washloo Side Control User manual

Side Control
User Manual
Clean Comfort Hygiene

Table of Contents
1
Page Description Page Number
Safety Precautions 2
Product Overview 4
Installation Guide 5
Preparation Before Use 9
Operation 10
Maintenance 13
Trouble Shooting 14
Technical Specifications 15
Warranty 16
User Information 17

2
Read all instructions before use.
Save these instructions for future reference.
Safety Precautions
‘Do Not’ Disassemble, attempt
to repair or alter the Washloo.
Any alterations should be carried out
by a qualified technician
Disassembly may result in
death or injury.
‘Do Not’ fully submerge the
Washloo into water.
‘Do not’ use the product in locations
exposed to excessive moisture and
do not splash water
onto the product
‘Do Not’ touch the plug with
wet hands.
This may cause a high risk of an
electric shock.
This Washloo is equipped with a
cord incorporating an earth wire
and an earthed plug.
Before connecting the Washloo
to the power supply, please
ensure the water supply is
connected first.
Washloos require a power
supply of 220-240V
‘Do Not’ loosen the plug
connecting wires.
Ensure the power cable is not
damaged or excessively bent prior to
use.
Exposed wires may result
in an electric shock
The plug must be inserted
into a power outlet that
has been correctly
installed

3
Safety Precautions
‘Do Not’ stretch or bend the
plastic water pipes supplying the
Washloo.
‘Do Not’ install or leave the
remote control near water.
‘Do Not’ expose the Washloo to
below freezing conditions.
The plastic water pipe supplying the
Washloo and also the internal water
system may get damaged, later
resulting in leaks.
For children and seniors who
have difficulties with adjusting
temperature.
‘Do Not’ place an electric heater
near the Washloo.
‘Do Not’ place any containers
filled with water, medicines,
‘Do Not’ stand on the Washloo
lid or seat.
‘Do Not’ force the Washloo cover
or seat downwards or upwards.
Any damage found
through misuse or
standing on the Washloo
will not be covered under
warranty.
This will damage the ‘soft
closing’ mechanism or the
physical product. Any
damage through misuse
will not be covered under
warranty.
This may result in leaks within
the water supply and
potentially damage the
Washloo.
‘Do Not’ submerge the remote
control in water as this will
damage the internal circuit
boards.
Users with sensitive skin or impaired
heat sensitivity should set the
temperature of the wash spray, air
dryer and seat to `'low'' or `'off‘’.
‘Do Not’ dispose of any burning
materials such as cigarettes in the
toilet. This may result in fire or product
deformation.
food, metallic objects or flammable
materials on top of the Washloo. If
foreign objects enter the product,
this may result in electric shock or
fire.

4

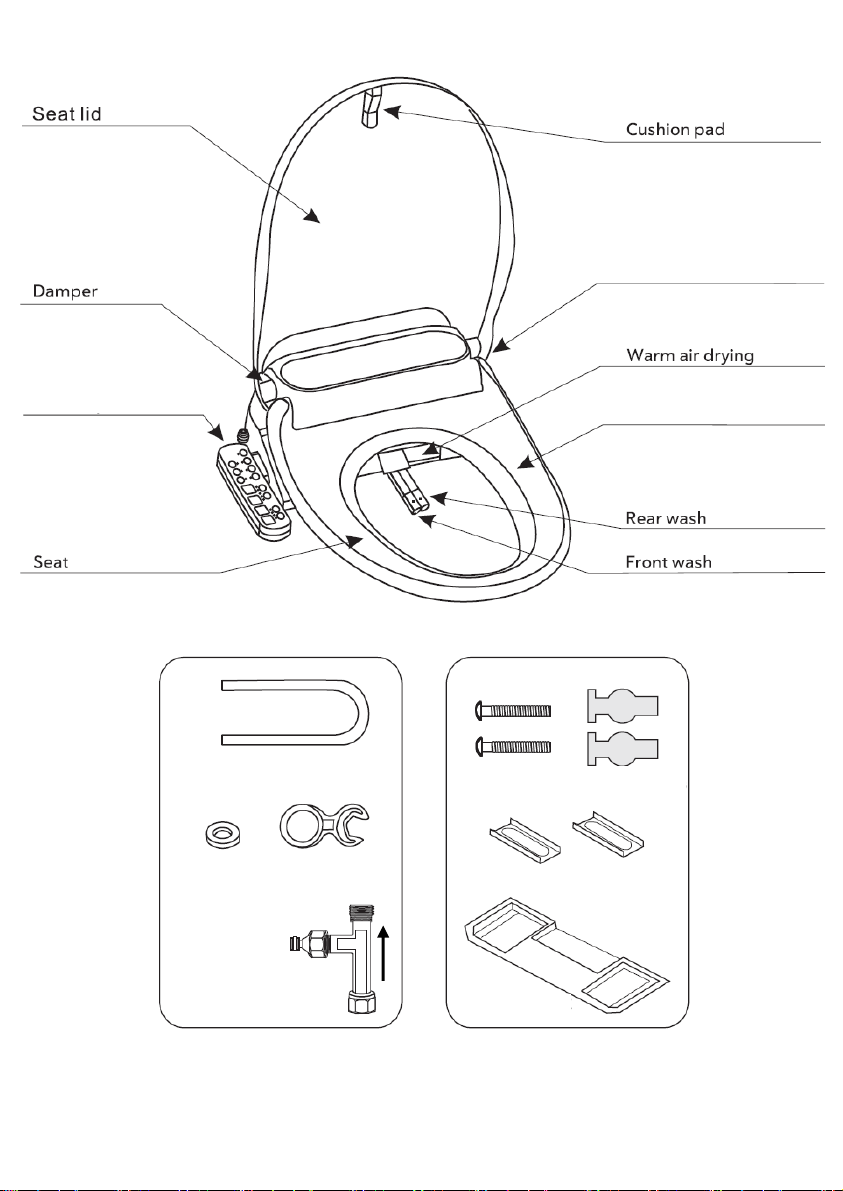

Product Overview - Side Control Models
Plastic Water Pipe
O-Ring
Seal Spanner
One way T-
Valve with 2x
Internal Filters
Mounting Bolts Rubber Expansion
Sleeves
Steel Adjustment Brackets
Fixing Bracket
Water Pipe Connecting Accessories Washloo Attachment Accessories
Note : The above illustration is an example only, your version may vary
Deodorising box
(inside)
Body Sensor
Side Control Panel
Fitting Kit –All Models

Installation Guide
Installation Environment
1. Prior to installation, ensure the area for the Washloo is clear and the
correct model has been selected for your pan (please see online
fitting/measuring guide).
2. Washloos’ requires water pressure between 0.06Mpa (flow)- 0.75Mpa
(Static).
3. Only use mains water supply. Do not use tank fed water, industrial
water or grey water for the supply as this may cause skin damage or
disease. This may also block the filters located within the T-Piece
quickly (Hard Water Areas).
4. Use the supplied T-Valve/Filter to ensure the Washloo is correctly
protected against contaminated/hard water. In hard water areas it is
advisable to use an inline water softener.
5. ‘Do Not’ connect the Washloo to the power supply before the
installation is complete.

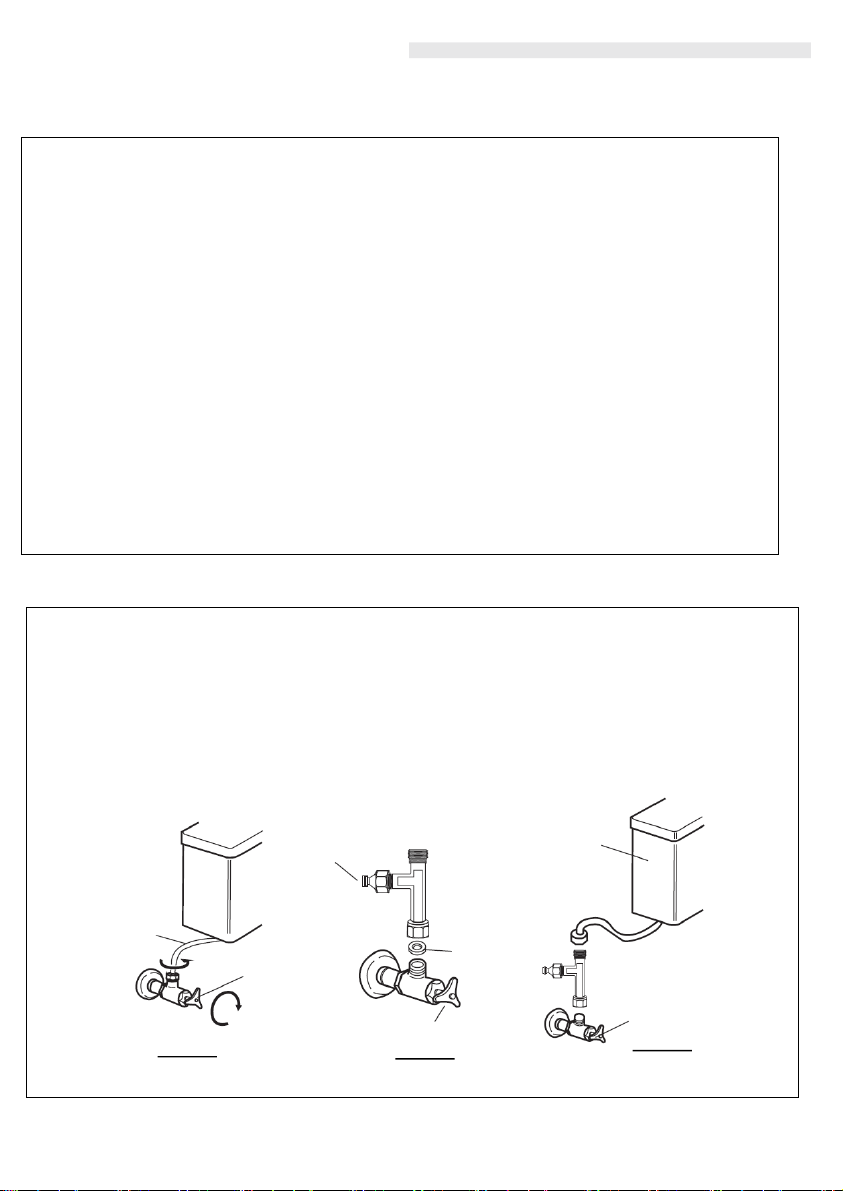

Installation of the T-Valve/Filter
1. Turn off water supply to your existing toilet to avoid any leaks prior to
installation (turn your nearest ‘Stop Tap’ off). Disconnect water supply to
the cistern.
2. Connect T-Valve/Filter between the water supply to your existing cistern as
shown below.
3. Reconnect the water supply to your cistern now with the T-Valve/Filter
installed in line.
Cistern T-Valve/Filter
Turn Off
Step 1 Step 2 Step 3
Stop Tap
O-Ring
Seal
Cistern
Stop Tap
Plastic
Water Pipe
5

Installation Guide

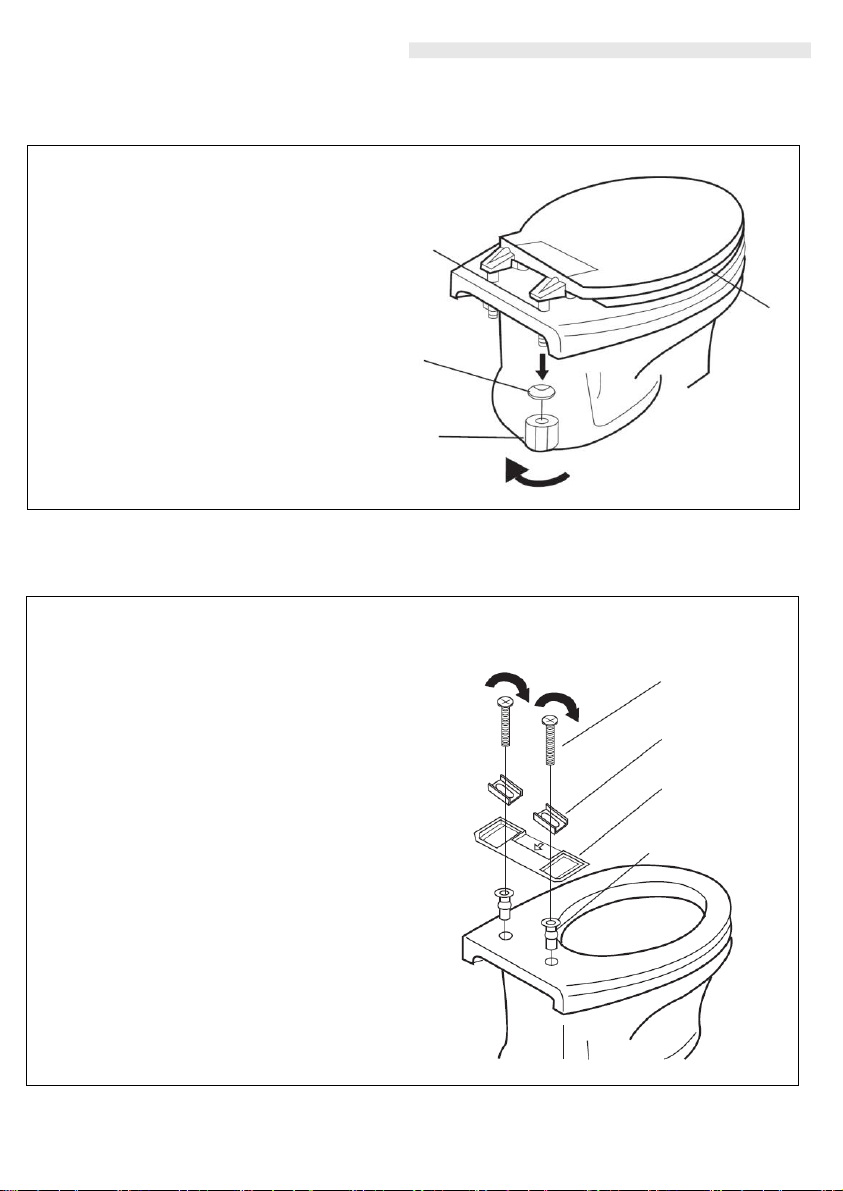

Installation of Fixing Bracket
1. Loosen nuts and attachment
bolts holding original toilet
seat on.
2. Remove original toilet seat
and all fasteners
Toilet
Seat
Bolts
Washers
Nuts
Mounting Bolts
Steel Adjustment
Brackets
Fixing Bracket
Rubber Expansion
Sleeves
1. Place Rubber Expansion Sleeves
into the attachment holes on your
existing toilet.
2. Place the Fixing Bracket on over
the installation holes.
3. Place the Steel Adjustment
Brackets into the Fixing Bracket as
shown.
4. Install the Mounting bolts and
tighten down to ensure the ‘Fixing
Bracket’ is in the correct position.
*The Fixing Bracket can be adjusted
between 130-170mm to allow adjustment
of the Washloo.
Removal of Current Toilet Seat
6

Installation Guide

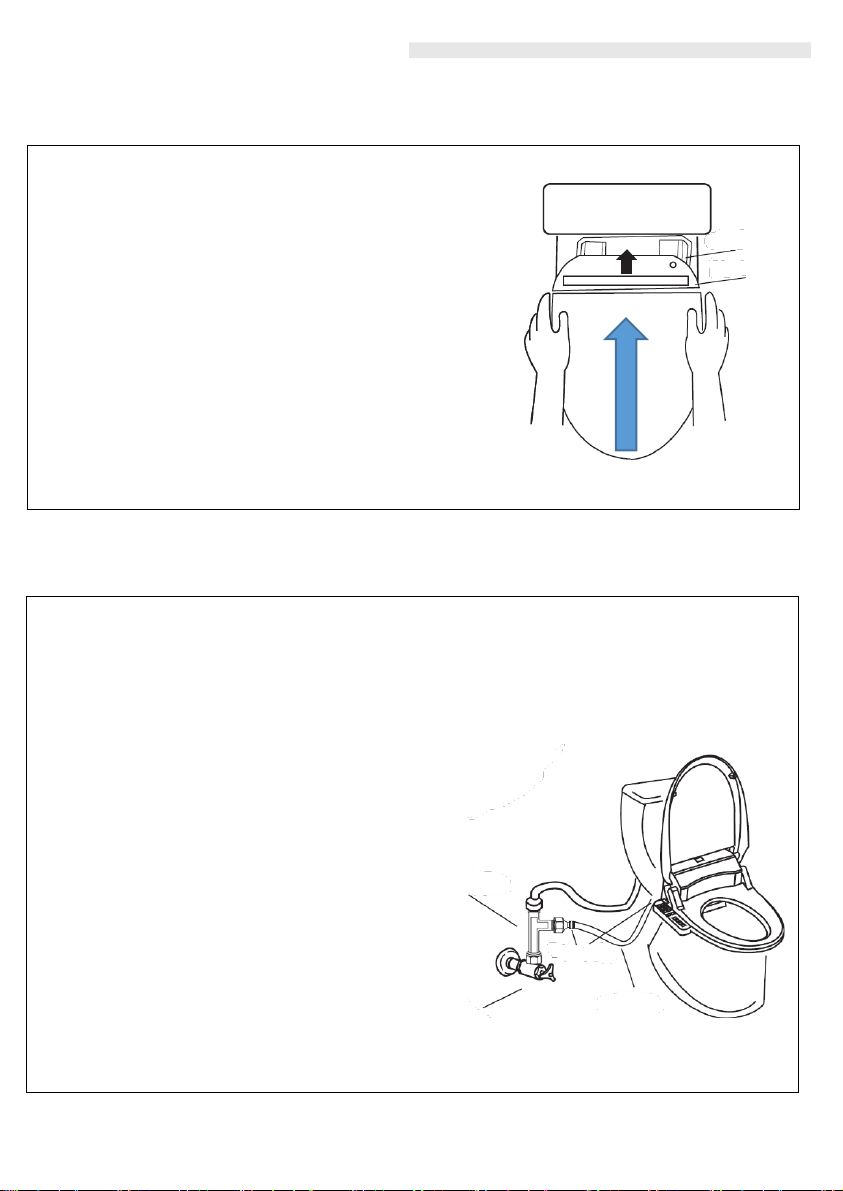

Installation of Washloo Seat
Installation of Water Pipe Fixtures
1. Push the Plastic Water Pipe into the
compression fitting on the Washloo.
Installing the Washloo Seat
1. Place the Washloo in front of the Fixing
Bracket. Using the release button on the
lower righthand side allow the locating
chamfer on the unit to slide backwards
onto the fixing bracket.
2. Push the Washloo back onto the Fixing
Bracket in a sliding motion.
3. Ensure the Fixing Bracket does not move
and misalign the Washloo.
Fixing
Bracket
Release
button
Cistern
Installing the Water Feed Accessories
1. Push the Plastic Water Pipe into the
compression/push fitting on the T Valve/Filter
2. Push the Plastic Water Pipe into
the compression/push fitting on
the Washloo.
T Valve/Filter
T Valve
Connector
Plastic Water
Pipe
Push
Fit
7

Installation Guide
Preparation for water supply and test for operation.
1. Insert the electric plug into the designated socket/fused spur as
recommended by a qualified electrician.
2. When switched on –all lights on the unit will be illuminated. The Washloo
will now prime the water system for around 10 seconds and finally the
nozzle will extend out whilst performing a cleaning/first use test function.
3. After the first use test cycle –all lights will now turn off and a buzzer sound
will notify the user that the full cycle is now complete.
4. Now press the ‘Power On’ button on the toilet and/or remote control to set
the toilet to the ‘Standby’ setting.
5. Please note –Set the water temperature, water pressure and seat
temperature accordingly before use (We recommend you to set to a low
temperature/pressure for first use to avoid sensitivity until you are familiar
with the Washloo seat).
6. Please follow all instructions within this manual when operating all of the
additional functions.
8

9
Preparations Before Use
Note : The above illustration is an example only, your version may vary
Control Panel
The following pages will describe
the operation and functions of the
Washloo Side Controls.

10

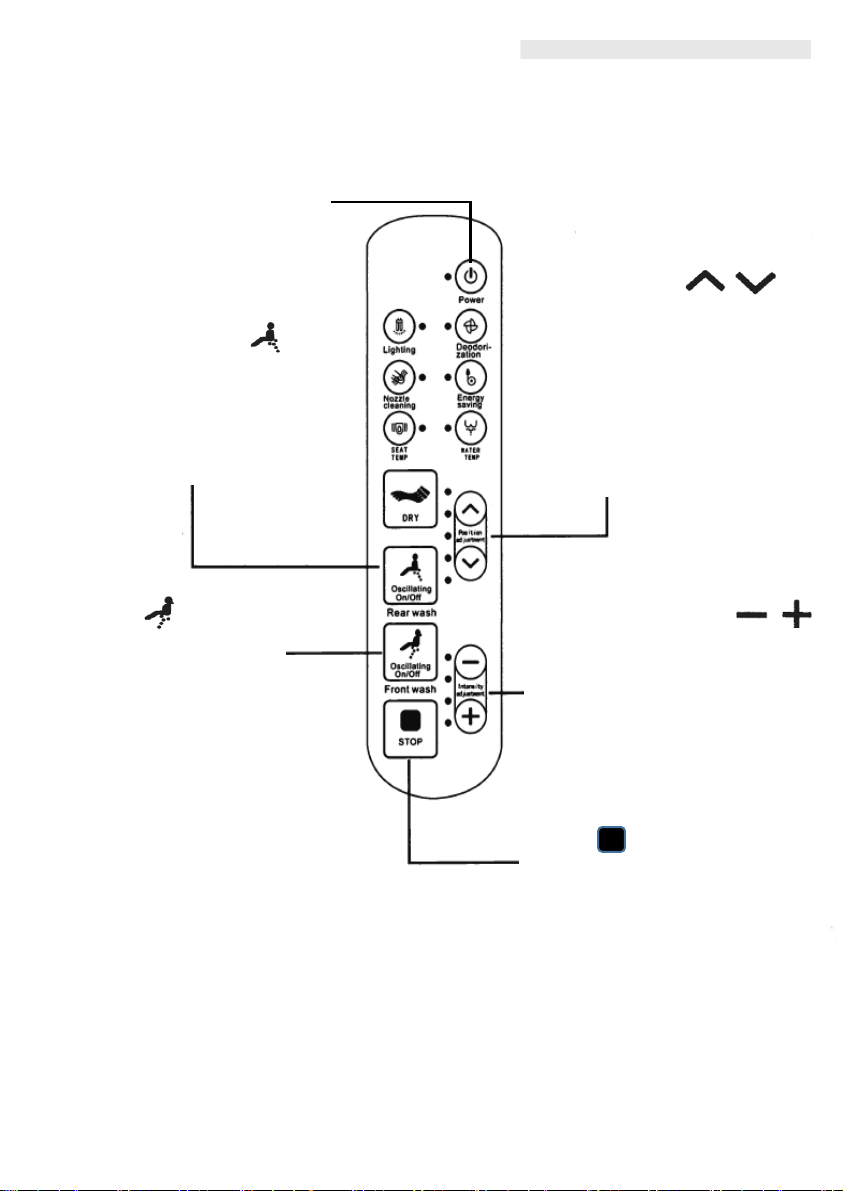

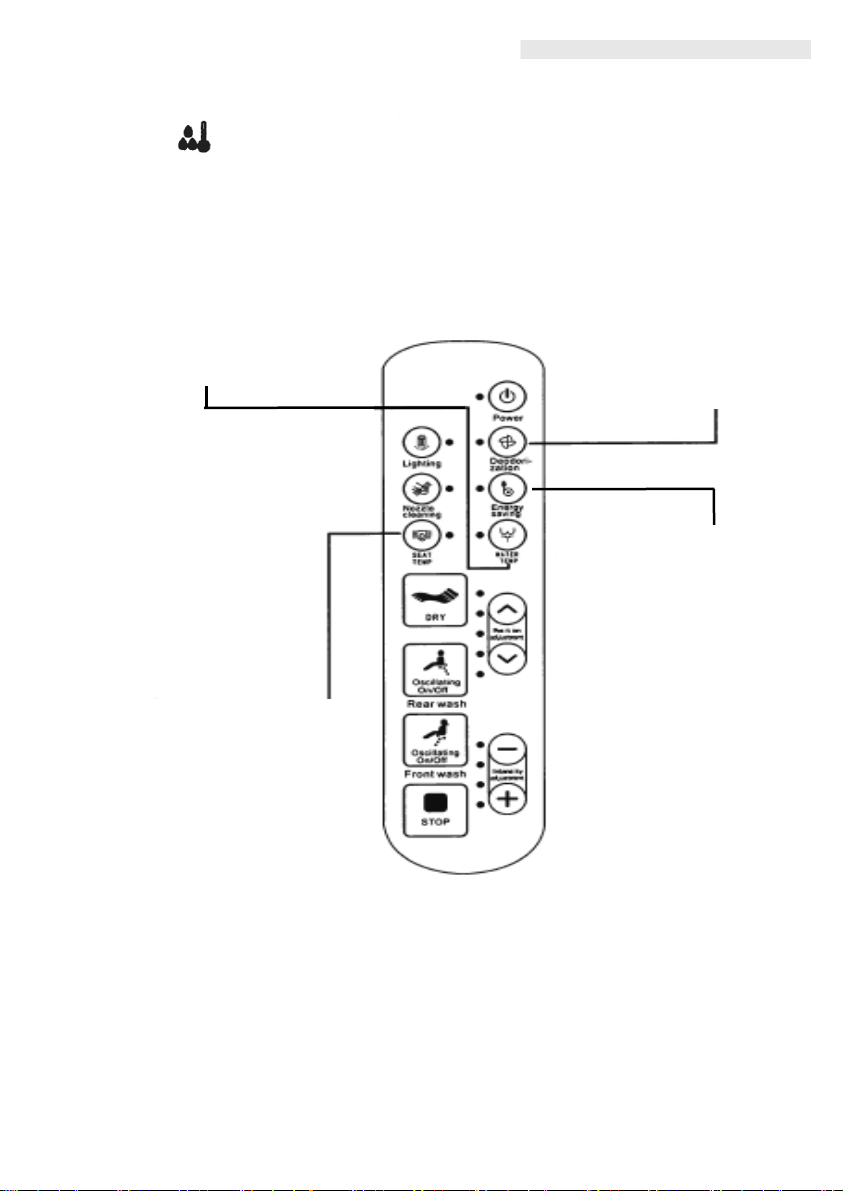

Side Control - Operation
Note : The above illustration is an example only, your version may vary
Nozzle Position
Adjust nozzle position using
forward or backwards button
according to your preference
and convenience during
washing. Please note that
during the ‘oscillation motion’
the adjustment of the nozzle
will not be possible.
Rear Wash / Oscillating
When you are seated and press
this button, this activates the
posterior wash. Press this button
again and the nozzle will move
forwards and backwards.
Front Wash
When you are seated and
press this button, this
activates the feminine
wash. Press this button
again and the nozzle will
move forwards and
backwards.
Pressure Adjustment
While the cleansing function is
operating, press the
There are three pressure
levels:
•LOW
•MED
•HIGH.
Stop
All currently operating
functions will stop by pressing
this button.
Power
Switch On or Off here. Indicator
light shows.
Note; Normally Leave On

Side Control - Operation
Note : The above illustration is an example only, your version may vary
Dryer
Press this button to use the warm
air drying function (when the
dryer is in operation the
deodorization function will be
turned off).
Dryer Temp
Dryer Temperature can be
adjusted using the + and –
symbols. There are 4 settings.
Stop
All currently operating functions
will stop by pressing this button.
Nozzle Cleaning
Press this button to operate the nozzle cleaning function.
•Nozzle cleaning is not available whilst you are seated.
•Before Rear Wash and Front Wash the nozzle will self cleanse.
•You can pull out the nozzles and clean them manually, twist Anti-
Clockwise to remove.
Night Light
Press this button to turn on the
Night Light. Press again to turn off.
11

12
Side Control - Operation
Note : The above illustration is an example only, your version may vary
Water Temp
Press `Water Temp' button to adjust
the water temperature to desired
level. There are 4 temperature levels
indicated by the numbered lights on
the side control.
LOW 33°C (number 1), MEDIUM 36°C
(number 2), HIGH 39°C (number 3)
and OFF (no light/numbers).
Water Temp
Press `Water Temp' button to
adjust the water temperature to
desired level. There are 4
temperature levels indicated by the
numbered lights on the side
control.
1. LOW 33°C
2. MEDIUM 36°C
3. HIGH 39°C
4. OFF
Deodoriser
Press this button and
the deodoriser will
operate, press again to
switch off.
When you leave the
seat, the deodoriser will
turn on for 1.5 minutes.
Seat Temp
Press this button to control the seat
temperature. There are 4
temperature levels;
1. LOW 33°C
2. MEDIUM 36°C
3. HIGH 39°C
4. OFF
After 10 minutes of inactive use,
the temperature of the seat will be
lowered and maintained at 35°C, in
preparation for the next occupant.
Energy Saving
By pressing the ‘Energy
Saving’ button, the bidet will
automatically enter the
Power Save mode. The light
will remain on for approx.
1.5 minutes. Now the
system will remain in the
energy saving mode. Water
and seat temp will stay at
25°C. Last used settings
resume when user activates
seat again.

Maintenance
Cleaning and Maintenance; Nozzle Cleaning.
1. Press the nozzle cleaning button and the
Washloo will spray the water over the nozzle.
2. Press the nozzle cleaning button a second time
and the rear nozzle will extend out, pressing
again will extend the ‘feminine nozzle’.
3. Clean the nozzles with a brush.
4. To replace the nozzles (spare nozzles included)
hold the tip of the nozzle and twist anti
clockwise.
5. Replacing the tip –insert the replacement
nozzle and twist clockwise.
Cleaning and Maintenance; Filter Removal
NOTE –If the water pressure reduces please remove and clean the filter as
shown below.
1. Close the shut off valve and stop the water
supply.
2. Disassemble the filter –remove the filter using
the ‘spanner’ provided.
3. Remove filter out of ‘T-Piece’ as shown in the
illustration.
4. Clean any debris from the filter using a small
brush and rinse thoroughly.
5. To reinstall please follow the reverse of the
above instructions.
Not using the toilet for a long period
Turn off valve/T- Piece and power supply.
13

14
Trouble Shooting
Problem
Problem Causes
Problem Solutions
The Bidet is not working
1. Bidet not plugged in.
2. No power to bidet.
3. There is power, but no functions are
working when trying to use.
4. Not activated by body sensor.
1. Make sure the bidet is plugged in.
2. Check the power button on the
control panel to see if it is turned
‘Off.’
3. Check remote control batteries are
not dead for the models with
remotes.
Product shuts off during
use
1. Washing time exceeded (check
handbook for auto timings)
2. Power failure.
1. Press the wash button to extend
the time.
2. Check power to the Washloo.
Lower water flow / Spray
pressure
1. Clogged Mesh Filter
2. Water supply valve not opened fully.
3. Nozzle outlets are dirty/clogged.
4. Pressure settings are set too low.
1. Remove, clean and reinstall mesh
filter (as per guidelines).
2. Check water supply is fully open.
3. Clean Nozzle Outlets as per
guidelines.
4. Adjust water pressure settings.
Bidet wash feature does
not work or fails to spray.
Body sensor does not detect that you
are sat on the Washloo.
Adjust seating position to fully cover
the body sensor.
Seat not heated. Seat temperature set to off
Make sure that the seat temp setting
is on Low –light 4, Med –
lights 4&5
High –lights 4/5/6 and
Off –No Lights.)
Water (Wash Spray) not
heated. Water temperature set to off.
Make sure that the water temp
setting is on (Low –light 1, Med –
light 1&2, High –
1/2/3 lights and Off
–No lights)
Water flows before or
after use. Water coming from the nozzles.
1. The water that comes out
between the nozzles before or after
use, is the ‘self-cleaning’ operation
and is not a malfunction.
2. Residual water may drip into the
bowl for several seconds after the
wash or self-cleaning function has
operated. This is not a malfunction.
Water leaks from areas
other than the nozzles.
1. Water is leaking from the T-Valve.
2. Water leaking from the Bidet hose
connection.
1. Make sure that the rubber washer
is inserted correctly and firmly
tighten the connector.
2. Make sure the bidet hose is
correctly connected and tight.

15
Technical Specifications
Product Specification
Voltage
AC220
-240V 50HZ
Water Supply
Direct connection to water pipe/mains
Water Pressure
0.6
-7.5 BAR
Warm Washing
Water Pressure Adjustable in 4 levels
Temperature control
(4 Levels, room temperature/33
°C/36°C/39°C
Adjustable)
Heater Capacity : 1520W
Temperature Control system, , Temperature
Reset Switch, Temperature fuse overheat
protection with water and electricity isolation
system.
Warm Air Dryer
Power : 200W
Temperature control
(4 Levels, room temperature to 52
°C Adjustable)
Temperature Control system, Temperature Reset
Switch, Temperature fuse over heat protection
with water and electricity isolation system.
Warm Seat
Power : 50W
Soft Closing Lid Design
Temperature control
(4 Levels, room temperature/33
°C/36°C/39°C
Adjustable)
Temperature Control system, , Temperature
Reset Switch, Temperature fuse overheat
protection with water and electricity isolation
system.
Power Cord Length
1.5m
Safety Device
Floating Switch, temperature sensor,
temperature fuse, earth leakage protection,
water and electricity isolation system.
Deodoriser
Chemical absorption by deodoriser cartridge.
IP Rating
IPX4
Size
Weight 5.4kg
510mm 380mm 150mm Remote Control
510mm 445mm 150mm Side Control
Colour
White
Certificate
CE RoHS SAA

This electronic bidet has been designed and manufactured with great care and
attention to detail. We offer a 24 month warranty.
In the following cases the warranty does not apply;
1.Damage or loss sustained in fire, earth quake, flood, thunder or other acts of
providence, pollution, gas damage, salt damage and abnormal voltage.
2. Damage or loss resulting from installation methods not in the manual, any
unreasonable use, abuse, negligence or improper maintenance.
3. Damage or loss resulting from modification, disassembly and destruction of the
product.
4. Damage or loss resulting from hard water, water stain retention, sediments or
foreign objects contained in the water system.
5. Damage or loss resulting from relocation after instalment, improper installation or
in a hazardous environment.
6. Damage or loss resulting from defect caused by miss-fitting or wrongly shaped
attachment.
7. Damage or loss resulting from bites by animals or insects or residual of dead
animals or insects.
8. Damage or loss resulting from product freezing.
9. Damage or loss resulting from use of the product if mounted on moving vehicles
such as cars, ships and caravans.
10. Damage or loss resulting from deterioration of battery etc.
11. Damage or loss resulting from lack of user's maintenance points (i.e. cleaning,
filter, washer, packing etc.).
12. Damage or loss resulting from physical or accidental damage;
This includes cracks, stress marks and breakages from over extension or force of the
lid cover and seat.
16
Warranty

If you want to dispose of this product, do not mix with general
household waste. There is a separate collection system for used
electronic products in accordance with legislation that requires proper
treatment, recovery and recycling.
Only discard discharged batteries. They should not be disposed of in
household waste, use appropriate collection sites.
17
Important User Manual Information
