WatchNet AVCDP7 User manual

WatchNET SIP Desk Phone
AVC-DP7

Page 2of 81 351 Ferrier Street • Markham, ON • L3R 5Z2
PHONE: [phone] TOLL FREE: 1-866-331-3341 • FAX: [phone]
www.watchnetinc.com / [e-mail]
........................................................................................................................................................................
Revision History ............................................................................................................................................ 4
Chapter 1 Introduction ................................................................................................................................. 4
1.1 Summary ......................................................................................................................................... 4
1.2 Specifications .................................................................................................................................. 4
1.3 Appearance and Interface Description ........................................................................................... 6
1.4 Keypad Description ......................................................................................................................... 6
1.5 Indicators ........................................................................................................................................ 7
1.6 Interface Description....................................................................................................................... 8
Chapter 2 Installation.................................................................................................................................... 9
2.1 Connecting Video Phone................................................................................................................. 9
Chapter 3 Operating Video Phone.............................................................................................................. 10
3.1 Basic Operation.............................................................................................................................10
3.1.1 Main Screen Operation .........................................................................................................10
3.1.2 Status and Notification.......................................................................................................... 10
3.1.3 Using the Touchscreen.......................................................................................................... 11
3.1.4 Startup and Shutdown .......................................................................................................... 11
3.1.5 View / Turn Off Notification.................................................................................................. 11
3.1.6 Making a Call ......................................................................................................................... 12
3.1.6.1 Dial Out Directly .........................................................................................................12

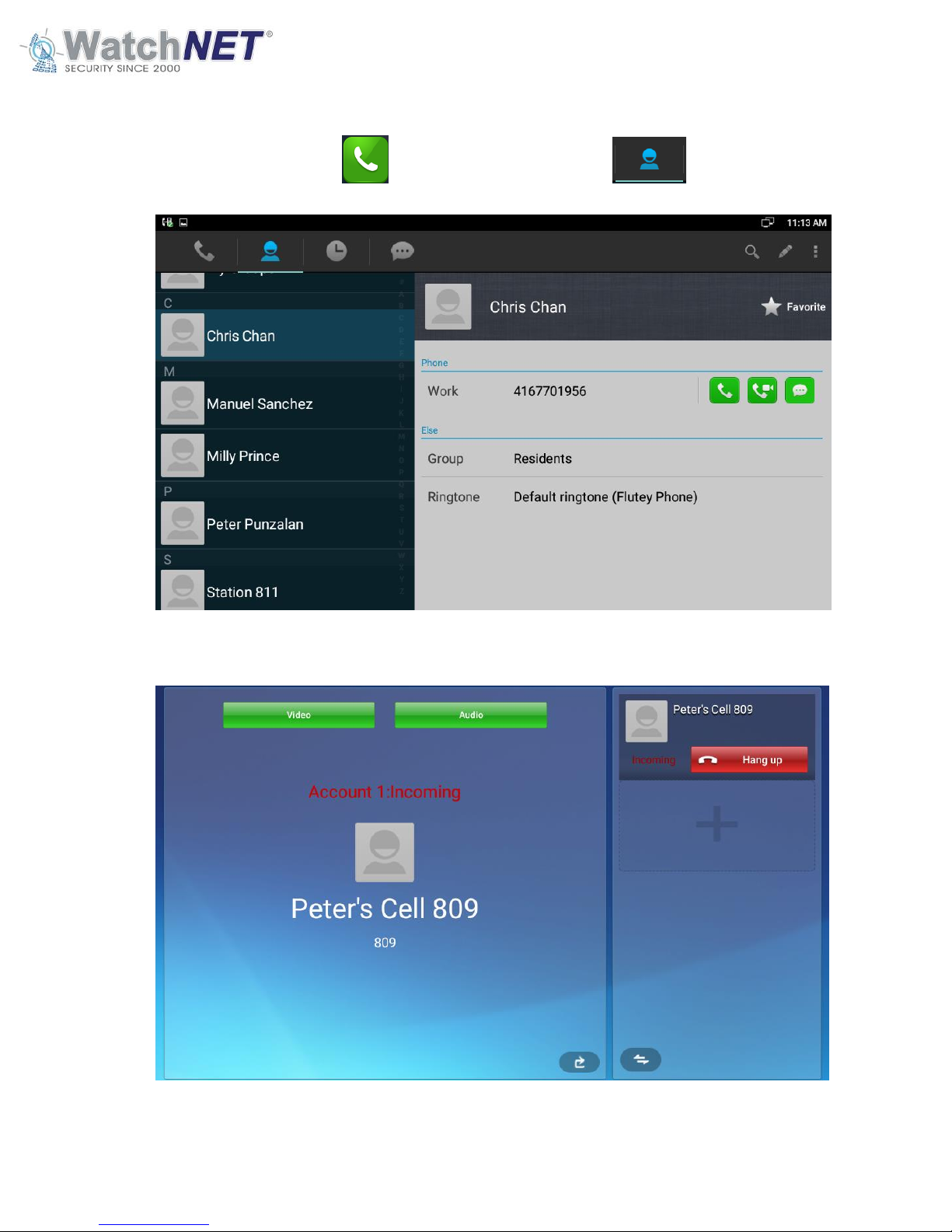

3.1.6.2 Calling from Contact List ............................................................................................ 15
3.1.7 Receiving Calls....................................................................................................................... 15
3.1.7.1 Audio Call Options ......................................................................................................16
3.1.7.2 Video Call Options ......................................................................................................17
Chapter 4 Configuring Video Phone ........................................................................................................... 18
4.1 Connecting to Network from the Video Phone ............................................................................18
4.2 SIP Account Configuration ............................................................................................................19
4.2.1 Adding SIP Account ...............................................................................................................20
4.2.2 Turn ON/OFF SIP Account .....................................................................................................22
4.2.3 Modify/Remove SIP Account ................................................................................................ 22
4.3 Audio Settings ............................................................................................................................... 23
4.3.1 Echo Cancel ........................................................................................................................... 24
4.3.2 Auto Gain Target ...................................................................................................................24
4.3.3 Tone Volume ......................................................................................................................... 24
4.3.4 Talk Volume........................................................................................................................... 24
4.3.5 Net EQ ................................................................................................................................... 25
4.4 Video Settings ............................................................................................................................... 25
4.4.1 Media Feedback ....................................................................................................................26
4.4.2 H264 Setting.......................................................................................................................... 26
4.4.3 Other Settings ....................................................................................................................... 26
4.5 Call Settings................................................................................................................................... 27
4.5.1 Call Forwarding .....................................................................................................................28
4.5.2 Call Waiting ........................................................................................................................... 29
4.5.3 Intercom................................................................................................................................ 29
4.5.4 Hotline................................................................................................................................... 29
4.6 Dial Plan ........................................................................................................................................30
4.6.1 Dial Plan.................................................................................................................................30
4.6.2 Area Code..............................................................................................................................30

Page 3of 81 351 Ferrier Street • Markham, ON • L3R 5Z2
PHONE: [phone] TOLL FREE: 1-866-331-3341 • FAX: [phone]
www.watchnetinc.com / [e-mail]
4.7 Auto Provision............................................................................................................................... 30
4.8 Personalize ....................................................................................................................................31
4.9 Reboot Manager ........................................................................................................................... 32
Chapter 5 Android Interface Settings ......................................................................................................... 33
5.1 Wireless & Network ......................................................................................................................33
5.1.1 Wi-Fi ...................................................................................................................................... 33
5.1.2 Ethernet ................................................................................................................................ 33
5.1.3 More...................................................................................................................................... 34
5.1.4 Bluetooth...............................................................................................................................34
5.1.5 VLAN......................................................................................................................................35
5.2 Device............................................................................................................................................ 35
5.2.1 Display ...................................................................................................................................36
5.2.2 Storage ..................................................................................................................................37
5.2.3 HDMI ..................................................................................................................................... 37
5.2.4 Sound & Notification............................................................................................................. 38
5.2.5 Apps....................................................................................................................................... 39
5.2.6 Screenshot Setting ................................................................................................................ 39
5.3 Personal.........................................................................................................................................39
5.3.1 Security.................................................................................................................................. 40
5.3.2 Language & Input ..................................................................................................................42
5.3.3 Accounts................................................................................................................................ 42
5.3.4 Backup & Reset .....................................................................................................................43
5.4 System........................................................................................................................................... 43
5.4.1 Date & Time .......................................................................................................................... 44
5.4.2 About Device .........................................................................................................................45
5.4.3 Accessibility........................................................................................................................... 45
Chapter 6 Logging in using Web Browser ................................................................................................... 46
6.1 Status ............................................................................................................................................48
6.2 Account .........................................................................................................................................49
6.2.1 Basic ...................................................................................................................................... 49
6.2.2 Advanced............................................................................................................................... 50
6.3 Network ........................................................................................................................................54
6.3.1 Basic ...................................................................................................................................... 54
6.3.2 Advanced............................................................................................................................... 55
6.4 Phone ............................................................................................................................................56
6.4.1 Time / Lang............................................................................................................................ 56
6.4.2 Preference.............................................................................................................................57
6.4.3 Call Feature ........................................................................................................................... 58
6.4.4 Audio ..................................................................................................................................... 62
6.4.5 Video ..................................................................................................................................... 63
6.4.6 Ext Key................................................................................................................................... 64
6.4.7 Tones.....................................................................................................................................66
6.4.8 Dial Plan.................................................................................................................................66
6.4.9 Action URL............................................................................................................................. 69
6.4.10 Multicast ............................................................................................................................. 71
6.5 Phone Book ................................................................................................................................... 72
6.5.1 Local Book ............................................................................................................................. 72
6.5.2 Remote Book......................................................................................................................... 73

Page 4of 81 351 Ferrier Street • Markham, ON • L3R 5Z2
PHONE: [phone] TOLL FREE: 1-866-331-3341 • FAX: [phone]
www.watchnetinc.com / [e-mail]
6.5.3 Call Log ..................................................................................................................................74
6.5.4 LDAP ......................................................................................................................................75
6.5.5 BroadSoft .............................................................................................................................. 76
6.6 Upgrade......................................................................................................................................... 77
6.6.1 Basic ...................................................................................................................................... 77
6.6.2 Advanced............................................................................................................................... 78
6.7 Security .........................................................................................................................................80
6.7.1 Basic ...................................................................................................................................... 80
6.7.2 Advanced............................................................................................................................... 81
Revision History
Revision
Date
Author
Description of Changes
1.0
02/01/2017
Peter Punzalan
Manual Created.
Chapter 1 Introduction
1.1 Summary
AVC-DP7 is an Android-based multimedia terminal with a 7 inch touch screen and a 2M CMOS sensor camera. It
supports H.264/H.263 codec with adaptive bandwidth adjustment. The 7 inch touch screen offers excellent user
experiences such as high quality videophone, smooth internet surfing, various Android Apps and daily information.
AVC-DP7 provides 2 Ethernet ports, 1USB, 1HDMI, and one 3.5mm headset/audio port.
1.2 Specifications
Graphic Display - 7 inch capacitive touch screen TFT LCD. 1024x600 pixels, 16:9 wide screen
aspect ration
Camera –1.3 megapixel CMOS camera, free rotation

Page 5of 81 351 Ferrier Street • Markham, ON • L3R 5Z2
PHONE: [phone] TOLL FREE: 1-866-331-3341 • FAX: [phone]
www.watchnetinc.com / [e-mail]
Network Protocol –SIP RFC3261, TCP/UDP/IP, PPPOE, RTP/RTCP
OS –Android 5.1
Voice Codec
oG.711A/U, G.729,G.722
oAMR-NB, AMR-WB, OPUS
Video Codec –H.263, H.264
DTMF Modes –Inband, RFC2833, SIP Info
Audio Features –VAD, CNG, Echo Canceller G.165/G.168
Video Features
oQCIF, CIF, 4CIF, VGA, 720P
oVideo bitrate: 64kbps-2Mbps
oPIP
oFull Screen
oLocal video ON/OFF control
Others
oDownload content from the specified server
oInformation receiving, storing and rendering capabilities
oWeb browser
oContacts and call records management
oSupport playing local or online video
Network Interface –Dual switched 10/100/1000Mbps port, supports IEEE802.az energy
efficient Ethernet
Wifi –IEEE802.11 b/g/n
Expansion Interface –USB 2.0, 3.5mm headset hack and HDMI
IP Configuration –Static IP, DHCP or PPPoE
Management –LCD Menu Configuration, TR069, WebUI
Dimension –240x192x160mm

Page 6of 81 351 Ferrier Street • Markham, ON • L3R 5Z2
PHONE: [phone] TOLL FREE: 1-866-331-3341 • FAX: [phone]
www.watchnetinc.com / [e-mail]
1.3 Appearance and Interface Description
Front View
1.4 Keypad Description
Camera –Adjustable camera shooting angle, rotate down to turn off the camera
Power –Turn On/Off the LCD, Reboot or Silent mode
Suspend - Turn On/Off the LCD, Reboot or Silent mode
Volume –Press “+” or” –“ to adjust phone volume
Standard Keypad –Input the number to call
Function Key
oDelete –Delete a character before the cursor
oOK –Same function with “Enter” key
oMessage –Optional
oContact –To go to the contact list to view local contact list
oConference –To add additional contact or join two contact into a conference call
oHold –Puts hold during a call

Page 7of 81 351 Ferrier Street • Markham, ON • L3R 5Z2
PHONE: [phone] TOLL FREE: 1-866-331-3341 • FAX: [phone]
www.watchnetinc.com / [e-mail]
oTransfer –To transfer the current call to a third party call
oMute –to mute the mic so other party cannot here you
Home button –To return to the main screen, if pressed longer it will display the recent
application used
Menu button –To open the system or program setup menu
Back button –To return to the previous menu
Speaker button –to put call on speaker
1.5 Indicators
Indicator Label
Icon
Status
Description
Power
ON
Video phone is powered On and working
OFF
Video phone is Off
Network Connection
ON
Network (LAN port) is connected
OFF
Network (LAN port) is disconnected
Information
Flashing
There is a missed call or unread message
OFF
Normal status
Rear View

Page 8of 81 351 Ferrier Street • Markham, ON • L3R 5Z2
PHONE: [phone] TOLL FREE: 1-866-331-3341 • FAX: [phone]
www.watchnetinc.com / [e-mail]

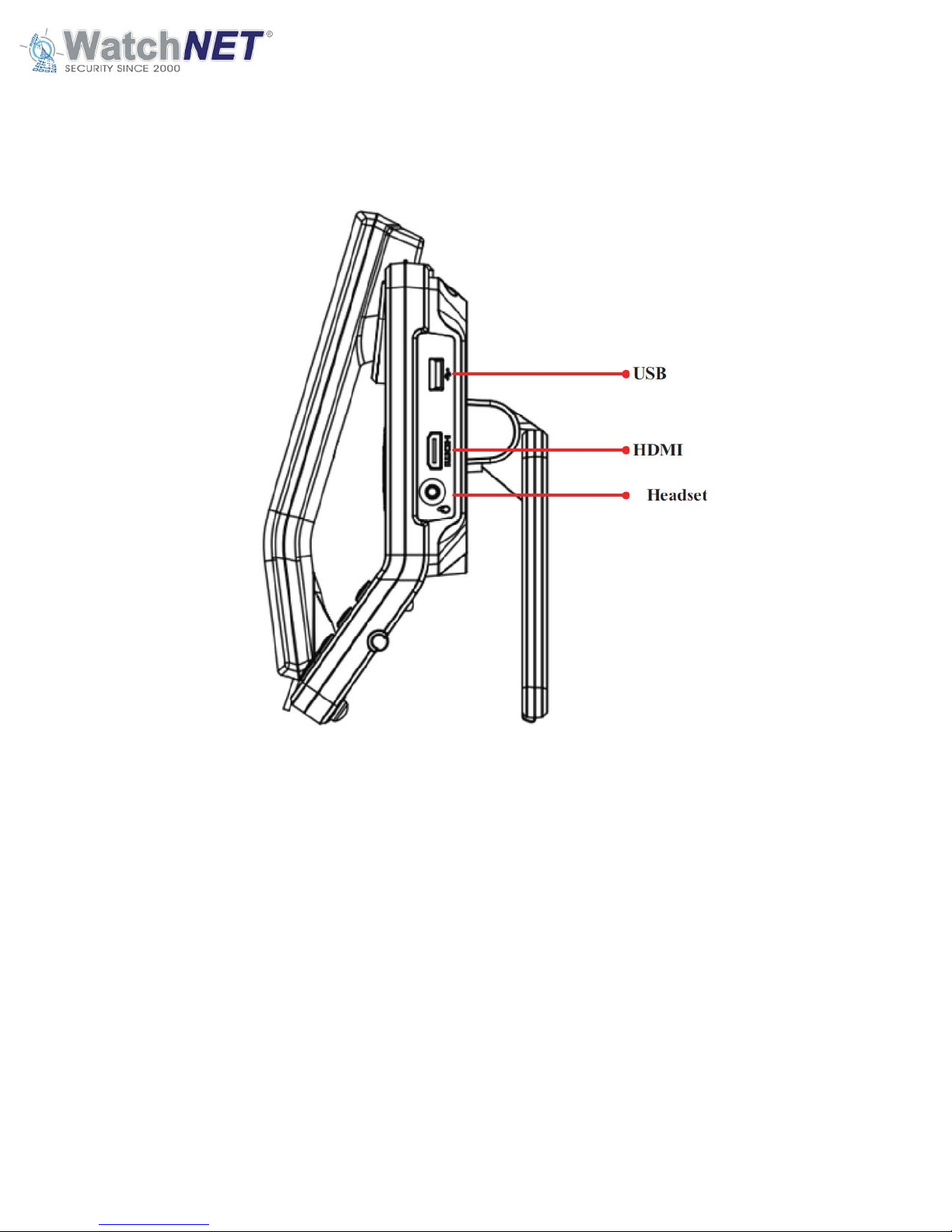

Side View
1.6 Interface Description
USB Interface –External USB storage supported
Headset –Supports 3.5mm jack stereo headset devices
HDMI –Supports HDMI cable to connect to TV or monitor
LAN –Video phone can be connected to switch, router or other network access devices,
supports POE
PC –Share network access from LAN port for PC and other equipment connection
Power –Connects to 12V adapter power supply
Handset –Connect to handset devices
Lock –Locks video phone using a laptop lock
Note: If using POE make sure not to plug the 12V AC adapter

Page 9of 81 351 Ferrier Street • Markham, ON • L3R 5Z2
PHONE: [phone] TOLL FREE: 1-866-331-3341 • FAX: [phone]
www.watchnetinc.com / [e-mail]
Chapter 2 Installation
2.1 Connecting Video Phone
Connection Diagram
Connecting to Network
Use internet cable to connect the video phone to a router or switch, if the Network
Connection indicator is on, network is properly connected.
Connecting to PC
You can connect to Video Phone via browser by typing the IP address on the address.

Page 10 of 81 351 Ferrier Street • Markham, ON • L3R 5Z2
PHONE: [phone] TOLL FREE: 1-866-331-3341 • FAX: [phone]
www.watchnetinc.com / [e-mail]
Chapter 3 Operating Video Phone
3.1 Basic Operation
3.1.1 Main Screen operation
Status Bar –status bar displays time, internet connectivity and other status
Shortcuts –user can modify the shortcut screen according to the desire settings
3.1.2 Status and Notification
The Status bar is divided into two zones, on the left is Notification area and one on the right is
Status area
Notification Area Status Area
Status Area
Icon
Description
Network is connected
Slide Mode (Sound is Off)
Alarm clock is set
Bluetooth is opened
Shortcuts
Status Bar

Page 11 of 81 351 Ferrier Street • Markham, ON • L3R 5Z2
PHONE: [phone] TOLL FREE: 1-866-331-3341 • FAX: [phone]
www.watchnetinc.com / [e-mail]
Notification Area
Icon
Description
SIP account is unregistered
SIP account is registered
Missed call received
Uploading
3.1.3 Using the Touchscreen
Tap –to select item on the screen, such as settings, options, apps or to type letters, number and
symbols using onscreen keyboard.
Touch and Hold –touch and hold the item to see options of the icon
Drag –touch and hold the icon for few seconds then once the item has a red frame you can
move the icon to the shortcut menu
Slide –move your finger across the screen to slide, to go to different page or menu page.
Double-Click –tap the screen twice in quick succession, for example when the user surfs in the
browser you can quickly click tap twice on the page to enlarge the page.
Pinch –place two fingers on screen then pinch them together to zoom out or spread apart to
zoom in which could be used to picture view.
3.1.4 Startup and Shutdown
Startup –when power is plugged in, video phone turns on automatically
Reboot –you can restart the video phone by following the steps below;
oPress and hold the “Power” button until the pop-up menu shows up
oTap “Reboot” to restart
3.1.5 View / Turn Off Notifications
To view notifications, drag down the status bar then tap each notification to view the detailed
notification
Touch and Hold one of the notifications bar until the icon appears, tap the icon to get into the
priority setting interface.
To turn off notifications simply drag down the middle of the screen to display the notifications
then click the 3 bar icon to clear up the notifications as shows below.

Page 12 of 81 351 Ferrier Street • Markham, ON • L3R 5Z2
PHONE: [phone] TOLL FREE: 1-866-331-3341 • FAX: [phone]
www.watchnetinc.com / [e-mail]
3.1.6 Making a Call –User can use the SIP account to call or IP to IP using dial plan to call directly. User
can dial directly from keypad or select the contacts from the list to call, see below list of modes
supported.
Mode 1 –Direct Pick up using handset
Mode 2 –Press Speaker button on keypad to dial
Mode 3 –Tap Call Icon on Shortcuts
Mode 4 –Tap the Menu Button on the shortcut and tap dial button
3.1.6.1 Dial out Directly
User can press the number on the keypad to go to dialing page, to delete a number
press X icon and press the Audio Call or Video call as preferred.

Page 13 of 81 351 Ferrier Street • Markham, ON • L3R 5Z2
PHONE: [phone] TOLL FREE: 1-866-331-3341 • FAX: [phone]
www.watchnetinc.com / [e-mail]
Audio Calling –Audio calling only

Page 14 of 81 351 Ferrier Street • Markham, ON • L3R 5Z2
PHONE: [phone] TOLL FREE: 1-866-331-3341 • FAX: [phone]
www.watchnetinc.com / [e-mail]
Video Calling –Allows you to see the person on the other line
User can also select which SIP account to use when dialing out.

Page 15 of 81 351 Ferrier Street • Markham, ON • L3R 5Z2
PHONE: [phone] TOLL FREE: 1-866-331-3341 • FAX: [phone]
www.watchnetinc.com / [e-mail]
3.1.6.2 Calling from Contact List
Tap the Call icon then tap Label Phone Book icon , select Local Phone
Book, select the contact then press call or video call
3.1.7 Receiving Calls –there is two modes when receiving a call, Video or Audio, if the caller has been
saved in the contacts it will show the contact’s name, otherwise the caller’s number will be displayed.

Page 16 of 81 351 Ferrier Street • Markham, ON • L3R 5Z2
PHONE: [phone] TOLL FREE: 1-866-331-3341 • FAX: [phone]
www.watchnetinc.com / [e-mail]
3.1.7.1 Audio Call Options –During the audio conversation the user will have some options to use, see
picture below
Icon
Description
Tap to put the current call on Hold
Tap to resume the current call from Hold
Tap to transfer the current call
Tap to mute the mic from the video phone
Tap to send a video request on the current call
Tap to use Handset mode
Tap to show more options
Tap to hide more options
Tap to start a conference call
Tap to start recording
Tap to call different number from other line
Tap to show touchpad
Tap to hide the right pane

Page 17 of 81 351 Ferrier Street • Markham, ON • L3R 5Z2
PHONE: [phone] TOLL FREE: 1-866-331-3341 • FAX: [phone]
www.watchnetinc.com / [e-mail]
3.1.7.2 Video Call options –During the Video call the user will have some options to use, see picture
below.
Icon
Description
Tap to disable the caller’s camera
Tap to disable the user’s camera
Tap to open the full screen of the video call

Page 18 of 81 351 Ferrier Street • Markham, ON • L3R 5Z2
PHONE: [phone] TOLL FREE: 1-866-331-3341 • FAX: [phone]
www.watchnetinc.com / [e-mail]
Chapter 4 Configuring Video Phone
4.1 Connecting to Network from the Video Phone
AVC-DP7 Video phone support LAN Ethernet and Wireless connection and connects using three
different modes which are:
Static IP –to configure the static IP, go to Settings-Ethernet-Ethernet IP mode then select static
and input the network settings
DHCP –to configure the network using DHCP just go to Settings-Ethernet-Ethernet IP mode then
select DHCP

Page 19 of 81 351 Ferrier Street • Markham, ON • L3R 5Z2
PHONE: [phone] TOLL FREE: 1-866-331-3341 • FAX: [phone]
www.watchnetinc.com / [e-mail]
Wi-Fi –to configure the Wi-Fi just go to Settings-Wi-Fi then turn on, select the Wi-Fi name and
input the password if needed.
4.2 SIP Account Configuration –there a different ways to go to SIP settings from the video phone, see
below.
1. Call Icon on Main screen - In the main screen, tap call icon then click setting icon
and go to “Account Manager”
2. Menu in the Main screen - in the In the main screen, tap menu icon , tap dial icon then
go to setting icon and go to “Account Manager”
3. Speaker Button on Keypad - Press speaker button then tap setting icon and go to
“Account Manager”
4. From a Browser –In the main screen, tap the browser icon and input the IP address of
the video phone to the address bar and hit enter, default username is: admin and password is:
admin. Go to Account –Basic and input the SIP account information then click submit.

Page 20 of 81 351 Ferrier Street • Markham, ON • L3R 5Z2
PHONE: [phone] TOLL FREE: 1-866-331-3341 • FAX: [phone]
www.watchnetinc.com / [e-mail]
4.2.1 Adding SIP Account –DP7 Video phone supports up to 6 different SIP accounts.
