Waterpik WP-100 Series User manual

.................
www.waterpik.co.uk
Waterpik®
Water Flosser
Model WP-100
2272_0010_009 WP 100 UK IG.indd 12272_0010_009 WP 100 UK IG.indd 1 4/6/10 1:30 PM4/6/10 1:30 PM

2
Congratulations! By selecting the Waterpik®
Water Flosser you are now on your way to better
gum health, and a healthier smile!
With a clinically proven combination of water
pressure and pulsations, the Waterpik®Water
Flosser removes harmful bacteria deep between
teeth and below the gumline – where brushing
alone won’t reach.
Thank you for choosing the Waterpik®
Water Flosser.
WELCOME
Traditional Oral Care
Oral Care With The Waterpik®
Water Flosser
Traditional brushing
can’t easily reach
hidden food debris and
harmful bacteria.
Flossing has limited
access below the
gumline.
The Waterpik®Water
Flosser removes trapped
food debris and harmful
bacteria.
2272_0010_009 WP 100 UK IG.indd 22272_0010_009 WP 100 UK IG.indd 2 4/6/10 1:30 PM4/6/10 1:30 PM

3
TABLE OF CONTENTS
Important Safeguards 4
Product Description 6
Getting Started 8
Care of Your Waterpik®Water Flosser 13
Troubleshooting Guide 14
Limited Three-Year Warranty 15
ENGLISH
2272_0010_009 WP 100 UK IG.indd 32272_0010_009 WP 100 UK IG.indd 3 4/6/10 1:30 PM4/6/10 1:30 PM

4
IMPORTANT SAFEGUARDS
IMPORTANT
SAFEGUARDS
When using electrical products, especially when
children are present, the basic safety precautions
below should always be followed.
READ ALL INSTRUCTIONS
BEFORE USING.
WARNING:
This product may not be powered
by a UK shaver socket, it must be
operated from a mains socket.
DANGER:
To reduce the risk
of electrocution:
• Always unplug product after using.
• Do not handle plug with wet hands.
• Do not immerse in water or other liquid.
• Do not use while bathing.
• Do not place or store product where it can fall
or be pulled into a tub, shower stall or sink.
• Do not reach for a product that has fallen into
any liquid. Unplug immediately.
• Check the power supply cord for damage before
the first use and during the life of the product.
• Do run a mains extension cable into a
bathroom.
WARNING:
To reduce the risk of burns,
electric shock, fire, serious injury
or damage to tissue:
• Do not plug this device into a voltage
system that is different from the voltage
system specified on the device or charger.
•
Do not use this product if it has a damaged
cord or plug, if it is not working properly,
if it has been dropped or damaged, or
dropped into any liquid. Contact Waterpik
International, Inc. on + 44 (0) 844 335 6354.
• Do not direct water under the tongue, into the
ear, nose or other delicate areas. This product
is capable of producing pressures that may
cause serious damage in these areas. See
operating instructions for correct usage.
• Use this product only as indicated in these
instructions or as recommended by your
dental professional.
• Only use tips and accessories
recommended by Water Pik, Inc.
• Fill reservoir with water or other dental
professional recommended solution only.
• Do not drop or insert any foreign object into
any opening or hose.
• Keep electrical cord away from heated surfaces.
2272_0010_009 WP 100 UK IG.indd 42272_0010_009 WP 100 UK IG.indd 4 4/6/10 1:30 PM4/6/10 1:30 PM

5
• Do not operate where oxygen or aerosol
sprays are being used.
• Do not use mouthwash/rinses that contain
iodine, bleach, or tea tree oil.
• Do not use while wearing any oral jewelry.
Remove prior to use.
• Do not use if you have an open wound on
your tongue or in your mouth.
• If your physician or cardiologist has advised
you to receive antibiotic premedication before
dental procedures, you should consult your
dentist before using this instrument or any
other oral hygiene aid.
• For household use only. Do not use outdoors.
• Closely instruct and supervise children and
individuals with special needs in the proper
use of this product.
• Do not remove the Pik PocketTM flexible tip
from the clear shaft. If it separates for any
reason, discard both the tip and shaft and
replace with a new Pik PocketTM Tip. Pik
PocketTM Tip not included in all models.
• Do not use this product for more than
5 minutes in each two-hour period. Longer
usage can overheat the motor and cause
product failure as well as voiding the
warranty.
• Children should be supervised to ensure that
they do not play with the appliance.
SAVE THESE INSTRUCTIONS
ENGLISH
2272_0010_009 WP 100 UK IG.indd 52272_0010_009 WP 100 UK IG.indd 5 4/6/10 1:30 PM4/6/10 1:30 PM

6
Reservoir
Reservoir cover w/ tip
storage Tip
Handle
Pause button
Pressure control dial
On/Off
Tip
eject button
Base
PRODUCT DESCRIPTION
2272_0010_009 WP 100 UK IG.indd 62272_0010_009 WP 100 UK IG.indd 6 4/6/10 1:30 PM4/6/10 1:30 PM

7
Reservoir cover
w/ tip storage
Orthodontic
Tip
Classic Jet
Tip
Pik Pocket
TM
Tip
Tongue
Cleaner Tip
ENGLISH
Toothbrush
Tip
Plaque Seeker
TM
r
Ti
p
N
O
TE
:
a
ll
tips not inc
l
u
d
e
d
in a
ll
mo
d
e
l
s
2272_0010_009 WP 100 UK IG.indd 72272_0010_009 WP 100 UK IG.indd 7 4/6/10 1:30 PM4/6/10 1:30 PM

8
GETTING STARTED
Plug the cord into an electrical outlet. If the outlet is
controlled by a wall switch, be sure it is turned on.
Preparing the Reservoir
Remove reservoir and cover from base. Fill
the reservoir with lukewarm water. Replace the
reservoir over the base and press down firmly.
Inserting and Removing Tips
Insert tip into the center of the knob at the top of
the Water Flosser handle. The coloured ring will be
flush with the end of the knob if the tip is correctly
locked into place. To remove tip from the handle,
press the tip eject button and pull tip from handle.
2272_0010_009 WP 100 UK IG.indd 82272_0010_009 WP 100 UK IG.indd 8 4/6/10 1:30 PM4/6/10 1:30 PM

9

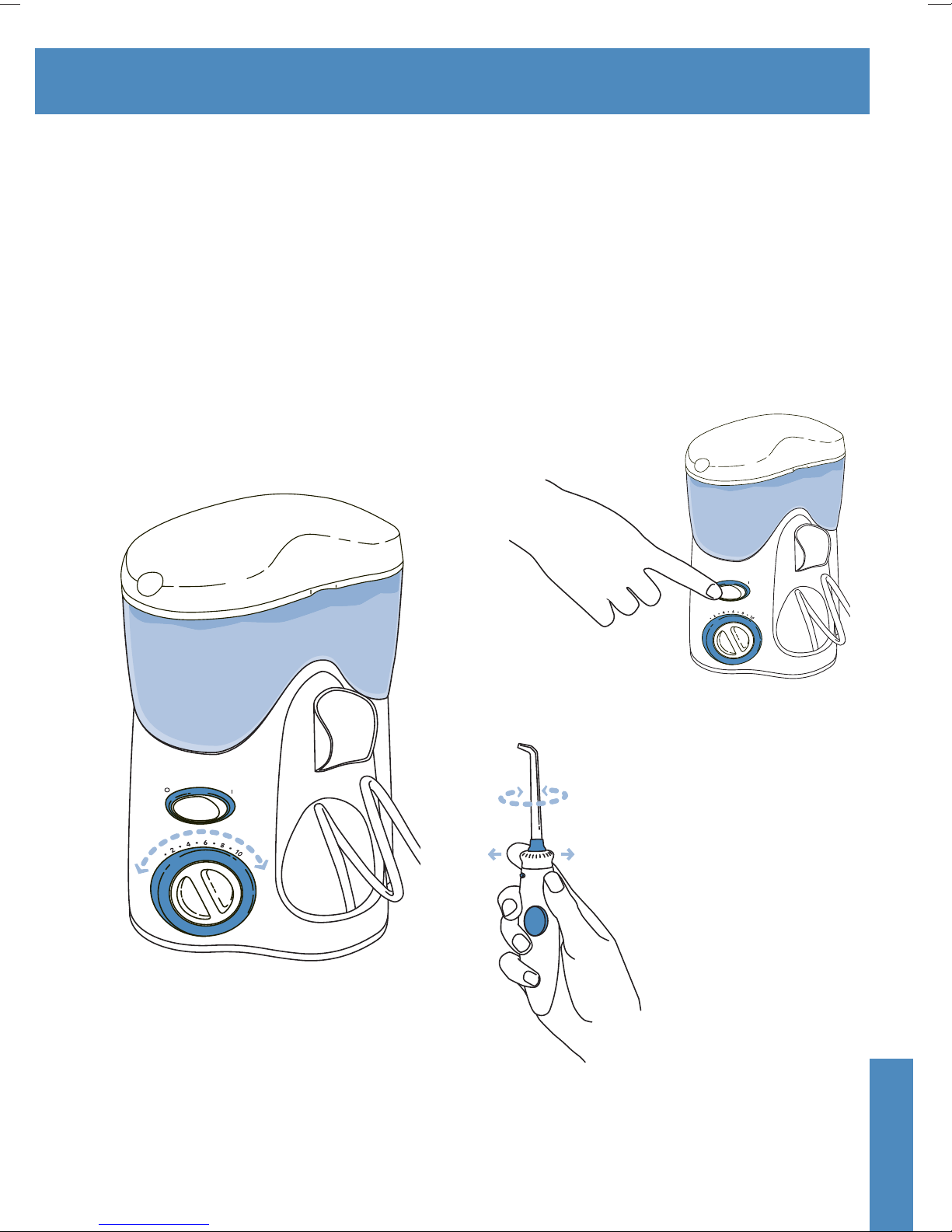

Placement in Mouth
Lean low over sink and place the tip in mouth.
Aim the tip toward teeth.
With your free hand, turn
the unit on. Set pressure
at desired setting.
Direct the stream by
turning the knob at
the top of the handle.
Adjusting the Pressure Setting
Turn the pressure control dial on the base of the
unit to the lowest setting (pressure setting No. 1)
for first-time use. Gradually increase pressure over
time to the setting you prefer – or as instructed by
your dental professional.
ENGLISH
2272_0010_009 WP 100 UK IG.indd 92272_0010_009 WP 100 UK IG.indd 9 4/6/10 1:30 PM4/6/10 1:30 PM

10
Recommended Technique
Direct the stream at a 90-degree angle to
your gumline. Slightly close lips to avoid
splashing but allow water to flow freely from
mouth into the sink. For best results, start in the
molar area (back teeth) working toward the front
teeth. Glide tip along gumline and pause briefly
between teeth. Continue until all areas around and
between the teeth have been cleaned.
Pause Control
You can temporarily stop the flow any time by
pressing the pause button on the handle.
When Finished
Turn the unit off. Empty any liquid left in the
reservoir. Unplug the unit.
11
1
22
2
33
3
44
4
2272_0010_009 WP 100 UK IG.indd 102272_0010_009 WP 100 UK IG.indd 10 4/6/10 1:30 PM4/6/10 1:30 PM

11

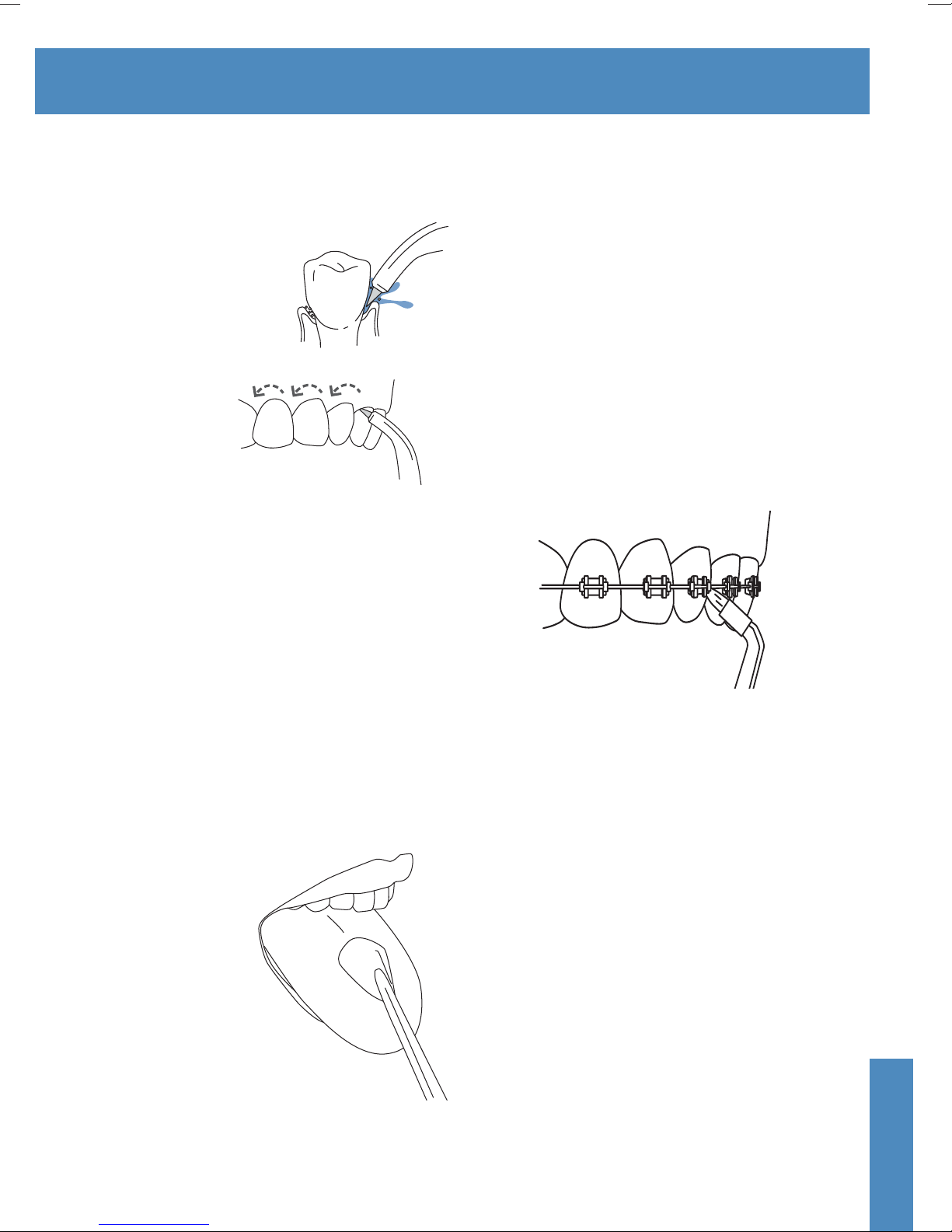

TIP USAGE
Pik PocketTM Tip
The Pik PocketTM Tip is
specifically designed
to deliver water or anti-
bacterial solutions deep
into periodontal
pockets. It is not
intended for
general use
To use the Pik
PocketTM Tip, lean low over your sink and place
the soft tip against a tooth at a 45-degree angle
and gently place the tip under the gumline, into
the pocket. Turn the unit on to the lowest pressure
setting and clean by gently following gumline,
inserting tip in between teeth. Continue tracing along
the gumline until all areas of the mouth are clean.
NOTE: This tip must be used only with the Pressure
Control set to 1. Use on a higher setting will shorten
life of tip and power handle
Tongue Cleaner Tip
Place the tongue
cleaner on your
tongue and start the
Water Flosser – use
the lowest pressure
setting, increase as
comfortable. Gently
place the tongue
cleaner in the center/
midline of your
tongue about half way back and with light pressure
pull forward.
Orthodontic Tip
The special Orthodontic Tip is uniquely designed to
simultaneously brush and rinse hard-to-reach areas
around braces and other dental work.
Start on the last molar (back tooth). Aim tip at 90
degree angle to the tooth at the gumline. Gently
glide tip along gumline, pausing briefly to lightly
brush area between teeth and all around orthodontic
bracket, before proceeding to the next tooth.
Continue process until you have cleaned the inside
and outside of both the upper and lower teeth.
ENGLISH
2272_0010_009 WP 100 UK IG.indd 112272_0010_009 WP 100 UK IG.indd 11 4/6/10 1:30 PM4/6/10 1:30 PM

12
Using Mouthwash and
Other Solutions
Your Waterpik®Water Flosser can be used to deliver
mouthwash and antibacterial solutions. Ask your
dental professional to recommend the appropriate
solution for you. Note: use of some antibacterial
solutions could shorten the life of your Waterpik®
Water Flosser.
After using any special solution in the reservoir, take
a moment after every use to rinse the unit. Partially fill
the reservoir with warm tap water. Aim the jet tip into
your sink. Turn on the unit and let it run until empty.
This will help keep the tip from clogging and help
your unit to last longer.
Clean the product when necessary by using a soft
cloth and mild non-abrasive cleanser.
Toothbrush Tip
Place the toothbrush tip in mouth with the brush
head on the tooth at the gum line. The toothbrush
tip can be used with or without toothpaste. Turn
the Water Flosser on so water flows through the
tip. Using a light pressure (bristles should not
bend) vibrate the brush back and forth with very
short strokes – much like you would with a manual
toothbrush. Repeat on adjacent teeth. Water will
flow through the brush, to help simultaneously
clean and rinse the tooth surface.
Plaque SeekerTM Tip
Direct the jet stream at a 90-degree angle to your
gumline. Close lips slightly to avoid splashing but
allow water to flow freely from mouth into sink. Start
in the molar (back teeth) area working toward the
front teeth. Place the tip close to the teeth so that
the bristles are gently touching the teeth.
Gently glide tip along gumline, pausing briefly
between teeth to gently brush and allow the water
to flow between the teeth. Continue until all areas
around and between the teeth both inside and
outside, top and bottom have been cleaned.
2272_0010_009 WP 100 UK IG.indd 122272_0010_009 WP 100 UK IG.indd 12 4/6/10 1:30 PM4/6/10 1:30 PM

13
CARE OF YOUR WATERPIK
®
WATER FLOSSER
Before cleaning, unplug from the electrical outlet.
Before exposing the Water Flosser to freezing
temperatures, remove the reservoir and run the
unit until completely empty.
Service Maintenance
Waterpik®Water Flossers have no consumer-
serviceable electrical items and do not require
routine service maintenance. For all your service
needs please call our UK customer service number
on [phone].
Some replacement parts and accessories for the
Water Flosser are also available from Waterpik
International, Inc. at www.waterpik.co.uk. You may
also call our UK customer service number at
[phone].
For questions or problems please call the customer
service centre before returning the product. Please
do not send your unit to the Waterpik International
address as this can cause lengthy delays.
Refer to the serial and model numbers
in all correspondence. These numbers are located
on the bottom of your unit.
Replacement tips/attachments may be purchased
directly from Waterpik International, Inc.
[phone] or from your local
Water Pik stockist.
ENGLISH
036
Classic
Jet Tip
Orthodontic
Tip
PikPocket™
Tip
Toothbrush
Tip
Plaque
Seeker™Tip
Tongue Cleaner
Tip
RECOMMENDED TIP REPLACEMENT INTERVALS
RECOMMENDED TIP REPLACEMENT INTERVALS
Replace Every
3 Months
Replace Every
6 Months
2272_0010_009 WP 100 UK IG.indd 132272_0010_009 WP 100 UK IG.indd 13 4/6/10 1:30 PM4/6/10 1:30 PM

14
TROUBLESHOOTING GUIDE
PROBLEM
Tips and
Tongue Cleaner
Leakage between the
tip and handle knob.
Pik PocketTM Tip
Tear in soft tip.
Water Flosser Base
Hose to the handle leaks.
Reservoir leaks.
Inadequate pressure.
Unit doesn’t start.
CAUSE
1) Tip not fully engaged.
1) Tip is worn.
1) Damage to the hose.
1) Reservoir valve is upside down.
1) Reservoir not positioned
properly.
2) Tip is clogged with debris.
1) Motor not running.
CORRECTIVE ACTION
1) Remove tip and reinstall.
1) Replace with new tip.
1)
Contact Waterpik International,
Inc. Customer Services on
[phone].
for a
self service repair kit.
1) Turn valve right-side up.
1) Re-position reservoir. Press
down firmly on the reservoir.
2) Flush tip under tap or replace
tip.
1) Be sure outlet is functioning;
test with another appliance
(check electrical reset button
and/or wall switch).
Still have questions? Go to www.waterpik.co.uk.
If none of these corrective actions are successful, call the Water Pik, Inc. UK Customer Service Centre: [phone].
2272_0010_009 WP 100 UK IG.indd 142272_0010_009 WP 100 UK IG.indd 14 4/6/10 1:30 PM4/6/10 1:30 PM

15
Water Pik, Inc. warrants to the original purchaser/owner of this new product that it is free from
defects in materials and workmanship for three years from date of purchase. Save your receipt
as your proof of purchase date. We will replace any part of the product, which in our opinion is
defective, provided the product has not been abused, misused, altered or damaged after purchase
and was used according to these instructions. This limited warranty excludes accessories or
consumable parts such as tips, etc.
This warranty gives you specific legal rights. You may also have other rights that vary depending on
the law in your place or residence.
LIMITED THREE-YEAR WARRANTY
ENGLISH
2272_0010_009 WP 100 UK IG.indd 152272_0010_009 WP 100 UK IG.indd 15 4/6/10 1:30 PM4/6/10 1:30 PM

Water Pik, Inc.
1730 East Prospect Road
Fort Collins, CO 80553-0001 USA
www.waterpik.co.uk
Waterpik®is a trademark of Water Pik, Inc. registered in Argentina, Australia, Canada, Chile, China,
Czech Republic, Hungary, India, Mexico, New Zealand, Pakistan, Poland, Russian Federation, Singapore, South Africa,
Switzerland, Taiwan, Ukraine, United Kingdom, and the United States.
Waterpik (stylized) is a trademark of Water Pik, Inc. registered in Canada, EU, Japan, Mexico, and the United States.
treat yourself betterTM , Pik PocketTM and Plaque SeekerTM are trademarks of Water Pik, Inc.
Form No. 20013565-F AA
©2010 Water Pik, Inc.
Designed in USA.
Conçu aux É.-U.
Diseñado en EE.UU.
Made in CHINA.
Fabriqué en CHINE.
Hecho en CHINA.
WaterPik International, Inc.
Castle Court, 41 London Road
Reigate, Surrey RH2 9RJ, United Kingdom
2272_0010_009 WP 100 UK IG.indd 162272_0010_009 WP 100 UK IG.indd 16 4/6/10 1:30 PM4/6/10 1:30 PM
