Waterway Power Defender 140 User manual

Installation and Operation Manual
Model: Power Defender 140 for Waterway
Programmable Pool Pump Motor/Control
This product does NOT provide a Safety
Vacuum Release System (SVRS).
Save this instruction manual for future reference.
Part #: M018316850000, Rev B Rev Date: February 21, 2020

Table of Contents
Important Safety Information .......................................................................................................... 1
Power Defender 140 for Waterway ................................................................................................. 3
Features................................................................................................................................. 3
Dimensions (Square Flange).................................................................................................. 4
Dimensions (Thru Bolt with Base) .......................................................................................... 5
Electrical Requirements .................................................................................................................. 6
Input....................................................................................................................................... 6
Rated Output.......................................................................................................................... 6
Agency.............................................................................................................................................. 7
Safety..................................................................................................................................... 7
Electromagnetic Compatibility (EMC) ..................................................................................... 7
Installation Instructions................................................................................................................... 8
Protect against Heat............................................................................................................... 8
Protect against Dirt................................................................................................................. 8
Protect against Moisture......................................................................................................... 8
Preparing the Motor for Operation .......................................................................................... 8
Wiring the Motor..................................................................................................................... 9
Motor Protections .......................................................................................................................... 11
Low Temperature Monitor .................................................................................................... 11
Motor Stalled ........................................................................................................................ 11
Open Output Phase.............................................................................................................. 11
Output Over Current............................................................................................................. 11
Output Over Power............................................................................................................... 11
Power Module Temperature ................................................................................................. 11
Under Voltage ...................................................................................................................... 11
Hardware Protection............................................................................................................. 12
Mechanical Requirements .................................................................................................... 12
Environmental Requirements ............................................................................................... 12

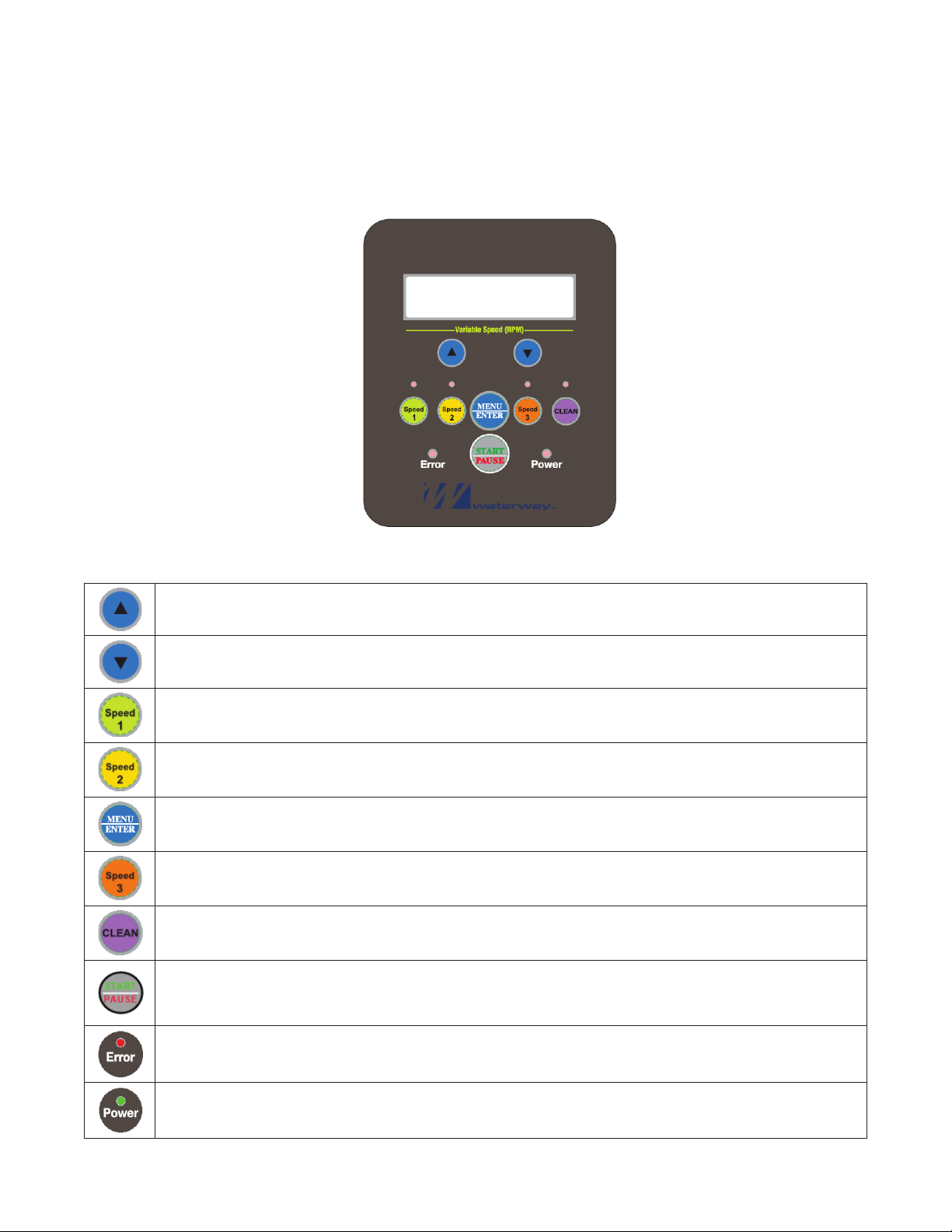

Pump Control via the User Interface ............................................................................................ 13
Navigation Overview ............................................................................................................ 13
Configure Your Pool Pump Motor......................................................................................... 19
Overriding a Timer................................................................................................................ 23
Wiring a Remote Connection................................................................................................ 24
Troubleshooting ............................................................................................................................ 25
Basic Troubleshooting.......................................................................................................... 25
General Troubleshooting ...................................................................................................... 26
Fault Conditions ................................................................................................................... 27
Maintenance................................................................................................................................... 30
Lowering Your Utility Costs .................................................................................................. 30
Example Calculations........................................................................................................... 30
Default Settings ............................................................................................................................. 31
Warranty Information..................................................................................................................... 33

P o w e r D e f e n d e r 1 4 0 f o r W a t e r w a y P o o l P u m p M o t o r
I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l 1
Important Safety Information
·Read all instructions thoroughly and be familiar with the equipment before installing or working on it.
·Before connecting or disconnecting cables or other electrical connections, verify that electrical
power to the system is removed. Failure to comply may cause serious damage to the pool pump
motor or injury.
·Because of the risk of electric shock, only individuals thoroughly trained in the use of multimeters
should conduct voltage tests.
·Never touch the metal contacts on the multimeter during a test.
·Always check testing equipment for proper operation before use.
Installation, operation, and maintenance must be performed by qualified personnel. Familiarization with
and adherence to the National Electrical Code (NEC), National Fire Protection Association (NFPA)
standards and to local codes are required. It is important to observe safety precautions to protect
personnel from possible injury. Personnel should be instructed for handling each of the following:

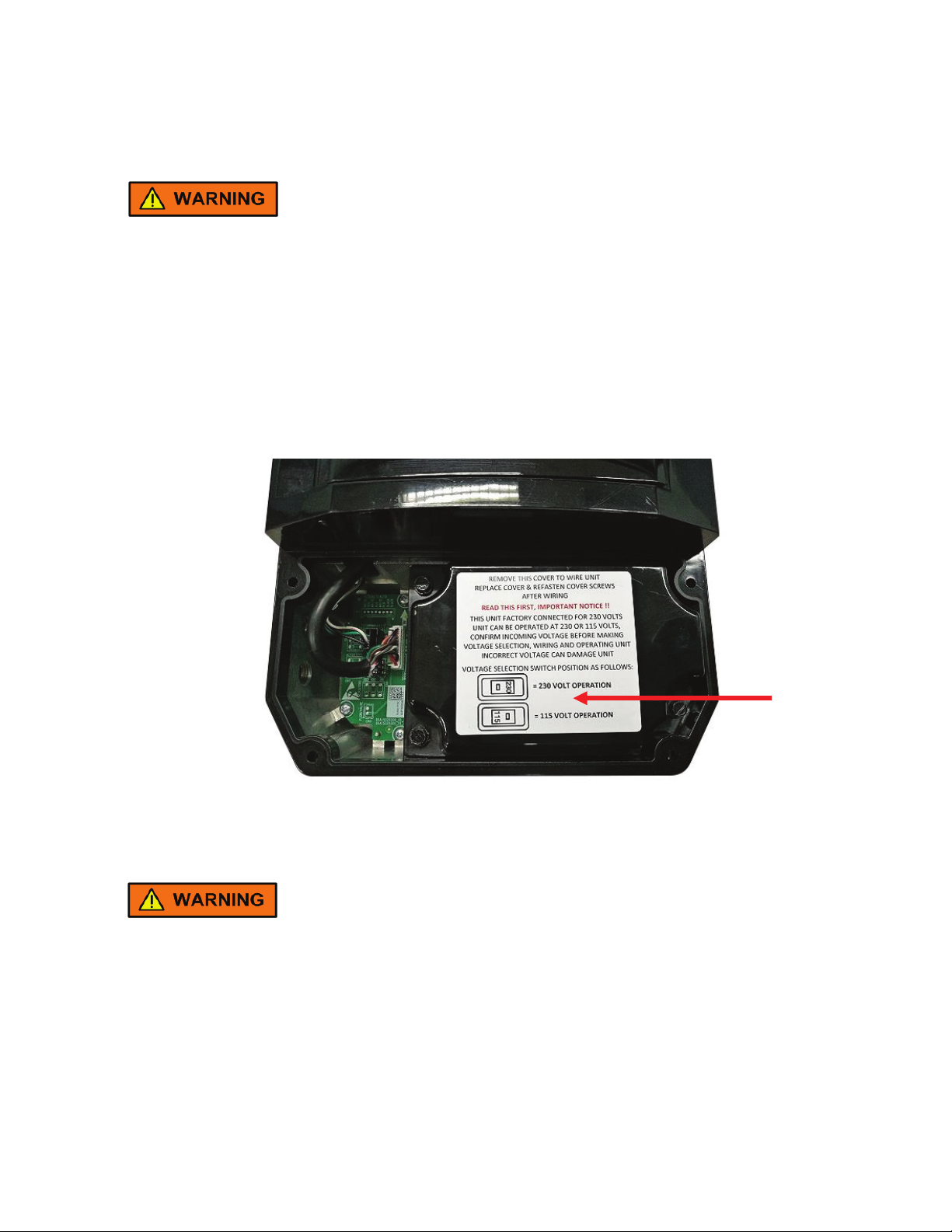

·Only apply nameplate voltage (115 or 230) with the Voltage Selection Switch in the correct position.
·Insulate all connections carefully to prevent grounding or short circuits. Reinstall all conduit and
terminal box covers.
·To avoid overheating or loss of output power, voltage to the motor control unit must be within plus
or minus 10% of the nameplate voltage.
·Make sure the unit is electrically grounded and that proper electrical installation, wiring, and controls
are used consistent with local and national electric codes. Refer to NEC Handbook and NFPA No.
70. Employ qualified electricians for the installation and maintenance of the unit.
·Code requirements differ from state to state. Install equipment using qualified electricians
in accordance with the applicable codes and ordinances in your area and in accordance with NEC.
All electrical connections should be made and maintained by a qualified or licensed electrician.
·Make sure there are no unusual noises or vibrations when the motor is running.
·Avoid contact with energized circuits and rotating parts.
·Provide proper safeguards for personnel against rotating parts.

P o w e r D e f e n d e r 1 4 0 f o r W a t e r w a y P o o l P u m p M o t o r
I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l 2
·Always disconnect electrical power at the fuse box or circuit breaker panel before handling electrical
connections or performing maintenance on this unit. Allow the motor to come to a complete stop
and wait two (2) minutes. This allows the capacitors to discharge any residual voltage.
·All aspects of the installation must conform to the applicable requirements of the NEC, including
Article 430 (Motor Circuits and Controllers), as well as all local codes.
·Double-check to make sure that electrical power is removed and that it cannot be turned on while
you are working on the equipment.
·A poor electrical connection can overheat and cause terminal and/or terminal board failures.
Examine the connections carefully for any signs of physical deterioration or loose fit to the motor
terminal block.
·Care must be taken to assure connections are made to the proper terminals and adequate electrical
clearances are maintained.
·The control unit on the motor contains hazardous voltage.
·Wear safety glasses to inspect the equipment while it is running or while working on equipment.
The motor and control unit are assembled and calibrated as a set. There are no serviceable parts in the
motor or control.
·Do not lift the Power Defender 140 for Waterway motor by the electronic control.
·To prevent permanent damage to the unit, only apply nameplate voltage.
·Do not strike the motor shaft with a hammer or other tool as this may cause damage.
·Voltage symbols vary among different multimeters and may be displayed as Vac, AC, V, or a V
beneath a wavy line. Select the correct symbol and set the multimeter to the voltage closest to but
higher than the voltage you are measuring.
·Although designed for outdoor application, the Power Defender 140 for Waterway Pool Pump Motor
is properly packaged for shipment and storage and should be kept in a clean and dry indoor area
until installed for use.

P o w e r D e f e n d e r 1 4 0 f o r W a t e r w a y P o o l P u m p M o t o r
I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l 3
Power Defender 140 for Waterway
The Power Defender 140 for Waterway variable speed pool pump motor is a premium efficient product
that includes a fully integrated motor, control, and User Interface (UI). The product provides
programming flexibility and speed range capability. It is also designed to communicate and operate with
a variety of external system controls, in addition to the on-board User Interface.
Features
·Total Output Horsepower: 1.40HP, 40° C (1.25HP, 50° C) at 3450 RPM, variable speed
·Voltage/Hertz: Single phase, 115 and 230 Vac, 50 or 60 Hz
·Speed Range: 600-3450 RPM
·Efficiency: 80% at 3450 RPM
·Enclosure: Finned Aluminum enclosure providing a Water Ingress Protection level of IPX5 for long
field life in outdoor environmental conditions
·Frame: Square Flange (NEMA 42Y mounting), Thru Bolt with Base
·User Interface: Fully functional, easy to operate
·Rotation: Counter-clockwise (viewing motor shaft)
·Low Temperature Monitor: Threshold temperature configurable in the UI
·Capable of communicating with specific pool control systems via MODBUS
·Capable of setting up to seven daily schedules
·Adjustable priming time & speed
·Menu keypad lockout
·Designed for quiet operation
·Fully Integrated: Designed for simple “Drop-In” installation with no complex wiring
·UL 1081 approvable
Square Flange Thru Bolt with Base

P o w e r D e f e n d e r 1 4 0 f o r W a t e r w a y P o o l P u m p M o t o r
I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l 4
Dimensions (Square Flange)
All dimensions are for reference only.
Side View
Fan View Shaft View

P o w e r D e f e n d e r 1 4 0 f o r W a t e r w a y P o o l P u m p M o t o r
I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l 5
Dimensions (Thru Bolt with Base)
All dimensions are for reference only.
Side View
Fan View Shaft View

P o w e r D e f e n d e r 1 4 0 f o r W a t e r w a y P o o l P u m p M o t o r
I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l 6
Electrical Requirements
Input
Input Line Voltage
The unit is intended to be operated from a 115 or 230 Vac single phase power supply. The input AC
supply frequency is 50 or 60 Hz nominal. Full rated output power is guaranteed between the Minimum
Full Performance Voltage and the Maximum Operating Voltage. The unit operates with frequency
variations up to +/-10 percent of the nominal value.
Line
Input 1Ø
Minimum
Operating Voltage
Minimum Full
Performance Voltage
Maximum
Operating Voltage
115 Vac
104 Vac
104 Vac
127 Vac
230 Vac
207 Vac
207 Vac
264 Vac
Input Line Current
Full load AC line currents are listed below. The inverter limits the inrush current to less than 150A peak
surge. The duration is less than 5 milliseconds.
AC Input
Full Load Current
115 Vac
15.6 amps
230 Vac
9.5 amps
Input Power Factor
There is no power factor correction circuit on the motor control board. Power factor range is normally
65 to 75%.
Rated Output
The unit is rated for the following maximum outputs:
HP
Speed (RPM)
Rated Torque
1.40HP
3450
25.5 in-lb.

P o w e r D e f e n d e r 1 4 0 f o r W a t e r w a y P o o l P u m p M o t o r
I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l 7
Agency
UL File Number:
·E503587 (control)
·E255002 (motor and control)
Safety
Document
Description
UL 60730-1
Principal standard for the design of an electronically protected motor.
UL 1998
Safety standard for software in programmable components of an
electronically protected motor.
UL1081
(approvable)
Standard for Safety: Swimming Pool Pumps, Filters and
Chlorinators.
UL 1004-1
Standard for Rotating Electrical Machines - General Requirements.
UL 1004-7
Standard for Electronically Protected Motors.
Electromagnetic Compatibility (EMC)
Document
Description
CISPR 22/EN55022
Standards applicable to information technology equipment.
IEC/EN 61000
-4-2
Testing and measurement techniques
- Electrostatic Discharge
Immunity Test
.
IEC/EN 61000
-4-4
Testing and measurement techniques - Electrical Fast
Transient/Burst Immunity Test.
IEC/EN 61000
-4-5
Testing and measurement techniques
- Surge Immunity Test.

P o w e r D e f e n d e r 1 4 0 f o r W a t e r w a y P o o l P u m p M o t o r
I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l 8
Installation Instructions
Follow these instructions to prolong the life of the pump motor and control. Install the product on a
secure and level platform or base, such as a concrete pad.
Installation, operation, and maintenance must be performed by qualified personnel. Familiarization with
and adherence to the National Electrical Code (NEC), National Fire Protection Association (NFPA)
standards and to local codes are required. It is important to observe safety precautions to protect
personnel from possible injury.
·Code requirements differ from state to state. Install equipment using qualified electricians in
accordance with the applicable codes and ordinances in your area and in accordance with NEC. All
electrical connections should be made and maintained by a qualified or licensed electrician.
Protect against Heat
·Shade the motor / control from the sun.
·Provide ample cross ventilation.
·Protect the motor / control from lint, etc., which can clog the ventilation openings.
Protect against Dirt
·Keep the motor / control and the surrounding area clean.
·Avoid sweeping or stirring dust near the motor / control while it is running.
·Avoid storing or spilling dry chemicals near the motor / control.
Protect against Moisture
·Provide protection from rain, snow, etc.
·Do not wrap the motor / control with plastic or other air tight materials.
·Locate the motor / control on a slight elevation so that water does not run or puddle nearby.
·Avoid splashing water on or near the motor / control.
·Repair leaky pipe joints or pump seals promptly.
Preparing the Motor for Operation
The Power Defender 140 for Waterway has been functionally tested before shipment. Most pool
installations already have the electrical power in conduit. However, on-site installation requirements and
electrical codes vary widely and are the responsibility of the installer. The motor / control must be wired
before operating.
Note: An electrical power cable is not provided.
You will need the following tools.
·1/4-inch socket or nut driver
·Flathead or Phillips screwdriver

P o w e r D e f e n d e r 1 4 0 f o r W a t e r w a y P o o l P u m p M o t o r
I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l 9
Wiring the Motor
Follow the steps outlined below to wire the Power Defender 140 for Waterway Pool Pump Motor.
·Always disconnect electrical power at the fuse box or circuit breaker panel before handling
electrical connections or performing maintenance on the motor. Allow the motor to come to a
complete stop and wait two (2) minutes. This allows the control bus capacitors to discharge
any residual voltage.
·The control unit on the motor contains hazardous voltage.
1. Remove the four (4) slotted head hex washer screws securing the Wiring Compartment Cover. Set
the cover aside.
2. Remove the three (3) slotted head hex washer screws securing the High Voltage Compartment
Cover over the AC Input Terminal Block and set the cover aside (Figure 1).
Figure 1 –High Voltage Compartment
3. The motor ships from the factory connected for 230 Vac power. (230 is visible on the Voltage
Selection Switch). You can also run the motor on 115 Vac.
·Confirm the incoming voltage before making the voltage selection, wiring, and operating the
motor. Incorrect voltage can damage the motor and control.
·If 230 Vac is correct, no action is needed. Proceed to Step 5.
·If 115 Vac is required, proceed to Step 4.
High Voltage
Compartment

P o w e r D e f e n d e r 1 4 0 f o r W a t e r w a y P o o l P u m p M o t o r
I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l 10
4. Flip the Voltage Selection Switch in the High Voltage compartment to the right for 115 Vac
operation (Figure 2). 115 should now be visible on the switch.
Figure 2 –Voltage Selection Switch
5. Remove the conduit plug on the side of the High Voltage Compartment.
6. Insert the power cable and use a water tight connector to seal the conduit hole (1/2” NPT thread).
7. Install the AC and Ground input wires as specified on the motor nameplate. You must connect
Line 1, Line 2, and Ground ( Green Screw) in the wiring compartment correctly and securely
(Figure 3).
Figure 3 –AC Input Terminal Block
8. Replace the cover over the High Voltage Compartment and secure it with the three (3) hex screws.
9. Set the Wiring Compartment Cover back in place and secure it with the four (4) hex screws.
10. Apply electrical power. You can now begin programming the pump.
Line 2
Line 1
Ground

P o w e r D e f e n d e r 1 4 0 f o r W a t e r w a y P o o l P u m p M o t o r
I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l 11
Motor Protections
The unit is designed to protect itself in the event of a fault situation. Fault handling is defined below:
·The drive disables power to the motor. (The motor will coast to a stop.)
·If the fault condition clears, the control attempts to restart automatically, when a valid command
signal is present. For example, if an over-temp fault occurs, the control does not attempt to restart
the motor until the temperature drops below the fault threshold.
·The control continues to cycle through the logic sequence indefinitely, so long as a valid command
signal is present.
Low Temperature Monitor
When the control senses the ambient temperature dropping below the threshold level (as defined by
the end-user), the control sends a command for the motor to run at 1200 RPM to help prevent water
from freezing in the pool plumbing.
Motor Stalled
When the control detects that the rotor is locked, the motor shuts down and automatically restart
when operating conditions are within specifications.
Open Output Phase
When one or more of the three phase lines between the motor and control is not connected well, the
output voltage in the control is not able to reach the motor. The motor cycles through the
shutdown/restart sequence the number of times indicated in the Retry Count to correct the fault
condition. If that is unsuccessful, the motor stops.
Output Over Current
Motor output power is reduced until the current returns to normal operating parameters. If the motor
is unable to reach normal operating current by reducing output power, the motor turns off. If the
condition clears, the motor automatically restarts.
Output Over Power
The control monitors shaft output power continuously using estimated speed and torque produced by
the motor shaft. The control limits the torque of the motor to maintain shaft output power below or
equal to the maximum power limit. If the overload condition reduces the speed beyond the designed
operating range, the motor stops.
Power Module Temperature
Motor output power is reduced until the power module temperature returns to normal operating
parameters. If the motor is unable to reach normal operating temperature by reducing output power,
the motor turns off. If the condition clears, the motor automatically restarts.
Under Voltage
The control turns the motor off for low voltage. When the voltage returns to acceptable operating
levels the motor automatically restarts.

P o w e r D e f e n d e r 1 4 0 f o r W a t e r w a y P o o l P u m p M o t o r
I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l 12
Hardware Protection
Fuse Protection
The unit includes fuse protection. Fuses are not user-serviceable and are intended to last the life of
the product.
Inrush Protection
The inverter limits inrush current to less than 150A peak surge. The duration is less than 5ms.
Mechanical Requirements
Connections
Input power and control signals are via conduit connections. There are two compartments:
·High Voltage input power
·Low Voltage control inputs
The High Voltage Compartment has a separate cover. The High Voltage Compartment is supplied with a
threaded hole for 1/2” NPT conduit connection for use with the required, sealed conduit connector and
screw terminals appropriate for the voltage and current present. The terminals accommodate #12 –#14
AWG wire-size for electrical power.
Environmental Requirements
Environmental Ranges
The motor is designed for indoor or outdoor use with temperatures in the following ranges.
Type
Range
Full
Shaft Output Power
0° C to 40° C (32° F to 104° F), 1.40HP
0° C to 50° C (32° F to 122° F), 1.25HP
Storage Temperature Range
-40° C to 60° C (-40° F to 140° F)
Humidity
0-99% RH (condensing)
Environmental Protection
IPX5 rating

P o w e r D e f e n d e r 1 4 0 f o r W a t e r w a y P o o l P u m p M o t o r
I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l 13
Pump Control via the User Interface
The User Interface (UI) enables you to program the operation of the pool pump motor. Generally, the
buttons have two functions. Navigation Mode allows you to move back and forth between the different
settings. Input Mode allows you to customize the settings and confirm your selections.
Navigation Overview
Scroll Up
–In Navigation Mode, scroll up to the previous screen. In Input Mode, increase the
value of the
digit in the LCD display.
Scroll Down
–In Navigation Mode, scroll down to the next screen. In Input Mode, decrease
the
value of
the digit in the LCD display.
Speed 1
–In Navigation Mode, there is no response. Likewise, in Input Mode, there is no
response.
In Run Mode, force an override using the pre-assigned Speed 1 default RPM.
Speed 2
–In Navigation Mode, there is no response. Likewise, in Input Mode, there is no
response.
In Run Mode, force an override using the pre-assigned Speed 2 default RPM.
MENU
/ENTER –When the UI is unlocked, in Navigation Mode
, enter a sub level menu or move to
Input Mode
. In Input Mode, confirm the latest setup and move back to Navigation Mode.
Speed 3
–In Navigation Mode, there is no response. Likewise, in Input Mode, there is no
response. In
Run Mode, force an override using the pre-assigned Speed 3 default RPM.
CLEAN
–Pressing this button starts a 30-minute manual cleaning cycle at maximum speed, 345
0
RPM
(100%).
START/PAUSE
–In Navigation Mode, exit a menu and enter Standby Mode, or return to
Navigation Mode
from a sub menu. In Input Mode, exit a menu screen and return to
Navigation
Mode
. In
Run Mode
, pause the motor.
Error
–A flashing red light indicates the motor encountered an error. Refer to the Fault
Conditions
sect
ion of the manual on page 27 for additional information.
Power
–A solid green light indicates the motor is powered on and functioning (running Timer
cycles). A flashing green light indicates the motor has power, but is paused (not allowed to run).

P o w e r D e f e n d e r 1 4 0 f o r W a t e r w a y P o o l P u m p M o t o r
I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l 14
Quick Start Guide
The Power Defender 140 for Waterway Variable Speed Pool Pump Motor ships with a Quick Start
Guide on the inside cover of the User Interface. If the guide is missing, use the following.

P o w e r D e f e n d e r 1 4 0 f o r W a t e r w a y P o o l P u m p M o t o r
I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l 15
Navigation with UI Buttons
When the motor is in Standby Mode and the UI is unlocked, pressing the MENU/ENTER button
once cycles the motor into Navigation Mode. You cannot change settings while in Navigation
mode. You can only view the setting and cycle through the menus.
·To change the settings, you must be in Input Mode, which you enter by pressing the
MENU/ENTER button while on a given screen.
·After adjusting the settings, pressing the MENU/ENTER button again saves any changes and
returns you to Navigation Mode.
·Pressing the START/PAUSE button in Input Mode cancels any changes you made without
saving them and returns you to the related menu in Navigation Mode.
·In Navigation Mode, use the Scroll Up and Scroll Down buttons to cycle between top-level
menus and sub menus. In Input Mode, use these buttons to increase or decrease a numeric
value, or toggle a parameter On or Off.
·In Input Mode, the parameter in the LCD display to be adjusted will blink.
·In Input Mode, MENU/ENTER cycles the LCD cursor to the right.
·In Input Mode, press the START/PAUSE button twice to return to normal operations.
·In Run Mode or Standby Mode, the three Speed buttons and Clean execute as follows:
Button
Description
Speed 1ᵃ
Force an override speed of 1350 RPM (40%).
Speed 2ᵃ
Force an override speed of 1725 RPM (50%).
Speed 3ᵃ
Force an override speed of 2760 RPM (80%).
Cleanᵇ
Start a 30
-minute cleaning cycle at a speed of 3450 RPM (100%).
ᵃYou can adjust the RPM in a pre-configured override. Press the Scroll Up or Scroll
Down button to increase or decrease the RPM in increments of 10. Press and hold
either button for 2 seconds to increase or decrease RPM in increments of 100.
ᵇIf you press the Clean button followed by a Speed button, the motor changes the
30-minute cleaning cycle to the RPM assigned to the Speed button. Pressing the
Clean button again returns the RPM of the cleaning cycle to the RPM assigned to
the Clean button. The duration of the cleaning cycle resets with each button press.
·In Run Mode or Standby Mode, pressing START/PAUSE pauses the motor and cancels the
override. Press START/PAUSE again to run the motor at the scheduled speed.
Lock the Keypad
You can lock the keypad to avoid accidental operation or unauthorized programming. With the
motor in Standby Mode, press the MENU/ENTER button and hold the button down for three (3)
seconds. The LCD screen flashes and displays the following message for ten (10) seconds.
Note: If the control does not detect a button press within the time frame, the request to lock the
keypad is cancelled.

P o w e r D e f e n d e r 1 4 0 f o r W a t e r w a y P o o l P u m p M o t o r
I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l 16
Press the MENU/ENTER button within the time frame to confirm the operation. The LCD screen then
displays the following message for two (2) seconds and returns to normal operation.
When the keypad is locked, the UI displays this message any time the MENU/ENTER button is
pressed.
Unlock the Keypad
With the motor in Standby Mode, press the MENU/ENTER button and hold the button down for
three (3) seconds. The LCD screen flashes and displays the following message for ten (10) seconds.
Note: If the control does not detect a button press within the time frame, the request to unlock the
keypad is cancelled.
Press the MENU/ENTER button again to confirm the operation. The LCD screen displays the
following message for two (2) seconds and then returns to normal operation.
Operational States
The table below describes the operational states for the motor.
State
Description
Power On
Initialize the motor and all communication ports. The motor is ready to run.
Pause
The motor is waiting for a key press or a scheduled event to run the pump.
Run
The pump is running in response to a timer, a manual override, a manual
pool cleaning, or a low temperature event.
Remote
The pump is operating under commands it receives from a central controller.
The UI is bypassed in this operational state.
Fault
The pool pump motor moves into this state in response to the detection of a
fault condition in either the motor or the control.
Menu
Setup
Pressing the MENU/ENTER button while in Standby shifts the motor to the
Menu Setup state in which the motor can be configured.
Power Loss
If the control detects a low voltage condition, it prepares the motor for a
possible power loss.

P o w e r D e f e n d e r 1 4 0 f o r W a t e r w a y P o o l P u m p M o t o r
I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l 17
Menu Trees
There are two top-level menus in Navigation Mode: Standard Settings and Custom Settings. Sub
menus under these two allow you to change system settings and customize all program Timers. The
menu trees for each are outlined on the next two pages.
·Press the MENU/ENTER button to access the menu system.
·Press Scroll Up or Scroll Down to cycle between Standard Settings and Custom Settings.
·Press the MENU/ENTER button a second time to enter the top-level menu you selected.
·Press the START/PAUSE button to saved changes and exit Input Mode.
Standard Settings
Options under Standard Settings allow you to set the time on your motor, set temperature readings
to Celsius or Fahrenheit, priming duration and speed, low temperature monitoring and threshold,
remoting system monitoring, or reset configurations to default values. The following is a map of the
menu tree. Note: By default, some menu options are not available unless the associated menu
option is enabled.
*

P o w e r D e f e n d e r 1 4 0 f o r W a t e r w a y P o o l P u m p M o t o r
I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l 18
Custom Settings
Configuration options under Custom Settings allow you to program the Start Time, Duration, and
Speed of each Timer. You can program up to seven. The following is a map of the menu tree.
*
*
*
*
*
*
*
*
*
*
*
*
*
*By default, Timers 4 –7 are deactivated. Setting a Duration of 0
deactivates the Timer.
