INSTALLATION, OPERATION AND MAINTENANCE MANUAL
Refer to enclosed warranty for operating parameters to ensure proper use with your water supply.
Watts Premier, Inc. 8716 W Ludlow Drive Suite #1 Peoria, AZ 85381
Phone: [phone] www.wattspremier.com Fax: [phone]
Save manual for future reference
Warning
Please read carefully before proceeding with installation. Your failure to follow any attached instructions
or operating parameters may lead to the product’s failure.
Manual Edition: 01/19/2012
P/N 299086
Model: ZRO-PURE

Page 2
Thank you for yourpurchase of a state of the artWatts Premier Reverse Osmosis (RO) watertreatment system.Water
quality concerns are becoming more of a focus for the public. You may have heard about contaminants in the drinking water
such as Arsenic, Perchlorate, Chromium, Cryptosporidium or Giardia. There may also be some local water issues such as
high levels of Lead and Copper. This Watts Premier water treatment system has been designed and tested to provide you
with high quality drinking water for years to come. The following is a brief overview of the system.
Your Reverse Osmosis System:
Osmosis is the process of water passing through a semi permeable membrane in order to balance the concentration of
contaminants on each side of the membrane. A semi permeable membrane is a barrier that will pass only certain particles
like clean drinking water, but not other particles like arsenic and lead.
Reverse osmosis uses a semi permeable membrane; however, by applying pressure across the membrane, it concentrates
contaminants (like a strainer) on one side of the membrane, producing crystal clear water on the other. This is why RO
systems produce both clean drinking water and rinse water that is ushed from the system. This reverse osmosis system also
utilizes carbon block ltration technology, and can therefore provide a higher quality drinking water than carbon ltration
systems alone.
Your system is a four stage RO which is based upon separate treatment segments within the one complete water ltration
system. These stages are as follows:
Stage 1 – Sediment lter, recommended change 6 months.
The rst stage of your RO system is a ve micron sediment lter that traps sediment and other particulate matter
like dirt, silt and rust which affect the taste and appearance of your water.
Stage 2 – Carbon lter, recommended change 6 months.
The second stage contains a 5 micron carbon block lter. This helps ensure that chlorine and other materials that
cause bad taste and odor are greatly reduced.
Stage 3- Membrane, recommended change 2-5 years.
Stage three is the heart of the reverse osmosis system, the 50GPD (Gallons Per Day) RO membrane. This semi
permeable membrane will effectively remove TDS, Sodium and a wide range of contaminants such as Percholate,
Chromium, Arsenic, Copper, Lead as well as Cysts, such as Giardia and Cryptosporidium. Because the process of
extracting this high quality drinking water takes time, your RO water treatment system is equipped with a storage tank.
Stage 4- Carbon post lter, recommend change 12 months.
The nal stage is a high quality carbon lter. Drinking water enters this lter after the water storage tank and it is
used as a nal polishing lter.
Note: Filter & Membrane life may vary based upon local water conditions and/or use patterns.
System Maintenance
Just because you can not taste it, does not mean that it is not there. Contaminants such as Lead, Chromium and Arsenic are
undetectable to the taste. Additionally, over time if you do not replace the lter elements, other bad tastes and odors will
be apparent in your drinking water.
It is important to change out your lters at the recommended intervals as indicated in this system manual. When replacing
the lter elements, pay special attention to any cleaning instructions. Should you have any further questions please refer to
our web site at www.wattspremier.com or call our customer service department at 1-800-752-5582.
With proper installation and maintenance, this system will provide you with high quality water for years to come.
All of Premier’s water enhancement products are rigorously tested by independent laboratories for safety and reliability.
If you have any questions or concerns, please contact our customer service department at 1-800-752-5582
(outside USA 480-675-7995) or refer to our on-line troubleshooting guide at www.wattspremier.com.

Page 3
** Before installation, please take a moment to ll out the warranty card on page 21.
Table of Contents
Operational Parameters................................................................................................................... 4
Contents of Reverse Osmosis System............................................................................................ 4
Installation & Startup
Tools Recommended For Installation .............................................................................................. 4
Plumbing diagram and parts list...................................................................................................... 5
Drill a Hole for the Reverse Osmosis Faucet .................................................................................. 6
How to use Quick Connect Fittings on Your RO System ................................................................ 6
Faucet Installation .......................................................................................................................... 7
Connecting to the Faucet ............................................................................................................... 7
Adapt-a-Valve Installation ............................................................................................................... 8
Reverse Osmosis Module Mounting................................................................................................ 8
Connect the Green and Red Tubing................................................................................................ 8
Green Tube Connection (From Adapt-A-Valve to Pump) ................................................................ 9
Green Tube Connection (From RO System to ESOV).................................................................... 9
Blue Tube Connection (From RO System to ESOV)....................................................................... 9
Blue Tube Connection (ESOV)........................................................................................................ 9
Tank Ball Valve Installation............................................................................................................ 10
Blue Tube Connection (From The ESOV to TANK)....................................................................... 10
Start up Instructions........................................................................................................................11
Maintenance & Troubleshooting
Changing The Filter Cartridges ..................................................................................................... 12
Membrane Replacement .............................................................................................................. 12
Annual Sanitization ....................................................................................................................... 13
Procedure for Extended Non-Use (More than 2 months).............................................................. 13
Check Air Pressure in the Tank ..................................................................................................... 14
Troubleshooting ............................................................................................................................ 15
Product Technical & Warranty Information
Performance Data Sheet................................................................................................................ 16
Arsenic Fact Sheet ......................................................................................................................... 17
Nitrate / Nitrite Test Instructions...................................................................................................... 18
Other Products from Watts Premier ..........................................................................................19-20
Warranty Registration................................................................................................................21-22
Service Record............................................................................................................................... 23
Limited Warranty ............................................................................................................................ 24

Page 4
1 Tank - White
1 RO Module (complete with lters)
1 Pump/ESOV Assembly
1 Transformer
1 Parts Bag
1 Faucet Bag
1 Manual
Contents of Reverse Osmosis (RO) System
* Note: RO unit must be installed a minimum of 25 Pipe feet from water heater *
Installation must comply with State and local plumbing regulations. Do not use with water that is micro
biologically unsafe or of unknown quality without adequate disinfection before or after the system.
System is intended to be installed using the cold water supply only.
Tools Recommended For Installation
√ 1 1/4" Diamond Tipped Hole Saw bit for faucet opening (Counter Tops/Porcelain & Stainless Sinks)
√ 1 1/4” Adjustable Wrench √ Phillips bit for electric drill
√ 1/2" Open End Wrench √ Needle Nose Pliers
√ 5/8” Open End Wrench √ Adjustable Pliers
√ Electric Drill √ Sharp Knife
√ 1/8" diamond tip bit, pilot hole √ Phillips Screw Driver
√ 1/4” drain saddle hole
Operating Temperatures: Maximum 100°F (37.8°C) Minimum 40°F (4.4°C)
Operating Pressure: Maximum 100 psi (7.0 kg/cm
2
) Minimum 40 psi (2.80 kg/cm
2
)
pH Parameters: Maximum 11 Minimum 2
Iron: Maximum 0.2 ppm
TDS (Total Dissolved Solids) < 1800 ppm
Turbidity < 5 NTU
Hardness Maximum 10 Grains Per Gallon *
Hardness: Recommended hardness not to exceed 10 grains per gallon, or 170 parts per million.
* System will operate with hardness over 10 grains but the membrane life may be shortened.
Addition of a water softener may lengthen the membrane life.
Copper Tube: Reverse Osmosis water should not be run through copper tube as the purity of the
water will leach copper causing an objectional taste in water and pin holes may form in the tube.
Water Pressure: The operating water pressure in your home should be tested over a 24 hour
period to attain the maximum pressure. If the incoming water pressure is above 100 psi then a
water pressure regulator is required. A booster pump is needed for incoming water pressure
under 40psi.
Operational Parameters
INSTALLATION & STARTUP
If any of the items are missing please contact Premier prior to installing.

Page 5
Item # Part # Description
1 531150 RO4-PNP-11-50 (Head & 4 Filter Cartridges)
2 125089 FITTING-ELBOW-90-QC-1/4TX1/4I
3 119007 TANK-3 GALLON-METAL-WHITE
4 560080 ADAPT-A-VALVE KIT
5 116118 FAUCET-NAG-BN-MONITOR
6 134018 TANK-VALVE-BALL-ELB-1/4QCX1/4F
7 119028 TANK STAND
8 610109 1/4” GREEN TUBING - 4FT ea.
9 610113 1/4” BLUE TUBING - 4FT ea.
10 140016 1/4” RED TUBING - 1FT ea.
11 152012 BOOSTER PUMP
12 152018 TRANSFORMER
13 610019 CHECK VALVE
Serial #
1/4" RED TUBE
1/4"
BLUE
TUBE
1/4" GREEN TUBE
ADAPTA
VALVE
1/4" BLUE TUBE ZRO-PURE
Storage Tank
Booster
Pump
Transformer
ADAPTA
VALVE
HOT COLD

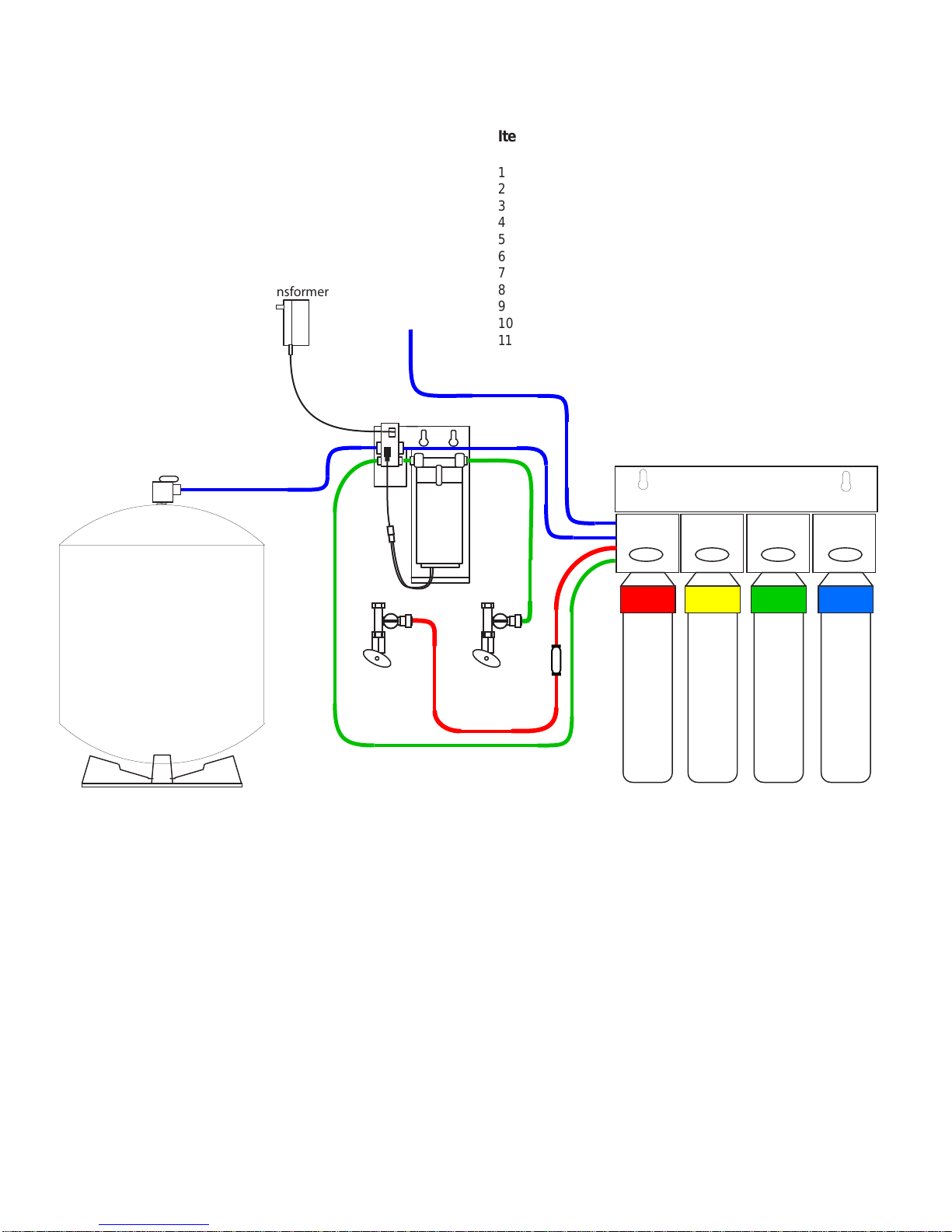

Plumbing Diagram and Parts List
Not recommended for use on homes equipped with tankless water heaters. Contact Watts Premier for
specic details regarding this unit and tankless water heaters.
System was tested in a laboratory setting utilizing a hot water heater of 40 gallons set at 120º F.
Performance may vary if your heater is smaller than 40 gallons or set above 120º F, contact the
manufacturer for additional details.
System should not be used on homes equipped with a backow prevention on the hot water heater.
This device is 100% efcient, as no water is lost to drain in the production of the RO water.
***IMPORTANT NOTICE***
Serial #

Page 6
After drilling, remove all sharp edges and make sure the surroundings
of the sink are cooled before mounting the faucet.
Step 3
Step 4
Determine desired location for the RO faucet on your sink and place
a piece of masking tape over where the hole is to be drilled. Mark the
center of the hole on the tape.
Step 1
Using a variable speed drill set on the slowest speed, drill a 1/8“ pilot
hole through both porcelain and metal casing of sink at the marked
center of the desired location. Use lubricating oil or liquid soap to keep
the drill bit cool (If drill bit gets hot it may cause the porcelain to crack
or chip).
Using a 1 ¼” diamond tip hole saw, proceed to drill the large hole. Keep
drill speed on the slowest speed and use lubricating oil or liquid soap
to keep the hole saw cool during cutting.
Step 2
Counter Top / Porcelain & Stainless Steel Sink
Note: Most sinks are pre drilled with 1 ¼” diameter hole that you can use for your RO faucet.
(If you are already using it for a sprayer or soap dispenser, see step 1)
Porcelain sinks are extremely hard and can crack or chip easily.
Use extreme caution when drilling. Watts accepts no responsibility for
damage resulting from the installation of faucet. Diamond tip bit recommended.
Marble Counter-top
We recommend contacting a qualied contractor for drilling a hole in a marble counter-top.
Drill a Hole for the Reverse Osmosis Faucet
How to use the Quick Connect Fittings
To make a connection, the tube is simply pushed into the tting. The unique locking system holds the tube rmly in place
without deforming it or restricting ow. Use the steps below in reference to any quick connect tube connections.
It is essential that the outside diameter be free of score
marksandthatburrs and sharp edges beremovedbefore
inserting into tting.
Fitting grips before it seals. Ensure tube is pushed into
the tube stop.
Push the tube into the tting, to the tube stop. The collet
(gripper) has stainless steel teeth which hold the tube
rmly in position while the O-ring provides a permanent
leak proof seal.
Pullon thetubeto checkthat itissecure. Itisa goodpractice
to test the system prior to leaving site and /or before use.
To disconnect, ensure the system is
depressurized before removing the tube. Push in the col-
lect squarely against face of tting. With the collet held
in this position, the tube can be removed. The tting can
then be reused.

Page 7
Faucet Installation
Insertthefaucetshankthrough theholein sink
and let it rest on the sink top.
Place the escutcheon chrome plate and the
black rubber washer on the faucet shank.
(Parts found in faucet parts bag).
From the underside of the sink, slide on the
locating washer, lock washer and brass
nut onto the shank. Check orientation of
faucet then tighten brass nut securely.
Step 7
Step 5
Step 6
Connecting to the Faucet
Step 8 Locate the blue 1/4” tube attached to the RO module labeled
“Faucet”. Remove a brass nut, plastic sleeve and brass insert from
the parts bag. To assemble, place the brass nut on the blue tube
rst, then the sleeve (small tapered end of sleeve must point to the
end of tube) and then push the brass insert all the way into the end
of the tube. (See Picture)
Insert the blue tube into the end of the faucet shank and use a
wrench to tighten the brass nut securely.
Step 9
This faucet provides an electronic monitor
that will tell you when it is time to replace
the lters in your water treatment device.
The light indicator on the handle will ash
blue for the life of the lter, turning red
once the life of the lter has been reached.
This can occur after six months of use, or
sooner for heavy water usage. The battery
life is expected to last one year, however,
under heavy use the battery may need
to be replaced sooner. For replacement,
look for battery number CR2032 (Watts
p/n:116080) which should be available at
your local battery store or contact Premier
at 800-752-5582. You may also order online
at www.wattspremier.com.
Escutcheon Plate
Rubber Washer
Locating Washer
Lock Washer
Brass Nut
Tube Insert
Ferrule (Sleeve)
Compression Nut

Page 8
Water supply line to the system must be from the cold water supply line only. Hot water
connection is used for rinse water return and must be connected for system to function correctly.
Reverse Osmosis Module Mounting
Step 12
Turnoffthe coldandhotwatersupplytothe faucetby turningthe anglestop valvescompletely
off. Open cold and hot water sink faucet to relieve pressure.
Step 10
Step 11 Choosing the conguration that ts your plumbing, attach the adapt-a-valves as illustrated in
the photos above.
Adapt-a-Valve Installation
Do not use Teon tape with the Adapt-a-Valve.WARNING:
3/8” Conguration
(With Brass Fittings)
* Insert White Washer
1/2” Conguration
(Without Brass Fittings)
*White
Washer
Hot
Supply Cold
Supply
Verify contents prior to installation:
( 2 ) - Plastic Adapt-a-Valve with black collet
( 2 ) - Brass Adapter no washer
( 2 ) - Brass Adapter with black washer
( 2 ) - White rubber washer
Make sure that the black collet is installed in to the 1/4” opening on the Adapt-a-valve.
Don’t forget to install the white compression washer with the 3/8” conguration.
Brass adapter (A) does not need to be tightened with a wrench, only nger tight.
Black
Collet
A
TIPS:
A
White
Washer
Connect the Green and Red Tubing
Step 13 In the parts bag locate the 1/4” green tubing. Insert one open end of the green 1/4” tube into
the open 1/4” quick connect tting on the COLD water feed adapta-a-valve making sure the
tube is pushed in all the way to the tube stop. Repeat the procedure to connect red tubing
attached to the RO module to connect to the hot water, return adapt-a-valve.
Determine best location for the RO module to be mounted to allow
for future system maintenance. Using the mounting holes on the
bracket, mark the location for the mounting screws on the cabinet
wall under the sink. In the parts bag, locate the two self tapping
screws. Using an electric drill with a Phillips bit, screw them into
thecabinetat themarked location.Hang the moduleon thescrews
using the mounting holes in the bracket

Page 9
Blue Tube Connection (From RO System to ESOV - Electronic Shut-off Valve)
Insert the 1/4” blue tube from the RO System into the 1/4” open
union of the ESOV - pump side. Make sure the tube is pushed
in all the way to the tube stop.
Blue Tube Connection (ESOV - Electronic Shut-off Valve)
In the parts bag, locate the 1/4” blue tubing. Insert one end of
the 1/4” blue tube into the open 1/4” union of the ESOV.
Green Tube Connection (From Adapt-a-Valve to Pump)
Insert the open end 1/4” green tube from theAdapt-a-Valve into
the 1/4” open end of the booster pump quick connect union.
Make sure the tube is pushed in all the way to the tube stop.
Green Tube Connection (From RO System to ESOV - Electronic Shut-off Valve)
Insert the 1/4” green tube from the RO module into the 1/4”
open end of the ESOV assembly quick connect union. Make
sure the tube is pushed in all the way to the tube stop.
Step 14
Step 15
Step 16
Step 17
ESOV
PUMP
ESOV
PUMP
ESOV
PUMP
ESOV
PUMP
In the parts bag locate two 3/8” male stem adapters and insert them into the upper ports
on the ESOV as pictured in the photos below.

Page 10
Blue Tube Connection (From The ESOV To TANK)
Position tank in desired location, stand it upright or lay it on its
side (using the black plastic stand included). Insert the blue 1/4”
tube from the ESOV into the quick connect tting on the tank ball
valve. Make sure the tube is pushed in all the way to the tube
stop (see page 9 for quick connect tting use directions).
Step 20
Note: Set the blue ball valve knob in-line with the blue tube, this is the “open” position.
Teon tape must be applied in a clockwise direction. Wrap
(7 to 12 turns) around the male pipe threads (MPT) on the
stainless steel tting on top of the tank.
Tank Ball Valve Installation
Thread the quick connect ball valve (supplied in the parts bag)
onto the stainless steel connector on the tank.
Note: Do not over-tighten plastic connections.
Step 18
Step 19

Page 11
Congratulations!
You have completed the installation of your new Reverse Osmosis system.
Please Follow the Startup Instructions.
Flushing of the tank 3 times is only necessary during the initial startup and after replacing
the membrane.
Note:
Start up Instructions
Step 1 Turn on the incoming hot and cold water angle stop valves.
Turn both of the adapt-a-valves on and check the system for leaks and tighten ttings
as necessary.
Note: Check daily over the next week
to ensure no leaks are present.
Step 2 Plug the (24 volt) transformer
power cord connector into the
ESOV as pictured.
Step 3 Plug the transformer into the
electrical outlet under the sink.
Step 4 Ensure ball valve on tank is open.
Step 5 Open the RO faucet and leave it
open until water begins to drip.
Then close the faucet.
The tank will take between 2 - 4
hours to ll.
Note: If no water comes out of the RO
faucet after a few minutes check
the power outlet! It is possible that the power outlet you used for the RO unit
is controlled by the garbage disposal switch. To test - Unplug the garbage
disposal and ip the garbage disposal switch to “on” . If the RO pump turns on
and water starts to drip out of the RO faucet you will need to connect the system
to a different power outlet socket.
Step 6 After the tank has lled once, open the RO faucet and drain the tank.
Note: Water may be cloudy or milky due to air in the system and carbon particles ushing out
of the nal polishing lter. This condition will resolve itself after ushing a couple of
tanks of water.
Step 7 Complete step #6 two more times. The process of ushing the system rst three times
should take about one day to complete. The fourth tank can be used for drinking water.
Warning: To prevent the possibility of electrical shock, clean up any water on
cabinet oor and dry all water from outside of RO unit.
ESOV

Page 12
Place a towel under the RO module to catch any excess water that
may drip out from the lters during the changeover.
Step 1
Your RO module is equipped with valved heads which will automatically turn off the water supply to
each lter when the lter is released, thus you do not need to turn off the incoming water supply at the
Adapt-a-Valve. The RO faucet must be off when lters are replaced. To make the removal of the lter
cartridges easier, the heads & cartridges may be swiveled up to 90 degrees as shown in the pictures below.
Step 2
To install a lter cartridge: Remove the seal cap and insert
the cartridge into the valved head until you hear an audible “click”
(the button does not need to be pressed to install new lters).
Step 3
To remove a lter cartridge: Push & hold the button on the
valved head above the lter. Pull cartridge downward (from the
head) to remove. Release button and discard old lter.
Changing The Filter Cartridges
Membrane Replacement (2 - 5 Years)
√ One Membrane (50 GPD Green Label P/N: 105331)Replace:
Membranes have a life expectancy between 2 and 5 years, depending on the incoming water conditions
and the amount the RO system is used. This reverse osmosis membrane is critical for effective reduction of total
dissolved solids (TDS). The product water should be tested periodically to verify that the system is performing
satisfactorily.
Normally, a membrane would be replaced during a semiannual or annual lter change. However, if at any
time you notice a reduction in water production or an unpleasant taste in the reverse osmosis water, it could be
time to replace the membrane. Premier recommends replacing the membrane when TDS reduction falls below
75%.
A water sample may be sent to Premier for a free diagnosis of your membranes performance. To send
a water sample, use 2 clean containers and ll 1/2 cup of tap water in one container and 1/2 cup of RO water in
2nd container. Clearly label each sample. Send the samples to the address listed on the cover of this manual
attention “Water Samples”. Premier will test the water and mail or call you with the results.
To reset the electronic monitor during replacement of lters, simply
pry out the black rubber battery drawer from the faucet handle using
a at head screwdriver, wait a few moments and reinsert.
Note:
This reverse osmosis system contains a replaceable component (the RO membrane) which is critical to the
efciency of the system. Replacement of this reverse osmosis membrane should be with one of identical
specications as dened by Premier to assure the same efciency and contaminant reduction performance.
Annual Maintenance-(Sanitization Recommended See PG.13)
√ One sediment lter (Red Label P/N: 105311)
√ One carbon pre-lter (Yellow Label P/N: 105351)
√ One carbon post-lter (Blue Label P/N: 105341)
Replace:
√ One sediment lter (Red Label P/N: 105311)
√ One carbon pre-lter (Yellow Label P/N: 105351)
Replace:
6 Month System Maintenance
Tip: This is a good time to check the air pressure in your storage
tank. For instructions please see page 14.
Flush rst tank full after completing the annual maintenance.
Note:

Page 13
Annual Sanitization
Procedure for Extended Non-Use (More than 2 months)
Turn off the cold water supply to your RO system, unplug power transformer from electrical
outlet and open the RO faucet to drain the storage tank. Once the storage tank is empty,
remove all lter cartridges (order not important), place them into a sealed plastic bag and
store in your refrigerator.
To Restart System:
If you have connected your RO system to a refrigerator / ice maker, make sure the ice
maker is off (do not allow water to ow to the ice maker) until the tank has been allowed
to completely ll.
After the Tank has lled, open the RO Faucet to ush the tank completely. You will know that
the tank is empty when the ow rate from the RO faucet is down to a trickle. The second tank
can be used for drinking.
Open the RO faucet and leave it open until water begins to trickle out (it will come out
slowly).
Step 5
Turn on the cold water supply to your RO system. Plug in the transformer,
(Check frequently over the next 24 hours to ensure no leaks are present).
Step 4
Step 3
Note:
Step 2
Close the RO faucet allowing the storage tank to ll with water. It may take 2 to 4 hours to
ll the tank completely depending on the production capability of the membrane, local water
temperature and water pressure.
Reinstall all lters on to the RO unit. Filters are color coded to match the lter heads they
snap in to. Refer to page 12 step three for cartridge installation procedure.
Step 1
Turn off the water supply to your RO system, unplug transformer and
open the RO faucet to drain the storage tank.
Step 1
Step 3
Step 2 Disconnect the blue tube from the ball valve on the storage tank (see
page 6 for quick connect tting use instructions).
Sanitization procedure must be performed before a lter change.
Note:
Using a clean eye dropper insert ½ teaspoon of hydrogen peroxide or
common household bleach into the blue tube. This will ow into the
tank once water is turned back on to unit. Reattach blue tube to the
ball valve. Follow start up procedure and drain two full tanks of water.
Replace carbon Post-lter.

Page 14
Once all water in the tank is purged, check air pressure using an air pressure gauge, it
should read between 5 - 7 PSI. (Digital air pressure gauge is recommended) Pressurize
tank using a bicycle tire pump if low. Follow start-up procedure on page 11.
Check Air Pressure in the Tank
Important:
Step 3
Check air pressure only when tank is empty of water!
Step 1 Turn off the cold water supply to the RO and unplug transformer.
Open the RO Faucet and allow water to drain from the tank until it is
completely empty.
Step 2
Check air pressure in the storage tank when you notice a decrease in available water from
the RO system. Air can be added with a bicycle pump using the schrader valve that is
located on the lower side of the tank behind a blue plastic cap.
Tip: When water from the RO faucet slows to a trickle, with the
faucet still in the open position, you may add air to the tank
to purge any left over water, this will ensure that the tank is
completely empty.
7
PSI

Page 15
TROUBLE SHOOTING
Problem Cause Solution
1. Low/Slow Production Low Water Pressure Make sure water supply is turned on and Adapta
Valve is all the way open.
Crimps in tubing Check tubing and straighten or replace as necessary.
Clogged pre-lters Replace pre-lters.
Fouled membrane Replace membrane.
2. Milky colored Water Air in system Air in the system is a normal occurrence with initial
start up of the RO system. This milky look will
disappear during normal use within 1-2 weeks. If
condition reoccurs after lter change, drain tank 1 to 2
times.
3. Water constantly Low water pressure See #1 Above
running, unit will not
shut off Crimp in supply tube Check tubing and straighten or repair as necessary.
High water pressure Check incoming water pressure to make sure it does
not exceed 80 psi. A pressure relief valve may be
necessary.
High pressure in Tank Empty storage tank of water. Set tank air pressure
between 5-7 psi. See previous page.
Low Pressure in Tank Use a Digital Air Gauge for best results. The empty
tank pressure should be 5-7 psi. See page 14.
4. Noise / Water from faucet Crimp or restriction Check tubing and straighten or repair as necessary.
vent hole or noise from in drain line Straighten all drain lines. Clear blockage. Cut off any
drain. Excess tubing
Drain tube clogged Caused from dishwasher or garbage disposal.
Disconnect the 3/8” black line at the drain, clean the
3/8” black line out with a wire, then reconnect. Blowing
air through the line will not always remove the clog.
5. Small amount of water in System starting up Normally it takes 2-4 hours to ll tank. Note: low
storage tank incoming water pressure and/or temperature can
drastically reduce production rate.
Low water pressure See #1 above.
To much air in tank Tank air pressure should be 5-7 psi when empty of water.
If below 5 psi add air or bleed if above 7 psi.
Check only when tank is empty of water.
See previous page.
6. Water leaks from the lter / Not properly seated Re-insert the lter / membrane cartridge.
membrane cartridge.
7. Low water ow from faucet Check air pressure in tank Use a Digital Air Gauge for best results. The empty
tank pressure should be 5-7 psi. See page 14.

Page 16
Watts Premier Inc.
8716 W Ludlow Drive Suite #1
Peoria, AZ 85381
ZRO-Pure
System conforms to Standard 58 for specic claims
RECOMMENDED REPLACEMENT PARTS AND CHANGE INTERVALS:
Note: Depending on incoming feed water conditions replacement time frame may vary.
Description Change time Frame Cost
Sediment Pre-lter: #105311 6 Months $ 9.95
Carbon Pre-lter: #105351 6 Months $15.95
Post Carbon lter #105341 12 Months $15.50
50 GPD R.O. Membrane: #105331 2 to 5 years $89.00
Concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving
the system as specied in NSF/ANSI 58. This system has been tested for the treatment of water containing pentavalent arsenic (also known as As (V), As (+5), or
arsenate) at concentrations of 0.30 mg/L or less. This system reduces pentavalent arsenic, but may not remove other forms of arsenic. This system is to be used
on water supplies containing a detectable free chlorine residual at the system inlet or on water supplies that have been demonstrated to contain only pentavalent
arsenic. Treatment with chloramine (combined chlorine) is not sufcient to ensure complete conversion of trivalent arsenic to pentavalent arsenic, Please see the
Arsenic Facts section of the Performance Data Sheet for further information
Avg. In. Avg. Eff. % Reduction pH Pressure Max Eff. Inf. challenge Max Allowable
(mg/L) (mg/L) mg/L concentration concentration
mg/L mg/L
Arsenic (Pentavalent) .310 0.001 99.6% 7.24 50psi 0.002 0.30±10% 0.010 mg/L
Barium Reduction 9.2 0.08 99.0% 7.64 50psi 0.12 10.0±10% 2.0
Cadmium Reduction 0.031 0.0004 98.0% 7.49 50psi 0.0008 0.03±10% 0005
Chromium (Hexavalent) 0.30 0.002 99.0% 7.24 50psi 0.004 0.03±10% 0.1
Chromium (Trivalent) 0.30 0.001 99.0% 7.64 50psi 0.002 0.03±10% 0.1
Copper Reduction 3.2 0.02 99.0% 7.40 50psi 0.04 3.0±10% 1.3
Cysts 92,000#/ml 3 #/ml 99.99% 7.44 50psi 18 minimum 50,000/mL N/A
Fluoride Reduction 8.7 0.19 97.0% 7.24 50psi 0.3 8.0±10% 1.5
Lead Reduction 0.15 0.002 98.8% 7.39 50psi 0.005 0.15±10% 0.0107
Nitrate 27 3.8 86.0% 7.24 50psi 4.3 27.0 ±10% 10.0
Nitrite 3.1 0.41 86.0% 7.24 50psi 0.46 3.0 ±10% 1.0
Nitrate + Nitrite 30 4.2 86.0% 7.24 50psi 4.8 30.0 ±10% 10.0
Radium 226/228 25pCi/L 5pCi/L 80.0% 7.24 50psi 5pCi/L 25pCiL±10% 5pCiL
Selenium 94.85 <0.2 97.0% 7.24 50psi <0.2 0.10±10% 0.05
TDS 741 22 97.0% 7.28 50psi 26.0 750±40mg/L 187
Turbidity 11.3 0.1 99.0% 7.43 50psi 0-1 11±1mg/L 0.5NTU
Depending on water chemistry, water temperature, and water pressure Premier’s R.O. Systems production and performance will vary.
REFER TO OWNER’S INSTALLATION/SERVICE MANUAL FOR FURTHER MAINTENANCE REQUIREMENTS AND WARRANTY
INFORMATION.
Phone: [phone] Fax: [phone] Email: [email protected]
GENERAL USE CONDITIONS:
1. System to be used with municipal or well water sources treated and tested on regular basis to insure bacteriological safe quality. DO NOT use with water that
is microbiologically unsafe or unknown quality without adequate disinfection before and after the system. Systems certied for cyst reduction may be used on
disinfected water that may contain lterable cysts.
2. This system is acceptable for treatment of inuent concentrations of no more than 27 mg/L nitrate and 3 mg/L nitrite in combination measured as N and
is certied for nitrite/nitrate reduction only for water supplies with a pressure of 280 kPa (40 psig) or greater. If your water supply is under 40 psi Premier
recommends the use of a RO booster pump for proper operation.
3. Operating Temperature: Maximum: 100°F (40.5°C) Minimum: 40° (4.4°)
4. Operating Water Pressure: Maximum: 85 psi (6.0kg/cm2) Minimum: 40 psi (2.8kg/cm2)
5. pH 2 to 11
6. Maximum Iron present in incoming water supply must be less than 0.2 ppm.
7. Hardness of more than 10 grains per gallon (170 ppm) may reduce RO membrane life expectancy.
8. Recommend TDS (Total Dissolved Solids) not to exceed 1800 ppm.
* All Prices Subject to change without notice
TECHNICAL & WARRANTY INFORMATION

Page 17
Arsenic (As) is a naturally occurring contaminant found in many ground waters. Arsenic in
water has no color, taste or odor. It must be measured by an arsenic test kit or lab test.
Public water utilities must have their water tested for arsenic. You can obtain the results from
your water utility contained with in your consumer condence report. If you have your own
well, you will need to have the water evaluated. The local health department or the state
environmental health agency can provide a list of test kits or certied labs.
There are two forms of arsenic: pentavalent arsenic (also calledAs (V),As (+5)) and trivalent
arsenic (also calledAs (III),As (+3)). In well water, arsenic may be pentavalent, trivalent, or a
combination of both.Although both forms of arsenic are potentially hazardous to your health,
trivalent arsenic is considered more harmful than pentavalent arsenic.
RO systems are very effective at removing pentavalent arsenic.Afree chlorine residual will
rapidly convert trivalent arsenic to pentavalent arsenic. Other water treatment chemicals
suchasozone and potassiumpermanganatewillalso changetrivalentarsenicto pentavalent
arsenic.Acombinedchlorine residual (also calledchloramine)whereitdoes convert trivalent
arsenic to pentavalent arsenic, may not convert all the trivalent arsenic in to pentavalent
arsenic. If you get your water from a public water utility, contact the utility to nd out if free
chlorine or combined chlorine is used in the water system.
ThisPremierreverseosmosissystem isdesignedtoremoveup to98%ofpentavalentarsenic.
It will not convert trivalent arsenic to pentavalent arsenic. Under laboratory standard testing
conditions, this system reduced 0.30 mg/L (ppm) pentavalent arsenic to under 0.010 mg/L
(ppm) (the USEPAstandard for drinking water).Actual performance of the system may vary
depending on specic water quality conditions at the consumer’s installation. In addition to
the independent laboratory standard testing conditions Premier has conducted additional
eld testing on our reverse osmosis units to determine trivalent arsenic reduction capabilities.
Based upon Premier eld testing, it has been determined that the RO units are capable of
reducing up to 67% of trivalent arsenic from the drinking water.
This reverse osmosis system contains a replaceable component critical to the efciency of
the system. Replacement of the reverse osmosis component should be with one of identical
specications, as dened by the manufacturer, to ensure the same efciency and contaminant
reduction performance. Specic component identication and ordering information can be
found in the maintenance section of this manual, by phone at 1-800-752-5582 or online at
www.wattspremier.com
California Proposition 65 Warning
WARNING: this product contains chemicals known to the State of California to cause cancer
andbirthdefects orotherreproductive harm.(Installer:California lawrequiresthat thiswarning
be given to the consumer). For more information: www.wattsind.com/prop65.
Arsenic Fact Sheet

Page 18
Nitrate / Nitrite Test Instruction

Page 19
Premier has other ne water ltration products and accessories to enhance your water and to
compliment your existing RO System. Listed on the next several pages are only a few of the items we
offer. Visit our web site at www.wattspremier.com or call our Customer Service Representatives at
1-800-752-5582 (inside USA) 1-480-675-7995 (outside USA) for more products.
Top Mount Faucets
These attractively designed faucets feature a long reach spout to compliment
all styles of kitchen decor. The unique top mount design allows for easy above
counter installation. The Monitored version of this faucet has an LED light that
turns red to notify you for lter replacement. Tubing Included!
Part No. 116091 - Chrome (Non-Monitored) *$47.95 each
116095 - Brushed Nickel (Non-Monitored) *$52.95 each
116094 - Chrome (Monitored) *$57.95 each
116093 - Brushed Nickel (Monitored) *$62.95 each
Other Products from Premier
Premier sells a lter change kit which includes all replacement lters needed.
Call 1-800-752-5582 or buy on-line at www.wattspremier.com.
*All prices subject to change without notice.
Connect your RO-Pure system to your refrigerator!
The ice maker kit includes parts needed for typical installation, includes;
30 feet of 3/8” tubing, an in-line ball valve and ttings.
Part No. 500010 *$ 16.95/ea
Premier Hot Water Recirculation System
Bring convenience and savings to your home, giving you hot water instantly at
every faucet when you need it. This unique product is easy to install and not
only provides you with the convenience of hot water when you need it, but also
saves an average of over 15,000 gallons per year!
Part No. 500800 *$229.99 each
Reverse Osmosis Ice Maker Connection Kit
ZRO-PURE Six Month Filter Kit
Compatible with the Premier ZRO-PURE Reverse Osmosis ltration system.
This kit includes one sediment lter and one 5 micron carbon pre lter.
Part No. 531102 *$24.95/ea
Pocket Total Dissolved Solids (TDS) Monitor
Test water electronically to verify reverse osmosis membrane effectiveness.
Carrying case included.
Part No. 273001 *$39.95/ea

Page 20
Removing chlorine from your shower
Deluxe Shower Handle with Built in Filter Replacement lters 2PK
5-Way Massaging Spray
72” Reinforced Hose
High Strength Bracket
Triple Plated Finish
Reversible Filter Cartridge (Model HHC)
Cartridge Life Rating: 3 months
Part No. 107070 WHITE *$38.95
Part No. 107091 CHROME *$44.95
Part No. 107092 GOLD *$44.95
Shower Falls Deluxe Shower Handle with Built in Filter
Curved Ergonomic Shower Handle Replacement lters 2PK
Filter Handle Extension
Dual Swivel Adjustment
Ultra Deluxe 5 Way Massaging Spray
72” Reinforced Hose
Chrome Plated Brass Bracket & Swivel Ball Extension
Triple Plated Finish
Reversible Filter Cartridge (Model HHC)
Cartridge Life Rating: 3 months
Part No. 107095 CHROME *$55.95
All-In-One reversible High-Flow Filter Replacement lter
Deluxe 5-Way Massaging Spray
Soft-Touch Adjustment Pads
Anti-Scaling Spray Nozzle
High Strength Housing
Triple Plated Finish
Cartridge Life Rating: 6 months
Part No. 107098 White/Chrome *$39.95 Part No. 107080 *$13.95/ea
*All prices subject to change without notice.
√ Free Chlorine (CL-)
√ Combined Chlorine (Sodium Hypochlorite)
√ Hydrogen Sulde (Rotten egg smell)
√ Plus, its pH balanced.
Special Chlorgon & KDF media – More effective then carbon medias with
hot water applications in the removal of the following.
√ Iron oxide (rust water)
√ Dirt, sediment
√ Odors
Part No. 107075 *$15.95/pk
Part No. 107075 *$15.95/pk
Visit our website www.wattspremier.com for a larger selection.
