Watts Lync WQ-AS User manual

Installation, Operation and
Maintenance Manual
Lync WQ-AS
Complete Water Quality Solutions
Engineered Solutions
Lync • 425 W Everman Pkway, St. 101 • Fort Worth, TX 76134
USA: T: [phone]
Technical Support • [phone] (ext. 3) • Mon-Fri, 8 am - 5 pm CST
© 2021 LYNC
L- OMM-007_A •5/6/2022
Disclaimer
The information contained in this manual is subject to change without notice
from Lync, a division of Watts Water Technologies, Inc. Lync makes no
warranty of any kind with respect to this material, including, but not limited to,
implied warranties of merchantability and fitness for a particular application.
Lync is not liable for errors appearing in this manual, nor for incidental or
consequential damages occurring in connection with the furnishing,
performance, or use of these materials.

Lync WQ-AS
Table of Contents
L- OMM-007_A •5/6/2022 Technical Support • [phone] • Mon-Fri, 8 am - 5 pm EST 2 of 42
TABLE OF CONTENTS
1. Introduction ......................................................................................................................................... 4
1.1. System Overview.......................................................................................................................4
1.2. Specifications.............................................................................................................................6
2. Lync WQ-AS Components ................................................................................................................. 9
2.1. WQ-AS Skid Components.........................................................................................................9
3. Installation and Operation................................................................................................................10
3.1. Pre-Installation Considerations................................................................................................10
3.2. Installation Location.................................................................................................................10
3.3. Plumbing and UV Connections................................................................................................11
3.4. Electrical Connections.............................................................................................................12
3.5. Startup.....................................................................................................................................13
3.6. Lync UV Controller ..................................................................................................................14
3.6.1. Lync UV Controller Wiring .......................................................................................................14
3.6.2. Overview of Screens ...............................................................................................................15
3.6.3. Normal Operation ....................................................................................................................16
3.6.4. Possible Alarms.......................................................................................................................16
3.6.5. Set Up Screen .........................................................................................................................18
3.6.6. Bypassing Alarms –Alarm Relay Output ................................................................................18
3.6.7. Bypassing Alarms –Audible Alarms .......................................................................................19
3.6.8. Lamp and Sleeve Replacement Screen..................................................................................19
3.7. Modbus Communication..........................................................................................................20
3.7.1. Serial Communication Settings ...............................................................................................20
3.7.2. Supported Function Codes......................................................................................................20
3.7.3. Input Registers ........................................................................................................................21
3.7.4. Lamp Type...............................................................................................................................22
3.7.5. Lamp Rated Operating Time...................................................................................................23
3.7.6. Controller Operating Time .......................................................................................................24
3.7.7. Lamp Operating Time..............................................................................................................25
3.7.8. Lamp Life Remaining...............................................................................................................26
3.7.9. Measured UV Level, Absolute.................................................................................................27
3.7.10.Controller Status Information Group 0.....................................................................................28
3.7.11.Controller Status Information Group 1.....................................................................................31
4. TROUBLESHOOTING........................................................................................................................33
5. REPLACEMENT PART LIST .............................................................................................................34
5.1. WQ-AS Skid Parts...................................................................................................................34
5.2. Lync AquaSolve Parts .............................................................................................................35
5.3. Lync Cartridge Filter Parts.......................................................................................................36
5.4. Lync UV Parts..........................................................................................................................37
6. Maintenance.......................................................................................................................................38
6.1. Replacing AquaSolve Media ...................................................................................................38

Lync WQ-AS
Table of Contents
L- OMM-007_A •5/6/2022 Technical Support • [phone] • Mon-Fri, 8 am - 5 pm EST 3 of 42
6.2. Routine Cartridge Replacement ..............................................................................................40
6.3. Lync UV Maintenance .............................................................................................................40
6.4. Disinfection Procedure ............................................................................................................41

Lync WQ-AS
SECTION 1: INTRODUCTION
L- OMM-007_A •5/6/2022 Technical Support • [phone] • Mon-Fri, 8 am - 5 pm EST 4 of 42
1. Introduction
1.1. System Overview
Lync WQ-AS is a complete, fully engineered multi-barrier, packaged system that optimizes your
system’s water quality by integrating scale prevention, sediment filtration and UV disinfection.
Lync WQ-AS is factory pre-assembled to minimize installation time and labor. Standard
components of this system are:

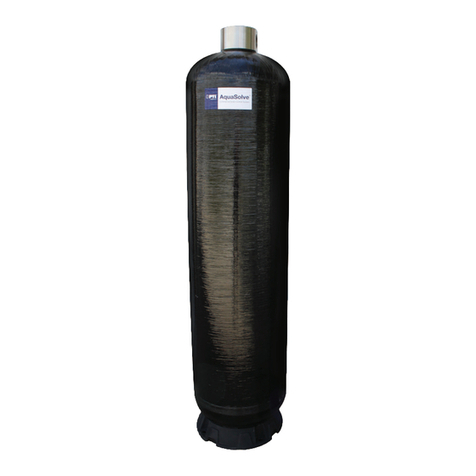

•Lync AquaSolve scale prevention system (LM8414TM-COM) includes mineral tank, scale
prevention media, internal distributor system, stainless steel head component. AquaSolve
provides protection from scale formation on internal plumbing surfaces. AquaSolve®
prevents scale by transforming the normal dissolved hardness minerals into undissolved
crystal microparticles. These crystals stay suspended in the water and have a greatly
reduced ability to react and attach to surfaces like dissolved hardness does.
The LM8414TM-COM is certified through WQA against NSF/ANSI/CAN Standard
61, CSAB483.1, and to NSF/ANSI 372 for Lead Free compliance.
•Lync cartridge filtration system includes filter housing (LCH-150) and a replaceable filter
cartridge (LBC-150-P5). Lync filter cartridge is a 5 micron filter with a housing that is
made of rugged, glass-reinforced polypropylene, so it will not chip, rust or dent. Because
all wetted surfaces are non-metallic, they are ideal when chemical compatibility is an
issue and for sea water applications.
LCH-150 is certified through NSF to NSF/ANSI/CAN 61.
•Lync UV Disinfection System (LD050AGAA) includes reactor chamber(s), UV lamp(s),
quartz sleeve(s), and system controller. Disinfection of water with Lync UV is a simple,
rapid physical process. When contaminated water is exposed to Lync UV 254 nanometer
UV light, the UV light penetrates the cell walls of microorganisms and disrupts their
genetic deoxyribonucleic acid (DNA) material. This quickly inactivates microorganisms by
destroying their ability to replicate and infect
Lync UV (LD050AGAA) is certified by the Water Quality Association (WQA) to
NSF/ANSI Standard 372 for lead free compliance.

Lync WQ-AS
SECTION 1: INTRODUCTION
L- OMM-007_A •5/6/2022 Technical Support • [phone] • Mon-Fri, 8 am - 5 pm EST 5 of 42
NOTES:
Lync UV complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Lync UV complies with Industry Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interference that may cause undesired
operation of the device.
Any changes or modifications of this product not approved by the manufacturer could void
the user’s authority to operate the equipment.
Lync UV complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna
of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To
reduce potential radio interference to other users, the antenna type and its gain should be so
chosen that the equivalent isotopically radiated power (e.i.r.p.) is not more than that
necessary for successful communication.
Lync UV controller is certified by the Federal Communications Commission (FCC) listed
under identification number
FCC ID: 2AFJT-SMARTSTREAM and Industry Canada (IC) listed under IC: 20623-
SMARTSTREAM.
WARNINGS!
Lync WQ-UV contains a UV-C emitter (UV lamp). Unintended use of the appliance or
damage to the housing may result in the escape of dangerous UV-C radiation. UV-C
radiation may, even in little doses, cause harm to the eyes and skin. Appliances that are
obviously damaged must not be operated. Do not operate the UV-C emitter when it is
removed from the appliance enclosure. The appliance must be disconnected from the power
supply before replacing the UV-C emitter. DO NOT look directly at the UV-C emitter while it is
ON. Permanent serious eye injury could occur.
This appliance can be used by people aged from 18 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the appliance. Cleaning and
user maintenance shall not be made by children.
Lync UV systems are engineered with the highest quality components. If at any time a
component needs to be replaced, use only parts recommended and supplied by Lync.
DO NOT add components to or remove components from this system. The UV lamp is rated for
9000 hours under normal operating conditions and should be replaced annually to keep the UV
intensity at the highest possible output. Quartz sleeves should be cleaned as needed or
replaced as needed to guarantee the highest possible UV transmittance into the water. Use only
Lync supplied UV lamps and quartz sleeves. Failure to do so may result in system failure and
will void all warranty.
DO NOT use this system in a manner that it is not intended for. This purifier is only for use in
water applications where the feed water, installation environment and installation method meets
the requirements within this manual. The system must be properly sized.

Lync WQ-AS
SECTION 1: INTRODUCTION
L- OMM-007_A •5/6/2022 Technical Support • [phone] • Mon-Fri, 8 am - 5 pm EST 6 of 42
DO NOT exceed the rated flow rate capacity of the system. Flow controllers are available from
Lync to ensure system's rated flow is not exceeded. Follow all product safety labeling. DO NOT
let the system freeze. System damage may result. Install the system on a flat, and level surface.
The quality of the water to be treated must meet the feed water guidelines within this manual.
Failure to ensure proper pretreatment will result in inadequate disinfection
1.2. Specifications
WQ-AS Skid
WQAS-050-D
WQAS-100-D
Peak flow rate
50 gpm
100 gpm
Number of Lync UV systems (LD050AGAA)
1
2
Number of Lync Cartridge Filter systems
1
Number of AquaSolve systems
1
2
Inlet/Outlet
2” SCH80 PVC Flange
Operating pressure
28 psi to 125 psi
Max ambient temperature/humidity
122 oF / 95 % relative humidity (non-condensing)
Operating temperature
40oF - 100oF (5oC - 38oC)
Max hardness
30 Grains (513 mg/L as CaCO3)
Max free chlorine
2 ppm
Max iron
0.3 ppm
Max manganese
0.05 ppm
Max copper
1.3 ppm
Max silica
20 ppm
Max TDS
1500 ppm
pH
6.5 –8.5
Total phosphate
3 ppm or less
Oil and H2S
Not allowed
Dimension W x D x H (inches)
78 x 24 x 82
132 x 24 x 82
Shipping weight (lbs)
700
1100
Lync UV
Flow rate per UV system @ 30mJ (95%UVT @EOL)
50 gpm
UV Transmittance
95 % UVT
Standard NPT inlet / outlet ports
1.5"NPT-M / 1"NPT-F Combo Ports
Chamber material
316L SS
Controller mounting
On chamber bracket
Input voltage
120 to 240VAC, 50/60 Hz
Max nominal input power for each UV system (Watts)
118

Lync WQ-AS
SECTION 1: INTRODUCTION
L- OMM-007_A •5/6/2022 Technical Support • [phone] • Mon-Fri, 8 am - 5 pm EST 7 of 42
Max nominal electrical power for each lamp (Watts)
112
Lamp technology
Quartz glass low pressure lamp / ozone free / true
pre-heat starting / glow-cap indicator
Wireless lamp key
Standard
Lamp dimming / Flow switch
Standard
System display type
Color Touch Screen with multiple languages,
intuitive screen navigation, detailed system status
messages, maintenance/diagnostic, and dealer
programmable with website/contact
information/QR codes
UV Sensor
Yes
Lamp life monitor
Display on graphic touch screen, auto-reset with
new lamp
Visual alarm
Animated icons and text messages on graphic
display
Audible alarm / audible alarm mute
Yes / yes
Alarm relay / Solenoid contacts
Yes / 24V 5 Amp Maximum
Alarm relay manual over-ride
Yes
Lync Cartridge Filter
Lync Cartridge Filter size
5 micron
Material, filter body & cartridge end caps
Glass reinforced PP
Brass reinforced gauge port
1⁄4" FNPT
Material, swing bolts
304SS
O-ring
EPDM
Lid closure
Swing bolt
Pipe fittings (One inlet and two outlets) PVC
2" SLIP Female PVC
Drain
1⁄2" FNPS with drain plug
Cartridge change-out, sediment
15 psi differential (max.)
AquaSolve
Flow rate per AquaSolve system
50 gpm
Standard NPT inlet / outlet ports
2" NPT-F / 2"NPT-F
WARNINGS!
•Not for use on closed loop systems.
•Do not let the system freeze. Damage to the tank may result.
•Place the WQAS skid on level surface. Because the system operates in an up-flow,
fluidized bed mode, having a level surface is more important than with a softener or
media filter.
•A bypass valve should be installed before and after the skid to facilitate installation and
service.
•Observe all local plumbing and building codes when installing the system.
•Do not apply any other anti-scalants before or after WQAS skid.

Lync WQ-AS
SECTION 1: INTRODUCTION
L- OMM-007_A •5/6/2022 Technical Support • [phone] • Mon-Fri, 8 am - 5 pm EST 8 of 42
•The addition of soaps, chemicals, or cleaners, before or after AquaSolve treatment, may
reverse its anti-scale treatment effects and/or create water with a heavy residue or
spotting potential. Any adverse conditions caused by the addition of soaps, chemicals, or
cleaners are the sole responsibility of the end user.
•AquaSolve is not a water softener and does not soften the water. Water treatment
chemistry requires to be compatible with water quality requirements outlined in the
specifications table.
Spotting may occur on external plumbing surfaces. AquaSolve media systems perform best in
single pass potable water applications with NO additional chemical additives. Depending on
hardness, soft scale spotting may occur. Soft scale spots in most cases can be easily wiped
down with a damp cloth and will not form hard scale deposits. A Point of Use (POU) Water
Softener should be used on mandatory spot-free applications (e.g. glass stemware, dishware).
Water known to have heavy loads of dirt and debris may require pre-filtration prior to WQAS
skid. AquaSolve technology is effective at controlling lime-scale formation inside the plumbing
system at influent hardness levels up to 75 grains per gallon (1282 mg/l) of calcium carbonate.
Due to variances in water chemistry, 30 grains per gallon is a recommended hardness
maximum due to potential aesthetic issues related to soft scale residue formation outside of the
plumbing system. Testing should be performed to determine proper application where hardness
levels exceed 30 grains per gallon.
Just as with conventional water softening media, AquaSolve media needs to be protected from
excess levels of certain metals that can easily coat the active surface, reducing its effectiveness
over time. Public water supplies rarely, if ever, present a problem, but if the water supply is from
a private well, confirm that the levels of iron (Fe) and manganese (Mn) are less than 0.3 mg/L
and 0.05 mg/L, respectively.
Pursuant to the EPA drinking water standards, the copper concentration permitted is up to 1.3
ppm. Typically originating from new copper plumbing, high levels of copper can foul AquaSolve
media. For applications with copper concentration greater than 1.3 ppm, please consult Lync
Technical Service. To further minimize any problem with excess copper, avoid applying
excessive flux on the inner surfaces of the pipe and use a low-corrosivity water soluble flux
listed under the ASTM B813 standard.
AquaSolve media does not reduce silica scaling. While silica tends to have a less significant
effect on scale formation than other minerals, it can act as a binder that makes water spots and
scale residue outside the plumbing system difficult to remove. This 20 ppm limitation is for
aesthetic purposes. All other contaminants must meet the requirements of the USEPA Safe
Drinking Water Act. Specific Mineral and Metal MCL’s, identified in Lync published Feed Water
Chemistry Requirements, supersedes the USEPA SDWA.
Exceeding maximum flow can reduce effectiveness and void warranty. Pressure drop at peak
flow rate is less than 28 psi (pressure drop reading taken with inlet and outlet gauges installed
at a common elevation and 80 degree feed water).

Lync WQ-AS
SECTION 2: Lync WQ-AS COMPONENTS
L- OMM-007_A •5/6/2022 Technical Support • [phone] • Mon-Fri, 8 am - 5 pm EST 9 of 42
2. Lync WQ-AS Components
2.1. WQ-AS Skid Components
WQAS-050-D
WQAS-100-D
Figure 2-1 General WQ-AS Component Identification

Lync WQ-AS
SECTION 3: OPERATION
L- OMM-007_A •5/6/2022 Technical Support • [phone] • Mon-Fri, 8 am - 5 pm EST 10 of 42
3. Installation and Operation
3.1. Pre-Installation Considerations
Unpack the crates and make sure all components are accounted for according to the table
below for each specific model. If any components are missing or damaged contact your Lync
representative. If they cannot be reached contact Lync customer service at 1-800-433-5654.
Component
Shipped
Loose
Pre-
installed
Quantity
WQAS-050-D
WQAS-100-D
Lync Cartridge Filter Housing (LCH-150)
X
1
1
Lync UV System (LD050AGAA)
X
1
2
Lync AquaSolve System (LM8414TM-COM)
X
1
2
Filter Cartridge (LCB-150-P5)
X
1
1
Piping Headers
X
1
1
UV Sensor
X
1
2
Extra Filter Cartridge (LCB-150-P5)
X
1
1
UV Quartz Sleeve
X
1
2
UV Lamp
X
1
2
AquaSolve Inlet Sample Port Assembly
X
1
2
Vacuum Relief Valve
X
1
2
2” Gasket Kit
X
1
1
Quartz Sleeve O-Ring
X
1
2
3.2. Installation Location
Lync WQ-AS is a complete system with factory pre-assembled plumbing and wiring to minimize
installation time and labor. Components are fastened onto a steel skid for safe and easy
transportation and installation.
1. Confirm that the system being installed matches the flow rate for the application.
2. The WQ-AS system should be installed as close as possible to the treated water's point
of use.
3. Position the system in a suitable location with 48 inches of space allowance around the
system to allow for the maintenance. Allow 48 inches of overhead clearance for the
removal of lamp and quartz sleeve.
4. Responsibility for meeting local electrical andplumbing codeslies withthe owner/operator.
5. Install indoors in an area protected from freezing.
NOTES:
•DO NOT install the system near any source of heat. Also, DO NOT install the system
near any device or break out area that would be adversely effected by water.
•DO NOT install this system higher in elevation than 10,000 feet above sea level.

Lync WQ-AS
SECTION 3: OPERATION
L- OMM-007_A •5/6/2022 Technical Support • [phone] • Mon-Fri, 8 am - 5 pm EST 11 of 42
•DO NOT install where system is exposed to harsh chemicals or may be subjected to
being struck by moving equipment, carts, mops or any other item that may cause
damage.
•DO NOT install the system outdoors. Keep system away from moisture, rain, and direct
sunlight. Ambient air temperature must remain below 122°F and relative humidity must
remain below 95%.
•The system MUST be installed in accordance with all applicable national, state and local
codes.
•Additional pretreatment may be necessary so that the feedwater conforms to the Feed
Water Specifications.
•The skid can be bolted down to the floor, if required.
3.3. Plumbing and UV Connections
It is the responsibility of the end user to ensure that the installation is done according to local
codes and regulations. 2” slip-on PVC flanges in inlet and outlet provides the option for both
flange and slip connections.
1. Turn off water heater(s).
2. Turn off the main water supply valve to the pipe the system will be installed in.
3. Relieve pressure within plumbing system by opening then closing both the hot and cold
sides of a faucet until water ceases to dispense from faucet.
4. If water heater(s) is equipped with isolation valves, isolate the water heater(s) by closing
inlet and outlet valves.
5. If no isolation valve exists at system installation location, it is recommended to install an
isolation valve located within 10 feet of the system.
6. After finalizing the installation location, place the AquaSolve skid in installation location
and connect the feed water line to the inlet side of the AquaSolve skid.
7. Place the filter and UV skid next to AquaSolve skid. Use the 2” gasket kit to connect the
outlet flange of AquaSolve skid to inlet flange of filter and UV skid.
8. Connect the outlet of filter and UV skid to treated water line plumbing.
WARNINGS!
Use gloves for quartz sleeve and lamp handling and installation. DO NOT touch the lamp
and quartz sleeve with bare hands. In cases that the lamp and sleeve are touched with bare
hands, use alcohol to clean them prior to installation.
9. Once the skids are installed and there will be no relocation, fully insert the quartz sleeve
into the reactor chamber of Lync UV system and install the O-ring over the quartz sleeve.
Press the O-ring down over the quartz sleeve until it is seated in the bevel of the stainless
steel reactor chamber's threaded port.
10. Install the quartz sleeve O-ring onto the visible end of the quartz sleeve. Screw the quartz
sleeve nut onto the quartz sleeve port thread and tighten hand tight.
11. Insert the UV lamp into the quartz sleeve. Gently press down on the glow cap and rotate
it clockwise until it locks in place on the mounting bracket.
12. Connect the lamp lead wire to the lamp.

Lync WQ-AS
SECTION 3: OPERATION
L- OMM-007_A •5/6/2022 Technical Support • [phone] • Mon-Fri, 8 am - 5 pm EST 12 of 42
13. Use Teflon tape and install the AquaSolve inlet sample port assembly on the inlet side of
the AquaSolve tank (see Figure 3-1).
14. Use Teflon tape and install AquaSolve vacuum relief valve on the outlet side of the
AquaSolve tank (see Figure 3-1).
Figure 3-1 WQAS AquaSolve Header Connections
NOTES:
•The Lync Cartridge Filter is inspected prior to shipment to assure it is free from
manufacturing defects. Before installation, however, please check the lid's O ring to
ensure it is in place.
•If water hammer is evident, install water hammer arrestors before the system.
3.4. Electrical Connections
It is the responsibility of the end user to ensure that the installation is done according to local
codes and regulations. Plug in the power cord(s) into an appropriate outlet (refer to
specifications table) that is installed and grounded in accordance with all local codes and
ordinances.
NOTE: The system MUST be plugged into an uninterrupted power supply that matches the
rated power requirement of the system. In European installations, the appliance is to be
supplied through a residual current device (RCD) having a rated residual operating current
not exceeding 30 milliamps.
WARNINGS!
This appliance must be grounded. In the event of a malfunction or breakdown, grounding will
reduce the risk of electric shock by providing a path of least resistance for electric current.
This appliance is equipped with a cord having an appliance-grounding conductor and a
grounding plug. The plug must be plugged into an appropriate outlet that is installed and
grounded in accordance with all local codes and ordinances.
Improper connection of the appliance-grounding conductor can result in a risk of electric
shock. Check with a qualified electrician or service representative if you are in doubt whether
the appliance is properly grounded. Do not modify the plug provided with the appliance; if it
will not fit the outlet, have a proper outlet installed by a qualified technician.

Lync WQ-AS
SECTION 3: OPERATION
L- OMM-007_A •5/6/2022 Technical Support • [phone] • Mon-Fri, 8 am - 5 pm EST 13 of 42
3.5. Startup
Once the plumbing and electrical connection procedures are completed, the AquaSolve tank(s)
needs to be filled with water. Follow the steps below to fill up the tanks:
•Verify that the UV unit(s) is unplugged
•Verify that the inlet valve to Lync Cartridge Filter is closed
•Verify that the inlet valve and outlet valves of the AquaSolve tank(s) are open
•Connect a hose to the hose bibb(s) (outlet sampling valve) after the outlet valve of the
AquaSolve tanks
•Run the hose(s) to a drain and open the hose bibb(s)
•Slowly/partially open the supply water valve to the skid and allow the AquaSolve tank(s)
to slowly fill with water
•When a steady stream of water appears at the drain, close the supply valve and hose
bibb(s)
Once the fill-up procedure of the AquaSolve tank(s) is complete, before the startup, the system
needs to be inspected to be free of leak. After it is verified that that there is no leak, follow the
steps below to complete the startup:
•Verify that the outlet isolation valve after the skid and the inlet and outlet valves of the UV
system(s) are open
•Slowly/partially open the supply water valve to the skid
•Slowly open the inlet valve to the Lync Cartridge Filter and allow the water to pass
through Lync Cartridge Filter, and Lync UV
•Check the entire system for leaks and repair as needed
•If leaks occur at cartridge filter, close the inlet isolation valve to the filter, release pressure
by pressing pressure release button, remove lid and check the O-ring to be sure it is
properly seated.
•Plug in the power cord(s) into an appropriate outlet (refer to specifications table) to start
the UV disinfection
NOTES:
•DO NOT allow this system to remain ON without water in it for extended periods of time.
•DO NOT allow the system to freeze.
•Do not operate filter above 125psi (8.8 bar). In installations where pressure is above
100psi (6.9 bar), install a pressure release valve to release pressure at 125psi (8.8 bar)
or less.
•A 1⁄4" FNPT port and pressure gauge has been installed in the filter's lid to indicate
working pressure . A second gauge is installed downstream of the filter in the pipe line to
indicate pressure differential and help determine when cartridge replacement may be
necessary.

Lync WQ-AS
SECTION 3: OPERATION
L- OMM-007_A •5/6/2022 Technical Support • [phone] • Mon-Fri, 8 am - 5 pm EST 14 of 42
WARNING!
Do not attempt to remove the cartridge filter lid without relieving pressure. To open lid, close
shutoff valves before and after filter, press pressure relief button to relieve pressure. Once
pressure has been relieved, remove eyebolts and lid. To start up filter, replace lid, tighten
eyebolts, and open shutoff valves slowly to check for leaks. If lid O-ring does not seat
properly, close shutoff valves, relieve pressure, open lid, apply a small amount of non-
petroleum based lubricant to the O-ring to help it seal, reposition O-ring and close lid.
Fill in install date and rebed due date on product label located on the front of each tank as a
reminder to replace AquaSolve media every 3 years. The system is now ready for service.
3.6. Lync UV Controller
The Lync UV controller features are:
•Automatic lamp dimming for cooler operation
•Flow switch
•Lamp out audible alarm
•Glow cap lamp indicator
•Graphic touch screen display to show key operational data
•Alarm output for solenoid valve
•UV sensor input
•4-20 milliamp output for UV Intensity (when UV Sensor is used).
3.6.1. Lync UV Controller Wiring
Figure 3-2 UV Controller
4-20mA Transmitter (Left is
'Loop +', Right is 'Loop -')
Future Accessories
Top Cat 5- Future Accessories
Bottom Cat 5- UV Sensor
Alarm Relay A (Left to Right)
Normally Closed/Common/
Normally Open
Alarm Relay B (Left to Right)
Normally Closed/Common/
Normally Open
Power Input AC 100-240 VAC
50/60HZ
Right- Ground to Chassis
Center- Flow Switch
Left- Antenna Wire

Lync WQ-AS
SECTION 3: OPERATION
L- OMM-007_A •5/6/2022 Technical Support • [phone] • Mon-Fri, 8 am - 5 pm EST 15 of 42
3.6.2. Overview of Screens
Startup Screen
When the system is first powered up, this screen will appear.
Lamp Warm Up Screen
Once Startup Screen system checks are complete, the lamp
warm up screen will appear, and automatically complete the
lamp warm up sequence.
Home Screen
Upon completion of the Lamp Warm Up Screen the Home
Screen will automatically appear. This is the screen that the
system will display during normal operation. From the Home
Screen four sub-screens can be accessed by touching the
icons.
Home Screen - Sub-Screens
1- History Screen
Upon touching , the screen displays the number of days
that the system and lamp have been running. It also displays
the days remaining for the current lamp.
2- Dealer Contact Screen-Lamp & Sleeve
Upon touching , the screen provides the contact information for
the service company that installed the system.
3- Replacement Screen
Upon touching , the screen provides the lamp and sleeve
model numbers for the specific system installed along with QR
codes for those items.

Lync WQ-AS
SECTION 3: OPERATION
L- OMM-007_A •5/6/2022 Technical Support • [phone] • Mon-Fri, 8 am - 5 pm EST 16 of 42
4- Set Up Screen
Upon touching , the screen allows the user to select a
language as well as the bypassing and silencing of alarms.
Touching the house icon from any of these sub-screens will return the user to the Home
Screen.
3.6.3. Normal Operation
System checks are automatically executed by the controller in the Start Up Screen, then the
system advances to the Lamp Warm Up Screen. If an abnormal condition exists, a variety of
alarms can be displayed.
3.6.4. Possible Alarms
Upon start-up of the system, if the UV sensor is not found, the
user will be notified via this screen. The system will continue to
the Home Screen when a UV sensor is not found and display
the warning message.
The lamp identifies it’s self via radio frequency. If the wrong
lamp is used in a system, this message will appear during start
up.
Every 15 seconds the screen will change from the Invalid Lamp
Type message to the Name of Dealer message. Touch the QR
Code to display the correct lamp QR code in full.

Lync WQ-AS
SECTION 3: OPERATION
L- OMM-007_A •5/6/2022 Technical Support • [phone] • Mon-Fri, 8 am - 5 pm EST 17 of 42
Upon touching the QR code, the full QR code is displayed.
The Home Screen is the normal operating screen for the
system. In this graphic the lamp is operating at full power. If an
alarm or warning condition occurs, the system will notify the
user from this screen.
This graphic shows the lamp to be in a dimmed condition to
reduce water temperature and conserve energy.
If the system detects low UV intensity, a yellow warning will
appear. If the UV intensity is too low for safe operation a red
warning will appear. In either condition the system should be
checked immediately for proper operation.
The system will reset an annual calendar upon replacement of a
new lamp. When 29 days remain on any given lamp, a yellow
warning will appear. Upon zero days remaining on the lamp, a
red warning will appear. Replace lamp at this time.

Lync WQ-AS
SECTION 3: OPERATION
L- OMM-007_A •5/6/2022 Technical Support • [phone] • Mon-Fri, 8 am - 5 pm EST 18 of 42
The user will be notified if a lamp failure occurs. Upon a lamp
failure condition, the alarm relay will energize to close the outlet
solenoid valve (optional) on the system and an audible alarm will
sound. Replace lamp if needed
The user will be notified if a UV sensor failure occurs. Ensure
proper wiring connections to the controller. Clean or replace
sensor if needed.
3.6.5. Set Up Screen
The Set Up Screen can be accessed by pressing the gear icon
on the Home Screen. This allows the user to select a language,
bypass the alarm relay, and silence audible alarms. Touching the
house icon returns the user to the Home Screen.
3.6.6. Bypassing Alarms –Alarm Relay Output
Touching the alarm override icon will bring up a confirmation
screen. Touch Yes to return the alarm relay to the normal
operating position and return to the Set Up Screen. Touch No to
return to the set up screen with the alarm relay in the alarmed
condition.

Lync WQ-AS
SECTION 3: OPERATION
L- OMM-007_A •5/6/2022 Technical Support • [phone] • Mon-Fri, 8 am - 5 pm EST 19 of 42
The alarm relay output is bypassed.
The alarm output relay is not bypassed.
3.6.7. Bypassing Alarms –Audible Alarms
Touching the speaker icon will bring up a confirmation screen.
Touch Yes to mute the audible alarm for 24 hours and return to
the Set Up Screen. Touch No to return to the Set Up Screen
with the alarm not muted.
The audible Alarm is muted.
The audible Alarm is not muted.
3.6.8. Lamp and Sleeve Replacement Screen

Lync WQ-AS
SECTION 3: OPERATION
L- OMM-007_A •5/6/2022 Technical Support • [phone] • Mon-Fri, 8 am - 5 pm EST 20 of 42
The Lamp and Sleeve Replacement Screen can be accessed
by touching the information icon at the bottom of the Home
Screen. This will provide the system model number along with
the model number and QR codes for replacement lamps and
quartz sleeves.
Touching the QR Code icons on the Lamp and Sleeve
Replacement Screen will enlarge them.
If there are no buttons touched over a 30 seconds period the system will go back to the Home
Screen. To return from the full screen QR code, touch the screen.
3.7. Modbus Communication
Remote communication of the Lync UV control system utilizes Modbus over a RS-485 protocol.
Connect the RJ45 cable into CAT 5 ethernet connection port at the bottom of Lync UV controller
(see section 3.6. to locate the port). In order to connect the control wiring to Building
Management System (BAS), use a RJ45 to terminal block adapter and RS-485 wiring.
3.7.1. Serial Communication Settings
The communications settings required by the RS-485 interface are shown in table below.
Baud Rate
19200 Baud
Parity
Even
Data Bits
8
Stop Bits
1
3.7.2. Supported Function Codes
The MODBUS Server in the Lync UV Controller supports the MODBUS function codes and
requests shown in table below.
Request
Function Code
Base-16
Base-10
Read Holding Registers
0x03
3
Read Input Registers
0x04
4
Write Single Register
0x06
6
Report Server ID
0x11
17
