INSTALLATION INSTRUCTIONS AND OWNER’S MANUAL
Model 3651-372
Installation Instructions
and Owner’s Manual
IMPORTANT NOTICE!
Read the enclosed instructions carefully before installing/
operating this garage door opener. Pay close attention to all
warnings and notes. This manual MUST be attached to the
wall in close proximity to the garage door opener.
© Copyright 2004, 2005, 2006 Wayne-Dalton Corp. Rev 7 6/6/2006
Part No. 305871

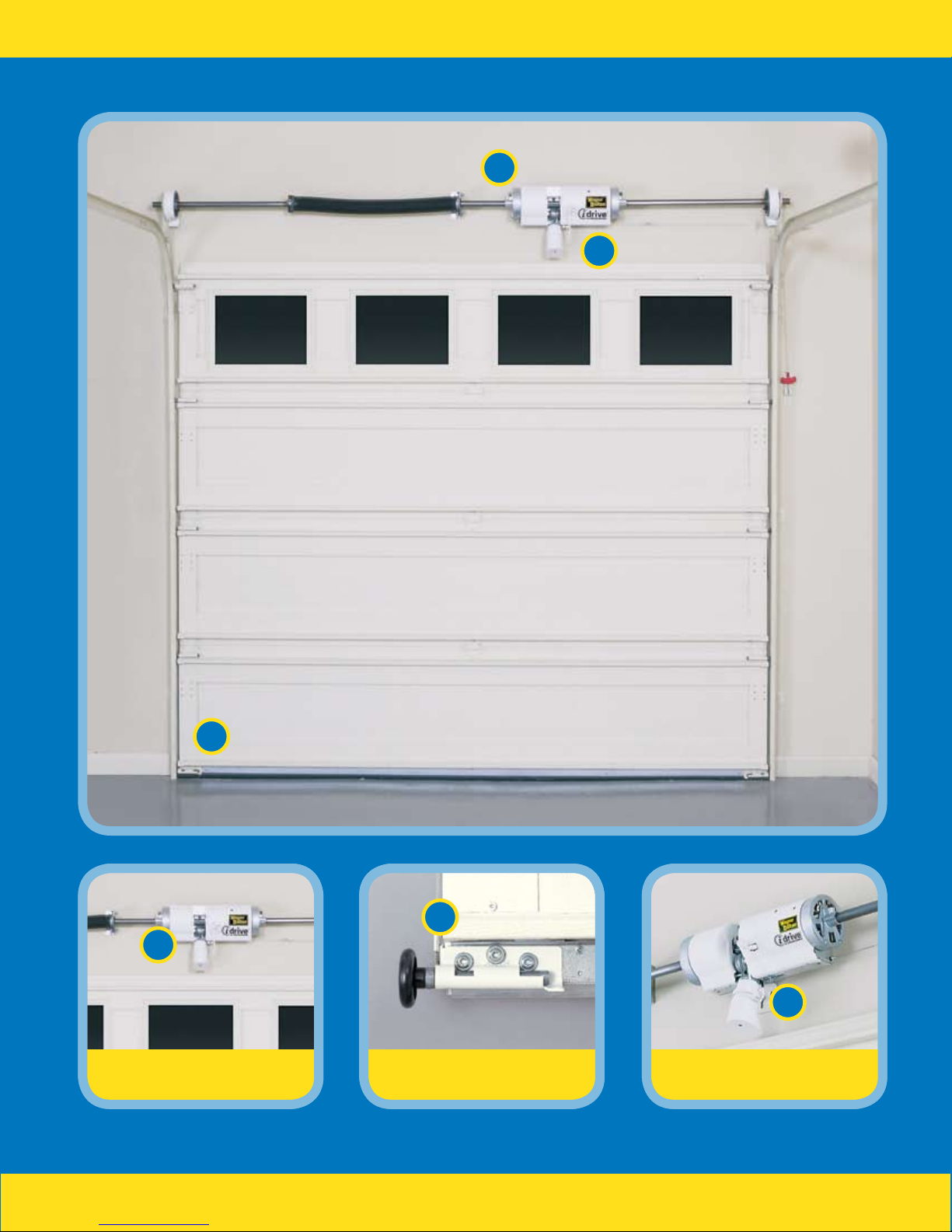

HOW idrive WORKS
1
3
2
Lift cables raise door
from bottom.
Security arm manually locks
closed door.
MOUNTS ON THE WALL INSTEAD OF CLUTTERING THE CEILING
1
3
2
idrive mounts to the
counterbalance above door.

You can reach us Toll Free at 1-888-827-3667 for Consumer Assistance or online at www.wayne-dalton.com
Please Do Not Return This Product To The Store. Call Us Directly! Our Trained Technicians Will Answer Your Questions and/or Ship Any Parts You May Need
Package Contents
Three
labels &
manual
not shown
Three
labels &
manual
not shown
Keychain/Visor
Transmitter (2)
Three
labels &
manual
not shown
Mounting Bracket
Three
labels &
manual
not shown
Gear Assemblies (2)
Opener
Wall Station
Three
labels &
manual
not shown
Cable Keeper
Assemblies
with Hardware
(2: 1 Right + 1 Left)
Three
labels &
manual
not shown
Grease Packet
Three
labels &
manual
not shown
Security Light with
Diffuser
Three
labels &
manual
not shown
Disconnect Handle
Three
labels &
manual
not shown
Sensor Wire Clip
Three
labels &
manual
not shown
Disconnect Cable Guide
Bracket
Three
labels &
manual
not shown
Disconnect
Handle Bracket
Insulated Staples (12)
Three
labels &
manual
not shown
Disconnect Cable
Three
labels &
manual
not shown
Power Cord Clips (4)
“S” Hook
Emergency
Disconnect Label
Three
labels &
manual
not shown
Safety Sensors
(2: 1 Sender + 1
Receiver)
Installation DVD
Owner’s Manual
Safety Sensor Bracket (2)
Entrapment Label
#6-20 x 1/2” Plastic fast
Screws (1)
#6-25 x 1/4” Self
Tapping Screws (2)
1/4-20 x 3/8” Self
Tapping Screws (4)
#6-32 x 3/4” Phillips
Pan Head Screw (1)
5/16-18 Nut (2)
5/16 x 1-5/8” Hex Head Lag Screws (2)
5 Button Wireless
Keyless Entry
1/4 x 1-1/2” Hex Head Lag Screws (4)#6 x 7/8” Phillips Pan
Head Screws (4)
5/16 Lock Washer (2)
I

PRE-INSTALLATION INSPECTION OF YOUR GARAGE DOOR PRIOR TO IDRIVE® FOR
TORSION SPRINGS INSTALLATION
Congratulations, you have just purchased one of the world’s safest garage door
openers! By design, this opener will detect obstructions and reverse rather than force
the door through obstructions. To ensure your new idrive® opener works as intended,
your garage door must be installed and balanced properly. Before installing your garage
door opener, open and close your door manually to ensure that it operates smoothly
from top to bottom. A properly balanced door should not take a lot of effort to open
or close by hand. The door should stay in the open and in the closed position without
drifting. If a door opens fast going up, the door may need spring tension reduced. If the
door drops fast going down, the door may need spring tension increased.
If the door operates properly, then proceed to your idrive® installation manual for
instructions on how to install idrive® for torsion springs garage door opener.
If the operation of the door does not perform as indicated above, please contact a
professional installer to adjust the door spring balance before installing idrive®.
You must contact a professional installer to make adjustments. Do not adjust torsion
springs if you are not a professional installer, as springs have high energy which can
cause severe or fatal injury. Visit www.wayne-dalton.com to find the location of your
nearest professional dealer.

You can reach us Toll Free at 1-888-827-3667 for Consumer Assistance or online at www.wayne-dalton.com
Please Do Not Return This Product To The Store Call Us Directly! Our Trained Technicians Will Answer Your Questions and/or Ship Any Parts You May Need
Pre-Installation Inspection
CAUTION! Do not install this Opener on your door unless the following
requirements are met.
Two electrical outlets are recommended for the idrive installation.
One of these outlets needs to be located less than 6’ from the
operator. The second outlet, for the light, can be located at a
position of your choice.
If in the event that an electrical outlet is not located within 6’ of
the operator, contact a local electrician for further options.
Your door must not exceed 8’ in height.
The torsion idrive®Opener will only work on sectional doors.
Do not install on one piece doors.
Your garage door must be properly balanced (door must not be
heavy to lift, nor lift by itself). Maximum door weight (without
spring tension) must not exceed 400lb.
The torsion iDrive®will not work on low headroom systems.
Horizontal tracks should be pitched 1” above level at rear of track.
Pre-Installation Inspection
Before installing the torsion idrive®Opener, ensure your door system
meets the following requirements. See the illustrations above as a
visual aid.
The torsion tube must be 1” in diameter.
There must be at least 30-3/8” of clear torsion tube between the
right (inside garage looking out) Cable Drum and end of left hand
gear. When installing the Opener, ensure there is at least 6” of
clearance between the cable end and the Cable Guide Bracket.
The Motor requires between 2-3/4” to 4-1/2” of clearance above
the top of the torsion tube.
There must be at least 7” of clearance between the top of the
door and the bottom of the torsion tube.
Required distance from the torsion tube to the header (mounting
surface) must be 2” to 2-7/8”.
Torsion Tube
1” Diameter
7” Min
Lock/Motor
S Hook
Cable Guide
Bracket
2-3/4”
4-1/2”
Counterbalance
Cable
Lock Adjustments
Clearance for Motor
Cable
Drum
Electrical Outlet
For Opener
A
D
30-3/8”
C
Track
A
B
C
D
E
II
Top of door
Electrical Outlet for
Light/Opener
F
F
2”- 2-7/8”
Min
Mounting Surface
ETop View
13-3/8”
10-3/4”
6”
B

You can reach us Toll Free at 1-888-827-3667 for Consumer Assistance or online at www.wayne-dalton.com
Please Do Not Return This Product To The Store. Call Us Directly! Our Trained Technicians Will Answer Your Questions and/or Ship Any Parts You May Need
2
1
4
3
Note: If your Torsion Spring does not match one of the
following Torsion Springs you may not install this idrive.
NOTE: Option 4 depicts an EZ-Set™ torsion spring system. EZ-Set™
torsion spring system is a registered trademark of Clopay®Building
Products - a Griffon Company.
NOTE: When installing torsion iDrive®on EZ-Set™ torsion spring
system, there must be at least 30-3/8” of clear torsion tube between
center bearing bracket and left side of the right hand torsion spring.

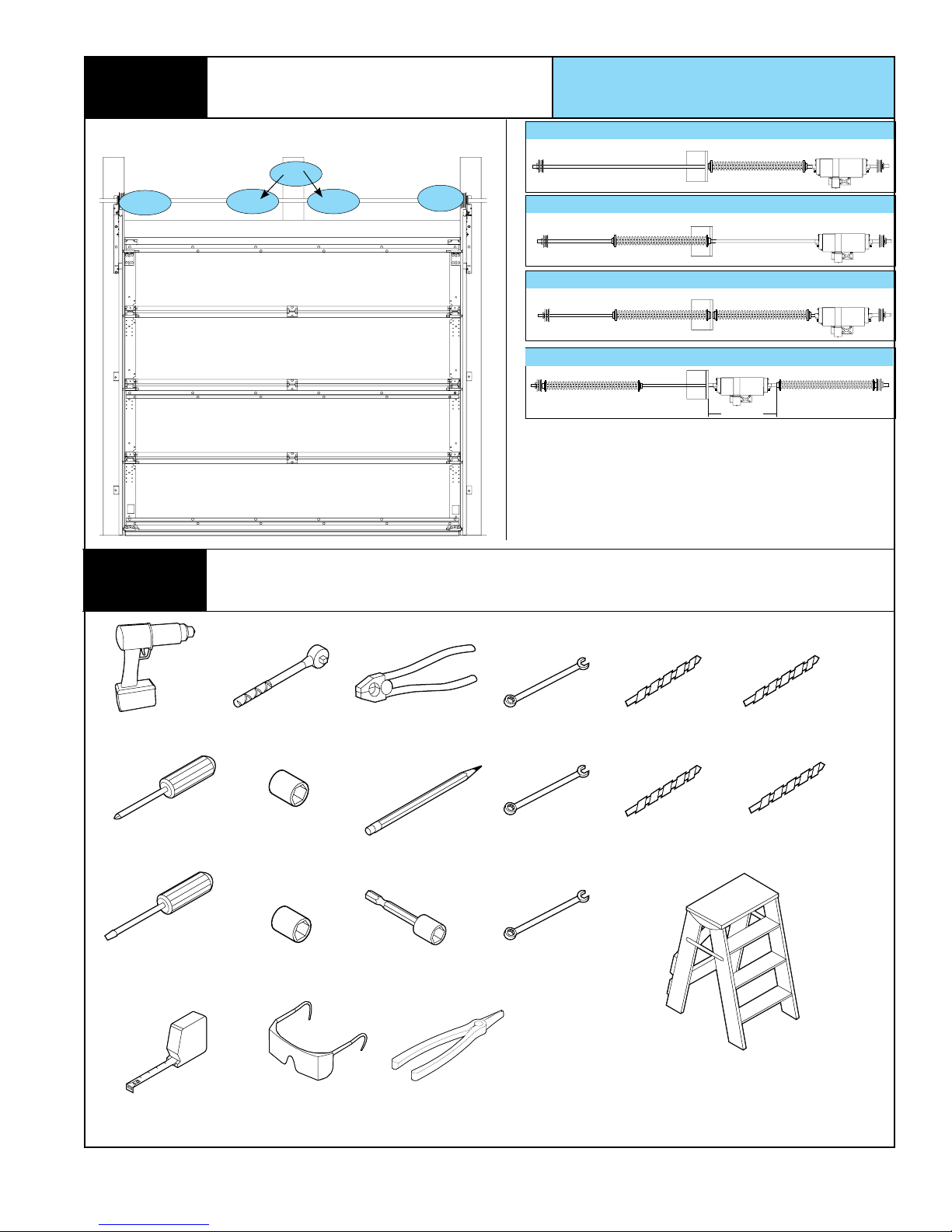

Pre-Installation Inspection
44
2 1
3
Possible Spring Locations
Power Drill
Flat Tip
Screwdriver
Pencil
Safety GlassesTape Measure
1/8” Drill Bit
3/16” Drill Bit3/32” Drill Bit3/8” Wrench
7/16” Wrench
1/2” Wrench
Pliers/Wire Cutters
7/16” Socket Driver
7/16” Socket
1/2” Socket
Ratchet Wrench
Step Ladder
Phillips Head
Screwdriver
5/64” Drill Bit
Tools Needed
III
Needle Nose Pliers
30-3/8”

You can reach us Toll Free at 1-888-827-3667 for Consumer Assistance or online at www.wayne-dalton.com
Please Do Not Return This Product To The Store Call Us Directly! Our Trained Technicians Will Answer Your Questions and/or Ship Any Parts You May Need
INCORRECT
INSTALLATION CAN LEAD TO
SEVERE OR FATAL INJURY.
FOLLOW THESE INSTRUCTIONS
CAREFULLY.
IMPORTANT SAFETY
INSTRUCTIONS
1. READ AND FOLLOW ALL INSTALLATION INSTRUCTIONS.
2. Do not connect the Opener to electrical power until
instructed to do so.
3. Install the Entrapment Warning Label next to the
Wall Station in a prominent location. Install the Emergency
Disconnect Label next to the Emergency Disconnect.
4. Remove all ropes and remove or make inoperative in the
unlocked position, all locks connected to the garage door
before installing the Opener.
5. Do not wear rings, watches or loose clothing when installing
or servicing a garage door system.
6. It is important that you install all the components supplied
with the idrive Opener, i.e., Wall Stations, Safety Sensors, etc.
Use of parts not supplied by Wayne-Dalton Corp. may cause
the Opener to malfunction and create unsafe conditions.
7. Wear safety glasses for eye protection when installing or
servicing the Opener or door.
8. Install Opener on a properly balanced and operating garage
door. Have a qualified service person make adjustments/
repairs to cables, spring assemblies, and other hardware
before installing the Opener. An improperly balanced door
could cause severe injury.
9. Where possible, install the Opener seven feet or more above
the floor. Mount the Emergency Disconnect six feet above
the floor.
10. Locate the Wall Station: (a) within sight of door, (b) at a
minimum height of five feet, so small children cannot reach it,
and (c) away from all moving parts of the door.
11. After installing the Opener, the door MUST reverse when it
contacts a 1- 1/2” high object (or 2 x 4 board laid flat) on
the floor. The door MUST also reverse when a 6” high object is
placed on the floor in line with safety sensors.
12. Installation and wiring must comply with local building and
electrical codes. Connect the Power Cord to a properly
grounded outlet. Do not remove the ground pin from
Power Cord.
After installation is complete, fasten this
manual near garage door. Perform Monthly
obstruction test and maintenance as
recommended. See pages 23 and 31.
WARNING
Table of Contents
Package Contents ............................................................................... I.
Pre-Installation Inspection................................................................... II-III.
Tools Needed ...................................................................................... III.
Important Safety Instructions .............................................................. IV.
Torsion idrive Installation..................................................................... 1-16.
Pre-Operation Installation.................................................................... 17-25.
Operation ............................................................................................ 26-31.
Maintenance ....................................................................................... 31.
Troubleshooting................................................................................... 32-33.
Warranty ............................................................................................. 33.
Customer Service Number .................................................................. 34.
IV

Tools Needed:
Tools Needed:
You can reach us Toll Free at 1-888-827-3667 for Consumer Assistance or online at www.wayne-dalton.com
Please Do Not Return This Product To The Store. Call Us Directly! Our Trained Technicians Will Answer Your Questions and/or Ship Any Parts You May Need
1
Tools Needed:
Tools Needed:
Tools Needed:
1Preparing for Installation
a. If the header does not provide a
mounting surface for the Opener, a
proper mounting surface will need to
be installed.
Securely fasten a wood mounting
surface (2” X 6” recommended) to the
building structure. Make sure the
surface is flush with the header and
properly positioned to allow mounting
the Opener on it.
b. Position Mounting Bracket over
threaded studs and hand tighten with
the (2) 5/16” X 18 hex nuts and
(2) lock washers.
NOTE: Black Drive Gears are factory set.
Do not attempt to turn these gears.

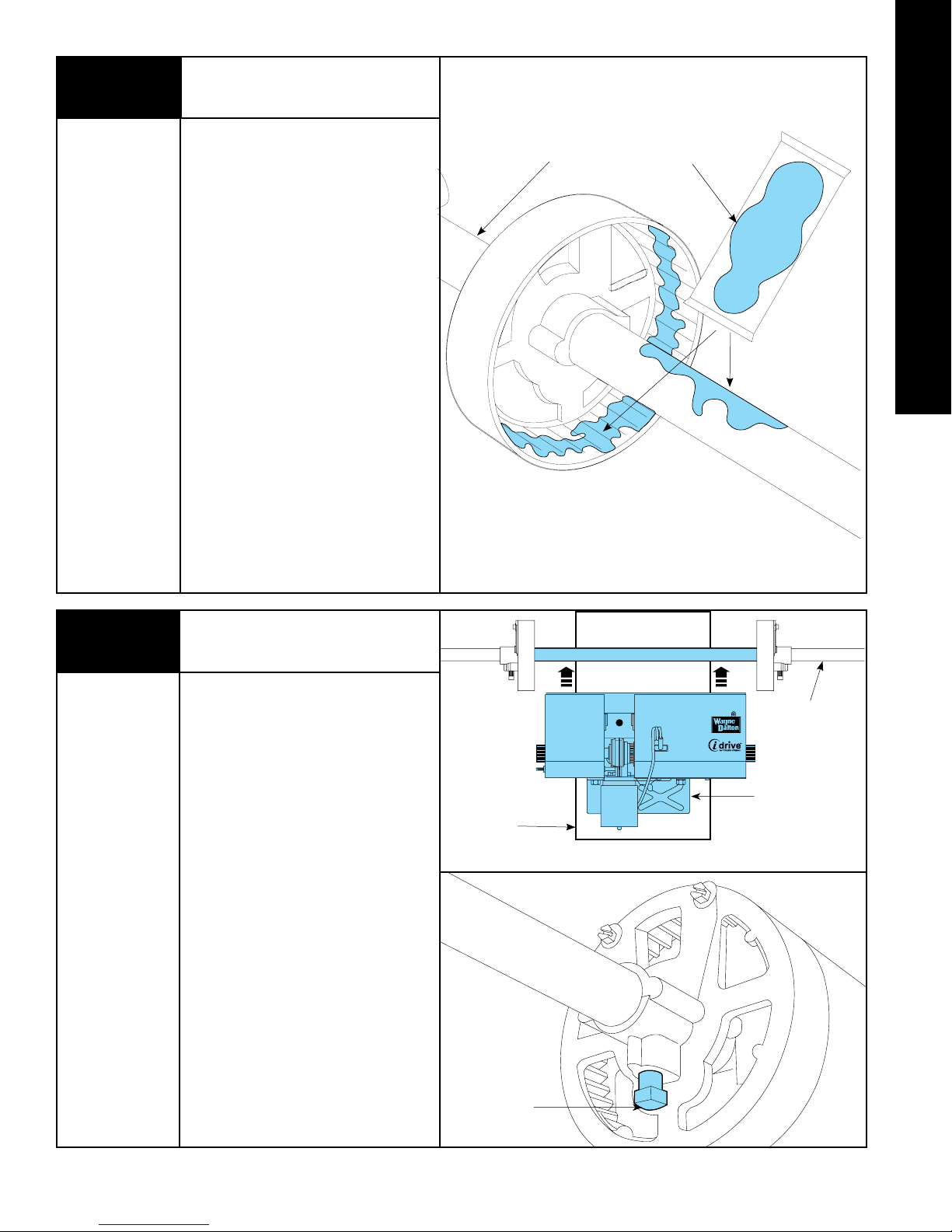

2Installing Gear Assemblies
None
3/8” Wrench
Clean torsion tube of dirt and loose rust
prior to installing the Gear Assemblies.
Remove the Bridge Gears from the
Gear Assemblies.
Place the main gear onto the Torsion
Tube. Orient the Bridge Gear so it can
slide into position surrounding the torsion
tube. Ensure both pieces fit together
properly.
Secure the Bridge Gear to the Main Gear
with the (2) 1/4-20 x 3/8” screws.
Repeat procedure with second Gear
Assembly. Slide the Gear Assemblies
19” apart. See illustration for proper
orientation of the Gear Assemblies.
a
b
Mounting Surface
(2’ x 6” Recommended)
Opener
Studs Lock Washers
5/16” -18 Nuts
Mounting
Bracket
On Same Plane
Black Drive
Gears
Gear Assembly
Torsion
Tube
Main Gear
Bridge
Gear
1/4-20 x 3/8”
Screws
19”

Tools Needed:
Tools Needed:
INSTALLATION
You can reach us Toll Free at 1-888-827-3667 for Consumer Assistance or online at www.wayne-dalton.com
Please Do Not Return This Product To The Store Call Us Directly! Our Trained Technicians Will Answer Your Questions and/or Ship Any Parts You May Need
2
None
None
3Lubricating Gear Assemblies
Lubricate both right hand and left
hand Gear Assembly teeth with the
grease provided.
Apply grease along the Torsion Tube
where the Opener will mount.
Installing Opener
Place the Opener over the Torsion Tube
and between the two Gear Assemblies.
Center the Mounting Bracket on the
Mounting Surface.
To ease installation, position the Gear
Assemblies so the 3/8” Square Head
Bolts are accessible from the front.
4
Torsion
Tube
Grease
Packet
Square
Head Bolt
Mounting
Bracket
Mounting
Surface
Torsion Tube

Tools Needed:
You can reach us Toll Free at 1-888-827-3667 for Consumer Assistance or online at www.wayne-dalton.com
Please Do Not Return This Product To The Store. Call Us Directly! Our Trained Technicians Will Answer Your Questions and/or Ship Any Parts You May Need
5
6

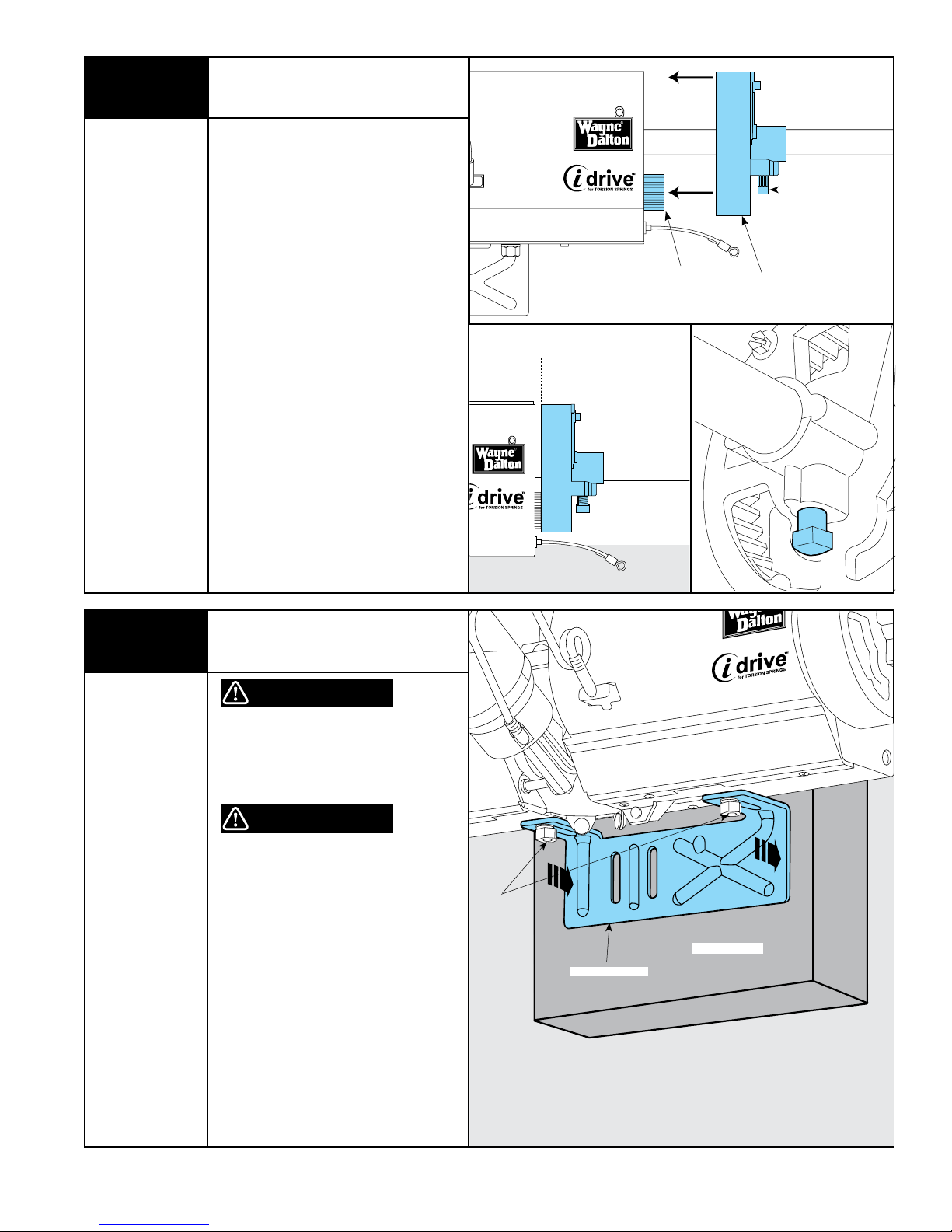

Positioning Opener
Lift the Opener slightly and slide the
Right Hand Gear Assembly over so the
Right Hand Drive Gear meshes with and
rests on the teeth of the Right Hand Gear
Assembly. Position Gear Assembly so it is
1/8” from the Opener. Hand tighten
Square Head Bolt.
Repeat for Left Hand Gear Assembly. Left
Hand Gear Assembly Square Head Bolt
should be hand tightened, then with a
wrench tighten 1 to 1 - 1/4 turns to
secure Gear Assembly. Do not tighten
Right Hand Gear Assembly at this time.
NOTE: Black Drive Gears are factory
preset. Do not attempt to turn these
gears.
Positioning Mounting Bracket
LOOSENING OR REMOVING ANY LAG
SCREWS, OR OTHER FASTENERS FROM
THE CENTER SPRING BRACKET
ASSEMBLY COULD RESULT IN SEVERE
OR FATAL INJURY
DO NOT MAKE ANY ADJUSTMENTS TO
THE TORSION SPRING OR ANY OF ITS
COMPONENTS BECAUSE THEY ARE
UNDER EXTREME SPRING TENSION AT
ALL TIMES.
Adjust the Mounting Bracket so it fits flush
on the header. Tighten the 5/16-18 nuts
on the threaded studs located on the
bottom of the opener.
1/2” Socket
Ratchet Wrench
Tools Needed:
3/8” Wrench
Right Hand
Drive Gear Right Hand
Gear Assembly
1/8”
Square
Head Bolt
Mounting Surface
Mounting Bracket
5/16-18 Nuts
3
WARNING
WARNING

Tools Needed:
Tools Needed:
INSTALLATION
You can reach us Toll Free at 1-888-827-3667 for Consumer Assistance or online at www.wayne-dalton.com
Please Do Not Return This Product To The Store Call Us Directly! Our Trained Technicians Will Answer Your Questions and/or Ship Any Parts You May Need
7Securing Mounting Bracket
Secure the Mounting Bracket to the
Mounting Surface by first pre-drilling the
Lag Screw locations with a 3/16”
diameter bit and fastening with (2) 5/16”
x 1-5/8” Lag Screws.
8Preparing Disconnect Cable
Insert a screwdriver through the cable
loop, to use as a handle when pulling
Disconnect Cable.
Pull out the Disconnect Cable located at
the lower right hand side of the Opener.
NOTE: The Disconnect Cable must be
pulled straight out. The Disconnect Cable
cannot be pulled at an angle.
While holding the Disconnect Cable rotate
the Motor into the down position.
Release the Disconnect Cable to
re-engage the Motor assembly.
NOTE: Motor may partly pivot upwards
due to springs.
Drill with 3/16” bit
7/16” Socket Driver
Screwdriver
(any type)
(2) 5/16” x 1-5/8”
Lag Screws
Disconnect Cable
Motor
4

Tools Needed:
You can reach us Toll Free at 1-888-827-3667 for Consumer Assistance or online at www.wayne-dalton.com
Please Do Not Return This Product To The Store. Call Us Directly! Our Trained Technicians Will Answer Your Questions and/or Ship Any Parts You May Need
Thread the Disconnect Cable Guide
Bracket onto the Disconnect Cable
making sure the proper hole is used.
• For 2” to 2-1/8” torsion tube to header
offset, use the hole closest to the
flange.
• For 2-7/8” torsion tube to header
offset, use the hole farthest from the
flange.
NOTE: Depending on the type of door
hardware present, it may be necessary
to drill a hole in the right side flagangle
and/or End Bearing Bracket for routing
the Disconnect Cable.
Threading Disconnect Cable
Guide Bracket
9
10

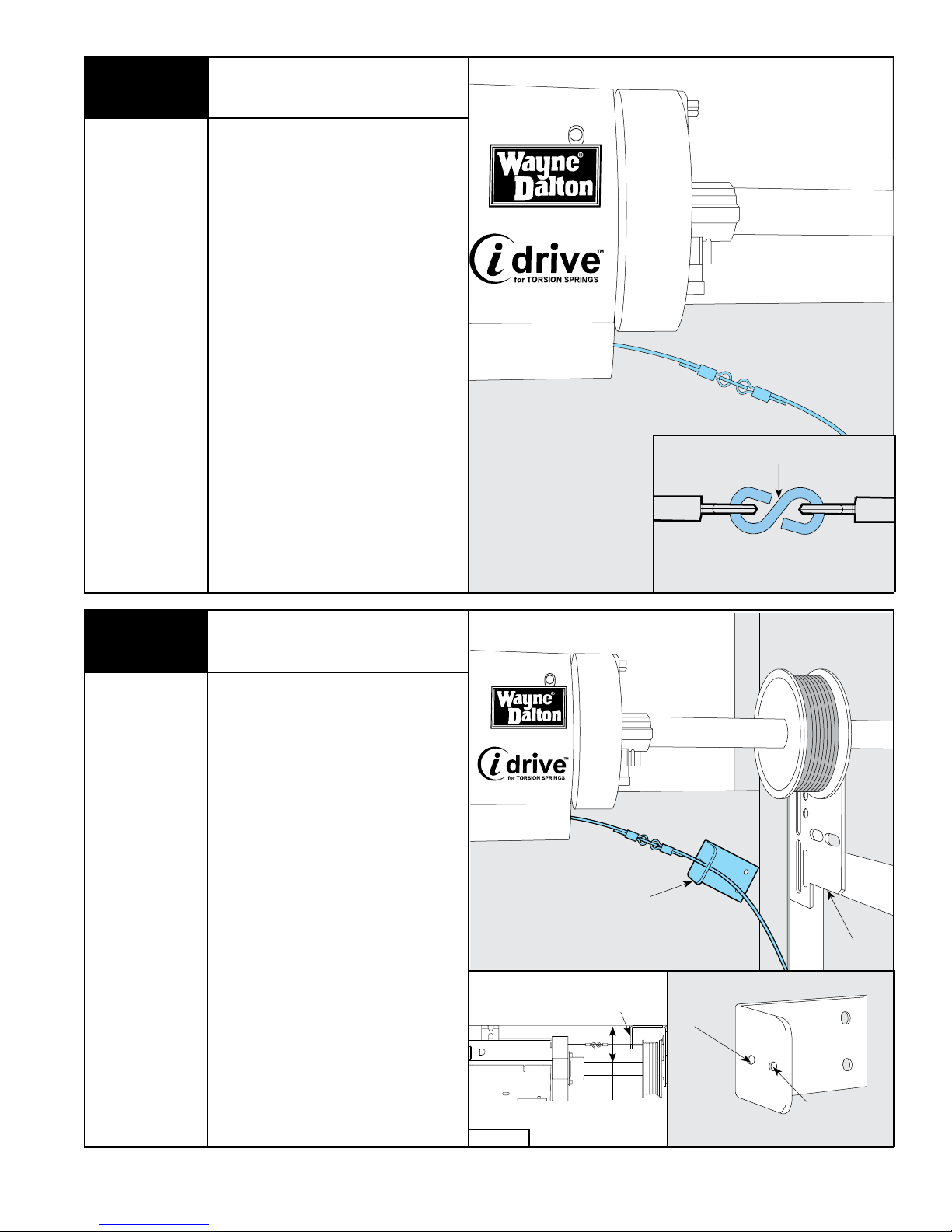

Attaching Disconnect Cables
Attach the loose Disconnect Cable, from
the hardware kit, to the attached
Disconnect Cable using the “S” Hook.
Close both ends of the “S” Hook to lock
the cables together.
None
Tools Needed:
Pliers
Close S-Hook
2-7/8” offset
2” offset
2-1/8” offset
Disconnect Cable
Guide Bracket
Flagangle
5
2”- 2-7/8”
Min
Mounting Surface
Top View
Disconnect Cable
Guide Bracket

Tools Needed:
Tools Needed:
INSTALLATION
You can reach us Toll Free at 1-888-827-3667 for Consumer Assistance or online at www.wayne-dalton.com
Please Do Not Return This Product To The Store Call Us Directly! Our Trained Technicians Will Answer Your Questions and/or Ship Any Parts You May Need
12
Route the Disconnect Cable behind the
counterbalance cable and through a
convenient hole or slot in the Flagangle.
Ensure the Disconnect Cable does not
rub against Counterbalance Cable.
If there isn’t a hole available, it may be
necessary to drill a 1/8” diameter hole in
the Flagangle and/or end bearing bracket.
IMPORTANT! Verify the Disconnect Cable
is between the Counterbalance Cable and
the header/jambs. Route the Disconnect
Cable through Flagangle so the
Disconnect Cable hangs outside of the
track.
Routing the Disconnect Cable
Drill with 1/8” bit
Counterbalance cable
Flagangle
11
Position the flange of the Disconnect
Cable Guide Bracket just inside the Cable
Drum. Align the Disconnect Cable so it
remains parallel to the Torsion Tube.
When installing Opener, ensure there is at
least 6” of clearance between the cable
end and the Cable Guide Bracket.
IMPORTANT! If the Disconnect Cable is
not aligned parallel to the Torsion Tube,
the disconnect operation will not function
properly.
Once the Disconnect Cable Guide Bracket
is aligned, drill pilot holes using 1/8” drill
bit. Secure the bracket to the jamb, using
(2) 1/4 x 1-1/2” lag screws.
Attaching Disconnect Cable
Guide Bracket
Drill with 1/8” bit
7/16” Socket
Driver
Tape Measure
6”
6

Tools Needed:
You can reach us Toll Free at 1-888-827-3667 for Consumer Assistance or online at www.wayne-dalton.com
Please Do Not Return This Product To The Store. Call Us Directly! Our Trained Technicians Will Answer Your Questions and/or Ship Any Parts You May Need
13
Mark a location on the right jamb, 6 feet
above the floor to mount the Disconnect
Handle Bracket. Align top of the Bracket
with the mark. Drill pilot holes using 1/8”
drill bit. Fasten Bracket to the jamb with
(2) 1/4 x 1-1/2” Lag Screws.
Mounting Disconnect
Handle Bracket
Tools Needed:
Pencil
Tape measure
Drill with 1/8” bit
7/16” Socket
Driver
Start the #6-20 x 1/2” Screw into the
Handle. Thread the Disconnect Cable
through the top of the Handle Bracket and
then the Handle. Locate the Handle in upper
position of Handle Bracket.
Remove all cable slack between the Opener
and the top of the Handle Bracket. Pull the
Disconnect Cable only enough to remove the
Cable’s slack (pulling the Cable more
could cause Opener to disconnect from
the Torsion Tube).
NOTE: If Motor disconnects from Torsion
Tube refer back to step 8.
Tighten #6-20 x 1/2” screw into the handle
until snug, and then tighten screw an
additional 1 to 1-1/2 turns to secure cable
to handle. Trim off excess cable from bottom
of the handle.
Apply Emergency Disconnect Label next
to the Disconnect Handle Bracket. Use
mechanical fasteners if adhesive will
not adhere.
Note: Pulling the Disconnect Handle down
and hooking it to the bottom of the
Disconnect Handle Bracket will place the
door in manual operated position. When
releasing the Disconnect Handle from the
manual operated position to the motor
operated position, the Disconnect Cable will
be slacked. This is normal. When the Opener
is activated the slack will be taken up.
Attaching Disconnect Handle
14
Tools Needed:
Phillips head
screwdriver
Wire cutters
Opener
Disconnect Handle
Bracket
Right
Jamb
6’
#6-20 x 1/2”
Screw
Disconnect
Handle
Bracket
Disconnect
Cable
Handle
Motor operated position Manual operated position
Upper Position
7
Emergency Disconnect Label
FEET
FROM
FLOOR

Tools Needed:
Tools Needed:
INSTALLATION
You can reach us Toll Free at 1-888-827-3667 for Consumer Assistance or online at www.wayne-dalton.com
Please Do Not Return This Product To The Store Call Us Directly! Our Trained Technicians Will Answer Your Questions and/or Ship Any Parts You May Need
15
16

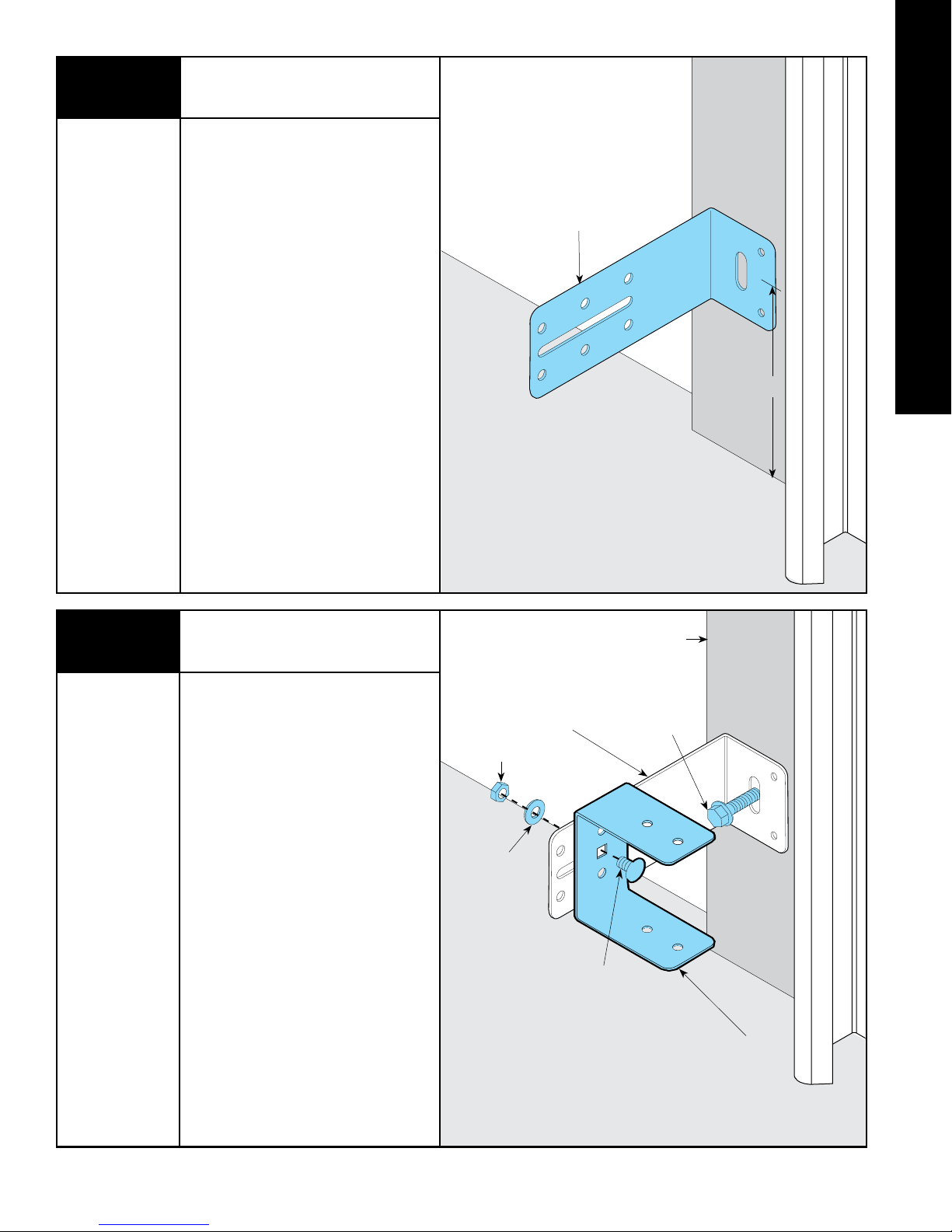

Select and mark with a pencil, a
mounting position no more than 5 inches
above the floor to center line of wall
mounting bracket. The Safety Sensors
should be mounted as close to the door
track or inside edge of the door as
possible to offer maximum entrapment
protection. It is very important that both
wall brackets be mounted at the same
height for proper alignment.
Use Steps 15-17 for installing sensors on
both sides of the garage door.
Positioning Safety Sensor
Wall Mounting Brackets
Attaching Safety Sensor Wall
Mounting Brackets
Drill pilot holes, using a 3/16” drill bit.
Using two 5/16 x 1-1/2” lag screw,
permanently mount the Wall Mounting
Brackets to both door jambs. In some
installations it may be necessary to attach
a wooden spacer to the wall to achieve
the required alignment.
Attach the “U” Brackets to the Wall
Mounting Brackets with 1/4-20 x 1/2”
Carriage Bolts, Washers and Nuts.
Insert the Bolts from the inside of the “U”
Bracket and hand tighten.
Pencil
Tape measure
:
Drill with 3/16” bit
7/16” Socket Driver
7/16” Wrench
Wall Mounting
Bracket
5”
Washer
Nut
1/4-20 x 1/2”
Carriage Bolt
5/16 x 1-1/2”
Lag Screw
Door Jam
U-Bracket
8
Emergency Disconnect Label
Wall Mounting
Bracket

Tools Needed:
Tools Needed:
You can reach us Toll Free at 1-888-827-3667 for Consumer Assistance or online at www.wayne-dalton.com
Please Do Not Return This Product To The Store. Call Us Directly! Our Trained Technicians Will Answer Your Questions and/or Ship Any Parts You May Need

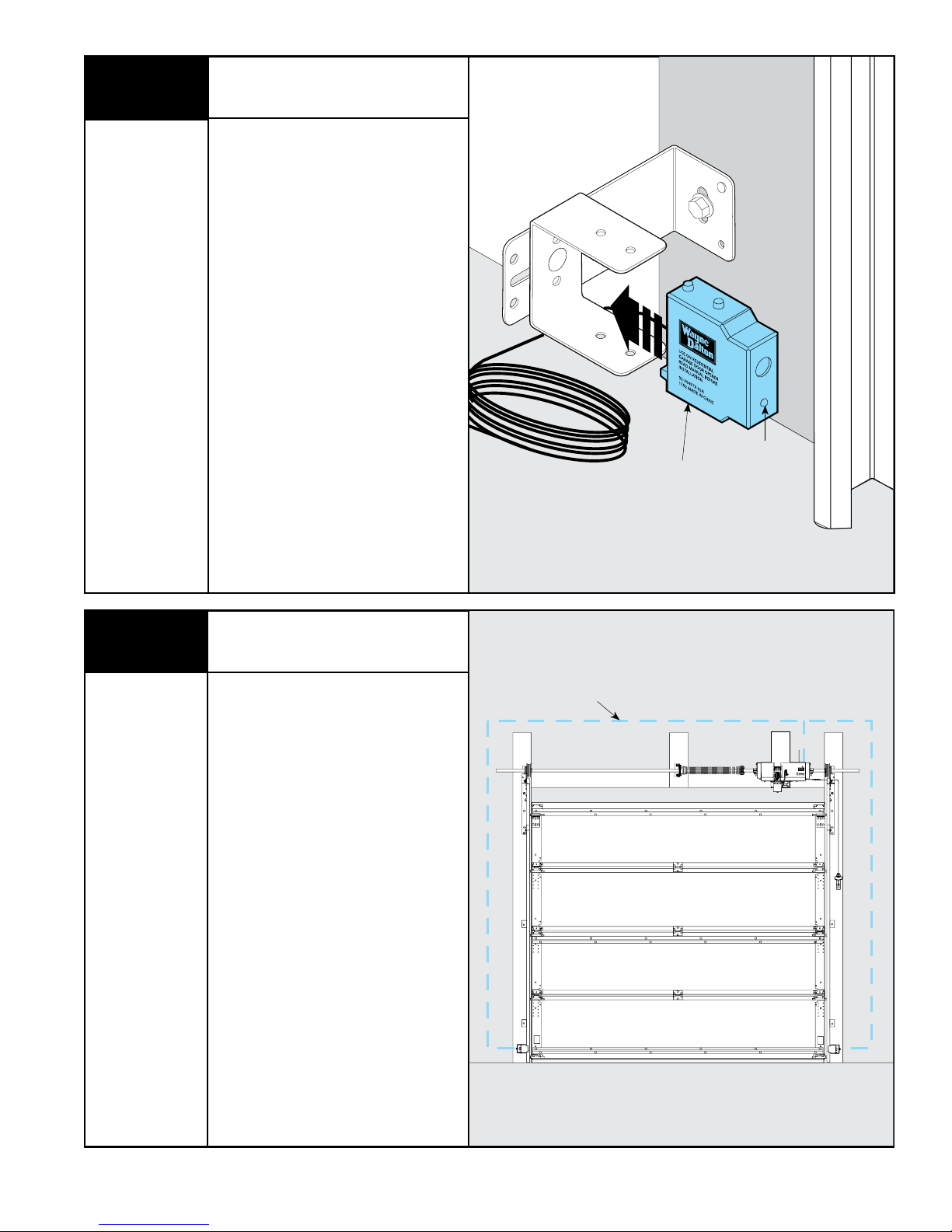

17 Attaching Safety Sensors
Attach the Sending and Receiving Safety
Sensors to the “U” Brackets by inserting
all three tabs into the respective holes.
IMPORTANT! Identify which side of the
garage door is exposed to the most
sunlight. Mount the Sending Unit (Unit
without LED) on the side which is exposed
to the most sun. Sunlight may affect the
Safety Sensors, this orientation will help
reduce the effect.
Receiving
Unit
LED
None
Routing Safety Sensor Wires
Uncoil Wires from Safety Sensors and
route Wires up garage wall and above
torsion tube towards the right side of the
Opener Power Head.
Route Wires behind torsion tube and tack
Wires in place with Insulated Staples.
NOTE: If wires must be lengthened or
spliced use wire nuts or suitable
connectors.
18
Hammer
Wire Routing
9

Tools Needed:
INSTALLATION
You can reach us Toll Free at 1-888-827-3667 for Consumer Assistance or online at www.wayne-dalton.com
Please Do Not Return This Product To The Store Call Us Directly! Our Trained Technicians Will Answer Your Questions and/or Ship Any Parts You May Need
Organizing Safety Sensor
Sender and Receiver Wires
IMPORTANT! Keep Safety Sensor Wires
away from moving parts.
Keep the Safety Sensor Wires straight and
organized by wrapping them around the
backside of the Opener and securing
them using the Sensor Wire Clip
(adhesive backed). (Ensure the surface
the wire clip is attached to is clean and
oil free).
Position Right Hand Gear Assembly so it
is 1/8” from the Opener. Right Hand Gear
Assembly Square Head Bolt should be
hand tightened, then with a wrench
tighten 1 to 1 - 1/4 turns to secure Gear
Assembly.
20
Tools Needed:
3/8” Wrench
Right Hand
Drive Gear
Square
Head Bolt
Right Hand
Gear Assembly
1/8”
Sensor
Wire Clip
10

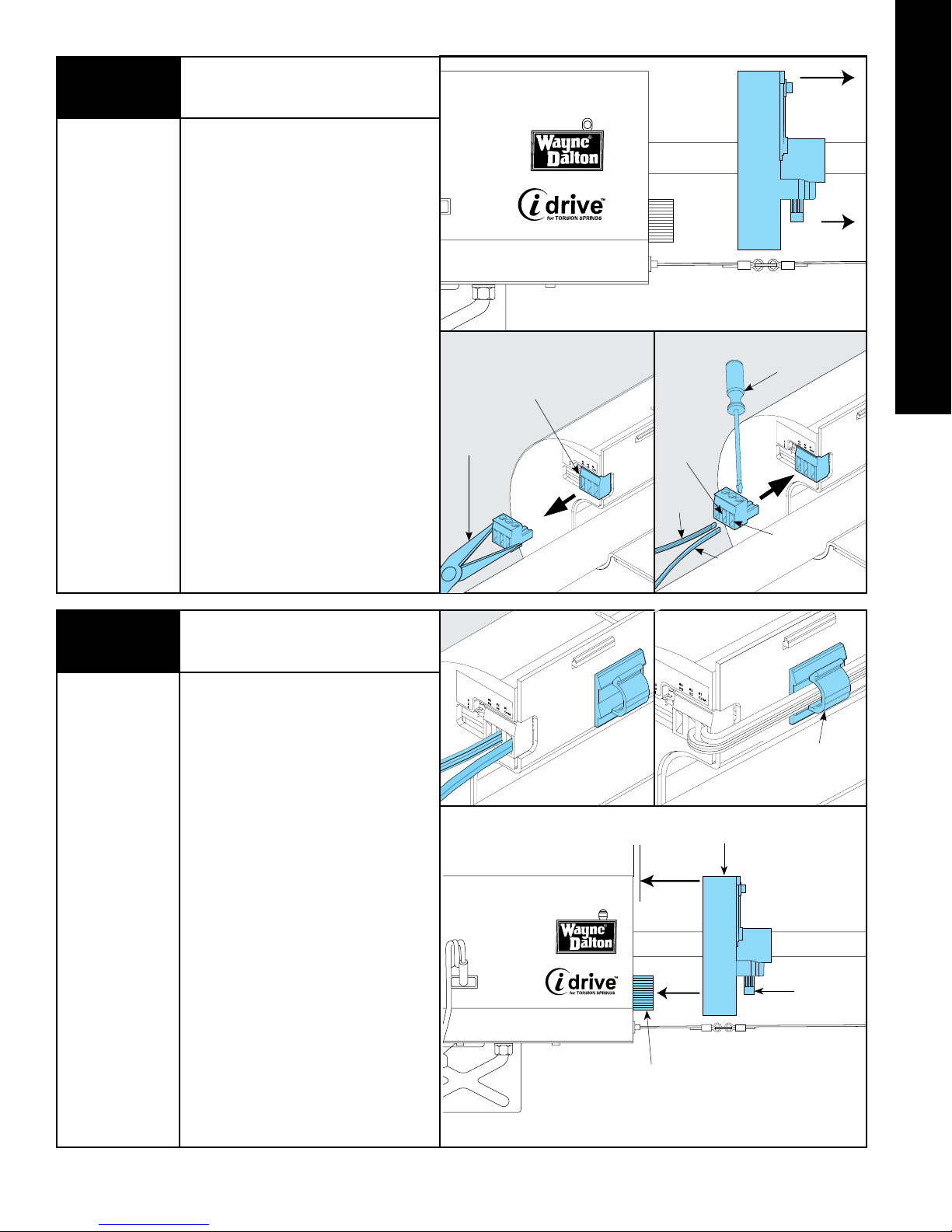

19 Connecting Safety Sensor
Wires to Opener
Expose the Terminal Block by sliding the
right hand Gear Assembly to the right.
Using a pair of Needle Nose Pliers, gently
pull terminal block from right hand side of
opener. Separate wire ends and strip
about 1/2” of the insulation off each of
the wire ends.
Using the Flat Tip Screwdriver to loosen
the screw above Hole #1 of the Terminal
Block. Insert both sender and receiver
solid white wires into Hole #1. Tighten
the screw above Hole #1 till both sender
and receiver solid white wires are
secured tightly. Insert both sender and
receiver wires (white with black stripe)
into Hole #2 by the same process. After
wires are secured in Terminal Block, snap
Terminal Block back in right hand side of
opener.
Wire cutters
Flat Tip
Screwdriver
Needle Nose
Pliers
Hole #2
Hole #1
Flat Tip Screwdriver
Terminal Block
Needle Nose
Pliers
White with
Black Stripe
Solid White
Wires

Tools Needed:
Tools Needed:
You can reach us Toll Free at 1-888-827-3667 for Consumer Assistance or online at www.wayne-dalton.com
Please Do Not Return This Product To The Store. Call Us Directly! Our Trained Technicians Will Answer Your Questions and/or Ship Any Parts You May Need
TO PREVENT POSSIBLE INJURY, INSTALL
ALL WALL CONTROLS OUT OF THE
REACH OF CHILDREN AND IN A
LOCATION WHERE THE OPENER CAN BE
SAFELY ACTIVATED, WHILE KEEPING
DOOR IN SIGHT. DO NOT MOUNT THE
CONTROLS NEAR OR NEXT TO GARAGE
DOOR.
Locate a convenient place to mount Wall
Station. To keep Wall Station out of the
reach of children, mount at least 5 feet up
from the floor.
If fastening into drywall or concrete, use
anchors provided. Using a 3/32” drill bit
and the drilling template located on page
34, drill the two mounting holes. Drill
3/16” holes if using anchors.
NOTE: Make sure mounting surface
is flat.
NOTE: The wall station can be mounted
to a NEMA standard electrical device box
or directly to any wall surface. No wiring is
required. If mounting to a NEMA electrical
device box use machine thread screws
provided in place of the wood screws. No
drilling is required. If high voltage wiring is
contained in the box a standard NEMA
solid faceplate must be installed between
the box and the wall station.
Install lower screw leaving 3/16” of the
threads exposed. Slide wall station
Keyhole slot onto the lower screw.
Wallstation should slide onto screw,
providing a snug fit. If necessary,remove
wall station and loosen or tighten lower
screw.
Mounting Wall Station
21
22
Positioning Wall Station
Tape Measure
Drill
3/32” Drill Bit
3/16” Drill Bit
( For Anchors)
Phillips Head
Screwdriver
5’ Min
11
WARNING
3/16”
Wall
Keyhole Slot Phillips Head Screw

Tools Needed:
Tools Needed:
INSTALLATION
You can reach us Toll Free at 1-888-827-3667 for Consumer Assistance or online at www.wayne-dalton.com
Please Do Not Return This Product To The Store Call Us Directly! Our Trained Technicians Will Answer Your Questions and/or Ship Any Parts You May Need
Remove the Battery Cover (right-hand side
of wall station) by disengaging the battery
cover’s Lower Clip. Install two AAA
batteries into the wall station observing
the polarity, (+) and (-), of both batteries.
After about five seconds, the Up/Down red
LEDs will begin to blink momentarily every
1/2 second. Re-install the Battery Cover
by first inserting its top into the wall
station then inserting and securing its
bottom.
Apply entrapment label in a convenient
location next to the Wall Station. Use
mechanical fasteners if adhesive will not
adhere.
Installing Battery
23
CAUTION: Over tightening the upper
screw could deform plastic case and may
affect operation.
Once wall station is snuggly onto lower
screw, install upper screw. Do not over
tighten.
Mounting Wall Station
(Continued)
12
None
Phillips Head
Screwdriver
Phillips Head Screw
Wall Station
Battery Cover
(2) AAA Batteries
Lower Clip

You can reach us Toll Free at 1-888-827-3667 for Consumer Assistance or online at www.wayne-dalton.com
Please Do Not Return This Product To The Store. Call Us Directly! Our Trained Technicians Will Answer Your Questions and/or Ship Any Parts You May Need
24
Tools Needed:
Installing Cable Keepers
Carefully inspect the cables on your door.
If they are worn, frayed or broken, contact
a qualified door service company to
replace the cables before installing the
cable keepers.
OPERATING A DOOR WITH FRAYED OR
BROKEN COUNTERBALANCE CABLES CAN
RESULT IN SEVERE OR FATAL INJURY.
CONTACT A QUALIFIED DOOR SERVICE
COMPANY TO REPLACE FRAYED OR
BROKEN CABLES BEFORE INSTALLING
CABLE KEEPERS.
DO NOT ATTEMPT TO LOOSEN OR
REMOVE BOTTOM BRACKETS. THEY ARE
UNDER EXTREME SPRING TENSION AND
CAN CAUSE SEVERE OR FATAL INJURY
Push Spacer on to the Roller Shaft
between the Bottom Bracket and Roller.
Use an additional Spacer if needed to
achieve min. 1/2” clearance.
If there is less than 1/2” clearance, loosen
the lag screws attaching the track to the
wall and adjust the track for the 1/2”
clearance. Re-tighten the lag screws.
Position the right hand (black) cable keeper
assembly directly above the garage door
bottom bracket. The cable keeper
assembly must extend 1/8” past the end of
the door section. Ensure there is no more
than 4-1/2” from the bottom edge of the
door to bottom of Cable Keeper.
IMPORTANT! Right and left hand is
always determined from inside the
building looking out.
1/8”
1/2” Min
4-1/2” Max
Bottom Bracket
Spacer
Roller
13
WARNING
WARNING
None
