Wayne-Dalton 8000 Series Quick start guide

8000 Series, Model 46
IMPORTANT NOTICE!
Read these instructions carefully before
attempting installation. If in question about
any of the procedures, do not perform the
work. Instead, have a qualified door agency
do the installation or repairs.
© Copyright 2009 Wayne-Dalton Corp. Part No. 323295 REV2 08/03/2009
TorqueMaster®- Single and Double Spring
Installation Instructions and Owner’s Manual
Portland Source Plant
Wayne-Dalton Corp.
P.O. Box 67
Mt. Hope, OH 44660
www.wayne-dalton.com

2
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your
local yellow pages/business listings or go to the Find a Dealer section online at www.wayne-dalton.com
Table of Contents
Important Safety Instructions ............................................ 2
Package Contents..........................................................3-4
Door Section Identification ................................................ 4
Tools Required.................................................................. 5
Pre-Installation ............................................................5-10
Removing The Old Door .................................5-9
Preparing The Opening ................................... 10
Installation ................................................................11-32
Optional Installations .................................................33-35
Side Lock ....................................................... 33
DoorMasterTM Bracket .................................... 33
Alternative Step Plate ..................................... 34
Pull Rope........................................................ 34
Trolley Operator .............................................. 35
Maintenance................................................................... 36
Cleaning......................................................... 36
Painting Instructions ....................................... 36
Warranty......................................................................... 37
Dealer Locator Information.............................................. 38
Definition of key words used in this manual:
INDICATES A POTENTIALLY HAZARDOUS
SITUATION WHICH, IF NOT AVOIDED, COULD
RESULT IN SEVERE OR FATAL INJURY.
CAUTION: PROPERTY DAMAGE OR INJURY CAN RESULT
FROM FAILURE TO FOLLOW INSTRUCTIONS.
IMPORTANT: REQUIRED STEP FOR SAFE AND PROPER
DOOR OPERATION.
NOTE: Information assuring proper installation of the door.
READ THESE INSTRUCTIONS
CAREFULLY BEFORE ATTEMPTING
INSTALLATION. IF IN QUESTION
ABOUT ANY OF THE PROCEDURES, DO
NOT PERFORM THE WORK. INSTEAD,
HAVE A QUALIFIED DOOR AGENCY DO
THE INSTALLATION OR REPAIRS.
1. READ AND FOLLOW ALL INSTALLATION INSTRUCTIONS.
2. Wear protective gloves during installation to avoid possible
cuts from sharp metal edges.
3. It is always recommended to wear eye protection when using
tools, otherwise severe or fatal eye injury could result.
4. Avoid installing your new door on windy days. Door could
fall during the instazllation causing severe or fatal injury.
5. Doors 12’-0” wide and wider should be installed by two
persons, to avoid possible injury.
6. Operate door ONLY when it is properly adjusted and free from
obstructions.
7. If a door becomes hard to operate, inoperative or is damaged,
immediately have necessary adjustments and/or repairs
made by a trained door system technician using proper tools
and instructions.
8. DO NOT stand or walk under a moving door, or permit
anybody to stand or walk under an electrically operated door.
9. DO NOT place fingers or hands into open section joints when
closing a door. Use lift handles/gripping points when operating
door manually.
10. DO NOT permit children to operate garage door or door
controls. Severe or fatal injury could result, should the child
become entrapped between the door and the floor.
11. Due to constant extreme spring tension, DO NOT attempt any
adjustment, repair or alteration to any part of the door,
especially to springs, spring brackets, bottom corner brackets,
red colored fasteners, cables or supports. To avoid possible
severe or fatal injury, have any such work performed
by a trained door systems technician using proper tools and
instructions.
12. On electrically operated doors, pull down ropes must be
removed and locks must be removed or made inoperative in
the open (unlocked) position.
13. Top section of door may need to be reinforced when attaching
an electric opener. Check door and/or opener manufacturer’s
instructions.
14. VISUALLY inspect door and hardware monthly for worn and or
broken parts. Check to ensure door operates freely.
15. Test electric opener’s safety features monthly, following
opener manufacturer’s instructions.
16. NEVER hang tools, bicycles, hoses, clothing or anything else
from horizontal tracks. Track systems are not intended or
designed to support extra weight.
After installation is complete, fasten this manual
near garage door.
WARNING
WARNING

3
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your
local yellow pages/business listings or go to the Find a Dealer section online at www.wayne-dalton.com
Package Contents
(1) TORQUEMASTER®SPRING TUBE
(2) HORIZONTAL TRACK WITH ATTACHED HORIZONTAL ANGLE RH/LH
NOTE: DEPENDING ON THE DOOR MODEL, SOME PARTS LISTED WILL NOT BE SUPPLIED IF NOT NECESSARY.
REAR SUPPORTS MAY OR MAY NOT BE INCLUDED WITH YOUR DOOR.
DOOR SECTIONS (AS REQUIRED)
(2) VERTICAL
RH/LH TRACK
IDRIVE®OPERATOR
(SOLD SEPARATELY)
(1) STEP PLATE
INSIDE
WEATHER SEAL &
NAILS (IF INCLUDED)
(2) FULLY ADJUSTABLE
RH/LH FLAGANGLES
U-BAR
(AS REQUIRED)
COUNTER GEAR(S)
(AS REQUIRED)
(2) TOP BRACKET
SLIDES
(2) TOP BRACKET
BASES
LUBRCIATING OIL
(AS REQURED)
(1) LOOSE WINDING SHAFT
(SINGLE SPRING ONLY)
#1, #2, #3 & #4
HINGES (AS REQURED)
RIGHT AND LEFT
BOTTOM BRACKETS
ROLLERS
(AS REQUIRED)
RIGHT AND LEFT CABLE
DRUM ASSEMBLIES
#6 SCREW EYE AND PULL
ROPE (IF INCLUDED)
(2) LIFT HANDLES
& SPACERS
COUNTER COVER(S)
(AS REQUIRED)
DRIVE GEARS
(AS REQUIRED)
(1) CENTER BRACKET
ASSEMBLY
(1) STEP PLATE
OUTSIDE
RIGHT & LEFT
END BRACKETS
MANUAL
8000 Series, Model 46
IMPORTANTNOTICE!
Read these instructions carefully before
attemptinginstallation. If in question about
anyof the procedures, do not perform the
work.Instead, have a qualified do or agency
dothe installation or re pairs.
©Copyright 2005 Wayne-Dalton Corp. PartNo. 323295 New 11/08/2005
To rqueMaster®- Single and Double Spring
InstallationInstructions and Owner’s Manual
PortlandSource Plant
JAMB BRACKETS
(AS REQUIRED)
RIGHT & LEFT
DRUM WRAPS

4
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your
local yellow pages/business listings or go to the Find a Dealer section online at www.wayne-dalton.com
Tools Needed:
1/4”- 20 X 7/8” SELF DRILLING
SCREWS (AS REQUIRED)
1/4”- 20 X 5/8”
CARRIAGE BOLTS
(AS REQUIRED)
5/16” X 2” HEX HEAD LAG SCREWS
(AS REQUIRED)
(2) 3/8”- 16 X 3/4”
HEX HEAD BOLTS
1/4”- 20 HEX NUTS
(LIFT HANDLE)
1/4”- 20 FLANGED HEX
NUTS (AS REQUIRED)
(2) 3/8”- 16
HEX NUTS
1/4”- 14 X 5/8” SELF TAPPING
SCREWS (AS REQUIRED)
(2) #10 PHILLIPS
HEAD SCREWS (2) 1/4”- 20 X 5/8”
TAMPER-RESISTANT
SCREWS
(2) 1/4” X 2-1/2” CARRIAGE BOLTS (LIFT HANDLE)
Package Contents Continued...
(2) #8 X 1-5/8” SELF TAPPING SCREWS
(STEP PLATE)
The BOTTOM SECTION can be
identified by the factory attached
bottom astragal and the bottom bracket
warning labels on each end stile. This
section is always the 1st section on
four and five section doors.
The LOCK SECTION may have a yellow
and black warning label on the right
side of the section. This section is
always the 2nd section on four and five
section doors.

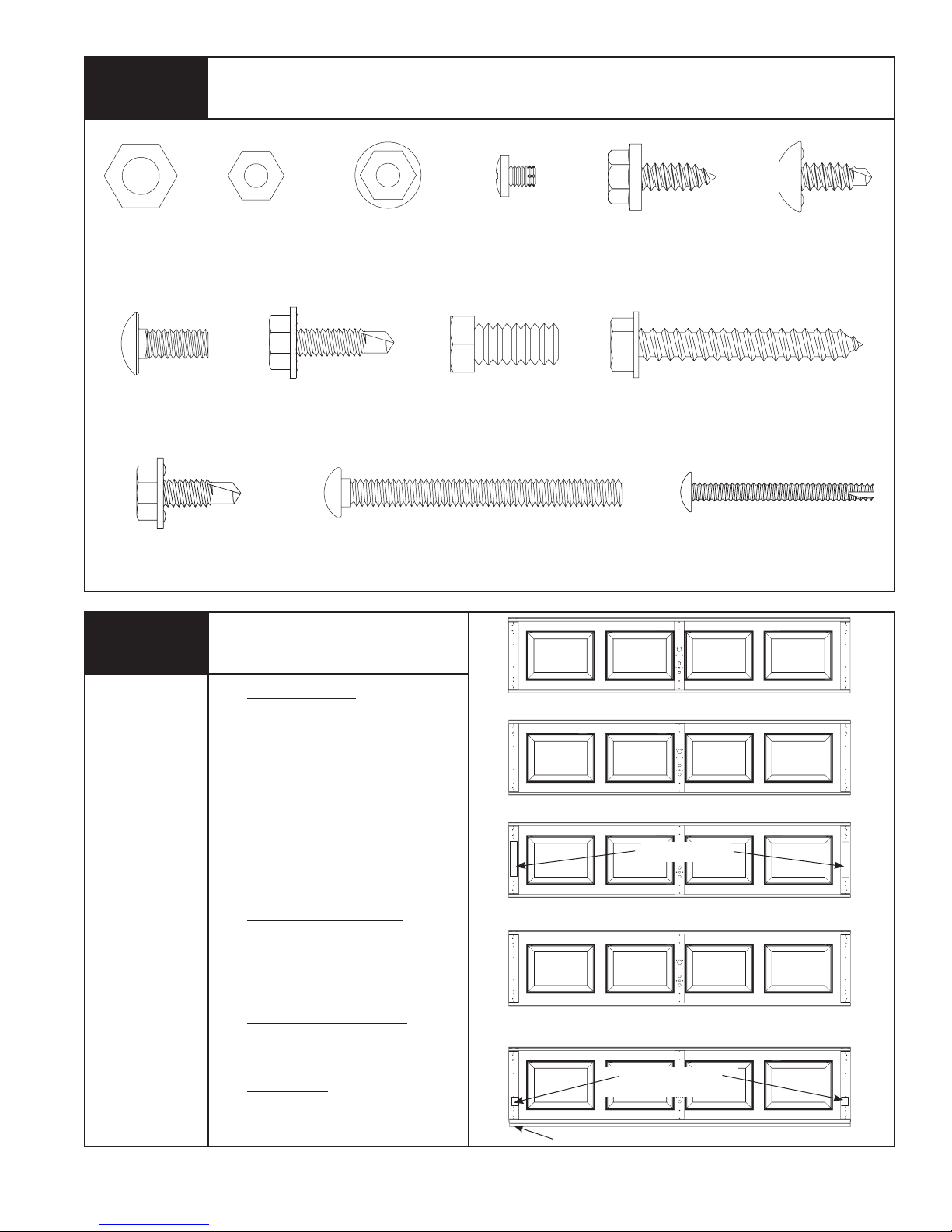

The INTERMEDIATE I SECTION may
have a warning label attached to either
right or left hand endstile of the section.
This section is always the 3rd section
from the bottom of the door.
The INTERMEDIATE II SECTION is
always the 4th section on five section
door.
The TOP SECTION is always the 4th
section on four section door and the 5th
section on five section door.
Door Section Identification
TOP SECTION
INTERMEDIATE II SECTION (5 SECTION DOORS ONLY)
LOCK SECTION
BOTTOM SECTION
BOTTOM BRACKET
WARNING LABELS
ASTRAGAL
WARNING LABEL
INTERMEDIATE I SECTION
1/4”-20 X 11/16” SELF DRILLING
SCREWS (AS REQUIRED)

5
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your
local yellow pages/business listings or go to the Find a Dealer section online at www.wayne-dalton.com
Tools Required
PRE-INSTALLATION
SAFETY GLASSESFLAT TIP SCREWDRIVER
1/4”, 3/8”, 7/16”, 1/2” &
9/16” WRENCHES
1/2” & 9/16”
SOCKET
PHILLIPS HEAD
SCREWDRIVER
PLIERS/WIRE CUTTERSRATCHET WRENCHPOWER DRILL
(2) SAWHORSES
GLOVES
3/8”, 7/16” SOCKET
DRIVER
HAMMERVICE GRIPS
STEP LADDER
TAPE MEASURELEVEL (2) VICE CLAMPS
PENCIL
9/32”, 1/2”, 5/16”,
3/16” & 1/8” DRILL BITS
Removing An Old Door
IF YOUR COUNTERBALANCE SYSTEM IS OTHER THAN THOSE MENTIONED, DO NOT ATTEMPT TO WORK ON IT, BUT
HAVE A QUALIFIED DOOR AGENCY PERFORM THE WORK. OTHERWISE, SEVERE OR FATAL INJURY COULD RESULT.
DISCONNECT AND REMOVE ANY ELECTRIC OPENER PRIOR TO REMOVAL OF COUNTERBALANCE SYSTEMS TO
PREVENT UNINTENDED DOOR OPERATION. OTHERWISE, SEVERE OR FATAL INJURY COULD RESULT.
COUNTERBALANCE SPRING TENSION MUST BE RELIEVED BEFORE REMOVING ANY HARDWARE. A POWERFUL
SPRING RELEASING IT’S ENERGY SUDDENLY CAN CAUSE SEVERE OR FATAL INJURY.
IF YOU HAVE BACK PROBLEMS DO NOT ATTEMPT THIS, OR SEVERE INJURY COULD RESULT
REMOVING AN EXISTING DOOR CAN BE DANGEROUS. FOLLOW INSTRUCTIONS ON PAGES 6-10 “REMOVING AN
OLD DOOR/PREPARING THE OPENING” CAREFULLY, OTHERWISE, SEVERE OR FATAL INJURY COULD RESULT.
WARNING
WARNING
WARNING
WARNING
WARNING
If you have an existing door, follow the instructions below to identify which counterbalance removal is necessary. The process of
removing an existing door begins by identifying it’s counterbalance system. If you are not removing an existing door, proceed to
PREPARING THE OPENING on page 10. Generally, you will find three (3) types of counterbalance systems: Extension Spring,
Wayne-Dalton®exclusive TorqueMaster®and Torsion counterbalance system, see pages 6-9.
For more technical information regarding the opening preparation, installation and use of your garage door and opener, you can go to
www.dasma.com and click on Publications and then Technical Data Sheet.

6
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your
local yellow pages/business listings or go to the Find a Dealer section online at www.wayne-dalton.com
Tools Needed:
FAILURE TO USE APPROVED
WINDING BARS CAN CAUSE SPRING
ENERGY TO BE RELEASED
SUDDENLY, RESULTING IN SEVERE
OR FATAL INJURY.
COUNTERBALANCE SPRING TENSION
MUST BE RELIEVED BEFORE
REMOVING ANY HARDWARE. A
POWERFUL SPRING RELEASING IT’S
ENERGY SUDDENLY CAN CAUSE
SEVERE OR FATAL INJURY.
Do not release the torsion spring tension
unless you are a qualified and experienced
door technician. Instead have a professional
door agency release the tension.

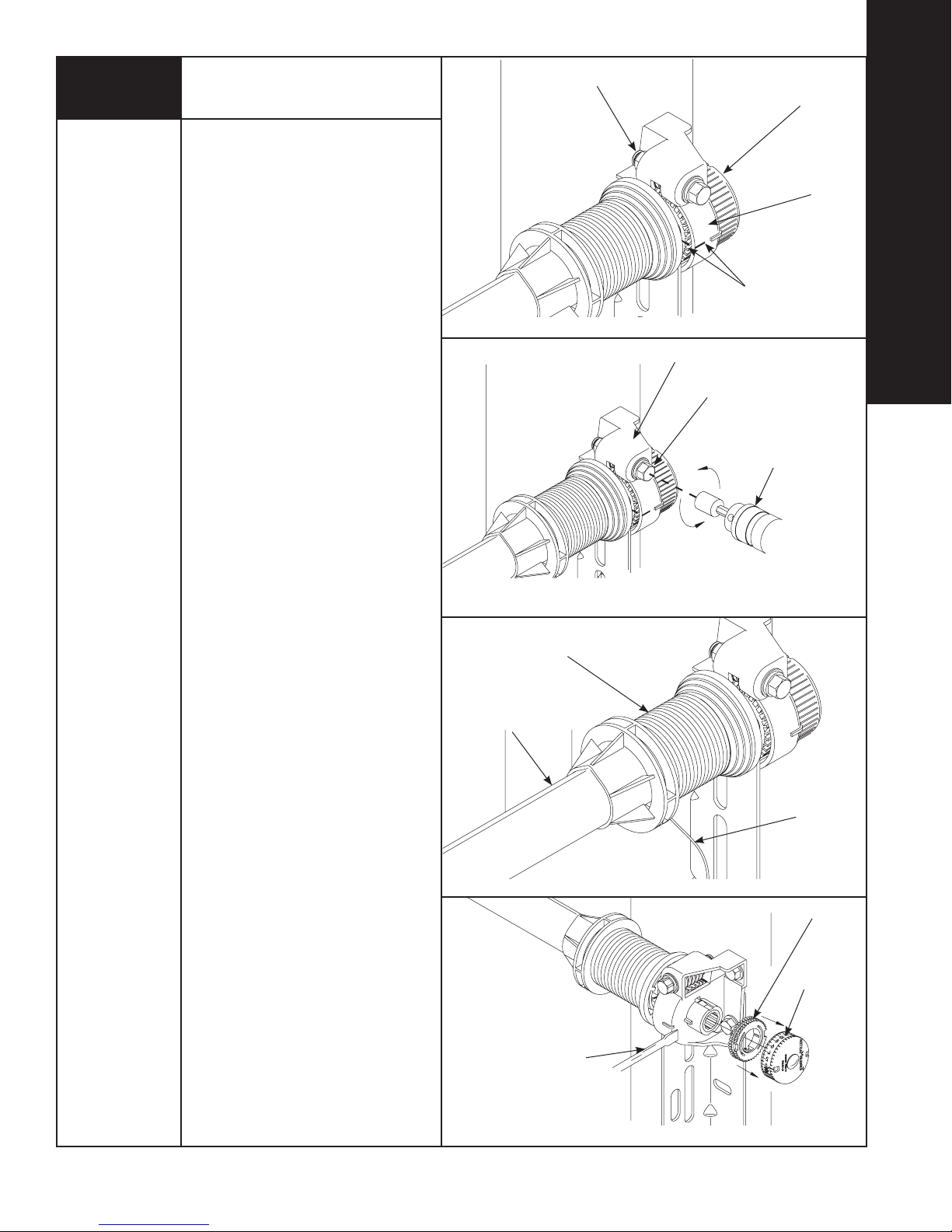

Step 1: Close the door and place vice
clamps on the back legs of both vertical
tracks, above the third roller to prevent the
door from lifting as you unwind the springs.
Use only approved winding bars available
from your dealer. Do not use undersized
steel rods, screw drivers or anything else
to unwind the springs. Position the ladder
just off to the side of the winding cone.
The winding cone should be easy to reach
without putting your body directly in front
of it.
Step 2: Insert a winding bar into one of the
holes in the winding cone. Exert upward
pressure. Using caution, loosen the two
(2) set screws in the winding cone. Be
prepared to support the full torsional force
of the spring when the set screws are
loosened.
Step 3: Once set screws are loose, slowly
and carefully lower the winding rod until it
rests against the door. Insert other winding
bar into the upper hole. Push up and
remove lower bar. Carefully lower upper
winding bar, 1/4 turns at a time until it rests
against the door. Repeat process until all
tension is relieved. If your door is equipped
with two (2) torsion springs, follow the same
procedure to relieve tension on the second
spring.
Step 4: Remove vice clamps from tracks,
unbolt torsion shaft assembly and remove
from work area.
NOTE: Continue with “P4” on page 9 after
completing this step.
Torsion Spring Removal
For Standard Lift
APPROVED WINDING BAR
TORSION SPRING ASSEMBLY
WINDING CONE
SET SCREWS
FIRMLY HOLD WINDING BARS AND
CAUTIOUSLY LOOSEN SET SCREWS
WARNING
WARNING
P1
Recommended
tools from
page 5

7
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your
local yellow pages/business listings or go to the Find a Dealer section online at www.wayne-dalton.com
PRE-INSTALLATION
Tools Needed:
Fig. 2
A TorqueMaster®spring system can be
identified by the end brackets. For single
spring applications, the right hand end
bracket will always have a drive gear,
counter gear, counter cover, and a winding
bolt head. The left hand end bracket will
have no gears, counter cover, or winding
bolt head. The hole for the winding bolt
head will be plugged.
For double springs, both the right hand
and left hand end brackets will always
have a drive gear, counter gear, counter
cover and a winding bolt head.
IMPORTANT: RIGHT AND LEFT HAND IS
ALWAYS DETERMINED FROM INSIDE THE
BUILDING LOOKING OUT.
Step 1: If you have a black counter cover:
Place a mark on the drive gear tooth and an
adjacent mark on the right hand end bracket
(Fig. 1). Loosen the lock nut using a 7/16”
wrench and continue with step 2.
If you have a gray counter cover: Loosen
the lock nut using a 7/16” wrench and
continue with step 2.
Step 2: Using an electric drill (High
torque / gear reduced to 1300 rpm
preferred) with a 7/16” hex head driver,
unwind the right hand winding bolt head
counterclockwise (Fig. 2) and count the
number of turns the mark on the drive
gear passes the adjacent mark on the end
bracket. Referencing the chart below, by
door height, stop unwinding the spring
once the counted turns have reached the
listed number of turns.
6’-0” Door Height = 14 turns
6’-3” Door Height = 14 1/2 turns
6’-5” Door Height = 15 turns
6’-6” Door Height = 15 turns
6’-8” Door Height = 15 1/2 turns
6’-9” Door Height = 15 1/2 turns
7’-0” Door Height = 16 turns
7’-3” Door Height = 16 1/2 turns
7’-6” Door Height = 17 turns
7’-9” Door Height = 17 1/2 turns
8’-0” Door Height = 18 turns
CAUTION: DO NOT USE IMPACT GUN TO
UNWIND SPRINGS.
IMPORTANT: DO NOT REFERENCE THE
COUNTER COVER WHEN COUNTING THE
NUMBER OF TURNS BEING UNWOUND
ON THE SPRING, BUT FOLLOW THE
INSTRUCTIONS ABOVE.
Step 3: Verify that spring tension has been
released by pulling the counterbalance
cable on the right hand cable drum away
from the header (Fig. 3). If spring tension
has been released, the cable will be loose.
In addition, the TorqueMaster®Spring
Tube should be free to rotate in either
direction.
Fig. 1
Fig. 3
Fig. 4
RIGHT HAND
CABLE DRUM
TORQUEMASTER®
SPRING TUBE
CHECK CABLE
TENSION
LOOSEN LOCK
NUT COUNTER
GEAR/ COVER
RIGHT HAND
END BRACKET
PLACE MARK ON END BRACKET
AND DRIVE GEAR TOOTH
BEFORE UNWINDING SPRINGS
END BRACKET
RIGHT HAND
WINDING BOLT HEAD
ELECTRIC DRILL
WITH 7/16” HEX
DRIVER (DO NOT
USE IMPACT
GUN)
PRY COUNTER GEAR
AND COUNTER COVER
FROM END BRACKET
USING FLAT TIP
SCREWDRIVER
COUNTER
GEAR
COUNTER
COVER
TorqueMaster®Spring Removal
P2
Recommended
tools from
page 5

8
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your
local yellow pages/business listings or go to the Find a Dealer section online at www.wayne-dalton.com
Tools Needed: (Spring Tube should be free to rotate in
either direction.) If the counterbalance
cable is still taut and the TorqueMaster®
Spring Tube is difficult to rotate, that is an
indication that spring tension still exists
on the left hand spring. Repeat Steps 1
and 2 for releasing spring tension on the
left hand side.
Step 4: Using a flat tip screwdriver, pry
the counter gear and counter cover
from the right hand end bracket (Fig. 4
on previous page). Discard the counter
gear and counter cover. On double spring
applications, repeat for left hand side.

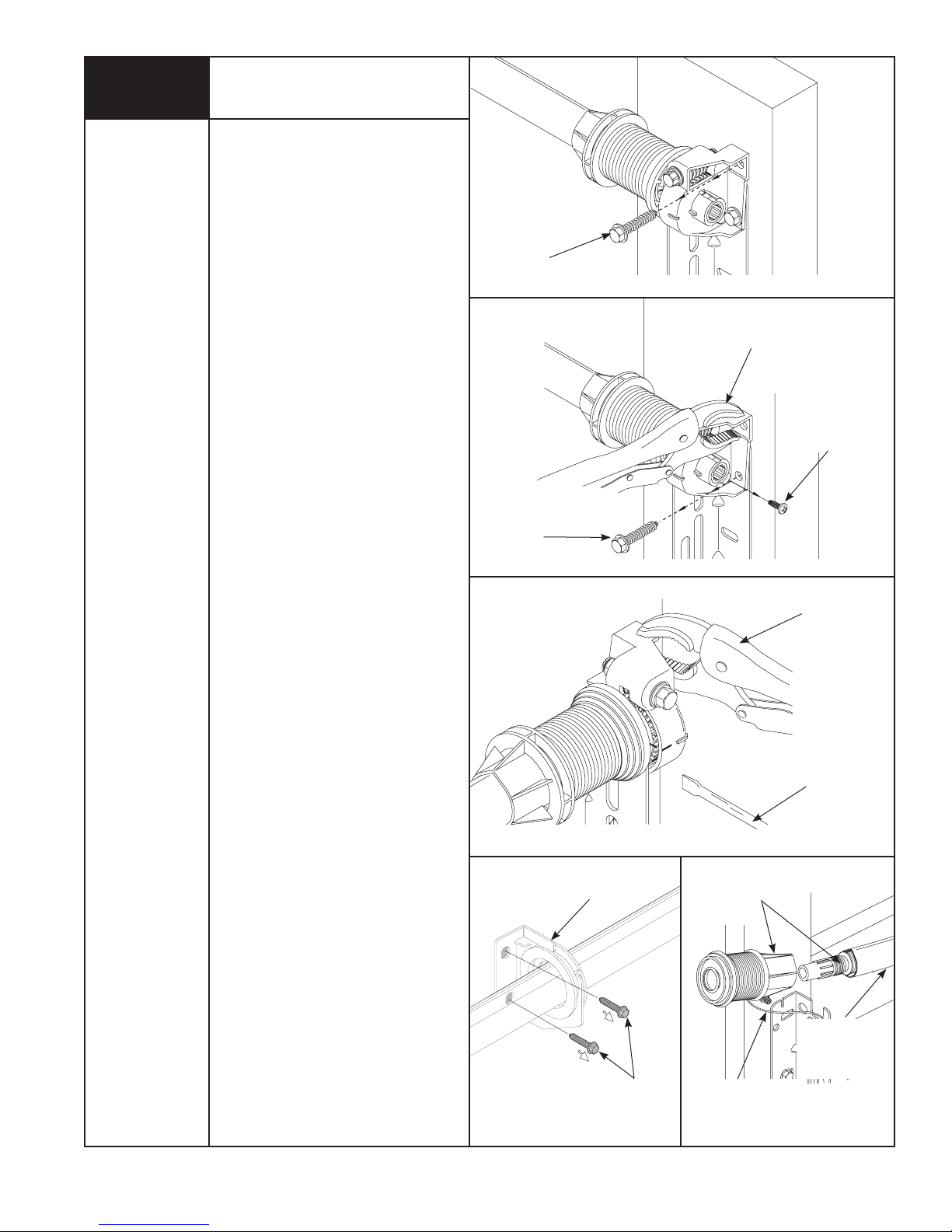

Step 5: Remove the upper 5/16” x
1-5/8” lag screw from the right hand end
bracket (Fig. 5). Attach locking pliers to
the upper portion of the end bracket and
hold the housing steady while removing
the lower 5/16” x 1-5/8” lag screw and
#10 x 1/2” phillips head screw from the
end bracket (Fig. 6).
Step 6: Holding the right hand end
bracket steady with locking pliers,
carefully pry the end bracket and drive
gear off the winding shaft using a flat tip
screwdriver (Fig. 7).
CAUTION: THE WINDING SHAFT MAY
ROTATE WHEN REMOVING THE END
BRACKET AND DRIVE GEAR.
Step 7: Repeat Step 4 for the left hand
side. Holding the left hand end bracket
steady with locking pliers, carefully pry
the end bracket off the winding shaft
using a flat tip screwdriver (Fig. 7).
Step 8: Remove the two (2) lag bolts
attaching the center bracket assembly to
the header board (Fig. 8).
Step 9: Lift the right hand side of the
TorqueMaster®Spring Tube and slide the
cable drum off. Realign the groove in the
winding shaft with the round notch in the
flagangle and drape the counterbalance
cable with drum over the flagangle. Lift
the left hand side of the TorqueMaster®
Spring Tube and slide the cable drum
and winding shaft off (Fig. 9). Drape the
counterbalance cable with drum over the
flagangle. Lift the TorqueMaster®spring
assembly off the flagangles and out of
the doorway. Unhook the counterbalance
cables from the bottom brackets and
remove all parts from the work area.
NOTE: The cable drums may be difficult to
remove. If so, twist the cable drum to aid
in removal.
NOTE: Continue with “P4” on page 9 after
completing this step.
Fig. 5
Fig. 6
Fig. 7
Fig. 9
REMOVE TOP
LAG SCREW
REMOVE
BOTTOM LAG
SCREW
USE LOCKING PLIERS
TO HOLD END BRACKET
REMOVE #10
PHILLIPS HEAD
SCREW
PRY END BRACKET FROM WINDING
SHAFT USING A FLAT TIP SCREW
DRIVER AND LOCKING PLIERS
HOLD THE
END BRACKET
STEADY WITH
LOCKING PLIERS
REMOVE CABLE DRUM AND
WINDING SHAFT
DRAPE CABLE ACROSS
TOP OF FLAGANGLE
LIFT
TORQUEMASTER®
SPRING TUBE
OFF FLAGANGLE
TorqueMaster®Spring
Removal continued...
Recommended
tools from
page 5
Fig. 8
CENTER
BRACKET
ASSEMBLY
(2) 5/16” X 1-5/8”
HEX HEAD LAG
SCREWS

9
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your
local yellow pages/business listings or go to the Find a Dealer section online at www.wayne-dalton.com
Tools Needed:
Tools Needed:
PRE-INSTALLATION
Having removed the counterbalance
system, the door can now be
disassembled.
Start by first removing the top row of
hinges.
With assistance, hold the top section to
keep it from falling and remove the
top brackets. With assistance, lift the top
section out of the opening and remove
it from the work area. Repeat for all
remaining sections.
After door is disassembled, unbolt both
track assemblies from the jambs and
remove all material from the work area.
You can neatly dispose of the old door by
placing it in the carton of your new door.
Clean up area and complete “Preparing
the Opening” “P5” on page 10 before
installing the new door.
Removing the Old Door
Step 1: Raise the door to the fully open
position and place vice clamps to the back
legs of both vertical tracks, below the
bottom rollers to prevent the door from
falling. By opening the door you release
most of the spring tension. Carefully
unfasten the S-hook from the horizontal
angle. Remove cable, sheave and extension
spring. Repeat for the other side. If safety
cables are running through the extension
springs, remove them also. Remove parts
from work area.
Step 2: Holding door in the open position,
remove the vice clamps, be prepared
to support the entire weight of the door.
Garage doors can weigh 200-400 pounds.
With assistance, carefully lower the door, by
grasping the door firmly by it’s lift handles.
Do not place fingers or hands near joints,
between sections, or between bottom of
door and floor. Otherwise, severe injury
could result.
NOTE: Continue with “P4” on page 9 after
completing this step.
Extension Spring Removal
TOP BRACKET
HINGES
HORIZONTAL TRACK
BOTTOM SECTION
(DOOR OPEN)
CAREFULLY REMOVE “S”
HOOK AND COUNTREBALANCE
CABLE (REPEAT FOR THE
OPPOSITE SIDE)
HORIZONTAL ANGLE
REMOVE LAG SCREW
FROM SAFETY CABLE (IF
INSTALLED). REPEAT FOR
OPPOSITE SIDE.
P3
P4
Recommended
tools from
page 5
Recommended
tools from
page 5

10
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your
local yellow pages/business listings or go to the Find a Dealer section online at www.wayne-dalton.com
Tools Needed:
HEADROOM REQUIREMENT
DOOR
HEIGHT TRACK MANUAL LIFT
MOTOR
OPERATED
6’5” 10”, 12”, 14” Radius 89” 120”
6’5” Low Headroom 101” 120”
6’6” 10”, 12”, 14” Radius 90” 120”
6’6” Low Headroom 102” 120”
7’0” 10”, 12”, 14” Radius 96” 120”
7’0” Low Headroom 108” 120”
7’6” 10”, 12”, 14” Radius 102” 132”
7’6” Low Headroom 114” 132”
8’0” 10”, 12”, 14” Radius 108” 132”
8’0” Low Headroom 120” 132”
BACKROOM REQUIREMENT
TRACK TYPE TorqueMaster®
10”, 12” 10”
14” 12”
3-1/2” LHR 6”
LHR Kit 6 1/2”
P5
Recommended
tools from
page 5

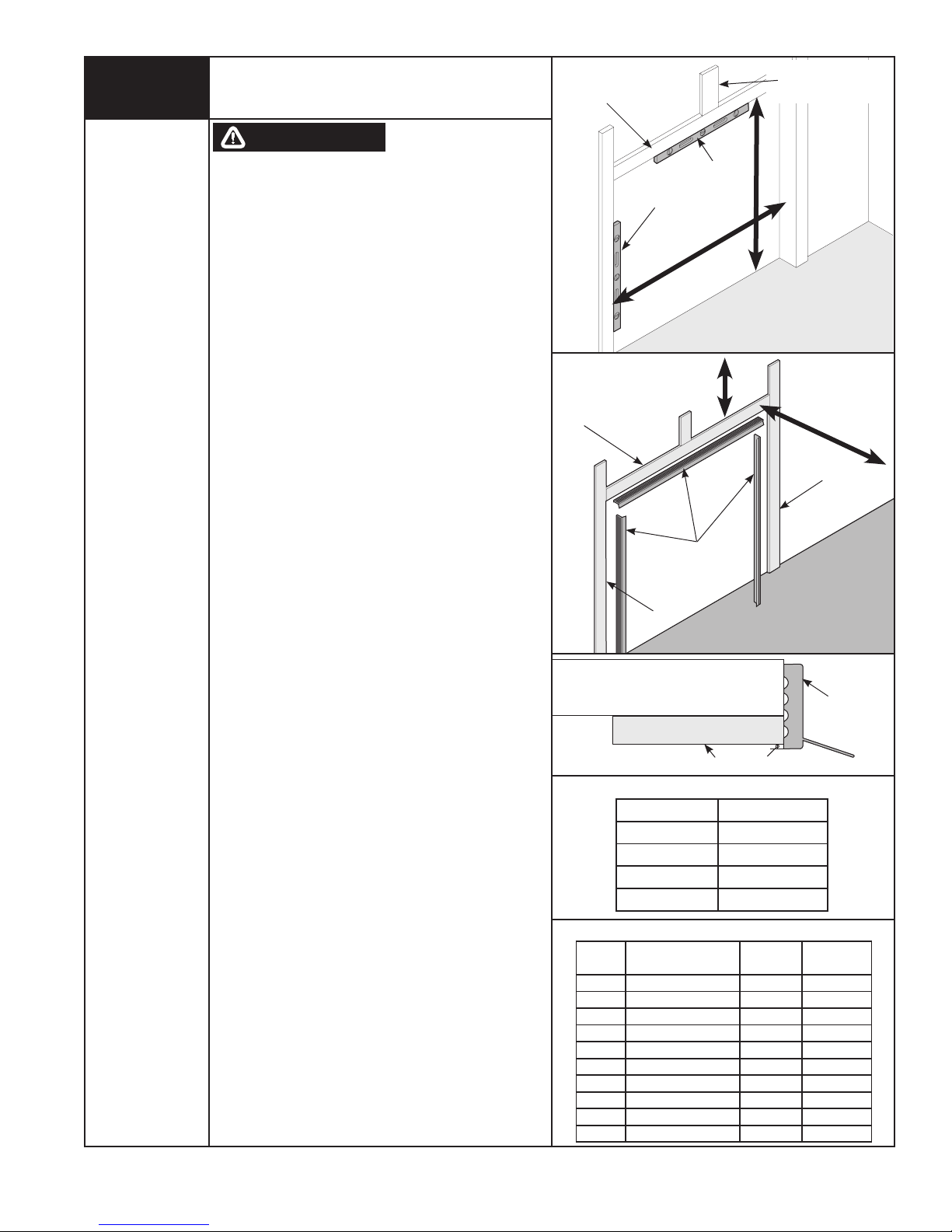

Preparing the Opening
WEATHER SEAL
HEADROOM
BACKROOM
DOOR
WIDTH
DOOR HEIGHT
LEVEL HEADER
PLUMB JAMBS
HEADER BOARD
2” X 6” LUMBER
PREFERRED
SUITABLE MOUNTING
SURFACE 2” X 6”
LUMBER MINIMUM
HEADER
JAMB
JAMB
JAMB
WEATHER
SEAL
1/8” TO 1/4”
WARNING FAILURE TO
SECURELY ATTACH A
SUITABLE MOUNTING PAD TO STRUCTURALLY
SOUND FRAMING COULD CAUSE SPRINGS TO
VIOLENTLY PULL MOUNTING PAD FROM WALL,
RESULTING IN SEVERE OR FATAL INJURY.
If you just removed your existing door or you are installing a
new door, complete all steps in PREPARING THE OPENING.
For detailed technical information regarding the opening
preparation, refer to the DASMA Technical Data Sheet TDS
#161 Connecting Garage Door Jambs to Building. Framing
located at www.dasma.com.
The inside of your garage door opening should be framed with
wood jambs and header. It is recommended that 2” x 6” lumber
be used. The jambs must be plumb and the header level. The
jambs should extend a minimum of 12” (305 mm) above the
top of the opening for TorqueMaster® counterbalance systems.
For low headroom applications, the jambs should extend to
the ceiling height. Minimum side clearance required, from the
opening to the wall, is 3-1/2”.
IMPORTANT: CLOSELY INSPECT JAMBS, HEADER AND
MOUNTING SURFACE. ANY WOOD FOUND NOT TO BE SOUND,
MUST BE REPLACED.
The jambs and header must be securely fastened to sound
framing members. Do not place jambs and header over drywall,
paneling, etc. Heads of fasteners must be flush or below jamb
and header surface, so they do not interfere with installation or
operation of new door.
TorqueMaster®counterbalance systems, a suitable mounting
surface must be firmly attached to the wall, above the header
at the center of the opening.
The mounting surface must be 2” x 6” lumber minimum (Select
southern yellow pine lumber. Do not use lumber marked as
spruce-pine-fur or SPF).
The mounting surface must be securely attached to block or
concrete wall with four (4) 3/8” masonry anchors or four (4)
5/16” x 4” lag screws for a wood structure.
NOTE: Drill a 3/16” pilot hole in the mounting surface to avoid
splitting the lumber. Do not attach the mounting surface with
nails.
WEATHER SEAL: Fit weather seal (may not be included) to fit
the jambs and header. Align the edge of the weather seals an
1/8” to 1/4” inside the edge of the opening. Temporarily nail
the weather seal to the jambs to keep the bottom section from
falling out of the opening during installation. Equally space
nails approximately 12” to 18” apart.
NOTE: Do not permanently attach weather seal to the jambs at
this time. Permanent installation will be done in Step 34.
HEADROOM REQUIREMENT: Headroom is defined as the
space needed above the top of the door for tracks, springs, etc.
to allow the door to open properly. If the door is to be motor
operated, 2-1/2” (64 mm) of additional headroom is required.
NOTE: 6” LHR Conversion Kit is available for 12” Radius only.
Contact your local Wayne-Dalton®dealer.
BACKROOM REQUIREMENT: Backroom is defined as the
distance needed from the opening back into the garage to
allow the door to open fully.

11
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your
local yellow pages/business listings or go to the Find a Dealer section online at www.wayne-dalton.com
Tools Needed:
INSTALLATION
1
NOTE: If you have riveted track, skip
this step.
Hand tighten the flagangle to the
vertical track using (2) 1/4”- 20 x 5/8”
carriage bolts and (2) 1/4”- 20 flange
hex nuts. Secure the flange nuts after
flagangle spacing is complete (Step 14).
IMPORTANT: READ INSTRUCTIONS TITLED “P4” “DOOR REMOVAL” ON PAGE 9 AND “P5” “PREPARING THE OPENING” ON PAGE 10
BEFORE ATTEMPTING DOOR INSTALLATION.
IMPORTANT: STAINLESS STEEL OR PT 2000 COATED LAG SCREWS MUST BE USED WHEN INSTALLING CENTER BEARING BRACKETS,
END BEARING BRACKETS, JAMB BRACKETS, OPERATOR MOUNTING/SUPPORT BRACKETS AND DISCONNECT BRACKETS ON TREATED
LUMBER (PRESERVATIVE-TREATED). STAINLESS STEEL LAG SCREWS ARE NOT NECESSARY WHEN INSTALLING PRODUCTS ON
UNTREATED LUMBER.
NOTE: It is recommended that 5/16 x 2” lag screws be pilot drilled using a 3/16” drill bit, and 1/4 x 2” lag screws and 1/4 x 1-1/2” lag
screws be pilot drilled using a 1/8” drill bit, prior to fastening.
None
Attaching Fully Adjustable
Flagangle to Vertical Track
(2) 1/4”- 20
FLANGE HEX
NUTS
FULLY ADJUSTABLE
FLAGANGLE
(2) 1/4”- 20 X 5/8”
CARRIAGE BOLTS
VERTICAL
TRACK

12
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your
local yellow pages/business listings or go to the Find a Dealer section online at www.wayne-dalton.com
Tools Needed:
Tools Needed:
3
NOTE: If you have riveted track, skip
this step.

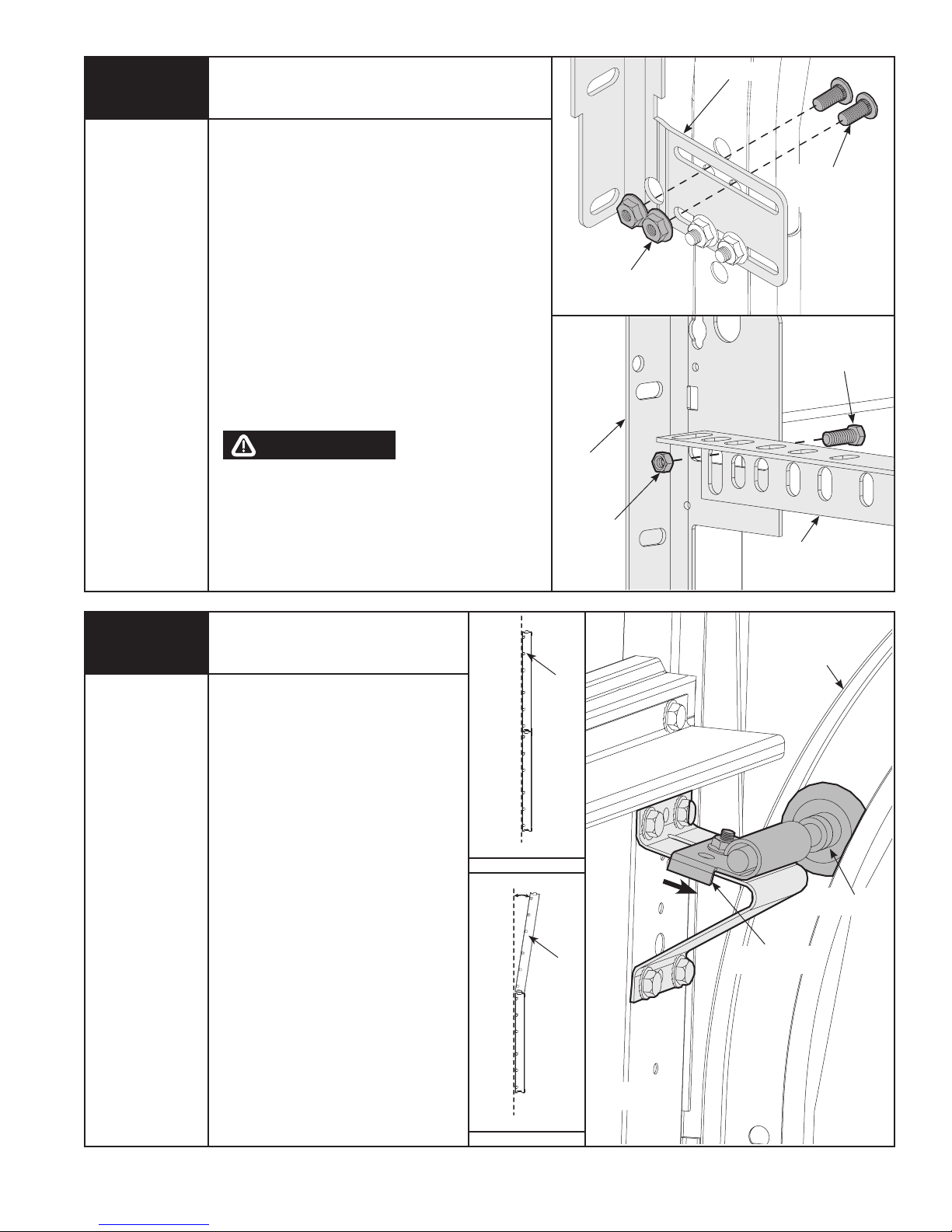

To attach the bottom jamb bracket,
JB-2, locate the first set of quick install
features of the vertical track. Align
the slot in the jamb bracket with the
slot above the quick install features in
the vertical track. The long side of the
bracket is placed against the track.
Fasten the jamb bracket finger tight,
using (1) 1/4”- 20 x 5/8” carriage bolt
and (1) 1/4”- 20 flange hex nut.
To attach the top jamb bracket, JB-3,
locate the third set of quick install
features of the vertical track. Align
the slot in the jamb bracket with the
slot above the quick install features in
the vertical track. The long side of the
bracket is placed against the track.
Fasten the jamb bracket finger tight,
using (1) 1/4”- 20 x 5/8” carriage bolt
and (1) 1/4”- 20 flange hex nut.
2Installing Fully Adjustable Jamb
Brackets
1ST SET
3RD SET
FULLY ADJUSTABLE
JAMB BRACKET
JAMB BRACKET SLOT
(1) 1/4”- 20 X 5/8”
CARRIAGE BOLT
(1) 1/4”-20
FLANGE
HEX NUT
JAMB BRACKET
VERTICAL
TRACK
QUICK INSTALL
FEATURE
QUICK INSTALL
FEATURE
VERTICAL
TRACK
None
Power Drill
7/16” Socket
Driver
NOTE: For door section identification see
page 4.
Align the center hole of bottom bracket
with hole #3 in the end stile of bottom
section. Fasten with (2) 1/4”-20 x 11/16”
self drilling screws and (1) 1/4”-20 x 5/8”
tamper-proof self drilling screw as shown.
Repeat for other side.
NOTE: Only doors provided to professional
installers, who have required tools will be
supplied with a tamper-resistant fastener.
Use a 1/4”-20 x 11/16” self drilling screw
in the bottom bracket, if not provided with
a tamper-resistant screw.
Bottom Bracket
1
2
3
4
5
6
7
LEFT HAND
BOTTOM BRACKET
BOTTOM
BRACKET
(2) 1/4”-20 X 11/16”
SELF DRILLING
SCREWS
(1) 1/4”- 20 X 5/8”
TAMPER-RESISTANT
SELF DRILLING
SCREW
BOTTOM
BRACKET
BOTTOM
SECTION
WARNING
LABEL
END STILE HOLE
PATTERN
(LEFT SIDE IS SHOWN.
RIGHT SIDE IS
OPPOSITE.)
#3 HOLE
CENTER HOLE

13
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your
local yellow pages/business listings or go to the Find a Dealer section online at www.wayne-dalton.com
Tools Needed:
INSTALLATION
4Drums
IMPORTANT: RIGHT AND LEFT HAND IS
ALWAYS DETERMINED FROM INSIDE THE
GARAGE LOOKING OUT.
NOTE: For door section identification see
page 4.
TorqueMaster®counterbalance drums
are marked right and left hand.
Uncoil the counterbalance cables and
make sure you place the right hand
cable loop on the right hand milford pin
and place the left hand cable loop on the
left hand milford pin.
Insert a roller into bottom bracket of the
bottom section.
Repeat for other side.
NOTE: Verify astragal (bottom seal)
is aligned with door section. If there
is more than 1/2” excess astragal on
either side, trim astragal even with door
section.
LEFT HAND
TORQUEMASTER®
COUNTERBALANCE DRUM
BOTTOM SECTION
MILFORD PIN
BOTTOM SECTION
ASTRAGAL
None
ROLLER
HINGE TUBE
BOTTOM
BRACKET
MILFORD PIN
COUNTERBALANCE
CABLE

14
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your
local yellow pages/business listings or go to the Find a Dealer section online at www.wayne-dalton.com

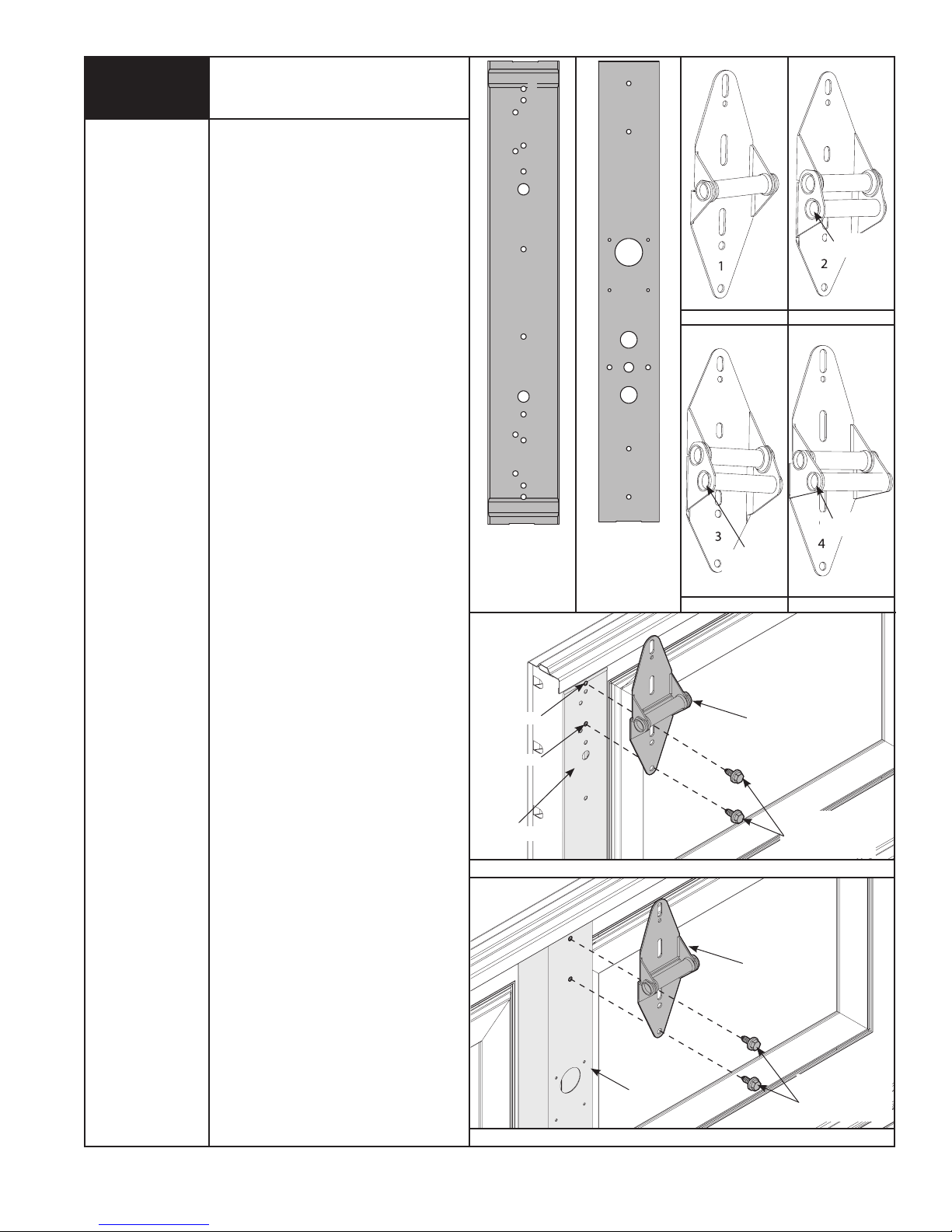

Tools Needed: Locate the lower (numbered) leaf of
the #1 end hinges and required center
hinges over the #1 and #4 holes in the
end stiles for the end hinges and the
pre-punched holes in the center stile(s)
for the center hinges at the top of the
section.
NOTE: The #1 hinges serve as end
hinges on the bottom section. The #1
hinges also serve as center hinges at all
center hinge locations.
Secure the hinges to the section using
(2) 1/4”-14 x 5/8” self tapping screws
on each hinge leaf.
Insert roller into appropriate hinge tube.
Repeat for all other sections using the
#2 end hinges on the second (lock
section) and the #3 end hinges on the
third section (intermediate section).
NOTE: #4 End hinges are used on fourth
section of five section doors.
IMPORTANT: WHEN PLACING ROLLERS
INTO END HINGES NUMBER 2 AND
HIGHER, THE ROLLER GOES INTO THE
TUBE FURTHEST AWAY FROM SECTION.
IMPORTANT: ONCE FASTENER IS
SNUG AGAINST HINGE LEAF, TIGHTEN
AN ADDITIONAL 1/4 TO 1/2 TURN TO
RECEIVE MAXIMUM DESIGN HOLDING
POWER.
Hinges
END STILE HOLE
PATTERN
(LEFT SIDE IS SHOWN.
RIGHT SIDE IS
OPPOSITE.)
7
6
5
4
3
2
1
#1 HINGE #2 END HINGE
#3 END HINGE #4 END HINGE
CENTER STILE
HOLE PATTERN
ROLLER
PLACEMENT
ROLLER
PLACEMENT
ROLLER
PLACEMENT
HINGE
(2) 1/4”-14 X 5/8”
SELF TAPPING
SCREWS
CENTER STILE
(2) 1/4”-14 X 5/8”
SELF TAPPING
SCREWS
HINGE
END STILE
END HINGE PLACEMENT
CENTER HINGE PLACEMENT
#4 HOLE
#1 HOLE
Power Drill
7/16” Socket
Driver
5

15
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your
local yellow pages/business listings or go to the Find a Dealer section online at www.wayne-dalton.com
Tools Needed:
Tools Needed:
INSTALLATION
6Top Bracket
Power Drill
7/16” Socket
Driver
7
Pencil
Power Drill
5/16” Drill Bit
Phillips
Screwdriver
Align upper-center hole of top bracket
base with #6 hole in the end stile (See end
stile hole layout). Loosely secure with
(1) 1/4”- 20 x 7/8” self drilling screw.
Ensure top bracket is level and aligned
with edge of section. Secure with
(4) 1/4”- 20 x 7/8” self drilling screws,
one in each corner of the top bracket
base.
Remove the 1/4”- 20 x 7/8” self drilling
screw installed in the upper-center hole of
the top bracket base.
Loosely hand tighten top bracket slide
with (1) 1/4”- 20 x 5/8” carriage bolts and
(1) 1/4”- 20 flange hex nuts. Insert roller
and repeat for other side.
NOTE: For doors with a glazed top section
(windows). Top strut may be mounted
between #2 and #6 holes before top
bracket is installed. See Step 8 for U-Bar
installation
(4) 1/4-20 X 7/8” SELF
DRILLING SCREW
TOP BRACKET
BASE
END STILE
TOP SECTION
TOP SECTION
TOP
BRACKET
BASE
TOP SECTION
TOP
BRACKET
ASSEMBLY
(1) 1/4”- 20
FLANGE HEX
NUT
(1) 1/4”- 20 X 5/8”
CARRIAGE BOLT
TOP
BRACKET
SLIDE
Step Plate
NOTE: For alternative step/ lift plate
installation, see “Step Plate” in the
optional installations on page 34.
Locate the center most stile on the
bottom section of the door. Using the
pre-punched holes at the bottom of
the stile as a template, drill (2) 7/32”
dia. holes through the section. Using
the previously drilled holes as a guide,
enlarge the holes from outside the door
to 7/16” diameter. Assemble the outside
and inside step/lift plates to the section
using (2) #8 x 1-5/8” screws.
NOTE: Do not drill through or enlarge
holes on the inside of the door.
STEP PLATE OUTSIDE
STEP PLATE INSIDE
BOTTOM
SECTION
OUTSIDE
STEP PLATE
INSIDE STEP
PLATE
(2) #8 X 1-5/8” SELF
TAPPING SCREWS
INSIDE STEP
PLATE
BOTTOM
SECTION
BOTTOM
SECTION BOTTOM
SECTION
OUTSIDE
STEP PLATE
#6 HOLE

16
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your
local yellow pages/business listings or go to the Find a Dealer section online at www.wayne-dalton.com
Tools Needed:
U-BAR
TOP
SECTION
TOP
SECTION
U-BAR
(2) 1/4”- 20 X 7/8”
SELF DRILLING
SCREWS
ATTACHING END STILE
U-Bar
8
NOTE: For door section identification see
page 4.
INSTALLATION ON THE TOP SECTION:
Doors 14’0” wide and over, locate U-Bar
above top bracket and secure with
(2) 1/4”-20 x 7/8” self drilling screws at
each end and center stile location.
NOTE: 3” U-Bars are now supplied with
all glazed doors starting at 14’0” width.
INSTALLATION ON ALL OTHER
SECTIONS:

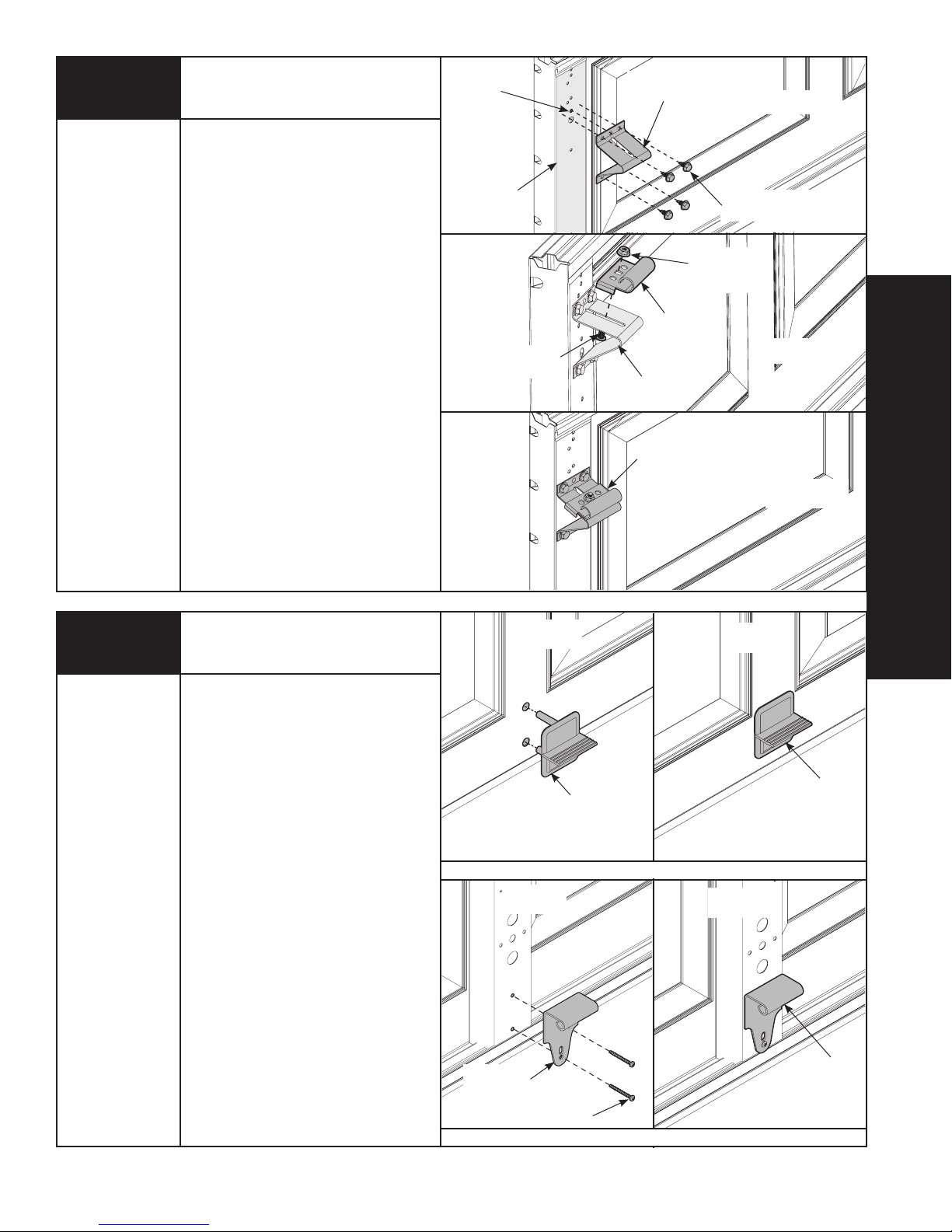

NOTE: All U-Bars are placed at the top
of the section, against the bottom of the
hinges, for the intermediate, lock and
bottom sections.
NOTE: For doors 16’1” to 18’0” that
have a glazed intermediate section, the
U-bar needs to be placed on the glazed
intermediate section.
NOTE: All WayneMark™ 8200 doors
14’0” to 16’0” wide, 6’0” to 7’0” high (4
section high only) are now supplied with a
2” U-Bar for the top of the bottom section.
Place the U-Bar on the section against the
bottom of the hinges. Center the U-Bar
side to side on the section at the location
shown, and secure to the section using
(2) 1/4”-20 x 7/8” self drilling screws at
each end and center stile location.
Power Drill
7/16” Socket
Driver
Model 46 U-Bar Schedule
Door Width 4 Section 5 Section
8’-0” to 14’-11” N/A N/A
15’-0” to 16’-0” (1) 2” U-Bar (1) 2” U-Bar
16’-1” to 18’-0” (3) 2” U-Bar (3) 2” U-Bar
8000 Series U-Bar Schedule
Door Width 4 Section 5 Section
8’-0” to 13’-11” N/A N/A
14’-0” to 14’-11” (1) 2” U-Bar (1) 2” U-Bar
15’-0” to 16’-0” (1) 2” U-Bar (1) 2” U-Bar
16’-0” to 18’-0” (3) 2” U-Bar (3) 2” U-Bar
ATTACHING CENTER STILE
(2) 1/4”- 20 X 7/8”
SELF DRILLING
SCREWS
(2) 1/4”- 20 X 7/8”
SELF DRILLING
SCREWS
U-BAR
U-BAR
HINGE
HINGE
BOTTOM SECTION
BOTTOM
SECTION
U-BAR PLACEMENT FOR BOTTOM, LOCK AND INTERMEDIATE SECTIONS
U-BAR PLACEMENT FOR TOP SECTION
U-BAR
TOP
BRACKET
ASSEMBLY
TOP SECTION
SIDE PROFILE
HINGE
DOOR
SECTION
U-BAR
U-BAR PLACEMENT FOR TOP SECTION

17
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your
local yellow pages/business listings or go to the Find a Dealer section online at www.wayne-dalton.com
Tools Needed:
Tools Needed:
INSTALLATION
10 Bottom Section
9

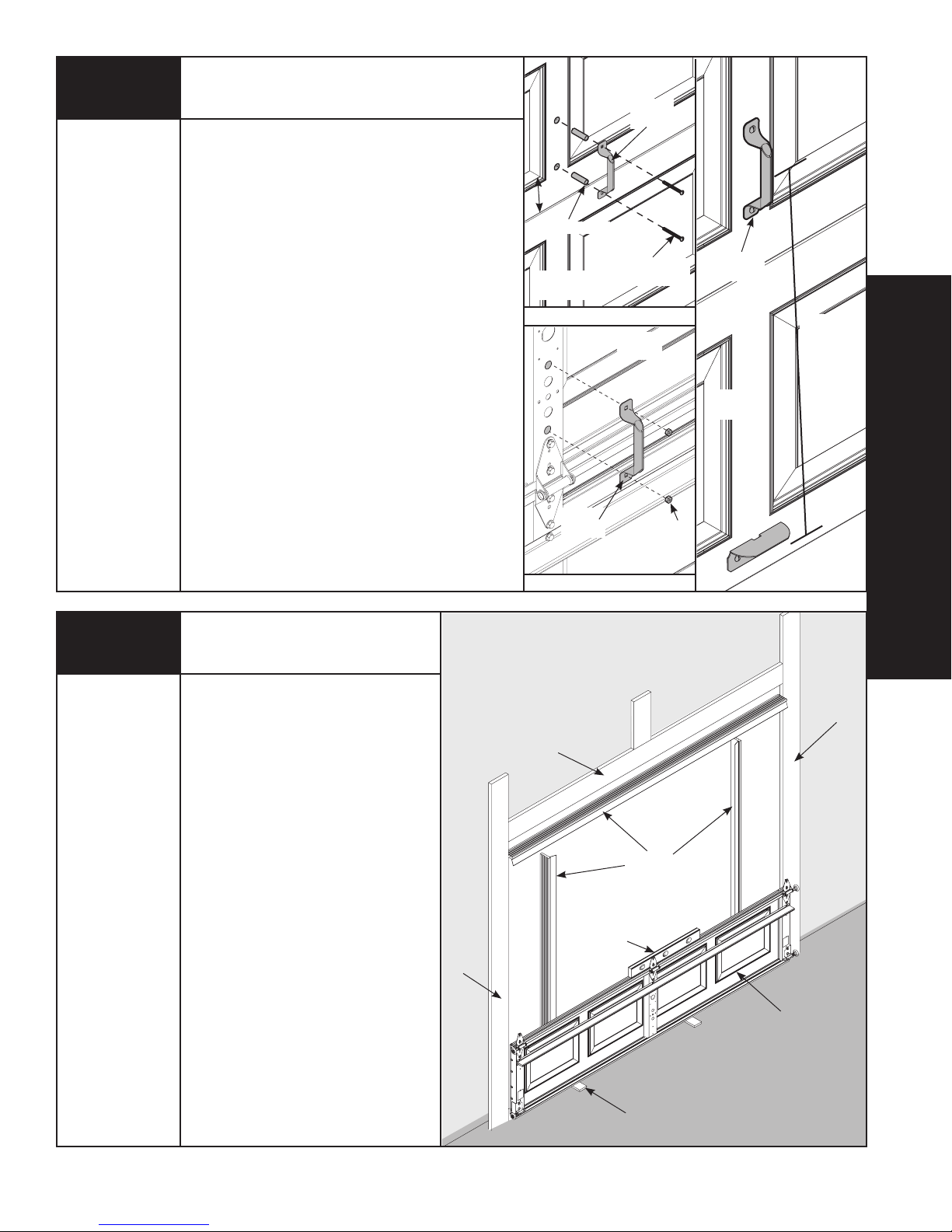

Before installing the bottom section,
the weather seal (may not be included)
must be installed (see PREPARING THE
OPENING on page 10)
Center the bottom section in the door
opening. Level section using wooden
shims under the bottom astragal if
necessary. Hold the section in the
opening while attaching vertical tracks. WEATHER
SEAL
LEVEL
HEADER
Level
Wood Shims
JAMB
BOTTOM
SECTION
WOODEN
SHIMS
JAMB
Tape Measure
Pencil
Power Drill
9/32” Drill Bit
1/2” Drill Bit
1/4” Wrench
Lift Handle
NOTE: Doors with a Keyed lock do not require this lift
handle.
NOTE: For door section identification see page 4.
Locate the inside center stile or the desired lift handle
location on the lock (2nd) section of the door. Position
the lower hole in the lift handle 4” from the bottom of
the second section.
IMPORTANT: The distance between the step/lift
plate and the middle of the lift handle must be 20”
minimum to 30” maximum. If needed reposition upper
lift handle to stay within the required dimension.
Drill (2) 9/32” dia. holes through section. Enlarge the
holes from outside the door to 1/2” dia.
Assemble the outside and inside lift handle to the
section using (2) 1/4” x 2-1/2” carriage bolts,
( 2) 1/4”- 20 hex nuts and (2) spacers.
NOTE: Do not drill through or enlarge holes on the
inside of the door.
LIFT HANDLE OUTSIDE
LIFT HANDLE INSIDE
LOCK
SECTION LOCK
SECTION
LOCK
SECTION
BOTTOM
SECTION
BOTTOM
SECTION
BOTTOM SECTION
LIFT
HANDLE
LIFT
HANDLE
LIFT
HANDLE
(2) SPACERS
(2) 1/4”-20
HEX NUT
(2) 1/4” X 2-1/2”
CARRIAGE BOLTS
4”
20” TO 30”

18
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your
local yellow pages/business listings or go to the Find a Dealer section online at www.wayne-dalton.com
Tools Needed:
Tools Needed:
12
11 Vertical Track
Stacking Sections
3/16” Drill Bit
Power Drill
7/16” Socket
Driver
Tape Measure
Level
Power Drill
7/16” Socket
Driver
BOTTOM SECTION
5/16 X 2” HEX
HEAD LAG
SCREWS
FLAGANGLE
VERTICAL
TRACK
ASSEMBLY
JAMB
BRACKET
VERTICAL TRACK
ROLLER
JAMB BRACKET
5/16” X 2”
HEX HEAD
LAG SCREW
FLAGANGLE HOLE
SELECTION
LOCK SECTION
NOTE: For door section identification
see page 4.
NOTE: Make sure hinges are flipped
down, when stacking another section
on top.

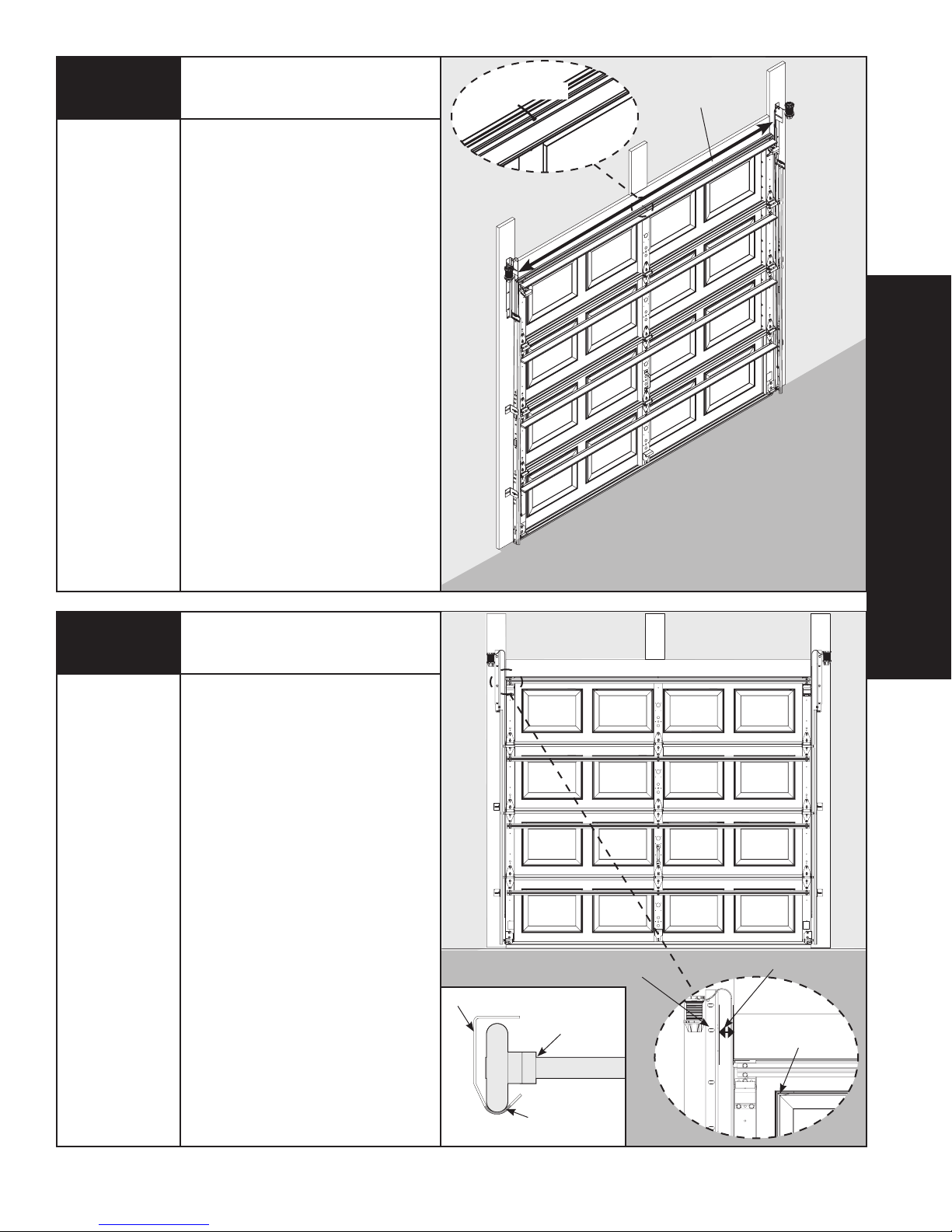

With assistance, lift second section and
guide rollers into the vertical tracks.
Keeping the ends of the sections
aligned, install remaining section(s),
except top section, in same manner.
Now flip up hinge leaf, and fastening
center hinges first, and end hinges last,
using (2) 1/4”- 14 x 5/8” self tapping
screws. Repeat for other section(s)
except top section.
NOTE: Install lock at this time (sold
separately) See instructions in
OPTIONAL SIDELOCK INSTALLATION on
page 33.
IMPORTANT: THE TOPS OF THE VERTICAL
TRACKS MUST BE LEVEL FROM SIDE
TO SIDE. IF THE BOTTOM SECTION WAS
SHIMMED TO LEVEL IT, THE VERTICAL
TRACK ON THE SHIMMED SIDE, MUST BE
RAISED THE HEIGHT OF THE SHIM.
Position the left hand vertical track
assembly over the rollers of the bottom
section. Make sure the counterbalance
cable is located between the rollers and
the door jamb. Drill 3/16” pilot holes for the
lag screws.
If installing an idrive®opener: Raise the
track so that the bottom of the track is 1”
higher than the bottom of the door.
For non-idrive®operated garage doors:
Install the track so that it is aligned with
the bottom of the door.
Loosely fasten jamb brackets and flagangle
to the jamb using 5/16” x 1-5/8” hex head
lag screws. Tighten bottom jamb bracket
lag screw securely to the jamb to maintain
5/8” spacing. Hang cable drum over
flagangle. Repeat for the right side.
5/8”

19
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your
local yellow pages/business listings or go to the Find a Dealer section online at www.wayne-dalton.com
Tools Needed:
Tools Needed:
INSTALLATION
13
14
Top Section
When installing a door with a
TorqueMaster®counterbalance system,
vertical track alignment is critical.
Position flagangle between 1-11/16”
(43 mm) to 1-3/4” (44 mm) from the
edge of the door. Tighten the bottom lag
screw. Flagangles must be parallel to the
door sections. Repeat for opposite side.
IMPORTANT: THE DIMENSION BETWEEN
THE FLAGANGLES MUST BE DOOR
WIDTH PLUS 3-3/8” (86MM) TO 3-1/2”
(89 MM) FOR SMOOTH, SAFE DOOR
OPERATION.
Complete the vertical track installation
by securing the center jamb bracket(s)
and tightening the other lag screws.
Push the vertical track against the rollers
so that the rollers are touching the
deepest part of the curved side of the
track (see illustration). Tighten all the
track bolts and nuts. Repeat for opposite
side.
Vertical Track
DOOR WIDTH
+3-3/8” TO 3-1/2”
NAIL
1-11/16” TO 1-3/4”
FLAGANGLE
TOP SECTION

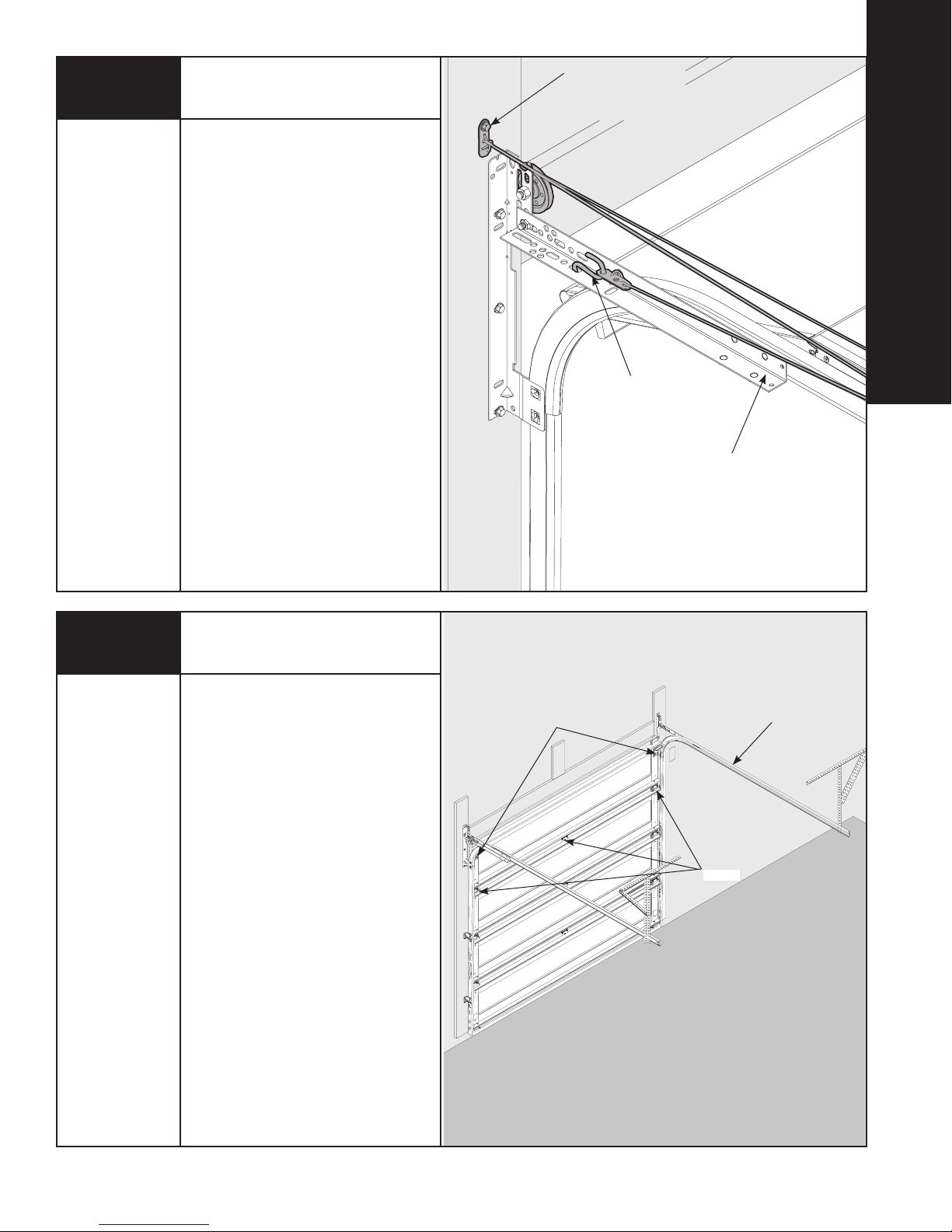

Place the top section in the opening and
vertically align with lower sections.
Temporarily secure the top section by
driving a nail in the header near the
center of the door and bending it over
the top section.
Now flip up the hinge leaf against
section, fastening center hinges first and
end hinges last.
Power Drill
7/16 Socket
Driver
Tape Measure
Hammer
Nail
Power Drill
7/16 Socket
Driver
ROLLER
VERTICAL TRACK
ROLLER AGAINST
VERTICAL TRACK

20
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your
local yellow pages/business listings or go to the Find a Dealer section online at www.wayne-dalton.com
Tools Needed:
Tools Needed:
16
15 Horizontal Track
With horizontal tracks installed you can
adjust the top brackets.
Vertically align the top section with the
lower sections. Once aligned, position
the top roller in the top bracket slide out
against the horizontal track. Maintaining
the slide’s position, tighten 1/4”- 20
flange hex nut to secure the top bracket
slide to the top bracket base.
Repeat for other side.
Adjusting Top Brackets
7/16” Wrench
HORIZONTAL
TRACK
TOP BRACKET
SLIDE
CORRECT
INCORRECT
TOP ROLLER
TOP
SECTION
TOP
SECTION
TOP
SECTION
(2) 1/4”- 20 X 5/8”
CARRIAGE BOLTS
FLAGANGLE
FLAGANGLE
(1) 3/8-16 X 3/4”
HEX HEAD BOLT
HORIZONTAL
ANGLE
To install horizontal track, place the curved end over
the top roller. Align the bottom of the horizontal track
with the vertical track. Hand tighten the horizontal
track to the flagangle with (2) 1/4”-20 x 5/8” carriage
bolts and (2) 1/4”-20 flange hex nuts.
Level the horizontal track assembly and bolt the
horizontal angle to the slot in the flagangle using
(1) 3/8”- 16 x 3/4” hex head bolt and (1) 3/8”-16 hex
nut. Repeat for other side. Remove the nail that was
temporarily holding the top section in place, installed
in Step 13.
IMPORTANT: FAILURE TO REMOVE NAIL BEFORE
ATTEMPTING TO RAISE DOOR COULD CAUSE
PERMANENT DAMAGE TO TOP SECTION.
DO NOT RAISE DOOR UNTIL HORIZONTAL TRACKS
ARE SECURED AT REAR, AS OUTLINED IN STEP
34, OR DOOR COULD FALL FROM OVERHEAD
POSITION CAUSING SEVERE OR FATAL INJURY.
NOTE: If an idrive® opener will be installed, position
horizontal tracks slightly above level.
9/16” Socket
Ratchet Wrench
9/16” Wrench
Level
(2) 1/4”-20 FLANGE
HEX NUTS
(1) 3/8”-16
HEX NUT
WARNING
