Wayne-Dalton TorqueMaster Plus 9800 Quick start guide

TorqueMaster® Plus - Single and Double Spring
Installation Instructions and Owner’s Manual
9800 DOORS
IMPORTANT NOTICE!
Read these instructions carefully before attempting
installation. If in question about any of the proce-
dures, do not perform the work. Instead, have a
qualified door agency do the installation or repairs.
©Copyright 2010 Wayne-Dalton, a Division of Overhead Door Corporation Part No. 341458 REV2 02/26/2010
Wayne-Dalton, a Division of
Overhead Door Corporation
P.O. Box 67, Mt. Hope, OH 44660
www.Wayne-Dalton.com

2Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your local
yellow pages business listings or go to the Find a Dealer section online at www.Wayne-Dalton.com
Definition of key words used in this manual:
INDICATES A POTENTIALLY HAZARDOUS
SITUATION WHICH, IF NOT AVOIDED, COULD
RESULT IN SEVERE OR FATAL INJURY.
CAUTION: PROPERTY DAMAGE OR INJURY CAN RESULT
FROM FAILURE TO FOLLOW INSTRUCTIONS.
IMPORTANT: REQUIRED STEP FOR SAFE AND PROPER
DOOR OPERATION.
NOTE: Information assuring proper installation of the door.
TO AVOID POSSIBLE
INJURY, READ THESE INSTRUCTIONS
CAREFULLY BEFORE ATTEMPTING
INSTALLATION. IF IN QUESTION ABOUT
ANY OF THE PROCEDURES, DO NOT
PERFORM THE WORK. INSTEAD, HAVE
A QUALIFIED DOOR AGENCY DO THE
INSTALLATION OR REPAIRS.
1. READ AND FOLLOW ALL INSTALLATION INSTRUCTIONS.
2. Wear protective gloves during installation to avoid possible cuts
from sharp metal edges.
3. It is always recommended to wear eye protection when using
tools, otherwise eye injury could result.
4. Avoid installing your new door on windy days. Door could fall
during the installation causing severe or fatal injury.
5. Doors 12’ - 0” wide and over should be installed by two persons,
to avoid possible injury.
6. Operate door ONLY when it is properly adjusted and free from
obstructions.
7. If a door becomes hard to operate, inoperative or is damaged,
immediately have necessary adjustments and/or repairs made
by a trained door system technician using proper tools and
instructions.
8. DO NOT stand or walk under a moving door, or permit anybody to
stand or walk under an electrically operated door.
9. DO NOT place fingers or hands into open section joints when
closing a door. Use lift handles/gripping points when operating
door manually.
10. DO NOT permit children to operate garage door or door controls.
Severe or fatal injury could result, should the child become
entrapped between the door and the floor.
11. Due to constant extreme spring tension, DO NOT attempt any
adjustment, repair or alteration to any part of the door, especially
to springs, spring brackets, bottom corner brackets, red colored
fasteners, cables or supports. To avoid possible severe or fatal
injury, have any such work performed by a trained door systems
technician using proper tools and instructions.
12. On electrically operated doors, pull down ropes must be
removed and locks must be removed or made inoperative in the
open (unlocked) position.
13. Top section of door may need to be reinforced when attaching
an electric opener. Check door and/or opener manufacturer’s
instructions.
14. VISUALLY inspect door and hardware monthly for worn and or
broken parts. Check to ensure door operates freely.
15. Test electric opener’s safety features monthly, following opener
manufacturer’s instructions.
16. NEVER hang tools, bicycles, hoses, clothing or anything else
from horizontal tracks. Track systems are not intended or
designed to support extra weight.
After installation is complete, fasten this manual
near garage door.
Table of Contents
Important Safety Instructions .................................................. 2
Package Contents ................................................................... 3
Door Section Identification ...................................................... 4
Tools Required ........................................................................ 5
Pre-Installation ..................................................................5-10
Removing The Old Door .......................................5-9
Preparing The Opening ......................................... 10
Installation ......................................................................11-32
Optional Installations .......................................................33-34
Side Lock ............................................................. 33
Pull Rope .............................................................. 33
Trolley Operator .................................................... 34
Maintenance ....................................................................35-36
Cleaning ............................................................... 35
Painting Instructions ............................................. 36
Warranty ............................................................................... 37
Dealer Locator Information.................................................... 38
WARNING
WARNING

3
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your local
yellow pages business listings or go to the Find a Dealer section online at www.Wayne-Dalton.com

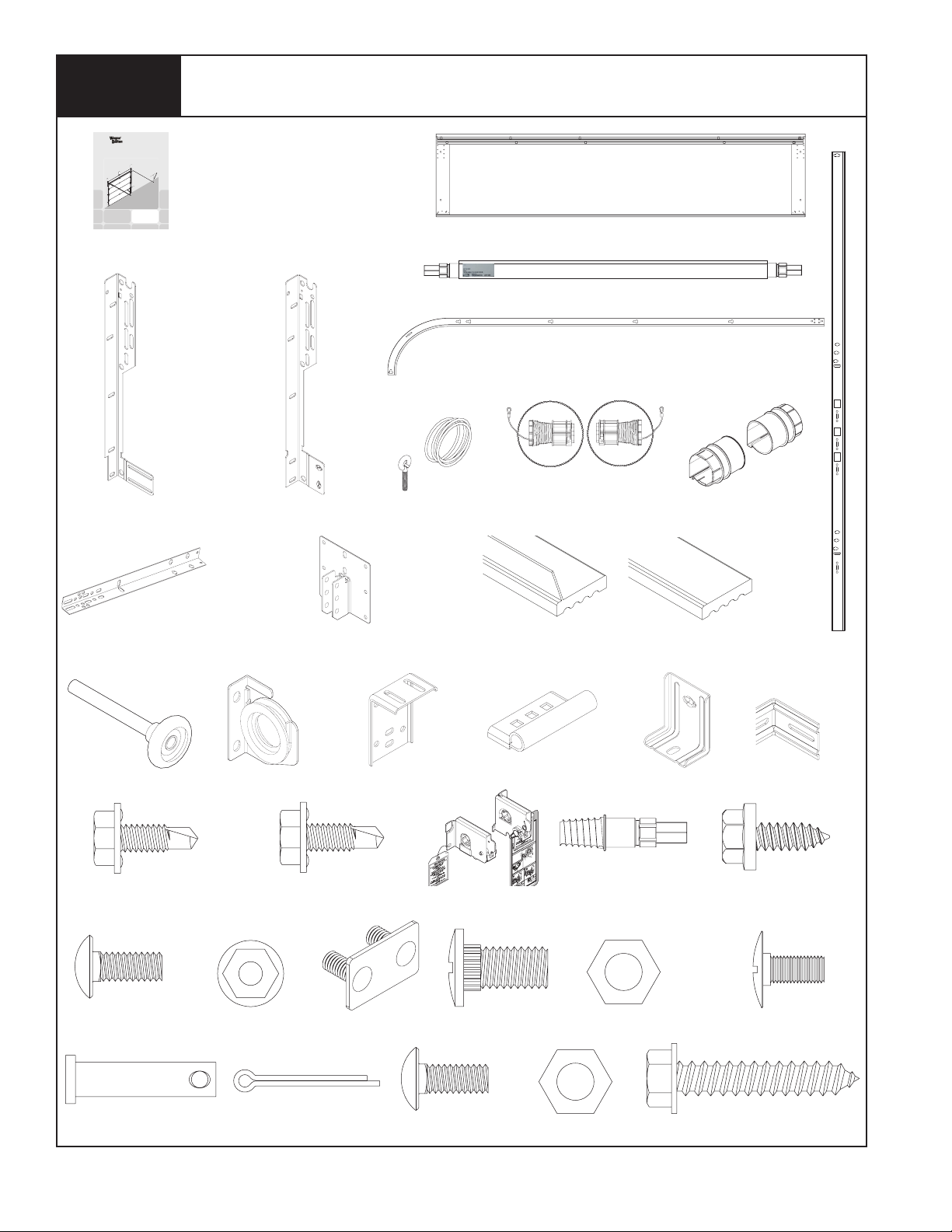

Package Contents
(1) TORQUEMASTER® SPRING TUBE
DOOR SECTIONS (AS REQUIRED)
(2) TOP BRACKET SLIDES
1/4” - 14 X 5/8” SELF-TAPPING
SCREWS (AS REQUIRED)
1/4” - 20 X 7/8” SELF-DRILLING
SCREWS (AS REQUIRED)
(4) 1/4” - 20 X 5/8”
CARRIAGE BOLTS
(2) VERTICAL
TRACKS RH/LH
(2) 3/8” - 16 X 3/4”
TRUSS HEAD BOLTS
(1) CENTER BRACKET
ASSEMBLY
(2) QUICK INSTALL RH/LH
FLAGANGLE (AS REQUIRED)
(2) HORIZONTAL TRACKS RH/LH
NOTE: DEPENDING ON THE DOOR MODEL, SOME PARTS LISTED WILL NOT BE SUPPLIED IF NOT
NECESSARY. REAR SUPPORTS MAY OR MAY NOT BE INCLUDED WITH YOUR DOOR.
ROLLERS
(AS REQUIRED)
(1) OPERATOR BRACKET
(2) HORIZONTAL ANGLES
(22”, 80” OR 94”)
(AS REQUIRED)
(2) TOP BRACKET BASES
SCREW EYE AND
PULL ROPE
(IF INCLUDED)
5/16” X 1 5/8” HEX HEAD LAG SCREWS
(AS REQUIRED)
(1) LOOSE WINDING SHAFT
(SINGLE SPRING ONLY)
RIGHT AND LEFT CABLE
DRUM ASSEMBLIES
WEATHER SEALS & NAILS
(IF INCLUDED)
RIGHT & LEFT
DRUM WRAPS
TorqueMaster® Plus - Single and Double Spring
Installation Instructions and Owner’s Manual
9800 SERIES
IMPORTANT NOTICE!
Read these instructions carefully before
attempting installation. If in question about
any of the procedures, do not perform the
work. Instead, have a qualified door agency
do the installation or repairs.
© Copyright 2007 Wayne-Dalton Corp. Part No. xxxxxx NEW 01/03/2007
MANUAL
1/4” - 20 FLANGED HEX
NUTS (AS REQUIRED)
RIGHT & LEFT
END BRACKETS
Cable Drum
No space between Ratchet
Pawl and Cable Drum
indicates engagement
Cable Drum
Ratchet Pawl
ENGAGED SIDE VIEW
No space between
Ratchet Pawl and
Cable Drum
ENGAGED UNDERNEATH VIEW
Space between Ratchet Pawl
and Cable Drum
non-indicates engagement
Cable Drum
Ratchet Pawl
DISENGAGED SIDE VIEW
No space between
Ratchet Pawl and
DISENGAGED UNDERNEATH VIEW
UPPER POSITION LOWER POSITION
LOW
ER POSITION SIDE VIEW
UPPER POSITION SIDE VIEW
Ratchet Pawl in Lower Position
Ratchet Pawl in Upper Position
Use these Illustration, in conjunction with the Instructions on the other side of
this label.
WARNING
Rachet Bracket is under
EXTREME SPRING
TENSION.
To avoid possible severe or
fatal injury, DO NOT remove
fasteners from ratchet bracket
until spring(s) are fully
wnwound.
To safely unwind spring(s)
read
and follow the directions in the
installation instructions/owners
manual.
DO NOT REMOVE THIS TAG.
Ratchet Pawl
ENGAGED SIDE VIEW
No space betw
een
NDERNEATH VIEW
WARNING
Rachet Bracket is under
EXTREME SPRING
TENSION.
To avoid possible severe or
fatal injury, DO NOT remove
fasteners from ratchet bracket
until spring(s) are fully
wnwound.
To safely unwind spring(s)
read
and follow the directions in the
installation instructions/owners
manual.
DO NO
T REMOVE THIS TAG.
Q.I. JAMB BRACKETS
(AS REQUIRED)
(2) 3/8” - 16 HEX
NUTS
(1) COTTER PIN(1) 5/16” X 1-1/4”
CLEVIS PIN
(2) 5/16” - 18 X 3/4”
CARRIAGE BOLTS
(2) 5/16” - 18
HEX NUTS
(2) FULLY ADJUSTABLE RH/LH
FLAGANGLE (AS REQUIRED)
STUD PLATES
(AS REQUIRED)
1/4” - 20 X 5/8” SELF-DRILLING
SCREWS (AS REQUIRED)
F.A. JAMB BRACKETS
(AS REQUIRED)
DOOR STOP & NAILS
(IF INCLUDED)
1/4” - 20 X 9/16” LARGE
HEAD RIBBED TRACK BOLTS
(AS REQUIRED)

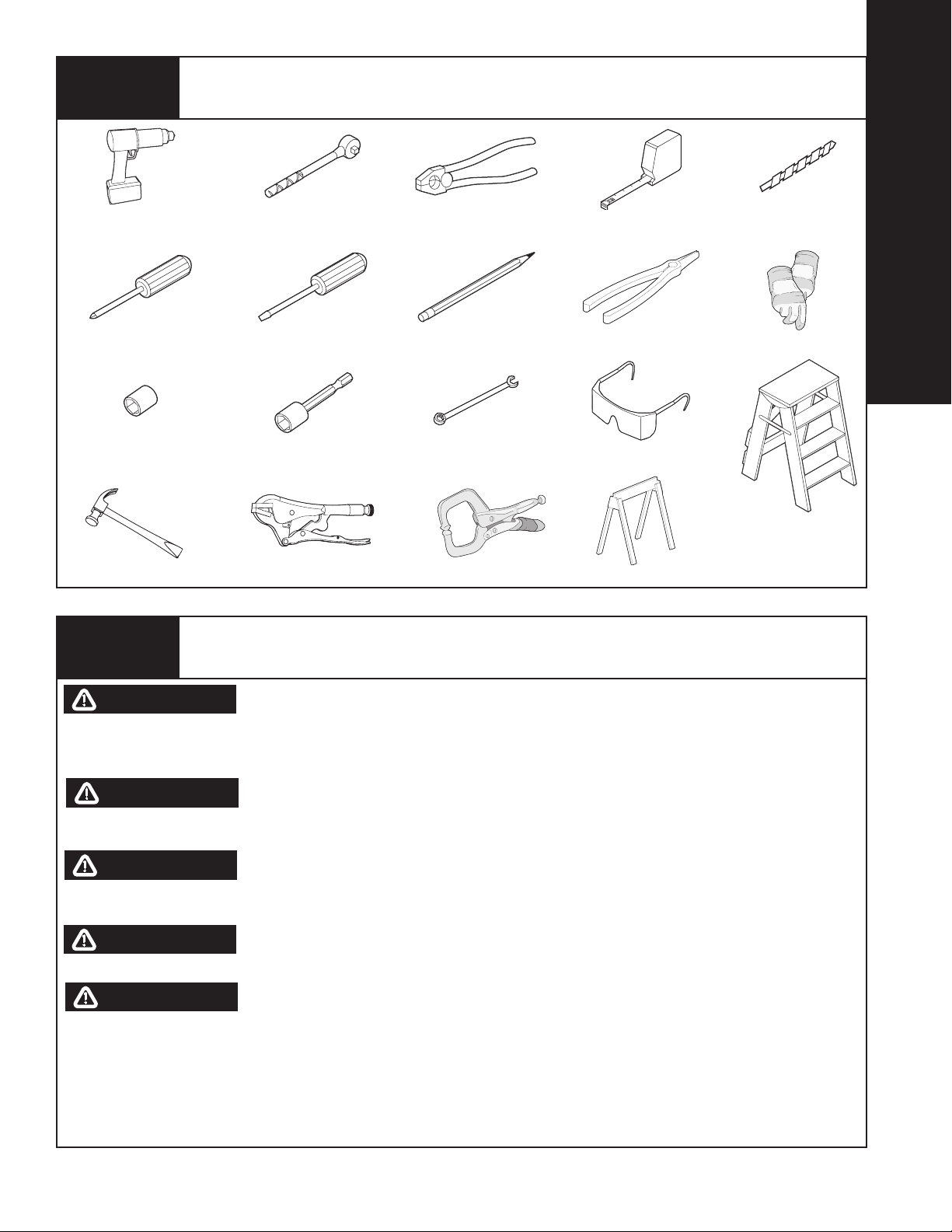

Tools Needed:
4Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your local
yellow pages business listings or go to the Find a Dealer section online at www.Wayne-Dalton.com
SECTION SIDE VIEW SHOWN ABOVE
TYPICAL HINGE STAMPING LOCATION
Door Section Identification
TOP SECTION
INTERMEDIATE SECTION
LOCK SECTION
BOTTOM SECTION
BOTTOM BRACKET
WARNING LABELS
ASTRAGAL
#3
#2
#1
WARNING LABEL
NOTE: This provides an alternative
method for identifying your door
sections/stacking position.
Hinges are always pre-attached at
the top of each section (except top
section) and the hinges are stamped for
identification, #1, #2, and #3. See view
below. The stamp identifies the stacking
sequence of the section. The sequence
is always determined by #1 being the
bottom section to #3 being the highest
lock/intermediate section. See views to
the right. If the stamp on the end hinge
is illegible, refer to the section side view
illustration to the right.
The section side view illustration shows
the end hinge profile of all the sections,
and can also be used in conjunction
with identifying each sections.
The BOTTOM SECTION can be
identified by #1 end hinges, the factory
attached bottom astragal, and by the
bottom bracket warning labels on each
end stile.
The LOCK SECTION can be identified
by #2 end hinge.
NOTE: On 3 section high doors, the
LOCK SECTION can be identified by
#3 end hinge and the section will have
a warning label attached to either the
right or left hand end stile.
The INTERMEDIATE SECTION can be
identified by #3 end hinges. The section
will have a warning label attached to
either the right or left hand end stile.
The TOP SECTION can be identified by
no pre-installed hinges on the section
and the warning label attached in the
center of the section.
TOP INT. LOCK BOTTOM
BOTTOM
BRACKET
ASTRAGAL
#1 END
HINGE
#3 END
HINGE
#2 END
HINGE
7/8”
1 1/8”
1 3/8”
TOP SECTION
LOCK SECTION
ASTRAGAL
#3
BOTTOM SECTION
BOTTOM BRACKET
WARNING LABELS
#1
WARNING LABEL
3 SECTION 7’0” HIGH SHOWN ABOVE
4 SECTION 8’0” HIGH SHOWN ABOVE

5
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your local
yellow pages business listings or go to the Find a Dealer section online at www.Wayne-Dalton.com
IF YOUR COUNTERBALANCE SYSTEM IS OTHER THAN THOSE MENTIONED IN SECTIONS P1, P2 AND P3, DO NOT
ATTEMPT TO WORK ON IT, BUT HAVE A QUALIFIED DOOR AGENCY PERFORM THE WORK. OTHERWISE, SEVERE OR
FATAL INJURY COULD RESULT.
DISCONNECT AND REMOVE ANY ELECTRIC OPENER PRIOR TO REMOVAL OF COUNTERBALANCE SYSTEMS TO
PREVENT UNINTENDED DOOR OPERATION. OTHERWISE, SEVERE OR FATAL INJURY COULD RESULT.
COUNTERBALANCE SPRING TENSION MUST BE RELIEVED BEFORE REMOVING ANY HARDWARE. A POWERFUL
SPRING RELEASING IT’S ENERGY SUDDENLY CAN CAUSE SEVERE OR FATAL INJURY.
IF YOU HAVE BACK PROBLEMS DO NOT ATTEMPT THIS, OR SEVERE INJURY COULD RESULT
REMOVING AN EXISTING DOOR CAN BE DANGEROUS. FOLLOW INSTRUCTIONS ON PAGES 6-10 “REMOVING AN OLD
DOOR/PREPARING THE OPENING” CAREFULLY, OTHERWISE, SEVERE OR FATAL INJURY COULD RESULT.
If you have an existing door, follow the instructions to identify which counterbalance removal is necessary. The process of removing
an existing door begins by identifying it’s counterbalance system. If you are not removing an existing door, proceed to PREPARING THE
OPENING on page 10. Generally, you will find three (3) types of counterbalance systems: Torsion spring counterbalance systems, Wayne-
Dalton® exclusive TorqueMaster® and Extension Spring counterbalance systems.
For more technical information regarding the opening preparation, installation and use of your garage door and opener, you can go to
www.dasma.com and click on Publications and then Technical Data Sheets Number 156, 161 and 164.
Tools Required
Removing An Old Door
WARNING
WARNING
WARNING
WARNING
POWER DRILL RATCHET WRENCH PLIERS/WIRE CUTTERS
PHILLIPS HEAD SCREWDRIVER PENCIL
1/8”, 3/16” DRILL BITS
FLAT TIP SCREWDRIVER
7/16” SOCKET DRIVER
TAPE MEASURE
NEEDLE NOSE PLIERS
7/16”, 1/2”, 9/16”
SOCKETS
3/8”, 7/16”, 1/2”, 9/16”
WRENCHES
SAFETY GLASSES
STEP LADDER
PRE-INSTALLATION
WARNING
VICE GRIPS VICE CLAMPS
GLOVES
(2) SAW HORSES
HAMMER

Tools Needed:
6Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your local
yellow pages business listings or go to the Find a Dealer section online at www.Wayne-Dalton.com
FAILURE TO USE APPROVED
WINDING BARS CAN CAUSE
SPRING ENERGY TO BE RELEASED
SUDDENLY, RESULTING IN SEVERE
OR FATAL INJURY.
COUNTERBALANCE SPRING
TENSION MUST BE RELIEVED
BEFORE REMOVING ANY
HARDWARE. A POWERFUL
SPRING RELEASING IT’S ENERGY
SUDDENLY CAN CAUSE SEVERE OR
FATAL INJURY.
Do not release the torsion spring
tension unless you are qualified and
experienced door technician. Instead have
a professional door agency release the
tension.

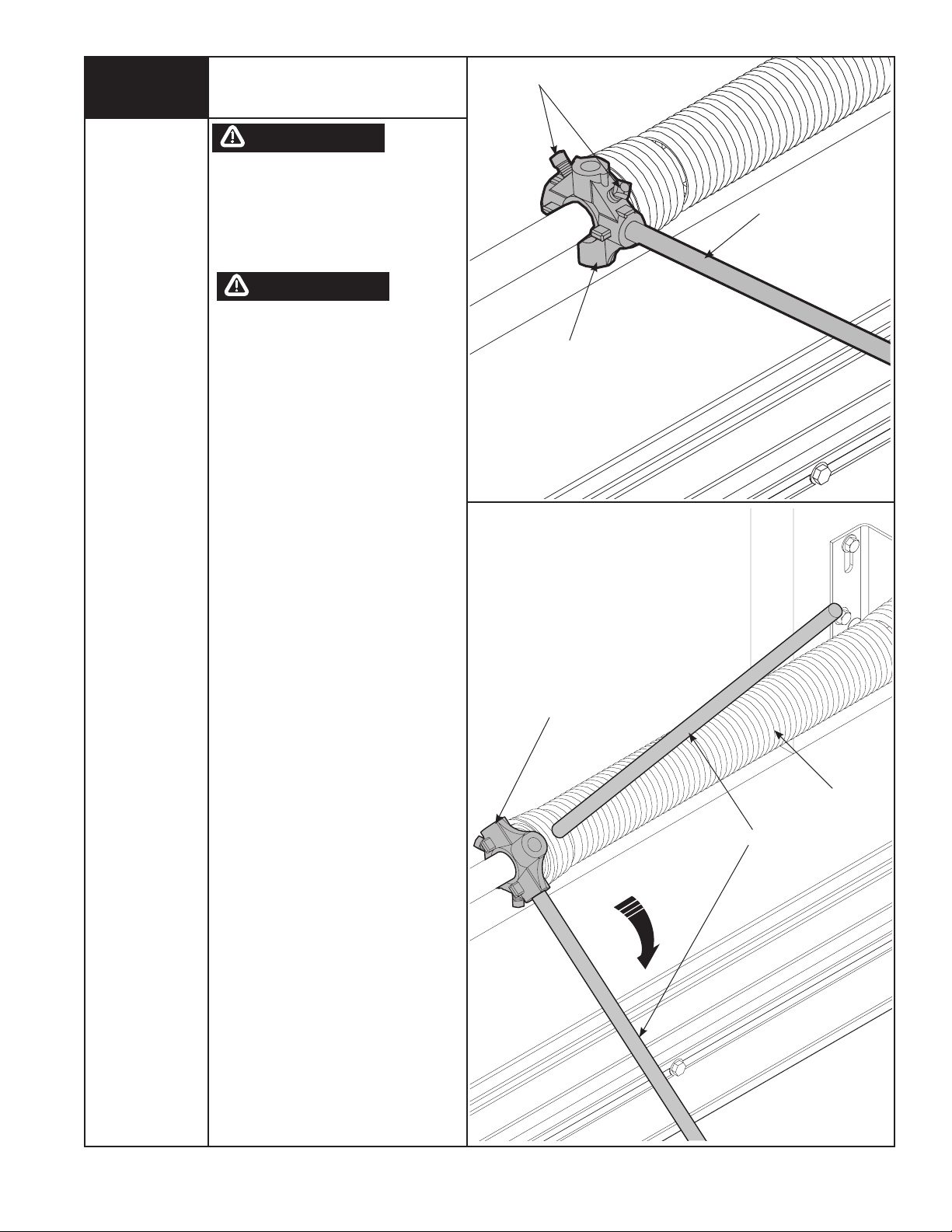

Step 1: Close the door and place vice
clamps on the back legs of both vertical
tracks, above the third roller to prevent
the door from lifting as you unwind the
springs. Use only approved winding bars
available from your dealer. Do not use
undersized steel rods, screw drivers or
anything else to unwind the springs.
Position the ladder just off to the side
of the winding cone. The winding cone
should be easy to reach without putting
your body directly in front of it.
Step 2: Insert a winding bar into one
of the holes in the winding cone. Exert
upward pressure. Using caution, loosen
the two (2) set screws in the winding
cone. Be prepared to support the full
torsional force of the spring when the set
screws are loosened.
Step 3: Once set screws are loose, slowly
and carefully lower the winding rod until it
contacts the door. Insert other winding bar
into the upper hole. Push up and remove
lower bar. Carefully lower upper winding
bar, 1/4 turns at a time until it contacts
the door. Repeat process until all tension
is relieved. If your door is equipped with
two (2) torsion springs, follow the same
procedure to relieve tension on the second
spring.
Step 4: Remove vice clamps from tracks,
unbolt torsion shaft assembly and remove
from work area.
NOTE: Continue with “P4” on page 9 after
completing this step.
WARNING
WARNING
P1
Approved
Winding Bars
3/8” Wrench
Vice Clamp
Recommended
tools from
page 5
Torsion Spring Removal
For Standard Lift
APPROVED WINDING BARS
WINDING CONE
TORSION ASSEMBLY
SET SCREWS
FIRMLY HOLD WINDING
BAR AND CAUTIOUSLY
LOOSEN SET SCREWS
WINDING CONE

Tools Needed:
7
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your local
yellow pages business listings or go to the Find a Dealer section online at www.Wayne-Dalton.com
PRE-INSTALLATION
Fig. 2
Fig. 1
Fig. 3
RIGHT HAND
CABLE DRUM
TORQUEMASTER®
SPRING TUBE
CHECK CABLE
TENSION
LOOSEN LOCK
NUT 1/4 TURN COUNTER
GEAR / COVER
RIGHT HAND
END BRACKET
PLACE MARK ON END BRACKET
AND DRIVE GEAR TOOTH
BEFORE UNWINDING SPRINGS
END BRACKET
RIGHT HAND
WINDING BOLT HEAD
ELECTRIC DRILL
WITH 7/16” HEX
DRIVER (DO NOT
USE IMPACT
GUN)
PRY COUNTER GEAR
AND COUNTER COVER
FROM END BRACKET
USING FLAT TIP
SCREWDRIVER
COUNTER
GEAR
COUNTER
COVER
P2
A TorqueMaster® spring system can be
identified by the end brackets. For single
spring applications, the right hand end
bracket will always have a drive gear,
counter gear, counter cover, and a winding
bolt head. The left hand end bracket will
have no gears, counter cover, or winding
bolt head. The hole for the winding bolt
head will be plugged.
For double springs, both the right hand
and left hand end brackets will always
have a drive gear, counter gear, counter
cover and a winding bolt head.
IMPORTANT: RIGHT AND LEFT HAND IS
ALWAYS DETERMINED FROM INSIDE THE
BUILDING LOOKING OUT.
Step 1: If you have a black counter
cover: Place a mark on the drive gear
tooth and an adjacent mark on the right
hand end bracket (Fig. 1). Loosen the lock
nut 1/4 turn using a 7/16” wrench and
continue with step 2.
If you have a gray counter cover:
Loosen the lock nut 1/4 turn using a 7/16”
wrench and continue with step 2.
Step 2: Using an electric drill (High
torque / gear reduced to 1300 rpm
preferred) with a 7/16” hex head driver,
unwind the right hand winding bolt head
counterclockwise (Fig. 2) and count the
number of turns the mark on the drive
gear passes the adjacent mark on the end
bracket. Referencing the chart below, by
door height, stop unwinding the spring
once the counted turns have reached the
listed number of turns.
6’-0” Door Height = 14 turns
6’-3” Door Height = 14 1/2 turns
6’-5” Door Height = 15 turns
6’-6” Door Height = 15 turns
6’-8” Door Height = 15 1/2 turns
6’-9” Door Height = 15 1/2 turns
7’-0” Door Height = 16 turns
7’-3” Door Height = 16 1/2 turns
7’-6” Door Height = 17 turns
7’-9” Door Height = 17 1/2 turns
8’-0” Door Height = 18 turns
CAUTION: DO NOT USE IMPACT GUN TO
UNWIND SPRINGS.
IMPORTANT: DO NOT REFERENCE THE
COUNTER COVER WHEN COUNTING THE
NUMBER OF TURNS BEING UNWOUND
ON THE SPRING, BUT FOLLOW THE
INSTRUCTIONS ABOVE.
Step 3: Verify that spring tension has been
released by pulling the counterbalance
cable on the right hand cable drum away
from the header (Fig. 3). If spring tension
has been released, the cable will be loose.
In addition, the TorqueMaster® Spring
Tube
TorqueMaster® Spring Removal
Recommended
tools from
page 5
Fig. 4

Tools Needed:
8Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your local
yellow pages business listings or go to the Find a Dealer section online at www.Wayne-Dalton.com
Fig. 5
Fig. 6
Fig. 7
REMOVE TOP
LAG SCREW
REMOVE
BOTTOM LAG
SCREW
USE LOCKING PLIERS
TO HOLD END BRACKET
REMOVE #10
PHILLIPS HEAD
SCREW
PRY END BRACKET FROM WINDING
SHAFT USING A FLAT TIP SCREW
DRIVER AND LOCKING PLIERS
HOLD THE
END BRACKET
STEADY WITH
LOCKING PLIERS
REMOVE CABLE DRUM AND
WINDING SHAFT
DRAPE CABLE
ACROSS
TOP OF FLAGANGLE
LIFT
TORQUEMASTER®
SPRING TUBE
OFF FLAGANGLE
CENTER
BRACKET
ASSEMBLY
(2) 5/16” X 1-5/8”
HEX HEAD LAG
SCREWS
should be free to rotate in either direction.
If the counterbalance cable is still taut and
the TorqueMaster® Spring Tube is difficult
to rotate, that is an indication that spring
tension still exists on the left hand spring.
Repeat Steps 1 and 2 for releasing spring
tension on the left hand side.
Step 4: Using a flat tip screwdriver,
pry the counter gear and counter cover
from the right hand end bracket (Fig. 4
on previous page). Discard the counter
gear and counter cover. On double spring
applications, repeat for left hand side.

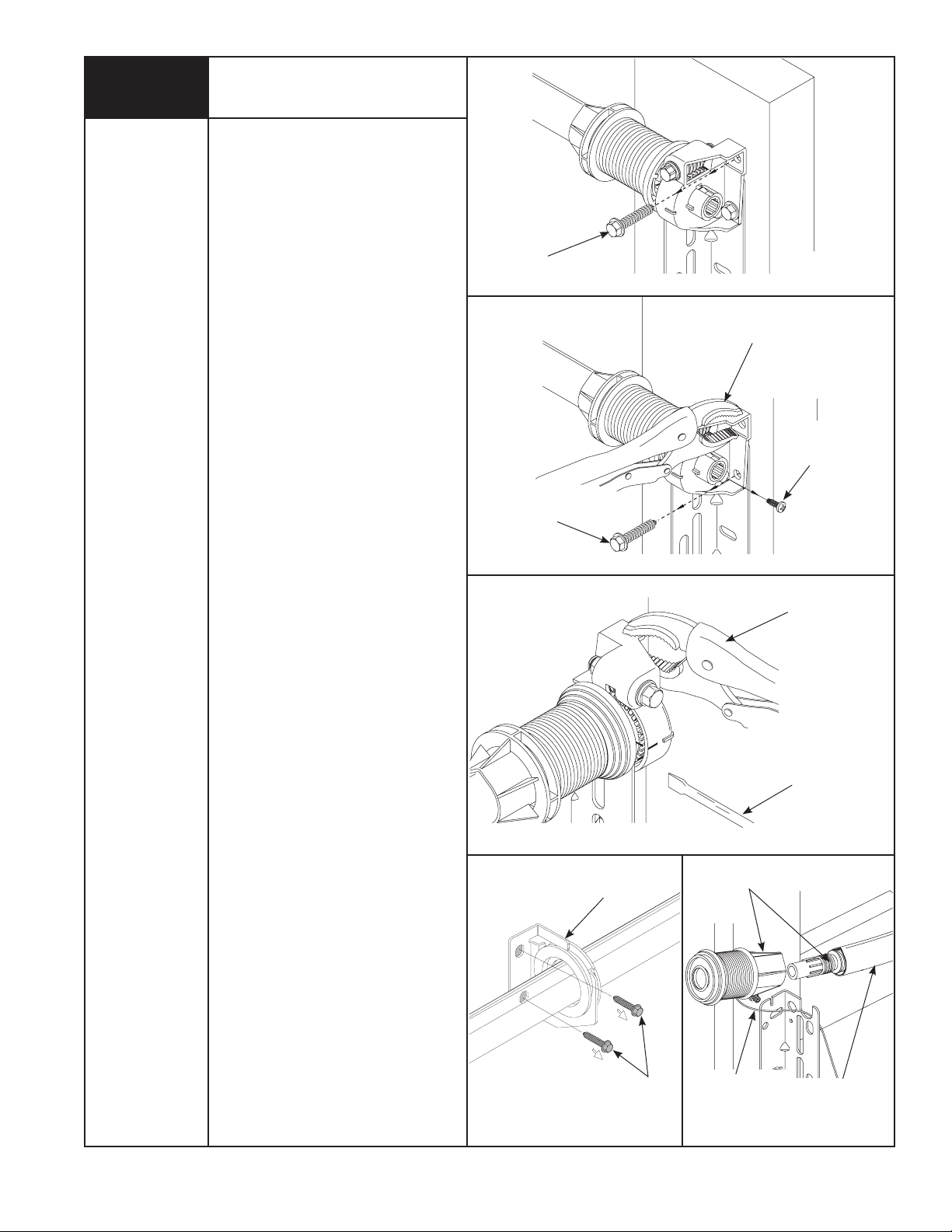

Step 5: Remove the upper 5/16” x
1-5/8” lag screw from the right hand end
bracket (Fig. 5). Attach locking pliers to
the upper portion of the end bracket and
hold the housing steady while removing
the lower 5/16” x 1-5/8” lag screw and
#10 x 1/2” phillips head screw from the
end bracket (Fig. 6).
Step 6: Holding the right hand end
bracket steady with locking pliers,
carefully pry the end bracket and drive
gear off the winding shaft using a flat tip
screwdriver (Fig. 7).
CAUTION: THE WINDING SHAFT MAY
ROTATE WHEN REMOVING THE END
BRACKET AND DRIVE GEAR.
Step 7: Repeat Step 4 for the left hand
side. Holding the left hand end bracket
steady with locking pliers, carefully pry
the end bracket off the winding shaft
using a flat tip screwdriver (Fig. 7).
Step 8: Remove the two (2) lag bolts
attaching the center bracket assembly to
the header board (Fig. 8).
Step 9: Lift the right hand side of the
TorqueMaster® Spring Tube and slide the
cable drum off. Realign the groove in the
winding shaft with the radial notch in the
flagangle and drape the counterbalance
cable with drum over the flagangle. Lift
the left hand side of the TorqueMaster®
Spring Tube and slide the cable drum
and winding shaft off (Fig. 9). Drape the
counterbalance cable with drum over the
flagangle. Lift the TorqueMaster® spring
assembly off the flagangles and out of
the doorway. Unhook the counterbalance
cables from the bottom brackets and
remove all parts from the work area.
NOTE: The cable drums may be difficult to
remove. If so, twist the cable drum to aid
in removal.
NOTE: Continue with “P4” on page 9 after
completing this step.
TorqueMaster® Spring
Removal Continued...
Recommended
tools from
page 5

9
Tools Needed:
Tools Needed:
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your local
yellow pages business listings or go to the Find a Dealer section online at www.Wayne-Dalton.com
PRE-INSTALLATION
Removing the Old Door
Extension Spring Removal
TOP BRACKET
HINGES
HORIZONTAL TRACK
BOTTOM SECTION
(DOOR OPEN)
CAREFULLY REMOVE “S”
HOOK AND COUNTERBALANCE
CABLE (REPEAT FOR THE
OPPOSITE SIDE)
HORIZONTAL ANGLE
REMOVE LAG SCREW
FROM SAFETY CABLE (IF
INSTALLED). REPEAT FOR
OPPOSITE SIDE.
P3
P4
Recommended
tools from
page 5
Recommended
tools from
page 5
Step 1: Raise the door to the fully open
position and place vice clamps to the
back legs of both vertical tracks, below
the bottom rollers to prevent the door
from falling. By opening the door you
release most of the spring tension.
Carefully unfasten the S-hook from the
horizontal angle. Remove cable, sheave
and extension spring. Repeat for the other
side. If safety cables are running through
the extension springs, remove them also.
Remove parts from work area.
Step 2: Holding door in the open position,
remove the vice clamps, be prepared
to support the entire weight of the door.
Garage doors can weigh 200-400 pounds.
With assistance, carefully lower the door,
by grasping the door firmly by it’s lift
handles. Do not place fingers or hands
near joints, between sections, or between
bottom of door and floor. Otherwise,
severe injury could result.
NOTE: Continue with “P4” after completing
this step.
Having removed the counterbalance
system, the door can now be
disassembled.
Start by first removing the top row of
hinges.
With assistance, hold the top section to
keep it from falling and remove the
top brackets. With assistance, lift the top
section out of the opening and remove
it from the work area. Repeat for all
remaining sections.
After door is disassembled, unbolt both
track assemblies from the jambs and
remove all material from the work area.
You can neatly dispose of the old door by
placing it in the carton of your new door.
Clean up area and complete “Preparing
the Opening” “P5” on page 10 before
installing the new door.

Tools Needed:
10 Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your local
yellow pages business listings or go to the Find a Dealer section online at www.Wayne-Dalton.com
If you just removed your existing door or you are installing a
new door, complete all steps in PREPARING THE OPENING.
To ensure secure mounting of track brackets, side
and center brackets, or steel angles to new or retro-fit
construction, it is recommended to follow the procedures
outlined in DASMA Technical Data Sheets #156, #161 and
#164 at www.dasma.com.
The inside perimeter of your garage door opening should
be framed with wood jamb and header material. The jambs
and header must be securely fastened to sound framing
members. It is recommended that 2” x 6” lumber be used.
The jambs must be plumb and the header level. The jambs
should extend a minimum of 12” (305 mm) above the top of
the opening for TorqueMaster counterbalance systems. For
low headroom applications, the jambs should extend to the
ceiling height. Minimum side clearance required, from the
opening to the wall, is 3-1/2” (89 mm).
IMPORTANT: CLOSELY INSPECT JAMBS, HEADER AND
MOUNTING SURFACE. ANY WOOD FOUND NOT TO BE SOUND,
MUST BE REPLACED.
For TorqueMaster counterbalance systems, a suitable
mounting surface (2” x 4”) must be firmly attached to the
wall, above the header at the center of the opening.
NOTE: Drill a 3/16” pilot hole in the mounting surface to
avoid splitting the lumber. Do not attach the mounting
surface with nails.
Weather Seal (May Not Be Included):
Cut the weather seal (if necessary) to fit header and jambs.
For quick install track: Align the header seal with the inside
edge of the header and temporarily secure it to the header
with equally spaced nails. Next, fit the jamb seals up tight
against the header seal and flush with the inside edge of
the jamb. Temporarily secure the jamb seals with equally
spaced nails approximately 12” to 18” apart. This will keep
the bottom section from falling out of the opening during
installation.
For fully adjustable track: Align the header seal 1/8” to
1/4” inside the header and temporarily secure it to the
header with equally spaced nails. Next, fit the jamb seals
up tight against the header seal and 1/8” to 1/4” inside
the jamb. Temporarily secure the jamb seals with equally
spaced nails approximately 12” to 18” apart. This will keep
the bottom section from falling out of the opening during
installation.
NOTE: Do not permanently attach weather seal to the jamb
at this time.
HEADROOM REQUIREMENT: Headroom is defined as the
space needed above the top of the door for tracks, springs,
etc. to allow the door to open properly. If the door is to be
motor operated, 2-1/2” (64 mm) of additional headroom is
required.
NOTE: 6” LHR Conversion Kit is available for 12” Radius only.
Contact your local Wayne-Dalton dealer.
BACKROOM REQUIREMENT: Backroom is defined as the
distance needed from the opening back into the garage to
allow the door to open fully.

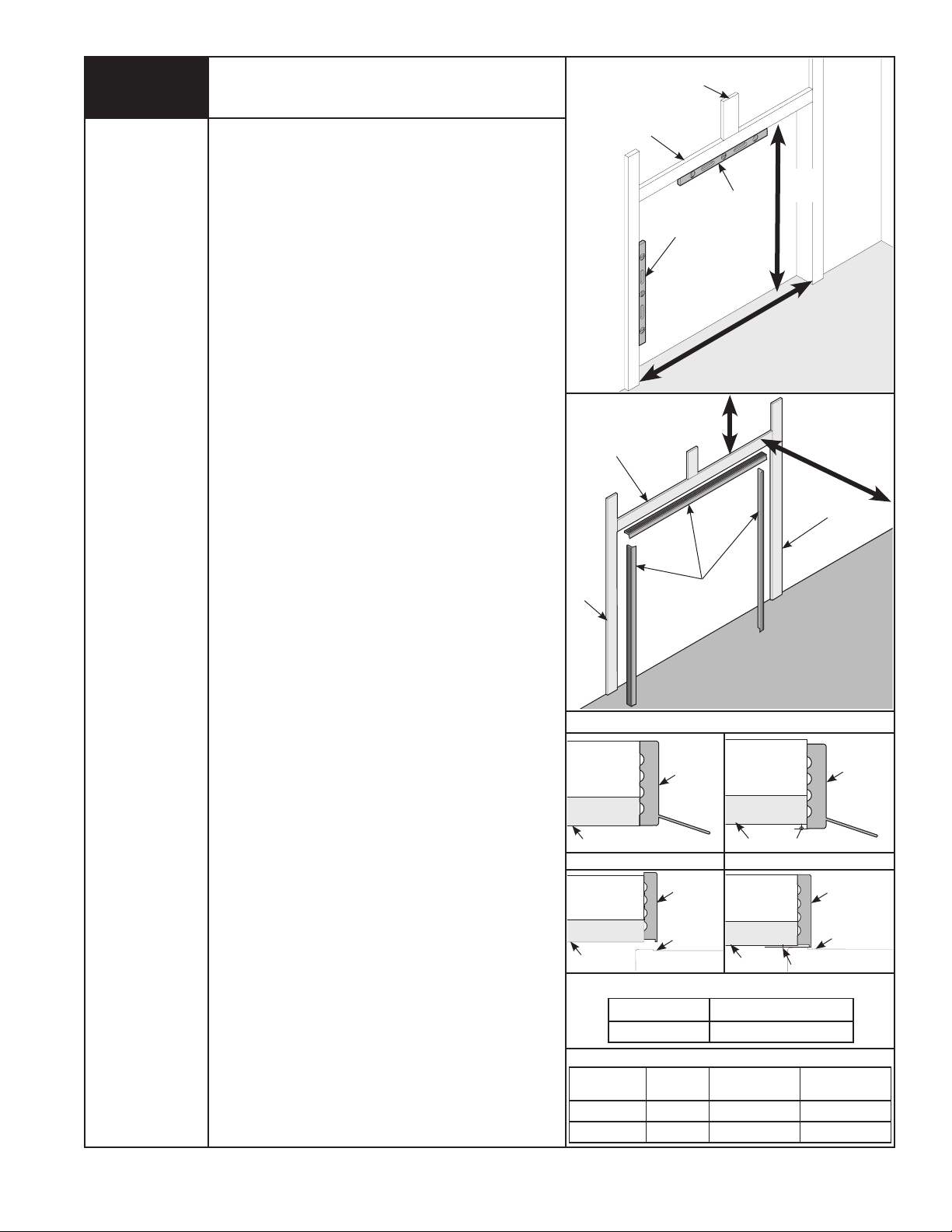

Preparing the Opening
WEATHER SEAL
HEADROOM
BACKROOM
DOOR
WIDTH
DOOR
HEIGHT
LEVEL HEADER
PLUMB JAMBS
HEADER BOARD
2” X 6” LUMBER
PREFERRED
SUITABLE MOUNTING SURFACE
2” X 6” LUMBER MINIMUM
P5
Recommended
tools from
page 5
HEADER
JAMB
JAMB
DOOR HEIGHT TRACK MANUAL LIFT MOTOR
OPERATED
6’6”, 7’0” 15” Radius 98” (2489 mm) 125” (3175 mm)
8’0” 15” Radius 110” (2794 mm) 137” (3480 mm)
BACKROOM REQUIREMENT
HEADROOM REQUIREMENT
TRACK TYPE TorqueMaster®
15” Radius track 12-1/2” (318 mm)
WEATHER SEAL
QUICK INSTALL TRACK FULLY ADJUSTABLE TRACK
JAMB
WEATHER
SEAL
1/8” TO 1/4”
WEATHER
SEAL
JAMB
DOOR
STOP
DOOR
STOP
DOOR
SECTION
DOOR
SECTION
JAMB JAMB 1/8” TO 1/4”

11
Tools Needed:
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your local
yellow pages business listings or go to the Find a Dealer section online at www.Wayne-Dalton.com
Installation
IMPORTANT: READ INSTRUCTIONS TITLED “P4” “REMOVING THE OLD DOOR” ON PAGE 9 AND “P5” “PREPARING THE OPENING” ON
PAGE 10 BEFORE ATTEMPTING DOOR INSTALLATION.
IMPORTANT: STAINLESS STEEL OR PT2000 COATED LAG SCREWS MUST BE USED WHEN INSTALLING CENTER BEARING BRACKETS,
END BRACKETS, JAMB BRACKETS, OPERATOR MOUNTING/SUPPORT BRACKETS AND DISCONNECT BRACKETS ON TREATED LUMBER
(PRESERVATIVE-TREATED). STAINLESS STEEL LAG SCREWS ARE NOT NECESSARY WHEN INSTALLING PRODUCTS ON UN-TREATED
LUMBER.
NOTE: It is recommended that 5/16” x 1-5/8” lag screws be pilot drilled using a 3/16” drill bit, and 1/4” x 2” lag screws and
1/4” x 1-1/2” lag screws be pilot drilled using a 1/8” drill bit, prior to fastening.
INSTALLATION
None
Attaching Quick Install Flag
Angle to Vertical Track
NOTE: If you have fully adjustable
flagangle, skip this step and complete
Step 2.
Place the lower quick install tab of the
flagangle in the quick install feature of
the vertical track. Give the flagangle 1/4
turn to lock in place. Repeat for other
side.
NOTE: After completing this step,
continue with Step 3.
QUICK INSTALL TAB UNLOCKED QUICK INSTALL TAB LOCKED
FLAGANGLE
VERTICAL
TRACK
1
LEFT HAND TRACK AND FLAGANGLE RIGHT HAND TRACK AND FLAGANGLE
FLAGANGLE
VERTICAL
TRACK

Tools Needed:
12
Tools Needed:
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your local
yellow pages business listings or go to the Find a Dealer section online at www.Wayne-Dalton.com

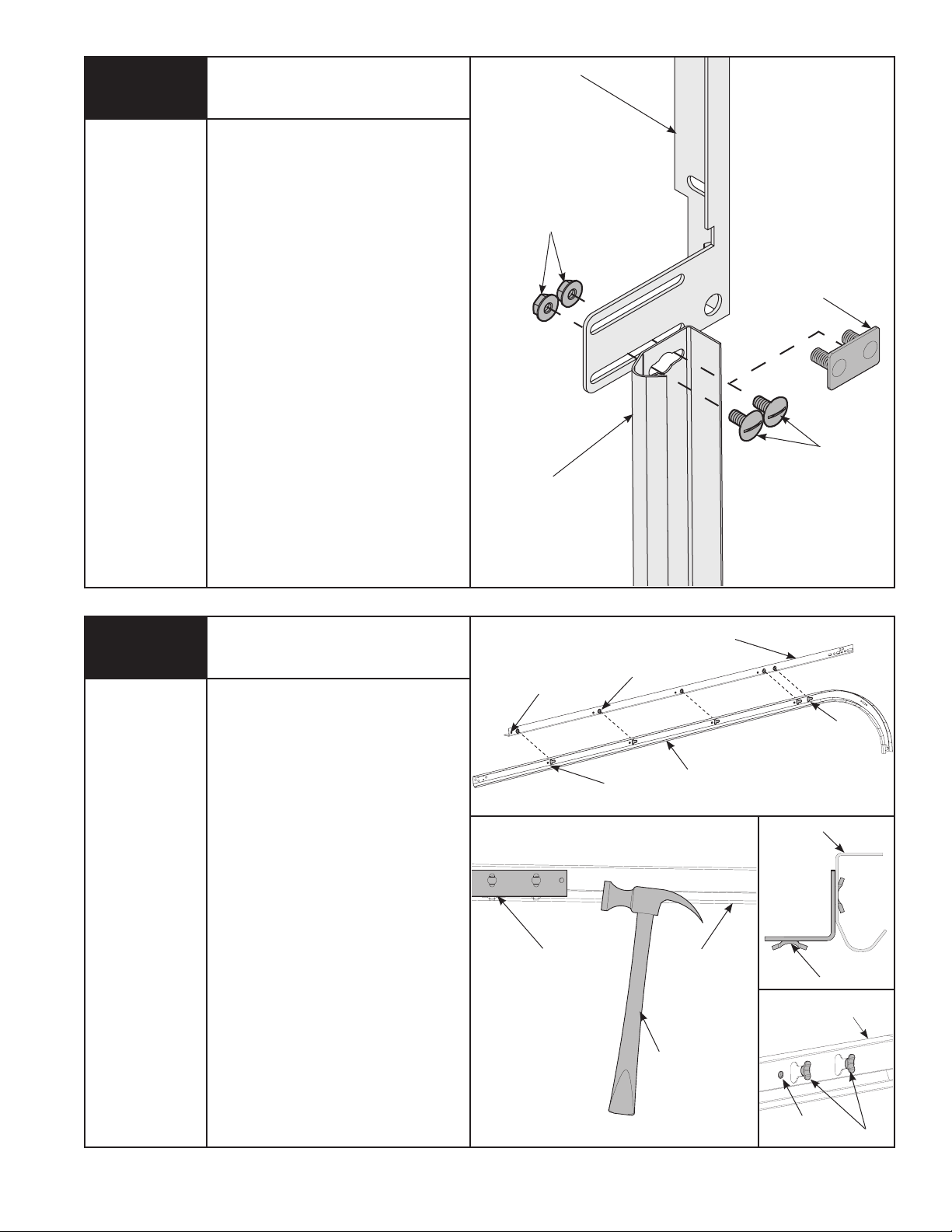

Position the horizontal angle as shown.
Place tabs of horizontal angle in the
key slots of horizontal track. Using
a hammer, tap the horizontal angle
towards the curved end of the track until
the holes in track and angle are aligned.
Set tracks aside.
NOTE: For larger doors, a full length
horizontal angle may be spot welded to
the horizontal track. If the horizontal angle
is not welded, the horizontal angle will be
installed as shown.
Horizontal Angle
Hammer
HORIZONTAL
TRACK
HORIZONTAL
ANGLE
HORIZONTAL ANGLE
HORIZONTAL
TRACK
HOLE
HOLE TABS
KEY SLOT
3
HORIZONTAL
TRACK
TABS
HORIZONTAL
TRACK
HORIZONTAL
ANGLE
HAMMER
HOLES
ALIGNED
Attaching Fully Adjustable
Flagangle to Vertical Track
1/4”- 20
FLANGE HEX
NUTS
NOTE: If quick install flagangle was
installed in Step 1, skip this step and
continue with Step 3. If not, complete
this step.
Hand tighten the flagangle to the vertical
track using (2) 1/4” - 20 x 9/16” large
head ribbed track bolts (or stud plate if
included) and (2) 1/4” - 20 flange hex
nuts. Repeat for other side.
Secure the flange nuts after flagangle
spacing is complete (Step 12).
FULLY ADJUSTABLE FLAGANGLE
1/4” - 20 X 9/16”
LARGE HEAD RIBBED
TRACK BOLTS
None
VERTICAL TRACK
2
STUD PLATE
(IF INCLUDED)

Tools Needed:
13
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your local
yellow pages business listings or go to the Find a Dealer section online at www.Wayne-Dalton.com
INSTALLATION

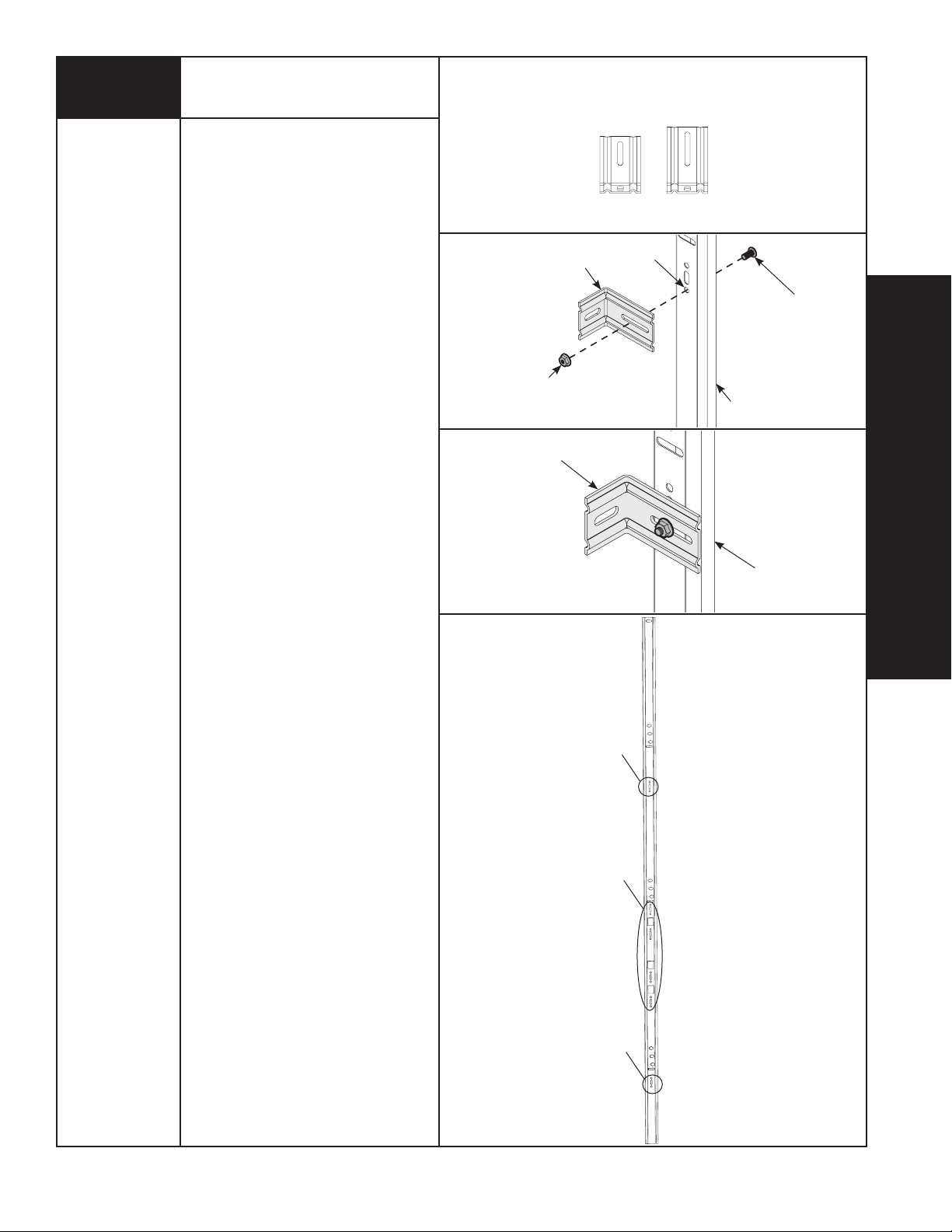

NOTE: If you have quick install jamb
brackets, skip this step and complete
Step 5.
The bottom jamb bracket is always the
shortest bracket included with your
door. If three jamb brackets are included
with you door, the second bracket up
is the middle bracket in height. The
top jamb bracket is the tallest bracket
included.
To attach the bottom jamb bracket,
locate the lower hole/slot pattern of
the vertical track. Align the slot in the
jamb bracket with the lower hole of the
hole/slot pattern in the vertical track.
Secure jamb bracket, using
(1) 1/4”-20 x 9/16” track bolt and
1/4”-20 flange hex nut.
Place the center jamb bracket over
the hole/slot pattern that is centered
between the bottom jamb bracket and
flagangle. Align the slot in the jamb
bracket with the lower hole of the hole/
slot pattern. Loosely fasten the bracket
onto the track with (1) 1/4”-20 x 9/16”
track bolt and 1/4-20 flange hex nut.
Repeat if a third jamb bracket is
provided, equally spacing the distance
between the two center jamb brackets
and the bottom jamb bracket and
flagangle.
NOTE: While the bottom jamb bracket
is the shortest in length that is included
with your door. It does not necessarily
mean it is the “short” (ST-0) jamb
bracket.
NOTE: After completing this step,
continue with Step 6.
4Installing Fully Adjustable Jamb
Brackets
1ST SET
3RD SET
FULLY ADJUSTABLE JAMB BRACKETS
JAMB
BRACKET
HOLE / SLOT
PATTERN
1/4”- 20 X 9/16”
TRACK BOLT
1/4” - 20
FLANGE HEX
NUT
JAMB BRACKET
VERTICAL
TRACK
VERTICAL TRACK
None
2ND SET
ST-0 ST-1

Tools Needed:
14
Tools Needed:
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your local
yellow pages business listings or go to the Find a Dealer section online at www.Wayne-Dalton.com
Drums
IMPORTANT: RIGHT AND LEFT HAND IS
ALWAYS DETERMINED FROM INSIDE THE
BUILDING LOOKING OUT.
NOTE: For door section identification see
page 4.
TorqueMaster® counterbalance drums
are marked right and left hand. Uncoil the
counterbalance cables and make sure you
place the right hand cable loop on the right
hand milford pin and place the left hand
cable loop on the left hand milford pin.
Insert a roller into bottom bracket of the
bottom section and insert another roller
at #1 end hinge at the top of the bottom
section. Repeat for other side.
NOTE: Verify astragal (bottom seal) is
aligned with door section. If there is more
than 1/2” excess astragal on either side,
trim astragal even with door section.
None
LEFT HAND
TORQUEMASTER®
COUNTERBALANCE
DRUM
BOTTOM
SECTION
MILFORD PIN
#1 END HINGE
(HINGE TUBE)
BOTTOM BRACKET
BOTTOM
SECTION
ASTRAGAL
6
COUNTERBALANCE
CABLE ROLLERS
BOTTOM
SECTION
NOTE: If you have fully adjustable jamb
brackets, skip this step and complete Step
6.
Measure the length of the vertical tracks.
Using the jamb bracket schedule, determine
the placement of the jamb brackets for your
door height and track type.
To install the jamb brackets, align the
twistlock tab on the quick install jamb
bracket with the quick install feature in the
track and turn the bracket perpendicular to
the track so the mounting flange is toward
the back (flat) leg of the track.
Installing Q.I. Jamb Brackets
TOP
HOLE
BOTTOM
HOLE
MIDDLE
HOLE
3RD SET HOLES
2ND SET HOLES
1ST SET HOLES
Tape Measure
5
QUICK INSTALL FEATURE
LEFT SIDE SHOWN RIGHT SIDE SHOWN
Q.I. JAMB BRACKET
TWISTLOCK
TAB
JAMB BRACKET SCHEDULE
DOOR
HEIGHT
1ST SET 2ND SET 3RD SET
JAMB BKT POSITION JAMB BKT POSITION JAMB BKT POSITION
6’ 6” and 7’ 0”
3 (Section High Doors) QIJB - 3 MIDDLE QIJB - 5 BOTTOM NOT APPLICABLE
8’ 0”
4 (Section High Doors) QIJB - 3 MIDDLE QIJB - 6 TOP QIJB - 7 MIDDLE

15
Tools Needed:
Tools Needed:
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your local
yellow pages business listings or go to the Find a Dealer section online at www.Wayne-Dalton.com

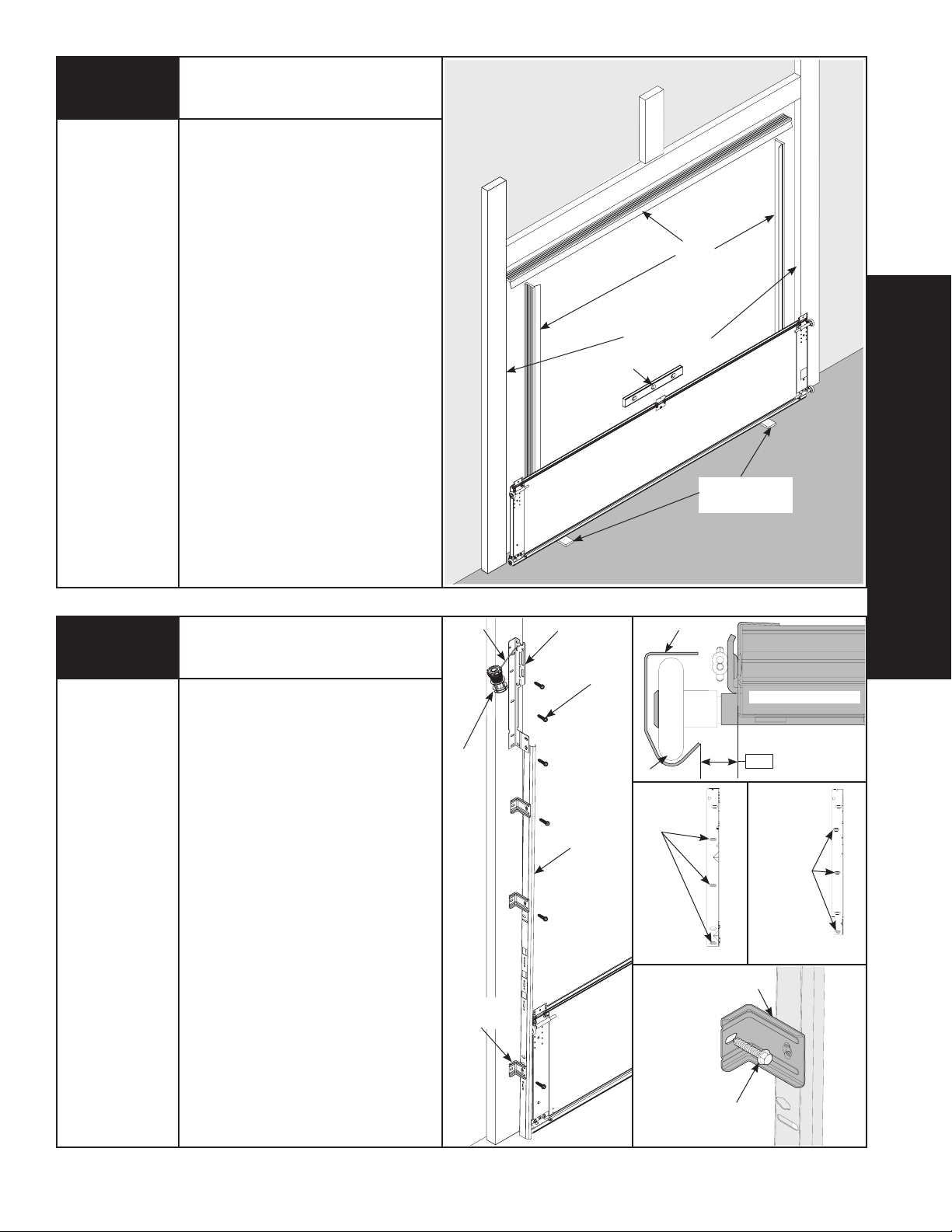

INSTALLATION

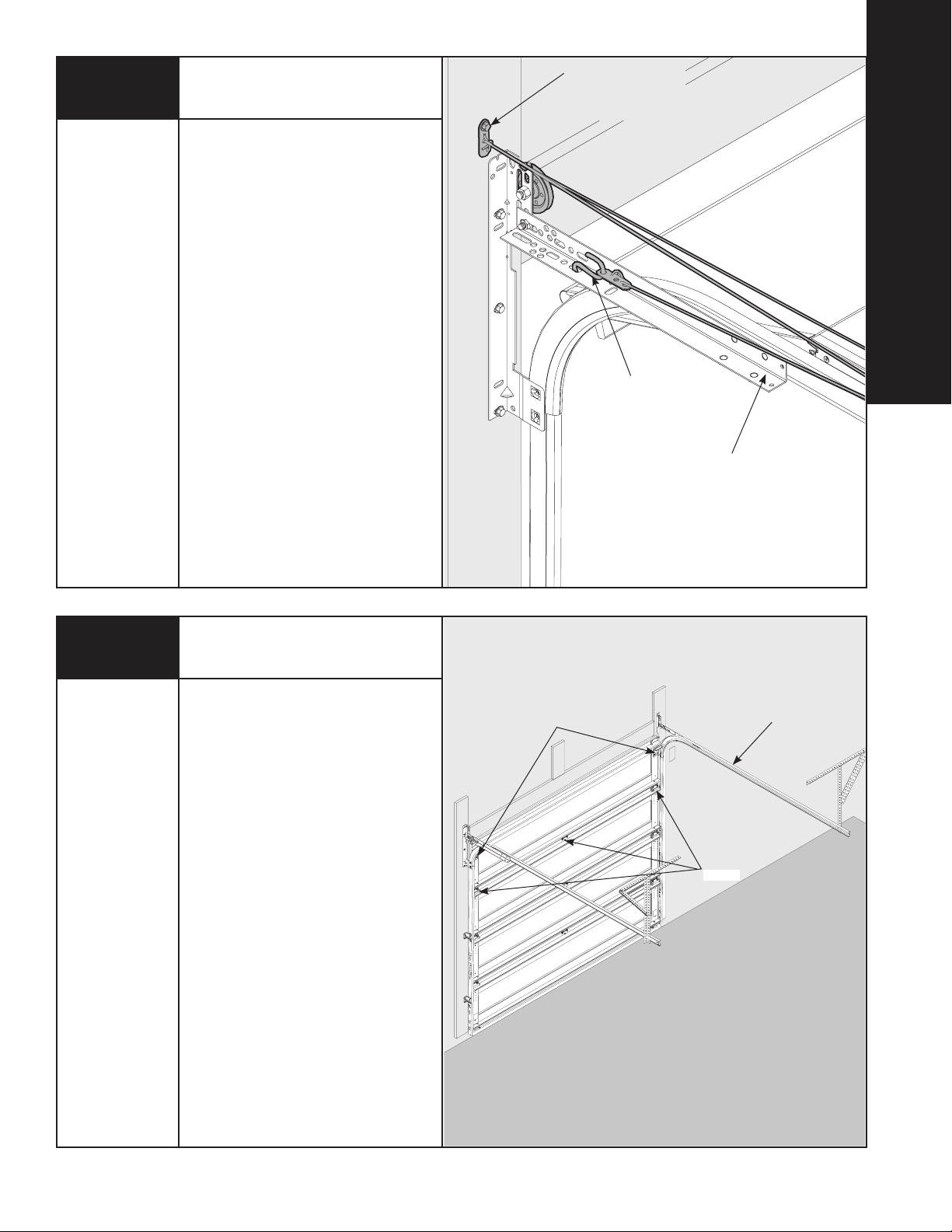

Vertical Track
IMPORTANT: THE TOPS OF THE
VERTICAL TRACKS MUST BE LEVEL
FROM SIDE TO SIDE. IF THE BOTTOM
SECTION WAS SHIMMED TO LEVEL IT.
THE VERTICAL TRACK ON THE SHIMMED
SIDE, MUST BE RAISED THE HEIGHT OF
THE SHIM.
Position the left hand vertical track
assembly over the rollers of the bottom
section. Make sure the counterbalance
cable is located between the rollers
and the door jamb. Drill 3/16” pilot
holes for the lag screws. Loosely fasten
jamb brackets and flagangle to the
jamb using 5/16” x 1-5/8” lag screws.
Tighten lag screw securing bottom
jamb bracket to jamb, to maintain
5/8” spacing. Hang cable drum over
flagangle.
Repeat for the right hand side.
BOTTOM
SECTION
BOTTOM SECTION
VERTICAL TRACK
ROLLER
5/16” X 1-5/8”
LAG SCREWS
FLAGANGLE
VERTICAL
TRACK
ASSEMBLY
CABLE
JAMB
BRACKET
3/16” Drill Bit
Power Drill
7/16” Socket
Driver
Tape Measure
Level
8
LAG
SCREW
QUICK INSTALL
JAMB BRACKET
CABLE
DRUM
15R Q.I. FLAGANGLE
LAG
SCREW
LOCATIONS
5/8”
Bottom Section
Before installing the bottom section,
the weather seal (may not be included)
must be temporarily installed on both
jambs and header (see PREPARING THE
OPENING on page 10).
Center the bottom section in the door
opening. Level section using wooden
shims (if necessary) under the bottom
section.
Level
BOTTOM SECTION
DOOR OPENING
WEATHER SEAL
WOODEN SHIMS
(IF NECESSARY)
LEVEL
15R FULLY ADJUSTABLE
FLAGANGLE
LAG
SCREW
LOCATIONS

Tools Needed:
16
Tools Needed:
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your local
yellow pages business listings or go to the Find a Dealer section online at www.Wayne-Dalton.com

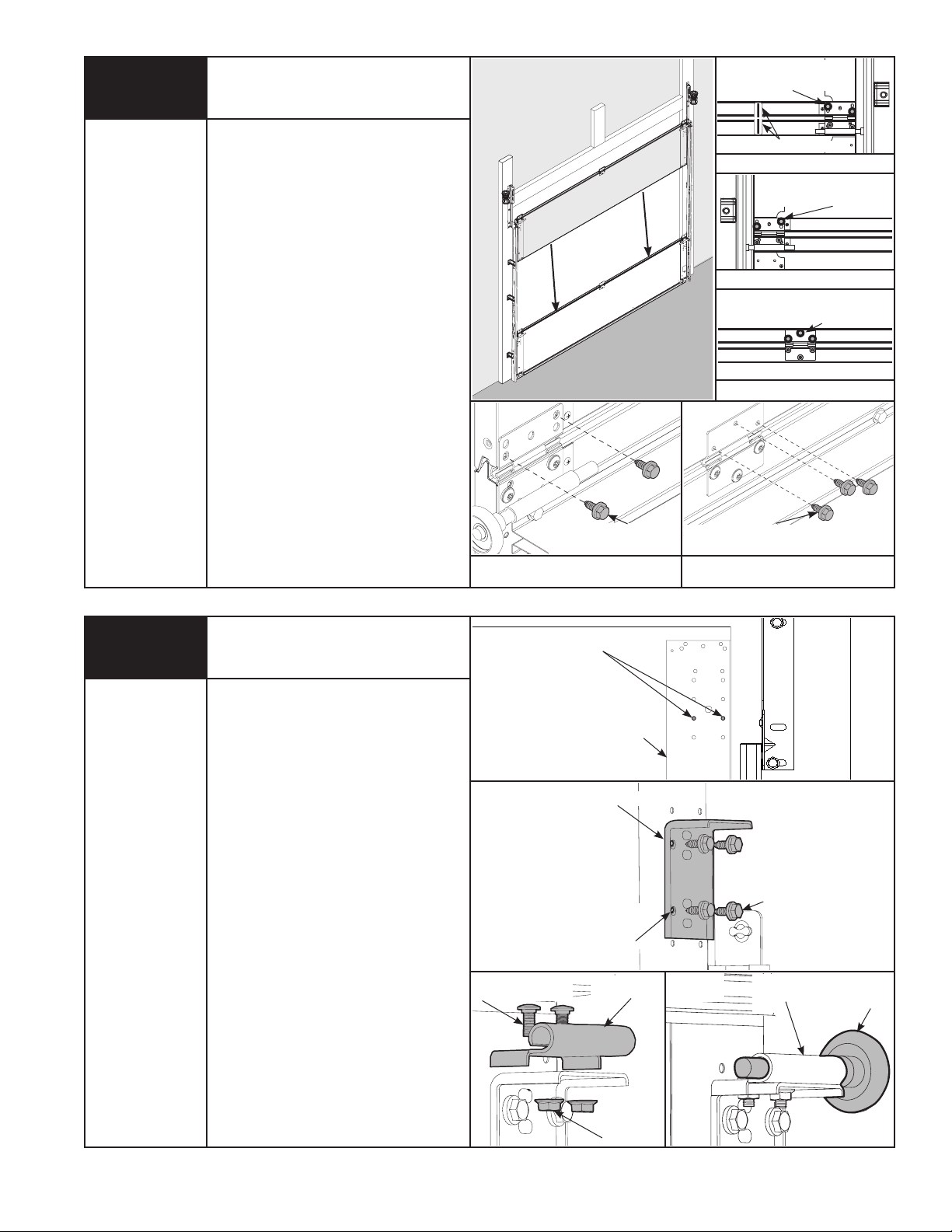

Top Brackets
Power Drill
7/16” Socket
Driver
NOTE: For door section identification see
page 4.
To install the L-shaped top brackets,
align the top holes in the top bracket
base with the second set of holes from
bottom of endcap.
Fasten top bracket base to endcap using
(4) 1/4” - 14 x 5/8” self-tapping screws.
Secure the top bracket slide to the
bracket base loosely using (2)
1/4” - 20 x 5/8” carriage bolts and (2)
1/4” - 20 flanged hex nuts. The bracket
will be tightened and adjusted in Step
15. Insert rollers into top bracket slide.
Repeat for other side.
10
Stacking Sections
NOTE: For door section identification see
page 4.
NOTE: Make sure hinge leafs are flipped
down, when stacking another section on top.
Place rollers in hinge tubes of the second
section (lock section). With assistance, lift
second section and guide rollers into the
vertical tracks. Align vertical marks in the
upper alignment sticker, with the lower
alignment sticker on right hand side on the
back of door. Keep sections aligned and
fasten hinges to connect the sections using
1/4” - 14 x 5/8” self-tapping screws. Repeat
for other section(s) except top section.
IMPORTANT: WHEN SECURING THE END
HINGES TO THE SECTIONS WITH 1/4” - 14
X 5/8” SELF-TAPPING SCREWS, ENSURE
THEY ARE ATTACHED AS SHOWN IN THE
ILLUSTRATIONS ABOVE.
IMPORTANT: PUSH & HOLD THE HINGE
LEAFS AGAINST SECTION WHILE SECURING
WITH 1/4” - 14 X 5/8” SELF-TAPPING
SCREWS. END HINGES HAVE (2) SCREWS
AND INTERMEDIATE HINGES HAVE (3)
SCREWS.
9
Power Drill
7/16” Socket
Driver
(4) 1/4” - 14 x 5/8”
SELF TAPPING
SCREWS
TOP BRACKET BASE
TOP BRACKET
SLIDE
(2) 1/4” - 20
FLANGED
HEX NUTS
ROLLER
TOP BRACKET
SLIDE
TOP
SECTION
TOP
SECTION
(2) 1/4” - 20 x 5/8”
CARRIAGE BOLTS
2ND SET OF HOLES
FROM BOTTOM
2ND SET OF
HOLES FROM
BOTTOM
ENDCAP
TOP SECTION
LOCK SECTION
(2) 1/4” - 14 X 5/8”
SELF-TAPPING SCREWS
END HINGES (LEFT HAND SHOWN, RIGHT
HINGE SYMMETRICALLY OPPOSITE) INTERMEDIATE HINGES
(3) 1/4” - 14 X 5/8” SELF-TAPPING
SCREWS
327985 NEW 9-04-06
327985 NEW 9-04-06
327985 NEW 9-04-06
327985 NEW 9-04-06
327985 NEW 9-04-06
327985 NEW 9-04-06
INTERMEDIATE HINGE
LEFT END HINGE
RIGHT END HINGE
(3) 1/4” - 14 X 5/8”
SELF-TAPPING SCREWS
(2) 1/4” - 14 X 5/8”
SELF-TAPPING SCREWS
(2) 1/4” - 14 X 5/8”
SELF-TAPPING SCREWS
ALIGNMENT STICKERS

Tools Needed:
17
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your local
yellow pages business listings or go to the Find a Dealer section online at www.Wayne-Dalton.com

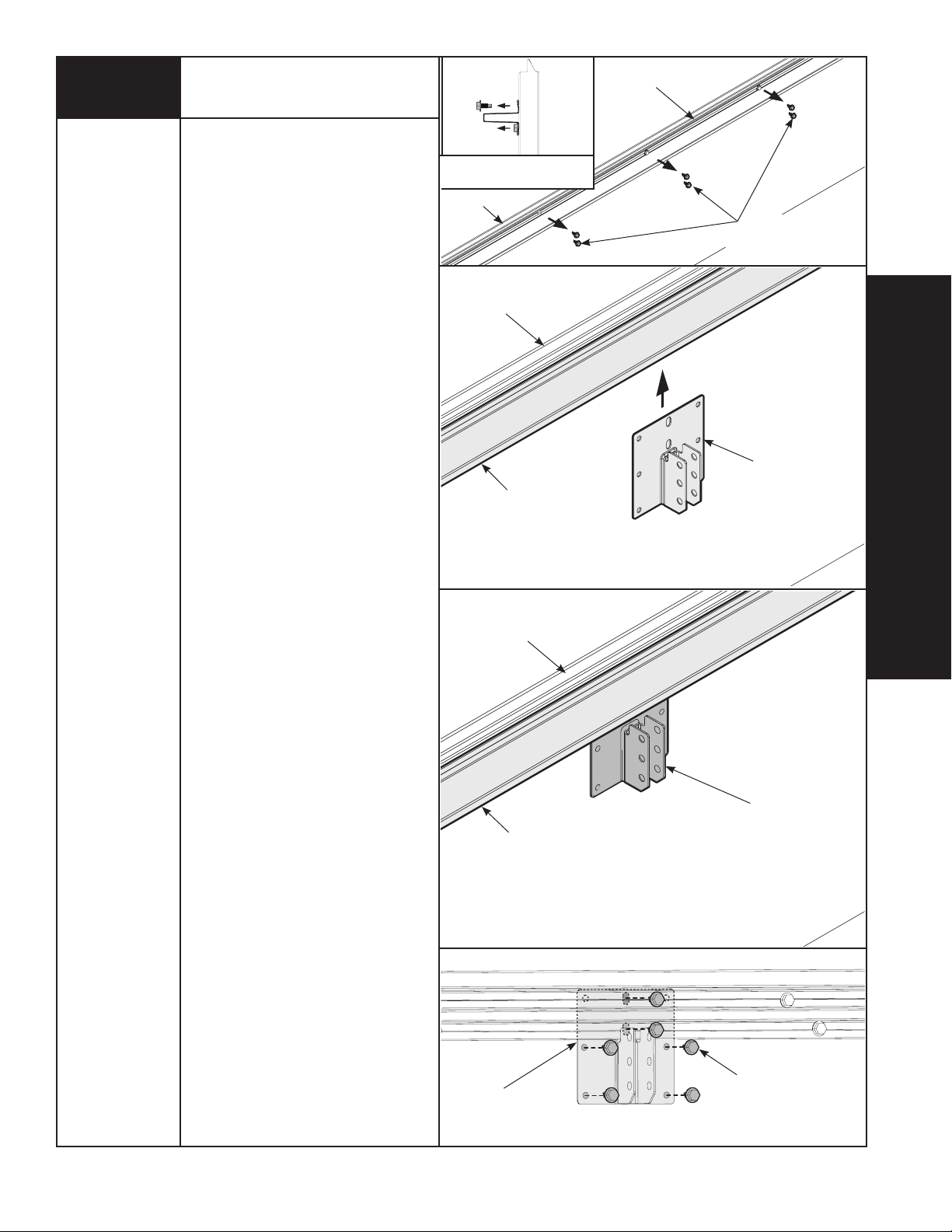

INSTALLATION
OPERATOR
BRACKET
U-BAR
OPERATOR BRACKET IN
PLACE UNDER U-BAR
(6) 1/4” - 20 X 5/8”
SELF-DRILLING
SCREWS
TOP SECTION
OPERATOR
BRACKET
U-BAR
1/4” - 20 X 7/8”
SELF-DRILLING SCREWS
SIDE VIEW OF U-BAR ON TOP
SECTION
U-BAR
11
Power Drill
7/16” Socket
Driver
Operator Bracket
NOTE: If installing a trolley type
operator, complete this step. If not, skip
this step and continue with Step 12.
IMPORTANT: WHEN CONNECTING A
TROLLEY TYPE GARAGE DOOR OPENER
TO THIS DOOR, A WAYNE-DALTON
OPENER / TROLLEY BRACKET MUST
BE SECURELY ATTACHED TO THE TOP
SECTION OF THE DOOR, ALONG WITH
ANY U-BARS PROVIDED WITH THE
DOOR. THE INSTALLATION OF THE
OPENER MUST BE ACCORDING TO
MANUFACTURER’S INSTRUCTIONS AND
FORCE SETTINGS MUST BE ADJUSTED
PROPERLY.
Remove, but retain (4 - 6) 1/4” - 20 x
7/8” self-drilling screws from the center
of the u-bar, allowing the operator
bracket to slide between the top section
and the u-bar.
NOTE: For retro fit applications, the
operator bracket must be aligned with
an existing operator
Locate the center of the top section and
slide operator bracket under u-bar till
the operator bracket is seated against
the u-bar flange. Attach the operator
bracket using (6) 1/4” - 20 x 5/8”
self-drilling screws (as shown). Finish
re-attaching the u-bar using the self-
tapping screws removed previously.
TOP SECTION
TOP SECTION

Tools Needed:
18 Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your local
yellow pages business listings or go to the Find a Dealer section online at www.Wayne-Dalton.com
FULLY ADJUSTABLE
ROLLER
VERTICAL TRACK
ROLLER AGAINST
VERTICAL TRACK
1-11/16” TO 1-3/4”
FLAGANGLE
TOP
SECTION

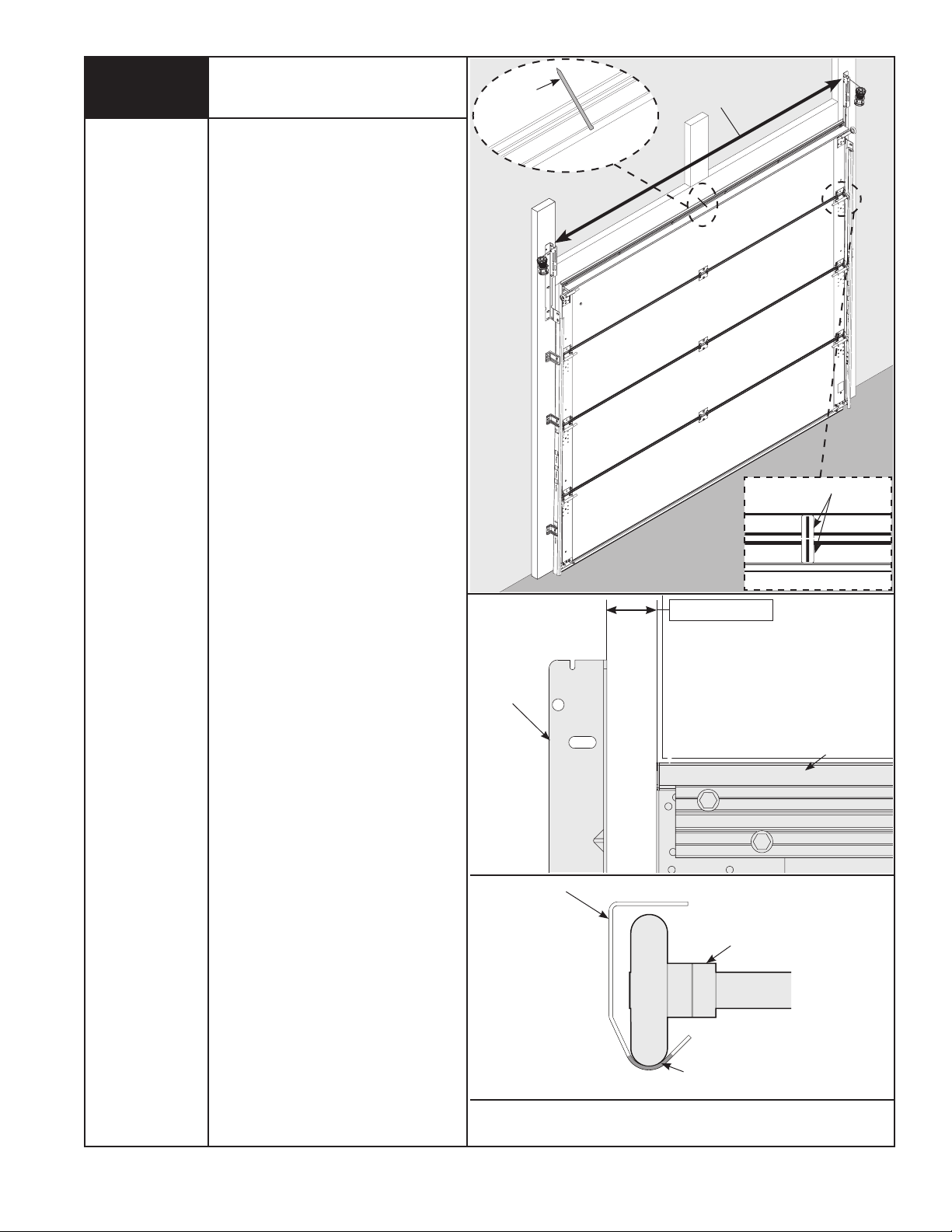

Top Section
Place the top section in the opening and
vertically align with lower sections. Align
vertical marks in the upper alignment
sticker, with the lower alignment sticker
on right hand side on the back of door.
Temporarily secure the top section by
driving a nail in the header near the
center of the door and bending it over
the top section.
Now, flip up hinge leafs, hold them tight
against section and fasten center hinges
first and end hinges last. (Refer to Step
9).
When installing a door with a
TorqueMaster® counterbalance system,
vertical track alignment is critical.
Position flagangle between 1-11/16”
(43 mm) to 1-3/4” (44 mm) from the
edge of the door. Flagangles must be
parallel to the door sections. Now,
complete the vertical track installation
by securing the center jamb bracket and
tightening the other lag screws.
Repeat for other side.
IMPORTANT: THE DIMENSION BETWEEN
THE FLAGANGLES MUST BE DOOR-
WIDTH PLUS 3-3/8” (86 MM) TO 3-1/2”
(89 MM) FOR SMOOTH, SAFE DOOR
OPERATION.
For quick install track:
Complete the vertical track installation
by securing the center jamb bracket(s)
and tightening the other lag screws.
Repeat for opposite side.
For fully adjustable track:
Complete the vertical track installation
by securing the center jamb bracket(s)
and tightening the other lag screws.
Push the vertical track against the
rollers so that the rollers are touching
the deepest part of the curved side of
the track (see illustration); tighten all the
track bolts and nuts. Repeat for opposite
side.
12
Hammer
DOOR WIDTH
+3-3/8” TO 3-1/2”
NAIL
327985 NEW 9-04-06
327985 NEW 9-04-06
RIGHT END HINGE SIDE
ALIGNMENT STICKERS

Tools Needed:
19
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your local
yellow pages business listings or go to the Find a Dealer section online at www.Wayne-Dalton.com
INSTALLATION

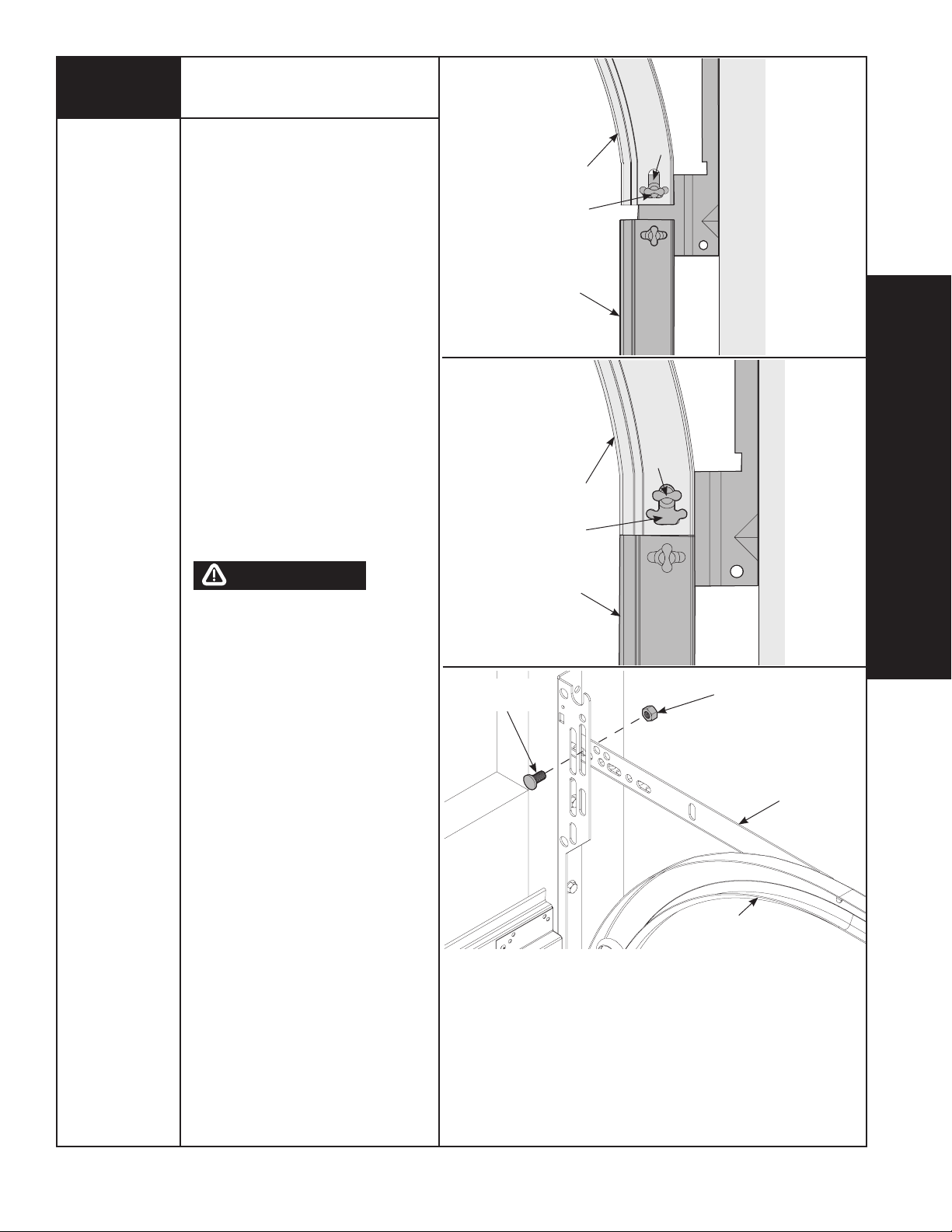

Attaching Horizontal Track
to Quick Install Flagangle
NOTE: If you have fully adjustable
flagangle, skip this step and complete
Step 14.
To install horizontal track, place the
curved end over the top roller. Align
key slot of the horizontal track with the
quick install tab of the flagangle. Push
curved portion of horizontal track down
to lock in place. Level the horizontal
track assembly and bolt the horizontal
angle to the slot in the flagangle using
(1) 3/8” - 16 x 3/4” truss head bolt
and (1) 3/8” - 16 hex nut. Repeat for
other side. Remove the nail that was
temporarily holding the top section in
place, installed in Step 12.
IMPORTANT: FAILURE TO REMOVE NAIL
BEFORE ATTEMPTING TO RAISE DOOR
COULD CAUSE PERMANENT DAMAGE
TO TOP SECTION.
DO NOT RAISE DOOR UNTIL
HORIZONTAL TRACKS ARE SE CURED
AT REAR, AS OUTLINED IN STEP 26, OR
DOOR COULD FALL FROM OVERHEAD
POSI TION CAUSING SEVERE OR FATAL
INJURY.
NOTE: If an idrive® opener will be
installed, position horizontal tracks
slightly above level.
KEY
SLOT
QUICK
INSTALL
TAB
HORIZONTAL
TRACK
VERTICAL
TRACK
FLAGANGLE
13
WARNING
9/16” Socket
Ratchet Wrench
9/16” Wrench
Level
KEY SLOT
QUICK
INSTALL
TAB
HORIZONTAL
TRACK
VERTICAL
TRACK
FLAGANGLE
3/8” - 16 X 3/4”
TRUSS HEAD BOLT
3/8” - 16 HEX NUT
HORIZONTAL TRACK
HORIZONTAL ANGLE

Tools Needed:
20
Tools Needed:
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your local
yellow pages business listings or go to the Find a Dealer section online at www.Wayne-Dalton.com
15 Adjusting Top Brackets
With horizontal tracks installed, you can
now adjust the top brackets.
Vertically align the top section of the
door with the lower sections. Once
aligned, position the top bracket slide,
out against the horizontal track.
Maintaining the slide’s position, tighten
the (2) 1/4” - 20 flange hex nuts to
secure the top roller slide to the top
bracket base.
HORIZONTAL
TRACK
TOP BRACKET
SLIDE
(2) 1/4” - 20
FLANGED HEX
NUTS
CORRECT
INCORRECT
7/16” Wrench
TOP
SECTION TOP
SECTION
TOP
SECTION
Attaching Horizontal Track
to Adjustable Flagangle
NOTE: If quick install flagangles were
installed in Step 13, skip this step and
continue with Step 15. If not, complete this
step.
To install horizontal track, place the curved
end over the top roller. Align the bottom of
the horizontal track with the vertical track.
Hand tighten the horizontal track to the
flagangle with (1) stud plate and (2)
1/4” - 20 flange hex nuts.
DO NOT RAISE DOOR UNTIL HORIZONTAL
TRACKS ARE SE CURED AT REAR, AS
OUTLINED IN STEP 26, OR DOOR COULD
FALL FROM OVERHEAD POSI TION CAUSING
SEVERE OR FATAL INJURY.
Level the horizontal track assembly and
bolt the horizontal angle to the slot in the
flagangle using (1) 3/8” - 16 x 3/4” truss
head bolt and (1) 3/8” - 16 hex nut. Repeat
for other side. Remove the nail that was
temporarily holding the top section in
place, installed in Step 12.
IMPORTANT: FAILURE TO REMOVE NAIL
BEFORE ATTEMPTING TO RAISE DOOR
COULD CAUSE PERMANENT DAMAGE TO
TOP SECTION.
NOTE: If an idrive® opener will be installed,
position horizontal tracks slightly above
level.
14
7/16” Socket
9/16” Socket
Ratchet Wrench
9/16” Wrench
Level
Flat Tip
Screwdriver
1/4” - 20
FLANGE HEX
NUTS
FLAGANGLE STUD
PLATE
WARNING
3/8” - 16 X 3/4”
TRUSS HEAD BOLT
3/8” - 16 HEX NUT
HORIZONTAL
TRACK
HORIZONTAL ANGLE
