Wayne-Dalton Torquemaster Plus Quick start guide

©Copyright 2021 REV1_04/14/2021Part Number
Table Of Contents
365456
PLEASE DO NOT RETURN THIS PRODUCT
TO THE STORE
If you need assistance, please call 1-866-
569-3799 (press Option 1) and follow the
prompts to contact a customer service
representative. They will be happy to handle
any questions that you may have.
Pre-Installation 2
Important Safety Instructions 2
Removing an Existing Door and Preparing the Opening 2
Package Contents 3
Door Section Identification 4
Tools Required 4
Breakdown Of Parts 5
Door Installation Instructions 6
Counterbalance Installation Instructions 10
Maintenance 16
Cleaning Your Garage Door 16
Painting Your Garage Door 16
Maintaining The Finish On Your Garage Door 16
Operation And Maintenance 16
Warranty 17
Wayne Dalton, a division of Overhead Door Corporation
Models 9100 / 9605
TO R Q U E MA S T E R ®P L U S
INSTALLATION INSTRUCTIONS AND OWNER’S
MANUAL
RESIDENTIAL
STANDARD LIFT
To avoid possible injury, read and fully understand the enclosed
instructions carefully before installing and operating the garage door. Pay
close attention to all warnings and notes. After installation is complete,
fasten this manual near garage door for easy reference.
IMPORTANT NOTICES! This Installation document is available at no charge from:
- Your local Wayne Dalton Sales Center, or
- Online at www.Wayne-Dalton.com, or
- By mailing to: Wayne Dalton, a division of Overhead Door Corporation,
P.O. Box 67, Mt. Hope, OH., 44660
Watch: https://www.youtube.com/
watch?v=IgE-hPXz3iU&feature=youtu.be
INSTALLATION VIDEO

Important Safety Instructions
DEFINITION OF KEY WORDS USED IN THIS MANUAL:
WARNING
INDICATES A POTENTIALLY HAZARDOUS SITUATION WHICH; IF NOT
AVOIDED, COULD RESULT IN SEVERE OR FATAL INJURY.
CAUTION
PROPERTY DAMAGE OR INJURY CAN RESULT FROM FAILURE TO FOLLOW
INSTRUCTIONS.
IMPORTANT: Required step for safe and proper door operation.
NOTE: Information assuring proper installation of the door.
READ THESE INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING INSTALLATION. IF
IN QUESTION ABOUT ANY OF THE PROCEDURES, DO NOT PERFORM THE WORK.
INSTEAD, HAVE A TRAINED DOOR SYSTEMS TECHNICIAN DO THE INSTALLATION OR
REPAIRS.
1. READ AND FOLLOW ALL INSTALLATION INSTRUCTIONS.
2. Wear protective gloves and eye protection during installation, to avoid possible injury.
3. Avoid installing your new door on windy days. Door could fall during the installation
causing severe or fatal injury.
4. Doors 12’-0” wide and over should be installed by two persons, to avoid possible
injury.
5. Operate door only when it is properly adjusted and free from obstructions.
6. If a door becomes hard to operate, inoperative or is damaged, immediately have
necessary adjustments and/ or repairs made by a trained door system technician using
proper tools and instructions.
7. DO NOT stand or walk under a moving door, or permit anybody to stand or walk under
an electrically operated door.
8. DO NOT place fingers or hands into open section joints when closing a door. Use lift
handles/ gripping points when operating door manually.
9. DO NOT permit children to operate garage door or door controls. Severe or fatal injury
could result should the child become entrapped between the door and the floor.
10. Due to constant extreme spring tension, do not attempt any adjustment, repair or
alteration to any part of the door, especially to springs, spring brackets, bottom corner
brackets, fasteners, counterbalance lift cables or supports. To avoid possible severe or
fatal injury, have any such work performed by a trained door systems technician using
proper tools and instructions.
11. On electrically operated doors, pull down ropes must be removed and locks must be
removed or made inoperative in the open (unlocked) position.
12. Top section of door may need to be reinforced when attaching an electric opener.
Check door and/ or opener manufacturer’s instructions.
13. Visually inspect door and hardware monthly for worn and or broken parts. Check to
ensure door operates freely. Test electric opener’s safety features monthly, following
opener manufacturer’s instructions.
14. NEVER hang tools, bicycles, hoses, clothing or anything else from horizontal tracks.
Track systems are not intended or designed to support extra weight.
15. This door may not meet the building code wind load requirements in your area. For
your safety, you will need to check with your local building official for wind load code
requirements and building permit information.
16. For windloaded doors, the wind performance is achieved via the entire door system
and component substitution is not authorized without express permission by Wayne
Dalton.
NOTE: It is recommended that 5/16” lag screws are pilot drilled using a 3/16” drill bit, prior
to fastening.
CAUTION
IF ANY PART OF THE DOOR IS TO BE INSTALLED ONTO PRESERVATIVE-
TREATED WOOD, PTFE-COATED OR STAINLESS STEEL FASTENERS MUST BE
OBTAINED AND USED. REPLACEMENT FASTENERS MUST BE OF AT LEAST
EQUAL STRENGTH AND SIZE AS ORIGINAL FASTENERS. IF THE ORIGINAL
FASTENER WAS RED-HEAD, THE REPLACEMENT FASTENER MUST BE RED-
HEAD ALSO. CONTACT WAYNE DALTON FOR FASTENER STRENGTH VALUES IF
NEEDED.
WARNING
IMPACT GUNS ARE NOT RECOMMENDED. WHEN INSTALLING 5/16” LAG
SCREWS USING AN ELECTRIC DRILL/ DRIVER, THE DRILL/ DRIVERS
CLUTCH MUST BE SET TO DELIVER NO MORE THAN 200 IN-LBS OF
TORQUE. FASTENER FAILURE COULD OCCUR AT HIGHER SETTINGS.
IMPORTANT: Right and left hand is determined inside the building looking out.
Potential Hazard Effect Prevention
Moving door
WARNING
Could result in Death or Serious
Injury
Keep people clear of opening
while Door is moving.
Do NOT allow children to play
with the Door Opener.
Do NOT operate a Door that
jams or one that has a broken
spring.
High tension spring
WARNING
Could result in Death or Serious
Injury
Do NOT try to remove, install,
repair or adjust springs or
anything to which door spring
parts are fastened, such as,
wood blocks, steel brackets,
cables or other like items.
Installations, repairs and
adjustments must be done by
a trained door system techni-
cian using proper tools and
instructions.
Removing an Existing Door and
Preparing the Opening
IMPORTANT: Counterbalance spring tension must always be released before any attempt
is made to start removing an existing door.
WARNING
A POWERFUL SPRING RELEASING ITS ENERGY SUDDENLY CAN CAUSE
SEVERE OR FATAL INJURY. TO AVOID INJURY, HAVE A TRAINED DOOR
SYSTEMS TECHNICIAN, USING PROPER TOOLS AND INSTRUCTIONS,
RELEASE THE SPRING TENSION.
To avoid possible injury and to ensure proper installation, it's highly recommended that you
read and fully understand the complete instructions on removing an Existing Door & Prepar-
ing the Opening. These are available for download at www.Wayne-Dalton.com or at your
local Wayne Dalton Sales Center.
IMPORTANT: If you just removed your existing door or you are installing a new door,
complete all steps in preparing the opening.
To ensure secure mounting of track brackets, side and center brackets, or steel angles to
new or retro-fit construction, it is recommended to follow the procedures outlined in DASMA
technical data sheets #156, #161 and #164 at www.dasma.com.
The inside perimeter of your garage door opening should be framed with wood jamb
and header material. The jambs and header must be securely fastened to sound framing
members. It is recommended that 2” x 6” lumber be used. The jambs must be plumb and
the header level. The jambs should extend a minimum of 12” (305 mm) above the top of the
opening for TorqueMaster®Plus counterbalance systems. For low headroom applications, the
jambs should extend to the ceiling height. Minimum side clearance required, from the open-
ing to the wall, is 3-1/2” (89 mm).
IMPORTANT: Closely inspect jambs, header and mounting surface. Any wood found not to
be sound, must be replaced.
For TorqueMaster®Plus counterbalance systems, a suitable mounting surface (2” x 6”) must
2
PRE-INSTALLATION

be firmly attached to the wall, above the header at the center of the opening.
NOTE: Drill a 3/16” pilot hole in the mounting surface to avoid splitting the lumber. Do not
attach the mounting surface with nails.
WEATHERSTRIPS (IF APPLICABLE): Depending on the size of your door, you may have to
cut or trim the weatherstrips (if necessary) to properly fit into the header and jambs.
NOTE: If nailing product at 40°F or below, pre-drilling is required.
For the header, align the weatherstrip with the inside edge of the header and temporarily
secure it to the header with equally spaced nails. Starting at either side of the jamb, fit the
weatherstrip up tight against the temporarily attached weatherstrip in the header and flush
with the inside edge of the jamb. Temporarily secure the weatherstrip with equally spaced
nails. Repeat for other side. This will keep the bottom section from falling out of the opening
during installation. Equally space nails approximately 12” to 18” apart.
HEADROOM REQUIREMENT: Headroom is defined as the space needed above the top of
the door for tracks, springs, etc. to allow the door to open properly. If the door is to be motor
operated, 2-1/2” (64 mm) of additional headroom is required.
NOTE: 6” low headroom conversion kit is available for 12” radius only. Contact your local
Wayne Dalton dealer.
BACKROOM REQUIREMENT: Backroom is defined as the distance needed from the opening
back into the garage to allow the door to open fully.
BACKROOM REQUIREMENTS
DOOR HEIGHT TRACK MANUAL LIFT MOTOR OPERATED
6’5” to 7’0” 12”,15” Radius 98” (2489 mm) 125” (3175 mm)
7’1” to 8’0” 12”,15” Radius 110” (2794 mm) 137” (3480 mm)
HEADROOM REQUIREMENTS
TRACK TYPE SPACE NEEDED
15” Radius track 13-1/2” (343 mm)
12” Radius track 11” (279 mm)
6” LHR KIT 6” (152 mm)
Weatherstrips
Level header
Finished
Door width
Jambs
Backroom
Plumb
jambs
Finished
Door
Height
Nail
Headroom
Header board 2”x 6”
lumber preferred
Suitable mounting surface
2”x 6” lumber minimum
Weatherstrips
Jamb
Quick Install track
Min. Side
room
Clearance
is 3-1/2”
Min. Side
room
Clearance
is 3-1/2”
Package Contents
NOTE: Depending on the door model, some parts listed will not be supplied if not required.
Rear Back Hangs are not included with your door.
(E1. - E4.)
Door sections (as required)
(I2.)
Spring tube assembly
(A1.) Quick Install flag angles
RH/LH (as required)
(H5. - H6.) Vertical tracks RH/LH
(A2.) Fully Adjustable flag angles
RH/LH (as required)
(H3. - H4.)
Horizontal track angles
(H1. - H2.) Horizontal tracks RH/LH
(B1.) Quick install jamb
brackets (as required)
(I1.) Center bracket
bushing assembly (I3.) Left hand en
d
bracket (as required)
Weatherstrips
(If included)
(I5.) Cable drum
assemblies RH/LH (I6.) Idler bracket (single spring only) (C1.) Track rollers
(as required)
(F1.)
Top fixture bases (F2.) Top fixture
slides (G1.) Drawbar operator bracket
300547 REV3 12/16/2020
©Copyright2020WayneDalton,a
divisionofOverheadDoor Corporation
NumberofInstalledSpring Turns ____
(I4.) Right
hand end bracket
(J1.) Strut
(U-shaped)
(if included)
(J2.) Strut
(A-symmetrical)
(if included)
(2) 3/8”- 16 Hex nuts 1/4”- 20 Flanged
hex nuts (as required)
(2) 5/16” Washers
(2) 5/16”-18 Hex nuts
5/16” x 1-5/8” Hex head lag screws
(as required)
(2) 5/16”-18 x 3/4”
Carriage bolts
1/4”-20 x 9/16”
Track bolts (as required)
(2) 3/8”-16 x 3/4”
Truss head bolts
(2) #12 x 1/2”
Phillips head screws
1/4”-14 x 5/8” Self tapping
screws (as required)
Cotter pin
5/16” x 1-1/4” Clevis pin
Stud Plate
(as required)
Rear Back Hangs
(If included)
3

Door Section Identification
Graduated end and center hinges are always pre-attached at the top of each section (except
top section) and the graduated end hinges are stamped for identification, #1, #2, #3, and #4
(#4 only on five section doors). The stamp identifies the stacking sequence of the section.
The sequence is always determined by #1 being the bottom section to #3 or #4 being the
highest intermediate section. If the stamp on the graduated end hinge is illegible, refer to
the section side view illustration. The section side view illustration shows the graduated end
hinge profile of all sections, and can also be used to identify each section.
The BOTTOM SECTION (E4.) can be identified by #1 graduated end hinges, the factory
attached bottom astragal, the factory attached bottom corner brackets, and by the bottom
corner bracket warning labels on each end stile.
The SECOND SECTION (E3.) can be identified by #2 graduated end hinges.
The INTERMEDIATE SECTION (E2.)can be identified by #3 graduated end hinges. The sec-
tion will have a warning label attached to either the right or left hand end stile.
NOTE: #4 graduated end hinges are used on the fourth section of five section doors.
The TOP SECTION (E1.) can be identified with no pre-installed graduated end or center
hinges.
Warning label
Warning label
(E2.) Intermediate section
(E3.) Second section
Bottom corner bracket warning labels
(E4.) Bottom section Bottom weather seal
#3
#2
#1
Bottom corner
bracket
Bottom
weather seal
Section side view illustration
#2 Graduated
end hinge
1-1/8”
7/8”
1-3/8” 1-9/16”
#4
Graduated
end hinge
Typical
graduated end
hinge stamping
location
(E1.) Top section
#1
Graduated
end hinge
#3 Graduated
end hinge
Tools Required
Power drill Socket driver: 7/16” Level
Drill bits: 1/8”, 3/16”,
9/32”, 7/16”, 1/2”
Ratchet wrench Tape measure Pliers / Wire cutters Flat tip screwdriver
Phillips head screwdrive
rWrenches: 3/8”, 7/16”,
1/2”, 9/16”, 5/8”
3” Ratchet
extension Sockets: 7/16”,
1/2”, 9/16”, 5/8”
Vise clamps HammerStep ladder PencilLeather gloves
Locking pliersSafety glassesSaw horses
4

5
A. FLAG ANGLES (AS REQUIRED):
A1. Quick Install (Q.I.) Flag Angles
A2. Fully Adjustable (F.A.) Flag Angles
B. JAMB BRACKETS (AS REQUIRED):
B1. Quick Install (Q.I.) Jamb Brackets
C. TRACK ROLLERS (AS REQUIRED):
C1. Short Stem Track Rollers
D. GRADUATED END HINGES:
D1. Single Graduated End Hinges (S.E.H.), Anti-Pinch
E. STACKED SECTIONS:
E1. Top Section
E2. Intermediate(s) Section
E3. Second Section
E4. Bottom Section
F. TOP FIXTURES:
F1. Top Fixture Bases - (L - Shaped)
F2. Top Fixture Slides - (L - Shaped)
G. DRAWBAR OPERATOR BRACKET (FOR TROLLEY OPERATED DOORS):
G1. Drawbar Operator Bracket
H. TRACKS:
H1. Left Hand Horizontal Track
H2. Right Hand Horizontal Track
H3. Left Hand Horizontal Track Angle
H4. Right Hand Horizontal Track Angle
H5. Left Hand Vertical Track
H6. Right Hand Vertical Track
I. TORQUEMASTER PLUS® SPRING ASSEMBLY:
I1. Center Bracket Bushing Assembly
I2. Spring Tube Assembly (Single Or Double Springs)
I3. Left Hand End Bracket (Double Springs Only)
I4. Right Hand End Bracket
I5. Left Hand And Right Hand Cable Drum Assemblies
I6. Idler bracket (Single Spring Only)
J. STRUT(S) (AS REQUIRED):
J1. Strut (U - shaped)
J2. Strut (asymmetrical)
K. HORIZONTAL TRACK ANGLES
K1. Left Hand Horizontal Track Angle
K2. Right Hand Horizontal Track Angle
NOTE: The illustrations shown on this page are general representations of the door parts. Each specific door models may have unique variations.
E4.
E1.
E2.
E3.
I3.
A1.
B1.
H5.
C1.
I6.
F1. F2.
G1.
I5.
I1.
I2.
F2.
F1.
H1.
H6.
B1.
A1.
I4.
H4.
H2.
I5.
A2.
A2.
B1. (Quick Install
Feature)
A1. (Quick Install
Feature)
A2. (Fully
Adjustable
Feature)
H3.
J2.
J1.
D1.
BREAKDOWN OF PARTS

DOOR INSTALLATION INSTRUCTIONS
BEFORE INSTALLING YOUR DOOR, BE CERTAIN THAT YOU HAVE READ AND FOL-
LOWED ALL OF THE INSTRUCTIONS COVERED IN THE PRE-INSTALLATION SECTION
OF THIS MANUAL. FAILURE TO DO SO MAY RESULT IN AN IMPROPERLY INSTALLED
DOOR.
NOTE: Reference TDS 160 for general garage door terminology at www.dasma.com.
IMPORTANT: IF THE DOOR WILL BE EXPOSED TO A SIGNIFICANT AMOUNT OF ROAD SALT,
PAINT THE BARE GALVANIZED BOTTOM WEATHER STEEL RETAINER TO INHIBIT RUSTING.
VERTICAL TRACK ASSEMBLY
1
NOTE: Depending on your door, you may have Quick Install Flag Angles or Fully Adjustable
Flag Angles. Refer to either the images below, Package Contents or Breakdown of Parts, to
determine which Flag Angles you have.
NOTE: The bottom jamb bracket is always the shortest bracket, while the center jamb
bracket is the next tallest. If three jamb brackets per side are included with your door, you
will have received a top jamb bracket, which is the tallest.
STEP 1 INSTRUCTIONS
FOR DOORS WITH QUICK INSTALL FLAG ANGLES:
1a. Place the lower Quick Install tab of the left hand flag angle (A1.) in the Quick Install
feature of the left hand vertical track (H3.). Give the flag angle 1/4 turn to lock in place.
1/4 Turn
(H3.) Left hand
vertical track
(A1.) Left hand quick
install flag angle
FOR DOORS WITH FULLY ADJUSTABLE FLAG ANGLE:
1a. Hand tighten the left hand flag angle (A2.) to the left hand vertical track (H3.) using (2)
1/4” - 20 x 9/16” track bolts and (1) stud plate.
Stud Plate
(2) 1/4”- 20
Flange hex nuts
12” Radius track15” Radius track
(2) 1/4”- 20 Flange hex nuts
Slot Slot
12” Or 15”
Radius
(H1.) Horizontal
track (A2.) Left hand fully
adjustable flag angle
(H5.) Left
hand vertical
track
(H5.) Left
hand vertical
track
1b. Measure the length of the vertical tracks. Using the jamb bracket schedule, determine
the placement of the jamb brackets (B1.) for your door height and track length.
1c. To install the jamb brackets, align the Quick Install tab on the Quick Install jamb bracket
with the Quick Install feature in the vertical track and turn the bracket perpendicular to the
track so the mounting flange is toward the back (flat) leg of the track.
1d. Repeat the same process for right hand side.
6’5”
6’0”
6’8” 72” (1829 mm)
69” (1753 mm)
64” (1626 mm)
3
3
5
B
B
M
6
6
6
M
M
B
NA
NA
NA
B
B
M
7’0”
7’6”
7’3”
8’0” 4-SEC
7’9” 85” (2159 mm)
82” (2083 mm)
79” (2007mm)
88” (2235mm)
76” (1930 mm)
8’0” 5-SEC
B= BOTTOM HOLE, M= MIDDLE HOLE, T= TOP HOLE
88” (2235 mm)
3
3
3
3
3
3
B
B
B
M
B
B
5
5
5
6
7
7
B
B
B
T
T
T
6
6
6
7
NA
8
B
B
B
M
B
T
JAMB BRACKET SCHEDULE
2ND SET1ST SET 3RD SET
TRACK LENGTH
DOOR
HEIGHT
1/4
Turn
Left hand
jamb bracket
3rd
Set
1st
Set
2nd Set
Bottom
hole
Top
hole Middle hole
(H3.) Left
hand
vertical
track
(B1.) Left hand
jamb bracket
ATTACHING HORIZONTAL TRACK ANGLES
2
NOTE: For larger doors, a full length horizontal track angle may not already be spot welded
to the horizontal track (H1.)(H2.). If the horizontal track angle is not welded, the horizontal
track angle will be installed, as shown.
STEP 2 INSTRUCTIONS
2a. Position the left hand horizontal track angle (H3.), as shown.
2b. Place the Quick Install tabs of the horizontal track angle in the key slot of the left hand
horizontal track (H1.). Using a hammer, tap the horizontal track angle towards the curved end
of the track until the alignment hole in the track and angle are aligned.
2c. Repeat for other side. Set tracks aside.
(H3.) Left hand
horizontal track angle
Key slots
(H1.) Left hand
horizontal track
Quick
Install tabs
Quick Install tabs
in place
Left hand horizontal
track angle
Quick
Install tabs
Or NOTE: Repeat the same
process for the right hand side.
6

ATTACHING COUNTERBALANCE LIFT CABLES
AND TRACK ROLLERS
3
NOTE: Refer to door section identification, located in the pre-installation section of this
manual or refer to Breakdown Of Parts.
WARNING
ENSURE TIGHT FIT OF CABLE LOOP OVER MILFORD PIN TO PREVENT
COUNTERBALANCE LIFT CABLE FROM COMING OFF THE PIN, WHICH
COULD ALLOW THE DOOR TO FALL AND RESULT IN SEVERE OR FATAL
INJURY.
NOTE: Verify bottom weather seal is aligned with bottom section. If there is more than 1/2”
excess weather seal on either side, trim weather seal even with bottom section.
STEP 3 INSTRUCTIONS
3a. Uncoil the counterbalance lift cables from the cable drum assemblies (I5.), making sure
you place the left hand cable loop on the left hand milford pin of the bottom corner bracket
and the right hand cable loop on the right hand milford pin of the bottom corner bracket.
3b. Insert a short stem track roller (C1.) into the bottom corner brackets and another into the
#1 graduated end hinges at the top of the bottom section (E4.).
Counterbalance
lift cable Counterbalance lift cable
Left hand cable
drum assembly
Cable loop
Cable loop
Right hand cable drum assembly
NOTE: Cable drum assemblies (I5.)
are marked right and left hand.
Left hand cable
drum assembly
(E4.) Bottom
section
Counterbalance
lift cable
(C1.) Short
stem track roller
Bottom
corner
bracket
warning
label
Bottom corner
bracket
warning label
#1 Single
graduated
end hinge
(Hinge tube)
Bottom
weather
seal
Left hand cable
drum assembly
#1 Single
graduated end
hinge (Hinge tube)
Milford
pin
Cable
loop
Short stem
track roller
Bottom
section
Counterbalance
lift cable
Bottom corner bracket
Short stem
track roller
POSITIONING BOTTOM SECTION
4
STEP 4 INSTRUCTIONS
4a. Center the bottom section (E4.) in the door opening. Level the section using wooden
shims (if necessary) under the bottom section. When the bottom section is leveled, temporar-
ily hold it in place by driving a nail into the jamb and bending it over the edge of the bottom
section on both sides.
Weatherstrips (If applicable)
Level
(E4.) Bottom section
Wooden shims (If necessary)
ATTACHING VERTICAL TRACKS TO JAMBS
5
IMPORTANT: If your door is to be installed prior to a finishing construction of the building’s
floor, the vertical tracks and the door bottom section assembly should be installed such that
when the floor is constructed, no door or track parts are trapped in the floor construction.
IMPORTANT: The tops of the vertical tracks must be level from side to side. If the bottom
section was shimmed to level it, the vertical track on the shimmed side must be raised the
height of the shim.
NOTE: Make sure the counterbalance lift cable is located between the track rollers and the
door jamb.
STEP 5 INSTRUCTIONS
5a. Starting on the left hand side of the bottom section (E4.), remove the nail. Position the
left hand vertical track assembly over the track rollers (C1.) of the bottom section and install,
as shown. Drill 3/16” pilot holes into the door jamb for the lag screws.
5b. Loosely fasten jamb brackets (B1.) (B2.) and flag angle (A1.) (A2.) to the jamb using
5/16” x 1-5/8” lag screws.
5c. Tighten lag screws, securing the bottom jamb bracket to jamb, maintain 3/8” to 5/8”
spacing, between the bottom section and vertical track. Hang counterbalance lift cable over
flag angle.
5d. Repeat same process for other side.
Vertical
track
assembly
(B1.)(B2.)
Jamb
bracket
(A1.)(A2.)
Flag angle
Flag angle lag screw locations
5/16” x 1-5/8”
Lag screws
(E4.)
Bottom
section
(C1.) Track
rollers
3/8” to 5/8”
Spacing
Bottom section
15R QI12R QI
Floor Track roller
Vertical track
12R Or 15R FAT
7

ATTACHING STRUT(S) TO SECTION
6
NOTE: Refer to Package Contents or Breakdown Of Parts, to determine which type of strut,
if any, you received.
STEP 6 INSTRUCTIONS
IF YOUR DOOR CAME WITH A STRUT (U - SHAPED):
6a. Place the strut (U-shaped) (J1.) over the top rib of the top door section (E1.), as shown.
6b. Fasten each end of the strut to the end cap with (2) 1/4” - 20 x 11/16” self drilling
screws. Fasten center of the strut as shown to the rib using (2) 1/4” - 14 x 5/8” self tapping
screws, one 6” to the left and one 6” to the right of the center line of the top door section.
= =
(2) 1/4”-14 x 5/8”
Self tapping screws (2) 1/4”-14 x 5/8”
Self tapping screws
Center line of top section
(2) 1/4”-20 x 11/16”
Self drilling screws (2) 1/4”-20 x 11/16”
Self drilling screws
6” 6”
End cap
30” To 36”
(J1.) Strut
(U-shape)
(attached to
top rib)
(E1.) Top section
Top rib
Top section
Top section
IF YOUR DOOR CAME WITH A STRUT (ASYMMETRICAL):
6a. Place the asymmetrical strut (J2.) over the top rib of the top door section (E1.), as
shown.
6b. Fasten each end of the asymmetrical strut to the end cap with (2) 1/4” - 20 x 11/16” self
drilling screws. Fasten center of the asymmetrical strut as shown to the rib using (2) 1/4” -
14 x 5/8” self tapping screws, one 6” to the left and one 6” to the right of the center line of
the top door section. Fasten both wall and the long leg of the asymmetrical strut, as shown
using (2) 1/4” - 14 x 5/8” self tapping screws every 30 - 36 inches. (Approximately 18 self
tapping screws per 18’ asymmetrical strut)
IMPORTANT: When securing the asymmetrical strut to the top section, it is recommended
not to install any fasteners into the short leg of the asymmetrical strut.
(J2.) Strut
(asymmetrical)
(attached to
top rib)
Strut
(asymmetrical)
(attached to top
rib)
Long leg
Short leg
Long leg
Short
leg
(E1.) Top section
Top section
Top ribTop rib
= =
(2) 1/4”-14 x 5/8”
Self tapping screws (2) 1/4”-14 x 5/8”
Self tapping screws
Center line of top section
(2) 1/4”-20 x 11/16”
Self drilling screws (2) 1/4”-20 x 11/16”
Self drilling screws
30” To 36” 6” 6”
End cap
Top section Top section
ATTACHING DRAWBAR OPERATOR BRACKET
7
NOTE: If you’re installing a drawbar operator, the drawbar operator bracket must be
mounted and secured prior to installing top section.
IMPORTANT: To avoid possible damage to your door, Wayne Dalton recommends reinforc-
ing the top section with a strut.
IMPORTANT: When connecting a drawbar operator type garage door opener to this door,
a Wayne Dalton operator/ drawbar operator bracket must be securely attached to the
top section of the door, along with any strut provided with the door. The installation of the
drawbar operator must be according to manufacturer’s instructions and force settings must
be adjusted properly.
NOTE: When attaching drawbar operator bracket to top section with strut, apply additional
pressure to thread into the strut.
STEP 7 INSTRUCTIONS
7a. Prior to installing the top section (E1.), locate the center of the top section and seat
the drawbar operator bracket (G1.) on top of the top section. For retro fit applications, the
drawbar operator bracket must be aligned with an existing drawbar operator and positioned
on top section so it bridges the transition point of the section thickness.
7b. Install (2) #12 x 1/2” phillips head screws on the back side of drawbar operator bracket.
Clamp drawbar operator bracket to strut (if supplied) with vise clamps. Attach (6) 1/4” - 14 x
5/8” self-tapping screws to the drawbar operator bracket. Remove vise clamps.
=
(E1) Top section Center line of
top section
Drawbar operator
bracket label
(2) #12 x 1/2”
Phillips head screws
1/4”- 14 x 5/8”
Self-tapping screws
(G1.) Drawbar
operator bracket
Backside of
drawbar operator
bracket
NOTE: Clamp drawbar operator bracket to
strut (if supplied) with vise clamps.
8

ATTACHING TOP FIXTURES
8
NOTE: The top fixture slide will be tightened and adjusted later, in Step 12 Adjusting Top
Fixtures.
NOTE: Ensure the top fixture slide is able to slide along the top fixture base. If needed,
loosen the 1/4” - 20 flange hex nuts.
STEP 8 INSTRUCTIONS
8a. To install the top fixtures, align the top holes in the top fixture base (F1.) with the second
set of holes in the end cap of the top section (E4.).
8b. Fasten to section using (4) 1/4” - 14 x 5/8” self tapping screws. Secure the top fixture
slide (F2.) to the fixture base loosely using (2) 1/4” - 20 x 5/8” carriage bolts and (2) 1/4” -
20 flange hex nuts.
8c. Insert short stem track roller (C1.) into top fixture slide.
8d. Repeat the same process for the right hand side.
(4) 1/4”- 14 x 5/8”
Self-tapping screws
(C1.) Insert short
stem track roller
(F1.) Top
fixture base
(F2.) Top
fixture slide
(2) 1/4”- 20 Flange hex nuts
End
cap
(2) 1/4”- 20 x 5/8”
Carriage bolts
2nd
Set
(E4.) Top
section
Top fixture slide
STACKING SECTIONS
9
NOTE: Refer to door section identification, located in the pre-installation section of this
manual or refer to Breakdown Of Parts.
NOTE: Make sure graduated end and center hinges are flipped down, when stacking
another section on top.
STEP 9 INSTRUCTIONS
9a. Place track rollers into graduated end hinges of remaining sections.
9b. With assistance, lift second section (E3) and guide the track rollers into the vertical
tracks (H5) (H6). Lower section until it is seated against bottom section (E4).
9c. Flip hinges up. Fasten center hinge(s) first; then end hinges last using 1/4” - 14 x 5/8”
self tapping screws.
NOTE: To prevent center hinge leaf from rotating, first secure the top middle hole of the
center hinge leaf with one 1/4” - 14 x 5/8” self-tapping screw then secure the other two
holes.
9d. Repeat same process for other sections (E2), except top section.
IMPORTANT: Push & hold the hinge leaf securely against the sections while securing with
1/4” - 14 x 5/8” self tapping screws. There should be no gap between the hinge leaves and
the sections.
(E2.) Intermediate
section
(E3.) Second
section
(E4.) Bottom
section
(H5.)
Vertical
track
(H6.)
Vertical
track
Center
hinge(s)
Left graduated end hinge
with short stem track roller Right graduated end hinge
with short stem track roller
1/4”-14 x 5/8” Self tapping screw locations
STACKING TOP SECTION
10
IMPORTANT: The dimension between the flag angles must be door width plus 3-3/8”
(86mm) to 3-1/2” (89 mm) for smooth, safe door operation.
STEP 10 INSTRUCTIONS
10a. Place the top section (E1.) in the opening.
10b. Install a nail to prevent the top section from falling backwards. Now, flip up the hinge
leaves, hold tight against section, and fasten center hinges first and end hinges last (refer to
Step 9 Stacking Sections).
10c. Vertical track alignment is critical. Position flag angle between 1-11/16” (43 mm) to
1-3/4” (44 mm) from the edge of the door; tighten the bottom lag screw. Flag angles (A1.)
must be parallel to the door sections. Repeat for other side.
10d. Complete the vertical track installation by securing the jamb bracket(s) (B1.) and
tightening the other lag screws. Repeat for other side.
(E1.) Top section
(E1.)
Top
section
Nail
Door width
+ 3-3/8” to 3-1/2”
1-11/16”
to 1-3/4”
(A1.)
Flag
angle
Vertical track
against track rollers
Flag angle
assembly
(A1.) Top of
flag angle
(B1.) Jamb bracket
9

ATTACHING HORIZONTAL TRACKS
11
NOTE: Depending on your door, you may have Quick Install Flag Angles or Fully Adjustable
Flag Angles. Refer to either the images below, Package Contents or Breakdown of Parts, to
determine which Flag Angles you have.
WARNING
DO NOT RAISE DOOR UNTIL HORIZONTAL TRACKS ARE SECURED AT
REAR, AS OUTLINED IN STEP 20 ATTACHING REAR BACK HANGS, OR
DOOR COULD FALL FROM OVERHEAD POSITION CAUSING SEVERE OR
FATAL INJURY.
STEP 11 INSTRUCTIONS
IF YOU HAVE QUICK INSTALL FLAG ANGLES:
11a. To install horizontal track (H1.), place the curved end over the top track roller of the top
section.
11b. Align key slot of the horizontal track with the Quick Install tab of the flag angle. Push
curved portion of horizontal track down to lock in place.
3/8”-16
Hex nut
3/8”-16 x
3/4” Truss
head bolt
Quick
Install
tab
Key
slot
Quick
Install
tab in
place
Level
(H3.) Horizontal
track angle
Flag
angle
upper
slot
(A1.) Flag
angle
(H1.)
Horizontal
track
IF YOU HAVE FULLY ADJUSTABLE FLAG ANGLES:
11a. To install horizontal track (H1.), place the curved end over the top track roller of the top
section. Align the bottom of the horizontal track with the top of the vertical track.
11b. Tighten the horizontal track to the flag angle with (1) stud plate and (2) 1/4” - 20 flange
hex nuts.
3/8”-16
Hex nut
Horizontal
track angle
3/8”-16 x 3/4”
Truss head bolt
1/4”-20 Flange
hex nuts
Horizontal
track
Flag angle
upper slot
Level 1/4”-20 Flange
hex nuts
12” Radius
track
15” Radius track
Stud Plate
Stud Plate
11c. Next level the horizontal track assembly and bolt the horizontal track angle (H3.) to the
first encountered slot in the flag angle (A1.) using (1) 3/8” - 16 x 3/4” truss head bolt and (1)
3/8” - 16 hex nut.
Level
Level
Horizontal
track angle Horizontal
track
Horizontal
track angle
Horizontal
track
11d. Repeat for other side. Remove nail that was temporally holding the top section in posi-
tion.
IMPORTANT: Failure to remove nail before attempting to raise door could cause permanent
damage to top section.
ADJUSTING TOP FIXTURES
12
STEP 12 INSTRUCTIONS
12a. With horizontal tracks installed, you can now adjust the top fixtures. Vertically align the
top section (E1.) of the door with the lower sections. Once aligned, position the top fixture
slide (F2.), out against the horizontal track.
12b. Maintaining the slide’s position, tighten the (2) 1/4” - 20 flange hex nuts to secure the
top fixture slide to the top fixture base.
12c. Repeat for other side.
(F2.) Top
fixture slide
Tighten the (2)
1/4”- 20
Flange hex nuts
Horizontal
track
(E1.) Top section
Top fixture
base Intermediate
section
Track roller
(E1.) Top
section
Top
section
COUNTERBALANCE INSTALLATION
INSTRUCTIONS
PREPARING THE SPRING TUBE ASSEMBLY
13
NOTE: Springs come lubricated and pre-assembled inside the spring tube.
STEP 13 INSTRUCTIONS
13a. To prepare for install, lay the spring tube assembly (I2.) on the floor, inside garage, in
front of the door, and with the labeled end to the left. Next, remove the shipping boots from
the ends of the spring tube.
13b. Being cam shaped, the center bushing only fits one way. Slide the center bracket bush-
ing assembly (I1.) towards the center of the spring tube, from the right side, as shown.
Remove shipping
boots and discard.
Label
(I1.) Center
bracket
NOTE: Orient profile of
spring tube and center
bracket hole for smooth fit.
(I2.) Spring tube
10

INSTALLING CABLE DRUM ASSEMBLIES
14
STEP 14 INSTRUCTIONS
14a. Shake the spring tube assembly (I2.) gently to extend the winding shafts out about 5”
on each side. For single spring applications, there will be no left hand spring in the spring
tube assembly.
14b. Lift the spring tube assembly and rest it on top of the flag angles (A1.).
NOTE: Temporarily support the center of the spring tube assembly until the center bracket
(I1.) is installed in Step 16 Attaching Center Bracket to Wall.
5”
Center
bracket
Winding
shaft
Winding
shaft
Winding
shaft
Winding
shaft
Spring tube
Center
bracket
Label
Label
Spring tube
(I2.) Spring
tube
NOTE:
If winding shaft is not
visible out of the right hand side,
gently shake the spring tube
until winding shaft sticks out 5”.
NOTE: If both winding shafts are not
visible, gently shake the spring tube
until both winding shaft sticks out 5”.
(I5.) Left
hand cable
drum
assembly
(I5.) Right hand
cable drum assembly
NOTE: Working with a partner as needed, lift
the spring tube assembly up and rest it on
top of the flag angles.
(A1.) Flag angle
(A1.)
Flag
angle
(I1.)
Center
bracket
Label
NOTE: Cable drum assemblies are marked right and left hand. Cable drums and spring
tube assembly are cam shaped to fit together only one way.
14c. Starting on the right hand side, pre-wrap the cable drum with the counterbalance lift
cable 1/2 wrap, as shown. Position the spring tube assembly so the cam peak is pointing
straight up.
14d. Slide the cable drum over the winding shaft until the cable drum seats against the
spring tube assembly. The winding shaft must extend past the cable drum far enough to
expose the splines and the grooves. Align the winding shaft grooves with the round notch in
the flag angle.
Right hand
cable drum
Right
hand
cable
drum
Spring tube
assembly
Counterbalance
lift cable 1/2
wrap
Counterbalance
lift cable
Winding
shaft
Cam peak
straight up
Splines
Groove
Round notch
in flag angle
5” Winding
shaft
Cam
peak
straight
up
Insert winding
shaft into flag
angle
Bearing
FOR DOUBLE SPRING APPLICATIONS: Repeat for left hand side.
Left hand
cable drum
Spring tube
assembly
Counterbalance lift
cable 1/2 wrap
Counterbalance
lift cable
Winding
shaft
5”
Left hand
cable drum
Splines
Groove
Round notch
in flag angle
Winding
shaft
Cam
peak
straight
up
Insert winding
shaft into flag
angle
Bearing
FOR SINGLE SPRING APPLICATIONS:
14e. Insert the idler bracket (I6.) into the left hand cable drum. Lightly press the idler bracket
into the cable drum until two distinct clicks are heard, or the bracket is inserted all the way.
IMPORTANT: Ensure the snaps on the idler bracket (left hand side) are engaged into the
left hand cable drum, so that it does not come back out.
NOTE: The idler bracket is designed for permanent assembly. Do not attempt to remove
idler bracket once inserted into the cable drum.
NOTE: The idler bracket must extend past the cable drum far enough to expose the groove.
14f. Align the idler bracket groove with the round notch in the flag angle.
Left hand
cable drum
Spring tube
assembly
Counterbalance lift
cable 1/2 pre-wrap
Counterbalance
lift cable
(I6.) Idler
bracket
Cam peak
straight up
Round
notch
Groove
Flag
angle
Snaps Idler
bracket
Flag
angle
Bearing
Idler
bracket Snaps
Groove
Left hand
cable drumIdler
bracket Snaps
Groove
Left
hand
cable
drum
11

ATTACHING END BRACKETS TO FLAG ANGLES
15
IMPORTANT: Warning tags must be securely attached to end bracket(s).
IMPORTANT: For single spring doors, ensure the left hand cable drum bearing is all the
way to the left and up against the flag angle. If the cable drum is pulled away from the flag
angle, then the idler bracket can rub against the cable drum causing noise.
NOTE: Drill 3/16” pilot holes into header for the lag screws.
STEP 15 INSTRUCTIONS
15a. Beginning with the right hand side, slide the end bracket (I4.) onto the winding shaft so
that the splines in the ratchet wheel fit onto the winding shaft grooves.
15b. Attach the end bracket to the flag angle (A1.) using (1) 5/16” - 18 x 3/4” carriage bolt,
(1) 5/16” washer and (1) 5/16” - 18 hex nut. Then secure the end bracket to the jamb using
(1) 5/16” x 1-5/8” lag screw.
NOTE: If ratchet wheel falls out of end bracket, refer to illustration for proper insertion
orientation.
15c. FOR DOUBLE SPRING APPLICATIONS: Repeat same process for left hand end
bracket.
Grooves
Warning
tag
Splines
Winding
shaft
(I4.)
Right
hand end
bracket
Flag
angle
Spring tube
assembly
Right hand
cable drum
Ratchet wheel
(oriented correctly)
FOR DOUBLE SPRING
APPLICATIONS:
Repeat
same process for left
hand end bracket.
5/16”
Washer
5/16”
Hex nut
Winding
shaft
5/16” -18 x 3/4”
Carriage bolt
Spring tube
assembly
Right hand
cable drum
5/16” x 1-5/8”
Lag screw
Right
hand end
bracket
Flag
angle
(A1.) Flag
angle
FOR SINGLE SPRING APPLICATIONS:
15d. Secure the idler bracket (I6.) to the flag angle using (1) 5/16” - 18 x 3/4” carriage bolt,
(1) 5/16” washer and (1) 5/16” - 18 hex nut. Then secure the idler bracket to the jamb using
(1) 5/16” x 1-5/8” lag screw.
Spring tube
assembly
Left hand
cable drum
(I6.) Idler
bracket
Flag
angle
5/16” x 1-5/8”
Lag screw
5/16” -18 x 3/4”
Carriage bolt
5/16” Washer
5/16” Hex
nut
Flag
angle
Left hand
cable drum
Bearing
ATTACHING CENTER BRACKET TO WALL
16
IMPORTANT: Spring tube must be level before securing center bracket bushing assembly
to header.
NOTE: Drill 3/16” pilot holes into header for the lag screws.
STEP 16 INSTRUCTIONS
16a. To locate the center bracket bushing assembly, mark the header halfway between the
flag angles and level the spring tube. Fasten the center bracket bushing assembly to the
header using (2) 5/16” x 1-5/8” lag screws.
Spring tube
Center bracket
bushing assembly
Level
(2) 5/16” x 1-5/8”
Lag screws
SECURING DOOR FOR WINDING THE SPRING(S)
17
STEP 17 INSTRUCTIONS
17a. With the door in the fully closed position, place locking pliers onto both vertical tracks
(H5.) (H6.) just above the third track roller (C1.). This is to prevent the garage door from
rising while winding spring(s).
NOTE: Check the following before attempting to wind the spring(s):
17b. Counterbalance lift cables are secured at bottom corner brackets.
17c. Counterbalance lift cables are routed unobstructed to cable drums.
17d. Counterbalance lift cables are correctly installed and wound onto cable lift drums.
17e. Spring tube is installed correctly.
17f. Review the Winding Spring Turn Chart in Step Winding Spring(s), to determine the
number of spring turns required.
NOTE: Door MUST be closed and locked when winding or making any adjustments to the
spring(s).
WARNING
FAILURE TO PLACE LOCKING PLIERS ONTO VERTICAL TRACK CAN
ALLOW DOOR TO RAISE AND CAUSE SEVERE OR FATAL INJURY.
(C1.) Short stem
track rollers
(E4.)
Bottom
section
(E3.) Second
section
Locking pliers attached
to inner and outer rail
of vertical track
(E2.) Intermediate section
(H5.)
Vertical track (H6.)
Vertical
track
12

ADJUSTING COUNTERBALANCE LIFT CABLE
18
STEP 18 INSTRUCTIONS
18a. Starting on the right side, adjust the cable drum assembly (I5.) by rotating the drum
until the set screw faces directly away from the header. The position of the cam peak on the
spring tube (I2.) should be pointing straight up.
18b. Loosen the set screw no more than 1/2 turn. Ensure counterbalance lift cable is aligned
and seated in the first and second grooves of the cable drum. Pull on the end of the cable to
remove all cable slack.
18c. Snug the set screw and then tighten an additional 1-1/2 turns. Measure approximately
6” of cable and cut off excess cable. Insert end of the cable into the hole of cable drum.
Repeat for left hand cable drum assembly.
IMPORTANT: Ensure the counterbalance lift cable is seated in the first groove of the cable
drum prior to winding the springs.
NOTE: Illustration shows the right hand cable drum assembly. Repeat the same process for
the left hand side.
Cam peak
pointing straight up
Insert
cable here
6”
Cut cable here
Tighten
set screw
(I2.) Spring
tube
Counterbalance
lift cable
Insert
cable here
First groove
(I5.) Cable drum assembly
WINDING THE SPRING(S)
19
IMPORTANT: Verify that there are no obstructions in the travel path of the door sections or
counterbalance lift cables.
IMPORTANT: Inspect each counterbalance lift cable making sure it is seated properly onto
the cable drum and that both counterbalance lift cables have equal tension.
STEP 19 INSTRUCTIONS
PRIOR TO WINDING SPRING(S), CHECK COUNTERBALANCE LIFT CABLES FOR EQUAL
TENSION:
19a. Attach locking pliers to track above top roller.
19b. Grasp cable at approximate mid-door height location.
19c. Draw cable toward you about 1/2” to 1” and release, noting the response of the cable.
19d. Repeat above steps for other cable.
19e. Adjust cable tension as needed until right and left cables both respond the same.
WARNING
EXTREME CAUTION SHOULD BE USED WHEN WINDING SPRINGS AS
FAILURE TO FOLLOW THE INSTRUCTIONS OR USE THE PROPER TOOLS
CAN LEAD TO SERIOUS INJURY TO PERSONS AND PROPERTY. BEFORE
ATTEMPTING TO WIND THE SPRING, MAKE SURE YOU HAVE READ
AND UNDERSTAND THE INSTRUCTIONS. IF YOU ARE UNCLEAR ON ANY
ASPECT OF THE INSTALLATION PROCEDURES, YOU SHOULD CONSULT A
TRAINED DOOR SYSTEMS TECHNICIAN.
WARNING
IT IS RECOMMENDED THAT LEATHER GLOVES BE WORN WHILE WINDING
SPRINGS. FAILURE TO WEAR GLOVES MAY CAUSE INJURY TO HANDS.
NOTE: A 3” ratchet extension is recommended for added clearance from the horizontal
track angle.
IMPORTANT: Pawl knob must be in upper position to add / remove required number of
spring turns.
19f. There are two methods for counting the spring turns as you wind. One method is to
identify the black tooth on the ratchet wheel inside of the end bracket. When the wheel
makes one revolution and the tooth returns to its starting point, one turn has been made. The
other method is to make a mark on the winding shaft (or socket) and end bracket, and count
your turns in this manner.
19g. Check the Winding The Spring Turn Chart (below) for the required number of complete
turns to balance your door.
19h. Starting on the right hand side, turn the pawl knob on the end bracket (I4.) to the upper
position. Using a ratchet wrench with a 5/8” socket and a 3” ratchet extension, wind the
spring by rotating the winding shaft counter clockwise, while watching either the black tooth
on the ratchet wheel or the mark on the winding shaft. After 2 to 3 turns, remove the ratchet
wrench and adjust the counterbalance lift cable on the left side. Ensure counterbalance lift
cables are in the first groove of the cable drums, as shown in Step 18 Adjusting Counterbal-
ance Lift Cable.
NOTE: Single spring applications require no spring winding on the left hand side, but lift
cable tension needs to be adjusted.
FOR SINGLE SPRING APPLICATIONS: Return to the right hand end bracket and continue
winding the spring to the required number of turns for your door following the double spring
instructions below. Place pawl knob in lower position.
FOR DOUBLE SPRING APPLICATIONS: Either use the black tooth on the ratchet wheel
for winding reference or place a mark on the winding shaft and end bracket (I3.). Place the
ratchet wrench with 5/8” socket and a 3” ratchet extension onto the left hand winding shaft
end. To wind the spring, rotate the winding shaft clockwise, while watching the black tooth on
the ratchet wheel or the mark on the winding shaft. Rotate the winding shaft to the required
number of winding turns for your door. Then return to the right hand side and wind the right
hand spring to the required number of turns. Place pawl knob in lower position on both sides.
Counterbalance
lift cable
(I4.) Right hand
end bracket
Pawl knob
in upper
position
5/8”
Socket
Ratchet
wrench
Winding
shaft 3” Ratchet
extension
Marks
Counterbalance
lift cable (I3.) Left hand
end bracket
Pawl knob
in upper
position
5/8”
Socket
Ratchet
wrench
3”
Extension
Marks
Winding
shaft
IMPORTANT: Mark the number of spring turns onto the end bracket warning tag.
WINDING SPRING TURN CHART
DOOR HEIGHT SPRING TURNS
6’-0” 14
6’-3” 14-1/2
6’-5” - 6’-6” 15
6’-8” - 6’-9” 15-1/2
7’-0” 16
7’-3” 16-1/2
7’-6” 17
7’-9” 17-1/2
8’-0” 18
NOTE: Since total turns to balance door can deviate from winding spring turn chart values
by ± 1 turn, adjustments to the recommended number of turns may be required after rear
back hangs are installed.
13

ATTACHING REAR BACK HANGS
20
IMPORTANT: Hold the door down to prevent it from rising unexpectedly in the event the
spring(s) were over-wound and cautiously remove locking pliers from vertical tracks.
STEP 20 INSTRUCTIONS
20a. Raise the door until the top section and half of the next section are in the horizontal
track radius. Do not raise door any further since rear of horizontal tracks are not yet sup-
ported.
WARNING
RAISING DOOR INTO THE LOOSE HORIZONTAL TRACKS CAN RESULT IN
DOOR FALLING AND CAUSE SEVERE OR FATAL INJURY.
20b. Clamp a pair of locking pliers onto the vertical tracks just above the second track roller
on one side, and just below the second track roller on the other side. This will prevent the
door from raising or lowering while installing the rear back hangs.
20c. Using the chart below, select the appropriate perforated angle (may not be supplied).
Fabricate and install rear back hangs, as shown.
Perforated Angle Gauge Weight Limitations:
Perforated Angle Gauge Door Balance Weight
2” x 2” x 12 Gauge 800 lbs. to 1600 lbs.
1-1/4” x 1-1/4” x 13 Gauge 305 lbs. to 610 lbs.
1-1/4” x 1-1/4” x 15 Gauge 220 lbs. to 440 lbs.
1-1/4” x 1-1/4” x 16 Gauge 175 lbs. to 350 lbs.
NOTE: If an opener is installed, position horizontal tracks one hole above level when secur-
ing them to the rear back hangs.
WARNING
KEEP HORIZONTAL TRACKS PARALLEL AND WITHIN 3/4” TO 7/8”
MAXIMUM OF DOOR EDGE, OTHERWISE DOOR COULD FALL, RESULTING
IN SEVERE OR FATAL INJURY.
WARNING
MAKE SURE BACK HANGS ARE BRACED SUFFICIENTLY TO RESIST ANY
MOTION DURING SPRING APPLICATION AND DOOR TRAVEL. IF BACK
HANGS PIVOT OR DEFLECT, ADD REINFORCEMENT UNTIL THEY REMAIN
FIRM AND STATIONARY. ANY BACK HANG THAT HAS BENT MUST BE
REPLACED.
IMPORTANT: Do not support the weight of the door on any part of the rear back hangs that
cantilevers 4” or more beyond a sound framing member.
NOTE: If rear back hangs are to be installed over drywall, use (2) 5/16” x 2” hex head lag
screws and make sure lag screws engage into solid structural lumber.
WARNING
FAILURE TO ASSEMBLE AND ATTACH REAR BACK HANGS PROPERLY
ACCORDING TO THE ABOVE INSTRUCTIONS MAY RESULT IN DOOR
FALLING WHEN RAISED, CAUSING SEVERE OR FATAL INJURY.
NOTE: Perforated angle must be attached to sound framing members and nails should
not be used.
90°
(3) 5/16”
Bolts and nuts
(3) 5/16” Bolts and
(3) 5/16” nuts
Perforated
angle
5/16” Hex nut
5/16”-18 x 1-1/4”
Hex bolt
Perforated angle bolted
using (2) 5/16” x 1-5/8”
hex head lag screws to
ceiling member and
parallel to door
Horizontal track
NOTE: Repeat the same
process for right hand side.
Horizontal tracks
Door edges
3/4” To 7/8”
3/4” To 7/8”
ATTACHING WEATHERSTRIPS (IF INCLUDED)
21
NOTE: When permanently attaching the weatherstrips to the jambs, avoid pushing the
weatherstrips too tightly against the face of door.
STEP 21 INSTRUCTIONS
21a. Permanently attach the weatherstrips on both door jambs and header. The weather-
strips were temporarily attached in Preparing the Opening, in the pre-installation section of
this manual.
Weatherstrips
Nail
Weatherstrips
Jamb Weatherstrips
installed
Jamb
Header
Jamb
Nail
NOTE: Door not shown for clarity.
14

BALANCING DOOR
22
NOTE: Windows may cause the top section to be significantly heavier than the remaining
sections. Wayne Dalton attempts to balance the door at the top and bottom. To prevent any
sudden door acceleration between the top and bottom, we recommend motor operating all
doors with windows.
STEP 22 INSTRUCTIONS
22a. Remove any locking pliers. Lift the door and check its balance. Adjust spring(s) if door
lifts by itself (hard to pull down) or if door is difficult to lift (drifts down). Anytime spring
adjustments are made, ratchet pawl knob must be in the upper position. An unbalanced door
can cause TorqueMaster®Plus operation problems.
22b. Close the door and place locking pliers onto both vertical tracks just above the third
track roller. This is to prevent the garage door from rising while adjusting the spring(s).
IMPORTANT: To adjust springs, only add or remove a maximum of 3/10 of a turn (three
teeth on the ratchet wheel) at a time. Both sides need to be adjusted equally on double
spring doors.
WARNING
EXTREME CAUTION SHOULD BE USED WHEN WINDING SPRINGS AS
FAILURE TO FOLLOW THE INSTRUCTIONS OR USE THE PROPER TOOLS
CAN LEAD TO SERIOUS INJURY TO PERSONS AND PROPERTY. BEFORE
ATTEMPTING TO WIND THE SPRING, MAKE SURE YOU HAVE READ
AND UNDERSTAND THE INSTRUCTIONS. IF YOU ARE UNCLEAR ON ANY
ASPECT OF THE INSTALLATION PROCEDURES, YOU SHOULD CONSULT A
TRAINED DOOR SYSTEMS TECHNICIAN.
22c. ADD SPRING TENSION: The ratchet wheel is made of 10 teeth. To add spring tension,
tighten counter clockwise on the right hand side and clockwise on the left hand side. Place
pawl knob in upper position. Place the ratchet with 5/8” socket and 3” ratchet extension
onto the winding shaft, to add 3/10 of a turn. Watch as three teeth of the ratchet wheel pass
over the pawl, creating three “clicks”. Place pawl knob in lower position. For double spring
applications, repeat the same process for the other side.
22d. REMOVE SPRING TENSION: To remove spring tension, place a regular 5/8” wrench
onto the winding shaft. Place pawl knob in upper position.
IMPORTANT: Be prepared to hold the full tension of the spring.
Pull down on the wrench to relieve pressure between the pawl and the ratchet wheel. Push in
on the pawl to allow the three ratchet wheel teeth to pass by the pawl, as you carefully allow
the wrench to be rotated upward by the spring tension, release the pawl to allow it to engage
with the ratchet wheel. Place pawl knob in lower position. For double spring applications,
repeat the same process for the other side.
IMPORTANT: Do not add or remove more than 1 spring turn (1 spring turn equals 10 teeth
on ratchet wheel) from the recommended number of turns shown on the winding spring
turn chart.
22e. If the door still does not operate easily, lower the door into the closed position, unwind
spring(s) completely, and recheck the following items:
22f. Is the door level?
22g. Are the spring tube and flag angles level and plumb?
22h. Does the distance between the flag angles equal door width plus 3-3/8” to 3-1/2”?
22i. Do the counterbalance lift cables have equal tension? Adjust if necessary.
22j. Rewind the spring(s).
22k. Make sure door is not rubbing on jambs.
Ratchet
wrench
End bracket
Pawl
Winding
shaft
Ratchet
wheel
Pawl
knob in
lower
position
Pawl
knob in
upper
position
Pawl
3”
Ratchet
extension
5/8” Socket
15

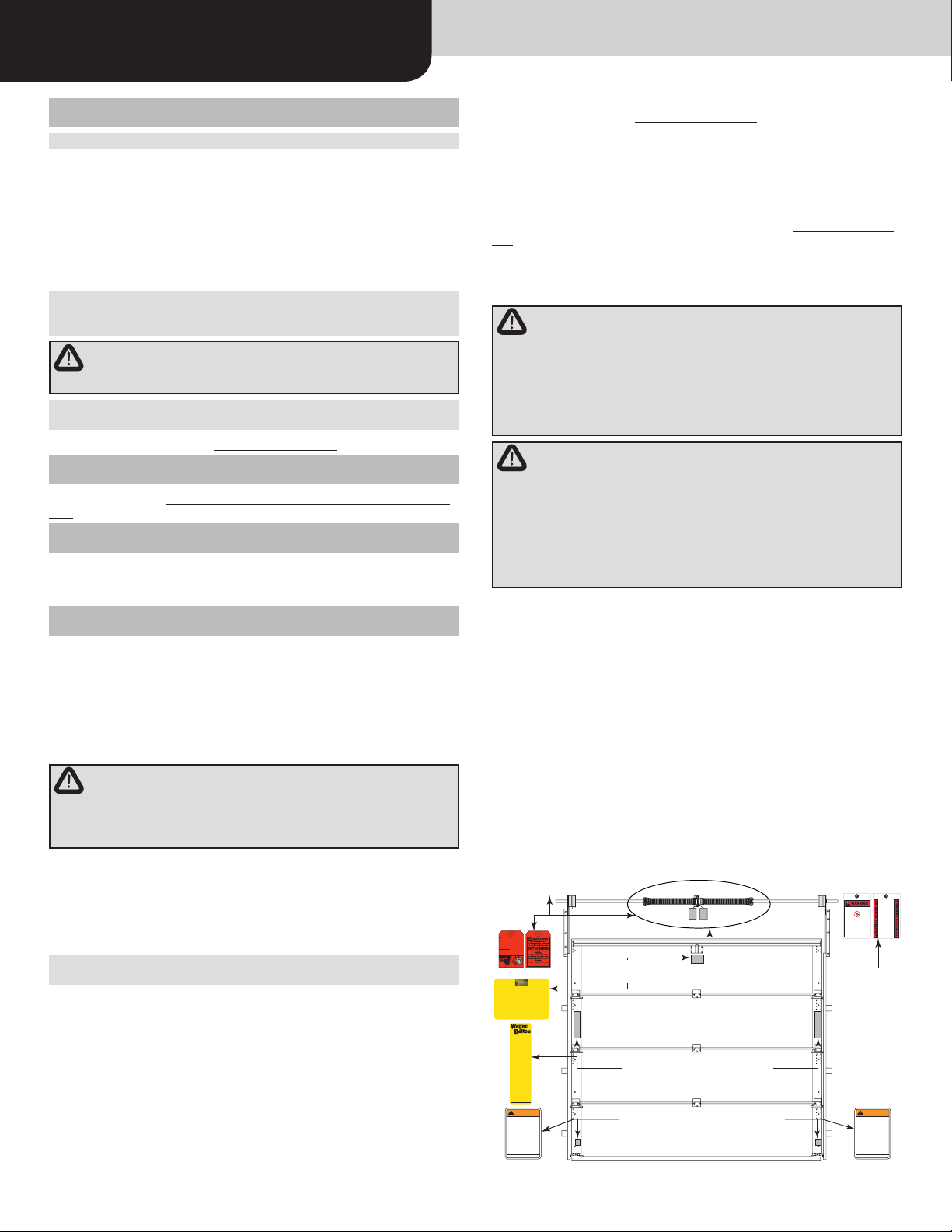

Cleaning Your Garage Door
IMPORTANT: Do not use a pressure washer on your garage door!
While factory-applied finishes on garage doors are durable, it is desirable to clean them on
a routine basis. Some discoloration of the finish may occur when a door has been exposed
to dirt-laden atmosphere for a period of time. Slight chalking may also occur as a result of
direct exposure to sunlight. Cleaning the door will generally restore the appearance of the
finish. To maintain an aesthetically pleasing finish of the garage door, a periodic washing of
the garage door is recommended.
THE FOLLOWING CLEANING SOLUTION IS RECOMMENDED: A mild detergent solution
consisting of one cup detergent (with less than 0.5% phosphate) dissolved into five gallons of
warm water will aid in the removal of most dirt.
NOTE: The use of detergents containing greater than 0.5% phosphate is not recommended
for use in general cleaning of garage doors. Be sure to clean behind weatherstrips on both
sides and top of door.
CAUTION
NEVER MIX CLEANSERS OR DETERGENTS WITH BLEACH.
NOTE: Do not use any window cleaning fluids, scouring compounds, gritty cloths or
solvent-based cleaners of any kind.
To clean polycarbonate windows, see www.Wayne-Dalton.com.
Painting Your Garage Door
Refer to Instruction Insert “Field Painting and Finishing Fiberglass or Steel Door Sec-
tions”.
Maintaining The Finish On Your Garage Door
If the factory finish is beginning to fade, the door may require a field applied top clear coat.
Depending on environment and usage, this may be necessary after 1 to 3 years of use. Refer
to Instruction Insert “Field Painting and Finishing Fiberglass Or Steel Door Sections”.
Operation And Maintenance
OPERATING YOUR GARAGE DOOR: Before you begin, read all warning labels affixed to
the door and the installation instructions and owner’s manual. When correctly installed, your
Wayne Dalton door will operate smoothly. Always operate your door with controlled move-
ments. Do not slam your door or throw your door into the open position, this may cause dam-
age to the door or its components. If your door has an electric opener, refer to the owner’s
manual to disconnect the opener before performing manual door operation below.
MANUAL DOOR OPERATION: For additional information on manual garage door operations
go to www.dasma.com and reference TDS 165.
WARNING
DO NOT PLACE FINGERS OR HANDS INTO SECTION JOINTS WHEN
OPENING AND/OR CLOSING A DOOR. ALWAYS USE LIFT HANDLES /
SUITABLE GRIPPING POINTS WHEN OPERATING THE DOOR MANUALLY.
OPENING A DOOR: Make sure the lock(s) are in the unlocked position. Lift the door by using
the lift handles / suitable gripping points only. Door should open with little resistance.
CLOSING A DOOR: From inside the garage, pull door downward using lift handles / gripping
point only. If you are unable to reach the lift handles/ suitable gripping points only, use pull
down rope affixed to the side of door. Door should close completely with little resistance.
USING AN ELECTRIC OPERATOR:
IMPORTANT: PULL DOWN ROPES MUST BE REMOVED AND LOCKS MUST BE REMOVED
OR MADE INOPERATIVE IN THE UNLOCKED POSITION.
When connecting a drawbar (trolley type) garage door operator to this door, a drawbar opera-
tor bracket must be securely attached to the top section of the door, along with any struts
provided with the door. Always use the drawbar operator bracket supplied with the door. To
avoid possible damage to your door, Wayne Dalton recommends reinforcing the top section
with a strut (may or may not be supplied). The installation of the drawbar operator must be
according to manufacturer’s instructions and force settings must be adjusted properly. Refer
to the owner’s manual supplied with your drawbar operator for complete details on installa-
tion, operation, maintenance and testing of the operator.
MAINTAINING YOUR GARAGE DOOR: Before you begin, read all warning labels affixed to
the door and the installation instructions and owner’s manual. Perform routine maintenance
steps once a month, and have the door professionally inspected once a year. Review your
Installation Instructions and Owner’s Manual for the garage door. These instructions are
available at no charge from Wayne Dalton, a division of Overhead Door Corporation, P.O. Box
67, Mt. Hope, OH., 44660, or at www.Wayne-Dalton.com. For additional information on
garage door/operator maintenance go to www.dasma.com and reference TDS 151, 167
and 179.
Monthly Inspections:
1. Visual Inspection: Closely inspect jambs, header and mounting surface. Any material
found not to be structurally sound must be replaced. It may be necessary to uninstall part
or all of the door assembly in order to replace defective material. Refer to the supplemental
instructions “Removing an Existing Door / Preparing the Opening” at www.Wayne-Dalton.
com. Inspect the spring(s), counterbalance lift cables, track rollers, pulleys, rear back hangs
and other door hardware for signs of worn or broken parts. Tighten any loose screws and/or
bolts, except on bottom corner brackets or on the counterbalance assembly. Check exterior
surface of the door sections for any minor cracks. Verify door has not shifted right or left in
the opening. If you suspect problems, contact a trained door system technician.
WARNING
GARAGE DOOR SPRINGS, COUNTERBALANCE LIFT CABLES, BRACKETS,
AND OTHER HARDWARE ATTACHED TO THE SPRINGS ARE UNDER
EXTREME TENSION, AND IF HANDLED IMPROPERLY, CAN CAUSE
SEVERE OR FATAL INJURY. ONLY A TRAINED DOOR SYSTEMS
TECHNICIAN SHOULD ADJUST THEM, BY CAREFULLY FOLLOWING THE
MANUFACTURER’S INSTRUCTIONS.
WARNING
NEVER REMOVE, ADJUST, OR LOOSEN THE BOLTS, SCREWS AND/OR LAG
SCREWS ON THE COUNTERBALANCE (END BEARING BRACKETS, DRUMS
OR SPRING SYSTEM) OR BOTTOM CORNER BRACKETS OF THE DOOR.
THESE BRACKETS ARE CONNECTED TO THE SPRING(S) AND ARE UNDER
EXTREME TENSION. TO AVOID POSSIBLE SEVERE OR FATAL INJURY,
HAVE ANY SUCH WORK PERFORMED BY A TRAINED DOOR SYSTEMS
TECHNICIAN USING PROPER TOOLS AND INSTRUCTIONS.
TorqueMaster® Plus Springs: Pawl knob(s) (located on the TorqueMaster®Plus end
brackets above the door) should be engaged to prevent the door from rapidly descending in
case of spring failure or forceful manual operation.
2. Door Balance: Periodically test the balance of your door. If you have a garage door draw-
bar operator, use the release mechanism so you can operate the door by hand when doing
this test. Start with the door in the fully closed position. Using handles or suitable gripping
points, lift the door to check its balance. Adjust spring(s) (see Step 22), if door lifts by itself
(hard to pull down) or if door is difficult to lift (easy to pull down). If in question about any of
the procedures, do not perform the work. Instead, have it adjusted by a trained door systems
technician.
3. Lubrication: The door should open and close smoothly. Ensure the door track rollers are
rotating freely when opening and closing the door. If track rollers do not rotate freely, clean
the door tracks, removing dirt and any foreign substances. Clean and lubricate (use a non-
silicon based lubricant) graduated end hinges, center hinges, steel track rollers, bearings and
torsion springs (torsion spring coil surfaces). DO NOT lubricate plastic idler bearings, nylon
track rollers, door track. DO NOT oil a cylinder lock, if actuation is difficult use a graphite dust
to lubricate.
CHECK FOR PRESENCE OF SAFETY LABELS:
The adjacent bottom corner
bracket and all cable
retention features including
milford pins, cotter pins, &
clevis pins are under HIGH
SPRING TENSION.
262484 REV1 01/08/10
WARNING
Repairs and adjustments
must be made by an
experienced door
professional or mechanic,
using proper tools and
instructions.
DO NOT REMOVE, COVER OR
PAINT THIS LABEL.
©Copyright 2010 Wayne-Dalton,
aDivision of Overhead Door Corp.
The adjacent bottom corner
bracket and all cable
retention features including
milford pins, cotter pins, &
clevis pins are under HIGH
SPRING TENSION.
262484 REV1 01/08/10
WARNING
Repairs and adjustments
must be made by an
experienced door
professional or mechanic,
using proper tools and
instructions.
DO NOT REMOVE, COVER OR
PAINT THIS LABEL.
©Copyright 2010 Wayne-Dalton,
aDivision of Overhead Door Corp.
WHEN CONNECTING A TROLLEY TYPE GARAGE DOOR
OPENER TO THIS DOOR, A WAYNE-DALTON
OPENER/TROLLEY BRACKET MUST BE SECURELY
ATTACHED TO THE TOP SECTION OF THE DOOR, ALONG
WITH ANY U-BARS PROVIDED WITH THE DOOR. THE
INSTALLATIONOF THE OPENER MUST BE ACCORDING TO
MANUFACTURER’S INSTRUCTIONS AND FORCE SETTINGS
MUST BE ADJUSTED PROPERLY.
323917 REV2 01/15/2010
IMPORTANT!
Copyright2010Wa yneDalton,a Division of Overhead Door Corp.
HIGHSPRING TENSION CAN CA USE
SERIOUSINJURY OR DEAT H.
DONOTadjust, repair or remove springs or parts to
whichsprings are connected, such as steel brack-
ets,cables, wood blocks, fasteners or other parts of
thecounterbalance system.
Adjustmentsor repairs must ONLY be made by a
traineddoor systems technician using proper tools
andinstructions.
DONOTremove, cover or paint over this tag. Prod-
uctuser should inspect this tag periodically for
legibilityand should order a replacement tag from
thedoor manufacturer, as needed.
©Copyright2010Overhead Door Corporation 102081 REV2 06/24/2010
SAFETYINSTRUCTIONS
1. Operatedoor ONLY when it is properly
adjustedand free of obstructions.
2. Ifa door becomes hard to operate,
inoperativeor is damaged, immediately
havenecessary adjustments and/or repairs
madeby a trained door system technician
usingproper tools and instructions.
3. DONOT stand or walk under a moving door,
orpermit anybody to stand or walk under
anelectrically operated door.
4. DONOT place fingers or hands into open
sectionjoints when closing a door. Use lift
handles/grippingpoints when operating
doormanually.
5. DONOT permit children to operate garage
dooror door controls.
6. Dueto constant extreme spring tension,
DONOT attempt any adjustment, repair or
alterationto any part of the door,
especiallyto springs, spring brackets,
bottomcorner brackets, red colored
fasteners,cables or supports. To avoid
possiblesevere or fatal injury, have any
suchwork performed by a trained door
systemtechnician using proper tools and
instructions.
7. Onelectrically operated doors, pull down
ropesmust be removed and locks must be
removedor made inoperative in the open
(unlocked)position.
8. Topsection of door may need to be
reinforcedwhen attaching an electric
opener.Check door and/or opener
manufacturer’sinstructions.
9. VISUALLYinspect door and hardware
monthlyfor worn and/or broken parts.
Checkto ensure door operates freely.
10.Te stelectric opener’s safety features
monthly,following opener manufacturer’s
instructions.
11.NEVER hang tools, bicycles, hoses, clothing
oranything else from horizontal tracks.
Tracksystems are not intended or designed
tosupport such extra weight.
Placelabel at a readable height on door. DO NOT
remove,cover or paint over this label. Product
usershould inspect this label periodically for
legibilityand should order a replacement label
fromthe door manufacturer as needed.
324100 REV7 09/16/2013
Qualitygarage doors since 1954
WayneDalton
2501S. State Hwy 121 Bus., Suite 200
Lewisville,TX 75067
Forservice, call [phone]
www.Wayne-Dalton.com
Copyright2013WayneDalton, a
DivisionofOverheadDoor Corp.
300547 REV3 12/16/2020
©Copyright2020WayneDalton, a
divisionofOverheadDoor Corporation
RatchetPawl
IDENTIFYINGENGAGMENT
CableDrum
DrumPawl
Nospace between pawl and cable
drumindicates engagement.
ENGAGEDUNDERNEATH VIEW
Nospace
betweenpawl
andcable drum
indicates
engagement.
WA RNING!RESET, ADJUSTMENT OR REPAIR OF TM
PLUSBRACKET, RATCHET, CABLES, OR SPRINGS MUST BE
DONEBY A TRAINED DOOR SYSTEMS TECHNICIAN.
The TorqueMaster®Plus (TM Plus) system includes a safety
featurethat prevents a door from rapidly descending if a spring
breaks.When engaged, the door can be opened, making a distinct
“clicking”noise, but may be prevented from closing.Refer to the
imagesbelow to determine if the TM Plus system is engaged.
Contactyour local door dealer for repairs if
engagementhas occurred. Instruction manuals are available at
www.Wayne-Dalton.comfor more information.
Avoid electric operation when TM Plus has engaged to prevent
possibledamage to the door. Ensure opener’sforce sensitivity has
beenset in accordance with the manufacturer’s instructions. The
LimitedWarranty of this door does not cover damage due to
improperforce settings.
Numberof Installed Spring Tu rns____
Residential warning label
The warning label will either be on
the right or the left end stile.
Drawbar operator
bracket label
Bottom corner bracket warning labels
Torsion spring tag(s)
(one per spring)
TorqueMaster®Plus tag(s)
(one per spring)
16
MAINTENANCE

Limited Warranty
Models 9100 and 9605
Wayne Dalton, a division of Overhead Door Corporation (“Seller”) warrants to the original purchaser of the Models 9100 and 9605 (“Product”), subject to all of
the terms and conditions hereof, that the Product and all components thereof will be free from defects in materials and workmanship for the following period(s) of time,
measured from the date of installation:
LIMITED LIFETIME WARRANTY* on the Product sections against:
• Peeling, cracking, or chalking of the original factory-applied coating on the steel sections of the Product.
• The Product becoming inoperable due to rust-through of the steel skin from the core of the Product section, caused by cracking, splitting, or other deterioration
of the steel skin, or due to structural failure caused by separation or degradation of the foam insulation.
• The Product hardware (except springs) and the tracks.
ONE (1) YEAR on those component parts of the Product not covered by the preceding provisions of this Warranty
*Limited Lifetime shall mean as long as the original purchaser owns the house in which the Product is originally installed.
Seller’s obligation under this warranty is specifically limited to repairing or replacing, at its option, any part which is determined by Seller to be defective during
the applicable warranty period. Any labor charges are excluded and will be the responsibility of the purchaser.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. This warranty is made to the original purchaser
of the Product only, and is not transferable or assignable. This warranty applies only to Product installed in a residential or other non-commercial application. It does not
cover any Product installed in commercial or industrial building applications. This warranty does not apply to any unauthorized alteration or repair of the Product, or to
any Product or component which has been damaged or deteriorated due to misuse, neglect, accident, failure to provide necessary maintenance, normal wear and tear,
acts of God, or any other cause beyond the reasonable control of Seller or as a result of having been exposed to toxic or abrasive environments, including blowing sand,
salt water, salt spray and toxic chemicals and fumes.
ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, ARE LIMITED IN TIME TO THE APPLICABLE WARRANTY PERIOD REFLECTED ABOVE. NO WARRANTIES, WHETHER EXPRESS OR IMPLIED,
WILL APPLY AFTER THE LIMITED WARRANTY PERIOD HAS EXPIRED. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation
may not apply to you.
IN NO EVENT SHALL SELLER BE RESPONSIBLE FOR, OR LIABLE TO ANYONE FOR, SPECIAL, INDIRECT, COLLATERAL, PUNITIVE, INCIDENTAL OR CONSEQUENTIAL
DAMAGES, even if Seller has been advised of the possibility of such damages. Such excluded damages include, but are not limited to, loss of use, cost of any substitute
product, or other similar indirect financial loss. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or
exclusion may not apply to you.
Claims under this warranty must be made promptly after discovery, within the applicable warranty period, and in writing to the authorized distributor or installer
whose name and address appear below. The purchaser must allow Seller a reasonable opportunity to inspect any Product claimed to be defective prior to removal or
any alteration of its condition. Proof of the purchase and/or installation date, and identification as the original purchaser, may be required. There are no established
informal dispute resolution procedures of the type described in the Magnuson-Moss Warranty Act.
• SELLER: _______________________________________________________________________
• SELLER’S ADDRESS: _______________________________________________________________________
_______________________________________________________________________
17
WARRANTY

If you need assistance, please call 1-866-569-3799 (press Option 1) and follow the prompts to
contact a customer service representative. They will be happy to handle any questions that you
may have.
Thank you for your purchase.
PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE
After installation is complete, leave this Installation
Instructions And Owner’s Manual with the homeowner, or
fasten it near garage door for easy reference.

©Copyright 2021 REV1_04/14/2021Número de pieza
Índice
365456
POR FAVOR, NO DEVUELVA ESTE
PRODUCTO A LA TIENDA
SI necesita asistencia, sírvase llamar al
1-866-569-3799 (presione la Opción 1) y
siga las indicaciones para contactar a un
representante de servicio al cliente. Nuestros
representantes se complacerán en atender
cualquier duda que usted tenga.
Preinstalación 2
Instrucciones de seguridad importantes 2
Remoción de una puerta existente y Preparación de la abertura 2
Contenido del paquete 3
Identificación de las secciones de la puerta 4
Herramientas necesarias 5
Desglose De Piezas 6
Instrucciones de instalación de la puerta 7
Instrucciones De Instalación Del Contrapeso 11
Mantenimiento 17
Limpieza de su puerta de garaje 17
Pintura de su puerta de garaje 17
Mantenimiento del acabado de su puerta de garaje 17
Accionamiento y mantenimiento 17
Garantía 19
Wayne Dalton, una división de Overhead Door Corporation
Modelos 9100 /
9605
TO R Q U E MA S T E R ®P L U S
INSTRUCCIONES DE INSTALACIÓN YMANUAL
DEL PROPIETARIO
RESIDENCIAL
ELEVACIÓN ESTÁNDAR
Para evitar posibles lesiones, lea detenidamente y entienda
completamente las instrucciones que se incluyen antes de instalar
y accionar la puerta de garaje. Preste suma atención a todas las
advertencias y notas. Después de completar la instalación, deje este
manual en un lugar fijo cerca de la puerta del garaje para referencia fácil.
¡AVISOS IMPORTANTES! Este documento de instalación está disponible sin cargo alguno a través
de:
- Su Centro de Venta Wayne Dalton local o
- En línea en www.Wayne-Dalton.com o
- Solicitándolo por correo postal a: Wayne Dalton, a division of Overhead
Door Corporation, P.O. Box 67, Mt. Hope, OH., 44660
Vea: https://www.youtube.com/
watch?v=IgE-hPXz3iU&feature=youtu.be
VIDEO DE INSTALACIÓN

Instrucciones de seguridad importantes
DEFINICIÓN DE LAS PALABRAS CLAVE QUE SE UTILIZAN EN ESTE MANUAL:
ADVERTENCIA
INDICA UNA SITUACIÓN POTENCIALMENTE PELIGROSA QUE, SI NO SE
EVITA, PODRÍA CAUSAR LESIONES GRAVES O MORTALES
PRECAUCIÓN
SE PODRÍAN PRODUCIR DAÑOS MATERIALES O LESIONES SI NO SE SIGUEN
LAS INSTRUCCIONES.
IMPORTANTE: PASO REQUERIDO PARA UN ACCIONAMIENTO SEGURO Y CORRECTO DE
LA PUERTA.
NOTA: Información que garantiza una instalación correcta de la puerta.
LEA DETENIDAMENTE ESTAS INSTRUCCIONES ANTES DE INTENTAR REALIZAR LA IN-
STALACIÓN. SI TIENE ALGUNA DUDA SOBRE CUALQUIERA DE LOS PROCEDIMIENTOS,
NO REALICE EL TRABAJO. EN LUGAR DE ELLO, HAGA QUE UN TÉCNICO CAPACITADO
EN SISTEMAS DE PUERTA REALICE LA INSTALACIÓN O LAS REPARACIONES.
1. LEA Y SIGA TODAS LAS INSTRUCCIONES.
2. Use guantes protectores y protección ocular durante la instalación, para evitar posibles
lesiones.
3. Evite instalar su puerta nueva en días ventosos. La puerta se podría caer durante la
instalación y causar lesiones graves o mortales.
4. Las puertas de 12 pies 0 pulgadas de ancho y más anchas deberán ser instaladas por
dos personas, para evitar posibles lesiones.
5. Accione la puerta solo cuando esté ajustada correctamente y libre de obstrucciones.
6. Si una puerta se vuelve difícil de accionar, no funciona o está dañada, acuda inmedi-
atamente a un técnico capacitado en sistemas de puertas para que efectúe los ajustes
y/o reparaciones necesarias utilizando las herramientas e instrucciones adecuadas.
7. NO se pare ni camine debajo una puerta en movimiento, ni permita que alguien se
pare o camine debajo una puerta accionada eléctricamente.
8. NO ponga los dedos ni las manos dentro de las juntas abiertas de las secciones al cer-
rar una puerta. Utilice las manijas de elevación o los puntos de agarre cuando accione
manualmente la puerta.
9. NO permita que los niños accionen la puerta del garaje o los controles de la puerta. En
el caso de que un niño quede atrapado entre la puerta y el piso, podría sufrir lesiones
graves o mortales.
10. Debido a la tensión extrema y constante de los resortes, no intente realizar ningún
ajuste, reparación o alteración de ninguna pieza de la puerta, especialmente de los
resortes, los soportes de los resortes, los soportes esquineros inferiores, los sujetado-
res, los cables de elevación de contrapeso o los apoyos. Para evitar posibles lesiones
graves o mortales, haga que un técnico capacitado en sistemas de puertas realice
dicho trabajo utilizando las herramientas e instrucciones adecuadas.
11. En las puertas accionadas eléctricamente, es necesario retirar las cuerdas de tiro y las
cerraduras o inhabilitar estas últimas en la posición abierta (desbloqueada).
12. Puede que sea necesario reforzar la sección superior de la puerta al instalar un abridor
eléctrico. Consulte las instrucciones del fabricante de la puerta y/o del abridor.
13. Inspeccione visualmente la puerta y los herrajes todos los meses para determinar si
hay piezas desgastadas y/o dañadas. Compruebe la puerta para asegurarse de que
funciona libremente. Pruebe mensualmente las funciones de seguridad del abridor
eléctrico, siguiendo las instrucciones del fabricante del abridor.
14. No cuelgue NUNCA herramientas, bicicletas, mangueras, ropa ni ningún otro objeto en
los rieles horizontales. Los sistemas de rieles no están concebidos ni diseñados para
soportar peso adicional.
15. Es posible que esta puerta no cumpla con los requisitos de carga de viento de los
códigos de edificación de su área. Por su seguridad, deberá consultar a su oficial de
edificación local para conocer los requisitos de los código de carga de viento y obtener
información sobre permisos de edificación.
16. Para puertas con carga de viento, el buen desempeño en viento se logra por medio de
todo el sistema de la puerta y no está autorizado sustituir los componentes sin permiso
expreso de Wayne Dalton.
NOTA: Se recomienda que para instalar los tirafondos de 5/16 de pulgada se taladren
agujeros piloto utilizando una broca taladradora de 3/16 de pulgada, antes de apretarlos.
PRECAUCIÓN
SI CUALQUIER PARTE DE LA PUERTA SE VA A INSTALAR SOBRE MADERA
TRATADA CON CONSERVANTES, SE DEBEN OBTENER Y UTILIZAR
SUJETADORES RECUBIERTOS CON PTFE O DE ACERO INOXIDABLE. LOS
SUJETADORES DE REPUESTO DEBEN SER AL MENOS DE LA MISMA
RESISTENCIA Y EL MISMO TAMAÑO QUE LOS SUJETADORES ORIGINALES.
SI EL SUJETADOR ORIGINAL TENÍA LA CABEZA ROJA, EL SUJETADOR DE
REPUESTO TAMBIÉN DEBE TENER LA CABEZA ROJA. SI ES NECESARIO,
CONTACTE A WAYNE DALTON PARA OBTENER LOS VALORES DE RESISTENCIA
DE LOS SUJETADORES.
ADVERTENCIA
NO SE RECOMIENDA UTILIZAR PISTOLAS DE IMPACTO. CUANDO
INSTALE TIRAFONDOS DE 5/16 DE PULGADA UTILIZANDO UN
TALADRO/ATORNILLADOR ELÉCTRICO, EL EMBRAGUE DEL TALADRO/
ATORNILLADOR SE DEBE AJUSTAR PARA PRODUCIR NO MÁS DE 200
PULGADAS-LB DE FUERZA DE TORSIÓN. SI SE UTILIZAN AJUSTES MÁS
ALTOS SE PODRÍA PRODUCIR UNA FALLA DEL SUJETADOR.
IMPORTANTE: EL LADO DERECHO Y EL LADO IZQUIERDO SE DETERMINAN DESDE EL
INTERIOR DEL EDIFICIO MIRANDO HACIA FUERA.
Peligro potencial Efecto Prevención
Puerta en movimiento
ADVERTENCIA
Podría causar la muerte o
lesiones graves
Mantenga a las personas ale-
jadas de la abertura mientras la
puerta se esté moviendo.
NO deje que los niños jueguen
con el abridor la puerta.
NO accione una puerta que se
atore o que tenga un resorte
roto.
Resorte de alta tensión
ADVERTENCIA
Podría causar la muerte o
lesiones graves
NO intente retirar, instalar,
reparar o ajustar resortes o
cualquier cosa a la que estén
sujetas las piezas de resorte de
la puerta, tales como bloques
de madera, soportes de
acero, cables u otros elementos
similares.
Las instalaciones, las
reparaciones y los ajustes
deben ser realizados por un
técnico capacitado en sistemas
de puertas utilizando las
herramientas e instrucciones
adecuadas.
Remoción de una puerta existente
y Preparación de la abertura
IMPORTANTE: La tensión del resorte de contrapeso se debe eliminar siempre antes de
realizar cualquier intento de retirar una puerta existente.
ADVERTENCIA
UN RESORTE PODEROSO QUE LIBERE REPENTINAMENTE SU ENERGÍA
PUEDE CAUSAR LESIONES GRAVES O MORTALES. PARA EVITAR
LESIONES, HAGA QUE UN TÉCNICO CAPACITADO EN SISTEMAS DE
PUERTAS, UTILIZANDO LAS HERRAMIENTAS E INSTRUCCIONES
CORRECTAS, ELIMINE LA TENSIÓN.
Para evitar posibles lesiones y garantizar una instalación correcta, se recomienda enfática-
mente leer y entender las instrucciones completas de “Remoción de una puerta existente” y
“Preparación de la abertura”. Estas instrucciones se encuentran disponibles para descargar-
las en www.Wayne-Dalton.com o en su Centro de Ventas Wayne Dalton local.
IMPORTANTE: Si acaba de desinstalar su puerta existente o está instalando una puerta
nueva, complete todos los pasos de preparación de la abertura.
Para garantizar un montaje seguro de los soportes para riel, los soportes laterales y cen-
trales, o los angulares de acero en construcción nueva o reacondicionada, se recomienda
que siga los procedimientos descritos en las hojas de datos técnicos DASMA núm. 156, 161
2
PREINSTALACIÓN
