Wayne-Dalton 7100 Series Quick start guide

This Installation document is available at no charge from:
- Your local Wayne Dalton Sales Center, or
- Online at www.Wayne-Dalton.com, or
- By mailing to: Wayne Dalton, a division of Overhead Door Corporation, P.O. Box
67, Mt. Hope, OH., 44660
©Copyright 2018 REV7_06/20/2018Part Number
Table Of Contents
347779
PLEASE DO NOT RETURN THIS PRODUCT
TO THE STORE
If you need assistance, please call 1-866-
569-3799 (press Option 1) and follow the
prompts to contact a customer service
representative. They will be happy to handle
any questions that you may have.
Pre-Installation 2
Important Safety Instructions 2
Removing an Existing Door and Preparing the Opening 2
Package Contents 3
Door Section Identification 4
Tools Required 4
Breakdown Of Parts 5
Door Installation Instructions 6
Counterbalance Installation Instructions 12
Optional Installation 18
Door Arm Hookup 18
Lift Handles 18
Pull Down Rope 18
Maintenance 19
Cleaning Your Garage Door 19
Painting Your Garage Door 19
Maintaining The Finish On Your Garage Door 19
Operation And Maintenance 19
Warranty 21
Wayne Dalton, a division of Overhead Door Corporation
Model Series 7100
To r s i o n
insTallaTion insTrucTions and owner’s
Manual
residenTial and lighT coMMercial
rear MounT low headrooM
ouTside hookup
DEFINITION OF LIGHT COMMERCIAL:
1. Door Heights less than or equal to 8’0” (< = 8’0”) are considered
Residential Applications.
2. Door Heights greater than 8’0” (> 8’0”) are considered Light
Commercial Applications.
To avoid possible injury, read and fully understand the enclosed
instructions carefully before installing and operating the garage door. Pay
close attention to all warnings and notes. After installation is complete,
fasten this manual near garage door for easy reference.
IMPORTANT NOTICES!

Important Safety Instructions
DEFINITION OF KEY WORDS USED IN THIS MANUAL:
WARNING
INDICATES A POTENTIALLY HAZARDOUS SITUATION WHICH; IF NOT
AVOIDED, COULD RESULT IN SEVERE OR FATAL INJURY.
CAUTION
PROPERTY DAMAGE OR INJURY CAN RESULT FROM FAILURE TO FOLLOW
INSTRUCTIONS.
IMPORTANT: REQUIRED STEP FOR SAFE AND PROPER DOOR OPERATION.
NOTE: Information assuring proper installation of the door.
READ THESE INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING INSTALLATION. IF
IN QUESTION ABOUT ANY OF THE PROCEDURES, DO NOT PERFORM THE WORK.
INSTEAD, HAVE A TRAINED DOOR SYSTEMS TECHNICIAN DO THE INSTALLATION OR
REPAIRS.
1. READ AND FOLLOW ALL INSTALLATION INSTRUCTIONS.
2. Wear protective gloves during installation to avoid possible cuts from sharp metal
edges.
3. It is always recommended to wear eye protection when using tools, otherwise eye
injury could result.
4. Avoid installing your new door on windy days. Door could fall during the installation
causing severe or fatal injury.
5. Doors 12’-0” wide and over should be installed by two persons, to avoid possible
injury.
6. Operate door only when it is properly adjusted and free from obstructions.
7. If a door becomes hard to operate, inoperative or is damaged, immediately have
necessary adjustments and/ or repairs made by a trained door system technician using
proper tools and instructions.
8. DO NOT stand or walk under a moving door, or permit anybody to stand or walk under
an electrically operated door.
9. DO NOT place fingers or hands into open section joints when closing a door. Use lift
handles/ gripping points when operating door manually.
10. DO NOT permit children to operate garage door or door controls. Severe or fatal injury
could result should the child become entrapped between the door and the floor.
11. Due to constant extreme spring tension, do not attempt any adjustment, repair or
alteration to any part of the door, especially to springs, spring brackets, bottom corner
brackets, fasteners, counterbalance lift cables or supports. To avoid possible severe or
fatal injury, have any such work performed by a trained door systems technician using
proper tools and instructions.
12. On electrically operated doors, pull down ropes must be removed and locks must be
removed or made inoperative in the open (unlocked) position.
13. Top section of door may need to be reinforced when attaching an electric opener.
Check door and/ or opener manufacturer’s instructions.
14. Visually inspect door and hardware monthly for worn and or broken parts. Check to
ensure door operates freely.
15. Test electric opener’s safety features monthly, following opener manufacturer’s instruc-
tions.
16. NEVER hang tools, bicycles, hoses, clothing or anything else from horizontal tracks.
Track systems are not intended or designed to support extra weight.
17. This door may not meet the building code wind load requirements in your area. For
your safety, you will need to check with your local building official for wind load code
requirements and building permit information.
18. For windloaded doors, the wind performance is achieved via the entire door system
and component substitution is not authorized without express permission by Wayne
Dalton.
NOTE: It is recommended that 5/16” lag screws are pilot drilled using a 3/16” drill bit, prior
to fastening.
CAUTION
IF ANY PART OF THE DOOR IS TO BE INSTALLED ONTO PRESERVATIVE-
TREATED WOOD, PTFE-COATED OR STAINLESS STEEL FASTENERS MUST BE
OBTAINED AND USED. REPLACEMENT FASTENERS MUST BE OF AT LEAST
EQUAL STRENGTH AND SIZE AS ORIGINAL FASTENERS. IF THE ORIGINAL
FASTENER WAS RED-HEAD, THE REPLACEMENT FASTENER MUST BE RED-
HEAD ALSO. CONTACT WAYNE DALTON FOR FASTENER STRENGTH VALUES IF
NEEDED.
WARNING
IMPACT GUNS ARE NOT RECOMMENDED. WHEN INSTALLING 5/16” LAG
SCREWS USING AN ELECTRIC DRILL/ DRIVER, THE DRILL/ DRIVERS
CLUTCH MUST BE SET TO DELIVER NO MORE THAN 200 IN-LBS OF
TORQUE. FASTENER FAILURE COULD OCCUR AT HIGHER SETTINGS.
IMPORTANT: RIGHT AND LEFT HAND IS DETERMINED INSIDE THE BUILDING LOOKING OUT.
Potential Hazard Effect Prevention
Moving door
WARNING
Could result in Death or Serious
Injury
Keep people clear of opening
while Door is moving.
Do NOT allow children to play
with the Door Opener.
Do NOT operate a Door that
jams or one that has a broken
spring.
High tension spring
WARNING
Could result in Death or Serious
Injury
Do NOT try to remove, install,
repair or adjust springs or
anything to which door spring
parts are fastened, such as,
wood blocks, steel brackets,
cables or other like items.
Installations, repairs and
adjustments must be done by
a trained door system techni-
cian using proper tools and
instructions.
Removing an Existing Door
and Preparing the Opening
IMPORTANT: COUNTERBALANCE SPRING TENSION MUST ALWAYS BE RELEASED BEFORE
ANY ATTEMPT IS MADE TO START REMOVING AN EXISTING DOOR.
WARNING
A POWERFUL SPRING RELEASING ITS ENERGY SUDDENLY CAN CAUSE
SEVERE OR FATAL INJURY. TO AVOID INJURY, HAVE A TRAINED DOOR
SYSTEMS TECHNICIAN, USING PROPER TOOLS AND INSTRUCTIONS,
RELEASE THE SPRING TENSION.
To avoid possible injury and to insure proper installation, it's highly recommended that you
read and fully understand the complete instructions on removing an Existing Door & Prepar-
ing the Opening. These are available for download at www.Wayne-Dalton.com or at your
local Wayne Dalton Sales Center.
IMPORTANT: IF YOU JUST REMOVED YOUR EXISTING DOOR OR YOU ARE INSTALLING A
NEW DOOR, COMPLETE ALL STEPS IN PREPARING THE OPENING.
To ensure secure mounting of track brackets, side and spring anchor brackets, or steel
angles to new or retro-fit construction, it is recommended to follow the procedures outlined in
DASMA technical data sheets #156, #161 and #164 at www.dasma.com.
The inside perimeter of your garage door opening should be framed with wood jamb
and header material. The jambs and header must be securely fastened to sound framing
members. It is recommended that 2” x 6” lumber be used. The jambs must be plumb and
the header level. The jambs should extend a minimum of 12” (305 mm) above the top of
the opening for Torsion counterbalance systems. For low headroom applications, the jambs
should extend to the ceiling height. Minimum side clearance required, from the opening to
the wall, is 3-1/2” (89 mm).
IMPORTANT: CLOSELY INSPECT JAMBS, HEADER AND MOUNTING SURFACE. ANY WOOD
FOUND NOT TO BE SOUND, MUST BE REPLACED.
For Torsion counterbalance systems, a suitable mounting surface (2” x 6”) must be firmly
attached to the wall, above the header at the center of the opening.
NOTE: Drill a 3/16” pilot hole in the mounting surface to avoid splitting the lumber. Do not
attach the mounting surface with nails.
WEATHERSTRIPS (MAY NOT BE INCLUDED):
Depending on the size of your door, you may have to cut or trim the weatherstrips (if neces-
sary) to properly fit into the header and jambs.
NOTE: If nailing product at 40°F or below, pre-drilling is required.
NOTE: Do not permanently attach weatherstrips to the header and jambs at this time.
For the header, align the weatherstrip 1/8” to 1/4” inside the header edge, and temporarily
secure it to the header with equally spaced nails. Starting at either side of the jamb, fit the
weatherstrip up tight against the temporarily attached weatherstrip in the header and 1/8”
2
Pre-Installation

to 1/4” inside the jamb edge. Temporarily secure the weatherstrip with equally spaced nails.
Repeat for other side. This will keep the bottom section from falling out of the opening during
installation. Equally space nails approximately 12” to 18” apart.

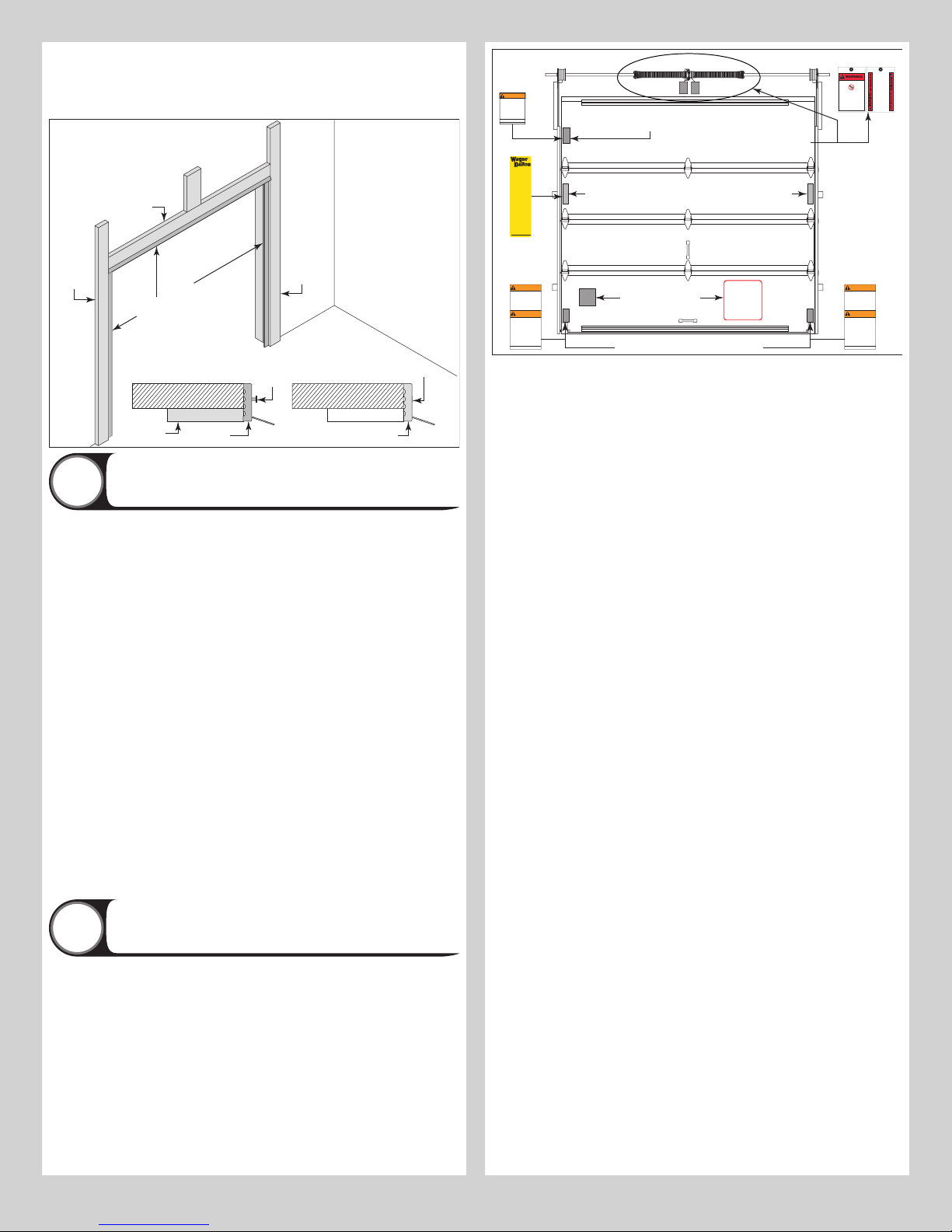

HEADROOM REQUIREMENT: Headroom is defined as the space needed above the top of
the door for tracks, springs, etc. to allow the door to open properly. If the door is to be motor
operated, 2-1/2” (64 mm) of additional headroom is required.
NOTE: 6” low headroom conversion kit is available for 12” radius only. Contact your local
Wayne Dalton dealer.
BACKROOM REQUIREMENT: Backroom is defined as the distance needed from the opening
back into the garage to allow the door to open fully.
*NOTE: For door heights from 10’1” to 14’0”, refer to your operator manufacture installation
instructions for appropriate depth into room.
BACKROOM REQUIREMENTS
Door Height Track Manual Lift Motor Operated
6’0” to 7’0” 15” Radius 102” (2591 mm) 125” (3175 mm)
7’1” to 8’0” 15” Radius 114” (2896 mm) 137” (3480 mm)
HEADROOM REQUIREMENTS
Track Type Space Needed
6” LHR 9” (229 mm)
Weatherstrips
Level header
Finished
Door width
Jambs
Backroom
Plumb
jambs
Finished
Door
Height
Nail
Headroom
Header board 2”x 6”
lumber preferred
Suitable mounting surface
2”x 6” lumber minimum
Weatherstrips
Jamb
Quick Install track
Other track systems
Jamb
1/8” to 1/4”
Min. Side
room
Clearance
is 3-1/2”
Min. Side
room
Clearance
is 3-1/2”
Package Contents
NOTE: Depending on the door model, some parts listed will not be supplied if not required.
Rear Back Hangs may not be included with your door.
Door sections (as required)
Torsion shaft / Torsion keyed shaft (as required)
Torsion keyed shafts (as required)
Vertical tracks RH/LH (as required)
Fully Adjustable flag angles RH/LH (as required)
Riveted vertical track assemblies RH/LH (as required)
Angle mount vertical track assemblies RH/LH (as required)
Horizontal tracks RH/LH (as required)
Horizontal tracks RH/LH (as required)
Tandem track rollers
(if included)
Bottom weather seal /
3/4” nails (as required)
Fully Adjustable jamb
brackets (as required)
Pull down
rope (if included)
Track rollers
(as required)
Weatherstrips & nails
(If included)
Top fixtures (as required)
Hinges (as required)
Strut (if included
)Strut clips
(as required)
Half center
hinges
(as required) Lift handles
(as required)
(2) Roller spacers
(as required) Track roller carriers (as required)
Cotter pin
(as required)
5/16” x 1-1/4”
Clevis pin (as required)
Bottom corner
brackets (as required)
Bottom corner
brackets (as required) Torsion springs RH/LH
Center coupler
assembly
(as required)
Center bearing bracket
assembly (as required)
Center bracket bushin
g
assembly (as required) (2) Cable
lift sheaves
Keys
(as required)
3

Cable drums RH/LH
Oval Bearings
(as required)
1/4”-20 x 9/16”
Track bolts (as required)
3/8”-16 x 3/4”
Truss head bolts (as required)
1/4” - 14 x 1”
Lag screws (as required)
Counterbalance
lift cables Cable sheave
saddles (as required)
3/8”- 16 Hex nuts
(as required)
3/8”-16 x 1-1/2” Hex bolts
5/16”-16 Hex
nut (as required)
5/16”-16 x 3/4”
Carriage bolts
(as required)
3/8” - 16 x 1-1/2”
Truss head bolts (as required)
5/16” x 1-5/8” Hex head lag screws
(as required)
5/16” x 2-1/2” Hex head lag screws
(RED HEAD) (as required)
1/4”- 20 Flanged
hex nuts (as required)
1/4” - 20 x 2-1/4”
Carriage bolts (as required)
5/16” x 1-5/8” Hex head lag screws
(RED HEAD) (as required)
(2) 5/16” Washers
1/4” - 10 x 1”
Tamper-resistant
lag screw (as required)

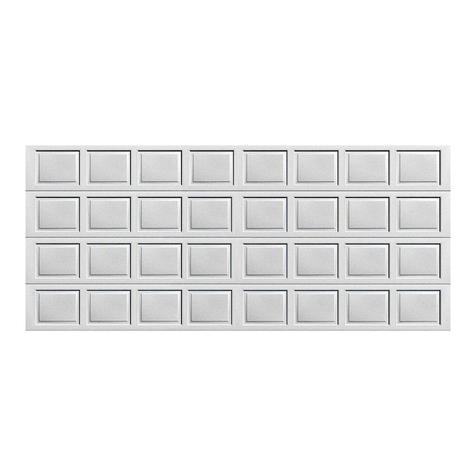

Door Section Identification
When installing your door, you must use sections of the appropriate height in the right stack-
ing location. Determine, what sections you need to use in what order depends on the design
of your door.
Sections are stamped for identification, #1, #2, #3, and #4 (#4 only on four section high
doors). The stamp, located on each side of the sections identifies the stacking sequence. The
sequence is always determined by #1 being the bottom section to #3 or #4 being the highest
top section. If the stamp on the section is illegible, refer to the section side view illustration.
The section side view illustration shows the section profile of all sections, and can also be
used to identify each section.
The BOTTOM SECTION can be identified by #1.
The INTERMEDIATE I SECTION can be identified by #2.
The INTERMEDIATE II SECTION can be identified by #3, for a 4 section high door only.
The TOP SECTION can be identified either by a #3, for a 3 section high door or by a #4, for
a 4 section high door.
Bottom
rail Bottom rail
Typical
stamping
location
Top rail
Typical design option “Outside surface of
door sections shown”
Bottom
section
Intermediate(s)Top
section
Side views of sections
Outside
surface Inside surface
1.
Bottom
section
2.
Intermediate I
section
3.
Intermediate II
section
4. or 3.
Top
section
## 1
NOTE: 3 Section high doors do not have an
Intermediate II Section.
Tools Required
Power drill Socket driver: 7/16” Level
Drill bits: 1/8”, 3/16”,
9/32”, 7/16”, 1/2”
Ratchet wrench Tape measure Pliers / Wire cutters Flat tip screwdriver
Phillips head screwdrive
rWrenches: 3/8”, 7/16”,
1/2”, 9/16”, 5/8”
3” Ratchet
extension
Sockets: 7/16”,
1/2”, 9/16”, 5/8”
Vise clamps Hammer Step ladder PencilLeather gloves
Locking pliersSafety glasses Approved winding bars Saw horses
1/4” Tamper-resistan
t
torx bit
4

5
A. FLAG ANGLES (AS REQUIRED):
A1. Fully Adjustable (F.A.) Flag Angles
B. JAMB BRACKETS (AS REQUIRED):
B1. Fully Adjustable (F.A.) Jamb Brackets
C. TRACK ROLLERS (AS REQUIRED):
C1. Short Stem Track Rollers
C2. Long Stem Track Rollers
C3. Short Stem Tandem Track Rollers
C4. Long Stem Tandem Track Rollers
D. GRADUATED END HINGES:
D1. Single Graduated End Hinges (S.E.H.), Industry Standard
D2. Double Graduated End Hinges (D.E.H.), Industry Standard
D3. Half Center Hinges (As required)
E. STACKED SECTIONS:
E1. Top Section
E2. Intermediate(s) Section / E3. Bottom Section
F. TOP FIXTURES (AS REQUIRED):
F1. Top Fixtures
G. STRUT(S) (AS REQUIRED):
G1. Strut (2” U-shaped) / G2. Strut (3” U-shaped)
H. TRACKS (AS REQUIRED):
H1. Left Hand and Right Hand Horizontal Track Assemblies
H2. Left Hand and Right Hand Vertical Tracks
H3. Left Hand and Right Hand Riveted Vertical Track Assemblies
H4. Left Hand and Right Hand Angle Mount Vertical Track Assemblies
I. TORSION SPRING ASSEMBLY (AS REQUIRED):
I1. Left Hand and Right Hand Torsion Springs (As Required)
I2. Counterbalance Lift Cables
I3. Left Hand and Right Hand Cable Drum
I4. Center Bracket (As Required)
I5. Center Bracket Bearing (As Required)
I6. Torsion Shaft / Torsion Keyed Shaft (As Required)
I7. Torsion Keyed Shafts (As Required)
I8. Keys (As Required)
I9. Center Coupler Assembly (As Required)
I10. Cable Sheaves
I11. Oval bearings (As Required)
I12. Cable sheave saddles
J. REAR BACK HANGS:
J1. Left Hand And Right Hand Rear Back Hang Assemblies
J2. Left and Right Hand Rear Center Back Hang Assemblies (As Required)
J3. Left and Right Hand Rear Center Back Hang Assemblies (As Required)
K. BOTTOM CORNER BRACKETS (AS REQUIRED):
K1. Left Hand and Right Hand Bottom Corner Brackets
L. BOTTOM WEATHER SEAL (AS REQUIRED):
L1. Bottom Weather Seal (Door Width), (Nails Not Supplied)
M. TRACK ROLLER CARRIERS (AS REQUIRED):
M1. Track Roller Carriers
C1.
C1.
E4.
E1.
E2.
E3.
F1.
NOTE: The illustrations shown on this page are general
representations of the door parts. Each specific door
models may have unique variations.
F1.
K1.
K1.
B1.
H2.
J1.
H3.
H4.
A1.
H2.
J1.
H3.
H4.
A1.
L1.
M1.
M1.
G1.
G2.
C3.
C4.
C2.
D1. D2.
C1.
D3.
J2.
J3.
NOTE: For Item (J2), The Rear Center Back Hang Assemblies are to used for
all doors over 11’0” door height and over 14’0” door width. One Rear Center
Back Hang Assembly, per side.
NOTE: For Item (J3), The Rear Center Back Hang Assemblies are to used for
all doors over 16’0” door height. Two Rear Center Back Hang Assemblies,
per side.
J2.
I10.
I12.
I1.
B1.
I1.
I3.
I8.
I10.
I2.
I3. I8.
K1.
I6. I7.
I9.
I8.
I11.
I4.
I8.
I11.
I5.
I4.
I4.
I5.
I5.
I7.
I1.
I1.
I12.
H1.
BREAKDOWN OF PARTS

DOOR INSTALLATION
INSTRUCTIONS
Before installing your door, be certain that you have read and followed all of the instruc-
tions covered in the pre-installation section of this manual. Failure to do so may result in an
improperly installed door.
NOTE: Reference TDS 160 for general garage door terminology at www.dasma.com.
IMPORTANT: WOOD DOORS MUST BE COMPLETELY FINISHED (3 TOTAL COATS, INCLUDING
PRIMER COAT) PRIOR TO INSTALLATION, TO ENSURE THAT THE INTERIOR AND EXTERIOR
SURFACES, AS WELL AS ALL EDGES OF THE DOORS ARE PROPERLY PROTECTED AGAINST
MOISTURE OR OTHER CONTAMINANTS. WOOD DOORS, IN A NON-FINISHED CONDITION,
MUST BE TRANSPORTED AND STORED SO THE WOOD SURFACES ARE NOT EXPOSED
TO MOISTURE OR OTHER CONTAMINANTS. IMPROPER TRANSPORTATION, STORAGE OR
DELAYS IN FINISHING, THAT ALLOWS EXPOSURE OF THE WOOD DOOR SURFACES TO MOIS-
TURE OR OTHER CONTAMINANTS WILL RESULT IN THE WARRANTY BEING VOIDED.
Attaching Flag Angles and Jamb Brackets To
Vertical Tracks
1
NOTE: If you have Riveted Track or Angle Mount Track, skip this step.
Hand tighten the left hand flag angle to the left hand vertical track using (2) 1/4” - 20 x 9/16”
track bolts and (2) 1/4” - 20 flange hex nuts.
NOTE: The bottom jamb bracket is always the shortest bracket, while the center jamb
bracket is the next tallest. If three jamb brackets per side are included with your door, you will
have received a top jamb bracket, which is the tallest.
To attach the bottom jamb bracket, locate lower hole of the hole/ slot pattern of the 1st hole
set on the vertical track. Align the slot in the jamb bracket with the lower hole of the hole/ slot
pattern. Hand tighten jamb bracket using (1) 1/4” - 20 x 9/16” track bolt and (1) 1/4” – 20
flange hex nut.
Place the center jamb bracket over the lower hole of the hole/ slot pattern that is centered
between the bottom jamb bracket and flag angle of the 2nd hole set. Hand tighten jamb
bracket using (1) 1/4” - 20 x 9/16” track bolt and (1) 1/4” - 20 flange hex nut.
If a top jamb bracket was included, hand tighten it to vertical track using the lower hole of the
hole/ slot pattern in the 3rd hole set and (1) 1/4” - 20 x 9/16” track bolt and (1) 1/4” - 20
flange hex nut.
Repeat the same process for right hand side.
Left hand
vertical track
NOTE: Loosely fasten
components together.
Repeat the same process
for the right hand side.
Left hand
flag angle
Left hand
jamb bracket
Left hand
jamb bracket
3rd
Set
1st
Set
2nd
Set
Attaching Bottom Weather Seal
2
NOTE: Reference Package Contents or Breakdown Of Parts, to determine if a bottom weather
seal was supplied. If a bottom weather seal was supplied, complete this step.
NOTE: Refer to door section identification, located in the pre-installation section of this
manual to determine what size section you need to use as your bottom (first) section. Mea-
sure your section to make sure it is the correct height as indicated on the chart.
Place the bottom section face down on a couple of sawhorses or flat clean/ smooth surface.
Align the bottom weather seal with the flap pointing towards the outside surface of the
bottom section. Starting at one end of the door, measure inward 1” and attach the bottom
weather seal to the bottom of the bottom section with 3/4” long galvanized roofing nails
(not supplied). Now stretch the bottom weather seal slightly and nail the rest of the bottom
weather seal to the bottom of the bottom section every 6”. Once the bottom weather seal is
fastened cut off any extra material so that the bottom weather seal is even with both ends of
the bottom section.
NOTE: Verify bottom weather seal is aligned with bottom section. If there is more than 1/2”
excess weather seal on either side, trim weather seal even with bottom section.
Edge of
bottom
section
Side
view
bottom
section
3/4” Long galvanized roofing nails (not supplied)
1” 6” 6”
Bottom
weather seal
Flap
Bottom
weather
seal
Attaching Bottom Corner Brackets
3
NOTE: Refer to door section identification, located in the pre-installation section of this
manual or refer to Breakdown of Parts.
With the bottom section facing down from the previous step, uncoil the counterbalance lift
cables.
Bottom weather seal Cable loopCable loop
Counterbalance
lift cable Counterbalance lift cable
Bottom section
NOTE: Refer to Package Contents / Breakdown of Parts, to determine which bottom corner
brackets you have.
Secure the cable loop to the clevis pin and bottom corner bracket using a flat washer and a
cotter pin. Repeat for other bottom corner bracket.
WARNING
ENSURE TIGHT FIT OF CABLE LOOP OVER PIN TO PREVENT
COUNTERBALANCE LIFT CABLE FROM COMING OFF THE PIN, WHICH
COULD ALLOW THE DOOR TO FALL AND RESULT IN SEVERE OR FATAL
INJURY.
Counterbalance
lift cable
Cotter pin
Clevis pin
(inserted through
cotter pin and
bent into place)
Washer
Left hand
bottom
corner
bracket
Left hand
bottom corner
bracket
Cotter
pin
Washer
Locate the left hand bottom corner bracket.Align the bottom corner bracket horizontally with
the bottom edge of the bottom section and also align the bottom corner bracket vertically
with the left bottom edge of the bottom section. Mark and pre-drill 9/32” diameter holes
through the bottom section. Attach the bottom corner bracket to the bottom section using (3)
1/4” - 20 x 2-1/4” carriage bolts and (3) 1/4” - 20 flange hex nuts. Repeat the same process
for the right hand side.
NOTE: All doors are provided with the tamper resistant fastener for the bottom corner brack-
ets. Professional installers should have the proper tool to install this fastener. For those that
do not have the proper tool to install the tamper resistant fastener, use a regular 1/4” - 20 x
2-1/4” carriage bolt and a 1/4” - 20 flange hex nut in its place.
Next, secure the bottom corner bracket to the bottom section using (1) 1/4” - 10 x 1” tamper
resistant lag screw to the left hand bottom corner bracket. Repeat the same process for the
right hand side.
Typical left hand
bottom corner bracket
Bottom
section
1/4” - 20 x 2-1/4”
Carriage bolts
Bottom
weather seal
1/4” - 20
Flange hex nuts
(1) 1/4” - 10 x 1” Tamper
resistant lag screw
6

Attaching Track Roller Carrier’s
4
NOTE: If you don’t have track roller carriers, then skip this step. Refer to Package Contents /
Breakdown of Parts, to determine if a track roller carrier was supplied with your door.
Starting on left hand side of the bottom section, position the track roller carrier with the
stamp “STD” facing UP to the bottom corner bracket and aligning the four holes of the track
roller carrier with the four holes in the bottom corner bracket. Secure the track roller carrier
to the bottom corner bracket with (4) 1/4” - 14 x 1” lag screws.
NOTE: Prior to fastening the track roller carrier to the bottom section, pilot drill using a 1/8”
drill bit.
IMPORTANT: BE EXTREMELY CAREFUL NOT TO DRILL THRU THE SECTION. ONLY DRILL 1”
DEEP.
Insert a short stem track roller and spacer into the bottom corner bracket. Repeat the same
process for the right hand side.
NOTE: The track roller carrier’s inner holes are used on doors with 2” track applications; the
outer holes are used on doors with 3” track applications.
Short stem
track roller
Spacer
Track roller
carrier
Bottom corner
bracket
“STD”
facing UP
(4) 1/4”-14 x 1”
Lag screws
Track roller
carrier
Short stem
track roller
Spacer
Bottom corner
bracket
(4) 1/4”-14 x 1”
Lag screws
Side view of track roller
carrier(s)
Inner holes
(2” Track)
Outer holes
(3” Track)
Attaching Hinges and Strut To Bottom Section
5
Lay a SHORT STRUT onto the bottom rail of the bottom section. Position the bottom of the
strut 3/4” up from the bottom edge of the bottom section. Center the short strut from side
to side on the section surface. Drill pilot holes, 1” deep into the bottom section using a 1/8”
drill bit.
IMPORTANT: BE EXTREMELY CAREFUL NOT TO DRILL THRU THE SECTION. ONLY DRILL 1”
DEEP.
Attach the strut using (1) 1/4” - 14 x 1” lag screw at each pre-drilled hole.
1/4” - 14 x 1”
Lag screws
SHORT
STRUT
3/4”
Bottom corner
bracket
Bottom
section
NOTE: Refer to the Graduated End Hinge Schedule below, to determine the appropriate
hinges for your bottom section.
Graduated End Hinge Schedule
Door Height Section Type Graduated End Hinge Number
3 Section High Door Bottom #2
4 Section High Door #1
NOTE: Center hinge(s) use #1 graduated end hinges at each pre-drilled or vertical stile loca-
tion. The pre-drilled locations are located at the top rails on the inside of the section surface.
NOTE: Measure the height of the long strut(s) to determine if you have 2” or 3”.
NOTE: Some struts also may or may not have holes in them. If they don’t, then prior to
installing the strut and hinge to the section surface, you may have to drill a 3/16” hole for the
appropriate fastener on one or both sides of the strut legs.
Using the appropriate graduated end hinges for the ends and depending on the width of your
door, enough center hinge(s) for each pre-drilled hole location(s). Starting at the upper left
hand corner of the bottom section. Position the lower hinge leaf of the appropriate graduated
end hinge onto the upper corner of the bottom section. Align the slots of the lower hinge leaf
with the pre-drilled holes in the bottom section.
NOTE: If you have strut clips, ensure the strut clip is positioned on the hinge, as shown.
FOR GRADUATED END HINGES:
IF YOU HAVE 2” LONG STRUTS: Lay the leg of the long strut over the bottom hole of the
lower hinge leaf and the bottom section. Center the long strut from side to side. Attach the
upper slot of the graduated end hinge to the bottom section using (1) 1/4” - 20 x 2-1/4”
carriage bolt and (1) 1/4” - 20 flange hex nut. Next attach the bottom hole of the graduated
end hinge to the upper leg of the strut to the bottom section using (1) 1/4” - 20 x 2-1/4”
carriage bolt and (1) 1/4” - 20 flange hex nut. Next secure the bottom leg of the strut to the
bottom section using (1) 1/4” - 20 x 2-1/4” carriage bolt and (1) 1/4” - 20 flange hex nut.
Repeat for other side.
Tandem
roller
Or
(2) 1/4” - 20 x 2-1/4” Carriage bolts
and (2) 1/4” - 20 Flange hex nuts
2”
LONG STRUT
Lower hinge leaf(s)
Single graduated end hinge
with short stem track roller
Double graduated end hinge
with long stem track roller
1/4” - 14 x 1”
Lag screws Bottom section
shown
IF YOU HAVE 3” LONG STRUTS: Lay a long strut over the lower hinge leaf and over the top
rail of the bottom section. Center the long strut from side to side. Attach the upper slot of the
graduated end hinge, (1) strut clip to the upper leg of the strut to the bottom section using (1)
1/4” - 20 x 2-1/4” carriage bolt and (1) 1/4” - 20 flange hex nut. Next secure the bottom leg
of the strut with the hole of the graduated end hinge to the bottom section using (1) 1/4” -
20 x 2-1/4” carriage bolt and (1) 1/4” - 20 flange hex nut. Repeat for other side.
IF YOU HAVE DOUBLE GRADUATED END HINGES: Position the second graduated end
hinge next to the first (single) graduated end hinge. Using the second graduated end hinge as
a template, drill pilot holes, 1” deep into the bottom section using a 1/8” drill bit.
IMPORTANT: BE EXTREMELY CAREFUL NOT TO DRILL THRU THE SECTION. ONLY DRILL 1”
DEEP.
Secure the strut and the graduated end hinge to the bottom section using (2) 1/4” - 14 x 1”
lag screws. Repeat for other side.
(2) 1/4” - 20 x 2-1/4” Carriage bolts
and (2) 1/4” - 20 Flange hex nuts
3”
LONG STRUT
(1) Strut
clip
Lower hinge
leaf(s)
Single graduated end hinge
with short stem track roller
Double graduated end hinge
with long stem track roller
(2) 1/4” - 14 x 1”
Lag screws
Bottom
section
shown
Tandem
roller
Or
FOR CENTER HINGES: Align the slots of the lower hinge leaf with the pre-drilled holes at
each center stile, located at the top rail of the bottom section. Using the center hinge as a
template, drill pilot holes, 1” deep into the bottom section with a 1/8” drill bit (if needed).
IMPORTANT: BE EXTREMELY CAREFUL NOT TO DRILL THRU THE SECTION. ONLY DRILL 1”
DEEP.
IF YOU HAVE 2” LONG STRUTS: Attach the upper slot of the center hinge using a 1/4” - 14
x 1” lag screw. Secure the leg of the strut to the hole of the center hinge using a 1/4” - 14 x
1” lag screw. Secure the other leg of the strut to the section using a 1/4” - 14 x 1” lag screw.
Repeat for other center hinge(s).
(3) 1/4” - 14 x 1”
Lag screws
Center hinge
2” LONG STRUT
Lower hinge
leaf
IF YOU HAVE 3” LONG STRUTS: Attach the upper leg of the strut to the upper slot of the
center hinge using (1) strut clip and a 1/4” - 14 x 1” lag screw. Secure the lower leg of the
strut to the hole of the center hinge using a 1/4” - 14 x 1” lag screw. Repeat for other center
hinge(s).
(2) 1/4” - 14 x 1”
Lag screws
Strut clip
Center hinge
3” LONG STRUT
Lower
hinge
leaf
(1) Strut clip
7

NOTE: If you don’t have half center hinges, then skip this part of the step. Refer to Package
Contents / Breakdown Of Parts, to determine if you have half center hinges.
Using a tape measure, position the half center hinges equally spaced in between the center
hinges and the graduated end hinges. Position the holes of the lower hinge leaf at the top rail
of the bottom section. Using the half center hinge as a template, drill pilot holes, 1” deep into
the bottom section with a 1/8” drill bit (if needed).
IMPORTANT: BE EXTREMELY CAREFUL NOT TO DRILL THRU THE SECTION. ONLY DRILL 1”
DEEP.
Attach the lower hinge leaf of the center hinge to the bottom section using (2) 1/4” - 14 x 1”
lag screws. Repeat for other half center hinge(s).
(2) 1/4” - 14 x 1” Lag screws
2” LONG STRUT Bottom section
shown
Half center hinge Lower hinge leaf
Center hinge
Graduated
end hinge
Equally spaced Equally spaced
(2) 1/4” - 14 x 1” Lag screws
3” LONG STRUT
Bottom section
shown
Half center hinge Lower hinge leaf
Center hinge
Graduated
end hinge
Equally spaced Equally spaced
If you have single graduated end hinges, insert a short stem track roller / short stem tandem
track roller (if included) into the hinge tube on each side.
If you have double graduated end hinges, insert a long stem track roller / short stem tandem
track roller (if included) into the hinge tubes on each side.
IMPORTANT: WHEN PLACING TRACK ROLLERS / TANDEM TRACK ROLLER (IF INCLUDED)
INTO GRADUATED END HINGES NUMBER 2 AND HIGHER, THE TRACK ROLLER / TANDEM
TRACK ROLLER (IF INCLUDED) GOES INTO TUBE FURTHEST AWAY FROM SECTION.
Attaching Hinges and Strut To Intermediate
Section(s)
6
NOTE: Refer to door section identification, located in the pre-installation section of this
manual to determine what size section you need to use as your intermediate I (second) and if
applicable intermediate II (third) section. Measure your section to make sure it is the correct
height as indicated on the chart.
NOTE: Refer to the Graduated End Hinge Schedule below, to determine the appropriate
hinges for your bottom section.
Graduated End Hinge Schedule
Door Height Section Type Graduated End Hinge Number
3 Section High Door Intermediate I #4
4 Section High Door Intermediate II #3
Intermediate I #2
NOTE: Refer to the Strutting Schedules below, to determine the appropriate strutting for your
Intermediate(s) section.
3 Section High Strutting Schedule
Section Type Type Of Strut Location On Section
Intermediate I (1) Long Top Of Section
N/A Bottom Of Section
4 Section High Strutting Schedule
Section Type Type Of Strut Location On Section
Intermediate II N/A Top Of Section
N/A Bottom Of Section
Intermediate I (1) Long Top Of Section
N/A Bottom Of Section
NOTE: Center hinge(s) use #1 graduated end hinges at each pre-drilled or vertical stile loca-
tion. The pre-drilled locations are located at the top rails on the inside of the section surface.
NOTE: Some struts also may or may not have holes in them. If they don’t, then prior to
installing the strut and hinge to the section surface, you may have to drill a 3/16” hole for the
appropriate fastener on one or both sides of the strut legs.
Place the Intermediate I section face down on a couple of sawhorses or flat clean/ smooth
surface. Using the appropriate graduated end hinges for the ends and depending on the
width of your door, enough center hinge(s) for each pre-drilled hole location(s). Starting at
the upper left hand corner of the Intermediate section. Position the lower hinge leaf of the
appropriate graduated end hinge onto the upper corner of the Intermediate section. Align the
slots of the lower hinge leaf with the pre-drilled holes in the Intermediate section. Next, lay a
long strut over the lower hinge leaf and over the top rail of the Intermediate section. Center
the long strut from side to side.
FOR GRADUATED END HINGES:
IF YOU HAVE 2” LONG STRUTS: Lay the leg of the long strut over the bottom hole of the
lower hinge leaf and the Intermediate section. Center the long strut from side to side. Attach
the upper slot of the graduated end hinge to the Intermediate section using (1) 1/4” - 20
x 2-1/4” carriage bolt and (1) 1/4” - 20 flange hex nut. Next attach the bottom hole of the
graduated end hinge to the upper leg of the strut to the Intermediate section using (1) 1/4” -
20 x 2-1/4” carriage bolt and (1) 1/4” - 20 flange hex nut. Next secure the bottom leg of the
strut to the Intermediate section using (1) 1/4” - 20 x 2-1/4” carriage bolt and (1) 1/4” - 20
flange hex nut. Repeat for other side.
Tandem
roller
Or
(2) 1/4” - 20 x 2-1/4” Carriage bolts
and (2) 1/4” - 20 Flange hex nuts
2”
LONG STRUT
Lower hinge leaf(s)
Single graduated end hinge
with short stem track roller
Double graduated end hinge
with long stem track roller
1/4” - 14 x 1”
Lag screws Intermediate
section shown
IF YOU HAVE 3” LONG STRUTS: Lay a long strut over the lower hinge leaf and over the top
rail of the Intermediate section. Center the long strut from side to side. Attach the upper slot
of the graduated end hinge, (1) strut clip to the upper leg of the strut to the Intermediate sec-
tion using (1) 1/4” - 20 x 2-1/4” carriage bolt and (1) 1/4” - 20 flange hex nut. Next secure
the bottom leg of the strut with the hole of the graduated end hinge to the Intermediate
section using (1) 1/4” - 20 x 2-1/4” carriage bolt and (1) 1/4” - 20 flange hex nut. Repeat for
other side.
IF YOU HAVE DOUBLE GRADUATED END HINGES: Position the second graduated end
hinge next to the first (single) graduated end hinge. Using the second graduated end hinge as
a template, drill pilot holes, 1” deep into the bottom section using a 1/8” drill bit.
IMPORTANT: BE EXTREMELY CAREFUL NOT TO DRILL THRU THE SECTION. ONLY DRILL 1”
DEEP.
Secure the strut and the graduated end hinge to the Intermediate section using (2) 1/4” - 14
x 1” lag screws. Repeat for other side.
(2) 1/4” - 20 x 2-1/4” Carriage bolts
and (2) 1/4” - 20 Flange hex nuts
3”
LONG STRUT
(1) Strut
clip
Lower hinge
leaf(s)
Single graduated end hinge
with short stem track roller
Double graduated end hinge
with long stem track roller
(2) 1/4” - 14 x 1”
Lag screws
Intermediate
section shown
Tandem
roller
Or
FOR CENTER HINGES: Align the slots of the lower hinge leaf with the pre-drilled holes at
each center stile, located at the top rail of the Intermediate section. Using the center hinge
as a template, drill pilot holes, 1” deep into the Intermediate section with a 1/8” drill bit (if
needed).
IMPORTANT: BE EXTREMELY CAREFUL NOT TO DRILL THRU THE SECTION. ONLY DRILL 1”
DEEP.
IF YOU HAVE 2” LONG STRUTS: Attach the upper slot of the center hinge using a 1/4” - 14
x 1” lag screw. Secure the leg of the strut to the hole of the center hinge using a 1/4” - 14 x
1” lag screw. Secure the other leg of the strut to the section using a 1/4” - 14 x 1” lag screw.
Repeat for other center hinge(s).
(3) 1/4” - 14 x 1”
Lag screws
Center hinge
2” LONG STRUT
Lower hinge
leaf
IF YOU HAVE 3” LONG STRUTS: Attach the upper leg of the strut to the upper slot of the
center hinge using (1) strut clip and a 1/4” - 14 x 1” lag screw. Secure the lower leg of the
strut to the hole of the center hinge using a 1/4” - 14 x 1” lag screw. Repeat for other center
hinge(s).
8

(2) 1/4” - 14 x 1”
Lag screws
Strut clip
Center hinge
3” LONG STRUT
Lower
hinge
leaf
(1) Strut clip
NOTE: If you don’t have half center hinges, then skip this part of the step. Refer to Package
Contents / Breakdown Of Parts, to determine if you have half center hinges.
Using a tape measure, position the half center hinges equally spaced in between the center
hinges and the graduated end hinges. Position the holes of the lower hinge leaf at the top
rail of the Intermediate section. Using the half center hinge as a template, drill pilot holes, 1”
deep into the Intermediate section with a 1/8” drill bit (if needed).
IMPORTANT: BE EXTREMELY CAREFUL NOT TO DRILL THRU THE SECTION. ONLY DRILL 1”
DEEP.
Attach the lower hinge leaf of the center hinge to the Intermediate section using (2) 1/4” - 14
x 1” lag screws. Repeat for other half center hinge(s).
(2) 1/4” - 14 x 1” Lag screws
2” LONG STRUT Intermediate
section shown
Half center hinge Lower hinge leaf
Center hinge
Graduated
end hinge
Equally spaced Equally spaced
(2) 1/4” - 14 x 1” Lag screws
3” LONG STRUT
Intermediate
section shown
Half center hinge Lower hinge leaf
Center hinge
Graduated
end hinge
Equally spaced Equally spaced
If you have single graduated end hinges, insert a short stem track roller / short stem tandem
track roller (if included) into the hinge tube on each side.
If you have double graduated end hinges, insert a long stem track roller / short stem tandem
track roller (if included) into the hinge tubes on each side.
IMPORTANT: WHEN PLACING TRACK ROLLERS / TANDEM TRACK ROLLER (IF INCLUDED)
INTO GRADUATED END HINGES NUMBER 2 AND HIGHER, THE TRACK ROLLER / TANDEM
TRACK ROLLER (IF INCLUDED) GOES INTO TUBE FURTHEST AWAY FROM SECTION.
Attaching Top Fixtures And Strut To Top Sec-
tion
7
NOTE: Refer to door section identification, located in the pre-installation section of this
manual to determine what size section you need to use as your top section. Measure your
section to make sure it is the correct height as indicated on the chart.
Place the top section face down on a couple of sawhorses or flat clean/ smooth surface.
Lay a SHORT STRUT onto the top rail of the top section. Position the top of the strut 3/4”
downward from the top edge of the top section. Center the short strut from side to side on
the section surface. Drill pilot holes, 1” deep into the top section using a 1/8” drill bit.
IMPORTANT: BE EXTREMELY CAREFUL NOT TO DRILL THRU THE SECTION. ONLY DRILL 1”
DEEP.
Attach the strut using (1) 1/4” - 14 x 1” lag screw at each pre-drilled hole.
Top section
1/4” - 14 x 1”
Lag screws
SHORT
STRUT
3/4”
1/4” - 14 x 1” Lag screws
Approximately
30” on centers
NOTE: If your door came with two top fixtures, then one top fixture and a short stem track
roller are required for each side.
NOTE: If your door came with four top fixtures, then two top fixtures and a long stem track
roller are required for each side.
Starting on the left hand side, align the edge of the top fixture parallel to the top section
edge. Using the top fixture base as a template, mark and pre-drill (2) 9/32” diameter holes
through the top section. Loosely attach the top fixture base to the top section using (2) 1/4”
- 20 x 2-1/4” carriage bolts and (2) 1/4” - 20 flange hex nuts. Repeat the same process for
the right hand side.
1/4” - 20 x 2-1/4”
Carriage bolts
1/4” - 20
Flange hex nuts
Top fixture
Short stem
track roller
Top section
IF YOU HAVE FOUR TOP FIXTURE ASSEMBLIES: Position the second top fixture assembly
next to the first installed top fixture assembly. Using the top fixture base as a template, drill
pilot holes, 1” deep into the top section with a 1/8” drill bit (if needed).
IMPORTANT: BE EXTREMELY CAREFUL NOT TO DRILL THRU THE SECTION. ONLY DRILL 1”
DEEP.
Loosely attach the top fixture base to the top section using (2) 1/4” - 14 x 1” lag screws.
Repeat the same process for the right hand side.
1/4” - 14 x 1”
Lag screws
Long stem
track roller
Top fixtures
Top section
Positioning Bottom Section
8
Center the bottom section in the door opening. Level the section using wooden shims (if
necessary) under the bottom section. When the bottom section is leveled, temporarily hold it
in place by driving a nail into the jamb and bending it over the edge of the bottom section on
both sides.
Weather seal (If applicable)
Level
Bottom section
Wooden shims (If necessary)
Attaching Vertical Tracks To Jambs
9
NOTE: Depending on your door, you may have Fully Adjustable Flag Angles, Riveted Vertical
Track Assemblies or you may have Angle Mount Vertical Track Assemblies. Refer to Package
Contents / Breakdown of Parts, to determine which Flag Angles / Vertical Track Assemblies
you have.
IMPORTANT: IF YOUR DOOR IS TO BE INSTALLED PRIOR TO A FINISHING CONSTRUCTION
OF THE BUILDING’S FLOOR, THE VERTICAL TRACKS AND THE DOOR BOTTOM SECTION
9

ASSEMBLY SHOULD BE INSTALLED SUCH THAT WHEN THE FLOOR IS CONSTRUCTED, NO
DOOR OR TRACK PARTS ARE TRAPPED IN THE FLOOR CONSTRUCTION.
IMPORTANT: THE TOPS OF THE VERTICAL TRACKS MUST BE LEVEL FROM SIDE TO SIDE.
IF THE BOTTOM SECTION WAS SHIMMED TO LEVEL IT, THE VERTICAL TRACK ON THE
SHIMMED SIDE MUST BE RAISED THE HEIGHT OF THE SHIM.
NOTE: Make sure the counterbalance lift cable is located between the track rollers and the
door jamb.
Starting on the left hand side of the bottom section, remove the nail. Position the left hand
vertical track assembly over the track rollers of the bottom section and install, as shown. Drill
3/16” pilot holes into the door jamb for the lag screws.
FOR FULLY ADJUSTABLE FLAG ANGLES: Loosely fasten jamb brackets and flag angle to
the jamb using 5/16” x 1-5/8” lag screws. Tighten lag screws, securing the bottom jamb
bracket to jamb, maintain 3/8” to 5/8” spacing, between the bottom section and vertical
track. Hang counterbalance lift cable over flag angle. Repeat same process for other side.
Vertical
track
assembly
Jamb
bracket
Flag
angle
Flag angle lag screw locations
5/16” x 1-5/8”
Lag screws
Bottom
section
Track
rollers
12R FA
3/8” to 5/8”
Spacing
Bottom section
Floor Track roller
15R FA
Vertical track
FOR RIVETED VERTICAL TRACK ASSEMBLY: Loosely fasten jamb brackets and flag angle
to the jamb using 5/16” x 1-5/8” lag screws. Tighten lag screws, securing the bottom jamb
bracket to jamb, maintain 3/8” to 5/8” spacing as shown between the bottom section and
vertical track. Hang counterbalance lift cable over flag angle. Repeat same process for other
side.
FOR ANGLE MOUNT VERTICAL TRACK ASSEMBLY: Loosely fasten the slots in the wall
angle to the jamb using 5/16” x 1-5/8” lag screws. Tighten lag screws, securing the bottom
slot in the wall angle, maintain 3/8” to 5/8” spacing as shown between the bottom section
and vertical track. Hang counterbalance lift cable over angle mount. Repeat same process for
other side.
Flag angle lag screw
locations
3/8” to 5/8”
Spacing
Bottom section
Vertical track
Bottom section
Vertical
track
Jamb
bracket
Flag
angle
5/16” x 1-5/8”
Lag screws
Floor
Angle mount
vertical track
assembly
Bottom
section
Riveted
vertical track
assembly
5/16” x 1-5/8”
Lag screws
Vertical
track
Wall
angle
Slot
Stacking Sections
10
NOTE: Refer to door section identification, located in the pre-installation section of this
manual to determine what size sections you need to use as your intermediate I (second)
section and intermediate II (third) section (if applicable). Measure your sections to make sure
they are the correct height as indicated on the chart.
NOTE: Make sure graduated end and center hinges are flipped down, when stacking another
section on top.
With assistance, lift second section and guide the track rollers into the vertical tracks. Keep-
ing the sections vertically aligned, lower section until it is seated against bottom section.
Intermediate II
section (if applicable)
Intermediate I
section
Bottom
section
Vertical
track Vertical track
FOR CENTER HINGE(S) AND OR HALF CENTER HINGE(S): Flip a upper hinge leaf up and
use it as a template. Mark and pre-drill (2) 1/8” pilot holes, 1” deep into the section with a
1/8” drill bit.
IMPORTANT: BE EXTREMELY CAREFUL NOT TO DRILL THRU THE SECTION. ONLY DRILL 1”
DEEP.
Attach the center hinge upper leaf to the section using (2) 1/4” - 14 x 1” lag screws. Repeat
same process for other center hinge(s) and or half center hinge(s).
(2) 1/4” - 14 x 1”
Lag screws
Typical sections
shown
Half center
hinge
Upper
hinge leaf
Center hinge
(2) 1/4” - 14 x 1”
Lag screws
Upper hinge leaf
FOR GRADUATED END HINGES: Starting with the outer graduated end hinges, flip the
upper hinge leaf up and use it as a template. Mark and pre-drill (2) 9/32” diameter holes
through the section. Attach the upper hinge leaf to the section using (2) 1/4” - 20 x 2-1/4”
carriage bolts and (2) 1/4” - 20 flange hex nuts. Repeat same process for the other side.
IF YOU HAVE DOUBLE GRADUATED END HINGES: Flip the inner upper hinge leaf up and
use it as a template. Mark and pre-drill (2) 1/8” pilot holes, 1” deep into the section with a
1/8” drill bit.
IMPORTANT: BE EXTREMELY CAREFUL NOT TO DRILL THRU THE SECTION. ONLY DRILL 1”
DEEP.
Attach the inner upper hinge leaf to the section using (2) 1/4” - 14 x 1” lag screws. Repeat
same process for the other side.
10

(2) 1/4” - 20 x 2-1/4” Carriage bolts
and (2) 1/4” - 20 Flange hex nuts
Single graduated
end hinge with
short stem track
roller
Double graduated end hinge
with long stem track roller
(2) 1/4” - 14 x 1”
Lag screws
Typical sections
shown
Upper hinge leaf
Upper hinge
leaf
IMPORTANT: PUSH & HOLD THE HINGE LEAFS SECURELY AGAINST THE SECTIONS WHILE
SECURING WITH APPROPRIATE FASTENERS. THERE SHOULD BE NO GAP BETWEEN THE
HINGE LEAFS AND THE SECTIONS.
Repeat same process for other sections (if applicable), except top section.
Stacking Top Section
11
Place the top section in the opening. Install a nail to prevent the top section from falling
backwards. Now, flip up the hinge leaves, hold tight against section, and fasten center hinges
first and end hinges last (refer to step, Stacking Sections). Vertical track alignment is critical.
Position flag angle or wall angle between 1-11/16” (43 mm) to 1-3/4” (44 mm) from the
edge of the door; tighten the bottom lag screw. Flag angles must be parallel to the door sec-
tions. Repeat for other side.
IMPORTANT: THE DIMENSION BETWEEN THE FLAG ANGLES OR WALL ANGLES MUST BE
DOOR WIDTH PLUS 3-3/8” (86MM) TO 3-1/2” (89 MM) FOR SMOOTH, SAFE DOOR OPERA-
TION.
FOR FULLY ADJUSTABLE TRACK OR RIVETED TRACK: Complete the vertical track instal-
lation by securing the jamb bracket(s) and tightening the other lag screws. Push the vertical
track against the track rollers so that the track rollers are touching the deepest part of the
curved side of the track; tighten all the track bolts and nuts. Repeat for other side.
FOR ANGLE MOUNT TRACK: Complete the vertical track installation by securing the jamb
bracket(s) and or tightening the other lag screws. Push the vertical track against the track
rollers so that the track rollers are touching the deepest part of the curved side of the vertical
track, as shown. Repeat for other side.
Top section
Top
section
Nail
Door width
+ 3-3/8” to 3-1/2”
1-11/16”
to 1-3/4”
Flag
angle
Vertical track
against track rollers
Flag angle or
wallangle assembly
Top of flag angle or
Top of wallangle assembly
Attaching Horizontal Tracks
12
NOTE: Depending on your door, you may have Fully Adjustable Flag Angles, Riveted Vertical
Track Assemblies or you may have Angle Mount Vertical Track Assemblies. Refer to Package
Contents / Breakdown of Parts, to determine which Flag Angles / Vertical Track Assemblies
you have.
WARNING
DO NOT RAISE DOOR UNTIL HORIZONTAL TRACKS ARE SECURED AT
REAR, AS OUTLINED IN STEP, REAR BACK HANGS, OR DOOR COULD FALL
FROM OVERHEAD POSITION CAUSING SEVERE OR FATAL INJURY.
IF YOU HAVE FULLY ADJUSTABLE FLAG ANGLES OR RIVETED TRACK ASSEMBLIES:
To install horizontal track, place the top rail end over the top track roller of the top section.
Align the bottom rail end of the horizontal track with the top of the vertical track. Tighten the
bottom rail of the horizontal track to the flag angle with (2) 1/4” - 20 x 9/16” track bolts and
(2) 1/4” - 20 flange hex nuts.
1/4”-20
Flange hex
nut
Upper rail
1/4”-20 x
9/16”
Track bolt
1/4”-20 x
9/16”
Track bolts
1/4”-20
Flange hex
nuts
Horizontal
track
Flag angle
upper slot
Level
Lower
rail
Washer
IF YOU HAVE ANGLE MOUNT VERTICAL TRACK ASSEMBLIES: To install horizontal track,
place the top rail end over the top track roller of the top section. Align the bottom rail end of
the horizontal track with the top of the vertical track. Tighten the bottom rail of the horizontal
track to the angle mount with (2) 1/4” - 20 x 9/16” track bolts and (2) 1/4” - 20 flange hex
nuts.
3/8”-16
Hex nuts
**
= 3/8”-16 x 3/4”
Truss head bolts
1/4”-20 x
9/16”
Track bolts
1/4”-20
Flange hex
nuts Horizontal
track
Wall angle
upper slot
Level
1/4”-20
Flange hex
nut
Washer
*= 1/4”-20 x 9/16”
Track bolt
**
*
Next level the horizontal track assembly and bolt the top rail of the horizontal track to the
encountered slot in the flag angle / angle mount using (1) 1/4” - 20 x 9/16” track bolt, (1)
1/4” - 20 flange hex nut and (1) 5/16” washer.
NOTE: If you have angle mount, bolt the top rail of the horizontal track to the encountered
slots in the angle mount using (2) 3/8” - 16 x 3/4” truss head bolts, (2) 3/8” - 16 hex nuts.
Repeat for other side.
Level
Level
Typical horizontal
track
Typical horizontal
track
Next remove the nail that was temporarily holding the top section in place, installed in step,
Top Section.
IMPORTANT: FAILURE TO REMOVE NAIL BEFORE ATTEMPTING TO RAISE DOOR COULD
CAUSE PERMANENT DAMAGE TO TOP SECTION.
Adjusting Top Fixtures
13
NOTE: Refer to Package Contents / Breakdown of Parts, to determine which Top Fixtures
Assemblies you have.
With horizontal tracks installed, you can now adjust the top fixtures. Vertically align the top
section of the door with the lower sections. Once aligned, position the top fixture slide(s), out
against the horizontal track. Maintaining the slide’s position, tighten the 1/4” - 14 x 1” lag
screws to secure each of the top fixtures.
11

Stem track
roller
Tighten 1/4” - 14 x 1”
lag screws
Top
section
Horizontal
track
Top
fixture(s)
Intermediate
section
Top
section
Top
section
COUNTERBALANCE
INSTALLATION INSTRUCTIONS
Attaching Cable Lift Sheaves
14
NOTE: Using the illustrations below, identify which cable lift sheave assemblies were provided
with your door.
FOR 3” OR 4” SHEAVES, WITH NO SHEAVE SADDLE: Place a 3/8” - 16 x 1-1/2” hex head
bolt through the hole in the sheave plate. Next insert the sheave over the end of the bolt.
Secure the sheave to the sheave plate with a 3/8” - 16 nut. Repeat the same process for the
other side. Then loop the counterbalance cables over each sheave, as shown.
Sheave
plate hole
Sheave
3/8” - 16 x 1-1/2”
Truss head bolt
Horizontal
track
3/8” - 16
Hex nut
Sheave
Counterbalance lift cable
NOTE: Repeat the same
process for the other side.
Then loop the counterbalance
lift cables over each sheave.
FOR 5” SHEAVES, WITH SHEAVE SADDLE: Position the sheave saddle over the 1” x 4” x
23” angle and align the slots in the sheave saddle with the corresponding holes in the 1” x 4”
x 23” angle. While holding the sheave saddle in place, insert (1) 5/16” - 18 x 3/4” carriage
bolt through each of the aligned holes and secure the assembly with 5/16” - 18 hex nuts.
Repeat the same process for the other side. Then loop the counterbalance cables over each
sheave, as shown.
Counterbalance
lift cable
NOTE: Repeat the same
process for the other side.
Then loop the counterbalance
lift cables over each sheave.
Flag
angle
Horizontal
track
5/16” - 18 X 3/4”
Square neck
carriage bolt
5/16” - 18
Hex nut
Sheave
Sheave
saddle
Sheave saddle
Sheave
Attaching Rear Back Hangs
15
NOTE: Temporarily support the horizontal track with rear back hangs as shown in illustra-
tions, without lifting door.
Using the chart below, select the appropriate perforated angle (may not be supplied). Fabri-
cate and install rear back hangs, as shown.
Perforated Angle Gauge Weight Limitations:
Perforated Angle Gauge Door Balance Weight
2” x 2” x 12 Gauge Less Than 800 lbs.
1-1/4” x 1-1/4” x 13 Gauge Less Than 305 lbs.
Perforated Angle Gauge Weight Limitations:
1-1/4” x 1-1/4” x 15 Gauge Less Than 220 lbs.
1-1/4” x 1-1/4” x 16 Gauge Less Than 175 lbs.
NOTE: If an opener is installed, position horizontal tracks one hole above level when securing
them to the rear back hangs.
WARNING
KEEP HORIZONTAL TRACKS PARALLEL AND WITHIN 3/4” TO 7/8” FROM
DOOR EDGE, OTHERWISE DOOR COULD FALL, RESULTING IN SEVERE OR
FATAL INJURY.
IMPORTANT: DO NOT SUPPORT THE WEIGHT OF THE DOOR ON ANY PART OF THE REAR
BACK HANGS THAT CANTILEVERS 4” OR MORE BEYOND A SOUND FRAMING MEMBER.
NOTE: If rear back hangs are to be installed over drywall, use (2) 5/16” x 2” hex head lag
screws and make sure lag screws engage into solid structural lumber.
WARNING
FAILURE TO ASSEMBLE AND ATTACH REAR BACK HANGS PROPERLY
ACCORDING TO THE ABOVE INSTRUCTIONS MAY RESULT IN DOOR
FALLING WHEN RAISED, CAUSING SEVERE OR FATAL INJURY.
NOTE: Perforated angle must be attached to sound framing members and nails should not
be used.
90°
(3) 5/16”
Bolts and nuts
(3) 5/16” Bolts and
(3) 5/16” nuts
Perforated
angle
5/16” Hex nuts
5/16”-18 x 1-1/4”
Hex bolts
Perforated angle bolted
using (2) 5/16” x 1-5/8”
hex head lag screws to
ceiling member and
parallel to door
Horizontal track
NOTE: Repeat the same
process for right hand side.
Horizontal tracks
Door edges
3/4” To 7/8”
3/4” To 7/8”
12

Torsion Spring Assembly
16
NOTE: Refer to Package Contents / Parts Breakdown, to determine if your door came with a
coupler assembly. If your door came with a coupler assembly, the mounting surface needs to
be a minimum of 17” wide. The two center bearing brackets will need to be spaced 12” to
14” apart at the center of the door, as shown.
IMPORTANT: RIGHT AND LEFT HAND IS ALWAYS DETERMINED FROM INSIDE THE BUILDING
LOOKING OUT.
IMPORTANT: IDENTIFY THE TORSION SPRINGS PROVIDED AS EITHER RIGHT WOUND (RED
WINDING CONE) OR LEFT WOUND (BLACK WINDING CONE).
NOTE: On some single spring doors, the single spring can be longer than half the opening
width. If your spring is longer, then the center bracket must be mounted off center for the
spring to fit properly. Measure spring length to determine appropriate center bracket location.
NOTE: If your door came with a center coupler assembly or if it utilizes 3-3/4” springs, the
springs will not share a center bracket.
NOTE: If your door has (4) springs, split the distance between the center of the door and the
end bracket on each side to locate the intermediate center brackets.
NOTE: The set screws used on all torsion winding cones and cable drums are now colored
red. DO NOT identify right and left hand by the set screw color.
IMPORTANT: REFERENCE THE ILLUSTRATIONS FOR PROPER SPRING POSITIONING WHEN
MORE THAN 2 SPRINGS ARE PROVIDED.
IMPORTANT: IN APPLICATIONS WHERE MORE THAN ONE SPRING SHARES A CENTER
BRACKET, USE ONLY 1 BEARING IN THE SPRING. ATTEMPTING TO USE 2 BEARINGS CAN
DAMAGE THE BEARINGS AND / OR SPRING CONES.
Facing the inside of the door, either lay the torsion shaft / torsion keyed shaft on the floor or
lay the (2) torsion keyed shafts on the floor, one torsion keyed shaft on the left hand side and
the other torsion keyed shaft on the right hand side.
IMPORTANT: DEPENDING ON YOUR DOOR APPLICATION, USE ONE OF THE THREE ILLUS-
TRATION’S, SHOWN BELOW TO ASSEMBLE YOUR TORSION COUNTERBALANCE SYSTEM.
IF YOU HAVE ONE OR TWO TORSION SPRINGS AND ONE PIECE TORSION SHAFT:
Torsion shaft
or
Torsion keyed shaft
Left wound, black winding
cone (left hand side)
Right wound, red winding
cone (right hand side)
One or Two springs, One piece shaft
Oval
bearing
IMPORTANT: ON SINGLE SPRING
APPLICATIONS, ONLY A RIGHT WOUND
(RED WINDING CONE), WHICH GOES ON
THE RIGHT HAND SIDE IS REQUIRED.
IF YOU HAVE FOUR TORSION SPRINGS AND ONE PIECE TORSION SHAFT / TORSION
KEYED SHAFT:
Torsion shaft
or
Torsion keyed
shaft
Right wound, red
winding cone (left
hand side)
Left wound, black
winding cone (left
hand side)
Right wound, red winding cone
(right hand side)
Left wound, black
winding cone (right
hand side)
Center
bearing
Four springs, One piece shaft
IF YOU HAVE TWO OR FOUR TORSION SPRINGS AND TWO PIECE TORSION KEYED
SHAFTS:
Torsion
keyed
shaft
Right wound, red
winding cone (left
hand side)
Left wound, black
winding cone (left
hand side) Right wound, red
winding cone (right
hand side)
Left wound, black
winding cone (right
hand side)
Coupler
halves
Torsion keyed shaft
Center bearings
Two or Four springs, Two piece shafts
Oval
bearings
Disassemble the coupler assembly by removing the (3) 3/8” - 16 x 1-1/2” hex head screws,
(6) 3/8” Washers, (3) 3/8” lock washers and the (3) 3/8” - 16 hex nuts from the coupler
halves. Loosen the set screws. Set the components aside. Next, slide the flat edge of the
couple half flush with the side edge of the torsion keyed shaft. Insert (1) keyed shaft into the
slot of both the coupler half and the slot in the torsion keyed shaft, as shown. Tighten the (2)
set screws and the locking nut to secure the coupler half to the torsion keyed shaft.
NOTE: Tighten the set screws to 14-15 ft. lbs. of torque (once set screws contact the shaft,
tighten set screws one full turn).
Repeat the same process for the other side.
Torsion
keyed
shaft Coupler
halves
(6) Set screws
and (2) Lock nuts
T
orsion
keyed
shaft
Key
Key
Coupler assembly
(3) 3/8” - 16 x 1-1/2”
hex head screws
(3) 3/8” - 16
Hex nuts
(3) 3/8”
Washers
(3) 3/8”
Washers
(3) 3/8”
Lock
washers
Coupler halves
Set screws
Set screws
Slide either the center bearing bracket or the center bearing(s) or the oval bearing(s) onto the
torsion shaft / torsion keyed shaft(s) followed by the torsion spring(s).
IMPORTANT: THE CENTER BEARING BRACKET, THE CENTER BEARING(S), THE OVAL
BEARING(S), THE COUPLER HALF’S AND THE TORSION SPRINGS, MUST BE POSITIONED, AS
SHOWN.
WARNING
CENTER BEARING BRACKETS WITH SPRINGS MUST BE SECURELY
FASTENED INTO SOLID STRUCTURAL MEMBERS ONLY AND MUST BE
ADEQUATELY REINFORCED TO HOLD THE LOAD OF TORSION SPRING
ASSEMBLIES. FAILURE TO DO SO CAN CAUSE SEVERE OR FATAL INJURY.
NOTE: If applicable, it is recommended that 5/16” lag screws are pilot drilled using a 3/16”
drill bit, prior to fastening the center bracket to the ceiling.
Referring to Step, Rear Back Hangs either secure the center bearing bracket(s) to the ceiling
using perforated angle at the center of the opening width using 3/8” - 16 x 3/4” hex head
bolts and nuts (not supplied) or to wood blocking (adequate framing member(s)) at the center
of the opening width using 5/16” x 1-5/8” RED HEAD hex head lag screws.
IMPORTANT: THE 5/16” RED HEAD LAG SCREWS MUST BE ATTACHED TO THE CENTER
BRACKET(S).
IMPORTANT: USE A 5/16” X 2-1/2” RED HEAD LAG SCREW INSTEAD OF THE 5/16” X
1-5/8” RED HEAD LAG SCREW IF MOUNTING SURFACE IS COVERED BY DRYWALL. THE LAG
SCREW MUST BE ATTACHED THROUGH THE BOTTOM HOLE OF THE CENTER BRACKET(S).
13

Center
bracket
Adequate
framing
member
Torsion shaft /
Torsion keyed
shaft
Adequate framing
members
Center
brackets
Torsion
keyed
shafts
† (2) Center bearing brackets spaced
6” to 7” apart from the center of
opening width.
Center of
opening
width
†12”
5/16” x 1-5/8” Hex head
lag screws (RED HEAD)
5/16” x 1-5/8” Hex head lag screw (RED HEAD) or
5/16” x 2-1/2” Hex head lag screw (RED HEAD)
Adequate framing
members
Center
brackets
5/16” x 1-5/8” Hex head
lag screws (RED HEAD)
5/16” x 1-5/8” Hex head
lag screws (RED HEAD)
5/16” x 1-5/8” Hex head
lag screw (RED HEAD) or
5/16” x 2-1/2” Hex head
lag screw (RED HEAD)
5/16” x 1-5/8” Hex head lag screw
(RED HEAD) or 5/16” x 2-1/2” Hex
head lag screw (RED HEAD)
IF YOU HAVE A TORSION SHAFT OR A TORSION KEYED SHAFT: With assistance, pick up
the torsion spring assembly and slide one end of the shaft through the rear support bracket.
Extend the shaft through the bearing until the opposite end of the shaft can be inserted into
the other rear support bracket. If your door came with oval bearing(s), loosely attach the oval
bearing to the center bracket with (2) 3/8” - 16 x 1-1/2” hex head bolts and (2) 3/8” - 16
hex nuts, as shown. Repeat for others, if needed.
Torsion shaft
or Torsion
keyed shaft
Horizontal
track
Oval
bearing
Rear support
bracket
Rear support
bracket
One or Two springs
Torsion shaft or
Torsion keyed shaft
Horizontal
track
Center
bearing
Center
bearing
Center
bearing Rear support
bracket
Rear support
bracket
Four springs
IF YOU HAVE TWO TORSION KEYED SHAFTS: With assistance, pick up the left hand
torsion spring assembly and slide one end of the torsion keyed shaft through the end bearing
bracket and loosely attach the oval bearing to the center bracket with (2) 3/8” - 16 x 1-1/2”
hex head bolts and (2) 3/8” - 16 hex nuts, as shown. Repeat for others, if needed.
Repeat the same process for the right hand torsion spring assembly.
Torsion
keyed shafts
Horizontal
track
Center bracket assembly
(See image below)
Center
bracket
Center bearing
((4) Springs)
Oval bearing ((2) Springs)
Coupler half
Coupler
half
Rear support
bracket
Rear support
bracket
Two or Four springs
Oval bearing (See
image below)
Center bracket
(See image below)
(2) 3/8” - 16
Hex nuts
Center bracket
Center
bearing
(2) 3/8” - 16 x 1-1/2”
Hex head bolts
Adequate framing member
Torsion shaft /
Torsion keyed shaft
Torsion spring
Four
springs
5/16” x 1-5/8” Hex head
lag screws (RED HEAD)
5/16” x 1-5/8” Hex head lag screw
(RED HEAD) or 5/16” x 2-1/2” Hex
head lag screw (RED HEAD)
(2) 3/8” - 16
Hex nuts
Center bracket
Oval
bearing
(2) 3/8” - 16 x 1-1/2”
Hex head bolts
Adequate framing member
Torsion shaft /
Torsion Keyed shaft
One or two springs
5/16” x 1-5/8” Hex head
lag screws (RED HEAD)
5/16” x 1-5/8” Hex head
lag screw (RED HEAD) or
5/16” x 2-1/2” Hex head
lag screw (RED HEAD)
Attaching Torsion Spring
17
IMPORTANT: THE SPRING WARNING TAG(S) SUPPLIED MUST BE SECURELY ATTACHED
TO THE STATIONARY SPRING CONE(S) IN PLAIN VIEW. SHOULD A REPLACEMENT SPRING
WARNING TAG BE REQUIRED, CONTACT WAYNE DALTON FOR FREE REPLACEMENTS.
FOR DOORS WITHOUT COUPLER ASSEMBLY: Equalize the amount that the torsion shaft /
torsion keyed shaft protrudes on each side. Align the stationary cone(s) of the torsion springs
with the slots in the rear support bracket and secure using (2) 3/8” - 16 x 1-1/2” truss head
bolts and (2) 3/8” - 16 hex nuts.
FOR DOORS WITH A COUPLER ASSEMBLY: At the middle of the two center bearing
brackets, re-assemble the coupler assembly by loosely fastening the coupler halves together
re-using the (3) 3/8” - 16 x 1-1/2” hex head screws, (6) 3/8” Washers, (3) 3/8” lock washers
and the (3) 3/8” - 16 hex nuts, as shown.
NOTE: Ensure both torsion keyed shafts have equal amounts of the shafts extending from
each rear support bracket.
Next, align the stationary cone(s) of the torsion springs with the slots in the rear support
brackets and secure using (2) 3/8” - 16 x 1-1/2” truss head bolts and (2) 3/8” - 16 hex nuts.
Repeat for opposite side. Secure all oval bearing(s), to the center bracket with (2) 3/8” - 16 x
1-1/2” hex head bolts and (2) 3/8” - 16 hex nuts.
NOTE: If you have 4 springs, secure the torsion spring(s) to the center bracket with (2) 3/8” -
16 x 1-1/2” hex head bolts and (2) 3/8” - 16 nuts.
IMPORTANT: NEVER USE MORE THAN ONE BEARING WHEN ATTACHING TWO SPRINGS TO
ONE CENTER BRACKET.
14

3/8”-16 x 1-1/2”
Truss head bolts
and 3/8” - 16 nuts
Spring
Horizontal track
Rear support
bracket
Torsion shaft
equalized on
both sides
Stationary cone
Winding
cone
Torsion
keyed
shafts
Center
brackets
Keys
Torsion
spring
Torsion
spring
(3) 3/8” - 16 x 1-1/2”
hex head screws
(3) 3/8” - 16
Hex nuts
(3) 3/8”
Washers
(3) 3/8”
Washers
(3) 3/8” Lock
washers
Coupler halves
Set screws
Set screws
Four springs shown
Attaching Counterbalance Lift Cables
18
IMPORTANT: RIGHT AND LEFT HAND IS ALWAYS DETERMINED FROM INSIDE THE GARAGE
LOOKING OUT.
Slide the black cable drum against the left hand rear support bracket. Thread the counterbal-
ance lift cable up and over the cable sheave. Position the cable drum and counterbalance lift
cable, as shown. Hook the cable into the drum.
NOTE: For doors with a torsion keyed shaft, insert (1) key into the slot of both the black cable
drum and the slot in the torsion keyed shaft, as shown.
Tighten the set screws in the black cable drum to 14-15 ft. lbs. of torque (once set screws
contact the shaft, tighten screws one full turn).
Torsion spring, Left wound,
black winding cone
(left hand side)
Horizontal track
Rear
support
bracket
Torsion warning tag
Counterbalance
lift cable taut
Tighten set screws
on cable drum
Torsion shaft
Black cable drum
(left hand side)
Horizontal track
Left hand end bearing bracket
Key
Torsion
keyed
shaft(s) Torsion spring, Left wound,
black winding cone
(left hand side)
Tighten set screws on cable drum
Black cable drum
(left hand side)
Counterbalance lift cable taut
Torsion warning tag
Slide the red cable drum against the right hand rear support bracket. Rotate the left hand
drum and torsion shaft until counterbalance lift cable is taut. Now attach locking pliers to the
torsion shaft and brace locking pliers against the perforated angle of the rear back hangs
to keep counterbalance lift cable taut. On the right hand side, thread the counterbalance lift
cable up and over the red cable drum and position the cable drum and counterbalance lift
cable, as shown. Hook the cable into the drum.
NOTE: For doors with a torsion keyed shaft, insert (1) key shaft into the slot of both the red
cable drum and the slot in the torsion keyed shaft, as shown.
Tighten the set screws in the red cable drum to 14-15 ft. lbs. of torque (once set screws
contact the shaft, tighten screws one full turn).
Secure locking pliers
to adequate framing
member / ceiling
Torsion shaft
Center
bracket
Horizontal track
Rear
support
bracket
Torsion warning tag
Counterbalance
lift cable taut
Torsion shaft
Red cable drum
(right hand side)
Torsion spring, Right wound,
red winding cone
(right hand side)
Tighten set screws to
14-15 ft. lbs. of torque
Right hand end bearing bracket
Key
Torsion
keyed
shaft(s)
Torsion spring, Right wound,
red winding cone
(right hand side)
Tighten set screws on cable drum
Red cable drum
(right hand side)
Counterbalance lift cable taut
Torsion warning tag
Horizontal track
IMPORTANT: CHECK EACH COUNTERBALANCE LIFT CABLE, MAKING SURE BOTH ARE
SEATED PROPERLY ON THE SHEAVES, CABLE DRUMS, ARE SECURELY ATTACHED TO THE
BOTTOM CORNER BRACKETS AND BOTH SIDES HAVE EQUAL COUNTERBALANCE LIFT
TENSION.
Now, secure the coupler assembly (if applicable) by tightening the (3) 3/8” - 16 hex nuts.
15

Torsion
keyed
shafts Center
brackets
Tighten (3) 3/8” - 16
hex nuts.
Torsion
spring
Torsion
spring
Coupler
assembly
Chalking Torsion Spring(s)
19
NOTE: If your springs have stenciling, then skip this step.
Draw a chalk line horizontally along the center of the torsion spring coil(s). As the torsion
spring is wound, the chalk line will create a spiral. This spiral can be used to count and
determine the number of turns that are applied on the torsion spring.
Draw horizontal chalk line prior to
winding
Spirals created after winding
Torsion spring
coils
Securing Door for Spring Winding
20
With the door in the fully closed position, place locking pliers onto both vertical tracks just
above the third track roller. This is to prevent the garage door from rising while winding
springs.
NOTE: Check the following before attempting to wind torsion spring(s):
a. Counterbalance lift cables are secured at bottom corner brackets.
b. Counterbalance lift cables are routed unobstructed to cable drums.
c. Counterbalance lift cables are correctly installed and wound onto cable lift drums.
d. Counterbalance lift cables are taut and have equal tension on both sides.
e. Cable lift drums are against end bearing brackets and set screws are tight.
f. Torsion spring or springs are installed correctly.
g. Review the label attached to the spring warning tag, to determine number of spring turns
required.
NOTE: Door MUST be closed and locked when winding or making any adjustments to the
torsion spring(s).
WARNING
FAILURE TO ENSURE DOOR IS IN A CLOSED POSITION AND TO PLACE
LOCKING PLIERS ONTO VERTICAL TRACK CAN ALLOW DOOR TO RISE
AND CAUSE SEVERE OR FATAL INJURY.
Winding Bars
(Steel Rods)
Size Of Winding Bar
(Inches)
Spring Inner
Diameter Used On
1/2” dia. x 18”
5/8” dia. x 24”
2” and 2-5/8”
3-3/4”
Locking pliers above
third track roller on
both sides of door
Bottom section
Lock
section
Locking pliers attached
to crown leg of vertical
track
Intermediate section
Vertical
track
Vertical
track
Winding Spring(s)
21
WARNING
WINDING SPRING IS AN EXTREMELY DANGEROUS PROCEDURE
AND SHOULD BE PERFORMED ONLY BY A TRAINED DOOR SYSTEM
TECHNICIAN USING PROPER TOOLS AND INSTRUCTIONS.
WARNING
USE ONLY SPECIFIED WINDING BARS, AS STATED IN STEP SECURING
DOOR FOR SPRING WINDING (E7). DO NOT SUBSTITUTE WITH
SCREWDRIVERS, PIPE, ETC. OTHER TOOLS MAY FAIL OR RELEASE FROM
THE SPRING CONE AND CAUSE SEVERE OR FATAL INJURY.
WARNING
PRIOR TO WINDING THE SPRING, ENSURE YOU’RE WINDING IN THE
PROPER DIRECTION AS SHOWN BELOW. OTHERWISE THE SPRING
FITTING MAY RELEASE FROM SPRING AND RESULT IN SEVERE OR FATAL
INJURY.
Check the label attached to the spring warning tag for the required number of complete turns
to balance your door.
HOW TO WIND TORSION SPRINGS:
1. Insert one winding rod snugly into winding cone, to full socket depth.
2. Maintaining a tight grip on the winding rod rotate it slowly in the proper direction, as
shown below.
3. If there is any slippage of the winding rod in the winding cone socket, reverse the direction
of winding and return the cone to its original position. Remove the winding rod from the
winding cone socket. Reseat the winding rod in the socket. Start over at Step #1.
4. When the winding rod is vertical above the winding cone, insert another winding rod into
one of the other sockets, being careful to seat it snugly and at full socket depth.
5. Hold the spring with the second winding bar, and remove the first.
6. Repeat Steps #2 through #5 until the complete turns have been applied.
IMPORTANT: AFTER WINDING THE SPRING(S), TIGHTEN THE (2) SET SCREWS TO 14-15
FT. LBS. OF TORQUE IN THE WINDING CONE. ONCE SET SCREWS CONTACT THE SHAFT,
TIGHTEN SCREWS ONE FULL TURN.
HIGH SPRING TENSION CAN CAUSE
SERIOUS INJURY OR DEATH.
DONOTadjust, repair or remove springs or parts to
whichsprings are connected, such as steel brack-
ets,cables, wood blocks, fasteners or other parts of
thecounterbalance system.
Adjustmentsor repairs must ONLYbe made by a
traineddoor systems technician using proper tools
andinstructions.
DONOTremove, cover or paint over this tag. Prod-
uctuser should inspect this tag periodically for
legibilityand should order a replacement tag from
thedoor manufacturer, as needed.
©Copyright2010Overhead Door Corporation
102081 REV206/24/2010
Torsion
shaft
Winding
cone
Torsion
spring
Approved
winding
rod
Set screws
IMPORTANT: CHECK THE WARNING
TAG(S) ATTACHED TO
THE SPRING(S)
FOR THE REQUIRED NUMBER OF
COMPLETE TURNS TO BALANCE
YOUR DOOR.
Warning
tag
Approved
winding rod
Torsion spring(s) should be wound in the direction the end coil points.
Spring
coils
Finish installing Rear Back Hangs
22
NOTE: Complete Step Rear Back Hangs now to secure the Rear Back Hangs, then proceed
to next Step.
Attaching Weather Seal
23
16

Permanently attach the weatherstrips on both door jambs and header. The weatherstrips
were temporarily attached in Preparing the Opening, in the pre-installation section of this
manual.
NOTE: When permanently attaching the weatherstrips to the jambs, avoid pushing the weath-
erstrips too tightly against the face of door.
Weather seals
Nail
Weather
seal
Jamb Weather seal
installed
Jamb
Header
Jamb
Nail
NOTE: Door not shown for clarity.
Balancing Door
24
Remove locking pliers. Lift door and check its balance. Adjustments to the required number
of spring turns stated may be necessary. If door rises off floor more than 2 ft. under spring
tension alone, reduce spring tension. If the door is hard to rise or drifts down on its own, add
spring tension. A poorly balanced door can cause garage door operator problems.
To adjust spring tension, fully close door. Apply locking pliers to track above third track roller.
Place locking pliers on torsion shaft, as shown in E5. Insert a winding rod into the winding
cone. Push upward on the winding rod slightly while carefully loosening the set screws in the
winding cone.
IMPORTANT: BE PREPARED TO SUPPORT THE FULL FORCE OF THE TORSION SPRING ONCE
THE SET SCREWS ARE LOOSE.
Carefully adjust spring tension 1/4 turn. Retighten both set screws to 14-15 ft. lbs. of torque
in the winding cone and repeat for the other side. Recheck door balance and re-adjust spring
tension if needed.
IMPORTANT: DO NOT ADJUST MORE THAN 1 TURN FROM THE RECOMMENDED NUMBER
OF TURNS.
If the door still does not operate easily, lower the door into the closed position, unwind
spring(s) completely, and recheck the following items:
1.) Is the door level?
2.) Are the torsion shaft and flag angles level and plumb?
3.) Does the distance between the flag angles equal door width plus 3-3/8” to 3-1/2”?
4.) Do the counterbalance lift cables have equal tension? Adjust if necessary.
5.) Rewind the spring(s).
6.) Make sure door is not rubbing on jambs.
IMPORTANT: IF DOOR STILL DOES NOT BALANCE PROPERLY, THEN CONTACT A TRAINED
DOOR SYSTEM TECHNICIAN.
Label Placement
25
IMPORTANT: USING THE ILLUSTRATION, ATTACH THE APPROPRIATE LABELS TO THE AP-
PROPRIATE LOCATION ON THE SECTION, AS SHOWN.
NOTE: The Spring Warning tag(s) are factory attached (one per spring).
NOTE: Because of different configurations, some labels may require minor relocations.
HIGHSPRING TENSION CA NCAUSE
SERIOUSINJURY OR DEAT H.
DONOTadjust, repair or remove springs or parts to
whichsprings are connected, such as steel brack-
ets,cables, wood blocks, fasteners or other parts of
thecounterbalance system.
Adjustmentsor repairs must ONLY be made by a
traineddoor systems technician using proper tools
andinstructions.
DONOTremove, cover or paint over this tag. Prod-
uctuser should inspect this tag periodically for
legibilityand should order a replacement tag from
thedoor manufacturer, as needed.
©Copyright2010Overhead Door Corporation 102081 REV2 06/24/2010
DONOT REMOVE, COVER OR PAINT OVER
THISLABEL. PRODUCT USER SHOULD
INSPECTTHIS LABEL PERIODICALLY FOR
LEGIBILITYAND SHOULD ORDER A
REPLACEMENTFROM THE DOOR
MANUFACTURERAS NEEDED.
346214 NEW 11/19/2010
CALIFORNIAHEALTH AND SAFETY
CODESECTION 25249.6
DRILLING,SAWING, SANDING OR
MACHININGWOOD PRODUCTS GENERATES
WOODDUST, A SUBSTANCE KNOWN TO THE
STATEOF CALIFORNIA TO CAUSE CANCER.
AVOIDINHALING WOOD DUST OR USE A
RESPIRATOR OR OTHER SAFEGUARDS FOR
PERSONALPROTECTION.
WARNING
THISWOOD PRODUCT REQUIRES PROPER
FINISHING PRIORTO ANY DOOR HARDWARE BEING
APPLIED.BOTH INNER AND OUTER FA CESOF THE
SECTION(S),AS WELL AS ALL EDGE SURFACES
MUST BE PREPAREDAND FINISHED IN STRICT
ACC0RDANCETO THE DIRECTIONS GIVEN IN THE
INSTALLATIONINSTRUCTIONS AND OWNER’S
MANUAL UNDER “MAINTENANCE AND PAINTING
INSTRUCTIONS FOR ALLWOOD DOORS”.
IMPROPER STORAGE, IMPROPER TRANSPORTATION
AND/OR DELAYIN FINISHING, THAT ALLOWS FOR
THE EXPOSURE OFTHIS WOOD PRODUCT TO
MOISTUREAND/OR OTHER CONTAMINANTS, VOIDS
THE LIMITED WARRANTY.
IMPORTANT
316986
WARNING
WARNING
Lift handles/gripping points are required
on this door, located as spelled out in the
installation instructions, even if the door
is motor operated.
Failure to install and use these lift handles/
gripping points on this door can result in
serious injury to fingers and/or hands, if
placed in the opening between sections,
when the door is operated manually.
The adjacent bottom corner bracket and
all cable retention features including
milford pins, cotter pins, & clevis pins are
under HIGH SPRING TENSION.
Adjustments and repairs must only be
made by a trained door systems
technician, using proper tools and
instructions.
DO NOT REMOVE, COVER OR PAINT OVER
THIS LABEL.PRODUCT USER SHOULD
INSPECT THIS LABEL PERIODICALLY FOR
LEGIBILITY AND SHOULD ORDER A
REPLACEMENT FROM THE DOOR
MANUFACTURER AS NEEDED.
325304 REV3 06/26/12
©Copyright 2012,
OverheadDoor Corporation
WARNING
WARNING
Lift handles/gripping points are required
on this door,located as spelled out in the
installation instructions, even if the door
is motor operated.
Failure to install and use these lift handles/
gripping points on this door can result in
serious injury to fingers and/or hands, if
placed in the opening between sections,
when the door is operated manually.
The adjacent bottom corner bracket and
all cable retention features including
milford pins, cotter pins, & clevis pins are
under HIGH SPRING TENSION.
Adjustments and repairs must only be
made by a trained door systems
technician, using proper tools and
instructions.
DO NOT REMOVE, COVER OR PAINT OVER
THIS LABEL.PRODUCT USER SHOULD
INSPECT THIS LABEL PERIODICALLYFOR
LEGIBILITY AND SHOULD ORDER A
REPLACEMENT FROM THE DOOR
MANUFACTURER AS NEEDED.
325304 REV3 06/26/12
©Copyright 2012,
OverheadDoor Corporation
SAFETYINSTRUCTIONS
1. Operatedoor ONLY when it is properly
adjustedandfree of obstructions.
2. Ifa door becomes hard to operate,
inoperativeoris damaged, immediately
havenecessaryadjustments and/or repairs
madebya trained door system technician
usingpropertools and instructions.
3. DONOT stand or walk under a moving door,
orpermitanybody to stand or walk under
anelectricallyoperated door.
4. DONOT place fingers or hands into open
sectionjointswhen closing a door. Use lift
handles/grippingpointswhen operating
doormanually.
5. DONOT permit children to operate garage
doorordoor controls.
6. Dueto constant extreme spring tension,
DONOTattempt any adjustment, repair or
alterationtoany part of the door,
especiallytosprings, spring brackets,
bottomcornerbrackets, red colored
fasteners,cablesor supports. To avoid
possiblesevereor fatal injury, have any
suchworkperformed by a trained door
systemtechnicianusing proper tools and
instructions.
7. Onelectrically operated doors, pull down
ropesmustbe removed and locks must be
removedormade inoperative in the open
(unlocked)position.
8. Topsection of door may need to be
reinforcedwhenattaching an electric
opener. Check door and/or opener
manufacturer’s instructions.
9. VISUALLYinspect door and hardware
monthly for worn and/or broken parts.
Check to ensure door operates freely.
10.Te stelectric opener’s safety features
monthly, following opener manufacturer’s
instructions.
11.NEVER hang tools,bicycles, hoses, clothing
or anything else from horizontal tracks.
Track systems are not intended or designed
to support such extra weight.
Placelabel at a readable height on door. DO NOT
remove,cover or paint over this label. Product
usershould inspect this label periodically for
legibilityand should order a replacement label
fromthe door manufacturer as needed.
324100 REV7 09/16/2013
Qualitygarage doors since 1954
WayneDalton
2501S. State Hwy 121 Bus., Suite 200
Lewisville,TX 75067
Forservice, call [phone]
www.Wayne-Dalton.com
Copyright2013WayneDalton, a
DivisionofOverheadDoor Corp.
Residential warning label, The warning label will
either be on the right or the left end stile.
Bottom section warning labels
Residential Dust label
(For California Residents Only)
Wood label
important notice
Torsion spring tag(s)
(one per spring)
17

Door Arm Hookup
At the center of the top section, measure horizontally from the top of center hinge to the
bottom of strut. Using that dimension, measure and cut (2) pieces of perforated angles.
Assemble the (2) pieces together using (2) 3/8” bolts and nuts (supplied by others). Now,
secure to the top section using carriage bolts and nuts (supplied by others), thru bolt both the
perforated angles to the top section, as shown.
Align the door arm with hole with one of the holes in the perforated angles. Secure the door
arm to the perforated angle using (1) 5/16” - 18 x 1” hex head bolt and (1) 5/16” - 18 lock
nut (supplied by others), as shown.
Top
section
(2) Perforated
angles
Carriage bolt
and nuts
(supplied by
others)
Typical
door arm
Strut
Center hinge
(1) 5/16” Hex bolt
and lock nut
(supplied by others).
(2) 3/8” Hex bolt and lock
nut (supplied by others)
Lift Handles
NOTE: Lift handles must be lined up vertically.
BOTTOM SECTION: Locate the exterior center stile or center most stile on the bottom sec-
tion.
NOTE: For flush doors, find the center most stile by locating the center most hinge.
Using the bottom hole of the lift handle, measure up 3” from the bottom of bottom section.
Mark the hole locations and drill (2) 9/32” dia. holes through the bottom section. On the out-
side of the door, insert (2) 1/4” - 20 x 2 1/2” carriage bolts (black head) into the outside lift
handle and insert the assembly into the (2) pre-drilled holes in the bottom section. From the
inside, slide the (2) holes in the inside lift handle over the stems of the carriage bolts. Secure
the outside and inside lift handle to the bottom section with (2) 1/4” - 20 flange hex nuts.
INTERMEDIATE I SECTION: Locate the exterior center stile or center most stile on the
Intermediate I section. Mark a vertical line on the section at that point.
NOTE: Some Garage Doors may require both lift handles to be installed on bottom section.
If your bottom section height is 28” or 29”, install both lift handles onto the bottom section.
Install bottom lift handle per above instructions, then install the second lift handle a Minimum
of 20” and a Maximum of 30” above the bottom lift handle.
Measure up 4” from the bottom of the Intermediate I section. Using this measurement as
a guide, position the bottom hole of the lift handle bottom at the mark. Make a mark at the
top hole of the lift handle. This should give you a Minimum of 20” and a Maximum of 30”
between the lower lift handle and the middle of the top lift handle. If needed, reposition the
lift handle to stay within the Minimum and Maximum dimensions, as stated above.
Using the lift handle as a template, mark the hole locations and drill (2) 9/32” dia. holes
through the section. On the outside of the door, insert (2) 1/4” - 20 x 2-1/2” carriage bolts
(black head) into the outside lift handle and insert the assembly into the (2) pre-drilled holes
in the section. From the inside, slide the (2) holes in the inside lift handle over the stems of
the carriage bolts. Secure the outside and inside lift handle to the section with (2) 1/4” - 20
flange hex nuts.
Lift
handle
Lift
handle
Center
hinge
Bottom
section
Intermediate I
section
Strut
(2) 1/4” - 20 x 2-1/2”
Carriage bolts and (2) 1/4” - 20
Flange hex nuts
(2) 1/4” - 20 x 2-1/2”
Carriage bolts and (2) 1/4” - 20
Flange hex nuts
3”
Pull Down Rope
WARNING
DO NOT INSTALL PULL DOWN ROPE ON DOORS WITH OPERATORS.
CHILDREN MAY BECOME ENTANGLED IN THE ROPE CAUSING SEVERE OR
FATAL INJURY.
Measure and mark the jamb approximately 48” to 50” (1220 to 1270 mm) from floor on the
right or left side of jamb. Drill 1/8” pilot hole for no. 6 screw eye. Tie the pull down rope to the
no. 6 screw eye and to the bottom corner bracket, as shown.
Typical bottom
bracket
Pull down
rope
No. 6 Screw eye
Pull down
rope
48” to 50”
From floor
18
Optional Installation

Cleaning Your Garage Door
IMPORTANT: DO NOT USE A PRESSURE WASHER ON YOUR GARAGE DOOR!
An annual inspection of all the surfaces of your garage door(s) will reveal the extent of weath-
ering and the possible need for refinishing. When the finish becomes eroded or thin, clean
and prime any areas showing deterioration. Then completely refinish the door, according to
the directions, listed below, or the manufacturer’s label directions. Proper finishing of the
wood substrates to protect your door(s) from the effects of moisture and sunlight is vital in
extending the service life and beautifying your garage door(s).
The interior and exterior surfaces, as well as all edges must be properly primed, painted and
maintained, to protect and beautify your door. These finishing instructions are intended to
achieve both objectives for your wood doors(s).
NOTE: Be sure to clean behind weatherstrips on both sides and top of door.
CAUTION
NEVER MIX CLEANSERS OR DETERGENTS WITH BLEACH.
GLASS CLEANING INSTRUCTIONS
Clean with a mild detergent solution (same as above) and a soft cloth. After cleaning, rinse
thoroughly.
ACRYLIC CLEANING INSTRUCTIONS
Clean acrylic glazing with nonabrasive soap or detergent and plenty of water. Use your bare
hands to feel and dislodge any caked on particles. A soft, grit-free cloth, sponge or chamois
may be used to wipe the surface. Do not use hard or rough cloths that will scratch the acrylic
glazing. Dry glazing with a clean damp chamois.
NOTE: Do not use any window cleaning fluids, scouring compounds, gritty cloths or solvent-
based cleaners of any kind.
Painting Your Garage Door
Refer to Instruction Insert “Field Painting Wood Door Sections”.
Maintaining The Finish
On Your Garage Door
If the finish is beginning to fade, the door may require a field applied top clear coat. Depend-
ing on environment and usage, this may be necessary after 1 to 3 years of use. Refer to
Instruction Insert “Field Painting Wood Door Sections”.
Operation And Maintenance
OPERATING YOUR GARAGE DOOR: Before you begin, read all warning labels affixed to
the door and the installation instructions and owner’s manual. When correctly installed, your
Wayne Dalton door will operate smoothly. Always operate your door with controlled move-
ments. Do not slam your door or throw your door into the open position, this may cause dam-
age to the door or its components. If your door has an electric opener, refer to the owner’s
manual to disconnect the opener before performing manual door operation below.
MANUAL DOOR OPERATION: For additional information on manual garage door operations
go to www.dasma.com and reference TDS 165.
WARNING
DO NOT PLACE FINGERS OR HANDS INTO SECTION JOINTS WHEN
OPENING AND/OR CLOSING A DOOR. ALWAYS USE LIFT HANDLES /
SUITABLE GRIPPING POINTS WHEN OPERATING THE DOOR MANUALLY.
OPENING A DOOR: Make sure the lock(s) are in the unlocked position. Lift the door by using
the lift handles / suitable gripping points only. Door should open with little resistance.
CLOSING A DOOR: From inside the garage, pull door downward using lift handles / gripping
point only. If you are unable to reach the lift handles/ suitable gripping points only, use pull
down rope affixed to the side of door. Door should close completely with little resistance.
USING AN ELECTRIC OPERATOR:
IMPORTANT: PULL DOWN ROPES MUST BE REMOVED AND LOCKS MUST BE REMOVED OR
MADE INOPERATIVE IN THE UNLOCKED POSITION.
When connecting a drawbar (trolley type) garage door operator to this door, a drawbar opera-
tor bracket must be securely attached to the top section of the door, along with any struts
provided with the door. Always use the drawbar operator bracket supplied with the door. To
avoid possible damage to your door, Wayne Dalton recommends reinforcing the top section
with a strut (may or may not be supplied). The installation of the drawbar operator must be
according to manufacturer’s instructions and force settings must be adjusted properly. Refer
to the owner’s manual supplied with your drawbar operator for complete details on installa-
tion, operation, maintenance and testing of the operator.
MAINTAINING YOUR GARAGE DOOR: Before you begin, read all warning labels affixed to
the door and the installation instructions and owner’s manual. Perform routine maintenance
steps once a month, and have the door professionally inspected once a year. Review your
Installation Instructions and Owner’s Manual for the garage door. These instructions are
available at no charge from Wayne Dalton, a division of Overhead Door Corporation, P.O. Box
67, Mt. Hope, OH., 44660, or at www.Wayne-Dalton.com. For additional information on
garage door/operator maintenance go to www.dasma.com and reference TDS 151, 167
and 179.
Monthly Inspections:
1. Visual Inspection: Closely inspect jambs, header and mounting surface. Any material
found not to be structurally sound must be replaced. It may be necessary to uninstall part
or all of the door assembly in order to replace defective material. Refer to the supplemental
instructions “Removing an Existing Door / Preparing the Opening” at www.Wayne-Dalton.
com. Inspect the spring(s), counterbalance lift cables, track rollers, pulleys, rear back hangs
and other door hardware for signs of worn or broken parts. Tighten any loose screws and/or
bolts, except on bottom corner brackets or on the counterbalance assembly. Check exterior
surface of the door sections for any minor cracks. Verify door has not shifted right or left in
the opening. If you suspect problems, contact a trained door system technician.
WARNING
GARAGE DOOR SPRINGS, COUNTERBALANCE LIFT CABLES, BRACKETS,
AND OTHER HARDWARE ATTACHED TO THE SPRINGS ARE UNDER
EXTREME TENSION, AND IF HANDLED IMPROPERLY, CAN CAUSE
SEVERE OR FATAL INJURY. ONLY A TRAINED DOOR SYSTEMS
TECHNICIAN SHOULD ADJUST THEM, BY CAREFULLY FOLLOWING THE
MANUFACTURER’S INSTRUCTIONS.
WARNING
NEVER REMOVE, ADJUST, OR LOOSEN THE BOLTS, SCREWS AND/OR LAG
SCREWS ON THE COUNTERBALANCE (END BEARING BRACKETS, DRUMS
OR SPRING SYSTEM) OR BOTTOM CORNER BRACKETS OF THE DOOR.
THESE BRACKETS ARE CONNECTED TO THE SPRING(S) AND ARE UNDER
EXTREME TENSION. TO AVOID POSSIBLE SEVERE OR FATAL INJURY,
HAVE ANY SUCH WORK PERFORMED BY A TRAINED DOOR SYSTEMS
TECHNICIAN USING PROPER TOOLS AND INSTRUCTIONS.
TORQUEMASTER®PLUS SPRINGS: Pawl knob(s) (located on the TorqueMaster®end brack-
ets above the door) should be engaged to prevent the door from rapidly descending in case
of spring failure or forceful manual operation.
EXTENSION SPRINGS: A restraining cable or other device should be installed on the exten-
sion spring (located above the horizontal tracks) to help contain the spring if it breaks.
2. Door Balance: Periodically test the balance of your door. If you have a garage door
drawbar operator, use the release mechanism so you can operate the door by hand when
doing this test. Start with the door in the fully closed position. Using handles or suitable grip-
ping points, lift the door to check its balance. Adjust TorqueMaster® or Extension spring(s),
if door lifts by itself (hard to pull down) or if door is difficult to lift (easy to pull down). DO NOT
attempt to repair or adjust Torsion Springs yourself. To adjust TorqueMaster® or Extension
spring(s), refer to your installation instructions and owner’s manual. If in question about
any of the procedures, do not perform the work. Instead, have it adjusted by a trained door
systems technician.
3. Lubrication: The door should open and close smoothly. Ensure the door track rollers are
rotating freely when opening and closing the door. If track rollers do not rotate freely, clean
the door tracks, removing dirt and any foreign substances. Clean and lubricate (use a non-
silicon based lubricant) graduated end hinges, center hinges, steel track rollers, bearings and
torsion springs (torsion spring coil surfaces). DO NOT lubricate plastic idler bearings, nylon
track rollers, door track. DO NOT oil a cylinder lock, if actuation is difficult use a graphite dust
to lubricate.
CHECK FOR PRESENCE OF SAFETY LABELS:
19
Maintenance

HIGHSPRING TENSION CA NCAUSE
SERIOUSINJURY OR DEAT H.
DONOTadjust, repair or remove springs or parts to
whichsprings are connected, such as steel brack-
ets,cables, wood blocks, fasteners or other parts of
thecounterbalance system.
Adjustmentsor repairs must ONLY be made by a
traineddoor systems technician using proper tools
andinstructions.
DONOTremove, cover or paint over this tag. Prod-
uctuser should inspect this tag periodically for
legibilityand should order a replacement tag from
thedoor manufacturer, as needed.
©Copyright2010Overhead Door Corporation 102081 REV2 06/24/2010
DONOT REMOVE, COVER OR PAINT OVER
THISLABEL. PRODUCT USER SHOULD
INSPECTTHIS LABEL PERIODICALLY FOR
LEGIBILITYAND SHOULD ORDER A
REPLACEMENTFROM THE DOOR
MANUFACTURERAS NEEDED.
346214 NEW 11/19/2010
CALIFORNIAHEALTH AND SAFETY
CODESECTION 25249.6
DRILLING,SAWING, SANDING OR
MACHININGWOOD PRODUCTS GENERATES
WOODDUST, A SUBSTANCE KNOWN TO THE
STATEOF CALIFORNIA TO CAUSE CANCER.
AVOIDINHALING WOOD DUST OR USE A
RESPIRATOR OR OTHER SAFEGUARDS FOR
PERSONALPROTECTION.
WARNING
THISWOOD PRODUCT REQUIRES PROPER
FINISHING PRIORTO ANY DOOR HARDWARE BEING
APPLIED.BOTH INNER AND OUTER FA CESOF THE
SECTION(S),AS WELL AS ALL EDGE SURFACES
MUST BE PREPAREDAND FINISHED IN STRICT
ACC0RDANCETO THE DIRECTIONS GIVEN IN THE
INSTALLATIONINSTRUCTIONS AND OWNER’S
MANUAL UNDER “MAINTENANCE AND PAINTING
INSTRUCTIONS FOR ALLWOOD DOORS”.
IMPROPER STORAGE, IMPROPER TRANSPORTATION
AND/OR DELAYIN FINISHING, THAT ALLOWS FOR
THE EXPOSURE OFTHIS WOOD PRODUCT TO
MOISTUREAND/OR OTHER CONTAMINANTS, VOIDS
THE LIMITED WARRANTY.
IMPORTANT
316986
WARNING
WARNING
Lift handles/gripping points are required
on this door, located as spelled out in the
installation instructions, even if the door
is motor operated.
Failure to install and use these lift handles/
gripping points on this door can result in
serious injury to fingers and/or hands, if
placed in the opening between sections,
when the door is operated manually.
The adjacent bottom corner bracket and
all cable retention features including
milford pins, cotter pins, & clevis pins are
under HIGH SPRING TENSION.
Adjustments and repairs must only be
made by a trained door systems
technician, using proper tools and
instructions.
DO NOT REMOVE, COVER OR PAINT OVER
THIS LABEL.PRODUCT USER SHOULD
INSPECT THIS LABEL PERIODICALLY FOR
LEGIBILITY AND SHOULD ORDER A
REPLACEMENT FROM THE DOOR
MANUFACTURER AS NEEDED.
325304 REV3 06/26/12
©Copyright 2012,
OverheadDoor Corporation
WARNING
WARNING
Lift handles/gripping points are required
on this door,located as spelled out in the
installation instructions, even if the door
is motor operated.
Failure to install and use these lift handles/
gripping points on this door can result in
serious injury to fingers and/or hands, if
placed in the opening between sections,
when the door is operated manually.
The adjacent bottom corner bracket and
all cable retention features including
milford pins, cotter pins, & clevis pins are
under HIGH SPRING TENSION.
Adjustments and repairs must only be
made by a trained door systems
technician, using proper tools and
instructions.
DO NOT REMOVE, COVER OR PAINT OVER
THIS LABEL.PRODUCT USER SHOULD
INSPECT THIS LABEL PERIODICALLYFOR
LEGIBILITY AND SHOULD ORDER A
REPLACEMENT FROM THE DOOR
MANUFACTURER AS NEEDED.
325304 REV3 06/26/12
©Copyright 2012,
OverheadDoor Corporation
SAFETYINSTRUCTIONS
1. Operatedoor ONLY when it is properly
adjusted and free of obstructions.
2. Ifa door becomes hard to operate,
inoperative or is damaged, immediately
have necessary adjustments and/or repairs
made by a trained door system technician
using proper tools and instructions.
3. DONOT stand or walk under a moving door,
or permit anybody to stand or walk under
an electrically operated door.
4. DONOT place fingers or hands into open
section joints when closing a door. Use lift
handles/gripping points when operating
door manually.
5. DONOT permit children to operate garage
door or door controls.
6. Dueto constant extreme spring tension,
DO NOT attempt any adjustment, repair or
alteration to any part of the door,
especially to springs, spring brackets,
bottom corner brackets, red colored
fasteners, cables or supports.To avoid
possible severe or fatal injury, have any
such work performed by a trained door
system technician using proper tools and
instructions.
7. Onelectrically operated doors, pull down
ropes must be removed and locks must be
removed or made inoperative in the open
(unlocked) position.
8. Topsection of door may need to be
reinforced when attaching an electric
opener. Check door and/or opener
manufacturer’s instructions.
9. VISUALLYinspect door and hardware
monthly for worn and/or broken parts.
Check to ensure door operates freely.
10.Te stelectric opener’s safety features
monthly, following opener manufacturer’s
instructions.
11.NEVER hang tools,bicycles, hoses, clothing
or anything else from horizontal tracks.
Track systems are not intended or designed
to support such extra weight.
Placelabel at a readable height on door. DO NOT
remove,cover or paint over this label. Product
usershould inspect this label periodically for
legibilityand should order a replacement label
fromthe door manufacturer as needed.
324100 REV7 09/16/2013
Qualitygarage doors since 1954
WayneDalton
2501S. State Hwy 121 Bus., Suite 200
Lewisville,TX 75067
Forservice, call [phone]
www.Wayne-Dalton.com
Copyright2013WayneDalton, a
DivisionofOverheadDoor Corp.
Residential warning label, The warning label will
either be on the right or the left end stile.
Bottom section warning labels
Residential Dust label
(For California Residents Only)
Wood label
important notice
Torsion spring tag(s)
(one per spring)
20
