Weider Body Works Pro 2.0 Bench User manual

QUESTIONS?
As a manufacturer, we are commit-
ted to providing complete customer
satisfaction. If you have questions,
or if there are missing parts, please
contact us at the numbers or
addresses listed below:
Call: 08457 089 009
Outside UK: 0 (44) 113 3877133
Fax: [phone]
E-mail: [email protected]
Write:
ICON Health & Fitness, Ltd.
Unit 4
Revie Road Industrial Estate
Revie Road, Beeston
Leeds, LS118JG,
UK
Model No. WEFMBE1477.0
Serial No.
Write the serial number in the
space above for future reference.
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
USER’S MANUAL
Serial Number
Decal
www.iconeurope.com
Visit our website at

WARNING DECAL PLACEMENT
2
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
PART IDENTIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

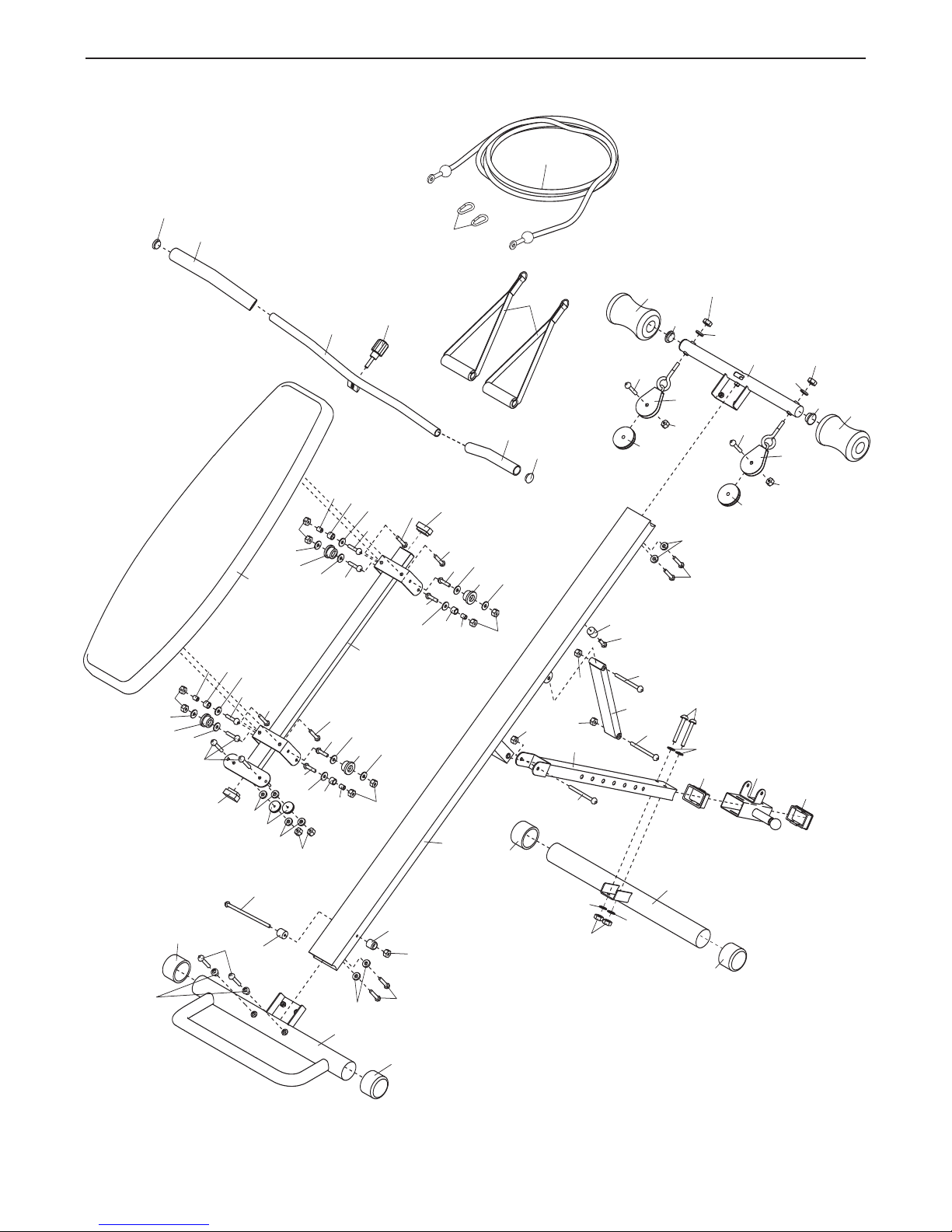

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
WIEDER is a registered trademark of ICON IP, Inc.

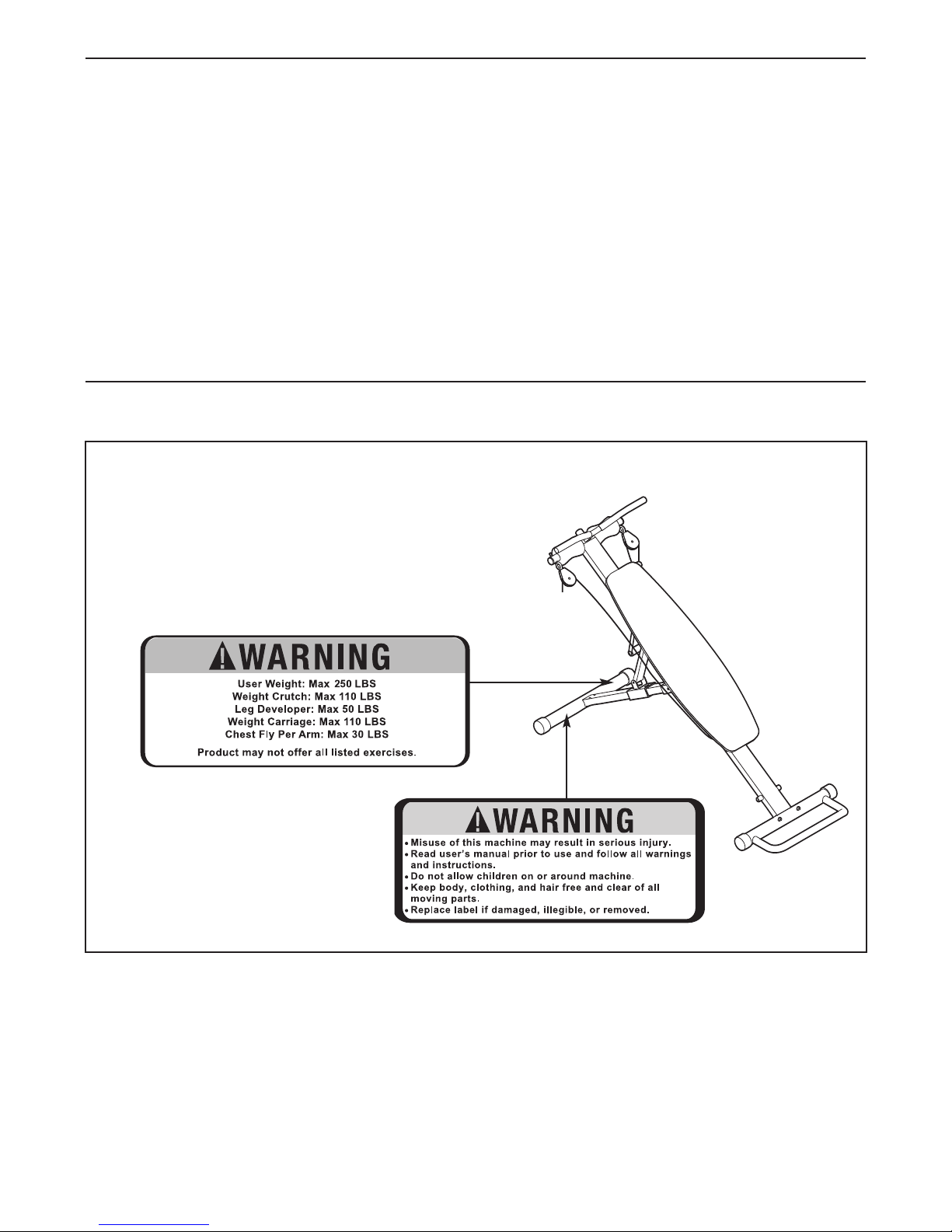

The decals shown here have been applied in the loca-
tions shown. If a decal is missing or illegible, call
the telephone number on the front cover of this
manual and request a free replacement decal.
Apply the decal in the location shown. Note: The
decals may not be shown at actual size.

3
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on the weight training system before using the weight
training system. ICON assumes no responsibility for personal injury or property damage sustained
by or through the use of this product.
IMPORTANT PRECAUTIONS
1. Before beginning this or any exercise pro-
gram, consult your physician. This is espe-
cially important for persons over the age of
35 or persons with pre-existing health prob-
lems.
2. Read all instructions in this manual and all
warnings on the weight training system
before using the weight training system.
3. It is the responsibility of the owner to ensure
that all users of the weight training system
are adequately informed of all precautions.
4. Use the weight training system only as
described in this manual.
5. Use the weight training system only on a
level surface. Cover the floor beneath the
weight training system to protect the floor.
6. Inspect and properly tighten all parts each
time you use the weight training system.
Replace any worn parts immediately.
7. Keep hands and feet away from moving parts.
8. Always tie back long hair to prevent it from
becoming caught.
9. Keep children under 12 years old and pets
away from the weight training system at all
times.
10. The weight training system should not be
used by persons weighing more than 250
lbs. (113 kg).
11. Wear appropriate clothes while exercising.
Always wear athletic shoes for foot protec-
tion while exercising.
12. If you feel pain or dizziness while exercising,
stop immediately and cool down.
13. The weight training system is intended for
home use only.Do not use the weight train-
ing system in any commercial, rental, or
institutional setting.

4
BEFORE YOU BEGIN
Thank you for selecting the WEIDER®BODY WORKS
PRO 2.0 weight training system. The versatile BODY
WORKS PRO 2.0 weight training system is designed to
help you develop every major muscle group of the body.
Whether your goal is a shapely figure, dramatic muscle
size and strength, or a healthier cardiovascular system,
the BODY WORKS PRO 2.0 weight training system will
help you to achieve the specific results you want.
For your benefit, read this manual carefully before
using the weight training system. If you have addi-
tional questions, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
are shown on the front cover of this manual.

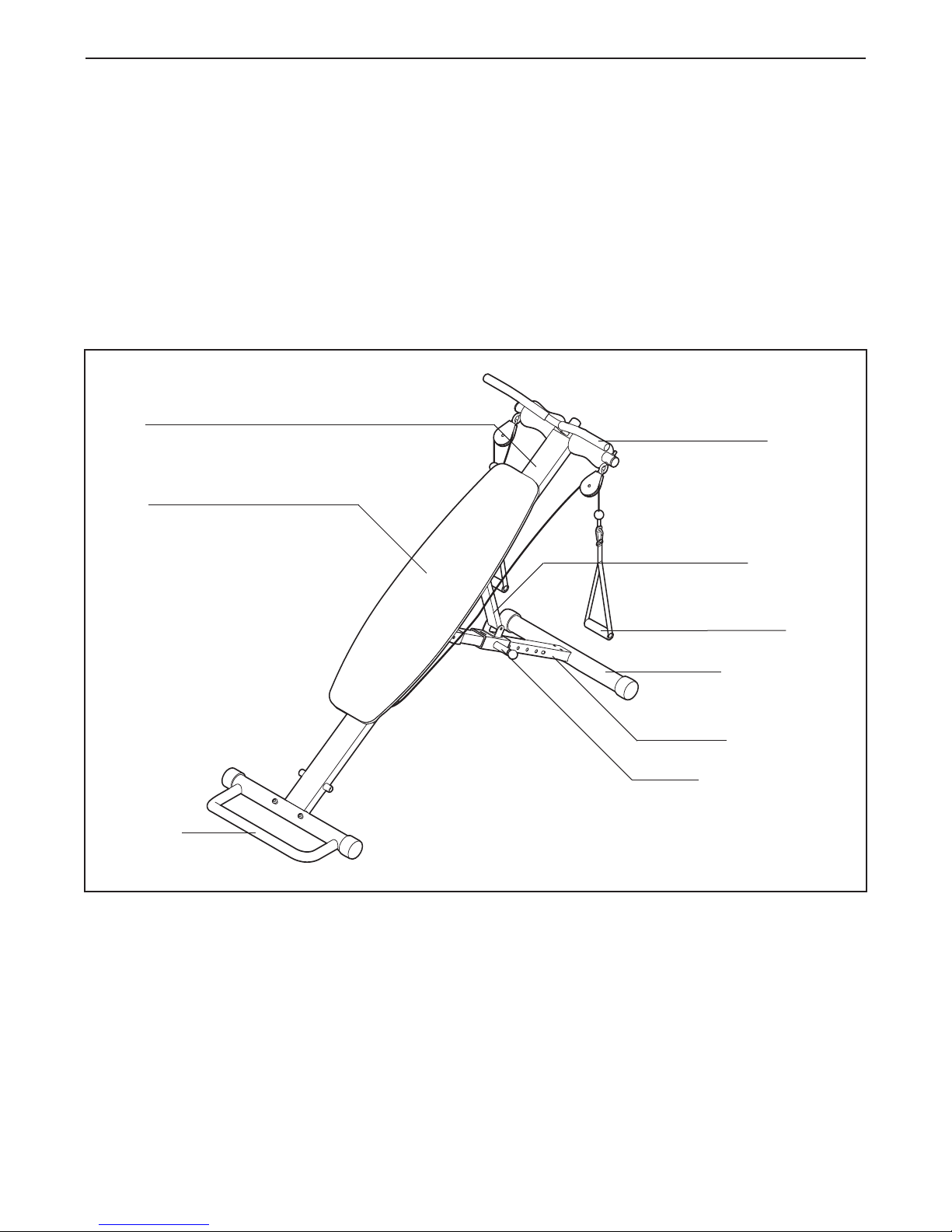

Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.
Stabilizer
Rail
Handle
Handgrip
Support Leg
Adjustment Bracket
Adjustment Leg
Adjustment Foot
Seat

5

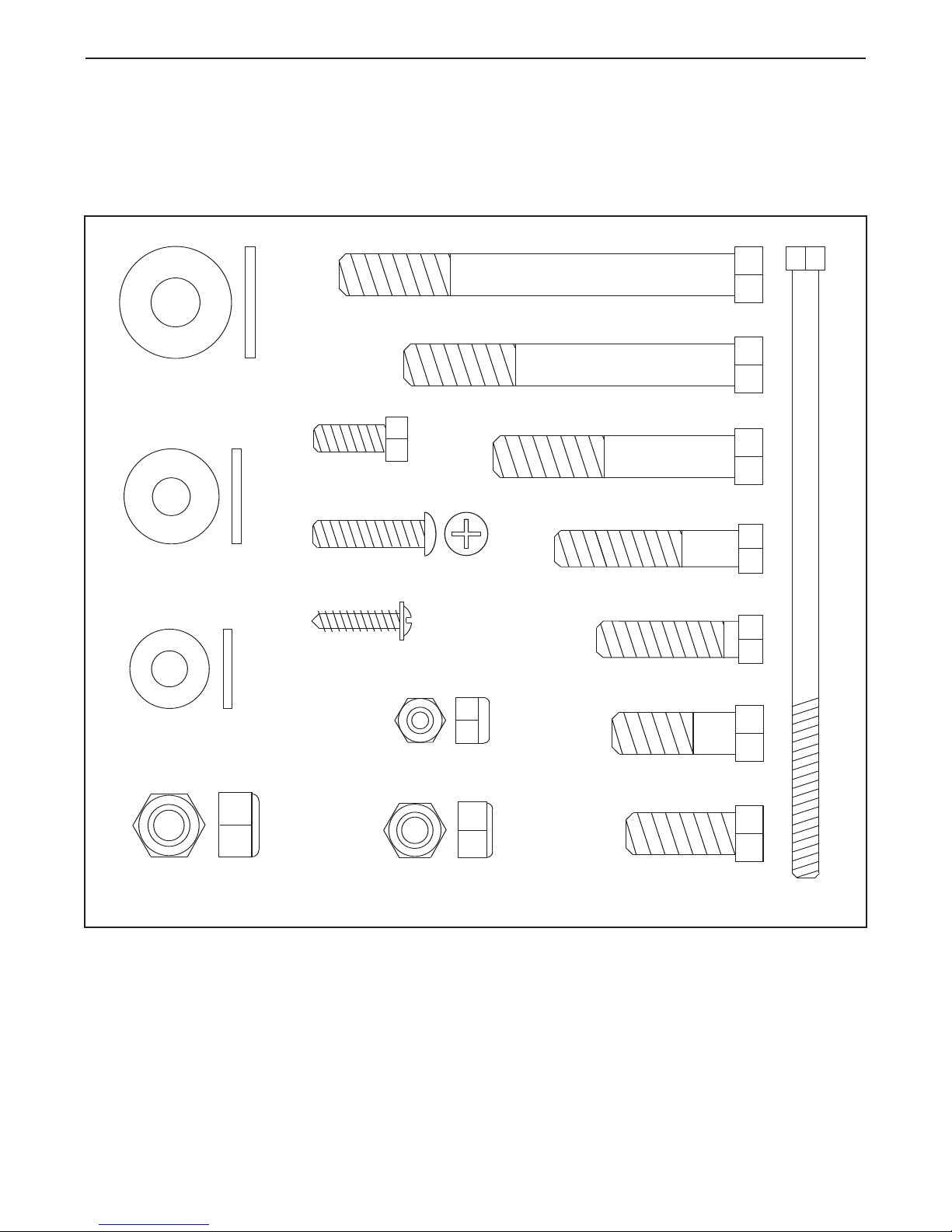

PART IDENTIFICATION CHART
M10 Nylon Locknut (32, 33)
M6 x 25mm Screw (48)
M6 Nylon Locknut (47)
M8 Washer (39)
M8 Large Washer (41)
M6 x 16mm Screw (37)
M8 Nylon Locknut (12)
M4 x 20mm Self-tapping Screw (46)
M6 x 138mm Bolt (31)
M10 x 90mm Bolt (44)
M10 x 75mm Bolt (43)
M10 x 55mm Bolt (42)
M8 x 42mm Bolt (38)
M8 x 32mm Bolt (40)
M10 x 30mm Bolt (45)
M10 x 25mm Screw (36)
M10 Washer (34, 35)
This chart is provided to help you identify the small parts used in assembly. The number in parenthesis below
each part refers to the key number of the part, from the PART LIST near the end of this manual. Note: Some
parts may have been preassembled for shipping purposes. If you cannot find a part in the parts bags,
check to see if it has been preassembled.

Before beginning assembly, carefully read the
following information and instructions:
•Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
•Tighten all parts as you assemble them, unless
instructed to do otherwise.
•As you assemble the weight training system,
make sure that all parts are oriented as shown in
the drawings.
•Assembly requires two persons.
•For help identifying small parts, use the PART
IDENTIFICATION CHART on page 5.
The following tools (not included) are required for
assembly:
•two adjustable wrenches
•one standard screwdriver
•one Phillips screwdriver
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches. If further
assistance is needed, please see the front cover
of this manual.
6

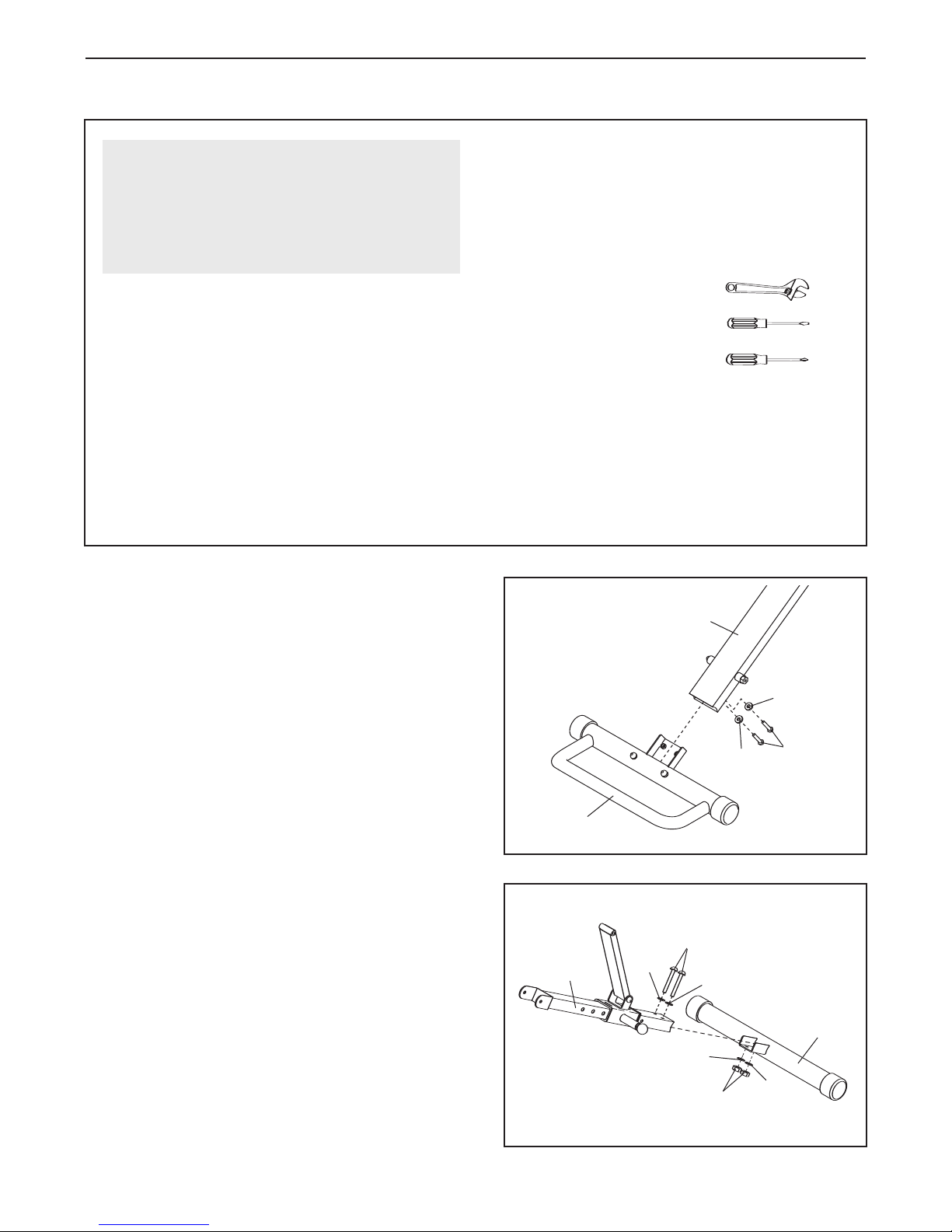

1. Orient the Stabilizer (4) and the Rail (3) as shown.
Then, attach the Stabilizer to the Rail with two M10 x
25mm Screws (36) and two M10 Washers (35).
2. Attach the Adjustment Foot (7) to the Adjustment
Leg (8) with two M10 x 55mm Bolts (42), four M10
Washers (35), and two M10 Nylon Locknuts (32).
1
ASSEMBLY
7
35
35
2
36
35
35
4
42
8
32
35
35
3
Make Assembly Easier
This manual is designed to ensure that the
weight training system can be assembled suc-
cessfully by almost anyone. By setting aside
plenty of time, assembly will go smoothly.

7
3. Note: The following steps require two persons.
Attach the Adjustment Leg (8) to the Rail (3) with an
M10 x 90mm Bolt (44) and an M10 Nylon Locknut
(32).
Attach the Support Leg (6) to the Rail (3) with an
M10 x 75mm Bolt (43) and an M10 Nylon Locknut
(32). Do not overtighten the Nylon Locknuts; the
Adjustment Leg (8) and the Support Leg must
pivot easily.
4. Have a second person hold the ends of the Cord
(30) above the Seat (1). See the inset drawing.
Slide the Seat Bracket (2) onto the Rail (3). Make
sure that the Wheels (21) are on top of the Rail
and that the Large Bushings (23) are below the
Rail.
5. Attach the Upper Bar (5) to the Rail (3) with two
M10 Washers (35) and two M10 x 25mm Screws
(36).
4
5
3
1
30
Silkscreen
3
323
23
21
21 2
3
6
8
43
44
32
36
35
35
3
5
CAUTION: Make sure that the
Seat (1) is oriented as shown in the draw-
ing.

8
6. Remove the Large Pulley (15) from one of the
Pulley Housings (16).
Wrap one end of the Cord (30) around the Large
Pulley (15). Reattach the Large Pulley inside the
Pulley Housing (16) with the M10 x 30mm Bolt (45)
and the M10 Nylon Locknut (32). Do not overtight-
en the Bolt; the Pulley must turn easily.
Repeat this step with the other Pulley Housing (16).
Attach a Handle (28) to each end of the Cord (30)
with the two Clips (29).
7. Make sure that all parts are properly tightened before you use the weight training system. The use of
the remaining parts will be explained in ADJUSTMENT on page 9.
6
15
16
16
15
32
32
45
45
30
28
28
29
29

9
ADJUSTING THE INCLINE
The incline of the weight training system can be adjust-
ed to change the resistance level of your workout.
To adjust the incline, lift the Rail (3) until the knob on
the Adjustment Bracket (9) can be pulled from the
adjustment hole in the Adjustment Leg (8). Raise or
lower the Rail to the desired incline and insert the knob
into an adjustment hole in the Adjustment Leg. Note:
Be sure that the knob on the Adjustment Bracket is
fully inserted into an adjustment hole in the
Adjustment Leg.
SECURING THE CORD
When storing the weight training system, or performing
exercises that do not require the use of the Handles
(not shown), secure the Cord (30) by wrapping it
around the Plastic Knobs (49) on the Stabilizer (4).
ADJUSTMENT
The weight training system is designed to use your own body weight as resistance. The steps below explain
how the weight training system can be adjusted and folded for storage. Refer to the accompanying exercise
guide to see the correct form for several exercises.
Inspect and tighten all parts each time you use the weight training system. Replace any worn parts immediately.
The weight training system can be cleaned with a damp cloth and mild, non-abrasive detergent; never use
solvents.
9
Knob
8Adjustment
Holes
3
30
4
49
ATTACHING THE HANDLEBAR
For some exercises, the Handlebar (24) must be
attached to the weight training system. Slide the
Handlebar into the Upper Bar (5) and secure it with the
Knob (27). Turn the Knob clockwise until it is tight.
24 27
5
CAUTION: Remove the Handlebar
(24) when performing an exercise that does not
require it.

10
11 Seat
2 1 Seat Bracket
3 1 Rail
4 1 Stabilizer
5 1 Upper Bar
6 1 Support Leg
7 1 Adjustment Foot
8 1 Adjustment Leg
9 1 Adjustment Bracket
10 2 Adjustment Bushing
11 4 60mm Round Outer Cap
12 10 M8 Nylon Locknut
13 2 Foam Pad
14 2 25mm x 50mm Inner Cap
15 2 Large Pulley
16 2 Pulley Housing
17 2 Small Pulley
18 2 Round End Cap
19 2 Bumper
20 1 Support Leg Isolator
21 4 Wheel
22 4 Small Bushing
23 4 Large Bushing
24 1 Handlebar
25 2 Inner Cap
26 2 Handgrip
27 1 Knob
28 2 Handle
29 2 Clip
30 1 Cord
31 1 M6 x 138mm Bolt
32 7 M10 Nylon Locknut (Black)
33 2 M10 Nylon Locknut (Silver)
34 2 M10 Washer (Silver)
35 8 M10 Washer (Black)
36 4 M10 x 25mm Screw
37 4 M6 x 16mm Screw
38 6 M8 x 42mm Bolt
39 12 M8 Washer
40 4 M8 x 32mm Bolt
41 4 M8 Large Washer
42 2 M10 x 55mm Bolt
43 2 M10 x 75mm Bolt
44 1 M10 x 90mm Bolt
45 2 M10 x 30mm Bolt
46 1 M4 x 20mm Self-tapping Screw
47 1 M6 Nylon Locknut
48 2 M6 x 25mm Screw
49 2 Plastic Knob
* – User’s Manual
* – Workout Chart
Note: Specifications are subject to change without notice. See the back cover for information on ordering
replacement parts. *These parts are not illustrated.
PART LIST—Model No. WEFMBE1477.0 R0707A
Key No. Qty. Description Key No. Qty. Description

11
33
34
34
18
18
13
13
5
16
16
15
15
32
32
45
45
33
35
36
46
20
32 43
43
42
35
10
10
9
8
11
7
35
35
32
6
36
48
11
31
47
19
11
4
19
35
32
32
44
11
3
26
1
41
39
39
12
12
21
22 23
25
12
22
39
49
30
29
28
27
24
26
25
12
17
14
38
39
40 37
21
22 23
37
37
38
40 37 14
2
40
38 21
23
39
41
39
41
39
39
41
40
38
12
21
22
23
39
39
EXPLODED DRAWING—Model No. WEFMBE1477.0 R0707A

Part No. 256999 R0707A Printed in China ©2007 ICON IP, Inc.
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to pro-
vide the following information when contacting us:
•the model number and serial number of the product (see the front cover of the manual)
•the name of the product (see the front cover of the manual)
•the key number and description of the part(s) (see the PART LIST and the EXPLODED DRAWING near the
end of this manual)
