WeiderPro Pro 4500 User manual

CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
Model No. WEEVSY3426.1
Serial No.
Write the serial number in the
space above for reference. USERʼS MANUAL
Serial umber Decal (under seat)
www.iconeurope.com
QUESTIONS?
If you have questions, or if there are
missing parts, please contact us:
UK
Call: 08457 089 009
From Ireland: 053 92 36102
Website: www.iconsupport.eu
E-mail: [email protected]
Write:
ICON ealth & Fitness, Ltd.
c/o I Group PLC
Express Way
Whitwood, West Yorkshire
WF10 5QJ
UK
AUSTRALIA
Call: 1-800-237-173
E-mail:
[email protected]

2

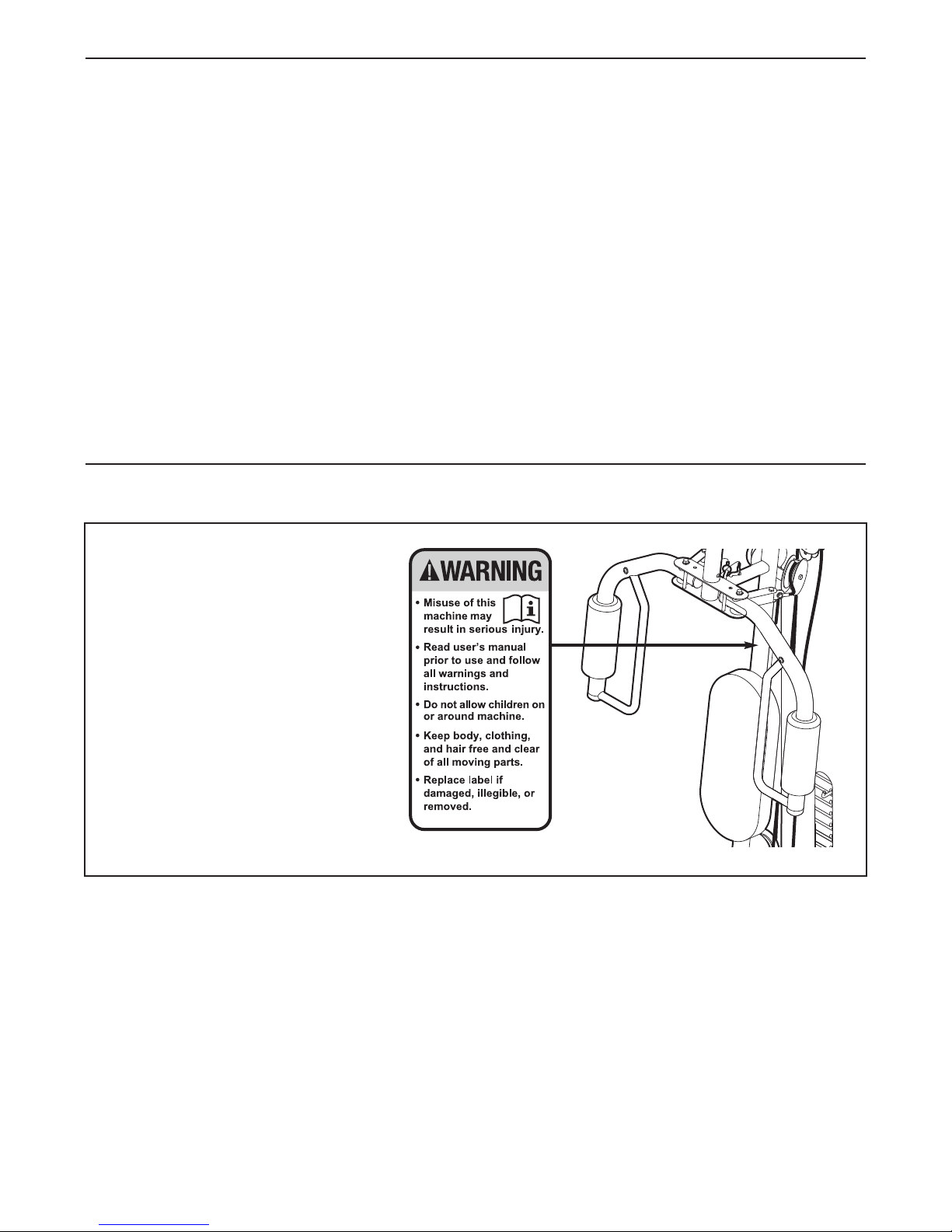

WARNING DECAL PLACEMENT
WEIDER is a registered trademark of ICO IP, Inc.
TABLE OF CONTENTS
This drawing shows the location(s)
of the warning decal(s). If a decal is
missing or illegible, see the front
cover of this manual and request
a free replacement decal. Apply
the decal in the location shown.
ote: The decal(s) may not be
shown at actual size.
WAR I GDECALPLACEME T ..............................................................2
IMPORTA TPRECAUTIO S ................................................................3
BEFOREYOUBEGI ......................................................................5
PARTIDE TIFICATIO CHART ..............................................................6
ASSEMBLY ...............................................................................7
ADJUSTME T ...........................................................................23
WEIGHTRESISTA CECHART..............................................................25
CABLEDIAGRAMS .......................................................................26
MAI TE A CE ..........................................................................27
EXERCISEGUIDELI ES ...................................................................28
PARTLIST ..............................................................................29
EXPLODEDDRAWI G ....................................................................30
ORDERI GREPLACEME TPARTS ..................................................BackCover

3
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your weight system before using your weight sys-
tem. ICON assumes no responsibility for personal injury or property damage sustained by or
through the use of this product.
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
2. Read all instructions in this manual and all
warnings on the weight system before using
the weight system. Use the weight system
only as described in this manual.
3. It is the responsibility of the owner to ensure
that all users of the weight system are ade-
quately informed of all precautions.
4. The weight system is intended for home use
only. Do not use the weight system in any
commercial, rental, or institutional setting.
5. Keep the weight system indoors, away from
moisture and dust. Do not put the weight
system in a garage or covered patio, or near
water.
6. Place the weight system on a level surface,
with a mat beneath it to protect the floor or
carpet. Make sure that there is enough clear-
ance around the weight system to mount,
dismount, and use the weight system.
7. This weight system has an open weight
stack; the weight stack must not be accessi-
ble from any point outside the userʼs field of
view. To prevent access to the weight stack,
place the weight system in a corner or bay
of a room, as shown in the drawing below.
There must be no more than 3 ft. 4 in. (1 m)
of clearance between the weight system and
the adjacent walls.
8. Keep children under age 12 and pets away
from the weight system at all times.
9. Make sure that all parts are properly tight-
ened each time the weight system is used.
Replace any worn parts immediately.
10. Always wear athletic shoes for foot protec-
tion while exercising.
11. Keep hands and feet away from moving
parts.
12. The weight system is designed to support a
maximum user weight of 300 lbs. (136 kg).
Wall

4
13. Always secure the weight stack with the lock
pin and lock after exercising to prevent
unauthorized use of the weight system (see
LOCKING T E WEIG T STACK on page 24).
14. Make sure that the cables remain on the pul-
leys at all times. If the cables bind as you
are exercising, stop immediately and make
sure that the cables are on the pulleys.
15. Always stand on the foot plate when per-
forming an exercise that could cause the
weight system to tip.
16. Never release the arms, leg lever, lat bar, or
ankle strap while weights are raised. The
weights will fall with great force.
17. Always disconnect the lat bar from the
weight system when performing an exercise
that does not require the lat bar.
18. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.

5
Shroud
High Pulley Station
Low Pulley Station
Right Side
Left Side
Note: The terms “right side” and “left side” are determined relative to a person sitting on the
seat; they do not correspond to right and left on the drawings in this manual. *Use the anchor
holes to secure the weight system in a fixed position, if desired.
Backrest
Weights
Anchor Hole*
Leg Lever
Foot Plate
Seat
Arm
Arm Pin
Curl Pad
BEFORE YOU BEGIN
Thank you for selecting the versatile WEIDER®PRO
4500 weight system. The 4500 weight system offers a
selection of weight stations designed to develop every
major muscle group of the body.
For your benefit, read this manual carefully before
using your weight system. If you have questions
after reading this manual, please see the front cover
of this manual. To help us assist you, note the product
model number and serial number before contacting
us. The model number and the location of the serial
number decal are shown on the front cover of this
manual.

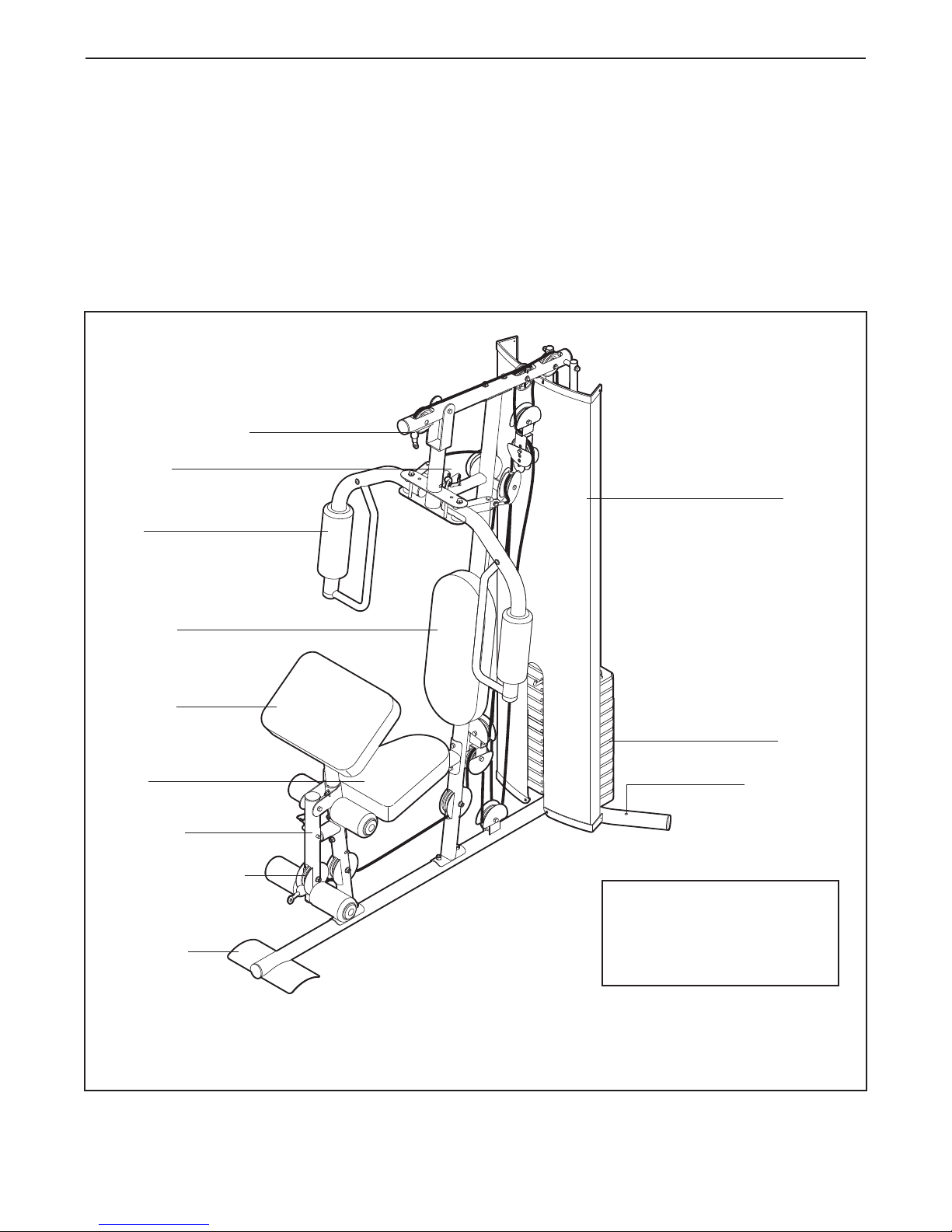

Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.
ASSEMBLED DIME SIO S:
Height: 6 ft. 4 in. (193 cm)
Width: 3 ft. 1 in. (94 cm)
Depth: 4 ft. (122 cm)

6
M8 Washer (59)
M8 x 75mm Carriage Bolt (78)
M4 x 10mm
Screw (84)
M10 Washer (57)
M10 x 70mm Bolt Set (73)
Large Washer (87)
M12 Nut (86)
M8 Locknut (58) M10 Locknut (56)
M10 x 45mm
Bolt (81)
M10 x 55mm Bolt (66)
M10 x 65mm Bolt (75)
M10 x 75mm Bolt (85)
M10 x 80mm Bolt (71)
M8 x 80mm Bolt (68)
M6 x 80mm Screw (70)
M10 x 80mm 10.9G Bolt (79)
M10 x 90mm Bolt (67)
M10 x 160mm Bolt (74)
M6 x 16mm
Screw (62) M4 x 19mm
Screw (69)
M8 x 19mm
Shoulder
Bolt (65)
M10 x 40mm
Bolt (77)
M6 Washer
(82)
M10 Large
Washer (80)
PART IDENTIFICATION C ART
Refer to the drawings below to identify small parts used in assembly. The number in parentheses by each draw-
ing is the key number of the part, from the PART LIST near the end of this manual. Note: If a part is not in the
hardware kit, check to see if it has been preattached.

7
ASSEMBLY
The Four Stages of the Assembly Process
Frame Assembly—You will begin by assem-
bling the base and the uprights that form the
skeleton of the weight system.
Arm Assembly—During this stage, you will
assemble the arms and the leg lever.
Cable Assembly—During this stage, you will
attach the cables and pulleys that connect the
arms to the weights.
Seat Assembly—During the final stage, you will
assemble the seat and the backrest.
To make assembly easier, carefully read the
following information and instructions:
•Assembly requires two persons.
• Because of its weight and size, the weight system
should be assembled in the location where it will
be used. Make sure that there is enough clear-
ance to walk around the weight system while you
assemble it.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
• For help identifying small parts, use the PART
IDE TIFICATIO CHART on page 6.

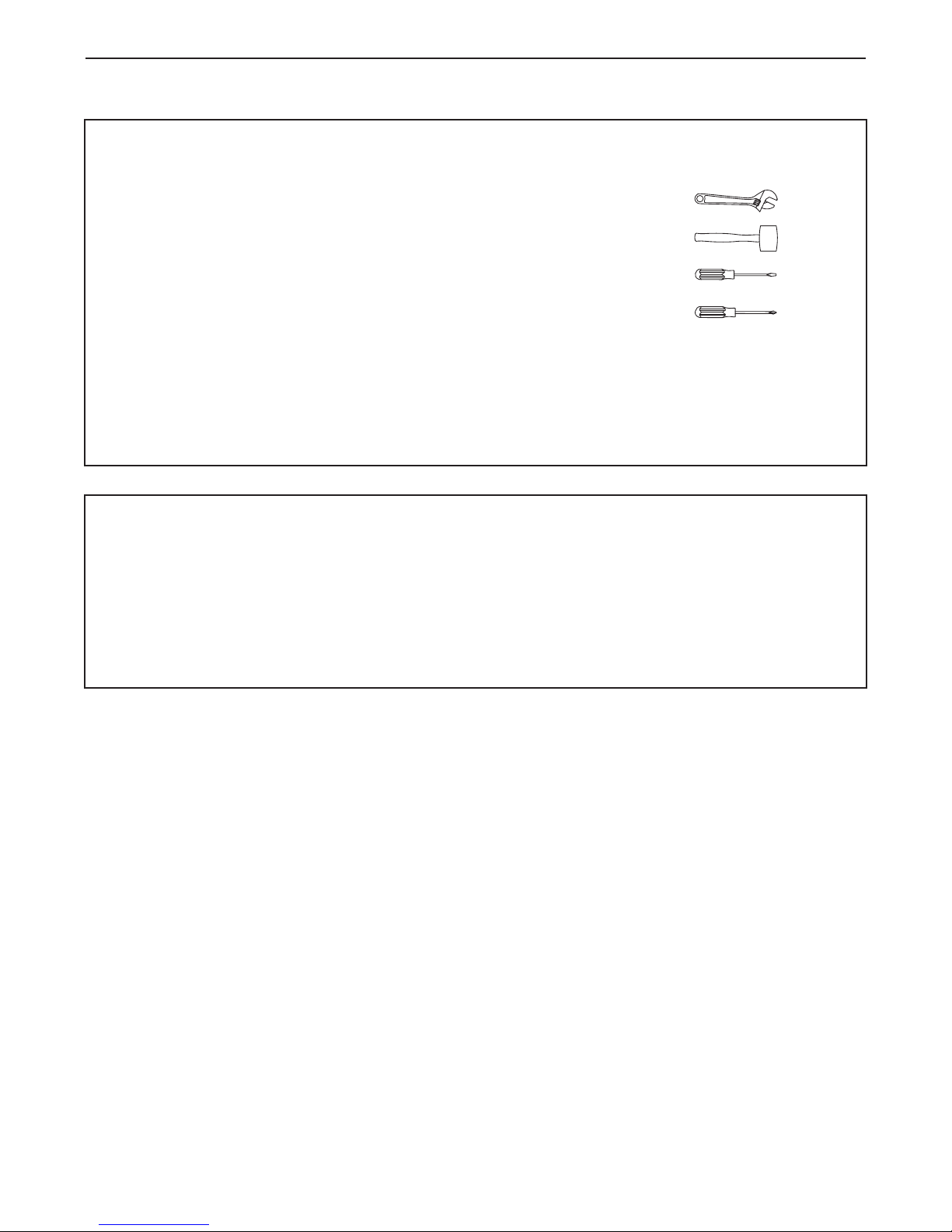

• The following tools (not included) may be required
for assembly:
two adjustable wrenches
one rubber mallet
one standard screwdriver
one Phillips screwdriver
Assembly may be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.

8
2. Orient the two Weight Guides (21) so that the
indicated holes are closer to the lower ends.
Attach the two Weight Guides and the Base (1)
to the Stabilizer (2) with two M10 x 80mm
10.9G Bolts (79), two M10 Washers (57), and
two M10 Locknuts (56). Tighten the Locknuts.
Attach the Upright (3) to the Base (1) with the
two indicated M8 x 75mm Carriage Bolts (78)
and two M8 Locknuts (58). Do not tighten the
Locknuts yet.

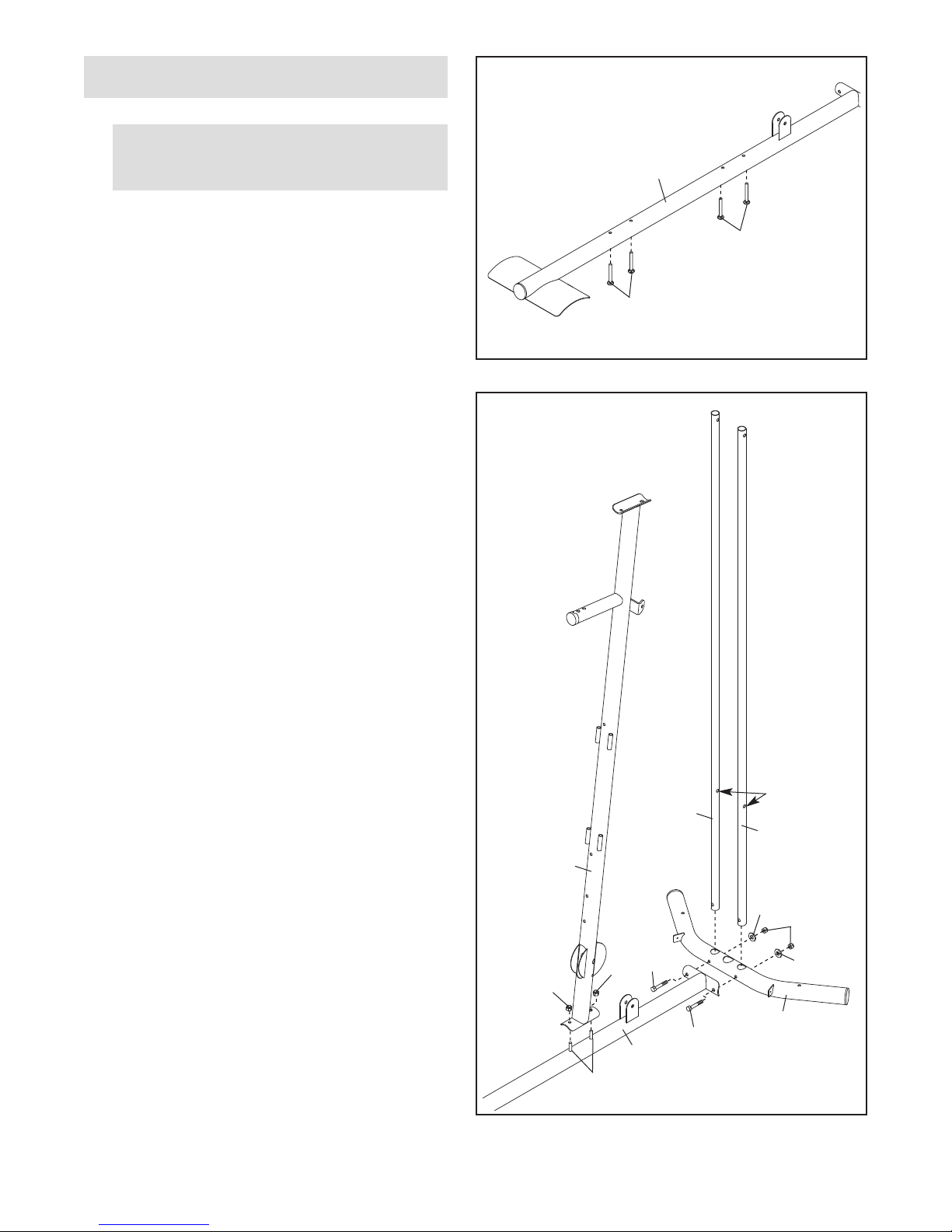

1.
Insert four M8 x 75mm Carriage Bolts (78) up
through the Base (1). Note: It may be helpful
to place tape over the bolt heads to hold
them in place.
Frame Assembly 1
1
78
78
2
78
56
58
3
1
58 79
79
2
57
57
21
Holes
21
IMPORTANT: To make assembly easier,
read the assembly tips on page 7.

9

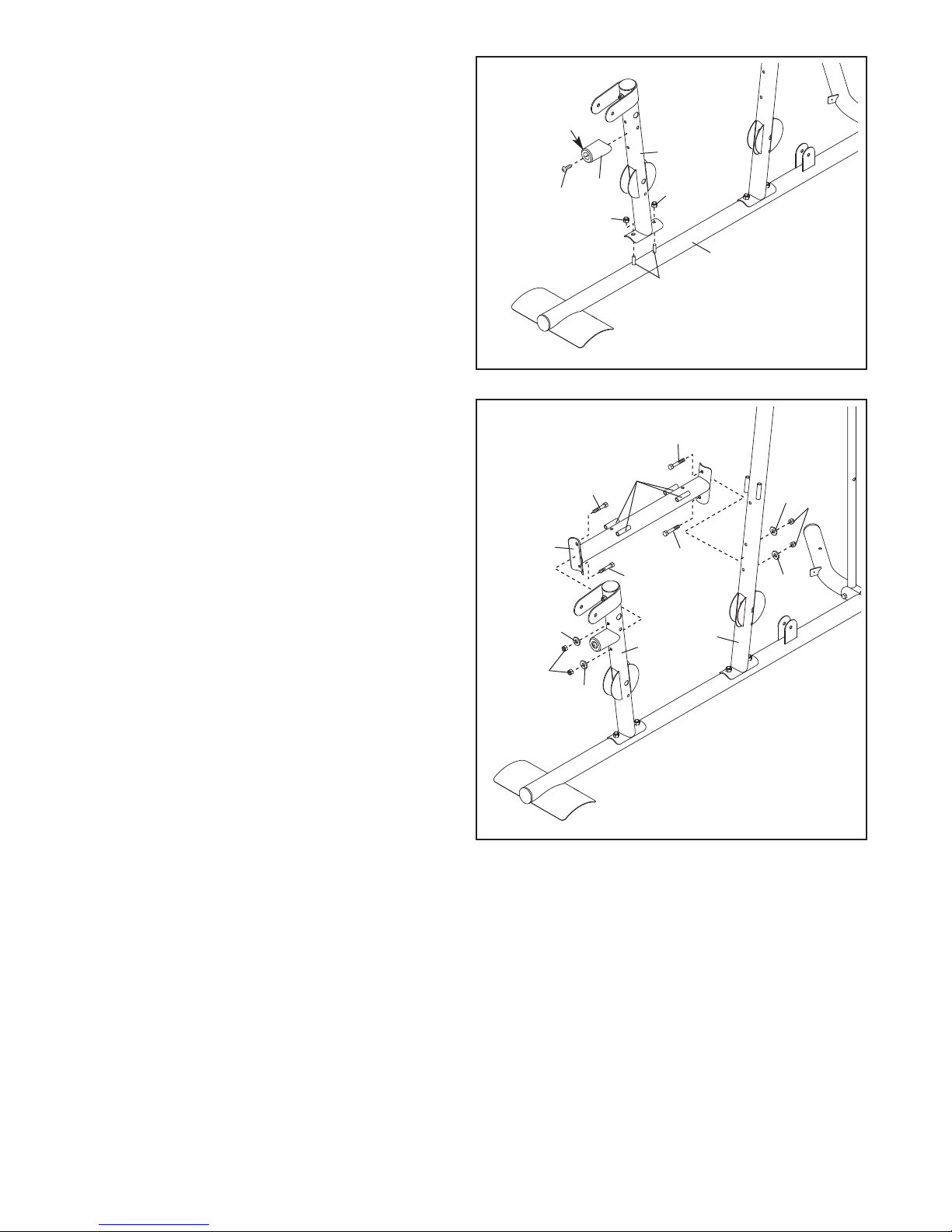

3. Attach the Front Leg (7) to the Base (1) with the
two indicated M8 x 75mm Carriage Bolts (78)
and two M8 Locknuts (58). Do not tighten the
Locknuts yet.
Attach the Leg Bumper (60) to the Front Leg (7)
with an M4 x 19mm Screw (69). Make sure
that the end of the Leg Bumper is pointing
upward.
4. Hold the Seat Frame (6) between the Upright
(3) and the Front Leg (7). Orient the Seat
Frame so that the welded rods are closer to the
Upright.
Attach the Seat Frame (6) to the Upright (3)
with two M8 x 80mm Bolts (68), two M8
Washers (59), and two M8 Locknuts (58). Do
not tighten the Locknuts yet.
Attach the Seat Frame (6) to the Front Leg
(7) in the same manner.
3
4
78
58
58
69
Up
60
7
1
6
68
Welded
Rods
68
68
59
59
59
59
3
7
58
58
68

10

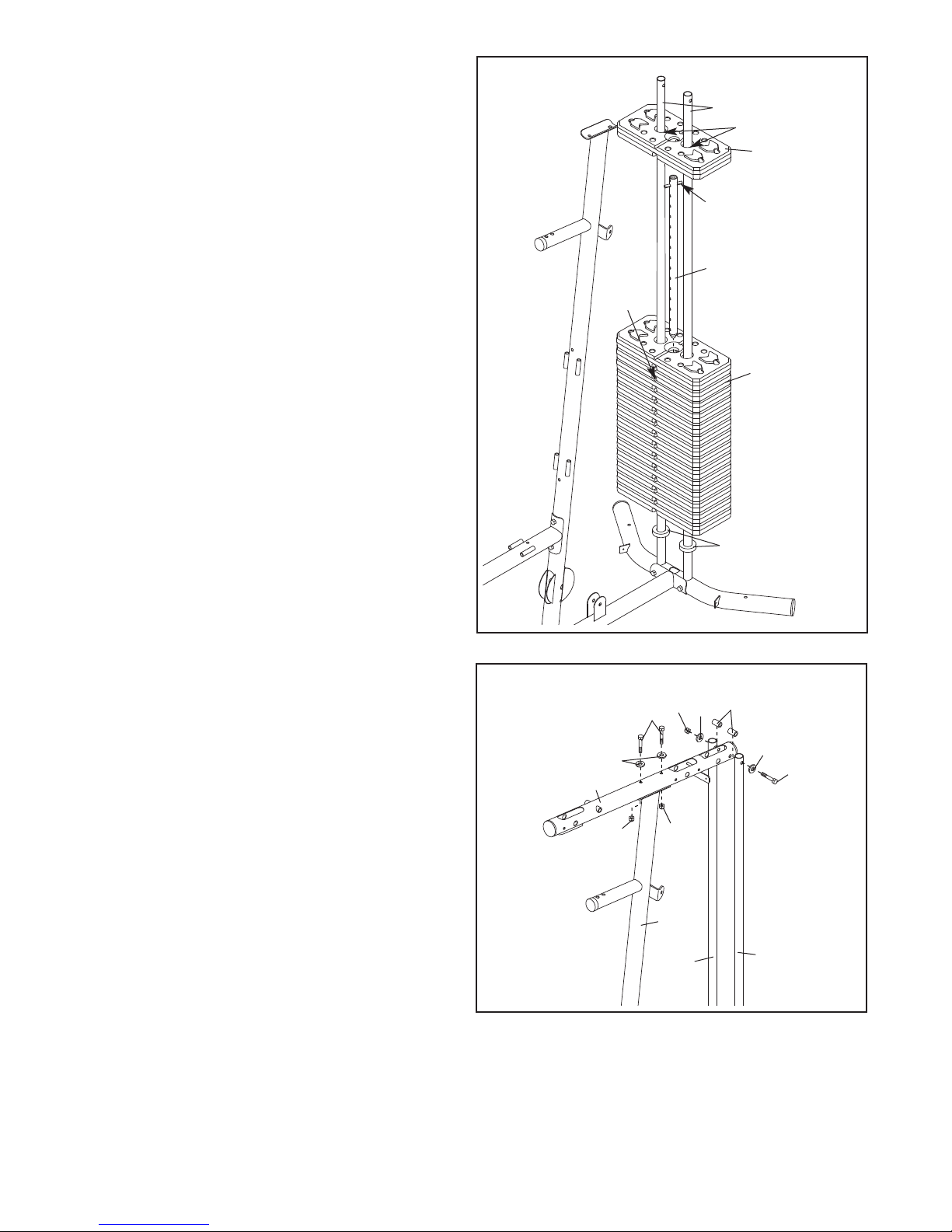

5. Slide the two Weight Bumpers (27) onto the
Weight Guides (21). Orient fourteen Weights
(22) so the pin holes are on the bottom, and
slide the Weights onto the Weight Guides.
Insert the Weight Tube (24) into the fourteen
Weights (22). Make sure that the pin on the
Weight Tube is oriented as shown.
Using the included grease packet, lubricate the
indicated holes in a Weight (22). Slide the
Weight onto the Weight Guides (21).
5
22
21
22
27
24
Pin
Pin
Hole
Grease
6. Attach the Top Frame (4) to the Upright (3) with
two M8 x 80mm Bolts (68), two M8 Washers
(59), and two M8 Locknuts (58). Do not tighten
the Locknuts yet.
Attach the Top Frame (4) between the Weight
Guides (21) with an M10 x 160mm Bolt (74),
two M10 Washers (57), two 13mm Spacers
(76), and an M10 Locknut (56). Do not tighten
the Locknuts yet.
6
4
3
56
58
74
21
21
59
57 76
57
68
58

11

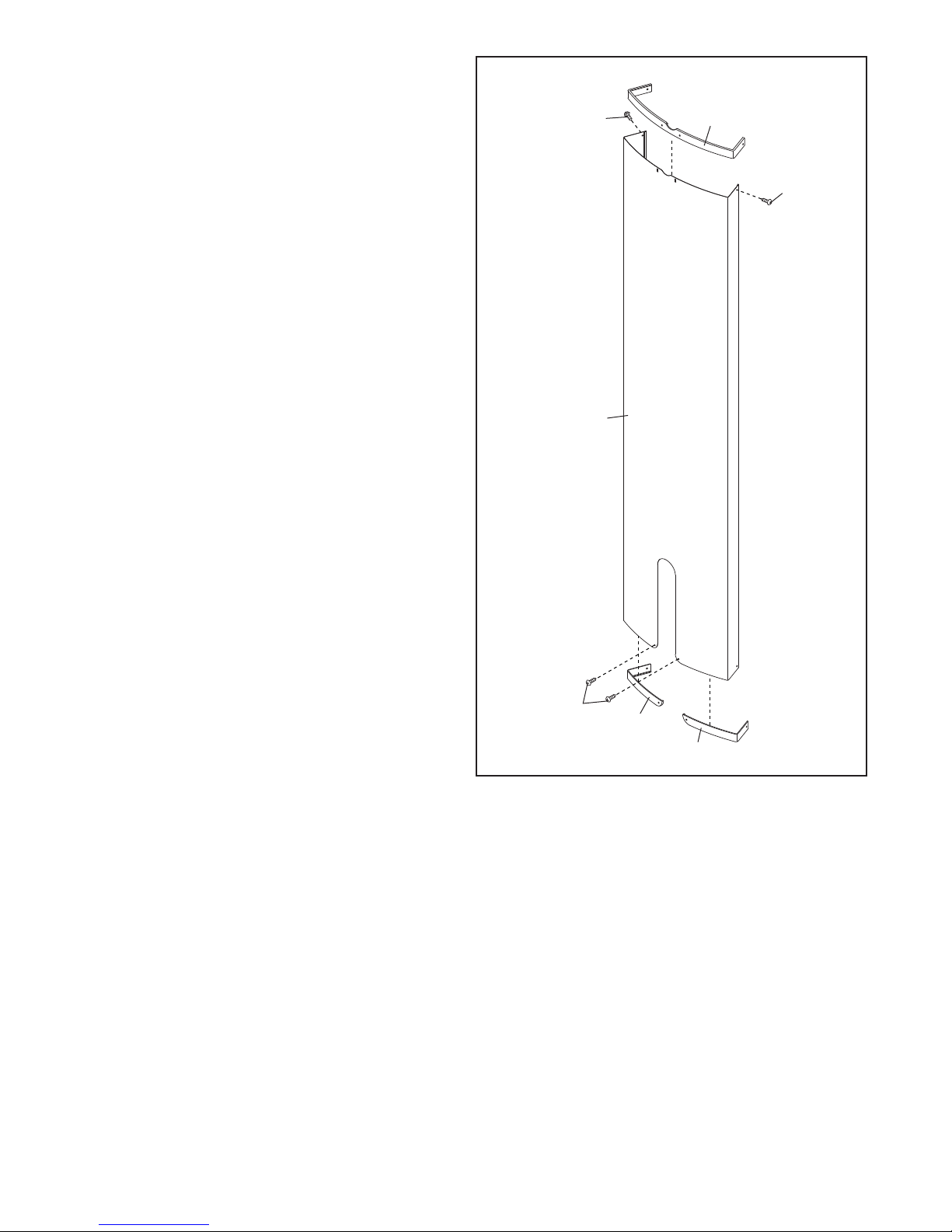

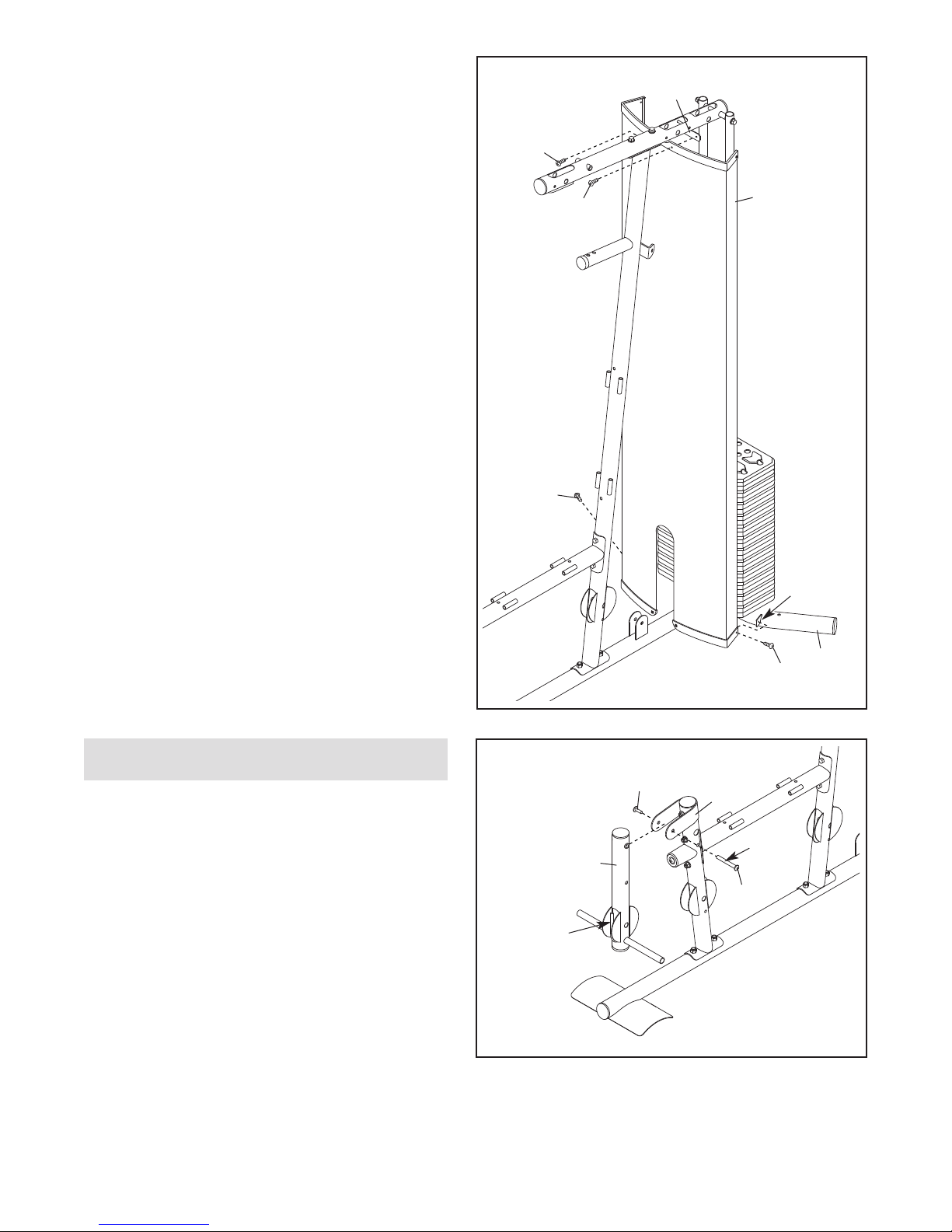

7. Attach the Left Cap (19) and the Right Cap (20)
to the bottom of the Shroud (17) with two M4 x
10mm Screws (84).
Attach the Top Cap (18) to the top of the
Shroud (17) with two M4 x 10mm Screws (84).
7
18
84
84
17
20
19
84

12
8. Attach the Shroud (17) to the Top Frame (4)
with two M4 x 19mm Screws (69).
Attach the Shroud (17) to the brackets on the
Stabilizer (2) with two M4 x 19mm Screws (69).
Make sure that the brackets are inside the
Shroud.
See steps 2–6. Tighten the Locknuts (56, 58)
used in these steps.
8
69
6917
4
69
69
Bracket
2
9. Apply grease to the M10 x 70mm Bolt Set (73).
Orient the Leg Lever (8) so that the welded sup-
port is on the side shown. Attach the Leg Lever
to the Front Leg (7) with the Bolt Set. Do not
overtighten the Bolt Set; the Leg Lever must
pivot freely.
9
73
73
Grease
Welded
Support
7
8
Arm Assembly

13
10. Apply grease to an M10 x 90mm Bolt (67).
Attach the Pivot Frame (5) to the Top Frame (4)
with the Button Bolt and an M10 Locknut (56).
Do not overtighten the Locknut; the Pivot
Frame must pivot freely.
Attach the two Arm Pins (40) to the Pivot Frame
(5) with two M4 x 19mm Screws (69). Insert the
Arm Pins into the two holes in the Upright (3).
10
Grease
Holes
5
56
67
69
69
3
40
40
4
11. Apply grease to an M10 x 55mm Bolt (66).
Attach a Cable Pivot (39) to the Right Arm (9)
with the Button Bolt and an M10 Locknut (56).
Do not overtighten the Locknut; the Cable
Pivot must pivot freely.
Wet the inside of a Large Foam Pad (42) with
soapy water. Slide the Large Foam Pad onto
the Right Arm (9).
Attach the upper end of a Handle (11) to the
Right Arm (9) with an M10 x 75mm Bolt (85),
two M10 Washers (57), two 16mm Spacers
(52), and an M10 Locknut (56). Do not tighten
the Button Bolt yet.
Press a Handle Cap (31) into the Right Arm (9).
Attach the lower end of the Handle (11) to the
Right Arm with an M10 x 40mm Bolt (77) and
an M10 Large Washer (80). Tighten the M10 x
75mm Bolt (85).
Assemble the Left Arm (10) in the same
manner.
11
11
10
39
31 77
80
66
52
52
57
85 56
56
57
9
42
Grease

14
12. Apply grease to an M10 x 90mm Bolt (67) and
two Arm Bushings (44). Attach the Right Arm (9)
to the Pivot Frame (5) with the Button Bolt, the
two Arm Bushings, and an M10 Locknut (56).
Do not overtighten the Locknut; the Right
Arm must pivot freely.
Attach the Left Arm (10) to the Pivot Frame
(5) in the same manner.
13. Refer to the CABLE DIAGRAMS on page 26
as you identify and assemble the cables.
Identify the Arm Cable (54). Apply grease to
an M8 x 19mm Shoulder Bolt (65). Attach the
Arm Cable to the indicated Cable Pivot (39) with
the Shoulder Bolt and an M8 Locknut (58).
Make sure that the Cable can pivot freely
around the Shoulder Bolt.
12
10
944
56
5
67
58
65
54
39
Grease
Grease
Grease
13
Cable Assembly

15

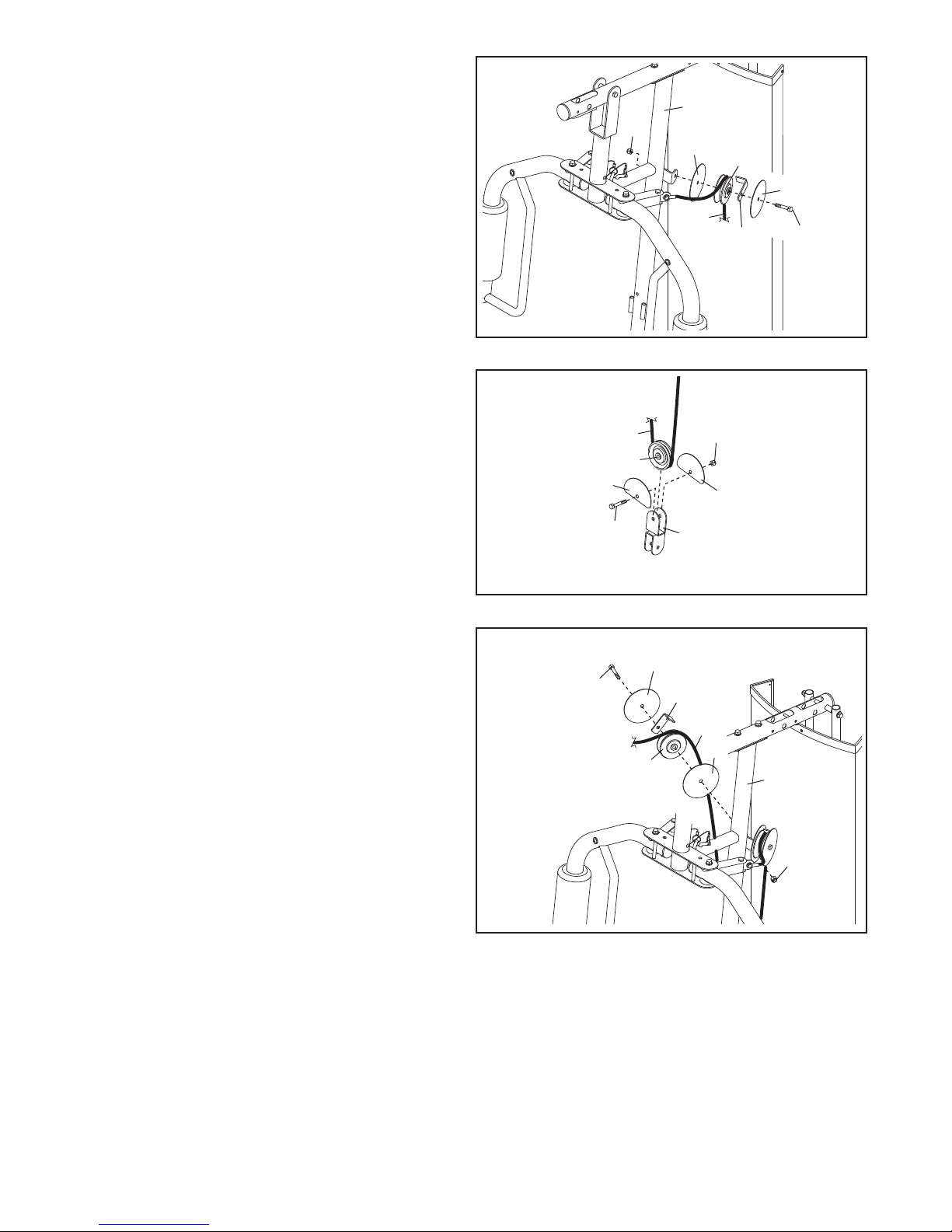

14. Route the Arm Cable (54) over a V-pulley (46).
Attach the V-pulley, a Large Cable Trap (50),
and two Guards (41) to the Upright (3) with an
M10 x 65mm Bolt (75) and an M10 Locknut
(56). Make sure that the Cable Trap is ori-
ented to hold the Cable in the groove of the
V-pulley.
16. Route the Arm Cable (54) over a V-pulley (46).
Attach the V-pulley, a Large Cable Trap (50),
and two Guards (41) to the Upright (3) with an
M10 x 65mm Bolt (75) and an M10 Locknut
(56). Make sure that the Cable Trap is ori-
ented to hold the Cable in the groove of the
V-pulley.
15. Route the Arm Cable (54) under a 90mm Pulley
(48). Attach the Pulley and two Half Guards (43)
to the Double U-bracket (63) with an M10 x
45mm Bolt (81) and an M10 Locknut (56). Make
sure that the alf Guards are on the outside
of the Double U-bracket as shown.
56
3
46
50
41
75
54
41
14
48
43
43
63
81
56
54
15
16
56
3
54
46
50
41
75
41

16
17. Apply grease to an M8 x 19mm Shoulder Bolt
(65). Attach the Arm Cable (54) to the indicated
Cable Pivot (39) with the Shoulder Bolt and an
M8 Locknut (58). Make sure that the Cable
can pivot freely around the Shoulder Bolt.
17
58
65
54 39
Grease
18. Identify the igh Cable (55). Route the High
Cable up through the Top Frame (4) and over a
90mm Pulley (48). Attach the Pulley inside of
the Top Frame with an M10 x 80mm Bolt (71),
two M10 Washers (57), two 19mm Spacers
(33), and an M10 Locknut (56).
19. Route the High Cable (55) over a 90mm Thin
Pulley (47) and down through the Top Frame
(4). Attach the Thin Pulley inside of the Top
Frame with an M10 x 80mm Bolt (71), an M10
Washer (57), and a 19mm Spacer (33). Make
sure that the Thin Pulley does not fall out of
the Top Frame while you complete steps 20
and 21.
18
19
56
4
55
33 33
57
57
48
71
4
55
33 57
47
71

17
20. Wrap the High Cable (55) under a 90mm Pulley
(48). Attach the Pulley and two Half Guards (43)
at the upper hole in the Adjustable U-bracket
(45) with an M10 x 45mm Bolt (81) and an M10
Locknut (56). Make sure that the alf Guards
are on the outside of the Adjustable U-
bracket.
21. Route the High Cable (55) up through the Top
Frame (4) and over a 90mm Thin Pulley (47).
Attach the Thin Pulley inside the Top Frame
with the M10 x 80mm Bolt (71) used in step 19,
a 19mm Spacer (33), an M10 Washer (57), and
an M10 Locknut (56).
20
21
81
56 48
55
43
43
45
55
47
71
4
33
57
56
22. Route the High Cable (55) over a 90mm Pulley
(48) and down through the Top Frame (4).
Attach the Pulley inside the Top Frame with an
M10 x 80mm Bolt (71), two M10 Washers (57),
two 19mm Spacers (33), and an M10 Locknut
(56).
22
71
55
33
33
48
57
457
56

18

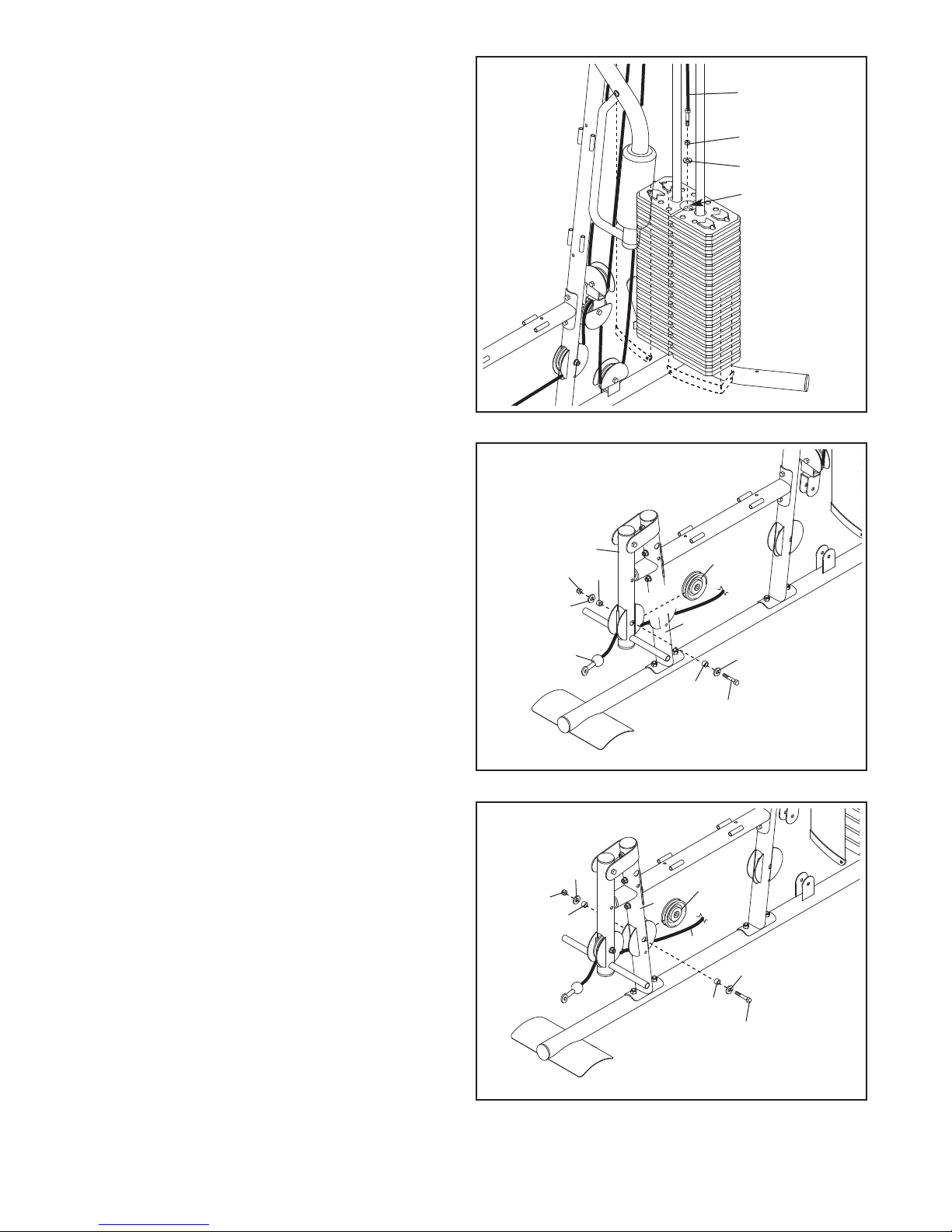

24. Identify the Low Cable (53). Route the Low
Cable through the Leg Lever (8) and the Front
Leg (7).
Attach a 90mm Pulley (48) inside the Leg Lever
(8), over the Low Cable (53), with an M10 x
75mm Bolt (85), two M10 Washers (57), two
16mm Spacers (52), and an M10 Locknut (56).
23. Thread an M12 ut (86) all the way onto the
High Cable (55). Place a Large Washer (87) on
top of the Weight Tube (24).
Tighten the High Cable (55) into the Weight
Tube (24) until all the slack is removed from the
cables. Tighten the M12 ut (86) against the
Large Washer (87).
23
24
55
86
87
24
8
7
53
52
52
57
57
48
85
56
25. Attach a 90mm Pulley (48) inside the Front Leg
(7), over the Low Cable (53), with an M10 x
80mm Bolt (71), two M10 Washers (57), two
19mm Spacers (33), and an M10 Locknut (56).
25
56 7
53
33
33
57
57
48
71

19
26. Attach a 90mm Pulley (48) inside the Upright
(3), over the Low Cable (53), with an M10 x
80mm Bolt (71), two M10 Washers (57), two
19mm Spacers (33), and an M10 Locknut (56).
28. Route the Low Cable (53) under a 90mm Pulley
(48). Insert an M10 x 55mm Bolt (66) through
two Half Guards (43), the Base (1), and the
Pulley. Make sure that the alf Guards are on
the outside of the bracket as shown.
27. Route the Low Cable (53) over a 90mm Pulley
(48). Attach the Pulley and two Half Guards (43)
to the Double U-bracket (63) with an M10 x
45mm Bolt (81) and an M10 Locknut (56). Make
sure that the alf Guards are on the outside
of the Double U-bracket as shown.
26
27
28
56
3
53
33
33
57
57
48
71
56
53
48
43
43 63
81
53
48
43
1
43
66

20

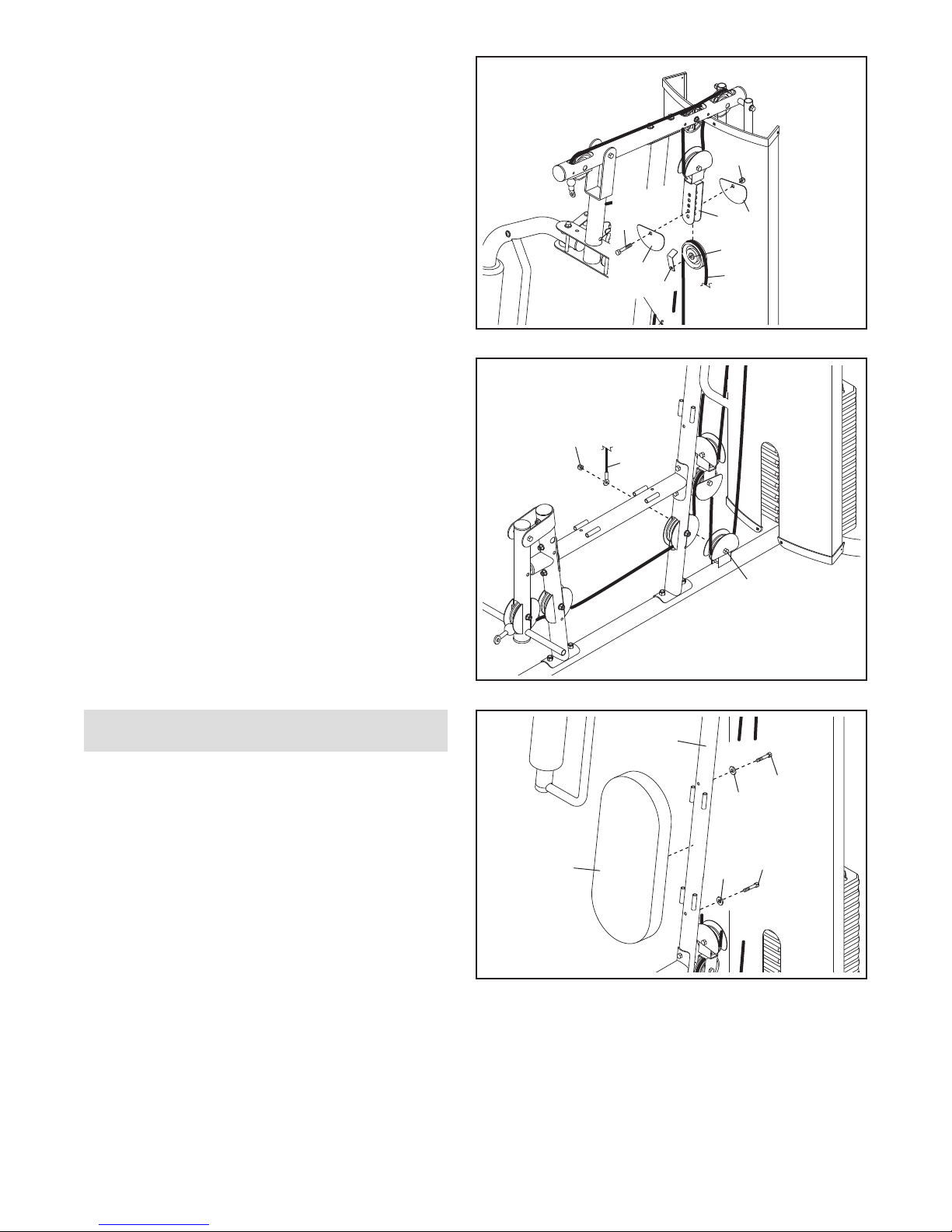

31. Attach the Backrest (16) to the Upright (3) with
two M6 x 80mm Screws (70) and two M6
Washers (82).
30. Attach the Low Cable (53) to the M10 x 55mm
Bolt (66) used in step 28 with an M10 Locknut
(56).
30
31
16
70
70
82
82
3
Seat Assembly
29. Route the Low Cable (53) over a 90mm Pulley
(48). Attach the Pulley, a Cable Trap (51), and
two Half Guards (43) to the Adjustable U-
bracket (45) at the second hole from the bottom
with an M10 x 55mm Bolt (66) and an M10
Locknut (56).
29
56
43
43
48
45
66
53
56
53
66
51
