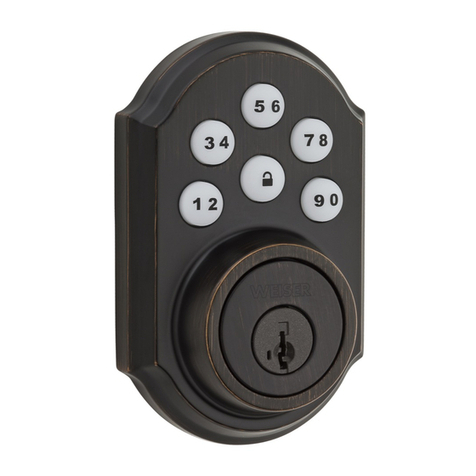

Weiser Smartcode 5 User manual

NP
actual
size
A
P (2x)
C
1 / 4
64465001
Rev 01
GED1450
Installation and User Guide
If drilling a new door, use the supplied template and the complete
door drilling instructions available at www.weiserlock.com/doorprep.
backset
Measure to conirm that the hole in
the door is 21/8" (54 mm).
*If you are installing this lever below
an existing lock or you plan to install a
lock above this lever, make sure that the
distance between holes is at least 61/2"
(165 mm).
Measure to conirm that the backset is
either 23/8" or 23/4" (60 or 70 mm).
23/8" or 23/4"
60 or 70 mm
See
note
below*
13/8" – 13/4"
35 – 44 mm
Measure to conirm that the hole in
the door edge is 1" (25 mm).
Measure to conirm that the door
is between 13/8" and 13/4" (35 mm
and 44 mm) thick.
A
A C
B
D
E
B C D
Are the latch holes centered in the door hole?
Is the door edge chiseled?
Install strike on the door frame.
Hold the latch in front of the door hole, with the latch
face lush against the door edge.
Adjust the latch face (if needed).
lush
1"
25 mm
YES NO
No adjustment is required.
Proceed to next step.
Move the pin to
extend the latch.
door frame
ENGLISH
21/8"
54 mm
For doors without chiseled edge
For square corners
Proceed to step 2D.
1. Remove square corner faceplate.
1. Remove plates.
Ensure A2
snaps into
place.
For round corners
2. Install round corner faceplate.
2. Install drive-in collar.
YES NO
slant of latch
bolt faces
door frame
slant of latch
bolt faces
door frame
wood block
Required tools
Ruler4 AA Batteries
Hammer Wood block
Phillips head screwdriver
Additional Tools (depending on application)
Weiser
1-800-501-9471
www.weiserlock.com
26298
27526 64156
22044
Levers
P
Z
UV
T
Parts in the box
Latch
Strike
Keys Spindle
Exterior
Assembly
Mounting
Plate
Fasteners
SmartKey
Tool
Interior
Assembly
C
M
K
L
F
G
F2E
H
Y2
Y1
N
AA2A3
A
A
A
A2 N (2x)
A3
or
or
chiseled not
chiseled
1Prepare the door and check dimensions
2Install the latch and strike

Install interior assembly onto mounting plate.Remove battery cover and battery pack from interior assembly.
A B
a
c
ba
bcd
Ensure correct polarity.
For best results, use
new, non-rechargeable
Alkaline batteries only.
actual
size
T
actual
size
U
2 / 4
Install exterior keypad.
keep parallel to
edge of door
tighten
screws
evenly
Remove battery cover. Connect cable.
Install
battery
pack.
Push interior assembly onto
mounting plate.
Secure with
screws.
Ensure tight cable connection.
Push excess
cable back into
the door as you
install L.
Turnbutton
may need to
be turned to
install L.
Install 4 AA batteries into battery pack.
Remove
battery
pack.
rounded edge
faces latch
latch
Secure interior lever.
Route cable through mounting plate.
Install exterior lever.
Secure mounting plate with
supplied screws.
Secure exterior lever.
Install spindle.
Install interior lever.
The small bolt of the latch should not enter the strike
hole. If it enters the strike hole, reposition strike.
A
A
B
B
C
C
D
D
cable goes
over latch
Do not install
battery pack
into interior
assembly yet.
4x
Lever handle
faces away
from the latch.
Tighten pre-
installed set
screw.
If latch is loose in the strike, adjust the strike tab so it
grips the latch bolt better when the door is closed.
tab
Tighten pre-
installed set
screw.
Lever handle
faces away
from the latch.
Close door, test latch operation and make adjustments as needed:
small bolt in
strike hole
small bolt NOT
in strike hole
F
M
K
K
Y1 or Y2 Y1 or Y2
Z Z
L
L
G
F2
T (2x)
U (2x)
3Install the exterior keypad, mounting plate, and spindle
4
5
6
Install interior assembly
Install levers
Test latch operation

1x 3x 2x
green red
Conirm that the code(s) added in previous step can unlock the door.
One green lash with one beep* Three red lashes with three beeps* Two beeps*
or or
Locking the Door Unlocking the Door
Each user code must be
a unique code between
4 and 8 digits.
Example: If
programming
the third code,
press the button
three times.
Programming was successful. Programming was unsuccessful.
Make sure the user code is not a duplicate and that it is
between 4 and 8 digits during your next attempt.
Programming time out.
Make sure not to pause for more than 5
seconds during programming.
Press Lock button once. Enter user code.
Tip: You can press the
Lock button before
entering your user
code to light up the
keypad at night.
*Beeping sound will only be heard if switch #3 (on the lock interior) is in the on positon. See “Switches and Status LED Colors” on page 4.
Mastercode
For enhanced security, a mastercode may be used when adding and deleting user codes. For more information about the mastercode, download the Programming
and Troubleshooting Guide on the SmartCode 5 Lever page at www.weiserlock.com.
Programming Timeout
If no button is pressed for ive seconds, the system will time
out and you will need to restart the procedure.
Make sure the door is open. Press
the Program button the number of
times that corresponds to the user
code position being programmed.
Enter user code. A total of 8 user
codes may be programmed.
Press Lock button once.
A B C
What lights and sounds does the lock produce?
D
7
8Test the lock (review normal operation)
Add user codes (8 max)
9Re-key the lock (if needed) and install the battery cover
Re-key the lock (if needed). Install the battery cover.
A B
IMPORTANT:
Remove battery
pack before
re-keying.
actual
size
V
V (2x)
KKM
H
a a
b b
c
Re-key the lock to work with your
existing key. See the supplied
SmartKey Re-key instructions
for more information. Reinstall
battery
pack.
3 / 4

© 2016 Spectrum Brands, Inc.
1. Read all instructions in their entirety.
2. Familiarize yourself with all warning and caution statements.
3. Remind all family members of safety precautions.
4. Protect your user codes and mastercode.
5. Dispose of used batteries according to local laws and regulations.
CAUTION: Prevent unauthorized entry. Since anyone with access to the back panel
can change the user codes, you must restrict access to the back panel and routinely
check the user codes to ensure they have not been altered without your knowledge.
The use of a mastercode can help protect your system’s settings.
WARNING: This Manufacturer advises that no lock can provide complete security
by itself. This lock may be defeated by forcible or technical means, or evaded by
entry elsewhere on the property. No lock can substitute for caution, awareness of
your environment, and common sense. Builder’s hardware is available in multiple
performance grades to suit the application. In order to enhance security and reduce
risk, you should consult a qualiied locksmith or other security professional.
Important Safeguards
Alert Reason Solution
Keypad lashes red 1 time
with 1 beep*
Door jammed while
attempting to lock.
Manually re-lock door. If needed,
reposition strike.
Keypad lashes red 3 times
with 3 beeps*
Unsuccessful programming. Attempt programming procedure
again.
One incorrect code entered. Re-enter code.
No user code programmed. Program at least one user code.
Keypad lashes red 10
times with 10 beeps* Low battery. Replace batteries.
Lock beeps 2 times.
Programming timeout.
Attempt programming procedure
again, making sure not to pause for
more than 5 seconds.
Keypad lashes red 3 times.
Keypad lashes red 6 times
with 6 beeps*.
Keypad lashes red 15 times
with 15 beeps*
Three incorrect codes entered
within one minute.
Re-enter code after 60 second keypad
lockout.
*Beeping sound will only be heard if switch #3 is on.
4 / 4
SmartCode at a Glance
Deleting a user code
In order to delete a user code, you must override the code by adding a dierent user code in the same
position. For example, if you want to delete the third code, add a dierent user code in position three.
Test the old user code to make sure it can no longer unlock the door.
If you cannot remember the user code position, you may wish to perform a factory reset to delete all
codes associated with the lock.
Reference Guide
Exterior
Back
panel
Program
button
Status
LED
Switches
Turnpiece
Interior (cover removed)
Switches and Status LED colors
Troubleshooting
Switch Function
1Door lock status LED blinks every 6
seconds
2
Lock automatically re-locks door 30
seconds after unlocking. Disabled if no
codes are programmed.
3 Audio
4 Not used.
Color Lock Status
Green Unlocked
Amber Locked
Red Low battery
1 2 3 4
On
Switches
Status
LED
O
System Alerts
Factory ResetBattery Replacement
A factory reset will delete all codes associated with the lock.If another lock is installed above the lever, remove the interior
assembly when battery replacement is required.
Status
LED
1 Remove
battery pack.
2 Press and HOLD the Program
button while reinserting
the battery pack.
Keep holding the button for 30
seconds until the lock beeps
and the status LED lashes red.
Keypad
Lock
button
Keyway
SmartKey
tool hole
3 Press the Program button
once more. When the LED
lashes green and you
hear one beep, the lock
has been reset.
4 Add user codes to your lock.
A complete Programming and Troubleshooting Guide is available on
the SmartCode 5 Lever page at www.weiserlock.com.
Lock
above
lever
Mounting
plate
Interior
assembly
Battery
pack
