Welbilt Convotherm maxx 6.10 User manual

Combi oven
Cmx eT 6.10 ES / Cmx eT 10.10 ES
Installation manual - Original, ENG
Advancing Your Ambitions

Table of Contents
1 General information 5
1.1 Environmental protection 5
1.2 Identifying your combi oven 6
1.3 Structure of customer documentation 7
1.4 About this installation manual 7
1.5 Essential reading relating to safety 8
2 Design and function 9
2.1 Design and function of the combi oven 9
2.2 Layout and function of the operating panel 10
3 For your safety 11
3.1 Basic safety code 11
3.2 Intended use of your combi oven 12
3.3 Warning signs on the combi oven 13
3.4 Owner obligations 15
3.5 Hazards arising from the appliance 16
3.6 Safety devices 18
3.7 Requirements to be met by personnel, working positions 20
3.8 Personal protective equipment 22
4 Transportation 23
4.1 Conveying the appliance to the installation location 23
4.2 Preparing to unpack 23
4.3 Scope of delivery 24
5 Setting up the appliance 25
5.1 Adjacent systems 25
5.2 Requirements for the installation location 26
5.3 Taking the appliance off the pallet 29
5.4 Setting up the appliance on a worktable 30
5.5 Setting up the appliance on a stand 31
5.6 Setting up the appliance on a wheeled stand 33
5.7 Setting up appliances in the stacking kit 33
6 Installation 34
6.1 Electrical installation 34
6.1.1 Planning the electrical installation 34
6.1.2 Carrying out the electrical installation 36
6.1.3 Connecting the water-treatment filter monitor 37
6.2 Network connection 38
6.2.1 Planning the network connection 38
6.2.2 Connecting to the network 39
6.3 Water connection 40
6.3.1 Water supply 40
6.3.2 Test the water quality 44
6.3.3 Drain connection 45
6.4 Installing the canister-based ConvoClean+ fully automatic oven cleaning system 46
6.4.1 Layout of the fully automatic oven cleaning system 46
6.4.2 Connecting the fully automatic oven cleaning system 48
Table of Contents
Installation manual 3

7 Putting into service 50
7.1 Procedure for putting the appliance into service 50
7.2 Measuring appliance gaps 53
8 Removal from service and disposal 54
8.1 Removal from service and disposal 54
9 Technical data and Connection diagrams 55
9.1 Technical data 55
9.2 Connection diagrams 59
Table of Contents
Installation manual 4

1 General information
1.1 Environmental protection
Statement of principles
Our customers' expectations, the legal regulations and standards and our company's own reputation
set the quality and service for all our products.
We have an environmental management policy that not only ensures compliance with all environmen‐
tal regulations and laws, but also commits us to continuous improvement of our green credentials.
We have developed a quality and environmental-management system in order to guarantee the con‐
tinued manufacture of high-quality products, and to be sure of meeting our environmental targets.
This system satisfies the requirements of ISO 9001:2015 and ISO 14001:2015.
Environmental protection procedures
We observe the following procedures:
■Use of residue-free compostable wadding materials
■Use of RoHS-compliant products
■REACH chemical law
■Recommendation and use of bio-degradable cleaning agents
■Recycling of electronic waste
■Environmentally friendly disposal of old appliances via the manufacturer
Join us in our commitment to protect the environment.
1 General information
Installation manual 5

1.2 Identifying your combi oven
Position of type plate
The type plate is located on the left-hand side of the combi oven.
Layout and structure of the type plate
Item Name
1Name of appliance
Combi Oven
2Trade name
Element Meaning
Cmx Convotherm maxx appliance series
eT easyTouch controls
numbers xx.yy Appliance size
ES Electric appliance with water injec‐
tion
-N for appliances with an NSK certifi‐
cate
3Electrical values
4Serial number
Element Meaning
Heating method Electric appliance (T)
Steam generation meth‐
od
■Injection (S)
Appliance size ■6.10 (1)
■10.10 (3)
Year of manufacture ■2020 (20)
■2021 (21)
■...
Month of manufacture ■January (01)
■February (02)
■March (03)
■...
Sequential number 4 digits
5Part number
1 General information
Installation manual 6

1.3 Structure of customer documentation
Contents of the appliance documentation
Book type Contents
Installation manual ■Describes how to move, set up and install the appliance, and how to
put the appliance into service
■Describes the hazards and appropriate preventive measures relevant
to all installation tasks
■Contains the technical data
User manual ■Describes the working procedures and operating steps for cooking and
cleaning
■Contains the servicing schedule and information on troubleshooting
■Describes the hazards and appropriate preventive measures relevant
to operation
Operating instructions ■Describes the appliance user interface
■Contains instructions on how to use the software
Documentation for accessories
Please refer to the relevant instructions for the accessory concerned (e.g. recoil hand shower, hood,
wheeled stand, stacking kit) for information on how to install the accessory.
1.4 About this installation manual
Who should read this manual
Name of target group Tasks
Start-up engineer
(Service engineer)
■Overall responsibility for putting the combi oven into service
■Instructing the user
Owner of the combi
oven
or
owner's member of staff
who is responsible for
the appliance and for the
operating personnel
■Made aware of all safety-related functions and devices of the combi
oven by the start-up engineer
■Instructed by the start-up engineer on how to operate the appliance
■Provides assistance as instructed with conveying the appliance within
the establishment and setting up the appliance.
See 'Owner obligations' on page 15 for further details
Equipment mover Conveying within the establishment
Service engineer ■Setting up the appliance
■Installing the fully automatic oven cleaning system
■Putting the appliance into service and removing the appliance from serv‐
ice
Electrical installation en‐
gineer
■Connecting the appliance to the building's electrical supply
■Disconnecting the electrical connection
Plumber ■Connecting the appliance to the building's water supply
■Disconnecting the water connection
■Connecting the appliance to the building's drain connection
■Disconnecting the drain connection
Notation for decimal points
A decimal point is always used in order to achieve international standardization.
1 General information
Installation manual 7

1.5 Essential reading relating to safety
Safety information in the customer documentation
Safety information relating to the combi oven appears only in the installation manual and the user
manual.
The installation manual contains the safety information for the tasks covered by the manual and which
are performed when moving, setting up and installing the appliance and when putting the appliance
into service and removing the appliance from service.
The user manual contains the safety information for the tasks covered by the manual and which are
performed during cooking, cleaning and servicing work.
The safety information contained in the user manual and installation manual must always be consid‐
ered to be part of the operating instructions. The safety information contained in the user manual and
installation manual must always be observed when performing tasks that go beyond merely operating
the software.
Parts of this document that must be read without fail
If you do not follow the information in this document, you risk potentially fatal injury and property dam‐
age.
To guarantee safety, all people who work with the combi oven must have read and understood the
following parts of this document before starting any work:
■the chapter 'For your safety' on page 11
■the sections that describe the activity to be carried out
Danger symbol
Danger symbol Meaning
Warns of potential injuries. Heed all the warning notices that appear af‐
ter this symbol to avoid potential injuries or death.
Form of warning notices
The warning signs are categorized according to the following hazard levels:
Hazard level Consequences Likelihood
Death / serious injury (irreversible) Immediate risk
Death / serious injury (irreversible) Potential risk
Minor injury (reversible) Potential risk
NOTICE Damage to property Potential risk
1 General information
Installation manual 8

2 Design and function
2.1 Design and function of the combi oven
Components and function
Item Name Function
1Ventilation port ■External air intake for removing the moisture from the cooking
chamber
■Smooths out any pressure fluctuations in the cooking chamber
2Air vent Allows hot vapour to escape
3Door handle ■Opens and closes the appliance door
■First latch position after 5°
■Sure-shut function
■Antibacterial ("HygienicCare")
4Appliance door Closes the cooking chamber
5Operating panel Used for operating the appliance
6Suction panel ■Distributes the heat evenly inside the cooking chamber
■Separates the fan compartment from the cooking chamber
■Protects against touching the fan
7Core temperature probe
(optional) Measures the core temperature of the food being cooked
8Rack Holds standard-sized food containers
9Door drip tray Collects condensate running down the inside of the appliance
door
10 Oven light (LED) Illuminates the cooking chamber
11 Cooking chamber Contains the food during cooking operation
12 Appliance drip tray Collects dripping liquid and condensate from the cooking cham‐
ber
13 Type plate Identifies the appliance
14 Appliance feet Can be adjusted in height to allow the appliance to be positioned
horizontally
15 Network port (rear) For connecting to the Internet
Material
The interior and exterior structure of the appliance is made of stainless steel.
2 Design and function
Installation manual 9

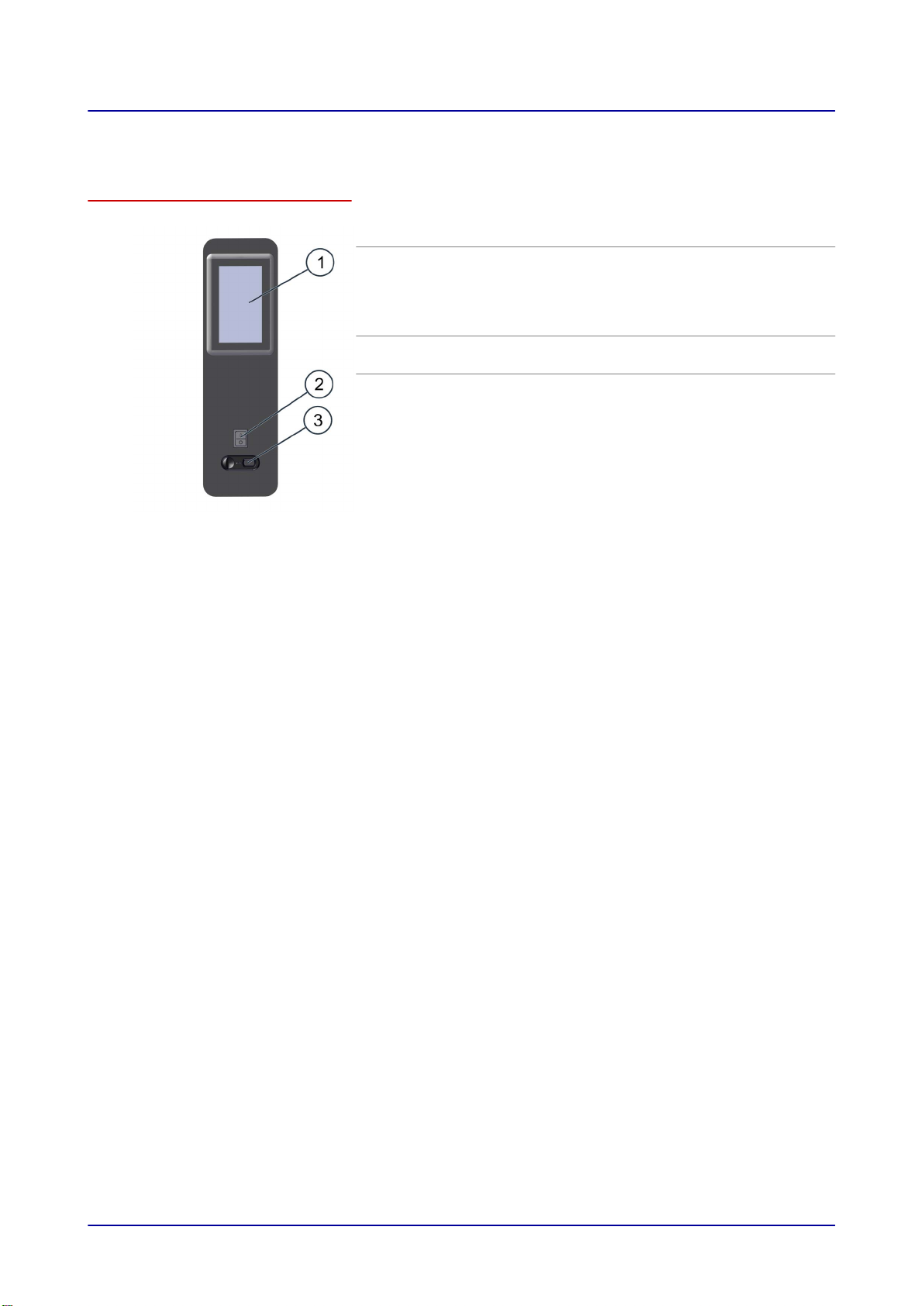

2.2 Layout and function of the operating panel
Layout and elements of the operating panel
Item Name Function
1Full touch
screen display Central controls for appliance
■Appliance operated by touching icons
on the control panel (full touch screen
display)
■Status displays
2Appliance
ON/OFF switch Switches the combi oven on and off
3USB port For connecting a USB stick
2 Design and function
Installation manual 10

3 For your safety
Purpose of this chapter
This chapter provides you with all the information you need in order to use the combi oven safely with‐
out putting yourself or others at risk.
This is a particularly important chapter that you should read through carefully.
3.1 Basic safety code
Object of this safety code
This safety code aims to ensure that all persons who use the combi oven have a thorough knowledge
of the hazards and safety precautions, and that they follow the warning notices given in the user man‐
ual and on the combi oven. If you do not follow this safety code, you risk potentially fatal injury and
property damage.
Referring to the user manuals included in the customer documentation
Follow the instructions below:
■Read in full the chapter 'For Your Safety' and the chapters that relate to your work.
■Always keep to hand the manuals included in the customer documentation for reference.
■Pass on the user manuals included in the customer documentation with the combi oven if it
changes ownership.
Ground rules for installation
■Installation must comply with all national and regional laws and regulations and comply with the lo‐
cal regulations of the relevant utility companies and local authorities and with other relevant re‐
quirements.
■The installation must be carried out by an authorized and qualified service engineer.
Working with the combi oven
Follow the instructions below:
■Only those persons who satisfy the requirements stipulated in this user manual are permitted to
use the combi oven.
■Only use the combi oven for the specified use. Never, under any circumstances, use the combi
oven for other purposes that may suggest themselves.
■Take all the safety precautions specified in this user manual and on the combi oven. In particular,
use the prescribed personal protective equipment.
■Only stand in the working positions specified.
■Do not make any changes to the combi oven, e. g. removing parts or fitting unapproved parts. In
particular, you must not disable any safety devices.
More on this ...
Related topics
Intended use of your combi oven 12
Warning signs on the combi oven 13
Owner obligations 15
Hazards arising from the appliance 16
Safety devices 18
Requirements to be met by personnel, working positions 20
Personal protective equipment 22
3 For your safety
Installation manual 11

3.2 Intended use of your combi oven
Intended use
■The combi oven is designed and built solely for cooking different foodstuffs in standard-sized food
containers (e.g. Gastronorm containers, standard baking trays). Steam, convection and combi-
steam (non-pressurized superheated steam) are used for this purpose.
■The food containers can be made of stainless steel, ceramic, plastic, aluminium, enamelled steel or
glass. Glass food containers must not exhibit any form of damage.
■The combi oven is intended solely for professional, commercial use.
Restrictions on use
Some materials are not allowed to be heated in the combi oven:
■NO dry powder or granulated material
■NO highly flammable objects with a flash point below 270 °C, such as highly flammable oils, fats,
plastics, cleaning products or alcohol-based fluids
■NO food in sealed tins or jars
Requirements to be met by personnel
■The combi oven must only be operated and installed by personnel who satisfy specific require‐
ments. Please refer to 'Requirements to be met by personnel, working positions' on page 20 for
the training and qualifications requirements.
■Personnel must be aware of the risks and regulations associated with handling heavy loads.
Requirements relating to the operating condition of the combi oven
■The combi oven must only be operated when all safety devices and protective equipment are fitted,
in working order and fixed properly in place.
■The manufacturer regulations for operating and servicing the combi oven must be observed.
■The combi oven must not be loaded over the maximum permissible loading weight for the given
model or shelf allowance; see 'Technical Data' on page 55.
Requirements relating to the operating environment of the combi oven
Specified operating environment for the combi oven
■The ambient temperature lies between +4 °C and +35 °C
■NOT a toxic or potentially explosive atmosphere
■A hygienic environment
■A dry kitchen floor to reduce the risk of accidents
Specified properties of the installation location
■NO fire alarm, NO sprinkler system directly above the appliance
■NO flammable materials, gases or liquids above, on, beneath or in the vicinity of the appliance
Mandatory restrictions on use
■Shelter from rain and wind must be provided if operated outdoors
■Appliance must NOT be shifted or moved during use
Cleaning requirements
■Use only cleaning agents that have been approved by the manufacturer.
■Use only materials specified by the manufacturer for cleaning; please refer to the 'Cleaning instruc‐
tions' in the User manual.
■High-pressure cleaners must NOT be used for cleaning.
■Water spray or jets must NOT be used for cleaning the exterior. Use of an external water spray is
permitted solely for cleaning the cooking chamber.
■The combi oven must NOT be treated with acids or exposed to acid fumes, except for the purpose
of descaling the cooking chamber by an authorized service company in accordance with the manu‐
facturer's instructions.
3 For your safety
Installation manual 12

3.3 Warning signs on the combi oven
Fixed platform
A fixed platform for the combi oven is a permanently fixed worktable, a permanently fixed stand or a
permanently fixed stacking kit. These platforms are not intended to be mobile and so are not equipped
with features that would help to move them.
Positioning of warning signs
Obligatory warning signs
The following warning signs must be attached to the combi oven and optional accessories in the area
indicated so as to be easily visible at all times.
Range Warning sign Description
1High voltage / electric shock hazard warning
There is a risk of electric shock from live parts if the safety cover is
opened.
2Hot steam and vapour hazard warning
There is a risk of scalding from hot steam and vapour escaping when
the appliance door is opened.
3 For your safety
Installation manual 13

Range Warning sign Description
2Warning of hot food, hot food containers and hot liquids
There is a risk of burns from hot food and hot food containers if food
containers tip out of the shelf levels or food slips off food containers
that are not held level. This risk is particularly high for shelf levels that
lie above the sightline of the user.
Spillage of hot liquid foods can result in scalds if the upper shelf levels
are loaded with liquids or foods that produce liquid during cooking. Do
not use shelf levels that lie above your sightline for liquid foodstuffs or
food that will liquefy during cooking.
2Warning of corrosive cleaning agents injected into oven
There is a risk of chemical burns or irritation to skin, eyes and respira‐
tory system from contact with sprayed cleaning agents and their va‐
pours if the appliance door is opened during fully automatic cleaning
(ConvoClean system).
3 For your safety
Installation manual 14

3.4 Owner obligations
Personnel for working at the combi oven
The owner must ensure that all work relating to conveying, setting up and installing the appliance, and
taking the appliance out of service, is performed solely by qualified personnel as specified in 'Require‐
ments to be met by personnel, working positions' on page 20.
Personnel for working on electrical parts
The owner/operator must ensure that only qualified electricians carry out installation, putting into serv‐
ice, servicing, maintenance or repair work on the combi oven.
Electrical installation, putting into service, servicing, maintenance, repair and testing work on the com‐
bi ovens must be carried out solely by authorized service representatives and in accordance with the
documentation specified by Convotherm for initial start-up, servicing, maintenance and repair.
The required tasks must be performed solely by qualified electricians who are suited to do so because
of their training and recent professional experience and who have the requisite knowledge of relevant
standards, rules and accident prevention regulations.
Every qualified electrician who carries out installation, initial start-up, service, maintenance or repair
work must have read and understood the installation manual.
Rules for working on electrical parts
The combi oven’s electrical connection must be made in accordance with the respective valid regula‐
tions, accepted engineering standards and the procedures listed in the installation manual.
Before putting the appliance into service and after any servicing, maintenance or repair work, electrical
safeguards and all protective equipment (mechanical and electrical) must be checked for compliance
and proper function, and, if stipulated by applicable regulations, relevant measurement-based verifica‐
tion and documentation provided.
Before any intervention work, the appliance must be disconnected from the power supply, protective
measures taken to ensure the power cannot be switched on again, and a check performed to verify
that the appliance is actually de-energized.
After de-energization has been ascertained, a waiting time of at least 15 minutes is mandatory to allow
full discharge of the DC bus capacitors.
To ensure operational and functional safety, all electrical connections must be checked and all manda‐
tory electrical tests required for putting the appliance into service and operating the appliance must be
carried out.
3 For your safety
Installation manual 15

3.5 Hazards arising from the appliance
General rules for working with the appliance
The combi oven is designed to protect the user from all hazards that can reasonably be avoided by
design measures.
The actual purpose of the combi oven, however, means that there are still residual risks; you must
therefore take precautions to avoid them. A safety device can provide you with a certain degree of pro‐
tection against some of these hazards. You must always ensure, however, that these safety devices
are in place and in working order.
The nature of these residual risks and what effect they have are described below.
Moving heavy loads
When conveying and setting up the appliance, the following hazards can arise when moving heavy
loads:
Risk of injury from overstressing your body
When?
■When moving or lifting the appliance
How can I avoid the hazard?
Use a forklift truck or pallet truck to place the appliance in the installation position or to
move it to a new position
Always use the correct number of persons and observe the limits specified for lifting and
carrying when adjusting the appliance position (guide value: 15 to 55 kg max.,
depending on age and gender)
Observe the local occupational safety regulations
Wear personal protective equipment
Loss of stability of appliance
When conveying and setting up the appliance, the following hazards can arise when moving the appli‐
ance:
Risk of body parts being crushed if the appliance is dropped
When?
■When moving or lifting the appliance
How can I avoid the hazard?
Use suitable handling gear
Move the appliance slowly and carefully, and secure it against tipping over
Be aware of the centre of gravity to keep the appliance balanced
Avoid jolts
3 For your safety
Installation manual 16

Live parts
The following hazards can arise at the appliance when performing any installation work:
Risk of electric shock from live parts
Where?
■Under covers
■Under the operating panel
■On the mains power lead
How can I avoid the hazard?
Switch off all connections to the power supply
Take protective measures at every power switch to ensure that the power cannot be
switched on again
Wait 15 minutes to allow the DC bus capacitors to discharge
Ensure that all electrical connections are in perfect condition and fixed securely
Make sure that the statutory safety checks have been carried out.
Protective equipotential bonding not in place
The following hazards can arise at the appliance when performing any installation work:
Risk of electric shock from live parts
Where?
■On the appliance and on adjacent metal parts
■On the appliance and on adjacent metallic accessories
How can I avoid the hazard?
Before preparing the appliance for first-time use, make sure that the appliance,
including all metallic accessories, is connected to a equipotential bonding system
Contact with cleaning agents
The following hazards can arise at the appliance when performing any installation work:
Risk of chemical burns or irritation to skin, eyes and respiratory system from contact with
cleaning agents and their vapours.
When?
■When fitting the cleaning system
■When handling cleaning-fluid canisters
■When abrasive cleaning products are used
How can I avoid the hazard?
Wear personal protective equipment
Observe the labels on the cleaning agents and the relevant safety datasheets
Always use the specified cleaning products
General hazards
Over and above the hazards mentioned here, also be aware of the general dangers associated with
the kitchen environment; please refer to the chapter 'For your safety' in the User manual.
3 For your safety
Installation manual 17

3.6 Safety devices
Meaning
The combi oven has a number of safety devices to protect the user from hazards. It is absolutely es‐
sential that all safety devices are fitted, secured correctly and in working order when operating the
combi oven.
Position and function
Item Safety device Function Check
1Cover can only be re‐
moved using tool Prevents live parts from being touched accidentally Check that the cover is in place
2Always use a tool to
open the control panel Prevents live parts from being touched accidentally Ensure that the operating panel is in place
3Appliance door with
magnetic door switch
and latch position
Appliance door:
Protects the user and outside
environment from hot steam
Check the door pane regularly
for scratches, cracks, indenta‐
tions etc. and replace it if any
are found
Magnetic door switch (electri‐
cal door sensor):
■When the appliance door is
opened, the switch stops:
■rotation of the fan wheel
(comes to a stop after a
few seconds)
■operation of the heating
element
■Distribution of the clean‐
ing products by the fully
automatic oven cleaning
system
■Prompt to close the appli‐
ance door
Check magnetic door switch
at low temperature
Action:
■Open the appliance door
fully
■Press Start
Result:
Motor must not start up.
Latch position at opening an‐
gle of 5°:
Prevents scalding of user's
face and hands from escaping
steam
When appliance is at low tem‐
perature, check door positions
as described in 'Opening and
closing the appliance door
safely' in the user manual
4Suction panel in cook‐
ing chamber; can only
be removed using a
tool
Prevents access to the mov‐
ing fan and ensures good
heat distribution
See 'Removing and fitting the
suction panel' in the user
manual for further details
3 For your safety
Installation manual 18

Item Safety device Function Check
5Cover can only be re‐
moved using tool Prevents live parts from being touched accidentally Check that the cover is in place
6Cover can only be re‐
moved using tool Prevents live parts from being touched accidentally Check that the cover is in place
7Circulation pump cov‐
er Prevents access to the mov‐ ing pump wheel Check that cover is fitted.
8
(no picture)
Safety thermostat in
the cooking chamber Switches off the appliance if temperature too high An error code is output in the event of a fault
(Please contact an authorized
service company to reset the
safety thermostat)
9
(no picture)
Restart after power
failure in case clean‐
ing agent was left in
the appliance
Restarts fully automatic oven
cleaning in a defined state af‐
ter power failure
None
10
(installed by
customer)
Disconnector ■Installed by the customer
close to the appliance; easi‐
ly visible and accessible,
all-pole action, minimum
contact separation 3 mm.
■Used to disconnect the ap‐
pliance from the power sup‐
ply during cleaning, repair
and servicing work and in a
hazardous situation
Action:
■Trip the disconnector
■Make sure that there is no
live voltage at the mains
supply connecting terminals
3 For your safety
Installation manual 19

3.7 Requirements to be met by personnel, working positions
Requirements to be met by personnel
The table shows the skills required to perform the specified roles. One person may perform more than
one role depending on need and organization of work, provided this person has the skills required for
the role concerned.
Role Skills required Tasks
Owner of the com‐
bi oven
or
owner's member
of staff who is re‐
sponsible for the
appliance and for
the operating per‐
sonnel
Knows the regulations associated with
handling heavy loads
■As the representative for the entire
team of operating personnel, is
made aware of all safety-related
functions and devices of the combi
oven by the start-up engineer
■As the representative for the entire
team of operating personnel, is in‐
structed by the start-up engineer
on how to operate the appliance
■Provides assistance as instructed
with conveying the appliance with‐
in the establishment and setting up
the appliance.
Equipment mover ■Trained in the use of a pallet truck
and forklift truck
■Knows the regulations associated
with handling heavy loads
Conveying within the establishment
Service engineer ■Is an employee of an authorized serv‐
ice company
■Has relevant technical training
■Is trained in the particular appliance
■Knows the regulations associated
with handling heavy loads
■Can assess whether the connections
to the electrical supply, water, waste‐
water system and network have been
installed correctly.
■Setting up the appliance
■Installing the fully automatic oven
cleaning system
■Putting the appliance into service
■Removing the appliance from serv‐
ice
Electrical installa‐
tion engineer
■Is an employee of an authorized serv‐
ice company
■Has relevant professional training
■Is a qualified electrician and knows
the applicable technical standards
■Connecting the appliance to the
building's electrical supply
■Disconnecting the electrical con‐
nection
Plumber ■Is an employee of an authorized serv‐
ice company
■Has relevant professional training
■Connecting the appliance to the
building's water supply
■Disconnecting the water connec‐
tion
■Connecting the appliance to the
building's drain connection
■Disconnecting the drain connec‐
tion
Start-up engineer
(Service engineer)
■Is an employee of an authorized serv‐
ice company who has overall respon‐
sibility for preparing the combi oven
for first-time use
■Has relevant technical training
■Is trained in the particular appliance
■Knows the regulations associated
with handling heavy loads
■Can assess whether the connections
to the electrical supply, water and
wastewater system have been instal‐
led correctly, and knows the applica‐
ble technical standards.
■Instructing the owner and/or mem‐
ber of staff with relevant responsi‐
bility
■Checking the work procedures and
status values against the check‐
lists
3 For your safety
Installation manual 20
