1 General
1.1 About These Operating Instructions
Purpose
The purpose of these operating instructions is to provide everyone working with/on the combi oven
with an overview of its easyTouch software and how to use it, as well as to enable them to carry out
basic tasks with the software.
Target groups
Name of target group Tasks
Cook Primarily takes care of organizational tasks, such as:
■Entering cooking profile data
■Editing existing cooking profiles in the cookbook
■Coming up with new cooking profiles
■Configuring the unit’s settings
and takes care of all operator tasks as well if necessary.
Operator Actually operates the combi oven, taking care of tasks such as:
■Selecting cooking profiles
■Starting cooking profiles
■Selecting cleaning profiles
Customer documentation parts
Document type Contents
Installation manual ■Describes how to transport, set up, install, and put the unit into opera‐
tion
■Goes over all the hazards involved in the various installation activities
and how to prevent and/or counter them
■Contains technical specifications
Operating manual ■Describes the work sequences and operating steps when cooking and
cleaning
■Includes the maintenance schedule and troubleshooting information
■Goes over all the hazards involved when operating the unit and how to
prevent and/or counter them
Operating instructions ■Describes the unit’s user interface
■Includes the instructions for using the software
Decimal mark used
In order to ensure that all numbers can be properly understood internationally, a decimal point is al‐
ways used.
1 General
Operating Instructions 5

1.2 Safety Information That Must Be Read without Exception
Safety information found in the documentation for the customer
Only the installation manual and operating manual provide safety information for the combi oven.
The installation manual provides safety information for the transportation, setup, installation, placing-
into-operation, and removal-from-service tasks it describes.
The operating manual provides safety information for the cooking, cleaning, and maintenance tasks it
describes.
When using the operating instructions, the operating manual or installation manual should always be
consulted in order to obtain the relevant safety information. When performing activities that go beyond
simply using the software, the safety information in the operating manual and installation manual must
always be observed.
Parts of the customer documentation that must be read without exception
These operating instructions are exclusively limited to describing how to use the unit's user interface.
The various sets of instructions all end when a process in which warnings need to be observed (cook‐
ing and cleaning, for example) starts. For instructions on how carry out the corresponding process,
please refer to the installation manual or to the operating manual.
In order to ensure their safety and the safety of others, everyone working with/on the combi oven must
read and understand the following customer documentation sections before starting any work:
■The 'For Your Safety' section in the installation manual or in the operating manual, depending on
the task being carried out
■The sections in the installation manual or operating manual describing the work that will be carried
out
Failure to take the safety information in the installation and operating manuals into account may result
in death, injury, or property damage.
1 General
Operating Instructions 6

2 The User Interface at a Glance
2.1 How the User Interface Works
How it works
easyTouch is the name of the control interface for your combi oven. You can use the touch screen to
easily operate the corresponding software with your finger.
All of the combi oven’s functions can be accessed using the easyTouch user interface’s various me‐
nus. These menus will provide the functions in the form of buttons.
After selecting functions, both user information and prompts are used to guide the operator in process
menus. If necessary, the operator can make changes to sequences in these process menus.
The process menus will show a sequence’s progress with a progress bar, as well as the relevant time
and temperature information. An acoustic signal, combined with the appropriate user information, will
be used by the unit to signal the end of the sequence.
Optional functions
The software functions described in these operating instructions are not available for all unit versions.
Starten der Software
After you turn on your combi oven using the easyTouch control panel, the unit will run a self-diagnostic
routine. If the software is ready for use, the main menu for selecting an operating mode will appear.
For more information, please refer to 'Main Menu.' on page 10
The following operating modes will be available here:
■Individual cooking
■Rethermalization
■Press&Go
■ConvoSense (optional)
■Cookbook
■Cleaning
If Press&Go mode is set in the software, the combi oven will start the pre-heat function immediately;
please refer to 'Fast Cooking with Press&Go' on page 30 as well.
What do I need for cooking?
To cook food with your combi oven, you will need a cooking profile that is appropriate for the food be‐
ing cooked. You can enter a new cooking profile with the 'Individual cooking' menu. You can also se‐
lect a suitable cooking profile from the ones available in the 'Cookbook' menu and start it.
If 'Press&Go' mode is set in the software, all you have to do is select the cooking profile you want and
start it. All the cooking profiles available in 'Press&Go' are defined in the 'Cookbook.'
Before starting a cooking sequence, read and understand the rules, risks, and hazards associated
with safely using the unit (as described in the operating manual) and follow all the corresponding in‐
structions.
2 The User Interface at a Glance
Operating Instructions 7

2.2 Software Layout
The software’s layout
1 Header
2 Main pane
3 Footer
Top bar
The software’s top bar will show various displays depending on the specific menu and function that
are selected:
Selected cooking profile Shows a selected cooking profile, e.g., croissant, with a pic‐
ture and text
kitchenconnect® Shows whether there is a connection to the cloud
WLAN Shows whether there is a connection to the Internet
Time Shows the current time
2 The User Interface at a Glance
Operating Instructions 8

Main pane
The software’s main pane will show various buttons and displays depending on the specific menu and
function that are selected:
Light gray button Function available / selected, e.g., core temperature
Dark gray button Function not available / not usable
Scrollbar Used for vertical scrolling in order to view additional menu
contents
Used to close the menu Closes the menu
Buttons and displays in the bottom bar
The software’s bottom bar will show various buttons and displays depending on the specific menu and
function that are selected:
Back Navigation buttons
Navigation menu Used to access the navigation menu with all available oper‐
ating modes
Notifications Indicates notifications, as well as how many of them there
are
Used to access the 'Notifications' menu
Clock timer Shown when a time-controlled cooking profile or cleaning
profile is active
Error list Indicates errors, as well as how many of them there are
Used to access the 'Error list' menu
2 The User Interface at a Glance
Operating Instructions 9

2.3 Main Menu
Accessing the main menu
This menu is password-protected and can only be accessed by specific users in order to make
changes to existing cooking profiles if necessary.
Main menu functions
■Provides access to all available operating modes

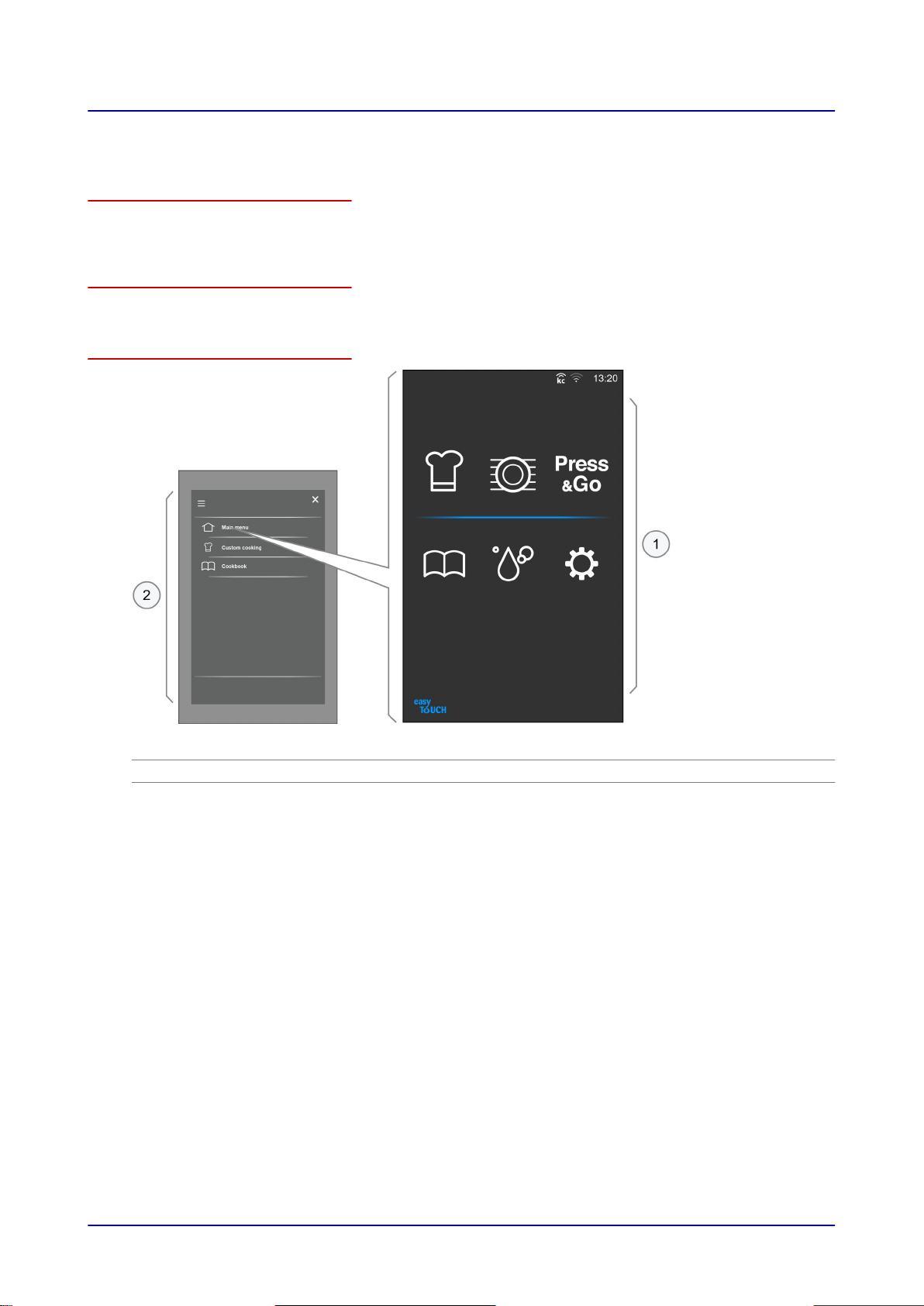

Main menu layout
1 Main menu
2 Navigation menu
2 The User Interface at a Glance
Operating Instructions 10

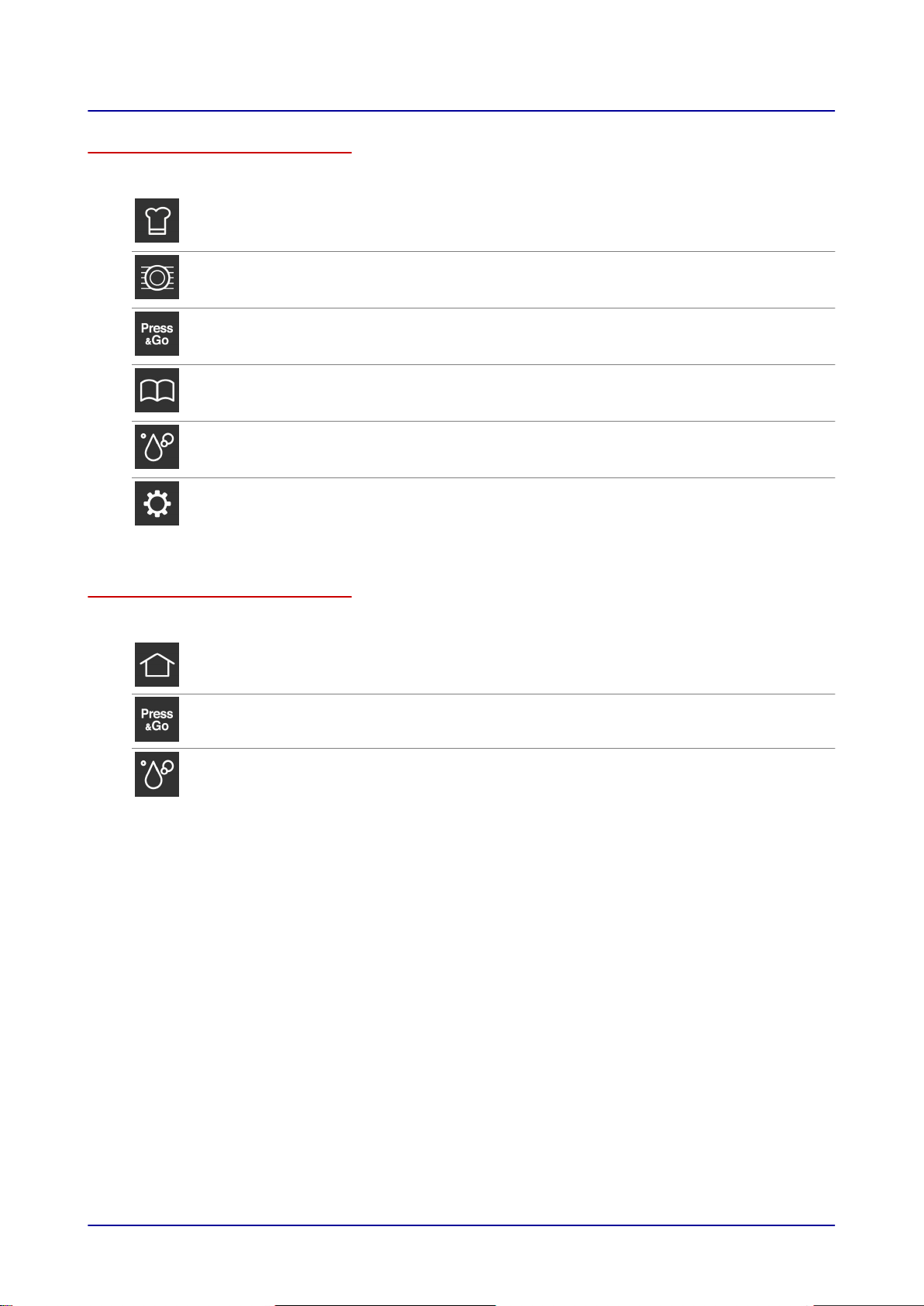

Main menu buttons
When this menu is active, the main pane will show the main functions available for selection:
Individual cooking 'Individual cooking' operating mode
Used to access the 'individual cooking' menu
Can be used to manually enter cooking profiles
Rethermalization 'Rethermalization' operating mode
Used to access the 'Rethermalization' menu
Can be used to manually enter cooking profiles
Press&Go 'Press&Go' operating mode
Used to access the 'Press&Go' menu
Press for automatic cooking with quick-select options
Cookbook 'Cookbook' operating mode
Used to access the 'Cookbook' menu
Press to manage the various cooking profiles
Cleaning 'Cleaning' operating mode
Used to access the 'cleaning' menu
Used to select cleaning profiles for cleaning the oven
Settings Used to access the 'Settings' menu
Used to change unit settings; access is password-protected
Navigation menu buttons
The navigation menu shows all available main functions that can currently be selected.
Main menu Used to access the main menu
Access is password-protected and for specific user profiles
Press&Go Used to access the 'Press&Go' menu
Press for automatic cooking with quick-select options
Cleaning Used to access the 'cleaning' menu
Used to select cleaning profiles for cleaning the oven
2 The User Interface at a Glance
Operating Instructions 11

2.4 Energy Saver Mode

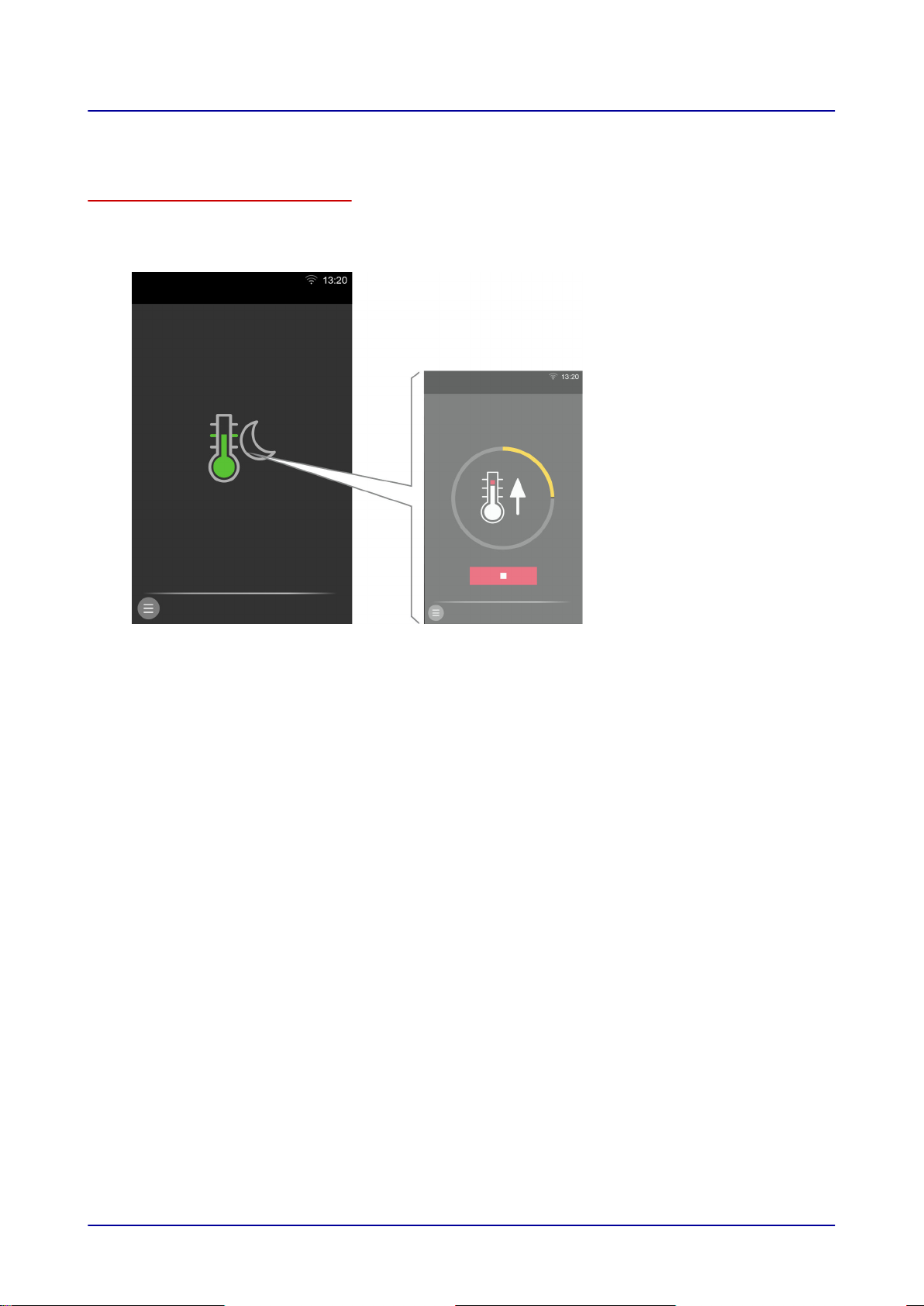

Energy saver mode display
If the combi oven is not used for about 30 minutes, it will automatically switch to standby mode and the
'energy saver mode' display will appear. To resume operation, simply tap the button at the center of
the display.
2 The User Interface at a Glance
Operating Instructions 12

3 Individual Cooking Made Easy
3.1 Individual Cooking at a Glance
Accessing the ‘individual cooking' menu
This menu is password-protected and can only be accessed by specific users in order to make
changes to existing cooking profiles if necessary.
The Cooking Methods
The 'individual cooking' menu can be used to enter your cooking profiles with the following cooking
modes:
■Steam
■Combi-steam
■Hot air
■Smoker
Once you select the basic cooking parameters, such as the cooking temperature and cooking time,
you can save the cooking profiles in the 'Cookbook' so that you can use them again later on with
'Press&Go.'
Cooking methods you can use
The aforementioned operating methods are suitable for the following cooking methods:
Steam Combi-steam Hot air Smoker
■Boiling
■Steaming
■Blanching
■Poaching
■Preserving
■Roasting
■Baking
■Braising
■Roasting
■Baking
■Cooking au gratin
■Grilling
■Dry roasting
■Smoking
Available cooking functions
Specific cooking functions will be available based on the cooking mode used:
Steam Combi-steam Hot air Smoker
■Fan speed ■Fan speed
■HumidityPro
■Fan speed
■Crisp&Tasty -
Available extra functions
The extra functions for your cooking profiles available on the 'Extra functions' menu will depend on the
cooking mode you are using:
Steam Combi-steam Hot air Smoker
■Program lock
■Reduced power
■Program lock
■Grease management
■Reduced power
■BakePro
■Program lock
■Grease management
■Reduced power
■Program lock
3 Individual Cooking Made Easy
Operating Instructions 13

3.2 The 'Individual Cooking' menu
'Individual cooking' menu functions
■Manually entering cooking data for your individual cooking profile. For more information, please re‐
fer to page 18
■Changing the cooking data for an opened cooking profile from the Cookbook
■Changing cooking parameters during a cooking sequence

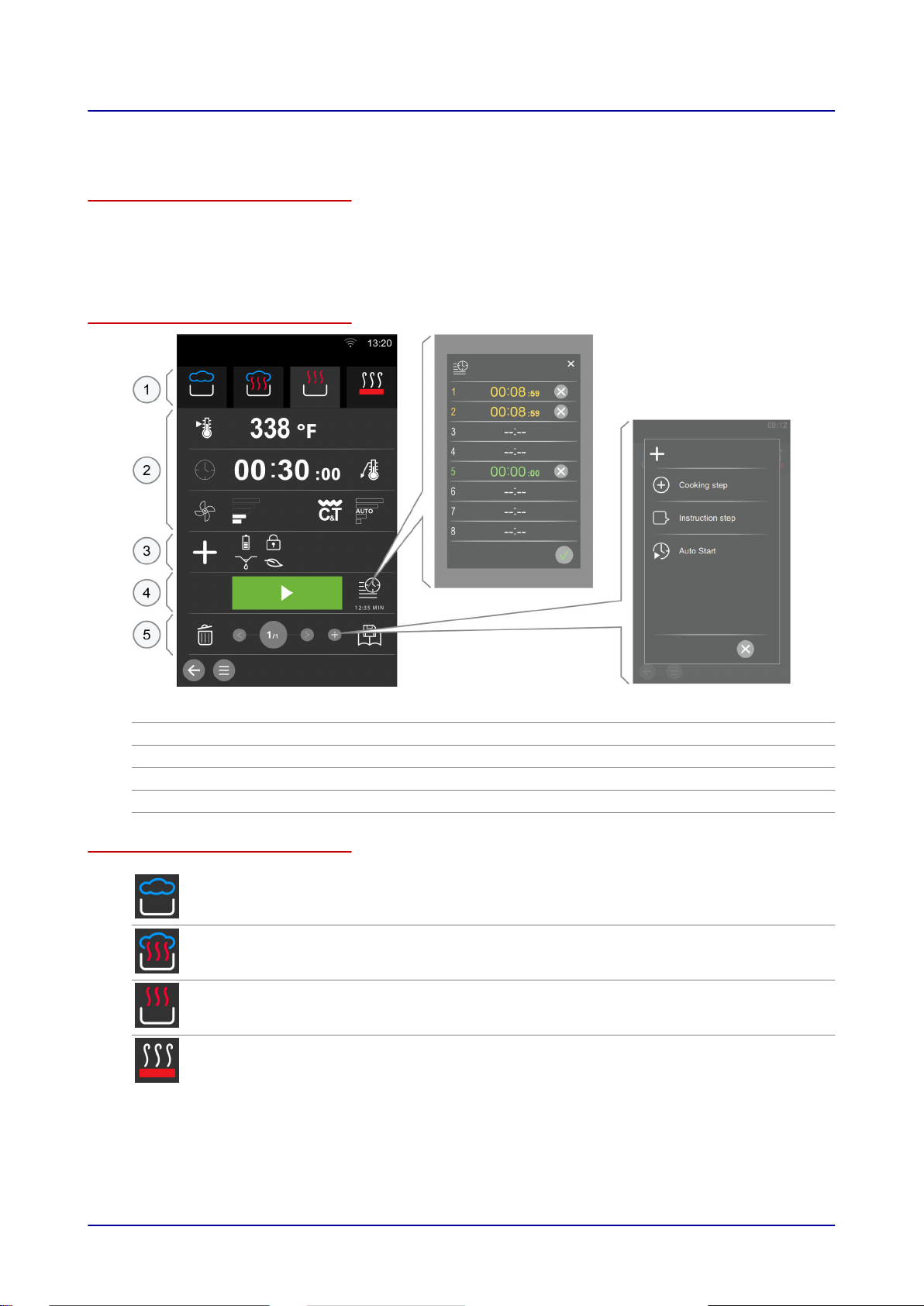

'Individual cooking' menu layout
1 Cooking mode
2 Cooking parameters
3 Extra functions and special programs
4 Start / Stop
5 Cooking step navigation
Cooking mode buttons
Steam Steam cooking mode
Temperature range: 85 °F to 265 °F
Combi-steam Combi-steam cooking mode
Temperature range: 85 °F to 480 °F
Hot air Hot air cooking mode
Temperature range: 85 °F to 480 °F
Smoker Smoker cooking mode
3 Individual Cooking Made Easy
Operating Instructions 14

Cooking parameter buttons
Cooking temperature Used to enter the cooking temperature in °C or °F
Cooking time Used to enter the cooking time in hh:mm:ss
Core temperature Used to enter the core temperature in °C or °F
Fan speed Used to control the flow speed inside the oven.
5 settings
HumidityPro Used to control the moisture level inside the oven
AUTO or 5 settings,
Can only be used in combination with combi-steam
Crisp&Tasty Used to control moisture removal from the oven cavity
5 settings
Can only be used in combination with hot air
Hot smoke Used for smoking in combination with other cooking meth‐
ods
Smoke Smoking with time in hh:mm:ss
Extra function buttons
Extra functions Used to select extra functions and special cooking methods
BakePro Baking function with 3 settings
Can only be used in combination with hot air
Program lock Function that prevents connected energy optimizing sys‐
tems from interrupting cooking sequences
Grease management Function used to manage grease during the cooking se‐
quence
Reduced power Function that reduces heat output in order to prevent load
peaks during the cooking sequence
ecoCooking Cooking method in which the heat output in the finishing
cooking phase is controlled using cycles in order to reduce
energy consumption levels.
3 Individual Cooking Made Easy
Operating Instructions 15

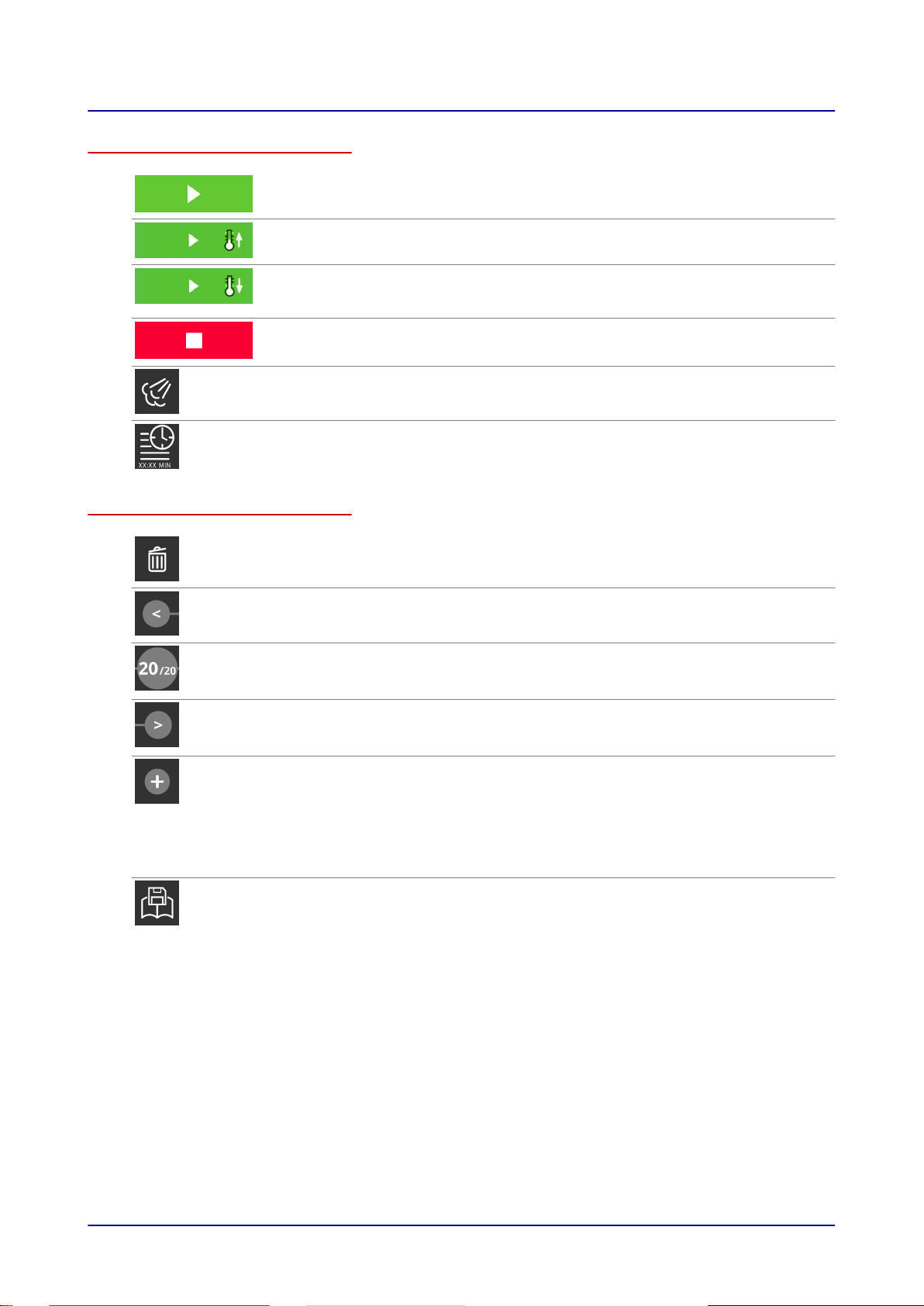

Start / Stop buttons
Start Starting a Cooking Sequence
Start with pre-heating If the unit door is closed, the oven cavity will be heated up
to the set cooking temperature after starting
Start with Cool down If the unit door is open and the fan is running, the oven cav‐
ity will be cooled down to the set cooking temperature after
starting
Stop Stops the cooking sequence
Manual steaming Used to add moisture to the oven cavity during the cooking
sequence. Available only during the cooking sequence.
TrayTimer Timer that can be set for individual shelf levels in order to
be able to use unoccupied shelf levels during a cooking se‐
quence
Cooking step navigation buttons
Delete cooking step Deletes all the data for the current cooking step
Previous cooking step Moves back one step in the cooking profile
Cooking steps view ■Shows the current cooking step / total number of cooking
steps
■Opens a list with details for all the defined cooking steps
Next cooking step ■Adds a new cooking step after the last cooking step in the
cooking profile
■Moves forward one step in the cooking profile
Add cooking step Opens a window used to select a new step in order to add it
after the last cooking step in the cooking profile:
■Cooking step
■Step prompt; please refer to 'Step prompt buttons' on
page 17
■Auto Start; please refer to 'Auto Start buttons' on page
17
Save cooking steps Saves the entered cooking steps as a cooking profile in the
Cookbook
3 Individual Cooking Made Easy
Operating Instructions 16

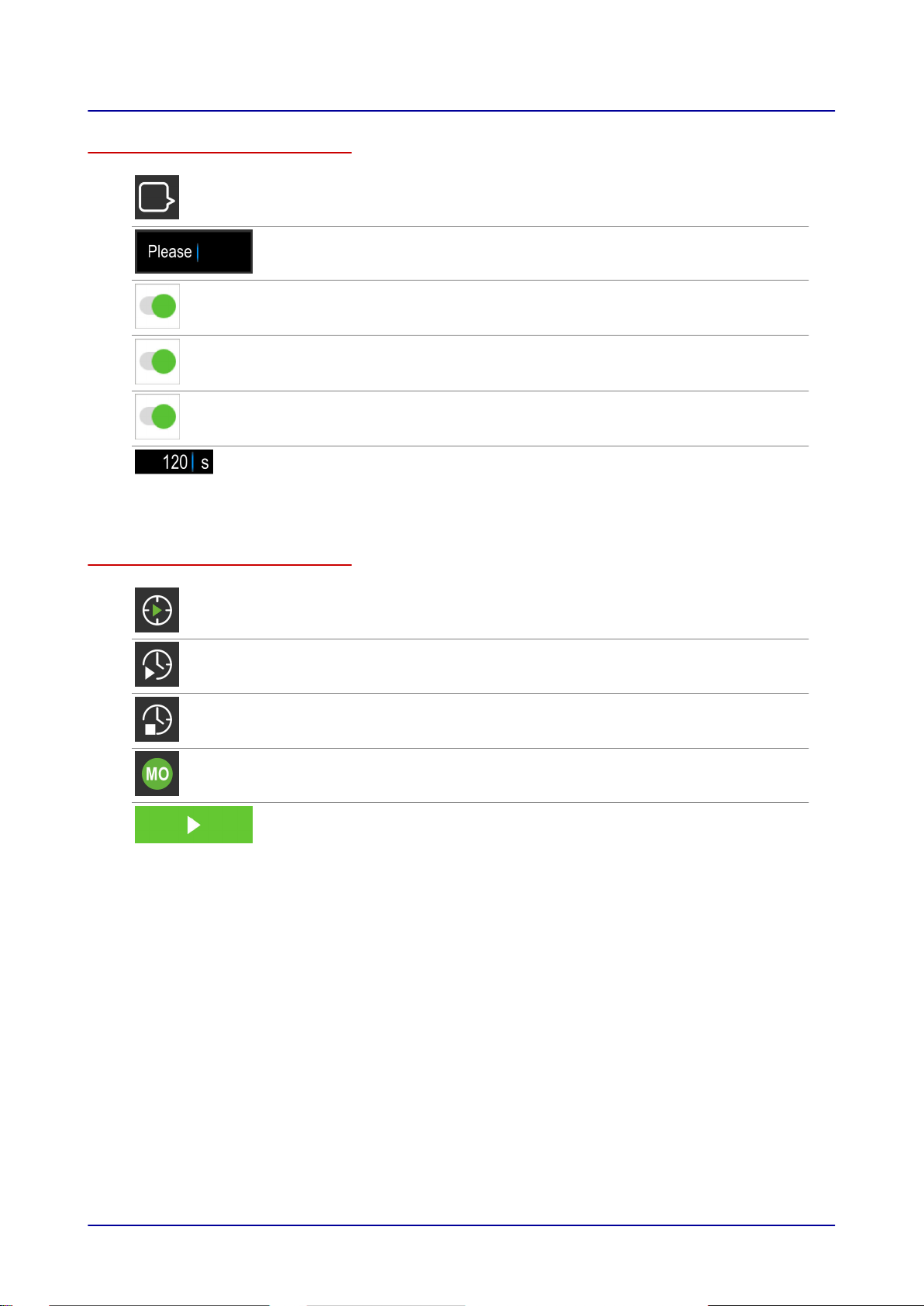

Step prompt buttons
Step prompt Function used to show messages during a cooking se‐
quence
Text box Used to enter a text prompt that should be displayed during
the cooking sequence
Cooking pause Used to set the display duration for a prompt, i.e., until it is
confirmed by the operator or until the cooking sequence
ends
Repeat step Repeat last cooking step
Display duration Used to set the display duration for a prompt with specific
time information
Input field Used to enter the display duration, in seconds
Auto Start buttons
Auto Start Function that can be used to set the start time for a cooking
sequence to a defined time in the future
Start time Used to set the planned time for starting a cooking profile
End time Used to set the planned time for ending a cooking profile
Weekday Can be used to select one or more weekdays
Start Starts Auto Start
3 Individual Cooking Made Easy
Operating Instructions 17

3.3 How to Set Up a Cooking Profile
How to set up a cooking profile using the 'individual cooking' menu
1. Select a cooking method, e.g., hot air.
2. Enter the cooking temperature you want.
3. Enter the cooking time you want.
4. Select a fan speed setting.
5. Select a Crisp&Tasty setting.
6. Add another cooking step if necessary.
7. Caution: Do not start the cooking profile without first familiarizing yourself with the corre‐
sponding hazards and safety measures and the steps and instructions in the operating man‐
ual.
Next steps:
■Saving the cooking profile in the cookbook. For more information, go to page 19
■The 'individual cooking' workflow. For more information, please refer to page 23
3 Individual Cooking Made Easy
Operating Instructions 18

3.4 Saving a Cooking profile in the Cookbook
Prerequisites
■You must have entered a new cooking profile in the 'individual cooking' menu.
How to save a new cooking profile in the Cookbook
1. Tap the 'Save' button in the 'individual cooking' menu.
2. Enter a new cooking profile name.
3. Confirm by pushing on the knob.
4. Select an icon for the new cooking profile.
5. Confirm by pushing on the knob.
Next steps:
■Deleting a cooking profile from the cookbook. For more information, please refer to page 46
3 Individual Cooking Made Easy
Operating Instructions 19

3.5 The 'Individual Cooking' Process Menu
Cooking workflow functions
■Changing the cooking temperature
■Press to use TrayTimer
■Canceling a Cooking Sequence
'Individual cooking' process menu layout
1 Cooking settings
2 Progress and action display
3 Action bar
Cooking setting buttons
Cooking mode Shows the cooking mode for the cooking profile, e.g., hot
air
Temperature value Shows the set cooking temperature for the cooking profile
3 Individual Cooking Made Easy
Operating Instructions 20
