Welbilt Lincoln Impinger 1600 Series User manual

International Service Manual
Gas Ovens for Non-USA Countries
Impinger® Advantage Digital
Series 1600 Low Profile Conveyor Oven
Consistency You Can Count On
Document #: LIN_GO_SM_IMPLOPRO_S1600_INTL_4605727 – 9/20
Original Document

Safety Notices
DEFINITIONS
DANGER
Indicates a hazardous situation that, if not avoided, will
result in death or serious injury. This applies to the most
extreme situations.
nWarning
Indicates a hazardous situation that, if not avoided,
could result in death or serious injury.
,Caution
Indicates a hazardous situation that, if not avoided,
could result in minor or moderate injury.
Notice
Indicates information considered important, but not
hazard-related (e.g. messages relating to property
damage).
NOTE: Indicates useful, extra information about the
procedure you are performing.
Read These Before Proceeding:
DANGER
Do not install or operate equipment that has been
misused, abused, neglected, damaged, or altered/
modified from that of original manufactured
specifications.
Important
Read these instructions for use carefully so as to
familiarize yourself with the appliance before connecting
it to its gas container. Keep these instructions for future
reference.
nWarning
Improper installation, adjustment, alteration, service
or maintenance can cause property damage, injury or
death. Read the installation, operating, and maintenance
instructions thoroughly before installing, operating, or
servicing this equipment.
nWarning
Authorized Service Representatives are obligated to
follow industry standard safety procedures, including,
but not limited to, local/national regulations for
disconnection / lock out / tag out procedures for all
utilities including electric, gas, water and steam.
nWarning
This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
concerning use of the appliance by a person responsible
for their safety. Do not allow children to play with this
appliance.
nWarning
This equipment is intended for indoor use only. Do not
install or operate this equipment in outdoor areas.
nWarning
Do not use electrical appliances or accessories other
than those supplied by the manufacturer.
FOR YOUR SAFETY
Do Not Store Or Use Gasoline Or Other Flammable
Vapors Or Liquids In The Vicinity Of This Or Any Other
Appliance.
nWarning
Never use a high-pressure water jet for cleaning or hose
down or flood interior or exterior of units with water. Do
not use power cleaning equipment, steel wool, scrapers
or wire brushes on stainless steel or painted surfaces.
,Caution
Maintenance and servicing work other than cleaning as
described in this manual must be done by authorized
service personnel.
NOTE: Proper installation, care and maintenance are
essential for maximum performance and trouble-free
operation of your equipment. Visit our website www.
mtwkitchencare.com for manual updates, translations, or
contact information for service agents in your area.

Table of Contents
Document #: LIN_GO_SM_IMPLOPRO_S1600_INTL_4605727 – 9/20
Safety Notices..................................................................................................................... 2
Definitions.................................................................................................................................................2
Section 1
General Information
Model Number Key ............................................................................................................7
Old Model Numbers ...........................................................................................................7
Section 2
Installation
Exterior Dimension-1600 ..................................................................................................9
Canopy Ventilation Recommendations..........................................................................10
Installation Requirements...............................................................................................11
Gas Code Requirements ................................................................................................................... 11
Electrical Code Requirements......................................................................................................... 11
Spacing Requirements ...................................................................................................................... 12
Ventilation Requirements................................................................................................................. 12
Restraint Requirement – ALL Oven(s) on Casters.................................................................... 13
Installation........................................................................................................................13
Unloading .............................................................................................................................................. 13
Uncrating................................................................................................................................................ 14
Manual Gas Valve Installation.........................................................................................14
Assembly Instructions .....................................................................................................14
Section 3
Operation
Sequence of Operation – Impinger Advantage Digital, Gas.........................................19
Power Supply ....................................................................................................................................... 19
Control Box Auto Cool Down.......................................................................................................... 19
Main Fan Circuit ................................................................................................................................... 19
Burner Circuit........................................................................................................................................ 19
Temperature Control.......................................................................................................................... 19
Conveyor Drive..................................................................................................................................... 19
Section 4
Maintenance
Preventative Maintenance ..............................................................................................21
Daily Cleaning ..................................................................................................................21
Weekly Cleaning...............................................................................................................22
Folding Conveyor Safety .................................................................................................23
Section 5
Troubleshooting
Troubleshooting Guide – Gas Ovens ..............................................................................25

4 Document #: LIN_GO_SM_IMPLOPRO_S1600_INTL_4605727 – 9/20
Table of Contents (continued)
Section 6
Controls
Information on Use of Oven ............................................................................................31
Controls.............................................................................................................................32
Front Panel Layout.............................................................................................................................. 32
Setpoint Mode...................................................................................................................................... 32
Temperature Setpoints...................................................................................................................... 32
Time Setpoint ....................................................................................................................................... 32
Jumping Between Menus ................................................................................................................ 32
Diagnostic Messages ......................................................................................................................... 32
Reversing Switch ..............................................................................................................32
Cooking Guidance............................................................................................................32
Control Preset Operation.................................................................................................33
Preset Operation.................................................................................................................................. 33
Section 7
Component
Replacement
Procedures
Ignition Control - Landis+Gyr (S/N L31478 and Below) ................................................35
Ignition Control - Honeywell (S/N L31479 to 1803100100610.....................................35
Ignition Control - Techrite (S/N 1803100100611 and Above).......................................35
Air Pressure Switch...........................................................................................................35
Conveyor Drive Motor .....................................................................................................35
Capacitor, Conveyor Motor .............................................................................................35
Reversing Switch ..............................................................................................................36
Fuseholder ........................................................................................................................36
Gas Valve (S/N L31478 and Below)..................................................................................36
Gas Valve (S/N L31479 and Above) .................................................................................36
Burner Alarm ....................................................................................................................36
Spark Generator ...............................................................................................................37
Igniter Sensor ...................................................................................................................37
Switch, Burner Reset ........................................................................................................37
Temperature Regulating Valve........................................................................................37
Main Orifice ......................................................................................................................37
Bypass Orifice ...................................................................................................................37
Thermostat, High Limit, Oven Cavity..............................................................................37
On-Off Switch (Power) .....................................................................................................38
Capacitor, Main Fan Motor ..............................................................................................38
Relay..................................................................................................................................38
Thermostat, Cooling Fan .................................................................................................38
High Limit Thermostat.....................................................................................................38
Cooling Fan Motor............................................................................................................38
Main Fan Motor ................................................................................................................39
Thermocouple (Type K)....................................................................................................39
Power Filter.......................................................................................................................39
Bearing, Conveyor............................................................................................................40
Burner Blower Motor .......................................................................................................40
Control Transformer.........................................................................................................40
Oven Control.....................................................................................................................40
Controller Programming Instructions ............................................................................41

Document #: LIN_GO_SM_IMPLOPRO_S1600_INTL_4605727 – 9/20
Table of Contents (continued)
Section 8
Charts
Specifications – Models with Gas Heat...........................................................................43
Section 9
Diagrams
Wiring Schematics............................................................................................................45
1633-000-EA, 1634-000-EA (Serial Number L28563 to L31478) ......................................... 45
1631-xxx-E-Kxxxx, 1632-xxx-E-Kxxxx, 1633-000-EA, 1634-000-EA
(Serial Number L31479 to 1803100100610).............................................................................. 46
1633-000-EA, 1634-000-EA, 1636-000-EA, 1636-H01-E-Kxxxx
(Serial Number 1803100100611 and above) ............................................................................ 47
1636-H51-EA, 1636-H51-E-Kxxxx (Serial Number 1803100100611 and above) ...........48

6 Document #: LIN_GO_SM_IMPLOPRO_S1600_INTL_4605727 – 9/20
Table of Contents (continued)
THIS PAGE INTENTIONALLY LEFT BLANK

Document #: LIN_GO_SM_IMPLOPRO_S1600_INTL_4605727 – 9/20
Model Number Key
Example: 1633-B00-E-K1801
16 33 B0–––0EK1801
OVEN PLATFORM SIZE
(i.e. Low Profile Impinger)
INDICATES CHANGE TO BASE ASSEMBLY
(i.e. Natural Gas, 230V, 1 phase, 50 Hz)
LANGUAGE CODE
CUSTOM CONFIGURATION CODE
(i.e. General Market)
AGENCY CODE
CONVEYOR PANEL SETUP CODE
(0=Full, 5=Split)
Language Code
Code Language Country
0 English Dom. & Int. Default
B French CE – France/Luxembourg
C German CE – Germany
D Italian CE – Italy
E Spanish CE – Spain
F English CE – UK/India/Africa/Hungary
G Spanish Mexico/Latin America
H Portuguese CE – Portugal
I Not Used ---
J Danish CE – Denmark
K Dutch & French CE – Belgium
L Dutch CE – Netherlands
M Greek CE – Greece
N Finnish CE – Finland
O Restricted ---
P Norwegian CE – Norway
Q English Japan
R Swedish CE – Sweden
S English Australia
T Mandarin China
U Restricted ---
V English Pacific Rim/Korea
W English Middle East/Africa
X Not Used ---
Y Not Used ---
Z Not Used ---
Agency Code
Code Agency
N No agency
E CE & RoHS compliance combined
U US & Canada compliance only
A Advantage style oven
B Australia AGA
Old Model Numbers
Please note that the model numbering system changed
March 2007. The chart below shows the old model
numbering system and its matching new model number.
Old Model Number →New Model Number
→1631-00z-E-Kxxxx
→1632-00z-E-Kxxxx
1633-000-A →1633-00z-E-Kxxxx
1634-000-EA →1634-00z-E-Kxxxx
1636-000-EA →1636-00z-E-Kxxxx
Section 1
General Information

8 Document #: LIN_GO_SM_IMPLOPRO_S1600_INTL_4605727 – 9/20
General Information Section 1
THIS PAGE INTENTIONALLY LEFT BLANK

Document #: LIN_GO_SM_IMPLOPRO_S1600_INTL_4605727 – 9/20
Exterior Dimensions – 1600
7.56"
(192 mm)
86.23" (2190 mm)
(For CE Electric Only)
79.85" (2028 mm)
(For All Models Other than CE Electric)
32.42"
(823 mm)
40.36"
(1025 mm)
17.64"
(448 mm)
21.85"
(555 mm)
44.56"
(1132 mm)
Tall Stand, Single, 6" Casters, Front View
32.42"
(823 mm)
51.66"
(1312 mm)
63.79"
(1620 mm)
86.23 (2190 mm)
(For CE Electric Only)
79.85" (2028 mm)
(For All Models Other than CE Electric)
7.56"
(192 mm)
Tall Stand, Double, 6" Casters, Front View
65.4" (1661 mm)
29"
(736 mm)
37.6"
(955 mm)
33.6"
(854 mm)
4.6"
(117 mm)
61.4" (1560 mm)
58.0" (1473 mm)
GAS
Side View
68" REF
(1727 mm)
35" (889 mm)
90.75"
(2305 mm)
86.23" (2190 mm)
(CE Electric Only)
62.45"
(1586 mm)
79.85" (2028 mm)
(For All Models Other than CE Electric)
3" (76 mm)
(For Gas
Models Only)
1" (25 mm) N.P.T.
(For Gas
Models Only)
17.47"
(443 mm)
(For Gas
Models Only)
13.15"
(334 mm)
(For Gas
Models Only)
DOOR SWING
Top View
5.60"
(142 mm)
16.10"
(409 mm)
35.33"
(897 mm)
54.57"
(1386 mm)
66.71"
(1694 mm)
86.23" (2190 mm)
(For CE Electric Only)
79.85" (2028 mm)
(For All Models Other than CE Electric)
Low Stand, Triple, 4" Casters, Front View
All ovens require separate service and dedicated neutral.
Notice
Do not install the (these) oven(s) in any area with an
ambient temperature in excess of 95°F / 35° C. Doing so
will cause damage to the unit.
Section 2
Installation

10 Document #: LIN_GO_SM_IMPLOPRO_S1600_INTL_4605727 – 9/20
Installation Section 2

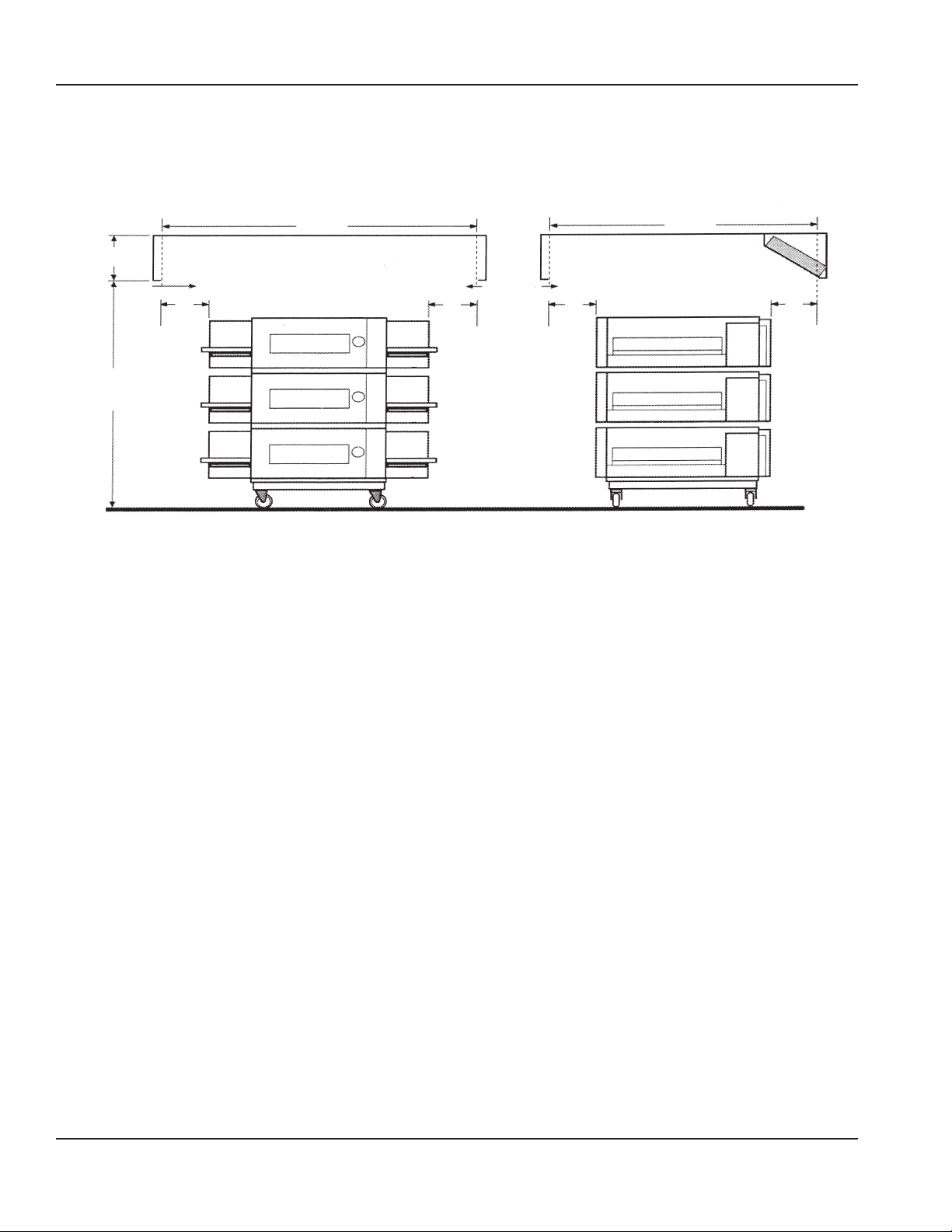

Canopy Ventilation Recommendations
NOTE: Hood shown as dimensional for island mount. Size reductions may be possible for wall mount units.
CAPTURE AREA CAPTURE AREA
78"
(1981 mm)
AFF MAX
120"
(3048 mm)
22"
(559 mm)
18 - 24"
(457 - 609 mm)
22"
(559 mm)
CAPTURE VELOCITY CAPTURE
VELOCITY
80"
(2032 mm)
12"
(305 mm)
12"
(305 mm)
AFF = Above Finished Floor
NOTE: The drawing shown is a typical installation and is
intended to be a guideline. It is not a rigid specification.
Hood dimensions and the positioning of the hood over the
oven will vary with hood manufacturers.
NOTE: Lincoln can provide oven spec sheets that show
the dimensions of the oven, kW or BTU ratings and other
information that will be useful to both the ventilation hood
supplier and the HVAC contractor.

Document #: LIN_GO_SM_IMPLOPRO_S1600_INTL_4605727 – 9/20
Section 2 Installation
Installation Requirements
DANGER
All utility connections and fixtures must be maintained
in accordance with local and national codes.
GAS CODE REQUIREMENTS
DANGER
Conversion of this appliance from one type of gas to
another must only be performed by qualified, licensed,
and authorized installation or service personnel.
Conversion without the proper components may result
in fire or explosion.
nWarning
A manual shut-off valve must be installed in the gas
supply (service) line upstream of this appliance and in a
position where it can be reached quickly in the event of
an emergency.
Safe and satisfactory operation of this oven depends to a
great extent upon its proper installation, and it should be
installed, as applicable in accordance with the National
Fuel Gas Codes, ANSI Z223.1/NFPA 54, latest version,
manufacturers’installation instructions, and local municipal
building codes.
1. The oven and its individual shut off valve must be
disconnected from the gas supply piping system
during any pressure testing of that system at test
pressures in excess of 1/2 psig (3.45 kPa).
2. The oven must be isolated from the gas supply piping
system by closing its individual manual shutoff valve
during any pressure testing of the gas supply system at
test pressures equal to or less than 1/2 psig (3.45 kPa).
IN MASSACHUSETTS: Installation of this oven must be
performed by a licensed plumber or gas fitter. All such
connections must be in accordance with applicable code
requirements. Refer to“Installation Requirements”section
for specific information.
IN CANADA: The installation of these appliances is to be in
accordance with CSA B.149.1 latest version – Natural Gas
and Propane Installation Code – and/or local codes.
IN AUSTRALIA: To be installed in accordance with AS 5601-
2004 and 4563-2004 Gas Installation Code.
IN SOUTH AFRICA: To be installed in accordance with SANS
10087-1 or SANS 827, as applicable.
NOTE: In the event that verification of pilot flame is needed,
a small mirror may be utilized for verification.
If flexible services are provided, they must meet code
requirements for such installation.
ELECTRICAL CODE REQUIREMENTS
nWarning
This appliance must be grounded and all field wiring
must conform to all applicable local and national
codes. Refer to rating plate for proper voltage. It is the
responsibility of the end user to provide the disconnect
means to satisfy the authority having jurisdiction.
nWarning
This equipment must be positioned so that the plug is
accessible unless other means for disconnection from
the power supply (e.g., circuit breaker or disconnect
switch) is provided.
When installed, this appliance must be electrically
grounded and its installation must comply with the
National Electric Code, ANSI-NFPA 70, latest edition, the
manufacturers’installation instructions, and applicable local
municipal building codes.
IN CANADA: All electrical connections are to be made
in accordance with CSA C22.1 latest version – Canadian
Electrical Code and/or local codes.
ALL OTHER COUNTRIES: Local gas and/or electrical codes
will prevail.
1. Strain Relief is provided with each oven. International
Dealer/Distributors provide applicable power cord/
plug for each customer.
2. All pole disconnection switch must have 3 mm open
contact distance.
3. To prevent electrical shock, an equal potential bonding
ground lug is provided in the back. This allows the oven
to be connected to an external bonding system.
4. If used as double or triple stack and each oven has its
own disconnection switch, all switches should be close
together.

12 Document #: LIN_GO_SM_IMPLOPRO_S1600_INTL_4605727 – 9/20
Installation Section 2
SPACING REQUIREMENTS
,Caution
Oven(s) must be operated on approved base only.
nWarning
To avoid instability the installation area must be capable
of supporting the combined weight of the equipment
and product. Additionally the equipment must be level
side to side and front to back.
The right and left side of the oven must have a minimum
3" (75 mm) clearance from all surfaces. WHEN COOLING
DUCTS ARE ATTACHED, no rear clearance is required. The
front of the oven requires a minimum 36" (914.4mm)
clearance from all surfaces. An 18" (457 mm) clearance on
both sides of the oven is required for service accessibility.
In case other cooking equipment is located on both sides
of oven, a minimum 24" (609 mm) clearance is required for
that equipment.
NOTE: Do not install this (these) oven(s) in any area with an
ambient temperature in excess of 95°F/35°C. Doing so will
cause damage to the unit.
VENTILATION REQUIREMENTS
A VENT IS REQUIRED: Local codes prevail. These are the
“authority having jurisdiction”as stated by the NATIONAL
FIRE PROTECTION ASSOCIATION, INC. in NFPA 96 latest
edition. In addition, to be in compliance with the NFPA 54
Section 10.3.5.2, this unit must be installed with a
ventilation hood interlock that prevents the unit from
operating when the ventilation hood is off. For further
ventilation information, see below.
Ventilation Guidelines
A ventilation hood is required to remove heat and cooking
odors. For gas ovens, a ventilation hood is also required to
remove the products of combustion. The hood and HVAC
installation must meet local codes to gain approval by
the authority having jurisdiction. Requirements may vary
throughout the country depending on the location by city,
county, and state. Obtain information from the authority
having jurisdiction to determine the requirements for your
installation. Obtain information and review copies of codes
or documents that will be used to inspect and approve
your installation. Your ventilation hood supplier and HVAC
contractor should be contacted to provide guidance. A
properly engineered and installed ventilation hood and
HVAC system will expedite approval and reduce oven
maintenance costs. Proper ventilation is the oven owner’s
responsibility.
The ventilation hood must operate in harmony with the
building HVAC system. It typically requires between 2500
and 6000 CFM (4248 and 10,194 m3/hour) exhaust. (The
“Efficiency” of various hood designs makes it necessary
to specify such a wide range of ventilator flow.) Make
up air must be supplied by either a hood design or the
HVAC system. This will vary with hoods from various
manufacturers.
Notice
Prevent airflow through the cooking chamber. Air must
NOT be directed onto the oven front, side, or rear of
theoven.
Ventilation System
NOTE: These ovens are considered“Medium Duty for
Baking” when evaluated for code vent requirements.
This information is shown as a guideline for ventilation.
1. Dimensions shown are for ovens without extension
shelves. The outside end of the conveyor frame must be
a minimum of 22inches (560 mm) inside the canopy as
shown.
2. The capture velocity across the lower edge of the
canopy is to be 50FPM at sides and front.
3. Use filters at rear exhaust area of hood, as shown.
4. At start-up, the CO level must be checked around the
oven space under the canopy.
5. This level must be <10ppm.
6. The ovens are to be centered in the canopy space left-
to-right and front-to-back if possible.
7. A 6-inch (152 mm) space at rear of oven is
recommended for utilities.
8. Recommend 70% make-up air provided outside of the
canopy through perf metal diffusers directed straight
down — not at the oven; located at front, sides or both.
9. Room air diffusers must not be directed onto the
oven and should be positioned a minimum of 3feet
(914 mm) from the perimeter of the hood to keep them
from affecting the oven.
NOTE: Smoke Candle Test can also be used as a method or
verifying proper ventilation.
1. This test is to be done on the bottom oven.
2. The conveyor must be off or not moving.
3. The oven temperature is operating at 550°F/288°C.
4. The ventilation system must capture all the smoke from
the oven.

Document #: LIN_GO_SM_IMPLOPRO_S1600_INTL_4605727 – 9/20
Section 2 Installation

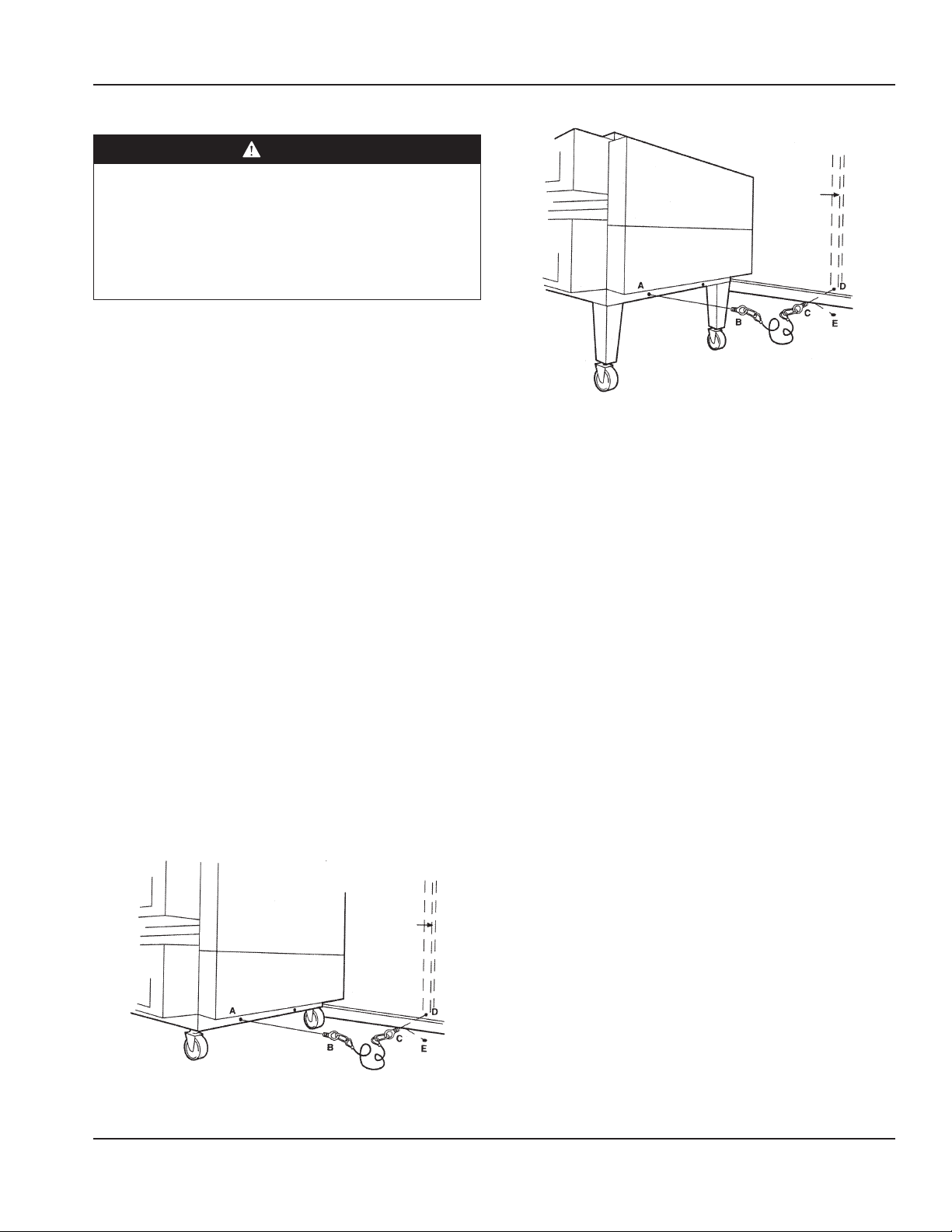

RESTRAINT REQUIREMENT  ALL OVENS ON CASTERS
DANGER
Legs or casters must be installed and the legs or casters
must be screwed in completely to prevent bending.
When casters are installed the mass of this unit will allow
it to move uncontrolled on an inclined surface. These
units, when permanently connected, must be tethered/
secured to comply with all applicable codes, so that
stress is not transmitted to the electrical supply conduit.
• The installation shall be made with a gas connector that
complies with the Standard for Connectors for Movable
Gas Appliances, ANSI Z21.69 latest version, and a quick
disconnect device that complies with the Standard for
Quick Disconnect Devices for Use With Gas Fuel, ANSI
Z21.41 latest version.
IN CANADA: The installation shall be made with gas
connectors that comply with Canadian Code CSA 6.16
latest version and quick disconnects complying to
Canadian Code CSA 6.9 latest version.
IN AUSTRALIA: To be installed in accordance with AS
5601-2004 and 4563-2004 Gas Installation Code.
• The installation of the restraint must limit the
movement of the oven(s) without depending on the
connector, the quick disconnect device, or its associated
piping to limit the oven movement.
• If the restraint must be disconnected during
maintenance or cleaning, it must be reconnected after
the oven has been returned to its originally installed
position.
Procedure
1. Screw lifting eye end “B” of cable assembly to hole “A”.
2. Screw eye bolt end“C” of cable assembly to stud in wall
“D” or floor anchor “E”.
NOTE: Installation point is the same for single, double, or
triple stacked ovens.
Wall
Floor
Stud
BACK OF DOUBLE OVEN
Wall
Floor
Stud
Installation
The instructions that follow are intended as a guide for
preparing for the installation of the Impinger® Conveyor
Ovens, Series 1600. First and foremost, each crate should
be examined before signing the Bill of Lading to report any
visible damage by the trucker in transit, and to account for
the proper number of crates.
UNLOADING
When the oven arrives it should consist of:
1. A crate containing oven body, conveyor, fingers, crumb
pans, and pan stops. (Some models may have the
conveyor packed separately.)
2. A package containing the stand and top.
It is recommended that you have a material-handling
device available to unload.
NOTE: DO NOT LIFT EXCESSIVE WEIGHT!
IF THERE IS APPARENT DAMAGE:
UNITED STATES AND CANADA: Arrangements should
be made to file a claim against the carrier, as Interstate
Commerce Regulations require that the consignee initiate
a claim.
ALL SHIPMENTS TO OTHER COUNTRIES: Freight terms will
be developed and extended on an individual basis.
Proper and secure storage facilities should be arranged for
the oven(s). If necessary, protect it from outdoor or damp
conditions at all times before installation.

14 Document #: LIN_GO_SM_IMPLOPRO_S1600_INTL_4605727 – 9/20
Installation Section 2
UNCRATING
When you have all the crates unloaded, open the crates and
remove the plastic covers. Inspect at once for concealed
damage. If anything appears to be damaged, contact the
appropriate persons immediately to file a damage claim.
After completing this inspection, finish unpacking the oven
and all other components. Be sure to remove the packing
cardboard from the plenum shroud. Move all components
inside near the area where they will be assembled in the
order in which they will be assembled.
THE OVEN WILL CLEAR THROUGH A 30" (762 MM)
DOORWAY BY USING THE FOLLOWING PROCEDURE:
1. Remove conveyor; see “Conveyor Removal for Cleaning”
in Section 4 for instructions. (Some units may have
conveyor packed separately.)
2. Remove front doors by lifting the doors from the hinge
plates.
3. Remove finger assembly and baffles from inside the
oven.
4. Place oven front on a four-wheel moving dolly and it
will clear a 30" (762 mm) doorway.
NOTE: Use care not to damage hinge plates on oven front.
Notice
Do not lift the ovens using the control enclosure. Lift
from the main oven cavity only. Damage may occur to
the controls of the oven if lifted by the control enclosure.
Manual Gas Valve Installation
When installing the gas valve that is supplied with the
oven it is our suggestion that an elbow be placed on the
oven pipe first if one is not already installed. This will allow
the flexible hose to be attached in a downward direction,
eliminating possible stress to the hose.
Assembly Instructions
1. For Single Stack Ovens: The stand is a 40" (1016mm)
x 47" (1194mm) rectangle. Set it in place with a 40"
side facing out. This will be the front of the oven. Ovens
on casters require a level floor. NOTE: The oven top is
packed with oven stand. Remove top from stand before
assembly.
P/N 1612
2. Oven Placement: Remove the oven from the dolly and
set it on the stand. The control panel should be on the
right rear as you face the oven. Be sure that the oven
sets squarely on the stand and is fully seated. For a
single oven, install top and duct cap onto rear cover.

Document #: LIN_GO_SM_IMPLOPRO_S1600_INTL_4605727 – 9/20
Section 2 Installation
3. How to Stack a Double Stack:
The stand is a 40" (1016mm) x 47" (1194mm)
rectangle. Set it in place with a 40" side facing out. This
will be the front of the oven. Ovens on casters require
a level floor. NOTE: The oven top is packed with oven
stand. Remove top from stand before assembly.
P/N 1612
A. Remove the first oven from the dolly and set it on
the stand. The control panel should be on the right
rear as you face the oven. Be sure that the oven
sets squarely on the stand and is fully seated.
B. Place the second oven on top of the first one. Be
sure that it is sets on squarely and is fully seated.
The control panels go on the right rear. Now install
oven top and duct cap onto rear cover.
4. How to Stack a Triple Stack: The stand is a 40"
(1016mm) x 47" (1194mm) rectangle. Set it in place
with a 40" side facing out. This will be the front of the
oven. Ovens on casters require a level floor. NOTE: The
oven top is packed with oven stand. Remove top from
stand before assembly.
P/N 1610
A. Remove the first oven from the dolly and set it on
the stand. The control panel should be on the right
rear as you face the oven. Be sure that the oven
sets squarely on the stand and is fully seated:

16 Document #: LIN_GO_SM_IMPLOPRO_S1600_INTL_4605727 – 9/20
Installation Section 2
B. Place the second and third ovens on top of the first
one. Be sure that they set squarely and are fully
seated. The control panels go on the right rear.
Now install the top and duct cap onto rear cover.
5. NOTE: When stacking ovens, remove the cover
mounting screws to provide a flush fit.
Install the oven top only on the top oven with #8-32
screws provided as shown above.
B
A
6. NOTE: Install duct cover top cap (A) onto the top rear
cover of all single, double, and triple stack ovens. For
double and triple stack ovens, right and left air baffles
(B) should be attached between the control boxes on
both sides of the ovens as shown above. Use #8 screws
provided.

Document #: LIN_GO_SM_IMPLOPRO_S1600_INTL_4605727 – 9/20
Section 2 Installation

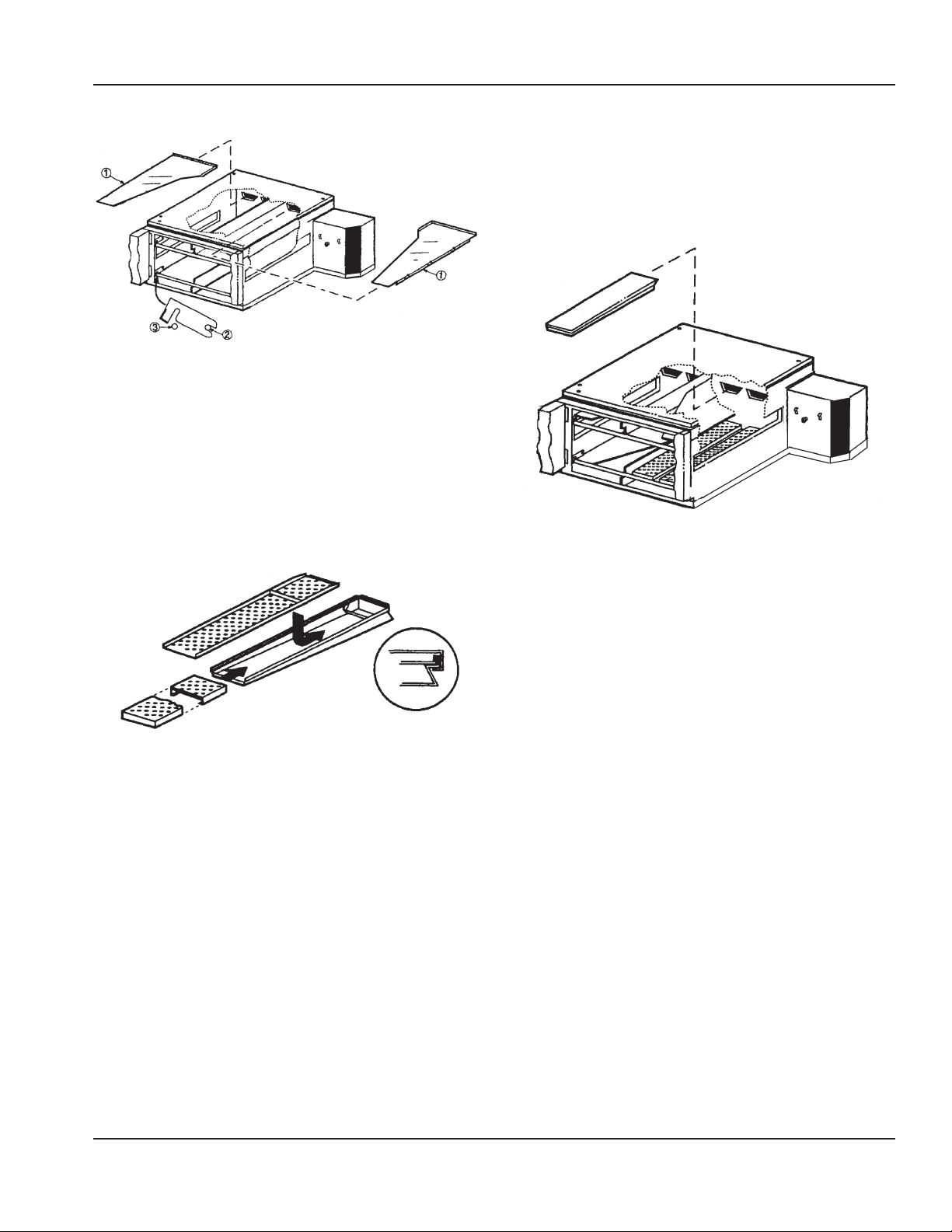

7. Before installing the finger supports in the oven(s), be
sure all of the packing materials are removed from the
plenum shroud.
Install air return baffles (1), if provided.
Install the finger supports by hooking the rear retaining
pin (2) and swinging the finger support into position (3)
as shown above.
8. Assemble fingers as shown below.
9. Insert columnating plate so the step goes under the lip
of the finger housing and the plate lies flush with the
housing side edge.
10. Install cover by sliding it on the small end of the finger
housing.
11. Insert assembled finger through door opening, starting
with lower left. NOTE: The customer MUST tell you
which position to place the assembled finger in for
their application.
12. Install the finger in the oven by sliding it over the
plenum flange and setting the front bracket. BE SURE
THAT THE FINGER SITS SQUARELY OVER THE PLENUM
FLANGES AND THE HOLES POINT IN THE PROPER
DIRECTION. Top fingers point down, bottom fingers
point up.
13. Repeat step 12 until all eight (8) fingers are installed.

18 Document #: LIN_GO_SM_IMPLOPRO_S1600_INTL_4605727 – 9/20
Installation Section 2

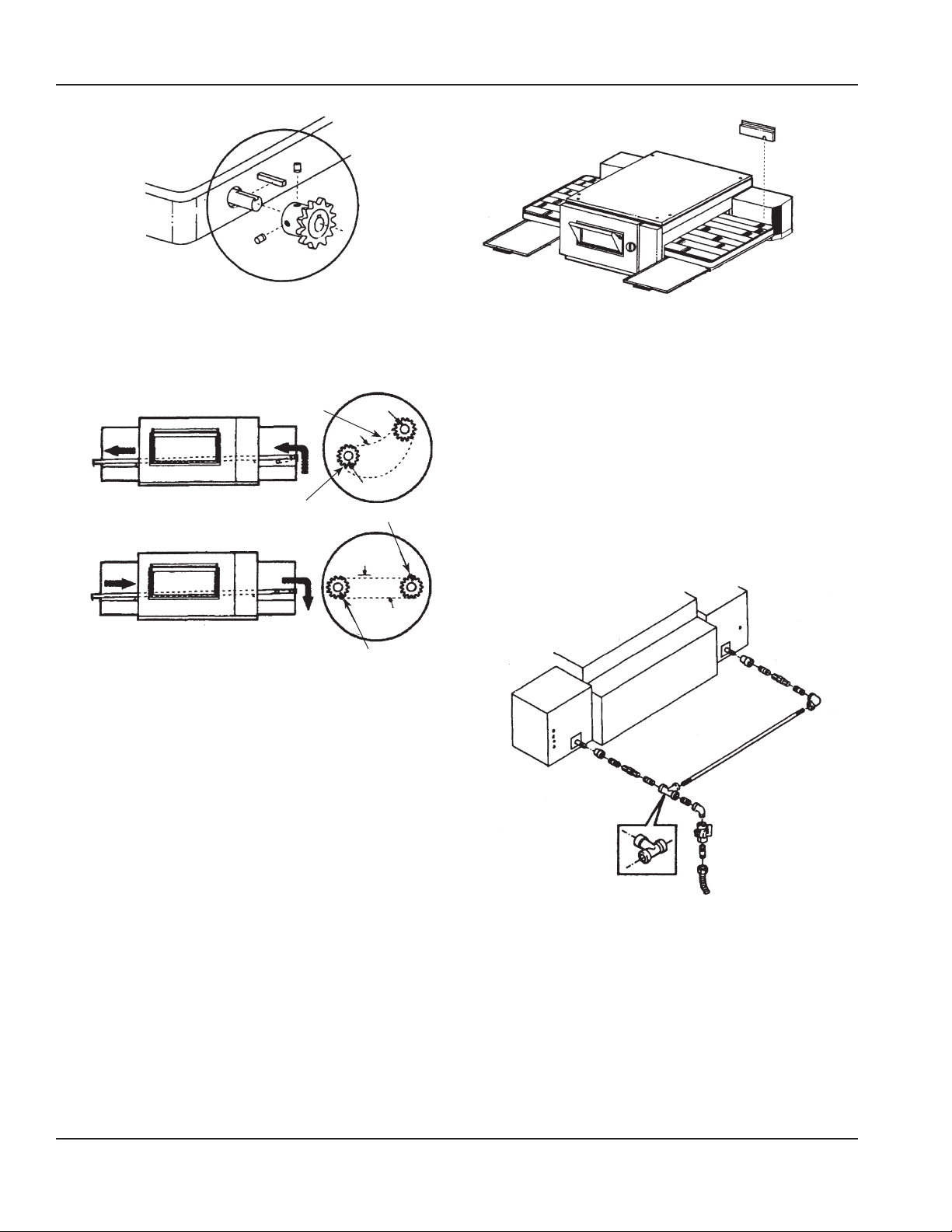

14. Install conveyor drive sprocket on conveyor drive shaft
as shown above. NOTE: Edge of drive sprocket should
be flush with end of drive shaft..
CONVEYOR DRIVE SPROCKET
DRIVE CHAIN
DRIVE MOTOR SPROCKET
CONVEYOR DRIVESPROCKET
DRIVE MOTOR SPROCKET
DRIVE
CHAIN
1/2" SAG
15. Insert the conveyor through the opening in the
right side. Sprocket should be to the right side of the
conveyor.
Slide conveyor through the oven chamber until
the locking bar on driving end of the conveyor is
approximately 2"– 3" (50.8 – 76.2 mm) into the oven
chamber. Install drive chain by placing it over the drive
sprocket and placing it over the conveyor sprocket.
Lift conveyor just enough to allow you to pull the
conveyor to you until the locking bar is outside of
the oven cavity. At the same time, push the conveyor
downward so that the bar locks on the outside of the
oven wall as shown above..
16. Install chain guard cover by sliding guard ontoretaining
clips.
17. Install crumb pans by sliding into rails under conveyor
frame.
18. You are now ready for services to be connected. This
should be done by licensed electricians and plumbers.
See the specifications sections and “Installation
Requirements” for more information.
19. The gas piping manifold kit should be installed as
shown below.

Document #: LIN_GO_SM_IMPLOPRO_S1600_INTL_4605727 – 9/20
Sequence of Operation – Impinger Advantage Digital, Gas
Serial Number L28563 and Above (Ovens with push button controls)
Old Model Number →New Model Number Gas Type Voltage Hz Phase
—→1631-xxx-E-Kxxxx Natural 230 VAC 50 Hz 1
—→1632-xxx-E-Kxxxx LP Gas 230 VAC 50 Hz 1
1633-000-EA →1633-00z-E-Kxxxx Natural Gas 230 VAC 50 Hz 1
1634-000-EA →1634-00z-E-Kxxxx LP Gas 230 VAC 50 Hz 1
POWER SUPPLY Electrical power is supplied to the oven by a three-conductor service.
Brown conductor is hot.
Blue conductor is neutral.
Green conductor is ground.
CONTROL BOX
AUTO COOL DOWN
When the temperature in either one of the control boxes reaches 120°F ±3° (49°C ± 1.7°), the cooling
fan thermostats will switch power to the cooling fans. The thermostats will interrupt power to the
cooling fans when the temperature falls to 100°F ± 3° (37°C ± 1.7°)
MAIN FAN CIRCUIT Line voltage is permanently supplied to a normally open contact of the oven power switch. Line
voltage is permanently supplied to the two normally open cooling fan thermostats, a normally open
contact of the oven power relay. Closing the oven power switch supplies line voltage, through both
normally closed control box hi-limit thermostats, to the oven power relay. Its contacts now close
supplying line voltage to the two main fan motors and the two burner circuits. Closing the oven
power switch also supplies line voltage to the control box cooling fans, the control transformer, and
the conveyor motor.
BURNER CIRCUIT NOTE: This oven utilizes two complete burner systems. The sequence of operations is the same for
each system.
Closing the main fan switch supplies line voltage, through the oven power relay, through a 3A fuse,
through the gas pressure switch (gas pressure switch removed at S/N L31479), through the main
fan air pressure switch, through the oven cavity hi-limit thermostat, to the ignition control. The
combustion motor is energized. The normally open combustion air switch closes upon sensing air
pressure. After a pre-purge period of between 30 and 60 seconds, the ignition control and the main
gas valve are energized. Ignition should now occur.
TEMPERATURE
CONTROL
Closing the oven power switch supplies line voltage, through the 10A fuse, through the oven power
relay, to the primary of the control transformer. 24 VAC is supplied to the oven control. The oven
control is set to desired temperature independently left and right (this oven utilizes two complete
temperature regulation systems). The left and right thermocouples will provide varying millivolts
to the oven control. The oven control supplies line voltage to the left and/or right temperature
regulation valve at intermittent intervals to maintain desired temperature. The display on the oven
control will indicate when the left (HL) and/or right (HR) temperature regulation valve is energized.
NOTE: The display also indicates oven temperature left (TPL) and right (TPR).
CONVEYOR DRIVE Closing the oven power switch supplies line voltage, through the 10A fuse, through the oven power
relay to the conveyor motor and to the primary of the control transformer. Secondary voltage,
24VAC, is supplied to the oven control. Setting the oven control to the desired time outputs voltage,
through a reversing switch, to the conveyor motor.
NOTE: The conveyor system uses a magnet and Hall Effect sensor to prove operation of the conveyor
motor. If the conveyor motor is not running,“BELT JAM” is indicated on the display.
Section 3
Operation

20 Document #: LIN_GO_SM_IMPLOPRO_S1600_INTL_4605727 – 9/20
Operation Section 3
THIS PAGE INTENTIONALLY LEFT BLANK
