Welbilt Convotherm OES 6.10 Mini User manual

OES 6.10 Mini (MS610)
Combination Oven
Installation, Operation and Maintenance Manual
This manual is updated as new information and models are released.
This equipment chapter is to be installed in the Oven Section of the Equipment Manual.
Part Number: CON_IOM_8197346 08/2019
*8197346*
OriginalInstructions
CAUTION
DONOTOPERATETHISEQUIPMENTWITHOUTREADING
ANDUNDERSTANDINGTHEINSTRUCTIONS.




AdvancingYourAmbitions

ii
Safety
FOR YOUR SAFETY
Do not store or use gasoline or other flammable liquids or vapors in the vicinity of this or any other
appliance.

WARNING
Improper installation, adjustment, maintenance or service, and unauthorized alterations or
modifications can cause property damage, injury, or death. Read the installation, operating, and
service instructions thoroughly before installing or servicing this equipment.

WARNING
Disconnect power at the main external power switch before servicing or repairing a Combination
Oven. Failure to disconnect can result in death, injury and property damage.

WARNING
Do not connect the Combination Oven drain connection to any drain material that cannot sustain
140 degrees Fahrenheit. Using drain material that cannot withstand 140 degrees Fahrenheit can
result in injury, equipment damage and property damage.

NOTICE
This equipment is to be installed with adequate backflow protection if required by federal, state and
local codes.

NOTICE
Water and waste plumbing and connections shall comply with the International Plumbing Code
(latest edition), International Code Council (ICC), or the Uniform Plumbing Code (latest edition),
International Association of Plumbing and Mechanical Officials (IAPMO).

NOTICE TO U.S. CUSTOMERS
This equipment is to be installed in compliance with the basic plumbing code of the Building Officials
and Code Administrators International, Inc. (BOCA) and the Food Service Sanitation Manual of the
U.S. Food and Drug Administration.

DANGER
This appliance must be connected to a power supply having the same voltage and phase as specified
on the rating plate located on the appliance.

WARNING
When installed, this appliance must be electrically grounded in accordance with local codes, or in the
absence of local codes, with the National Electrical Code, ANSI/NFPA 70, the Canadian Electrical
Code, CSA C22.2, or the appropriate national code of the country and/or region in which the
appliance is installed.

WARNING
Risk of burns from high temperatures inside the oven and on the inside of the appliance door or any
parts that are inside the oven during cooking. Wear personal protective equipment as specified by
operational procedures.


iii
NOTICE
This appliance is intended for professional use only and is to be operated by qualified personnel
only. A Factory Authorized Servicer (FAS) or other qualified professional should perform installation,
maintenance, and repairs. Installation, maintenance, or repairs by unqualified personnel may void
the manufacturer’s warranty.
NOTICE
This appliance is intended to be used for commercial applications, for example in kitchens of
restaurants, canteens, hospitals and in commercial enterprises such as bakeries, butcheries, etc.,
but not for continuous mass production of food.
WARNING
Only McDonald’s approved cleaning and rinse agents must be used. High-pressure cleaners or water
jets must not be used for cleaning. The Combi oven must not be treated with acids or exposed to
acid fumes.
NOTICE
IF, DURING THE WARRANTY PERIOD, THE CUSTOMER USES A PART FOR THIS CONVOTHERM FOOD
SERVICE EQUIPMENT OTHER THAN AN UNMODIFIED NEW OR RECYCLED PART PURCHASED DIRECTLY
FROM CONVOTHERM, OR ANY OF ITS FACTORY AUTHORIZED SERVICERS, AND/OR THE PART BEING
USED IS MODIFIED FROM ITS ORIGINAL CONFIGURATION, THIS WARRANTY WILL BE VOID. FURTHER,
CONVOTHERM AND ITS AFFILIATES WILL NOT BE LIABLE FOR ANY CLAIMS, DAMAGES OR EXPENSES
INCURRED BY THE CUSTOMER WHICH ARISE DIRECTLY OR INDIRECTLY, IN WHOLE OR IN PART, DUE TO
THE INSTALLATION OF ANY MODIFIED PART AND/OR PART RECEIVED FROM AN UNAUTHORIZED
SERVICER.
WARNING
This appliance is not intended for use by children under the age of 16 or persons with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision concerning use of the appliance by a person responsible for their safety. Do not
allow children to play with this appliance.
WARNING
Operation, installation, and servicing of this product may expose you to chemicals/products
including [Bisphenol A (BPA), glass wool or ceramic fibers, and crystalline silica], which is [are] known
to the State of California to cause cancer, birth defects or other reproductive harm. For more
information go to www.P65Warnings.ca.gov.

iv
NOTICE TO OWNERS OF UNITS EQUIPPED WITH TOUCH SCREEN CONTROLLERS
U.S.
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions: 1) This device may not cause harmful interference, and 2) This device must accept any
interference received, including interference that may cause undesired operation. While this device
is a verified Class A device, it has been shown to meet the Class B limits.
CANADA
This digital apparatus does not exceed the Class A or B limits for radio noise emissions as set out by
the ICES-003 standard of the Canadian Department of Communications.
Cet appareil numerique n’emet pas de bruits radioelectriques depassany les limites de classe A et B
prescrites dans la norme NMB-003 edictee par le Ministre des Communcations du Canada.

v
OES 6.10 Mini (MS610) COMBINATION OVEN
TABLE OF CONTENTS
Page
Warranty ..................................................................................................................................................... 1
Start-Up ....................................................................................................................................................... 2
Introduction................................................................................................................................................ 3
CHAPTER 1: General Information............................................................................................................. 3
1.1 Product Information...............................................................................................................................3
1.2 Product Information Plate.....................................................................................................................3
1.3 Model Number........................................................................................................................................3
1.4 Serial Number and Equipment Record................................................................................................3
1.5 Inspect for Shipping Damage................................................................................................................4
CHAPTER 2: Installation Instructions ...................................................................................................... 4
2.1 Laws, Codes and Regulations ...............................................................................................................4
2.2 General Instructions...............................................................................................................................5
2.3 Install the MINI........................................................................................................................................5
2.3.1 Select a Location for the MINI..............................................................................................5
2.3.2 Exhaust Hood Requirements...............................................................................................6
2.3.3 Installation of a Convotherm Hood.....................................................................................7
2.3.4 Dimensions and Clearance ................................................................................................10
2.3.5 Connections .........................................................................................................................11
2.3.6 Air Supply..............................................................................................................................11
2.4 Water Connections for the MINI.........................................................................................................11
2.4.1 Install Water Supply ............................................................................................................11
2.4.2 Water Supply Requirements ..............................................................................................12
2.4.2.1 Water Quality......................................................................................................12
2.4.2.2 Minimum Water Quality Requirements..........................................................12
2.4.3 Water Supply System Pressure Requirements................................................................12
2.4.4 Connect Water Supply Lines ..............................................................................................12
2.4.5 Included water connection and drain kit parts ...............................................................13
2.4.6 Install Vented Drain Lines from the MINI to the Existing Floor Drain ..........................14
2.4.7 Attach Oven Rinse Aid and Degreaser Pick-Up Tubes....................................................15
2.5 Electric Connections for the MINI.......................................................................................................15
2.5.1 Install Electric Power Lines.................................................................................................15
CHAPTER 3: Startup Procedure .............................................................................................................. 16
3.1 Installation Check List ..........................................................................................................................16
3.2 Startup Temperatures and Checklist .................................................................................................17
CHAPTER 4: Identification and Major Component Function............................................................... 18
CHAPTER 5: Equipment Set-up and Close Procedures ......................................................................... 19
5.1 Crew Mode ............................................................................................................................................19
5.2 Manager Mode......................................................................................................................................21
5.2.1 Add/Remove Recipes to Groups, Edit Recipe Cook Times.............................................21
5.2.2 Removing a Recipe ..............................................................................................................22
5.2.3 Adding a Recipe ...................................................................................................................22
5.2.4 Changing a Position in the Group .....................................................................................22
5.2.5 Edit Recipe Cook Times.......................................................................................................23
5.2.6 Changing Limited Settings..................................................................................................25
5.3 Automatic Cleaning ..............................................................................................................................26

vi
CHAPTER 6: Troubleshooting, Power Failure and Service and Parts/Service .................................... 27
6.1 Troubleshooting Guide........................................................................................................................27
6.2 In the Event of a Power Failure...........................................................................................................28
6.3 Ordering Parts/Service ........................................................................................................................28
CHAPTER 7: Planned Maintenance......................................................................................................... 29
CHAPTER 8: Wiring Diagrams.................................................................................................................. 51

1
Warranty
CONVOTHERM products are warranted to the
original purchaser to be free from defects in
materials and workmanship under normal use
and service for the standard warranty period of
two years from date of startup.
CONVOTHERM agrees to repair or replace, at
its option, f.o.b. factory, any part which proves
to be defective due to defects in material or
workmanship during the warranty period,
providing the equipment has been unaltered,
and has been
PROPERLY INSTALLED,
MAINTAINED, AND OPERATED IN
ACCORDANCE WITH THE CONVOTHERM
OWNER’S
MANUAL.
CONVOTHERM agrees to pay any FACTORY
AUTHORIZED EQUIPMENT SERVICE
AGENCY (within the continental
United States,
and Hawaii) for reasonable labor required to
repair or replace, at our option, f.o.b. factory,
any part which
proves to be defective due to
defects in material or workmanship, during the
labor warranty period. This warranty includes
travel time not to exceed two hours and
mileage not to exceed 50 miles (100 miles
round-trip), BUT DOES NOT INCLUDE
POST
START-UP, TIGHTING LOOSE FITTINGS,
DOOR GASKET, MINOR ADJUSTMENTS,
MAINTENANCE, CLEANING OR DESCALING.
PROPER INSTALLATION IS THE
RESPONSIBILITY OF THE DEALER,
THE OWNER-USER, OR INSTALLING
CONTRACTOR, AND IS NOT COVERED BE
THIS WARRANTY. Many local codes exist, and
it is the responsibility of the
owner and installer
to comply with these codes. CONVOTHERM
equipment is built to comply with applicable
standards for
manufacturers, including UL,
AGA, NSF, ASNE/Ntl. Bd, CSA, CGA, ETL and
others.
STEAM GENERATOR MAINTENANCE IS THE
RESPONSIBILITY OF THE OWNER-USER
AND IS NOT COVERED BY
THIS WARRANTY. The use of good
quality feed water is the responsibility of
the Owner-User (see Water Quality
Recommendations to the right). THE USE
OF POOR QUALITY FEED WATER
WILL VOID EQUIPMENT WARRANTIES.
MINIMUM WATER QUALITY REQUIREMENTS
TDS………………………50-125ppm
pH Factor………………...7.0-8.5
Free Chlorine……………< 0.1 ppm
Silica……………………. <13 ppm
Chloride………………... < 25ppm
Alkalinity………………... 50-100 ppm (3-6gpg)
Hardness…………….…50-100 ppm (3-6gpg)
NH2CL(Monochloramine) … < 0.2 PPM
Water Pressure ……….35-80 psi
The foregoing shall constitute the sole and
exclusive remedy of original purchaser and
the full liability of CONVOTHERM for any
breach of warranty. THE FOREGOING IS
EXCLUSIVE AND IN LIEU OF ALL
OTHER WARRANTIES, WHETHER
WRITTEN, ORAL. OR IMPLIED,
INCLUDING ANY WARRANTY OF
PERFORMANCE, MERCHANTABILITY,
OR FITNESS
FOR PURPOSE, AND
SUPERSEDES AND EXCLUDES ANY
ORAL WARRANTIES OR
REPRESENTATIONS, OR WRITTEN
WARRANTIES OR REPRESENTATIONS,
NOT EXPRESSLY DESIGNATED IN
WRITING AS A “WARRANTY” OR
“GUARANTEE” OF CONVOTHERM MADE
OR IMPLIED IN ANY MANUAL,
LITERATURE, ADVERTISING
BROCHURE OR
OTHER MATERIALS.
CONVOTHERM liability on any claim of
any kind, including negligence, with respect
to the goods or services covered here-
under, shall in no case exceed the price of
the goods or services, or part thereof,
which gives rise to the claim. IN NO
EVENT
SHALL CONVOTHERM BE
LIABLE FOR SPECIAL, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES, OR ANY
DAMAGES
IN THE NATURE OF
PENALTIES.

2
Start Up
You’re entitled to a Start Up that is included with the purchase of your
new Convotherm Combi Oven Steamer.
To arrange startup and activate the warranty, please contact RISE to
arrange for the Factory Startup: 844-724-2273, option 4, option 4, or
[email protected]
You will need the Model Number and Serial Number which is located on the Combi
Oven Steamer rating plate.
Model # ________________________ Serial # _________________________
Scanning the QR code below allows access to tutorial videos for
the operation of the oven.
Note: These videos can only be viewed on a portable device such as an Iphone or
Android Phone
https://carecode.info/q/w89a7no0
To view videos on a computer go to
https://www.youtube.com/channel/UC4No1nnZtkqD7ZULzA65V1A/videos

3
Introduction
The CONVOTHERM combination convection and steam oven, manufactured exclusively for McDonald’s,
provides a method for easy menu item cooking, while accommodating a variety of products.
This unit meets all the McDonald’s standards for safety, efficiency, quality and cleanliness.
DO NOT OPERATE OR ATTEMPT TO OPERATE THIS APPLIANCE OR ANY ACCESSORIES
WITHOUT READING COMPLETELY AND FULLY UNDERSTANDING THIS MANUAL.
KEEP THIS MANUAL FOR REFERENCE.
This manual may be subject to new technical developments, modifications, and unforeseen errors.
CHAPTER 1
General Information
1.1 Product Information
Convotherm assigns two product identification numbers to each MINI: a model number and a serial number.
The model number identifies the product characteristics. The serial number identifies the individual unit.
1.2 Product Information Plate
The Product Information Plate on the left side of the unit lists the model, serial number, electric, and
wiring requirements of the appliance.
1.3 Model Number
1. This manual covers installation of The MINI Convotherm
Combi/Oven-Steamer.
2. For further information, contact your Convotherm sales representative or Convotherm.
1.4 Serial Number and Equipment Record
During manufacture, MINIs are assigned individual serial numbers. Please provide the following
information when you contact Convotherm or a qualified Convotherm authorized service representative:
Serial Number________________________________________________________________
(Write the Serial Number of your MINI here.)
Model Number________________________________________________________________
(Write the Model Number of your MINI here.)

4
Operating this appliance out of level can cause DEATH, INJURY, and EQUIPMENT DAMAGE. This appliance
must be level both front-to-back and side-to-side in all installations. NEVER operate this appliance out of
level. If this appliance is suspected to be out of level, shut it down at once and call your qualified
Convotherm authorized service agency immediately.
1.5 Inspect for Shipping Damage
If the appliance is damaged or damage is suspected:
1) Submit a Damage Claim to the Shipper immediately.
2) Inform your dealer at once.
3) Inform Convotherm USA in writing within three (3) days to [email protected].
CHAPTER 2
Installation Instructions
2.1 Laws, Codes, and Regulations
This equipment should be installed only by qualified service agents, professional plumbers, pipe fitters,
and electricians.
1. The installation of this appliance must conform with:
a. The National Electrical Code, ANSI/NFPA 70 (latest edition), or the Canadian Electrical Code,
CSA C22.2, or local codes, as applicable.
When installed, the appliance must be electrically grounded in accordance with the above.
b. The Food Code (latest edition) of the Food and Drug Administration (FDA).
2. This equipment may need to be installed with adequate backflow protection to comply with applicable
federal, state and local codes.
3. This equipment is to be installed to comply with the applicable federal, state, or local plumbing codes.
Water and waste piping connections shall comply with the latest edition of the international plumbing
code, International Code Council (ICC) or the uniform Plumbing Code, International Association of
Plumbing and Mechanical Officials (IAPMO)
4. Installation instructions must be read in their entirety before starting installation of this appliance.
This includes the separate installation instructions provided with accessories such as Convotherm
stands designed to be used with the MINI.
5. Install this appliance according to the policies and procedures outlined in this manual.
6. Installation must comply with all local fire and health codes.
Improper installation, adjustment, alteration, service, or maintenance of this appliance, or installation of a
damaged appliance can result in DEATH, INJURY, EQUIPMENT DAMAGE, and void the warranty.
NEVER install damaged appliances, equipment, or accessories. This unit may only be installed with
optional legs or approved stands. Installation in any other manner can result in DEATH, INJURY,
EQUIPMENT DAMAGE, and void the warranty. ALWAYS have installation and service performed by
qualified Convotherm authorized personnel.

5
All clearance requirements above, below, and around the MINI are the same for non-combustible locations
as for combustible locations.
Failure to maintain required clearances and additional distances as needed can result INJURY and
EQUIPMENT DAMAGE.
2.2 General Instructions
1. Select the MINI’s operating location.
2. Only install the MINI on an McDonald’s approved stand designed specifically for a MINI. Legs are
not included and must be ordered separately.
3. Complete the facility, water, drain, and electric lines before positioning and leveling the MINI.
4. Position and level the MINI.
5. Connect the utility lines AFTER positioning and leveling the MINI.
6. Call RISE to arrange for the Factory Startup: 844-724-2273, option 4, option 4, or
[email protected].
7. After Setup and Performance Checkout, the MINI should provide years of reliable operation.
2.3 Install the MINI
2.3.1 Select a Location for the MINI
1. For safe and efficient operation, observe the following criteria when selecting an operating
location for a MINI
2. Transport the MINI on its pallet.
3. Passages and doors must be high enough and wide enough for a MINI and its pallet. See
Table 2-1.
4. Location selected must be capable of supporting a MINI and or optional stand. See Table 2-1.
5. The area MUST be free from and clear of combustible materials.
6. Position the MINI so it will not tip or slide.
7. To ensure that the oven functions correctly when installed, it should be placed upright and
level (horizontally). This is measured at the front and side edge of the roof. The oven can be
levelled using the adjusting screws on the stand or on the legs of table models.
Improper lifting can result in DEATH, INJURY, AND EQUIPMENT DAMAGE. Use enough workers with training
and experience lifting heavy equipment to place MINIs on supporting surfaces and lift and handle MINIs
and accessories.
Operating an out of level MINI can cause DEATH, INJURY, and EQUIPMENT DAMAGE. MINIs must be level
both front-to-back and side-to-side in all installations. NEVER operate an out of level MINI. If a MINI is
suspected to be out of level, shut it down at once and call you qualified Convotherm authorized service
agency at once.

6
8. A MINI MUST be level both front to back and side to side.
9. The ambient temperature should be within 40°F and 95°F.
10. Proper air supply for ventilation is REQUIRED for and CRITICAL to safe, efficient operation of a
MINI.
11. Operating Clearances: Sides and Rear - 3".
12. Service Clearance: Above - 20”.
13. Allow for sufficient distance if a "high heat source" (e.g. grills) is located next to the unit.
14. Allow for sufficient clearance on the rear for service access. Contact Convotherm at 844-462-
9529 for recommendations.
15. Installation must comply with all local fire and health codes.
16. Do not install the MINI directly over a drain. Steam rising up out of the drain will adversely
affect operation, hamper cooling air circulation, and damage electrical and electronic
components.
17. Do not obstruct the flow of ventilation air. Make
sure the air vents of the MINI are not blocked.
18. Attach the included air diverter on the rear air
intake vent of the MINI.
TABLE 2-1 WEIGHT AND DIMENSIONS INCLUDING PALLET AND CRATE
MODEL WEIGHT WIDTH DEPTH HEIGHT
6.10 190 lb. 25.6” 36.5” 32.1”
TABLE 2-2 OPERATING WEIGHT AND DIMENSIONS
MODEL WEIGHT WIDTH DEPTH HEIGHT
6.10* 157 lb. 20.3” 34.71” 28.48”
2.3.2 Exhaust Hood Requirements
1. Install the MINI under an exhaust hood or install a Convotherm hood on the oven. See next
page for Convotherm Hood installation instructions.
2. Contact your KES for information regarding optional hood applications.

7

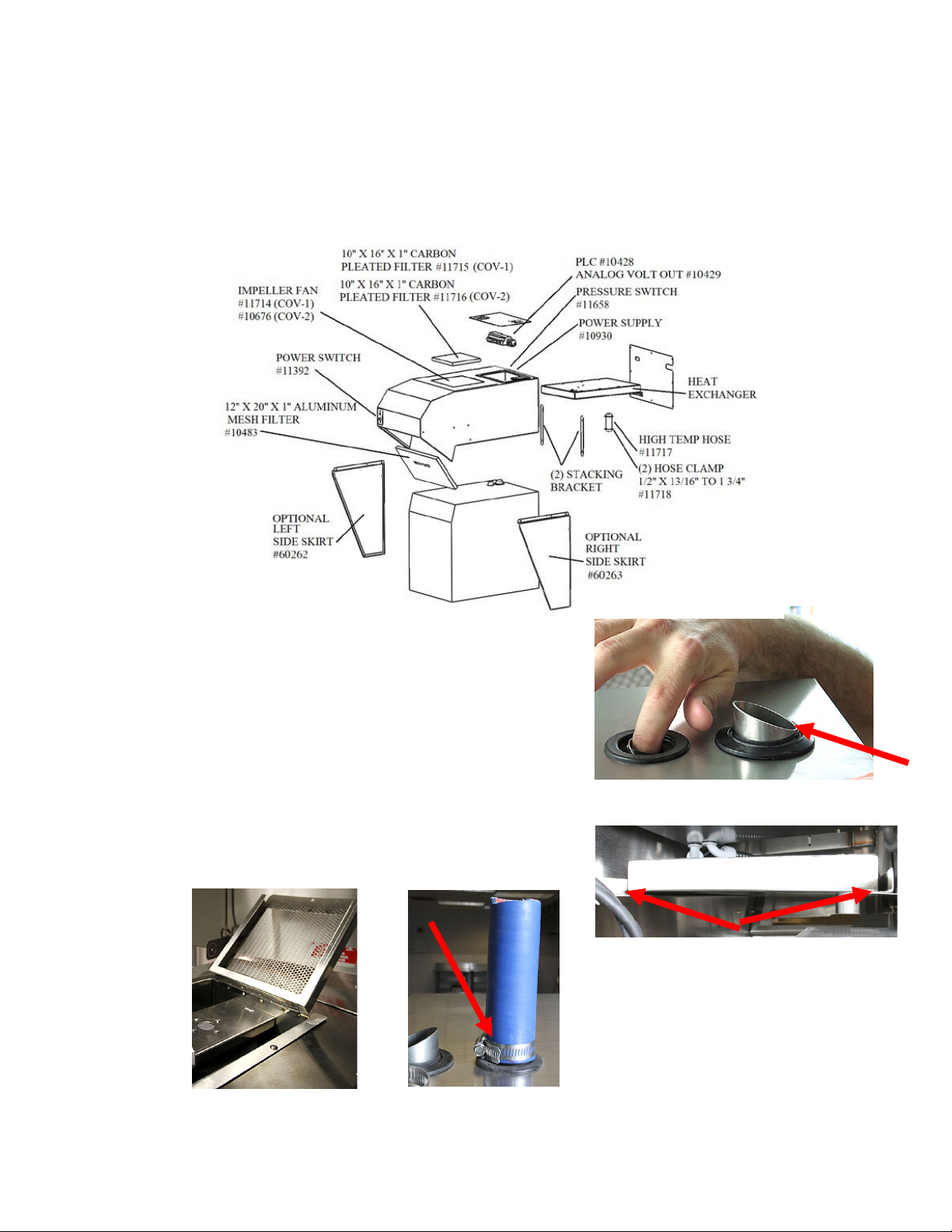

2.3.3 Installation of a Convotherm Hood
1. Carefully unpack the unit and place in an open work area.
2. Remove protective plastic covering.
3. Remove top access panel to retrieve heat exchange connection hose and DB-9 cord.
4. Replace top access panel.
5. Remove back access panel and the side access panel (see Figure 1).
6. Guide the vent tubes on the oven up through the
grommets (see Figure 2).
7. Locate the blue hose, hose clamps and data cable in
the top access panel, included with the hood (see
Figure 3).
8. Attach the hose to the vent connection towards the
front of the oven (see Figure 4) and secure with hose
clamp.
9. Ensure the heat exchanger is resting on its shelf. It
may have shifted during shipping or handling of the
box (see Figure 5).
Figure 2
Figure 1
Figure 5
Figure 3
Figure 4

8
10. Ensure the oven is secure on its table and the top is clean
and clear of grease.
11. Carefully lift the hood (It requires two people to lift it on
top of the oven).
12. Once the hood is resting on the oven, connect the blue heat
exchanger tube, it’s accessible from the rear and the side,
between the oven’s top vent and the heat exchanger (see
Figure 6).
13. Secure the heat exchanger tube, with the provided hose
clamps (see Figure 7).
14. Attach the brackets between
the rear of the oven and the
rear of the hood (see Figure 8).
15. Return access panels to the
hood.
16. Optional - Attach the skirt (left
or right) to the side of the
oven (see Figure 9).
17. Attach the DB-9 cable
between the hood’s port and
the port on the rear of the
oven (see Figure 10).
18. Open the charcoal access on top of
the hood and insert the charcoal
filters (see Figure 11).
19. Position the mesh filter at the front of
the hood by lifting the screen up and
into the frame and then pulling it
down into position (see
Figure 12).
Figure 6
Figure 7
Figure 8
Figure 9
Figure 10
Figure 11
Figure 12

9
20. Plug the hood into 120V service

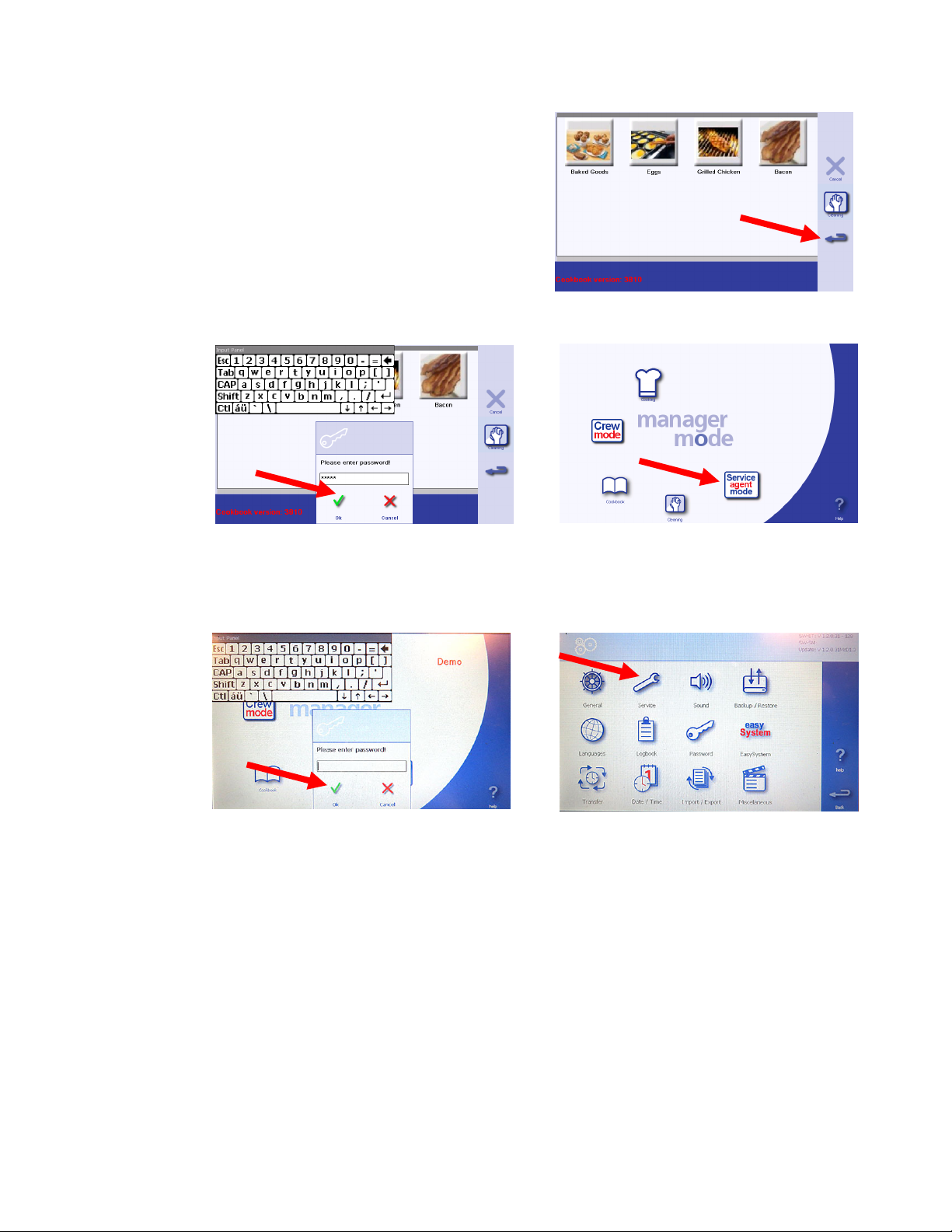

21. (Optional, depending on setting of oven upon
shipping:) Turn the oven on. Enter Manager
Mode on the oven’s touch screen by pressing
the back button to exit crew mode (see Figure
13).
22. Enter Manager Password (default “Convo”)
and press the checkmark. This password is
case sensitive (see Figure 14).
23. Select “service agent mode” on start screen
(see Figure 15).
24. Enter Manager Password (default “1qaz”) and press the checkmark (see Figure 16).
25. Press Service, Select option 48, Hood Connection. It should be set to 1 (see Figure 17).
26. Cycle power to save changes.
Figure 13
Figure 14
Figure 15
Figure 16
Figure 17

10

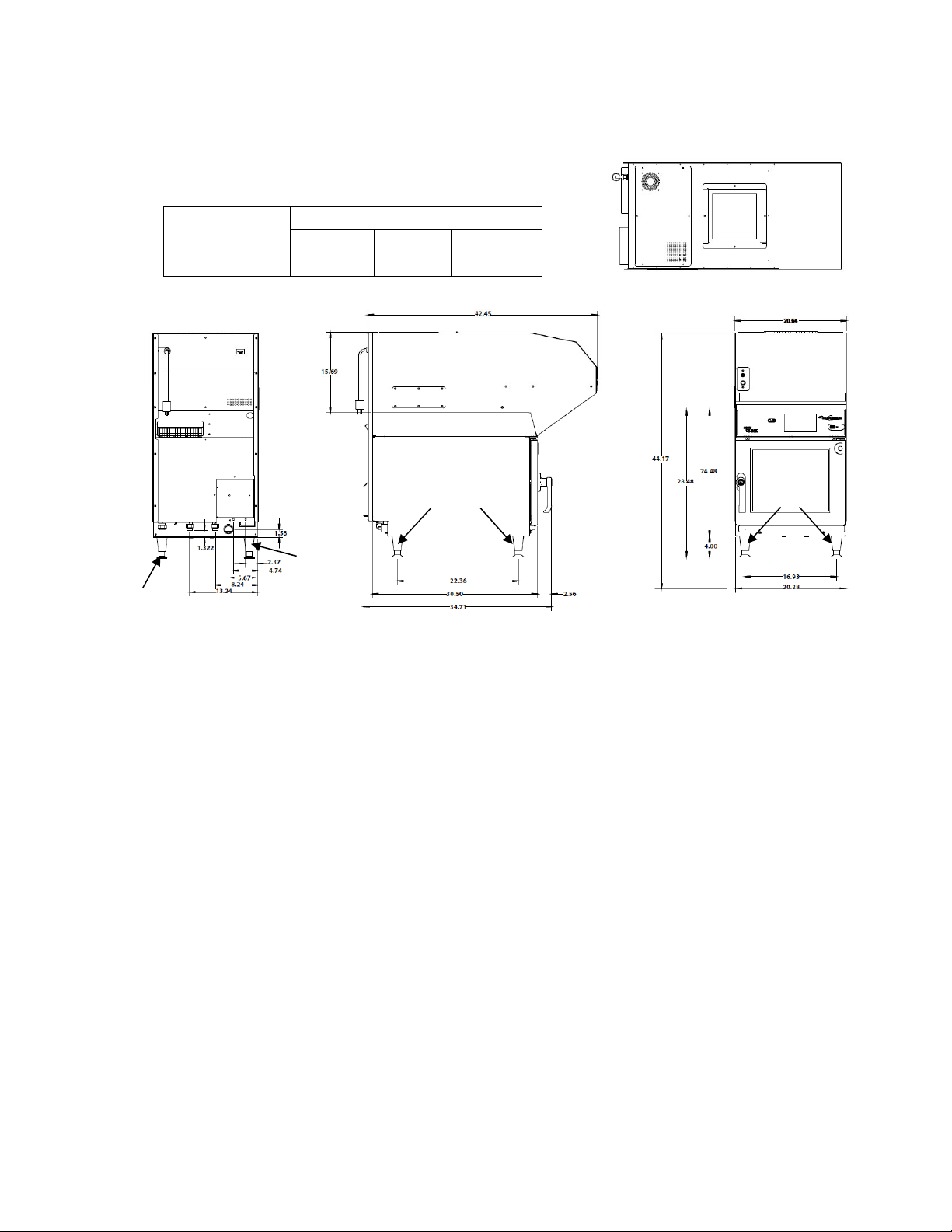

2.3.4 Dimensions and Clearances
Appliance must be installed level
Operating Clearances: Left-Right: 3”, Back: 3”
Service Clearance: Above: 20” (ventilation)
Allow extra clearance on the left side if the appliance has the optional hand shower.
Dimensions with hood installed (and optional legs)
Model Dimension
(
inches
)
X Y Z
6.10 34.71 44.17 20.54
Optional
le
g
s
Optional
le
g
s
Optional
le
g
s
Optional
le
g
s

11
2.3.5 Connections
2.3.6 Air Supply

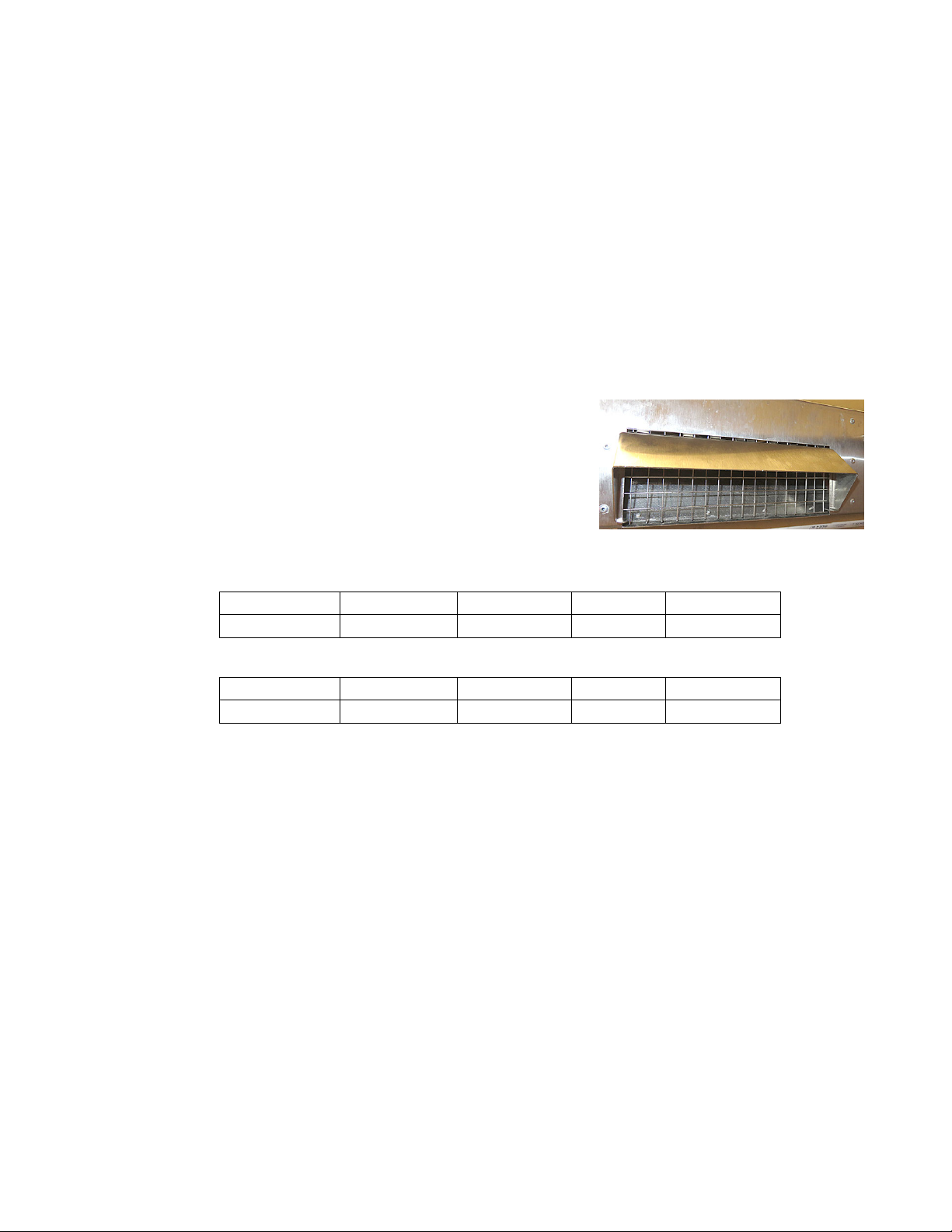

1. Air intake is located in the rear of the oven and air exhaust is located in the bottom of the oven.
2. Keep all air intake vents clear, clean, and free of obstructions.

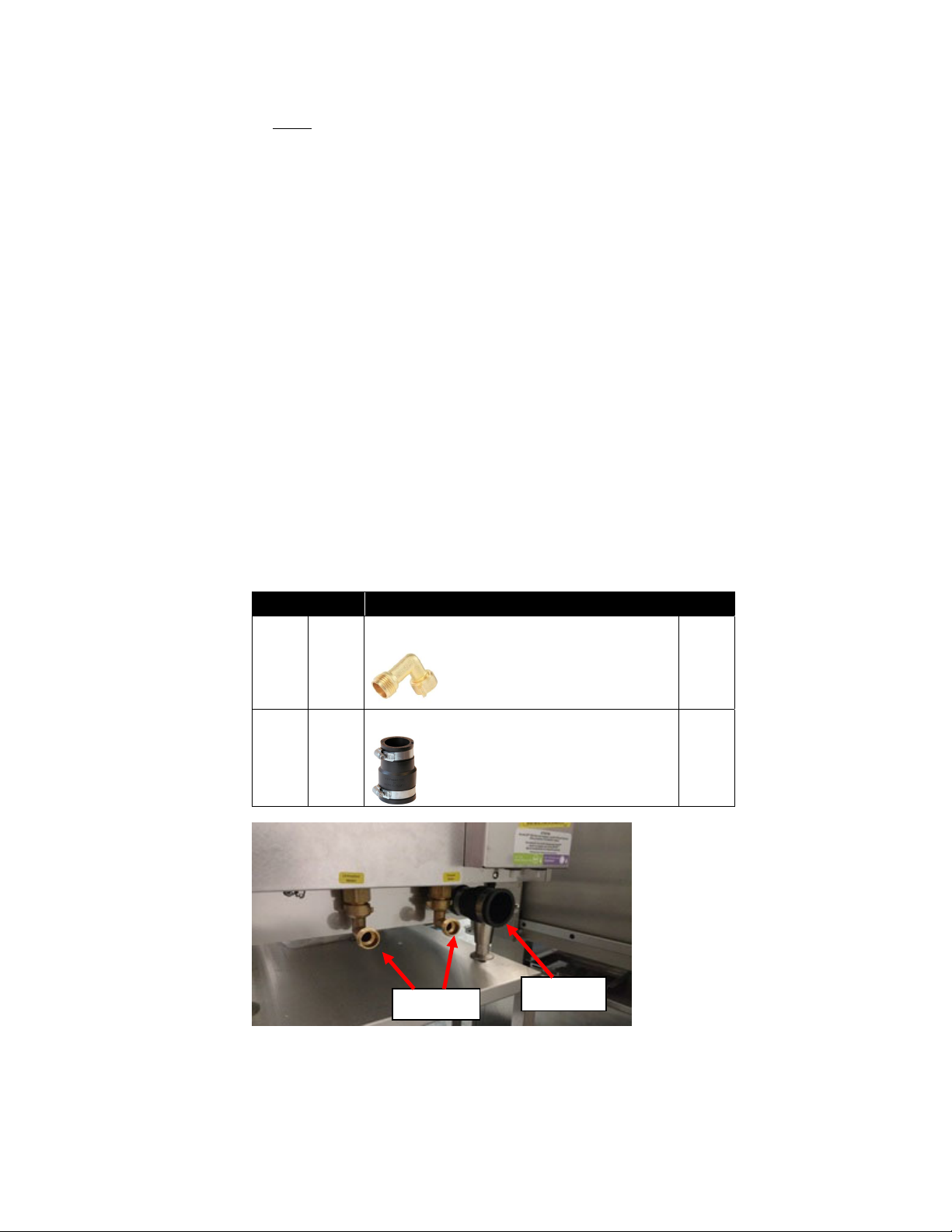

2.4 Water Connections for the MINI
2.4.1 Install Water Supply
1. Install the water supply in the building before positioning the MINI.
2. Water supply line(s) must be designed so the MINI can be moved for service.
3. Construct all supply lines up to the point of installing the MINI.
4. Flush the water supply lines before connecting the MINI to the water supply lines.
5. Use of a water filtration system is recommended. Contact Convotherm at 844-462-9529 for
details.
Shown with
optional legs

12
NOTICE
Using water outside the limits specified in this manual without appropriate
adjustment in the maintenance schedule voids warranty coverage.
2.4.2 Water Supply Requirements
2.4.2.1 Water Quality
1. Check the quality of supply water (described below) before designing the water supply.
2. Contact a local water treatment specialist for on-premises water analysis.
3. Minimum feed water quality requirements are listed in Table 2-3.
4. Poor water supply quality degrades MINI performance.
5. Softened or chlorinated water damages the MINI by increasing corrosion. Filtration is
required before water enters the MINI if supply water is softened or chlorinated.
6. If a water treatment system must be installed to achieve acceptable water quality, install it
BEFORE connecting the water supply lines to a MINI.
7. If analysis shows that supply water is below Minimum Water Quality:
EITHER a water treatment system must be installed in the treated water inlet line feeding
the spritzer,
OR the frequency of maintenance and cleaning must be increased beyond that
recommended in the maintenance schedule,
AND Contact your Convotherm sales representative for details on how to provide water
per Minimum Water Quality Requirements in Table 2-3, or how to increase the frequency
of maintenance and cleaning.
2.4.2.2 Minimum Water Quality Requirements – Table 2-3
Scale Forming Factors Concentrations must be:
Total Dissolved Solids 50-125 parts per million
Silica less than 13 parts per million
Alkalinity 50-100 parts per million
Hardness 50-100 parts per million (3-6 gpg)
NH2CL(Monochloramine) less than 0.2 parts per million
Corrosion-Causing
Factors
Concentrations must be:
Free Chlorine less than 0.1 parts per million
Chloride less than 25 parts per million
pH factor between 7.0-8.5
2.4.3 Water Supply System Pressure Requirements
The water supply must provide:
A minimum dynamic pressure of 35 psi (2.4 kg/cm2)
A maximum static pressure of 80 psi (4.1 kg/cm2).
2.4.4 Connect Water Supply Lines
The Installer/Owner is responsible for the correct water connection of the MINI (see next page
for included kit parts and instructions). When connecting water supply lines observe the
following instructions, and all other applicable national, state, and local codes and regulations:
1. Connect the MINI to COLD POTABLE WATER

13
2. Never connect the MINI to HOT WATER! The condenser system will not work properly if
connected to HOT or WARM water.
3. The water supply must have a minimum dynamic (flow) pressure of 35 psi (2.4 kg/cm²)
and a maximum static pressure of 80 psi (4.1 kg/cm²).
4. If the static pressure is above 80 psi, a pressure regulator must be used and set at
approximately 50 psi. Pressure above 80 psi can damage solenoid valves.
5. MINIs have two connection points for incoming water. See Figure in section 4 on page 11.
6. Water supply must meet the minimum requirements shown in the Warranty and Table 2-
3. Install a water treatment system as needed.
7. Installation Requirements:
a. Apply non-hardening pipe thread sealant to all the threaded connections except the
¾” GHT Female (Garden Hose Thread or National Hose Thread) connections at the
Water Connection. GHT or NHT connections do not require pipe thread sealant.
b. Install a manual water shut-off valve (not provided) between main water supply lines
and MINI supply lines.
c. This may require the installation of a check-valve (or other approved anti-backflow /
anti-siphon device) (not provided) in all supply lines in accordance with and as
required by local, state, and national health, sanitation and plumbing codes.
d. Check local codes to determine exactly what type of anti-backflow / anti-siphon device
is necessary to meet local requirements.
2.4.5 Included water connection and drain kit parts
Kit Part # 8104877
Item ID# Description Qty
1 24258 3/4" FEMALE HOSE X 3/4" MALE HOSE LEAD FREE 2
2 24259 1 1/2" X 1 1/4" RUBBER COUPLING 1
Item #1 – Connect to the two (2) hose connections on the rear of the oven.
Item #2 – Connect to the stainless steel tube that is exiting the rear of the oven.
Item #1 Item #2

14
DEATH, INJURY, EQUIPMENT and PROPERTY DAMAGE will result from improper installation of
drain outlet lines. Install free air vented drain lines as described in this manual.
Do not connect the MINI Combi/Oven-Steamer drain connection to any drain material that cannot
sustain 140oFahrenheit. Using drain material that cannot withstand 140oFahrenheit can result in
injury, equipment damage, and property damage.
2.4.6 Install Free Air Vented Drain Lines from the MINI to the Existing Floor Drain
NOTE: This equipment is to be installed to comply with the applicable federal, state, or local plumbing codes.
Notice: Furnishing and installing drain lines is the responsibility of the Owner/Installer.
Notice: If additional drain is required (maximum length 12 feet), use at least 1 1/2” ID piping of an appropriate
schedule and of a material suitable for sustained operation at 140°F.
Notice: Joining clamps may be used to connect same size or larger size drain to the existing drain.
The following restrictions and requirements are critical to the safety of personnel and equipment, and
must not be violated under any circumstances:
1. Do NOT connect the MINI drain connection to any drain material that cannot sustain 140° F.
2. Do NOT connect drains from any other equipment to the drain line of the MINI.
3. Do NOT connect the drain outlet extension line directly into a floor drain or a sewer line.
4. Do NOT connect the MINI drain directly to drains or to the plumbing of any other equipment.
5. The drain line must be free air vented, have gravity flow from the MINI, and terminate outside the
perimeter of the MINI.
6. Improper installation of drain outlet lines voids the MINI warranty.
7. The drain lines must be installed in compliance with the Food Service Sanitation Manual of the Food and
Drug Administration (FDA) and any other applicable national, state, or local codes and regulations.
8. This equipment is to be installed to comply with the applicable federal, state, or local plumbing codes.
9. Do NOT install the MINI directly over a drain. Steam rising up out of the drain will adversely affect operation,
hamper cooling air circulation, and damage electrical and electronic components.
10. The total length of drain and number of bend fittings required to reach the open drain determines the
drain size used to extend the drain line to an open drain.
If the drain outlet extension requires 6 feet or less of drain,
and no more than two elbows are required, 1 1/2-inch ID
drain and fittings are acceptable.
If the drain outlet extension requires 6 to 12 feet of drain, or
requires three elbows, then 2-inch ID drain and fittings are
required.
The drain line must have gravity flow from the MINI drain
outlet to floor drain.
Do NOT install a trap in the drain line.
11. Free air venting requires minimum 1” clearance between the end
of the drain line and the top of the floor drain.
Figure 2-1
Typical Drain Layout
