Welbilt 483700 User manual

1 OF 7
DRILL-POWERED GREASE GUN
OWNER’S MANUAL
WARNING: Read carefully and understand all
INSTRUCTIONS before operating. Failure to follow the safety
rules and other basic safety precautions may result in serious
personal injury.
Item #483700

2 OF 7
Thank you very much for choosing a Wel-Bilt product! For future reference, please complete the
owner’s record below:
Model: _______________ Purchase Date: _______________
Save the receipt, warranty and these instructions. It is important that you read the entire manual to
become familiar with this product before you begin using it.
This machine is designed for certain applications only. The distributor cannot be responsible for issues
arising from modification. We strongly recommend this machine is not modified and/or used for any
application other than that for which it was designed. If you have any questions relative to a particular
application, DO NOT use the machine until you have first contacted the distributor to determine if it can
or should be performed on the product.
For technical questions please call 1-800-222-5381.
INTENDED USE
This Drill-Powered Grease Gun is an innovative, convenient, industrial heavy-duty portable tool which
connects to any compatible electric or pneumatic power tool. It provides dynamic and continuous-flow
grease lubrication operation.
TECHNICAL SPECIFICATIONS
The Grease Gun includes a lightweight aluminum container tube .
When connected, the Grease Gun provides a fully automatic, continuous grease flow with the
trigger depressed.
Provides 4000-8000 PSI
Accepts most 14-oz. grease cartridges; also accept bulk grease
GENERAL SAFETY RULES
WARNING: Read and understand all instructions. Failure to follow all instructions listed below
may result in electric shock, fire and/or serious injury.
WARNING: The warnings, cautions, and instructions discussed in this instruction manual
cannot cover all possible conditions or situations that could occur. It must be understood by the
operator that common sense and caution are factors, which cannot be built into this product, but must be
supplied by the operator.
SAVE THESE INSTRUCTIONS

3 OF 7
WORK AREA
Keep work area clean, free of clutter and well lit. Cluttered and dark work areas can cause
accidents.
Do not use your Grease Gun where there is a risk of causing a fire or an explosion; e.g.
in the presence of flammable liquids, gasses, or dust. A Grease Gun can create sparks, which
may ignite the dust or fumes.
Keep children and bystanders away while operating the Grease Gun. Distractions can cause
you to lose control, so visitors should remain at a safe distance from the work area.
Be aware of all power lines, electrical circuits, water pipes and other mechanical hazards in
your work area, particularly those hazards below the work surface hidden from the operator’s
view that may be unintentionally contacted and may cause personal harm or property damage.
Be alert of your surroundings. Using the Grease Gun in confined work areas may put you
dangerously close to cutting tools and rotating parts.
PERSONAL SAFETY
Stay alert, watch what you are doing and use common sense when operating the Grease Gun.
Do not use the Grease Gun while you are tired or under the influence of drugs, alcohol or
medication. A moment of inattention while operating the Grease Gun may result in serious
personal injury.
Dress properly. Do not wear loose clothing, dangling objects, or jewelry. Keep your hair,
clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught
in moving parts. Air vents often cover moving parts and should be avoided.
Use safety apparel and equipment. Use ANSI-approved safety goggles or safety glasses with
side shields, or when needed, a face shield. Use as dust mask in dusty work conditions. This
applies to all persons in the work area. Also use non-skid safety shoes, hardhat, gloves, dust
collection systems, and hearing protection when appropriate.
Do not overreach. Keep proper footing and balance at all times.
Remove adjusting keys or wrenches before connecting to the power supply or turning on the
tool. A wrench or key that is left attached to a rotating part of the tool may result in personal
injury.
TOOL USE AND CARE
Do not force the tool. Power tools do a better and safer job when used in the manner for
which they are designed. Plan your work, and use the correct tool for the job.
Never use a tool with a malfunctioning switch. Any power tool that cannot be controlled with
the switch is dangerous and must be repaired by an authorized service representative before
using.
Disconnect power supply from tool and place the switch in the locked or off position before
making any adjustments, changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
Store idle tools. When tools are not is use, store them in a dry, secure place out of the reach of
children. Inspect tools for good working condition prior to storage and before re-use.

4 OF 7
Use only accessories that are recommended by the manufacturer for your model.
Accessories that may be suitable for one tool may create a risk of injury when used on another
tool.
Keep guards in place and in working order.
Never leave tool running unattended.
USE COMPRESSED AIR ONLY IF USING AN AIR-POWERED DRILL. Use clean, dry and
regulated compressed air to power this tool. Never use oxygen, carbon dioxide or any other
bottled gas as a power source for this tool.
TOOL SET UP
Fig. 1 (Above) shows an optimal set-up that includes an inline filter, regulator and oiler. All of these
components are sold separately.
NOTE: If you are not using an automatic oiler system, before operation, add a few drops of
Pneumatic Tool Oil to the airline connection. Add a few drops more after an hour of continual use.
1. Prepare the 1/4in. air nipple to connect to the air inlet on pneumatic tool. First, wrap the
1/4in. air nipple with pipe thread seal tape (not included) before threading it into the inlet.
Connect the 3/8in. I.D. air hose (not included) to a quick-disconnect coupler (not included)
and then to the air nipple.
2. Turn on the air pressure on your compressor to 4000-8000 PSI. Do not exceed the
recommended air pressure of 8000 PSI.
3. Check the air connection for leaks.
AIR SUPPLY (IF APPLICABLE)
WARNING: Ensure the air supply is clean and does not exceed 8000 PSI while operating the tool.
Too much air pressure and unclean air will shorten the product life due to excessive wear, and may cause
damage and/or personal injury.
1. Make sure that the air valve (or trigger) is in the “off” position before connecting to the air
supply.
2. An air pressure of 8000 PSI is required.
3. Drain the air tank daily. Water in the airline can damage the tool.

5 OF 7
4. Clean the air inlet filter weekly.
5. Line pressure should be increased to compensate for longer air hoses (over 26 feet or 8
meters).
6. Keep the hose away from heat, oil and sharp edges. Check the hose for wear and make
certain that all connections are secure.
MAINTENANCE
WARNING: Make sure the Grease Gun is disconnected from its power source before attempting
any maintenance, cleaning, or inspection.
Maintain your Grease Gun. It is recommended that the general condition of any tool be examined
before it is used. Keep your Grease Gun in good repair by adopting a program of conscientious
repair and maintenance in accordance with the recommended procedures found in this manual. If
any abnormal vibrations or noise occurs, turn the Grease Gun off immediately and have the
problem corrected before further use. Have necessary repairs made by qualified service personnel.
Keep all cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control. Keep handles dry, clean, and free from oil and
grease.
Cleaning. Use only soap and a damp cloth to clean your Grease Gun. Many household cleaners
are harmful to plastics and other insulation. Never let liquid get inside the Grease Gun.
OPERATING INSTRUCTIONS
Set your power tool to “FORWARD” mode. Do not use the REVERSE mode.
Evacuate any air from the container tube if necessary.
Insert the outlet of spout part to the fitting (which loaded on working area).
Depress the trigger on the drill thoroughly to start work.
Switch operation:
When the trigger switch is depressed, the tool rotates.
When the trigger switch is released, the tool stops.
Once operation is complete, disconnect the power supply (battery pack or air source) before
removing the grease gun from the drill.

6 OF 7

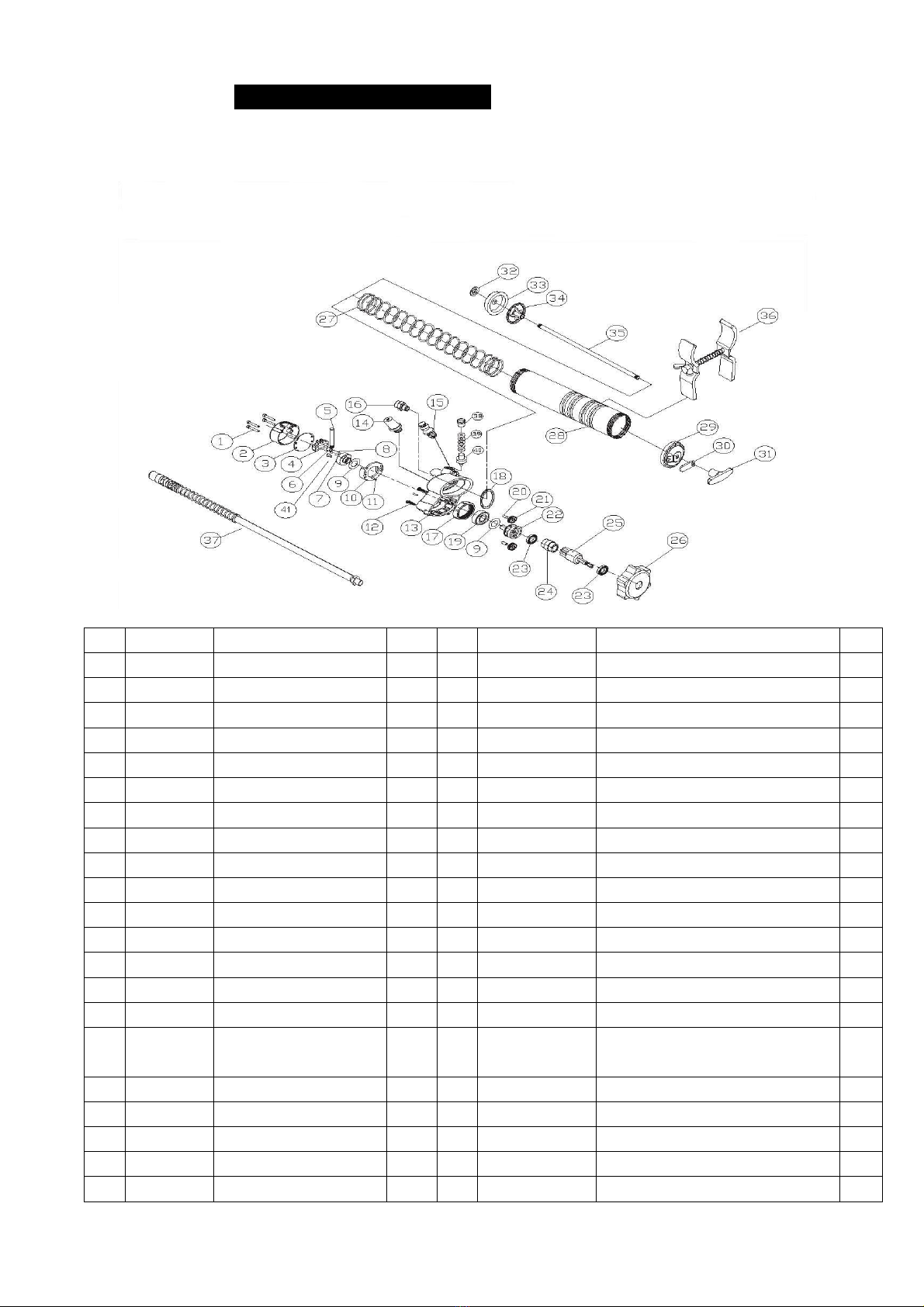

DIAGRAM & PARTS LIST
NO
PART NO
DESCRIPTION
Q'TY
NO
PART NO
DESCRIPTION
Q'TY
01
483700-01
SCREW
4
22
483700-22
CONTROL AX LE
1
02
483700-02
GEAR CAP
1
23
483700-23
AXLE BEARING
2
03
483700-03
CAP PLATE
1
24
483700-24
BEARING DIVIDER
1
04
483700-04
PIST ON CONTROLLER
1
25
483700-25
JOIN ER
1
05
483700-05
PIST ON
1
26
483700-26
PROTECT COVER
1
06
483700-06
AXLE GU IDE
1
27
483700-27
LONG SPRING KIT
1
07
483700-07
ROLLER
1
28
483700-28
CONTAINER TUBE
1
08
483700-08
ROLLER PIN
1
29
483700-29
BOTTOM CAP
1
09
483700-09
WASHER
2
30
483700-30
CATCH P LATE
1
10
483700-10
CONTROLLER BODY
1
31
483700-31
PLUNGER HANDLE
1
11
483700-11
BODY PIN
2
32
483700-32
PLUNGER WASHER
1
12
483700-12
SCREW
4
33
483700-33
PLUNGER
1
13
483700-13
GUN HOLDER
1
34
483700-34
BACKLASH GASKET
1
14
483700-14
FILLER PLUG
1
35
483700-35
PLUNGER RO D
1
15
483700-15
AIR VENT VAL VE
1
36
483700-36
HOLDER
1
16
483700-16
ADAPTER
1
37
483700-37
18" HIGH PRES SUR E NYLON
HOSE
1
17
483700-17
GEAR HO LDE R
1
38
483700-38
ROUND PLUNG
1
18
483700-18
GASKET
1
39
483700-39
PRESSURE VENT
1
19
483700-19
ROLLER BEARING
1
40
483700-40
VENT SPRING
1
20
483700-20
GEAR PIN
2
41
483700-41
SCREW
1
21
483700-21
SMALL G EAR
2
For replacement parts and technical questions, please call 1-800-222-5381.

7 OF 7
WARRANTY
One-Year Limited Warranty
WARNING
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains
chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some
examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your
exposure to these chemicals: work in a well-ventilated area, and work with approved safety equipment, such as
those dust masks that are specially designed to filter out microscopic particles.
Distributed by
Northern Tool + Equipment Co., Inc.
Burnsville, MN 53306
NorthernTool.com
Made in Taiwan
