Weldex WDC-4605XV User manual

V.00
WDC-4605XV
1/3” High Resolution Face View Camera

1.0 Features
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
TOREDUCETHERISKOFELECTRICSHOCK,DONOTREMOVECOVER(ORBACK),
NOUSERSERVICEABLEPARTSINSIDE.
REFERSERVICINGTOQUALIFIEDSERVICEPERSONNEL.
1/3” Sony Super HAD CCD
User Friendly OSD Menu Control
High Resolution of 600 TV Line
Easy Camera Level Adjustment
Day& Night
Dual Power : DC 12V and AC 24V
DNR (Digital Noise Reduction)
Privacy Function
Regulatory Notice
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions :
(1)This device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class A
These limits are designed to provide digital device, pursuant to Part 15 of the FCC Rules.
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
may cause harmful interference installed and use in accordance with the instructions,
to radio communications.
Operation of this equipment in a residential area is likely to cause interference, in which
interference at his own expense. case the user will be required to correct the
WARNING- Changesormodificationsnotexpresslyapprovedbythemanufacturercouldvoidtheusersauthoritytooperatetheequipment.
CAUTION- Toprevent electricshock andrisk offire hazards:
Do NOTuse powersources otherthan thatspecified. Do NOTexpose thisappliance torain ormoisture.
The lightning flash With an arrowhead symbol, within an equilateral triangle is intended to alert the user to
the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intendede to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the appliance
Operation Manual 2.
1/3” High Resolution Face View Camera WDC-4605XV

1/3” High Resolution Face View Camera WDC-4605XV
Operation Manual 3.
2.0 Warnings
The camera needs periodic inspection.
Contactan authorizedtechnician forinspection.
Stop using your camera when you find a malfunction.
Ifyou useyour cameraaround smokeor unusualheat fora longtime, firemay becaused.
Do not Install the camera on a surface that can not support it.
Unlessthesurfaceissuitable,itcouldcausefallingorotherhazards.
Do not hold plug with wet hands.
Itcould causean electricshock.
Do not disassemble the camera.
Itmay resultin fire,electric shockor otherhazards.
Do not use the camera close to a gas or oil leak.
Itmay resultin fireor otherhazards.
3.0 Precautions
Donotinstallthecamerainextreme
temperatureconditions.
Onlyusethecameraunderconditions
wheretemperaturesarebetween-10
Deg.Cand+50Deg.C.(14Deg.Fand
122Deg.F) Beespeciallycarefulto
provideventilationwhenoperating
underhightemperatures.
Do not install or use the camera inan
environment where the humidity is high.
Itcancausetheimagequality tobe
poor.
Donot installthe camera under
unstablelightingconditions.
Severelightingchangeorflickercan
causethecameratoworkimproperly.
Do nottouch the frontlensof the
camera.
Itis one of the most important parts
of thecamera. Be carefulnot to be
stainedby fingerprint.
Donotdropthecameraorsubject
themtophysicalshocks.
Itcancausemalfunctionstooccur.
Never keep the camera faceto
stronglightdirectly.
ItcandamagetheCCD.
Do not exposethe camera to rain
orspillbeverageon it.
Ifitgetswet,wipeitdryimmediately.
Liquids cancontainminerals that
corrodetheelectroniccomponents.
Do not expose the camera to
radioactivity.
If it is exposed to radioactivity, For
heatedCCD, it willbeout oforder.
Note
Ifthe cameraisexposedtospotlightorobjectreflectingstronglight,smearorbloomingmayoccur.
Pleasecheck thatthe powersatisfies thenormal specificationbeforeconnectingthecamera.

Operation Manual 4.
1/3” High Resolution Face View Camera WDC-4605XV
1.0 Features
2.0 Warmings
3.0 Precautions
4.0 Components
5.0 Names and Function of Parts
6.0 Installation
7.0 Setup Menu
7.1 Main Menu
7.2 Exposure
7.3 White Balance
7.4 Backlight
7.5 Day & Night
7.6 DPC
7.7 Special
8.0 Troubleshooting
9.0 Specifications
02
03
04
05
06
07
09
09
09
09
09
10
10
10
12
13
Contents

1/3” High Resolution Face View Camera WDC-4605XV
Operation Manual 5.
V.01
WDC-4605XV
1/3” High Resolution Face View Camera

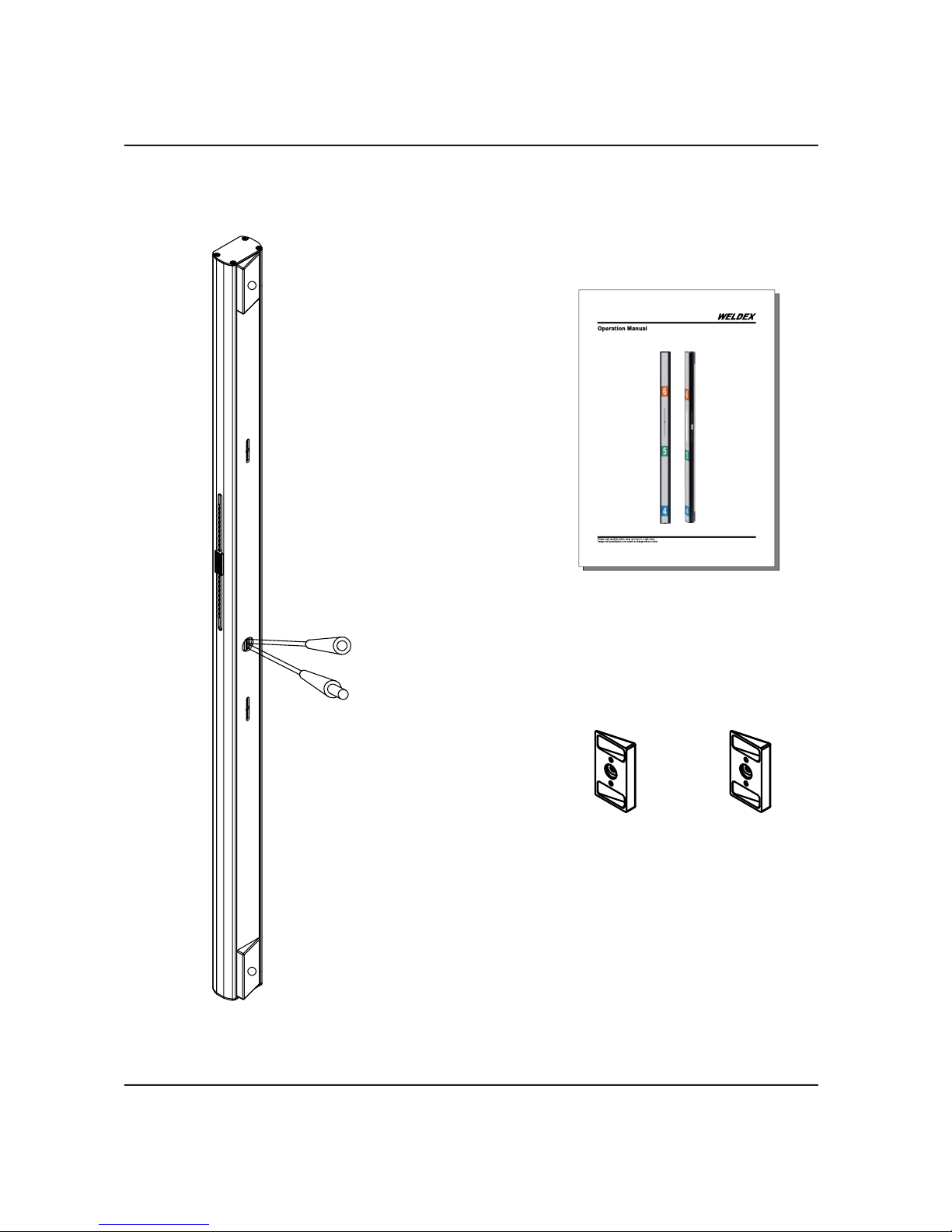

4.0 Components
Face View Camera WDC-4605XV
Operation WDC-4605XV
Angle adjustment bracket
15° 30°

Operation Manual 6.
1/3” High Resolution Face View Camera WDC-4605XV
5.0 Names and Function of Parts
1
1
2
3
4
5
Pin hole Lens 3.6
2
Hight Adjustable Knob
3
Power Input Jack
4
Video Output Jack
5
Jog Controller (Set button)
SET button: Usedfor themenu display.This buttoncan beused to
confirmsettings afterchanging thevalue ofthe selected
functionor currentconditions.
UP & DOWN buttons: Usedfor selectingitems bymoving thecursor
upor downon themenu screen.
LEFT & RIGHT buttons: Usedwhen changingitem values,by moving
thecursor tothe leftor righton themenu screen.
It is Jog Controller then you move Left&Right / Up & Down.

1/3” High Resolution Face View Camera WDC-4605XV
Operation Manual 7.
6.0 Installation
4
3
BODY
ANGLE
MACHINE SCREW
Screw Size(3X6 mm)
TAPPING SCREW
Screw Size(2.6X6mm)
2
TAPPING SCREW
1
6
5
WINDOW
TOP PLATE
SPONGE
7

1/3” High Resolution Face View Camera WDC-4605XV
Operation Manual 8.
6.0 Installation
1. Place 2 Angle Brackets(Angle adjustable 15°/30°)
to right position(Top & Bottom).
2. Tapping screw bolted(4 x 16mm)
3. Make 2 holes to wall where you want to install
(6ft 7.8” from the ground/4ft location)
4. M3 Screw bolted((3 x 6mm)
5. Insert Window into Body
6. Tighten tapping screws after placing a Top Plate
(screw size: 2.6 x 6mm)
7. Attach sponge between 2 angles
Please refer to the Installation Picture Page.7

1/3” High Resolution Face View Camera WDC-4605XV
Operation Manual 9.
7.0 Setup Menu
7.1 MAIN MENU
SETUP
LENS
EXPOSURE
WHITE BAL
BACKLIGHT
DAY&NIGHT
DPC
SPECIAL
RESET
EXIT
DC
ATW1
OFF
AUTO
SETUP
LENS
EXPOSURE
WHITE BAL
BACKLIGHT
DAY&NIGHT
DPC
SPECIAL
RESET
EXIT
DC
ATW1
OFF
AUTO
EXPOSURE
SHUTTER
BRIGHTNESS
AGC
DWDR
RETURN
AUTO
----
50
OFF
RET
The menu consists of the “Main Menu” and“Sub Menu”.
The main menu is 8 kinds of camera functons can
be selected.Tothe right of each main menu selection,
the sub-menu is displayed.
SHUTTER: You can set to auto or manual mode.
AUTO, 1/60(50), FLK, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/5000,
1/10000, 1/100000sec
BRIGHTNESS : You can adjust brightness level.
0 (dark) ~ 255 (bright) steps
AGC: You can select auto gain control level
OFF / LOW / MIDDLE / HIGH
LENS
LENS : Select lens type
DC /VIDEO / MENUAL
DWDR : You can select WDR (Wide Dynamic Range) level.
DWDR : OFF / ON
LEVEL: 0~35 steps
7.2 EXPOSURE
7.3WHITE BALANCE
WHITE BAL : Youcan select white balance mode.
ATW1/ ATW2/ AWC → SET / MANUAL
(INDOOR/ OUTDOOR/MANUAL)
7.4 BACKLIGHT
SETUP
LENS
EXPOSURE
WHITE BAL
BACKLIGHT
DAY&NIGHT
DPC
SPECIAL
RESET
EXIT
DC
ATW1
OFF
AUTO
WB MANUAL
COLOR TEMP
BLUE
RED
RETURN
MANUAL
111
095
RET
SETUP
LENS
EXPOSURE
WHITE BAL
BACKLIGHT
DAY&NIGHT
DPC
SPECIAL
RESET
EXIT
DC
ATW1
OFF
AUTO
BLC
AREA SEL
AREA STATE
GAIN
HEIGHT
WIDTH
LEFT/RIGHT
TOP/BOTTOM
RETURN
AREA1
ON
042
005
004
006
005
RET
ATM1 : Automatically adjusts color according tothe available lighting. (2500°K → 9500°K)
ATW2: Automatically adjusts color according tothe available lighting. (2300°K → 10000°K)
AWC→SET : It is afixed white balance mode that may be automatically readjusted only by
pressing SET Button in ONE PUSH mode.
OUTDOOR: Set color temperature to be Outdoor light (5400°K)
INDOOR: Set color temperature to be Indoor light (3200°K)
MANUAL : Color can be corrected when the user increases or decreases “ Red Gain” or
“Blue Gain”
RED GAIN: Adjust R gain value 0 ~ 255
BLUE GAIN: Adjust B gain value 0 ~ 255
BACKLIGHT :Select OFF / BLC / HLC
BLC (Back Light Compensation)
BLC : Select area, gain
AREA SEL: Select AREA1, AREA2
AREA STATE : Select OFF / ON
GAIN: Select 0~ 255 steps
HEIGHT : Select 0~ 15 steps
WIDTH : Select 0~ 15 steps
LEFT / RIGHT : Select 0~ 15 steps
TOP / BOTTOM: Select 0~ 15 steps

Operation Manual 10.
1/3” High Resolution Face View Camera WDC-4605XV
7.4 BACKLIGHT 7.5 DAY & NIGHT
SETUP
LENS
EXPOSURE
WHITE BAL
BACKLIGHT
DAY&NIGHT
DPC
SPECIAL
RESET
EXIT
DC
ATW1
OFF
AUTO
D&N AUTO
DN
→
LEVEL
DN
→ DELAY
ND
→ LEVEL
ND
→ DELAY
RETURN
184
3SEC
018
3SEC
RET
DAY & NIGHT :Select AUTO / COLOR / B/W /EXT
AUTO : Day & night Auto mode
COLOR : Day & Night only color mode
B/W : Day & night B/W mode
EXT : Day & Night EXT mode
D→ N LEVEL: 128 ~192 steps
D→ N DELAY : 1~ 30 SEC
BURST : OFF / ON
IR SMART : OFF / ON
SETUP
LENS
EXPOSURE
WHITE BAL
BACKLIGHT
DAY&NIGHT
DPC
SPECIAL
RESET
EXIT
DC
ATW1
OFF
AUTO
HLC
LEVEL
MODE
RETURN
200
ALL DAY
RET
HLC (High Light Compensation)
LEVEL: Select 0~ 255 steps
MODE: ALL DAY, NIGHT ONLY
N→ D LEVEL: 0~ 64 steps
N→ D DELAY : 1~ 30 SEC
RGAIN: 0~ 255
HEIGHT : 0~ 15
WIDTH : 0~ 15
LEFT / RIGHT : 0~15
TOP / BOTTOM: 0~ 15
IR LEVEL: HIGH/ LOW
7.6 DPC (Dead Pixel Compensation) 7.7 SPECIAL
DPC : Select dead pixel compensation processing
SETUP
LENS
EXPOSURE
WHITE BAL
BACKLIGHT
DAY&NIGHT
DPC
SPECIAL
RESET
EXIT
DC
ATW1
BLC
AUTO
COVER THE LENS
THEN
PRESS ENTER KEY
SETUP
LENS
EXPOSURE
WHITE BAL
BACKLIGHT
DAY&NIGHT
DPC
SPECIAL
RESET
EXIT
DC
ATW1
BLC
AUTO
SPECIAL
CAM TITLE
MOTION
PRIVACY
PARK.LINE
IMAGE ADJ.
COMM ADJ.
LANGUAGE
VERSION
RETURN
OFF
OFF
ENGLISH
21 01 10
OFF
OFF
RET
CAM TITLE : Select camera title menu (Text edit).
MOTION: Select camera title menu (Text edit)
AREA SEL: Select AREA1, AREA2, AREA3, AREA4
AREA STATE : Select OFF / ON
HEIGHT : Select 0~ 15 steps
WIDTH : Select 0~ 15 steps
LEFT / RIGHT: Select 0~ 15 steps
TOP / BOTTOM: Select 0~ 15 steps
DEGREE : Select 0~ 255 steps
VIEW : OFF / ON

1/3” High Resolution Face View Camera WDC-4605XV
Operation Manual 11.
7.7 SPECIAL 7.7 SPECIAL
SPECIAL
CAM TITLE
MOTION
PRIVACY
PARK.LINET
IMAGE ADJ.
COMM ADJ.
LANGUAGE
VERSION
RETURN
OFF
OFF
OFF
OFF COMM ADJ.
RET
ENGLISH
21 01 10
CAM ID
BAUD RATE
PROTOCOL
DISPLAY ID
ID POS
RETURN
PELCO-D
9600
001
RET
CONTRAST : Youcan adjust contrast on screen. (0 ~ 255 steps)
SHARPNESS : You can adjust sharpnesson screen. (0 ~ 31 steps)
DISPLAY : You can adjust display. (CRT / LCD / USER)
CRT (Cathode Ray Tube, Braun tube)
PED LEVEL : 0 ~ 63steps
COLOR GAIN :0~255 steps
LCD (Liquid Crystal Display)
GAMMA : 0.05~1.00 steps
PED LEVEL : 0 ~ 63 steps
COLOR GAIN : 0 ~ 255 steps
USER
GAMMA : 0.05~1.00 steps
PED LEVEL : 0 ~ 63 steps
COLOR GAIN : 0 ~ 255 steps
NEG.IMAGE : You can select negative display. (OFF/ON)
COMM ADJ. : You can adjust command.
CAM ID : Select the camera ID
0 ~ 255
BAUD RATE : Selectserial communication speed.
2400 / 4800 / 9600 / 19200 / 38400 / 57600 bps
PROTOCOL: Select operating protocol
PELCO-D / PELCO-P
DISPLAY ID :Select display item.
OFF/ON
ID POS: You can adjust ID position on screen.
LANGUAGE : You canselect language
ENGLISH / CHINESE
VERSION : Factory vision.
RESET : Factory default reset.
OFF
7.7 SPECIAL 7.7 SPECIAL
PRIVACY : You can select Hide an area on the screen.
AREA SEL: Select AREA1, AREA2, AREA3, AREA4, AREA5,
AREA6, AREA7, AREA8
AREA STATE : Select OFF / ON
HEIGHT : Select 0~ 124 steps
WIDTH : Select 0~ 200 steps
LEFT / RIGHT: Select 0~ 200 steps
TOP / BOTTOM: Select 0~ 124 steps
COLOR : Select 0~ 15 steps
PARK. LINE : You can select parking line on the screen.
LT :
You can adjust the top left area on screen.(0 ~ 255 steps)
LB : You can adjust the bottom left area on screen.(0 ~ 255 steps)
RT : You can adjust the top right area on screen.(0 ~ 255 steps)
RB : You can adjust the bottom right area on screen.(0 ~ 255 steps)
F : You can adjust the front area on screen.(0 ~ 255 steps)
N: You can adjust the near area on screen.(0 ~ 255 steps)
T : You can adjust the parking line thickness.(0 ~ 15 steps)
SPECIAL
CAM TITLE
MOTION
PRIVACY
PARK.LINE
IMAGE ADJ.
COMM ADJ.
LANGUAGE
VERSION
RETURN
OFF
OFF
OFF
OFF IMAGE ADJ.
RET
ENGLISH
21 01 10
LENS SHAD.
2DNR
MIRROR
FONT COLOR
CONTRAST
SHARPNESS
DISPLAY
NEG. IMAGE
RETURN
OFF
OFF
ON
OFF
RET
138
021
CRT
IMAGE ADJ. : You can adjust camera image.
LENS SHAD : You can adjust lens shading on screen.
LEVEL: 0~ 255 steps
2DNR : You can select Digital Noise Reduction on screen. (OFF/ON)
MIRROR : You can select mirror on screen. (OFF/ON)
FONT COLOR : You can select font color on screen.
FONT : O ~ 15 steps
ID& TITLE : O ~ 15 steps

Operation Manual 12.
1/3” High Resolution Face View Camera WDC-4605XV
8 TROUBLESHOOTING
Please check the power connection.
Please check the video signal line connection.
Please check and make sure that the lens mode is set to DC (VIDEO) when using a VIDEO (DC) lens.
Please clean the lens with a clean cloth or brush.
Please adjust that the screen is not exposed directly to a bright light.
Please move the camera if necessary.
Please readjust the back-focus of the camera.
Please adjust the contrast feature of the monitor.
If you have an intermediate device, set the 75Ω /Hi-Z properly, and check the terminals.
Please check if an auto iris lens is being used and adjust the brightness level.
Please check if “MOTION DETECTION” mode is turned on.
Please check if the MD Sensitivity is too low.
Please check the setting of the MD AREA.
If thereare problems in operation, please refer to the items below.
If the problem persists,please contact the agent you purchased this product from.
Problems Troubleshooting
Nothing appears on the screen.
The video image is not clear.
The screen is dark.
The MOTION DETECTION
function is not working
The WDR function is not working
Please check if the WDR Level is too low.
Please check if the AE Mode is set to MANUAL. The WDR doesn’t work in MANUAL
Exposure mode.
Colors are not quite right.
Please check if the camera is facing directly into sunlight or fluorescent light.
Please check if an auto iris lens is being used.
Please check the connection of the lens connector cable.
The Day&Night function doesn’t work
Please check if the AGC of EXPOSURE menu is set to OFF.
The Auto Day&Night Function doesn’t work in AGC OFF.

Operation Manual 13.
1/3” High Resolution Face View Camera WDC-4605XV
9. Specification
SPECIFICATIONS
Power Source
CDD
Total Pixels
Effective Pixels
Size
Scanning System
SYNC
Synchronization
Frequency
ELECTRICAL
Resolution
Video Output
S/N (Y signal)
Min. Illumination
COLOR
Gain Control
White Balance
Electronic Shutter Speed
Sens-Up
O.S.D
Motion Detection
DNR
Mirror
Privacy Function
Lens Size
Operation Temp. / Humidity
Weight
NTSC PAL
AC 24 Volt & DC 12 Volt, Power Dual
811(H)x 508(V)
768(H)x 494(V)
1/3 inch Interline Transfer CCD
2:1 Interlace
INT/LL Selectable, 0~359 (Adjustable)
Horizontal:15.734 KHz Vertical :59.94 Hz
600 TV Lines
1.0Vp-p/75 (Video 0.714Vp-p Sync 0.286Vp-p)
50dB (AGC Off)
0.3Lux/F1.2(Color), 0.1Lux/F1.2(B/W), 0.002Lux(Sens-up)
ON/AUTO
OFF / LOW / MIDDLE / HIGH
ATW/AWC/MANUAL(1,800 K~10,500 K)
AUTO/MANUAL(1/60~1/120,000)
ON/AUTO
Built-in
ON / OFF (4 Programmable Zone)
OFF / LOW / MIDDLE / HIGH(Noise Reduction)
Built-in(Horizontal Image Inversion)
ON / OFF (4 Programmable Zone)
2.9mm
-10 C ~ +50 C / 30~90% RH
AC 24 Volt & DC 12 Volt, Power Dual
795(H)x 596(V)
752(H)x 582(V)
1/3 inch Interline Transfer CCD
2:1 Interlace
INT/LL Selectable, 0~359 (Adjustable)
Horizontal: 15.625 KHz Vertical : 50.00 Hz
600 TV Lines
1.0Vp-p/75 (Video 0.7Vp-p Sync 0.3Vp-p)
50dB (AGC Off)
0.3Lux/F1.2(Color), 0.1Lux/F1.2(B/W), 0.002Lux(Sens-up)
ON/AUTO
OFF / LOW / MIDDLE / HIGH
ATW/AWC/MANUAL(1,800 K~10,500 K)
AUTO/MANUAL(1/50~1/120,000)
ON/AUTO
Built-in
ON / OFF (4 Programmable Zone)
OFF / LOW / MIDDLE / HIGH(Noise Reduction)
Built-in(Horizontal Image Inversion)
ON / OFF (4 Programmable Zone)
2.9mm
-10 C ~ +50 C / 30~90% RH

6751 KATELLAAVE CYPRESS, CA 90630, USA
Tel. [phone], Fax: [phone]
www.weldex.com / [email protected]
Made in Korea
