WELDPRO TIGACDC250GD User manual

TIGACDC250GD

1
Technicalsupport: 651 3292686
www.weldpro.com Tel:[phone]

2
STOP

Introduction
This manual includes hardware description and operation introduction of the equipment. For safety, please read the manual
carefully.
Description
3
Attention
Pay attention to the words after the signs below.
Sign
The words after this sign means there is great potential danger,which may
cause major accident, damage or even death, if it is not followed.
The words after this sign means there is some potential danger,which may cause
hurt or property lose, if it is not followed.
The words after this sign means there is potential risk, which may cause
equipment fault or break, if it is not followed.
DANGER
WARNING
ATTENTION
Edition
The contents of this manual are updated regularity for updating of product. The manual is only used as operation guide, except
for promises. No warranties of any kind, either express or implied are made in relation to the description, information or
suggestion or any other contents of the manual.
The images shown here are indicative only. If there is inconsistency between the image and the actual product, the actual
product shall govern.
Description

CONTENTS
4
1 WELDPRO SAFETY.............................................................................................................
2 PRODUCT DESCRIPTION.....................................................................................................
3 TWO YEAR WARRANTY........................................................................................................
4 TECHNICAL PARAMETERS..................................................................................................
5 INSTALLATION....................................................................................................................
6 OPERATION........................................................................................................................
7 I NSTRUCTION NOTES.........................................................................................................
8 MAINTENANCE AND CHECK TROUBLE................................................................................
9 TROUBLESHOOTING ...........................................................................................................
5-16
17
18
19
20-24
25-31
32
33-34
34-35

Weldpro Safety
5
WeldproSafety

Thank you for using Weldpro arc welding and cutting equipment.
We ask you to work like a weld-pro and weld-pros weld and cut safely. Please read and comply with the sample safety
procedures outlined in this guide and the equipment Owner's Manual.
Always read and follow the Owner's Manual, the safety labels on the product, and all applicable safety
standards, especially ANSI Z49.1, Safety in Welding, Cutting, (we recommend you get a copy and keep it
handy).
Only qualified persons should install, operate, maintain, and repair this equipment. A qualified person is defined
as one who, by possession of a recognized degree, certificate, or professional standing, or who by extensive
knowledge, training and experience, has successfully demonstrated the ability to solve or resolve problems
relating to the subject matter, the work, or the project and has received safety training to recognize and avoid
the hazards involved.
Thank you for working safely.
6
1 General Safe Practices..........................................................................................................................
2 Arc Welding Hazards............................................................................................................................
3 Plasma Arc Cutting Hazards.................................................................................................................
4 Special Situations & Equipment...........................................................................................................
5 EMF Information...................................................................................................................................
6 California Proposition 65 Warnings......................................................................................................
7 Principal Safety Standards...................................................................................................................
8 Lens Shade Selector Guide...................................................................................................................
7
7-9
10-12
13-14
14-15
15
15
16

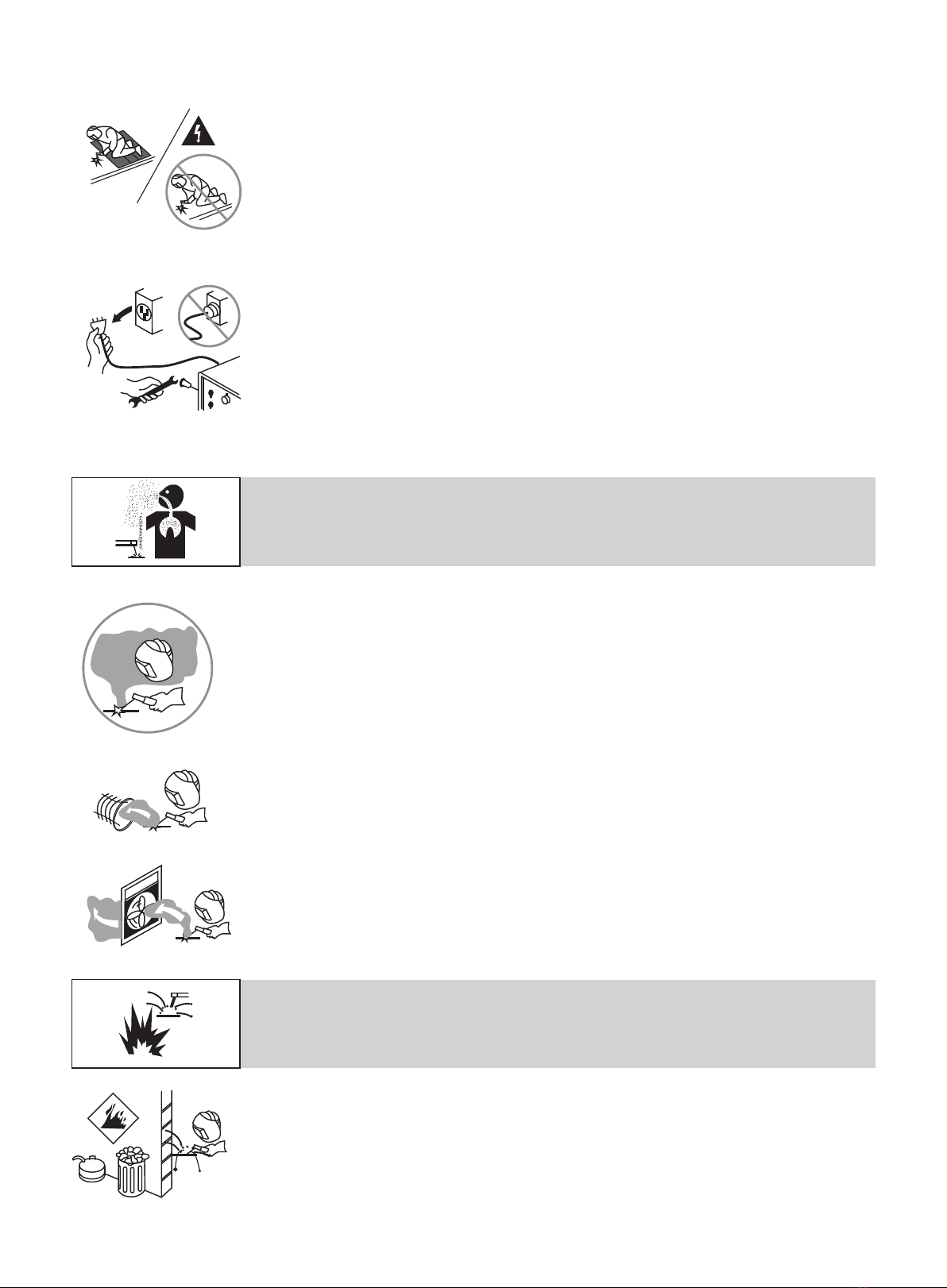

1. General Safe Practices
Become trained and read the instructions before
working on the machine or welding or cutting. Read
and understand the Safety Data Sheets (SDSs) and
the manufacturer's instructions for adhesives,
coatings, cleaners, consumables, coolants, de-
greasers, fluxes, and metals.
Wear approved safety glasses with side shields under your welding helmet or face shield
and at all times in the work area.
Read and follow all labels and the Owner's Manual carefully before installing, operating, or
servicing unit. Read the safety information at the beginning of the manual and in each
section.
Wear a safety harness if working above floor level. Keep children away from all equipment
and processes.
Do not install or place machine on or over combustible surfaces.
Use GFCI protection when operating auxiliary equipment in damp or wet locations.
Use only genuine replacement parts from the manufacturer.
Perform installation, maintenance, and service according to the Owner's Manuals, industry
standards, and national, state, and local codes.
2. Arc Welding Hazards
Electric shock from welding electrode or wiring can kill.
Wear dry, hole-free insulating gloves and body protection. Do not touch electrode with
bare hand. Do not wear wet or damaged gloves.
Do not touch live electrical parts.
Do not use AC weld output in damp, wet, or confined spaces, or if there is a danger of
falling.
Use AC output ONLY if required for the welding process.
If AC output is required, use remote output control if present on unit. Do not use worn,
damaged, undersized, or repaired cables.
Additional safety precautions are required when any of the following electrically hazardous
conditions are present: in damp locations or while wearing wet clothing; on metal
structures such as floors, gratings, or scaffolds; when in cramped positions such as
sitting, kneeling, or lying; or when there is a high risk of unavoidable or accidental contact
with the workpiece or ground. For these conditions, use the following equipment in order
presented: 1) a semiautomatic DC constant voltage (wire) welder, 2) a DC manual (stick)
welder, or 3) an AC welder with reduced open-circuit voltage.
7

Protect yourself from electric shock by insulating yourself from work and ground. Use
non-flammable, dry insulating material if possible, or use dry rubber mats, dry wood or
plywood, or other dry insulating material big enough to cover your full area of contact with
the work or ground and watch for fire.
Disconnect input plug or power before working on machine. Do not make input
connections if color blind.
Frequently inspect input power cord and ground conductor for damage or bare wiring –
replace immediately if damaged – bare wiring can kill. Keep cords dry, free of oil and
grease, and protected from hot metal and sparks. Be sure input ground wire is properly
connected to a ground terminal in disconnect box or receptacle.
Properly install, ground, and operate all equipment according to its Owner's Manual and
national, state, and local codes.
Breathing welding fumes can be hazardous to your health.
Keep your head out of the fumes. Do not breathe the fumes. Use enough ventilation,
exhaust at the arc, or both, to keep fumes and gases from your breathing zone and the
general area. The recommended way to determine adequate ventilation is to sample for the
composition and quantity of fumes and gases to which personnel are exposed.
Read and understand the Safety Data Sheets (SDSs) and the manufacturer's instructions
for adhesives, coatings, cleaners, consumables, coolants, degreasers, fluxes, and metals.
Use enough forced ventilation or local exhaust (forced suction) at the arc to remove the
fumes from your breathing area.
Use a ventilating fan to remove fumes from the breathing zone and welding area.
If adequacy of ventilation or exhaust is uncertain, have your exposure measured and
compared to the Threshold Limit Values (TLV) in the Safety Data Sheet (SDS).

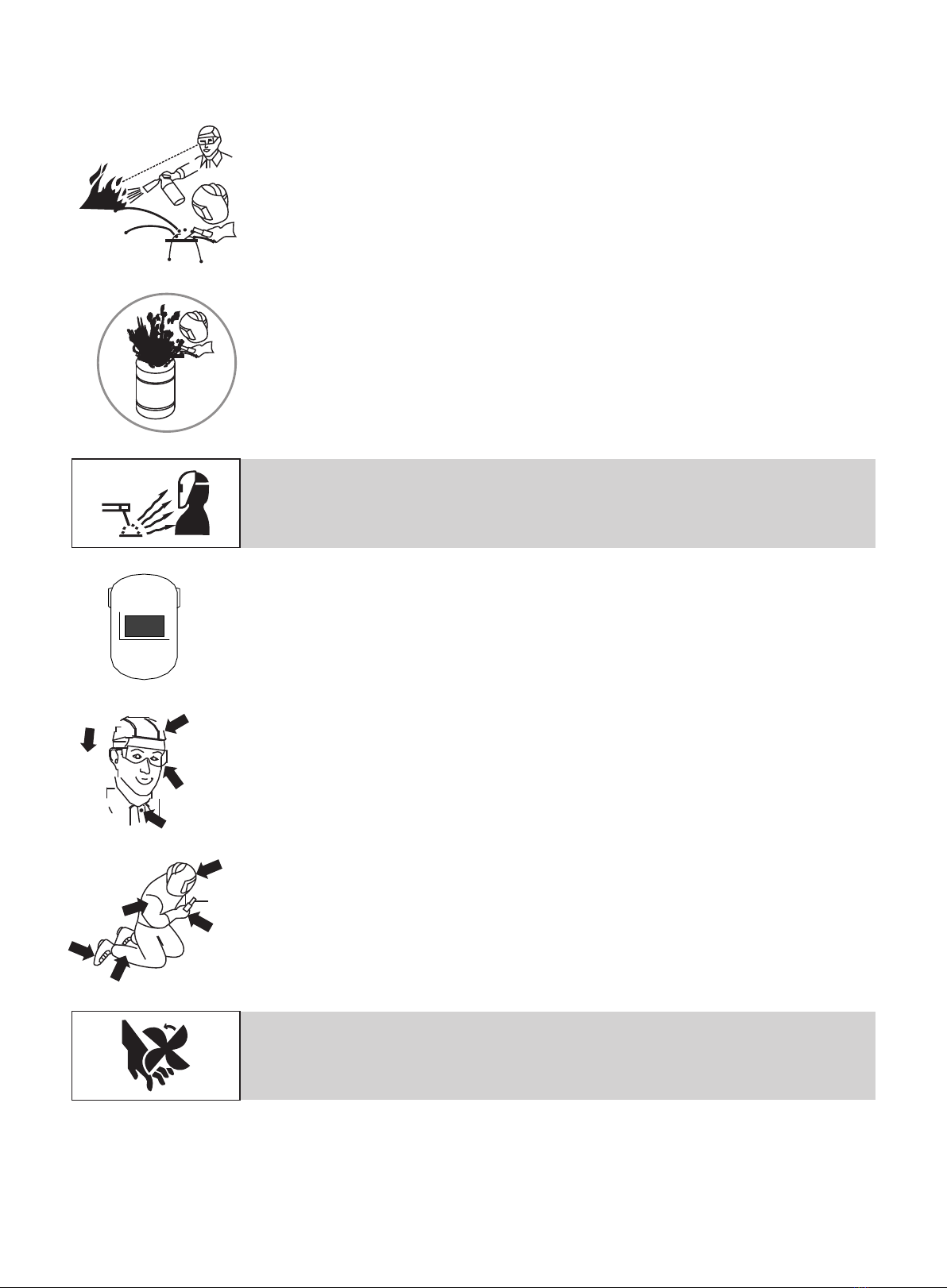

Welding can cause fire or explosion.
Do not weld near flammable material or where the atmosphere can contain flammable
dust, gas, or liquid vapors (such as gasoline). Move flammables at least 35 feet (11
meters) away or protect them with flame-proof covers (see NFPA 51B listed in Section.
8

?
Welding sparks can cause fires. Have a fire extinguisher nearby and have a trained fire
watcher ready to use it. After completion of work, inspect area to ensure it is free of
sparks, glowing embers, and flames.
Do not weld on containers that have held combustibles, or on closed containers such as
tanks, drums, or pipes unless they are properly prepared according to AWS F4.1 and AWS
A6.0 (see Safety Standards in Section 9).
Welding can cause fire or explosion.
Use welding helmet with correct shade of filter (see Section to choose the correct shade).
Wear welders cap and safety glasses with side shields. Use ear protection when welding
out of position or in confined spaces. Button shirt collar.
Wear body protection made from durable, flame-resistant material (leather, heavy cotton,
wool). Body protection includes oil-free clothing such as leather gloves, heavy shirt,
cuffless trousers, high shoes, and a cap.
Moving parts can injure.
Keep hands, hair, loose clothing, and tools away from moving parts such as fans, belts, wire drive rolls, and rotors. Keep all
doors, panels, and guards closed and secured.
9

3. Plasma Arc Cutting Hazards
Cutting sparks can cause fire or explosion.
Do not cut near flammable material or where the atmosphere can contain flammable dust,
gas, or liquid vapors (such as gasoline). Move flammables at least 35 feet (11 meters)
away or protect them with flame-proof covers (see NFPA 51B listed in Section 9).
Cutting sparks can cause fires. Have a fire extinguisher nearby, and have a trained fire
watch ready to use it. After completion of work, inspect area to ensure it is free of sparks,
glowing embers, and flames.
Do not cut on containers that have held combustibles, or on closed containers such as
tanks, drums, or pipes unless they are properly prepared according to AWS F4.1 and AWS
A6.0 (see Safety Standards in Section 9).
Plasma arc can injure.
Turn off power before disassembling torch.
Do not grip material near cutting path.
Do not touch hot parts bare-handed.
?
OFF
10

Electric shock from torch or wiring can kill.
Wear dry insulating gloves. Do not wear wet or damaged gloves. Do not touch live
electrical parts.
Do not use worn, damaged, undersized, or repaired cables.
Protect yourself from electric shock by insulating yourself from work and ground. Use
non-flammable, dry insulating material if possible, or use dry rubber mats, dry wood or
plywood, or other dry insulating material big enough to cover your full area of contact with
the work or ground. Watch for fire, smoke, and sparks.
Disconnect input plug or power before working on machine. Do not make input
connections if color blind.
Frequently inspect input power cord and ground conductor for damage or bare wiring –
replace immediately if damaged – bare wiring can kill. Keep cords dry, free of oil and
grease, and protected from hot metal and sparks. Be sure input ground wire is properly
connected to a ground terminal in disconnect box or receptacle.
Properly install, ground, and operate this equipment according to its Owner's Manual and
national, state, and local codes.
Breathing cutting fumes can be hazardous to your health.
Keep your head out of the fumes. Do not breathe the fumes. Use enough ventilation,
exhaust at the arc, or both, to keep fumes and gases from your breathing zone and the
general area. The recommended way to determine adequate ventilation is to sample for the
composition and quantity of fumes and gases to which personnel are exposed.
Read and understand the Safety Data Sheets (SDSs) and the manufacturer's instructions
for adhesives, coatings, cleaners, consumables, coolants, degreasers, fluxes, and metals.
Use enough forced ventilation or local exhaust (forced suction) at the arc to remove the
fumes from your breathing area.
11

Use a ventilating fan to remove fumes from the breathing zone and cutting area.
If adequacy of ventilation or exhaust is uncertain, have your exposure measured and
compared to the Threshold Limit Values (TLV) in the Safety Data Sheet (SDS).
Arc rays can burn eyes and skin.
Use welding helmet or face shield with correct shade of filter (see Section to choose the
correct shade).
Wear welders cap and safety glasses with side shields. Use ear protection when cutting
out of position or in confined spaces. Button shirt collat.
Wear body protection made from durable, flame-resistant material (leather, heavy cotton,
wool). Body protection includes oil-free clothing such as leather gloves, heavy shirt, cuffl-
ess trousers, high shoes, and acap.
Loose or incorrect hardware and fasteners can injure, and damage equipment.
Periodically double-check all nuts and bolts for tightness and condition
If necessary, always replace any fastener with one of
equal size, grade, and type.
Be sure the grade marks on replacement fastener
match the original bolt. The manufacturer's
identification mark .
12

4. Special Situations & Equipment
Confined spaces can be hazardous.
Confined spaces are areas which lack room for full movement and often lack ventilation, such as storage tanks, vats, tunnels,
boilers, pipes, hold of a ship, corners of a room, near a ceiling or floor corner, or in a pit. Gases can collect and form dangerous
concentrations.
Always open all covers, remove any hazardous or toxic materials, provide forced ventilation, and provide a means to turn off
power and gas from the inside.
Never work alone — have constant communication with someone outside who can quickly turn off power and gas, is trained in
rescue procedures, and is able to pull you out in case of emergency.
Do not use AC weld output in confined spaces.
Insulate yourself from work and ground using non-flammable, dry insulating material if possible, or use dry rubber mats, dry
wood or plywood, or other dry insulating material big enough to cover your full area of contact with the work or ground, and
watch for fire.
Always check and monitor the air quality in the space. Welding or cutting fumes and gases can displace air and lower the
oxygen level — use ventilation and, if needed, an air-supplied respirator. Be sure the breathing air is safe. The recommended
way to determine adequate ventilation is to sample for the composition and quantity of fumes and gases.
Always remember: All normal arc welding and cutting hazards are amplified in confined spaces. See ANSI Z49.1 listed in
Principal Safety Standards (Section 9).
Cylinders can explode if damaged.
Confined spaces are areas which lack room for full movement and often lack ventilation, such as storage tanks, vats, tunnels,
boilers, pipes, hold of a ship, corners of a room, near a ceiling or floor corner, or in a pit. Gases can collect and form dangerous
concentrations.
Always open all covers, remove any hazardous or toxic materials, provide forced ventilation, and provide a means to turn off
power and gas from the inside.
Never work alone — have constant communication with someone outside who can quickly turn off power and gas, is trained in
rescue procedures, and is able to pull you out in case of emergency.
Do not use AC weld output in confined spaces.
Insulate yourself from work and ground using non-flammable, dry insulating material if possible, or use dry rubber mats, dry
wood or plywood, or other dry insulating material big enough to cover your full area of contact with the work or ground, and
watch for fire.
Always check and monitor the air quality in the space. Welding or cutting fumes and gases can displace air and lower the
oxygen level — use ventilation and, if needed, an air-supplied respirator. Be sure the breathing air is safe. The recommended
way to determine adequate ventilation is to sample for the composition and quantity of fumes and gases.
Always remember: All normal arc welding and cutting hazards are amplified in confined spaces. See ANSI Z49.1 listed in
Principal Safety Standards (Section 9).
13

Electric and magnetic fields (EMF) can affect Implanted Medical Devices.
Wearers of Pacemakers and other Implanted Medical Devices should keep away.
Implanted Medical Device wearers should consult their doctor and the device manufacturer before going near arc welding, spot
welding, gouging, plasma arc cutting, or induction heating operations.
Hot parts can burn.
Do not touch hot welded or cut parts with bare hand. If handling is needed, use proper tools and/or wear heavy, insulated
welding gloves to prevent burns.
Allow cooling period before handling parts or working on equipment.
Falling equipment can injure, and damage equipment.
Use lifting eye to lift unit only, NOT running gear, gas cylinders, trailer, or any other accessories. Use correct procedures and
equipment of adequate capacity to lift and support unit.
If using lift forks to move unit, be sure forks are long enough to extend beyond opposite side of unit.
Do not place unit where it can easily tip over or fall.
Battery charging output and battery explosion can injure.
Sparks can cause battery gases to explode.
Do not smoke and keep matches and flames away from battery.
Wear a face shield or safety glasses when working near or on a battery.
Do not use welder or plasma cutter to charge batteries or jump start vehicles unless the unit has a battery charging feature
designed for this purpose.
5. EMF Information
Electric current flowing through any conductor causes localized electric and magnetic fields (EMF). The current from arc
welding (and allied processes including spot welding, gouging, plasma arc cutting, and induction heating operations) creates an
EMF field around the welding circuit. EMF fields can interfere with some medical implants, e.g. pacemakers. Protective
14

measures for persons wearing medical implants have to be taken. For example, restrict access for passers−by or conduct
individual risk assessment for welders. All welders should use the following procedures in order to minimize exposure to EMF
fields from the welding circuit:
1. Keep cables close together by twisting or taping them or using a cable cover.
2. Do not place your body between welding cables. Arrange cables to one side and away from the operator.
3. Do not coil or drape cables around your body.
4. Keep head and trunk as far away from the equipment in the welding circuit as possible.
5. Connect work clamp to workpiece as close to the weld as possible.
6. Do not work next to, sit or lean on the welding power source.
7. Do not weld whilst carrying the welding power source or wire feeder.
About Implanted Medical Devices:
Implanted Medical Device wearers should consult their doctor and the device manufacturer be- fore performing or going near
arc welding, spot welding, gouging, plasma arc cutting, or induction heating operations. If cleared by your doctor, then
following the above procedures is recommended.
6. California Proposition 65 Warnings
WARNING:The machine is mainly used for industrial purpose. It will cause radio interference indoor, operators shall
take fully preventative measures.
For more information, go to www.P65Warnings.ca.gov.
WARNING:Cancer and Reproductive Harm − www.P65Warnings.ca.gov.
For Diesel Engines:
WARNING: Breathing diesel engine exhaust exposes you to chemicals known tothe state of California to cause cancer
and birth defects or other reproductive harm.
• Always start and operate the engine in a well−ventilated area.
• If in an enclosed area, vent the exhaust to the outside.
• Do not modify or tamper with the exhaust system.
• Do not idle the engine except as necessary.
For more information, go to www.P65Warnings.ca.gov.
7. Principal Safety Standards
Safety in Welding, Cutting, and Allied Processes, American Welding Society standard ANSI Standard Z49.1. Website:
www.aws.org.
Safe Practices for the Preparation of Containers and Piping for Welding and Cutting, American Welding Society Standard AWS
F4.1 from Global Engineering Documents.
Website: www.global.ihs.com.
Safe Practices for Welding and Cutting Containers that have Held Combustibles, American Welding Society Standard AWS A6.0
from Global Engineering Documents.
Website: www.global.ihs.com.
National Electrical Code, NFPA Standard 70 from National Fire Protection Association. Website: www.nfpa.org and
www.sparky.org.
Safe Handling of Compressed Gases in Cylinders, CGA Pamphlet P-1, from Compressed Gas Association. Website:
www.cganet.com
15

8. Lens Shade Selector Guide
Operation/Process Electrode Size in. (mm) Arc Current (Amperes) Minimum Protective
Shade
Suggested* Shade
No. (Comfort)
Shielded metal arc
welding (SMAW)
Less than 3/32 (2.5)
3/32−5/32 (2.5−4)
5/32−1/4 (4−6.4)
More than 1/4 (6.4)
Less than 60
60−160
160−250
250−550
7
8
10
11
—
10
12
14
Gas metal arc welding
(GMAW) and flux cored
arc welding (FCAW)
Less than 60
60−160
160−250
250−550
7
10
10
10
—
11
12
14
Gas tungsten arc welding
(GTAW)
Less than 50
50−150
150−500
8
8
10
10
12
14
Air carbon arc cutting
(CAC−A)
Less than 500
500−1000
10
11
12
14
(Light)
(Heavy)
Plasma arc welding
(PAW)
Less than 20
20−100
100−400
400−800
6
8
10
11
6 to 8
10
12
14
Plasma arc cutting (PAC)
Less than 20
20−40
40−60
60−80
80−300
300−400
400−800
4
5
6
8
8
9
10
4
5
6
8
9
12
14
Torch brazing (TB) 3 or 4
— —
Torch soldering (TS) 2
— —
Carbon arc welding (CAW) 14
— —
Plate thickness
Mmin.
Oxyfuel gas welding (OFW)
Light
Medium
Heavy
Under 1/8
1/8 to 1/2
Over 1/2
Under 3.2
3.2 to 12.7
Over 12.7
4 or 5
5 or 6
6 or 8
Oxygen Cutting (OC)
Light
Medium
Heavy
Under 1
1 to 6
Over 6
Under 25
25 to 150
Over 150
3 or 4
4 or 5
5 or 6
As a rule of thumb, start with a shade that is too dark to see the weld or cut zone. Then go to a lighter shade which gives
sufficient view of the weld or cut zone without going below the minimum. In oxyfuel gas welding, cutting, or brazing where the
torch produces a high yellow light, it is desirable to use a filter lens that absorbs the yellow or sodium line in the visible light of
the (spectrum) operation.
Guide adapted from ANSI Z49.1, 2012.
16

PRODUCT DESCRIPTION
Congratulations on your purchase. Please take a few moments to completely read through this manual. Doing so will make
your welding experience much more pleasant and understandable. And remember, should you need, seek or desire further
understanding of welding principals and practices, the internet is your friend! Take advantage of today’s information highway.
The internet holds a wealth of information and knowledge. Enjoy!
This welder is an inverter based machine the utilizes the most advanced inverter technology. IGBT circuits along with PWM
technology along with the greatly reduced size and weight, enable this welder to not only be more efficient by 30%, but also as a
result of the electronic circuitry, enables this welding machine to afford the user far more and better range of settings for each
specific weld. The ACDCTIG200 also has a 40% duty cycle at full amperage which, explained another way, allows for a full four
minutes of uninterrupted continuous welding at full amperage within a ten minute period. Far more capable than any user
would dream of attempting.
The TIGACDC250GD is capable of welding with either AC or DC current. This allows the user to choose DC current welding for
carbon steel, stainless steel, copper and many other metals, while also being equipped with the ability to switch over to AC
welding used in welding aluminum and aluminum alloys. In addition to its advanced TIG welding functions, the TIGACDC250GD
is also a very good MMA / Stick welder.
This AC/DC TIG welder adopts our company’s exclusive High Frequency technology as well as a pure square wave output,
excellent arc force and a wide range of balance control for aluminum cleaning.
This AC/DC TIG welder also offers a feature not always found in this price range. That is a completely dedicated foot control
with no interim current control on the foot pedal. This design is a much sought after feature of advanced welders who dislike
greatly the idea of inadvertently changing amperage settings while readjusting the foot pedal with their feet while changing their
welding positions. This is no longer a concern with the Weldpro TIGACDC250GD since all amperage control settings are made
from the console on the machines face.
The TIGACDC250GD also has provisions on the back side for connecting an optional water cooler that must be used in
conjunction with optional water cooled tig torch set.
Thank you for purchasing our product. We are sure you will soon realize the great value and quality that went into the design
of this welder as well as all of the advanced features and functions.
PRODUCT DESCRIPTION
17

TWO YEAR WARRANTY
All Weldpro welders and plasma cutters are covered under the following specific terms of warranty. All welders and plasma
cutters are warrantied to the original purchaser only, when purchased through an authorized seller of Weldpro products for a
period of two (2) years from the date of purchase, to be free of manufacturers defect or failure. Proof of purchase and date of
purchase paperwork will be required by Weldpro at the time of the claim.
Extended warranty coverage may be available for Weldpro welders and plasma cutters at an additional cost. Always check with
Weldpro.
The Weldpro warranty is limited to defects, malfunctions or failure of the equipment to operate properly based specifically and
solely from manufacturer defects. Any malfunctions from improper use, lack of maintenance, incorrect or insufficient source
supply power to the units, shipping damage, and similar failures not related to specific manufacturers defect will not be
honored.
Weldpro will not be responsible in the event of a product failure, for lost time in operation or use of said product. Rather it will
honor solely the product itself only.
Further, the warranty will cover the repair or replacement of the unit in question for the term of the warranty with either a new or
a refurbished unit, or in some cases replacement parts of the same model, at the discretion of Weldpro. As a term of the
Weldpro warranty, if and when applicable, individual parts are needed, they may be supplied to the customer rather than
replacing the entire unit. Situations like this may include, but are not limited to items such as foot pedals, torches, mig wire
rollers, feed spools, or any other item Weldpro deems more practical to supply individually.
Weldpro will provide free shipping return of the damaged product due to manufacturers defect for the first 30 days of the
warranty term if shipping is within the lower 48 United States. Customers outside this area must check with Weldpro for further
shipping instructions. Failures after the initial 30-day period, and due to manufacturers defect, may not enjoy free return
shipping.
If it is determined when the product is returned to Weldpro that there is no malfunction, or that the assumed malfunction by the
customer was user error, Weldpro may request a shipping fee refund prior to the return of the item to the customer.
Prior to returning any item thought to be malfunctioning or damaged due to manufacturers defect, customers are required to
contact Weldpro first, to explain the failure and to obtain a Return Merchandise Authorization number, or the item may not be
covered under the terms of this warranty.
Weldpro ships in the USA from third party shippers such as, but not limited to UPS, FedEx, and the USPS. Weldpro is not
responsible for damage that occurs during shipping. It is the customer’s responsibility to check the item at the time of delivery.
If a customer receives an item damaged, they must immediately contact both Weldpro and the shipper to document and report
the damage as soon as possible, and in no circumstances later than 48 hours after delivery. All shipping and delivery dates are
tracked for arrival. Weldpro may require photo image of the damage at their discretion.
Returned items within the first 30 days. Undamaged items in good working condition may be returned within the first 30 days of
purchase. In such a case, these items are not eligible for the free return shipping policy associated with items that have
manufacturers defects. A restocking fee will be charged for said return of up to 25% on any item returned with a valid RMA
number that are undamaged and not covered or subject under the terms of this warranty. The amount of the restocking fee is
solely at the discretion of Weldpro and based on the condition of the returned item and its accessory parts and packaging.
Further, should Weldpro receive an item in good working condition that has sustained physical damage, Weldpro has the right
to refuse acceptance of said returned item completely, and the customer will be responsible for return shipping of the product
to them.
Weldpro does not imply or suggest any interpretation of the above warranty beyond what is stated in this print of its terms.
Weldpro is not responsible for injury due to improper use of the equipment or failure to heed all of the safety precautions
associated with the dangers of welding or cutting metals.
The terms and conditions of the Weldpro warranty are subject to change without notice. Be sure to check the terms of the
Weldpro warranty prior to your purchase.
WELDPRO Warranty and Return Terms
Welders and Plasma Cutters
TWO YEAR WARRANTY
18

Model
Parameters
TIGACDC250GD
Supply voltage (V)
Frequency (Hz)
Rated input current (A)
No-load voltage (V)
Output current (A)
Output voltage (V)
Arcing way
Pre-flow (S)
Current descending (S)
Post flow (s)
No-load loss (W)
Housing protection class
Insulation class
Weight (lb)
Dimensions (in) 20.3x9.7x22.6
51.7
Ip21
F
0.73
80
40
30
0-15
0-25
0.1-1
TIG: 14.8
MMA: 24.8
TIG: 20
MMA: 28.8
TIG: 120
MMA: 120
TIG: 250
MMA: 220
AC
115V±15%
AC
230V±15%
TIG: 26.4
MMA: 44.3
TIG: 37.2
MMA: 47.2
TECHNICAL PARAMETERS
60
65
HF
Duty cycle (%)
Efficiency (%)
Power factor
TECHNICAL PARAMETERS
19
