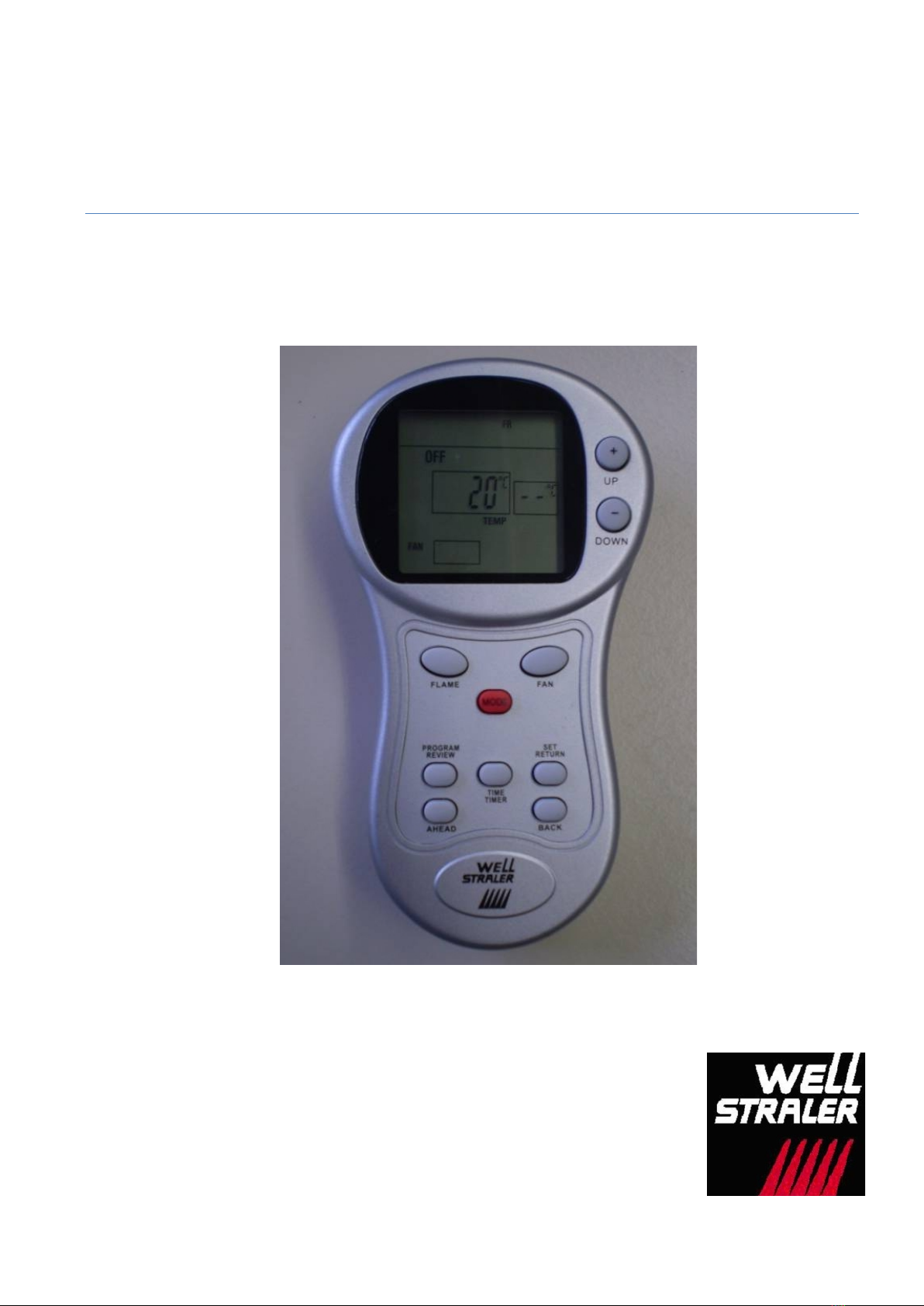

Well Straler RC-16A-TX User manual

User Guide
RC-16A-TX
WELL STRALER
Hertstraat 99
B-9473 Welle
T [phone]
F [phone]
[email protected]

2
Index
1. Introduction .......................................................................................................................................................................3
1.1. Welcome..................................................................................................................................................................3
1.2. Warranty..................................................................................................................................................................3
1.3. Security....................................................................................................................................................................3
1.3.1. BUILT-IN SAFETIES ........................................................................................................................................3
1.3.2. Thermo safety - transmitter ..............................................................................................................................3
1.3.3. Communication safety - transmitter..................................................................................................................4
1.3.4. Thermo safety - receiver...................................................................................................................................4
1.3.5. Child Protection (CP)........................................................................................................................................4
1.4. Appliances with ventilator ........................................................................................................................................4
2. Commands of your appliance............................................................................................................................................5
2.1. Transmitter .......................................................................................................................................................5
2.2. LCD-screen ......................................................................................................................................................5
2.3. Initial set-up programming of transmitter ..........................................................................................................6
2.3.1. Changing temperature scale (°C - °F).......................................................................................................6
2.3.2. Setting the current day of the week...........................................................................................................6
2.3.3. Setting of the current hour and minutes ....................................................................................................6
2.4. Additional programming options: swing (TEMPERATURE DIFFERENTIAL) ...................................................7
2.4.1. Manuel check of SWING ...........................................................................................................................7
2.4.2. Changing the factory set SWING: .............................................................................................................7
2.5. Program operation of remote control................................................................................................................8
2.5.1. Programming day/period of day/temperature ............................................................................................8
2.5.2. Program overview ...................................................................................................................................10
2.5.3. Program cancellation – return to factory settings ....................................................................................10
2.6. Operating your appliance ...............................................................................................................................10
2.6.1. Manual (ON/OFF)....................................................................................................................................10

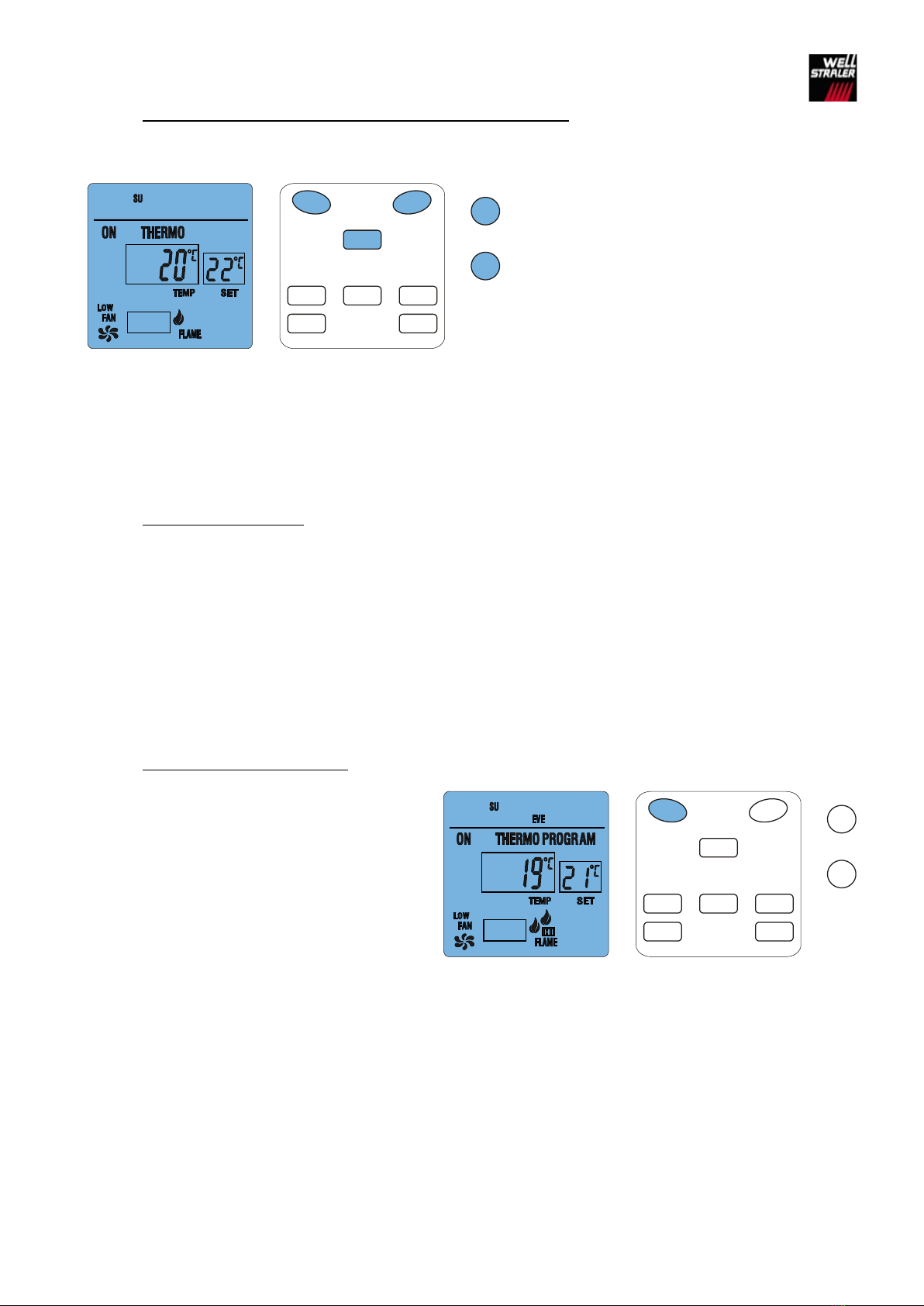

2.6.2. Thermo operation (ON/OFF BASED ON SET TEMP SETTING) ............................................................11
2.6.3. Automatic (PROGRAM) ..........................................................................................................................11
2.6.4. Adjusting the FLAME HEIGHT ................................................................................................................11

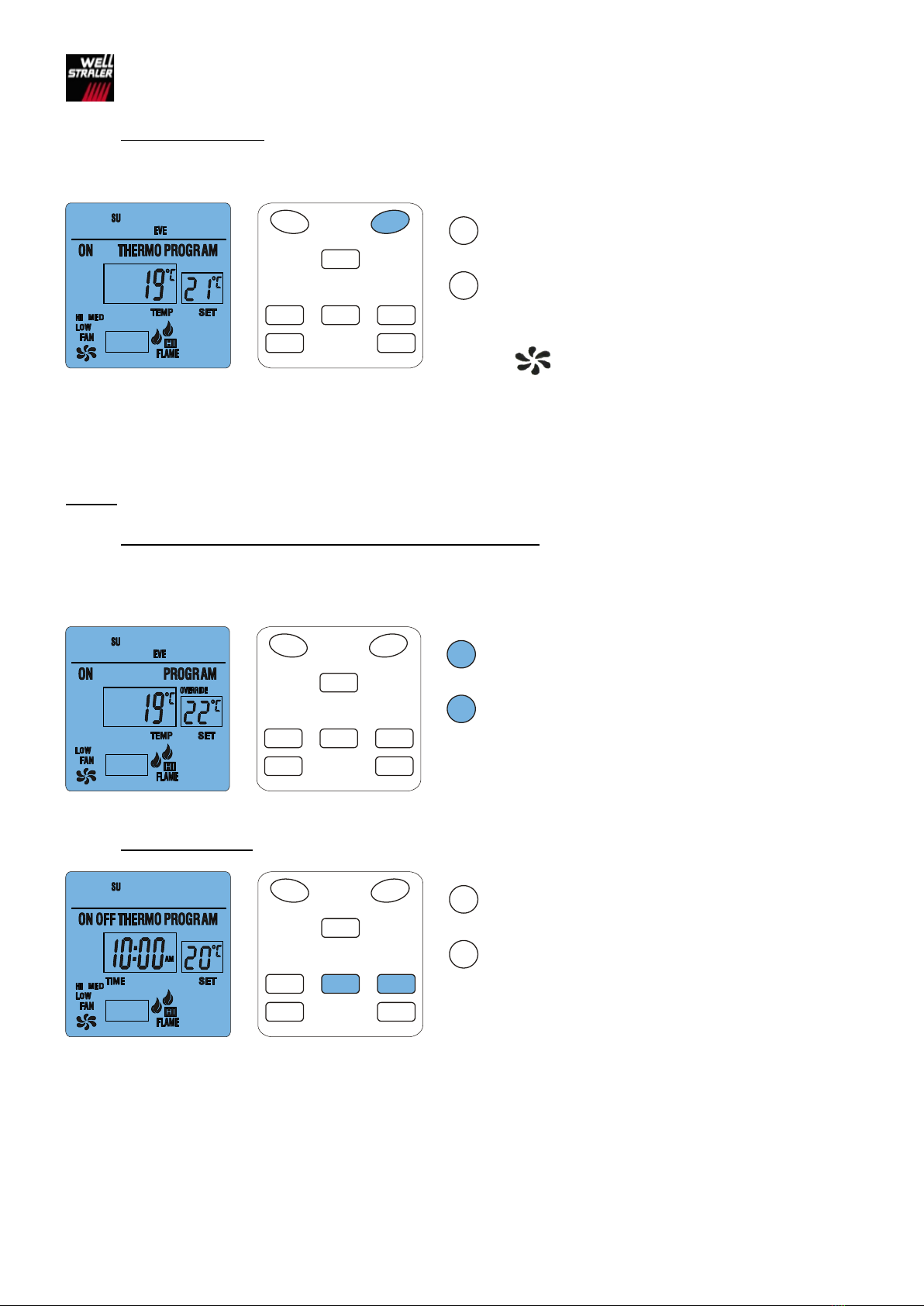

2.6.5. Adjusting FAN speed...............................................................................................................................12
2.6.6. Temperature OVERRIDE (Operates only in PROGRAM mode) .............................................................12
2.6.7. Time of Day display................................................................................................................................12

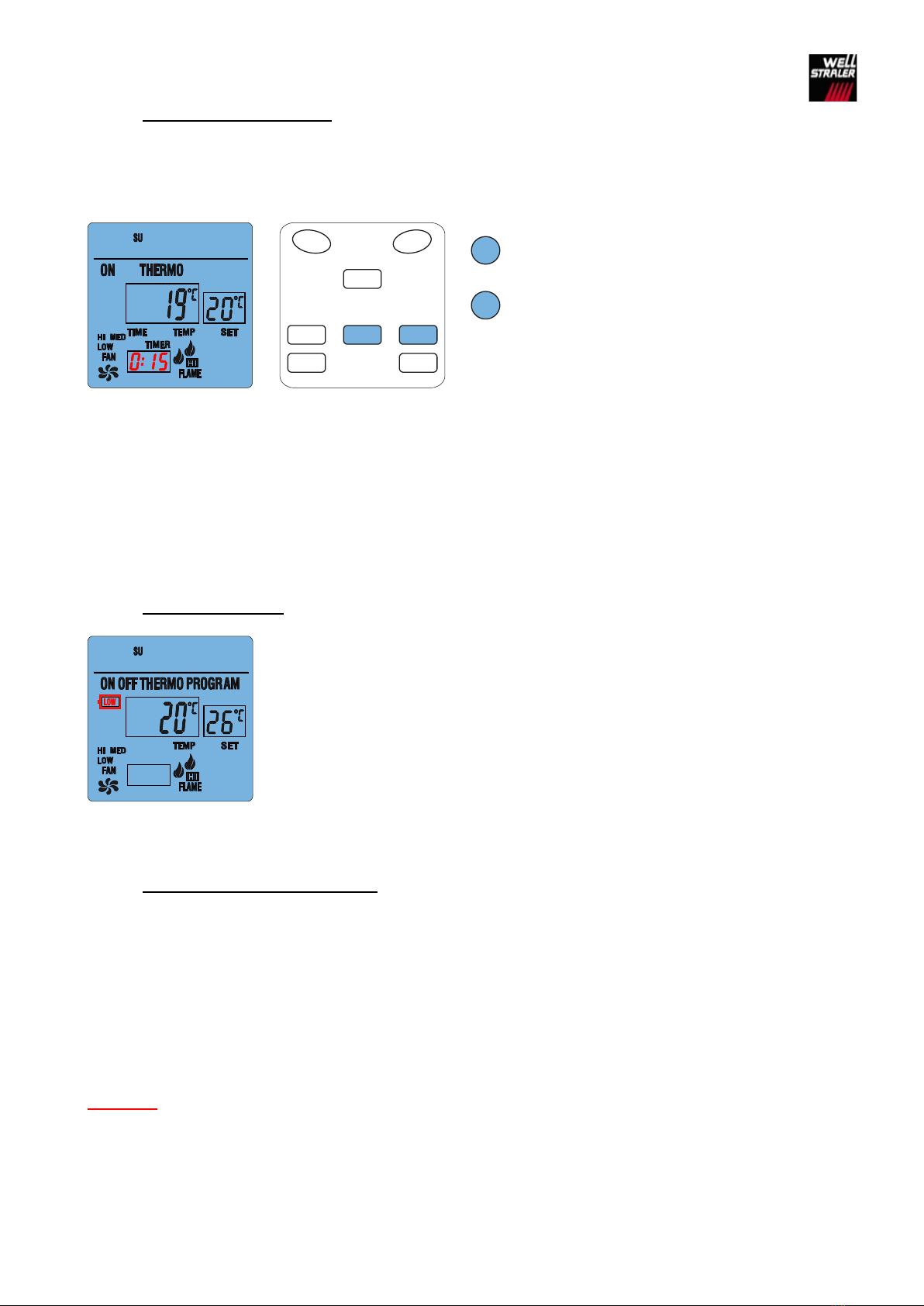

2.6.8. Setting the countdown timer....................................................................................................................13
2.6.9. Low battery indicator ...............................................................................................................................13
2.6.10. Place of the remote control system .........................................................................................................13
2.7. Receiver .........................................................................................................................................................14
2.7.1. Matching security codes..........................................................................................................................14
2.8. Problem solver................................................................................................................................................15

3
1. Introduction
1.1. Welcome
Thanks for buying your Well Straler gas heater.
We are glad to have you as a customer. With this quality product you will enjoy the cosy warmth and unique flame dance for
many years.
Before using the heater, please read the instructions carefully and keep them in a safe place.
Installation must be carried out by a suitably qualified gas technician in accordance with the gas safety regulations that are
currently in effect. Make sure that you get informed by your technician about how to use, operate and maintain your
appliance. Every appliance has been tested, carefully adjusted and sealed in the factory in accordance with I2H or I3B/P
category. The warranty will only be valid if the service has been completed by a competent person (according the gas safety
regulations in force). Failure to install the fire correctly could lead to prosecution.
The appliance is covered with a heat-resistant surface coating. During the first few hours of use, it is absolutely normal that
a harmless temporary odor is produced. This disappears after a short period. We advise you to let the appliance work for a
few hours in a well ventilated room.
1.2. Warranty
This product has a 2 year warranty counting from the date of installation, and this for manufacturing defects only. The
warranty is limited to a simple exchange of parts that are recognized as defective by our technical department, and not
giving cause by any means to further liability. Shipping costs and labor are not part of the warranty and have to be paid by
the user. Warranty will be invalidated if the appliance has been poorly maintained, used in a wrong way, has been damaged
in an accident or catastrophe of which the origin has no connection with the appliance itself, or if service has been done by
an unauthorized person. Delicate parts in contact with fire like glass etc. are not covered by warranty. Complaints are only
accepted when made through a recognized dealer.
1.3. Security
1.3.1. Built-in safeties in the control system
The system operates on radio frequency signals that are sent by the transmitter (remote) to the receiver in the appliance.
We recommend that the transmitter always be located within the operating range (± 6 m).
To avoid unpleasant situations, the system has several built-in safety measures that alert the user when action is needed.
1.3.2. Thermo safety - transmitter
The transmitter has a thermo-safety function built into its software. It provides an extra margin of safety when the appliance
is in the THERMO or PROGRAM mode.
The thermo-safety is activated when the transmitter is moved beyond the maximum recommended operating range, which is
± 6 m. It is also activated when batteries become weak or are removed from the transmitter. The thermo-safety operates in
the following manner (only in THERMO or PROGRAM mode):
The room temperature is measured every 2 minutes by the transmitter and compared against the SET temperature. In
addition to check these temperatures, the transmitter sends an RF signal to the receiver, signaling that the transmitter is still
in the operating range. Should the receiver NOT receive a transmitter signal every 2 minutes, the IC software in the receiver
will begin a 20 minutes countdown timing function (thermo-safety function).
If the receiver does not receive a signal from the transmitter during this period of 20 minutes, the system will shut down the
appliance. The receiver will produce a series of rapid beeps for a period of 10 seconds, followed by a single beep every
4 seconds until a transmitter signal is again received and the system is RESET.
To RESET the receiver: press the MODE button until OFF appears on the LCD-screen. It is now possible to operate the
appliance to the preferred working mode.

4
1.3.3. Communication safety – transmitter
The communication-safety operates in all operation modes (ON-THERMO-PROGRAM):
At all times and in all operating modes, the transmitter sends an RF-signal every 15 minutes to the receiver, signaling that
the transmitter is within the normal operating range of ± 6 m. Should the receiver not receive a transmitter signal, the IC-
software in the receiver will begin a 1 hour countdown timing function. If the receiver does not receive a signal from the
transmitter during this 1 hour period, the system will shut down the appliance. The receiver will produce a series of rapid
beeps for a period of 10 seconds, followed by a single beep every 4 seconds until a transmitter signal is again received and
the system is RESET.
To RESET the receiver: press the MODE button until OFF appears on the LCD-screen. It is now possible to operate the
appliance to the preferred working mode.
1.3.4. Thermo-safety – receiver
The system has a thermo-safety feature that is built into the receiver. This feature is temperature-activated and it provides
an extra margin of safety in case the receiver should be placed where ambient temperatures exceed 65°C. At 65°C the
thermistor will automatically shut down the fireplace and the receiver will begin emitting a series of 4 beeps every 2 seconds.
When the ambient temperature near the receiver drops under 50°C, you can reactivate the appliance by pushing MODE on
the transmitter.

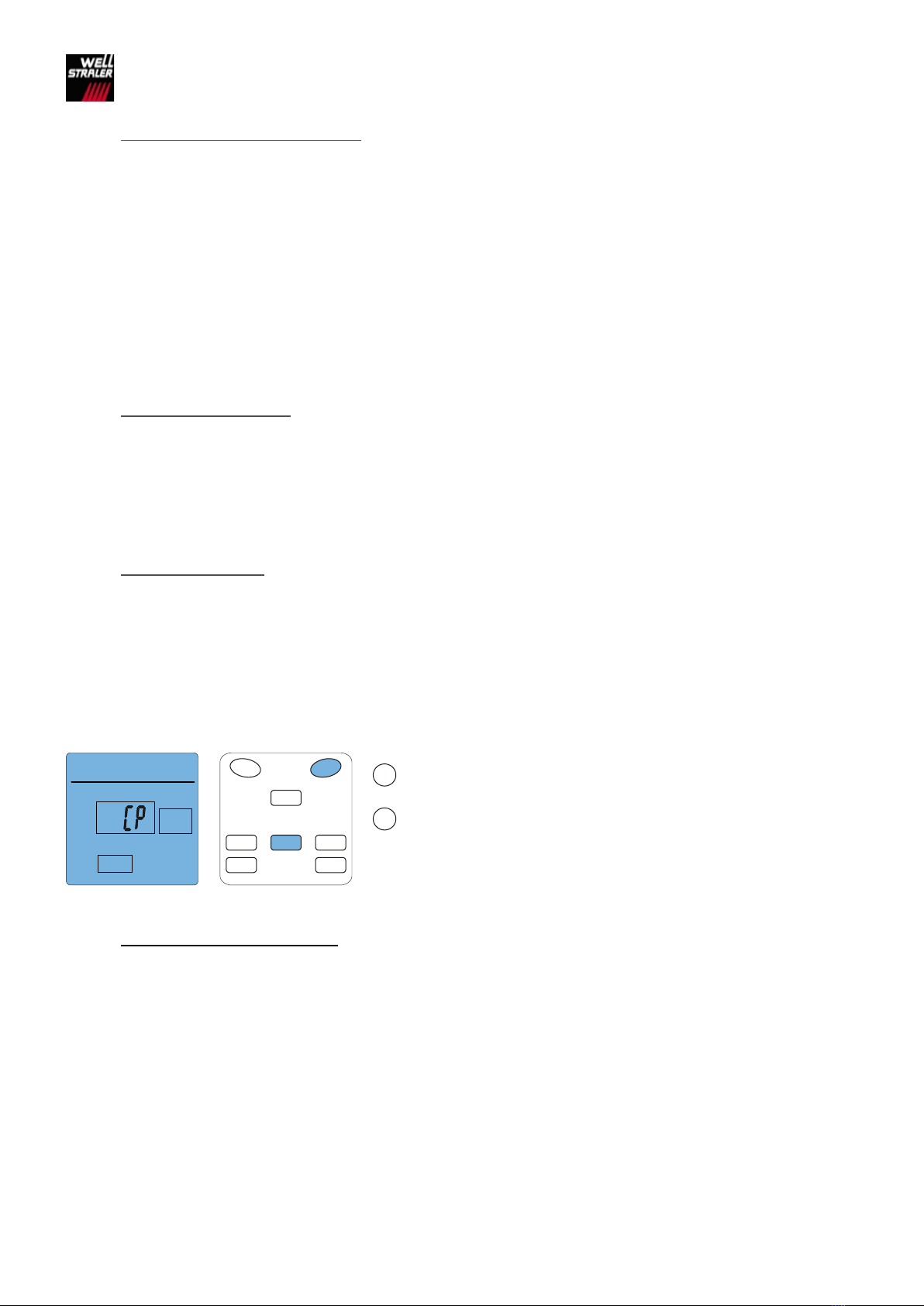

1.3.5. Child Protection (CP)
The system includes a child-proof ‘lock-out’ feature that allows the user to ”lock-out’operation of the appliance from the
transmitter.
REMARK: If the appliance is already operating in ON, THERMO or PROGRAM modes, engaging the ”lock-out” will not
cancel the operating mode. It only prevents the manual operation of the transmitter. If the appliance is operating in AUTO
mode (thermo and/or program operation) it will continue working normally. To totally ”lock-out” the operation of the
transmitter’s operating signals, the transmitter’s mode must be set to OFF.
DOWN
FAN
TIME
TIMER
FLAME
BACK
SET
RETURN
PROGRAM
REVIEW
AHEAD
-
+
MODE UP
1. To activate the ”LOCK-OUT‘, press and hold the
TIME/TIMER and FAN buttons together for
5 seconds. The letters CP will appear in the TEMP
frame on the LCD-screen.
2. To disengage the ”LOCK OUT,‘ press and hold the
TIME/TIMER and FAN buttons together for at least
5 seconds.
1.4. Appliances with ventilator
To prevent cold air to flow out of the cooled-down appliance, the ventilator begins working after the appliance has warmed
up (± 5 minutes warming up at the maximum rate). After extinction of the burner the ventilator keeps working for 15 minutes,
in order to use the residual warmth.

5
2. Commands of your appliance
Some advantages of the Well Straler new product generation:
Automatic ignition without steady pilot;
Precise digital temperature control in a range of ± 6 m from the heater;
Wireless RF remote control of all the functions of your heater in a range of ± 6m;
Four different operation modes: (ON/OFF – THERMOSTAT – WEEKLY PROGRAM –
COUNTDOWN TIMER);
Full automatic pre-programmed weekly program with 4 independent temperature ranges
each day, seven days a week.
IMPORTANT
For the device to work correctly, the emitter and receiver must be well tuned to each other (cfr. LEARN, p.14). If the
range is lower than 6 m, the antenna of the receiver (black wire on the side) must be moved. If the receiver is in
safety mode (one beep every 20 seconds), it has to be reset. In that case switch the receiver OFF, and then again
on REMOTE.
2.1. Transmitter
The transmitter operates on 2 AAA-size 1,5V batteries. We recommend the use of ALKALINE BATTERIES for maximum
operation performance. Insert batteries into the battery compartment on the back of the transmitter, positioning the (+) and
(-) ends of the batteries as indicated. Once batteries are inserted, the temperature will display. If this is not the case please
check that batteries are inserted properly (check polarity).
2.2. LCD-screen
1. PROGRAM FOR: Displays when programming days of week and
periods of day. In normal state only current DAY (2) and single
PERIOD (3) are displayed, when in PROGRAM mode.
2. DAY: Current DAY of week
3. PERIOD:Current period of DAY
4. MODE: Indicates operation MODE of system
ON (Indicates system is on, manually or thermostatically)
OFF (Indicates system is turned off)
THERMO (Indicates the system will automatically cycle,
depending on programmed SET temperature)
PROGRAM (Indicates the system is operating with
PROGRAMMED settings)
5. START AT: Appears when programming time to turn system on
6. SET:Indicates desired SET room temperature, when in THERMO
or PROGRAM mode
7. F°/C°:Temperature, in Fahrenheit or Celcius
8. TIME/TEMP:Displays CURRENT room temp. In same frame, the
current time will display in AM or PM. Press TIME/TIMER to display current time
9. LOW: Battery power is LOW. Replace batteries within 2 weeks
10. TIMER: When displayed, indicates countdown timer in operation
11. OVERRIDE:Displays when SET temperature is overridden
12. FLAME:Single or double flame symbol indicates burner is operational in LOW/HI mode
13. CP:Displays when CHILD PROOF—LOCK OUT“ is engaged. Pressing TIME/TIMER and FAN buttons together for
more than 10 seconds, engages or disengages CP
14. SWING:Displays in SET frame when setting temperature differential
15. FAN: indicates the FAN is operating in normal speed LOW,MED or HI speed (when fan blade is displayed)
16. TRANSMIT: Lights up whenever a signal is send from the transmitter to the receiver.
3
9
21
5
13
8
16
12
11
14
7
4
6
10
15

6
SET
2.3. Initial set-up programming of transmitter
Follow the procedure below before first use:
Temperature setting (°C of °F) preset for °F;
Current day of week SU-MO-TU-WE-TH-FR-SA;
Current time of day hours and minutes.
To program settings, first remove the battery cover on the back of the transmitter. If you have not
already installed the 2 AAA batteries, this would be a good time to do so. Note the small push button
at the top of the battery compartment. This button is used to perform the initial transmitter
programming.
2.3.1. Changing temperature scale (°C - °F)
DOWN
FAN
TIME
TIMER
FLAME
BACK
SET
RETURN
PROGRAM
REVIEW
AHEAD
-
+
MODE UP
1. Press button on back of transmitter ONCE. °C
symbol will begin flashing on the LCD-screen.
2. To change °C to °F, press the UP or DOWN
button on the front of the transmitter.
3. After setting/confirming the preferred
temperature scale, press SET/RETURN.
REMARK: If you choose to keep the set
temperature (°C), push SET/RETURN after step 1.
2.3.2. Setting the current day of the week
DOWN
FAN
TIME
TIMER
FLAME
BACK
SET
RETURN
PROGRAM
REVIEW
AHEAD
-
+
MODE UP
4. Following step 3 above, the SU symbol will
begin flashing on the LCD-screen.
5. To change to the CURRENT DAY of the week,
press the AHEAD or BACK button.
6. After setting/confirming the current DAY of the
week, press SET/RETURN.
2.3.3. Setting of the current hour and minutes
DOWN
FAN
TIME
TIMER
FLAME
BACK
SET
RETURN
PROGRAM
REVIEW
AHEAD
-
+
MODE UP
7. Following step 6 above, the HOUR digits will
begin flashing in the TIME frame.
8. To set the current HOUR, press UP or DOWN,
setting the HOUR for the corresponding
AM/PM-period.
9. After setting the current HOUR, press
SET/RETURN and the MINUTE digits will
begin flashing.
10. To set the MINUTES, press UP/DOWN, setting
the correct MINUTES.
11. After setting HOURS and MINUTES press
SET/RETURN. HI FLAME will start to flash.
12. Press SET/RETURN to confirm your settings.
THE INITIAL SET-UP/PROGRAMMING OF THE TRANSMITTER IS NOW COMPLETE. BE SURE THE SLIDE-ON
BATTERY COVER IS REINSTALLED. THE LCD-SCREEN IS NOW IN ITS NORMAL STATE.
YOU NOW ONLY HAVE TO SET THE ‘SWING’ TO YOUR PERSONAL PREFERENCES.

7
2.4. Additional programming options: SWING (temperature differential)
The thermo-transmitter operates the fireplace system whenever the ROOM TEMPERATURE diverts a certain number of
degrees from the SET temperature. This variation is called the SWING or temperature differential. A small SWING increases
the number of operating cycles in order to obtain a more stable temperature. A larger SWING decreases the number of
cycles. The factory setting for the SWING is 2°C.
2.4.1. Manuel check of SWING
The operation of the factory set THERMO SWING can be checked by adjusting the SET TEMP 2°C above or below the
room temperature. This will cause the system to turn ON or OFF. Normally the system will only respond to temperature
changes every two minutes. Manually changing the SET temperature will activate the system in less than 10 seconds. If the
SWING is changed, the system will respond to a new temperature differential (1°C, 2°C or 3°C above or below room
temperature).
2.4.2. Changing the factory set SWING:
DOWN
FAN
TIME
TIMER
FLAME
BACK
SET
RETURN
PROGRAM
REVIEW
AHEAD
-
+
MODE UP
1. Press AHEAD and BACK simultaneously to display
the current SWING in the SET TEMP frame, the
word SWING will display on the LCD-screen.
2. Press UP/DOWN to change the temperature
differential or SWING.
3. Press SET/RETURN to store the SWING number or
allow 15 sec. to lapse, and the new SWING will be
automatically programmed.

8
2.5. Program operation of remote control
The transmitter has a factory program built-in standard program. Each day has been broken into four periods and each
period has its own starting time and temperature. A chart of the built-in programs is pictured below
You may change any of the factory settings by following the procedures below. Should you wish to return to the factory
program, follow the procedure under heading 2.5.3 Program cancellation.
2.5.1. Programming day/period of day/temperature
CUSTOM PROGRAM:
DAY
Morning
Day
Evening
Night
Hour
Temp
Hour
Temp
Hour
Temp
Hour
Temp
SU
MO
TU
WE
TH
FR
SAT
You may change the built-in time and temperature programs to suit your personal schedule. Each day is divided into four
periods: MORNING, DAY, EVENING and NIGHT. A blank programming chart is provided above to record your customized
time and temperature settings If desired, you may change a single day or all seven days that have the built-in factory
program. To change one or all seven days, complete the following steps.
NOTE: If the initial SET-UP and settings were not previously completed and you go into programming mode, the
LCD-screen will display SU, MORN, TIME and SET temperature digits. You must go back and perform the initial
set-up procedure or the remote will not operate properly in the PROGRAM MODE.
DAY
PERIOD
hour / temperature
Every day of the week
MORN
6:00 am
21°C
DAY
8:30 am
16°C
EVE
3:00 pm
21°C
NIGHT
11:00 pm
18°C

9
To make changes in the standard program:
DOWN
FAN
TIME
TIMER
FLAME
BACK
SET
RETURN
PROGRAM
REVIEW
AHEAD
-
+
MODE UP

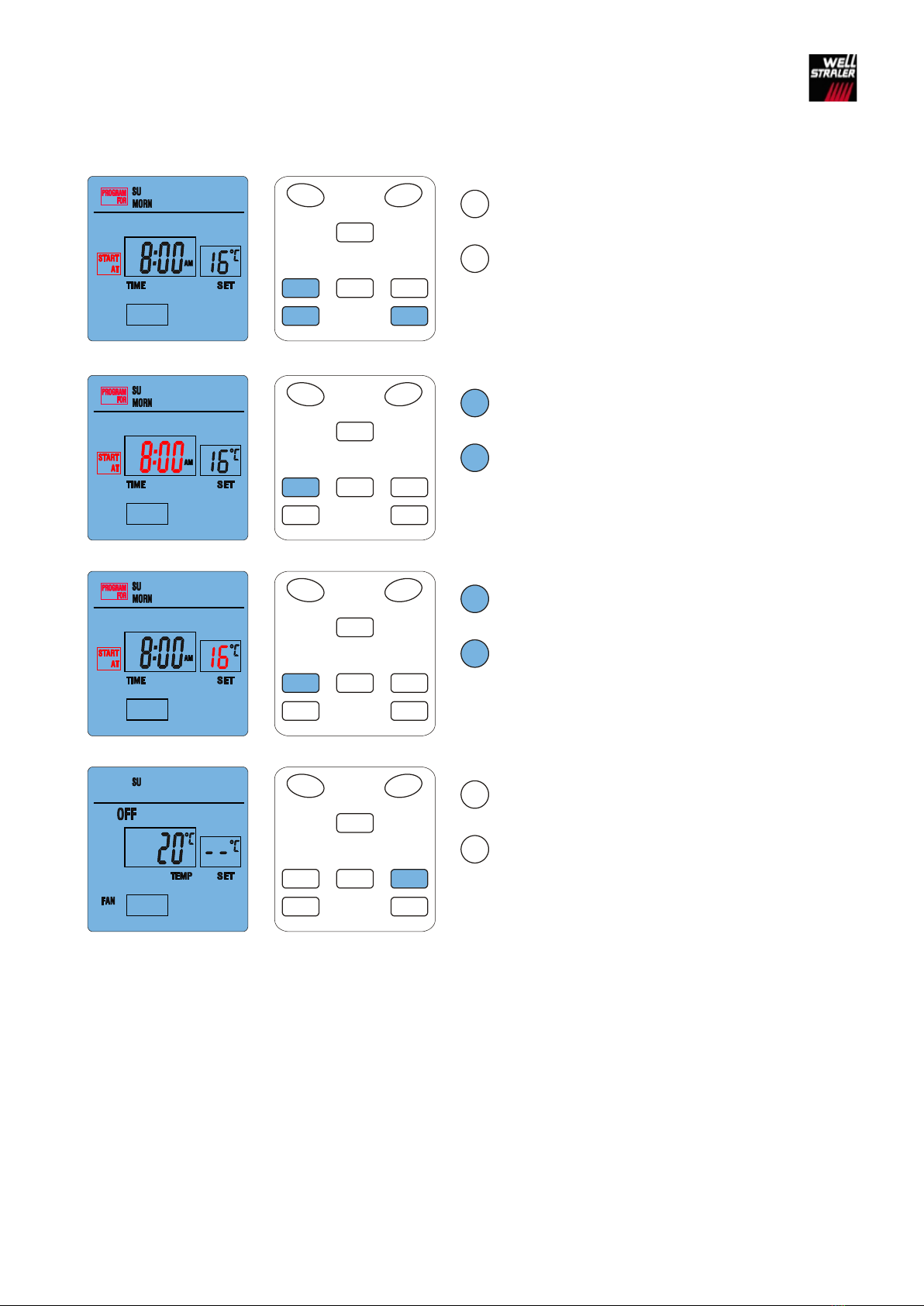

1. Press PROGRAM/REVIEW for 4 sec. The shaded
boxes on the LCD-screen with the words
PROGRAM FOR and START AT will begin to flash.
The current day, period, time and set temperature
of the built-in factory program will also be displayed.
2. To program the DAY and PERIOD of DAY, press
AHEAD or BACK to display the DAY and PERIOD
you wish to program.
3. Press PROGRAM/REVIEW. to confirm, and TIME
will flash on the LCD-screen.
DOWN
FAN
TIME
TIMER
FLAME
BACK
SET
RETURN
PROGRAM
REVIEW
AHEAD
-
+
MODE UP
4. Press UP or DOWN to program the START TIME.
Programmed start time settings are in 15
min.-segments. The new start time will display on
the LCD-screen.
5. Press PROGRAM/REVIEW to confirm: SET TEMP
will flash on the LCD-screen.
DOWN
FAN
TIME
TIMER
FLAME
BACK
SET
RETURN
PROGRAM
REVIEW
AHEAD
-
+
MODE UP
6. Press UP or DOWN to program the SET
temperature.
7. When the desired SET TEMP displays, press
PROGRAM/REVIEW to confirm.
8. After pressing the PROGRAM/REVIEW button in
step 7, the next PERIOD of the same DAY or next
DAY will display on the LCD-screen.
DOWN
FAN
TIME
TIMER
FLAME
BACK
SET
RETURN
PROGRAM
REVIEW
AHEAD
-
+
MODE UP
9. To program the next period, follow steps 3, 4, 5, 6
and 7.
10. Continue to follow steps 3, 4, 5, 6 and 7 until all
7 days and the 4 time periods in each day are
programmed.
11. Once all the programming has been completed,
press SET/RETURN. The programming data that
has been entered will now over-ride the factory built-
in program and operate your remote control system.
NOTE: Once you are in the programming process and you want to advance the programming procedure, you may bypass
some of the DAYS or PERIODS OF DAY, by pushing the AHEAD or BACK buttons. This allows you to eliminate the need
to enter the TIME and TEMP for each DAY/PERIOD, speeding up the programming process by skipping some of the
‘software prompts‘. Once the DAY/PERIOD you want to reprogram is displayed by the LCD-screen, press
PROGRAM/REVIEW and follow the programming steps outlined above.

10
2.5.2. Program overview
If you want to review the settings for either the
factory program and/or your customized program,
you may do so by pressing the PROGRAM/
REVIEW button for 1 second. By pushing this
button repeatedly you can review the complete
program.
If you press the PROGRAM/REVIEW button for 4
sec. then you enter the programming process.
Press the SET/RETURN button should you hold the
PROGRAM/REVIEW button too long.
DOWN
FAN
TIME
TIMER
FLAME
BACK
SET
RETURN
PROGRAM
REVIEW
AHEAD
-
+
MODE UP
2.5.3. Program cancellation – return to factory settings
To cancel the customized program that you have entered and to return to the factory settings:
Press SET/RETURN to make sure the LCD-screen is in its normal state. Press and hold PROGRAM/REVIEW and at the
same time, press SET/RETURN for a period of ± 10 sec. The customized program will be cancelled when the display
icons/numbers flash with some icons disappearing. The LCD-screen will begin flashing PROGRAM FOR,START AT,
together with the digits in the TIME and SET frames. This confirms that the CUSTOMIZED program has been cancelled.
Press SET/RETURN to return the LCD-screen to normal state, or wait approximately 10 seconds and the LCD-screen will
return to its normal state automatically.
2.6. Operating your appliance
2.6.1. Manual (ON/OFF)
Press MODE until the LCD-screen displays ON. Together with ON the LCD-screen will display FLAME and 1 flame
symbol. At this point the spark electrode will begin sparking to ignite the pilot for a period of approx. 60 seconds. As soon
as a flame is detected the sparking will stop, and after a few seconds the main burner will ignite. The flame height at this
stage will be LO. The appliance will burn as long as it is not turned off manually, regardless of the room temperature.
REMARK: In case of a new installation, it is possible that the pilot does not ignite after 60 seconds, due to air in the gas
pipes. In this case the appliance will shut down and turn to secure mode. Before you can use the appliance again it has to
be reset. To reset the appliance press MODE till LCD-screen displays OFF. To ignite again: press MODE until LCD-screen
displays ON. Repeat this procedure until there is no more air in the gas pipes that lead to the appliance and the pilot ignites.
Once the pilot is on and the main burner is burning low, it is possible to change the flame height and the speed of the fan
with the FLAME and FANtoggle keys.
To switch off the device, push MODE until OFF appears. The pilot as well as the main burner will be quenched.
After this, the fan will still turn for about 15 minutes, until the remaining heat is fully utilized.
There is an additional safety imbedded in this mode of operation that will put the fire automatically to OFF after a period of
9 hours.
*only for devices equipped with a fan
