Well Straler RC15 User manual

User Guide
RC15 transmitter & receiver
WELL STRALER
Hertstraat 99
B-9473 Welle
T [phone]
F [phone]
[e-mail]

2
Index
1. Introduction.....................................................................................................................................................................3
1.1. Welcome................................................................................................................................................................3
1.2. Warranty................................................................................................................................................................3
1.3. Security..................................................................................................................................................................3
1.3.1. Built-in safeties in the control system.............................................................................................................3
1.3.2. Thermo safety - transmitter............................................................................................................................3
1.3.3. Communication safety – transmitter...............................................................................................................4
1.3.4. Thermo-safety – receiver................................................................................................................................4
1.3.5. Child Protection (CP)......................................................................................................................................4
1.4. Appliances with ventilator......................................................................................................................................4
2. Commands of your appliance..........................................................................................................................................5
2.1. Transmitter.....................................................................................................................................................5
2.2. LCD-screen....................................................................................................................................................6
2.3. Initial set-up programming of transmitter........................................................................................................7
2.3.1. Changing temperature scale (°C - °F).........................................................................................................7
2.3.2. Setting the current day of the week.........................................................................................................7
2.3.3. Setting ofthe current hour and minutes.......................................................................................................7
2.4. Program operation of remote control..............................................................................................................8
2.4.1. Programming day/period ofday/temperature...............................................................................................8
2.4.2. Program overview......................................................................................................................................10
2.4.3. Program cancellation – return to factory settings.......................................................................................10
2.5. Operating your appliance.............................................................................................................................10
2.5.1. Manual (ON/OFF)......................................................................................................................................10
2.5.2. Thermo operation (ON/OFF BASED ON SET TEMP SETTING)...............................................................11
2.5.3. Automatic (PROGRAM).............................................................................................................................11
2.5.4. Adjusting the FLAME HEIGHT...................................................................................................................11
2.5.5. Adjusting FAN speed.................................................................................................................................12
2.5.6. Temperature OVERRIDE (operates only in PROGRAM mode).................................................................12
2.5.7. Time of day display....................................................................................................................................12
2.5.8. Setting the countdown timer.......................................................................................................................13
2.5.9. Low battery indicator..................................................................................................................................13
2.5.10. Place of the remote control system.......................................................................................................13
2.6. Receiver.......................................................................................................................................................14
2.6.1. Matching security codes (LEARN).............................................................................................................14
2.7. Problem solver..............................................................................................................................................15

3
1. Introduction
1.1. Welcome
Thanks for buying your Well Straler gas heater.
We are glad to have you as a customer. With this quality product you will enjoy the cosy warmth and uniqueflame dance for
many years.
Before using the heater, please read the instructions carefully and keep them in a safe place.
Installation must be carried out by a suitably qualified gas technician in accordance with the gas safety regulations that are
currently in effect. Make sure that you get informed by your technician about how to use, operate and maintain your
appliance. Every appliance has been tested, carefully adjusted and sealed in the factory in accordance with I2H or I3B/P
category. The warranty will only be valid if the service has been completed by a competent person (according the gas safety
regulations in force). Failure to install thefire correctlycould lead to prosecution.
The appliance is covered with a heat-resistant surface coating. During the first few hours of use, it is absolutely normal that
a harmless temporary odor is produced. This disappears after a short period. We advise you to let the appliance work for a
few hours in a well ventilated room.
1.2. Warranty
This product has a 2 year warranty counting from the date of installation, and this for manufacturing defects only. The
warranty is limited to a simple exchange of parts that are recognized as defective by our technical department, and not
giving cause by any means to further liability. Shipping costs and labor are not part of the warranty and have to be paid by
the user. Warranty will be invalidated if the appliance has been poorly maintained, used ina wrong way, has been damaged
in an accident or catastrophe of which the origin has no connection with the appliance itself, or if service has been done by
an unauthorized person. Delicate parts in contact with fire like glass etc. are not covered by warranty. Complaints are only
accepted whenmade througha recognized dealer.
1.3. Security
1.3.1. Built-in safeties in the control system
The system operates on radio frequency signals that are sent by the transmitter (remote) to the receiver in the appliance.
We recommend that the transmitter always be located withinthe operating range (± 6 m).
To avoid unpleasant situations, the system has several built-in safety measures that alert the user whenaction is needed.
1.3.2. Thermo safety - transmitter
The transmitter has a thermo-safety function built into its software. It provides an extra margin of safety when the appliance
is in the THERMO or PROGRAM mode.
The thermo-safety is activatedwhen the transmitter is moved beyond the maximum recommended operating range, which is
± 6 m. It is also activated when batteries become weak or are removed from the transmitter. The thermo-safety operates in
the following manner (only in THERMO or PROGRAM mode):
The room temperature is measured every 2 minutes by the transmitter and compared against the SET temperature. In
addition to check these temperatures, the transmitter sends an RF signal to the receiver, signaling that the transmitter is still
in the operating range. Should the receiver NOT receive a transmitter signal every 2 minutes, the IC software in the receiver
will begin a 45 minutes countdown timing function (thermo-safety function).
If the receiver does not receive a signal from the transmitter during this 45 minutes period, the system will shut down the
appliance. The receiver will produce a series of rapid beeps for a period of 10 seconds, followed by a single beep every 4
seconds until atransmitter signal is again received and the system is RESET.
To RESET the receiver: press the MODE button until OFF appears on the LCD-screen. It is now possible to operate the
appliance to the preferred working mode.

4
1.3.3. Communication safety – transmitter
The communication-safety operates in all operation modes (ON-THERMO-PROGRAM):
At all times and in all operating modes, the transmitter sends an RF-signal every 15 minutes to the receiver, signaling that
the transmitter is within the normal operating range of ± 6 m. Should the receiver not receive a transmitter signal, the
IC-software in the receiver will begin a 1 hour countdown timing function. If the receiver does not receive a signal from the
transmitter during this 1 hour period, the system will shut down the appliance. The receiver will produce a series of rapid
beeps for a period of 10 seconds, followed by a single beep every 4 seconds until a transmitter signal is again received and
the system is RESET.
To RESET the receiver: press the MODE button until OFF appears on the LCD-screen. It is now possible to operate the
appliance to the preferred working mode.
1.3.4. Thermo-safety – receiver
The system has a thermo-safety feature that is built into the receiver. This feature is temperature-activated and it provides
an extra margin of safety in case the receiver should be placed where ambient temperatures exceed 65°C. At 65°C the
thermistor will automatically shut down the fireplace and the receiver will begin emitting a series of 4 beeps every 2 seconds.
When the ambient temperature near the receiver drops under 50°C, you can reactivate the appliance by pushing MODE on
the transmitter.
1.3.5. Child Protection (CP)
The system includes a child-proof ‘lock-out’ feature that allows the user to ”lock-out’operation of the appliance from the
transmitter.
REMARK: If the appliance is already operating in ON, THERMO or PROGRAM modes, engaging the ”lock-out” will not
cancel the operating mode. It only prevents the manual operation of the transmitter. If the appliance is operating in AUTO
mode (thermo and/or program operation) it will continue working normally. To totally ”lock-out” the operation of the
transmitter’s operating signals, the transmitter’s mode must be set to OFF.
DOWN
FAN
TIME
TIMER
FLAME
BACK
SET
RETURN
PROGRAM
REVIEW
AHEAD
-
+
MODE UP
1. To activate the ”LOCK-OUT‘, press and hold the
TIME/TIMER and FAN buttons together for 5 seconds.
The letters CP will appear in the TEMP frame on the LCD-
screen.
2. To disengage the ”LOCK OUT,‘ press and hold the
TIME/TIMER and FAN buttons together for
at least
5 seconds.
1.4. Appliances with ventilator
To prevent cold air to flow out of the cooled-down appliance, the ventilator begins working after the appliance has warmed
up (± 5 minutes warming up at the maximum rate). After extinction of the burner the ventilator keeps working for 15 minutes,
in order to use the residual warmth.

5
2. Commands of your appliance
Some advantages of the Well Straler new product generation:
•Automatic ignition without steady pilot;
•Precise digital temperature control in a rangeof ± 6 m from the heater;
•Wireless RF remote control of all the functions of your heater in a range of
± 6m;
•Four different operation modes: (ON/OFF – THERMOSTAT – WEEKLY
PROGRAM – COUNTDOWN TIMER);
•Full automatic pre-programmed weekly program with 4 independent
temperature ranges each day, seven days a week.
IMPORTANT
For the device to work correctly, the emitter and receiver must be well tuned to each other (cfr. LEARN, p.14). If the
range is lower than 6 m, the antenna of the receiver (black wire on the side) must be moved. If the receiver is in
safety mode (one beep every 20 seconds), it has to be reset. In that case switch the receiver OFF, and then again
on REMOTE.
2.1. Transmitter
The transmitter operates on 2 AAA-size 1,5V batteries. We recommend the use of ALKALINE BATTERIES for maximum
operation performance. Insert batteries into the battery compartment on the back of the transmitter, positioning the (+) and
(-) ends of the batteries as indicated. Once batteries are inserted, the temperature will display. If this is not the case please
check thatbatteries are inserted properly (check polarity).

6
2.2. LCD-screen
1. PROGRAM FOR: Displays when programming days of week and
periods of day. In normal state only current DAY (2) and single
PERIOD (3) are displayed, when in PROGRAM mode.
2. DAY: Current DAY of week
3. PERIOD: Current period of DAY
4. MODE:Indicates operation MODE of system
•ON (Indicates system is on, manually or thermostatically)
•OFF (Indicates system is turned off)
•THERMO (Indicates the system will automatically cycle,
depending on programmed SET temperature)
•PROGRAM (Indicates the system is operating with
PROGRAMMED settings)
5. START AT: Appears when programming time to turn systemon
6. SET: Indicates desired SET room temperature, when in THERMO or PROGRAM mode
7. F°/C°:Temperature, in Fahrenheit or Celcius
8. TIME/TEMP: Displays CURRENT room temp. In same frame, the current time will display in AM or PM. Press
TIME/TIMER to display current time
9. LOW: Battery power is LOW. Replace batteries within 2 weeks
10. TIMER: When displayed, indicates countdown timerin operation
11. OVERRIDE:Displays when SET temperature is overridden
12. FLAME:Single ordouble flame symbol indicates burneris operational inLOW/HI mode
13. CP: Displays when CHILD PROOF—LOCK OUT“ is engaged. Pressing TIME/TIMER and FAN buttons together for
more than 10 seconds, engages or disengages CP
14. SWING:Displays in SET frame when setting temperature differential
15. FAN: indicates the FAN is operating in normal speed LOW or HI speed (when fan blade isdisplayed)
16. TRANSMIT: Lights up whenever a signal is send from the transmitter to the receiver.
3
9
21
5
13
816
12
11
14
7
4
6
10
15

7

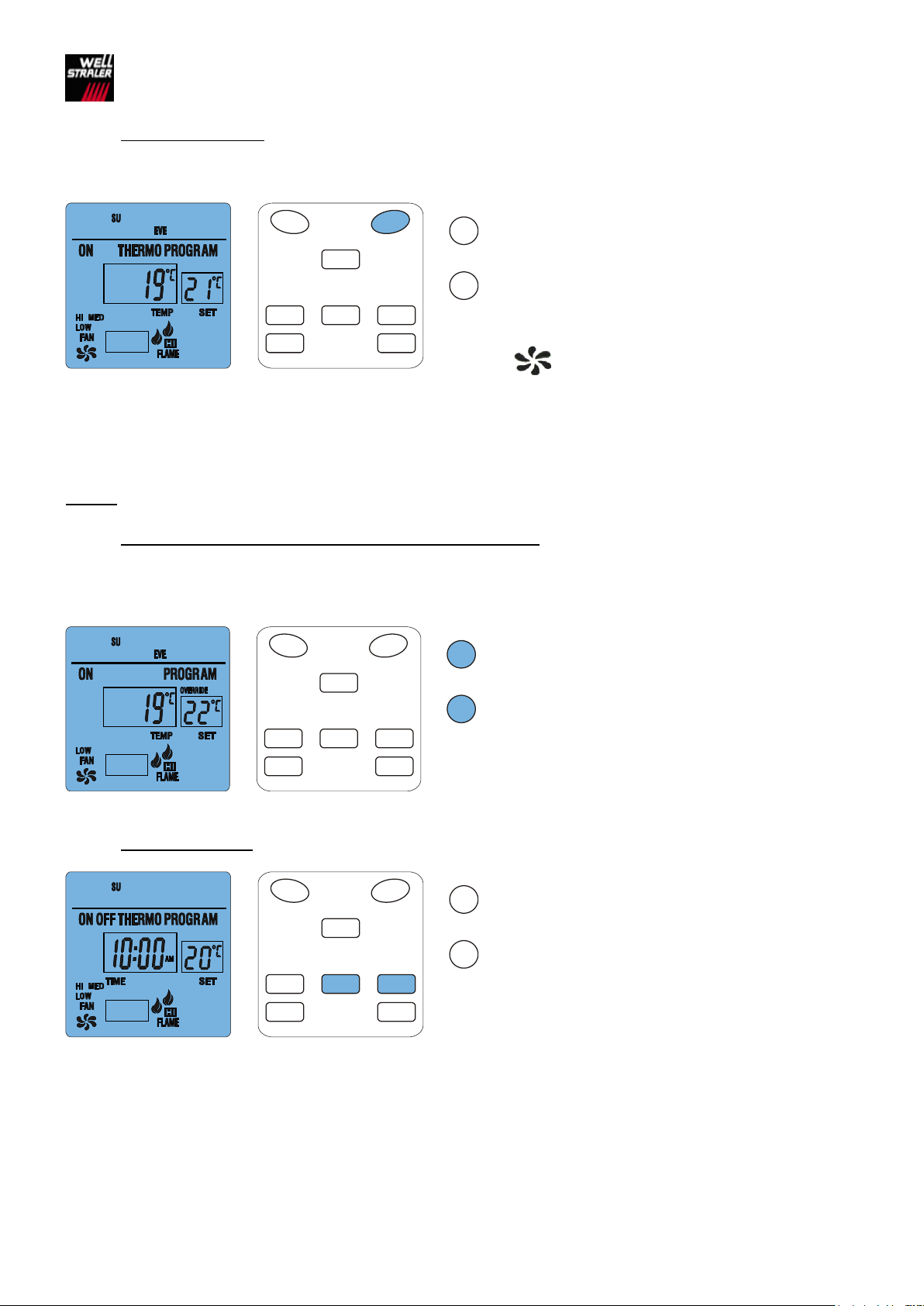

2.3. Initial set-up programming of transmitter
Follow the procedure below before first use:
•Temperature setting (°C of °F)preset for °F;
•Current day of week SU-MO-TU-WE-TH-FR-SA;
•Current time of day hours andminutes.
To program settings, first remove the battery cover on the back of the transmitter. If you have not
already installed the 2 AAA batteries, this would be a good time to do so. Note the small push
button at the top of the battery compartment. This button is used to perform the initial transmitter
programming.
2.3.1. Changing temperature scale (°C - °F)
DOWN
FAN
TIME
TIMER
FLAME
BACK
SET
RETURN
PROGRAM
REVIEW
AHEAD
-
+
MODE UP
1.
Press button on back of transmitter ONCE. °C
symbol will begin flashing on the LCD-screen.
2. To change °C to °F, press the UP or DOWN
button on the front of the transmitter.
3.
After setting/confirming the preferred
temperature scale, press SET/RETURN.
REMARK: If you choose
to keep the set
temperature (°C), push SET/RETURN after step 1.
2.3.2. Setting the current day of the week
DOWN
FAN
TIME
TIMER
FLAME
BACK
SET
RETURN
PROGRAM
REVIEW
AHEAD
-
+
MODE UP
4. Following step 3 above, the SU symbol will
begin flashing on the LCD-screen.
5. To change to the CURRENT DAY of the week,
press the AHEAD or BACK button.
6. After setting/confirming the current DAY of the
week, press SET/RETURN.
2.3.3. Setting ofthe current hourand minutes
DOWN
FAN
TIME
TIMER
FLAME
BACK
SET
RETURN
PROGRAM
REVIEW
AHEAD
-
+
MODE UP
7. Following step 6 above, the HOUR digits will
begin flashing in the TIME frame.
8. To set the current HOUR, press UP or DOWN,
setting the HOUR for the corresponding
AM/PM-period.
9. After setting the current HOUR
, press
SET/RETURN and the MINUTE
digits will
begin flashing.
10. To set the MINUTES, press UP/DOWN, setting
the correct MINUTES.
11. After setting HOURS and MINUTES press
SET/RETURN. HI FLAMEwill start to flash.
12. Press SET/RETURN to confirm your settings.
THE INITIAL SET-UP/PROGRAMMING OF THE TRANSMITTER IS NOW COMPLETE. BE SURE THE SLIDE-ON
BATTERY COVER IS REINSTALLED. THE LCD-SCREEN IS NOW IN ITS NORMAL STATE.
YOU NOW ONLY HAVE TO SET THE ‘SWING’ TO YOUR PERSONAL PREFERENCES.

8
2.4. Program operation of remote control
The transmitter has a factory program built-in standard program. Each day has been broken into four periods and each
period has its own starting time and temperature. A chart of the built-in programs is pictured below
You may change any of the factory settings by following the procedures below. Should you wish to return to the factory
program, follow the procedure under heading2.4.3 Program cancellation.
2.4.1. Programming day/period of day/temperature
CUSTOM PROGRAM:
DAY
Morning
Day
Evening
Night
Hour
Temp
Hour
Temp
Hour
Temp
Hour
Temp
SU
MO
TU
WE
TH
FR
SAT
You may change the built-in time and temperature programs to suit your personal schedule. Each day is divided into four
periods: MORNING, DAY, EVENING and NIGHT. A blank programming chart is provided above to record your customized
time and temperature settings If desired, you may change a single day or all seven days that have the built-in factory
program. To change one or all seven days, complete thefollowing steps.
NOTE: If the initial SET-UP and settings were not previously completed and you go into programming mode, the
LCD-screen will display SU, MORN, TIME and SET temperature digits. You must go back and perform the initial
set-up procedure or the remote will not operate properly in the PROGRAM MODE.
DAY PERIOD hour / temperature
Every day of the week
MORN
6:00 am
21°C
DAY
8:30 am
16°C
EVE
3:00 pm
21°C
NIGHT
11:00 pm
18°C

9
To make changesin the standard program:
DOWN
FAN
TIME
TIMER
FLAME
BACK
SET
RETURN
PROGRAM
REVIEW
AHEAD
-
+
MODE UP
1. Press PROGRAM/REVIEW for 4 sec. The shaded
boxes on the LCD-screen
with the words
PROGRAM FOR and START AT will begin to flash.
The current day, period, time and set temperature
of the built-in factory program will also be displayed.
2. To program the DAY and PERIOD of DAY, press
AHEAD or BACK to display the DAY and PERIOD
you wish to program.
3. Press PROGRAM/REVIEW. to confirm, and TIME
will flash on the LCD-screen.
DOWN
FAN
TIME
TIMER
FLAME
BACK
SET
RETURN
PROGRAM
REVIEW
AHEAD
-
+
MODE UP
4. Press UP or DOWN to program the START TIME.
Programmed sta
rt time settings are in 15
min.-segments. The new start time will display on
the LCD-screen.
5. Press PROGRAM/REVIEW to confirm: SET TEMP
will flash on the LCD-screen.
DOWN
FAN
TIME
TIMER
FLAME
BACK
SET
RETURN
PROGRAM
REVIEW
AHEAD
-
+
MODE UP
6. Press UP or DOWN to program the SET
temperature.
7. When the desired SET TEMP
displays, press
PROGRAM/REVIEW to confirm.
8. After pressing the PROGRAM/REVIEW button in
step 7, the next PERIOD of the same DAY or next
DAY will display on theLCD-screen.
DOWN
FAN
TIME
TIMER
FLAME
BACK
SET
RETURN
PROGRAM
REVIEW
AHEAD
-
+
MODE UP
9. To program the next period, follow steps 3, 4, 5, 6
and 7.
10. Continue to follow steps 3, 4, 5, 6 and 7 until all
7 days and the 4 time periods in each day are
programmed.
11.
Once all the programming has been completed,
press SET/RETURN. The programming data that
has been entered will now over-ride the factory built-
in program and operate your remote control system.
NOTE: Once you are in the programming process and you want to advance the programming procedure, you may bypass
some of the DAYS or PERIODS OF DAY, by pushing the AHEAD or BACK buttons. This allows you to eliminate the need
to enter the TIME and TEMP for each DAY/PERIOD, speeding up the programming process by skipping some of the
‘software prompts‘. Once the DAY/PERIOD you want to reprogram is displayed by the LCD-screen, press
PROGRAM/REVIEW and follow the programming steps outlined above.

10
2.4.2. Program overview
If you want to review the settings for either the
factory program and/or your customized program,
you may do so by pressing the PROGRAM/
REVIEW button for 1 second. By push
ing this
button repeatedly you can review the complete
program.
If you press the PROGRAM/REVIEW button for
4 seconds you enter the programming process.
Press the SET/RETURN button should you hold the
PROGRAM/REVIEW button too long.
FAN
TIME
TIMER
FLAME
BACK
SET
RETURN
PROGRAM
REVIEW
AHEAD
MODE
2.4.3. Program cancellation – return to factorysettings
To cancel the customized program that you have entered and to return to the factory settings:
Press SET/RETURN to make sure the LCD-screen is in its normal state. Press and hold PROGRAM/REVIEW and at the
same time, press SET/RETURN for a period of ± 10 sec. The customized program will be cancelled when the display
icons/numbers flash with some icons disappearing. The LCD-screen will begin flashing PROGRAM FOR, START AT,
together with the digits in the TIME and SET frames. This confirms that the CUSTOMIZED program has been cancelled.
Press SET/RETURN to return the LCD-screen to normal state, or wait approximately 10 seconds and the LCD-screen will
return to its normal state automatically.
2.5. Operating your appliance
2.5.1. Manual (ON/OFF)
Press MODE until the LCD-screen displays ON. Together with ON the LCD-screen will display FLAME and 1 flame
symbol. At this point the spark electrode will begin sparking to ignite the pilot for a period of approx. 60 seconds. As soon
as a flame is detected the sparking will stop, and after a few seconds the main burner will ignite. The flame height at this
stage will be LO. The appliance will burn aslong as it is not turned off manually, regardless of the room temperature.
REMARK: In case of a new installation, it is possible that the pilot does not ignite after 60 seconds, due to air in the gas
pipes. In this case the appliance will shut down and turn to secure mode. Before you can use the appliance again it has to
be reset. To reset the appliance press MODE till LCD-screen displays OFF. To ignite again: press MODE until LCD-screen
displays ON. Repeat this procedure until there is no more air in the gas pipes that lead to the appliance and the pilot ignites.
Once the pilot is on and the main burner is burning low, it is possible to change the flame height and the speed of the fan
with the FLAME and FAN•
toggle keys.
To switch off the device, pushMODE until OFFappears. Thepilot as well as the main burner will be quenched.
After this, the fan will still turn for about 15 minutes, until the remaining heat is fully utilized.
There is an additional safety imbedded in this mode of operation that will put the fire automatically to OFF after a period of
9 hours.
*only for devices equipped with a fan

11
2.5.2. Thermo operation (ON/OFF BASED ONSET TEMP SETTING)
The system cancontrol your appliance thermostatically when operating in THERMO mode.
DOWN
FAN
TIME
TIMER
FLAME
BACK
SET
RETURN
PROGRAM
REVIEW
AHEAD
-
+
MODE UP
1. Press MODE until LCD-screen displays THERMO.
2. Press UP/DOWN
to set the desired room
temperature. The highest SET temperature is
32°C (99°F), the lowest SET temperature is 6°C
(45°F). The transmitter will measure the room
temperature every 80 seconds automatically
turning the appliance ON or OFF thermostatically.
3. Press FLAME to modify the FLAME HEIGHT (see
chapter Adjusting FLAME Height).
4. Press FAN (only for appliances equipped with a
fan) to modify the FAN speed (see chapter 2.5.5.
Changing FAN speed).
2.5.3. Automatic (PROGRAM)
Press MODE until PROGRAM displays on the LCD-screen. Together with PROGRAM the following is displayed on the
LCD-screen:
Current period of the day (morn/day/eve/nite), depending on the program;
ON/OFF to mark if the appliance is turnedon or not;
Room temperature (TEMP). Desired temperature forthis period (SET);
FLAME/FLAME HI to indicate whether the appliance functions or will function with normal/high flames;
FAN LOW/HI to indicate whether the fan operates or will operate inLOW or HI speed.
The gas appliance will operate fully automatically depending on the pre-programmed weekly program and changes in
temperature.
2.5.4. Adjusting the FLAME HEIGHT
The flame height can be adjusted only in the
following modes:ON – THERMO – PROGRAM.
Press FLAME on the transmitter to change flame
height from LO to HI. You will note the word HI
and a 2nd FLAME icon will appear on the LCD-
screen. Press again to changefrom HI to LO.
DOWN
-
+
UP
SET
RETURN
FAN
BACK
TIME
TIMER
MODE
FLAME
PROGRAM
REVIEW
AHEAD
The transmitter always remembers the last setting of the flame height, and this for the entire mode of operation
(ON - THERMO and PROGRAM mode). Only when you change mode the settingwill return to itsstandard setting
(LO).

12
2.5.5. Adjusting FAN speed
The speed of the FAN can be adjusted only in the following modes: ON - THERMO – PROGRAM.
DOWN
-
+
UP
SET
RETURN
FAN
BACK
TIME
TIMER
MODE
FLAME
PROGRAM
REVIEW
AHEAD
The FAN operates automatically in LOW speed
(FAN LOW) whenever the fire is on for 5 minutes
and stays on for approximately 15 minutes after the
burner is turned off. Press FAN to change the FAN
speed to HI.
This symbol is displayed when the burner is on:
If the burner is OFF only FAN appears.
The transmitter always remembers the last setting of the FAN speed, and this for the entire mode of operation (ON -
THERMO and PROGRAM mode). Only when youchange mode thesetting will return to its standard setting (FAN LOW).
Remark:only for appliances equippedwith a fan.
2.5.6. Temperature OVERRIDE (operates only in PROGRAMmode)
You can change the current SET temperature without changing the programs stored in the transmitter‘s memory. The
OVERRIDE feature will be automatically cancelledat the start of the next PROGRAM PERIOD.
DOWN
-
+
UP
SET
RETURN
FAN
BACK
TIME
TIMER
MODE
FLAME
PROGRAM
REVIEW
AHEAD
1. Press UP/DOWN to change the SET
temperature. Setting will be cancelled
automatically when next program period
begins). The word OVERRIDE
will appear
over the SET frame on the LCD-screen.
2. To cancel temperature OVERRIDE, press
SET/RETURN.
2.5.7. Time of day display
DOWN
-
+
UP
SET
RETURN
FAN
BACK
TIME
TIMER
MODE
FLAME
PROGRAM
REVIEW
AHEAD
1. To check the current TIME of day, press
TIME/TIMER on the transmitter for less then
1 second. The current TIME of day will appear
in the TIME/TEMP
frame replacing the
temperature reading.
2. The temperature will reappear automatically in
15 seconds, or you can press SET/RETURN
to cancel the display of TIME immediately.

13
2.5.8. Setting the countdowntimer
This system can operate with a built-in COUNTDOWN timer when the transmitter is in the ON or THERMO mode (THERMO
or ON must be displayed on the LCD-screen).
When the set time period haselapsed, the device will automatically switch off.
DOWN
-
+
UP
SET
RETURN
FAN
BACK
TIME
TIMER
MODE
FLAME
PROGRAM
REVIEW
AHEAD
1. Press TIME/TIMER on the transmitter for more
than 5 seconds. The word TIMER and 0:15 flash
on the LCD-screen.
2. Press UP/DOWN
to begin advancing through
each of the countdown time options. Available
countdown times are 15 min./ 30 min. / 45 min./
1 hr / 1hr30 / 2 hr / 2hr30 /… up to 9hrs.
3. To set the TIMER press SET/RETURN. If the
system is ON, it will remain on until the ”timer
time”
has expired. If the system is in the
THERMO mode, it will cycle ON and OFF as the
room temperature requires
4. To cancel the TIMER
operation, press the
TIME/TIMER button for more than 5 seconds
until the ‘timer time‘ disappears.
NOTE: When the timer is used in THERMO mode, the THERMO operation will discontinue only when the countdown time’
has expired.
2.5.9. Low battery indicator
The word LOW outlined by a battery on the left side of the LCD-screen will appear
when battery power has dropped significantly. At this time, approximately two weeks of
battery power remains until the transmitter may experience partial or complete loss of
functions.
(REMARK: Wrong placementof the batteries will also result in the appearance ofLOW
on the screen.)
Here’s how to replace the batteries:
1. Push the MODE-button until OFF appears on the screen;
2. Remove the batteries one by one;
3. Place new batteries, minding their polarity.
Replacing the batteries in an operational mode (ON – THERMO – PROGRAM) can damage the microprocessor.
2.5.10. Place of the remote controlsystem
As the transmitter is also the thermostat of your appliance, it is preferable to locate the bracket on an inside wall, sufficiently
far away from direct sources of heat such as a fireplace, incandescent lighting or sunlight, in order for it to detect actual
ambient room temperatures, and not a single heat source. Before fixing the bracket to the wall, check if the transmitter is not
outside the operating range of the receiver! Normal operatingrange is ± 6 m,but can vary.
The system operates on RF-signals. The place of the antenna (black thread on the side of the receiver) determines the
operating range of the system. In order to get the system to function as good as it may, the antenna must be free in the
appliance.
Be careful: Transmitter and receiver must be placed at at least 1 meter from electromagnetic fields (such as TV,
radio, PC, microwave oven,…). Repeated exposure to magnetic fields reduces the operating capacity of the
appliances.

14

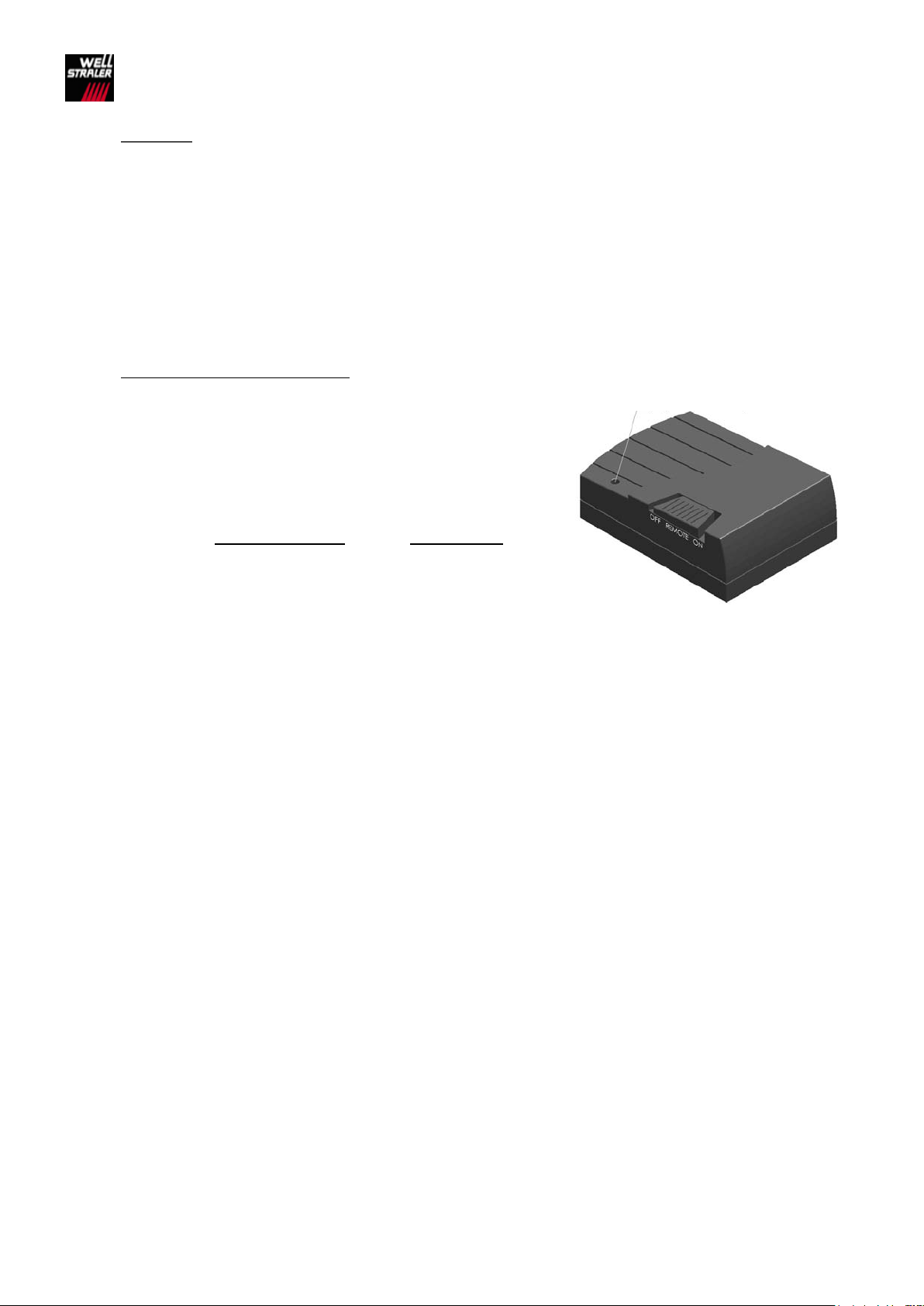

Access to the LEARN-button
2.6. Receiver
The receiver is built-in in your appliance and has a 3-position slide button:
•LEFT: OFF (the system is OFF)
•MIDDLE: REMOTE (the system only operates if the receiver receives commands from the transmitter)
•RIGHT: ON (the system remains ON in lowflame until the slide switch is placed in theOFF or REMOTE position)
We advise you to put the slide switch in the OFF position if you will be away from your home for an extended period of time
or during summer. Placing the slide switch in the OFF position also functions as a safety ”LOCK-OUT”by both turning the
system off and rendering the TRANSMITTER inoperative.
2.6.1. Matching security codes (LEARN)
Each transmitter can use one of the 1.048.576 security codes. It may be
necessary to program the remote receiver to LEARN the security code of the
transmitter, upon initial use, if batteries are replaced or if a replacement
transmitter is purchased. When matching security codes, be sure the slide
button on the RECEIVER is in the REMOTE position: the code will not LEARN
if the slide switch is in the ON or OFF position. Program the remote RECEIVER
to LEARN a new security code by pushing in the LEARN-button on the top of
the remote RECEIVER until a beep is heard and then simultaneously pressing
MODE on the TRANSMITTER. The RECEIVER will emit a series of rapid
beeps indicating the transmitter‘s code has been programmed into the receiver.
When an existing receiver is matched to a new transmitter, the new security
code will overwrite the old one
REMARK: The microprocessor that controls the security code matching procedure is controlled by a timer
function. If you are unsuccessful in matching the security code on the first attempt, wait 1-2 minutes before trying
again: this delay allows the microprocessor to reset its timer circuitry.

15
2.7. Problem solver
PROBLEM
CAUSE
SOLUTION
The appliance does not react
when the MODE-butt
on is
pressed.
The receiver is in ‘OFF’ position
Place the receiver button in ‘REMOTE’ position
The receiver does not match to the
transmitter.
Execute the ‘LEARN’ procedure
The transmitter does not react
after the ‘LEARN’-procedure.
The transmitter is too far from the
receiver.
Move the antenna to a free space (the outside
of the appliance is the maximum range area)
so that the operating range is wider
The receiver emits a beep
The transmitter is positioned out of
range of the receiver for more than
1 hour.
Place the transmitter closer to the receiver, or
move the antenna of the receiver
The receiver beeps
repeatedly in quick tempo and
the transmitter is within the
receiver’s operating range
The receiver got overheated
The receiver has to cool down, as it will only
operate again when the temperature inside the
receiver drops beneath 50°C
The receiver beeps in slow
tempo and the transmitter is
within the receiver’s operating
range
The transmitter is positioned on a
radio-wave reflecting surface
Place transmitter on a soft, non-reflecting
surface
The transmitter is broken
Replace transmitter

16
