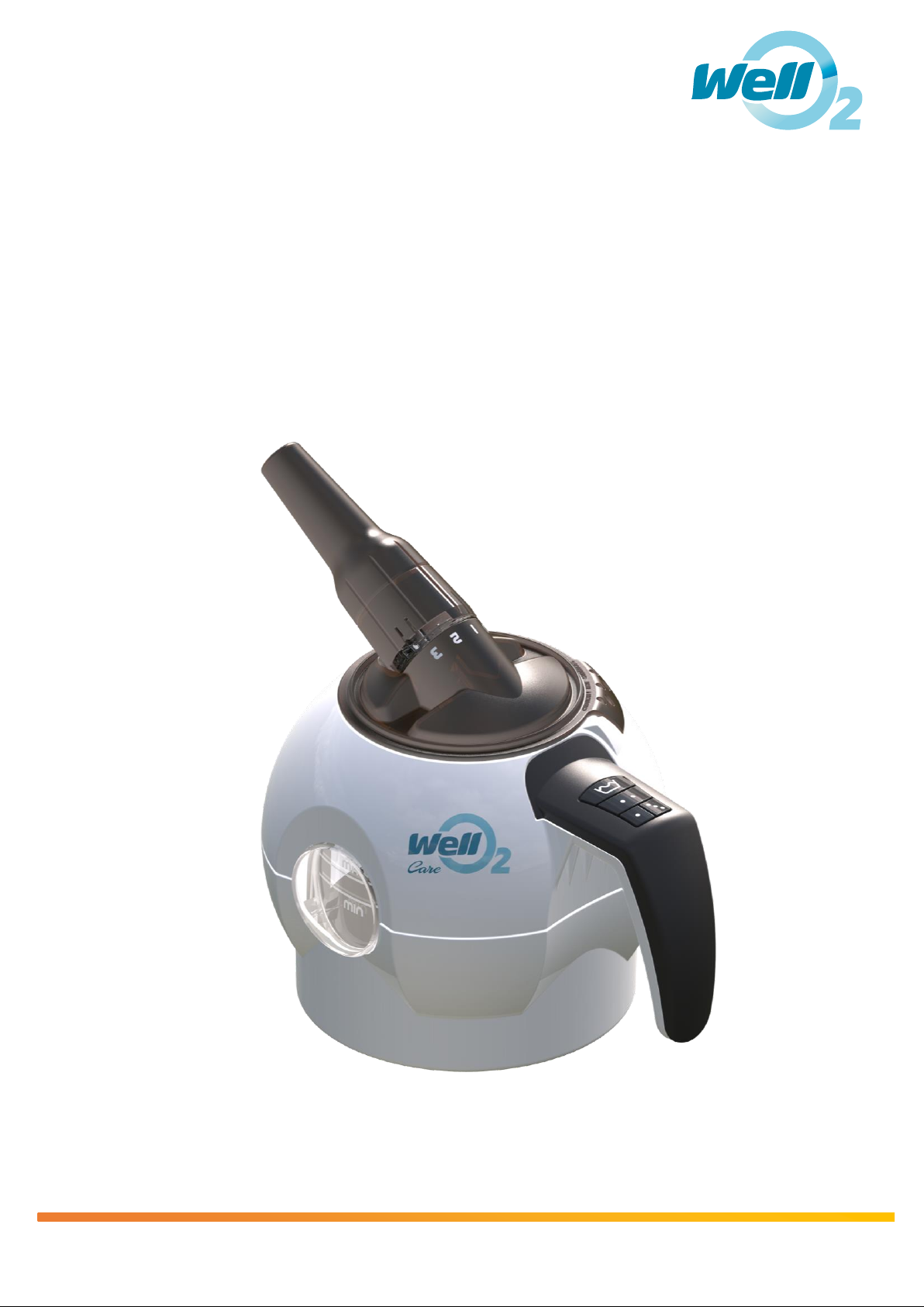

wello2 Care User manual

WellO2–Instructions for use

Breathe well. Feel better.
WellO2is a wellness device for household use that opens up and
soothes airways and also strengthens respiratory muscles. The
patented technology of WellO2combines adjustable breathing
resistance and warm vapour inhalation in a unique way.
WellO2can be used by individuals with acute or chronic breathing
difficulties, but also by those suffering from shallow breathing or
snoring, the elderly, athletes and professional voice users.
WellO2technology combines resisted breathing with warm vapour
inhalation and provides a natural aid for better and more efficient
breathing. Resisted breathing strengthens respiratory muscles,
opens up airways and helps the inhaled vapour generated by the
device to penetrate deeper into the airways. The warm vapour
moistens the mucous membranes and facilitates loosening and
elimination of mucus.
WellO2is easy and safe to use. The device’s double body structure
guarantees consistent production of warm vapour during the
breathing exercise and also protects users from exposure to hot
water.
Adjustable breathing resistance and vapour temperatures provide
optimal conditions for respiratory training with the device regardless
of the current fitness of the user.
WellO2can be used regularly to boost breathing or to alleviate
breathing difficulties when needed.
Register your WellO2now and take advantage of the various benefits!
www.wello2.com/support

WellO2–Instructions for use Page: 3

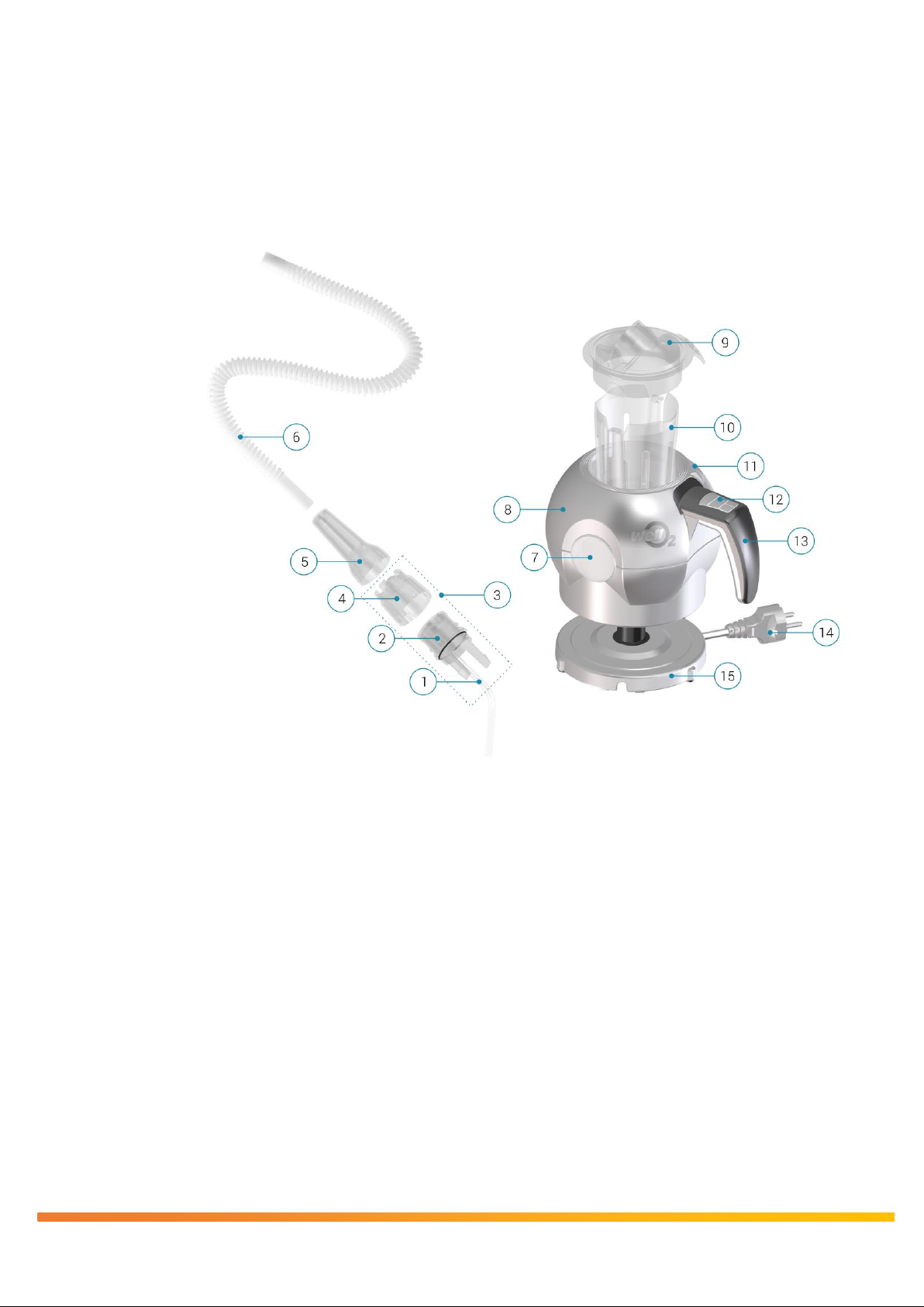

Getting to know WellO2
1.
Silicon tubing
9.
Lid
2.
Connecting element
10.
Basket
3.
Breathing regulator
11.
Ventilation hole
4.
Resistance setting ring
12.
Operating buttons
5.
Mouthpiece
13.
Handle
6.
Extension hose
14.
Power cord and plug
7.
Side windows
15.
Power base
8.
Main body

Page: 4 WellO2–Instruction for use
Preparing the device
Open and remove the lid by
turning it 90° anticlockwise.
Attach the breathing regulator
to the lid with the silicon tubing
facing downwards.
Attach the basket to the lid.
Add clean water so that the water
level is between the MIN and
MAX fill level .
Put the lid in place and close it by
turning it 90° clockwise.
Fully unwind the power cable
from the power base and plug
it into the mains supply. Place the
device on the power base.
Select the temperature by
pressing one of the pre-set
buttons for one second.
When the water has reached the
selected temperature, the device
emits a long sound signal and the
LED light stops blinking and stays
on.
Lift the main body off the power
base using the handle and place
it on a stable surface. Attach the
mouthpiece to the breathing
regulator.
9
3
1
10
7
14
15
12
5

WellO2–Instructions for use Page: 5
Breathing exercise
Adjust the exhaling/inhaling
resistance by turning the setting
ring on the breathing
regulator.
Sit upright or stand if possible
and slowly exhale into the
mouthpiece until your lungs are
empty, then immediately slowly
inhale the warm water vapour.
Avoid inhaling through your nose.
Hold the mouthpiece tightly in
your mouth so that the air flows
from the device only.
Repeat exhaling and inhaling
cycles 5 to 15 times, according to
your feelings. If necessary,
breathe normally a few times in
between the cycles.
Cleaning the device
Let the device cool down then
remove the mouthpiece from the
breathing regulator. Remove the
lid by turning it 90°anticlockwise
and drain the water. Rinse the
water vessel with plenty of clean
water, wipe it and let it dry.
Detach the basket from the lid
and then detach the breathing
regulator by pressing the tabs.
Pull the setting ring off the
connecting element . Rinse all
the separated components with
clean water, drain off any excess
water and allow them to dry.
4
4
2

Page: 6 WellO2–Instructions for use
WellO2–Instructions for use
Device name
WellO2
Part number
6430058490005
Instructions for Use
WellO2IFU EN
Revision number
1.02
Release date
02-11-2016
Manufacturer
Hapella Oy
Vuorikatu 36
FIN-70100 Kuopio
Finland
www.wello2.com
[e-mail]

WellO2–Instructions for use Page: 7
Contents
1. Introduction................................................................................................8
2. Safety Information ...................................................................................8
General warnings ...........................................................................................9
General cautions ..........................................................................................11
Dry-boil protection........................................................................................12
Protection from electromagnetic radiation ...........................................13
Correct disposal ...........................................................................................13
Contraindications .........................................................................................13
3. Before using the device for the first time..........................................14
4. Preparing the device for use ................................................................14
5. Using the device......................................................................................17
6. Cleaning the device ................................................................................20
7. Using the cleaning program.................................................................22
8. Descaling ..................................................................................................25
9. Troubleshooting......................................................................................26
10. Specifications and requirements........................................................28

Page: 8 WellO2–Instructions for use
1. Introduction
Thank you for purchasing WellO2.
It is extremely important that you read the instructions for use
carefully before using the device. Reading and understanding the
instructions guarantees safe and effective use of the product. If you
are uncertain about any part of the instructions, we recommend that
you contact your retailer or Hapella Oy ([e-mail]) for
more information.
2. Safety Information
This chapter provides important information on safe and efficient
use. Before using the product, you must read and understand the
following safety-related information.
Read the instructions carefully before using the device for
the first time and keep them handy. The manufacturer
accepts no responsibility for inappropriate use.
Regarding safety information, the following terminology is used
throughout these instructions.
Warnings indicate a potential personal injury if the
instructions are not followed.
Cautions indicate a potential risk of damage to the
product and/or property if the instructions are not
followed.
Warnings and cautions are given in several parts of these
instructions. You must always pay attention to them whenever they
are given.

WellO2–Instructions for use Page: 9
General warnings
If any part of the device has been damaged or it is not
working properly, do not use or dismantle it. Contact your
retailer or Hapella Oy for further advice.
Any operations on the device other than cleaning and
descaling as advised in these instructions must be
performed by the manufacturer’s representative.
Only plug the device into an earthed mains socket.
Check that the voltage indicated on the rating plate of the
device corresponds to that of the mains.
Do not use any power base other than the one provided
by Hapella Oy.
Always place the device on a dry, flat, stable, heat-
resistant work surface. Keep the device and the power
cord away from any source of heat, as well as from wet or
slippery surfaces or sharp edges.
Never place any part of the device on a hot surface. Do
not use it near an open flame.
Never turn the device on without filling the water vessel.
Immediately unplug the device from the mains if you
notice that it is not operating correctly.
Do not immerse the device, the power base, the power
cord or the plug in water or any other liquid.
When filling the device, avoid spillage on the connectors,
the power cord or the plug.

Page: 10 WellO2–Instructions for use
Do not use the device when your hands are wet or your
feet are bare.
The device emits vapour during the cleaning process. Do
not touch the device when the cleaning program is
running.
The device must be used with its lid locked in place.
Never open the lid while the water is hot, in particular
immediately after the cleaning process when the device is
very hot.
Always use the handle when moving the device.
Never move the device while it is heating water. Let the
device cool down for at least 20 minutes after the
cleaning process is completed before moving it.
Unplug the power base as soon as you have finished
using the device and always before cleaning it. Leave it
unplugged when the device is not in use.
Do not unplug the device from the mains by pulling on the
power cord. Wind the power cord back onto the power
base after you have finished using the device.
Never try to replace or remove any parts of the device
when it is connected to power base and mains.
Always store the device dry. Never leave water inside the
device or tubing.
WellO2is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been taught to use it under supervision or given

WellO2–Instructions for use Page: 11
adequate instruction concerning use of the device by a
person responsible for their safety.
This device can be used by children aged from 8 years
and above if they have been taught to use it under
supervision or given adequate instruction concerning use
of the device in a safe way and provided that they
understand the hazards involved.
Cleaning and user maintenance must not be performed
by children unless they are aged over 8 and supervised.
Keep the device and its cord out of reach of children aged
under 8 years.
Children should always be supervised to ensure correct
use of the device.
Children should be supervised to ensure that they do not
play with the device.
Always remain vigilant when the device is on. Do not
perform any other activities when using the device.
Hot surfaces, hot water and vapour may cause burns and
scalds. If an accident occurs, immediately move the
injured person away from the heat source and cool the
area of the burn with cold water or ice for 10 to 30
minutes. Contact a doctor if necessary.
General cautions
This device is designed for indoor use only.
Only use for breathing exercises. Do not use as an electric
kettle.

Page: 12 WellO2–Instructions for use
This device has been designed to be used for a maximum
of 30 minutes at a time. Let the device cool down for 30
min before turning it on again.
Use only the descaling methods described in chapter 8
DESCALING.
Do not use scourers to clean the device.
Protect the device from humidity, direct sunlight and frost
during storage.
To avoid possible adverse effects of humidity and
condensation, if the device has been outside in the cold
(for instance during transportation), always wait until it
returns to room temperature before turning it on.
This device is intended to be used in household and other
residential type environments. It is not intended to be
used and the guarantee will not apply in the following
applications:
–staff kitchen areas in shops, offices and other working
environments;
–farm houses;
–in hotels and motels when used by clients;
–bed and breakfast type environments.
Dry-boil protection
This device switches off automatically if you accidentally switch it
on with too little or no water in it. Let the device cool down for 10
minutes and then lift it off the power base. Fill it with clean cold
water so that the water level is between the MIN and MAX fill level
marks. The device is ready for use again.

WellO2–Instructions for use Page: 13
Protection from electromagnetic radiation
This device complies with Electromagnetic Compatibility (EMC)
standards.
Communication devices (mobile phones, tablets, etc.)
may cause malfunctions, which may affect the safety of
the device.
Do not change any of the electrical components, since
this may lessen the EMC immunity of the device.
Correct disposal
Dispose of the product according to your national regulations for
disposal of electronic devices. For more information, contact your
retailer.
Contraindications
Do not use WellO2 without consulting your physician in
case any of the following conditions applies to you. If you
are in doubt, please contact your physician.
–Emphysema
–Pneumothorax
–Unstable cardiovascular status
–Recent myocardial infarction or pulmonary embolus
–Thoracic, abdominal, or cerebral aneurysms
–Recent eye surgery (including cataract)
–Recent surgery of thorax or abdomen
–Epilepsy
–Nosebleed
–Pregnancy

Page: 14 WellO2–Instructions for use
3. Before using the device for the first time
Remove the device from its packaging and check that all the
following parts are included:
omain body and lid with the basket attached
opower base with power cord
o3 mouthpieces (each in a sealed plastic bag)
obreathing regulator (in a sealed plastic bag)
oextension hose (in a sealed plastic bag)
oinstructions for use
Check that all outer and inner packagings are intact.
If any of the wrappings are damaged, do not use the
device and contact your retailer.
Remove the device, the power base and the accessories from
their plastic bags.
Separate the two parts of the breathing regulator by pulling them
apart as shown in FIGURE 8.
The breathing regulator contains two check valves. Do
not attempt to remove the valves from their housing.
Carefully rinse the separated components with clean water and
run the cleaning program as described in chapter 7USING THE
CLEANING PROGRAM then continue to the following chapter.
4. Preparing the device for use
If you are not sure that the device is clean, run the
cleaning program before use.
Always use your personal mouthpiece to avoid microbial
cross-contamination.
Lift the device off the power base

WellO2–Instructions for use Page: 15
Open and remove the lid by turning it 90oanticlockwise as
shown in FIGURE 1.
Figure 1 –Opening the lid
Attach the breathing regulator to the lid as shown in FIGURE 2
and put the assembly on one side on a clean and dry surface.
Figure 2 –Attaching the breathing regulator

Page: 16 WellO2–Instructions for use
Add clean water so that the water level is
between the MIN and MAX fill level marks.
Use clean drinking water only. If you are
not sure of the quality of your tap water,
use only bottled still water.
Do not use water that looks, smells or tastes unusual.
Never fill the water vessel above the MAX fill level mark!
Overfilling may lead to scalding injuries.
Attach the basket to the lid taking care that the tubing is placed
in the correct position as shown in FIGURE 3.
Figure 3 –Attaching the basket to the lid

WellO2–Instructions for use Page: 17
Put the lid in place taking care to position it as shown in FIGURE 4
and close it by turning it 90oclockwise.
Figure 4 –Closing the lid
5. Using the device
Always make sure that the breathing regulator is
operating correctly. It includes two check valves
regulating the direction of the air flow. Blowing into the
device should generate bubbles in the water vessel
whereas inhaling should bring only water vapour into your
mouth, not water. If you notice that water rises up into
the tubing on inhaling, do not use the device and contact
your retailer or the manufacturer.
Fully unwind the power cable located in the power base and
place the power base on a dry, flat, stable and heat-resistant
surface such as a table.
Place the device on the power base and plug the power cable
into the mains supply.

Page: 18 WellO2–Instructions for use
Select the temperature by pressing one of the pre-set buttons
and holding it for one second. Note that pressing any button
again or removing the device from the power base immediately
interrupts heating.
oThe device emits a short sound signal.
oThe indicator light of the selected button blinks slowly.
oThe device heats up the water to the selected temperature.
Make sure you do not select the cleaning program as this
will cause the temperature to rise to an extremely high
level. Inhaling very hot vapour can cause serious injury.
When the water has reached the selected temperature
oThe device emits a long sound signal.
oThe indicator light for the selected temperature stops blinking
and stays on.
oThe heating process stops.
Lift the main body off the power base using the handle and place
it on a dry, flat, stable and heat-resistant surface. Take care not
to touch the main body or the lid, as they may be hot.
Lifting the main body off the power base will turn it off. The
device is now ready for use.
WellO2has three pre-set temperature buttons marked
respectively with one (warm), two (hot) and three (very
hot) dots. As perception of heat and cold is subjective,
we recommend that you to start with warm vapour. If
the inhaled vapour feels too cold for you, increase the
temperature one step at a time until you find the most
suitable temperature.

WellO2–Instructions for use Page: 19
Never perform the breathing exercise while the device is
on the power base.
Attach the mouthpiece to the breathing regulator as in FIGURE 5.
For better comfort you can attach the extension hose to the
mouthpiece.
Figure 5 –Attaching the mouthpiece
Adjust the exhaling/inhaling resistance by turning the setting ring
on the breathing regulator as shown in FIGURE 6.
Figure 6 –Adjusting the inhaling and exhaling resistance
It is very important to select the correct resistance and you may need
to try out different settings to do so. We suggest you to begin with the
lowest resistance and gradually raise it as your breathing power
increases.

Page: 20 WellO2–Instructions for use
Sit upright or stand if possible.
Slowly exhale into the mouthpiece until your lungs are empty,
then immediately slowly inhale the warm water vapour.
Beware of the hot vapour that comes out of the
ventilation hole during the exercise.
Avoid inhaling through your nose.
Hold the mouthpiece tightly in your mouth so that the air flows
from the device only.
Repeat exhaling and inhaling cycles 5 to 15 times, according to
your feelings.
If necessary, breathe normally a few times in between the cycles.
If you feel dizzy or otherwise uncomfortable during the
exercise, stop and take a break until your condition
normalises.
After use, clean the device as described in chapter 6CLEANING
THE DEVICE.
Run the cleaning program as described in chapter 7USING THE
CLEANING PROGRAM at least every tenth use and always if the
device has been used by others.
6. Cleaning the device
Clean the device each time you finish using it.
Let the device cool down for 20 minutes.
Please note that the air flowing through the device during the
breathing exercise may cause the emission of sounds.
