WELLTECH FXO GATEWAY H.323 3802 User manual

F
FX XO OG GA AT TE EW WA AY Y
U
Us se er rM Ma an nu ua al l
(
(
3
3
8
8
0
0
2
2
/
/
0
0
4
4
/
/
0
0
6
6
)
)

STEPS IN CONFIGURATION..................................................................................2
1. START UP................................................................................................................3
1.1 INTRODUCTION .....................................................................................................3
1.2 FEATURES AND SPECIFICATION ..............................................................................3
1.3 ACCESSORIES AND EQUIPMENT..............................................................................4
1.4 APPEARANCE ........................................................................................................5
1.4.1 3802 ..............................................................................................................5
1.4.2 3804 ..............................................................................................................6
1.4.3 3806 ..............................................................................................................7
2. HOW TO SETUPAND CONNECT BASICALLY...............................................9
2.1 SYSTEM REQUIREMENT.........................................................................................9
2.2 IP ENVIRONMENT SETTING .................................................................................10
2.2.1 For Windows 2000/NT................................................................................10
2.3 NETWORK CONFIGURATIONS IN YOUR GATEWAY .................................................12
2.3.1 Static ip address..........................................................................................14
2.3.2 DHCP mode................................................................................................16
2.3.3 PPPoE mode...............................................................................................17
2.4 MAKING A VOIP CALL ........................................................................................17
2.4.1 Configure the gateway into the Peer-to-Peer mode....................................18
2.4.2 Configure the gateway into the GK routed mode........................................20
2.4.2.1 The type in GK routed mode ....................................................................21
3.ADVANCE CONFIGURATIONS ........................................................................23
3.1 IP SHARING .........................................................................................................23
3.2 NETWORK INTERFACE .........................................................................................27
3.3 H323 INFORMATION ............................................................................................ 29
3.4 SYSTEM CONFIGURATION....................................................................................31
3.5 VOICE SETTING ...................................................................................................32

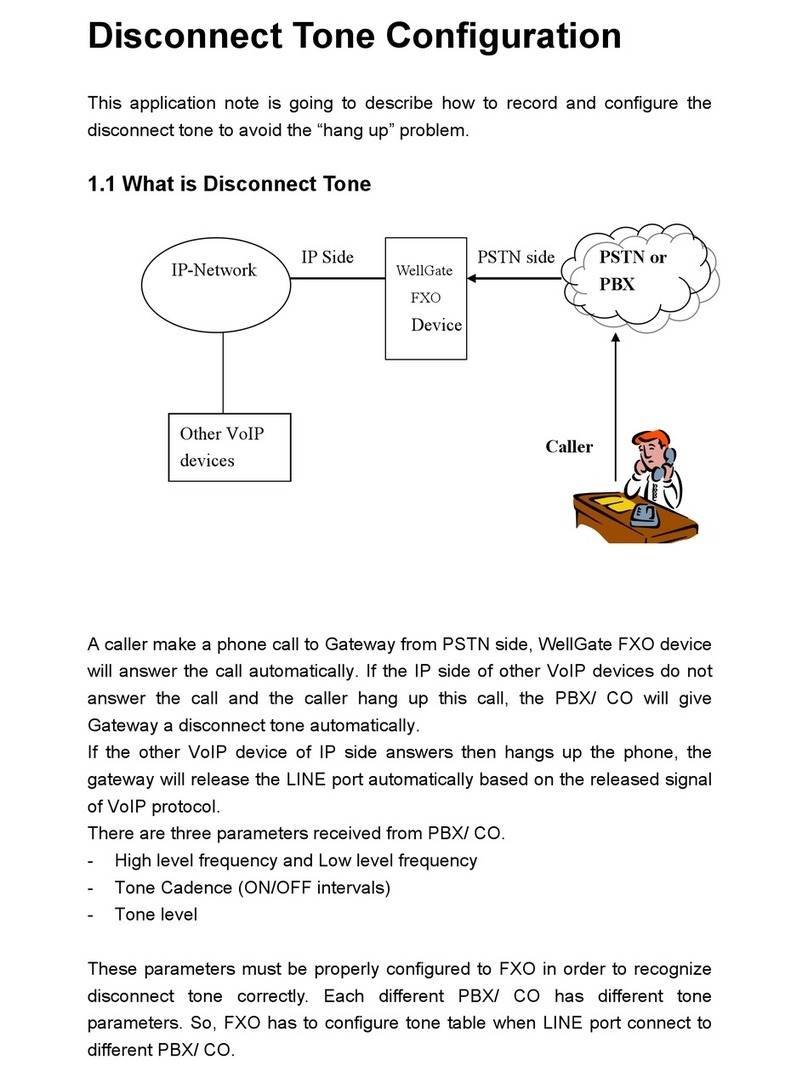

3.6 TONE PATTERN ....................................................................................................34
3.7 SUPPORT FUNCTION ............................................................................................ 35
3.8 PHONE BOOK ......................................................................................................36
3.9 TYPE OF SERVICE ................................................................................................ 37
3.10 HOTLINE ...........................................................................................................38
3.11 PPPOE SETTING ................................................................................................39
3.12 PASSWORD ........................................................................................................ 41
3.13 ROM UPGRADE ................................................................................................42
3.14 FLASH CLEAN ...................................................................................................45

FXO H.323 Gateway User Manual Document Ver.: 117b
Release Feb, 2004
1
3.15 COMMIT ............................................................................................................46
3.16 REBOOT ............................................................................................................47
4. COMMAND LIST.................................................................................................48
4.1 HYPER TERMINAL SETTING................................................................................. 48
4.2 COMMAND LIST ..................................................................................................51
4.2.1 [help] command..........................................................................................51
4.2.2 [quit] command...........................................................................................51
4.2.3 [debug] command.......................................................................................52
4.2.4 [reboot] command.......................................................................................52
4.2.5 [flash] command.........................................................................................53
4.2.6 [commit] command.....................................................................................53
4.2.7 [ifaddr] command.......................................................................................54
4.2.8 [time] command..........................................................................................56
4.2.9 [ping] command..........................................................................................56
4.2.10 [greetrd] command ...................................................................................57
4.2.11 [pbook] command .....................................................................................59
4.2.12 [pppoe]......................................................................................................62
4.2.13 [ddns] command.......................................................................................62
4.2.14 [sysconf] command...................................................................................64
4.2.15 [h323] command.......................................................................................68
4.2.16 [voice] command ......................................................................................70
4.2.17 [tos] command..........................................................................................72
4.2.18 [tone] command........................................................................................73
4.2.19 [support] command...................................................................................74
4.2.20 [group] command .....................................................................................75
4.2.21 [bureau] command....................................................................................77
4.2.22 [prefix] command......................................................................................78
4.2.23 [rom] command.........................................................................................79
4.2.24 [passwd] command...................................................................................81

FXO H.323 Gateway User Manual Document Ver.: 117b
Release Feb, 2004
2
Steps in configuration
STEP 1
Start Up
To check out the peripheral equipments and
understand the feature of this gateway. Please
read this step very carefully before starting the
configuring.
Connecting the gateway and computer to start
configuring by WEB GUI.
STEP 2
How to
Setup and
Connect
basically
Setting the ip address for this gateway to make
sure that it could connect with the internet.
Setting the configurations of dialing, including the
Peer-To-Peer, GK mode and how to set these
tables to make calls by this gateway easily.
The other configurations of make call will be
discussed in this step.
STEP 4
Command
List
STEP 3
Advanced
To explain the meaning of the command in the
command line interface and example the usage of
the command.
To get more usages or configuration in this step
and study about the command line configuration.
Advanced configurations and special functions of
this gateway. Using the WEB GUI to show how to
set this table and explain the meaning of these
tables.

FXO H.323 Gateway User Manual Document Ver.: 117b
Release Feb, 2004
3
1. Start Up
1.1 Introduction
The WellGate FXO gateway provides voice/fax service over IP network with H.323 v3
protocol. By connecting to your existing ADSL or cable modem service, which allows the
use of a single, network for voice and fax services with consequent saving in network
infrastructure and greatly reduced telephone charges. Ideal solution for providing low cost
communications between headquarters and branch offices in the world, as well as for
SOHO and office telephony applications.
WellGate FXO GateWay provides analog lines to connect local PSTN/PTT interface (FXO),
and converts voice/fax signal onto IP network. The management feature is via RS-232C
COM port and TELNET.
1.2 Features and specification
Features
- ITU-T H.323 v3 compliance
- Automatically Gatekeeper Discovery
- Peer-to-Peer mode (non-Gatekeeper)
- Support auto-attendant (2nddial Tone / Voice greeting)
- Dimensions : 221mm(W)*42mm(H)*217mm(L)
- Line hunting
- 2(3802)/4(3804)/6(3806) RJ-11 FXO ports
- E.164 (Telephone Number Plan)
- DTMF dialing
- DTMF detection/generation
- TFTP software upgrade
- Remote configuration/reset via Telnet
- LED indication for system status
- LAN interface : One RJ-45 connector of 10Base-T
- Microsoft Netmeeting v3.0 compatible
- Support static IP and DHCP
- QoS by ToS (Type Of Service)

FXO H.323 Gateway User Manual Document Ver.: 117b
Release Feb, 2004
4
- SNTP (Simple Network Time Protocol)
- Security: Password setting
Audio feature
- Codec -- G.711 a/μlaw, G.723.1 (6.3K/bps), G.729A (Optional)
- VAD (Voice Activity Detection), CNG (Comfort Noise Generate)
- G.168/165-compliant adaptive echo cancellation
- Dynamic Jitter Buffer
- Bad Frame Interpolation
- Call Transfer (H.450.2)
- Call Forward (H.450.3)
- Call Hold (H.450.4)
- Gain Settings
- Provide Call Progress Tone: Dial tone, busy tone, call-holding tone and ring-back tone
Management Features:
Two easy ways for system configuration
- Console port: RS-232C port
- TELNET
- HTTP Brower (e.g. Internet Explorer)
1.3 Accessories and equipment
The voice gateway in 2/4/6 FXO ports models and only one RJ-45 connector (WAN).
The AC adapter.
The CD of user manual.
The connection cable in RS-232 interface.

FXO H.323 Gateway User Manual Document Ver.: 117b
Release Feb, 2004
5
1.4 Appearance
1.4.1 3802
Front panel: The LED light provides system message of WellGate3802.
Power : Light on means WellGate3802 is power on.
L1-L2 : Light on means the line is in use.
Link : Light on means WellGate3802 is connected to the network correctly.
Act : LED should be light on and in flash display when data is transmitting.
Ready : 1. Light on and in slow flash means WellGate3802 is in operation mode.
Status : 1. Light on means WellGate3802 successfully registered to Gatekeeper when
it is set as Gatekeeper Mode.
2. LED flash means WellGate3802 is not registered to Gatekeeper when it is
set as Gatekeeper Mode.
3. Or when WellGate3802 is in downloading mode, LED should be flash as
well.
4. Light off means WellGate3802 is in Peer-to-Peer Mode.
Back panel:

FXO H.323 Gateway User Manual Document Ver.: 117b
Release Feb, 2004
6
1.4.2 3804
Front panel: The LED light provides system message of WellGate FXO GateWay.
Power : Light on means WellGate FXO GateWay is power on.
L1-L4 : Light on means the line is in use.
Link : Light on means WellGate FXO GateWay is connected to the network correctly.
Act : LED should be light on and in flash display when data is transmitting.
Ready : 1. Light on and in slow flash means WellGate FXO GateWay is in operation
mode.
Status : 1. Light on means WellGate FXO GateWay successfully registered to
Gatekeeper when it is set as Gatekeeper Mode.
2. LED flash means WellGate FXO GateWay is not registered to Gatekeeper
when it is set as Gatekeeper Mode.
3. Or when WellGate FXO GateWay is in downloading mode, LED should be
flash as well.
4. Light off means WellGate FXO GateWay is in Peer-to-Peer Mode.
Back panel:

FXO H.323 Gateway User Manual Document Ver.: 117b
Release Feb, 2004
7
1.4.3 3806
Front panel: The LED light provides system message of WellGate3806.
Power : Light on means WellGate3806 is power on.
L1-L6 : Light on means the line is in use.
Link : Light on means WellGate3806 is connected to the network correctly.
Act : LED should be light on and in flash display when data is transmitting.
Ready : 1. Light on and in slow flash means WellGate3806 is in operation mode.
Status : 1. Light on means WellGate3806 successfully registered to Gatekeeper when
it is set as Gatekeeper Mode.
2. LED flash means WellGate3806 is not registered to Gatekeeper when it is
set as Gatekeeper Mode.
3. Or when WellGate3806 is in downloading mode, LED should be flash as
well.
4. Light off means WellGate3806 is in Peer-to-Peer Mode.
Back panel:

FXO H.323 Gateway User Manual Document Ver.: 117b
Release Feb, 2004
8
1. Ethernet Port
LAN/WAN: 10/100 Base-T; RJ-45 socket, complied with ETHERNET 10/100base-T.
The pin-out is as following:
PIN 1, 2: Transmit
PIN 3, 6: Receive
2. COM:
RS232 console port (DB-9pin male connector)
Note: use straightforward cable to connect to your computer.
PINOUTS
Pin Name Dir Description
2 RXD Receive Data
3 TXD Transmit Data
5 GND System Ground
3. TEL:
RJ-11 connector, FXS interface is for connecting the analog phone sets or trunk line of

FXO H.323 Gateway User Manual Document Ver.: 117b
Release Feb, 2004
9
PABX.
4. LINE:
RJ-11 connector, FXO interface is for connecting the extension line of PABX or PSTN Line.
5. 12V DC:
Input AC 100V~120V;output DC12V.
2. How to Setup and connect basically
2.1 System Requirement
1. One PC (a) Pentium 100 or above, 64 RAM, Windows 98 or above.
(b) Ethernet card or COM port
2. One standard straightforward RS-232 cable (female connector to Gateway side).
3. PBX extension Lines or PSTN Lines.
4. Software tools (a) Hyper Terminal, TELNET, Web Browser.
(b) Gatekeeper (optional).

FXO H.323 Gateway User Manual Document Ver.: 117b
Release Feb, 2004
10
2.2 IP Environment Setting
User must prepare a valid IP address, complied with IP Network, for Gateway’s proper
operation.
For testing the validation of chosen IP address, using the same IP configuration in other PC or
Notebook, and then try to connect to Public Internet (go to well-known website, receive Internet
mail, or ping a specific public IP address). If it works, use the same IP address and network
configuration for Gateway.
Please follow up the step for the configuration of your computer or notebook.
2.2.1 For Windows 2000/NT
Please make sure that the network interface of your computer is working fine and the cross over
line (RJ-45) is connecting with the computer correctly or you could use a hub to connect with
your computer and this gateway. Turn on your computer and configure the network parameter
as follow:
1Go to the start menu and enter the setting area. Click control panel.
2Enter the network configuration.

FXO H.323 Gateway User Manual Document Ver.: 117b
Release Feb, 2004
11
Figure 2.1: Network Configuration
3Select the Property of the LAN card.
4Setup the ip address, subnet mask and default gateway as below:
Figure 2.2: Configure the network
5Click OK after you finished the network setup.

FXO H.323 Gateway User Manual Document Ver.: 117b
Release Feb, 2004
12
The default ip address, netmask and default gateway address of the gateway is 10.1.1.3,
255.0.0.0, 10.1.1.254.
2.3 Network configurations in your gateway
1Key in the ip address of the gateway (http://10.1.1.3) with the browser
Figure 2.3: WEB Browser

FXO H.323 Gateway User Manual Document Ver.: 117b
Release Feb, 2004
13
2After key in the ip address, you have to enter the user name and password to enter the WEB
configuration. (Username: root ; No password)
Figure 2.3: Login the username and password
3You will enter the main page of the configuration after key in the login name and password
correctly:

FXO H.323 Gateway User Manual Document Ver.: 117b
Release Feb, 2004
14
Figure 2.4: The main WEB configuration
4Press the Network Interface to configure the networking of your gateway:
Figure 2.5: The Network Interface
2.3.1 Static ip address
1Please get the correct ip address, netmask and default gateway address from your ISP first.
Press the OK button if you finished.

FXO H.323 Gateway User Manual Document Ver.: 117b
Release Feb, 2004
15
Figure 2.5: Configure the static ip address
2Press the commit if you finish the configuration.
Figure 2.6: Commit the data
3Press the reboot if you want the configuration executed.

FXO H.323 Gateway User Manual Document Ver.: 117b
Release Feb, 2004
16
Figure 2.7: Reboot the system
2.3.2 DHCPmode
1Enable the DHCP if you are using the cable modem or DHCP server.
Figure 2.8: Enable the DHCP function

FXO H.323 Gateway User Manual Document Ver.: 117b
Release Feb, 2004
17
2Please commit the data and reboot the machine after you enable the DHCP function.
2.3.3 PPPoE mode
1Press the PPPoE Configuration and put the info of the PPPoE account and password in the
configuration table.
Figure 2.9: Configure the PPPoE function
2Please commit the data and reboot the machine after you finished the configuration of
PPPoE.
2.4 Making a VoIP Call
There are two modes that you could configure the gateway for making VoIP calls. One is the
Peer-to-Peer mode, another is GK routed mode. The configurations and functions are different.

FXO H.323 Gateway User Manual Document Ver.: 117b
Release Feb, 2004
18
Please make sure about the mode you want and follow up the step to configure your gateway.
2.4.1 Configure the gateway into the Peer-to-Peer mode
1Enter the H323 Configuration table and change the mode to Peer-to-Peer.
Figure 2.10: Configure the Peer-to-Peer mode
2Press the OK button which is on the buttom of this page to save the configuration.
3Enter the Phone Book configuration table and configure the name, ip address and phone
number of the destination.
