WELLTECH 2424s FXS User manual

Welltech 2424s FXS
Gateway User Guide

2
Contents
CH1 Introduction.............................................................................. 4
1-1 Physical Interface ............................................................................. 4
1-2 Environmental .................................................................................. 4
1-3 Front Panel: LED Indicators.......................................................... 5
1-4 Rear Panel: LED Indicators........................................................... 6
1-5 QUICK SETUP ................................................................................ 7
CH2 Device Settings....................................................................... 13
2-1 Network Configuration................................................................... 13
2-2 Device Time Setting ....................................................................... 15

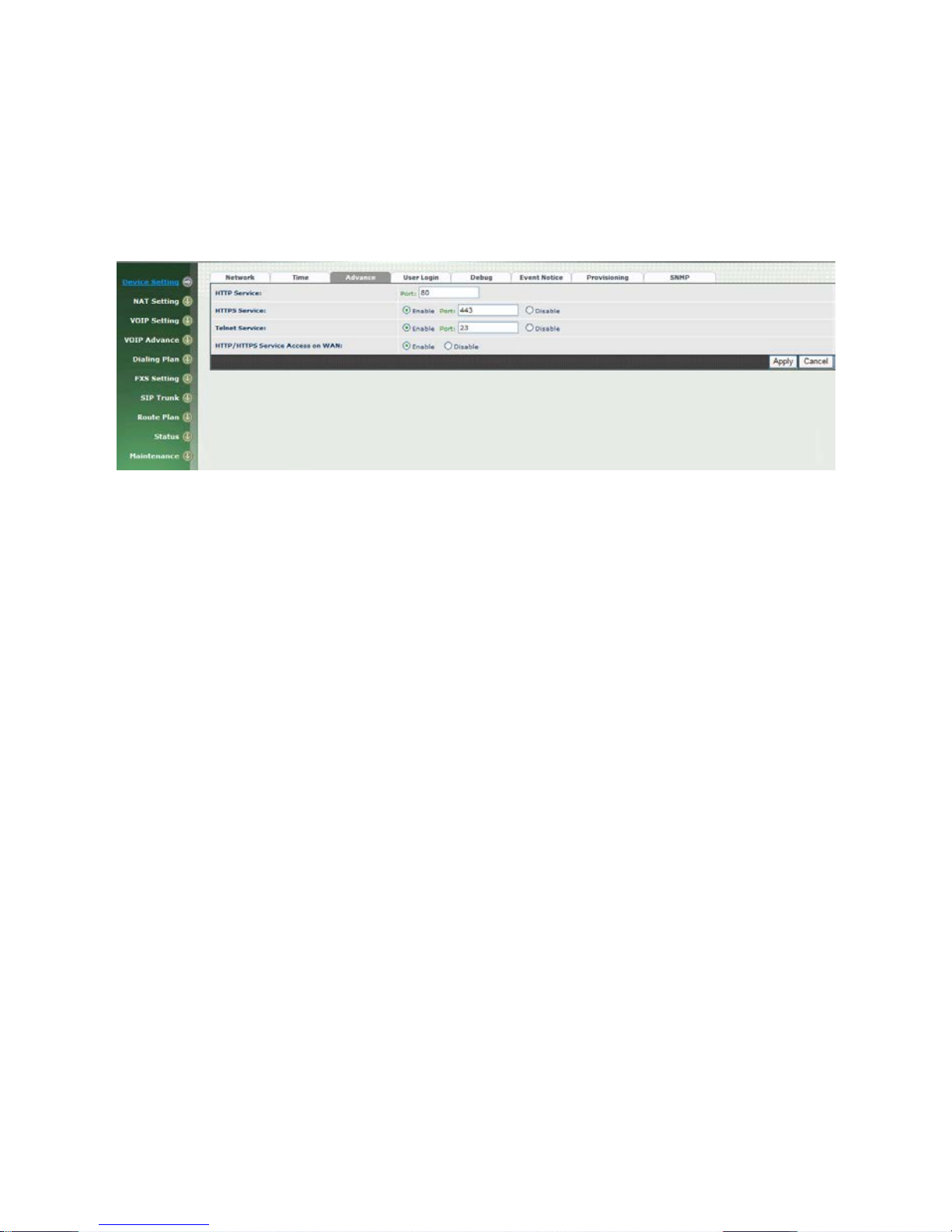

2-3 Device Advance Setting.................................................................. 16
2-4 User Login Setting.......................................................................... 17
2-5 Debug Settings................................................................................ 18
2-6 Event Notice................................................................................... 19

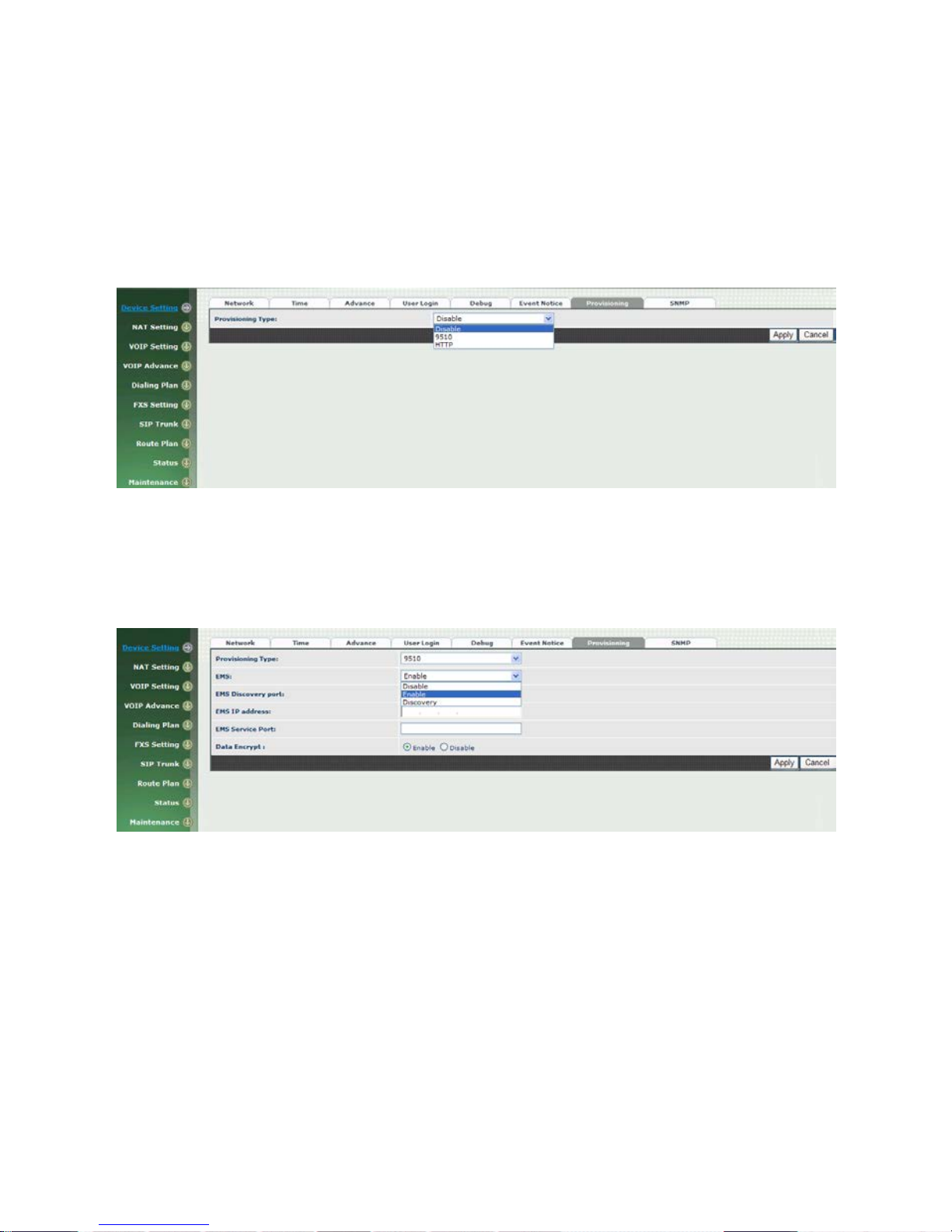

2-7 Auto Provisioning........................................................................... 20
2-8 SNMP ............................................................................................. 22
CH3 NAT Setting............................................................................. 23
3-1 DHCP Ser. (DHCP server).............................................................. 23
3-2 UPNP (universal plug and play server) .......................................... 24
3-3 Bandwidth (Bandwidth Control).................................................... 24
3-4 URL Filter....................................................................................... 28
3-5 IP Filter........................................................................................... 28
3-6 MAC Filter ..................................................................................... 29
3-7 APP Filter........................................................................................ 29
3-8 Port Filter........................................................................................ 30
3-9 Port Fwd ......................................................................................... 30
CH4 VOIP Setting........................................................................... 31
4-1 SIP .................................................................................................. 31
4-2 Audio .............................................................................................. 32
4-3 Tone ................................................................................................ 34
4-4 NAT Traversal................................................................................. 35
CH5 VOIPAdvance........................................................................ 36

3
5-1 SIP .................................................................................................. 36
5-2 Audio .............................................................................................. 38
5-3 Ring ................................................................................................ 40
CH6 Dialing Plan............................................................................ 41
6-1 General............................................................................................ 41
6-2 Dialing Rule.................................................................................... 42
6-3 Digit Manipulation ......................................................................... 43
6-4 Phone Book..................................................................................... 44
CH7 FXS Setting............................................................................. 45
7-2 SIP Proxy........................................................................................ 48
7-3 Caller ID......................................................................................... 49
7-4 Others.............................................................................................. 50
CH8 SIP Trunk................................................................................ 51
8-1 Create SIP Trunk............................................................................. 52
CH9 Route Plan............................................................................... 54
9-1 Create Route Plan........................................................................... 55
CH10 Status...................................................................................... 57
10-1 Device States ................................................................................ 57
10-2 Line States .................................................................................... 58
10-3 SIP Trunk States............................................................................ 59
CH11 Maintenance......................................................................... 60
11-1 Firmware Update .......................................................................... 60
Appendix A--- System Recovery.......................................................... 61
Appendix B --- HTTP auto provisioning.............................................. 65

4
WellGate 2424s
CH1 Introduction
2424s Telephony Gateway
The Welltech 2424s is a 24 ports FXS (WellGate 2424s) VoIP gateway which
includes 1-WAN/1-LAN (management port) 10/100 base-T network
environment. Field-proven quality of Voice communication and Fax
transmission over IP broadband access network to makes WellGate 2424s to
be an excellent solution for various VoIP applications.
1-1 Physical Interface
Ethernet port (RJ-45, 10/100 base-T)
1-WAN port, for connect to router, ADSL modem (ATU-R), or switch
hub directly.
1-LAN port, for PC, management or other network devices
connecting.
Telephony port (RJ-11)
24-FXS ports, to connect to analog phone.
Console port (RS232, rate:115200)
AC power Jack
Status indicated LED
Indicates Power, Ethernet, Line, SIP and system status
1-2 Environmental
Dimension: 440 × 44 × 262 mm(WxHxD)
Weight: 3.25kg (unit)
Operating Temp. & Humidity
-Temp.: 0°C~45°C (32°F~113°F)
-Humidity: 10%~85% relative humidity, non-condensing
Power Input:
-INPUT: AC100V~240V, 50/60Hz

5
1-3 Front Panel: LED Indicators
WellGate 2424s
Figure 1-3-1 front panel
LED
Description
Power
When the power adapter is connected, the LED will light
up green.
Status
When system is startup successfully, the LED will light up
green.
Proxy
When the gateway is registered successfully to a Proxy,
this will light up green.
WAN
This will light up green when the gateway’s WAN port is
physically connected to the public internet. When data is
transmitted through this port, it will flash green.
The default IP of WAN port is 10.1.1.3.
LAN
This will light up green when the gateway’s LAN port is
physically connected to a local network (Refer to Rear
Panel section in page number for location of LAN port).
When data is transmitted through this port, it will flash
green.
The default IP of LAN port is 192.168.123.123.
Port1~Port24
The status LED for FXS port 1-24, this will light up amber
orange when the connected phone is engaged in a
conversation. It will flash amber orange when there is an
incoming call.

6
1-4 Rear Panel: LED Indicators
WellGate 2424s
Figure 1-4 rear panel for FXS
Item
Description
Phone1 - Phone24
The status LED for FXS port 1-24, this will light up amber
orange when the connected phone’s handset is lifted, or
when the connected phone is engaged in a conversation.
It w
ill flash amber orange when there is an incoming call.
(WellGate 2424s only)
LAN
10/100 Base-T RJ-45 socket for LAN port, connects to PC
for management purpose.
WAN
10/100 Base-T RJ-45 socket for WAN port, connects to
wide area network.
AC100V~240V
The power socket, input AC 100V~240V, output DC 12V,
6A.
Console Port
This port is for RS-232 cable connected , the baud rate is
115200, data bits is 8, parity is none, stop bits is 1, flow
control is none. Normally the port is used for Welltech’s
engineer debug.
Notice: if you want to use it, just could use command
“ifaddr –print” (to display IP address of WAN and LAN port
on screen) or “passwd” (to change password), other
commands are not yet available.
Reset Button
Press and hold over 5 seconds to reload factory default
setting, this will erase all existing settings configured on
this gateway.

7
1-5 QUICK SETUP
Note:
Please use Windows XPIE 6.0 web browser or above version to
configure FXO gateway webpage setting. Welltech products don’t
support other Web Browser such as FireFox to configure.

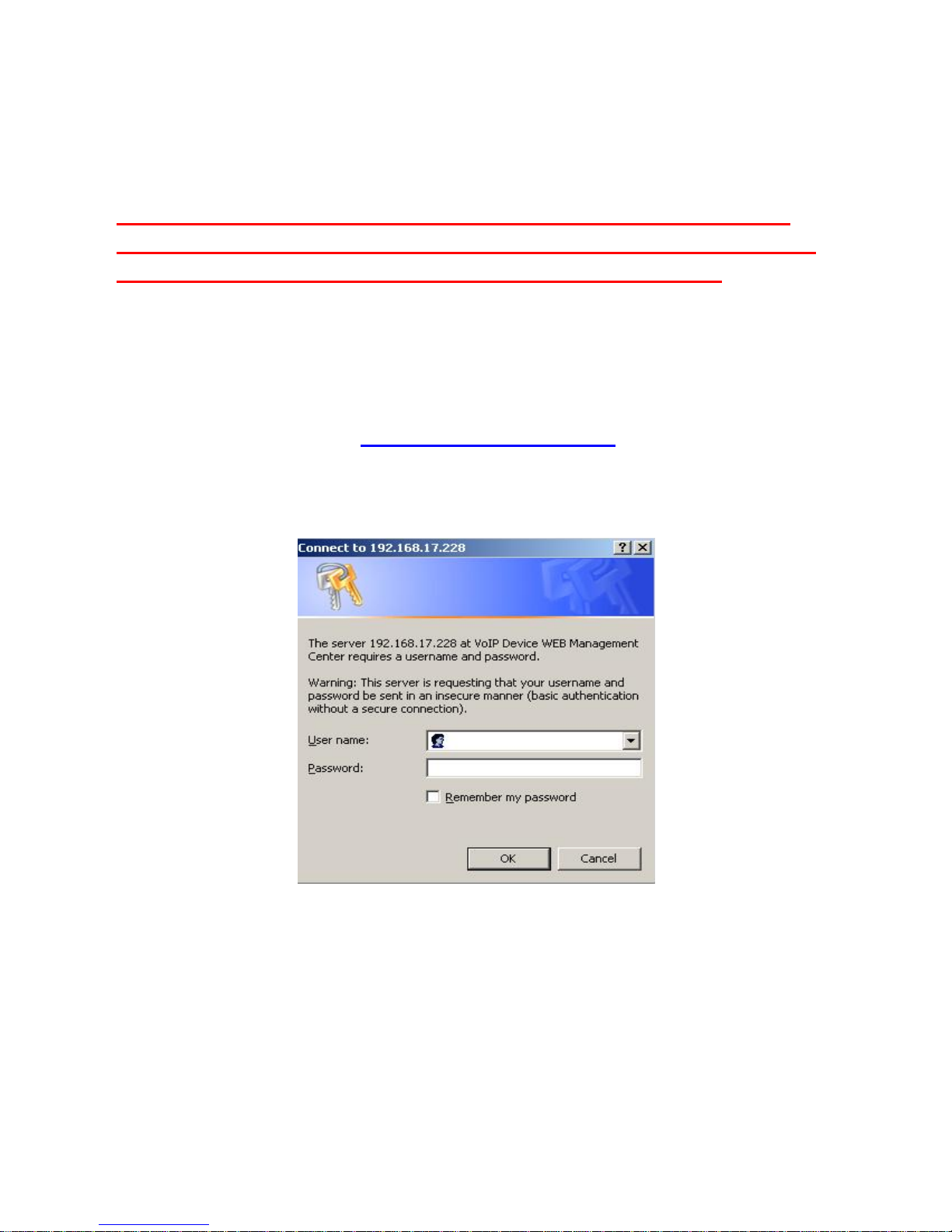

Login :
Setp1: Setup the administrative PC’s IP address to be same as WellGate
2424s and connect the Ethernet cable into WAN or LAN port. Start IE6.0 (or
later version) to navigate WellGate 2424s web management system by typing
the default URL which is http://192.168.123.123 (through LAN port) or
http://10.1.1.3 (through WAN port).The screen will display User Name
and Password (the default user id is root and user password is root). (See
figure 1-5-1 web access)
Figure 1-5-1 web access
Step 2: After login, the screen shows the Home page of WellGate 2424s. (See
figure 1-5-2 Network configure-1)

8
Figure 1-5-2 Network configure-1
Change Default IP Network:
Step 3: After successfully logon to the system, we need to change the
network configuration. Click Device Setting > Network to setup the service
network interface (WAN) parameters. Enter the deserved IP address, netmask
and default gateway or selected to “DHCP” or “PPPOE”. Apply the change by
clicking Apply button as fig (See Figure 1-5-3 Network configure-2).
Note: If Gateway WAN port are setting in the 10.x.x.x segment, please make
sure that you also change the LAN port to other segment such as 192.168.x.x
Figure 1-5-3 Network configure-2

9

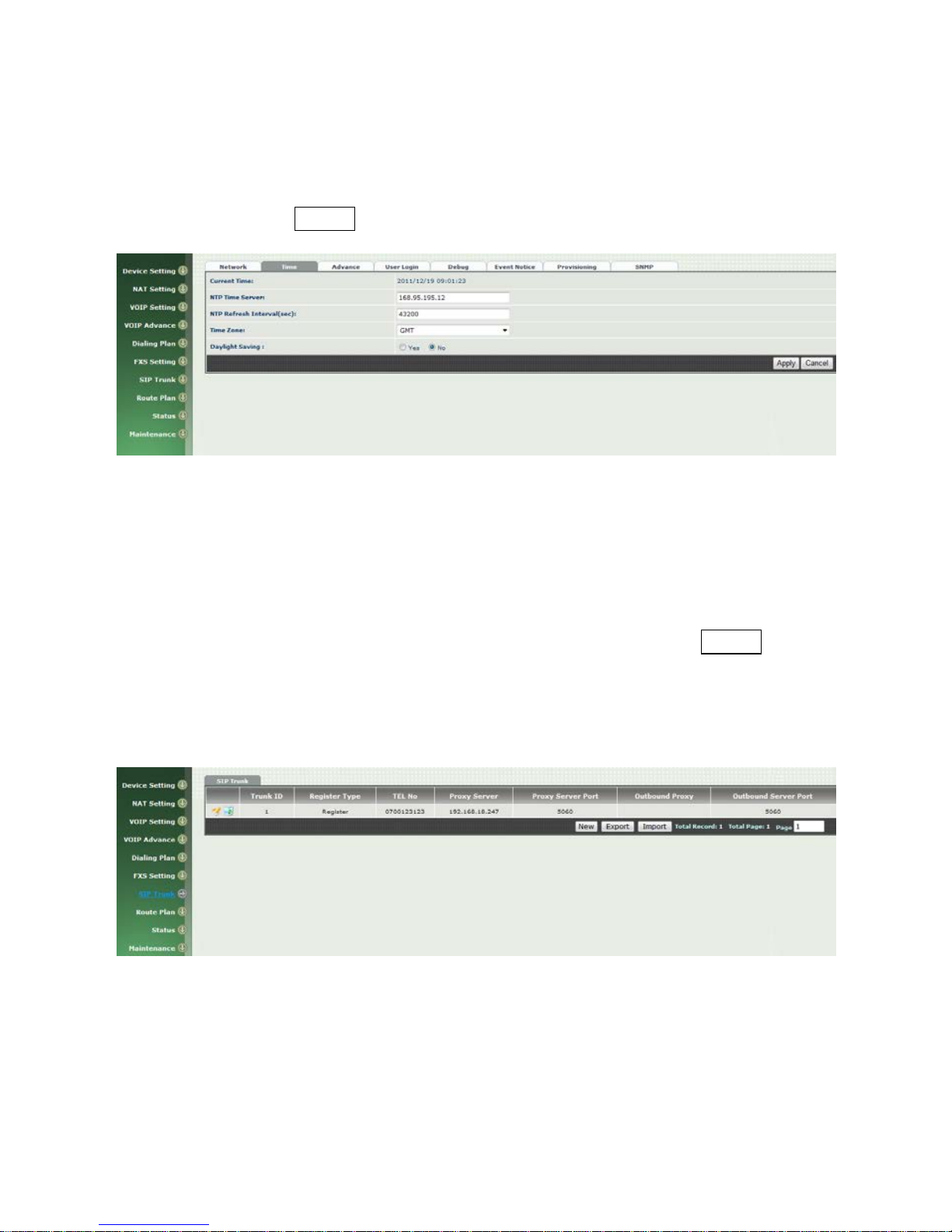

Change Default Time setting:
Step 4: When re-logon to the new IP address, the next is to setup the system
time zone. Click Device Setting > Time to setup the system. Enter the
current SNTP server, time zone and daylight saving parameters. Apply the
change by clicking Apply button. (See figure 1-5-4 Time setting)
Figure 1-5-4 Time setting
Modify SIP Account Parameter:
Step 5: The next step is to add a SIP trunk for VOIP calling. For WellGate
2424O, it is necessary for VOIP calling while WellGate 2424S is optional. Click
SIP trunk and new to create the required sip trunk. Enter the trunk ID to 1
and input those SIP parameters. Apply the change by clicking Apply button.
(See Figure 1-5-5 SIP Trunk).
Note: please don’t delete sip trunk, even it is unless at all, because it have to
be used with Route plan.
Figure 1-5-5 SIP Trunk
Modify FXS SIP Settings: (WellGate 2424s only)
Step 6: Set the SIP proxy server for FXS calling. For WellGate 2424s, the all
FXS ports are using the same SIP proxy setting. If you need use different SIP
proxy server, please use SIP trunk instead. Click FXS Settings > SIP Proxy to

10
set the dedicate FXS SIP proxy server. (See Figure 1-5-6 SIP Proxy)
Figure 1-5-6 SIP Proxy
Step 7: Setup each FXS line’s parameters by clicking the line ID from FXS
settings > FXS Line. Modify the SIP register information and apply it. ( See
Figure 1-5-7 SIP Proxy )
Figure 1-5-7 SIP Proxy
Soft Reset WellGate 2424s:
Step 8: After modify basic setting. It is required to reset WellGate 2424s.
Click Maintenance > Maintenance > Soft-Reset or Reboot to take effect.
Apply the change by clicking Apply button. (See Figure 1-5-8 Quick-Reset)

11
Figure 1-5-8 Quick-Reset
Check WellGate 2424s Registered Status:
Step 9: After soft-reset or reboot.
>Click Status > SIP Trunk Status to check whether registered or not. (See
Figure 1-5-9 SIP Trunk States )
Figure 1-5-9 SIP Trunk States
>Click line status to check whether registered or not. (Figure 1-5-10 SIP
Trunk States)
Figure 1-5-10 SIP Trunk States

12
Through the above settings, the WellGate 2424s should able to do the
following:
For FXS (WG2424S):
1. The user can pick up the handset and hear dial tone. Call out and talk.
2. For VOIP incoming call to a dedicate FXS number, the dialed phone will ring
and can answer to talk.

13
CH2 Device Settings
From this setting category, all devices related parameters can be found here.
2-1 Network Configuration
> Network
Figure 2-1 network setting
Parameter Description:
WAN Setting:
Network Type: support “Fixed IP”;”DHCP”;”PPPOE”
IP Address:IP address
Default Gateway: Default gateway
DHCP Tag (option 60): input Vendor class identifier or not.
DHCP Tag (option 61): input Client identifier or not.
DNS Server1: Primary DNS Server IP network
DNS Server2: Secondary DNS Server IP network
VOIP VLAN: Enable VOIP VLAN or not. When enable VOIP VLAN, the
WAN port can be only accessed by VLAN. If it is required to manage the
WellGate 2424s, Administrator can use LAN port instead.
VOIP VLAN ID(2-4096): VLAN ID Used
Note: the default WAN IP address is 10.1.1.3.

14
LAN Setting:
Management mode:This LAN port is used for management purpose,
not used for register or routing.
NAT mode: DHCP function on the LAN port. The LAN ports will function
as a DHCP server, network devices connected to them will be issued with
IP addresses. (On the lift item will add a NAT setting, the information
please refer NAT setting)
IP Address:IP address (please set to 192.168.x.x if your WAN port is
using 10.x.x.x IP segment).
Netmask: IP network mask
Bridge mode: At this mode, both WAN and LAN ports are configured to
Switch/Hub features. LAN port access to WAN port directly.
Note: default LAN IP address is 192.168.123.123
DDNS (DynDNS) Setting:
DDNS (DynDNS): enable or disable dynamic DNS feature.
Domain Name: input your Domain Name
User Name: input your user name
Password: input your password

15
2-2 Device Time Setting
WellGate 2424s support SNTP with time zone and daylight saving.
Device Setting > Time
Figure 2-2 Time setting
Parameter Description:
Now: Current Time (display only)
NTP Time Server: SNTP time server
NTP Refresh Interval(sec):The frequency to sync NTP server in
seconds
Time Zone: The time-zone WellGate 2424s is located.
Standard: Use a predefined standard time zone
Customize: Use a user defined time zone
Daylight Saving: Auto adjust daylight saving timer or not
Daylight Bias: The offset added to the Bias when the time zone is in
daylight saving time
Daylight Start: The date that a time zone enters daylight time
Month: 01 to 12
Week Day: Sunday to Saturday
Apply Week (Day:01 to 05, Specifies the occurrence of day in the
month; 01 = First occurrence of day, 02 = Second occurrence of
day, ...and 05 = Last occurrence of day)
Hour: 00 to 23
Standard Start: The date that a time zone enters daylight time
Month: 01 to 12
Week Day: Sunday to Saturday
Apply Week (Day:01 to 05, Specifies the occurrence of day in the
month; 01 = First occurrence of day, 02 = Second occurrence of
day, ...and 05 = Last occurrence of day)
Hour: 00 to 23

16
2-3 Device Advance Setting
> Advance
Figure 2-3 Advance setting
Parameter Description:
HTTP Service:The Administrator Web service port (the default is 80)
HTTPS Service: The https web service port (the default is 443)
Telnet Service:The telnet service port (the default is 23)
HTTP/HTTPS Service access on WAN:When click the disable option;
The WEB service will be rejected on WAN port, so please be careful with
this function. If you wanted to enable WAN port again, you need to
access this device from its LAN port to connect to WEB pages and enable
WAN port.

17
2-4 User Login Setting
Three level of users can be used, administrator, supervisor, user. Each level of
users will have different predefined access level.
>User Login
Figure 2-4 user login setting
Parameter Description:
Administrator: The administrator level user which has full access of
WellGate 2424s.
Supervisor: The supervisor level user which has limited administrative
access right.
User: The user access right which only allows to setting some user
related features.
User ID: Login User ID
Password: Login Password
Confirm Password: Confirm new password again
Language: The web page language used when the account login. To add
a customized local language, please contact Welltech.

18
2-5 Debug Settings
WellGate 2424s provides the real time debug to syslog or through telnet interface. It
generates the debug information based on debug level and modules. Since the
generating debug will consume system resource, it is recommended to turn on only for
necessary and under Welltech FAE’s instruction.
Debug
Figure 2-5 Debug setting
Parameter Description:
SYSLOG: Enable or disable to send system information to SYSLOGD
server or not
Check for start from Any Time: Always Send: Always send syslog
or only during a specified time range.
Syslog Start (YYYY/MM/DD HH:MM): Always Send: Always
send syslog or only during a specified time range.
Syslog Stop (YYYY/MM/DD HH:MM): The syslog stop sending
time.
Syslog Server: Syslog server IP address
Syslog Port: syslog server service port (default is 514)
DSP Debug:Enable or disable to send DSP information to capture log
DSP Capture server: Syslog capture server IP address
DSP Capture port: syslog capture server service port (default is 50000)

19
2-6 Event Notice
WellGate 2424s can send Syslog Event Notice when it had the following cases:
1. Register Failure or re-registered
2. FXO is plug or unplug
3. Ethernet reconnected
4. System started
Figure 2-6 Event notice setting
SYSLOG: Enable or disable to send system event to SYSLOG
server or not
Syslog Server: Syslog server IP address
Syslog Port: syslog server service port (default is 514)

20
2-7 Auto Provisioning
The WellGate 2424s can be provisioned by WellEMS 9510 for large deployment.
Please contact Welltech for availabilities.
>Provisioning
Figure 2-7-1 Provisioning
Select 9510:
Figure 2-7-2 Provisioning type of 9510
Parameter Description:
(This function is not available yet for WellEMS 9510)
EMS:Enable auto provisioning service by WellEMS 9510 or not.
Enable: Enable the service and use manual configured EMS server
parameters.
Disable: Disable the auto provisioning service.
Discovery: To automatically discover the EMS server or not. By
using this mode, WellEMS 9510 need to be the same IP network in
order to make the IP broadcasting work.
EMS Discovery Port: WellEMS 9510 service auto discovery
