Wen TT1088 User manual
ROLLING
TABLE SAW STAND
Instruction Manual
MODEL TT1088
IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged,
trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use
your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
TECHSUPPOR[email protected]
1-800-232-1195 (M-F 8AM-5PM CST)
For replacement parts and the most up-to-date instruction manuals, visit WENPRODUCTS.COM
2
CONTENTS
WELCOME 3
Introduction ..................................................................................................... 3
Specifications................................................................................................... 3
SAFETY 4
General Safety Rules........................................................................................ 4
Specific Rules for Your Table Saw Stand.......................................................... 6
BEFORE OPERATING 7
Unpacking & Packing List................................................................................ 7

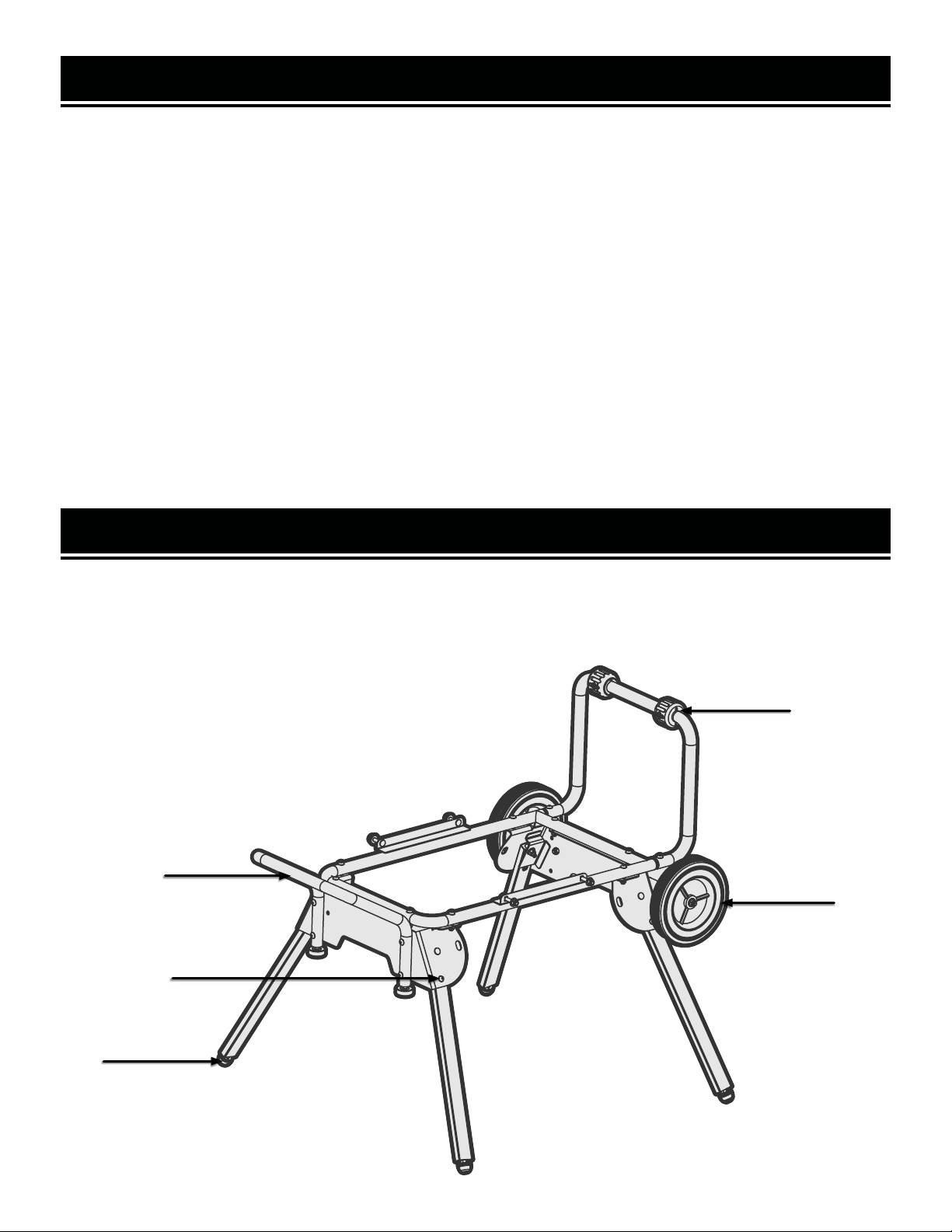

Know Your Table Saw Stand ............................................................................ 7
Assembly ......................................................................................................... 8
9
Operation ......................................................................................................... 9
Adjustments .................................................................................................. 10
Exploded View & Parts List............................................................................ 11
Warranty Statement ....................................................................................... 13
OPERATION & MAINTENANCE
To purchase accessories for your tool, visit WENPRODUCTS.COM
INTRODUCTION
Thanks for purchasing the WEN Table Saw Stand. We know you are excited to put your tool to work, but first, please
take a moment to read through the manual. Safe operation of this tool requires that you read and understand this
operator’s manual and all the labels affixed to the tool. This manual provides information regarding potential safety
concerns, as well as helpful assembly and operating instructions for your tool.
NOTE: The following safety information is not meant to cover all possible conditions and situations that may occur.
WEN reserves the right to change this product and specifications at any time without prior notice.
At WEN, we are continuously improving our products. If you find that your tool does not exactly match this manual,
please visit wenproducts.com for the most up-to-date manual or contact our customer service at 1-800-232-1195.
Keep this manual available to all users during the entire life of the tool and review it frequently to maximize
safety for both yourself and others.
SAFETY ALERT SYMBOL: Indicates danger, warning, or caution. The safety symbols and the explanations
with them deserve your careful attention and understanding. Always follow the safety precautions to reduce the
risk of fire, electric shock or personal injury. However, please note that these instructions and warnings are not
substitutes for proper accident prevention measures.
SPECIFICATIONS
3
Model Number TT1088
Product Dimensions 41.3 in. x 34.3 in. x 34 in.
Product Weight 27.8 Pounds
GENERAL SAFETY RULES
4
WORK AREA SAFETY
1. Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
2. Do not operate power tools in explosive atmo-
spheres, such as in the presence of flammable liq-
uids, gases or dust. Power tools create sparks which
may ignite the dust or fumes.
3. Keep children and bystanders away while operat-
ing a power tool. Distractions can cause you to lose
control.
ELECTRICAL SAFETY
1. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools. Unmodi-
fied plugs and matching outlets will reduce risk of elec-
tric shock.
2. Avoid body contact with earthed or grounded sur-
faces such as pipes, radiators, ranges and refrigera-
tors. There is an increased risk of electric shock if your
body is earthed or grounded.
3. Do not expose power tools to rain or wet condi-
tions. Water entering a power tool will increase the risk
of electric shock.
4. Do not abuse the cord. Never use the cord for car-
rying, pulling or unplugging the power tool. Keep cord
away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of elec-
tric shock.
5. When operating a power tool outdoors, use an ex-
tension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric
shock.
6. If operating a power tool in a damp location is
unavoidable, use a ground fault circuit interrupter
(GFCI) protected supply. Use of a GFCI reduces the risk
of electric shock.
PERSONAL SAFETY
1. Stay alert, watch what you are doing and use com-
mon sense when operating a power tool. Do not use a
power tool while you are tired or under the influence
of drugs, alcohol or medication. A moment of inatten-
tion while operating power tools may result in serious
personal injury.
2. Use personal protective equipment. Always wear
eye protection. Protective equipment such as a respi-
ratory mask, non-skid safety shoes and hearing protec-
tion used for appropriate conditions will reduce the risk
of personal injury.
3. Prevent unintentional starting. Ensure the switch is
in the off-position before connecting to power source
and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or
energizing power tools that have the switch on invites
accidents.
4. Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal
injury.
5. Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power
tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or jew-
elry. Keep your hair and clothing away from moving
parts. Loose clothes, jewelry or long hair can be caught
in moving parts.
Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool”
in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
SAVE THESE SAFETY INSTRUCTIONS.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions
may result in electric shock, fire and/or serious injury.
GENERAL SAFETY RULES
5
7. If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection
can reduce dust-related hazards.
POWER TOOL USE AND CARE
1. Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
2. Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
3. Disconnect the plug from the power source and/or
the battery pack from the power tool before making
any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained
users.
5. Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and any
other condition that may affect the power tool’s opera-
tion. If damaged, have the power tool repaired before
use. Many accidents are caused by poorly maintained
power tools.
6. Keep cutting tools sharp and clean. Properly main-
tained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits, etc.
in accordance with these instructions, taking into ac-
count the working conditions and the work to be per-
formed. Use of the power tool for operations different
from those intended could result in a hazardous situa-
tion.
8. Use clamps to secure your workpiece to a stable
surface. Holding a workpiece by hand or using your
body to support it may lead to loss of control.
9. KEEP GUARDS IN PLACE and in working order.
SERVICE
1. Have your power tool serviced by a qualified repair
person using only identical replacement parts. This
will ensure that the safety of the power tool is main-
tained.
CALIFORNIA PROPOSITION 65 WARNING
Some dust created by power sanding, sawing, grinding,
drilling, and other construction activities may contain
chemicals, including lead, known to the State of Califor-
nia to cause cancer, birth defects, or other reproductive
harm. Wash hands after handling. Some examples of
these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement, and other
masonry products.
• Arsenic and chromium from chemically treated
lumber.
Your risk from these exposures varies depending on
how often you do this type of work. To reduce your ex-
posure to these chemicals, work in a well-ventilated area
with approved safety equipment such as dust masks
specially designed to filter out microscopic particles.
Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool”
in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
SAVE THESE SAFETY INSTRUCTIONS.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions
may result in electric shock, fire and/or serious injury.
6 76
TABLE SAW STAND SAFETY
1. Place the table saw stand on a flat and level surface to
prevent rocking or tipping.
2. Do not climb, sit, or stand on the stand.
3. Follow the assembly instructions carefully when in-
stalling the stand.
4. This product is designed to be used as a stand for
table saws. Any misuse or abuse of the stand can result
in product damage or personal injury. Do not exceed the
capacity of the stand.
5. The height of the power tool mounted to the stand
should not exceed the width of the tool in order to pre-
vent the stand from tipping over. The power tool must
be centered and properly secured to the table saw stand.
Always check to make sure the stand and the power tool
are stable before operation.
6. Keep proper footing and balance at all times. Do not
overreach when operating the table saw.
7. Be careful not to pinch yourself when folding and un-
folding the legs.
8. Make sure all fasteners, including those used to
mount the saw to the stand, are securely tightened be-
fore moving, folding, or unfolding the stand.
9. When moving the saw and stand, set the stand gently
on the ground. Do not let it crash down. Doing so could
damage the stand or saw.
10. Have another person help you lift the table saw onto
the stand, if necessary. Don't try to lift the saw yourself
if you think you can't lift it; you may hurt yourself.
11. Follow all warnings and directions in your saw’s
owner’s manual regarding safe and proper use of the
saw.
TABLE SAW STAND SAFETY WARNINGS
WARNING! Do not operate the power tool until you have read and understood the following instructions
and the warning labels.
6 777
UNPACKING
With the help of a friend or trustworthy foe, carefully remove the table saw stand from the packaging. Make sure to
take out all contents and accessories. Do not discard the packaging until everything is removed. Check the packing
list below to make sure you have all of the parts and accessories. If any part is missing or broken, please contact
PACKING LIST
UNPACKING & PACKING LIST
Components:
1. Front Handle ........................................................... 1
2. Rear Handle / Rest .................................................. 1
3. Stand Body ............................................................. 1
4. Wheels.................................................................... 2
Hardware Bag (1):
1. 5mm Hex Wrench ....................................................1
2. 10mm / 13mm Open-End Wrench ...........................1
3. Socket Button Head Cap Screws, M8x16.................2
4. Socket Button Head Cap Screws, M8x40.................4
5. M8 Lock Nuts.........................................................10
6. 8mm Flat Washers...................................................6
7. Carriage Bolts, M8x40 (20mm Thread)....................4
KNOW YOUR TABLE SAW STAND
TOOL PURPOSE
Table saw stands give your table saw the support, both physical and emotional, it deserves. Familiarize yourself
with the various components and controls of the table saw stand, shown below. They will be referred to later in the
manual for assembly and operation instructions.
Detent Button
Wheel
Rear Handle
Front Handle
Foot
8
UNLOCKING THE LEGS
1. Press the detent button (Fig. 1 - 1) on the saw body’s
legs and swing the legs open. Make sure to open them ful-
ly, so the detent button snaps back out and locks the legs
in place. Stand the saw body up.
INSTALLING THE REAR HANDLE
1. Install the rear handle / rest (Fig. 2 - 1) onto the stand
body, near the wheel axles. Secure it with two M8x16 bolts
(Fig. 2 - 2). Tighten using the included 5mm hex wrench.
INSTALLING THE WHEELS
1. Install the wheels (Fig. 3 - 1) onto the axles. Secure each
with an 8mm washer (Fig. 3 - 2) and M8 lock nut (Fig. 3 -
3). Tighten using the included 13mm wrench. Make sure
not to overtighten the nuts, or the wheels won’t spin.
ASSEMBLY
Fig. 1
Fig. 2
Fig. 3
1
1
2
2
1
3
2
9
INSTALLING THE FRONT HANDLE
1. Install the front handle (Fig. 4 - 1) onto the stand body.
Secure it with four M8x40 bolts (Fig. 4 - 2) and M8 lock
nuts (Fig. 4 - 3). Tighten using the included 5mm hex
wrench and 13mm wrench.
MOUNTING THE SAW TO THE STAND
1. Place the saw onto the saw body. You can place it facing
either direction, so long as the horizontal mounting holes
(Fig. 5 - 1) on the base of the frame are aligned with the
rectangular holes in the saw body bracket. Secure the saw
to the base using four M8x40 partially-threaded carriage
bolts, 8mm washers, and M8 lock nuts. Tighten using the
included 5mm hex wrench and 13mm wrench.
NOTE: Make sure the rectangular brackets are on the in-
side, and the saw frame is on the outside.
NOTE: Make sure the bolts’ square necks sit fully in the
rectangular holes in the saw body brackets.
2. Make sure all fasteners are tight.
ASSEMBLY
Fig. 4
Fig. 5
2
3
1
1
1
WHEN YOU’RE READY TO MOVE YOUR SAW:
1. Make sure any and all loose accessories on the saw itself are secure.
2. Collapse the legs by pressing the detent buttons (Fig. 1 - 1) and folding the legs inwards. Have an assistant help
you hold the stand while doing this, if needed. Be careful not to pinch yourself.
NOTE: You can fold the legs in any order.
3. Lower the stand to the ground. Pick the stand up by the front handle (Fig. 4 - 1) and roll it wherever it’s needed.
4. To reassemble, press the detent buttons (Fig. 1 - 1) and fold the legs out. Have an assistant help you hold the
stand while doing this, if needed. Be careful not to pinch yourself.
OPERATION
10

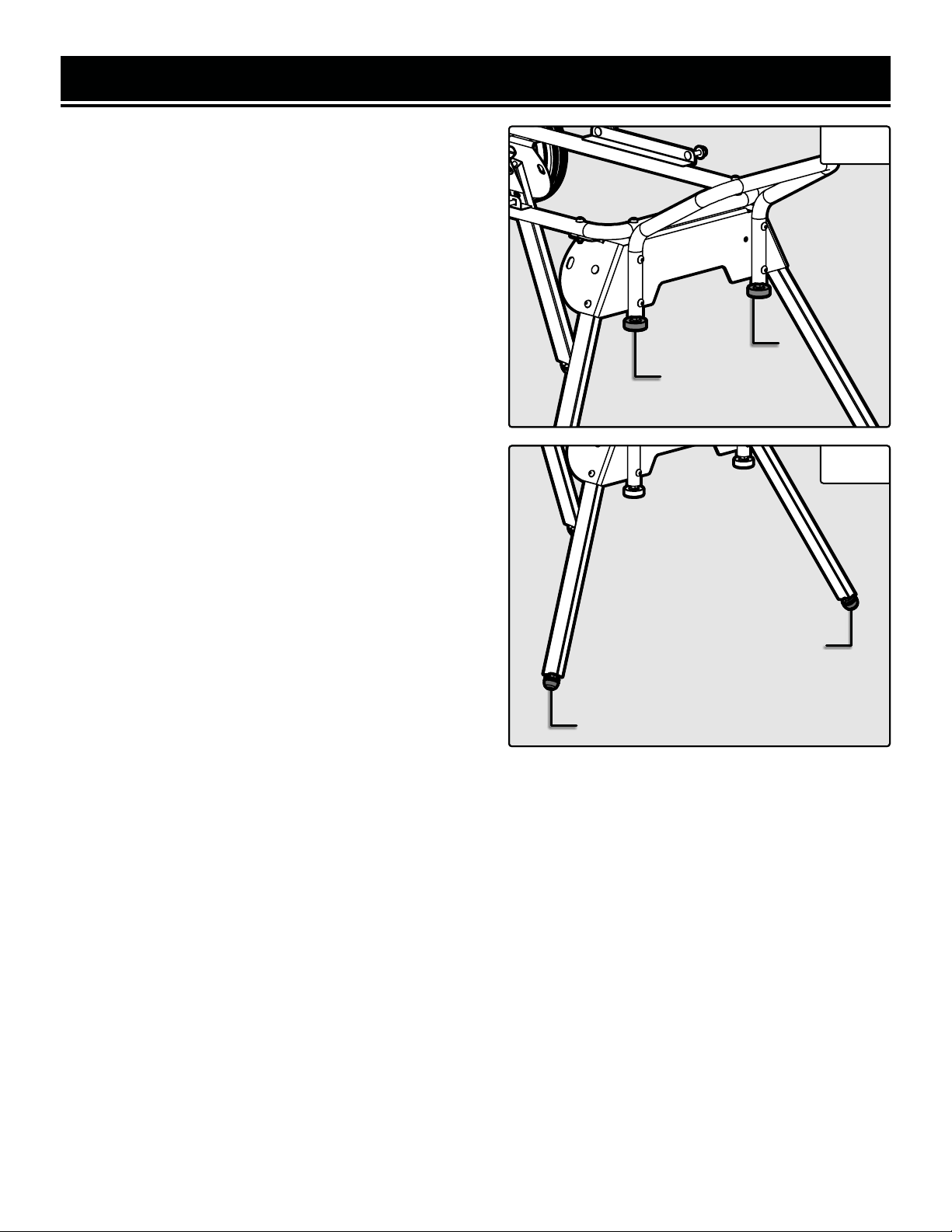

ADJUSTING THE FEET
1. Adjust the threaded feet on the front handle (Fig. 6 - 1)
as necessary so that the saw is level when the stand is col-
lapsed on the ground.
2. Adjust the threaded feet on the stand legs (Fig. 7 - 1) as
necessary so that the saw is level when the stand is in use.
ADJUSTMENTS
Fig. 6
Fig. 7
1
1
1
1
11
EXPLODED VIEW & PARTS LIST
12
EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
1 TT1088-001 Main Hardware Bag 1
1.1 Socket Button Head
Cap Screw, M8x40 4
1.2 Lock Nut, M8 8
1.3 Carriage Bolt, M8x40
(20mm thread) 4
1.4 8mm Flat Washer 4
1.6 Socket Button Head
Cap Screw, M8x16 2
1.7 10mm/13mm Open-
end Wrench 1
1.8 5mm Hex Wrench 1
2 TT1088-002 Wheel Hardware Bag 1
2.1 Lock Nut, M8 2
2.2 8mm Flat Washer 2
3 Stand Body 1
4 Leg Bracket 2
5Socket Button Head
Cap Screw, M8x40 8
6 Lock Nut, M8 8
7 Rear Handle 1
No. Part No. Description Qty.
8 Bumper 2
9Socket Button Head
Cap Screw, M8x45 2
10 Hex Nut, M8 8
11 TT1088-011 Front Handle 1
12 TT1088-012 Handle Foot, M8x22 2
13 Leg 4
14 Detent Pin 4
15 7mm Flat Washer 4
16 7mm E-clip 4
17 Detent Spring 4
18 TT1088-018 Leg Foot, M8x20 4
19 Socket Button Head
Cap Screw, M8x60 2
20 Wheel Axle 1
21 Carriage Bolt, M8x40 4
22 8mm Flat Washer 4
23 TT1088-023 Wheel 2
27 Label 1 1
28 Label 2 1
NOTE: Not all parts may be available for purchase. Parts and accessories that wear
down over the course of normal use are not covered under the warranty.
ASSEMBLY & ADJUSTMENTS
13
WARRANTY STATEMENT
WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this
commitment and our dedication to quality.
LIMITED WARRANTY OF WEN PRODUCTS FOR HOME USE
GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN consumer power
tools will be free from defects in material or workmanship during personal use for a period of two (2) years from date
-
fessional or commercial use. Purchaser has 30 days from the date of purchase to report missing or damaged parts.
SELLER’S SOLE OBLIGATION AND YOUR EXCLUSIVE REMEDY under this Limited Warranty and, to the extent per-
mitted by law, any warranty or condition implied by law, shall be the replacement of parts, without charge, which are
defective in material or workmanship and which have not been subjected to misuse, alteration, careless handling,
misrepair, abuse, neglect, normal wear and tear, improper maintenance, improper storage, incorrect lubricants/
fuels, or other conditions adversely affecting the Product or the component of the Product, whether by accident or
intentionally, by persons other than Seller. To make a claim under this Limited Warranty, you must make sure to keep
-
chase. Place of Purchase must be a direct vendor of Great Lakes Technologies, LLC. Pur
chasing through third party
vendors, including but not limited to garage sales, pawn shops, resale shops, or any other secondhand merchant,
following information to make arrangements: your shipping address, phone number, serial number, required part
numbers, and proof of purchase. Damaged or defective parts and products may need to be sent to WEN before the
replacements can be shipped out.
-
turning a product for warranty service, the shipping charges must be prepaid by the purchaser. The product must
be shipped in its original container (or an equivalent), properly packed to withstand the hazards of shipment. The
product must be fully insured with a copy of the proof of purchase enclosed. There must also be a description of
the
will be returned and shipped back to the purchaser at no charge for addresses within the contiguous United States.
THIS LIMITED WARRANTY DOES NOT APPLY TO ITEMS THAT WEAR OUT FROM REGULAR USAGE OVER TIME,
INCLUDING FILTERS, SPARK PLUGS, VOLTAGE REGULATORS, BRUSHES, GASKETS, O-RINGS, WHEEL KITS, BAT-
TERIES, RECOIL STARTERS, HIGH PRESSURE HOSES, SPRAY GUNS, ETC. ANY IMPLIED WARRANTIES SHALL
BE LIMITED IN DURATION TO TWO (2) YEARS FROM DATE OF PURCHASE. SOME STATES IN THE U.S. AND SOME
CANADIAN PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE
ABOVE LIMITATION MAY NOT APPLY TO YOU.
IN NO EVENT SHALL SELLER BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING BUT
NOT LIMITED TO LIABILITY FOR LOSS OF PROFITS) ARISING FROM THE SALE OR USE OF THIS PRODUCT. SOME
STATES IN THE U.S. AND SOME CANADIAN PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF IN-
CIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS
WHICH VARY FROM STATE TO STATE IN THE U.S., PROVINCE TO PROVINCE IN CANADA AND FROM COUNTRY
TO COUNTRY.
THIS LIMITED WARRANTY APPLIES ONLY TO ITEMS SOLD WITHIN THE UNITED STATES OF AMERICA, CANADA
AND THE COMMONWEALTH OF PUERTO RICO. FOR WARRANTY COVERAGE WITHIN OTHER COUNTRIES, CON-
TACT THE WEN CUSTOMER SUPPORT LINE. FOR WARRANTY PARTS OR PRODUCTS REPAIRED UNDER WAR-
RANTY SHIPPING TO ADDRESSES OUTSIDE OF THE CONTIGUOUS UNITED STATES, ADDITIONAL SHIPPING
CHARGES MAY APPLY.
14
NOTES
15
NOTES
16
V. 2021.11.30
THANKS FOR
REMEMBERING
Table of contents
Other Wen Power Tools Accessories manuals
