Wesco CRESTON UC-MM30-T User manual
UC-MM30-T (SM-MM30-T-US-ND)
Quick Start Guide
Crestron® Flex Tabletop Small Room
Video Conference System for Microsoft
Teams® Rooms
NOTE: This Quick Start guide is speciically for use with Crestron Flex
hardware ordered through Wesco Conference Room as a Service.
• Product information
• Live support
• Spec sheets
Scan this QR code for:
The UC-MM30-T Crestron Flex tabletop conferencing systems provide
small room video conference solutions for use with Microsoft Teams®
Rooms software. They support single or dual video displays and feature
a Crestron Flex tabletop conference device, a UC bracket assembly,
and a collaboration camera.
Minimum Requirements:
lA video display (not included) connected to the UC Engine. A second
display is optional.
lA Microsoft Teams account
lAn environment running Microsoft Exchange Server® software (2013
SP1 or later for on-premises installation or Microsoft 365® software
for Cloud) for scheduling and/or Skype for Business 2015 (on-
premises installation or Microsoft 365 software for Cloud)
In the Box
1
1
2
1
1
2
Tabletop Conference Device
Flex MM Tabletop Conference Device, Microsoft Teams video
(6511613 or 6511614)
PoE+ Injector (2055605)
Cable, CAT5e, RJ-45 - RJ-45, 11.8 ft (3.6 m) (2056204) labeled LAN
Cable, USB 2.0, A - Micro B, 5.8 ft (1.8 m) (2055579) labeled USB-101
UC Bracket Assembly
UC Bracket Assembly with UC Engine and HDMI® content ingest
UC-BRKT-200-S-T-ASSY, (6511478)
Anchor, Drywall, Plastic, 3/8 in. x 1/2 in. (9.5mm x 12.7mm)
(2052565)
2
1
2
4
1
1
1
1
1
1
1
1
1
EDID passthrough (2055728)
Key, Anchor (4529654)
Screw, 8-AB x 1-1/2 in. (38.1 mm), Pan Head, Combo (2052567)
Tie Wrap (2047935)
Additional Items
Collaboration camera (6510482)
Camera wall mount kit (6510998)
Cable, CAT6a, RJ-45 - RJ-45, 20 ft (6.1 m) (6507640) labeled HDBaseT
Cable, CAT5e, RJ-45 - RJ-45, 7 ft (2.1 m) (6509924) labeled LAN
Cable, DisplayPort™ to HDMI, 6 ft (1.8 m) (6508282) labeled VID-301
Cable, HDMI, 20 ft (6.1 m) (6503567) labeled VID-101
Cable, HDMI, 6 ft (1.8 m) (6503565) labeled VID-201
Cable, USB 3.0, Right angle USB-C® to A, 6 ft (1.8 m)
(6511591) labeled CAM
Cable, USB Extension, USB Type A Male-to-Female, 15 ft (4.6m)
(6508260) labeled USB-EXT
Consumable Kit
Your unit ships with a Wesco provided "Consumables Kit" that
includes additional items such as power strips, screws and anchors,
cable management and a DigitaLinx Adapter Ring to aid you in
installing and connecting your system.
1
QuickStart
Crestron Flex Tabletop Small Room Video Conference System for Microsoft Teams® Rooms
UC-MM30-T (Wesco #SM-MM30-T-US-ND)
This Quick Start guide is specifically for use
with Crestron Flex hardware ordered through
Wesco Conference Room as a Service.
Mount Devices
Mount the UC Bracket Assembly
Mount the UC Bracket Assembly to VESA® compliant display devices, a
wall, or other building structure. Anchors and screws are supplied for
installation on walls 3/8 in. (9.5mm) to 3/4 in. (19mm) thickness.
CAUTION: Preinstalled screws may protrude from the back of the UC
Bracket Assembly. Exercise caution when handling the UC Bracket
Assembly to avoid scratching or damaging surfaces.
NOTE: The integrated cable tie wraps are reusable. Avoid damaging
the cable tie wraps.
Mount the Camera
Mount the included camera according to the UC-CAM-WMK Quick Start
(Doc. 8257).
2
QuickStart
Crestron Flex Tabletop Small Room Video Conference System for Microsoft Teams® Rooms
This Quick Start guide is specifically for use
with Crestron Flex hardware ordered through
Wesco Conference Room as a Service.
UC-MM30-T (Wesco #SM-MM30-T-US-ND)
Connect

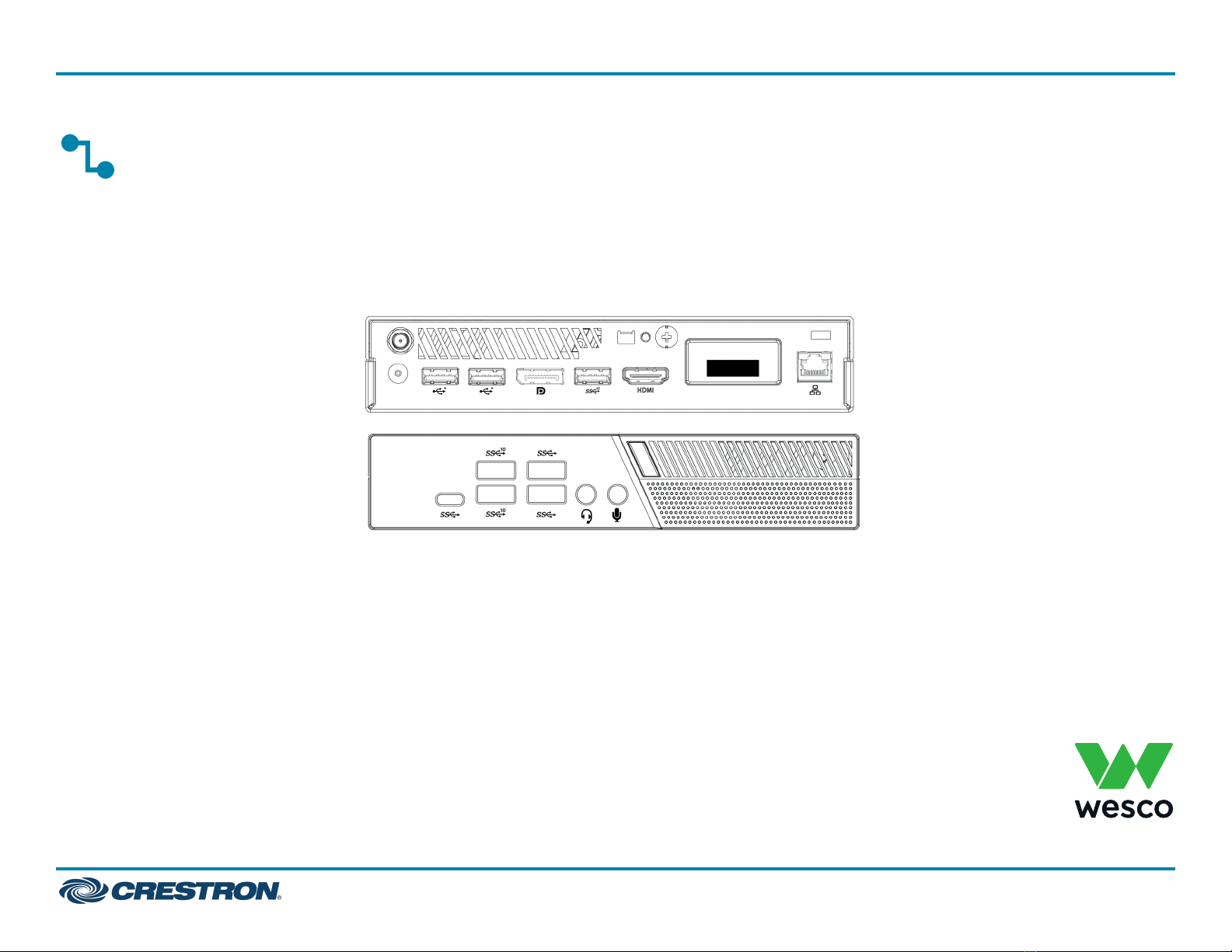

Identify the UC Engine
Your UC Engine is the ASUS® Mini PC (UC-MM30-T) - Click on the image below to proceed
3
QuickStart
Crestron Flex Tabletop Small Room Video Conference System for Microsoft Teams® Rooms
This Quick Start guide is specifically for use
with Crestron Flex hardware ordered through
Wesco Conference Room as a Service.
UC-MM30-T (Wesco #SM-MM30-T-US-ND)
4
QuickStart
Crestron Flex Tabletop Small Room Video Conference System for Microsoft Teams® Rooms

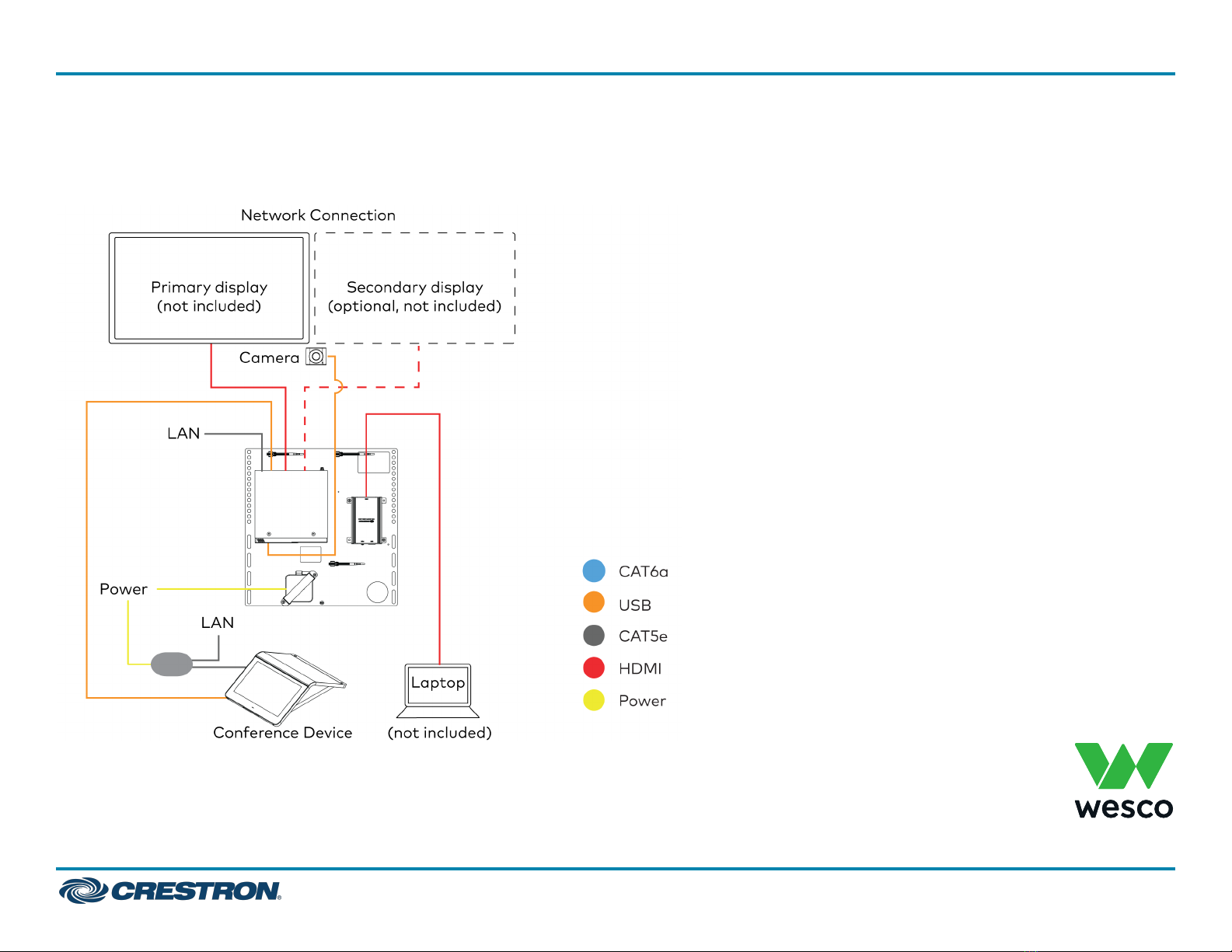

System Overview
When connections are complete, the system appears as shown below. Refer to Page 5 for detailed connection instructions.
UC-MM30-T (Wesco #SM-MM30-T-US-ND)
This Quick Start guide is specifically for use
with Crestron Flex hardware ordered through
Wesco Conference Room as a Service.
Network Connection
5
QuickStart
Crestron Flex Tabletop Small Room Video Conference System for Microsoft Teams® Rooms
UC-MM30-T (Wesco #SM-MM30-T-US-ND)
2. Connect displays to the UC Engine. Connect the EDID passthroughs to the displays.
6
QuickStart
Crestron Flex Tabletop Small Room Video Conference System for Microsoft Teams® Rooms
Primary: 6 ft (1.Bm) HDMI cable (labeled VID-201)
Secondary: 6 ft (1.Bm) DisplayPort to HDMI cable (labeled (VID-301)
This Quick Start guide is specifically for use
with Crestron Flex hardware ordered through
Wesco Conference Room as a Service.
UC-MM30-T (Wesco #SM-MM30-T-US-ND)
3. Remove the screw from the connector cover (located below the UC Engine) using a Philips #1 screwdriver (not included). Open the connector
cover and retain the screw.
4. Connect the camera to the UC Engine as shown in the image below. Do not connect the camera to any of the other USB ports.
7
QuickStart
Crestron Flex Tabletop Small Room Video Conference System for Microsoft Teams® Rooms
(labeled CAM)
This Quick Start guide is specifically for use
with Crestron Flex hardware ordered through
Wesco Conference Room as a Service.
UC-MM30-T (Wesco #SM-MM30-T-US-ND)
5. Reattach the connector cover using the screw removed in step 3.
6. Connect a laptop to the content ingest device (HD-CONV-USB-200).
7. Bundle the cables to the bracket assembly with the integrated cable tie wraps. The cable tie wraps are reusable.
8
QuickStart
Crestron Flex Tabletop Small Room Video Conference System for Microsoft Teams® Rooms
(labeled VID-101)
UC-MM30-T (Wesco #SM-MM30-T-US-ND)
This Quick Start guide is specifically for use
with Crestron Flex hardware ordered through
Wesco Conference Room as a Service.
Configure
Apply Power
Press the power button on the bottom of the UC Engine and apply
power to all of the other devices in the system.
Configure the Conference Device
1. On a computer, open a web browser to the IP address found in the
conference device's settings.
NOTES:
lThe device and computer must be on the same network switch
and VLAN.
lA login with administrative rights for the device is required.
2. Log in to the device and navigate to DEVICE > Applications.
3. Enter the following information in the appropriate fields:
lTeams Video PC Address: Enter the IP address or hostname of the
UC Engine.
NOTE: The hostname is printed on a label affixed to the UC
Engine.
lTeams Video PC Port: By default, port number 49500 is used. If a
different port number has been configured on the UC Engine,
enter that port number instead.
lTeams Video Username: Enter the login username for the UC
Engine. (The default username is “admin”.)
lTeams Video Password: Enter the login password for the UC
Engine. (The default password is “sfb”.)
4. Click Save Changes.
Configure the System
Use the conference device and your dedicated Microsoft Teams Rooms
account credentials to configure the UC Engine. Caution: Using
Microsoft Teams credentials from a personal account may
lock the system, requiring a factory reset.
For detailed information on deploying Microsoft Teams Rooms, refer to
the Microsoft Teams Rooms documentation.
9
QuickStart
Crestron Flex Tabletop Small Room Video Conference System for Microsoft Teams® Rooms
This Quick Start guide is specifically for use
with Crestron Flex hardware ordered through
Wesco Conference Room as a Service.
UC-MM30-T (Wesco #SM-MM30-T-US-ND)
Factory Reset
A factory reset may be performed when troubleshooting.
To perform a factory reset on the conference device:
1. Power cycle the device by disconnecting and reconnecting the CAT5e
cable from the conference device.
2. When the device powers on and the LEDs flash green, tap the button
below the Crestron® logo 10 times. A factory reset confirmation
screen appears.
3. Tap one of the mute buttons to move the selector on the factory
reset confirmation screen to Yes. Tap the button below the Crestron
logo to confirm the factory reset.
4. The device will reboot. Configure the device as described in Configure.
10
QuickStart
Crestron Flex Tabletop Small Room Video Conference System for Microsoft Teams® Rooms
UC-MM30-T (Wesco #SM-MM30-T-US-ND)
This Quick Start guide is specifically for use
with Crestron Flex hardware ordered through
Wesco Conference Room as a Service.
