Westinghouse SP6390 User manual

1
NCCO Air Treatment Unit
OPERATION MANUAL
Model No.:
1701/SP6390
Please read and retain this manual prior to usage.

2
CONTENT
SAFETY INSTRUCTIONS 3 - 4
PARTS AND COMPONENTS 5
INSTALLATION GUIDE 6
OPERATION GUIDE 7 - 8
OPERATION INSTRUCTIONS 9 - 10
FILTER CARE AND REPLACEMENT 11
FILTER CLEANING AND MAINTENANCE 12
TROUBLESHOOTING 13 - 16
PRODUCTSPECIFICATION 17
WARRANTY 18
DEAR VALUED CUSTOMER
Thank you for your purchase of the NCCO Air Treatment Unit SP6390.
For your safety and to optimize the capabilities of this appliance:
Please read and retain this manual before operating the appliance;
Please keep it in a convenient and safe location for future reference.

3
SAFETY INSTRUCTIONS
Please read the following instructions before use.
The appliance is designed for domestic usage and may only be operated in
accordance with the following instructions.
WARNING
1. Do not expose the appliance to water and do not unplug the appliance
with wet hands.
2. Do not clean or spray the appliance with water, liquid, detergent, or any
flammable liquids.
3. Do not obstruct the air inlet and outlet.
4. Do not use extension power cord set unless with approval by local
authority.
5. Do not use the appliance when it is damaged.
6. Do not disassemble, repair, or modify the appliance on your own.
7. Do not use the appliance in the presence of burning incense and
chemical fumes.
8. Do not use the appliance near heat generating devices such as stove,
oven, fireplace, heater etc. or direct sunlight.
9. Unplug the appliance if it is not being used.
10. Do not use the appliance in a location subject to significant changes in
temperature.
11. Do not use the appliance in hot and humid environments such as
bathrooms or kitchens.
12. If the appliance produces a strange noise, burning smell or smoke,
immediately remove the power plug from the electric socket and call the
service center.
SAFETY PRECAUTIONS
1. If the power cord is damaged, it must be replaced by the manufactureror
a qualified service agent.
2. This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for
their safety.Children should be supervised to ensure that they do not
play with the appliance.
3. The appliance is not a substitute for proper ventilation or regular
vacuuming and should not be used in place of an extractor hood or stove
top range hood.

4
4. Ensure the power socket is in good condition and properly connected.
Ensure that the appliance is properly connected and that the plug is not
over-loaded or over-heated.
5. Only use the appliance on a dry, stable and level surface.
6. Ensure that the appliance operates at a minimum distance of 4 inches
adjacent to walls or objects.
7. Do not push, lean against or exert excessive force on any part of the
appliance. Do not stick sharp objects into any part of the appliance.
8. If the HEPA Filter or/and NCCO Reactor is not installed properly, the
appliance would not operate.
9. Maintain good air circulation when using the appliance.
10. Prior to cleaning and maintenance, the appliance must be disconnected
from the power supply.
11. When the appliance is turned on for the first time, warm air with mineral
smell may be released from the air outlet. This is normal as catalytic
oxidation is taking place inside the NCCO Reactor.
12. The appliance is equipped with a special protection feature. When
running with external power supply, it will stop operating with indicating
light off for 30 minutes, for every 8 hours of non-stop operation. After
that, the appliance will resume operating automatically.
13. To reduce the risk of electric shock, this appliance has a polarized plug
(one blade is wider than the other). This plug will fit in a polarized outlet
only one way. If the plug does not fit fully in the outlet, reverse the plug.
If it still does not fit, contact qualified personnel to install the proper
outlet. Do not alter the plug in any way.
14. The appliance is not to be operated by any supply sources other than
that specified above.
PLEASE DO NOT RETUN TO STORE
IF YOU HAVE QUESTIONS OR PROBLEMS
PLEASE CONTACT CUSTOMER SERVICE
IN CANADA:
Toll Free: 1-844-455-4621
Email: [email protected]
IN THE UNITED STATES:
Toll Free: 800-239-0689
Email: [email protected]

5
PARTS AND COMPONENTS

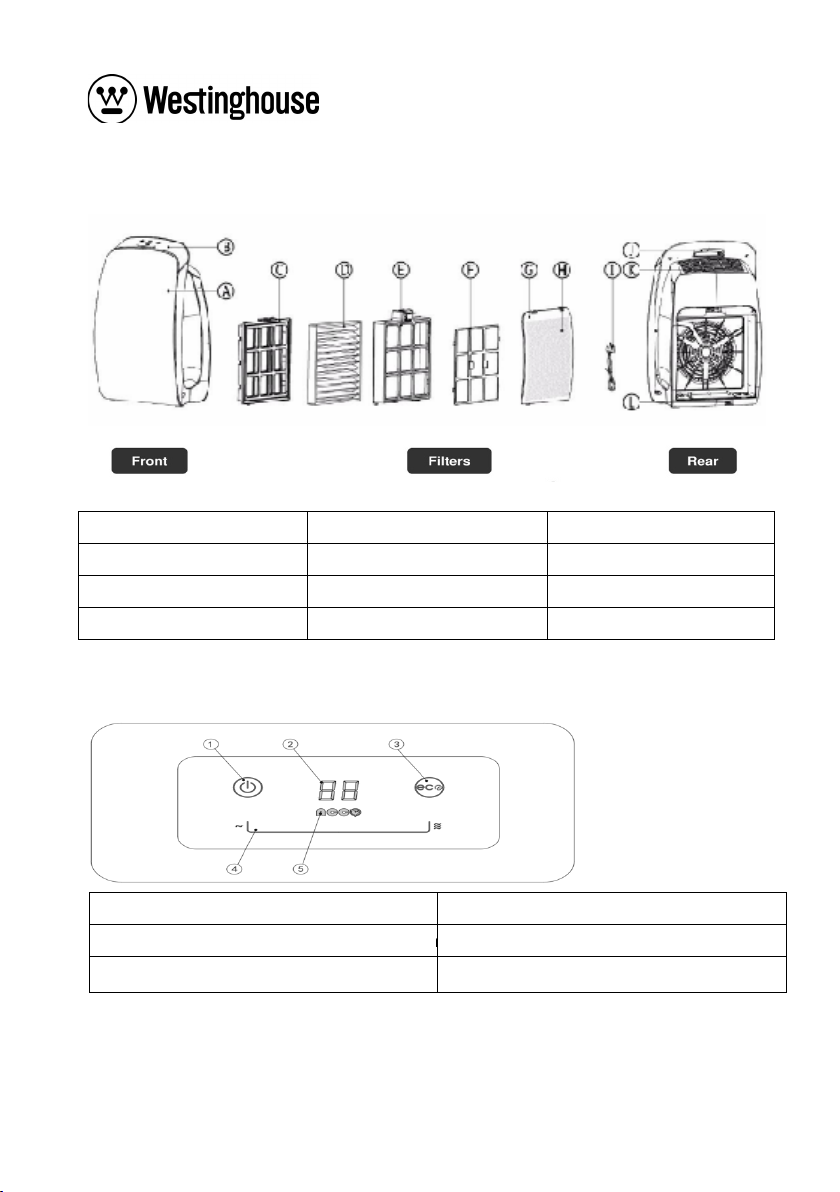

ILLUSTRATION DIAGRAM
CONTROL PANEL
1. Power Button
4. Fan Speed Control
2. Control Panel Display
5. Filter In 5. Filter Installation Indicator
3. ECO Mode
A. Main Body
E. HEPA Filter Frame
I. Power Cord
B. Control Panel
F. Pre-filter
J. Carrying Handle
C. NCCO Reactor
G. Back Panel
K. Air Outlet
D. HEPA Filter
H. Air Inlet
L. Power Cord Inlet

6
INSTALLATION GUIDE
USING THE APPLIANCE FOR THE FIRST TIME
1. Read the instruction manual and retain for future reference.
2. Remove all packaging materials, use a soft dry cloth to clean all the parts
before assembling the appliance.
3. Once assembled, placethe appliance on a dry, solid, level surface, and
ensure the appliance is provided with reasonable space of at least 4
inches from any objects, in order to operate effectively.
4. Check power sockets and any extension cords to confirm compliance with
appliance requirements. Ensure that the appliance is plugged in before
usage.
5. When the appliance is turned on for the first time, warm air and mineral
smell may be released from the air outlet. This is normal as catalytic
oxidation is taking place inside the NCCO Reactor.
INSTALLATION PROCEDURE
1. OPEN THE BACK PANEL
Press down and remove back panel
with both hands.
2. OPEN FILTER & NCCO REACTOR PACKS
Remove the HEPA Filter and NCCO
Reactor from their factory sealed packs.
HEPA Filter in clear plastic and NCCO
Reactor in Silver package.
3. INSTALL FILTER & NCCO REACTOR
Fit the NCCO Reactor into the bottom
of the filter cavity. Place the HEPA
Filter into the empty frame behind the
Pre-Filter with the ribbon facing out.
Install the HEPA Filter frame with the pre
-filter facing out on top of the NCCO Reactor.
WARNING
If Filter and NCCO Reactor are not properly
installed the unit will not work and alert you.
Redo the installation making sure it is done
properly and try again.

7
OPERATION GUIDE

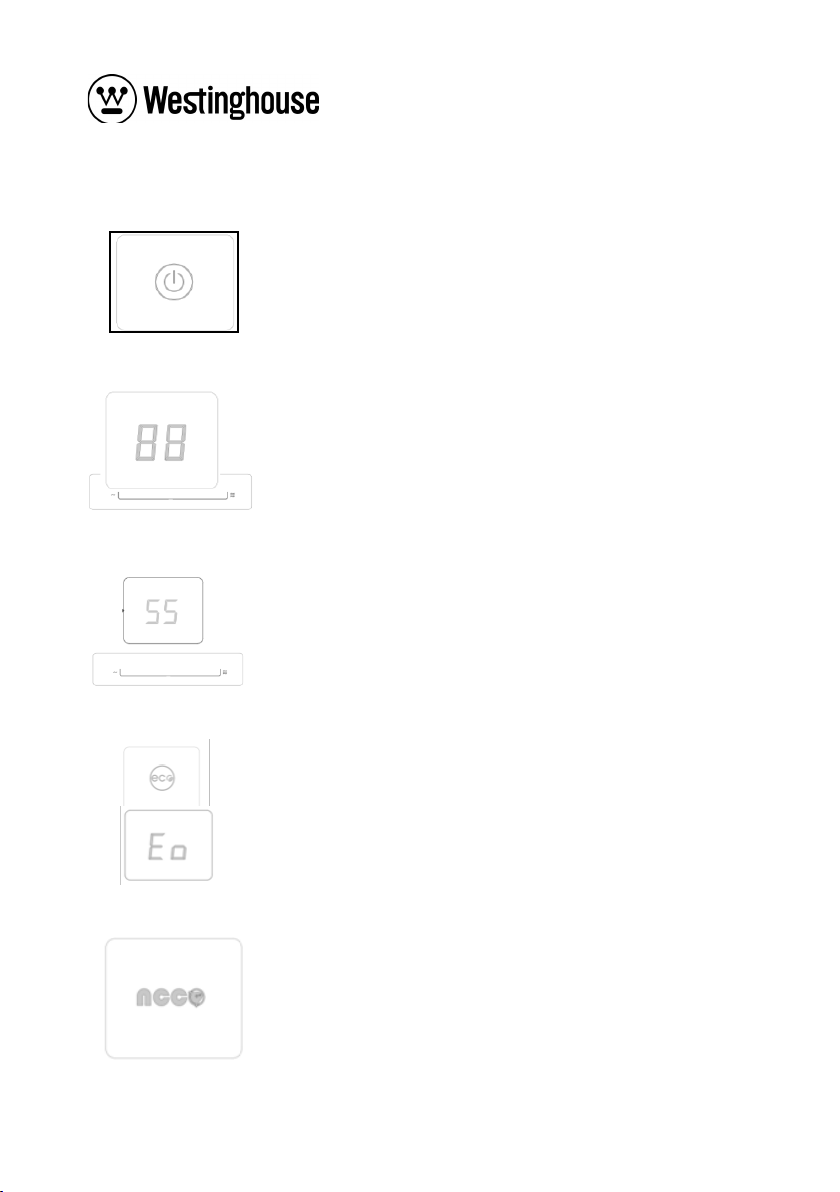

1. POWER BUTTON
2. CONTROL PANEL DISPLAY
3. TURBO MODE
4. ECO MODE
5. FILTER INSTALLATION INDICATOR
Display will show the current fan speed.
Fan speeds are ranged from 1 -10.
“01” represents the lowest fan speed, the higher num-
ber displayed, the greater fan speed would come out.
Press power button to turn on or off.
An alert tone will be on to signal that the machine is
connected with electricity.
It is suggested to turn on ECO Mode during sleeping
time.
“Eo” will be displayed on control panel display when it
is operated in ECO Mode.
Fan speed will automatically decrease and all indica-
tion lights will be dimmed.
When filters are not installed correctly, FilterInstallation
Indicator will flash.
‘SS’ represents Turbo Mode.
Turbo mode can be used for highly polluted area.

8
ATTENTION
* The appliance is equipped with a special protection feature. It will stop
operating with indicating light off for 30mins, after every 8 hours’ non-stop
operation and resume operating automatically.
**Once after the appliance runs for 1 minute without receiving any operation
instruction, all indicating light and the Fan Speed Display will be off while
other functions remained. To wake up, press any button in the control panel.
PLEASE DO NOT RETUN TO STORE
IF YOU HAVE QUESTIONS OR PROBLEMS
PLEASE CONTACT CUSTOMER SERVICE
IN CANADA:
Toll Free: 1-844-455-4621
Email: [email protected]
IN THE UNITED STATES:
Toll Free: 800-239-0689
Email: [email protected]

9

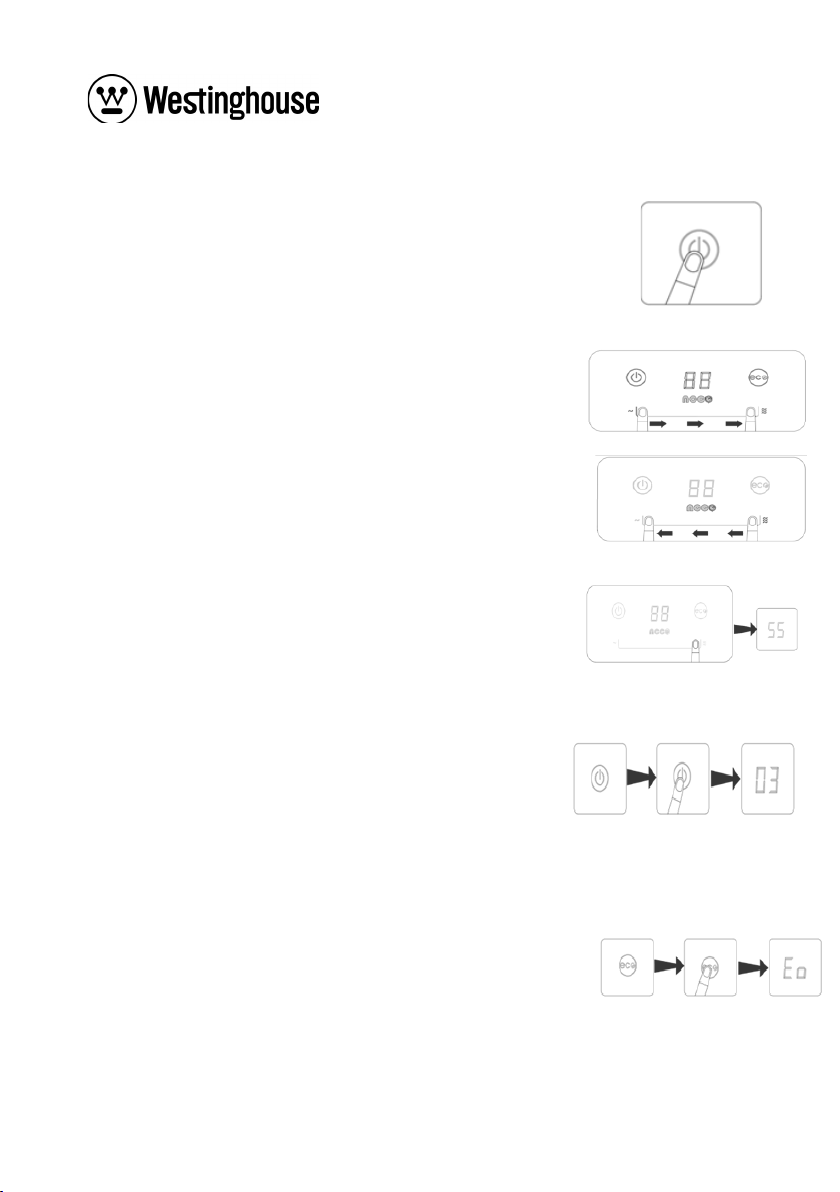

OPERATION INSTRUCTIONS
1. POWER ON/OFF
Power on:
Press power button to turn on the appliance.
An alert tone will be on to signal that the appliance is
connected with electricity.
Power off: Press the power button to turn the appliance
off.
2. SELECT FAN SPEED
To Accelerate: Use finger to slide to right, on the Fan
Speed Control; Or, click the bar to select the fan speed.
To Decelerate: Use finger to slide to left, on the Fan
Speed Control; Or, click the bar to select the fan speed
3. SELECT TURBO MODE
Use finger to slide to the Highest Fan Speed, press and
hold for 3 seconds on theright-hand side of the slide bar,
then it will switch to Turbo Mode (SS).
Turbo mode can be used for highly polluted area.
To turn offTurbo Mode:
Press and hold for 3 seconds on theright hand of the
slide bar or restart the appliance.
4. FACTORY DEFAULT SETTING AND MEMORY FUNCTION
Factory Default Setting:
Appliance will return to fan speed of “03” each time,
when it is not connected to electricity socket.
Memory Function:
Appliance will remainat the same fan speed as last
usage when it stays connect to electricity socket.
5. ECO MODE
Press the button “ECO” to activate ECO Mode and it will
display “Eo”.
Appliance will automatically switch to a lower fan speed
and all lights will be dimmed.
To Activate: Press the button “ECO” button positions on
the right-hand side of the display.
To Deactivate: Press the “ECO” button to deactivate and
return to Fan Speed mode.
ToAccelerate
ToDecelerate

10
6. FILTER INSTALLATION INDICATOR
When either HEPA Filter or NCCO Reactor is improperly
installed, appliance will not work with making a “DiDi”
sound.
Solution: disconnect the appliance from the electricity
socket. Open the back panel to take out all filters and
re-install the filters.
After the installation is corrected, the sound would stop
and the appliance resumes operating.

11
FILTER CARE AND REPLACEMENT
1. Filter lifetime will vary depends on environment, amount of usage and
location of the appliance.
2. To maintain optimal operating condition of the appliance, only use the
recommended filter.
3. It is recommended to clean the Pre-filter regularly.
4. Before disassembling the appliance, disconnect the power supply.
5. When the NCCO Reactor needs to be replaced, it is also recommended
to replace the HEPA Filter.
RECOMMENDED FILTER CLEANING AND REPLACEMENT
CYCLES AND ETHODS
Recommended cleaning and replacement cycle of filters
*The filters cleaning and replacement cycle may vary depending on the operating
environment.
** If the HEPA Filter has not been replaced periodically or it has been damaged,
and the surface of the NCCO Reactor is covered with dust or oily substances
after disassembling, the removal capacity of the NCCO Reactor may be badly
reduced and should be replaced.
Color Reference Table for HEPA Filter
Filters
Period
Solution
Pre-Filter
/
Cleaning
HEPA Filter
Every 6 -18 Months *
Replacement
NCCO Reactor
Substantial**
Substantial
HEPA FILTER SURFACE COLOR CHANGING INDICATOR
No replacement
needed
Replacement is recom-
mended
Replacement is
needed

12
FILTER CLEANING AND MAINTENANCE

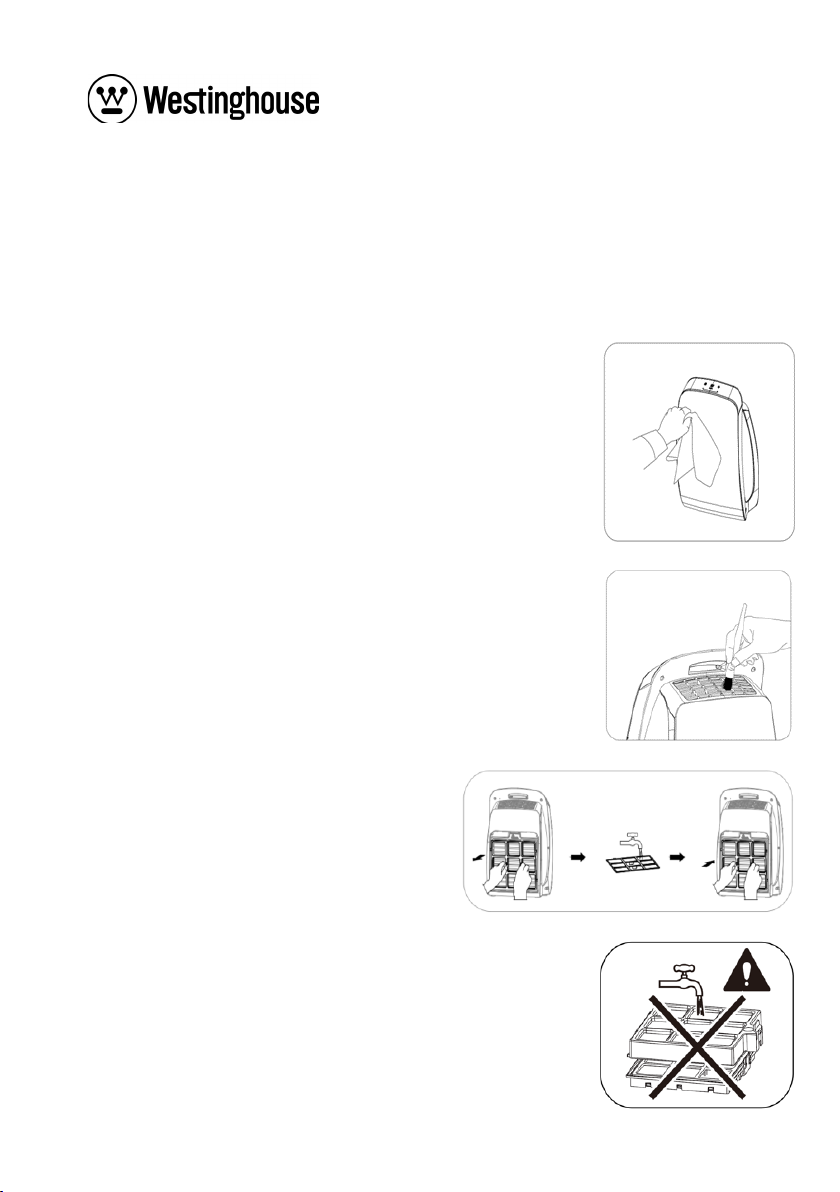

1. Always disconnect the power supply of the appliance before disassem-
bling for cleaning or replacing Filters.
2. If the HEPA Filter is not maintained periodically, performance may be
weakened.
3. Do not clean or wash HEPA Filter or NCCO Reactor with water.
1. CLEANING EXTERIOR BODY
Use dry and soft cloth to clean the appliance.
The cover can be washed by water.
Attention: Make sure the cover is dried out before
assembling it back to the appliance.
Tips: Damp cloth can be used to clean the surface of
the appliance. Do not use abrasive materials.
2. CLEANING AIR INLET AND OUTLET
Clean the air inlet and outlet with a soft brush or
vacuum cleaner.
3. CLEANING PRE-FILTER
Pre-filter can be cleaned with water.
Make sure it is dry before usage.
WARNING
Do not rinse or soak HEPA Filter or NCCO Reactor
with water.

13
TROUBLE SHOOTING
Problems
Solutions
The appliance does not
operate.
Check if the appliance is correctly connected
to its power supply.
Turn on the appliance.
Appliance is “beeping” in
sound and does not
operate.
Check if the filters have been correctly
installed.
Re-install filters.
No air is blowing through
air outlet.
Check if the appliance is correctly connected
to its power supply.
Check if the power cord interface is in good
service condition.
The air quality is not yet
improved after a longtime
operation.
If the appliance is used in a seriously
polluted area, the treatment process will
take longer than normal. It is
recommended to operate the appliance
using it in high airflow mode until the
pollution diminishes.
The Filter may require cleaning and
replacement.
The airflow from air outlet
becomes slow.
The dust-removing filter may be blocked.
Replace the filter (see section
"maintenance and replace" of this manual).
Make sure all packaging materials are
removed.
The appliance makes an
abnormal noise.
Make sure all packaging materials are
removed.
Make sure the air inlet and outlet are not
blocked by external objects.
Remove all adjacent objects that block the
air inlet and outlet.
The device may malfunction. Call the
customer service center for advice or
consult with a qualified agent.

14
The appliance emits an
unusual smell or smog.
(e.g. smoke, flame, or
burning)
Turn off the appliance and disconnect it
from power supply. Call the customer
service center immediately or contact with
a qualified agent.
The appliance’s “NCCO”
indicating light flashes in
red.
Turn off the appliance. Unplug and wait for
3-5mins to plug back to the socket.
The appliance releases
mineral smell during the
first-time operation.
It’s normal as catalytic oxidation is taking
place inside of the NCCO Reactor, the
smell is harmless to human body, and it
would disappear after a period of operating
time.

15
ERROR CODES
ERROR CODE DESCRIPTION
EE HEPA Filter not installed filter properly
Please remove and reinstall the filter
HP HEPA need to replace,
which reached 3,000 hours
NC NCCO reactor need to inspect,
which reached 10,000 hours
FLITER AND REACTOR REPLACEMENT
HP; HEPA Filter Replacement:
The Default operation time of HEPA Filter is 3,000 hours.
HEPA Filter Reminding: After user has turned on unit, the ON / OFF
Button, the Display Screen and the red ‘NCCO’ Filter Installation
Indicator are illuminated, and the blower and other functions still
normally operate. The Reminding Mode can be released only after
user has replaced HEPA Filter with the following steps.
NC; NCCO Reactor Replacement:
The Default operation time of NCCO Reactor is 11,000 hours.
NCCO Reactor Reminding: After user has turned on unit, the ON /
OFF Button and the Display screen are illuminated, the red ‘NCCO’
Filter Installation Indicator flickers every 0.5 seconds with ‘Bi Bi’
sound, and the blower are other functions still normally operate.
The Reminding Mode can be released only after user has replaced
NCCO Reactor with the following steps.
After Completing Replacment Re-Set the Appliance:
1. When the ON / OFF Button, the Display Screen and the red
‘NCCO’ Filter Installation Indicator are illuminated, user shall turn off
unit and long press the ON / OFF Button for 10 seconds until hearing
a ‘Da’ sound. Then, press the Air Speed Reduce Indicator . ‘HF’
displays at Display Screen for 3 seconds indicating that the unit has
exited the Reminding Mode. User can turn on unit to operate it again.

16
2. When the ON / OFF Button and the Display screen are illuminated,
the red ‘NCCO’ Filter Installation Indicator flickers every 0.5 seconds
with ‘Bi Bi’ sound, user shall turn off unit and long press the ON / OFF
Button for 10 seconds until hearing a ‘Da’ sound. Then, press the Air
Speed Increase Indicator . ‘nF’ displays at Display Screen for
3 seconds indicating that the unit has exited the Reminding Mode.
User can turn on unit to operate it again.

17
PRODUCT SPECIFICATION
Power Supply
120Vac, 60Hz
Power
Consumption
(W)
Mode
Low Speed
(01)
8
High Speed
(10)
18
Turbo(SS)
20
Airflow
Volume
(m3/hr)
Mode
Low Speed
(01)
<40
High Speed
(10)
110
Turbo(SS)
130
Noise Level
(dB)
Mode
Low Speed
(01)
38
High Speed
(10)
53
Turbo(SS)
57
Product Dimension (L x W x H) mm
292 (L) x 184 (W) x 440 (H)
Net Weight (kg)
4
Treatment
System
Stage 1
Stage 2
Stage 3
Stage 4
Active Oxygen
Generator
Pre-filter
HEPA Filter
NCCO Reactor
Function
Sterilization
Remove
dust and
hair
Remove dust,
hair and
airborne
particles such
as allergens
and pollen,
bacteria,
viruses and
fungi.
Remove odor,
decompose
and oxidize
harmful
pollutants
such as
formaldehyde
and VOCs.

18
WARRANTY
The NCCO air treatment unit comes with a three-year limited warranty.
Thislimited warranty covers repair or replacement of the unit if found to
bedefective in material or workmanship, within three years of the date
ofpurchase. Be sure to include your buying receipt to activate your warranty.
WESTINGHOUSE, is a trademark of Westinghouse Electric Corporation.
Used under license by NCCO Global, Ltd. All Rights Reserve.
PLEASE DO NOT RETUN TO STORE
IF YOU HAVE QUESTIONS OR PROBLEMS
PLEASE CONTACT CUSTOMER SERVICE
IN CANADA:
Toll Free: 1-844-455-4621
Email: [email protected]
IN THE UNITED STATES:
Toll Free: 800-239-0689
Email: [email protected]

19
NCCO Unité de Traitement de l’Air
Manuel de fonctionnement
Modèle:
1701/SP6390
Veuillez lire et conserver ce manuel avant l’utilisation
CONTENU
CONSIGNE DE SÉCURITÉ 21 - 23
PIÈCES ET COMPOSANTS 24
GUIDE D’INSTALLATION 25 - 26
GUIDE D’OPÉRATION 27 - 28
INSTRUCTION D’UTILISATION 29 - 30
ENTRETIEN ET REMPLACEMENT DU FILTRE 31
NETTOYAGE ET ENTRETIEN DU FILTRE 32

20
DÉPANNAGE 33 - 36
SPÉCIFICATION DE PRODUIT 37 - 39
GARANTIE 40
TRÈS CHER CLIENT
Merci d'avoir acheté l'unité de traitement d'air NCCO SP6390.
Pour votre sécurité et pour optimiser les capacités de cet appareil:
Veuillez lire et conserver ce manuel avant d'utiliser l'appareil;
Veuillez le conserver dans un endroit pratique et sûr pour référence future.
CONSIGNE DE SÉCURITÉ
Veuillez lire les instructions suivantes avant utilisation.
L'appareil est conçu pour un usage domestique et ne peut être utilisé que
conformément aux instructions suivantes.
