TIPS & INFORMATION

If you find the appliance is damaged or marked, you must
report it within 7 days if you wish to claim for damage/
marks under the manufacturer’s warranty. This does not affect
your statutory rights.
ENVIRONMENTAL TIPS

• Most of the packing materials are recyclable.
Please dispose of those materials through your local
recycling depot or by placing them in appropriate
collection containers.
• If you wish to discard this product, please contact your
local authorities and ask for the correct method of disposal.
Please read the user manual carefully and store in a handy
place for later reference. The symbols you will see in this
booklet have these meanings:
WARNING

CAUTION


TIPS & INFORMATION

ENVIRONMENTAL TIPS


Meanings of symbols used in this manual are shown below:


Congratulations and thank you for choosing our Product.
We are sure you will find your new appliance a pleasure to
use and a great asset to your cooking. Before you use the
appliance, we recommend that you read through the whole
user manual which provides a description of the product and
its functions.
To avoid the risks that are always present when you use a
gas appliance, it is important that the appliance is installed
correctly and that you read the safety instructions carefully to
avoid misuse and hazards. For future reference, please store
this booklet in a safe place.


Important safety instructions � � � � � � � � � � � � � � � � � � � � � � � � 3
Description of your appliance � � � � � � � � � � � � � � � � � � � � � � � � 4
Before operating your appliance for the first time� � � � � � � � � � � � � � 5
Installing your oven accessories � � � � � � � � � � � � � � � � � � � � � � 5
Using the hotplate� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 7
Using the grill � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 8
Guide to better grilling � � � � � � � � � � � � � � � � � � � � � � � � � � � 9
Using the timer � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �10
Using the oven � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �12
Dealing with cooking problems � � � � � � � � � � � � � � � � � � � � � � �15
Electronic burner control(models 625 and 627 only) � � � � � � � � � � � �16
Cleaning your appliance� � � � � � � � � � � � � � � � � � � � � � � � � � �17
Cleaning your oven accessories� � � � � � � � � � � � � � � � � � � � � � �18
Solving problems � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �19
Installing the appliance � � � � � � � � � � � � � � � � � � � � � � � � � � �20
Wiring requirements� � � � � � � � � � � � � � � � � � � � � � � � � � � � �22
Connecting to services and commissioning� � � � � � � � � � � � � � � � �22
Testing the operation of the gas cooker� � � � � � � � � � � � � � � � � � �25
Warranty� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �27

Model:....................................................................
Serial number: ..........................................................



• During use the appliance becomes hot. Care should be
taken to avoid touching the hot surfaces inside the oven.
• Switch the appliance off before removing the oven light
glass for globe replacement.
• To avoid an accident, ensure that oven shelves and ttings
are always inserted into the appliance in accordance with
the instructions.
• Do not use the door as a shelf.
• Do not push down on the open oven door.

• An authorised person must install this appliance.
(Certicate of Compliance to be retained)
• Before using the appliance, ensure that all packing
materials are removed from the appliance.
• In order to avoid any potential hazard, the enclosed
installation instructions must be followed.
• Ensure that all specied appliance vents, openings and
airspaces are not blocked.
• Where the appliance is built into a cabinet, the cabinet
material must be capable of withstanding 85°C
• Only authorised personnel should carry out servicing.
(Certicate of Compliance to be retained)
• Always ensure the appliance is switched off before
cleaning or replacing parts.
• Do not use steam cleaners, as this may cause moisture
build up.
• Always clean the appliance immediately after any food
spillage.
• To maintain safe operation, it is recommended that the
product be inspected every ve years by an authorised
serviceperson.
• If rigid gas pipe is used for installation it should include
sufcient loops to allow the appliance to be removed
from installed position without the need to disconnect the
piping.

• For appliances supplied with a supply cord, if the
supply cord is damaged, it must be replaced by the
Manufacturer or its service agent or similarly qualied
person in order to avoid a hazard.

• This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that they do not
play with the appliance.
• During use, this appliance becomes hot. Care should
be taken to avoid touching hot surfaces, e.g. oven door,
heating elements or internal surfaces of the oven.
• This appliance must not be used as a space heater.
• In order to avoid a re, the appliance must be kept clean
and vents kept unobstructed.
• Do not spray aerosols in the vicinity of the appliance
during operation.
• Do not store ammable materials in or under the
appliance, e.g. Aerosols.
• Accessible parts will become hot when in use. To avoid
burns and scalds children should be kept away.
• Do not line the bottom of the oven or grill with foil or
cookware.
• Always use gloves when handling hot items inside grill or
oven.
• Where this appliance is installed in marine craft or in
caravans, it shall not be used as a space heater.
• Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can
scratch the surface, which may result in shattering of the
glass.

• Always turn the grill off immediately after use as fat left
there may catch fire.
• Always keep the grill dish clean as any fat left may catch
fire.
• Do not leave the grill on unattended.
• To avoid a re, ensure that grill trays and ttings are
always inserted into the appliance in accordance with the
instructions.
• Do not place thick portions of food under the grill. Foods
may curl, catch and ignite.
• Accessible parts may become hot when grill is in use.
Children should be kept away.










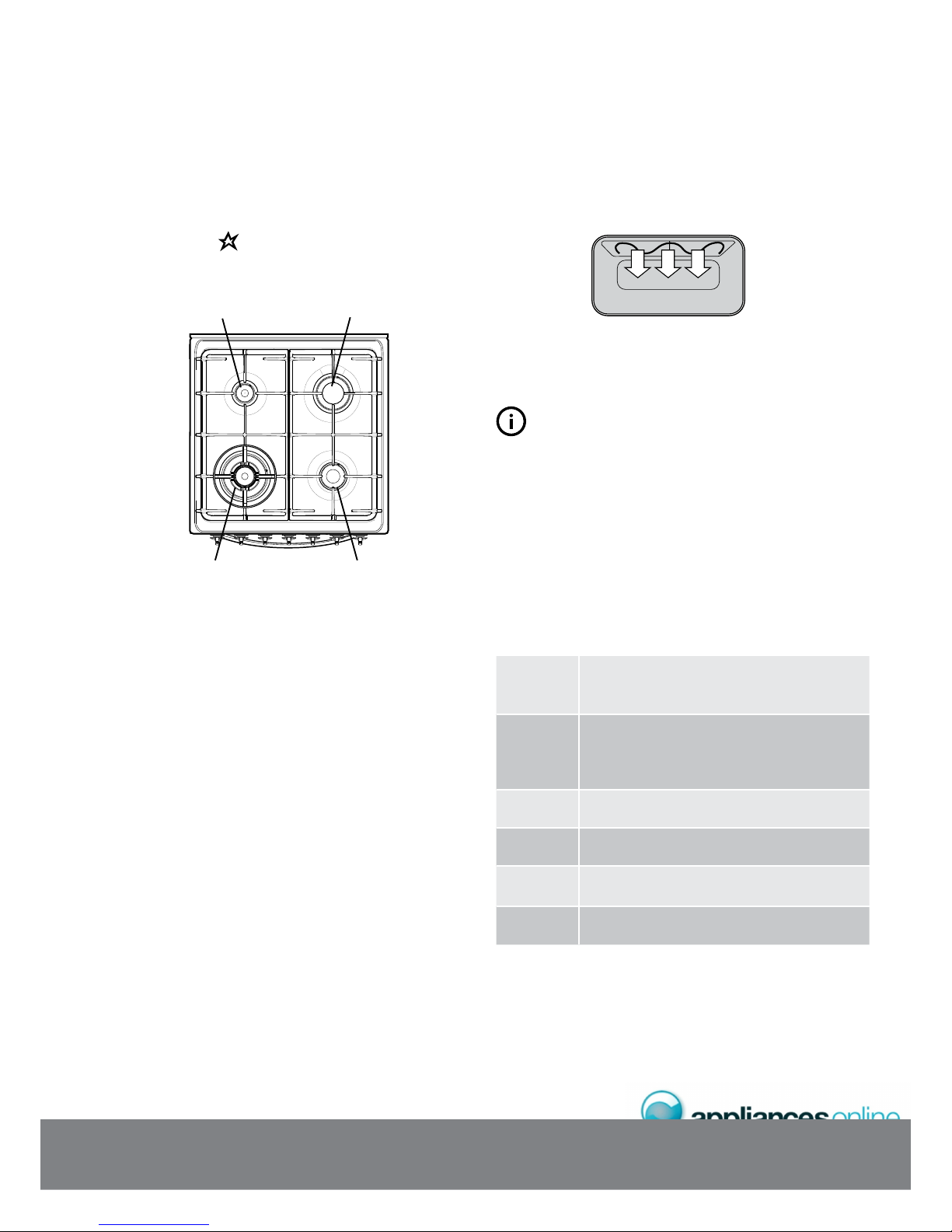

Hotplate power on
indicator lamp
Hotplate
controls
Hotplate
controls
Hotplate
controls
Hotplate
controls
Dual ring
hotplate
control
Grill
temperature
selector
Grill
temperature
selector
Grill
temperature
selector
Grill
temperature
selector
Oven
temperature
selector
Oven
temperature
selector
Oven
temperature
selector
Oven
temperature
selector
2 hour
‘Auto Off’
timer
2 hour
‘Auto Off’
timer
2 hour
‘Auto Off’
timer
Electronic
clock and
timer
Grill indicator
lamp
Grill indicator
lamp
Grill indicator
lamp
Grill indicator
lamp
Oven indicator
lamp
Oven indicator
lamp
Oven indicator
lamp
Oven indicator
lamp





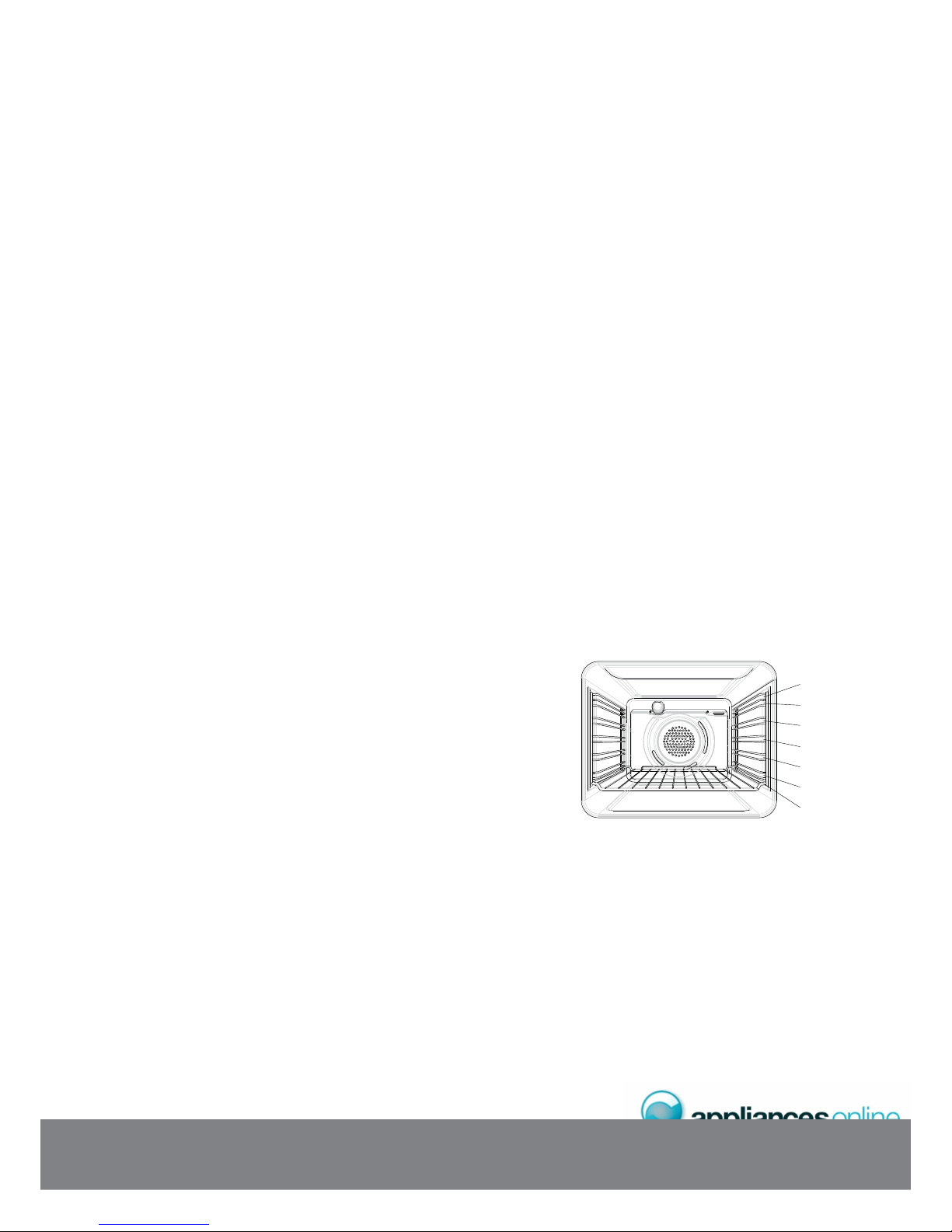

The side racks that come with your oven are all tted the same
way and can be attached to either side of your oven.
• Insert the largest peg into rear access hole provided.
• Then locate the front peg into the front access hole and
push in firmly.

The shelves are designed so that they have maximum travel
but cannot be accidentally pulled right out. The trays are
designed the same way and fit straight into the side racks.
• Locate the rear edge of the shelf/tray in between 2 guide
rails of the side rack – see diagram. Ensure the same rail
positions on both sides of the oven are being engaged.
• With the front edge raised, begin to slide the shelf into the oven.
• Once the detents have passed the front edge of the side
rack, the shelf can be pushed completely in.
• When fully inserted the shelf/tray should not interfere with
the closed oven door.
• Remove extra trays and dishes before roasting or baking.

If you have purchased a model tted with an electronic timer,
you must set the time of day before you can operate your
appliance.

• After the appliance has been electrically connected “12.00”
will be displayed and the “clock” indicator will ash.
• To set the time of day, press the – or + buttons. 5 seconds
after the last change, the “clock” indicator will disappear,
conrming the time has been set.
 The clock has a 24-hour display.

• Please remove all internal boxes and bags from the oven
before operation.
• Please wipe out the oven interior prior to operation with
warm soapy water and polish dry with a soft clean cloth.
Do no close the oven door until the oven is completely dry.
• New appliances can have an odour during rst
operation. It is recommended to ‘run in’ your oven before
you cook for the rst time. Run the oven at 180°C for 2–4
hours and ensure the room is well ventilated.
• DO NOT line the oven with foil. It will damage the
enamel.
• If your appliance is tted with a 2-hour “Auto Off”
timer, make sure it is set to the “Off” marker for manual
operation. See image.

Your appliance is tted with a cooling fan. This prevents
your kitchen cabinet from overheating and reduces the
condensation inside the oven. It will operate whenever you
are using your oven or grill and will blow warm air across
the top of the oven door. The cooling fan may continue to
operate after the appliance is turned off. It will switch off by
itself once the oven is cool.





To insert the grill tray, fully open the drawer and position the
tray so that the slots on the outer edges t over the tabs on
the slides.
Place the grill tray insert into the grill tray.


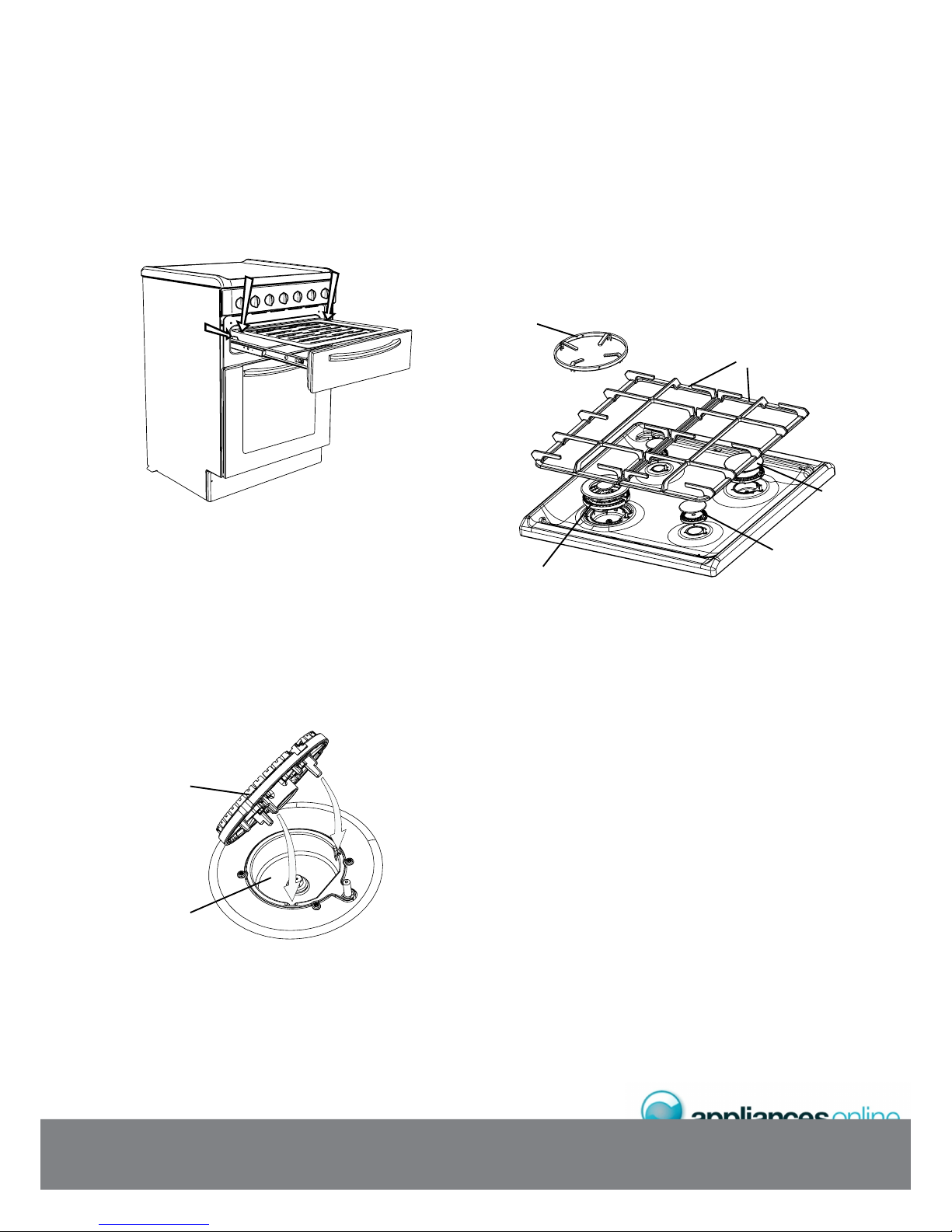

• The burner crown must be tted correctly into the burner
cup or damage will occur during operation.
• To do this, ensure that the 2 ribs on either side of the
spark plug hole are positioned into the 2 slots on the
burner cup (see diagram).
• The burner cap is simply positioned over the top of the
burner crown.
 When the burner is correctly tted it will sit level on the hob.

• The rubber feet on the trivets locate into the recesses on
the hob.
• Take care when placing the trivets as dropping them may
damage the hob or trivet.
• The wok trivet sits on top of the base trivet above the wok
burner.
burner crown
burner cup

wok trivet
burner cap
trivets
wok burner
burner crown





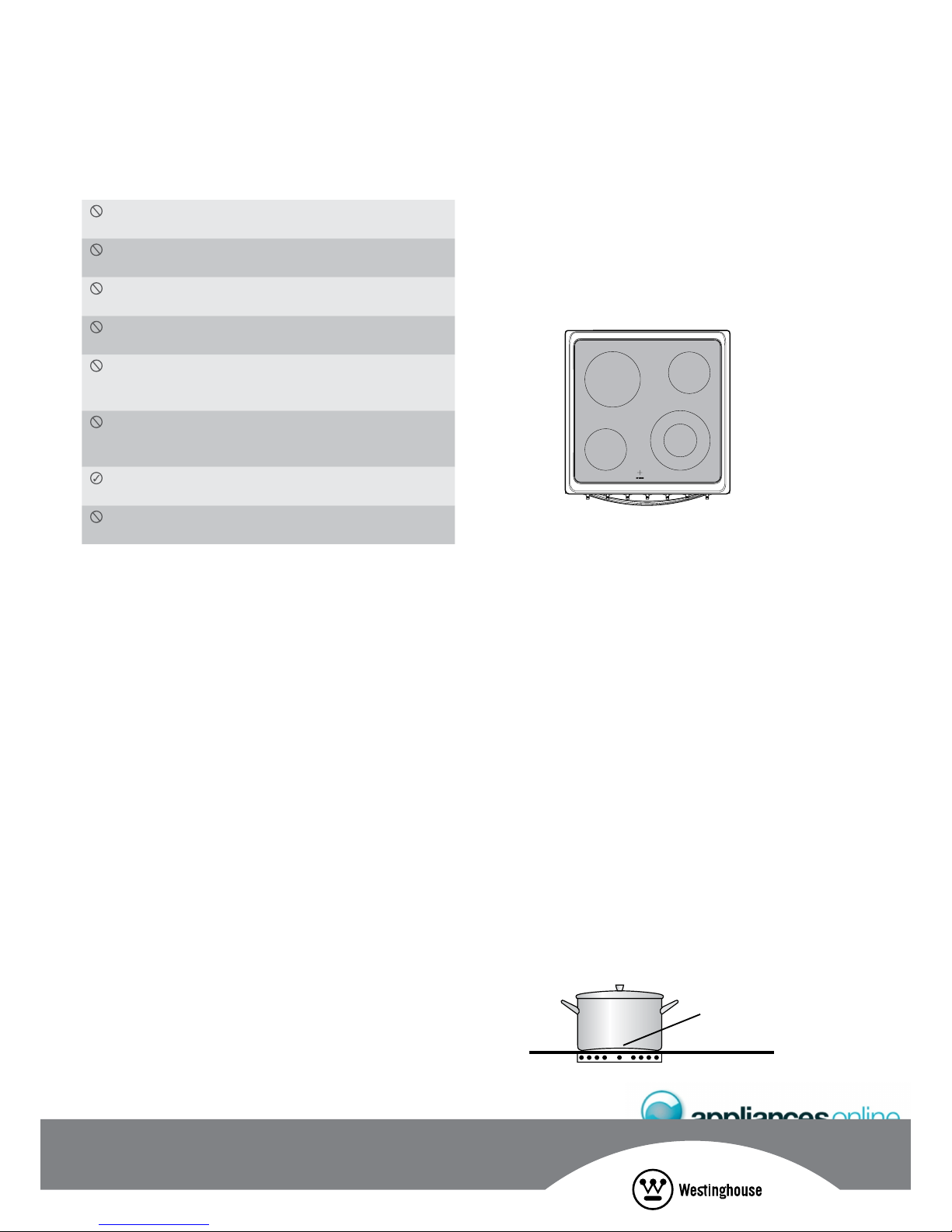

The cooktop is made from ceramic glass, a tough, durable
material that withstands heating and cooling without
breaking. It is strong enough to hold the heaviest utensils.
However, it must be remembered that as it is GLASS, it may
break. Treat it accordingly!
Should you have any questions about the glass in your new
appliance, please contact the service centre by dialling 13 13 49.
The heating elements are concealed under the smooth glass
surface which has a pattern to show the location of the
elements. When cooking, turn the control to the required
setting.
The ceramic cooktop glass will retain heat for a period of
time after the control is turned off. This will be indicated by
the hot surface warning light which will continue to glow until
the temperature drops below 60°C.
 If the ceramic glass is cracked switch off the appliance
to avoid the possibility of electric shock.
• Use pans with smooth, clean and dry bottoms to avoid
scratching or burning residue into the glass.
• Ensure the pan bottom is the same size as the working
element.
• We do not recommend ceramic glass pans because they
do not conduct heat well.
• Stainless steel or enamelled saucepans are best.
• Do not use pans with copper or aluminium bottoms because
they can leave traces which are difcult to remove from the
glass.
• If buying new utensils select enamelled steel pans with 2-3mm
thick bottoms or stainless steel pans with sandwich bottoms
4-6mm thick. The pan bottom should be at, or preferably,
slightly concave at room temperature so that it lies at on the
glass surface when hot.

Do not place heat resistant mats, wire mats or
aluminium foil under pots and pans.
Do not allow pots and pans to boil dry, as damage to
both pan and hotplate may result.
Do not use the hotplate as extra bench space or as a
cutting board.
Do not allow children on or near the cooktop at any
time.
Do not allow large cookware to overhang the hotplate
onto the adjacent benchtop. This will cause scorching
to the benchtop surface.
Do not use round bottom woks or similar utensils which
could lead to overheating of the hotplates and possible
damage to the cooking surface.
Use the stored heat in the hotplate by turning the control
to off before the nal few minutes of cooking.
Do not slide pans across the surface of the ceramic glass
as it could result in scratching of the surface.

a at or slightly
concave pan is
preferable for
ceramic hotplates



• To ignite, push knob in and turn anti-clockwise to the
ignition symbol .
• Sparks are sent to all burners.
• Release knob once burner has ignited and adjust the
ame.
 
Used for simmering and for use with small cookware
items.
 
Used for fast heating with large size cookware items.
 
Used for very fast heating with woks and other large
size cook ware items. Use wok support provided when
cooking with a wok.
 
Used for normal cooking and simmering with mid size
cookware items.
To conserve gas, place the pan centrally over the burner and
adjust the ame so that it does not go past the edge of the
cookware.
 In the absence of electrical power, carry out the ignition
directly to the burner with a hand held ignition source.


• The grill directs heat from the electric element in the grill
compartment onto the food.
• This way of cooking traps the juices inside the food and
increases the avour.
• Grilling is suitable for tender cuts of meat, steak, chops,
sausages, sh and other foods which cook quickly.
TIPS & INFORMATION




As a method of cooking, grilling can be used to:
• Enhance the avours of vegetables, sh, poultry and
meat.
• Seal the surface of the food and retain the natural juices.
This table shows how to grill different types of meat:
Beef You can use tenderloin, rump, sirloin. Brush
with oil or melted butter, especially if the meat
is very lean.
Lamb You can use loin chops, shortloin chops,
chump chops, and forequarter chops.
Remove skin or cut at intervals to stop curling.
Brush with oil or melted butter.
Sausages Prick sausages to stop skin from bursting.
Poultry Divide into serving pieces. Brush with oil.
Fish Brush with oil or melted butter and lemon
juice.
Bacon Remove rind. Grill at.

1
3
2
4


WARNING

Do not cook food on the bottom of the grill
compartment. Always use the grill dish and grill dish
insert.
Do not place foil under the food on the grill dish insert,
as this prevents fats and oils running away and may
cause a fire.
Always use the grill parts according to instructions.
Do not put thick pieces of food too near the element.
They may curl and catch fire.
Always turn the grill off immediately after cooking. Left-
over fat may cause a re.
Always clean the grill dish and insert after use. Fat
build up may cause a re.
Do not let children play with the grill.
Do not let children use the grill without adult
supervision.
Do not leave the grill unattended when on.
Be careful not to touch hot surfaces.
Do not spray aerosols near the grill, when it is turned
on.
Do not keep ammable materials in or near the grill,
eg chemicals, aerosols, etc.
No denite times can be given for grilling because this
depends on your own taste and the size of the food. These
times should only be used as a guide and remember to turn
the food over half way through the cooking process.
Steak 15 - 20 minutes
Chops 20 - 30 minutes
Fish 8 -10 minutes
Bacon 4 - 5 minutes
For better grilling results, follow these easy instructions:
1. Preheat the grill for at least 3 minutes to obtain best
results. This will help to seal the natural juices.
2. Choose only prime cuts of meat or fish. If the cut is less
than 5mm thick it will dry out. If the cut is more than
40mm thick, the outside may burn whilst the inside
remains raw.
3. Do not place aluminium foil under the food as this
prevents fats and oils from draining away, which could
result in a fire.
4. Baste the food during cooking with butter, olive oil or
marinade. Grilled food is better if marinated before
cooking.
5. Use tongs to turn food as a fork pierces the surface and
will let juices escape.
6. Set the height of the grill tray insert to the most suitable
height.
• The grill insert can be used on both sides to provide two
different grill heights
• Thinner pieces of food should be nearer the element
and thicker pieces should be 10mm away.





The timer needs to be set at the “OFF” marker for the
oven to be used manually.

The 2-hour timer features an automatic oven “cut-off”.
This means that a cooking period of up to 120 minutes
can be set.
1. Set the Oven Temperature Control Knob to the required
temperature.
2. Turn the cut-off timer to the required number of minutes.
 For timer settings of less than 20 minutes, turn the
knob past 20 minutes, and then go back to the required
number of minutes. This is to ensure that the timer’s bell
ringer is correctly set.
3. When the timer returns to the “Auto Off” position, it will
give a short ring and the oven element will be switched
off. Although the oven element is off, the oven light, the
cooling/venting fan and the oven fan will remain on
whilst the Timer is in “Auto Off” mode. They will stay on
until both the Timer and the Oven knobs are moved to the
“Off” position.
4. The oven will not operate again until you turn the timer
back to the “OFF” marker. This will set the timer to manual
mode.
 It is not recommended to use this timer for short
durations, e.g. boiling eggs.



Your 3 button programmable timer has the following features:
• Timer – your 3 button programmable timer allows you to
set a countdown time that will beep when the set time has
elapsed.
• Cooking duration – You can set a cooking duration. A
timer will count down the preset cooking time, beep when
the time has elapsed and turn the oven off.
• End cooking time – you can set a cooking nish time. A
timer will count down the preset cooking time, beep when
the nish time has been reached and turn the oven off.
• Delayed start cooking time – You can combine the
cooking time and stop cooking time to switch the oven on
and off at a specific time during the day.
 Your 3 button programmable timer only operates with
your main oven.

You must set the time of day before you can operate your
appliance. When power is supplied to your oven “12.00“
will be displayed and the “clock” indicator will ash.
1. To set the time of day in hours and minutes, press the – or
+ buttons. 5 seconds after the last change, the “clock”
indicator will disappear, conrming the time has been set.
 The clock has a 24-hour display.

1. Press the “mode“ button until the “timer” indicator begins
ashing.
2. Set the countdown time you want by using the – and +
buttons. 5 seconds after the last change the “timer” indicator
will stop ashing, conrming the timer has been set.
3. To stop the beeper, press any button.

1. Check the clock displays the correct time of day.
2. Select the desired oven function and temperature. The
oven indicator light will glow and the heating source will
come on.
3. Press the “mode“ button until the “cook time” indicator
begins ashing.
4. Set the cooking duration you want by using the – or +
buttons. 5 seconds after the last change, the “cook time”
indicator will stop ashing, and the time of day will be
displayed.
 Do not forget to add preheating time if necessary.



1. Check the clock displays the correct time of day.
2. Select the desired oven function and temperature. The
oven indicator light will glow and the heating source will
come on.
3. Press the “mode“ button until the “end time” indicator
begins ashing.
4. Enter the time of day you want to nish cooking by
pressing the – or + buttons. 5 seconds after the last
change, the “end time” indicator will stop ashing and the
current time of day will be displayed.

1. Program the “cook time“ and “end time“ as described
in the relevant sections. Once both the “cook time“ and
“end time“ have been set, the “cook time“ and “end time”
indicators will stop ashing and the current time of day
will be displayed.

1. To check your settings, press the “mode” button until the
setting you want is displayed. A red indicator light will
ash next to the mode (cook time, end time etc) that is
currently on display.
2. To cancel “delayed start” press the “mode” button until
the indicator next to “end time” ashes. Press and hold
the – button until the clock no longer reverses (you will
hear a beep). If you have left the temperature and function
knobs at a setting the oven will start once the “end time”
indicator stops ashing.
3. To cancel “auto shut off” press the mode button until the
indicator next to “cook time” ashes. Press and hold
the – button until the clock no longer reverses at (“0:00”
and you will hear a beep). This automatically cancels
“delayed start”. If you have left the temperature and
function knobs at a setting, the oven will start once the
“cook time” indicator stops ashing. Because you have
cancelled “auto off” the oven will continue to heat until
you manually turn it off.

The oven will turn off, the timer will beep and the “end time“
and/or “cook time“ indicators will ash.
1. Turn the function and temperature controls to the off
position.
2. Press any button to stop the timer from beeping.

1. Press any two buttons together for 2 seconds to switch
’off’ the display.
2. Press any button to switch the clock display ’on’ again.
 If a timer mode is set, then it is not possible to switch
the display off.



The temperature in the oven is controlled by a thermostat. The
fan distributes the heat throughout the oven compartment. This
allows:
• Baking on all shelves at the same time with little variation
in browning or cooking.
• Cooking at slightly lower temperatures.
• Cooking from a cold start so there is no need to preheat
the oven – this is good for casseroles and fruit cakes.
• Good cooking results for cream mixtures, rich pastries and
bread but with these foods, preheating the oven for 10 to
15 minutes is required.

• Defrosting uses air that is circulated by the fan.
• You should defrost food before cooking it.
• You can also use the defrost function to raise yeast dough
and dry fruit, vegetables and herbs.

Condensation fogs the oven door and happens when you
are cooking large quantities of food from a cold start. You
can minimise condensation by:
• keeping the amount of water used in cooking to a
minimum;
• making sure that the oven door is rmly closed;
• cooking casseroles with a lid.
 If you are using water in cooking, this will turn to steam
and may condense outside the oven. This is not a problem or
a fault.


• Select the correct shelf location for food being cooked.
• The grill tray can be used in the oven as a baking dish.
• Make sure dishes will t into the oven and remove
unnecessary trays or dishes before you switch it on.
• Keep edges of baking dishes at least 40mm from the
side of the oven. This allows free circulation of heat and
ensures even cooking.
• Do not open the oven door more than necessary.
• Do not place foods with a lot of liquid into the oven with
other foods. This will cause food to steam and not brown.
• After the oven is turned off it retains the heat for some
time. Use this heat to nish custards or to dry bread.
• Do not use a lot of cooking oil when roasting. This will
prevent splattering oil on the sides of the oven and the
oven door. Polyunsaturated fats can leave residue which is
very difcult to remove.
• When cooking things which require a high heat from
below (e.g. tarts), place the cooking dish on a scone tray
in the desired shelf position.
• For sponges and cakes use aluminium, bright nished or
non-stick utensils.

Your oven has seven positions for shelves. These are
numbered from 1 (the lowest shelf position) to 7 (the highest
shelf position). See diagram.
To give maximum space above and below the shelves, load
them in this way:
• When cooking with 1 shelf, use position 3 or 4.
• When cooking with 2 shelves, use position 3 and 5.
Use the oven efciently, by cooking many trays of food at the
same time. For example:
– Cook 2 trays of scones, small cakes or sausage rolls.
1
2
3
4
5
6
7



The following tables are intended as a guide and experience may show some variation in cooking times necessary to meet
individual requirements.
For best results when baking you must preheat your oven for 30 minutes.

   
Scones Plain or fruit 210 Any 10 -15
Biscuits Rolled 150 Any 10 - 15
Spooned 180 Any 12 - 15
Shortbread biscuits 150 Any 30 - 35
Meringues Hard - individual 100 Any 90
Soft - individual 165 Any 15 - 20
Pavlova - 6 egg 100 Any 75
Cakes Patty cakes 180 Any 15 - 20
Sponge - 4 egg 170 Any 20 - 30
Shallow butter cake 170 Any 30 - 40
Rich fruit cake 130 Any 180
Pastry - shortcrust Cornish pasties 180 Any 40 - 45
Custard tart 190 / 170 Any 20 - 30
Pastry - choux Cream puffs 200 Any 25 - 30
Yeast goods Bread 200 Any 25 - 30

   
Scones Plain or fruit 210 Any 10 -15
Biscuits Rolled 170 3 & 5 10 - 15
Spooned 180 3 & 5 12 - 15
Shortbread biscuits 150 3 & 5 30 - 35
Meringues Hard - individual 100 Any 90
Soft - individual 165 Any 15 - 20
Pavlova - 6 egg 100 Any 75
Cakes Patty cakes 180 3 & 5 15 - 20
Sponge - 4 egg 170 3 20 - 30
Shallow butter cake 170 3 & 5 30 - 40
Rich fruit cake 130 3 180
Pastry - shortcrust Cornish pasties 180 / 160 3 40 - 45
Custard tart 190 / 170 3 20 - 30
Pastry - choux Cream puffs 200 3 & 5 25 - 30
Yeast goods Bread 200 Any 25 - 30
* Counting from the bottom shelf up. Refer to “oven shelf location” section for more detailed information.


• You can use the grill tray and grill tray insert for roasting
meat in the oven.
• Place the meat in the oven and set the temperature
between 180°C and 200°C. (It is recommended to wrap
your meats in an oven roasting bag or foil to prevent fats
and oils from splattering, making it easier to clean your
oven.)
• Do not pierce the meat, as this will allow juices to
escape.
• When the meat is cooked, take the roast out of the oven,
wrap in aluminum foil and leave to stand for about 10
minutes. This will help retain the juices when the meat is
carved.
The table shows temperatures and cooking times for different
kinds of meat. These may vary depending on the thickness or
bone content of the meat.
 


Beef 200°C Rare 35 - 40
Medium 45 - 50
Well done 55 - 60
Lamb 200°C Medium 40
Well done 60
Veal 180°C Well done 60
Pork 200°C Well done 60

• Place the poultry or sh in an oven set at a moderate
temperature of 180°C.
• Place a layer of foil over the sh for about three quarters
of the cooking time.
The table shows temperatures and cooking times for different
kinds of sh and poultry. These may vary depending on the
thickness or bone content of the meat.





Chicken 180°C 45 - 50
Duck 180 - 200°C 60 - 70
Turkey 180°C 40 - 45 (<10kg)
35 - 40 (>10kg)
Fish 180°C 20


  
Uneven cooking Incorrect shelf position Select shelf that puts food in centre of oven
Oven tray too large Try other trays or dishes
Trays not in centre Put trays in centre
Air ow in oven uneven Rotate food during cooking
Grill tray affecting thermostat Remove grill tray from oven on bake modes
Baked products too brown on top Oven not preheated Preheat the oven
Baking tins too large for recipe Use correct size tins
Baking tins not evenly spaced Stagger baking tins at least 3cm between tins
and the oven walls
Products not evenly sized or spaced on trays Make into same size and shape and spread
evenly over trays
Baked products too brown on
bottom
Baking tins too large Use correct size tins
Baking tins are dark metal or glass Change to shiny, light tins or lower the
temperature by 10°C
Food too low in oven Cook one shelf higher
Oven door opened too frequently during baking Don’t open the oven door until at least half the
cooking time has passed
Baking temperature too high Lower the temperature
Grill tray affecting thermostat Remove grill tray from oven on bake modes
Cakes have a cracked thick crust Baking temperature too high Lower the temperature
Food too low in oven Cook one shelf higher
Cake batter over mixed Mix just long enough to combine the ingredients
Baking tin too deep Check size of tin and use recommended size
Baking tins dark Change to shiny light tins
Baked products are pale, at and
undercooked
Baking temperature too low Raise the temperature
Food too low in oven Cook one shelf higher
Baking time too short Increase cooking time
Incorrect baking tin size Use correct size tin
Cakes fallen in centre Baking temperature too low Raise the temperature
Baking time too short Increase cooking time
Proportions of ingredients incorrect for recipe Check recipe
Opening door too early during baking Do not open door until the last quarter of cooking
time
Roast meat and potatoes not
brown in fan oven
Poor hot air circulation Elevate food onto a rack to allow air circulation
Grill tray affecting thermostat Remove grill tray from oven on bake modes
Juices running out of meat Do not pierce meat with fork, turn with tongs
Grilled meats overcooked on
outside & raw in the centre
Grill at lower insert position
Grilled chops & steaks curling Cut into fat every 2cm (¾")


Your gas oven is tted with an electronic controller which
manages the operation of the burner and monitors the
ame. This controller includes features which ensure the safe
operation of your appliance and will prevent the build up of
unburnt gas, should a fault occur.
It is normal for the ame to turn on and off during cooking,
to maintain a stable temperature in the oven. The Thermostat
Indicator Light indicates when the ame is on or igniting
(indicator glows), or when the ame is off (indicator off).
The burner ame can be seen by viewing through the 2 holes
in the front of the burner cover.

The controller will attempt to ignite the ame when an oven
function is selected and the Thermostat turns on (indicator
light changes from off to on). The controller will make up to
2 attempts to ignite the ame, stopping if a ame is detected
by the controller. If by the end of the 2 attempts a ame is not
detected then the burner and ignition will be turned off and
a delay of 90 seconds will be observed. During this delay
the controller will not respond to the Function and Thermostat
controls.
At the end of this delay, switch the Thermostat or Function
Selector off and leave off for at least 5 seconds. Then switch
the Thermostat and Function Selector on again to re-attempt
ignition.
If the oven controls are left on when the delay ends then
ignition will not be attempted until the Thermostat or Function
Selector is rst turned off for 5 seconds.

If the controller cannot detect ame due to a fault, then the
controller will respond
• rstly by attempting to re-light the burner with a sequence
of up to 3 attempts and
• If the re-lighting sequence is not successful the burner will
be shut off.
The re-lighting sequence will include up to 3 attempts to
re-light the burner, stopping if a ame is detected by the
controller. If by the end of the re-lighting sequence a ame
is not detected then the burner and ignition will be turned
off and a delay of 90 seconds will be observed. During
this delay the controller will not respond to the Function and
Thermostat controls.
At the end of this delay, switch the Thermostat or Function
Selector off and leave it off for at least 5 seconds. Then
switch the thermostat and Function Selector on again to re-
attempt ignition.
If the oven controls are left on when the delay ends then
ignition will not be attempted until the Thermostat or Function
Selector is rst turned off for 5 seconds.



During normal cooking the Thermostat indicator light is on
when the burner ame is igniting or on, and the Thermostat
indicator light is off when the ame is off.
If an oven function is selected and the Thermostat light is
on, but the ame is not on or attempting to ignite then the
controller has invoked a safety shutdown of the burner. A
90 second delay is observed from the time the shut-down
occurred before the controller will respond to the oven
controls.
Once the delay period has ended the Thermostat or Function
Selector must be turned off for at least 5 seconds before oven
functions can resume.

In the event of an interruption to mains power, the restoration
of power will not cause the burner to ignite if the controls
were left on. However the grill element will resume heating
on models which do not have an electronic clock.
To resume operation of the appliance after a power
interruption:
• First turn the Function Selector or Thermostat controls to the
off position. The controls must remain in this position for at
least 5 seconds
• If the appliance has an electronic clock then set the time
of day on the electronic clock. Normal operation of the
appliance may now resume.




• Remove all spilt food and fat with the supplied razor
blade scraper, while the ceramic glass is still warm but not
hot. Wipe clean with dishwashing detergent on a damp
cloth.
• If aluminium foil, plastic items or high sugar content
foods are allowed to melt on the ceramic glass, clean
immediately with the supplied razor blade scraper before
the surface has cooled down, otherwise pitting of the
surface can occur.
 Items with high sugar content not only include jam
and fruit, but also vegetables such as peas, tomatoes and
carrots.
• When the ceramic glass is cool, apply a suitable cleaner
(supplied with the appliance).
• It is important to follow the cleaner manufacturer’s
instructions. Remove any cleaning residue from the surface
as staining of the cooktop may occur.
• Do not use abrasive sponges or scourers, as they may
scratch the surface.
• Any pitting, staining, scratches or other surface
deterioration is excluded from the warranty.
• All stains/water marks can be removed by vigorous
cleaning, using the supplied ceramic cleaner.

• The trivets can be removed for cleaning by carefully lifting
them form the hob.
• Clean by washing with warm soapy water.
• The burner caps and crowns are also removable for
cleaning.
• If the caps, crowns and cups are heavily soiled, use a
non-abrasive cleaning compound.
• Flame port blockages should be removed by using a
matchstick or brush.
• Do not clean them with abrasive or caustic type cleaners,
or clean them in a dishwasher.

• Always keep your appliance clean. Ensure that fats and
oils do not accumulate around elements, burners or fans.
• Always keep oven dishes, baking trays, grill trays and grill
tray insert clean, as any fat deposits may catch fire.
• Always wrap your meats in foil or an oven roasting bag
to minimise cleaning. Any polyunsaturated fats can leave
a varnish-like residue which is very difcult to remove.

• Always keep the grill tray and grill tray insert clean, as
any fat deposits may catch fire.
CAUTION
• Always make sure that the oven is electrically isolated
before cleaning. This can be done via the functional switch
located nearby. Do not use steam cleaners.
• Do not line the bottom of the oven or grill with foil or
cookware.

• Wash with warm soapy water and rinse with clean water.
• Rub persistent stains vigorously with a nylon scourer or
creamed powder cleansers.
 You can also use household oven enamel cleaners –
follow the manufacturer’s instructions carefully.
• Do not use harsh abrasive cleaners, powder cleaners,
steel wool or wax polishes.

All grades of stainless steel can stain, discolour or become
greasy. You must clean these areas regularly by following the
procedures below, if you want your appliance to look its best,
perform well and have a long life.
WARNING


Your stainless steel appliance is manufactured from a mark
resistant stainless steel. This special stainless steel resists marks
such as fingerprints and water spots. To keep your stainless
steel appliance looking it’s best, you should clean it regularly.
Wash with warm soapy water and rinse with clean water.
Wipe with clean water and a soft cloth to remove soap
residue.
 Make sure you follow the polish or brushing lines in the
steel.
CAUTION
DO NOT use stainless steel cleaners, abrasive pads or other
cleaners as they are likely to scratch the surface. Damage
due to poor cleaning technique is not covered by your
warranty.

• Glass surfaces on doors and control panels are best
cleaned immediately after soiling.
• A damp cloth may help remove baked on food deposits.
• Oven cleaners can be used to remove stubborn marks
and stains.



• Turn oven light glass anticlockwise to remove it for globe
replacement.
A special high temperature resistant globe should be used
that can be purchased from the Electrolux Customer Care
Centre.
WARNING
 Make sure the appliance is turned off before you
remove or replace parts, to avoid the possibility of electric
shock.


• Slide the shelves/grill tray towards you until they reach
the front stop.
• Tilt them up at the front, taking care not to spill any
contents.
• Lift them clear.
• Wash the shelves, grill tray and grill tray insert in hot
soapy water.
• Reverse the above steps to put the grill dish and shelves
back again.
• See page 5 for more details.

• Grasp the side rack at the front.
• While pushing the side rack to the rear of the oven, pull it
firmly inwards.
• To install the side racks, see page 5.




If there is a problem with the oven and/or grill, please:
• Check the points listed below before calling for service. It may be possible to avoid a call by xing the problem yourself –
and so continue cooking.
• For cooking problems, see page 15.
 We may charge for service even in the guarantee period if your problem is due to the causes listed below.

If you need more information, service, replacement parts or have a warranty enquiry, please contact the Customer Care Centre:
• Australia – 1300 363 640, 8.00am - 5.00pm EST Monday - Friday
• New Zealand – 09 573 2384, 8.00am - 5.00pm EST Monday - Friday
Please have the following information ready: Model, Model Number and Serial Number. This is shown on the data plate
which is visible when the oven door is open.
  
Oven or grill not working Power not turned on Switch on electricity
Household fuse blown Check fuses
Controls incorrectly set Reset controls
Circuit breaker tripped Check circuit breaker
Clock not set Set time of day on timer
 If the household fuse continues to blow, call the Electrolux Customer Care Centre.
Oven not heating enough Foil or trays on bottom of oven Remove foil or trays
Light and fans on continuously Timer not in manual mode Set timer to manual mode
Oven not working Timer not in manual mode Set timer to manual mode
Household fuse blown Check fuses
 If the household fuse continues to blow, call the Electrolux Customer Care Centre.
Oven light not working Household fuse blown Check fuses
Circuit breaker tripped Check circuit breaker
Lamp blown or loose in socket Replace or tighten lamp
 If the household fuse continues to blow, call the Electrolux Customer Care Centre.
Cooker smoking when first used Protective oils being removed Turn grill on high for 30 mins and then the
oven on 220°C for 1 hour
Too much condensation building up when
baking
Too much water used when cooking Reduce amount of water
Leave oven door open after cooking
Smells when rst using oven This is normal
60 minute or 2 hour timer ring not audible Timer not wound sufficiently Turn timer knob past 20 minutes then turn
back to required number of minutes
Gas hotplates not working Power not turned on at appliance Switch on electricity
Household fuse has blown or power supply
is turned off
Check fuses
Gas is off Check gas is supplied to the cooker
Burner parts or spark plugs are wet or dirty Clean and dry burners or spark plugs
Timer ashing Power failure or interruption Reset time of day
 In the event of a power failure the gas burners may still be lit with a handheld igniter and used. Take care to avoid letting
unburnt gas ow for more than 5 seconds when attempting to light the burner.





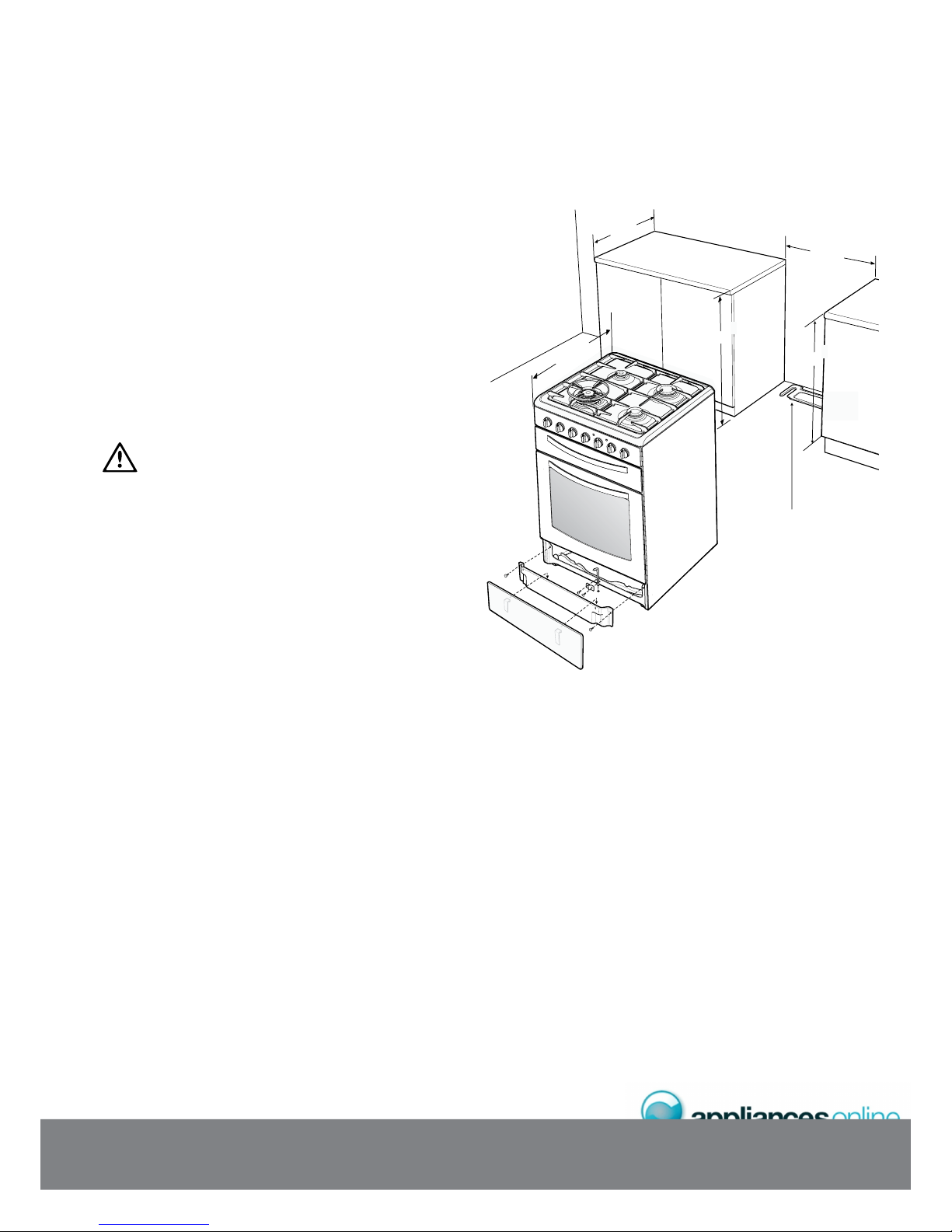

This appliance has been designed to ‘slot-in’ to a 600mm
wide gap built-in standard kitchen cabinets. As such the
appliance can be installed matching the height and depth of
benches and behind the kick rail of the cabinets. This allows
the cooker to integrate well into contemporary kitchens. The
cooker may also be installed at the end of a line of benches or
with a free space on either side.
• This appliance is not supplied with a splashback.
• Ensure that all vertical surfaces (rear and sides) are non-
combustible surfaces (eg ceramic tiles, sheet metal or
toughened glass).
• Refer to section 5.12.1.1 of AS5601 in Australia or
section 14.1.2 of NZS5261 in New Zealand for
overhead clearances.
WARNING





Electrolux Home Products cannot accept responsibility for
damage caused by installation into low temperature tolerant
cabinets.



1. Check that the required services are correctly positioned
(see electrical and gas services requirements section and
cabinet requirements section).
2. Ensure that cabinetry has correct details (see cabinet
requirements section).
3. Unpack the cooker.
4. Remove the foam pack containing accessories.
5. Remove the internal pack from the oven and position shelf
supports and grill trays (see page 5).
6. On gas cookers position gas burners and trivets (see
page 6).
m600m
600m m
mminimu
0m( M72 mNO)
anti-tilt bracket
600mm
m( )900mNOM
