Westinghouse HD LCD TV User manual

English
Owner’s Record
The model and serial numbers are located on the back of the
TV. Keep a record of the numbers in the spaces provided
below. Refer to them whenever you call upon your
Westinghouse Digital dealer regarding this product.
Model No. __________________________________
Serial No. ___________________________________
If you have any questions or concerns,
Please call our toll free number
1-866-287-555

ii
English
Welcome 1
Package Contents 1
Contacting Westinghouse Digital 1
1 Product Safety 3
Important Notice Concerning Power Cord Selection 3
FCC Compliance Statement 4
Product Safety Instructions 4
Important Safety Instructions 5
Other Notices 5
Antenna Installation Safety 7
Outdoor Antenna Grounding 7
Lightning 7
Power Lines 7
2 INTRODUCTION: THE BASICS 8
Digital Television (DTV) 8
High Definition Television (HDTV) 8
About the Digital Television Picture 8
About Digital Channels 9
Controls and Connections 12
Front View 12
Side Connectors 13
Quick Reference: HDTV Connection 15
Inserting Remote Control Batteries 16
Precaution 16
Remote Control Features 17
3 HDTV/ACCESSORY SETUP 20
Connecting Your HDTV 20
Power 20
Choose Your TV Source 21
Determining Available Channels 22
Set Your Time Zone 23
Connecting Your Personal Computer 24
Computer Settings 24
Connection Types 24
Power 24
Connecting Other Accessories 25
DVD or Game System 25
Video Cassette Recorder (VCR) 25
Cable or Satellite Receiver 26
Audio Equipment 26
4 HDTV OPERATION 27
About the On Screen Display (OSD) 27
OSD Menus and Features 28
Contents

iii
English
List of Speed Keys Menu 28
Video Menu 29
TV Menu 36
Settings Menu (Screen 1) 39
About Parental Controls 41
Settings Menu (Screen 2) 47
5 Appendix 50
42-inch High Definition LCD TV Specifications 50
47-inch High Definition LCD TV Specifications 52
Troubleshooting 54
Cleaning the High Definition LCD TV 56
Wall mount and Base removal for the 42"/47" HD LCD TV57
Safety bracket Options 59

1
English
Welcome
Congratulations on the purchase of your High Definition LCD TV-and thank you for
choosing Westinghouse. This User Manual was created to ensure simple, safe
setup and use of all the features offered by your new HDTV.
Package Contents
In addition to your new Westinghouse FHDTV and this User Manual, you'll also find
the following:
Contacting Westinghouse Digital
If you still have questions or require assistance after reading the Quick Setup Guide
and the instructions in this User Manual, please contact Westinghouse Customer
Service at 1-866-287-5555, or visit our Web site at www.westinghousedigital.com.
Don't forget to complete and return your Warranty card or use our online
Product Registration feature. Your Westinghouse HDTV is warranted for
Quick Setup Guide,
Warranty Card and User
Guide

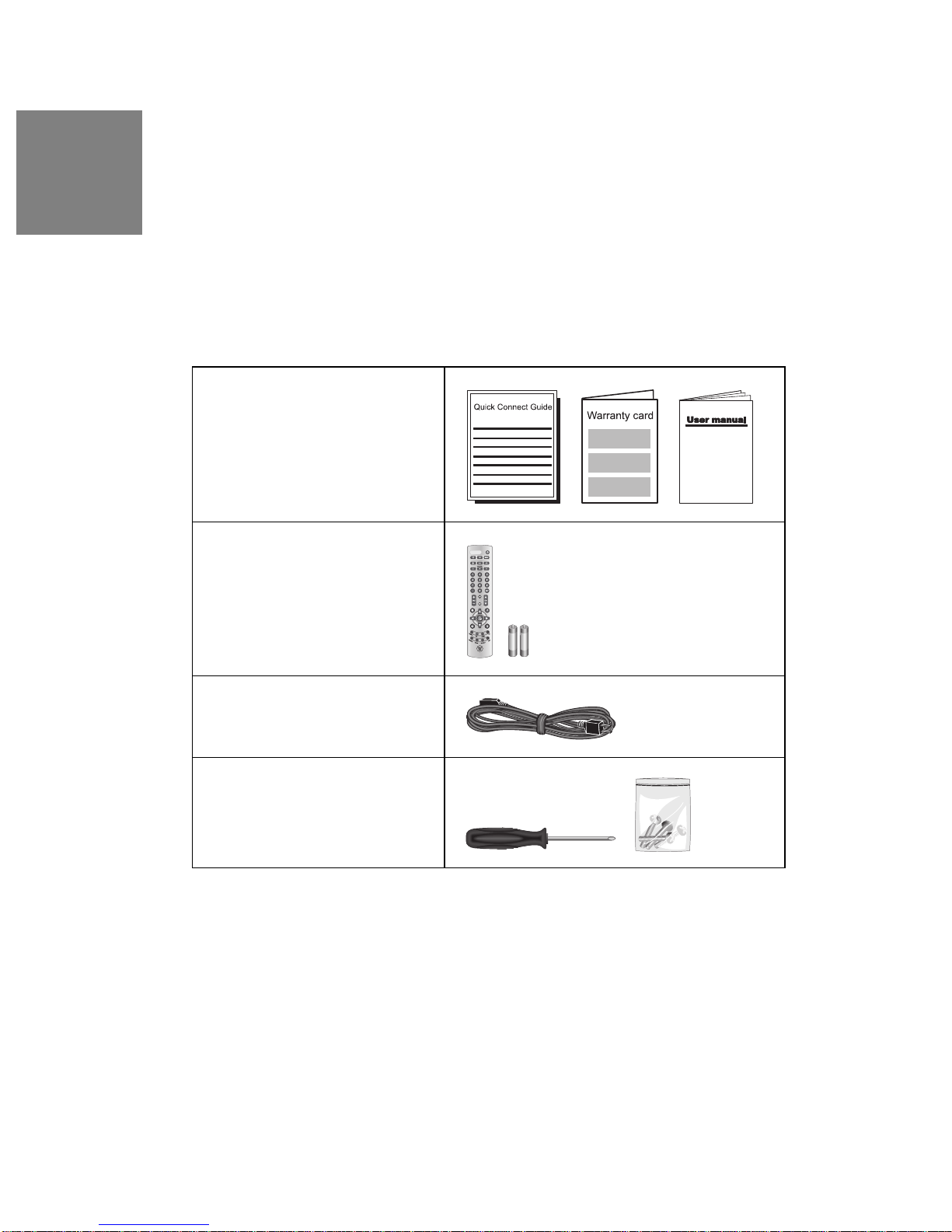

Remote control and 2 AAA
batteries
AC power cord
Screw driver and 4 screws
(42” model)

2
English
defects in materials or workmanship for a period of one year from original date
of purchase.

3
English
PLEASE READ FIRST:

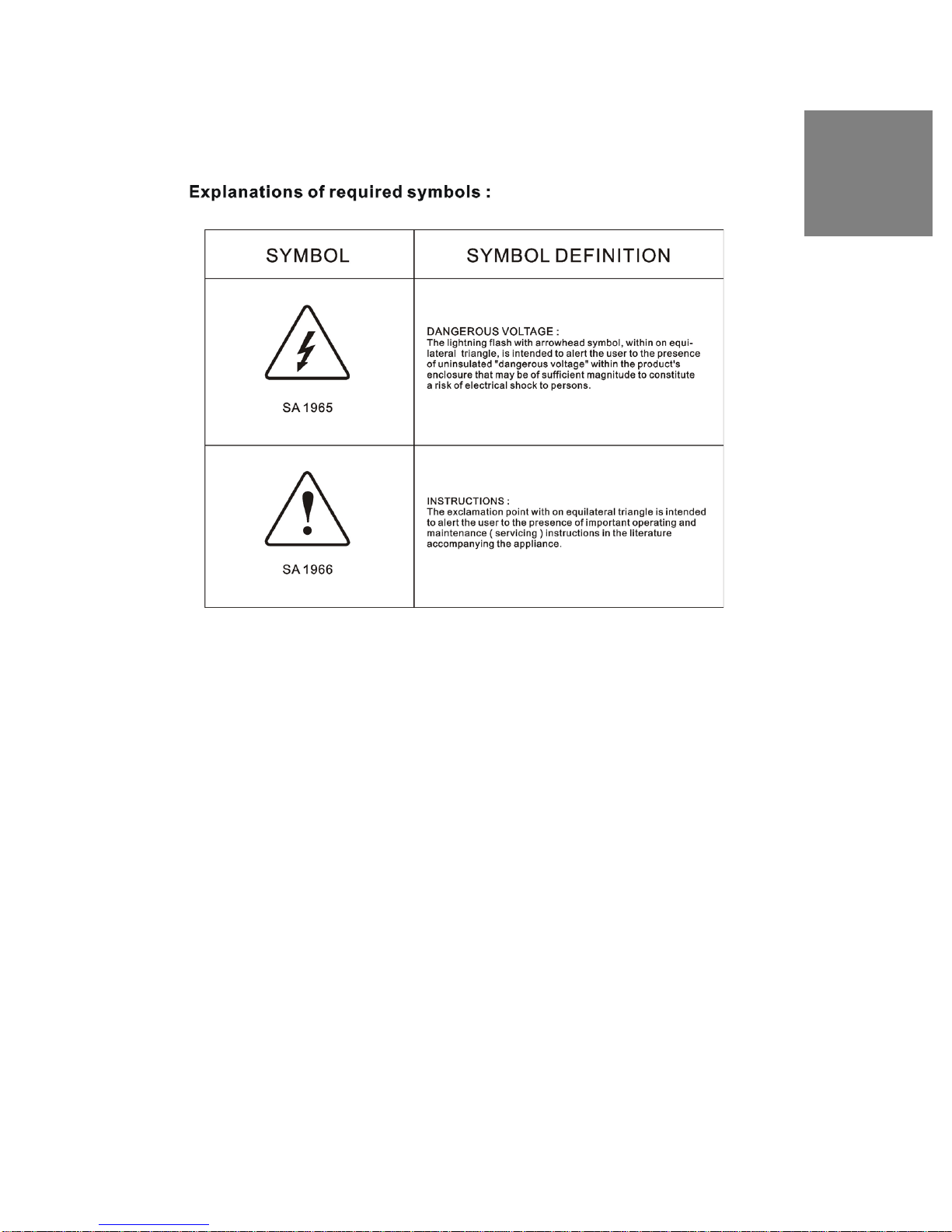

1 Product Safety
WARNING: This device must be operated with the original power
supply, part number DPS-210 EP 2 C.
Caution: The power supply outlet should be located near High
Definition LCD TV and should be easily accessible. Always use the
appropriate AC cord that is certified for your specific country. Some
examples are listed below:
Important Notice Concerning Power Cord
Selection
The specific power cord for this High Definition LCD TV is enclosed and has been
selected according to the country of destination and must be used to prevent electric
shock. Use the following guidelines if it is necessary to replace the original cord set,
or if the cord set is not enclosed. The female receptacle of the cord set must meet
IEC-60320 requirements and should look like Figure A1 below:
For the United States and Canada
In the United States and Canada the male plug is a NEMA5-15 style (Figure A2), UL
Listed, and CSA Labeled. For High Definition LCD TVs that are placed on a desk or
table, type SVT or SJT cord sets may be used. For High Definition LCD TVs placed
directly on the floor, only SJT type cord sets may be used. The cord set must be
selected according to the current rating for the High Definition LCD TV. Please
USA............................................UL Switzerland......................................SEV
Canada...................................CSA Britain......................................BASE/BS
Germany.................................VDE Japan.......Electric Appliance Control Act

4
English
consult the table below for the selection criteria for power cords used in the United
States and Canada.
FCC Compliance Statement
This equipment has been tested and complies with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy, and may cause
harmful interference to radio communications if not installed and used in accordance
with the instructions. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the High Definition LCD TV and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the Westinghouse Service Center or an experienced radio/TV
technician for assistance.
FCC Warning
To assure continued FCC compliance, the user must use a grounded power
supply cord and the provided shielded video interface cable with bonded
ferrite cores. If a BNC cable is used, use only a shielded BNC (5) cable. Also,
any unauthorized changes or modifications not expressly approved by
Westinghouse Digital will void the user's authority to operate this device.
Product Safety Instructions
Follow and obey all warnings and instructions marked on the High Definition LCD
TV. For your safety, please read all of the following safety and operating instructions
before you operate the High Definition LCD TV-and keep this User's Manual for
future reference.
Cord Type Size of Conductors in Cord MaximumCurrentRating
of Unit
SJT 18 AWG
16 AWG
14 AWG
10 Amps
12 Amps
12 Amps
SVT 18 AWG
17 AWG 10 Amps 12 Amps

5
English
Important Safety Instructions
1 Never use your HDTV near water.
2 Clean only with dry cloth.
3 Never block any ventilation openings; install in accordance with the
manufacturer's instructions.
4 Do not install near any heat sources such as radiators, heat registers,
stoves or any other equipment (including amplifiers) that produce heat.
5 Take care to maintain the safety purpose of the polarized or grounding
type plug. A polarized plug has two blades with one wider than the
other. A grounding type plug has two blades and a third grounding
prong. The wide blade or the third prong are provided for your safety;
therefore, if the provided plug does not fit into your outlet, do not alter
the plug in any way to fir; consult an electrician for replacement of the
obsolete outlet.
6 Ensure the power cord is protected from being walked on or pinched,
particularly at plugs, convenience receptacles and the point where
they exit from the apparatus.
7 Only use attachments/accessories specified by the manufacturer.
8 Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use
caution when moving the cart/apparatus combination to avoid the
potential for injuries caused by tipping over.
9 Unplug this apparatus during lightning storms or when unused for long
periods of time.
10 Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as: damage
to the power supply cord or plug; liquid has been spilled into-or objects
have fallen onto-the apparatus; the apparatus has been exposed to
rain or moisture and does not operate normally, or it has been
dropped.
Other Notices
• Avoid exposing the High Definition LCD TV to direct sunlight or high
temperatures.

6
English
• Avoid exposing the High Definition LCD TV to moisture or high humidity.
• Do not attempt repairs yourself. Your warranty does not cover repairs or
attempted repairs by anyone not authorized by the manufacturer.
• If your High Definition LCD TV will not be used for a long period of time, unplug
your HDTV and remove the batteries from the remote control.
• Only use attachments/accessories specified by the manufacturer.
• Avoid touching the screen. Skin oils are difficult to remove.
• Never remove the rear cover. Your High Definition LCD TV contains high-
voltage parts. You may be seriously injured if you touch them.
• Always handle your LCD display with care when moving it.
• If the High Definition LCD TV emits smoke, abnormal noise, or a strange odor,
immediately turn it off and contact the Westinghouse Service Center.

7
English
Antenna Installation Safety
Outdoor Antenna Grounding
If an outside antenna or cable system is connected to the High Definition LCD TV,
be sure the antenna or cable system is grounded to prevent voltage surges and
built-up static charges. Article 810 of the National Electrical Code, ANS/NFPA 70,
provides information on proper grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna discharge unit, connection to grounding
electrodes, and requirements for the grounding electrode.
Lightning
For added protection for the High Definition LCD TV during a lightning storm, or
when it is left unattended and unused for long periods of time, unplug it from the wall
outlet and disconnect the antenna or cable system. This will prevent damage to the
High Definition LCD TV due to lightning and power-line surges. Do not disconnect
the antenna or the power cord during a heavy storm-lightning may strike while you
are holding the cable cord, causing serious injury. Turn off your High Definition LCD
TV and wait for the weather to improve.
Power Lines
An outside antenna system should not be located in the vicinity of overhead power
lines or other electric light or power circuits. When installing an outside antenna
system, extreme care should be taken to keep from touching such power lines or
circuits.

8
English
2 INTRODUCTION: THE BASICS
Digital Television (DTV)
Television broadcasting is changing. By February of 2009, traditional analog TV
transmissions (the standard since TV's inception) will cease to exist, in compliance
with a federal mandate requiring all U.S. television stations to convert from analog to
the new digital television (DTV) standards.
In contrast to the magnetic waves used for analog transmission (also known as
NTSC, short for National Television Standards Committee), DTV transmits images
and sound as data, using ones and zeroes, the same digital code computers use. As
a result of this increased efficiency, DTV offers an array of benefits including
dramatic improvements to picture and sound quality. In addition, DTV allows the
same number of stations to broadcast using fewer channels, freeing parts of the
broadcast spectrum for other uses, such as public safety and wireless services
Note: DTV should not be confused with digital cable or digital
satellite systems. While these systems receive digital signals, the
signals are converted to analog for display on channel 3 or 4 of an
analog TV.
High Definition Television (HDTV)
The most common DTV formats are Standard Definition Television (SDTV) and High
Definition Television (HDTV). Of the two, HDTV delivers digital broadcasting's
highest resolution and picture quality. HDTV also uses a "widescreen format," which
refers to the aspect ratio (screen width vs. height) of the image. To put this in
perspective, analog television uses a 4 x 3 aspect ratio; HDTV's aspect ratio is 16 x
9, creating a more cinematic-like viewing experience. Plus HDTV increases the
number of horizontal scan lines on the screen, enabling it to render greater picture
detail. And, while HDTV uses approximately the same bandwidth, it transmits
approximately six times more information, further enhancing video and audio clarity.
About the Digital Television Picture
Your new Westinghouse High Definition LCD TV has a built-in HDTV/NTSC tuner,
meaning it can receive both analog and digital broadcasts from your antenna, cable
or satellite service. But because not all broadcasters have converted to the new DTV
standards, it's important to understand some fundamentals of the digital television
picture.
The elements that make up onscreen images are pixels. The more pixels, the more
detail, because the number of pixels determines picture resolution-and HDTV offers

9
English
the highest pixel count and best resolution available. HDTV resolution is available in
both 720p and 1080i formats. The "p" and "i" refer to the scanning method used to
deliver the lines of resolution on the screen. Progressive "p" scanning means that
pixels on the screen are refreshed simultaneously, with each scan showing every
line for a complete picture at 1/60th of a second. Interlaced "i" scanning refreshes
pixels by alternating first, by showing every odd line, then following with the even
lines-for a complete picture at 1/30th of a second.
True high definition image quality is possible only with a true high definition display-
and a 720p or 1080i signal coming into your HDTV. Lower resolution images from
analog broadcasts or VHS recordings, for example, may result in disappointing
picture quality as they simply don't have enough detail to display well in high-
definition. If you have cable or satellite service, you'll want to check with your
provider to determine which packages include stations broadcasting in high
definition, and if you need a different box or tuner to receive HDTV signals. You may
also find the "Aspect Ratio" feature found in the On Screen Display Menu's "Display"
option helpful in adjusting your picture. And, as more and more broadcasters change
to a digital signal, you will be able to view all of your programming choices in
stunning high definition-and the luxury of your personal home theater experience.
About Digital Channels
Currently, all broadcasters have an analog TV channel and a digital TV channel. The
digital bandwidth has the capability of accommodating more than one program
stream because each broadcaster's assigned digital channel carries a 19.39-
megabit-per-second (Mbps) digital data stream. This allows the broadcaster the
option of broadcasting a single program or dividing the digital data stream into
multiple programming streams. These streams include the "major" channel specific
to a broadcasting station, as well as any additional programming streams on the
bandwidth, which are referred to as "minor channels" or "sub-channels," each
broadcasting a different program. As a result, the numbering system for digital
channels is different than that of traditional analog TV.

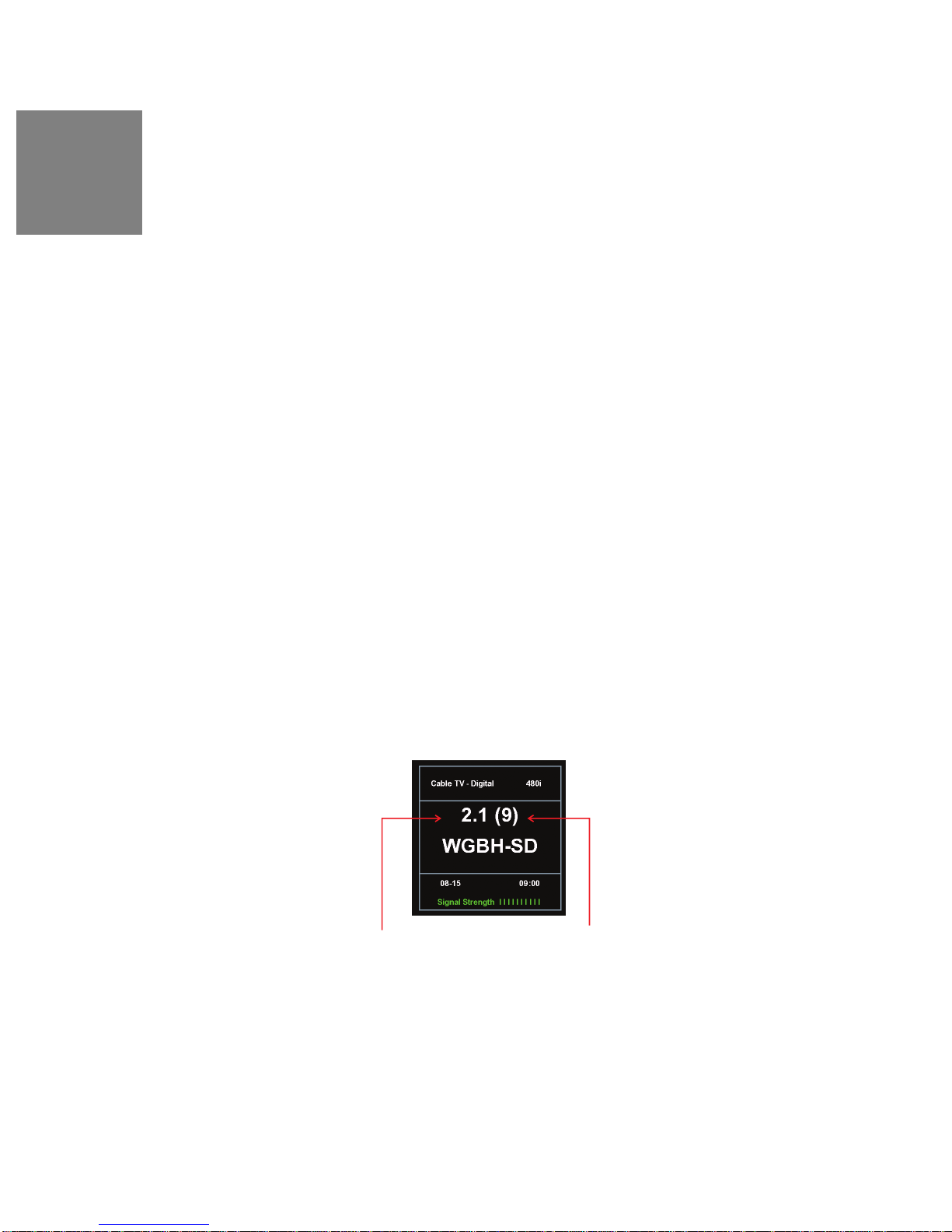

Here's how it works:
• The number in parentheses to the right is the actual physical channel number
of the transmitter used to broadcast the network programming in your region
• Each physical channel is mapped to one or more digital channel numbers,
known as "virtual channels," and represented by a number, followed by a dot
Digital Virtual Channel Number Physical Channel Number

10
English
and then another number; for example, 7.1, 7.2, etc. (the old analog channel is
always referenced to minor channel "0", as in 7.0, while 7.1 would represent the
new digital television channel)
• The first number is the major channel used for all channels of a
particular broadcasting station
• The number following the dot is the minor channel number
assigned to each broadcaster's additional programming streams;
digital television stations may have only one virtual channel, or as
many as six
There are several ways to input digital television channels:
User Input (double-digit channels) Channel Displayed
11.3 Channel 11.3
113 Channel 11.3
User Input (single-digit channels) Channel Displayed
052 Channel 5.2
5.2 + Ent Channel 5.2

12
English
Controls and Connections

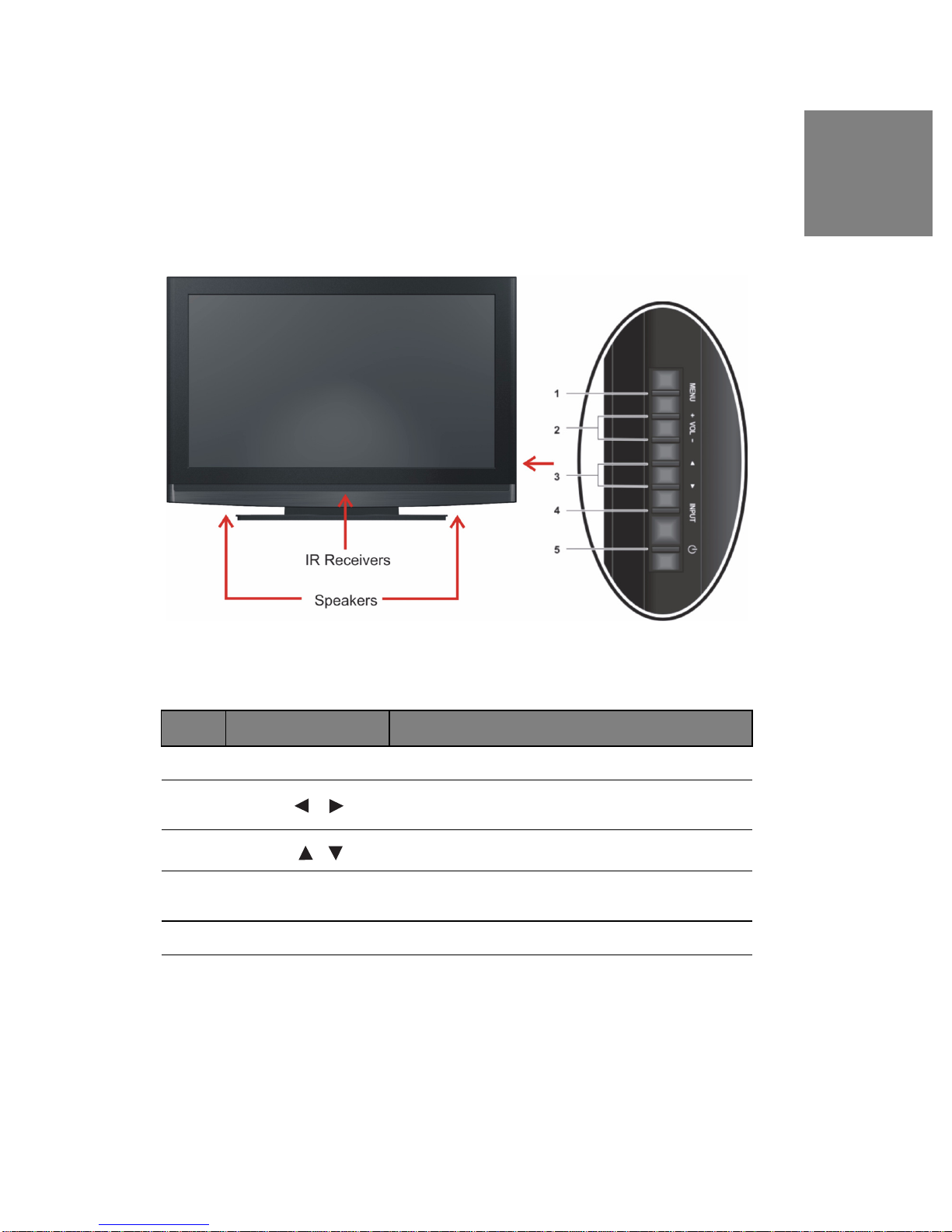

Front View
Use buttons on the right front side of your HDTV (or on remote control) for On
Screen Display (OSD), volume adjustment, channel selection, source, and turning
power on or off.
#Item Description
1 Menu OSD menu ON/OFF
2Volume / Increase/decrease sound or adjust selected features in
OSD menus
3Channel / Scroll up/down through channels or OSD menus
4 Source Select active video source or a highlighted feature in
OSD menus
5 Power ON/OFF power button

13
English
Side Connectors
#Item Description
1 YPbPr1/Audio 1 (Right/
Left) Connect external video device like DVD or game system
2 YPbPr2/Audio 2 (Right/
Left) Connect external video device like DVD or game system
3 AV1 Video/Audio (Right/
Left) Connect an external video device like VCR (Audio Right/Left supports S-Video or AV input)
4 AV2 Video/Audio (Right/
Left) Connect an external video device like VCR (Audio Right/Left supports S-Video or AV input)
5 VGA Connect personal computer using a 15-pin VGA cable
6 PC Audio Connect personal computer u sing a 3.5mm mini-jack
cable from PC's Audio Out
7 ANT (RF-input) Connect antenna or cable service

14
English
Note: See “Connecting Your HDTV” on page 20 for more information
about connecting cable/satellite receivers, game consoles, VCR and
DVD player/recorders, audio devices and your personal computer.
8 HDMI 1 /Audio1 (Right/
Left) Connect external HDMI device like a DVD, cable/ satellite receiver or personal computer; for analog
Audio use, select Audio menu in On Screen Display
(OSD) and use remote's left/right arrows to change
HDMI to Analog
9 HDMI 2-3-4 Connect external HDMI device like a DVD, cable/
satellite receiver or personal computer
10 SPDIF Digital Audio out connection
11 Audio Out (Right/Left) Connect an external audio amplifier
12 Subwoofer Connect an external subwoofer
13 USB Service port for Firmware update and maintenance
14 AC-IN (Power) Connect to power source via supplied power cord
#Item Description

15
English
Additional information:
Quick Reference: HDTV Connection
YPbPr
The "Y" stands for the luminance of the signal; Pb and Pr refer to the color difference
signals ("b" for blue, "r" for red). Provides improved color bandwidth over S-Video or
composite video connections.
DVI-HDCP (Digital Visual Interface/High-bandwidth Digital Content Protection)
Provides superior level of digital video quality, typically used in cable/satellite
receivers or DVD players. (Not Available)
HDMI (High Definition Multimedia Interface)
Provide superior level of digital video quality; includes DVD, cable/satellite receivers
or personal computers
S-Video Input (option)
The "S(uper)-Video" connection provides enhanced picture clarity for selected
accessory sources such as a digital broadcast satellite service, video games, DVD
and VHS. Accessory source must have S-Video output jack.

16
English
Inserting Remote Control Batteries
1 Remove the battery compartment cover
2 Insert the batteries corresponding to the (+) and (-) marks inside the
battery compartment
3 Reattach cover
Precaution
• Only use AAA batteries
• Don't mix new and old batteries, which can result in cracking or leakage and
may pose a risk for fire or personal injury
• Make sure you Insert batteries according to (+) and (-) markings; incorrect
battery installation can result in cracking or leakage and may pose a risk for fire
or personal injury
• Always dispose of used batteries in accordance with local laws and regulations
• Keep all batteries away from children and pets
• Remove batteries when the remote control will not be used for an extended
period of time

17
English

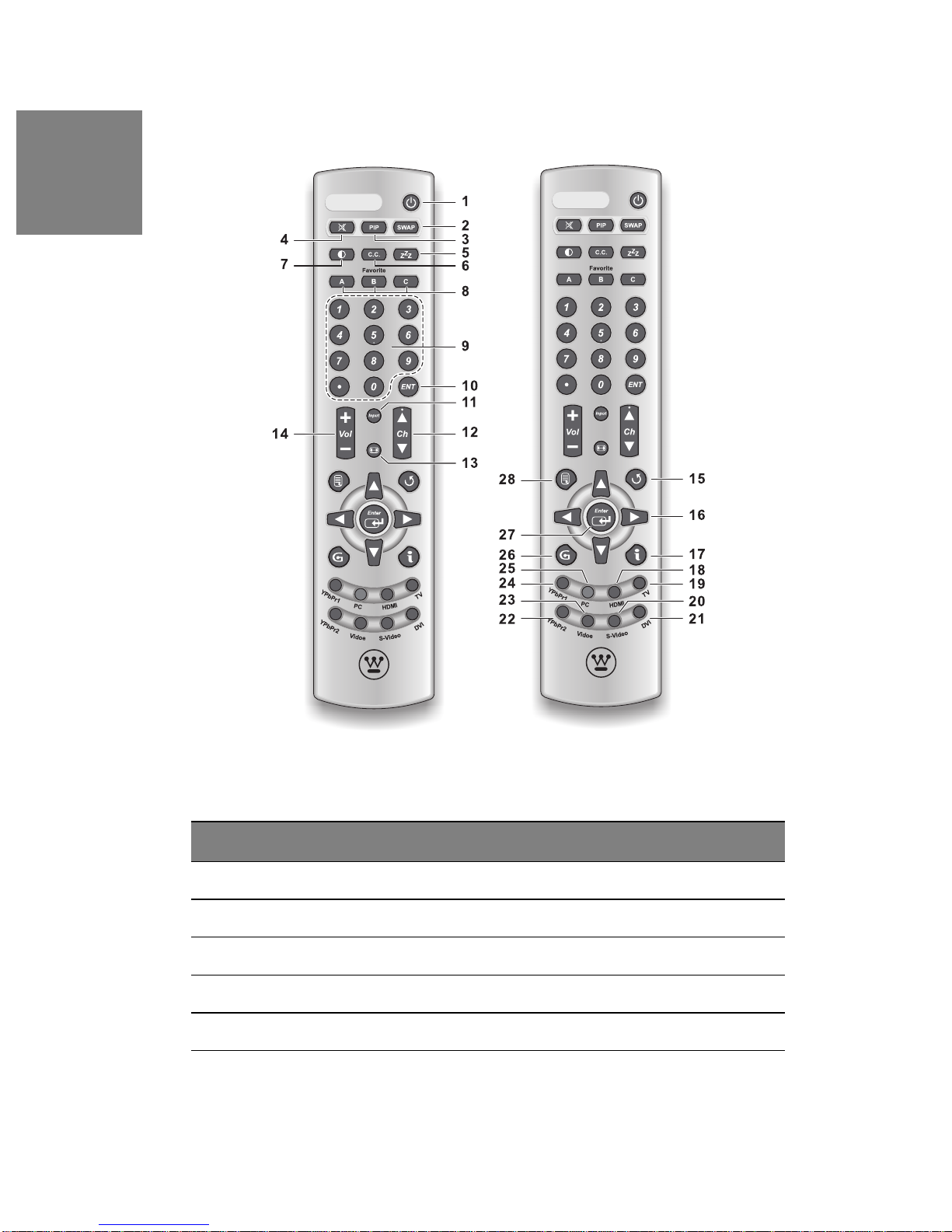

Remote Control Features
#Item Description
1 Power Switch the power On/Off
2 SWAP Switch between PIP and Main Picture (not available)
3 PIP Display sub picture On/Off (not available)
4 MUTE Turn the sound On/Off
5 SLEEP Set sleep timer

18
English
6 CC Turn Closed Caption On/Off
7 BACKLIGHT Shortcut to adjust backlight adjustment
8 FAVORITECHANNELA/ B
/ C Jump to favorite channels (Hold button for 3 seconds to program favorite channel and input source)
9 CHANNEL NUMBER KEYS Select specific channels
Note: The Dot is used to input dash when selecting
specific channels
10 ENT Complete channel selection
11 INPUT Display MP input menu
12 CH / TV Channel Up/Down adjustment
13 SCALING Set video display format to “STANDARD” or “FILL”
14 VOL / Volume Up/Down adjustment
15 LAST CHANNEL Switch to the previous channel
16 / / / Navigate within OSD Menu
17 INFO Display the source and channel information
18 HDMI Switch to HDMI sources
19 TV Switch to TV source
20 S-VIDEO Switch to S-Video source (not available)
21 DVI Switch to DVI source (not available)
22 YPbPr2 Switch to YPbPr2 source
23 AV Switch to AV1 and AV2 sources
24 YPbPr1 Switch to YPbPr1 source
25 PC Switch to VGA source
26
27 ENTER Make a selection
#Item Description
