USER’S MANUAL
MANUEL DE L’UTILISATEUR
MANUAL DEL USUARIO
PT-16H610S
LCD TV

www.wde .com
Westinghouse Digital Electronics
Santa Fe Springs, CA SE-UM-1603-0701

I
EnglishEspañolFrançais
TABLE OF CONTENTS
IMPORTANT SAFETY AND PRECAUTIONS.....................................................................1
Important Information....................................................................................................1
Safety Precautions........................................................................................................2
Important Safety Instructions ........................................................................................4
GENERAL INFORMATION .................................................................................................6
Feature .........................................................................................................................6
Controls and Ports of the Panel....................................................................................7
Accessories ..................................................................................................................9
Remote Control...........................................................................................................10
INSTALLATION AND FUNCTION ADJUSTMENT...........................................................12
Installation ..................................................................................................................12
Function adjustment ...................................................................................................15
TROUBLESHOOTING ......................................................................................................29
PRODUCT SPECIFICATION ..........................................................................................332

1
EnglishEspañolFrançais
IMPORTANT SAFETY AND PRECAUTIONS
This wide active matrix TFT (thin film transistor) liquid crystal monitor is designed for use as
a stand alone TV as well as a display device for video electronics appliances and personal
computers.
Important Information
Warning : To reduce the risk of fire or electric shock, do not expose this product to rain or
moisture.
Caution :To reduce the risk of electric shock, do not attempt to disassemble or modify this
device. There are no user-serviceable parts inside. Refer any service issues to
qualified service personnel.
Caution : FCC/ CSA regulations state that any unauthorized changes or modifications to
this equipment may void the user's authority to operate it.
Important: One Federal Court has held that unauthorized recording of copyrighted TV
programs is an infringement of U.S. copyright laws. Certain Canadian programs may also
be copyrighted and any unauthorized recording in whole or in part may be in violation of
these rights.
Warning : Do not leave stationary images, patterns, PIP windows, or letterbox images
on the screen for prolonged periods of time as this may result in permanent damage
to the LCD panel. This type of damage is not covered under warranty. The following
are examples of, but not limited to, potentially hazardous display output: side bar
images, video game patterns, closed captioning, channel logos and letterbox black
bars. To prevent this type of damage, it is recommended to display constantly moving
images that fill the screen as often as possible.
According to industrial standards for LCD display technology; there are a certain number
of allowable defective pixels. Although we produce panels with more than 99.9% active
cells, there still may be some cells that do not produce light or remain constantly lit. For
further information, please contact sales or technical support.

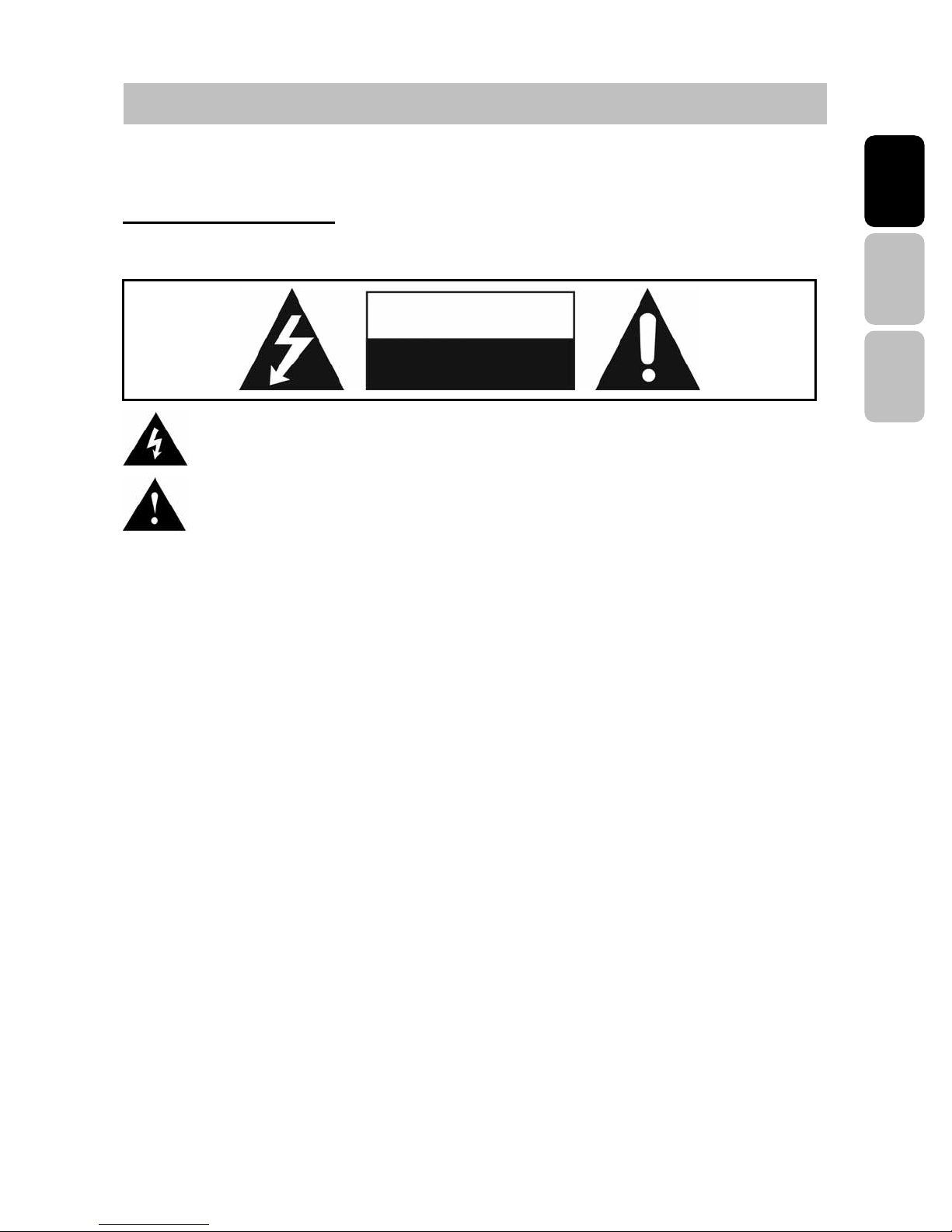

CAUTION
Risk of electric
shock. Do not open.
The symbol is intended to alert the user to presence of un-insulated ”Hazardous Voltage”
within the product’s enclosure that may be of sufficient magnitude to constitute a risk of
electric shock to persons.
The symbol is intended to alert the user that improper use of the product may result in
product malfunction. The user should pay attention to avoid accidents or unnecessary
problems.

2
Safety Precautions
1. Cleaning : Unplug the power cord from the AC outlet before cleaning the product.
Use a damp cloth to clean the product. Do not use liquid cleaners or aerosol cleaners.
2. Water and moisture : Do not use the product near water or areas of high moisture
content such as swimming pools, bathtubs or wet basements.
3. Ensure that no water droplets remain on the screen. Water can cause permanent
discoloration.
4. Heat sources : Keep the product away from heat sources such as radiators, heaters,
stoves and other heat-generating products (including amplifiers).
5. For added protection during a lightning storm or for extended periods of non-use,
unplug the power cord from the wall outlet and disconnect the antenna (if used). This
will prevent damage to the product due to power line surges.
6. If an outside antenna is connected to the product, make sure the antenna is
properly grounded so as to provide some protection against voltage surges.
( Coaxial connector shielding from cable distribution system should be probably
earthed. )
Example of antenna grounding
As per national electrical code
Electric service
equipment
Ground clamp
Power service grounding
Electrode system
Ground clamps
Antenna lead in wire
Antenna dischar
g
e unit
Groundin
g
conductors

3
EnglishEspañolFrançais

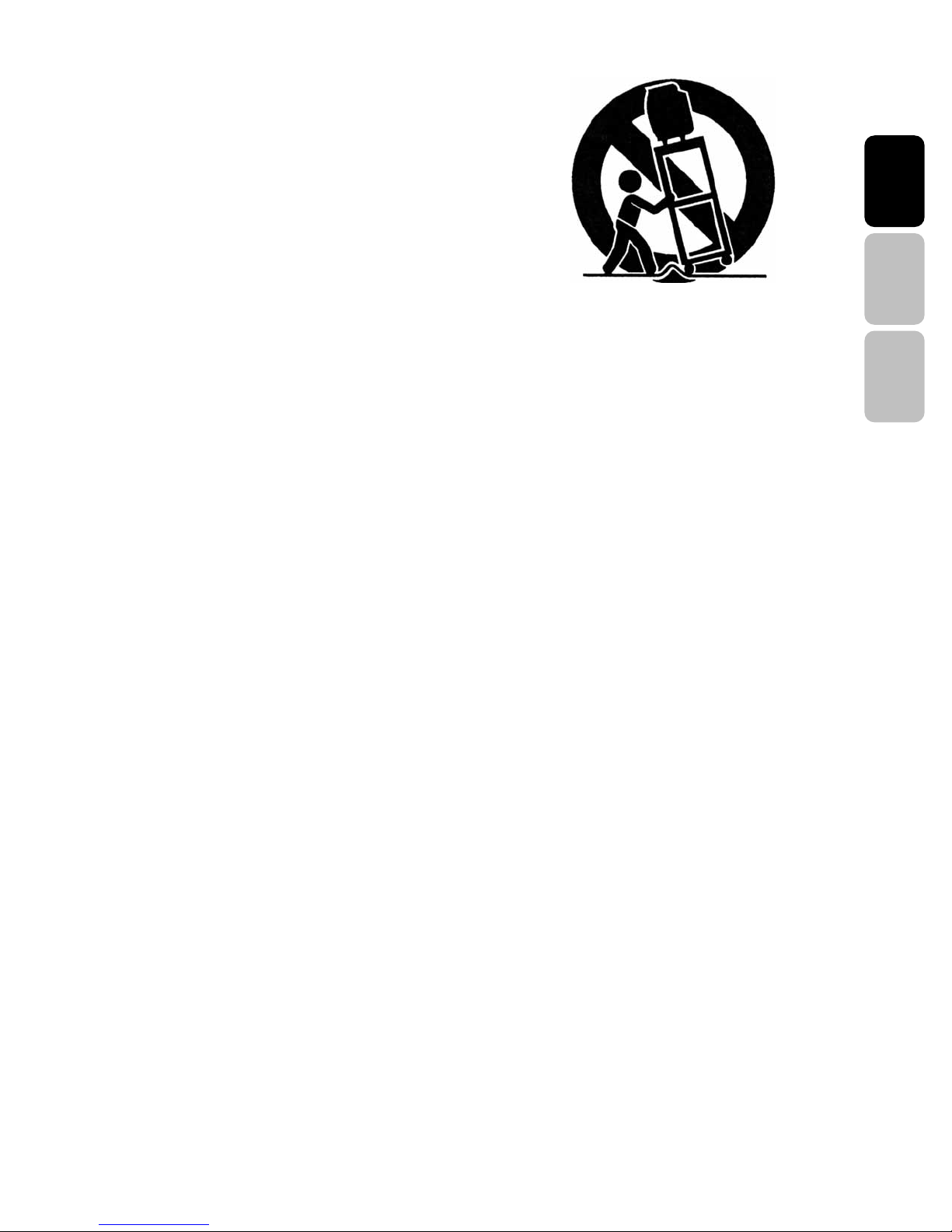

7. Stand : Do not place the product on an unstable
cart, stand, tripod or table. Placing the product
on an unstable base can cause the product to
fall, resulting in serious personal injuries as
well as damage to the product. Use only a cart,
stand, tripod, bracket or table recommended by
the manufacturer or sold with the product. Use
only mounting hardware recommended by the
manufacturer.
8. Use care when moving the product on a rolling cart. Sudden stops, excessive force
and uneven floor surface can cause the product to fall from the cart.
9. Ventilation : The vents and other openings in the cabinet are designed for
ventilation. Do not cover or block these vents and openings as insufficient ventilation
can cause overheating and/or shorten the life of the product. Do not place the product
on a bed, sofa, rug or other similar surfaces since they can block ventilation openings.
This product was not designed to operate in an enclosed environment. Don't place the
product in an enclosed space such as a bookcase or rack, unless proper ventilation is
provided or the manufacturer's instructions are followed.
10. The LCD panel used in this product is made of glass. Therefore, it can break if the
product is dropped or struck.
11. During the LCD panel lifespan it is normal for a few pixels to become defective.
Non-active pixels may appear on the screen as fixed points of red, blue or green.
Refer pixel policy questions to the reseller for further clarification on acceptable loss.
12. An outside antenna system should not be located in the vicinity of overhead power
lines or other electrical conduits. When installing an outside antenna, use extreme
caution to prevent the antenna from coming into contact with said items, as contact
with them may be fatal.

4
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that product heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide blade or the third prong are
provided by your safety. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid injury from tip-over.

5
EnglishEspañolFrançais
13. Unplug the apparatus during lightening storms or when unused for long periods of
time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in an way, such as power-supply cord is damaged,
liquid has been spilled or objects have fallen into apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has dropped.

6
GENERAL INFORMATION
Feature
Your TV is designed with the latest technology and is a high-performance unit that includes
the following special feature :
 Multi-sources input included RF IN, D-SUB, HDMIx2, Compositex2, and Componentx1.
 Built-in combo tuner is able to receive ATSC, NTSC and Clear QAM Cable signals.
 Built-in 10W dual channel speakers.
 Embedded video enhance and noise Reduction features for the colorful and clearest
picture possible.
 Provided multi-channel sound decoder for stereo and bilingual broadcasts.
 Automatic sleep timer control.
 Component video input for high definition TV programming (HDTV ready), resolution up
to 720p, 1080i.

7
EnglishEspañolFrançais
Controls and Ports of the Panel
F
Fr ro on nt tP Pa an ne el lV Vi ie ew ws s
FUNCTION KEYS
1. MENU ( 

) ʳ : Display the main menu. When OSD is appeared, press the button to select or access the
sub-menu.
2. VOLUME (W
WW
W
ʳ
ʳʳʳ
/ ʳ
ʳʳʳ
X
XX
X) ʳ : Decrease/Increase the volume or be the left/right arrow button for menu.
3. CHANNEL (▲
ʳ
ʳʳʳ
/ ʳ
ʳʳʳ
▼) ʳ : Change the channel or be the up/down arrow button for menu.
4. INPUT
ʳʻʳ  ʳ ) Select the input source ( TV, Video, HDMI ).
5. POWER
ʳ : Turn the LCD-TV on or off.
REMOTE SENSOR WINDOW
ʳ : aim the remote control towards this spot on the TV.
POWER INDICATOR
ʳ : WHITE LIGHT ѧ power on
AMBER LIGHT
ѧ power sleep
EXTINGUISHED
ѧ power off
NOTE 1 : These buttons control the basic features of your TV, including the on-screen menu. To use
advanced features, you must use the remote control
ˁʳ
NOTE 2 : The picture of LCD TV display is for reference only.
Power indicator & Remote sensor window Function Keys

8

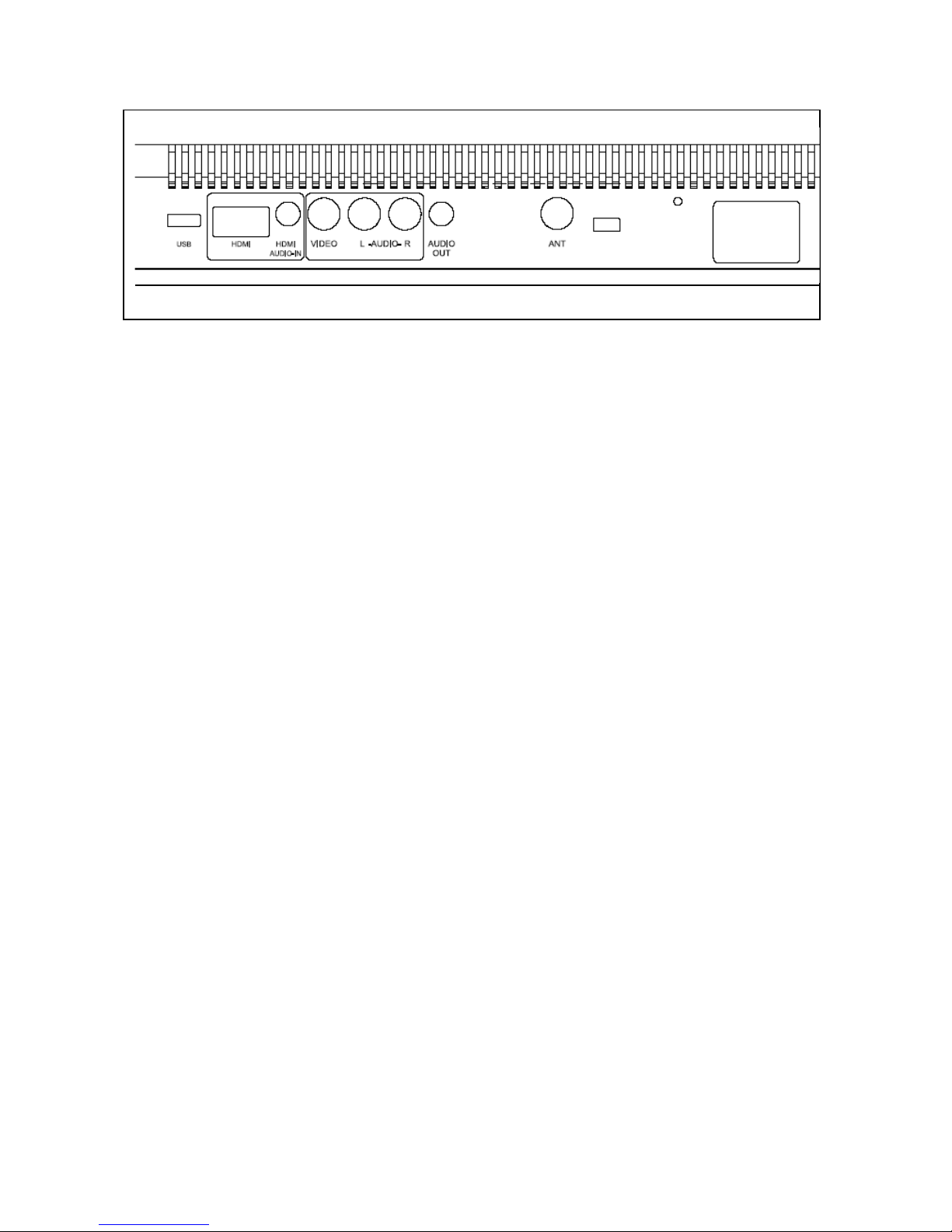

B
Ba ac ck kP Pa an ne el lV Vi ie ew ws s
1. Service USB
Factory service port
2. HDMI input
Connect to an external video device such as HD digital cable/satellite receiver, HD STB, Media
center PC, or DVD player
3. HDMI Audio input(R/L)
Connect the audio input if you using a DVI-to-HDMI converter.
4. Video input
Connect the Composite video to a legacy video such as a VCR or video game system.
5. Video Audio input
Connect an external audio source to this jack.
6. Audio output(R/L)
Connect this output to an external stereo audio amplifier, receiver or surround sound processor with
R/L audio inputs.
7. ANT.(RF input)
Connect the LCD TV to an over-the-air antenna or cable service to view NTSC and ATSC(HDTV)
content.
8. AC power in
Connect power cable to AC inlet.

9
EnglishEspañolFrançais
Accessories
User’s Manual Remote Control & Batteries
Power Cord Quick Connect Guide
Warranty Card
LCD - TV
Quick connect
Warranty Card

10

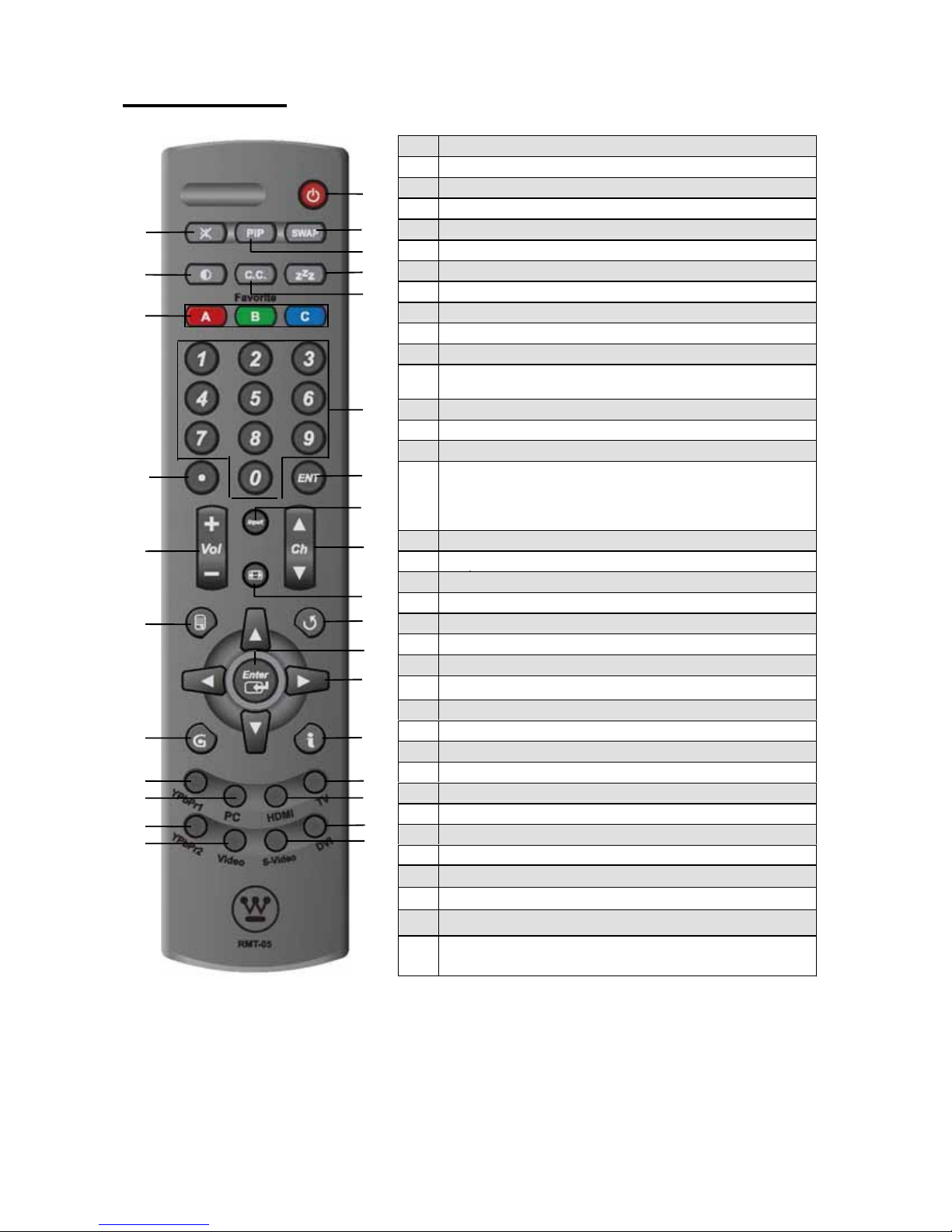

Remote Control
1 Power
Switch TV power on/off.
2 Mute
Turn the sound on/off.
3 Swap
No support
4 PIP
No support
5 Backlight
Adjust the LCD Backlight level
6 Sleep
Press to select a preset time interval for automatic power
down.
7 CC
Press to enable or disabled closed caption.
8 Favorite
Select, remove or add your favorite channel. Press
Favorite(A, B, C)key to access favorite list. Use arrow
keys and enter key to select, add or remove the channel
from favorite list.
9 Channel number keys
Select specific channel.
b
10 Enter
Execute a command.
11 Input
Select input source.
12 VOL +/-
Volume Up/Down adjustment.
13 CH ▲/▼
TV channel Up/Down adjustment.
14 Screen Fit
Select video display format “Standard” or “Fill”.
15 Menu
Display the User setup menu.
16 Return
Switch to previous TV channel or previous video input
17 Enter
Execute a command.
18 ▲/▼/◄/►
OSD menual control(▲/▼:TV channel
Up/Down;◄/►:Volume Down/Up)
1
3
4
6
7
9
10
11
13
14
16
17
18
20
22
24
26
28
2
5
8
29
12
15
19
21
23
25
27

11
EnglishEspañolFrançais
19 Guide
Broadcast program information.
20 Info.
Display the source and channel information.
21 YPbPr1
Not available
22 TV
Select TV(NTSC/ATSC) source input.
23 PC
Not available
24 HDMI
Select HDMI input.
25 YPbPr2
Not available.
26 DVI
Not available.
27 Video
Select Video input.
b
28 S-Video
Not available.
29 Dot button(NOTES)
Quicker access to all the available virtual channels
1
3
4
6
7
9
10
11
13
14
16
17
18
20
22
24
26
28
2
5
8
29
12
15
19
21
23
25
27

12
NOTES
Η
ΗΗ
Η Dot : The Dot Drop List is menu list of all the virtual channels available on the current physical channel for
the user to select. The user can utilize this function for quicker access to all the available virtual
channels instead of channeling through each channel.
Key command Function
Dot Open dot list menu
Up Move point to previous virtual channel
Down Move point to next virtual channel
Left Close dot list menu
Enter Select and change current channel to points’ channel
INSTALLATION AND FUNCTION ADJUSTMENT
Installation
1. Insert Batteries into Remote Control
1) Remove the battery cover.
2) Insert two size AAA batteries corresponding to (+) and (-) marks on the battery
compartment.
CAUTION
಺  Only use AAA batteries.
಺  Do not mix new and old batteries. This ma
y
result in crackin
g
or leaka
g
e, which ma
y
pose a fire risk or lead to personal injury.
಺  Insert batteries according to (+) and (-) markin
g
s. Insertin
g
the batteries incorrectl
y
may result in cracking or leakage, which may pose a fire risk or lead to personal injury.
಺  Dispose of used batteries in accordance with local laws and regulations.
಺  Keep batteries away from children and pets.
಺  When the remote control will not be used for an extended period, remove the batteries.

13
EnglishEspañolFrançais
2. Connections

14
3. Connect power cables
Connect the power cord to the LCD TV then to a proper AC outlet.
IMPORTANT: The power input voltage for TV is 120Vac, before beginning; make sure
all devices are turned off.
4. Turn Power On
Press the power button on the right side of the LCD TV, or press the power (Red) button
on the remote control.
5. Select input source for the LCD TV using the OSD menu or remote
control direct select buttons
6. If connecting to Antenna, Cable or other RF source on TV inputs:
See page 19 to scan and edit available channels.
ʳ
ʳ
ʳ
ʳ
ʳʳʳʳʳʳʳʳʳʳʳʳʳʳʳʳʳʳʳʳʳʳʳʳʳʳʳʳʳʳʳʳʳʳʳʳʳʳʳʳʳʳʳʳʳʳ
ʳ
ʳ
ʳ
ʳ
ʳ
ʳ
ʳ
ʳ
ʳ
ʳ

15
EnglishEspañolFrançais
ʳ
Function adjustment
There are four main Setup Menus; these are Settings, Channels, Locks and Guide. All the
functions can be adjusted either by the remote control or by using the control keys on the
LCD TV’s right side.
Viewing OSD Menu
To display the main menu, press the Menu button on the right side of front control keys of
the LCD TV or the MENU key on the remote control. Press arrow keys to select desired
OSD menu and Enter key to select desired setting. Press the Return or Menu button to
return back previous menu.

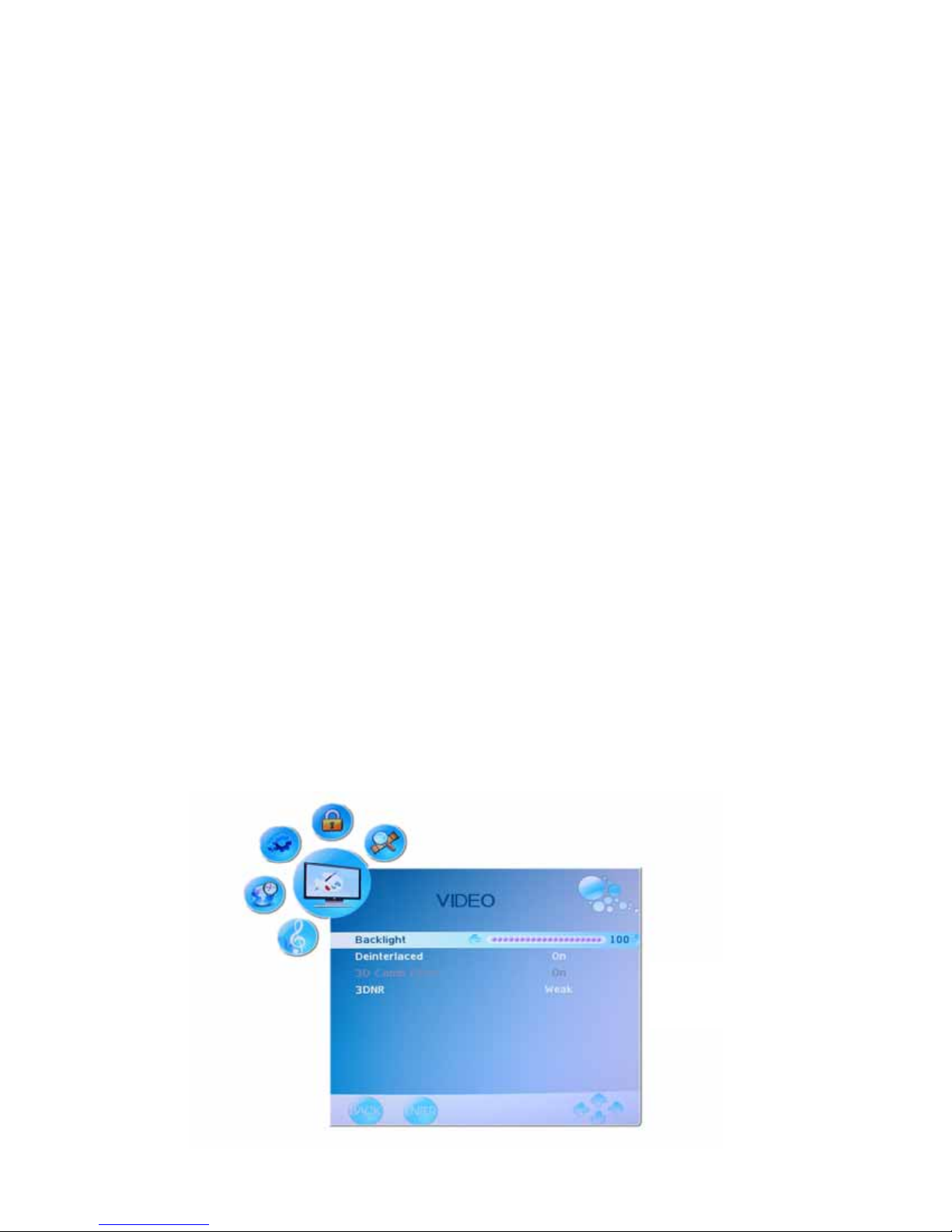

Video
Video settings:

16
Press arrow keys to select or adjust your favorite picture settings.
Preset
Choose among different preset adjustments for TV picture.
Movie / Sports / Game / Enhanced / User
Contrast
Press arrow keys to adjust the contrast.
Brightness
Press arrow keys to adjust the brightness.
Sharpness
Press arrow keys to adjust the Sharpness.
Hue
Press arrow keys to adjust the Hue.
Saturation
Press arrow keys to adjust the Saturation.
Color Temp.
Press arrow keys to select or adjust your preferred color temperature settings.
Warm / Neutral / Cool / User
Screen Size
Adjust your TV screen to handle different picture formats.
Standard / Fill / Overscan
Advanced
Need to change
