Westinghouse LTV-27w2 User manual

Model No. LTV-27w2
LTV-32w1
Type No. : SLT27A
SLT32A
27” & 32” Color LCD TV Display

27" & 32" COLOR LCD TV DISPLAY
1
www.westinghousedigital.com
Table of Contents
1. Precautions and Safety Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2. Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.1. General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3. Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3.1. Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3.2 Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3.3 Factory Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4. Front Panel Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4.1 User Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4.2 Internal Function Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.3 OSD Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Appendix A. Part Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Appendix B. Exploded Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Appendix C. Block & Schematic Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-

27" & 32" COLOR LCD TV DISPLAY
1. Precautions and Safety Notices
2
www.westinghousedigital.com
Prior to using this manual, please ensure that you have carefully followed all the procedures
outlined in the user manual for this product.
• Read all of these instructions.
• Save these instructions for later use.
• Follow all warnings and instructions marked on the product.
• Do not use this product near water.
• This display should be installed on a solid horizontal base.
• When cleaning, use only a neutral detergent cleaner with a soft damp cloth. Do not
spray with liquid or aerosol cleaners.
• Do not expose this display to direct sunlight or heat. Hot air may cause damage to the
cabinet and other parts.
• Adequate ventilation must be maintained to ensure reliable and continued operation and
to protect the display from overheating. Do not block ventilation slots and openings with
objects or install the display in a place where ventilation may be hindered.
• Do not install this display near a motor or transformer where strong magnetism is gener-
ated. Images on the display will become distorted and the color irregular.
• Do not allow metal pieces or objects of any kind to fall into the display from ventilation
holes.
Slots and openings in the cabinet and the back or bottom are provided for ventilation. To
ensure reliable operation of the product and to protect it from overheating, those openings
must not be blocked or covered. The openings should never be blocked by placing the prod-
uct on a bed, sofa rug, or other similar surface. This product should never be placed near or
over a radiator or heat register. This product should not be placed in a built-in installation
unless proper ventilation is provided.

27" COLOR LCD TV DISPLAY
3
www.westinghousedigital.com
2. Specifications
2.1 General
Item Specifications for LTV-27w2
Display Area 27” diagonal (26.97” viewable)
23.5” (H) x 13.2” (V)
Resolution 640x480, 800x600, 1024x768,
1280x720 (Native), 1280x768
Aspect Ratio 16:9
Pixel Pitch 0.1555mm(H) x 0.4665mm(V)
Lamp Life 60,000 hrs
Display Color 16.7 M
Transmissive Mode Normally black
Viewing Angle 170° (H) / 170° (V)
Brightness
(Luminance) 550cd/m2
Contrast Ratio 600:1
Response Time 16 ms
Separate Sync TTL Level
Horizontal Sync Positive/Negative
Vertical Sync Positive/Negative
Composite (Video In) 2xRCA
(Yellow, Red, White)
S-Video In S-Video
Component In YPbPr RCA,
Tuner In TV System
Antenna/NTSC
Audio In (2) RCA (Red/White)
(Audio L/R In)
Audio Out 3.5mm Stereo
(Headphone)
Compatibility Color System NTSC
Audio Output Built-in Speaker 2 x 9 watt speakers
Physical Dimensions 26.8"W x 22"H x 7.3"D (w/ Base)
26.8"W x 20.5"H x 4.0"D (w/o Base)
Weight 30 lbs w/Base
26 lbs w/o Base
Power Adapter Input – AC 90-240VAC
50/60 Hz (auto switch), 1.6A, universal
Power Consumption Normal Mode: Under 150W
Power off Mode : Under 3W
Operating Temperature 32°F to 95°F (0°C to 35°C)
Regulation Safety/EMC UL/C-UL, FCC-B
DDC Plug & Play VESA DDC1 and DDC2B
Function Function Key 7 keys
Preset Timing Mode (Pre-adjusted to reduce blinking: 1280 x 720 at 75Hz)
Warning: Do not set the graphics card in your computer to exceed these refresh rates; doing so may result in permanent
damage to the LCD TV.
Note: Product Specifications are subject to change without notice.
Graphic
Display Panel
Other
Connectors

Item Specifications for LTV-32w1
Display Area 32” diagonal (32.02” viewable)
27.9” (H) x 15.7” (V)
Resolution 640x480, 800x600,
1280x768, 1280x1024, 1360x768 (Native)
Aspect Ratio 16:9
Pixel Pitch 0.1730mm(H) x 0.5190mm(V)
Lamp Life 60,000 hrs
Display Color 16.7 M
Transmissive Mode Normally black
Viewing Angle 170° (H) / 170° (V)
Brightness
(Luminance) 550cd/m2
Contrast Ratio 1000:1
Response Time 8 ms
Separate Sync TTL Level
Horizontal Sync Positive/Negative
Vertical Sync Positive/Negative
Composite (Video In) 2xRCA
(Yellow, Red, White)
S-Video In S-Video
Component In YPbPr RCA,
Tuner In TV System
Antenna/NTSC
Audio In (2) RCA (Red/White)
(Audio L/R In)
Audio Out 3.5mm Stereo
(Headphone)
Compatibility Color System NTSC
Audio Output Built-in Speaker 2 x 9 watt speakers
Physical Dimensions 31.3"W x 25.5"H x 8"D (w/ Base)
31.3"W x 23.5"H x 3.8"D (w/o Base)
Weight 34 lbs w/Base
30 lbs w/o Base
Power Adapter Input – AC 90-240VAC
50/60 Hz (auto switch), 1.6A, universal
Power Consumption Normal Mode: Under 150W
Power off Mode : Under 3W
Operating Temperature 32°F to 95°F (0°C to 35°C)
Regulation Safety/EMC UL/C-UL, FCC-B
DDC Plug & Play VESA DDC1 and DDC2B
Function Function Key 7 keys
Preset Timing Mode (Pre-adjusted to reduce blinking: 1360 x 768 at 60Hz)
Warning: Do not set the graphics card in your computer to exceed these refresh rates; doing so may result in permanent
damage to the LCD TV.
Note: Product Specifications are subject to change without notice.
32" COLOR LCD TV DISPLAY
2. Specifications
2.1 Gener
4
www.westinghousedigital.com
Graphic
Display Panel
Other
Connectors

27" & 32" COLOR LCD TV DISPLAY
5
www.westinghousedigital.com
3. Testing
3.1. Environment
Test Condition
30 Minutes Warm-Up
Viewing Distance 1m
Input Characteristics
Input voltage range. 90Vac to 264Vac.
Input frequency range 50 or 60Hz ± 3Hz.
Power board output voltage 24V, 12V, 5VC, 5VSB +/-5%
Input current 50/60 Hz (auto switch), 0.8A/1.8A
Inrush current < 50A @ 115VAC, < 100A (MAX) @230VAC.
Operating Temperature 0° C to + 35° C (32° F to + 95° F)
Operating Relative Humidity 10% to 90% (no condensation)
Storage Temperature -20° C to + 60° C (-4° F to + 140° F)
Storage Relative Humidity 10% to 95% (no condensation)
Operating Altitude 0 meters to +3,000 meters
Storage Altitude 0 meters to +12,000 meters
Test Fixture & Equipment
Video Generator CHROMA & VCD/DVD/VCR/GAME/DVHS PLAYER
Pattern Generator CHROMA2225/VG828/VG848/VG858
3.2 Tests
Component 1&2, AV 1&2, S-Video, TV Function & Function Key test
YPbPr & Composite AV port & S-Video Port Toggle Test
Connect a YPbPr video signal to the Component port, and a composite video signal
to the AV port, and a S-Video Signal Source to the S-Video port. Using the OSD,
toggle through all the sources, and confirm that an image is displayed.
RF Signal Test
NTSC Cable Test. (Standard cable 125 Channel)
NTSC Air Test. (Antenna 69 Channel)
With a RF cable connected, a picture should be displayed.

27" & 32" COLOR LCD TV DISPLAY
Audio Test
6
www.westinghousedigital.com
Test Condition
Base input audio waveform Sine wave 0.5Vr.m.s. (1.414Vp-p) @ 1KHz
Video setting Purity white at 1280 x 768 @ 60Hz
Contrast and Brightness Default
Balance = 0, Bass = 10, Treble = 10.
Connect an audio source to each audio input (VGA, DVI, AV x 2, and component x 2) and
the speakers should output sound.
Speaker Specifications
Line Input Connection 3.5 mm stereo Jack x 1, RCA Jack (L/R) x 5
Line Input Signal 0.5Vrms (1.414Vp-p)
Line Input Impedance 10KΩ
Maximum Power Output (electric) 9W x 2 @ 10 % THD at Freq.= 200Hz ~ 15KHz
Frequency response 200Hz – 15KHz into 8ΩLoad
Distortion < 10 % THD
Audio DPMS Speakers must be mute when the display is in power
saving mode

27" & 32" COLOR LCD TV DISPLAY
7
www.westinghousedigital.com
Video Performance Test
VIDEO PORTS TO TEST
AV port S-Video port YCbCr/YPbPr TV Composite Video*
• The color from left to right should be White, Yellow, Sky Blue, Green, Magenta,
Red, and Blue.
• Some smearing or dot crawl between color
bars is acceptable.
• Use the Blue color filter to check Hue and
Saturation are in the optimized point.
(Saturation - Blue and White color should be
the same when seen through a blue color
filter.)
(Hue - Magenta and Sky Blue color should
be the same when seen through a Blue
color filter.)
• Crosshatch pattern should have no visible noise.
• In low bandwidth pattern, there shouldn’t
be any dots on the transition edges.
• In high bandwidth pattern, there shouldn’t
be any loss of resolution and the scaling
should be correct.
• This is a sample with no visible noise.
• There shouldn’t be any visible noise at transition edges.
• The gray scale should not be saturated at default value
-
-
The following tests should be conducted by connecting the video signal to one port at a time.
Color Bar
Pattern
(COL_SMPTE)
Multi Burst
Pattern
Black & White
Pattern
Gray Scale
Pattern
Crosshatch

27" & 32" COLOR LCD TV DISPLAY
Video Performance Test
8
www.westinghousedigital.com
Connect a cable TV or RF pattern generator signal and set the RF sensitivity to 45 ~85dBµV. An
image should be displayed. If under 60dBµV, some snow noise is acceptable but there
should not be any color loss.
TV Channel Auto Scan
• The auto scan process should take less than 3 minutes.
• Pressing the “Menu” key should exit the TV channel scanning.
V-Chip & Close Caption Function Test
• Close Caption:
• Select “Close Caption” (In main picture OSD) to CC1, CC2, CC3, CC4, TT1, TT2, TT3, TT4.
• Using a FLUKE 54200 or VG848/858, test CC number 1, CC number 2, CC number 3, CC
number 4, CC number 5, CC number 6, CC number 7, CC number 8.
• Parental Control:
• Select the “Parental Control” in OSD and enter the password “0000”. Enter the TV
rating and setting all the rating to “LOCKED”.
• Using a FLUKE 54200 or VG848/858, test the CC Sequence, the image should be
locked and should show the “enter password” and rating message. After entering
the password and the image should display again.
Power Supply Tests
Power Consumption Test Table:
Audio Test
Connect a VGA audio input source to VGA audio input. The audio function of Balance, Bass,
and Treble should be working normally.
Connect AV1 & AV2 (AV & S-Video) audio input source to AV L/R audio input. The audio
function of Balance, Bass, and Treble should be working normally.
Connect Component 1 & 2 audio input source to Component 1 & 2 L/R audio input. The audio
function of Balance, Bass, and Treble should be working normally.
Audio Output Test: When each audio input has a source, then the audio output RCA jack
(L/R) should output 0.5Vrms (1.414Vp-p).
Note:
1. “Green” color for 00AAB, “Blue” color for 43AAB.
2. Amber (1sec) ➝Green (1sec) ➝Amber (1sec) ➝ Green (1sec)… continuously.
3. The power saving status is only for VGA / DVI PC mode (DMPS is on).
Power saving time is 30 seconds; in factory mode it is 3 seconds.
TV Status LED Color Video Signal Power Consumption Recover Time
Power On Green1Active <180W
Aging Note2NA <180W
Power Saving Amber3NA <3W
DC Power Off Off NA <3W
AC Power Off Off NA -

27" & 32" COLOR LCD TV DISPLAY
9
www.westinghousedigital.com
3.3 Factory Settings
TV AV S-Video Component1 Component2 DVI Video DVI PC VGA
Mode Mode
Brightness 50 50 50 48 50 44 50 50
Contrast 45 45 45 50 50 50 50 50
Saturation 50 50 50 40 55 55 50 50
Hue 0
Color Temp. Color 3
Sharpness 0 0 0 0 0 0 None None
Aspect Ratio FILL
Backlight 100
Volume 30
Bass 10
Treble 10
Balance 0
MTS Stereo None None None None None None None
Mute OFF
Speaker Internal
Display Mode OFF
Main Source TV
PIP Source VGA
PIP Position H-position: 100, V-position: 100.
PIP Size SMALL
Audio From TV
TV/CATV CABLE STD
Closed Caption OFF
Sleep OFF
MPAA Rating None
TV PG Rating None
MENU Position H-position: 0, V-position: 0.
MENU Timeout 10 second
Language English
Transparency 3
DPMS ON
DC Power OFF

27" & 32" COLOR LCD TV DISPLAY
4. Front Panel Controls
10
www.westinghousedigital.com
4.1 User Control
Use the MENU on the right side of the LCD TV or on the remote control to display the On Screen
Display (OSD). The OSD controls are defined in “OSD Functions” on page 12.
1/2. AV2 Audio Input (Left / Right)
Connect an external audio source to
these jacks (Audio (R/L).
3. AV2 Video Input
Connect an external video device such as
a VCR, DVD or video game system.
4. Headphone Jack
1. Menu
Turn OSD Menu ON/OFF
2. Volume + / -
Increase/Decrease sound volume or adjust a highlighted con-
trol while in the OSD Menu.
3. Channel + / -
Channel up/down when Input is TV or highlight a control
while in the OSD Menu.
4. Input
Select Active Video Input or choose a selection while in the
OSD MENU.
5. Power Button
Power ON/OFF
1
2
3
4
1. “IR” Receiver and LED indicator
2. Speakers
Side View of the LCD TV

27" & 32" COLOR LCD TV DISPLAY
11
www.westinghousedigital.com
1. S-Video Input
Connect to an external video device such as a digital
cable/satellite receiver, VCR, DVD or video game system.
2. AV1 Video Input
Connect an external video device such as a VCR, DVD or
video game system.
3. AV1 & S-Video Audio Input (Right/Left)
Connect an external audio source to this jack (Audio (R/
L). This connection supports either S-Video or AV1 input.
4. Audio Output (Right/Left)
Connect this output to an external audio receiver.
5. ANT (RF-input)
Connect the LCD TV to an antenna or cable service.
6. VGA Audio IN
Using the cable provided, connect to the Audio out
(Green) from a computer.
7. VGA
Using a 15-pin VGA cable, connect to a computer or other
device with a VGA output.
8. DVI Audio Input (Left/Right)
Connect an audio source.
9. DVI
Using the 20-pin DVI connect to a computer or other
device with a DVI output.
10. YPbPr1 Input
Connect an external video device with component output
to these jacks.
11. YPbPr1 Audio 1 Input (Left/Right)
Connect an external audio source to this jack.
12. YPbPr2 Input
Connect an external video device with component output
to these jacks.
13. YPbPr2 Audio 2 Input (Left/Right)
Connect an external audio source to this jack.
14. AC IN (Power)
Connect the power cord from AC IN to a power source.

27" & 32" COLOR LCD TV DISPLAY
12
www.westinghousedigital.com
4.2 Internal Function Key
Special Keys (Hot key)
4.3 OSD Functions
All the OSD function settings are controlled either by the remote control or using the control
keys on the right side of the LCD TV. To display the OSD main menu, press the Menu button on
the right side of the LCD TV or on the remote control. Use ➝arrow keys to highlight the desired
OSD sub-menu.
Main Menu
To select a sub-menu, press θΘ on the right side of the LCD TV or the θΘ key on the remote
control.
Function Hot Key Remark
Turn on Burn-in Mode “VOL -” + “Input” + “Power Button”
ISP Mode “MENU” + “VOL +” + “Power Button”
Factory Mode While in the Burn-in mode, press the
“RETURN” key on the remote control.

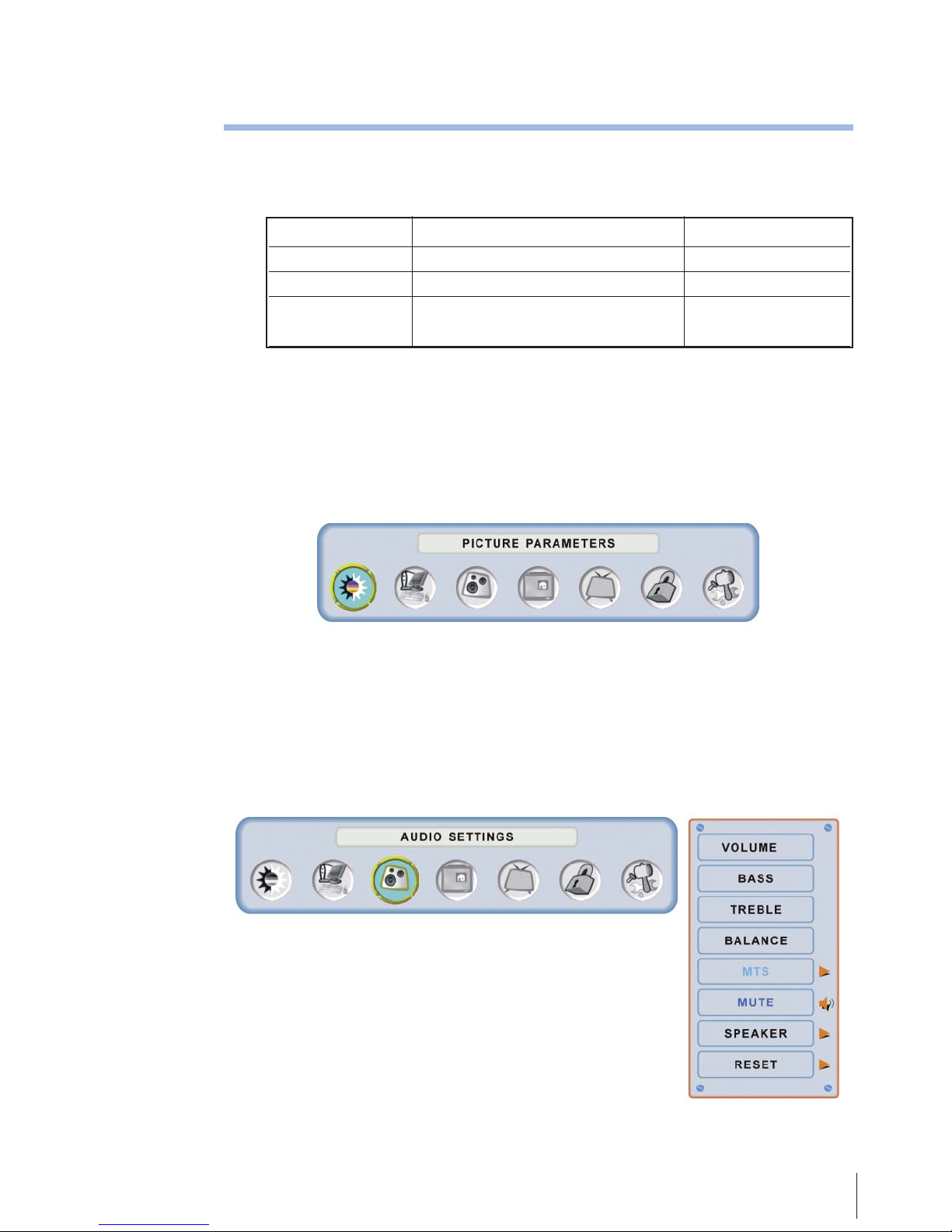

Audio Settings:

27" & 32" COLOR LCD TV DISPLAY
13
www.westinghousedigital.com

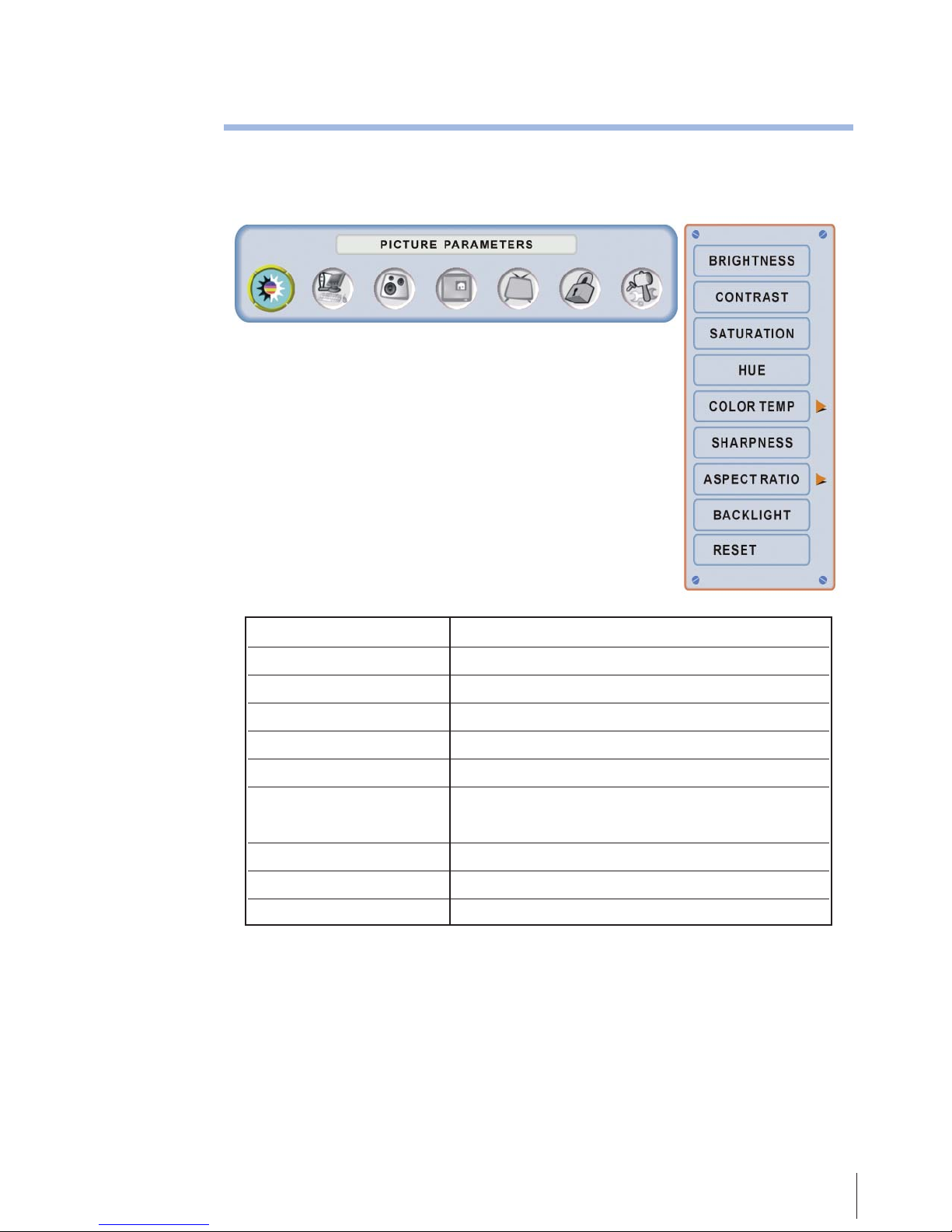

Picture Parameters:
Function Name Function
Brightness Brightness adjustment
Contrast Contrast adjustment
Saturation Saturation adjustment
Hue Hue adjustment
Color Temp Color temperature adjustment (Color 1, Color 2, Color 3)
Sharpness Sharpness adjustment
(Sharpness cannot be adjusted in PC mode)
Aspect Ratio Set display to “STANDARD” / “FILL” / “ZOOM”
Backlight Backlight adjustment
Reset Reset video settings

27" & 32" COLOR LCD TV DISPLAY
14
www.westinghousedigital.com
PC Parameters:
NOTE: The GRAPHIC menu is only available when VGA source is selected.
Function Name Function
Auto Adjust Automatically adjust the horizontal phase of the image
Clock Clock adjustment
Phase Phase adjustment
Position Adjust the horizontal and vertical position of the image

27" & 32" COLOR LCD TV DISPLAY
15
www.westinghousedigital.com
Audio Settings:
Function Name Function
Volume Volume adjustment
Bass Bass adjustment
Treble Treble adjustment
Balance Balance adjustment
MTS MTS Selection
NOTE: This function depends on the type of broadcast being received.
Mute Select Audio OFF or ON
Speaker Select internal or external speaker
Reset Reset audio settings

27" & 32" COLOR LCD TV DISPLAY
Picture-in-Picture:
16
www.westinghousedigital.com
Function Name Function
Display Mode OFF➝PIP➝PBP➝POP
Main Source Select main screen sources
TV➝AV1➝AV2➝S Video➝YPbPr1➝YPbPr2➝VGA➝DVI
PIP Source
Select sub screen sources
See PIP/PBP/POP specification in Table 1
Swap Swap main screen and sub-screen source
PIP Position Sub-screen display horizontal/vertical position adjustment
PIP Size
Sub-screen display size adjustment
(Small➝Medium➝Large)
Audio From Select main screen or sub-screen audio sources
Table 1:
Main VGA DVI AV1 AV2 S Video YPbPr1 YPbPr2 TV
VGA X O O O O X X O
DVI O X O O O O O O
AV1 O O X X X O O X
AV2 O O X X X O O X
S Video O O X X X O O X
YPbPr1 X O O O O X X O
YPbPr2 X O O O O X X O
TV O O X X X O O X
SUB

27" & 32" COLOR LCD TV DISPLAY
17
www.westinghousedigital.com
Channel Settings:
Parental Controls:
Function Name Function
TV / CATV Select TV source type (ANTENNA➝Cable STD➝Cable HRC➝Cable IRC)
Auto Scan Automatically detect available TV channels
Channel EDIT Add/Delete the selected TV channel
Close Caption Turn the Close Caption OFF or CC1, CC2, CC3, CC4,
TEXT1, TEXT2, TEXT3, TEXT4
Function Name Function
Lock Menu Turn parental control OFF or ON
MPAA Rating See next page
TV PG Rating See next page
Password EDIT Change Password (see next page)

27" & 32" COLOR LCD TV DISPLAY
18
www.westinghousedigital.com
MPAA Rating
NONE: Not available
G: General audience
PG: Parental guidance suggested
PG-13: Parents strongly cautioned
R: Restricted
NC 17: No one 17 and under admitted
X: Adult audience only TV PG Rating
Password Edit
TV PG Rating
TV Y: All children
TV Y7: For older children
TV G: General audience
TV PG: Parental guidance suggested
TV 14: Parents strongly cautioned
TV MA: Mature audience only
Change Password
Function Name Function
SEXUAL SITUATIONS
SEXUAL SITUATIONS
SEXUAL SITUATIONS
VIOLENCE
VIOLENCE
VIOLENCE
FANTASY VIOLENCE
FOUL LANGUAGE
FOUL LANGUAGE
FOUL LANGUAGE
SUGGESTIVE DIALOG
SUGGESTIVE DIALOG
ALL
ALL
ALL

27" & 32" COLOR LCD TV DISPLAY
19
www.westinghousedigital.com
Function Name Function
Menu Position OSD horizontal/vertical position adjustment
Menu Timeout Set the time to turn off the OSD automatically
Language OSD language selection.
Sleep Timer Set sleep timer to turn off the power automatically
Transparency Set OSD transparency level
DPMS Select DPMS On/Off
LED Turn LED on or off
System Info Display Input source, type and signal
Factory Reset Restore factory default settings
General Settings:
