LTV-27w7 HD, LTV-32w6 HD and LTV-37w2 HD Service Guide 10/1/06

Model No.: LTV-27w7 HD
LTV-32w6 HD
LTV-37w2 HD
27”, 32” & 37” Color LCD TV Display
SERVICE GUIDE

COLOR LCD TV DISPLAY
1
www.westinghousedigital.com
Table of Contents
1. Precautions and Safety Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2. Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.1 LTV-27v7 HD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
2.2 LTV-32w6 HD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
2.3. LTV-37w2 HD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
3. User Controls & Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3.1. User Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3.2 Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.3 On-Screen Display Menu (OSD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
4. Servicing Environment and Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5. Assembly/Disassembly Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Appendix A. Spare Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Appendix B. Exploded Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Appendix C. Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

COLOR LCD TV DISPLAY
1. Precautions and Safety Notices
2
www.westinghousedigital.com
Prior to using this manual, please ensure that you have carefully followed all the proce-
dures outlined in the user manual for this product.
• Read all of these instructions.
• Save these instructions for later use.
• Follow all warnings and instructions marked on the product.
• Do not use this product near water.
• This display should be installed on a solid horizontal base.
• When cleaning, use only a neutral detergent cleaner with a soft damp cloth. Do not
spray with liquid or aerosol cleaners.
• Do not expose this display to direct sunlight or heat. Hot air may cause damage to the
cabinet and other parts.
• Adequate ventilation must be maintained to ensure reliable and continued operation
and to protect the display from overheating. Do not block ventilation slots and open-
ings with objects or install the display in a place where ventilation may be hindered.
• Do not install this display near a motor or transformer where strong magnetism is
generated. Images on the display will become distorted and the color irregular.
• Do not allow metal pieces or objects of any kind to fall into the display from ventilation
holes.
Slots and openings in the cabinet and the back or bottom are provided for ventilation. To
ensure reliable operation of the product and to protect it from overheating, those open-
ings must not be blocked or covered. The openings should never be blocked by placing
the product on a bed, sofa rug, or other similar surface. This product should never be
placed near or over a radiator or heat register. This product should not be placed in a
built-in installation unless proper ventilation is provided.

COLOR LCD TV DISPLAY
3
www.westinghousedigital.com
Item Specifications for LTV-27w7 HD
Display Area 27" Viewable Diagonal
Resolution 1366 x 768 Native
1280 x 1024, 1024 x 768, 848 x 480, 832 x 624
480i, 480P, 720P, 1080i
Aspect Ratio 16:9
Lamp Life 60,000 hrs
Display Color 16.7 M
Transmissive Mode Normally black
Viewing Angle 176° (H) / 176° (V)
Brightness (Luminance) 550cd/m2
Contrast Ratio 1000:1
Response Time 8 ms
Separate Sync TTL Level
Horizontal Sync Positive/Negative
Vertical Sync Positive/Negative
Composite (Video In) 1 x A/V RCA
S-Video In 1 x S-Video
Component In 2 x YPbPr
VGA In 1 x VGA (RGB)
Antenna In 1 x RF
HDMI In 1 x HDMI
Audio In (Dual RCA) 4 x RCA (Red/White)
(Audio L/R In)
Audio In (Mini) 1 x 3.5mm Stereo
(Headphone)
Audio In (2) RCA (Red/White)
(Audio L/R In)
Audio Out (Dual RCA) 1 x RCA (Red/White)
(Audio L/R Out)
Compatibility Color System NTSC & ATSC
Audio Output Built-in Speaker 2 x 10 watt speakers
Physical Dimensions 26.6" (W) x 21.9" (H) x 7.3" (D)
Weight 27.7 lbs
Power Adapter Input – AC 100-120VAC
Power Consumption Normal Mode: 180W
Power off Mode : < 3W
Operating Temperature 32°F to 95°F (0°C to 35°C)
Regulation Safety/EMC FCC-B, CSA (CUL)
DDC Plug & Play VESA DDC1 and DDC2B
Function Function Key 7 keys
2. Specifications
2.1 LTV-27w7 HD Specifications
Graphic
Display Panel
Connectors
Other
Note: Product Specifications are subject to change without notice.

COLOR LCD TV DISPLAY
2.2 LTV-32w6 HD Specifications
4
www.westinghousedigital.com
Item Specifications for LTV-32w6 HD
Display Area 32" Viewable Diagonal
1366 x 768 Native
Resolution 1280 x 1024, 1024 x 768, 848 x 480, 832 x 624
480i, 480P, 720P, 1080i
Aspect Ratio 16:9
Lamp Life 60,000 hrs
Display Color 16.7 M
Transmissive Mode Normally black
Viewing Angle 170° (H) / 170° (V)
Brightness (Luminance) 400cd/m2
Contrast Ratio 1000:1
Response Time 8 ms
Separate Sync TTL Level
Horizontal Sync Positive/Negative
Vertical Sync Positive/Negative
Composite (Video In) 1 x A/V RCA
S-Video In 1 x S-Video
Component In 2 x YPbPr
VGA In 1 x VGA (RGB)
Antenna In 1 x RF
HDMI In 1 x HDMI-HDCP
Audio In (Dual RCA) 4 x RCA (Red/White)
(Audio L/R In)
Audio In (Mini) 1 x 3.5mm Stereo
(Headphone)
Audio Out (Dual RCA) 1 x RCA (Red/White)
(Audio L/R Out)
Compatibility Color System NTSC & ATSC
Audio Output Built-in Speaker 2 x 9 watt speakers
Physical Dimensions 31.4" (W) x 25.2" (H) x 8.3" (D)
Weight 37.5 lbs
Power Adapter Input – AC 100-120 VAC
60 Hz, 3A (Max)
Power Consumption Normal Mode: 180W
Power off Mode : < 2W
Operating Temperature 32°F to 95°F (0°C to 35°C)
Regulation Safety/EMC FCC-B, CSA (CUL)
DDC Plug & Play VESA DDC1 and DDC2B
Function Function Key 7 keys
Graphic
Display Panel
Connectors
Other
Note: Product Specifications are subject to change without notice.

COLOR LCD TV DISPLAY
2.3 LTV-37w2 HD Specifications
5
www.westinghousedigital.com
Item Specifications for LTV-37w2 HD
Display Area 37" Viewable Diagonal
1366 x 768 Native
Resolution 1280 x 1024, 1024 x 768, 848 x 480, 832 x 624
480i, 480P, 720P, 1080i
Aspect Ratio 16:9
Lamp Life 60,000 hrs
Display Color 16.7 M
Transmissive Mode Normally black
Viewing Angle 178° (H) / 178° (V)
Brightness (Luminance) 550cd/m2
Contrast Ratio 1000:1
Response Time 8 ms
Separate Sync TTL Level
Horizontal Sync Positive/Negative
Vertical Sync Positive/Negative
Composite (Video In) 1 x A/V RCA
S-Video In 1 x S-Video
Component In 2 x YPbPr
VGA In 1 x VGA (RGB)
Antenna In 1 x RF
HDMI In 1 x HDMI-HDCP
Audio In (Dual RCA) 4 x RCA (Red/White)
(Audio L/R In)
Audio In (Mini) 1 x 3.5mm Stereo
(Headphone)
Audio Out (Dual RCA) 1 x RCA (Red/White)
(Audio L/R Out)
Compatibility Color System NTSC & ATSC
Audio Output Built-in Speaker 2 x 9 watt speakers
Physical Dimensions 37.3" (W) x 26.1" (H) x 8.2" (D)
Weight 48.9 lbs
Power Adapter Input – AC 100-120 VAC
60 Hz, 3A (Max)
Power Consumption Normal Mode: 214W
Power off Mode : < 3W
Operating Temperature 32°F to 95°F (0°C to 35°C)
Regulation Safety/EMC FCC-B, CSA (CUL)
DDC Plug & Play VESA DDC1 and DDC2B
Function Function Key 7 keys
Graphic
Display Panel
Connectors
Other
Note: Product Specifications are subject to change without notice.

COLOR LCD TV DISPLAY
3. User Controls & Connectors
6
www.westinghousedigital.com
3.1 User Control
Use the MENU on the right side of the LCD TV or on the remote control to initiate the On
Screen Display (OSD). The OSD controls are defined in the following section.
MENU 1. Menu Turn OSD Menu ON/OFF
+ VOL - 2. Volume + / - Increase/Decrease sound volume or adjust a highlighted con-
trol while in the OSD Menu
+ CH - 3. Channel + / - Channel up/down when input is TV or highlight a control while
in the OSD Menu
INPUT 4. Input source Select Active Video Input or choose a selection while in the
OSD MENU
5. Power Power ON/OFF
Control Key
Speaker IR receiver
Control keys

COLOR LCD TV DISPLAY
7
www.westinghousedigital.com

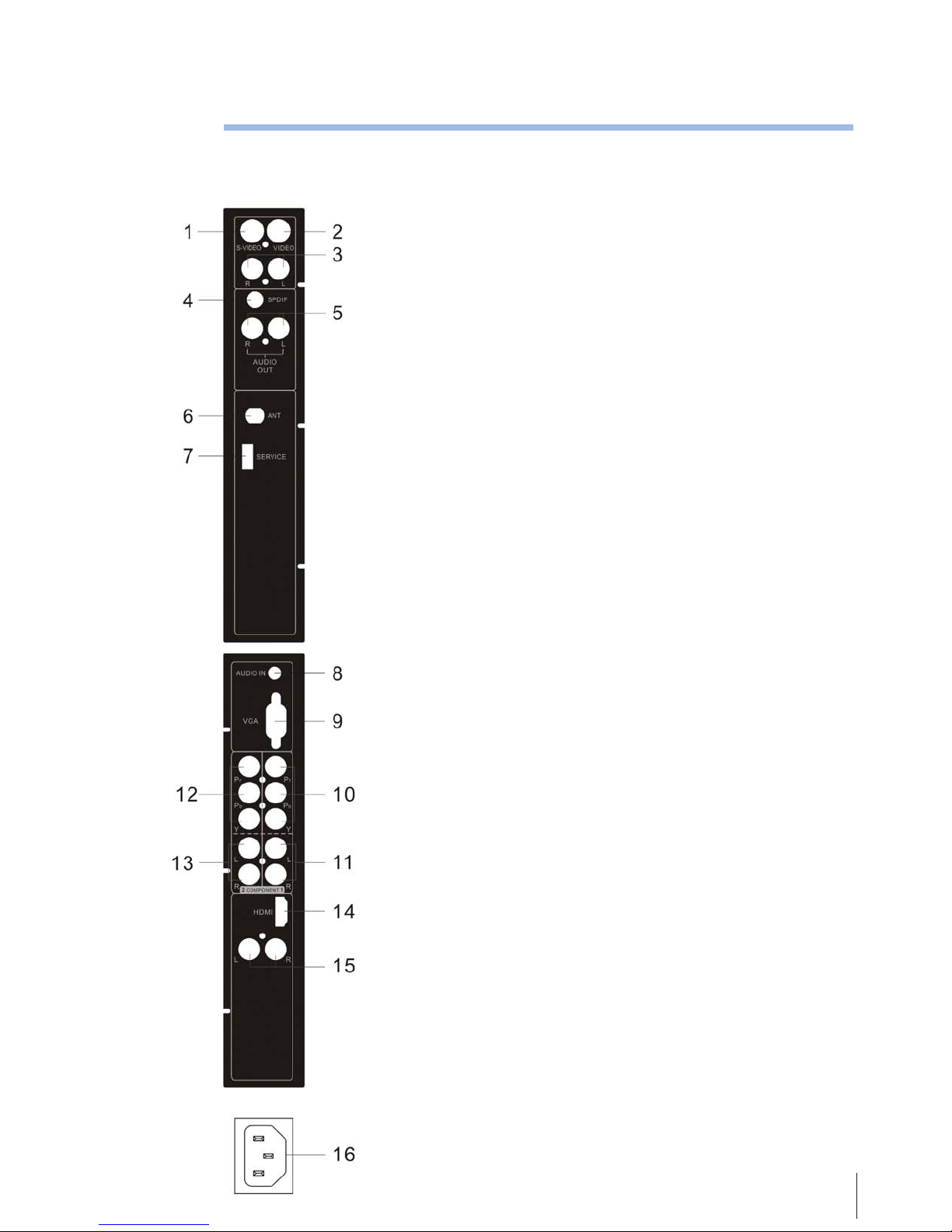

1. S-Video Input
Connect to an external video device such as a digital
cable/satellite receiver, VCR, DVD or video game system.
2. Video Input
Connect the Composite Video to an external video device such
as VCR, DVD and video game system.
3. AV & S-Video Audio Input (Right / Left)
Connect an external audio source to this jack (Audio (R/L).
This connection supports either S-Video or AV input.
4. SPDIF Output
Connect this output to an external audio receiver with
SPDIF function.
5. Audio Output (Right / Left)
Connect this output to an external audio receiver.
6. ANT (RF-input)
Connect the LCD TV to an antenna or cable service.
7. SERVICE
For ATSC software update source.
8. VGA Audio IN
Connect to the Audio out (blue) from a computer.
9. VGA
Using a 15-pin VGA cable, connect to a computer or other
device with a VGA output.
10. YPbPr1 Input
Connect an external video devices with component output to
these jacks.
11. YPbPr1 Audio 1 Input (Left / Right)
Connect an external audio source to this jack.
12. YPbPr2 Input
Connect an external video device with component output to
these jacks.
13. YPbPr2 Audio 2 Input (Left / Right)
Connect an external audio source to this jack.
14. HDMI input
Connect external video devices with HDMI output to this jack.
15. HDMI Audio Input (Left / Right)
Connect an external audio source to these jacks.
16. AC IN (Power)
Connect the power cord from AC IN to a power source.
3.2 Connectors

COLOR LCD TV DISPLAY
8
www.westinghousedigital.com
3.3 On-Screen Display Menu (OSD):
All the functions can be adjusted either by the remote control or using the control keys on
the right side of LCD TV.
To display the OSD main menu, press the Menu button on the right side of front control
keys of the LCD TV or the MENU key on the remote control. Press  / arrow keys to
select desired OSD Menu and  / arrow keys to select desired OSD sub-menu.

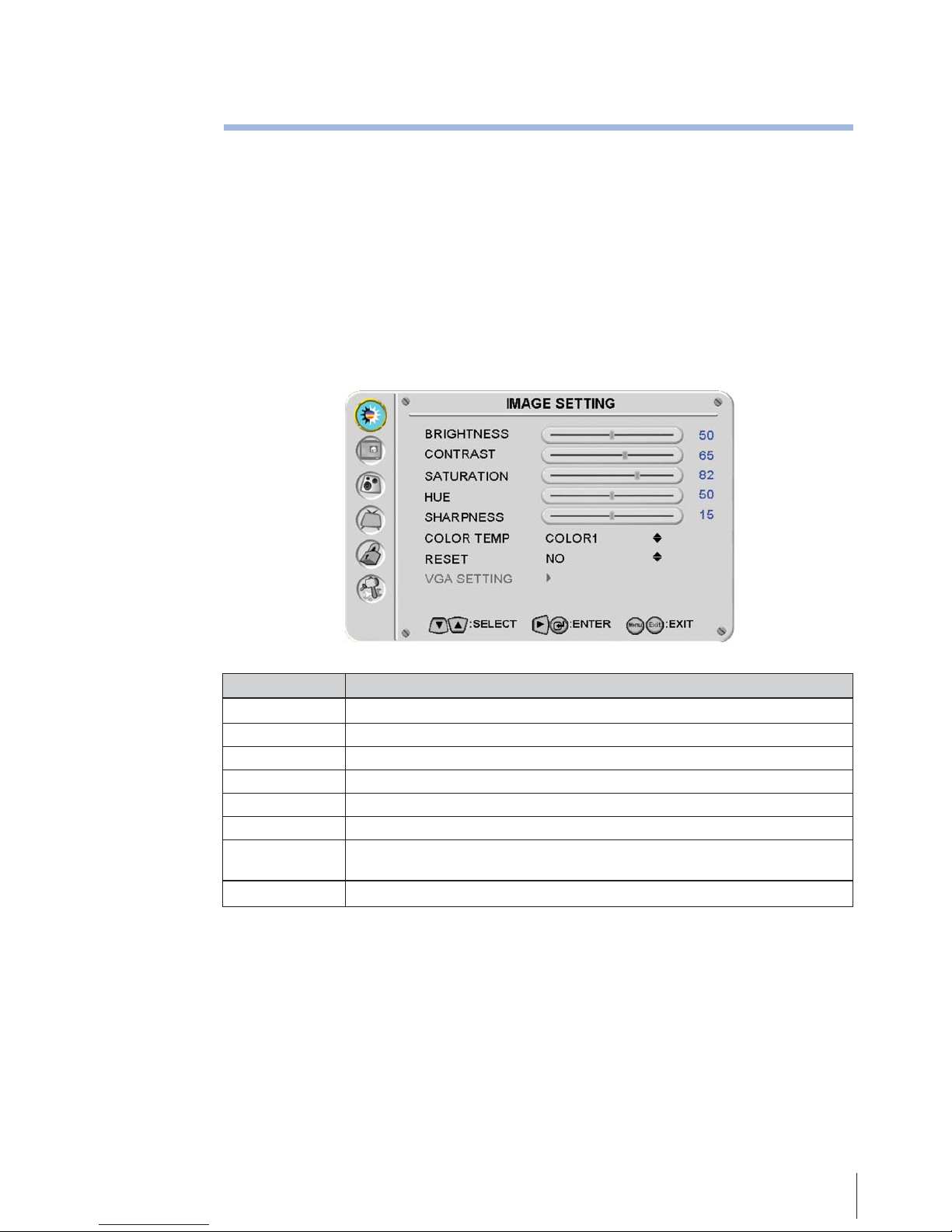

IMAGE SETTING:
Function Name Function
BRIGHTNESS Brightness adjustment
CONTRAST Contrast adjustment
SATURATION Saturation adjustment
HUE Hue adjustment
SHARPNESS Sharpness adjustment (Sharpness cannot be adjusted in PC mode)
COLOR TEMP Color temperature adjustment (Color 1, Color 2, Color 3)
RESET Select “YES” to call the factory default setting for image setting
Select “NO” to keep your picture adjusts setting
VGA SETTING VGA setting adjustment

COLOR LCD TV DISPLAY
DISPLAY SETTING:
9
www.westinghousedigital.com
Function Name Function
MAIN SOURCE Select main screen sources:
“TV”,”HDTV”, ”VIDEO”, ”S-VIDEO”, ”YPbPr1”, ”YPbPr2”, “VGA”, “HDMI”
PIP SOURCE Select sub screen sources
ASPECT RATIO Select “STANDARD”, ”FILL”
PIP MODE Select “OFF”, ”PIP”, ”PBP”, ”POP”.
SWAP Swap main screen and sub-screen source.
PIP SIZE Sub screen display size adjust
(“SMALL”, ”MEDIUM”, ”LARGE”)
PIP POSITION Sub screen display horizontal /vertical position adjustment.
AUDIO FROM Select main screen or sub screen audio sources.
SUB
Main VGA HDTV Video S Video YPbPr1 YPbPr2 TV HDMI
VGA X X X X X X X O
HDTV X X X X X X X O
Video X X X X X X X O
S Video X X X X X X X O
YPbPr1 X X X X X X X O
YPbPr2 X X X X X X X O
TV X X X X X X X O
HDMI O O O O O O O X
Table 1:

COLOR LCD TV DISPLAY
10
www.westinghousedigital.com

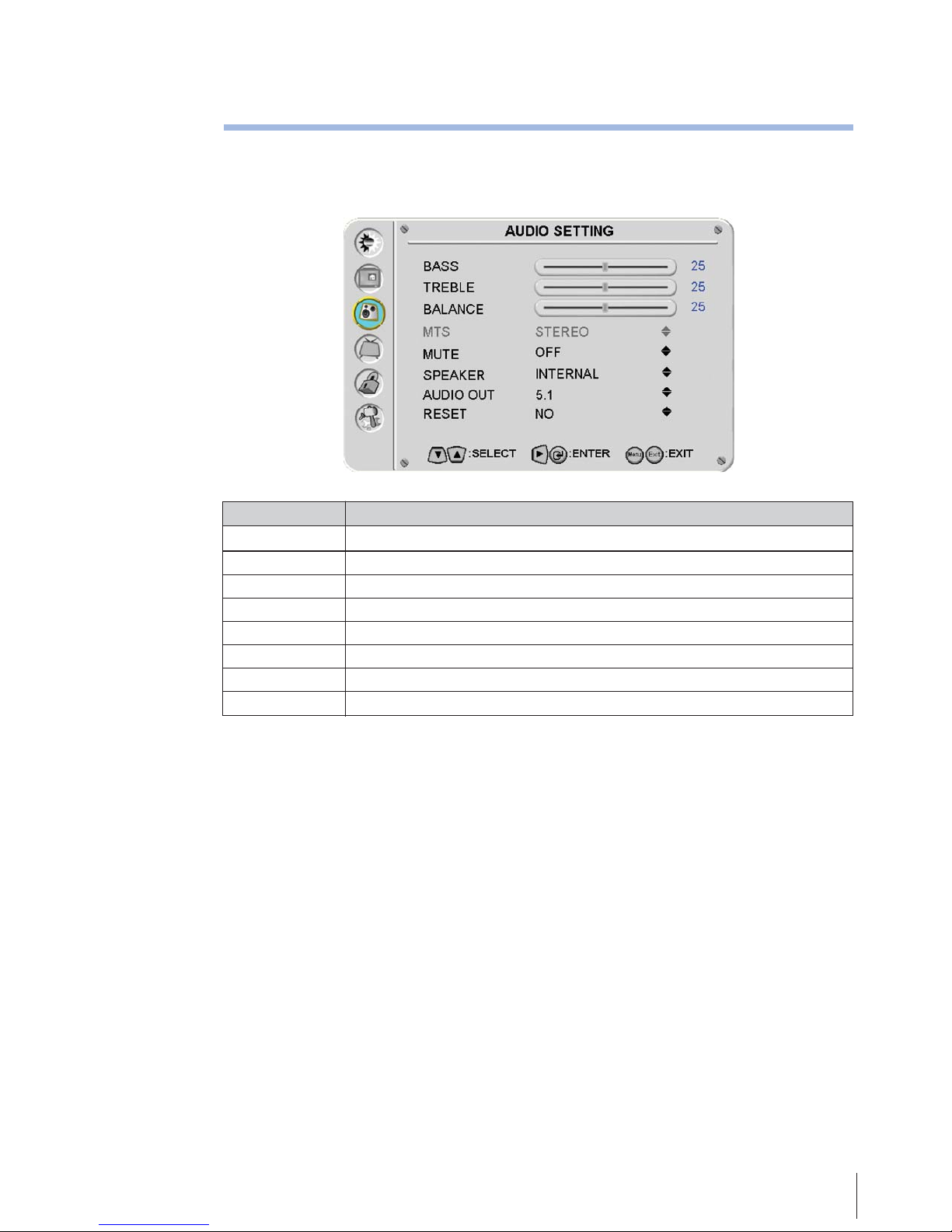

AUDIO SETTING:
Function Name Function
BASS Bass adjustment
TREBLE Treble adjustment
BALANCE Balance adjustment
MTS Select STEREO, MONO, or SAP
MUTE Select audio “OFF” or “ON”
SPEAKER Select “internal”, “external”, or “Both” speakers
AUDIO OUT Select SPDIF OUT for 2.1 channel or 5.1 channel
RESET Select “NO” or “YES”

COLOR LCD TV DISPLAY
11
www.westinghousedigital.com
TV/HDTV SETTING:
Function Name Function
TV SYSTEM CABLE STD CABLE IRC ANTENNA
AUTO SCAN Select “NO” or “YES”
CHANNEL EDIT Select “ADD” or “DELETE”
LOCAL TIME Select local time: “CANADA”, “EASTERN”, “CENTRAL”, “MOUNTAIN”,
“PACIFIC”,”ALASKA”,“HAWAII”, “SAMOA”, “NEWFOUNDLAND”
DAYLIGHT SAV Day light saving: On mode: “daylight saving “ times to begin
Off mode: “daylight saving “ is over

COLOR LCD TV DISPLAY
12
www.westinghousedigital.com
PARENTAL CONTROL:
The parental controls feature prevents viewers from watching programs that are not age-
appropriate, such as programs containing violence or adult language.
Function Name Function
PASSWORD The factory default password is “0000”. Use remote control to key in the number and
enter the parental controls sub-menu.
TV PG RATING Select “TV-MA”, “TV-Y”, ”TV-Y7”, ”TV-G”, ”TV-PG”, ”TV-14”, ”TV-MA” or “OFF”.
MPAA RATING Select “G”, “PG-13”, ”R”, “NC-17”, “X”, or “OFF”
PASSWORD EDIT Enter new pass word
TV PG Rating MPAA Rating
TV Y All children NONE Not available
YTV Y7 For elder children G General audience
TV G General audience PG Parental guidance suggested
TV PG Parental guidance suggested PG-13 Parents strongly cautioned
TV 14 Parents strongly cautioned R Restricted
TV MA Mature audience only NC 17 No one 17 and under admitted
OFF None X Adult audience only
OFF None

COLOR LCD TV DISPLAY
13
www.westinghousedigital.com

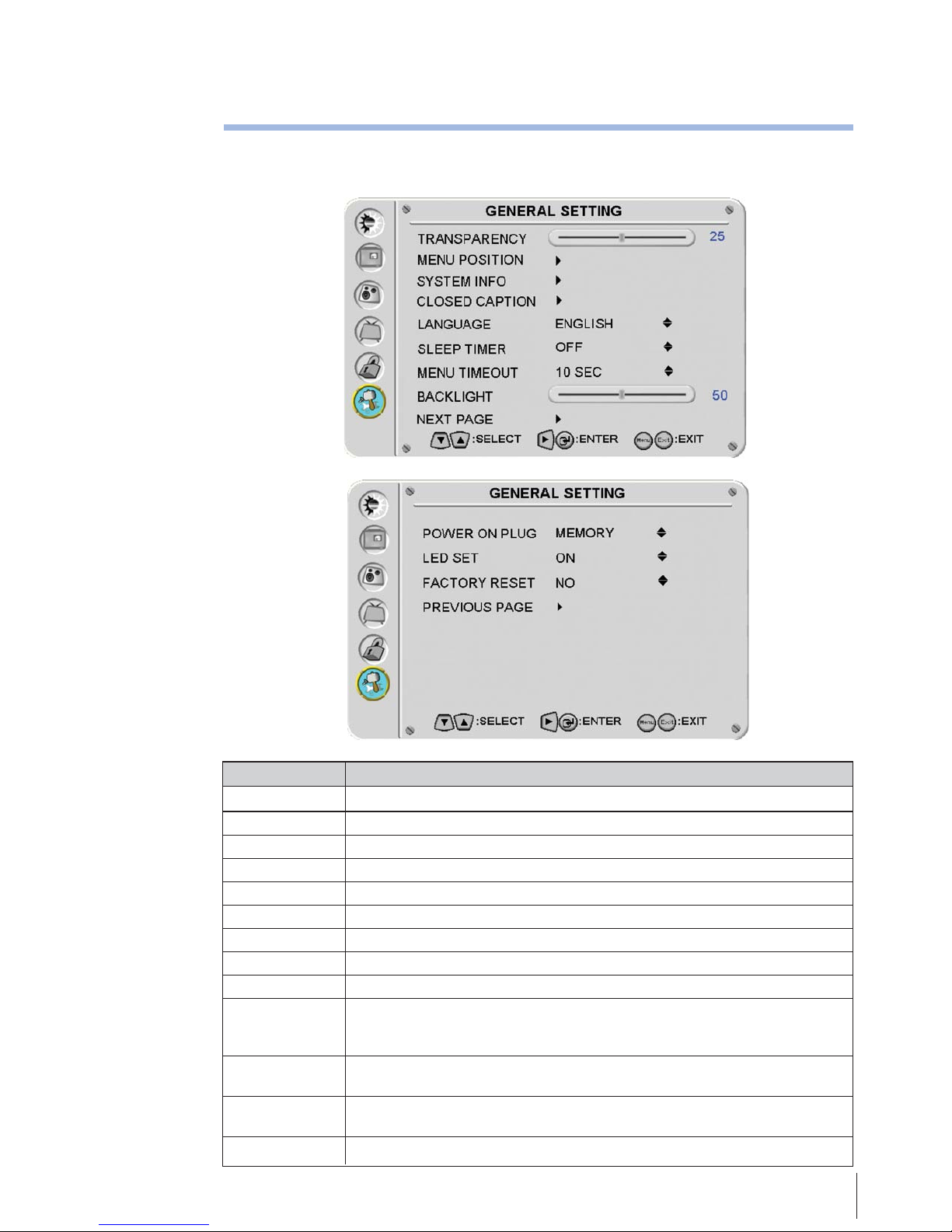

GENERAL SETTING:
Function Name Function
TRANSPARENCY Set OSD transparency level
MENU POSITION OSD horizontal/vertical position adjustment
SYSTEM INFO Display input source, type and signal
CLOSED CAPTION Turn the closed caption OFF or CC1, CC2, CC3, CC4, TEXT1, TEXT2, TEXT3, TEXT4
LANGUAGE OSD language selection
SLEEP TIMER Set sleep timer to turn off the power automatically
MENU TIMEOUT Set the time to turn off the OSD
BACKLIGHT Backlight adjustment
NEXT PAGE Select to next page
POWER ON PLUG
ON: To memorize the DC power status. If last DC power status is on, TV will power on
automatically when plugged back in.
OFF: turn off POWER ON PLUG function.
LED SET ON: Turn on TV indicator LED.
OFF: Turn off TV indicator LED.
FACTORY RESET YES: recall OSD default setting.
NO: skip the change.
PREVIOUS PAGE Return to previous GENERAL SETTING page.

COLOR LCD TV DISPLAY
4. Servicing Environment & Tools
14
www.westinghousedigital.com
Volt Meter (Fig. 1) Screwdriver Set (Fig. 2)
Servicing Environment
1. This LCD TV should be used only with the power source type identified on the package
and User’s Guide
2. Service the LCD TV in a room with low humidity and free of dust.
3. Place the LCD TV on a firm, level surface. Subjecting the LCD TV to a drop or sharp
impact may cause severe damage to thin glass, plastic surface materials, and internal
components.
4. If necessary, clean the LCD TV with a slightly damp cloth using clean water.
Disconnect the LCD TV from the power source before cleaning. DO NOT use ammonia-
based cleaning products.
5. In the event that the powered LCD rapidly heats, or emits unusual smells or noises,
immediately disconnect the LCD TV From the power source.
6. To avoid electrical hazard, make sure that the LCD TV is fully assembly the casing closed,
and the screws tightened completely before plugging in LCD TV for testing.
7. Internal components of LCD display may be damaged by electrostatic discharge(ESD).
Carry out repairs in an ESD-protected workshop If no such workshop is available, wear an
antistatic wrist strap or touch a highly conductive metal object.
8. Before opening the housing, disconnect the product from all power source and remove
any connecting cable. If the display has not been disconnected from the power outlet
before being opened, there is a danger to life through electric shock. These is also a risk
of damage to the components

COLOR LCD TV DISPLAY
5. Assembly/Disassembly
15
www.westinghousedigital.com
1. Remove base stand cover plate 2. Remove base stand (6 screws).
3. Remove rear cover (10 screws). 4. Remove top (4 screws) and bottom (4 screws)
shields.
5. Remove wall mounting bracket/plate (4 screws) 6. Main Board and Power Supply
Stand Cover Plate
Power Supply
Main Board

COLOR LCD TV DISPLAY
16
www.westinghousedigital.com
7. Remove and replace main board (4 screws & 8. Remove and replace power supply (4 screws
8 cables). and 1 cable).
8 Cables
1 Cable

COLOR LCD TV DISPLAY
17
www.westinghousedigital.com
PART NUMBER DESCRIPTION
Power
991206224 BATTERY ZN-CHLORIDE 1.5V AAA
3090107601 AC POWER CORD 3P #18*3C L1800 BLK
4900214080 SMPS 100~132VAC 187.5W LT32B-2
PCBA
3368250200 BASE ASSY LT27GGN 43AAB W7VBA1LS
3368600100 F/B ASSY LT27GGN 43AAB W7VFA2LS
50527001WD LCD 5052700101 CONTRACT PRICE
5600600040 PWB ASSY MAIN BD LT27GGN 43AAB
5600600041 PWB ASSY IR BD LT32EGN 43AAB
5600600042 PWB ASSY FUNCTION KEY BD LT32EGN 43AAB
Internal Cables
3080341501 CABLE SIGNAL RCA L200 BLK
3081500101 CABLE FFC L280 T2
Accessory
3200158900 LABEL SPEC PAPER 10mm
3200675700 LABEL CONNECTOR PC 231.4*43.25 T0.25 LT3
3200675801 LABEL CONNECTOR PC 231.4*43.25 T0.25 LT3
3202011000 LABEL BARCODE PAPER 42*11 T0.05
3202811800 LABEL SPEC POLYESTER 77.57*33.71 T0.25 L
3261009500 LABEL BARCODE PAPER 46*55 T0.08 LT32EGN
3264501500 LABEL SPEC ART PAPER 203.8*50.8 LT27GGN
3264502000 LABEL ID POLYESTER 119.5*59.5 T0.075 LT2
3264506500 LABEL INFORMATION POLYESTER 80*15 T0.05
5041811900 REMOTE CONTROLLER 47KEYS LT32CGN 43AAB W
APPENDIX A. Spare Parts List LTV-27w7 HD

COLOR LCD TV DISPLAY
18
www.westinghousedigital.com
PART NUMBER DESCRIPTION
Screws
3100300600 SCREW M M3*0.5*6 PAN C S+P S20C ZN
3100431600 SCREW M M3*0.5*16 PAN C S20C ZN BLK
3105051501 SCREW M #4-40*7 HEXH HEXI S18C NI
3105124700 SCREW M M4*0.7*16 FF C S18C ZN BLK NL
3105126600 SCREW M M4*0.7*6.5 FF C S18C NI NL
3105221000 SCREW M M3*0.5*6 FF C S18C ZN
3105225300 SCREW M M3*0.5*4 FF C S18C ZN
3105281900 SCREW M M3*0.5*8 FF C S18C ZN BLK
3109016100 SCREW T 3*1.27*8 FPH C S18C ZN YEL
3109028000 SCREW T 4*1.6*26 PAN C S18C ZN BLK
3109029100 SCREW T 4*1.6*16 PAN C S18C ZN BLK
3109168700 SCREW T 3*2.7*6 FF C S18C ZN BLK
Mechanical
307230191C CONN ADP RCA PLUG RCA MALE/F FEMALE
3110250000 WASHER SPRING 5.5*3.1*0.8 SWRT
3240046600 WASHER PA66 94V2 10*4*5 NAT
3240976200 RUBBER PAD 25*8 T2.5 GRAY
3360261901 CABINET BACK ABS 94V0 W7VRA1LS 433C
3360505500 LED LENS ABS 94HB Y5LFB1LS
3360508600 LED LENS ABS 94HB W32VFA2LS LIMPID
3360750100 FUNCTION KEY HIPS 94HB SW-005 W2VFA2LS 5
3360940100 ARM HIPS 94HB BK-011 W7VBA1LS 433C
3361102800 R/C HIPS 94HB W7VRA1LS 433C
3361218801 COVER D-SUB HIPS 94HB W7VRA1LS 433C
3362015200 COVER EARPHONE HIPS 94HB W7VRA1LS 433C
3460204503 BRACKET ARM SECC 230*210*55*2 ZN
3460206800 BRACKET SIDE MOUNT RIGHT SECC 385*43*40*
3460206901 BRACKET SIDE MOUNT LEFT SECC 385*43*40*1
3460214902 BRACKET VESA SECC 225*130*8.1*2 ZN
