IMPORTANT SAFETY AND PRECAUTIONS
This wide active matrix TFT (thin film transistor) liquid crystal monitor is designed for use as
a stand alone TV as well as a display device for video electronics appliances and personal
computers.
Important Information
Warning : To reduce the risk of fire or electric shock, do not expose this product to rain or
moisture.
The symbol is intended to alert the user to presence ofun-insulated ”Hazardous
Voltage”within the product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The symbol is intended to alert the user that improper use of the product may
result in product malfunction. The user should pay attention to avoid accidents
or unnecessary problems.
Caution :To reduce the risk of electric shock, do not attempt to disassemble or modify this
device. There are no user-serviceable parts inside. Refer any service issues to
qualified service personnel.
Caution : FCC/ CSA regulations state that any unauthorized changes or modifications to
this equipment may void the user's authority to operate it.
Important: One Federal Court has held that unauthorized recording of copyrighted TV
programs is an infringement of U.S. copyright laws. Certain Canadian programs may also
be copyrighted and any unauthorized recording in whole or in part may be in violation of
these rights.
According to industrial standards for LCD display technology; there are a certain number
of allowable defective pixels. Although we produce panels with more than 99.9% active
cells, there still may be some cells that do not produce light or remain constantly lit. For
further information, please contact sales or technical support.
CAUTION
Risk of electric
shock. Do not open.

2
Safety Precautions
1. Cleaning : Unplug the power cord from the AC outlet before cleaning the product.
Use a damp cloth to clean the product. Do not use liquid cleaners or aerosol cleaners.
2. Water and moisture : Do not use the product near water or areas of high moisture
content such as swimming pools, bathtubs or wet basements.
3. Ensure that no water droplets remain on the screen. Water can cause permanent
discoloration.
4. Heat sources : Keep the product away from heat sources such as radiators, heaters,
stoves and other heat-generating products (including amplifiers).
5. For added protection during a lightning storm or for extended periods of non-use,
unplug the power cord from the wall outlet and disconnect the antenna (if used). This
will prevent damage to the product due to power line surges.
6. If an outside antenna is connected to the product, make sure the antenna is
properly grounded so as to provide some protection against voltage surges.
( Coaxial connector shielding from cable distribution system should be probably
earthed. )

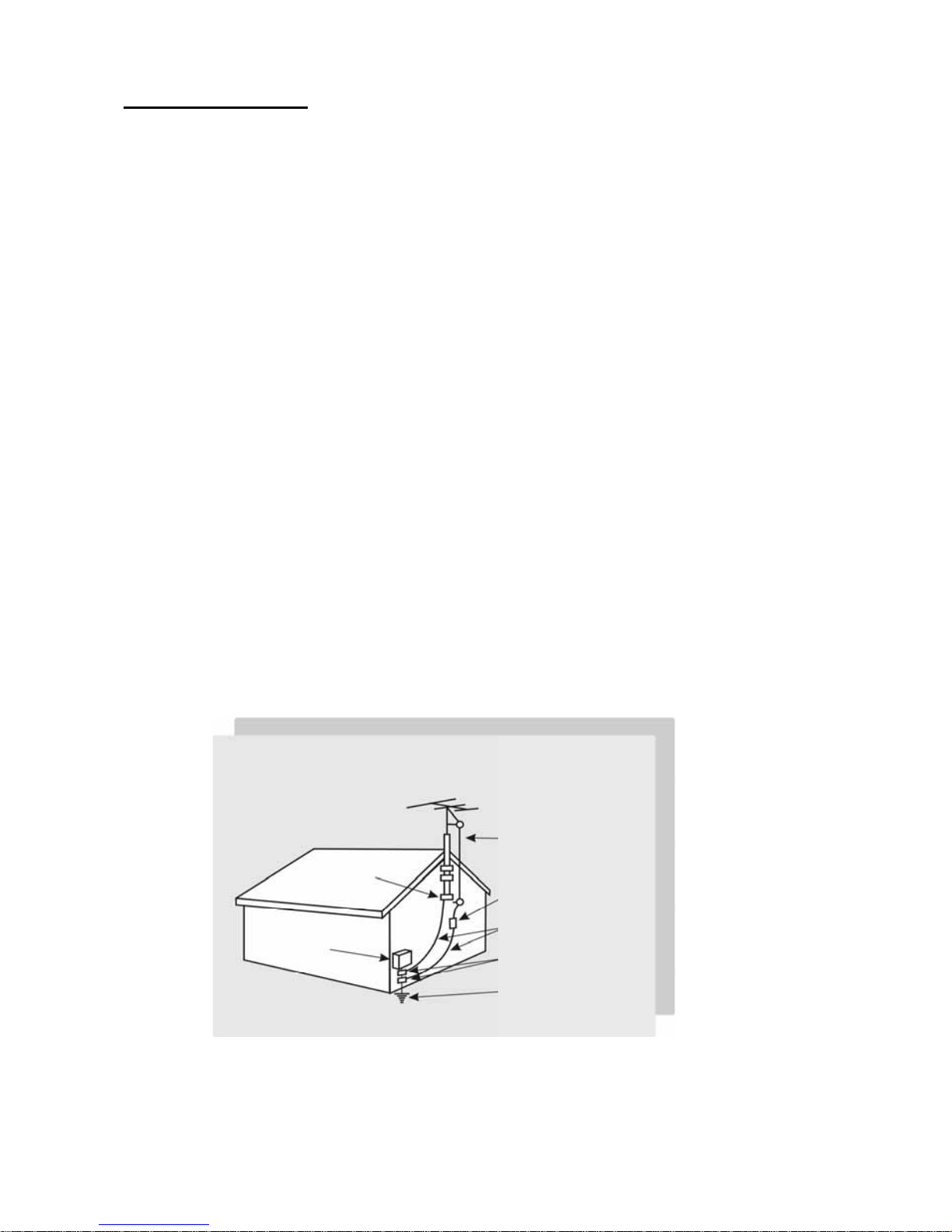

Example of antenna grounding
As per national electrical code
Electric service
equipment
Ground clamp
Power service grounding
Electrode system
Ground clamps
Antenna lead in wire
Antenna dischar
g
e unit
Groundin
g
conductors

3
EnglishEspañolFrançais

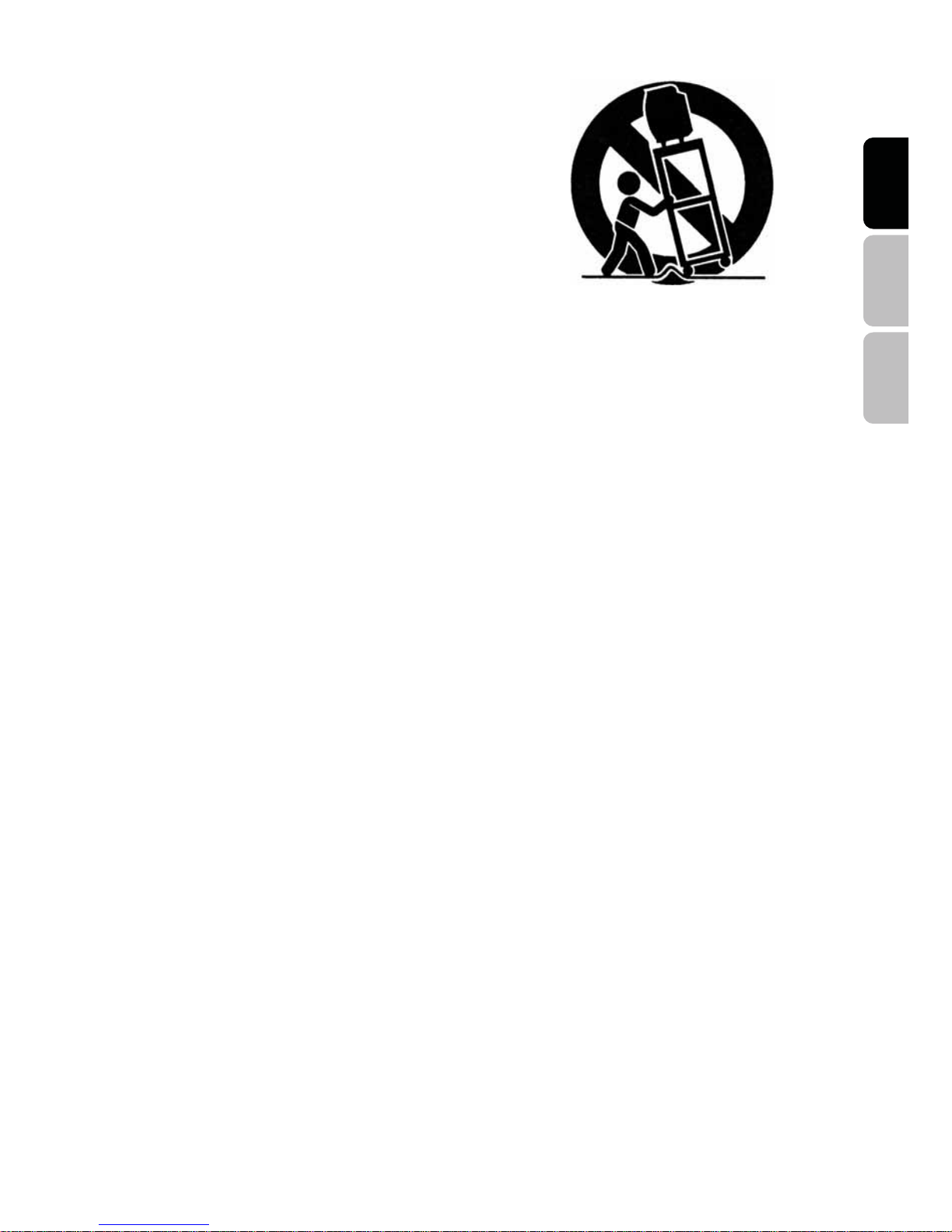

7. Stand : Do not place the product on an unstable
cart, stand, tripod or table. Placing the product
on an unstable base can cause the product to
fall, resulting in serious personal injuries as
well as damage to the product. Use only a cart,
stand, tripod, bracket or table recommended by
the manufacturer or sold with the product. Use
only mounting hardware recommended by the
manufacturer.
8. Use care when moving the product on a rolling cart. Sudden stops, excessive force
and uneven floor surface can cause the product to fall from the cart.
9. Ventilation : The vents and other openings in the cabinet are designed for
ventilation. Do not cover or block these vents and openings as insufficient ventilation
can cause overheating and/or shorten the life of the product. Do not place the product
on a bed, sofa, rug or other similar surfaces since they can block ventilation openings.
This product was not designed to operate in an enclosed environment. Don't place the
product in an enclosed space such as a bookcase or rack, unless proper ventilation is
provided or the manufacturer's instructions are followed.
10. The LCD panel used in this product is made of glass. Therefore, it can break if the
product is dropped or struck.
11. During the LCD panel lifespan it is normal for a few pixels to become defective.
Non-active pixels may appear on the screen as fixed points of red, blue or green.
Refer pixel policy questions to the reseller for further clarification on acceptable loss.
12. An outside antenna system should not be located in the vicinity of overhead power
lines or other electrical conduits. When installing an outside antenna, use extreme
caution to prevent the antenna from coming into contact with said items, as contact
with them may be fatal.

4
GENERAL INFORMATION
Feature
Your TV is designed with the latest technology and is a high-performance unit that includes
the following special feature :
Multi-sources input included RF IN, D-SUB, HDMIx2, Compositex2, S-Videox2, and
Componentx2.
Built-in combo tuner is able to receive ATSC, NTSC and Clear QAM Cable signals.
Built-in 10W dual channel speakers.
Embedded video enhance and noise Reduction features for the colorful and clearest
picture possible.
Provided multi-channel sound decoder for stereo and bilingual broadcasts.
Automatic sleep timer control.
Component video input for high definition TV programming (HDTV ready), resolution up
to 720p, 1080i.

5
EnglishEspañolFrançais

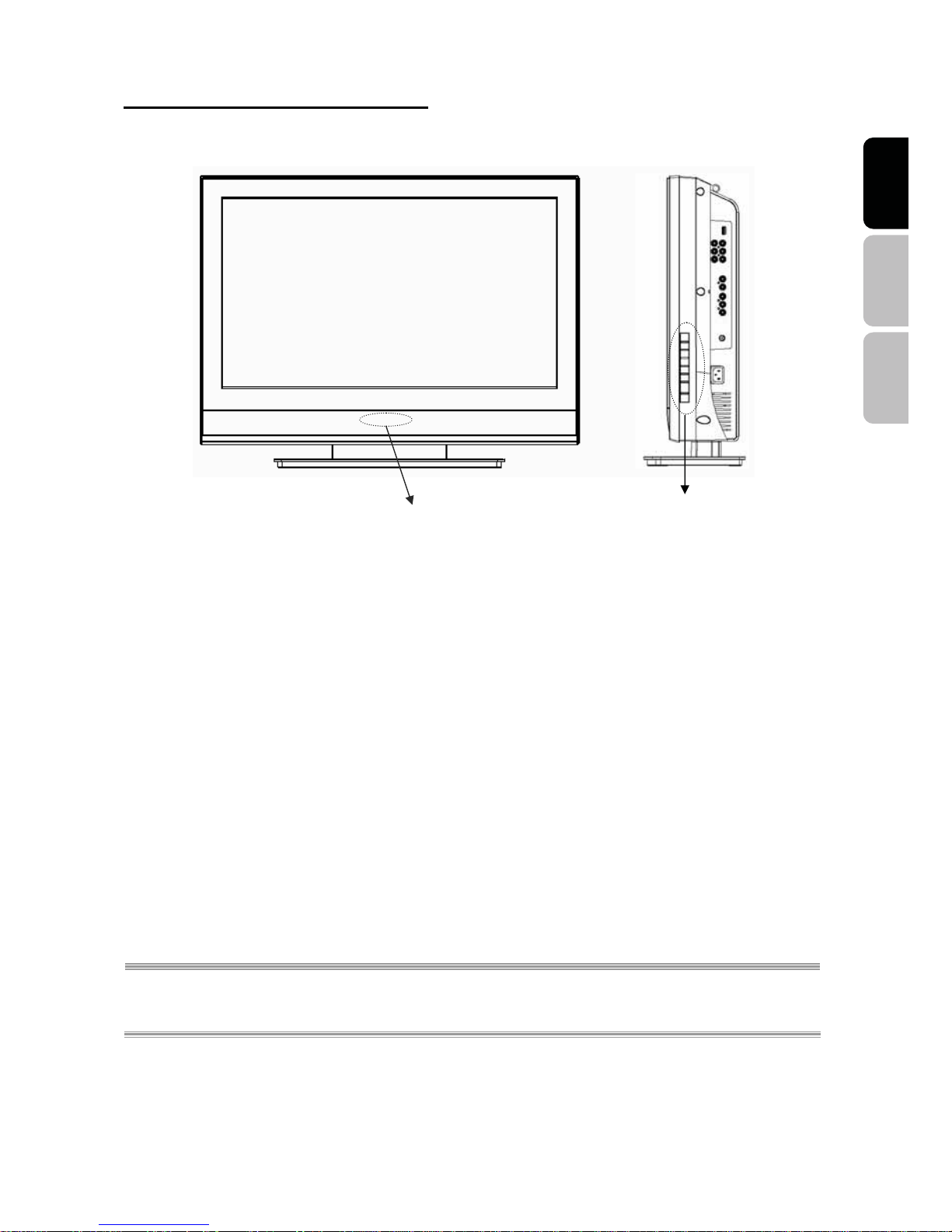

Controls and Ports of the Panel
F
Fr ro on nt tP Pa an ne el lV Vi ie ew ws s( (S SK K- -2 26 6H H5 54 40 0S S) )
FUNCTION KEYS
1. MENUʳ: Display the main menu. When OSD is appeared, press the button to select or
access the sub-menu.
2. VOLUME (+ʳ/ʳ-)ʳ: Increase/decrease the volume or be the left/right arrow button for
menu.
3. CHANNEL (+ʳ/ʳ-)ʳ: Change the channel or be the up/down arrow button for menu.
4. SOURCEʳ: Select the input source ( TV, Video 1, Video 2 , YPbPr, HDMI1, HDMI2, PC ).
5. POWERʳ: Turn the LCD-TV on or off.
6. REMOTE SENSOR WINDOWʳ: aim the remote control towards this spot on the TV.
7. POWER INDICATORʳ:WHITE LIGHT ѧpower on
AMBER LIGHT ѧpower sleep
EXTINGUISHED ѧpower off
NOTE 1 : These buttons control the basic features of your TV, including the on-screen menu. To use
advanced features, you must use the remote controlˁʳ
NOTE 2 : The picture of LCD TV display is for reference only.
Function Keys
Remote sensor window & Power indicator

6
F
Fr ro on nt tP Pa an ne el lV Vi ie ew ws s( (S SK K- -2 26 6H H7 73 30 0S S) )
FUNCTION KEYS
1. MENUʳ: Display the main menu. When OSD is appeared, press the button to select or
access the sub-menu.
2. VOLUME (+ʳ/ʳ-)ʳ: Increase/decrease the volume or be the left/right arrow button for
menu.
3. CHANNEL (+ʳ/ʳ-)ʳ: Change the channel or be the up/down arrow button for menu.
4. SOURCEʳ: Select the input source ( TV, Video 1, Video 2 , YPbPr, HDMI1, HDMI2, PC ).
5. POWERʳ: Turn the LCD-TV on or off.
6. REMOTE SENSOR WINDOWʳ: aim the remote control towards this spot on the TV.
7. POWER INDICATORʳ:WHITE LIGHT ѧpower on
AMBER LIGHT ѧpower sleep
EXTINGUISHED ѧpower off
NOTE 1 : These buttons control the basic features of your TV, including the on-screen menu. To use
advanced features, you must use the remote controlˁʳ
NOTE 2 : The picture of LCD TV display is for reference only.
Function Keys
Remote sensor window & Power indicator

7
EnglishEspañolFrançais
S
Si id de eP Pa an ne el lV Vi ie ew ws s( (S SK K- -2 26 6H H5 54 40 0S S) )
1. ANT.(RF input)
Connect the LCD TV to an over-the-air antenna or cable
service to view NTSC and ATSC(HDTV) content.
2. YPbPr input
Connect an external video device with component output to
this jack.
3. YPbPr Audio input(L/R)
Connect an external audio source to this jack.
4. Video1 input
Connect the Composite video to a legacy video such as a
VCR or video game system.
5. Video2 input
6. Video1 Audio input
Connect an external audio source to this jack.
7. Video2 Audio input
8. USB
Factory service port
9. AC power in
Connect power cable to AC inlet.
10. Audio output(R/L)
Connect this output to an external stereo audio amplifier,
receiver or surround sound processor with R/L audio
inputs.
11. SPDIF output(Optical)
Connect this output to an external stereo audio amplifier,
receiver or surround sound processor with SPDIF optical
input.
12. VGAAudio in
Connect to the audio out(Green) from a computer.
13. VGA
Using a 15-pin VGAcable, connect to a computer.
14. HDMI Audio input(R/L)
Connect the audio input if you using a DVI-to-HDMI
converter.
15. HDMI2 input
Connect to an external video device such as HD digital
cable/satellite receiver, HD STB, Media center PC, or DVD
player.
16. HDMI1 input
11
12
13
14
15
16
45
3
2
1
8
67
10
9

8
S
Si id de eP Pa an ne el lV Vi ie ew ws s( (S SK K- -2 26 6H H7 73 30 0S S) )
1. ANT.(RF input)
Connect the LCD TV to an over-the-air antenna or cable
service to view NTSC and ATSC(HDTV) content.
2. YPbPr input
Connect an external video device with component output to
this jack.
3. YPbPr Audio input(L/R)
Connect an external audio source to this jack.
4. Video1 input
Connect the Composite video to a legacy video such as a
VCR or video game system.
5. Video2 input
6. Video1 Audio input
Connect an external audio source to this jack.
7. Video2 Audio input
Connect an external audio source to this jack.
8. USB
Factory service port
9. AC power in
Connect power cable to AC inlet.
10. Audio output(R/L)
Connect this output to an external stereo audio amplifier,
receiver or surround sound processor with R/L audio inputs.
11. SPDIF output(Optical)
Connect this output to an external stereo audio amplifier,
receiver or surround sound processor with SPDIF optical
input.
12. VGAAudio in
Connect to the audio out(Green) from a computer.
13. VGA
Using a 15-pin VGAcable, connect to a computer.
14. HDMI Audio input(R/L)
Connect the audio input if you using a DVI-to-HDMI
converter.
15. HDMI2 input
Connect to an external video device such as HD digital
cable/satellite receiver, HD STB, Media center PC, or DVD
player.
16. HDMI1 input
9
45
3
2
1
8
67
11
12
13
14
15
16
10

9
EnglishEspañolFrançais
Accessories
User’s Manual Remote Control & Batteries
Power Cord Quick Connect Guide
Warranty Card Screw driver & Screws x4(base)
LCD - TV
Quick connect
Warranty Card

10

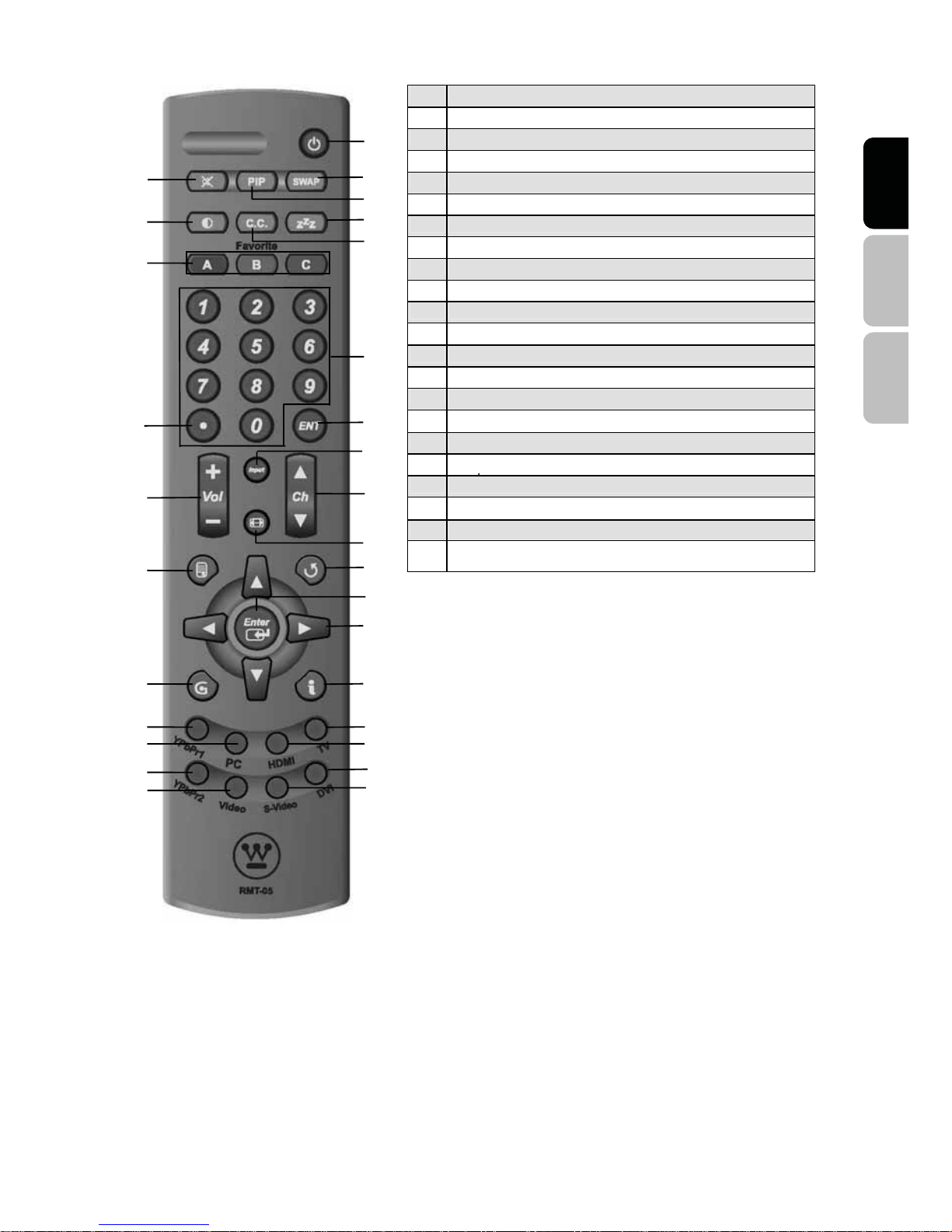

Remote Control
1Power
Switch TV power on/off.
2Mute
Turn the sound on/off.
3Swap
No support
4PIP
No support
5Backlight
Adjust the LCD Backlight level
6Sleep
Press to select a preset time interval for automatic power
down.
7CC
Press to enable or disabled closed caption.
8Favorite
Press and hold programable Key(A, B, or C). to save the
current channel.
9Channel number keys
Select specific channel.
10 Enter
Execute a command.
11 Input
Select input source.
12 VOL +/-
Volume Up/Down adjustment.
13 CH +/-
TV channel Up/Down adjustment.
14 Screen Fit
Select video display format “Standard” or “Fill”.
15 Menu
Display the User setup menu.
16 Return
Switch to previous TV channel
17 Enter
Execute a command.
18 Ÿ/ź/Ż/Ź
OSD menual control(Ÿ/ź:TV channel
Up/Down;Ż/Ź:Volume Up/Down)
1
3
4
6
7
9
10
11
13
14
16
17
18
20
22
24
26
28
2
5
8
29
12
15
19
21
23
25
27

11
EnglishEspañolFrançais
19 Guide
Broadcast program information.
20 Info.
Display the source and channel information.
21 YPbPr1
Select YPbPr1 or 2 source input.
22 TV
Select TV(NTSC/ATSC) source input.
23 PC
Select VGA source input.
24 HDMI
Select HDMI 1 or 2source input.
25 YPbPr2
No support
26 DVI
No support.
27 Video
Select Video 1 or 2 input.
b
28 S-Video
No support
29 Dot button
Quicker access to all the available virtual channels
1
3
4
6
7
9
10
11
13
14
16
17
18
20
22
24
26
28
2
5
8
29
12
15
19
21
23
25
27

12
INSTALLATION AND FUNCTION ADJUSTMENT
Installation
1. Insert Batteries into Remote Control
1) Remove the battery cover.
2) Insert two size AAA batteries corresponding to (+) and (-) marks on the battery
compartment.
CAUTION
ǸʳOnly use AAA batteries.
ǸʳDo not mix new and old batteries. This may result in cracking or leakage, which may
pose a fire risk or lead to personal injury.
ǸʳInsert batteries according to (+) and (-) markings. Inserting the batteries incorrectly
may result in cracking or leakage, which may pose a fire risk or lead to personal injury.
ǸʳDispose of used batteries in accordance with local laws and regulations.
ǸʳKeep batteries away from children and pets.
ǸʳWhen the remote control will not be used for an extended period, remove the batteries.

13
EnglishEspañolFrançais

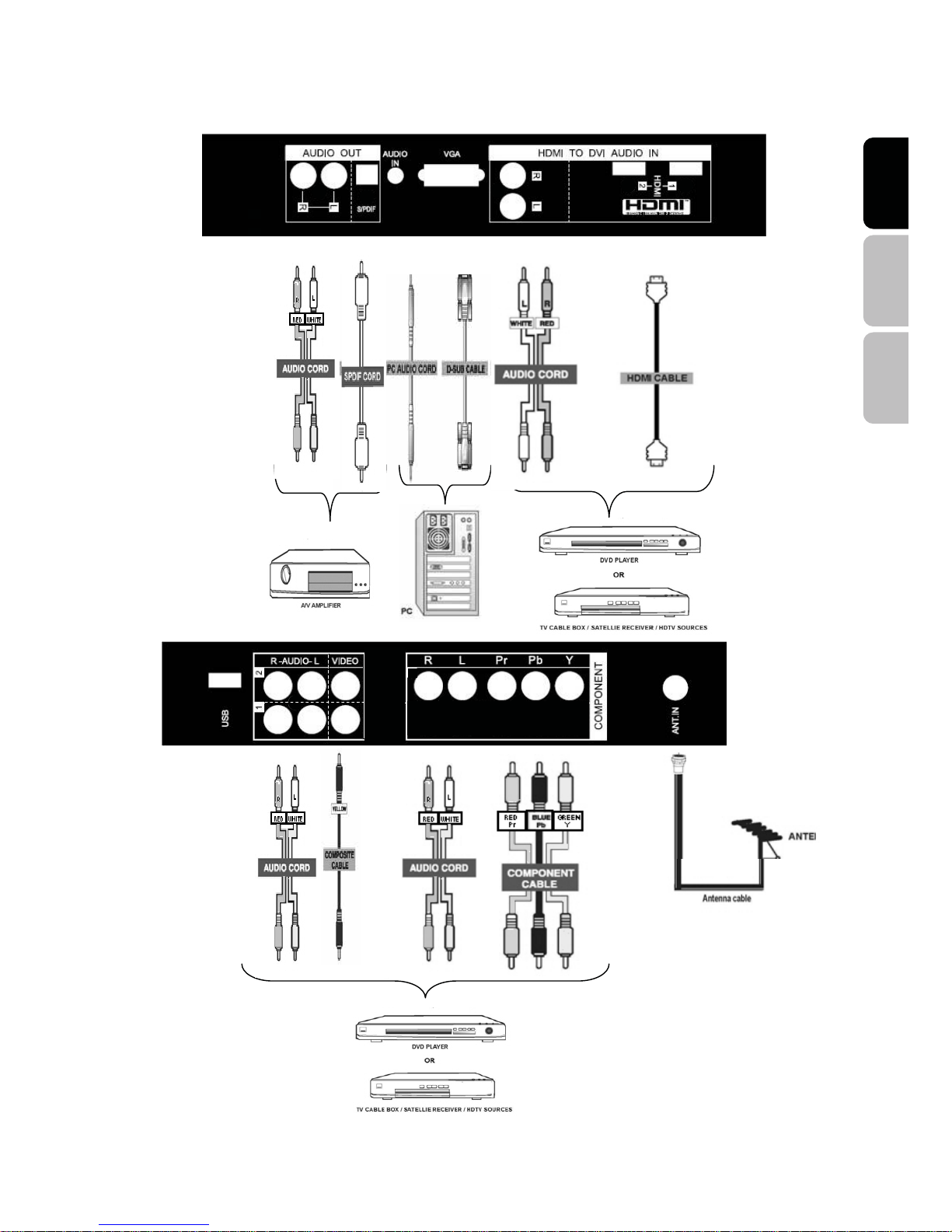

2. Connections
Έ͹ͺ΅Ͷʳ ʳ 
L

14
3. Connect power cables
Connect the power cord to the LCD TV then to a proper AC outlet.
IMPORTANT: The power input voltage for TV is 120Vac, before beginning; make sure
all devices are turned off.
4. Turn Power On
Press the power button on the right side of the LCD TV, or press the power (Red) button
on the remote control.
5. Select input source for the LCD TV using the OSD menu or remote
control direct select buttons
6. If connecting to Antenna, Cable or other RF source on TV inputs:
See page 19 to scan and edit available channels.
7. If connecting to a PC(VGA):
For the best picture quality, set the timing of your computer to 1366 x 768 at 60Hz.
Refer to the graphic card’s user guide of your computer to set this timing.

15
EnglishEspañolFrançais
How to remove the BASE
a. Carefully place the TV face down on a soft clean surface.
b. Remove the four screws underneath the BASE.
(See picture below)
c. Pull out the BASE from the TV.
SK-26H540S
SK-26H730S

16
Function adjustment
There are four main Setup Menus; these are Settings, Channels, Locks and Guide. All the
functions can be adjusted either by the remote control or by using the control keys on the
LCD TV’s right side.

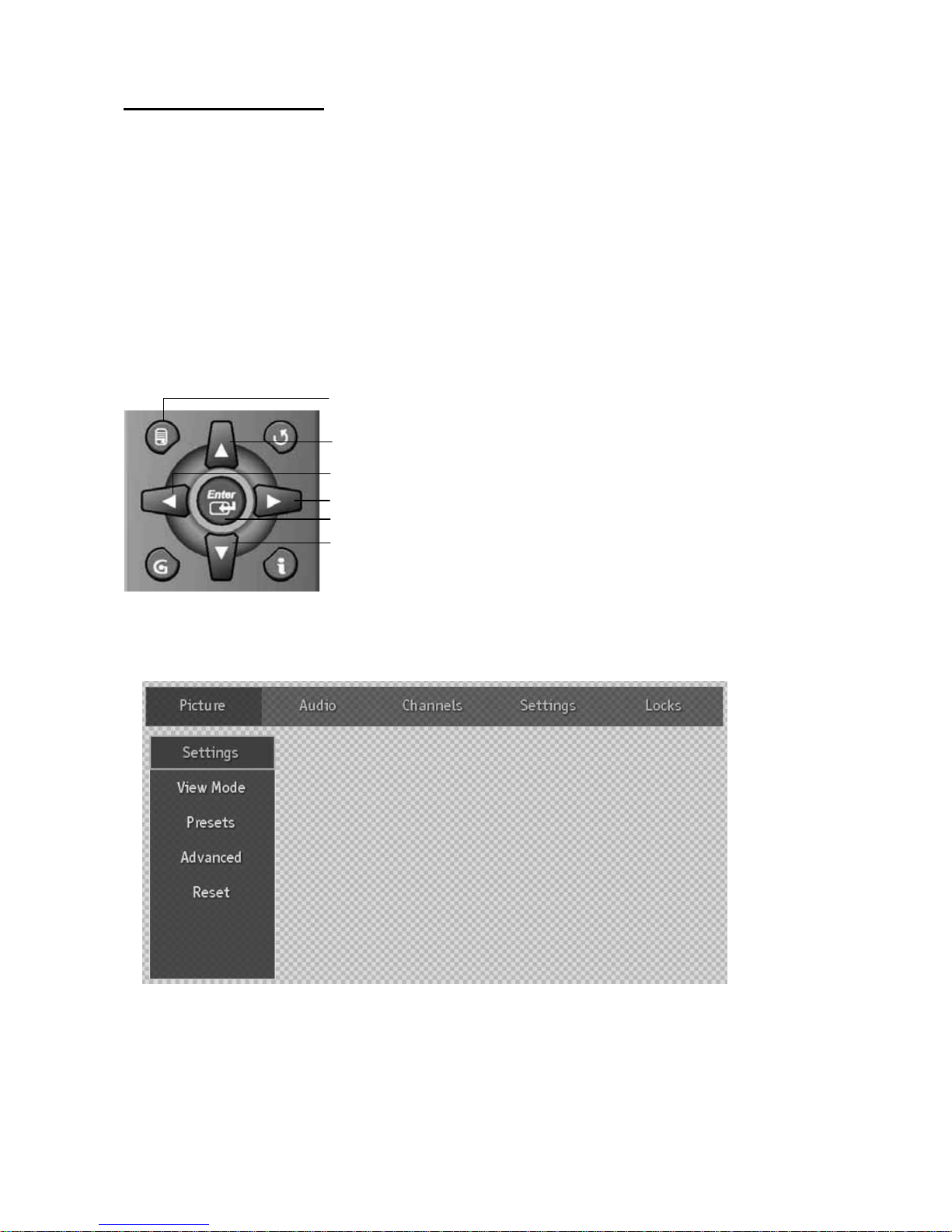

Viewing OSD Menu
To display the main menu, press the Menu button on the right side of front control keys of
the LCD TV or the MENU key on the remote control. Press arrow keys to select desired
OSD menu and Enter key to select desired setting.
Picture including Settings, View Mode, Presets, Advanced, and Reset.
Settings
Settings including Brightness, Contrast, Hue, Saturation, Sharpness, and Backlight,
please press arrow keys to select or adjust your favorite picture settings.
Menu/Exit
Up
Exit to previous menu
Right
Down
Enter

17
EnglishEspañolFrançais
Brightness, Contrast, Hue, Saturation, Sharpness, Backlight
Press arrow keys to set value.
View Mode
Adjust your TV screen to handle different picture formats.
Standard/Fill/Overscan
