Westinghouse WPX2700 User manual

For Gas Pressure Washer Models:
WPX2700, WPX3200
USER MANUAL
12111Rev03

2 | Westinghouse Outdoor Power Equipment
DISCLAIMERS:
All information, illustrations and specications in this manual are based on the latest information available at the time of
publishing. The illustrations used in this manual are intended as representative reference views only. Moreover, because
of our continuous product improvement policy, we may modify information, illustrations and/or specications to explain
and/or exemplify a product, service or maintenance improvement. We reserve the right to make any change at any time
without notice. Some images may vary depending upon which model is shown.
ALL RIGHTS RESERVED:
No part of this publication may be reproduced or used in any form by any means – graphic, electronic or mechanical,
including photocopying, recording, taping or information storage and retrieval systems – without the written permission
of Westinghouse Outdoor Power Equipment.
DANGER
This manual contains important instructions for operating this pressure washer. For your safety
and the safety of others, be sure to read this manual thoroughly before operating the
pressure washer. Failure to properly follow all instructions and precautions can cause you and
others to be seriously hurt or killed.
Specications WPX2700 WPX3200
Pressure - PSI/BAR 2700/186 3200/220
Flow Rate - (GPM/LPM) 2.3/ 8.71 2.5/ 9.46
Water Temperature (oF/oC) 104/40 Max
Hose Length (ft) 25 25
Soap Tank Capacity (L) 1.6L 1.6L
Nozzles 0o, 25o, 40o, Soap 0o, 15o, 25o, 40o, Soap
Engine Displacement 212cc (3600 RPM) 212cc (3600 RPM)
Spark Plug Type F7TC
Spark Plug Gap (in/mm) 0.030/0.76 mm
Fuel Capacity (L) 3.3 3.3
Recommended Oil 10W30
Oil Capacity (oz/L) 20/0.5 20/0.5
On/O Switch Yes
Thermal Relief Valve 140o
HAVE QUESTIONS? DO NOT RETURN THIS PRODUCT TO THE STORE
Email us at [e-mail] or call 1-855-944-3571
SAVE THESE INSTRUCTIONS
Important safety instructions are included in this manual.
Operating, servicing and maintaining this equipment can expose you to chemicals including engine exhaust,
carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth
defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine except
as necessary, service your equipment in a well-ventilated area and wear gloves or wash your hands frequently
when servicing your equipment. For more information go to www.P65Warnings.ca.gov.
WARNING

Westinghouse Outdoor Power Equipment | 3
HIGH ALTITUDE OPERATION
NOTICE
This pressure washer is NOT equipped with an altitude carburetor modication. Even with a carburetor modication, engine horsepower will
decrease about 3.5% for each 300 meter (1,000 foot) increase in altitude. The eect of altitude on horsepower will be greater if no carburetor
modication is made. A decrease in engine horsepower will decrease the power output of the pressure washer. Contact our service team to
order altitude kits.
FOR YOUR RECORDS:
Date of Purchase:
Pressure Washer Model Number:
Purchased from Store/Dealer:
Pressure Washer Serial Number:
IMPORTANT: KEEP YOUR PURCHASE RECEIPT TO ENSURE TROUBLE-FREE WARRANTY
COVERAGE.
PRODUCT REGISTRATION
To ensure trouble-free warranty coverage, it is important you register your Westinghouse pressure washer.
You can register your pressure washer by either:
1. Filling in the product registration form below and mailing to:
Product Registration
Westinghouse Outdoor Power Equipment
777 Manor Park Drive
Columbus, OH 43228
2. Registering your product Online at www.westinghouseoutdoorpower.com/register
To register your pressure washer you will need to locate the following information:
WESTINGHOUSE PRODUCT REGISTRATION FORM
PERSONAL INFORMATION PRESSURE WASHER INFORMATION
First Name: _______________________________________ Model Number: _____________________________________
Last Name: _______________________________________ Serial Number:______________________________________
Street Address: ___________________________________ Date Purchased: ____________________________________
Street Address: ___________________________________ Purchased From:____________________________________
City, State, ZIP:____________________________________ E-Mail:_____________________________________________
Country: __________________________________________ Phone Number: _____________________________________
C hine

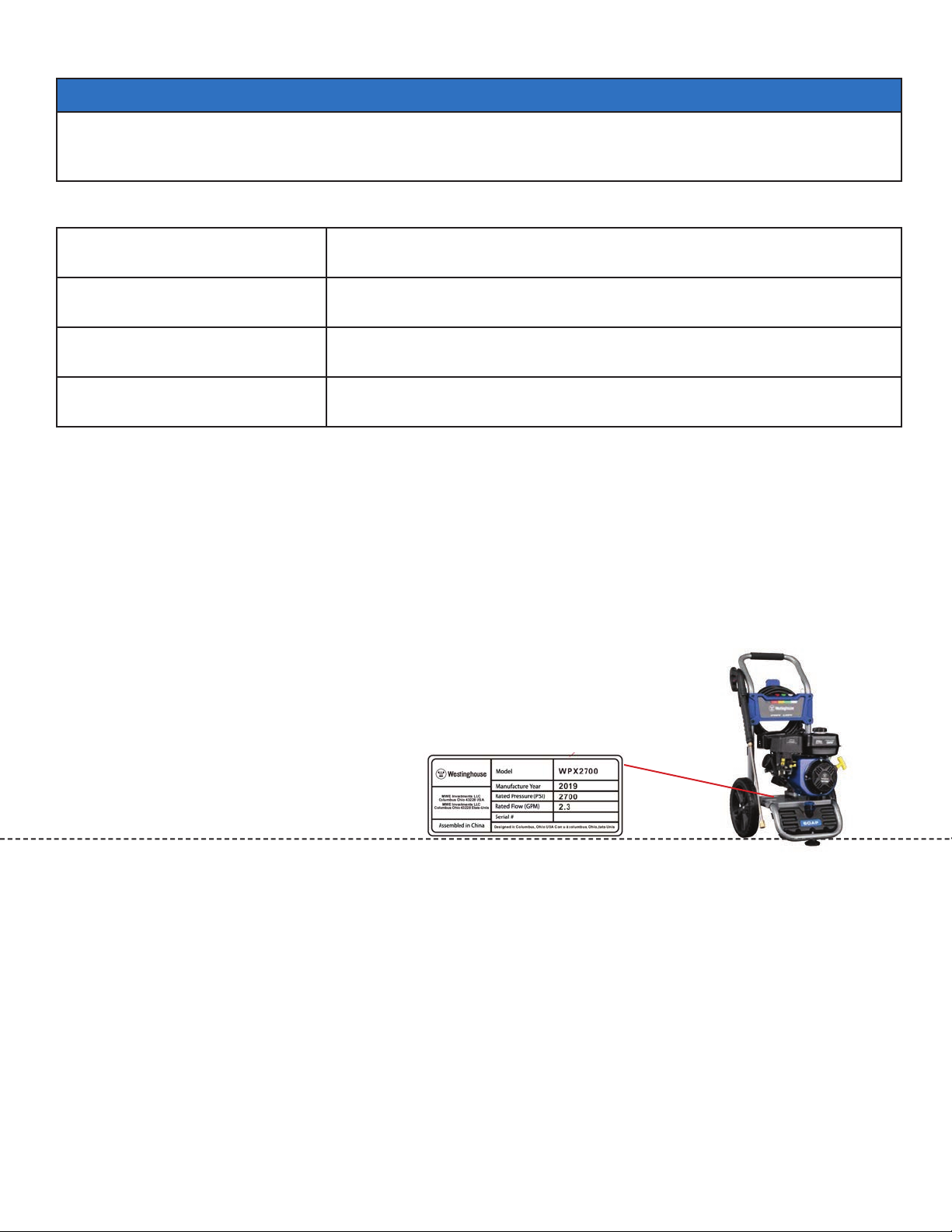

WHERE IS MY SERIAL
NUMBER?

4 | Westinghouse Outdoor Power Equipment
TABLE OF CONTENTS
SAVE THESE INSTRUCTIONS ..................2
PRODUCT REGISTRATION .....................3
For Your Records: ..........................3
Product Registration .......................3
Product Registration Form ...................3
SAFETY .....................................5
Safety Denitions ..........................5
Safety Symbol Denitions ...................5
General Safety Rules ........................6
Fuel Safety ................................8
ASSEMBLY .................................9
Wheel Assembly ...........................9
Handle Assembly ...........................9
Nozzle Assembly ...........................10
Hose Assembly ............................10
OPERATION .................................11
Before Starting the Pressure Washer ...........11
Adding/Checking Engine Fluids & Fuel .......11
Adding Gasoline to the Fuel Tank ...........12
Connecting the Water Supply ...............12
Starting the Pressure Washer .................13
Stopping the Pressure Washer ................14
Normal Operation .......................14
During an Emergency ....................14
Selecting Nozzles ..........................14
Spraying Tips ..........................15
Spraying Soap . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Rinsing ...................................16
Cleaning the Soap Siphon Hose ..............16
MAINTENANCE ..............................16
Maintenance Schedule ......................16
Engine Oil Maintenance .....................17
Engine Oil Specication ...................17
Checking Engine Oil .....................17
Adding Engine Oil .......................18
Changing Engine Oil .....................18
Air Filter Maintenance .......................18
Cleaning the Air Filter ....................18
Spark Plug Maintenance .....................19
Pressure Washer Components ..................19
Water Filter Screen .......................19
High-Pressure Hose & Spray Gun ..............19
High-Pressure Hose ......................19
Spray Gun .............................19
Soap Siphon Hose .......................19
Nozzle .................................19
AFTER EACH USE ............................20
Long Term Storage .........................20
Storage 1 - 3 Months ........................20
Storage Greater Than 3 Months ...............20
Winter Storage .............................20
Remove & Install the Pump ...................21
TROUBLESHOOTING .........................22
PRESSURE WASHER PARTS ...................24
WPX2700 Exploded View ....................24
WPX2700 and WPX3200 Engine View ...........25
WPX3200 Exploded View ....................27

Westinghouse Outdoor Power Equipment | 5
SAFETY DEFINITIONS
The words DANGER, WARNING, CAUTION and
NOTICE are used throughout this manual to highlight
important information. Be certain that the meanings of
these alerts are known to all who work on or near the
equipment.
This safety alert symbol appears
with most safety statements. It
means attention, become alert, your
safety is involved! Please read and
abide by the message that follows
the safety alerts symbol.
DANGER
Indicates a hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING
Indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION
Indicates a hazardous situation which, if not
avoided, could result in minor or moderate injury.
NOTICE
Indicates a situation which can cause damage to
the pressure washer, personal property and/or the
environment, or cause the equipment to operate
improperly.
NOTE: Indicates a procedure, practice or condition
that should be followed in order for the
pressure washer to function in the manner
intended.
SAFETY
SAFETY SYMBOL DEFINITIONS
Burn Hazard
Burst/Pressure Hazard
Don’t leave tools in the area
Electrical Shock Hazard
Explosion Hazard
Fall Hazard
Fire Hazard
High-Pressure Hazard
Lifting Hazard
Pinch-Point Hazard
Read Manufacturer’s Instructions
Read Safety Messages Before Proceeding
Wear Personal Protective Equipment (PPE)

6 | Westinghouse Outdoor Power Equipment
SAFETY
GENERAL SAFETY RULES
DANGER
NEVER operate the pressure washer in an enclosed
area. Engine exhaust contains carbon monoxide.
Only operate the pressure washer outside and away
from windows, doors and vents.
WARNING
Gasoline and gasoline vapors are
extremely ammable and explosive
under certain conditions.
• ALWAYS refuel the pressure washer
outdoors, in a well-ventilated area.
• NEVER remove the fuel cap with the
engine running.
• NEVER refuel the pressure washer
while the engine is running. Always
turn the engine o and allow the
pressure washer to cool before
refueling.
• Only ll fuel tank with gasoline.
• Keep sparks, open ames or other
form of ignition (such as match,
cigarette, static electric source) away
when refueling.
• NEVER overll the fuel tank. Leave
room for fuel to expand. Overlling
the fuel tank can result in a sudden
overow of gasoline and result in
spilled gasoline coming in contact
with HOT surfaces. Spilled fuel
can ignite. If fuel is spilled on the
pressure washer, wipe up any spills
immediately. Dispose of rag properly.
Allow area of spilled fuel to dry before
operating the pressure washer.
• Wear eye protection while refueling.
• NEVER use gasoline as a cleaning
agent.
• Store any containers containing
gasoline in a well-ventilated area,
away from any combustibles or
source of ignition.
• Check for fuel leaks after refueling.
• Never operate the engine if a fuel
leak is discovered.
WARNING
This equipment produces a stream of water
with enough high pressure to penetrate
skin and its underlying tissues, which
could result in amputation or other serious
injury. Spray gun traps high-pressure water,
even when engine is stopped and water
is disconnected. Leaks caused by loose
ttings or worn or damaged hoses can
result in injection injuries.
DO NOT TREAT FLUID INJECTION
AS A SIMPLE CUT! See a physician
immediately!
• NEVER aim spray gun at people, animals
or plants. Direct spray away from self and
others.
• NEVER place hands in front of nozzle.
• ALWAYS point spray gun in safe direction
while spraying and when relieving
retained high pressure after stopping
engine.
• DO NOT allow CHILDREN to operate
pressure washer.
• NEVER leave spray gun unattended while
machine is running.
• NEVER secure spray gun in open
position.
• DO NOT twist nozzle while spraying.
• NEVER repair a high-pressure hose.
ALWAYS replace it.
• NEVER repair leaking connections with
sealant of any kind. ALWAYS use factory-
recommended repair parts.
• NEVER hold onto the hose or ttings
during operation.
• DO NOT allow high-pressure hose to
contact muer or other extremely hot
surfaces.
• ALWAYS be certain spray gun, nozzles
and hoses are correctly attached and in
working order.
• NEVER use spray gun if trigger lock is
not in working order.
• ALWAYS use spray gun, hoses and
connections rated for pressure higher
than your pressure washer’s psi.
• NEVER attach or remove spray gun,
nozzles or hoses while system is
pressurized.

Westinghouse Outdoor Power Equipment | 7
GENERAL SAFETY RULES
SAFETY
WARNING
• NEVER modify spray equipment.
• ALWAYS wear protective clothing to
protect eyes and skin from contact
with sprayed materials.
NEVER aim spray in the direction of
power source. Contact with power
source can cause electric shock or
burn.
Unexpected kickback while spraying
can cause you to fall.
• Use of pressure washer can create
slippery surfaces and puddles. The
operating area of this equipment
should have adequate drainage to
reduce the possibility of a fall due to
slippery surfaces.
• Be extremely careful if necessary
to use the pressure washer from
a ladder, scaolding or any other
similar location.
• Use both hands to rmly grasp the
spray gun while in use to avoid injury
from high-pressure kickback.
NEVER use acids, toxic or corrosive
chemicals, poisons, insecticides,
or any kind of ammable solvent
with this equipment. Only use
detergents, cleaners and degreasers
recommended for use in this pressure
washer.
ALWAYS wear chemical splash safety
goggles that comply with ANSI Z87.1
when operating or in the vicinity of this
equipment.
ALWAYS remove any tools or other
service equipment used during
maintenance from the pressure washer
before operating.
NOTICE
NEVER operate pressure washer with damaged or
missing parts.
NEVER modify any feature or component of the
pressure washer.
NEVER spray at glass when using the high-pressure
nozzle (red). High-pressure spray may damage fragile
items including glass.
DO NOT exceed rated pressure when operating
pressure washer.
NEVER move pressure washer by pulling on any
hoses. Always use handle to move pressure washer.
Check components for ice forming on components
when operating in cold weather.
Remove the protective shipping caps from the
pump’s water inlet and outlet.
Be sure the water supply is connected and turned
on before starting the engine. Damage to the pump
could occur and will void the warranty.
Water supply must deliver a minimum of 3.8 gal
(14.3 L) per minute and at least 30 psi (2 bar). Do not
siphon standing water for the water supply. Water
temperature must not exceed 100°F (37.7°C).
DO NOT install a one-way valve, vacuum breaker
or check valve at the pump’s water inlet. Installing
one of these devices at the pump’s water inlet could
cause damage to the pump and will void the warran-
ty. Allow at least 10 feet (3 m) of unrestricted hose
length between the pump’s water inlet and a one-way
valve, vacuum breaker or check valve.

8 | Westinghouse Outdoor Power Equipment
Fuel Tank: Fill with regular unleaded fuel. Do not overll.
High Pressure hose: Connect one end to spray
gun and the other end to the water pump on bottom
of pressure washer.
Fuel On/O Switch: Turns fuel supply to the engine
on and o.
Choke: Prepares a cold engine for starting.
Nozzles: Varying sizes for various high pressure
cleaning applications.
Chemical/Soap Tank: Siphons detergent into the
low pressure stream. Automatically turns on when
using black soap nozzle. Only use pressure washer
safe detergent.
Oil Drain Plug: Used to drain engine oil.
Engine On/O Switch: Turn this switch “ON”
before using the recoil starter. Turn to “OFF” to stop
the engine.
Chemical/Soap Tube Connections: Connect
chemical/soap clear tube to tank and pump.
Nozzle Cleaning Tool: Used to clean nozzles.
Spray Gun: Controls the application of water
onto the surface with trigger. Includes trigger
lock.
Gun Lance: Connects to end of spray gun and
works with pressure nozzles included.
Thermal Relief Valve: When water reaches
125o F warm water will discharge from pump onto
ground. Helps to prevent internal pump damage.
Recoil Starter: Pull to start engine.
Oil Fill/Drain Plug: Access to oil. Includes
dipstick to measure oil levels.
Air Filter: Filters dust and debris out of the air
intake to protect the engine.
Pump: Generates high pressure.
Unloader Valve: Controls pressure output.
High Pressure Outlet: Connection for high pressure
hose.
Water Inlet: Connection for garden hose.
FEATURES
Pump
1 11
2
12
313
4
14
5
15
6
16
717
818
19
20
9
10
1
2
3
4
6
7
8
9
10
11
12
13
14
15
16
5
17
18
19
20

Westinghouse Outdoor Power Equipment | 9
INSTALLING WHEELS
BEFORE ASSEMBLING THE PRESSURE
WASHER REVIEW THE SAFETY
SECTION STARTING ON PAGE 5.
1. Place pressure washer on a at surface.
2. Place a piece of cardboard or other soft material to
tip the pressure washer onto, to protect the frame
paint and prevent the pressure washer from sliding.
Tip the pressure washer onto its side.
3. Insert axle pin through wheel.
4. Install the wheel with axle pin through the axle
bracket on the frame. The eye of the bolt should be
facing toward the inside of the pressure.
21
3
5. Install the hairpin cotter through the axle pin to lock
it in place.
1 - Axle Bracket
2 - Hairpin Clip
3 - Axle Pin
6. Repeat previous steps on other wheel.
UNPACKING THE PRESSURE WASHER
CAUTION
Always have assistance when lifting the
pressure washer. The pressure washer
is heavy; lifting it could cause bodily
harm.
Avoid cutting on or near staples to
prevent personal injury.
The following tools are required:
• Box cutter or similar device
• 10 mm wrench
1. Carefully cut the packing tape on top of the carton.
2. Fold back top aps to reveal the owner’s manual.
Remove owner’s manual and save it for reference.
3. Carefully cut two sides of the carton to remove the
pressure washer.
COMPONENTS
Verify the contents against the list below. If any parts
are missing, please locate an authorized Westinghouse
dealer at www.wpowereq.com or call 1-855-944-3571.
High-Pressure Hose (1)
Wheels (2)
Spray Gun Bracket (1) with fasteners (2)
Wheel Axle Lock Pin (2)
Wheel Axle Pin (2)
Soap Hose and soap tank (pre-installed) (1)
Spray Gun (1)
Spray Gun Lance (1)
Bottle of Oil SAE 10W30 with funnel tip (1)
Owners Manual (1)
Warranty (1)
Emissions Statement (1)
Spray nozzles (4 - WPX2700, 5 - WPX3200)
Nozzle Cleaning Tool (1)
NOTE: Soap and gasoline are not included
UNPACKING

10 | Westinghouse Outdoor Power Equipment
INSTALLING WHEELS AND FEET
BEFORE ASSEMBLING THE PRESSURE
WASHER REVIEW THE SAFETY
SECTION STARTING ON PAGE 5.
CAUTION
Never lift the pressure washer without
assistance. The pressure washer is
heavy and lifting without assistance
could result in personal injury.
Never use the handles as a lifting point
to support the entire weight of the
pressure washer. Only use the handles
to move the pressure washer by lifting
the handles and using the wheels to
move the pressure washer.
Use caution when collapsing the
handles. Hands and ngers could get
caught and pinched.
NOTICE
Assembling the pressure washer will require tipping
the unit. Make sure all engine oil and fuel are drained
from the unit prior to assembling.
Once assembled, the wheels are not intended for
on-road use. The wheels are designed for use on this
pressure washer only.
Never tip the pressure washer after it has been fully
assembled and lled with oil and fuel.

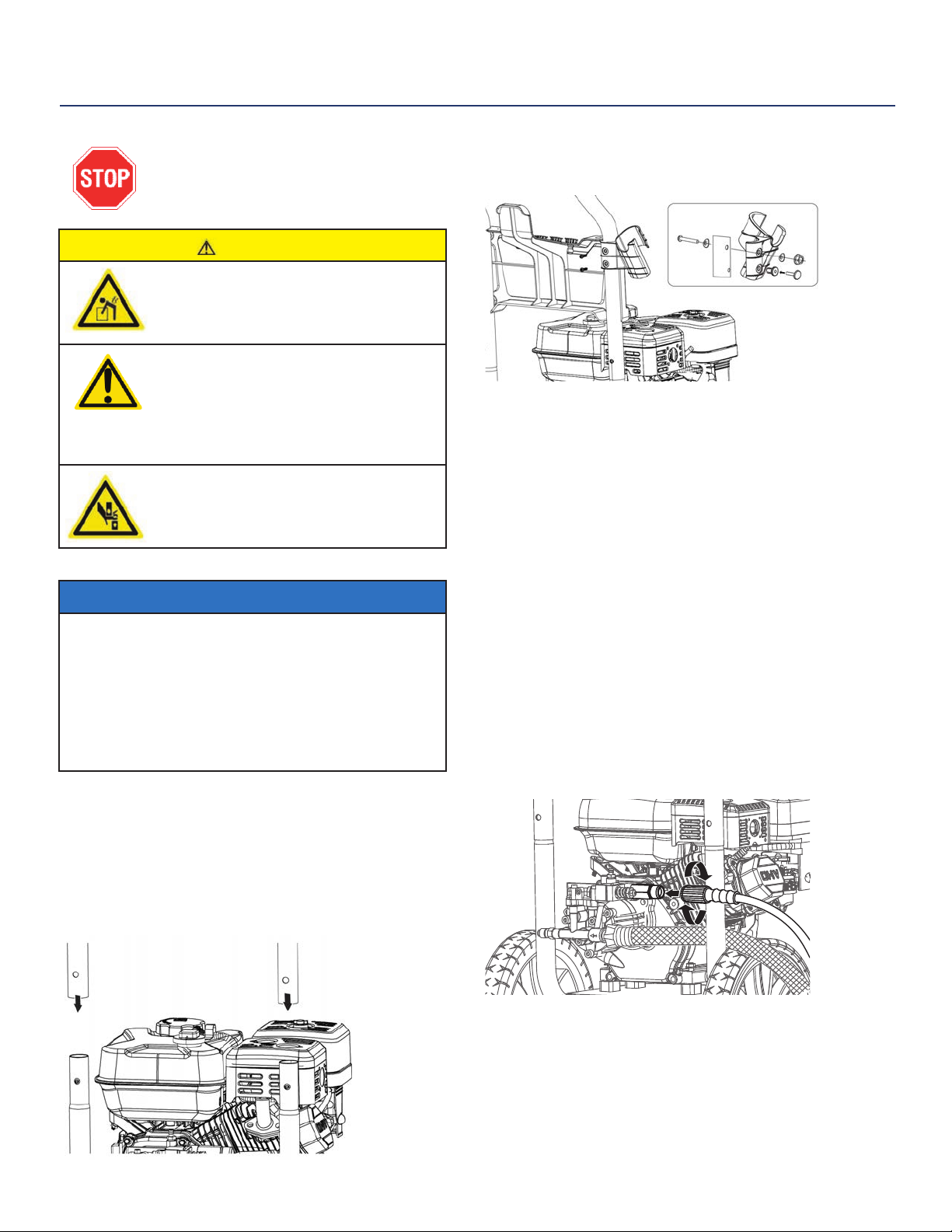

INSTALLING HANDLE TO FRAME
1. Place Handle over snap pin.
2. Install handle to frame via snap pin by pushing in
the pin & pressing down on handle until you hear a
“snap” to lock in to place, as shown below.
SPRAY GUN HOLDER
1. Attach spray gun holder included to the frame with
bolts provided.
INSERTING SPRAY NOZZLES
1. Insert colored nozzles included into corresponding
holder at the top of the pressure washer.
WAND ASSEMBLY
1. Connect the spray lance to the spray gun and turn
the tting counterclockwise to tighten. Do not over-
tighten. The tting only needs to be hand-tight.
2. Install the high-pressure hose to the spray gun and
tighten the hose tting. Do not over-tighten. The
tting only needs to be hand-tight.
HOSE ASSEMBLY
1. Locate the high pressure outlet tting on the pump at
the bottom of the unit.
2. Inspect the O-rings on both sides of the high
pressure hose. Moisten the O-rings with water.
3. Connect the high pressure hose to high pressure
outlet. Connect other end to spray wand
ASSEMBLY
CAUTION!
INSTALLING NOZZLE
1. Select desired nozzle for application. Lock spray gun.
2. Pull back collar at the end of the spray lance and
insert the nozzle. Tug on the nozzle to make sure it is
securely in place.
ASSEMBLY

Westinghouse Outdoor Power Equipment | 11
OPERATION
BEFORE STARTING THE
PRESSURE WASHER
BEFORE STARTING THE PRESSURE
WASHER REVIEW THE SAFETY SECTION
STARTING ON PAGE 5.
Location Selection – Before starting the pressure washer,
avoid exhaust and location hazards by verifying the
following:
• You have selected a location to operate the pressure
washer that is outdoors and well ventilated.
• You have selected a location with adequate drainage
but still level enough to prevent the pressure washer
from tipping over.
• You have selected a location that is at least 5 feet
(1.5 m) away from any building, other equipment or
combustible material.
• If the pressure washer is located close to a building,
make sure it is not located near any windows, doors
and/or vents.
WARNING
Always operate the pressure washer on a
surface that will prevent the pressure washer
from tipping over. Placing the pressure wash-
er on a surface that may allow the pressure
washer to tip over, could cause fuel and oil
to spill. Spilled fuel can ignite if it comes in
contact with an ignition source such as a very
hot surface.
NOTICE
Operating the pressure washer on a surface with loose
material such as sand or grass clippings can cause debris
to be ingested by the pressure washer that could:
• Block cooling vents
• Block air intake system
Check the following items before starting the engine:
1. Verify the pressure washer is properly assembled.
2. Check that recommended engine oil has been added to
proper level in the engine crankcase.
3. Add recommended fuel to fuel tank.
4. Check for properly tightened hose connections.
5. Check to make sure there are no kinks, cuts or damage
to high-pressure hose.
6. Provide a proper water supply at an adequate ow.
ADDING/CHECKING ENGINE FLUIDS
AND FUEL
BEFORE ADDING FUEL TO THE PRESSURE
WASHER REVIEW THE SAFETY SECTION
STARTING ON PAGE 5.
DANGER
Filling the fuel tank with gasoline while
the pressure washer is running can
cause gasoline to leak and come in
contact with hot surfaces that can
ignite the gasoline.
Before starting the pressure washer, always check the
level of:
• Engine oil
• Gasoline in the fuel tank
Once the pressure washer is started and the engine
gets warm, it is not safe to add gasoline to the fuel
tank or engine oil to the engine while the engine is
running or the engine and muer are hot.

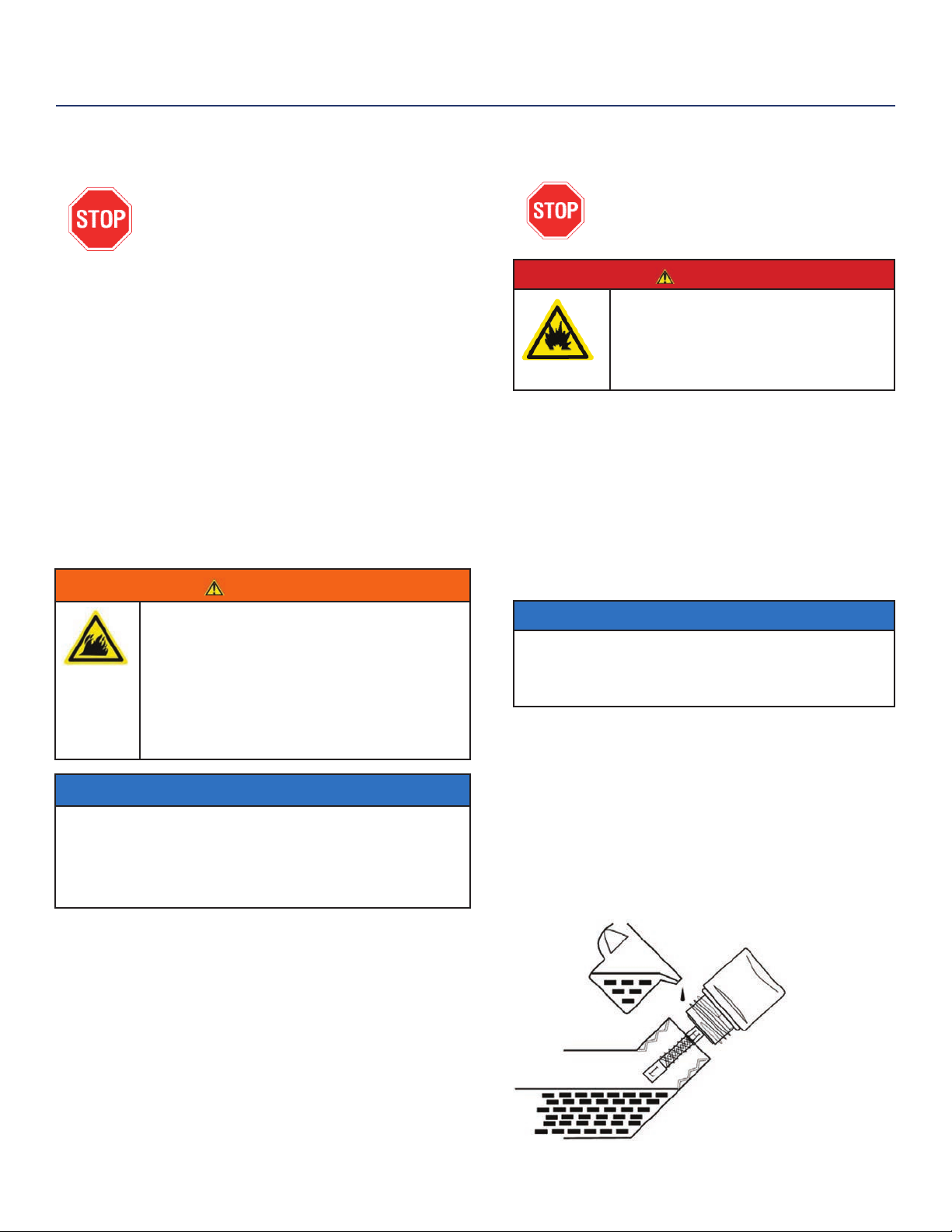

INITIAL OIL FILL
NOTICE
The pressure washer does not contain engine oil as
shipped. Attempting to start the engine without adding
engine oil can permanently damage internal engine com-
ponents.
1. Before starting for the rst time make sure to add
oil to the engine.
2. Remove oil ll plug/dipstick and wipe clean.
3. Using the supplied oil bottle and funnel, slowly add
engine oil to the engine. Stop frequently to check
the level to avoid overlling.
4. Add oil ll plug/dipstick and tighten.
5. Remove oil ll plug/dipstick to conrm oil level is
correct.

12 | Westinghouse Outdoor Power Equipment
OPERATION
ADDING GASOLINE TO THE FUEL TANK
WARNING
Never refuel the pressure washer while the
engine is running.
Always turn the engine o and allow the
pressure washer to cool before refueling.
Required Gasoline - Only use gasoline that meets the
following requirements:
• Unleaded gasoline only
• Gasoline with maximum 10% ethanol added
• Gasoline with an 87 octane rating
Filling the Fuel Tank - Follow the steps below to ll the
fuel tank:
1. Shut o the pressure washer.
2. Allow the pressure washer to cool down so all sur-
face areas of the muer and engine are cool to the
touch.
3. Move the pressure washer to a at level surface.
4. Clean area around the fuel cap.
5. Remove the fuel cap by rotating counterclockwise.
6. Slowly add gasoline into the fuel tank. Be very careful
not to overll the tank. The gasoline level should NOT
be higher than the bottom of the ller neck.
NOTICE
Take care when installing the fuel cap. Threads can be
damaged if cap is incorrectly installed.
7. Install the fuel cap by rotating clockwise until it hits
the stop, indicating the cap is completely installed.
CAUTION
Avoid prolonged skin contact with gas-
oline. Avoid prolonged breathing of gaso-
line vapors.
CONNECTING THE WATER SUPPLY
CAUTION
Risk of eye injury. Spray can splash back
or propel objects.
Always wear safety goggles when using
this equipment.
NEVER substitute safety glasses for
safety goggles.
NOTICE
Do not start the engine without the water supply
connected and turned on. Running the pump without
water will damage the pump.
Water supply must deliver a minimum of 3.8 gal (14.3
L) per minute and at least 30 psi (2 bar). Do not siphon
standing water for the water supply. Water temperature
must not exceed 100°F (37.7°C).
Make sure water inlet screen is in place before
attaching hose.
1. Run water through your garden hose to clear out any
debris that may have been in the hose.
2. Inspect the water inlet screen to make sure it is in
place and free of debris. Do not operate the pressure
washer with a missing or damaged inlet screen.
3. Use the shortest hose possible to complete the job at
hand. Using a longer hose may aect performance.
Connect a garden hose that is not longer than 50 feet
(15.2 m) to the water inlet tting.
4. Hand tighten the tting onto the hose. Do not
over-tighten.
ASSEMBLY
CAUTION!
5. Turn the water on and inspect for leaks.
6. Squeeze the trigger on the gun and allow any air to
bleed out of the hoses and the pump before starting
the engine.
7. Conrm the soap hose is connected if using soap.

Westinghouse Outdoor Power Equipment | 13
7. Move the choke lever to the CHOKE position.
CHOKE
RUN
8. Slide the fuel valve to the ON position
OFF
ON
9. Firmly grasp and pull the starter handle slowly until
you feel increased resistance. At this point, apply a
rapid pull on the starter handle.
NOTE: If the engine starts briey and then shuts o,
squeeze the trigger on the spray gun to relieve the
pressure before trying to start the engine again.
10. Once the engine starts, move the choke lever to the
RUN position. Allow the engine to warm up slightly
before beginning washing.
RUN
CHOKE

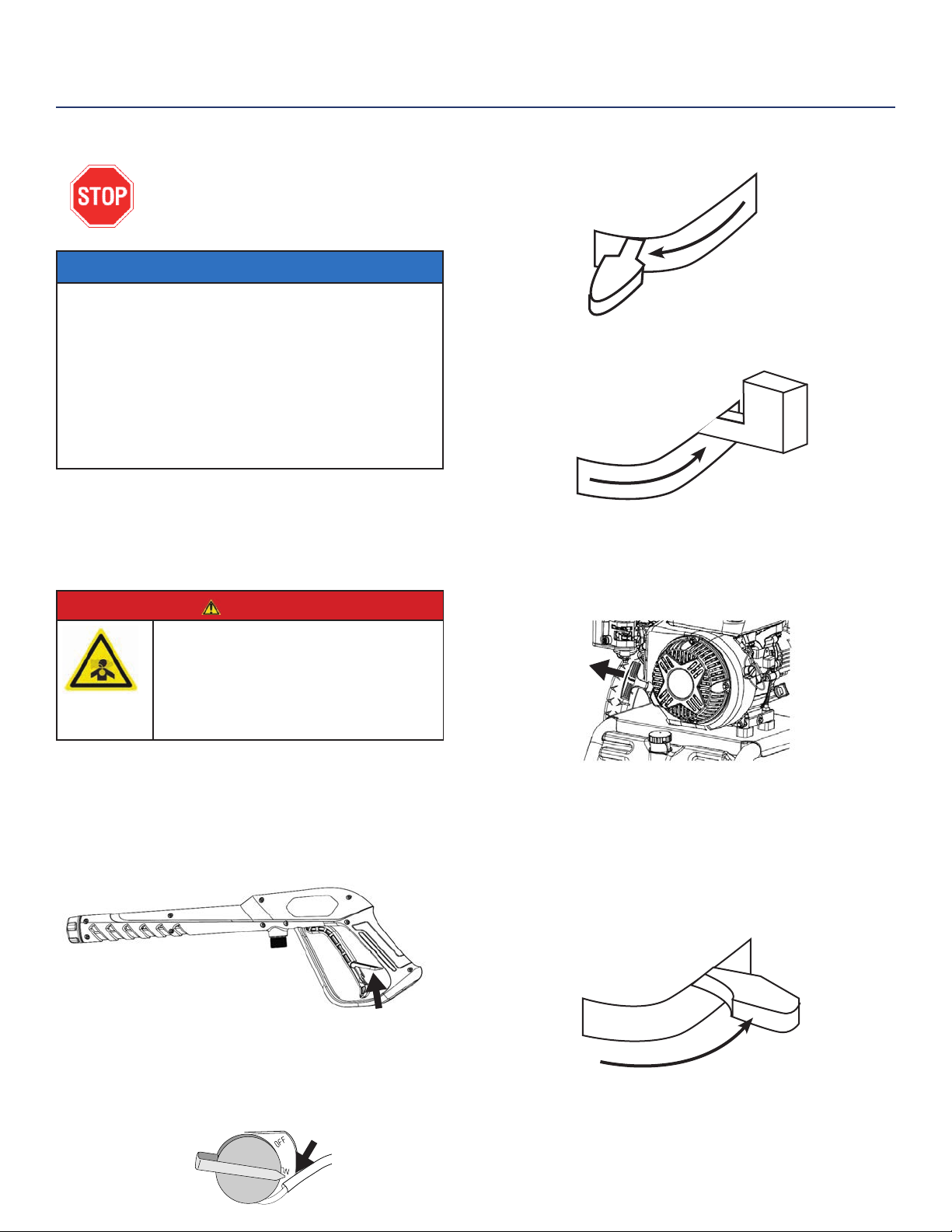

STARTING THE PRESSURE WASHER
BEFORE STARTING THE PRESSURE
WASHER REVIEW THE SAFETY SECTION
STARTING ON PAGE 5.
NOTICE
Pressure washer may walk or move when used on
hard surfaces. Be sure the unit is secure during
operation.
The pump is equipped a with a thermo valve. If the
pump is run for an extended period of time without
water owing through it, it could overheat. If the
pump gets to a certain temperature, the thermo valve
will open and discharge warm water out the valve to
allow cold water in to cool the pump.
Before attempting to start the pressure washer, verify the
following:
• The engine is lled with engine oil (see Initial Oil Fill).
• The pressure washer is situated in a proper location
(see Location Selection)
DANGER
Never operate the pressure washer
in an enclosed area. Engine exhaust
contains carbon monoxide that can
kill in minutes. Only operate the
pressure washer outside and away from
windows, doors and vents.
1. Move pressure washer to a at surface outside in a
well ventilated area. Maintain 5ft distance from any
surrounding buildings.
2. Check oil levels.
3. Flip the trigger lock lever up and lock the trigger in
the OFF position.
4. Make sure the water supply is turned on.
5. Point the thermo valve away from the work area you
are washing to avoid being sprayed with warm water.
6. Move the engine ON/OFF switch to the ON position.
OPERATION

14 | Westinghouse Outdoor Power Equipment
1
2
3
4
5
OPERATION
STOPPING THE PRESSURE WASHER
Normal Operation
During normal operation, use the following steps to
stop your pressure washer:
1. Lock the spray gun trigger lock in the OFF position.
2. Move the engine OFF/ON switch to the OFF
position.
3. Close the fuel shuto valve.
4. Turn the water supply o.
5. Unlock the spray gun trigger and squeeze the
trigger to release any pressure in the hoses and
pump.
6. Disconnect the garden hose from the water inlet.
7. Complete all steps in After Each Use in
Maintenance section of manual.
During an Emergency
If there is an emergency and the pressure washer must
be stopped quickly, push the engine control switch to
OFF position immediately.
SELECTING NOZZLES
The quick-connect feature allows changing between
nozzles while the pressure washer is running once the
spray gun trigger is locked in the safe position.
NOTICE
Only use the nozzles that were supplied with the
pressure washers. Using any other nozzles can
aect performance and may void the warranty.
For replacement nozzles call [phone].
WARNING
Always apply the trigger lock to change a
nozzle if the engine is running.
High Pressure 0° (RED)
High to Medium Pressure 15° (YELLOW)
Medium Pressure 25° (GREEN)
Low Pressure 40° (WHITE)
Soap (BLACK)

Westinghouse Outdoor Power Equipment | 15
SPRAYING TIPS
For most cleaning, keep nozzle 8 - 24 in. (20 - 61 cm)
away from cleaning surface.
• Damage may occur to the cleaning surface if you
spray too close, especially with high-pressure
nozzles.
• When beginning to spray, start farther away and
move closer to avoid damage to the surface.
• When cleaning tires, allow at least 6 in. (15 cm)
between a tire and the nozzle.
NOTICE
Do not get any closer than 6 in. (15 cm). Spraying
closer than 6 in. (15 cm) may damage tire.
To relieve system pressure, shut o engine, turn o water
supply and pull gun trigger until water stops owing.
SPRAYING SOAP
NOTICE
Use only pressure washer-safe soap. Use soaps that are
designed for pressure washers. Use as recommended by
soap manufacturer.
1. Install the soap nozzle (BLACK).
NOTICE
Only use the soap nozzle to apply soap. Using other
nozzles will not apply soap. NEVER use caustic liquid with
pressure washers. Do not route soap siphon hose where it
can contact the muer while engine is running.
2. Prepare soap solution following manufacturer’s
instructions.
3. Place soap siphon hose into soap container.
4. Make sure the garden hose and high-pressure hose
are connected.
NOTICE
All hoses must be connected before starting the engine.
5. Turn on the water supply.
6. Start the engine and squeeze the trigger.
7. Use long, even overlapping stroke to apply soap.
8. Allow 3 - 5 minutes for the soap to soak in before
rinsing. Do not allow the soap to dry on the surface
before rinsing. Reapply soap if necessary to
maintain a wet surface for the soap to soak in.
NOTICE
Clean the soap siphon hose once done.
OPERATION
NOZZLE APPLICATION
NOZZLE USE
1. High Pressure Nozzle
(RED) - higher
pressure & smallest
spray pattern.
NOTE: The red nozzle
can damage surfaces
if it is held too close
for an extended time.
Use to clean hard,
embedded dirt & grime.
Use on concrete, brick,
driveways, & patios.
2. High to Medium
Pressure Nozzle
(YELLOW) - High to
medium pressure
with smallest angle
spray pattern.
Use to clean paint, stain,
mildew, oil, & stuck on
dirt & grime. Use on
wood, decks, home
siding, driveways, &
patios.
3. Medium Pressure
Nozzle (GREEN) -
medium pressure
& medium spray
pattern.
For general rinsing ideal for
most all purpose cleaning
such as home siding,
brick patios, wood decks,
driveways and sidewalks,
garage oors, etc.
4. Low Pressure Nozzle
(WHITE) - lower
pressure & widest
spray pattern.
For delicate rinse for
gentle cleaning of cars/
trucks, boats, RV’s patio
furniture, lawn equipment,
etc.
5. Soap Nozzle (BLACK)
NOTE: Only use
pressure washer safe
soap.
Use to apply soap to
cleaning surfaces in order
to provide a thorough
cleaning.
CHANGING THE NOZZLE
1. Push up the trigger lock to the OFF position.
2. Pull the quick coupler toward the spray gun.
3. Push the nozzle into the coupler and push the
coupler away from the spray gun. The nozzle will lock
into place. Tug on the nozzle to verify it is locked in
place.

16 | Westinghouse Outdoor Power Equipment
OPERATION
MAINTENANCE
RINSING
WARNING
Always apply the trigger lock to change a
nozzle if the engine is running
1. Select the desired nozzle and change nozzle.
2. Squeeze the trigger and carefully start to spray,
keeping nozzle at a safe distance from the cleaning
surface.
3. Starting from the top of the surface, spray a small
are then check surface for damage. If no damage,
continue rinsing by using overlapping strokes
working down the surface. Keep checking surface
for damage while rinsing.
CLEANING SOAP SIPHON HOSE
If used, clean the soap siphon hose before
stopping the engine.
1. If necessary, install the soap nozzle (BLACK).
2. Use clean water to ush the soap siphon hose.
Submerge the soap siphon hose in clean water.
3. Flush the soap siphon hose for 1 - 2 minutes while
the engine is running.
4. Once clean, stop the engine.
5. Point spray gun in a safe direction. Squeeze the
trigger to release pressure within the system.
MAINTENANCE
BEFORE PERFORMING MAINTENANCE
ON THE PRESSURE WASHER REVIEW
THE SAFETY SECTION STARTING ON
PAGE 5.
WARNING
Avoid accidentally starting the pressure
washer during maintenance by removing
the spark plug boot from the spark plug.
Allow hot components to cool to
the touch prior to performing any
maintenance procedure.
Internal pressure can build in the engine
crankcase while the engine is running.
Removing the oil ll plug/dipstick while
the engine is hot can cause extremely hot
oil to spray out of the crankcase and can
severely burn skin. Allow engine oil to
cool for several minutes before removing
the oil ll plug/dipstick.
Always perform maintenance in a well
ventilated area. Gasoline fuel and fuel
vapors are extremely ammable and can
ignite under certain conditions.
CAUTION
Avoid skin contact with engine oil or
gasoline. Prolonged skin contact with
engine oil or gasoline can be harmful.
Frequent and prolonged contact with
engine oil may cause skin cancer. Take
protective measures and wear protec-
tive clothing and equipment. Wash all
exposed skin with soap and water.
WARNING
Failure to perform periodic maintenance
or not following maintenance procedures
can cause the pressure washer to
malfunction and could result in death or
serious injury.
NOTICE
Periodic maintenance intervals vary depending on
pressure washer operating conditions. Operating the
pressure washer under severe conditions, such as
sustained high-load, high-temperature, or unusually
wet or dusty environments, will require more frequent
periodic maintenance. The intervals listed in the
maintenance schedule should be treated only as a
general guideline.

Westinghouse Outdoor Power Equipment | 17
MAINTENANCE
TABLE 1: MAINTENANCE SCHEDULE - OWNER PERFORMED
Maintenance
Item
Before Every
Use
After First 5
Hours
After 25 Hours
of Use or Every
Year
After 50 Hours
of Use or Every
Year
After 100 Hours
of Use or Every
Year
Engine Oil Check Level Change - Change -
Cooling Features Check - - - Clean
Air Filter Check -Check Replace* -
Spark Plug - - - Check/Clean Replace
Spark Arrestor Inspect - - Clean -
Water Inlet Screen Inspect - - Replace -
*Service more frequently if operating in dry and dusty conditions
TABLE 2: MAINTENANCE SCHEDULE - AUTHORIZED WESTINGHOUSE
SERVICE DEALER PERFORMED
Maintenance
Item
Before Every
Use
After First 5
Hours
After 25 Hours
of Use or Every
Year
After 50 Hours
of Use or Every
Year
After 100 Hours
of Use or Every
Year
Valve Clearance - - - - Check/Adjust
Fuel Filter Check - - Replace -
Combustion
Chamber
- - - - Decarbonize
ENGINE OIL MAINTENANCE
1. Only use the engine oil specied below.
°F -200 20 32 40 60
50 80 100
°C -30- 20 -100 10 20 30 40
5W-30
10W-30
SAE 30
2. Only use 4-stroke/cycle engine oil. NEVER USE
2-STROKE/CYCLE OIL.
NOTICE
Always maintain proper engine oil level. Failure to
maintain proper engine oil level could result in severe
damage to the engine and/or shorten the life of the
engine.
Always use the specied engine oil. Failure to use the
specied engine oil can cause accelerated wear and/
or shorten the life of the engine.
CHECKING ENGINE OIL
1. Always operate or maintain the pressure washer on
a at surface.
2. Stop engine if running.
3. Let engine sit and cool for several minutes (allow
crankcase pressure to equalize).
4. With a damp rag, clean around the oil ll plug/dip-
stick.
5. Remove oil ll plug/dipstick and wipe it clean.
6. Thread the oil ll plug/dipstick all the way back in
and then remove and check the oil level on the oil
ll plug/dipstick.
• Acceptable Oil Level – Oil is visible on the
crosshatches between the H and L lines on the
oil ll plug/dipstick.
• Low Oil – Oil is below the L line on the oil ll
plug/ dipstick.

18 | Westinghouse Outdoor Power Equipment
MAINTENANCE
ADDING ENGINE OIL
NOTICE
Oil crankcase capacity is 0.5L. Do not overll.
1. Always operate or maintain the pressure washer on
a at surface.
2. Stop engine if running.
3. Let engine sit and cool for several minutes (allow
crankcase pressure to equalize).
4. Thoroughly clean around the oil ll plug/dipstick.
5. Remove oil ll plug/dipstick and wipe clean.
6. See Engine Oil Specication in Engine Oil
Maintenance Section for the proper engine oil.
7. Using the funnel provided, slowly add engine oil
to the engine. Stop frequently to check the level to
avoid overlling.
8. Continue to add oil until the oil is at the correct
level.
CHANGING ENGINE OIL
1. Stop the engine. Ensure gas cap is properly sealed.
2. Let engine sit and cool for several minutes (allow
crankcase pressure to equalize and hot surfaces to
cool down).
3. Place oil pan (or suitable container) beside the oil ll
plug/dipstick.
4. Remove the oil drain plug so the oil can drain.
5. With a clean rag, throughly clean around the oil ller
cap. Allow oil to completely drain.
6. Fill crankcase with oil following the steps outlined in
Adding Engine Oil.
7. Dispose of used engine oil properly.
NOTICE
Never dispose of used engine oil by dumping the
oil into a sewer, on the ground, or into ground
water or waterways. Always be environmentally
responsible. Follow the guidelines of the EPA or
other governmental agencies for proper disposal
of hazardous materials. Consult local authorities or
reclamation facility.
AIR FILTER MAINTENANCE
WARNING
Never use gasoline or other ammable
solvents to clean air lter. Use only
household detergent soap to clean the air
lter.
The air lter must be replaced after every 50 hours of
use or every year (frequency should be increased if
pressure washer is operated in a dusty environment).
NOTE: The air lter cannot be cleaned with
compressed air.
1. Turn o the pressure washer and let it cool for
several minutes if running.
2. Move the pressure washer to a at, level surface.
3. Loosen the nut holding the cover in place and open
the air cleaner cover.
4. Remove the foam air lter
element. (WPX3200 will
have an additional paper
lter that must only be
cleaned with compressed
air or brush).
5. Wash the foam air lter elements by submerging
the elements in a solution
of household detergent soap and warm water.
Slowly squeeze the foam to thoroughly clean.
7. Dispose of used soap cleaning solution properly.
8. Dry the air lter elements by again applying a slow
rm squeezing action.
9. Once the air lters are dry, coat the air lters with
clean engine oil.
10. Squeeze the lters to remove any excess oil.
11. Insert the new air lter element in the air cleaner
assembly box. Make sure to install paper lter
correctly as well.
12. Close the air cleaner cover and secure cover.

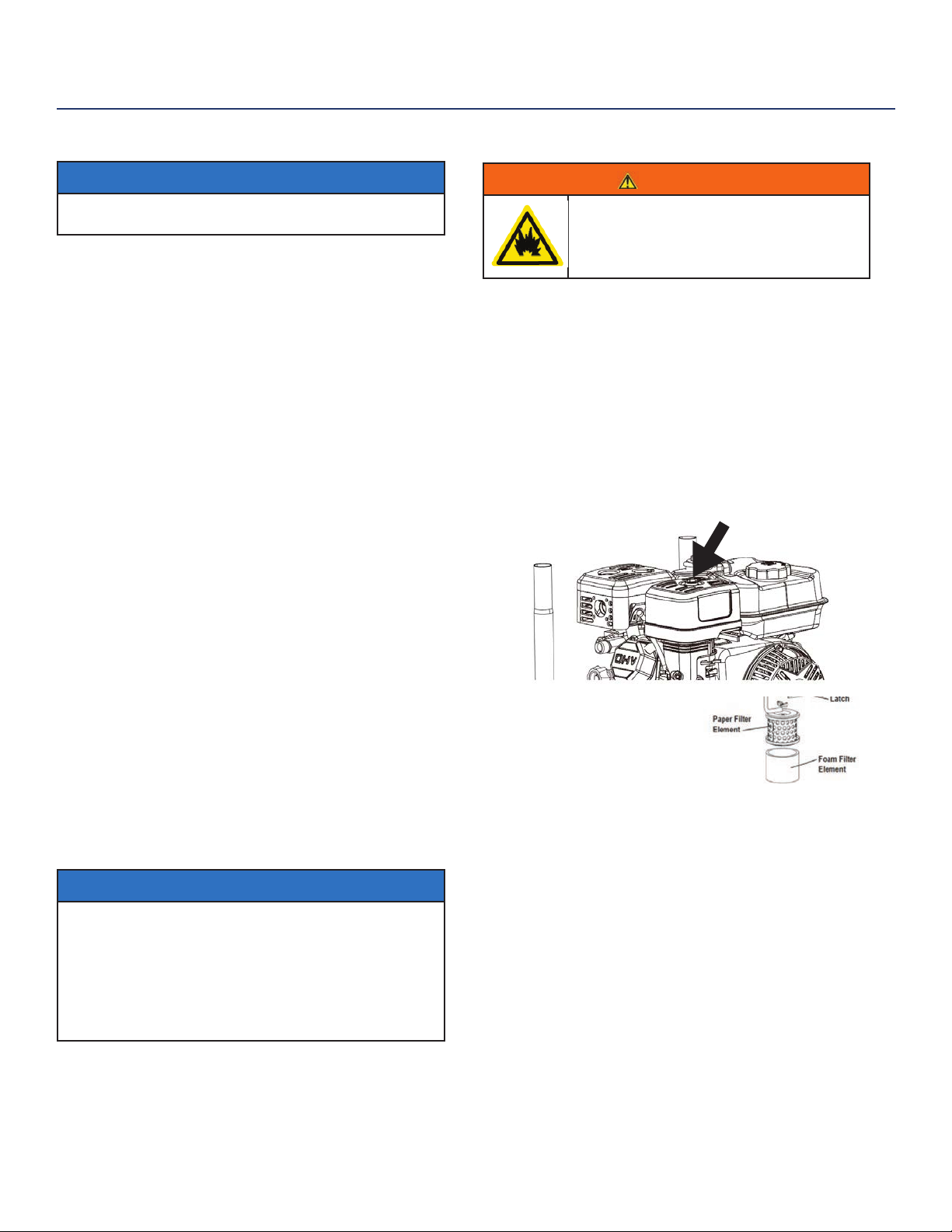

Air Filter Assembly

Westinghouse Outdoor Power Equipment | 19
High-Pressure Hose
1. Remove the high-pressure hose.
2. Inspect the O-rings on the hose tting. Replace if
cracked or split.
3. Inspect the high-pressure hose for leaks or damage.
4. Replace the high-pressure hose if it leaks or damage
are present.
Spray Gun
1. Inspect the O-ring on the wand where it connects to
the spray gun. Replace if cracked or split.
2. Inspect the connection between the hose and the
spray gun. Ensure that the hose is connected tightly
to the tting on the spray gun.
3. Release the trigger lock by slightly pushing the trigger
forward.
4. Test the trigger by pulling it backward. Make sure that
the trigger returns to its original position when it is
released.
Soap Siphon Hose
1. Remove the soap siphon hose from the soap
container.
2. Inspect the soap siphon hose. Clean it if it is clogged.
3. Inspect the soap siphon hose for leaks or damage.
4. Replace soap siphon hose if it is damaged.
Nozzle and Lance
1. Shut o the pressure washer and turn o the water
supply.
2. Pull the trigger of the spray gun to release any
remaining water pressure.
3. Lock spray gun trigger.
4. Remove the nozzle tip from the end of the spray gun
lance.
5. Flush the nozzle tip with clean water. Use cleaning
tool provided to remove any obstructions inside the
nozzle hole.
6. Remove the lance extension from the spray gun.
7. Flush clean water through the lance extension.
8. Reconnect the lance extension to the spray gun.
9. Reinstall the nozzle tip into the lance extension.
SPARK PLUG MAINTENANCE
The spark plug must be replaced after every 100 hours of
use or every year.
1. Stop the pressure washer and let it cool for several
minutes if running.
2. Move the pressure washer to a at, level surface.
3. Remove the spark plug boot by rmly pulling the
plastic spark plug boot handle directly away from the
engine.
4. Clean the area around the spark plug.
5. Remove the spark plug from the cylinder head.
6. Place a clean rag over the opening created by the
removal of the spark plug to make sure no dirt can
get into the chamber.
7. Inspect the spark plug for:
• Cracked or chipped insulator
• Excessive wear
• Spark plug gap (the correct
valve is 0.030 in. [0.76 mm]).
8. Install the spark plug by carefully following the steps
outlined below:
A. Carefully insert the spark plug back into the
cylinder head. Hand-thread the spark plug until it
bottoms out.
B. Turn the spark plug to ensure it is fully seated.
Torque plug to 20 ft-lb (27 N.m).
C. Replace the spark plug boot, making sure the
boot fully engages the spark plug’s tip.
PRESSURE WASHER COMPONENTS
Water Filter Screen
1. Remove the water inlet hose.
2. Remove the cone-shaped water lter screen from the
water inlet hose tting.
3. Inspect the water lter screen for debris or damage.
4. If the water lter screen is clogged or full of debris,
clean it by ushing it with water on both sides. If it is
damaged, replace it.
5. Reinsert the water lter screen into the water inlet
hose tting. The cone side must face out.
MAINTENANCE
SPARK PLUG GAP

20 | Westinghouse Outdoor Power Equipment
Storage Procedure for 1 - 3 Months
1. Clean the pressure washer as outlined After Each
Use on page 21.
2. Add a gasoline fuel stabilizer to the fuel tank. Follow
the recommended procedure of the fuel stabilizer
manufacturer for correct amount of stabilizer to add.
Storage Procedure for Greater Than 3 Months
1. Clean the pressure washer as outlined After Each
Use.
2. Drain all gasoline from the fuel tank as best as
possible.
3. Connect a hose to the water inlet tting and turn on
the hose.
4. Start the engine and allow pressure washer to run
until all the remaining gasoline in the fuel lines and
carburetor is consumed and the engine shuts o.
5. Clean the pressure washer as outlined in After Each
Use.
6. Change the oil (see Changing Oil).
7. Remove the spark plug (see Spark Plug Maintenance)
and place about 1 tablespoon of oil in the spark
plug opening. While placing a clean rag over the
spark plug opening, slowly pull the recoil handle to
allow the engine to turn over several times. This will
distribute the oil and protect the cylinder wall from
corroding during storage.
8. Replace the spark plug (see Spark Plug
Maintenance).
9. Move the pressure washer to a clean, dry place for
storage.
WINTER STORAGE
1. Follow steps 1 - 11 in After Each Use.
2. Store the hoses, spray gun and nozzle extension.
3. Disconnect the spark plug wire.
4. Connect a 3ft (1m) section of garden hose to the
water inlet hose tting.
5. Using a funnel, pour 6 oz (177 mL) of RV antifreeze
into the hose
NOTICE
Use only RV antifreeze. Any other antifreeze can
damage the pump.
6. Slowly pull the recoil handle several times, until
antifreeze comes out of the high-pressure tting of
the pump.
7. Remove the 3ft (1m) garden hose.
8. Reconnect the spark plug wire.
9. Store the pressure washer in a clean, dry place.
MAINTENANCE
AFTER EACH USE
1. Shut o the pressure washer and turn o the water
supply.
2. Remove the soap siphon hose the from the soap
container and insert it into a container with clean
water.
3. Install black soap nozzle on spray gun. Turn on the
water supply and start the pressure washer.
4. Pull the spray gun trigger and spray for 1 - 2 minutes.
This will ensure that all remaining soap is ushed
from the pump.
5. Shut o the pressure washer and turn o the water
supply.
6. Pull the spray gun trigger to release any remaining
pressure.
7. Let the pressure washer cool down.
8. Disconnect the high-pressure hose and water inlet
hose.
9. Drain the hoses, spray gun and nozzle extension.
10. Engage the trigger lock on the spray gun.
11. Wipe o all remaining water with a clean, dry rag.
12. While the pressure washer is turned o, pull the recoil
handle 5 - 6 times. This should remove most of the
remaining liquid inside the pump.
13. Store the pressure washer in a clean, dry place.
LONG-TERM STORAGE
WARNING
Never store a pressure washer with fuel
in the tank indoors or in a poorly venti-
lated area where the fumes can come in
contact with an ignition source such as
a: 1) pilot light of a stove, water heater,
clothes dryer or any other gas appliance;
or 2) spark from an electric appliance.
NOTICE
Gasoline stored for as little as 60 days can go bad,
causing gum, varnish and corrosive buildup in fuel
lines, fuel passages and the engine. The corrosive
buildup restricts the ow of fuel, preventing an engine
from starting after a prolonged storage period.
Proper care should be taken to prepare the pressure
washer for any long-term storage.
