Westinghouse MT80 ARM20 Guide

Max UL Load Capacity: 80 lb (36.3 kg)
ISSUED: 01-17-06 SHEET #: 202-9094-1
Installation and Assembly:
Universal Articulating Wall Mount for 20" - 42" Screens
Model: MT80 ARM20
Features:
•Universaldesignfor20"-42"flatpanelscreens
• Threetensionablepivotpointsforextensiveadjustment of viewing angle
• VESA®100/200/200 x 200 compatible
• Frees up space by folding flat against the wall
• Keeps electronic wires routed internal to reduce clutter
R
Visit the Westinghouse Web Site at www.westinghousedigital.com For customer care call 1-866-287-5555.

2 of 10 ISSUED: 01-17-06 SHEET #: 202-9094-1
Note: Read entire instruction sheet before you start installation and assembly.
Forcustomer care call 1-866-287-5555.
Table of Contents
Parts List.............................................................................................................................................................................. 3
Installation to Wood Stud Wall ............................................................................................................................................. 4
Installation to Solid Concrete and Cinder Block .................................................................................................................... 5
Tools Needed for Assembly
• studfinder("edgetoedge"studfinderisrecommended)
• phillipsscrewdriver
• drill with 1/4" and 5/32" drill bits
Accessories
• Metal Stud Wall Plate (WSP models) (Not evaluated by UL)
• Donotbegin to install your Westinghouse product until youhavereadand understood the instructions and warnings
contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, call
customerservice at1-866-287-5555.
• This product should only be installed by someone of good mechanical aptitude, has experience with basic building
construction, and fully understands these instructions.
• Make sure that the supporting surface will safely support the combined load of the equipment and all attached
hardware and components.
• Never mount this product to a metal stud wall construction unless the stud can be verified to be constructed of 25
gauge steel minimum, the drywall is 1/2" thick minimum and you obtain and use the accessory kit for metal studs.
• Neverexceedthe Maximum ULLoadCapacity.
• If mounting to wood wall stud wall construction, make sure that mounting screws are anchored into the center of the
studs. Use of an "edge to edge" stud finder is highly recommended.
• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• Tighten screws firmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding
power. See suggested torque values where applicable within these instructions.
WARNING

3 of 10 ISSUED: 01-17-06 SHEET #: 202-9094-1
Description Qty. Part #
Awall mount 1 095-0345
BAlligator® anchor 2 590-0097
C.198" ID x .313" OD x .437" H retaining spacer 4 590-5003
D3/16" allen wrench 1 560-9713
EM4 x .7 x 12 mm phillips screw 4 504-2013
FM4 x .7 x 20 mm phillips screw 4 504-2014
GM6 x 1 x 12 mm phillips screw 4 520-2039
H#14 x 2-1/2" flat head wood screw 2 520-2165
I1/4-20 x .5" flat head phillips screw 2 520-2178
JM6 x 1 x 20 mm phillips screw 4 520-2040
KM6 x 1 x 30 mm phillips screw 4 520-2042
Parts List
D
B
E
H
CFG
I
A
JK

4 of 10 ISSUED: 01-17-06 SHEET #: 202-9094-1
Installation to Wood Stud Wall
Remove cord covers from wall arm assembly (A) as shown in figure 1.1. Using a stud finder, locate and mark the
edges of the wood stud used in mounting this product. Use of an edge to edge stud finder is highly recommended.
Use a level to draw a vertical line down the center of the stud. Use wall plate as template to mark center of holes
along the vertical line. Drill two 5/32" (4 mm) dia. holes 2.5" (65 mm) deep.Attach wall mount (A) to wall using two
#14 x 2.5" flat head wood screws (H) as shown in figure 1.2.
Skip to step 2 on page 6.
1
• Makesurethatthewallwillsafelysupportthecombinedloadoftheequipmentandallattachedhardwareandcomponents.
WARNING
• Tightenscrewssothatwallplateisfirmlyattached,butdonotovertighten.Overtighteningcandamagethescrews,
greatlyreducing theirholdingpower.
• Never tighten in excess of 80 in. • lb (9 N.M.).
• Make sure that mounting screws are anchored into the center of the studs. The use of an "edge to edge" stud finder is
highlyrecommended.
WARNING
WOOD
STUD
WALL
A
H
A
CORDCOVER
fig. 1.1
fig. 1.2

5 of 10 ISSUED: 01-17-06 SHEET #: 202-9094-1

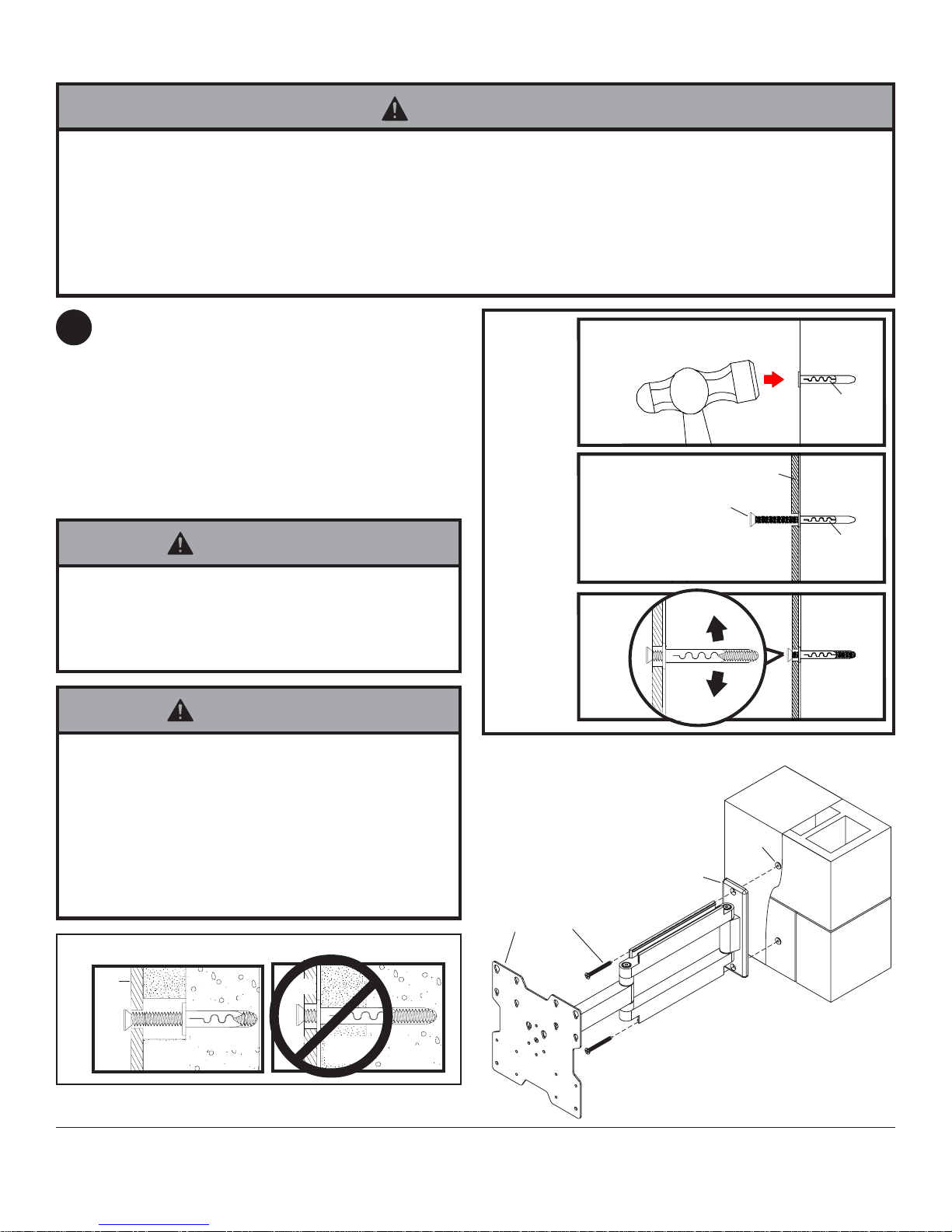

Installation to Solid Concrete and Cinder Block
1
• When installing Westinghouse wall mounts on cinder block, verify that you have a minimum of 1-3/8" of actual con-
crete thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a
solid part of the block, generally 1" minimum from the side of the block. Cinder block must meetASTM C-90 specifica-
tions. It is suggested that a standard electric drill on slow setting is used to drill the hole instead of a hammer drill to
avoidbreakingout the back of theholewhen entering a void orcavity.
• Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor.
• Makesurethatthesupportingsurfacewillsafelysupportthecombinedloadoftheequipmentandallattachedhard-
wareand components.
WARNING
Removecordcoversfrom wall arm assembly (A) as
shown in figure 1.1. Level and use wall plate as
template to mark center of holes. Drill two 1/4" (6
mm) dia. hole to a minimum depth of 2" (51 mm).
Insert anchors (B) in holes flush with wall as shown
in fig 1.3. Place wall mount (A) over anchor and
secure with wood screw (H) as shown in figures 1.4
and 1.6. Make sure wall mount is level, and tighten
all fasteners. See figure 1.5.
Skip to step 2 on next page.
• Concrete anchors are notintended for attachment to
concretewallcovered with a layer ofplaster, drywall,
orother finishing material asshownbelow. Ifmounting
toconcretewall covered with plaster/drywall is
unavoidable,plaster/drywall(up to 5/8" thick) must be
counterboredas shown below.Be sure concrete
anchorsdonot pull away from concretewhentighten-
ing screws. If plaster/drywall is thicker than
5/8", custom fasteners must be supplied by installer.
WARNING
B
concrete
wall
B
Drill holes
and insert
anchors.
Place wall
plate over
anchor and
secure with
screw.
Tighten all
fasteners.
H
WALLPLATE
fig. 1.3
fig. 1.4
fig. 1.5
CUTAWAYVIEW
CORRECT
concrete
plaster/
drywall
INCORRECT
concrete
plaster/
drywall
A
• Tighten screws so that wall plate is firmly attached,
butdo notovertighten.Overtightening can damagethe
screws,greatly reducing their holdingpower.
• Never tighten in excess of 80 in. • lb (9 N.M.).
WARNING
AH
B
A
fig. 1.6
WALLPLATE

6 of 10 ISSUED: 01-17-06 SHEET #: 202-9094-1

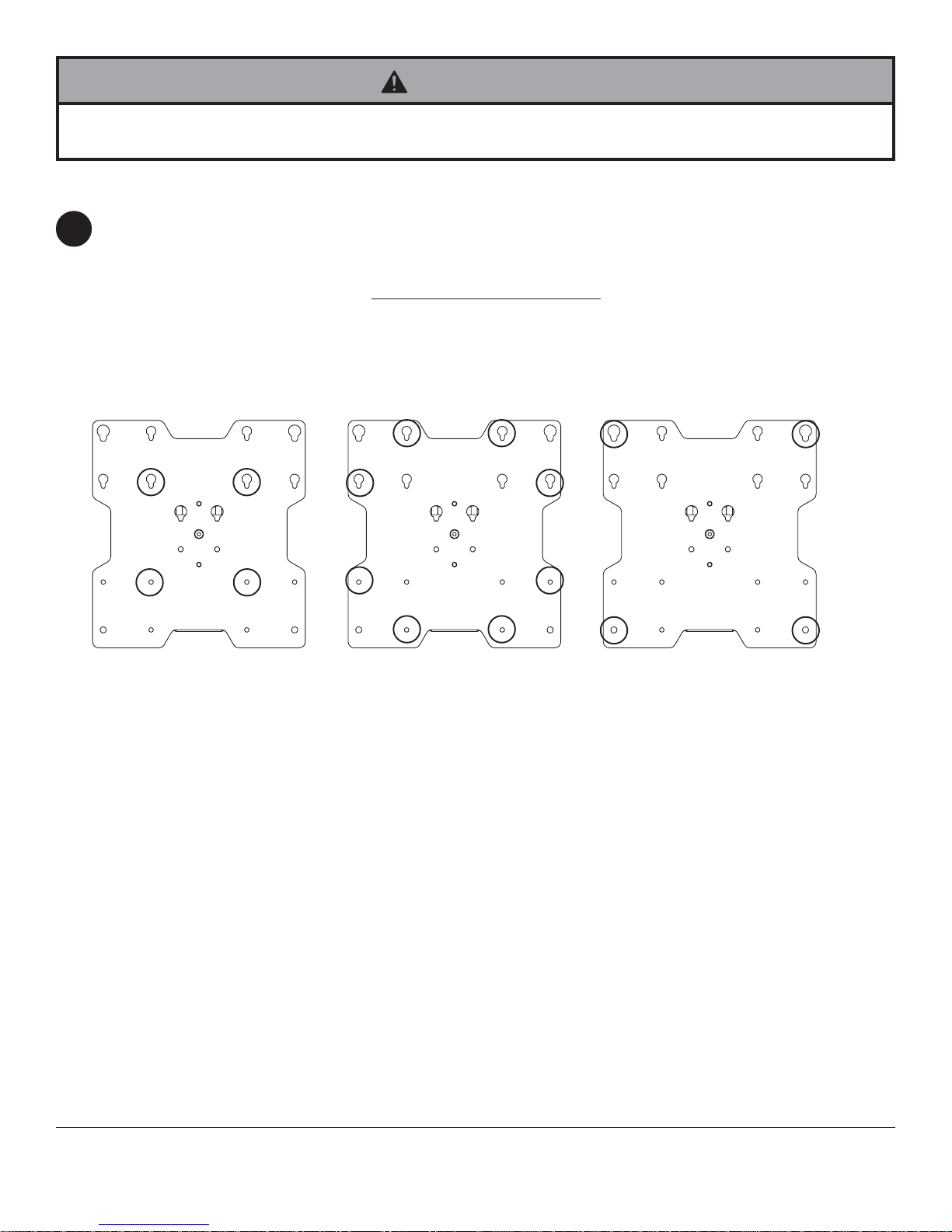

To prevent scratching the screen, set a cloth on a flat, level surface that will support the weight of the screen. Place
screen face side down. Find the VESA®hole pattern (VESA 200 can be horizontal or vertical) as shown in figures 2.1
through 2.3, and attach adapter plate to screen accordingly. Verify that all holes are properly aligned, and then
tighten screws using security allen wrench (D). For additional screen compatibility please refer to the Westinghouse
Décor wall mount list on out website at www.westinghousedigital.com.
2
• If screws don't get three complete turns in the screen inserts or if screws bottom out and adapter plate is still not
tightly secured, damage may occur to screen or product may fail. Contact customer care for correct hardware to use.
WARNING
fig. 2.1 fig. 2.2 fig. 2.3
VESA 100 VESA 200 VESA 200 x 200
Note: To add security, orderACC 919 for security screws. Refer toACC 919 instruction sheet for installing security screws.

7 of 10 ISSUED: 01-17-06 SHEET #: 202-9094-1
SCREW
fig. 2.5
ADAPTERPLATE
FORVESA100MOUNTINGPATTERN:
Thread two M4 x 12 mm screws (E), leaving .25" exposed thread, into top holes on back of screen. Hook screen onto
adapter plate, and attach using bottom two M4 x 12 mm screws as shown in figures 2.4 and 2.5. Tighten all four screws.
*Note: If screw (E) gets less than three threads of engagement, attach adapter plate to back of screen using four M4 x 20
mm screws (F) as indicated in figure 2.5.
FORVESA200MOUNTINGPATTERN:
Thread two M4 x 12 mm screws (E), leaving .25" exposed thread, into top holes on back of screen. Hook screen onto
adapter plate, and attach using two bottom M4 x 12 mm screws as shown in figures 2.4 and 2.5. Tighten all four screws.
*Note: If screw (E) gets less than three threads of engagement, attach adapter plate to back of screen using four M4 x 20
mm screws (F) as indicated in figure 2.5.
FORVESA200x200MOUNTINGPATTERN:
Thread two M6 x 12 mm screws (G), leaving .25" exposed thread, into top holes on back of screen. Hook screen onto
adapter plate, and attach using two bottom M6 x 12 mm screws as shown in figures 2.4 and 2.5. Tighten all four screws.
FOR SHARP™37"LCD SCREEN MODELS LC-37HV6U ANDLC-37HV4U:
Thread two M6 x 20 mm screws (J), leaving .25" exposed thread, into top holes on back of screen. Hook screen onto
adapter plate, and attach using two bottom M6 x 20 mm screws as shown in figures 2.4 and 2.5. Tighten all four screws.
FOR SHARP™45" LCD SCREEN MODEL LC-45GX6U:
Thread two M6 x 30 mm screws (K), leaving .25" exposed thread, into top holes on back of screen. Hook screen onto
adapter plate, and attach using two bottom M6 x 30 mm screws as shown in figures 2.4 and 2.5. Tighten all four screws.
C
*For screens with a hole
pattern in a pocket,
spacers (C) go between
adapter plate and screen.
SCREW
ADAPTER
PLATE
fig. 2.4

8 of 10 ISSUED: 01-17-06 SHEET #: 202-9094-1
3Adjust tension knob on side of mount shown in figure
3 to desired tension to balance your screen size and
weight.
Push or pull from top or bottom of screen to adjust
tilt as shown. The tilt can be adjusted to a maximum
of15°forward or 5° backward.
• Becarefulnot to pinch fingerswhenopening and
closing mount from the wall.
CAUTION
• Do not tighten screws with excessive force.
Overtighteningcan cause damagetomount. Tighten
screws to 40 in. • lb (4.5 N.M.) maximum torque.
CAUTION TENSIONKNOB
Note: Makesurecords have enough slack to allow full movementofthearm.
Route cords inside arm slots of wall mount (A) as shown in figure 4.1. Optional: Run power cord through one side of
mountandsignal cable(s) through other sideinorder to avoid interference with thesignal.
Lock cords into place by sliding cord covers (I) onto mount as shown in figure 4.2. Screen may have to be moved for
better access for sliding on the cord covers.
fig. 4.1
A
4
fig. 4.2
I
fig. 3

9 of 10 ISSUED: 01-17-06 SHEET #: 202-9094-1

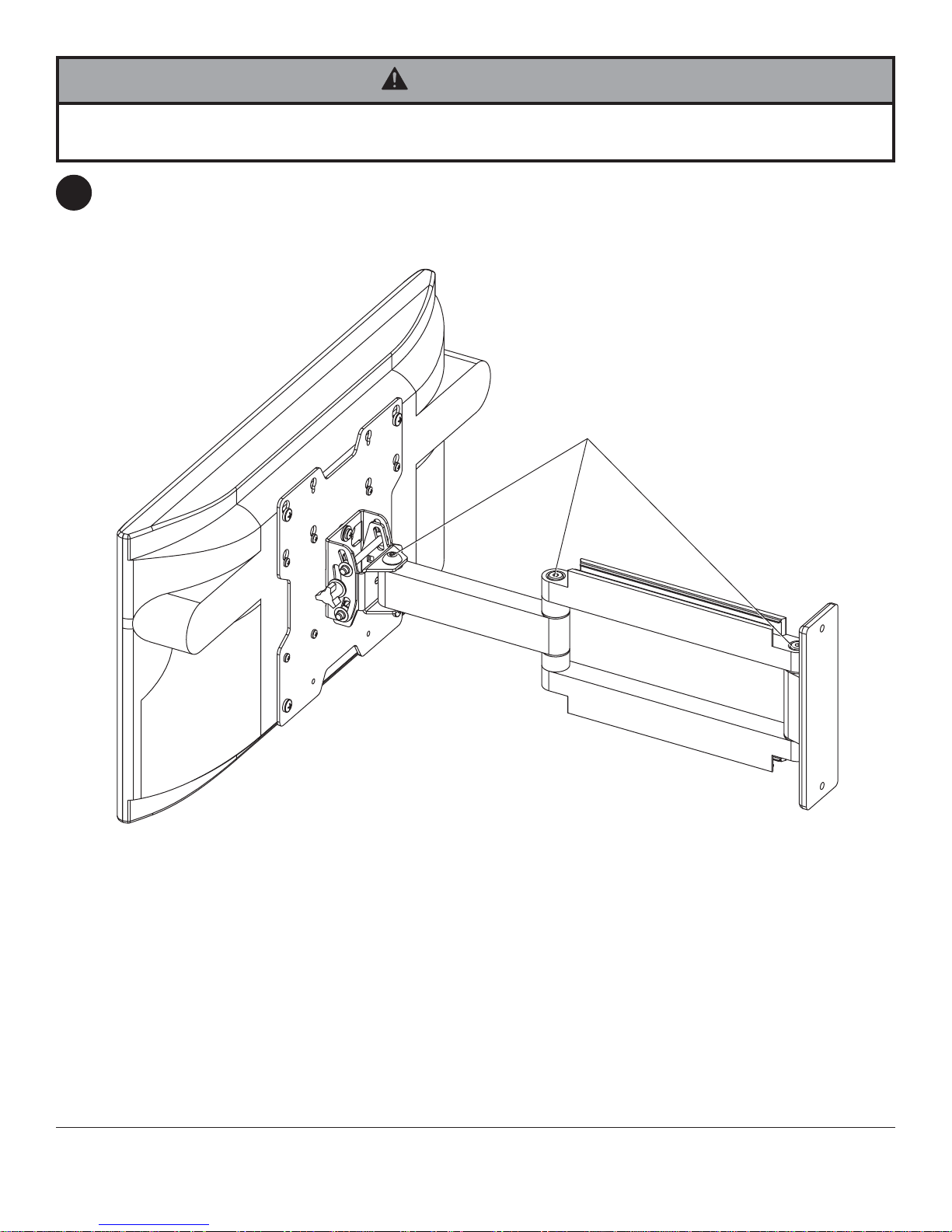

If more or less tension is desired in the arm pivot points, do the following:
• To increase tension, turn tension screw(s) clockwise with 3/16" allen wrench (D).
• To reduce tension, turn tension screw(s) counter-clockwise with allen wrench. Do not turn more than half a turn.
5
TENSIONSCREWS
• Do not remove screw or loosen screw until it is no longer engaged with the mount. Doing so may cause the
screen to fall.
WARNING

10 of 10 ISSUED: 01-17-06 SHEET #: 202-9094-1
