Westinghouse MT150 THIN Guide

Max Load Capacity: 150 lb (68 kg)
ISSUED:02-08-06 SHEET#:202-9092-1
Model: MT150 THIN
Features:
•Universaldesignfor37"to47"flatpanelscreens
•Low-profile design keeps the screen close up against the wall
•Easy to install with hooking brackets
•Screenfastenersincludedforquickinstallation
Installation and Assembly:
Universal Flat Wall Mount for 37" - 47" Flat Panel Screens
Visit the Westinghouse Web Site at www.westinghousedigital.com For customer care call 1-866-287-5555.

2 of 9 ISSUED:02-08-06 SHEET#:202-9092-1
Note: Read entire instruction sheet before you start installation and assembly.
Tools Needed for Assembly
•studfinder("edgetoedge"studfinderisrecommended)
•phillipsscrewdriver
•drill
•1/4" bit for concrete and cinder block wall
•1/2" bit for metal stud wall
•5/32" bit for metal or wood stud wall
•level
• DonotbegintoinstallyourWestinghouseproductuntil you have read and understood the instructionsandwarnings
containedinthisInstallationSheet.Ifyouhaveanyquestionsregardinganyofthe instructions or warnings, please
callcustomercareat1-866-287-5555.
• Thisproductshouldonlybeinstalledbya qualified professional.
• Makesurethatthesupportingsurfacewillsafelysupportthecombinedloadoftheequipmentandallattachedhard-
wareandcomponents.
• NeverexceedtheMaximumLoadCapacityof150lb (68 kg).
• If mounting to wood wall studs, make sure that mounting screws are anchored into the center of the studs. Use of an
"edgetoedge"studfinderishighlyrecommended.
• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• Tightenscrewsfirmly, butdonotovertighten.Overtighteningcandamage the items, greatly reducingtheirholding
power.
WARNING
Forcustomercarecall1-866-287-5555.
Accessories
•Metal Stud Fastener Kit (ACC 415)
Table of Contents
Parts List..............................................................................................................................................................................3
Installation to Single Wood Stud Wall...................................................................................................................................4
Installation to Double Wood Stud Wall..................................................................................................................................5
Installation to Solid Concrete or Cinder Block .......................................................................................................................6
InstallingAdapterBrackets ...................................................................................................................................................7
Installing Flat Panel Screen to Wall Plate.............................................................................................................................8

3 of 9 ISSUED:02-08-06 SHEET#:202-9092-1
Description Qty Part #
AA wall plate 1 200-4797
BB adapter bracket 2 200-0759
CC #14 x 2.5" wood screw 4 5S1-015-C03
DD Alligator® anchor 4 590-0097
EE 4 mm allen wrench 1 560-1145
Parts List
Before you begin, make sure all parts shown are included with your product.
AA
CC
EE
BB
DD
M4 x 12 mm (4)
504-9013
Adapter Bracket Fasteners
M4 x 25 mm (4)
504-1015 M5 x 12 mm (4)
520-1027 M5 x 25 mm (4)
520-9543 M6 x 12 mm (4)
520-1128
M6 x 25 mm (4)
520-1208 M6 x 20 mm (4)
520-9402 M6 x 30 mm (4)
510-9109 I.D. 6.5 mm (4)
540-1058 multi-washer(4)
580-1036

4 of 9 ISSUED:02-08-06 SHEET#:202-9092-1
Installation to Single Wood Stud Wall
1Use a stud finder to locate the edges of the stud. Use of an edge-to-edge stud finder is highly recommended. Based
on its edges, draw a vertical line down the stud’s center. Place wall plate (AA) on wall as a template, making sure
thatthe three mounting holes are over the stud centerline. The top mounting hole should be 2.5" above the desired
screen center as shown in figure 1.1. Level plate, and mark the center of the three holes. Drill three 5/32" (4 mm) dia.
holes 2-1/2" (65 mm) deep. Make sure that the wall plate is level, secure it using three #14 x 2.5" wood screws (CC)
as shown in figure 1.2.
Skip to step 2 on page 7.
• Installermustverifythatthesupportingsurfacewill safely support the combined weight ofallattachedequipmentand
hardware.
WARNING
• Tightenwoodscrewssothatwallplateis firmly attached, but do not overtighten.Overtighteningcandamagethe
screws,greatlyreducingtheirholding power.
• Never tighten in excess of 80 in. • lb (9 N.M.).
• Make sure that mounting screws are anchored into the center of the stud. The use of an "edge to edge" stud finder is
highlyrecommended.
• Hardwareprovidedisforattachmentofmount through standard thickness drywallorplasterintowoodstuds.Installers
areresponsibletoprovidehardware for othertypesofmountingsituations.
WARNING
CC
AA
fig. 1.1
fig. 1.2
2.5"
(64 mm)
CS = center of screen
CS

5 of 9 ISSUED:02-08-06 SHEET#:202-9092-1
Installation to Double Wood Stud Wall
1Wall plate (AA) can be mounted to two studs that are 16" apart. Use a stud finder to locate the edges of the studs.
Useofanedge-to-edgestudfinderishighlyrecommended.Basedontheiredges,drawaverticallinedowneach
stud’s center. Place wall plate on wall as a template. The top mounting slots should be 2.5" above the desired
screen center as shown in figure 1.3. Level plate, and mark the center of the four mounting holes. Make sure that the
mounting holes are on the stud centerlines. Drill four 5/32" (4 mm) dia. holes 2-1/2" (65 mm) deep. Make sure that
the wall plate is level, secure it using four #14 x 2.5" wood screws (CC) as shown in figure 1.4.
Skip to step 2 on page 7.
• Installermustverifythatthesupportingsurfacewill safely support the combined weight ofallattachedequipmentand
hardware.
WARNING
• Tightenwoodscrewssothatwallplateis firmly attached, but do not overtighten.Overtighteningcandamagethe
screws,greatlyreducingtheirholding power.
• Never tighten in excess of 80 in. • lb (9 N.M.).
• Make sure that mounting screws are anchored into the center of the stud. The use of an "edge to edge" stud finder is
highlyrecommended.
• Hardwareprovidedisforattachmentofmount through standard thickness drywallorplasterintowoodstuds.Installers
areresponsibletoprovidehardware for othertypesofmountingsituations.
WARNING
CC
AA
fig. 1.3
fig. 1.4
2.5"
(64 mm)
CS = center of screen
CS

6 of 9 ISSUED:02-08-06 SHEET#:202-9092-1
Installation to Solid Concrete or Cinder Block
1Make sure that wall plate (AA) is level, use it as a
template to mark four mountingholes. Thetop
mountingholeshouldbe2.5"abovethedesired
screen center as shown in figure 1.1 on page 4. Drill
four 1/4" (6 mm) dia. holes to a minimum depth of
2.5" (64 mm). Insert anchors (DD) in holes flush with
wallasshown(right).Placewallplateoveranchors
and secure with #14 x 2.5" screws (CC). Level, then
tightenallfasteners.
• When installing Westinghouse wall mounts on cinder block, verify that you have a minimum of 1-3/8" of actual con-
crete thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a
solid part of the block, generally 1" minimum from the side of the block. Cinder block must meetASTM C-90 specifica-
tions. It is suggested that a standard electric drill on slow setting is used to drill the hole instead of a hammer drill to
avoidbreakingoutthebackofthe hole when enteringavoid or cavity.
• Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor.
• Makesure that the supporting surface will safely support the combined load of the equipment and all attached hard-
wareand components.
WARNING
CUTAWAYVIEW
INCORRECT
concrete
surface
1
3
2
DD
Drill holes and insert anchors (EE).
CORRECT
Place plate (AA)over anchors (DD) and secure with screws (CC).
Tighten all fasteners.
wallplate
plaster/
drywall
concrete wallplate concrete
plaster/
drywall
• Always attach concrete expansion anchors directly to
load-bearingconcrete.
• Neverattach concrete expansionanchorsto concrete
coveredwith plaster,drywall, orother finishing mate-
rial.If mounting to concrete surfacescovered with a
finishingsurface isunavoidable, the finishingsurface
must be counterbored asshown below. Be sure
concreteanchors do not pull away from concrete
whentightening screws. If plaster/drywall is thicker
than 5/8", custom fasteners must be supplied by
installer.
WARNING
AA
• Tighten screws so that wall plate is firmly attached,
butdo notovertighten. Overtighteningcan damage
screws,greatly reducing theirholding power.
• Never tighten in excess of 80 in. • lb (9 N.M.).
WARNING DD
CC
CC
AA DD
solid concrete cinder block

7 of 9 ISSUED:02-08-06 SHEET#:202-9092-1
2
fig 2.1 Note: "X"dimensions should be equal.
Notes:
• Alwaysuse multi-washers when attaching
brackets (BB) to your screen.
• Use the corresponding hole in the multi-
washer that matches your screw size as
shownin figure 2.2.
• Spacers maynot be used, depending upon
the type of screen.
• Tightenscrews so adapter brackets are firmly
attached. Do not tighten with excessive force.
Overtighteningcan cause stress damageto
screws,greatly reducing theirholding power and
possibly causing screw heads to become
detached. Tighten to 40 in. • lb (4.5 N.M.)
maximumtorque.
WARNING
Installing Adapter Brackets
BB
CENTERBRACKETS
VERTICALLYON
BACKOFSCREEN
X
X
BB
Refer to Screen Compatibility Chart to determine the proper fasteners to use.
To prevent scratching the screen, set a cloth on a flat, level surface that will support the weight of the screen. Place
screen face side down. If screen has knobs on the back, remove them to allow the adapter brackets to be attached.
Place adapter brackets (BB) on back of screen, align to holes, and center on back of screen as shown in figure 2.1.
Attach the adapter brackets to the back of the screen using the appropriate combination of screws, multi-washers,
and spacers as shown in figure 2.3.
Note:Attach the bracket to the screen using
the top and bottom mounting holes only.
Verify that all holes areproperlyaligned, and
then tighten screws using a phillips screw-
driver.
SCREWS
BB
fig 2.3
BB
• If screws don't get three complete turns in the screen
inserts or if screws bottom out and bracket is still not
tightly secured, damage may occur to screen or
productmay fail.
WARNING
MEDIUMHOLEFORM5SCREWS
SMALLHOLEFORM4SCREWS
LARGEHOLEFORM6SCREWS
fig. 2.2
MULTI-
WASHER
SPACER
MULTI-WASHER

8 of 9 ISSUED:02-08-06 SHEET#:202-9092-1

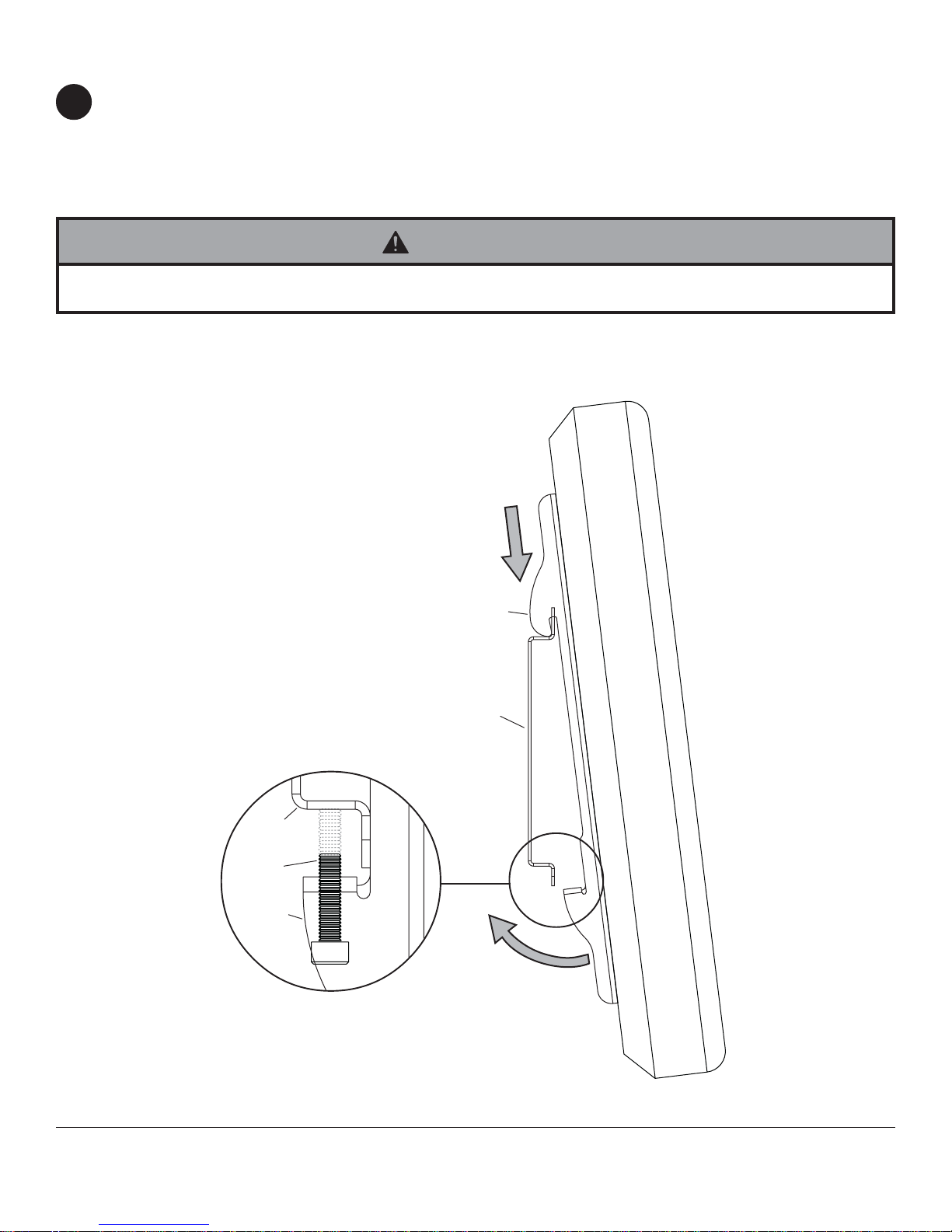

Mounting and Removing Flat Panel Screen
Hook adapter brackets (BB) onto wall plate (AA). Then slowly swing screen in as shown. Turnscrews clockwiseusing
4mm allen wrench (EE)at least six times topreventscreen from being removed asshown in detail 1.
Screen can be adjusted horizontally if desired.
Note: To lock the screen down, tighten screw to wall plate as shown in detail 1.
Toremove screenfrom mount,loosensafetyscrews,swing screenaway frommount, andliftscreen offof mount.
3
AA
BB
• Always use an assistant or mechanical lifting equipment to safely lift and position the screen.
DETAIL 1
SCREW
AA
BB
WARNING

9 of 9 ISSUED:02-08-06 SHEET#:202-9092-1
Limited Five-Year Warranty
Westinghouse Digital Electronics warrants to original end-users of this Westinghouse display mounting product (the
“Product”)that the Product willbe free from defectsin material and workmanship,under normal use, for aperiod of five (5)
years from the date of purchase by the original end-user, subject to the following terms and conditions:
REPAIR OR REPLACEMENT – For a period of five (5) years from the original date of purchase, Westinghouse Digital
Electronics will repair any defect in material or workmanship in the Product, or, at its option, replace a defective Product.
Replacement parts and products will be warranted for either the remainder of the original warranty period or ninety (90)
daysfromthe date of delivery to the end-user, whichever occurs last.
OBTAINING WARRANTY SERVICE –To obtainwarranty services, you must either personallydeliver or ship the Product
to Westinghouse Digital Electronics, freight prepaid. Please call Westinghouse Digital Electronics at [phone] to
obtaina Return MerchandiseAuthorization (“RMA”)and for otherinstructions regardingreturn and replacementor repairof
the Product. Westinghouse Digital Electronics will not accept Products delivered to it without an RMA.
EXCLUSIONS TO WARRANTY – This warrantydoes not cover damage causedby (a) service orrepairsby anyone other
thanpersonnel authorized by WestinghouseDigital Electronics, (b) the failureto utilize proper packing whenreturning the
product, (c) improper installation or the failure to follow Product instructions or warnings, or (d) misuse or accident, in
transitor otherwise.
PROOF OR ORIGINAL PURCHASE –Asales receipt, invoice, or other proof of purchase specifying the original date of
purchasewithin the five (5) year warranty period must be presented to obtain warranty service. This warranty extends to
theoriginal purchaser and is not transferable.
EITHER REPAIR OR REPLACEMENT IS YOUR EXCLUSIVE REMEDYUNDER THIS WARRANTY. EXCEPTTO THE
EXTENT PROHIBITED BY LAW, WESTINGHOUSE DIGITAL SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR
CONSEQUENTIALDAMAGESCLAIMEDTOARISEFROM BREACH OFANYEXPRESS ORIMPLIED WARRANTYON
THISPRODUCT. ANYIMPLIED WARRANTYOF MERCHANTABILITYOR FITNESS FORAPARTICULARPURPOSE
ONTHIS PRODUCTISLIMITED IN DURATIONAND SCOPETOTHE TERMSOFTHIS WARRANTY.
Some States do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on how
longan implied warranty lasts, so the above limitation may not applyto you. This warranty gives specific legal rights, and
you may also have other rights which vary from State to State.
