Westinghouse MT80A THIN Guide

Max UL Load Capacity: 80 lb (36.3 kg)
Visit the Westinghouse Web Site at www.westinghousedigital.com
ISSUED:01-17-06 SHEET#:202-9090-1
Features:
• For 15" to 37" flat panel screens
• Ultra-slim design holds the screen flat against the wall
Installation and Assembly:
Universal Flat Wall Mount for 15" - 37" Screens
Model: MT80A THIN
This product is UL Listed. It must be
installed by a qualified professional
installer.
R
For customer care call 1-866-287-5555.

2 of 8 ISSUED:01-17-06 SHEET#:202-9090-1
Note: Read entire instruction sheet before you start installation and assembly.
Tools Needed for Assembly
•studfinder("edgetoedge"studfinderisrecommended)
•phillipsscrewdriver
•drill
•1/4" bit for concrete and cinder block wall
•5/32" bit for wood stud wall
•level
Accessories
• Metal Stud Fastener Kit (ACC 215) (Not evalutated by UL)
• VideoConferencingShelf(ACC309)(Not evalutated byUL)
• Accessory Shelves (PM 600, PM 610) (Not evalutated by UL)
• DonotbegintoinstallyourWestinghouseproductuntilyou have read and understood the instructionsandwarnings
containedinthisInstallationSheet.Ifyouhaveanyquestionsregardinganyoftheinstructionsor warnings, please
callcustomer careat1-866-287-5555.
• Thisproduct should only be installed bya qualified professional.
• Makesurethat the wall will safely support the combined load of the equipment and all attached hardware and compo-
nents.
• Neverexceed the Maximum UL Load Capacity of 80 lb (36.3 kg).
• If mounting to wood wall studs, make sure that mounting screws are anchored into the center of the studs. Use of an
"edgeto edge" stud finder is highly recommended.
• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• Tightenscrews firmly, but donot overtighten. Overtightening candamagethe items, greatly reducingtheir holding
power.
WARNING
Table of Contents
Parts List..............................................................................................................................................................................3
Installation to Single Wood Stud Wall...................................................................................................................................4
Installation to Solid Concrete or Cinder Block .......................................................................................................................5
Attaching Hook Bracket to Flat Panel Screen ......................................................................................................................6
InstallingandRemovingFlatPanelScreen ...........................................................................................................................7
Forcustomer care call 1-866-287-5555.

3 of 8 ISSUED:01-17-06 SHEET#:202-9090-1
Description Qty Part #
Awall plate 1 095-4320
Bhook bracket 1 095-4321
CM5 x 12 mm screw 2 520-1027
DM4 x .7 x 10 mm phillips screw 4 504-9012
EM4 x .7 x 20 mm phillips screw 4 504-9020
F.198 ID x .313 OD x .437 H retaining spacer 4 590-5005
G#14 x 2.5" hex head wood screw 2 5S1-015-C03
HAlligator® anchor 2 590-0097
Parts List
AB
D E G HFC

4 of 8 ISSUED:01-17-06 SHEET#:202-9090-1

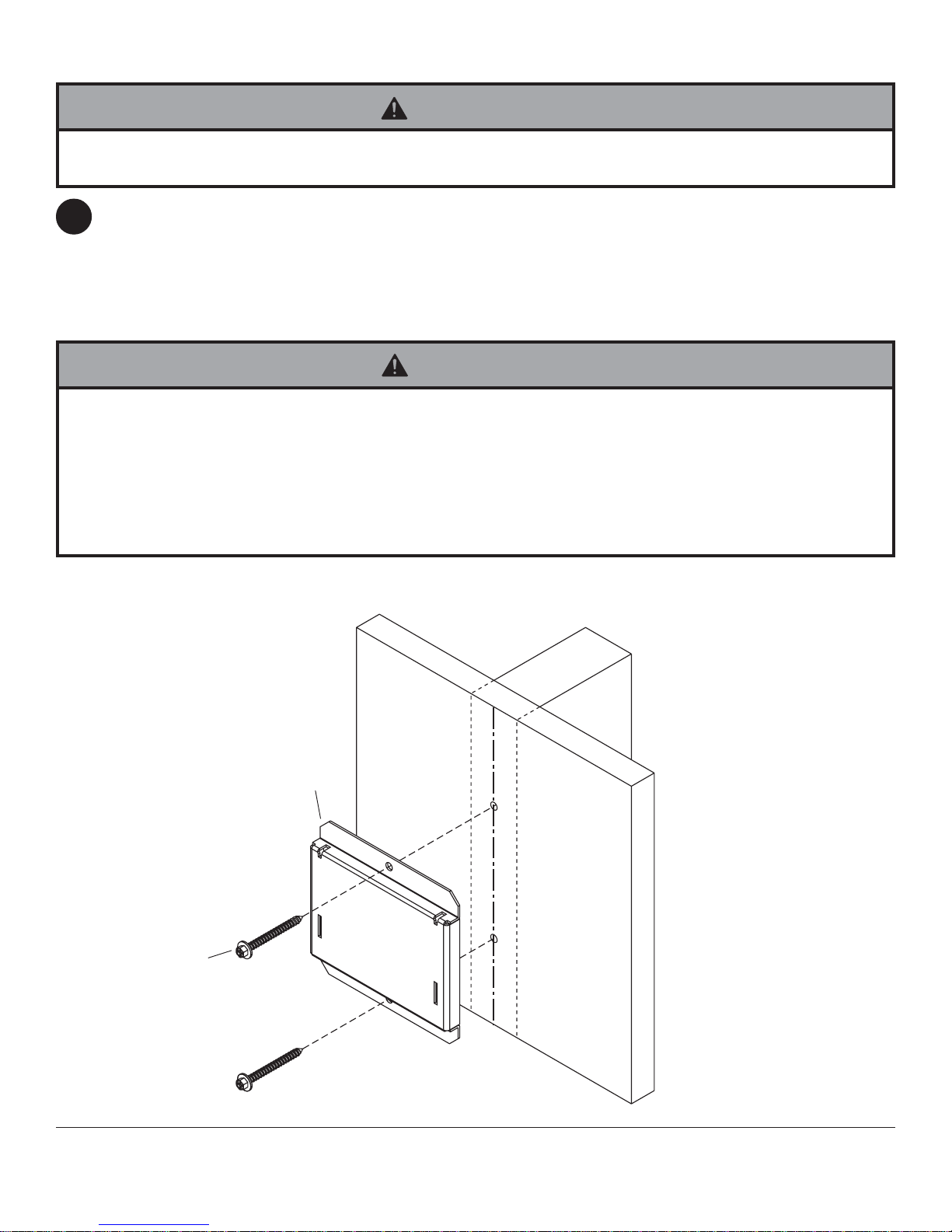

Installation to Single Wood Stud Wall
1Use a stud finder to locate the edges of the stud. Use of an edge-to-edge stud finder is highly recommended. Based
on its edges, draw a vertical line down the stud’s center. Place wall plate (A) on wall as a template, making sure that
the two mounting holes are over the stud centerline. Level plate, and mark the center of the two holes. Drill two
5/32" (4 mm) dia. holes 2-1/2" (65 mm) deep. Make sure that the wall plate is level, secure it using two #14 x 2.5"
wood screws (G) as shown.
Skip to step 2 on page 6.
• Make sure that the wall will safely support the combined load of the equipment and all attached hardware and
components.
WARNING
• Tighten wood screws so that wall plate is firmly attached, but do not overtighten. Overtightening can damage the
screws, greatly reducing their holding power.
• Never tighten in excess of 80 in. • lb (9 N.M.).
• Make sure that mounting screws are anchored into the center of the stud. The use of an "edge to edge" stud finder is
highly recommended.
• Hardwareprovided is for attachment ofmount through standard thickness drywallor plaster into wood studs.Installers
areresponsible to providehardware for othertypes of mounting situations.
WARNING
G
A

5 of 8 ISSUED:01-17-06 SHEET#:202-9090-1
Installation to Solid Concrete or Cinder Block
1Make sure that wall plate (A) is level, use it as a
template to mark two mounting holes. Drill two 1/4"
(6 mm) dia. holes to a minimum depth of 2.5" (64
mm). Insert anchors (H) in holes flush with wall as
shown(right). Place wall plate over anchors and
secure with two #14 x 2.5" screws (G). Level, then
tightenall fasteners.
• When installing Westinghouse wall mounts on cinder block, verify that you have a minimum of 1-3/8" of actual con-
crete thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a
solid part of the block, generally 1" minimum from the side of the block. Cinder block must meetASTM C-90 specifica-
tions. It is suggested that a standard electric drill on slow setting is used to drill the hole instead of a hammer drill to
avoidbreaking out the back ofthe hole when entering avoid or cavity.
• Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor.
• Make sure that the wall will safely support four times the combined load of the equipment and all attached hardware
and components.
WARNING
CUTAWAY VIEW
INCORRECT
concrete
surface
1
3
2
Drill holes and insert anchors (H).
CORRECT
Place plate (A)over anchors (H) and secure with screws (G).
Tighten all fasteners.
wall
plate
plaster/
drywall
concrete wall plate concrete
plaster/
drywall
• Always attach concrete expansion anchors directly to
load-bearingconcrete.
• Neverattach concrete expansion anchorsto concrete
coveredwith plaster,drywall, or other finishingmate-
rial.If mounting to concrete surfacescovered with a
finishingsurface isunavoidable, the finishingsurface
must be counterbored asshown below. Be sure
concreteanchors do not pull away from concrete
whentightening screws. If plaster/drywall is thicker
than 5/8", custom fasteners must be supplied by
installer.
WARNING
A
• Tighten screws so that wall plate is firmly attached,
but do not overtighten. Overtightening can damage
screws, greatly reducing their holding power.
• Never tighten in excess of 80 in. • lb (9 N.M.).
WARNING
H
G
G
CINDERBLOCK
SOLID
CONCRETE
AH
H

6 of 8 ISSUED:01-17-06 SHEET#:202-9090-1
Attaching Hook Bracket to Flat Panel Screen
ThreadM5 phillips screws (C) to hook bracket (B)
making the screws flush with bracket as shown in
figures2.1and2.2.
• If screws don't get three complete turns in the screen inserts or if screws bottom out and bracket is still not tightly
secured, damage may occur to screen or product may fail.
WARNING
F
*For screens with a hole
pattern in a pocket,
spacers (F) go between
hook bracket (B) and
screen.
D
FORVESA100MOUNTINGPATTERN:
Choosehole pattern as shown below. Attach hook
bracket (B) to back of screen using four M4 x 10 mm
screws(D)asshown below.
D
2
3FORVESA®75MOUNTINGPATTERN:
Choosehole pattern as shown below. Attach hook
bracket (B) to back of screen using four M4 x 10 mm
screws(D)asshown below.
*Note: If hole pattern is in a pocket, attach hook
bracket (B) to back of screen using four M4 x 20 mm
screws(E)and fourretaining spacers(F)as indicated
below.
B
CC
B
fig. 2.1 fig. 2.2
B
B

7 of 8 ISSUED:01-17-06 SHEET#:202-9090-1
Hookscreen onto wall plate (A) figure 4.1. Tighten
M5 x 12 mm screws (C), shown in figure 4.2 and
detail 1.
Note: For security models, tighten M5 x 12 mm
screws (C) using 4 mm allen wrench (I)
Toremove screen frommount,loosen screws (C)
and lift screen off of mount.
Installing and Removing Flat Panel Screen
4A
SCREEN
• Do not lift more weight than you can handle. Use
additionalman powerormechanical lifting equipment
to safely handle placement of the screen.
• Failure to lock hook bracket with screws (C) can
cause screen to come off mount if hit accidentally.
• Do not tighten screws with excessive force.
Overtighteningcan causedamage to mount. Tighten
screws to 20 in. • lb (2.26 N.M.) maximum torque.
CAUTION
WARNING
DETAIL 1
fig. 4.2
fig. 4.1
A
C
B
BA
C

8 of 8 ISSUED:01-17-06 SHEET#:202-9090-1
andWestinghousearetrademarksofWestinghouseElectricCorporationandareusedunderlicense.
Limited Five-Year Warranty
Westinghouse Digital Electronics warrants to original end-users of this Westinghouse dislplay mounting product (the
“Product”)that the Product willbe free from defectsin material and workmanship, undernormal use, for aperiod of five (5)
years from the date of purchase by the original end-user, subject to the following terms and conditions:
REPAIR OR REPLACEMENT – For a period of five (5) years from the original date of purchase, Westinghouse Digital
Electronics will repair any defect in material or workmanship in the Product, or, at its option, replace a defective Product.
Replacement parts and products will be warranted for either the remainder of the original warranty period or ninety (90)
daysfrom the date of delivery to the end-user, whichever occurs last.
OBTAINING WARRANTY SERVICE –To obtainwarranty services, you musteither personally deliver or shipthe Product
to Westinghouse Digital Electronics, freight prepaid. Please call Westinghouse Digital Electronics at [phone] to
obtaina Return MerchandiseAuthorization (“RMA”)and for otherinstructions regardingreturn and replacementor repairof
the Product. Westinghouse Digital Electronics will not accept Products delivered to it without an RMA.
EXCLUSIONS TO WARRANTY – This warranty doesnot cover damage causedby(a) service or repairsbyanyone other
thanpersonnel authorized by WestinghouseDigitalElectronics, (b) the failuretoutilize proper packing whenreturningthe
product, (c) improper installation or the failure to follow Product instructions or warnings, or (d) misuse or accident, in
transitor otherwise.
PROOF OR ORIGINAL PURCHASE –Asales receipt, invoice, or other proof of purchase specifying the original date of
purchasewithin the five (5) year warranty period must be presented to obtain warranty service. This warranty extends to
theoriginal purchaser and is not transferable.
EITHER REPAIR OR REPLACEMENT IS YOUR EXCLUSIVE REMEDYUNDER THIS WARRANTY. EXCEPTTO THE
EXTENT PROHIBITED BY LAW, WESTINGHOUSE DIGITAL SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR
CONSEQUENTIALDAMAGESCLAIMEDTOARISEFROM BREACH OFANYEXPRESS ORIMPLIED WARRANTYON
THISPRODUCT. ANYIMPLIED WARRANTYOF MERCHANTABILITYOR FITNESS FORAPARTICULARPURPOSE
ONTHIS PRODUCTISLIMITED IN DURATIONAND SCOPETOTHETERMSOFTHIS WARRANTY.
Some States do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on how
longan implied warranty lasts, so the above limitation may not apply toyou. Thiswarranty gives specific legal rights, and
you may also have other rights which vary from State to State.
WestinghouseDigital Electronics, LLC
12150MoraDrive
Santa Fe Springs, CA90670
Tel.[phone]
Fax.[phone]
