Westinghouse MT150 TILT Guide

Visit the Westinghouse Web Site at www.westinghousedigital.com
ISSUED:02-08-06 SHEET#:202-9093-1
Installation and Assembly:
Universal Tilt Wall Mount for 37" - 47" Screens
Features:
• Universaldesignfor37"-47"flatpanelscreens
• One-touchtiltforeffortless positioning and adjustment of the screen
• Ultra-slim design holds the screen flat against the wall
• IncreLok™ locking tilt positions for specific tilt settings in 5° increments
• Comes in black Max Load Capacity: 150 lb (68kg)
For customer care call 1-866-287-5555.
Model: MT150 TILT This product is UL Listed. It must be
installed by a qualified professional
installer.
R

2 of 8 ISSUED:02-08-06 SHEET#:202-9093-1
Note: Read entire instruction sheet before you start installation and assembly.
Tools Needed for Assembly
•studfinder("edgetoedge"studfinderisrecommended)
•phillipsscrewdriver
•drill
•1/4" bit for concrete and cinder block wall
•1/2" bit for metal stud wall
•5/32" bit for metal or wood stud wall
•level
Table of Contents
Parts List..............................................................................................................................................................................3
Installation to Double Wood Stud Wall..................................................................................................................................4
Installation to Solid Concrete or Cinder Block .......................................................................................................................5
InstallingTilt Brackets...........................................................................................................................................................6
Installing Flat Panel Screen to Wall Plate.............................................................................................................................7
Forcustomer care call1-866-287-5555
Accessories
•4 piece Metal Stud Fastener Kit (ACC 415) (Metal Stud not evaluated by UL)
•2 piece Metal Stud Fastener Kit (ACC 215) (Metal Stud not evaluated by UL)
• Donot begin to install your Westinghouse productuntilyou have read and understood the instructionsandwarnings
containedin this Installation Sheet. If you have any questions regarding any of theinstructionsor warnings, please
callcustomer careat1-866-287-5555.
• This product should only be installed by someone of good mechanical aptitude, has experience with basic building
construction, and fully understands these instructions.
• Makesurethatthesupporting surface will safely support the combined load of the equipment and all attached hard-
wareand components.
• Neverexceed the Maximum UL Load Capacity of150lb (68 kg).
• If mounting to wood wall studs, make sure that mounting screws are anchored into the center of the studs. Use of an
"edgeto edge" stud finder is highly recommended.
• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• Tighten screws firmly, but do notovertighten. Overtightening can damage theitems, greatly reducing their holding
power.
WARNING

3 of 8 ISSUED:02-08-06 SHEET#:202-9093-1
Penta-PinDriver(1)
CC
M4 x 12 mm (6)
Adapter Bracket Fasteners
M4 x 25 mm (4)
M5 x 12 mm (4)
M5 x 25 mm (4)
M6 x 12 mm (4)
M6 x 25 mm (4)
M6 x 20 mm (4)
M6 x 30 mm (4) I.D. 6.5 mm (4) multi-washer(6)
Before you begin, make sure all parts shown are included with your product.
Parts may appear slightly different than illustrated.
AA
BB
DD
FF
M8 x 16 mm (6) M8 x 40 mm (6)
I.D. 8.7 mm (4)
I.D. 5.1 mm (4)
M10 x 15 mm (4)
I.D. 5.6 mm (4)
EE
I.D. 8.9 mm (6)
Note: The sorted-for-you™ fastener pack included was made specifically for your product and may not contain all components
shown below.
Description Qty. Part #
AA wall plate 1 200-4797
BB Left tilt bracket 1 200-0905
CC Right tilt bracket 1 200-0906
DD #14 x 2.5" hex head screw 4 5S1-015-C03
EE Alligator® anchor 4 590-0097
FF 4 mm allen wrench 1 560-1131
Parts List
M8 x 25 mm (4)

4 of 8 ISSUED:02-08-06 SHEET#:202-9093-1
Installation to Double Wood Stud Wall
1Wall plate (AA) can be mounted to two studs that are 16" apart. Use a stud finder to locate the edges of the studs.
Useofanedge-to-edgestudfinder is highly recommended. Based on their edges, draw a vertical line down each
stud’s center. Place wall plate on wall as a template.The top mounting slots should be 2.5" above the desired
screen center as shown in figure 1.1. Level plate, and mark the center of the four mounting holes. Make sure that the
mounting holes are on the stud centerlines. Drill four 5/32" (4 mm) dia. holes 2-1/2" (65 mm) deep. Make sure that
the wall plate is level, secure it using four #14 x 2.5" wood screws (DD) as shown in figure 1.2.
Note: Wall plate may be mounted up to 4" (102 mm) off center as shown in figure 1.1.
Skip to step 2 on page 6.
• Installermust verify that the supporting surface will safelysupport the combined load of the equipment and allattached
hardwareandcomponents.
• Tightenwood screws so that wall plateisfirmly attached, but do not overtighten. Overtighteningcan damage the
screws,greatly reducing theirholding power.
• Never tighten in excess of 80 in. • lb (9 N.M.).
• Make sure that mounting screws are anchored into the center of the stud. The use of an "edge to edge" stud finder is
highlyrecommended.
• Hardwareprovided is for attachment ofmount through standard thickness drywallor plaster into wood studs.Installers
areresponsible to providehardware for othertypes of mounting situations.
WARNING
fig. 1.1
CS
2.5"
(64 mm)
DD AA
fig. 1.2
CS = center of screen
STUD
AA

5 of 8 ISSUED:02-08-06 SHEET#:202-9093-1

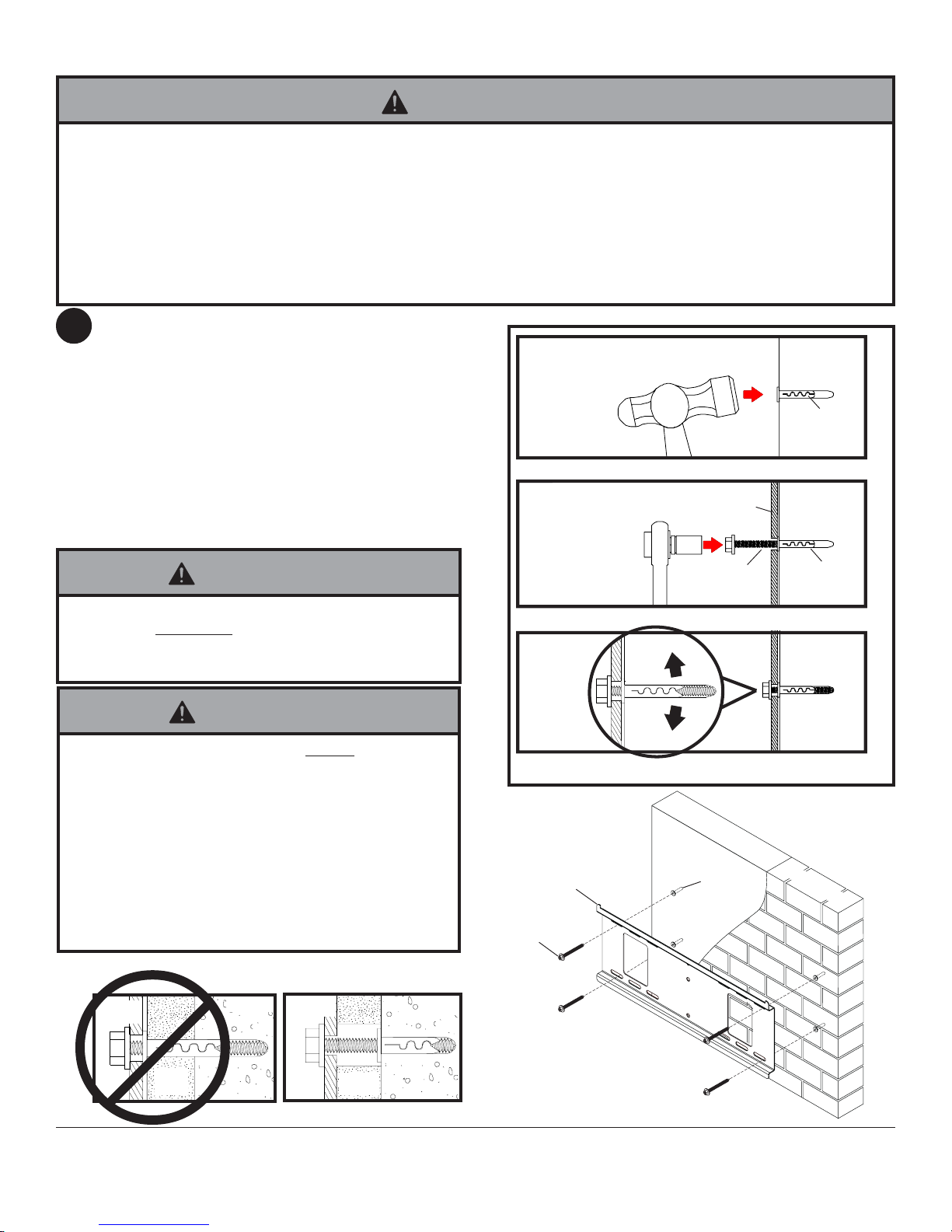

Installation to Solid Concrete or Cinder Block
1Make sure that wall plate (AA) is level, use it as a
template to mark four mountingholes. The top
mountinghole should be 2.5" above the desired screen
center as shown in figure 1.1 on page 4. Drill four 1/4"
(6 mm) dia. holes to a minimum depth of 2.5" (64 mm).
Insert anchors (EE) in holes flush with wall as shown
(right).Placewall plate over anchors and secure with
#14 x 2.5" screws (DD). Level, then tighten all
fasteners.
• When installing Westinghouse wall mounts on cinder block, verify that you have a minimum of 1-3/8" of actual con-
crete thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a
solid part of the block, generally 1" minimum from the side of the block. Cinder block must meetASTM C-90 specifica-
tions. It is suggested that a standard electric drill on slow setting is used to drill the hole instead of a hammer drill to
avoidbreaking out the back ofthe hole when entering avoid or cavity.
• Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor.
• Makesurethatthesupporting surface will safely support the combined load of the equipment and all attached hard-
wareand components.
WARNING
CUTAWAY VIEW
INCORRECT
concrete
surface
1
3
2
EE
Drill holes and insert anchors (EE).
CORRECT
Place plate (AA)over anchors (EE) and secure with screws (DD).
Tighten all fasteners.
wall
plate
plaster/
drywall
concrete wall plate concrete
plaster/
drywall
• Always attach concrete anchors directly to load-
bearingconcrete.
• Neverattach concreteanchors to concretecovered
withplaster, drywall, orother finishing material. If
mountingto concrete surfacescoveredwith a finishing
surfaceis unavoidable, thefinishingsurface must be
counterbored asshown below. Be sure concrete
anchorsdo not pull away fromconcrete when tighten-
ing screws. If plaster/drywall is thicker than 5/8",
custom fasteners must be supplied by installer.
WARNING
AA
• Tighten screws so that wall plate is firmly attached,
but do not overtighten. Overtightening can damage
screws, greatly reducing their holding power.
• Never tighten in excess of 80 in. • lb (9 N.M.).
WARNING
DD
AA
EE
DD
EE
solid concrete cinder block

6 of 8 ISSUED:02-08-06 SHEET#:202-9093-1
2
fig 2.1 Note: "X"dimensions should be equal.
Notes:
• Alwaysuse multi-washers when attaching
tilt brackets (BB and CC) to your screen.
• Use the corresponding hole in the multi-
washer that matches your screw size as
shownin figure 2.2.
• Spacersmay not be used, depending upon
the type of screen.
• Tightenscrews so adapter brackets are firmly
attached. Do not tighten with excessive force.
Overtighteningcan cause stress damage to screws,
greatlyreducing their holdingpower and possibly
causingscrew heads to become detached. Tighten to
40 in. • lb (4.5 N.M.) maximum torque.
• If screws don't get three complete turns in the screen
inserts or if screws bottom out and bracket is still not
tightly secured, damage may occur to screen or
productmay fail.
WARNING
Installing Tilt Brackets
BB
CENTERBRACKETS
VERTICALLYON
BACKOFSCREEN
X
CC
Refer to Screen Compatibility Chart to determine the proper fasteners to use.
To prevent scratching the screen, set a cloth on a flat, level surface that will support the weight of the screen. Place
screen face side down. If screen has knobs on the back, remove them to allow the adapter brackets to be attached.
Place tilt brackets (BB and CC) on back of screen.Align to holes, and center on back of screen as shown in figure
2.1. Attach the tilt brackets to the back of the screen using the appropriate combination of screws, multi-washers,
and spacers as shown in figure 2.3. Note: Be sure to attach tilt brackets with knobs facing outward as in figure 2.1.
Note: Top and bottom mounting holes must be used for attaching brackets. Middle holes should also be used where
thefasteners and screens allow.
Verifythat all holes are properly aligned, and then tighten screws using a phillips screwdriver or security wrench (FF)
dependingon thefastenersused.
MEDIUMHOLEFORM5SCREWS
SMALLHOLEFORM4SCREWS
LARGEHOLEFORM6SCREWS
fig. 2.2
MULTI-
WASHER
SPACER
MULTI-WASHER
SCREW
BB
CC
fig 2.3
X

7 of 8 ISSUED:02-08-06 SHEET#:202-9093-1
Mounting and Removing Flat Panel Screen
Hook tilt brackets (BB andCC) onto wall plate (AA).
Then slowly swing screen in as shown. Turnsafety/
security screws, using phillips screw driver or security
allen wrench (FF), clockwise at least six times to
preventscreenfrombeingremovedasshownindetail1.
offigure3.1.
Screen can be adjusted horizontally if desired as
shownin figure 3.2.
Note: To lock the screen down, tighten screws to wall
plateusingaphillipsheadscrewdriveror securtyallen
wrench (FF) as shown in detail 1.
Toremovescreenfrommount,loosenscrews,swing
screenawayfrom mount,andliftscreenoff ofmount.
3
Unlock tilt position by loosening IncreLok™ tilt
locking screws on both tilt brackets.Adjust
tension knobs shown in detail 2 to desired
tension, balancing your screen size and weight.
Push or pull from top or bottom of screen to
adjust tilt as shown in figure 4.1. The tilt can be
adjusted to a maximum of 15° forward or 5°
backward.
Note: To lock the screen into the desired tilt
position, use locator hole to find tilt position.
Tighten IncreLok™ tilt locking screws on both
tilt brackets as shown in figure 4.1 and detail 2.
4
Adjusting the Tilt Angle of the Flat Panel Screen
• Becareful not to pinch fingers whenpushing screen
fromthe bottom.
CAUTION
• Do not tighten screws with excessive force.
Overtighteningcan causedamage to mount. Tighten
screws to 40 in. • lb (4.5 N.M.) maximum torque.
CAUTION
BB and CC
AA
DETAIL 1
AA
• Always use an assistant or mechanical lifting equip-
ment to safely lift and position the screen.
WARNING
DETAIL 2 fig 4.1
SAFETY/
SECURITY
SCREW
IncreLok™TILT
LOCKING
SCREW
LOCATOR
HOLE
TENSION
KNOB
fig 3.1
fig 3.2

8 of 8 ISSUED:02-08-06 SHEET#:202-9093-1
Limited Five-Year Warranty
Westinghouse Digital Electronics warrants to original end-users of this Westinghouse display mounting product (the
“Product”)that the Product willbe free from defectsin material and workmanship, undernormal use, for aperiod of five (5)
years from the date of purchase by the original end-user, subject to the following terms and conditions:
REPAIR OR REPLACEMENT – For a period of five (5) years from the original date of purchase, Westinghouse Digital
Electronics will repair any defect in material or workmanship in the Product, or, at its option, replace a defective Product.
Replacement parts and products will be warranted for either the remainder of the original warranty period or ninety (90)
daysfrom the date of delivery to the end-user,whichever occurs last.
OBTAINING WARRANTYSERVICE –Toobtainwarranty services, youmusteither personally deliver or shipthe Product
to Westinghouse Digital Electronics, freight prepaid. Please call Westinghouse Digital Electronics at [phone] to
obtain aReturn MerchandiseAuthorization(“RMA”) andfor otherinstructionsregarding returnand replacementorrepairof
the Product. Westinghouse Digital Electronics will not accept Products delivered to it without an RMA.
EXCLUSIONS TO WARRANTY –Thiswarranty does not coverdamage caused by (a) serviceor repairsbyanyone other
thanpersonnel authorized by WestinghouseDigitalElectronics, (b) the failuretoutilize proper packing whenreturningthe
product, (c) improper installation or the failure to follow Product instructions or warnings, or (d) misuse or accident, in
transitor otherwise.
PROOF OR ORIGINAL PURCHASE –Asales receipt, invoice, or other proof of purchase specifying the original date of
purchasewithin the five (5) year warranty period must be presented to obtain warranty service. This warranty extends to
theoriginal purchaser and is not transferable.
EITHER REPAIR OR REPLACEMENT IS YOUR EXCLUSIVE REMEDYUNDER THIS WARRANTY. EXCEPTTO THE
EXTENT PROHIBITED BY LAW, WESTINGHOUSE DIGITAL SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR
CONSEQUENTIALDAMAGESCLAIMEDTOARISEFROMBREACH OFANYEXPRESS ORIMPLIED WARRANTYON
THISPRODUCT. ANYIMPLIED WARRANTYOF MERCHANTABILITYOR FITNESS FORAPARTICULAR PURPOSE
ONTHIS PRODUCTISLIMITED IN DURATIONAND SCOPETOTHETERMSOFTHIS WARRANTY.
Some States do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on how
longan implied warranty lasts, so the above limitation may not applytoyou. This warranty gives specific legal rights, and
you may also have other rights which vary from State to State.
WestinghouseDigital Electronics, LLC
12150MoraDrive
Santa Fe Springs, CA90670
Tel.[phone]
Fax.[phone]
andWestinghousearetrademarksofWestinghouseElectricCorporationandareusedunderlicense.
