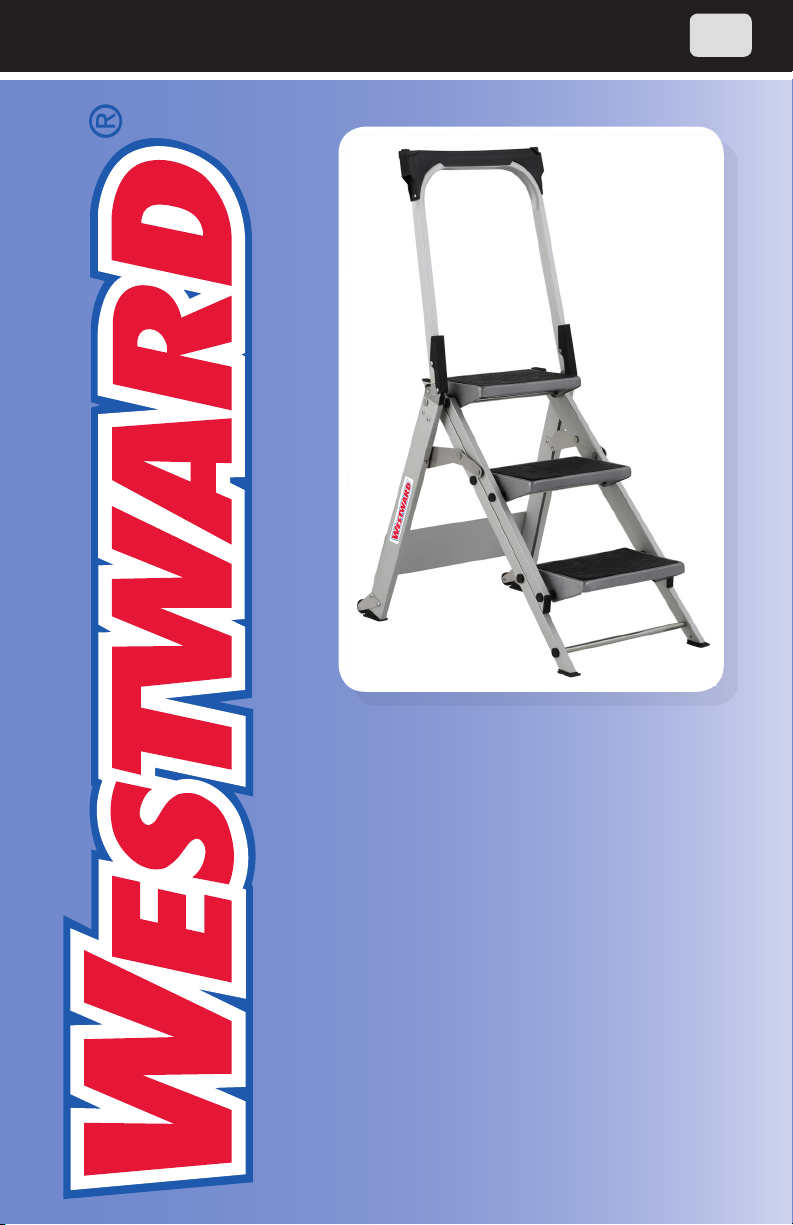

Westward 44YY25 Instructions for use

(Step Stool)
Models 44YY25, 44YY13, 44YY14
Operating Instructions & Parts Manual EN

PLEASE READ AND SAVE
THESE INSTRUCTIONS.
READ CAREFULLY
BEFORE ATTEMPTING
TO ASSEMBLE, INSTALL,
OPERATE OR MAINTAIN THE
PRODUCT DESCRIBED.
PROTECT YOURSELF AND
OTHERS BY OBSERVING ALL
SAFETY INFORMATION. FAILURE
TO COMPLY WITH INSTRUCTIONS
COULD RESULT IN PERSONAL
INJURY AND/OR PROPERTY
DAMAGE! RETAIN INSTRUCTIONS
FOR FUTURE REFERENCE.
PLEASE REFER TO BACK COVER
FOR INFORMATION REGARDING
WESTWARD’S WARRANTY AND
OTHER IMPORTANT INFORMATION.
Model #: ___________________
Purch. Date: _______________
Printed in USA
© 2017 W.W. Grainger, Inc.
All Rights Reserved
NOTES

5
SELECTION GUIDE INSPECTION INSTRUCTIONS NOTES
NOTES INSTRUCTIONS INSPECTION SELECTION GUIDE
4
SELECTION GUIDE
SELECTION GUIDE
HOW TO SELECT A LADDER HOW TO SELECT A LADDER (CONTINUED)
LADDER
SIZE
APPROX.
HIGHEST
STANDING
LEVEL
MAXIMUM
REACH^
4’ 1’ 11” 8’ 6”
5’ 2’ 10” 9’ 5”
6’ 3’ 9” 10’ 4”
7’ 4’ 9” 11’ 4”
8’ 5’ 8” 12’ 3”
10’ 7’ 7” 14’ 2”
12’ 9’ 6” 16’ 1”
14’ 11’ 5” 18’
16’ 13’ 4” 19’ 11”
18’ 15’ 3” 21’ 10”
20’ 17’ 2” 23’ 9”
STEP LADDERS
LADDER
SIZE
MAXIMUM
EXTENDED
LENGTH
MAX.
REACH^
WORKING
RANGE
TO TOP
SUPPORT*
MAXIMUM
ACCESSIBLE
ROOF HEIGHT
RANGE*
16’ 13’ 16’ 1” 7 ½’ – 12 ½’ 4 ½’–9 ½’
20’ 17’ 20’ 9 ½’ – 16 ½’ 6 ½’–13 ½’
24’ 21’ 23’ 10” 11 ½’ – 20’ 8 ½’–17’
28’ 25’ 27’ 9” 13 ½’ – 24’ 10 ½’–21’
32’ 29’ 31’ 7” 15 ½’– 28’ 12 ½’–25’
36’ 32’ 34’ 6” 17 ½’ – 31’ 14’–28’
40’ 35’ 37’ 5” 19’ – 33 ½’ 16’–30 ½’
44’ 39’ 41’ 3” 21’ – 37 ½’ 18’–34 ½’
48’ 43’ 45’ 2” 23’ – 41 ½’ 20’–38 ½’
60’ *48’ 50’ 23’ – 46 ½’ 20’–43 ½’
EXTENSION LADDERS
^Assumes 5’ 7” person with 12” vertical reach |
*When set up at the proper 75 1/2° angle | **Three–section extension ladder
The most versatile
style of ladder,
found in a variety
of sizes. Most
commonly used for
higher elevations.
Combine step
ladder and
warehouse ladder
technology. The
non-pinch platform
provides a large
standing area for
work.
Allows two users
to work on the
same ladder
simultaneously.
Easily accomplish
tasks that would be
more dicult for a
single person.
The most popular
style of ladder.
Used from medium
to low heights.
Utilize pail shelves
and tops to hold
tools for the job.
STEP LADDER TWIN FRONT LADDER PLATFORM LADDER EXTENSION LADDER
1
Select a TypeSelect a Type
3
Select a
Load Capacity
Select a
Load Capacity
4
Select a
Ladder Material
Select a
Ladder Material
2
Select a HeightSelect a Height
TYPE III:
Household use. Light
duty. Capable of
supporting 200 lbs.
USES: Light cleaning
and painting.
TYPE IA: Professional
use. Extra heavy duty.
Capable of supporting
300 lbs.
USES: Roong,
building maintenance,
contracting and
industrial construction.
TYPE I:
Industrial use. Heavy
duty. Capable of
supporting 250 lbs.
USES: Building
maintenance, general
contracting and
sheet rock.
TYPE II: Commercial
use. Medium duty.
Capable of supporting
225 lbs.
USES: Light commercial
and general repair,
painting and cleaning.
TYPE IA A: Professional
use. Extra heavy duty.
Capable of supporting
375 lbs.
USES: MRO and
industrial construction.
IIIIII
TYPETYPE
LOAD CAPACITYLOAD CAPACITY
includes weight of user
plus materials
200200
lbslbs
IAIA
TYPETYPE
includes weight of user
plus materials
LOAD CAPACITYLOAD CAPACITY
lbslbs
300300
II
TYPETYPE
LOAD CAPACITYLOAD CAPACITY
includes weight of user
plus materials
lbslbs
250250
250250
IIII
TYPETYPE
LOAD CAPACITYLOAD CAPACITY
includes weight of user
plus materials
225225
lbslbs
IAAIAA
TYPETYPE
lbslbs
375375
LOAD CAPACITYLOAD CAPACITY
includes weight of user
plus materials
> Non-conductive when clean
and dry
> Strong and durable
> Weather-resistant
> Great for heavy-duty
construction
FIBERGLASS
FIBERGLASS LADDERS
ARE SAFE FOR WORKING
AROUND ELECTRICITY
ALUMINUM
> Lightweight
> Long-lasting construction
> Resists corrosion
> Ideal for painting, roofing
and siding
DO NOT USE
ALUMINUM
LADDERS NEAR
ELECTRICITY
Louisville Ladder, Inc. manufactures products in ompliance with the
applicable safety codes of the AMERICAN NATIONAL STANDARDS
INSTITUTE (ANSI). There are a variety of ANSl safety codes depending on material and
type of ladder. You can nd a list of them in the gure on the right.
In addition, ANSI codes have established a Duty Rating which identies the use for which
a portable ladder is intended and the conditions under which the ladder can be used
safely. An extensive series of tests and design requirements determines which Duty Rating
label a particular ladder may receive. The total load supported includes the combined
weight of the user, clothing, tools and any materials on the ladder. However, ladders must
be used properly in order to support the intended load.
AT LOUISVILLE LADDER, all of our products are designed and constructed to meet
or exceed applicable standards and requirements of the American National Standards
Institute (ANSI), Occupational Safety and Health Administration (OSHA), and Canadian
Standards Association (CSA). Please read the information on this page before using
our products. Your safety is important to us.
METAL LADDERS: ANSI A14.2
FIBERGLASS LADDERS: ANSI A14.5

7
SELECTION GUIDE INSPECTION INSTRUCTIONS NOTES
NOTES INSTRUCTIONS INSPECTION SELECTION GUIDE
6
SELECTION GUIDE
SELECTION GUIDE
HOW TO SELECT A LADDER (CONTINUED)
The OCCUPATIONAL SAFETY & HEALTH ADMINISTRATION (OSHA)
regulates the adequacy of ladders and the work practices followed by
employees using them in ve sections: Portable Wood (1910.25), Portable Metal (1910.26),
Fixed Ladders (1910.27), Mobile Ladder Stands and Scaffolds (1910.29) and ladders used in
Construction Industry (1926.1053). These sections specify the standards to which all portable
ladders must be manufactured, care and placement of ladders in the workplace, and the safe
use of ladders on the job.
OSHA sets minimum national requirements with respect to the use of ladders in business
and industry. However, many states have enacted their own regulations under the
Occupational Safety & Health Act that establish more severe requirements. The more
demanding state codes will supersede OSHA standards within their respective states.
Therefore, users should check with their own state OSHA representatives.
Where applicable, product meets or exceeds
CANADIAN STANDARDS INSTITUTE testing requirements.
=
Look for damaged or missing parts
Always check for damage before using any ladder. Do not use a damaged ladder.
Conduct your inspection before you leave for the job site.
1. Begin at the bottom, making sure the feet are not broken or malfunctioning and that
the slip-resistant pads are secure.
2. Inspect the ladder for cracks, bends, and splits on side rails, rungs, and steps.
3. Check all rung/step-to-side rail connections, as well as hardware, fittings, and
accessories. Make sure both rung locks are in working order.
4. Test the rope and pulley for smooth operation. Replace the rope if frayed or partially
cut.
5. All pivotal connections and the rung-locks should be well-lubricated.
6. All bolts and rivets should be secure. Never use a ladder if any bolts or rivets are
missing or if the joints between the steps (or rungs) and the side rails are not tight.
7. Make sure the ladder (particularly the steps and rungs) is free of foreign materials
such as oil and grease.
8. If you’re using a stepladder, make sure the spreader braces are not bent, are secure
and working properly.
Use a ladder-inspection chart as a guide for evaluating the safety of a ladder.
Remember to inspect the ladder before you travel to the job site, because once
you’re there you’ll be tempted to use the ladder regardless of its condition.
Always mark unsafe ladders by using a damaged-ladder tag (see sample illustration).
Be sure to store damaged ladders away from usable
ladders. Have them repaired as soon as possible.
Destroy unrepairable ladders immediately.
Transporting a ladder
Accidents can happen while transporting the ladder
to the job site. A ladder is long and awkward, and
can cause injuries and property damage during
transport. When possible, two people should carry
an extension ladder. If you carry it yourself, keep
the front end of the ladder slightly higher than the
back end.
Never move or reposition an extension ladder
without completely retracting the fly section.
Failure to do so can cause serious injury or
death.
Secure both ends of a ladder when transporting it on
a vehicle. Use care when placing ladders onto or
removing from ladder racks.
LADDER INSPECTION

98
SELECTION GUIDE INSTRUCTIONS NOTES
NOTES INSTRUCTIONS SELECTION GUIDE
INSPECTION SELECTION GUIDE
INSPECTION
INSTRUCTIONS- STEP STOOL (CONTINUED)INSTRUCTIONS- STEP STOOL
Inspection
1. Inspect upon receipt and before each use, never climb a damaged, bent, or broken
step stool, all working parts must be in good working order.
2. Make sure all rivets, joints, nuts, and bolts are tight, steps and rungs are secure, and
spreaders function properly.
3. Keep step stool clean, free from grease, oil, mud, snow, wet paint, and other slippery
material. Keep your shoes clean, leather soles should not be used.
4. Never make temporary repairs to damaged or missing parts.
5. Destroy step stool if broken, worn, or if exposed to fire or chemical corrosion.
Proper setup
1. DANGER! METAL STEP STOOLS CONDUCT ELECTRICITY! Do not let step stools
of any material come into contact with live electrical lines.
2. Make sure step stool Is fully open and spreaders are secure.
3. Place on firm surface and a secure footing. Do not use on a slippery surface. Do not
place on boxes, unstable bases, or scaffolds to gain additional height. Do not place
in front of door opening towards step stool.
Proper climbing and use
1. DO NOT USE STEP STOOLS If you tire easily, are subject to fainting spells, using
medication or alcohol, or are physically impaired.
2. To protect children, do not leave ladder setup and unattended.
3. Face step stool when climbing up or down. Keep body centered over side rails.
4. Do not over reach, move step stool when needed.
5. Do not “walk” or “jog” ladder while standing on it.
6. Do not overload. Step stools are meant for one person. Do not use as a brace,
platform, or plank.
7. Keep step stool close to work; avoid pushing or pulling off to side of step stool.
Proper care and storage
1. Store step stool in safe and dry place.
2. Properly secure and support step stool while in transit.
3. Never store materials on step stool.
4. Keep step stool clean and free of all foreign material.
Caution
KEEP BODY CENTERED BETWEEN SIDERAILS. DO NOT OVER-REACH.
LOCK SPREADERS
SET ALL FOUR FEET ON FIRM LEVEL SURFACE
WEAR SLIP RESISTANT SHOES
READ ADDITIONAL INSTRUCTIONS ON STEP STOOL.

WESTWARD ONE-YEAR LIMITED WARRANTY
WESTWARD ONE-YEAR LIMITED WARRANTY. All Westward®product models covered in this manual
covered by this Limited Warranty are warranted by W.W. Grainger, Inc. (“Grainger”) to the original user
against defects in workmanship or materials under normal use for one year after date of purchase. If the
Product is part of a set, only the portion that is defective is subject to this warranty. Any Product or part
which is determined to be defective in material or workmanship and returned to an authorized service
location, as Grainger or Grainger’s designee designates, shipping costs prepaid, will be, as the exclusive
remedy, repaired or replaced with a new or reconditioned product or part of equal utility or a full refund
given, at Grainger’s or Grainger’s designee’s option, at no charge. For limited warranty claim procedures,
see “Warranty Service” below.
COVERED PRODUCTS. This Limited Warranty covers the product model(s) identified in this manual.
This Limited Warranty does not cover normal wear and tear of Products or portions of them, or products or
portions of them which are consumable in normal use. This warranty is void if there is evidence of misuse,
mis-repair, mis-installation, abuse or alteration.
WARRANTY DISCLAIMERS AND LIMITATIONS OF LIABILITY RELATING TO ALL CUSTOMERS
FOR ALL PRODUCTS
LIMITATION OF LIABILITY. TO THE EXTENT ALLOWABLE UNDER APPLICABLE LAW, GRAINGER’S
LIABILITY FOR CONSEQUENTIAL AND INCIDENTAL DAMAGES IS EXPRESSLY DISCLAIMED. GRAINGER’S
LIABILITY IN ALL EVENTS IS LIMITED TO AND SHALL NOT EXCEED THE PURCHASE PRICE PAID.
WARRANTY DISCLAIMER. A DILIGENT EFFORT HAS BEEN MADE TO PROVIDE PRODUCT INFORMATION
AND ILLUSTRATE THE PRODUCTS IN THIS LITERATURE ACCURATELY; HOWEVER, SUCH INFORMATION
AND ILLUSTRATIONS ARE FOR THE SOLE PURPOSE OF IDENTIFICATION, AND DO NOT EXPRESS OR
IMPLY A WARRANTY THAT THE PRODUCTS ARE MERCHANTABLE, OR FIT FOR A PARTICULAR PURPOSE,
OR THAT THE PRODUCTS WILL NECESSARILY CONFORM TO THE ILLUSTRATIONS OR DESCRIPTIONS.
EXCEPT AS PROVIDED BELOW, NO WARRANTY OR AFFIRMATION OF FACT, EXPRESSED OR IMPLIED,
OTHER THAN AS STATED IN THE “LIMITED WARRANTY” ABOVE IS MADE OR AUTHORIZED BY GRAINGER.
PRODUCT SUITABILITY. MANY JURISDICTIONS HAVE CODES AND REGULATIONS GOVERNING SALES,
CONSTRUCTION, INSTALLATION, AND/OR USE OF PRODUCTS FOR CERTAIN PURPOSES, WHICH MAY VARY
FROM THOSE IN NEIGHBORING AREAS. WHILE ATTEMPTS ARE MADE TO ASSURE THAT PRODUCTS COMPLY
WITH SUCH CODES, GRAINGER CANNOT GUARANTEE COMPLIANCE, AND CANNOT BE RESPONSIBLE FOR
HOW THE PRODUCT IS INSTALLED OR USED. BEFORE PURCHASE AND USE OF A PRODUCT, REVIEW THE
SAFETY/SPECIFICATIONS, AND ALL APPLICABLE NATIONAL AND LOCAL CODES AND REGULATIONS,
AND BE SURE THAT THE PRODUCT, INSTALLATION, AND USE WILL COMPLY WITH THEM.
CONSUMERS ONLY. CERTAIN ASPECTS OF DISCLAIMERS ARE NOT APPLICABLE TO CONSUMER
PRODUCTS SOLD TO CONSUMERS; (A) SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION
MAY NOT APPLY TO YOU; (B) ALSO, SOME JURISDICTIONS DO NOT ALLOW A LIMITATION ON HOW LONG
AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU; AND (C) BY LAW,
DURING THE PERIOD OF THIS LIMITED WARRANTY, ANY IMPLIED WARRANTIES OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE APPLICABLE TO CONSUMER PRODUCTS PURCHASED BY
CONSUMERS, MAY NOT BE EXCLUDED OR OTHERWISE DISCLAIMED.
THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER
RIGHTS WHICH VARY FROM STATE TO STATE.
THIS LIMITED WARRANTY ONLY APPLIES TO PRODUCTS PURCHASED BY UNITED STATES PURCHASERS
FOR DELIVERY IN THE UNITED STATES.
WARRANTY SERVICE
To obtain warranty service if you purchased the covered product directly from Grainger, (i) write or call or
visit the local Grainger branch from which the product was purchased or another Grainger branch near you
(see www.grainger.com for a listing of Grainger branches); or (ii) contact Grainger by going to www.grainger.
com and clicking on the “Contact Us” link at the top of the page, then clicking on the “Email us” link; or
(iii) call Customer Care (toll free) at 1-888-361-8649. To obtain warranty service if you purchased the covered
product from another distributor or retailer, (i) go to www.grainger.com for Warranty Service; (ii) write or
call or visit a Grainger branch near you; or (iii) call Customer Care (toll free) at 1-888-361-8649. In any case,
you will need to provide, to the extent available, the purchase date, the original invoice number, the stock
number, a description of the defect and anything else specified in this Westward One-Year Limited Warranty.
You may be required to send the product in for inspection at your cost. You can follow up on the progress
of inspections and corrections in the same ways. Title and risk of loss pass to buyer on delivery to common
carrier, so if product was damaged in transit to you, file claim with carrier, not the retailer or Grainger.
For warranty information for purchasers and/or delivery outside the United States, please contact:
Canada: www.westwardtools.ca
Mexico: Grainger.com.mx
Location not listed, contact: [phone] (or 1-800-GRAINGER)
DM_US 45931887-4.019350.0029
