Whalen MNFP52EW26CA User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date 2020-05-25 Rev. 0001-A
Eastwood 52” Fireplace Console
Model # MNFP52EW26CA
# MNFP52EW26CB
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our toll-free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
1-866-942-5362
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our web site 24 hours a day, 7 days a week for product assistance at
www.whalenfurniture.com
Or e-mail your request to [e-mail]
LOT NUMBER:
DATE PUR
CHA
SE
D
:
/
/

2
IMPORTANT
Before you begin: Open, identify and count all parts prior to assembly. Lay out parts on a flat and
non-abrasive surface. You will need the parts identified on page 3 and 4 of this instruction manuals.

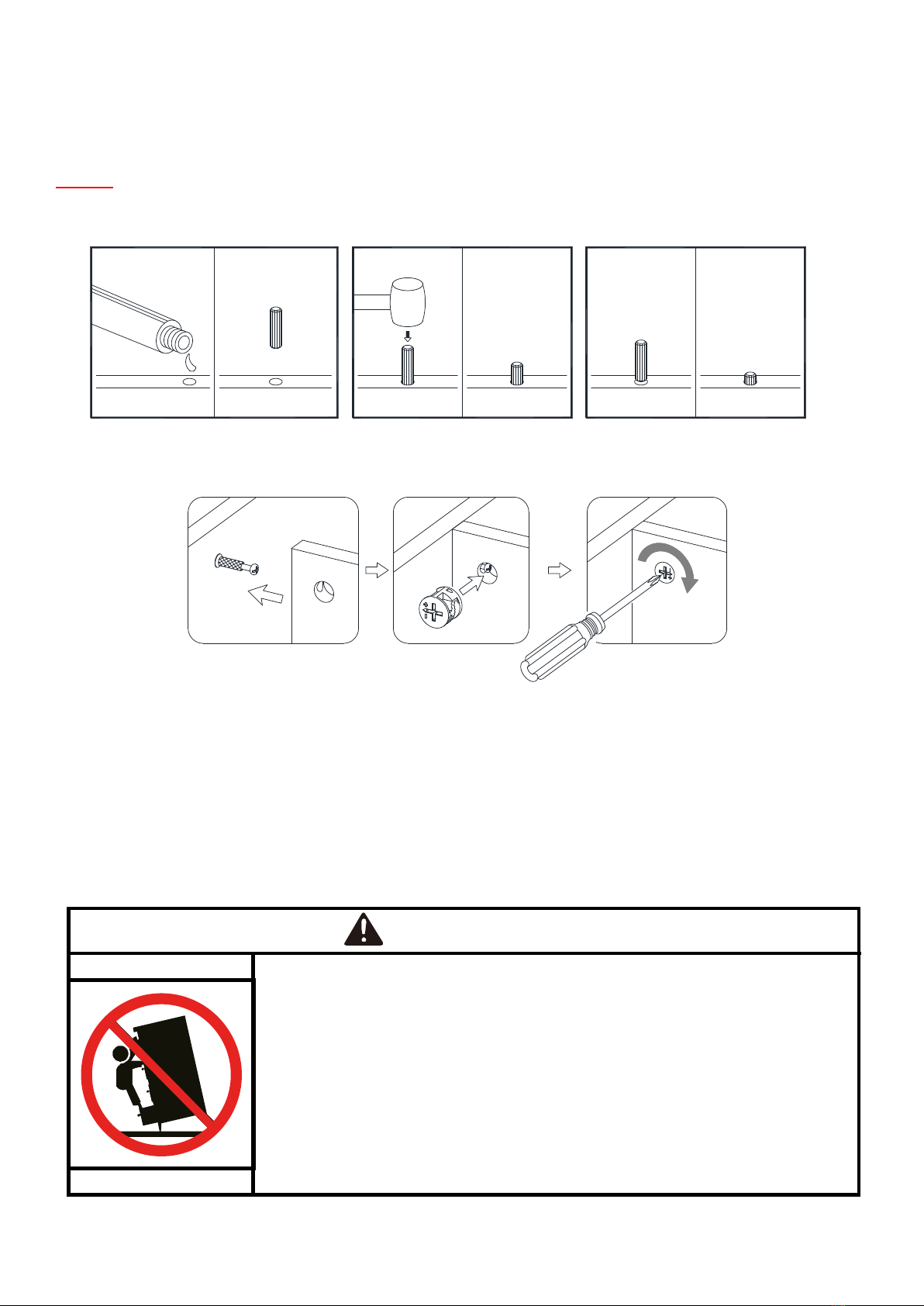

NOTE: IT IS VERY IMPORTANT TO USE GLUE WITH THE DOWELS. EXCESS GLUE CAN BE WIPED
OFF WITH A DAMP CLOTH.
Insert dowel at least half way by tapping lightly with a rubber mallet (not included), IF NECESSARY.
CAM LOCK SYSTEM OPERATION
HOW THE KNOCK DOWN (KD) ASSEMBLY SYSTEM WORKS
1. Screw the Cam Bolt into the pre-drilled small holes on the panel. Connect both panels together; making sure
the Cam Bolt goes into the pre-drilled hole at the end of the panel with the Cam Lock.
2. Insert the Cam Lock into the pre-drilled large hole in the panel. Make sure the arrow on the Cam Lock is
pointed towards the Cam Bolt.
3. Once the Cam Bolt is connected inside the Cam Lock, take a Phillips screwdriver (not included) and tighten
the Cam Lock clockwise.
You are now ready to assemble the KD unit.
123
GLUE
XX
FINAL
1 2 43
Children have died from furniture tip-over.
To reduce the risk of furniture tip-over:
 ALWAYS install tip-over restraint provided.
 FOR use with televisions weighing 70 lbs or less. Use with heavier televisions
may
result in instability causing tip-over resulting in death or serious injury.
 NEVER allow children to stand, climb or hang on drawers, doors, or shelves.
 NEVER open more than one drawer at a time.
 Place heaviest items in the lowest drawers.
Use of tip-over restraints may only reduce, but not eliminate, the risk of
tip-over.
WARNING

3

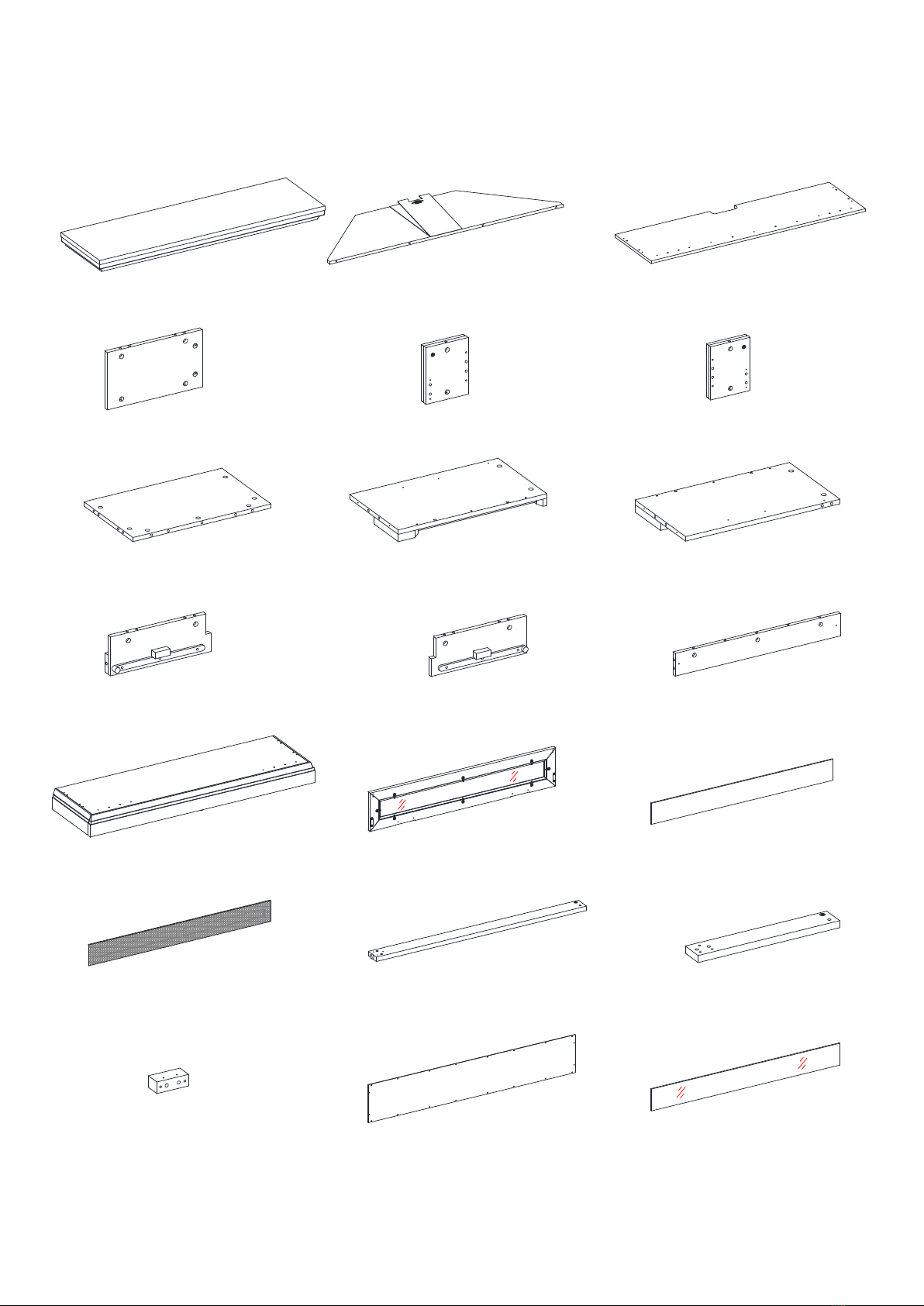

Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.
A- Top Panel (Qty. 1) B-Top Corner Extension (Qty. 1) C- Media Shelf (Qty. 1)
D- Upper Side Panel (Qty. 2) E- Upper Left Side Molding (Qty. 1) F- Upper Right Side Molding (Qty. 1)
G- Lower Side Panel (Qty. 2) H- Lower Left Side Molding (Qty. 1) I- Lower Right Side Molding (Qty. 1)
J- Upper Left Partition Panel (Qty. 1) K- Upper Right Partition Panel (Qty. 1) L- Middle Crossbar (Qty. 1)
M- Base (Qty. 1) N- Barrister Door (Qty. 1) O- Wood Door Insert (Qty. 1)
P- Speaker Grill (Qty. 1) Q- Long Corner Support (Qty. 1) R- Short Corner Support (Qty. 1)
S- Magnetic Catch Holder (Qty. 2) T- Back Panel (Qty. 1) U- Glass Door Insert (Qty. 1)
(Pre-attached)

4
Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.
Fireplace Insert Remote Control with Battery (1) Cam Lock (2) Cam Bolt
(Qty. 1) (Qty. 1) (Qty. 41+2 extra) (Qty. 41+2 extra)
(3) M8 x 30 mm Long Wood Dowel (4) M3.5 x 12 mm Screw (5) M3.5 x 15 mm Screw (6) M3 x 15 mm Pan Head Screw
(Qty. 50+2 extra) (Qty. 4+1 extra) (Qty. 8+1 extra) (Qty. 4+1 extra)
(7) M3.5 x 15 mm (8) M4 x 25 mm (9) M4 x 50 mm (10) M8 x 20 mm
Washer Head Screw Screw Screw Short Wood Dowel
(Qty. 20+1 extra) (Qty. 3+1 extra) (Qty. 8+1 extra) (Qty. 2 +1 extra)
(11) Magnetic Catch (12) Handle (13) Mending Plate (14) Hook
(Qty. 2) (Qty. 2) (Qty. 2) (Qty. 2)
(15) Metal Bracket (16) Connector (17) Floor Leveler (18) Acrylic Stopper
(Qty. 2) (Qty. 5) (Qty. 2) (Qty. 1)
(19) 1/4”x 12 mm Bolt (20) 1/4”x 32 mm Bolt (21) Lock Washer (22) Flat Washer
(Qty. 10+1 extra) (Qty. 2+1 extra) (Qty. 2+1 extra) (Qty. 2+1 extra)
(23) M3.5 x 12 mm Pan Head Screw Glue Touch-up Pen Tipping Restraint Hardware Kit (Qty. 2)
(Qty. 4+1 extra) (Qty. 2) (Qty. 1) (Included in plastic bag)
Tools required (not included): Phillips screwdriver, stud finder, pencil, tape measure, power drill and 1/8”
drill bit.

5
Assembly Instructions
NOTE: DO NOT fully tighten all cam locks and bolts until you finish assembling all parts. Once
assembled, go back and fully tighten all cam locks and bolts.
1. Unpack the unit and confirm that you have all the hardware and required parts. Assemble the unit on a
carpeted floor or the empty carton to avoid any scratch.

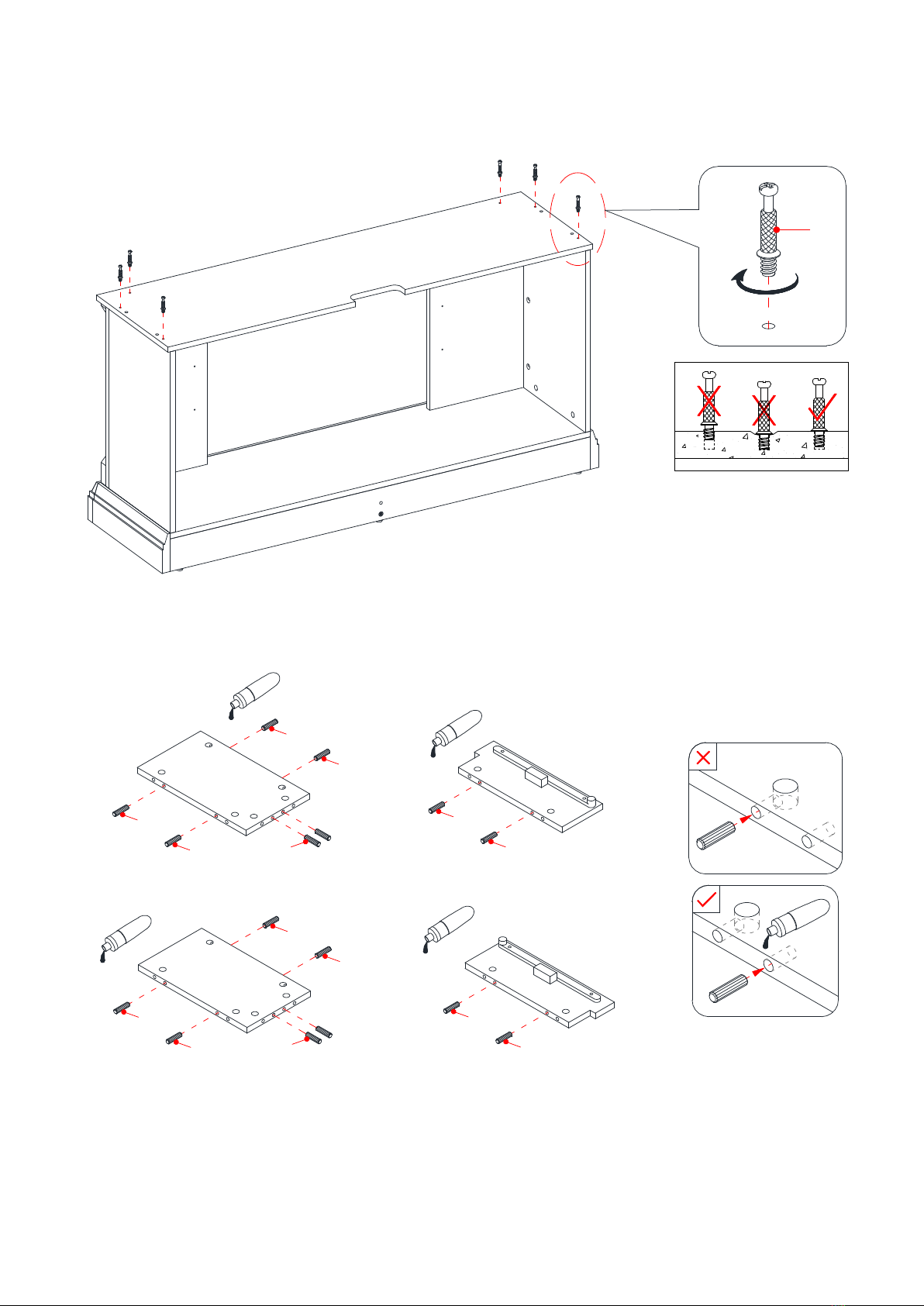

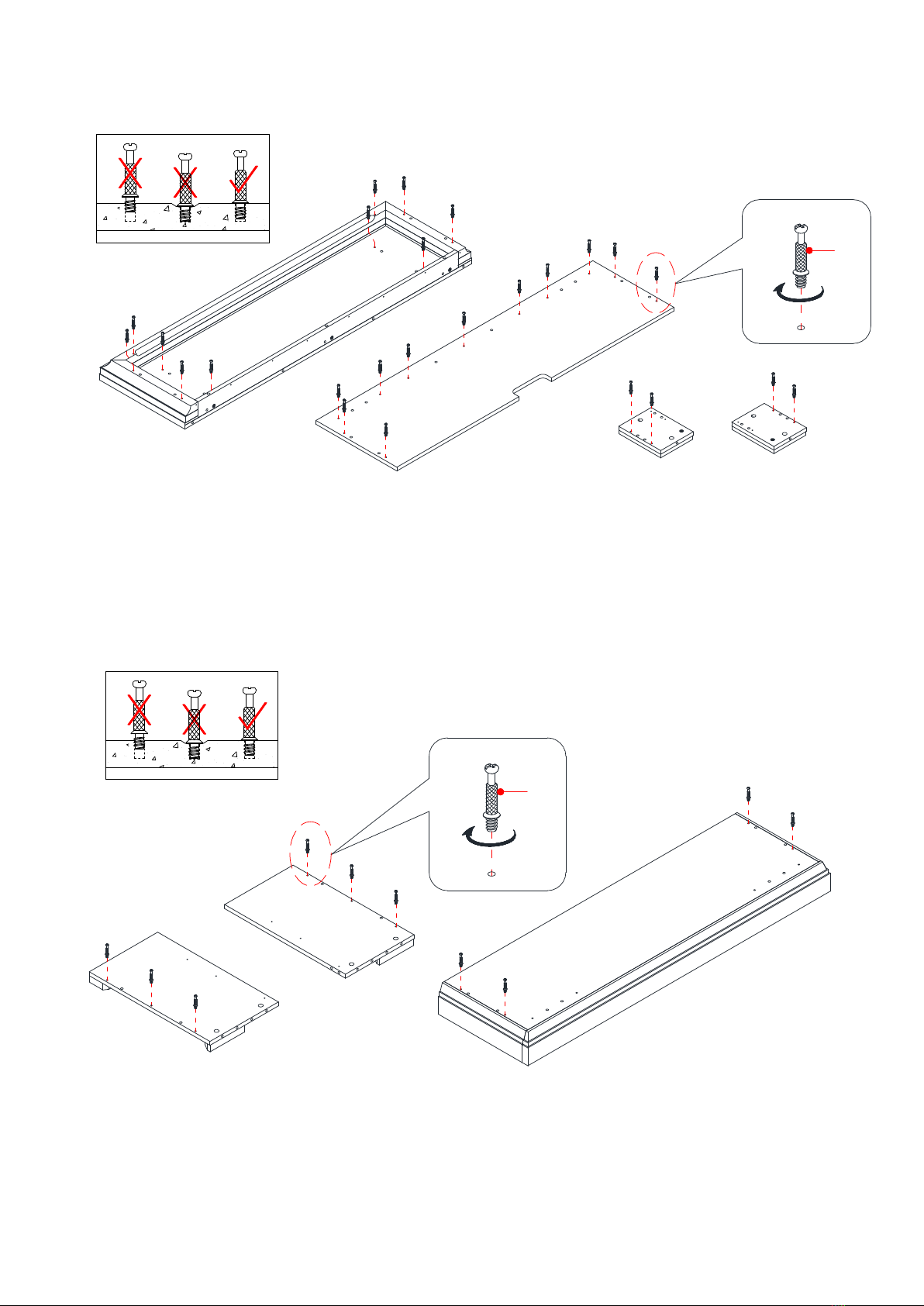

2. Securely screw the Cam Bolts (2) into the designated small holes on the Top Panel (A), Media Shelf (C)
and Upper Side Moldings (E and F) with a Phillips screwdriver. Do Not over tighten the cam bolts.
3. Continue to screw the Cam Bolts (2) into the designated small holes on the Lower Side Moldings (H and
I) and Base (M).
A
C
EF
2
M
H
I
2
