Whalen Barston Laminated Fireplace Manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Whalen Furniture Mfg., Inc. Page 1 Factory No. 16086
Barston Laminated Fireplace
Stock # BARLFP-26
ADULT ASSEMBLY AND SET-UP REQUIRED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our customer service number and have your instructions and
parts list ready to provide the model name, part name or factory number:
1-866-942-5362
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our web site 24 hours a day, 7 days a week for product assistance at
www.whalenstyle.com
Or e-mail your request to [email protected]
LOT NUMBER:
DATE PURCHASED: / /

Stock # BARLFP-26
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg., Inc. Page 2 Factory No. 16086
QUALITY GUARANTEE
We are confident that you will be delighted with your Whalen Furniture purchase.
Should this product be defective in workmanship or materials or fail under normal use, we will
repair or replace it for up to one (1) year from date of purchase. Every Whalen Furniture product is
designed to meet your highest expectations. We guarantee that you will immediately see the value of
our fine furniture.
This warranty gives you specific legal rights and you may also have other rights which vary from
State to State.
Customer Service: 1-866-942-5362
8:30 a.m. - 4:30 p.m., PST, Monday to Friday
www.whalenstyle.com
MANUFACTURER: Whalen Furniture Mfg., Inc.
CATALOG: Barston Laminated Fireplace (BARLFP-26)
DATE OF MANUFACTURE: November 2013
MADE IN CHINA

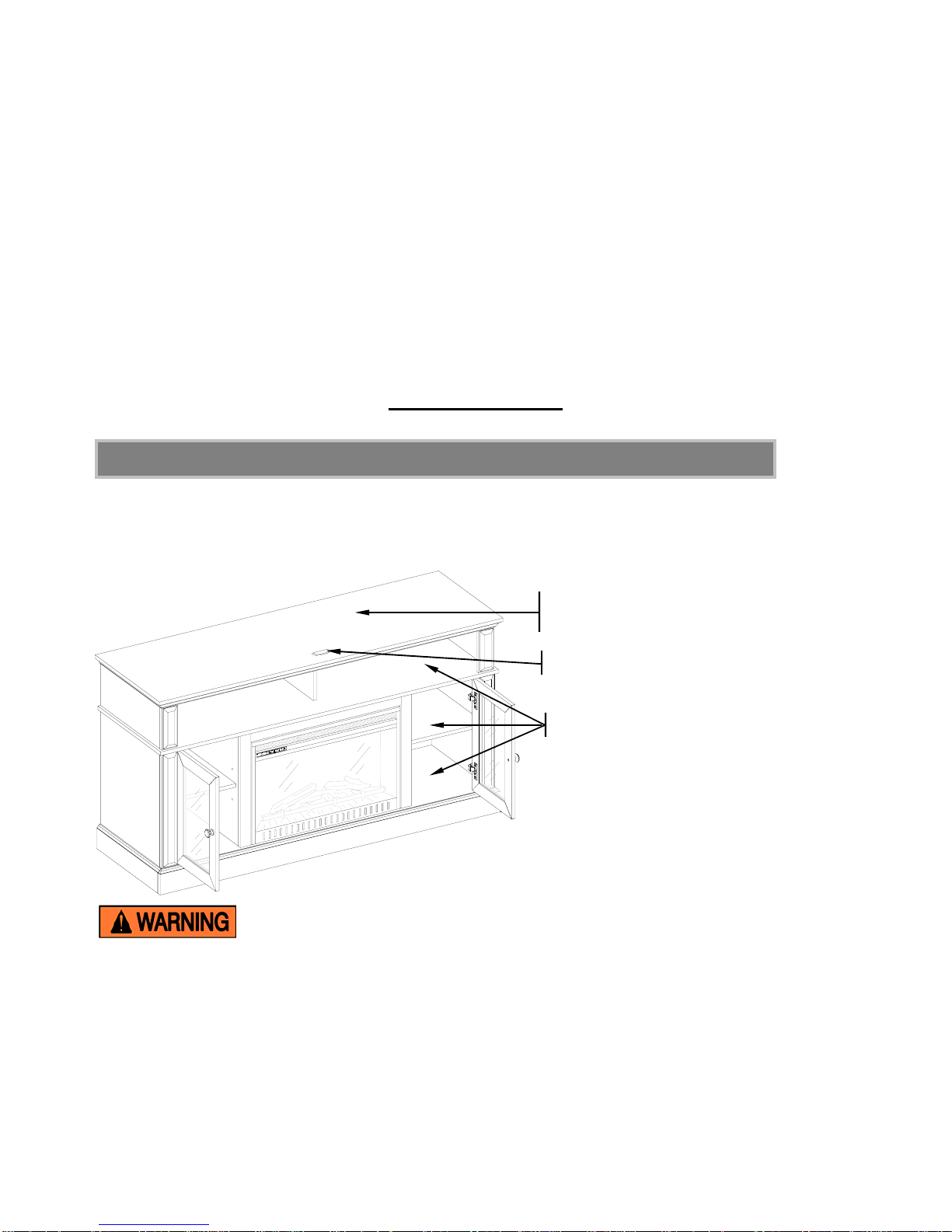

MAXIMUM RECOMMENDED WEIGHT LOADS
FITS UP TO MOST 70” FLAT PANEL TVs
MAXIMUM LOAD 135 lb. (61.2 kg)
THIS UNIT IS NOT INTENDED FOR USE WITH CRT TVS. USE ONLY WITH
FLAT PANEL TVS AND AUDIO/VIDEO EQUIPMENT MEETING RECOMMENDED SIZE AND
WEIGHT LIMITS. NEVER USE WITH LARGER/HEAVIER THAN RECOMMENDED FLAT PANEL
TVS OR EQUIPMENT. TO AVOID INSTABILITY, PLACE FLAT PANEL TV IN THE CENTRE OF
THE UNIT; CRT TVS, IMPROPERLY POSITIONED FLAT PANEL TVS, OR FLAT PANEL TVS OR
OTHER EQUIPMENT THAT EXCEED RECOMMENDED SIZE AND WEIGHT LIMITS COULD
FALL OFF OR BREAK THE UNIT, CAUSING POSSIBLE SERIOUS INJURY.
MAXIMUM LOAD 50 lb. (22.6 kg)
PLACE TV BEHIND THE STOPPER

Stock # BARLFP-26
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg., Inc. Page 3 Factory No. 16086
Important
Before you begin: Open, identify and count all parts prior to assembly. Lay out parts on a flat and non-
abrasive surface. You will need the parts identified on page 4 of this instruction manual.
NOTE: IT IS VERY IMPORTANT TO USE GLUE WITH DOWELS. EXCESS GLUE CAN BE WIPED
OFF WITH DAMP CLOTH.
Insert the Dowel at least half way by tapping lightly with a rubber mallet, IF NECESSARY.

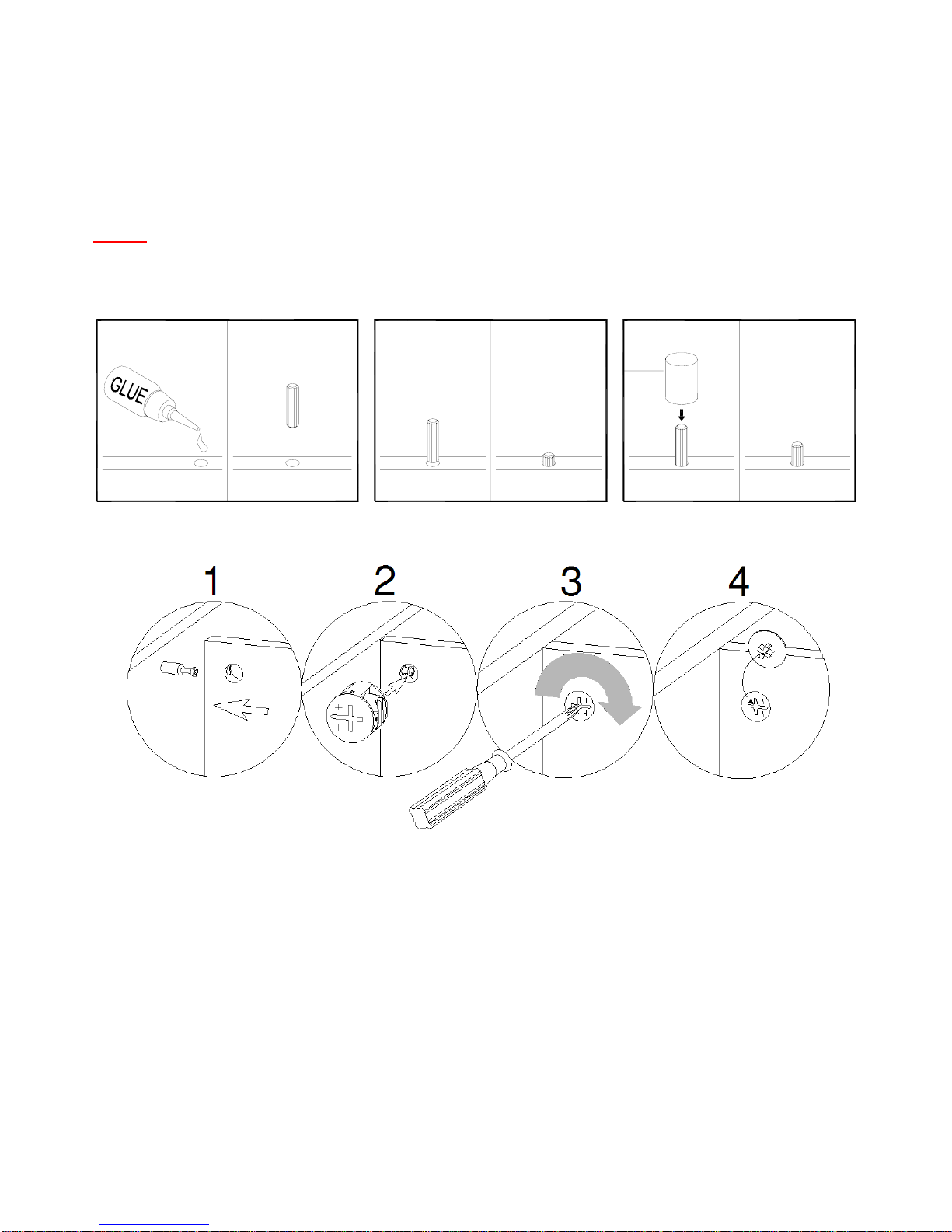

CAM LOCK SYSTEM OPERATION
HOW THE KNOCK DOWN (KD) ASSEMBLY SYSTEM WORKS
1. Screw the Cam Bolt into the threaded inserts on the panel. Connect both panels together; making sure Cam
Bolt goes into the pre-drilled hole on the end of panel for Cam Lock.
2. Insert the Cam Lock into the pre-drilled large hole on the panel. Make sure the arrow on the face of Cam
Lock faces out and points towards Cam Bolt.
3. Take a Phillips screwdriver and rotate the Cam Lock clockwise to lock the Cam Bolt in place.
4. Plug the Cam Lock Cover into the cross slot of the Cam Lock to conceal the Cam.
You are now ready to assemble the KD unit.
XXFINAL
12 43

Stock # BARLFP-26
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg., Inc. Page 4 Factory No. 16086

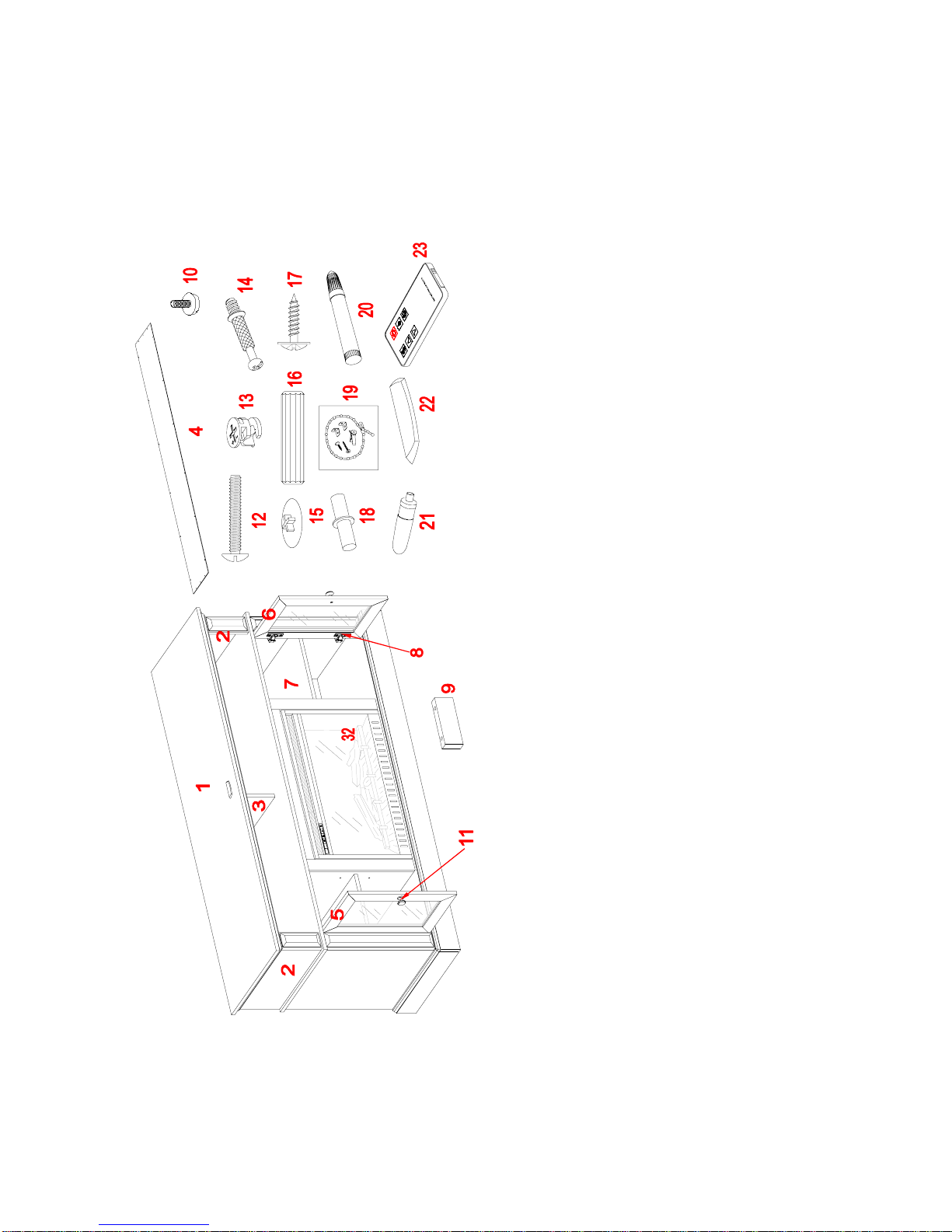

Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.

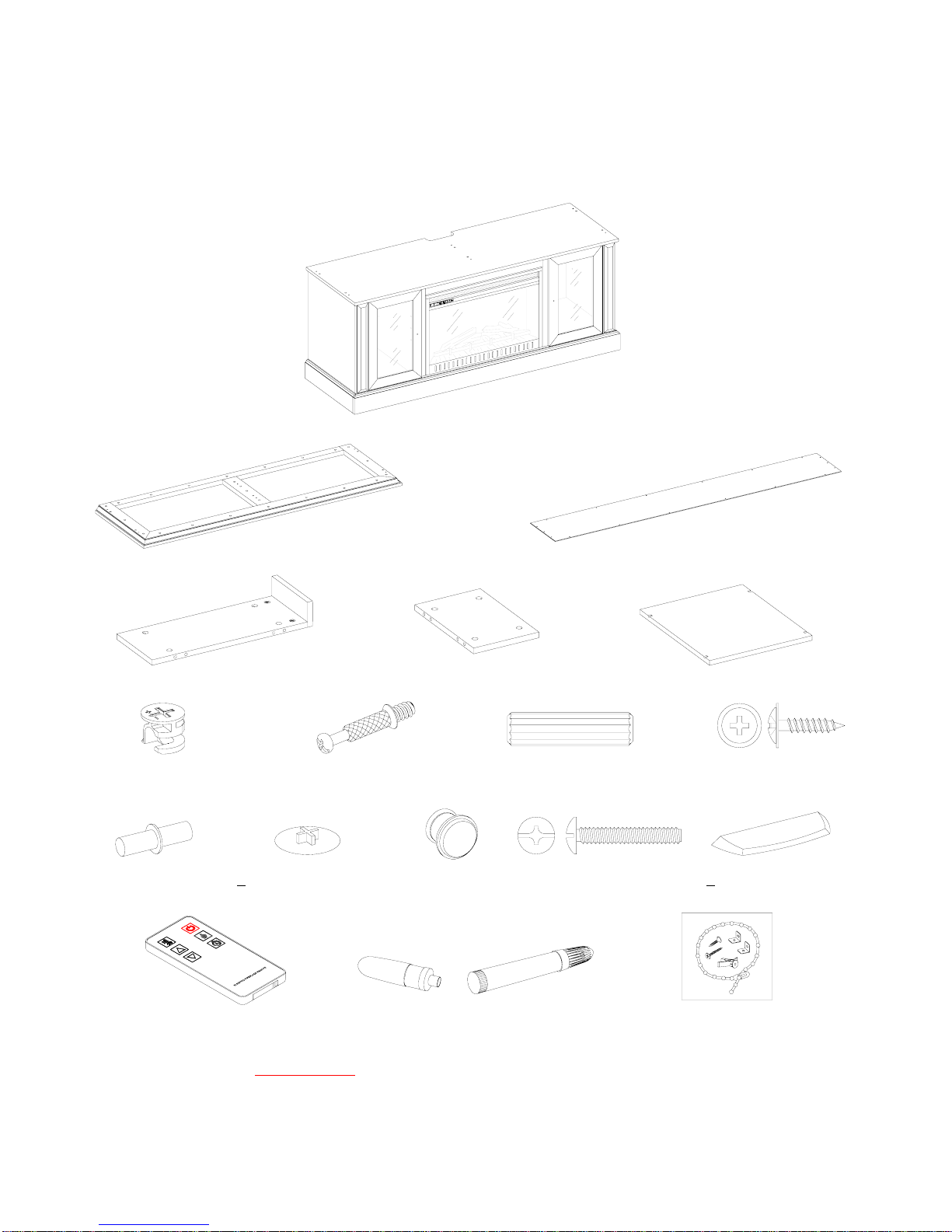

A- Mantel with Fireplace (1)
B- Top Panel (1) C- Back Panel (1)
D- Upper Side Panel (2) E- Upper Partition Panel (1) F- Adjustable Shelf (2)
(1) Cam Lock (2) Cam Bolt (3) M8 x 30 mm Wood Dowel (4) 5/8” Screw
(12+1 extra) (12+1 extra) (12+1 extra) (18+1 extra)
(5) Shelf Pin (6) Cam Lock Cover (7) Knob (8) 1” Knob Bolt (9) Acrylic Stopper
(8+1 extra) (24+1 extra) (2) (2) (1)
(10) Remote Control with Battery (1) Glue (1) Touch-up Pen (1) Tipping Restraint Hardware Kit (2)
(Included in plastic bag)
Tools required: Phillips screwdriver and Rubber Mallet (not provided).

Stock # BARLFP-26
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg., Inc. Page 5 Factory No. 16086
B
A
A/B
Assembly Instructions
1. Unpack the unit and confirm that you have all the hardware and required parts. Assembly the unit on a
carpeted floor or the empty carton to avoid any scratch.
2. With the help of an assistant, remove the Mantel Base (A) from the box, and place it near the final
installation location. Securely screw six Cam Bolts (2) into the outer small holes on the fixed shelf of the
Mantel Base (A), using a Phillips screwdriver. As shown above.

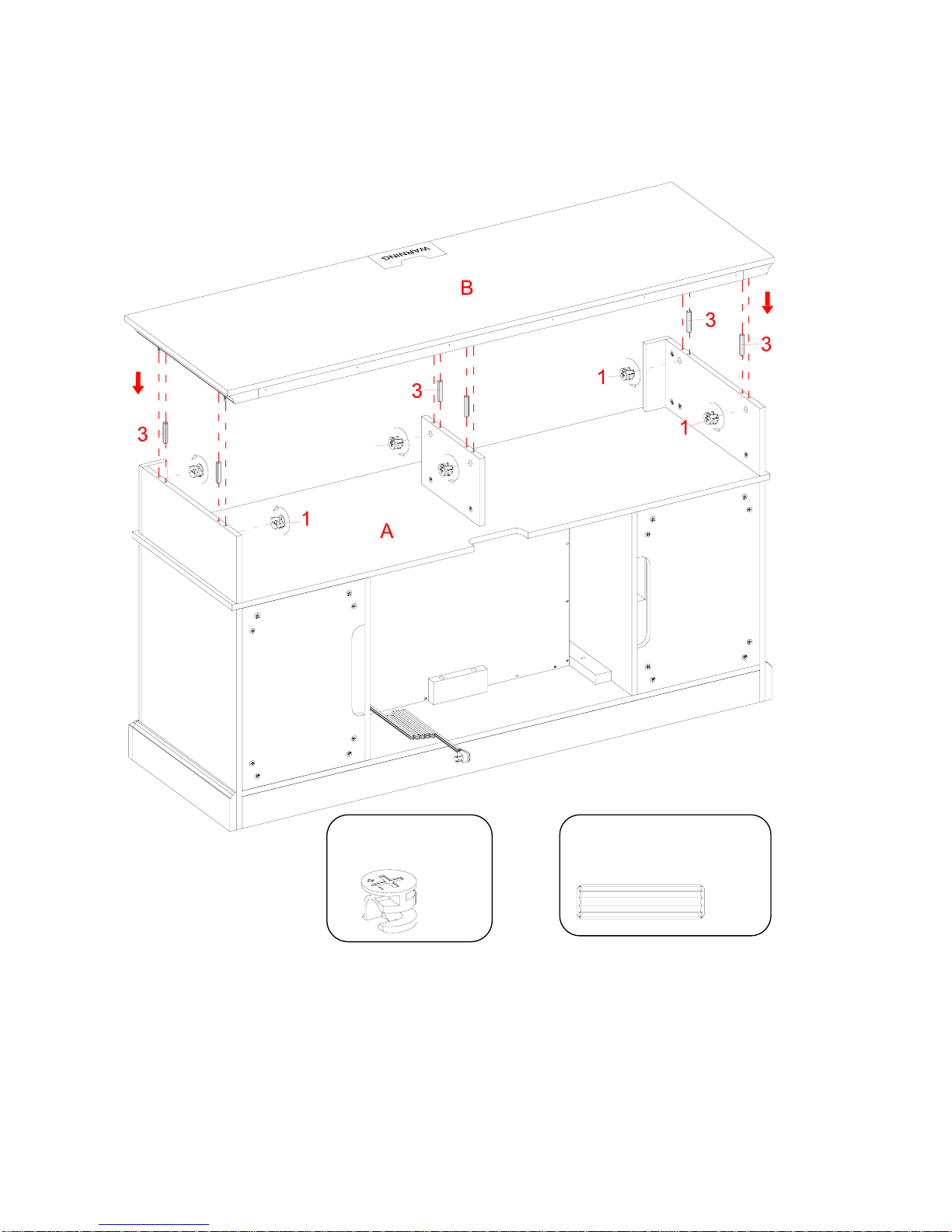

3. Locate the Top Panel (B) on a level and protective surface with the holes facing up. Securely screw six
Cam Bolts (2) into the designated small holes, as shown above.
Cam Bolt
(12 used in this step)
②

Stock # BARLFP-26
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg., Inc. Page 6 Factory No. 16086
Assembly Instructions

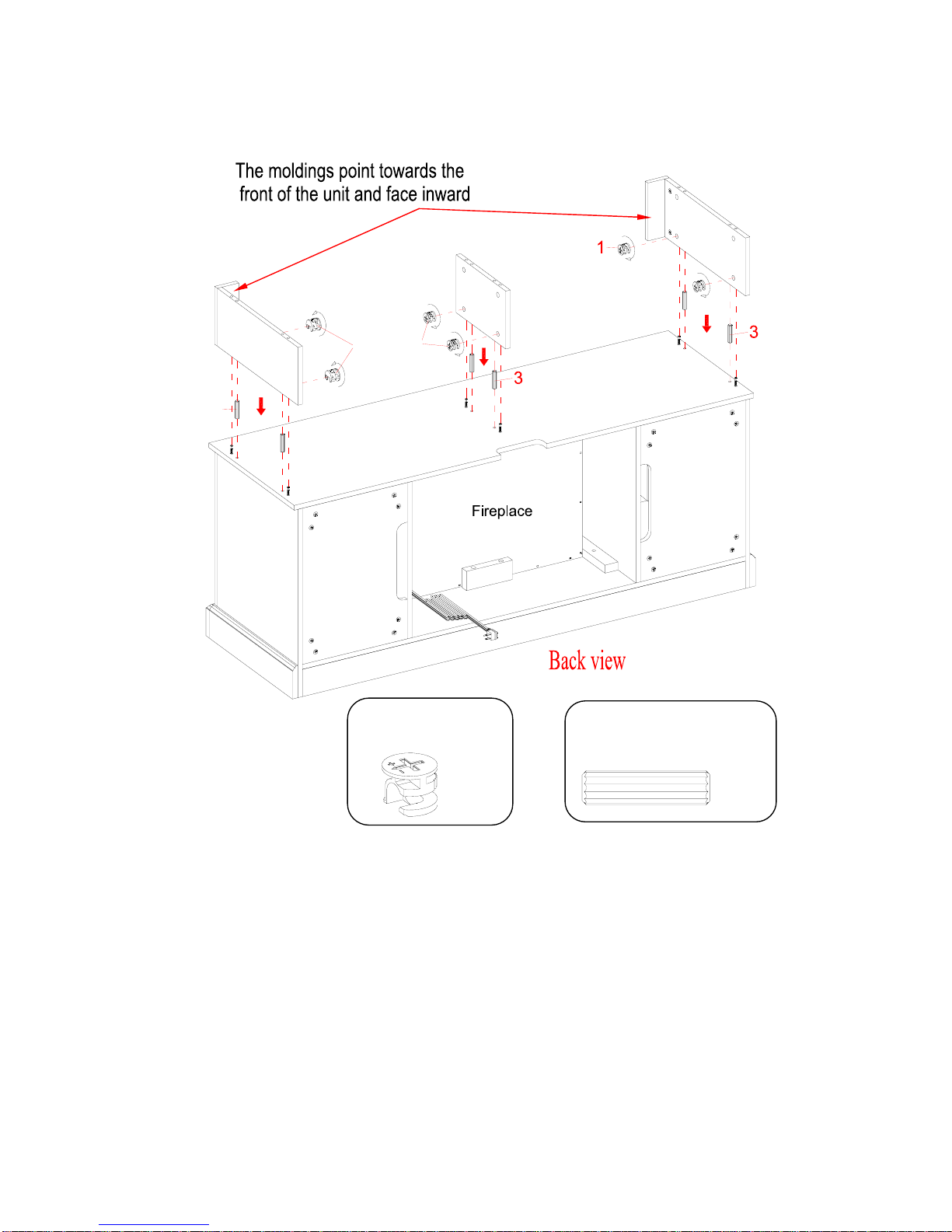

4. Insert 2 Wood Dowels (3) into the inner end holes of one Upper Side Panel (D). Tap in with a rubber mallet,
if necessary. Make sure that you use a small amount of glue with both ends of all dowels.
5. Align the inserted Wood Dowels (3) under the Upper Side Panel (D) with the large holes on the fixed shelf
of the Mantel Base (A), and then press them together. Make sure that the Upper Side Panel molding points
towards the front of the unit and faces inward. Fasten the Upper Side Panel (D) in place by engaging 2 Cam
Locks (1) (Refer to page 3 on Cam Lock system operation supplement).
6. Repeat the same procedure with the other Upper Side Panel (D).
7. Fasten the Upper Partition Panel (E) to the fixed shelf of the Mantel Base (A) with two Wood Dowels (3)
and two Cam Locks (1). As shown.
M8 x 30 mm Wood Dowel
(6 used in this step)
③
Cam Lock
(6 used in this step)
①
D
1
1
3
E
D
A

Stock # BARLFP-26
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg., Inc. Page 7 Factory No. 16086
Assembly Instructions
8. Insert 6 Wood Dowels (3) into the inner holes on the top of both Upper Side Panels (D) and the Partition
Panel (E).
9. Ask for assistance to position the Top Panel (B) onto the inserted Wood Dowels (3) making sure that the
back edges are even with each other. Attach the Top Panel (B) in place by engaging 6 Cam Locks (1). As
shown.
Fireplace
1
D
E
D
Cam Lock
(6 used in this step)
①
M8 x 30 mm Wood Dowel
(6 used in this step)
③

Stock # BARLFP-26
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg., Inc. Page 8 Factory No. 16086
Assembly Instructions
10. Now, go back and securely tighten all the Cam Locks. Make sure that all the parts are tight and there are no
gaps between the pieces. This will help keep the unit square.
11. Pick up the Back Panel (C) and align the pre-drilled holes against the upper long edge with the pilot holes
on the back stretcher of the Top Panel (B). Attach the Back Panel (C) in place using the provided 5/8”
Screws (4).
B
C
D
5/8” Screw
(18 used in this step)
④

Stock # BARLFP-26
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg., Inc. Page 9 Factory No. 16086
Assembly Instructions

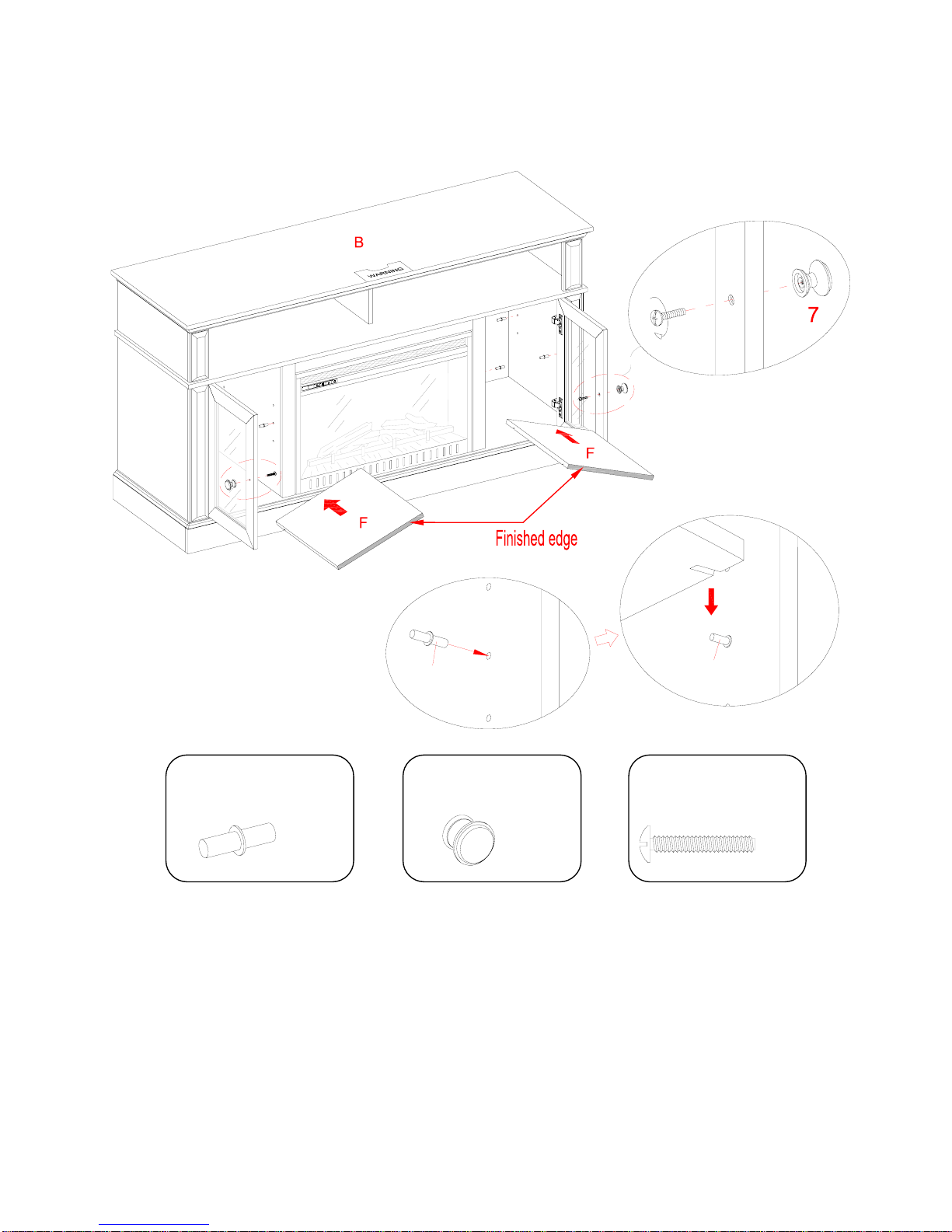

12. Open the doors and attach the Knob (7) to the front side of each door with the provided Knob Bolt (8).
13. With the doors open, insert the Shelf Pins (5) into the desired holes in the sides of the compartments. Make
sure you place the four Shelf Pins in the same level so the shelf is not tilted. Tilt and rest the Adjustable
Shelves (F) onto the Shelf Pins (5) with the finished edge facing the front of the unit. Make sure that the
end notches of the Shelf fit onto the Shelf Pins properly. As shown.
F
55
8
B
Shelf Pin
(8 used in this step)
⑤
Knob Bolt
(2 used in this step)
⑧
Knob
(2 used in this step)
⑦

Stock # BARLFP-26
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg., Inc. Page 10 Factory No. 16086
Assembly Instructions

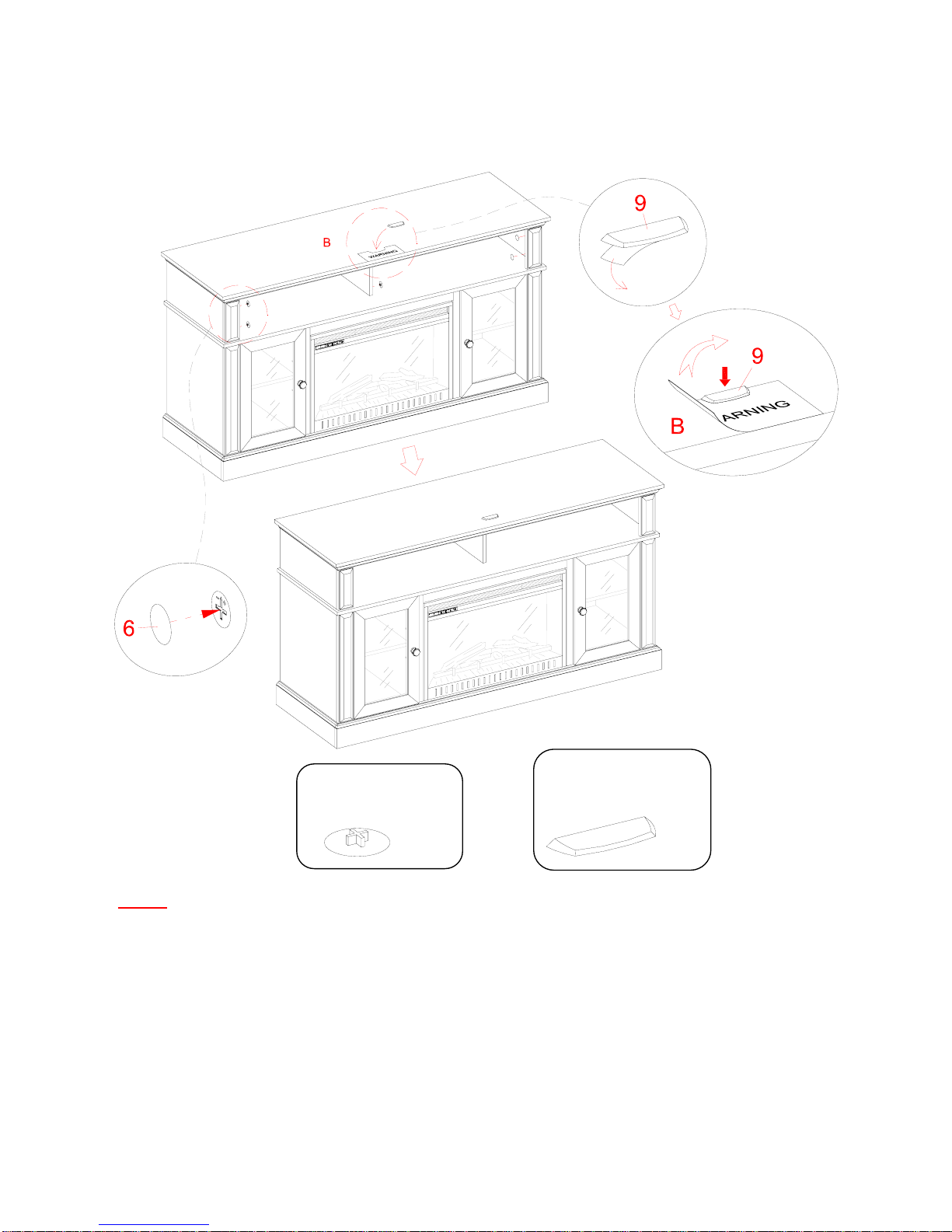

NOTE: You must install the Acrylic TV Stopper to prevent the TV from tipping when placing your flat
panel television directly on the Top Panel (B).
14. Remove the tape of the Acrylic Stopper (9) and place it in the cut-out of the acrylic stopper template on the
front of the Top Panel (B). Make sure it is properly aligned before applying pressure.
15. Remove the acrylic stopper template from the Top Panel (B) carefully, as shown above.
16. Plug the provided Cam Lock Covers (6) onto the visible Cams Locks to conceal the Cams.
Acrylic Stopper
(1 used in this step)
⑨
Cam Lock Cover
(24 used in this step)
⑥

Stock # BARLFP-26
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg., Inc. Page 11 Factory No. 16086
Assembly Instructions
Tools required: Phillips screwdriver, Power Drill, 3/8” Drill Bit and Rubber Mallet.
17. Ask for assistance to position the assembled mantel at the desired location against a wall. If necessary,
adjust the pre-attached the Floor Levelers under the Mantel Base (A) to level the unit.

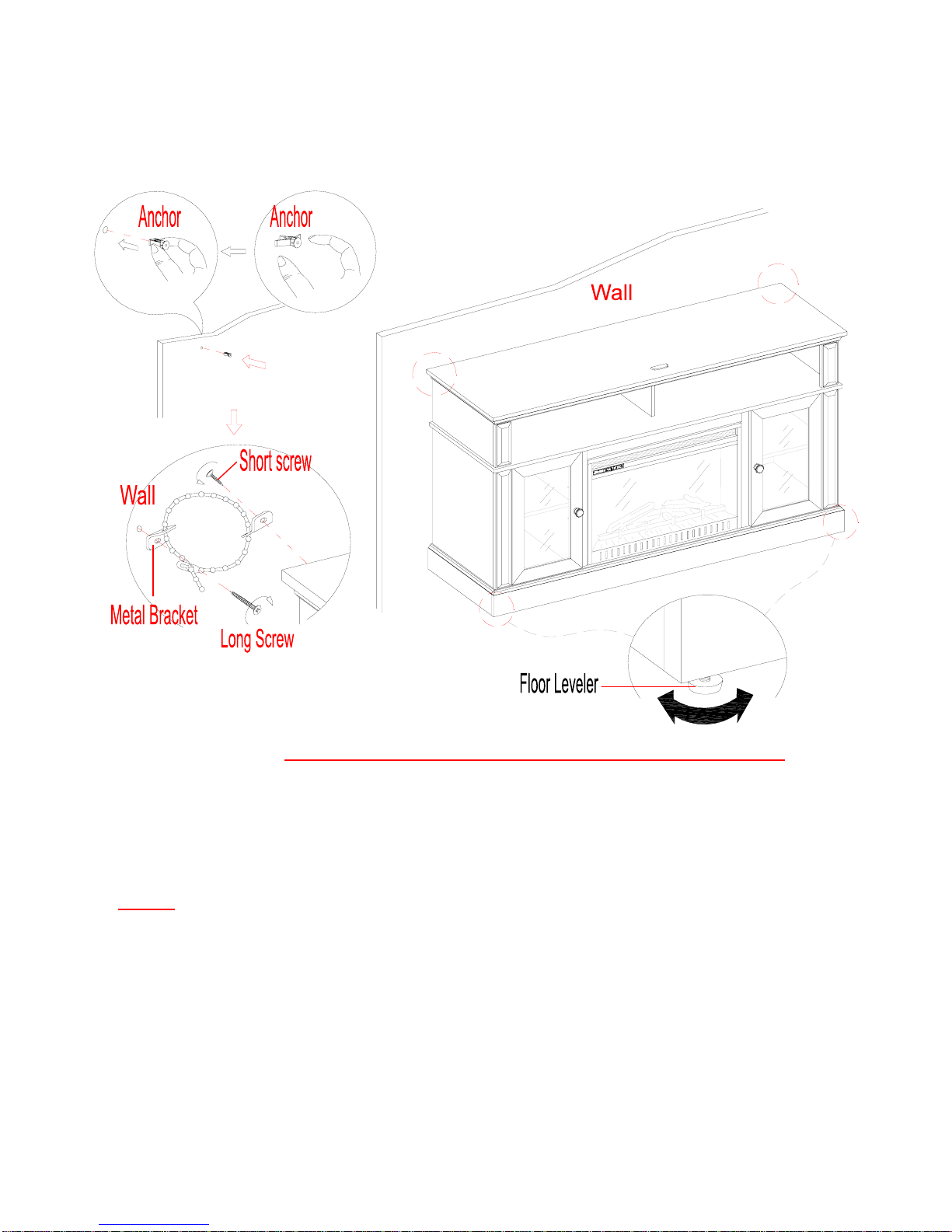

18. Now, follow the instructions printed on the plastic bag containing the Tipping Restraint Hardware to attach
two tipping restraints to the unit and the wall, as shown in the illustration.
NOTE: Young children can be seriously injured by tipping furniture. You must install the
Tipping Restraint Hardware with the unit to prevent the unit from tipping, causing any accidents
or damage. The tipping restraints are intended only as a deterrent, they are not a substitute for
proper adult supervision. The tipping restraints are not earthquake restraints. If you wish to add
the extra security of earthquake restraints, they must be purchased and installed separately.
19. Connect the fireplace to a power transformer. Follow the separated operating manual of electric fireplace to
control your fireplace.

Stock # BARLFP-26
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg., Inc. Page 12 Factory No. 16086
Care and Maintenance
zUse a soft, clean cloth that will not scratch the surface when dusting.
zUse of furniture polishes is not necessary. Should you choose to use polishes, test first in an
inconspicuous area.
zUsing solvents of any kind on your furniture may damage the finish.
zNever use water to clean your furniture as it may cause damage to the finish.
zAlways use coasters under beverage glasses and flowerpots.
zLiquid spills should be removed immediately. Using a soft clean cloth, blot the spill gently. Avoid
rubbing.
zAlways use protective pads under hot dishes and plates. Heat can cause chemical changes that may
create spotting within the furniture finish.
zStains or marks from crayons or ink markers will be difficult to remove.
zIn the event that your furniture is stained or otherwise damaged during use, we recommend that
you call a professional to repair your furniture.
zCheck bolts/screws periodically and tighten them if necessary.
Further advice about wood furniture care
It is best to keep your furniture in a climate-controlled environment. Extreme temperature and
humidity changes can cause fading, warping, shrinking and splitting of wood. It is advised to keep
furniture away from direct sunlight as sun may damage the finish.
Proper care and cleaning at home will extend the life of your purchase. Following these important and
helpful tips will enhance your furniture as it ages.
Cleaning trim for fireplace
Clean the metal trim using a soft cloth, slightly dampened with citrus oil based product and buff with a
clean soft cloth. DO NOT use brass polish or household cleaners as these products will damage the
metal trim. Citrus oil based products can be obtained at supermarkets or hardware stores.
A Touch-up Pen has been provided to repair any small nicks or scratches that may occur during
assembly or shipping.
We hope you enjoy your purchase for many years.
Thank you for choosing Whalen Furniture!
