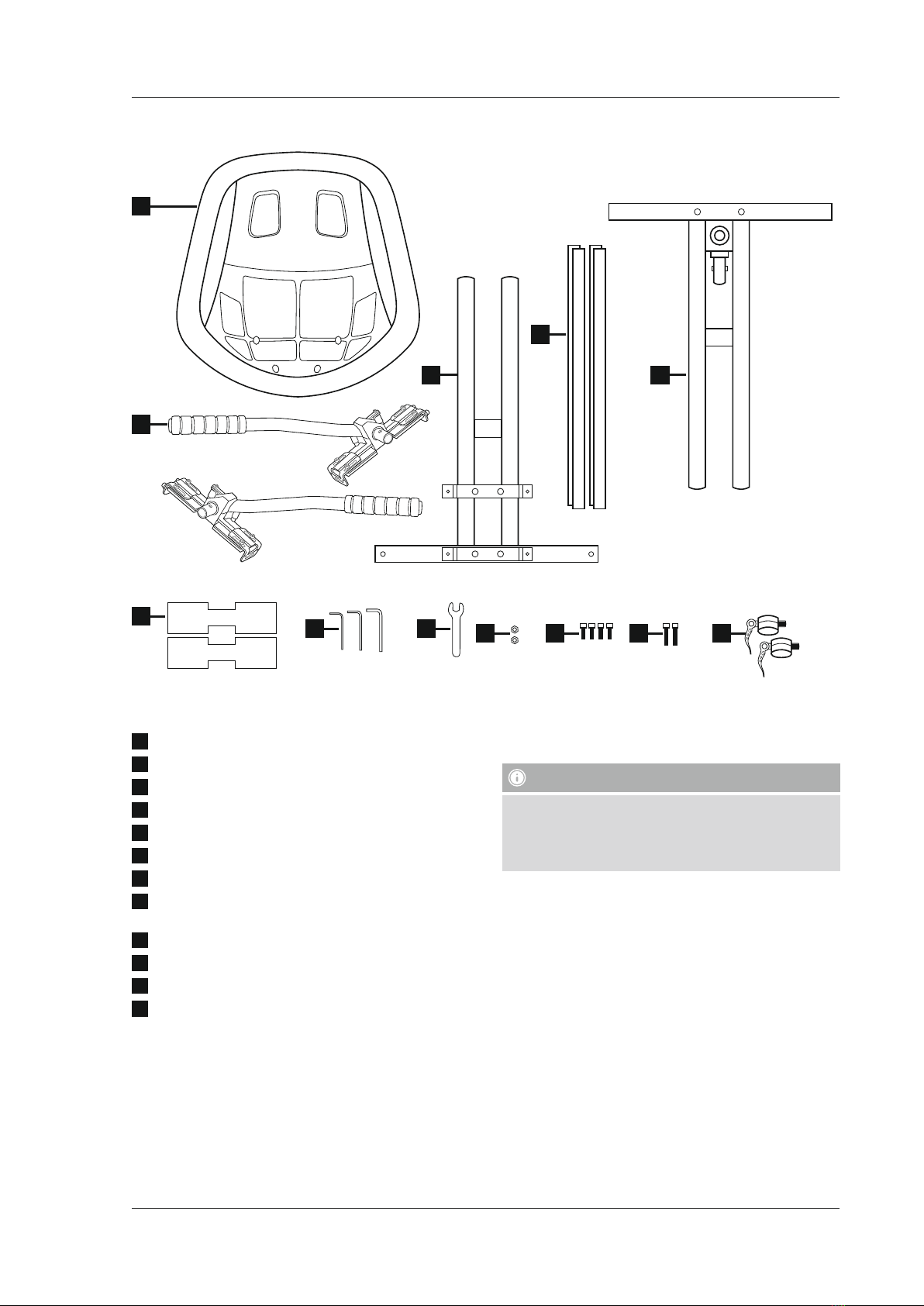

1. Package Contents
1Foam rubber mats (x2)
2Allen keys (3, 4 & 5 mm)
3Open-end spanner
4M6 self-locking nuts (x2)
5M6 x 15 screws (x4)
6M6 x 35 screws (x6)
7Quick releases (x2)
8Control stick with adjustable holding brackets for installation of the
Cart on Cruisers (x2)
9Seat shell
10 Rear frame part with quick-release bolts for adjusting the wheelbase
11 Fastening belts (x4)
12 Front frame part with front wheel
GOperating instruction
Note
•Before unpacking your product, check the packaging and make note
of any damage.
•If you notice any damage, please contact your supplier.
•If there is no damage, make sure that the package contents are not
missing anything.
•If the package contents are missing something, please contact your
supplier.

3
Thank you for choosing a Hama product.
Take your time and read the following instructions and information
completely. Please keep these instructions in a safe place for future
reference. If you sell the device, please pass these operating instructions
on to the new owner.
2. Explanation of Warning Symbols and Notes
Warning
This symbol is used to indicate safety instructions or to draw your
attention to specic hazards and risks.
Note
This symbol is used to indicate additional information or important
notes.
3. Safety Notes
Note
While operating the Cart, please observe all safety and usage notes
as well as the restrictions noted in the operating instructions for your
Cruiser.
Warning
•You accept sole responsiblity while using this product.
•Check the functionality of your product before each drive.
•Keep your ngers and other appendages away from possible points
of danger or moving parts, especially from the wheels while in use.
•Avoid driving with hanging objects, such as free-hanging
headphones, their connection cables or clothing with loose material.
Parts of these objects may reach into the moving wheels.
•Avoiding using in inclement weather (rain, snow, icy conditions,
frost or snowfall, or on greasy paths). Do not drive over curbs and
avoid running over obstacles.
•This product is not permitted for use on public streets. It may only
be used on private property. The manufacturer explicitly dissociates
itself from any and all damage resulting from improper use of this
product.
•Always wear high-quality protective clothing while using the
product, such as a safety helmet, knee and elbow pads,
gloves and sturdy shoes.
4. Areas of application and intended use
Note
•This product is an accessory for the Hama products F, S and X
Cruiser (item nos. 00109864, 00109866 and 00109865) and may
be used only in combination with those products. It is not intended
for use with other, similar products from other manufacturers.
•This product is not permitted for use on public streets. It may only
be used on private property. Observe all applicable national legal
rules and regulations!
•Use the device only on enclosed, private property as long as no
other regulation prohibits using it there.
•The minimum age for use is 14 years old.
•This device is intended for use by one driver only.
•The maximum driver weight is 120 kg.
5. Installation
Note
The tools necessary for assembling the Cart (3, 4 and 5-mm Allen
keys, 10-mm open-end spanner) are included.
5.1. Rear frame part and seat shell
•Install the control stick (8) on the rear frame part (10) as shown in the
gures below.
•Use two M6x35 bolts (6) and self-locking nuts (4) for this purpose.
A
8
10
B
2
63
4
C

4
•Attach the seat shell (9) to the rear frame part (10).
•Use 4 M6x15 bolts (5) for this purpose. A female thread can be found in
the frame.
D
9
5
4
3
10
2
E
5.2. Attachment to the Cruiser
Note
The direction of travel is not important for installing the Cart on the
Cruiser.

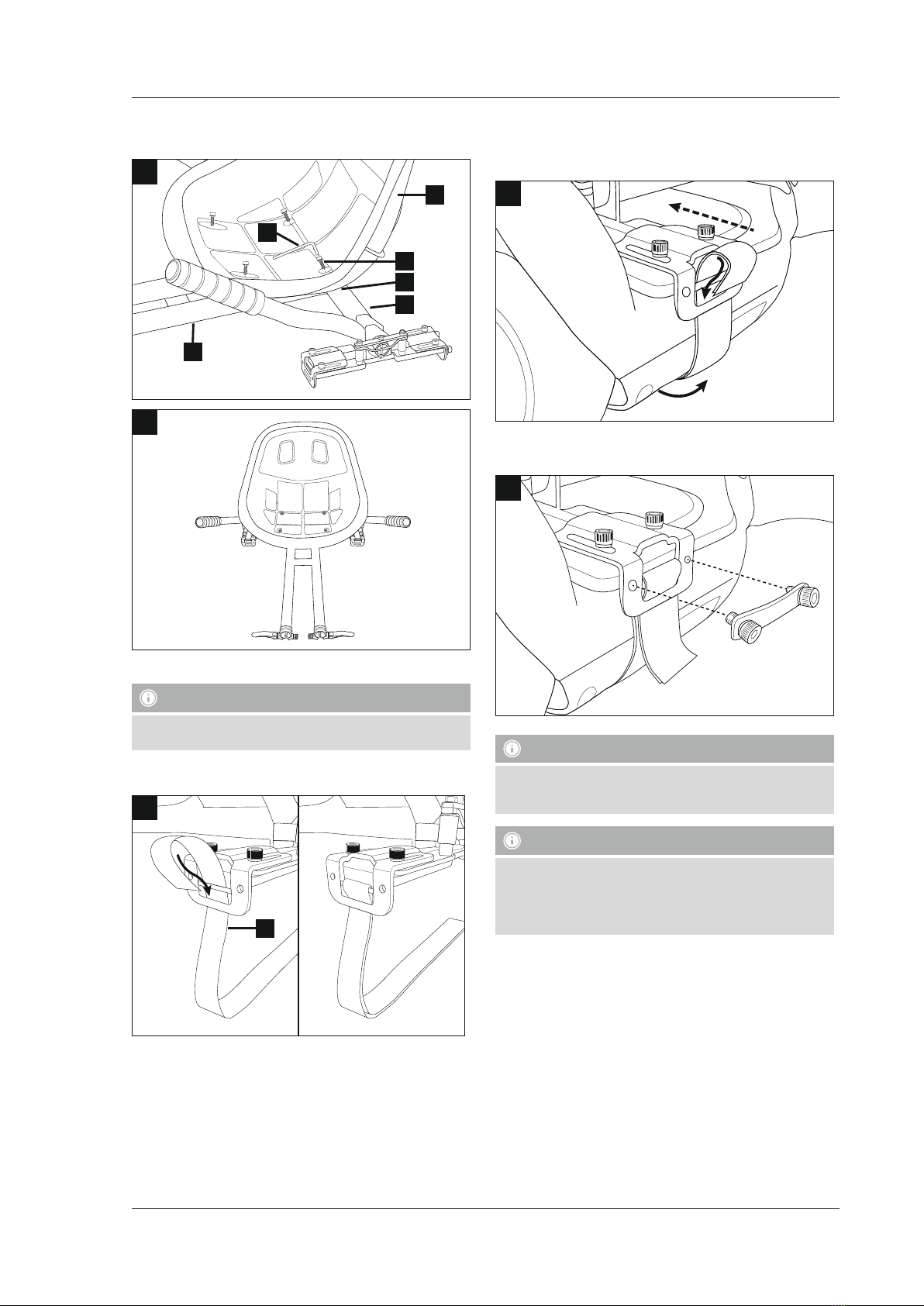

•Take the belts (11) and mount them as shown in the pictures below.
A
11
•Loop the fastening belts underneath the Cruiser.
•Push the fastening belts through the slits intended for them, pull them
tight and at the same time adjust the holding brackets to the width of
your Cruiser.
B
•Secure the belts with the belt clamp.
•Shorten the belt if it is too long.
C
Note
The belt is designed to accommodate a 10” scooter. If you shorten it
for a 6.5” scooter, it will no longer be usable for a 10” scooter.
Note
If the scooter begins beeping steadily after the board is mounted, then
the kart may be attached too tightly. Loosen the straps. If the scooter
continues to beep, consult the service notes in the scooter operating
instructions or contact Hama support.
•Regularly check that the fastening belts are securely attached and pulled
tight.

5
5.3. Installing the front frame part

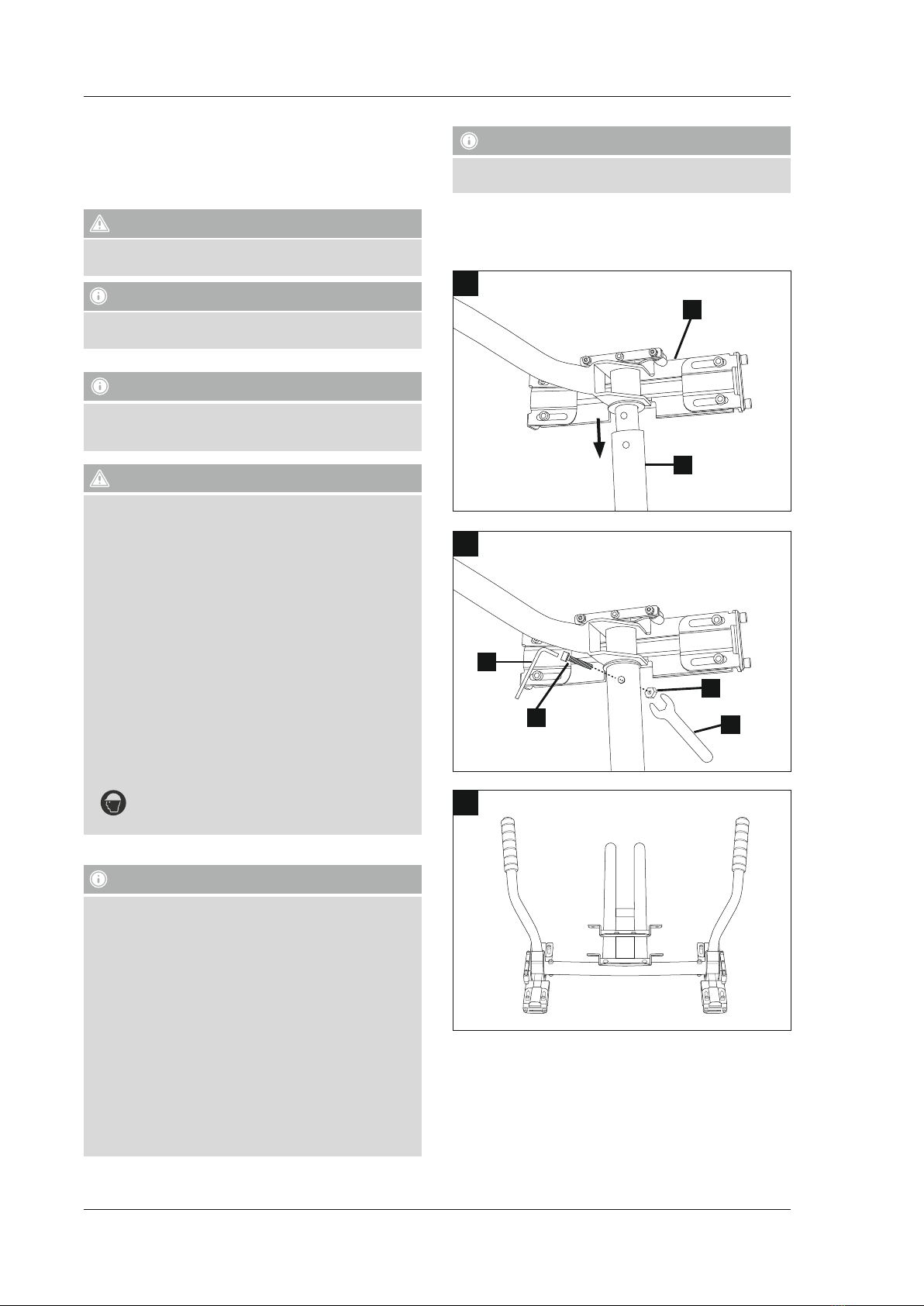

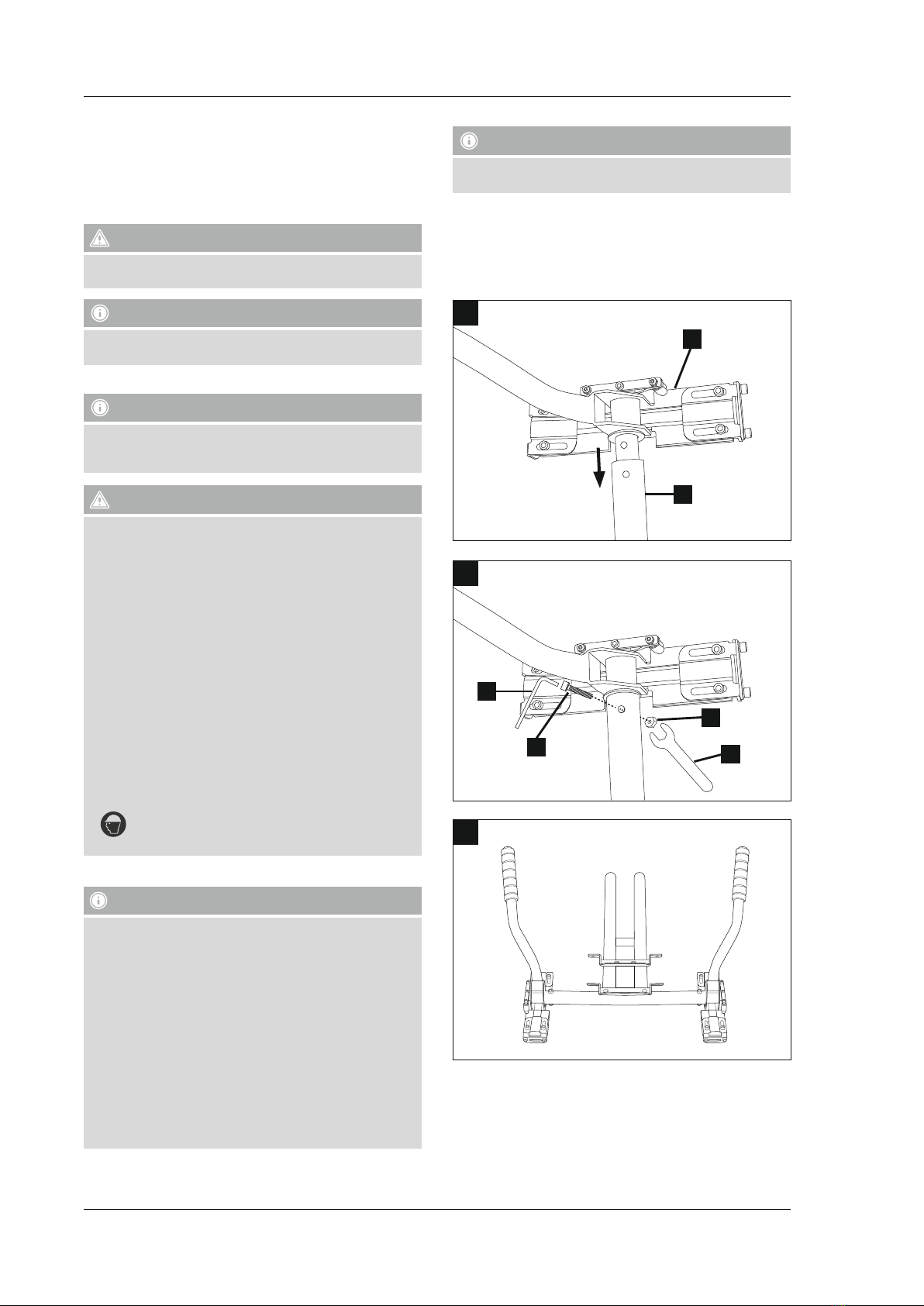

•Open the two quick-release fasteners (7) and join the front (12) and rear
(10) frame parts.
A
10
12
•Tighten the knurled nuts on the quick-release fasteners until the quick-
release levers can be closed tightly but without undue force.
B
•Fully secure both quick-release fasteners by pushing the levers as far as
they will go.
C
Warning – Stability of the frame connection
•Make absolutely certain that the two frame parts are tted together
at least as far as the stamped marking (approx. 10 cm) in order to
guarantee sucient stability of the frame.
Note
•If the connection between the frame parts feels insecure or starts
to bend, push the frame parts further together until the connection
becomes more robust.
•During this process, make sure to also check that the quick-release
fasteners are tightened.
•Always tighten the levers by pushing them parallel to the frame
tubing (not upwards or downwards) so that they cannot get caught.
6. Driving and steering
•Seat yourself on the Cart and place your feet on the footrests without
touching the control stick.
Note – First drives
•Switch on your Cruiser and activate CART mode as described in the
operating instructions.
•Start the Cart moving only once you are securely seated as described
above.
•Start off keeping all of your control stick movements cautious and
unhurried in order to gradually become accustomed to the control
and handling characteristics of the vehicle.
•Occasional squeaking noises coming from the control stick while
using it are normal.

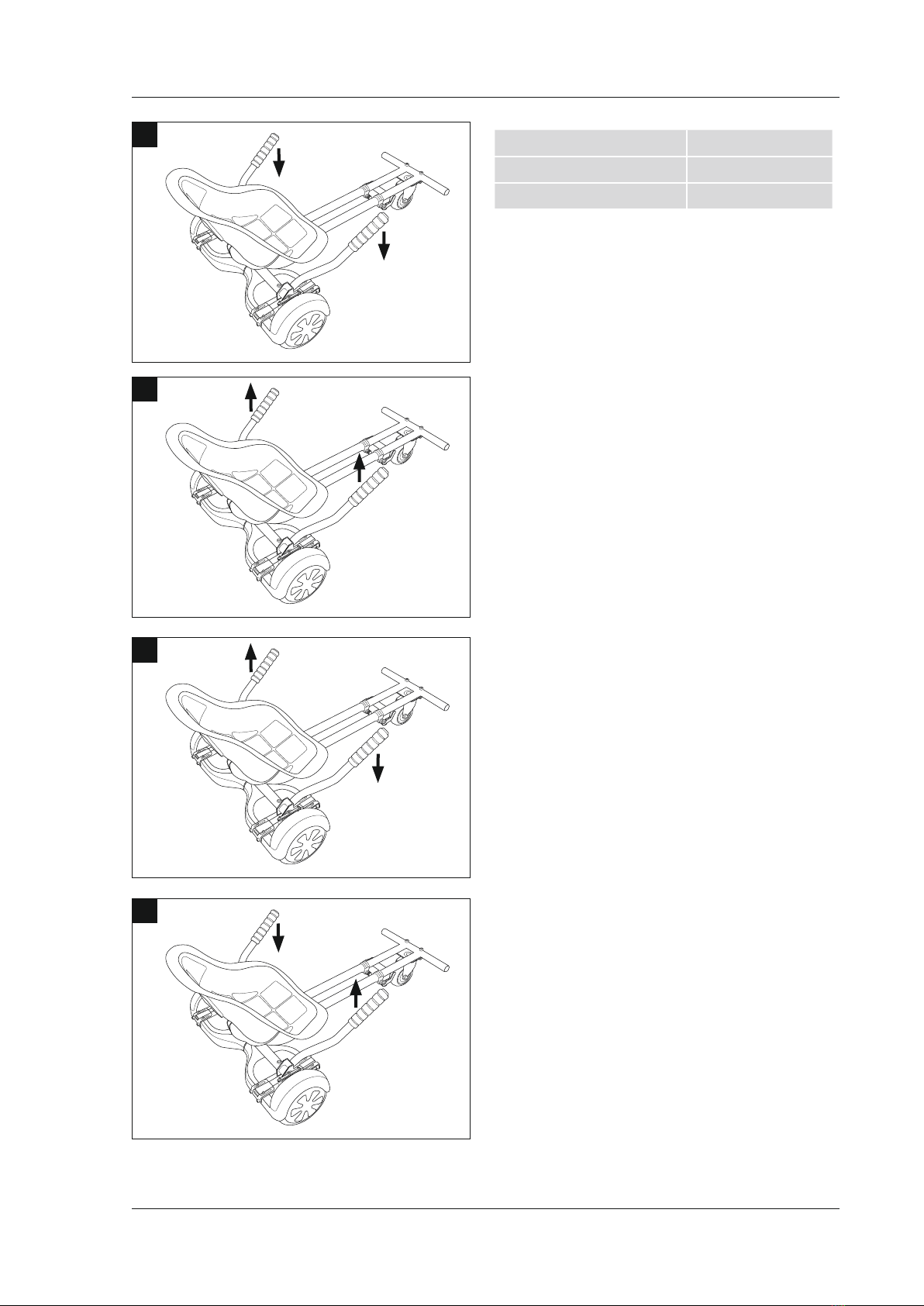

•Drive forwards by simultaneously pushing both control sticks down (g. A).
•Stop by simultaneously pulling both control sticks up (g. B).
Warning – Braking time on downward slopes
•Note that the vehicle does not brake, but rather rolls to a stop.
•Therefore, always make sure that you have enough room to safely
come to a stop.
•On upward and downward slopes, the Cart behaves differently from
the Cruiser without the Cart.
•For example, sudden quick acceleration on upward slopes may
cause the front wheel to lose traction and lead to loss of control
over the Cart.
•On downward slopes, the Cart can accelerate unusually quickly,
which may lead to loss of control over the Cart.
•Therefore, take your time getting used to the different handling.
•Turn left by pulling the left control stick upwards and pushing the right
control stick downwards (g. C).
•Turn right by pulling the right control stick upwards and pushing the left
control stick downwards (g. D).
Warning – Stability of the frame connection while driving
•If the connection between the frame parts feels insecure or starts
to bend while you are driving, stop the vehicle immediately and
get out. It may cause sudden loss of control and cause injury to the
driver and/or bystanders.
•Ensure the stability of the connection between the frame parts as
described in section 5 before attempting to resume driving.
