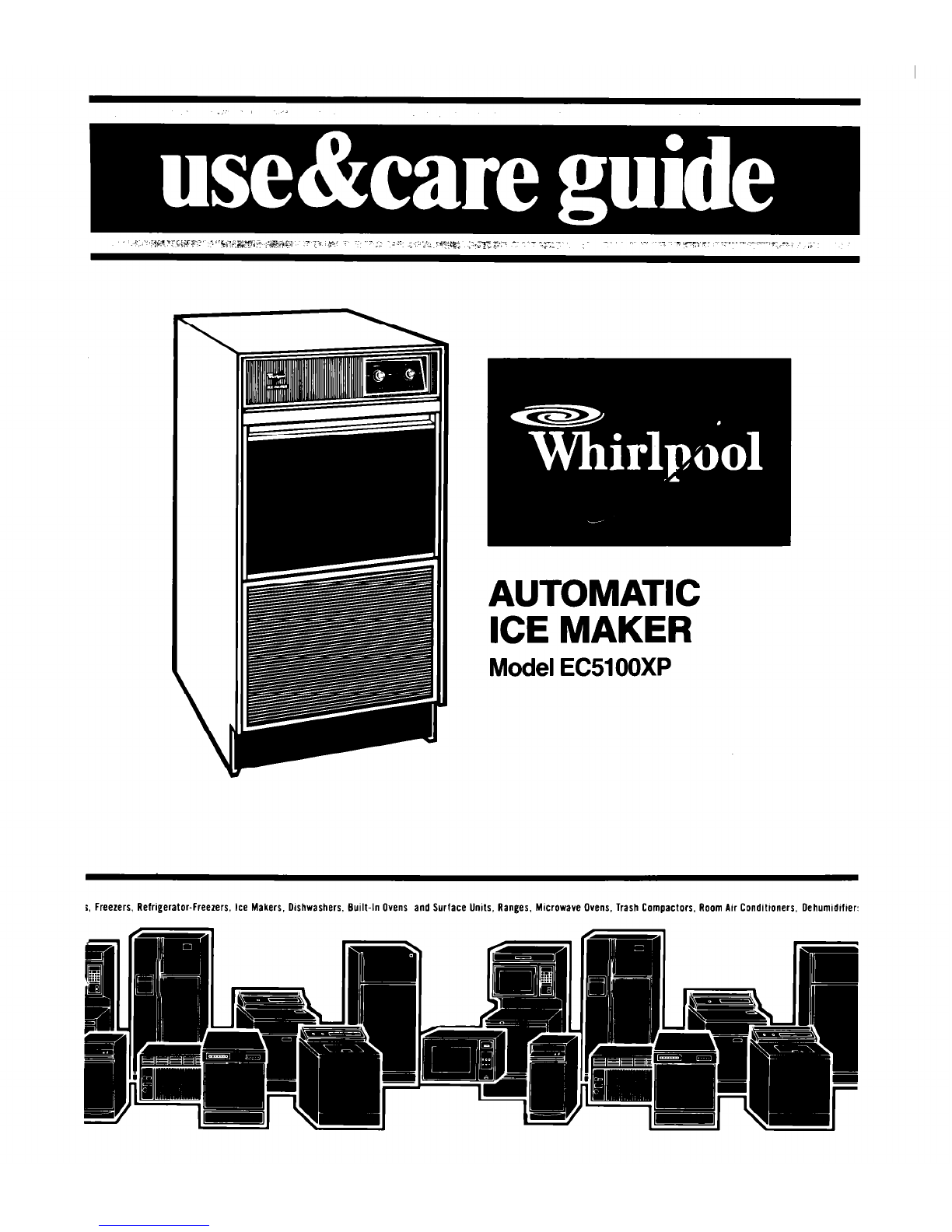

Whirlpool EC5100XP User manual

AUTOMATIC
ICE MAKER
Model ECUOOXP
s. Freezers, Refngerator-Freezers. Ice Makers, Dishwashers. Built-In Ovens and Surface Units. Ranges. Microwave Ovens. Trash Compactors. Room Atr Condittoners. Dehumidlfler:

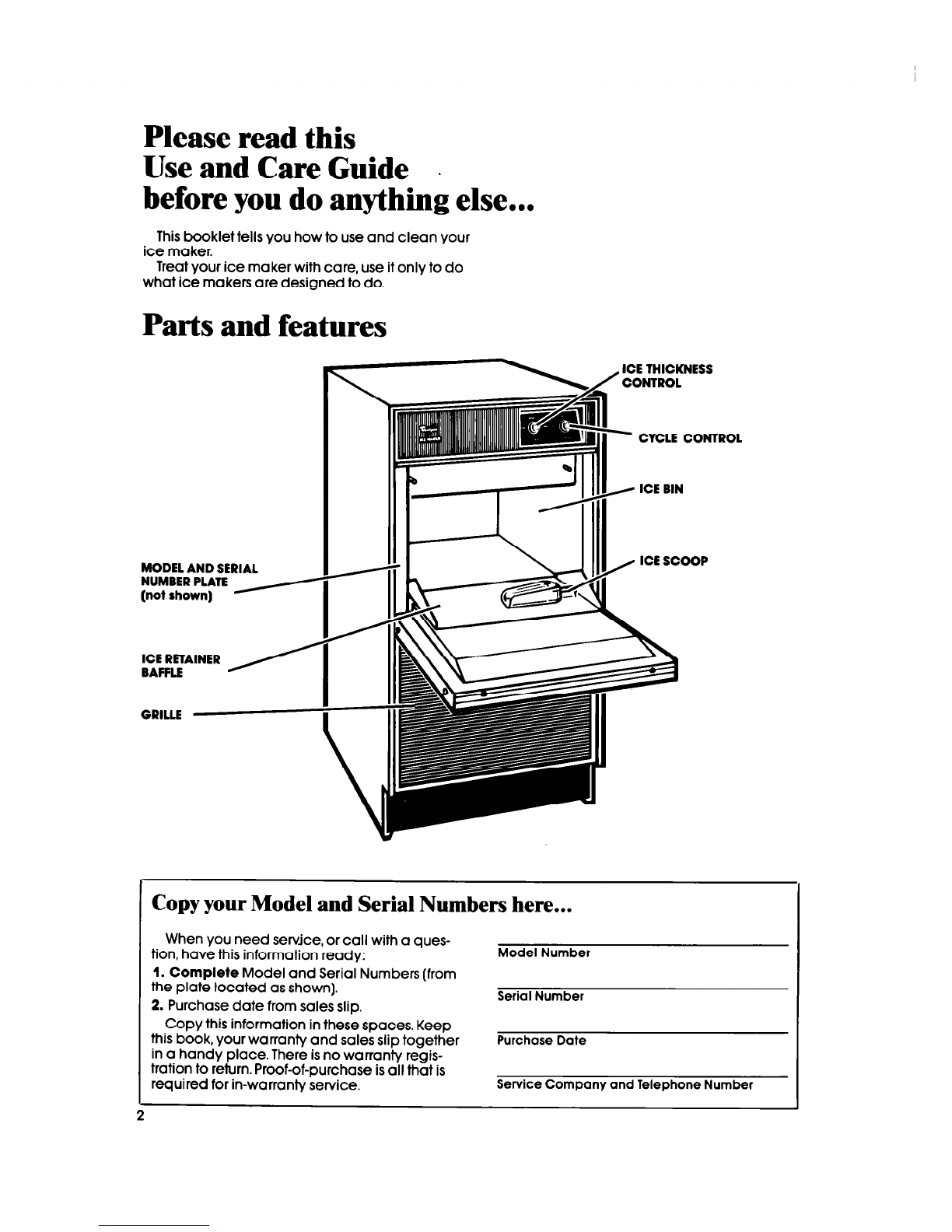

Please read this
Use and Care Guide .
before you do anything else...
This booklet tells you how to use and clean your
ice maker.
Treat your ice maker with care, use it only to do
what ice makers are designed to do.
Parts and features
MODEL AND SERIAL
NUMBER PLATE /
(not shown)
GRILLE
-/ CONTROL
CYCLE CON-I lROL
Copy your Model and Serial Numbers here...
When you need servjce, or call with a ques-
tion, have this information ready:
1. Complete Model and Serial Numbers (from
the plate located as shown].
2. Purchase date from sales slip.
Model Number
Serial Number
Copy this information in these spaces. Keep
this book, your warranty and sales slip together
in a handy place. There is no warranty regis-
tration to return. Proof-of-purchase is all that is
required for in-warranty service.
Purchase Date
Service Company and Telephone Number
2

Contents
BEFOREYOUPLUGITIN.. ............
USING YOUR ICE MAKER ............
How the Ice Maker Works .........
Setting the Controls ...............
Changing the Bin Door Panel . ,
CLEANING AND CARING FOR YOUR
ICE MAKER .........................
Cleaning Exterior Surfaces. .......
Cleaning the Condenser .........
Page
3
. 4
1
5
6
2
Page
Cleaning the Ice Maker System. 7
Cleaning the Interior Components. 8
Filtering and Treating Water . . . . . . 9
VACATION AND MOVING CARE. . . . . . 9

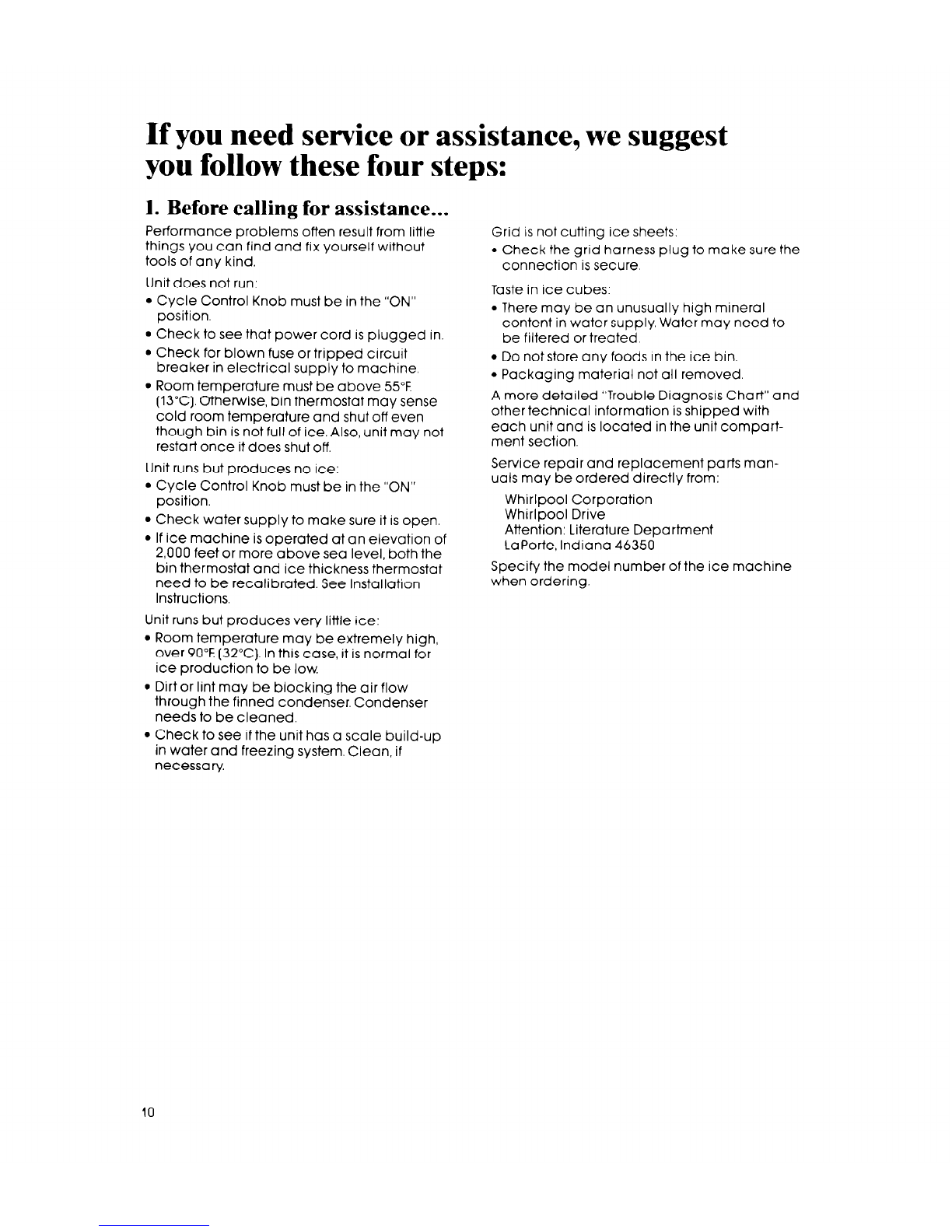

IF YOU NEED SERVICE OR ASSISTANCE
10
1. Before Calling for Assistance . . . . 10
2. IfYou Need Assistance . . . . . , . . . 11
3. IfYouNeedService . .. . . . . . . . . . . . 11
4. IfYouHaveaProblem . . . . . . . . . . . 11
01985 Whirlpool Corporation
Before you plug it in
IMPORTANT
Before using your ice maker, you are
personally responsible for making sure that it...
l has been installed where it is protected from
the elements.
l is located so that the front is not blocked to
restrict incoming or discharge air flow.
l is properly leveled.
l is located in a well ventilated area with
temperatures above 55°F(13°C)and below
110°F(43°C). Bestresults are obtained
at temperatures between 70°F(21°C)
and 90°F(32°C).
--..
l is properly connected to a water supply and
drain.
l is properly connected to electricity A 115
Volt, 60 Hz.,15amp fused electrical supply is
required. NOTE: Time delay fuse or circuit
breaker is recommended.
l is properly electrically grounded.
l is not operated by anyone unable to use
it properly.
l is used only for the job it was designed to
perform.
l is properly maintained.

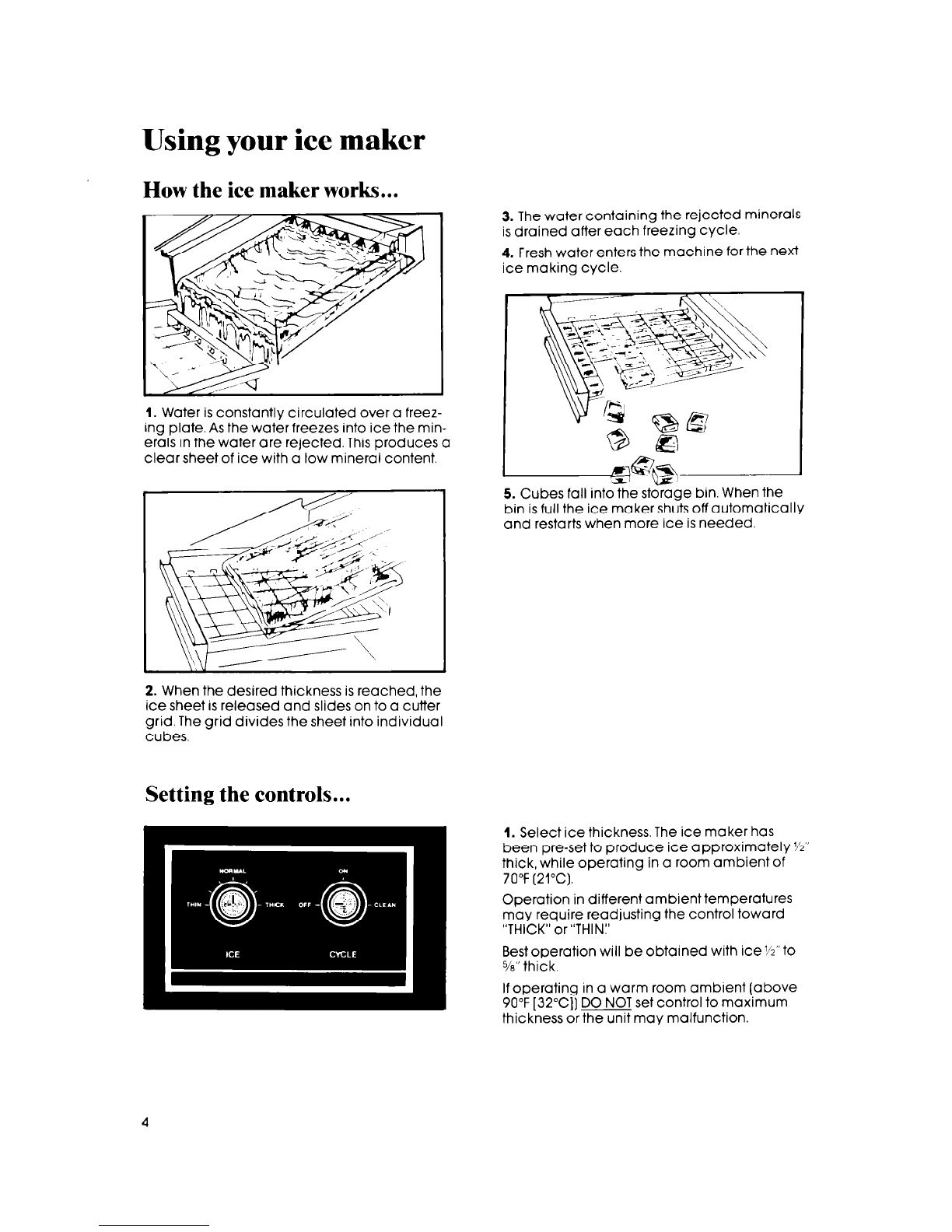

Using your ice maker
How the ice maker works...
1. Water is constantly circulated over a freez-
ing plate. As the water freezes into ice the min-
erals in the water are rejected. This produces a
clear sheet of ice with a low mineral content
3. The water containing the rejected minerals
is drained after each freezing cycle.
4. Fresh water enters the machine for the next
ice making cycle.
bin is full the ice maker shuts off automatically
and restarts when more ice is needed.
2. When the desired thickness is reached, the
ice sheet is released and slides on to a cutter
grid. The grid divides the sheet into individual
cubes.
Setting the controls...
1. Select ice thickness. The ice maker has
been pre-set to produce ice approximately Yz”
thick, while operating in a room ambient of
70°F (21°C).
Operation in different ambient temperatures
may require readjusting the control toward
“THICK” or “THIN;’
Best operation will be obtained with ice Yz”to
5/s”thick.
If operating in a warm room ambient (above
90°F [32”C]) DO NOT set control to maximum
thickness or the unit may malfunction.

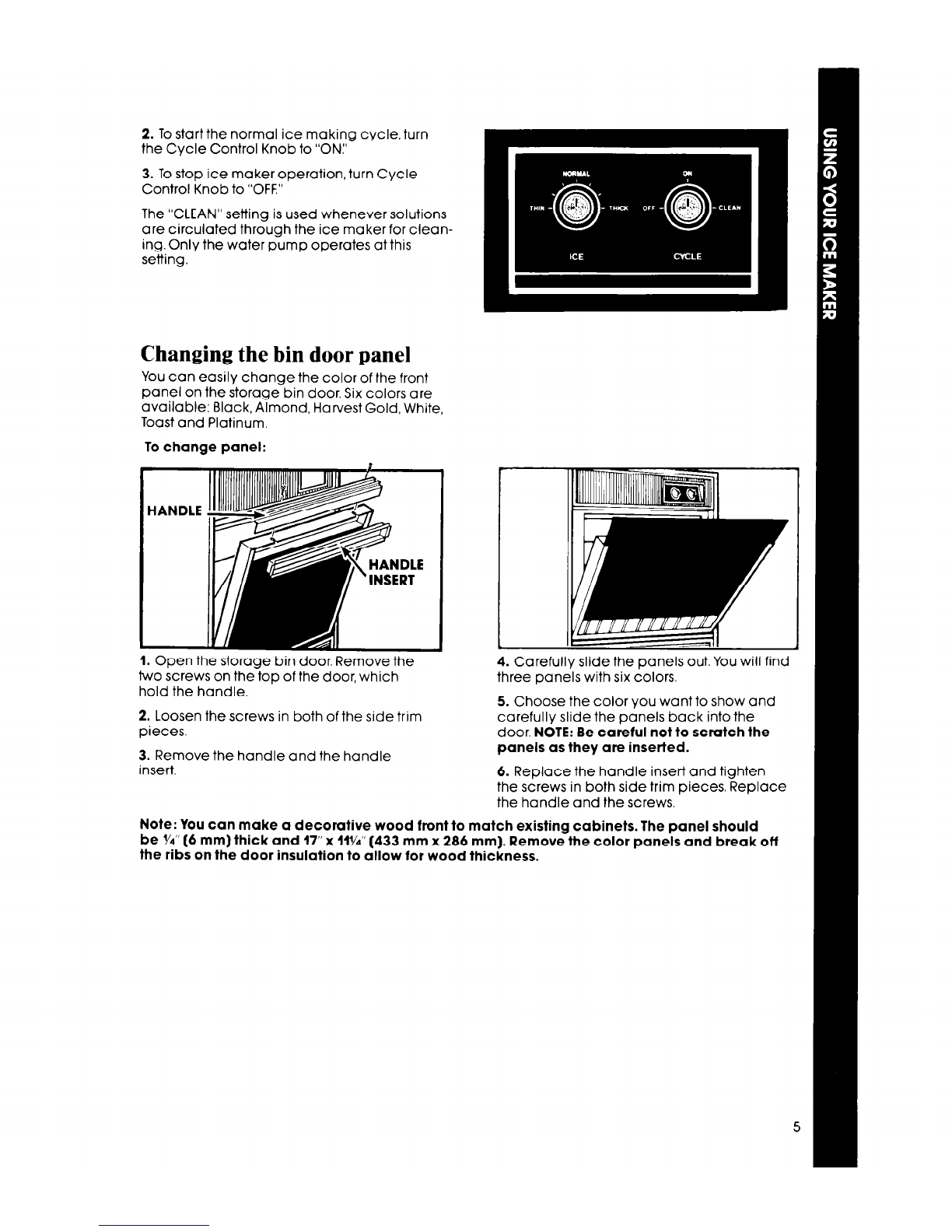

2. To start the normal ice making cycle, turn
the Cycle Control Knob to “ON:’
3. To stop ice maker operation, turn Cycle
Control Knob to “OFF.”
The “CLEAN” setting is used whenever solutions
are circulated through the ice maker for clean-
ing. Only the water pump operates at this
setting.
Changing the bin door panel
You can easily change the color of the front
panel on the storage bin door. Six colors are
available: Black, Almond, Harvest Gold, White,
Toast and Platinum.
To change panel:
_ -
1. Open the storage bin door. Remove the
two screws on the top of the door, which
hold the handle.
2. Loosen the screws in both of the side trim
pieces.
3. Remove the handle and the handle
insert.
4. Carefully slide the panels out. You will find
three panels with six colors.
5. Choose the color you want to show and
carefully slide the panels back into the
door. NOTE: Be careful not to scratch the
panels as they are inserted.
6. Replace the handle insert and tighten
the screws in both side trim pieces. Replace
the handle and the screws.
Note: You can make a decorative wood front to match existing cabinets. The panel should
be Y4”(6 mm) thick and 17” x ll%” (433 mm x 286 mm). Remove the color panels and break off
the ribs on the door insulation to allow for wood thickness.

Cleaning and caring for your ice maker
Periodically inspect and clean the ice
maker to keep it operating at peak efficiency
and to prevent premature failure of system
components.
Both the ice making system and the air cooled
condenser need to be cleaned regularly.
The minerals rejected from the circulating
water during the freezing cycle will eventually
form a hard scaly deposit in the water system
which prevents a rapid release of the ice from
the freezing plate.
Cleaning exterior surfaces
Wash the exterior enamel surfaces and
gaskets with warm water and mild soap or
detergent. Rinse and dry. Regular use of
a good household appliance cleaner and
wax will help protect the finish.
Do not use harsh or abrasive cleaners on
enamel surfaces as they may scratch the
finish.
Cleaning the condenser
Clean the ice and water system periodically
to remove mineral scale build-up. Frequency
of cleaning depends on water hardness.
With sofi water, cleaning may not be required
for several years. With hard water (15to 20
grains/gal.), cleaning may be required as
frequently as every six months.
A dirty or clogged condenser:
0 prevents proper air flow.
l reduces ice making capacity.
l causes higher than recommended
operating temperatures which may lead
to component failure.
1. Disconnect electrical power supply to the 1 III III
macnlne and place the Cycle Control Knob in
the “OFF” position.
I I
4. Remove dirt and lint from the condenser fins
\ and the unit compartment with a brush attach-
CREW ment attached to a vacuum cleaner.
2. Remove the two screws from the bottom of
the grilled front panel.
3. Pull forward and down to remove the panel.
CAUTION: Condenser fins can bend
easily. Use care when vacuuming the con -
denser to keep from bendlng the fins.
5. Replace the grilled front panel and screws.
6. Plug unit in and place the Cycle Control
Knob in the “ON” position.

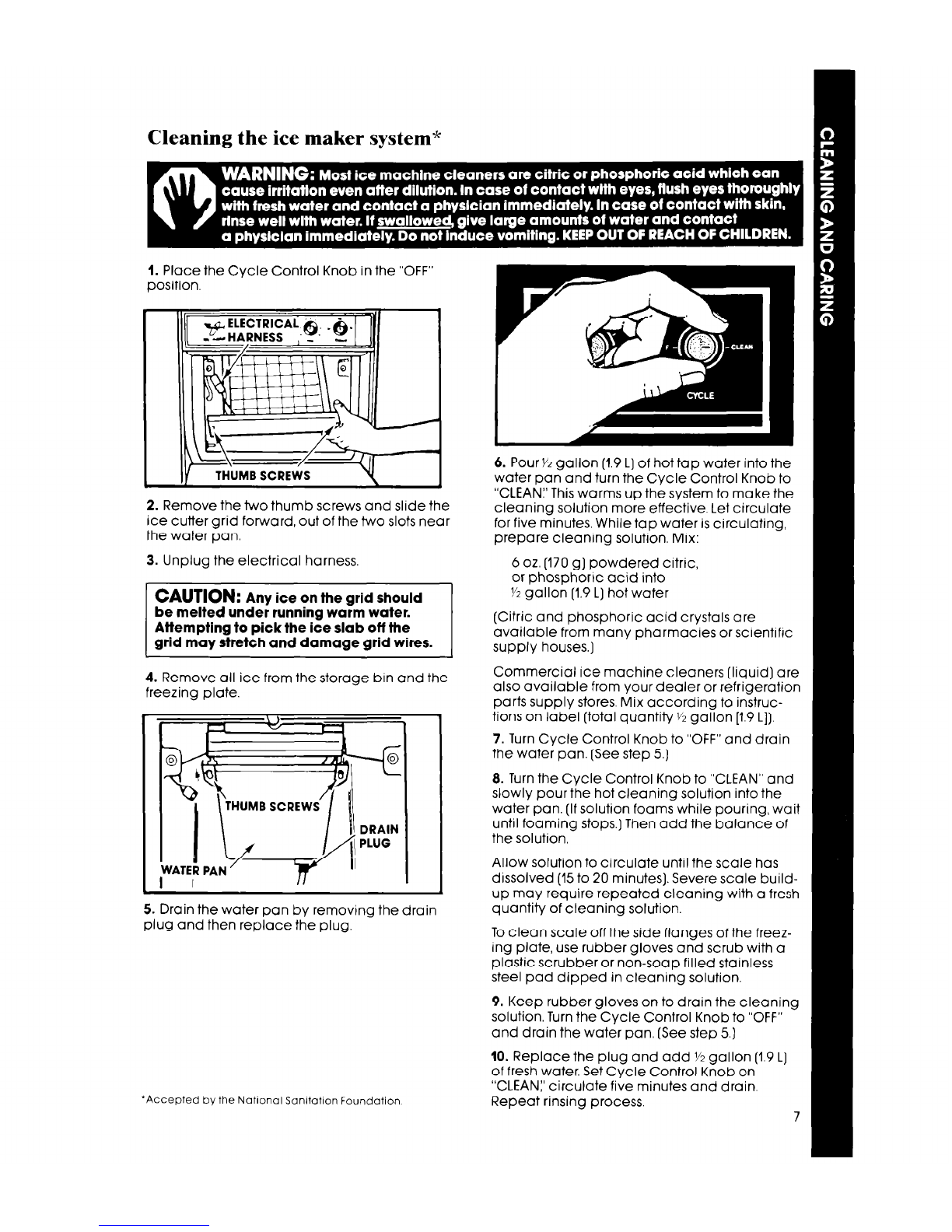

1. Place the Cycle Control Knob in the “OFF”
position.
2. Remove the two thumb screws and slide the
ice cutter grid forward, out of the two slots near
the water pan.
3. Unplug the electrical harness.
CAUTION: Any ice on the grid should
be melted under running warm water.
grid may stretch and damage grid wires.
4. Remove all ice from the storage bin and the
freezing plate.
5. Drain the water pan by removing the drain
plug and then replace the plug.
*Accepted by the National Sanltatlon Foundation
6. Pour YZgallon (1.9 L) of hot tap water into the
water pan and turn the Cycle Control Knob to
“CLEAN:’ This warms up the system to mal
cleaning solution more effective. Let circulate
for five minutes. While tap water is circulating,
prepare cleaning solution. Mix:
6 oz. (170 g) powdered citric,
or phosphoric acid into
Yzgallon (1.9 L) hot water
(Citric and phosphoric acid crystals are
available from many pharmacies or scientific
supply houses.)
Commercial ice machine cleaners (liquid) are
also available from your dealer or refrigeration
parts supply stores. Mix according to instruc-
tions on label (total quantity YZgallon [I.9 L]).
7. Turn Cycle Control Knob to “OFF” and drain
the water pan. (See step 5.)
8. Turn the Cycle Control Knob to “CLEAN” and
slowly pour the hot cleaning solution into the
water pan. (If solution foams while pouring. wait
until foaming stops.] Then add the balance of
the solution.
Allow solution to circulate until the scale has
dissolved (15 to 20 minutes). Severe scale build-
up may require repeated cleaning with a fresh
quantity of cleaning solution.
To clean scale off the side flanges of the freez-
ing plate, use rubber gloves and scrub with a
plastic scrubber or non-soap filled stainless
steel pad dipped in cleaning solution.
9. Keep rubber gloves on to drain the cleaning
solution. Turn the Cycle Control Knob to “OFF”
and drain the water pan. (See step 5.)
10. Replace the plug and add YZgallon (1.9 L)
of fresh water, Set Cycle Control Knob on
“CLEAN:’ circulate five minutes and drain.
Repeat rinsing process.

Cleaning the interior components
1. Turn the Cycle Control Knob to “OFF” and
disconnect the electrical power supply to the
machine. Open the storage bin door and
remove any ice that is in the bin,
2. Remove ice retainer baffle by flexing it and
then slide it off the studs.
3. Remove the ice cutter grid by unscrewing
the two thumb screws, slidino the arid forward
and unplugging the electrical wire harness
WATER PAN -
INTO nDAl
4. Remove the water pan by unscrewing the
two thumb screws.
ISE
DISTRIBUTOR
6. Remove the water distributor from the
freezing plate. It is held in place by rubber end
caps. Remove the inlet hose and clean all
water distributor holes and the small orifice in
the inlet side of the distributor. When replacing
the distributor, make sure the end caps are
located in the evaporator flange detents and
that the water distributor holes face down.
7. Wash the interior components (ice
retainer baffle, cutter grid, water pan, inlet
hose and water distributor] and the storage
bin, door gasket and ice scoop with mild
soap or detergent and warm water. Rinse in
clean water. These components should also
be cleaned in a solution of ‘/4oz. (8 ml] of
chlorine bleach with 1gallon (3.8 L)warm
water.
DO NOT WASH PLASTIC PARTS IN
DISHWASHER.
They cannot withstand temperatures above
145°F (63°C).
8. Replace the interior components: water
distributor, inlet hose, water pan, cutter grid
and ice retainer baffle.
9. Check the following:
l Hose from water valve is in water pan.
l Rubber drain plug is in water pan.
l Water distributor is seated and holes are
facing down.
l Hose is reconnected to pump and water
distributor.
l Hose from water pan is inserted into
storage bin drain opening.
10. Reconnect electrical harness, slide cutter
grid into place and tighten the thumb screws.
5. Remove the hose from the water pump.

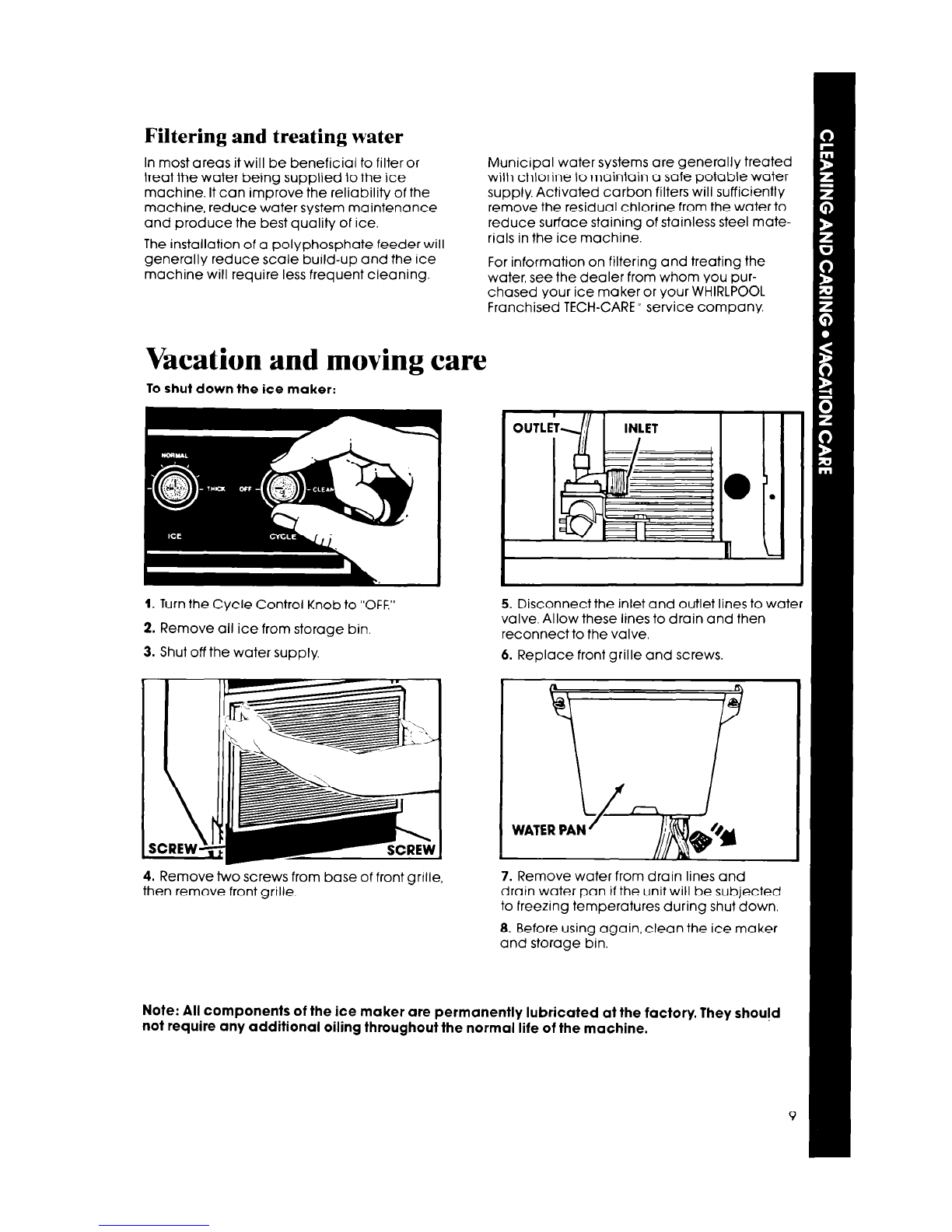

Filtering and treating water
In most areas it will be beneficial to filter or
treat the water being supplied to the ice
machine. It can improve the reliability of the
machine, reduce water system maintenance
and produce the best quality of ice.
The installation of a polyphosphate feeder will
generally reduce scale build-up and the ice
machine will require less frequent cleaning.
Municipal water systems are generally treated
with chlorine to maintain a safe potable water
supply. Activated carbon filters will sufficiently
remove the residual chlorine from the water to
reduce surface staining of stainless steel mate-
rials in the ice machine
For information on filtering and treating the
water, see the dealer from whom you pur-
chased your ice maker or your WHIRLPOOL
Franchised TECH-CARE” service company.
To shut down the ice maker:
Vacation and moving care
!
1. Turn the Cycle Control Knob to “OFF.”
2. Remove all ice from storage bin.
3. Shut off the water supply.
4. Remove two screws from base of front grille,
then remove front grille.
OUTLE;\I! 1 INLET
T
,
-
5. Disconnect the inlet and outlet lines to wate
valve. Allow these lines to drain and then
reconnect to the valve.
6. Replace front grille and screws.
7. Remove water from drain lines and
drain water pan if the unit will be subjected
to freezing temperatures during shut down.
8. Before using again, clean the ice maker
and storage bin.
Note: All components of the ice maker are permanently lubricated at the factory. They shou!d
not require any additional oiling throughout the normal life of the machine.

If you need service or assistance, we suggest
you follow these four steps:
1. Before calling for assistance...
Performance problems often result from little
things you can find and fix yourself without
tools of any kind.
Unit does not run:
l Cycle Control Knob must be in the “ON”
position.
l Check to see that power cord is plugged in.
l Check for blown fuse or tripped circuit
breaker in electrical supply to machine.
l Room temperature must be above 55°F.
(13°C). Otherwise, bin thermostat may sense
cold room temperature and shut off even
though bin is not full of ice. Also, unit may not
restart once it does shut off.
Unit runs but produces no ice:
l Cycle Control Knob must be in the “ON”
position.
l Check water supply to make sure it is open
l If ice machine is operated at an elevation of
2,000 feet or more above sea level, both the
bin thermostat and ice thickness thermostat
need to be recalibrated. See Installation
Instructions.
Unit runs but produces very little ice:
l Room temperature may be extremely high,
over 90°F.(32°C). In this case, it is normal for
ice production to be low.
. Dirt or lint may be blocking the air flow
through the finned condenser. Condenser
needs to be cleaned.
l Check to see if the unit has a scale build-up
in water and freezing system. Clean, if
necessa rv
Grid is not cutting ice sheets:
l Check the grid harness plug to make sure the
connection is secure.
Taste in ice cubes:
l There may be an unusually high mineral
content in water supply. Water may need to
be filtered or treated.
l Do not store any foods In the ice bin.
l Packaging material not all removed.
A more detailed “Trouble Diagnosis Chart” and
other technical information is shipped with
each unit and is located in the unit compart-
ment section.
Service repair and replacement parts man-
uals may be ordered directly from:
Whirlpool Corporation
Whirlpool Drive
Attention: Literature Department
LaPorte, Indiana 46350
Specify the model number of the ice machine
when ordering.
10

2. If you need assistance?..
Call Whlrlpool COOL-LINE@ service as-
slstance telephone number. Dial free from:
Contlnental U.S.. . . . . . . . [phone]
Michigan . . . . . . . . . . . . . . [phone]
Alaska & Hawaii . . . . . . . [phone]
and talk with one of our trained Consultants.
The Consultant can instruct you in how to ob-
tain satisfactory operation from your ap-
pliance or, if service is necessary, recommend
a qualified service company in your area.
3. If you need service:..
1 FRANCHISED SERVICE
Whirlpool has a
nationwide net-
work of franchised
TECH-CARE,9Serv-
ice Companies.
TECH-CAREservice
technicians are
trained to fulfill the
product warranty
and provide after-
warranty service,
anywhere in the United States.Tolocate TECH-
CAREservice in your area, call our COOL-LINE
service assistance telephone number (see
Step 2) or look in your telephone directory
Yellow Pages under:
APPLIANCES-HOUSEHOLD- ELECTRICALAPPUANCES-
MAJOR-SERVICE L REPAlR
OR
MAJOR- REPAIRING L PARTS
WHIRLPOOL APPLIANCES WHIRLPOOLAPPLIANCES
FRANCHISEOTECH-CARE SERVICE FRANCHISED TECH-CARE SERVICE
SERVICE COMPA,v,ES SERVICE COMPANIES
XYZ SERVICE CO XYL SERVICECO
123 Maple 999 9999 123 Maple 999.9999
OR
WASHING MACHINES. DRYERS
L IRONERS-SERVICING
4. If you have a problem?..
Call our COOL-LINEservice assistance tele-
phone number (see Step 2) and talk with one of
our Consultants, or if you prefer, write to:
Mr.Stephen E.Upton
Senior Vice President
Whirlpool Corporation
Administrative Center
2000 US-33North
Benton Harbor, Ml 49022
‘If you must call or write, please provide:
model number, serial number, date of pur-
chase, and a complete description of the
problem. This information is needed in order to
better respond to your request for assistance.
0
of Whirlpool Corporation for
quality parts Look for this
FSP
symbol of quality whenever
you need a replacement part
8
for your WhlrlpoO appliance
FSP replacement parts
will fit right and work right. because they are
made to the same exacting speclflcatlons
used to build every new WhIrlpool appliance
FSP ISa regIstered trademark
WHIRLPOOL APPLIANCES
FRANCHISED TECH-CARE SERVICE
SERVICE COMPANIES
XY2 SERVICECO
123 Maple 999.99%

Home L Appliances
Maklng your world a little easier.
Part No. 758558
01985 Whirlpool Corporation Printed in U.S.A.
Makers, Dishwashers. Built-In Ovens and Surface Units. flanges. Microwave Ovens. Trash Compaclors, Room Air Condltloners, Oehumldlflers, Automatlc Washers, Clothes Dryer
