Whirlpool EHC511 User manual

AUTOMATIC ICE MAKER
Use and Care Guide
Ice Thickness Control H
Cycle or Service Switch /
Model and Serial Number Plate
(inside, not shown)
Bin
Grille
Part No. 756637 Rev. 6

BEFORE OPERATING THE ICE MAKER
It is your responsibility to make sure that the ice
maker: .
* has oeen installed where it is protected from
the elements,
.
* is located so that the front is not blocked to
restrict incoming or discharge air flow.
* is properly leveled.
0 is located in a well ventilated area with tem-
peratures above 55°F (13°C) and below 110°F
(43°C). Best results are obtained at temperatures
between 70°F (21°C) and 90°F (32°C).
is properly connected to a water supply and
drain.
is properly connected to electricity. A 115 Volt,
60 Hz.. 15 amp fused electrical supply is required.
NOTE: Time delay fuse or circuit breaker is
recommended.
is properly electrically grounded,
is not operated by anyone unable to use it
properly.
is used only for the job it was designed to perform.
is properly maintained.
ICE MAKER OPERATION
How it makes ice:
4. Fresh water enters the machine for the next ice
making cycle.
1. bv;iter is constantly circuiated over a freezing
plate. As the water freezes into ice the minerals in
the water are rejec:.ed. This produces a clear sheet
of ice with a low mineral content. El@@
5. Cubes fall into the storage bin. When the bin is
full the ice maker shuts off automatically and re-
starts when more ice is needed.
2 When the desired thickness is reached, the ice
sheet is released and slides on to a cutter grid. The
grid divides the sheet into individual cubes.
3 The water containing the rejected minerals is
tlrained after each freezing cycle.
2

To 3perate the Ice Maker:
1 Select ice thickness (Figure 1). The ice maker
has been pre-set to produce ice approximateiy ‘;”
thick, while operating in a room ambient of
70’F (21°C).
Operation in different ambient temperatures may
renuire readjusting the control toward “THICK”
01. “THIN.”
I
ICE THICKNESS SERVICE OR
CONTROL CYCLE SWITCH
FIGURE 1
Best operation will be obtained with ice l/2” to
5,‘8” thick.
If operating in a warm room ambient (above 90°F
[32”C] ) DO NOT set control to maximum thick-
ness or the unit may malfunction.
2. To start the normal ice making cycle, turn service
or cycle switch to “ON.”
3. To stop ice maker operation, turn service or
cycle switch to “OFF.”
4. The “CLEAN” setting is used whenever solutions
are circulated through the ice maker for cleaning.
Only the water pump operates at this setting.
GENERAL CARE AND CLEANING
Periodically inspect and clean the ice maker to
keep it operating at peak efficiency and to prevent
premature failure of system components.
1. Disconnect electrical power supply to the
machine or place the service switch in the “OFF”
position. The condenser fan should not operate
while removing dirt from the condenser.
Both the ice making system and the air cooled
condenser need to be cleaned regularly.
Cleaning exterior surfaces:
2. Remove the two screws from the bottom of the
grilled front panel.
Waslr the exterior enamel surfaces and gaskets CAUTION: S&itch must be in “OFF” position to
with warm water and mild soap or detergent. Rinse keep condenser fan from rotating. Do not touch
and dry. Regular use of a good household appliance condenser fins. They are sharp. Refrigerant tubing
c:leaner and wax will help protect the finish. gets very hot during normal operation. Be careful.
Note: Do not. use harsh or abrasive cleaners on
enan\el surfaces as tl-ey may scratch the finish. 3. Pull forward and down to remove the panel.
Cleaning the condenser: -
A 3irty or clogged condenser:
* prevents proper air flow.
l reduces ice making capacity.
. causes higher than recommended operating
temperatures which may lead to component
fdilurc
FIGURE 3
To Clean :
GRILLED
PANEL
4. Remove dirt and lint from the condenser fins
with a soft brush and then use a vacuum cleaner to
remove the dirt from the unit compartment
(Figure 3).
Caution: Condenser fins are sharp and can bend
easily. Use care when brushing the condenser to
keep from bending the fins. Condenser tubing gets
hot enough during normal operation to burn your
hand. Use care and do not touch the tubing.
5. Replace the grilled front panel and screws.
3

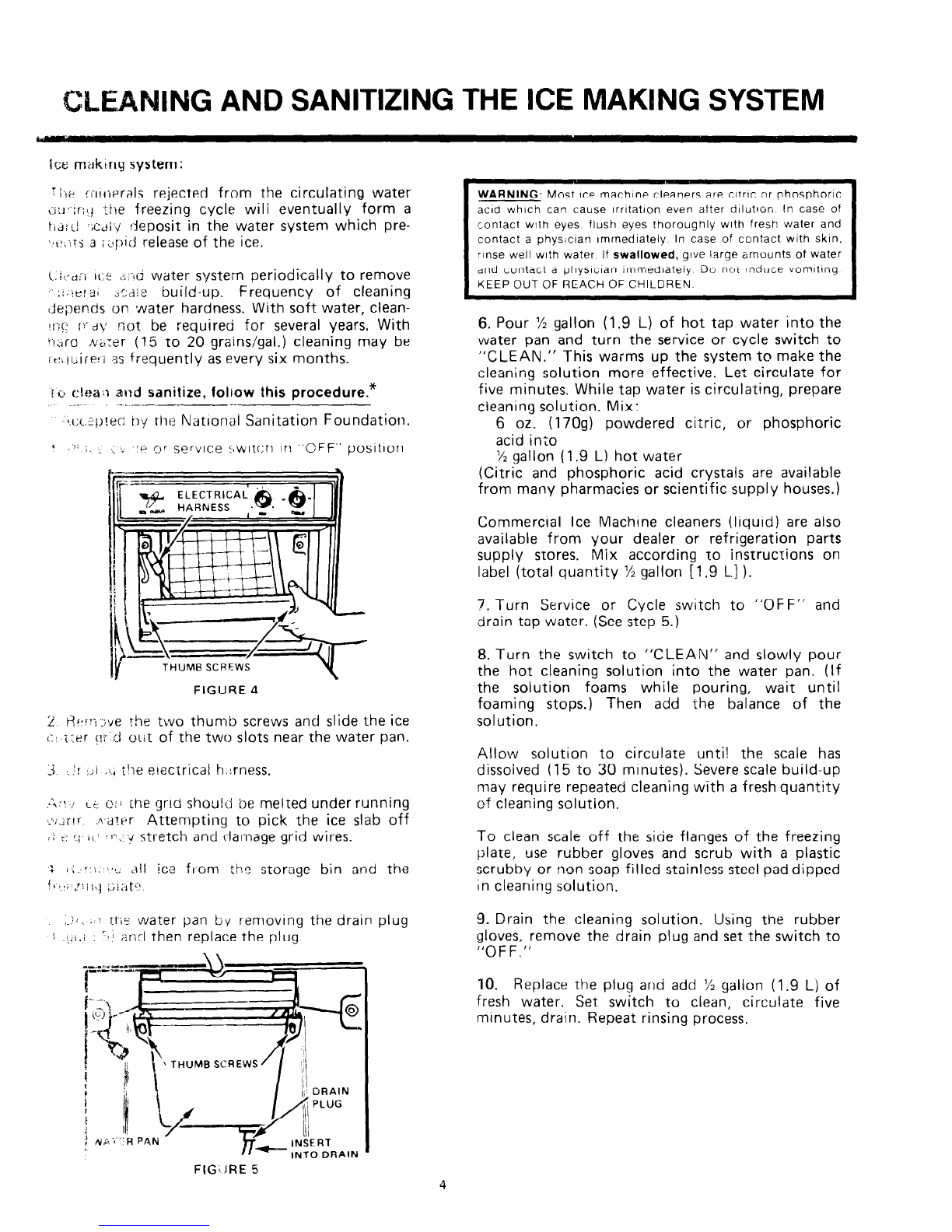

ING AND SANITIZING THE ICE MAKING SYSTEM
Ice makkny system:
: [-,p
, r:1111;3rals rejected from the circulating water
~i:~~~;ri:! the freezing cycle wili eventually form a
f,a:c! .;CJi'*j
deposit in the water system which pre-
,,t:.;rj a ;spid release of the ice.
i.ri-a:i 1c.e ;:i:,C; water system periodically to remove
:i.ie’a, 3i: li I” build-up. Frequency of cleaning
&per& on ‘water hardness. With soft water, clean-
!I:!% I:~ay not be required for several years. With
‘~;~ro Ni2:t)r (15 to 20 grains/gal.) cleaning may be
~~:~r~,ire!i as frequently as every six months.
ii~~c!ea.t and sanitize, loliow this procedure.*
- -. .-..- -.
-~,c:c.~p!ec: ny the Natronal Sanitation Foundation.
d :I jI _ ,. ‘+ ‘P CI~service :,wrtch In “OFF“ posrtron
FIGURE 4
1L F!r,rr-:.,ve rhe two thumb screws and slide the ice
c:! ;:.er gr’d out of the two slots near the water pan.
:i I_,’: :j I I‘., i !ie erectrical h,:rness.
,L’,* j c~: o;’ [he gr-rd should be melted under running
..‘,:-r~r .ha?tjr Attempting to pick the ice slab off
i <;c: ji’ ‘pY:;/ stretch and damage grid wires.
G ri p.:. b’k: ctll ice from the storage bin and the
6
br”i:/Li\:j ,,!;jt”
,-j:\ 1 Itie water pan by removing the drain plug
iii.; ‘11 ;:r;d then re
HUM0 SCREWS
INTO DRAIN
FIG; ,RE 5
WARNING: Most ICF machlne cleaners are cltrlc or phosphoric
acid which can cause lrrltatlon even after dllutlon In case of
contact with eyes flush eyes thoroughly with fresh water and
contact a physicIan lmrnedlately In case of contact with skin.
rinse well with water If swallowed, give large amounts of water
and contact a physIcIan lmmedlately Do not Induce vomltlng
KEEP OUT OF REACH OF CHILDREN
6. Pour % gallon (1.9 L) of hot tap water into the
water pan and turn the service or cycle switch to
“CLEAN.” This warms up the system to make the
cleaning solution more effective. Let circulate for
five minutes. While tap water is circulating, prepare
cleaning solution. Mix:
6 oz. (1709) powdered citric, or phosphoric
acid into
% gallon (1.9 L) hot water
(Citric and phosphoric acid crystais are available
from many pharmacies or scientific supply houses.)
Commercial Ice Machine cleaners (liquid) are also
available from your dealer or refrigeration parts
supply stores. Mix according to instructions on
label (total quantity % gallon [I .9 L.1 1.
7. Turn Service or Cycle switch to “OFF” and
drain tap water. (See step 5.)
8. Turn the switch to “CLEAN” and slowly pour
the hot cleaning solution into the water pan. (If
the solution foams while pouring, wait until
foaming stops.) Then add the balance of the
solution.
Allow solution to circulate unti! the scale has
dissoived (15 to 30 minutes). Severe scale build-up
may require repeated cleaning with a fresh quantity
of cleaning solution.
To clean scale off the side flanges of the freezing
plate, use rubber gloves and scrub with a plastic
scrubby or nonsoap filled stainless steel pad dipped
in cleaning solution.
9. Drain the cleaning solution. Using the rubber
gloves, remove the drain plug and set the switch to
“OFF.”
10. Replace the pluq and add % gallon (1.9 L) of
fresh water. Set switch to clean, circulate five
minutes, drain. Repeat rinsing process.

Removal and cleaning of interior components:
Do not operate unit with panels removed.
1. Remove ice retainer baffle by flexing it (Figure 6)
I - -
FIGURE 6
and then slide it off the studs.
THUMB SCREWS
!
FIGURE 7
2. Remove the ‘water pan by unscrewing the two
thumb screws (Figure 71.
3. Remove the hose from rhe water pump. Clean
the water inlet hose hanging in the water pan.
FIGURE 8
5. Wash the interior components you have just re-
moved with mild soap or detergent and warm water.
Rinse in clean water. Sanitize in a solution of l/402.
(8 ml) of chlorine laundry bleach mixed with 1 gallon
(3.8 L) warm water.
NOTE: Do not wash plastic parts in dishwasher.
Plastic parts can not withstand temperatures above
145” F (63°C).
6. Wash the storage bin, door, gasket, and ice scoop
with mlld soap or detergent and warm water. Rinse
with clean water. Sanitize with the chlorine bleach
and water solution.
7. Replace the interior components: water distrib-
utor, hoses, water pan, and ice retainer.
8. Check the following:
l Hose from water valve is in water pan.
l Rubber drain plug is in water pan (Figure 7).
l Water distributor is seated and holes are
facing down.
l Hose is reconnected to pump and water
distributor.
l Hose from water pan is inserted into storage
bin drain opening.
9. Reconnect electrical harness. Replace cutter grid.
4. Remove the water d,stributor from the freezing
plate. It is held in place by rubber end caps. Remove
the inlet hose and clean all water distributor holes
an@ the small orfice in the inlet side of the distrib-
utor. When replacing the distributor, make sure the
end caps are located in the evaporator flange
detents and that the water distributor holes face
down.
5

CHANGING THE BIN DOOR PANEL
You can easily change the color of the front panel
on the storage bin door. Four colors are available;
Blark, Almond, Harvest Gold and White.
To change the panel :
_~ -~-.___
4. Choose the color you want to show and carefully
slide the panels back into the door, being careful
not to scratch the panel as it’s inserted.
5. Replace the handle and screws.
1. Ooen the bin door. Remove the two screws on
top cjf the door, which hold the handle.
2. Remove the handle
Note: A brushed chrome door panel is available
that you can order from your dealer as part No.
755340.
3; C~reiully slide the panels out. You will find two
pane Is with four colors. You can also have a decorative wood front to
match existing cabinets. The panel should be l/4”
(6 mm) thick and 17” x 13-3/16” (433 mm x
335 mm). Remove the metal panels and break off
the ribs on the door insulation to allow for wood
thickness.
FILTERING AND TREATING WATER
In n‘ost areas it will be beneficial to filter or treat
th; \tvater being supplied to the ice machine. It can
Improve the reliability of the machine, reduce
vvatrr system maintenance and produce the best
quaicti/ of ice.
The installation of a polyphosphate feeder will
generally reduce scale build-up and the ice machine
Lvirl -equire less frequent cleaning.
Municipal water systems are generally treated with
chlorine to maintain a safe potable water supply.
Activated carbon filters will sufficiently remove
the residual chlorine from the water to reduce
surface staining of stainless steel materials in the
ice machine.
For information on filtering and treating the water,
see the dealer from whom you purchased your ice
maker or your WHIRLPOOL Franchised TECH-
CARE@ service company.
TO SHUT DOWN THE ICE MAKER
1. imi;rn ice maker to “OFF.”
2. Remove all ice frorr storage bin.
3. Shut off the water supply.
4. Remove front grille (Figure 2).
5. [),sconnect the inlet and outlet lines to water
vain. Allow these lines to drain and then recon-
nect to the valve,
6. Replace front grille .jnd screws.
7. Remove water from drain lines and drain water
pan if the unit will be subjected to freezing tem-
peratures during shut down.
8. Before using again, clean and sanitize the ice
maker and storage bin.
Oiling:
All components of the ice maker are permanently
lubricated at the factory. They should not require
any additional oiling throughout the normal life of
the machine.

IF YOU NEED SERVICE OR ASSISTANCE,
WE SUGGEST YOU FOLLOW THESE FOUR STEPS:
I = Before calling for assistance. . .
Performance probler
yo:~ can find and fix
1. :Jnit does not run
ns often result from little things
yourself.
* Service or Cyr le switch rnust be in “ON”
position.
D Check to see that power cord is plugged in.
0 Check for blown fuse or tripped circuit breaker
in electrical supply to machine.
* Room temperature must be above 55°F. (13°C).
Otherwise, bin thermostat may sense cold
room temperature and shu- off even though
bin is not full of ice. Also, unit may not re-
start once it does shut off.
2. Unit runs but produces no ice:
0 Service or Cycle switch must be in “ON”
position.
* Check water supply to make sure it is open.
l If ice machine is operated at an elevation of
2,000 feet or more above sea level, both the
bin thermostat and the ice thickness thermostat
need to be recalibrated. See Installation
Instructions.
3. Unit runs but produces very little ice:
l Room temperature may be extremely high,
over 90°F. (32°C). In this case, it is normal for
ice production to be low.
0 Dirt or lint may be blocking the air flow
through the finned condenser. Condenser
needs to be cleaned.
l Check to see if the unit has a scale build-up in
water and freezing system. Clean, if necessary.
4. Grid is not cutting ice sheets:
l Check the grid harness plug to make sure the
connection is secure.
5. Taste in ice cubes:
l There may be an unusually high mineral
content in water supply. Water may need to
be filtered or treated.
0 Do not store any foods in the Ice bin.
l Packaging material not all removed.
A more detailed “Trouble Diagnosis Chart” and
other technical information is shipped with each
unit and is located in the unit compartment section.
Service repair and replacement parts manuals may
be ordered directly from:
Whirlpool Corporation
Whirlpool Drive
Attention: Literature Department
LaPorte, Indiana 46350
Specify the model number of the ice machine
when ordering.

2. If you need assistance*. . .
Call Whirlpool COOL-LINE@ service assistance
telephone number. Dial free from:
Continental U. S. . . . . . [phone]
Michigan . , . , . . . . . . , . . [phone]
Alaska & Hawaii . , . . , . . (800) 253-l 121
and talk with one of our trained Consultants.
The Consultant can instruct you in how to obtain
sa:.isfactory operation from your appliance or, if
service is necessary, recommend a qualified service
company in your area.
3. If you need service* . . .
’ 7cEiswARE
L
FRANCHISED SERVICE
--__ I
Whirlpool has a nation-
wide network of fran-
chised TECH-CARE@Ser-
vice Companies. TECH-
CARE service technicians
are trained to fulfill the
product warranty and
provide after-warranty
service, anywhere in the
United States. To locate
TECH CARE service in your area, call our COOL-
LINE service assistance telephone number (see
Step 2) or look in your telephone directory
Yellow Pages under:
APPLIANCES-HOUSEHOLD- ELECTRICAL APPLIANCES-
MAJOR-SERVICE 6 REPAIR MAJOR-REPAIRING I PARTS
WHIRLPOOL APPLIANCES OR WHIRLPOOLAPPLIANCES
FRANCHISED TECHJZARE SERVICE FRANCHISED TECH-CARE SERVICE
SERI’ICE (‘0.MPA.YlE.S SERVICE COMPA.‘IIEP
XYZ SERVICE CO XYL SERVICE CO
123 Maple 999 9999 123 Maple 999~9999
OR
WASHING MACHINES, DRYERS
6 IRONERS-SERVICING
WHIRLPOOLAPPLIANCES
FRANCHISED TECH-CARE SERVICE
SERVICE COMPANIES
XYZ SERVICE CO
123 MaDIe 999-9999
4. If you have a problem* . . .
Call our COOL-LINE service assistance telephone
number (see Step 2) and talk with one of our
Consultants, or if you prefer, write to:
Mr. Guy Turner, Vice President
Whirlpool Corporation
.4dministrative Center
2000 US-33 North
Benton Harbor, M! 49022
*If you must call or write, please provide: model
number, serial number, date of purchase, and a
Icomp!ete description of the problem. This infor-
matbon is needed in order to better respond to your
reouest for assistance
FSPISa reaistered trademark
0
of WhlrlpoGl Corporation for
quality parts Look for thus
FSP s\/mbol of quallh/ whenever
you need a replacement part
@ for yoilr Whirlpool appliance “5
replacement ports are designee?
to fit right and work right, because they are
rr7cae t:i ii-le same exacting specifications
dSC32to &Id every new i3ij?~rlpo3! aprjlia:3ce
Eenlon Harbor, Miclugan Aulomalic Washers. Clothes Dryers.
Freezers. Relrlgerator-Freezers. Ice Makers, Dishwashers.
Buill-in Ovens and Surlace Unils. Ranges. Microwave Ovens,
Compaclors. Room Air Conditioners, Dehumidiliers. Cenlral
Heating and Air Conditioning Systems.
Par: No. 756637 Rev. B
