Whirlpool ICE CUBES MAKERS Series User manual

ICE CUBES MAKERS Range
SPRAY Technology

2
CONTENTS
Introduction
Warnings........................................................................................................................................3
Description –Operating Principles.................................................................................................5
Operating principlefollowing the electricdiagram..........................................................................6
Specifications

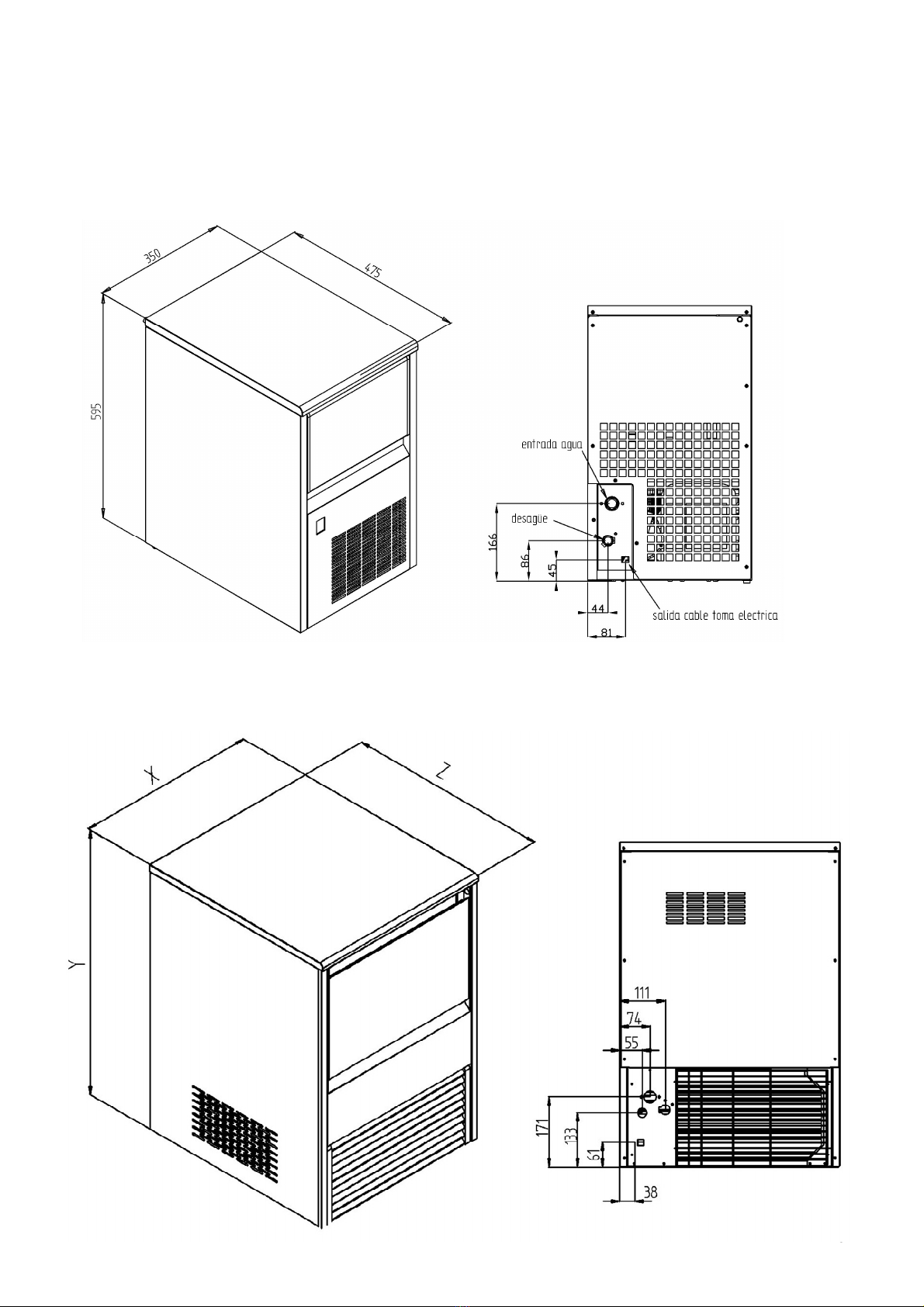

Diagramsofconnectionsand dimensions......................................................................................9
Consumptions, weights, packaged dimensionsand volume.........................................................10
TechnicalData............................................................................................................................11
Production Figures......................................................................................................................12
Reception ofthemachine
Packaging -Housing –Specificationsplate.................................................................................16
Installation
Required conditionsforplacement ofunit -Waterand drainage..................................................17
Connection towatermains(watercondensing )–Connection todrain–Electricalconnection....18
Starting
Preliminary checking...................................................................................................................19
Starting.......................................................................................................................................20
Adjustments
Fan pressostat (aircondensing)...................................................................................................21
Securitypressostat......................................................................................................................22
Maintenance and cleaning instructionsand procedures
Maintenancechart.......................................................................................................................23
Watercondenser–Aircondenser-Evaporator/ Watertray........................................................24
Storage bin–Housing -Pipesand nozzles..................................................................................25
WaterFilter–Waterleakscontrol...............................................................................................26
Special advisesofuseR404A Refrigerant................................. ............................................................26
Troubleshooting .....................................................................................................................................27

3
INTRODUCTION
Thankyou forchoosing ITV's NG DP IceCube Maker.
You havepurchased one ofthe mostreliableice-making productson the markettoday.
Carefullyread the instructionscontained inthismanualsincetheyprovide important
information relativetosafetyduring installation, use, and maintenance.
WARNINGS
-Thisapplianceshouldbe installed byapproved TechnicalServicePersonnel.
-Thisplug shouldbe accessibleat all times.
-Toreducethe risk ofelectricalshock,ALWAYS disconnectthe machine BEFORE
cleaning ormaintaining the equipment. Donotattempttoinstall,service,ormodifythis
machine.
-Improperusebyotherthan speciallytrained techniciansisextremelydangerous
and mayresult inafireorelectricshock.
-Thisproducthasnotbeen designed foranyusesotherthan producing icecubes
withdrinking water.
-It isextremellydangeroustomodifyortrytomodifythisappliance. Besidesit would
automaticallycancelthe warrantytotally.
-Thisapplianceisnotintended foruse(including children)withreduced physical,
sensoryormentalcapabilities,orlack ofexperienceand knowledge,unless theyhave
been given supervision orinstruction concerning useofthe appliancebyaperson
responsiblefortheirsafety.
- Children shouldbe supervised toensurethat theydo not playwiththe appliance.
-Thismachine shouldnot be placed outdoorsorexposed torain.
-Connect todrinking watermains.
-Connect onlywiththe powerdsupplycordsupplied withthe machine.
-Thisapplianceisnot intended tobe connected toafixcanalization.
-Pleasefollowthe instructionsgiven bythe manufacturerinordertoguarantee the
efficiency ofthismachine and aproperoperation.THECLEANINGAND MAINTENANCE
shouldbe carried out bytrained personnelinmost of the cases.

4
IMPORTANT:
-Donotattempttoservicethismachine yourself. Improperusebyotherthan
speciallytrained techniciansisextremelydangerousand maycauseseveredamage tothe
unit.Incaseofbreakdowncontactan authorised distributor.Westronglyrecommend using
onlyoriginalreplacement parts.
-Wasteand othermaterialshouldbe disposed inaccordancetolocalregulations
and proceduresforwastedisposal.
CLEANINGAND MAINTENANCEOPERATIONSARENOTCOVEREDBYTHE
WARRANTYAND WILL BEINVOICEDBYTHEINSTALLER..

5
DESCRIPTION
Mainfeatures:
−Stainless steelbodyAISI 304 and chapa galvanizada.
−Anti-blocking spraynozzles.
−Pumpwithout seals.
−High pressuresafetypressostatseven inair-cooled machine.
−Large condensers(workwell athigh ambienttemperatures;and reducecooling water
consumption inwater-cooled machines).
−TRANSPARENTCUBES withmost of the watermains.
ALFACUBE GALACUBE DELTACUBE SUPERSTARCUBE
OPERATING PRINCIPLE
WHENSWITCHINGONTHEMACHINEFORTHEFIRSTTIME,THEMACHINESHOULD
BE PLACEDONTHEDEFROSTINGSTAGE.Todo so,turnthe wheelson the timeruntil
the microswitchesaredepressed.
-Atthismoment, the compressorisworking;the waterinletvalveand hotgasinlet
valvearebothopen.The waterbinfillswithwater, anyexcess islost viathe maximumlevel
overflow.
-Afteraperiod oftimecontrolled bythe timerthe hotgasvalveand waterinlet valve
areclosed. The pumpthen sendswatertothe evaporatorwherethe icescubesare
graduallyformed. The evaporation temperatureslowlydescendsuntil itreachesapoint
wherethe cyclethermostatisconnected and startsthe timer.Oncethistimehaselapsed,
the defrosting stage (3-4minutes)begins.The pumpisoff and the hotgasand water
valvesareopen. Somewaterissent tothe top of the evaporatortohelpthe cubesunstick.
-Oncethe defrosting stage isover,the cyclebeginsagain,and soitcontinuesuntil
the binisfull ofice,and contactbetween the binthermostatsituated atthe top ofthe bin
and the icewill stop the machine.The binthermostatwill neverstop the machine inmid-
cycle.

6

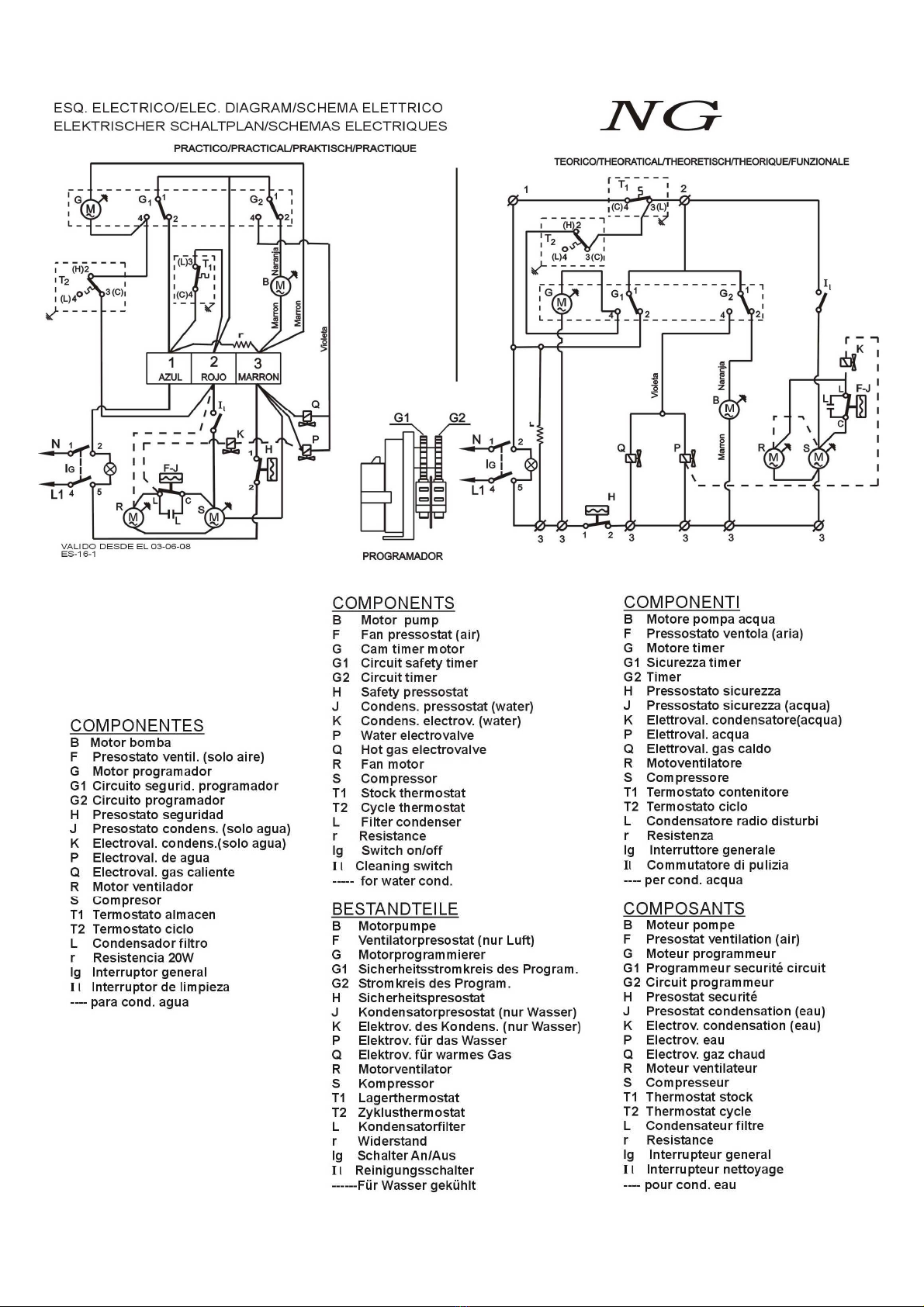

OPERATINGPRINCIPLEFOLLOWINGTHEELECTRICDIAGRAM(TIMERON
DEFROST-MICROSWITCHES DEPRESSED).
-The ITVmodelNG hastwoswitches:
1st Inthe frontalside ofthe machine (withled).Thisturnsthe machine on oroff when we
press it.
2nd The second switchislocated inthe electricalpanel. Thisone stopsthe condensing unit,
butkeepsthe hydraulicpartinoperation and allowstodo the cleaning ofthe machine
(except inNDP20 model).
-Currentreachesthe machine viathe line connecting the blue (1)and brown(2)
terminals.The brownwireconnectsthe compressorand timermotor.The blue wire
connectsbinthermostatT1whichclosesthe circuitwith2.Adifferentblue wiregoesto2
on terminalG1whichat thismoment isconnecting 1and 4.
-Ared wireconnectsbinthermostatT1and microsG1and G2whichclosethe
circuit with4and provide current viaG1tothe timerG.
-At thispoint the following areconnected:
vCOMPRESSOR(S)
vWATERINLETVALVE (P)
vHOTGAS VALVE (Q)
vTIMERMOTOR(G)
-Sincethe motorofthe timer(G)isworking, during 1÷3minutesthe rolerof microof the
second waterinletcoil (cleaning valvedrive)isdepressed until the pinsreleasethe micro,
closing thisvalve..
-After 2to4minutesmicrosG1and G2will open and closecircuits1-2.
-Viaterminal2on microG2,currentreachesthe pump.Circuit4on microG2which
providescurrenttothe hotgasvalve(Q)and waterinletvalve(P)will be interrupted.Since
the thermostatisbetween 1and 3the timerwill receiveno current. The compressor
continuesswitched on.

7
-Air-cooled machineshaveafan (R)whichiscontrolled bythe pressostat (F).
-Inwater-cooled modelswithoutpressostaticvalve,pressostat(J)opensand closes
the condenserelectrovalve(K).
-Evaporatortemperaturedecreasesuntil the cyclethermostat(T2)setpointis
reached, at thistemperaturecircuit 1-2will be closed and timermotor(G)will switchon.
-Oncethe cycleisover,the pinson the timerwheelswill forcethe microstochange
circuits,stopping the pumpand opening the hotgasvalveand watervalve.The combined
effectofhotgasand watersprayed on the top ofthe evaporatorwill releasethe icecubes
and change the position of the cyclethermostat (T2).
-The iceproduction and defrosting cyclewill continue until the icestorage binisfull,at
whichpointcyclethermostat(T1)will disconnectthe machine,butneverduring acycle, but
atthe beginning ofthe defrosting stage,sinceduring the production cycle,currentwill
reachthe pumpviaterminals1-2of microG1.
-The machine will remaindisconnected until the leveloficeinthe bindropsbelowthe
thermostatbecauseoficeconsumption.Atthispointthe binthermostatT1changesand
the machine will start anewproduction cycleautomatically.

8

9
SPECIFICATIONS
Models:
NDP20
NG DP30 -150.

10
NG MDP150
CONSUMP. CONSUMP. CONSUMP. NET DIMENSIONS DIMENSIONS GROSS
VOLUME
WATER
COND.. WATER TOTAL WATER WEIGHT MACHINE PACKAGING WEIGHT
L/HOUR(1) PROD. L/HOUR(1)
MODEL
L/HOUR(1) (KG) X*Y*Z (KG) (M3)
NDP20 A
5.1 5.1 36 350x474x592 420x540x725 35 0.20
NDP20 W
18 5.1 23.1 36 350x474x592 420x540x725 35 0.20
NG 30 A
14 14 39 405x560x770 485x610x790 45
NG 30W
20 14 34 39 405x560x770 485x610x790 45
NG 35 A
14 14 42 465x595x795 525x645x920 50
NG 35 W
20 14 34 42 465x595x795 525x645x920 50
NG
DP45 A
18.8 18.8 45 465x595x795 525x645x920 53
NG DP45 W
24 18.8 42.8 45 465x595x795 525x645x920 53
NG DP60 A
28.8 28.8 48 535x595x795 595x645x920 67 0.40
NG DP60 W
30 28.8 58.8 48 535x595x795 595x645x920 67 0.40
NG DP80 A
14.6 10.6 58 715x595x945 780x670x1055
78 0.57
NG DP80 W
54 14.6 68.6 58 715x595x945 780x670x1055
78 0.57
NG DP110 A
17.2 17.2 89 715x700x1050
780x780x1070 100
NG DP110 W
59 17.2 76.2 89 715x700x1050
780x780x1070 100
NG DP150 A
22.4 22.4 95 860x700x1050
925x780x1070 105
NG DP150 W
62 22.4 84.4 95 860x700x1050
925x780x1070 105
NG MDP150 A
22,4 22,4 70 775x625x805 820x700x825 80
NG MDP150 W
62 22,4 84,4 70 775x625x805 820x700x825 80
775
625
805

11
(1)Dataobtained at roomtemperature(20°C), waterintroduced at 15°C; waterquality=500ppm
(2)Maximumconsumption obtained at roomtemperature=43°C, according toUNEclimateclassification Class T
(TROPICALISED)
NOTE: Expansion controlled bycapillary exceptinmodularsmodelswhereitiscontrolled bymeansofan
expansion valve.
REFRIGER. LOW FUSE POWER
CHARGE PRESSURE SECURITY COMPRESSOR
MODEL
HIGHPRESSURE TOTAL
INTENST.
AMPS
(TOINSTALL)
POWER
ABS
MIN. MAX. AVERAGE -2 -1 -2
(GR) (A) (A) (W) (W)
NDP20 A
345 2 1/5 355
NDP20 W
285 2 1/5 355
NG 30 A
320 2 1/4 423
NG 30 W
300 2 1/4 423
NG 35 A
360 2 1/4 540
NG 35 W
310 2 1/4 540
NG 45 A
420 3 3/8 550
NG 45 W
365
3 3/8 550
NG DP60 A
420 15´5bar 18 bar 2´5bar 3.5 10 3/8 650
NG DP60
W
350 3.5 3/8 650
NG DP80 A
470 3 1/2 780
NG DP80 W
355 3 1/2 780
NG 110 A
1000 4 7/8 1150
NG 110 W
1000 4 7/8 1150
NG 150 A
1000 4 13/8 1350
NG 150 W
1000 4 13/8 1350
MDP150 A
1200
5.5 13/8 1500
MDP150 W
1200 13/8 1500

12
PRODUCTIONCHARTS(Kg/Day)
NDP20
Tw/Tr 45 40 35 30 25 20 15 10
35 8 10 13 14 16 17 17 17
30 12 15 17 19 20 21 21 21
25 15 18 20 22 24 24 25 25
20 19 21 24 25 27 28 28 28
15 22 24 27 28 30 20 31 31
10 24 27 29 31 32 33 33 33
5 26 29 31 33 34 35 35 35
NG 30
Tw/Tr 45 40 35 30 25 20 15 10
35 12 16 19 22 24 25 26 26
30 18 22 25 28 30 31 32 32
25 23 28 31 34 36 37 38 37
20 28 32 36 38 40 42 42 42
15 33 37 40 43 45 30 47 47
10 36 40 44 46 48 50 50 50
5 39,6 43 47 49 51 53 53 53

13
NG 35
Tw/Tr 45 40 35 30 25 20 15 10
35 14 19 22 26 28 29 30 30
30 21 26 30 33 35 37 37 37
25 27 32 36 39 42 43 44 44
20 33 38 42 45 47 49 50 50
15 38 43 47 50 52 35 55 54
10 42 47 51 54 56 58 59 59
5 46 51 54 58 60 61 62 62
NG 45
Tw/Tr 45 40 35 30 25 20 15 10
35 18,3 24,4 29,5 33,5 36,5 38,5 39,4 39,4
30 27,5 33,6 38,7 42,8 45,8 47,7 48,7 48,6
25 35,8 41,9 47 51,1 54,1 56 57 56,9
20 43,2 49,3 54,3 58,4 61,4 63,4 64,3 64,2
15 49,5 55,7 60,7 64,8 67,8 45 70,7 70,6
10 55 61,1 66,1 70,2 73,2 75,2 76,1 76
5 59,4 65,5 70,6 74,6 77,7 79,6 80,6 80,5

14
NG 60
Tw/Tr 45 40 35 30 25 20 15 10
35 24,4 32,5 39,3 44,7 48,7 51,3 52,6 52,5
30 36,7 44,9 51,6 57 61 63,7 64,9 64,8
25 47,8 55,9 62,7 68,1 72,1 74,7 76 75,9
20 57,6 65,7 72,5 77,8 81,9 84,5 85,8 85,6
15 66,1 74,2 81 86,4 90,4 60 94,3 94,2
10 73,3 81,4 88,2 93,6 97,6 100,2 101,5 101,4
5 79,2 87,4 94,1 99,5 103,5 106,2 107,4 107,3
NG 80
Tw/Tr 45 40 35 30 25 20 15 10
35 32 43 52 59 64 68 70 70
30 49 59 68 76 81 84 86 86
25 63 74 83 90 96 99 101 101
20 76 87 96 103 109 112 114 114
15 88 98 108 115 120 80 125 125
10 97 108 117 124 130 133 135 135
5 105 116 125 132 138 141 143 143

15
NG 110
NG 150
Tw/Tr 45 40 35 30 25 20 15 10
35 61 81 98 111 121 128 131 131
30 91 112 129 142 152 156 162 162
25 119 139 156 170 180 186 190 189
20 143 164 181 194 204 211 214 214
15 165 185 202 215 225 150 235 235
10 183 203 220 233 244 250 253 253
5 198 218 235 248 258 265 268 268
Tw/Tr 45 40 35 30 25 20 15 10
35 44 59 72 81 89 94 96 96
30 67 82 94 104 111 116 119 118
25 87 102 114 124 132 137 139 139
20 105 120 132 142 150 154 157 157
15 121 136 148 158 165 110 172 172
10 134 149 161 171 178 183 186 185
5 145 160 172 182 189 194 197 196

16
DELIVERY&UNPACKING
Upon receipt, thoroughlyinspectthe packing container.If thereappearstobe damage to
the containercontact the shipperimmediately.
Unpack the unitinpresenceofthe forwardernoting anydamage on the deliverynoteor
CMRorinan additionaldocument. ITVpacking bearsthe “GreenPoint” on all models
sinceJanuary1st 1998 according tothe European Directiveson management of Packaging
and WasteDisposal.ITV.
Besuretoinclude modelnameand serialnumberon all claims.Serialnumberislocated in
the following three places:
Packing
Thereisalabelstick ontothe cardboardpacking bearing thisserialnumber(1).
Machinebody
Onthe back of the machine (1).
Ratingplateandserial number
WARNING:DONOTLEAVE PACKINGMATERIALS(PLASTICBAGS,CARDBOARD
Located at the back of the machine (1).
Watercooled machines: check that the
drainage hoseat the back of the machine is
ingood condition.
Verifythat the instalation kit isinside the
bin, and hasthe following pieces: scoop,
3/4’waterhose, twosmall filtersand user
manual.

17
BOXES, ETC.)INREACH OFCHILDREN.

18
INSTALLATION
Requiredconditionsforplacementofunit
IMPORTANT:
The NGmachinesareintended toworkatroomtemperaturebetween 5ºCand 43ºC
and withwatertemperaturebetween 5ºCand 35ºC.
Difficultiesduring harvestcyclecan appearbelowtheseminimumtemperatures.
Abovethe maximumtemperaturesthe lifeofthe compressorbecomesshorterand the
production decreasesconsiderably.
IMPORTANT:
The newbox-type frameinNGmodelsallowsabetterventilation inthe air-cooled
machines,due tothe factthatthe condensersareplaced inoblique position inthe front
part of the machine.
The machineswill workproperlyeven iftheyarelocated inplaceswithlittle
ventilation at the rearand lateralsides. The airisexpelled bythe front grill.
Bearinmind the previousremarks ifthe premiseswherethe machine islocated isvery
dustyorsmoky
The flooron whichthe machine will be placeshouldbe solidand asleveled as
possible.
Waterand drainage
Waterqualityinfluenceson icehardness, flavour, and qualityaswell ascondenserlife.
Keep inmind the following points:
a)WATERIMPURITIES:
Majorimpuritiesareeliminated byfiltersprovided. Filtersshouldbe cleaned
regularlydepending on purityofwater.Forminorimpuritieswerecommend installing a5-
micron filter(Provided withthe unit:. Part #ITV7499).

19
b)WATERWITHMORETHAN1000 PPM:
Icewill be less hardand tend toadhere. Cubeswithwhitespotsmayappear. Limedeposits
mayimpede properfunctioning.Inwatercooled models,condenserobstruction islikely.
Installation ofahigh qualitywatersoftenerisrecommended.Limedepositscan be avoided
withthe installation of ourpolyphosphatesfilter. (Part #ITV7500).
c)CHLORINATEDWATER:
Chlorine tastecan be avoided byinstalling acarbon filter(Part #ITV7509).
(NOTE: You mayencounterwaterwithall aforementioned properties.)
d)HIGHT-PURITYWATER:
Upto10%reduction inoverall production mayoccur.
Connecting UnitTo WaterSource
-Use1.3m.flexibletube (withthe twofilterjointsprovided)provided.NOTE:We
adviseagainstusing faucetswithtwoexitsand twokeys sincetheycan closethe buttock
bymistakeand sothe machine remainswithout water. Thismayindicateafalsefailure.
-Waterpressureshouldbe between 0.7and 6Bars. (10/85 psi.)
-If waterpressureexcedesthesevalues,installation ofappropriatecorrectiveunits
will be necessary.
-It isimportantthatwatertubing doesnotcomeclosetoorincontactwithanyheat
sourcesorheat generated byunit asthiscoulddecreaseproduction.
Connecting UnitTo Drain
-Drainmust be located at least 150mm. belowmachine
-Draintube musthavean innerdiameterof30mm.withaminimumgradientof3cm
permeter.
Electrical connection:
-The Unitisprovided witha1.5mcordand schuckosocket. If the cordisdamaged
shoud be replaced byacordorspecialassemblysupplied bythe manufacturerorafter-
salesservice.
-It isstronglyrecommended toleaveaminimumspacebetween the rearside and
the wall inordertohavean easy access tothe plug without risks.
-It isadvisabletoinstall aswitchand adequatefuses.Nominalvoltage and intensity
areindicated on rating plateaswell ason thismanual'stechnicalpages.Voltage
fluctuationsgreaterthan 10%can causeproblemsorprevent machine fromstarting.

20
-The Line tobaseof plug must haveaminimumsection of 2.5mm2.
-Besurevoltage indicated on rating platecorrespondstothat of mainssupply.
IMPORTANT!
Supplysocketmustbe properlyearthed.Besuretocheck standardforcountrywere
applianceisgoing tobe installed.
OPERATION
PreliminaryCheck
a)Ismachine levelled?
b)Arevoltage and frequency of mainssupplythe sameasindicated on rating plate?
c)Isdrainage systemfunctioning?
d)Isaircirculation and roomtemperatureadequate? (**Aircooled models)
TEMPERATUREROOM WATER
MAXIMUM43 C 35ºC
MINIMUM 5ºC 5ºC
a)** Iswaterpressureadequate?
MINIMUM 0.7Bar
MAXIMUM 6Bar
NOTE: Toinstall apressurereducerIf waterinlet pressureismorethan 6bar.
ATTENTION: Check that voltage and mainsfrequency arethe sameasinthe rating plate.
