Whirlpool WHELJ1 User manual

ow to install, operate
and maintain your Central
Water Filtration System
Model W ELJ1
Whirlpool Central
Water Filtration System
System tested and certified by the Water Quality
Association against CSA B483.1.
7339997 (Rev. D 7/22/14)
Manufactured and warranted by
Ecodyne Water Systems
1890 Woodlane Drive
Woodbury, MN 55125
If you have any questions or concerns when
installing, operating or maintaining your Central
Water Filtration System, call our toll free number:
1-866-986-3223
Monday - Friday, 8 AM - 7 PM EST or visit
www.whirlpoolwatersofteners.com
When you call, please be prepared to provide
the model and serial number of your product,
located on the rating decal on back of the cover.
Installation and Operation Manual
Do not return unit to store
System tested and certified by NSF International
against NSF/ANSI Standard 42
for the reduction of chlorine taste and odor,
and certified to NSF/ANSI Standard 372.

2
TABLE OF CONTENTS
Page
Specifications & Performance Claims . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Central Water Filtration System Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Before You Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Inspect Shipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
ow a Central Water Filtration System Works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installation Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-11
Programming the Central Water Filtration System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Start Up Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Customizing Features / Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-15
Care of Your Central Water Filtration System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-19

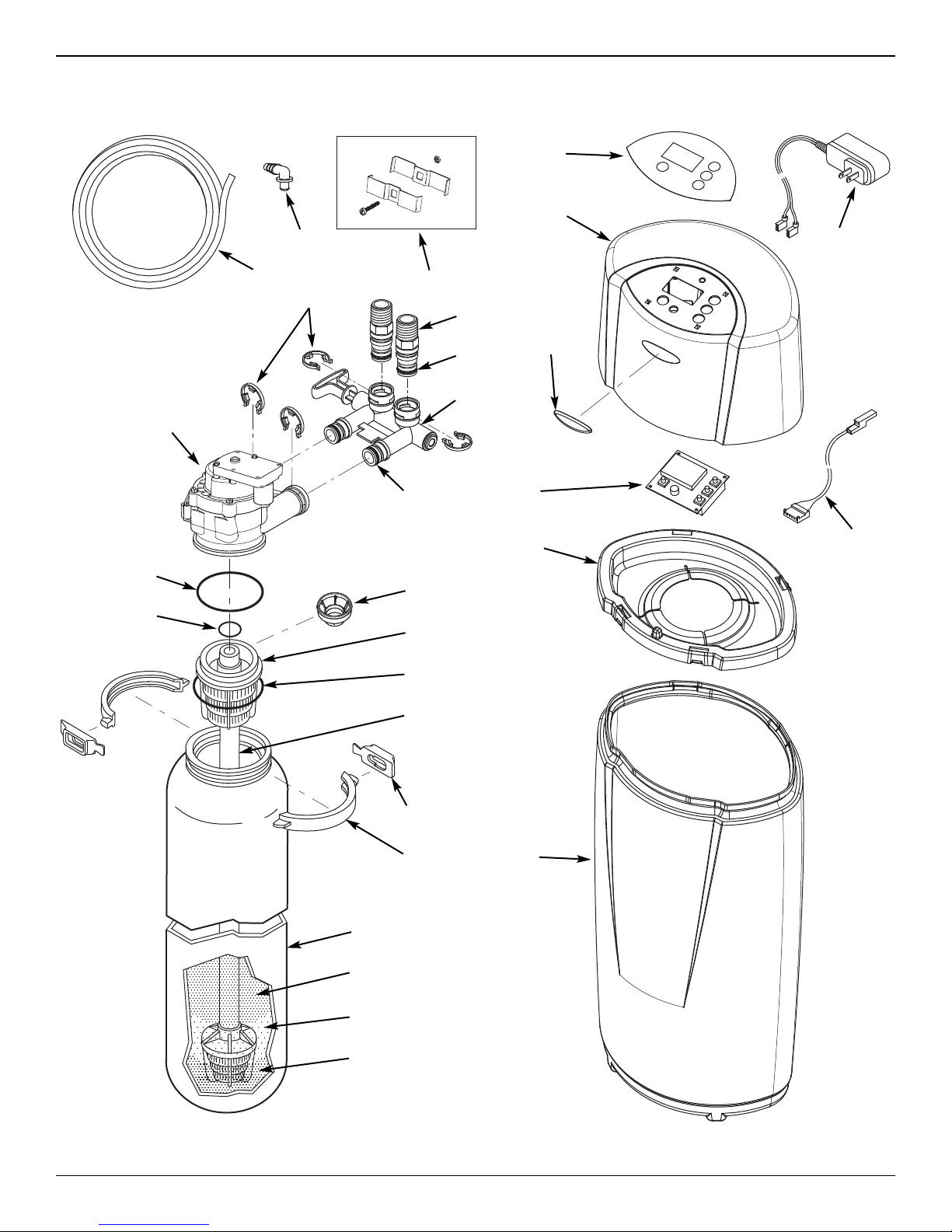

Exploded View & Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-23
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

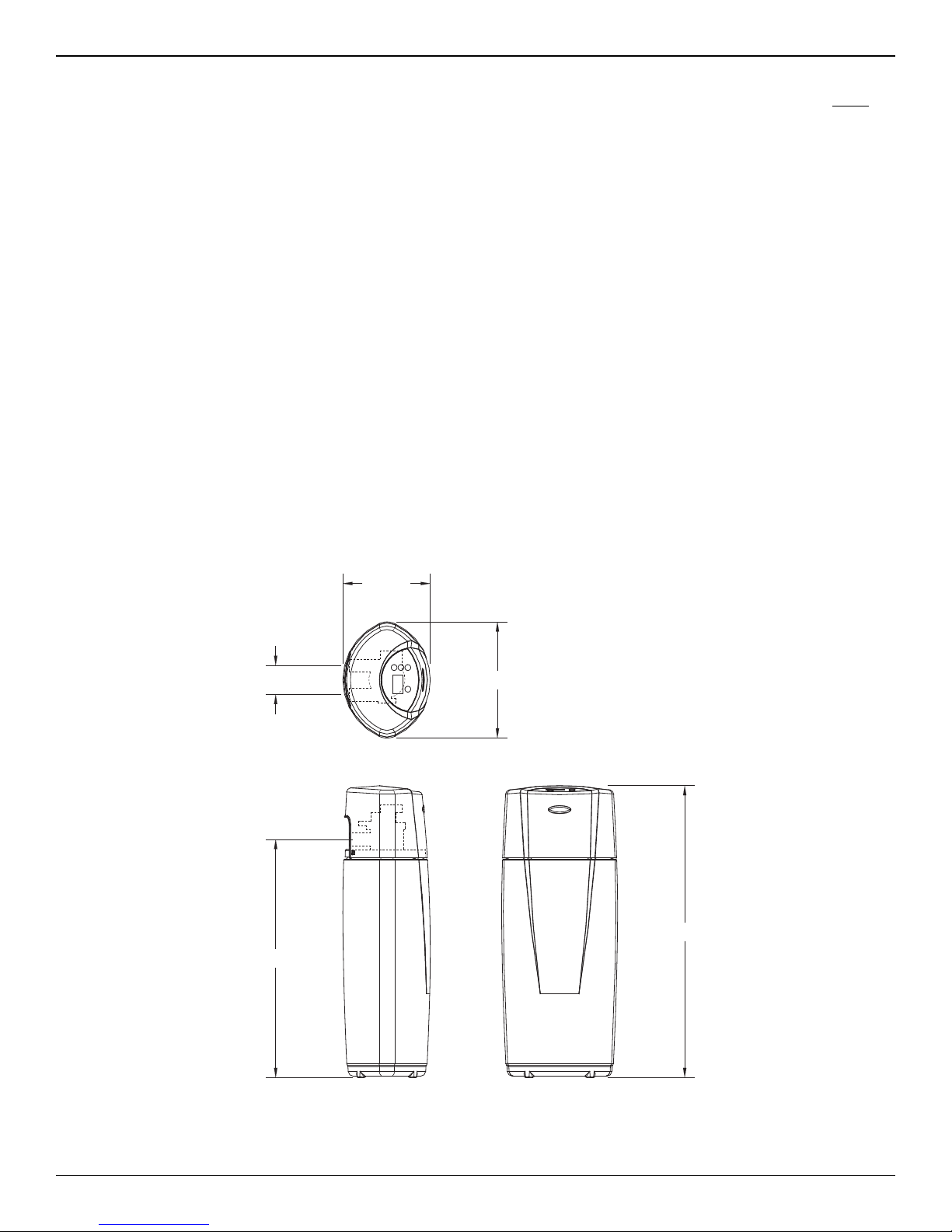

FIG. 1
27-1/2”
33-3/4”
3-3/8” 13-7/16”
10-1/8”
IN – OUT
OUT
IN
TOP VIEW
SIDE VIEW FRONT VIEW
Dimensions

3
SPECIFICATIONS
odel WHELJ1
Rated Service Flow Rate 6.0 gpm (22.7 L/min.)
Pressure Drop at Rated Service Flow 10 psig*(68.9 kPa)
Pressure Drop at 9.6 gpm 15 psig*(103.4 kPa)
Water Pressure Limits (minimum / maximum) 30 - 125 psi
(206.8 - 861.8 kPa)
Water Temperature Limits (minimum / maximum) 40 - 100 °F (5 - 38 °C)
Drain Flow Rate 3.4 gpm
0.50 ppm
0.75 ppm
Rated Capacity at Chlorine Concentration** of: 1.0 ppm
1.5 ppm
2.0 ppm
2,280,000 gal.*
1,520,000 gal.*
1,140,000 gal.*
760,000 gal.*
570,000 gal.*
Sediment Removal with 30-40 micron particle size 95% or more
Sediment Removal with 40-50 micron particle size 99% or more
*From independent laboratory test data.
** Typical residential chlorine concentration is 0.5 to 1.0 ppm.
This system conforms to NSF/ANSI Standard 42 for the specific performance claims
as verified and substantiated by test data.
Specifications & Performance Claims
Questions? Call Toll Free 1-866-986-3223 Monday- Friday, 8 AM - 7 PM EST
or visit www.whirlpoolwatersofteners.com
When you call, please be prepared to provide the model and serial number,
located on the rating decal on back of the cover.
This system has been tested according to NSF/ANSI 42 for the reduction of chlorine taste and odor. The concentra-
tion of the indicated substance in water entering the system was reduced to a concentration less than or equal to the
permissible limit for water leaving the system, as specified in NSF/ANSI 42.
While testing was performed under standard laboratory conditions, actual performance of the system may vary
based on local water conditions.
PERFOR ANCE CLAI S
Substance Influent
Challenge Level
Reduction
Requirement
Average Percent
Removal
Chlorine 2.0 ±10% mg/L 50% 82.8%

4
Before You Start
=Do not turn the Central Water Filtration System upside down, drop, or set on sharp protrusions.
=The Central Water Filtration System has a maximum allowable inlet water pressure of 125 psi and a minimum of
30 psi. If daytime pressure is over 80 psi, nighttime pressure may exceed the maximum. Use a pressure reduc-
ing valve if necessary (Adding a pressure reducing valve may reduce the flow.). If your home is equipped with a
back flow preventer, an expansion tank must be installed in accordance with local codes and laws.
=The Central Water Filtration System works on 28V DC electrical power, supplied by a direct plug-in power supply
(included). Be sure to use the included power supply and plug it into a nominal 120V, 60 z household outlet
that is in a dry location only, grounded and properly protected by an overcurrent device such as a circuit breaker
or fuse.
=Do not use the Central Water Filtration System with water that is microbiologically unsafe or of unknown quality
without adequate disinfection before or after the system.
European Directive 2002/96/EC requires all electrical and electronic equipment to be disposed of accord-
ing to Waste Electrical and Electronic Equipment (WEEE) requirements. This directive or similar laws
are in place nationally and can vary from region to region. Please refer to your state and local laws for
proper disposal of this equipment.
Central Water Filtration System Safety
Your safety and the safety of others are very important.
We have provided many safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING”
These words mean:
You can be killed or seriously injured if you don’t
immediately follow instructions.
You can be killed or seriously injured if you don’t
follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell
you what can happen if the instructions are not followed.
In the state of Massachusetts: The Commonwealth of Massachusetts plumbing code 248-CMR shall
be adhered to. A licensed plumber shall be used for this installation.
Do not return the Central Water Filtration System to store.
If you have any questions, or there are missing parts or damage, please call Toll Free 1-866-986-3223,
Monday - Friday, 8 am - 7 pm EST, or visit www.whirlpoolwatersofteners.com
When you call, please be prepared to provide the model and serial number, found on the rating decal on
back of the cover.

How a Central Water Filtration System Wor s
NOR AL OPERATION
During normal operation water enters the Central
Water Filtration System and flows through several fil-
tration processes where tastes, odors and sediment
are reduced.
CLEAN RINSE CYCLE
A Clean Rinse cycle will automatically be initiated
based on how the controller has been programmed.
The Clean Rinse cycle lifts and expands the media
bed to rejuvenate the media and then repacks the bed
for continued use. During the Clean Rinse cycle, dirt,
sediment, etc. are flushed from the Central Water
Filtration System down the drain.
APPLICATIONS FOR A CENTRAL WATER
FILTRATION SYSTE
=Do not use the Central Water Filtration System with
water that is microbiologically unsafe or of unknown
quality without adequate disinfection before or after
the system.
=The Central Water Filtration System may not be an
effective treatment method for water sources with a
hydrogen sulfide problem (rotten egg odor or taste)
If your water has hydrogen sulfide, contact a water
treatment expert or call 1-866-986-3223.
=The Central Water Filtration System will not remove
iron and is not intended to replace iron treatment
equipment.
=Although the Central Water Filtration System has
sediment filter capabilities, additional sediment filtra-
tion may be needed in problem water applications.
5
Packing List
Inspect Shipment
Ground Clamp
Kit Drain ose
Bypass Valve
Adaptor Elbow
Installation
Adaptors
FIG. 2
ose Clamps
The parts required to assemble and install the Central
Water Filtration System are included with the unit.
Thoroughly check the Central Water Filtration System
for possible shipping damage and parts loss. Also
inspect and note any damage to the shipping carton.
Remove and discard (or recycle) all packing materials.
To avoid loss of small parts, we suggest you keep the
small parts in the parts bag until you are ready to use
them.
Clips
Grommet
(used for Models W ES33,
W ES44 & W ES48)

6
LOCATION REQUIRE ENTS
Consider the following when selecting an installation
location for the Central Water Filtration System.
=Do not operate the Central Water Filtration System
where freezing temperatures occur. Do not attempt
to treat water over 100ºF (38ºC). Freezing temper-
atures or hot water damage voids the warranty.
=To condition all water in the home, install the
Central Water Filtration System close to the water
supply inlet, and before all other plumbing connec-
tions, except outside water pipes.
=For a home with municipal water supply, install the
Central Water Filtration System between the home’s
incoming water supply and the water softener, if one
is being used (See Figure 3A). If the home has well
water, reverse the order of the Central Water Filtra -
tion System and the water softener (See Figure 3B).
=A nearby drain is needed to carry away Clean
Rinse discharge water. Use a floor drain, laundry
Installation Requirements
tub, sump, standpipe, or other options (check your
local codes). See "Air Gap Requirements" and
"Valve Drain Requirements" sections. If a drain is
not available, it is still possible to operate the
Central Water Filtration System in a manual Clean
Rinse mode. See “Operating in Manual Clean
Rinse Mode.” The automatic Clean Rinse must be
disabled if the Central Water Filtration System will
not be connected to a drain (See Page 7).
=The Central Water Filtration System works on 28V
DC electrical power, supplied by a direct plug-in
power supply (included). Provide a 120V, 60 z
electrical outlet in accordance with NEC and local
codes.
=Do not install the Central Water Filtration System on
a hot water line (See Figures 3A & 3B, below).
=Avoid installing in direct sunlight. Excessive sun
heat may cause distortion or other damage to non-
metallic parts.

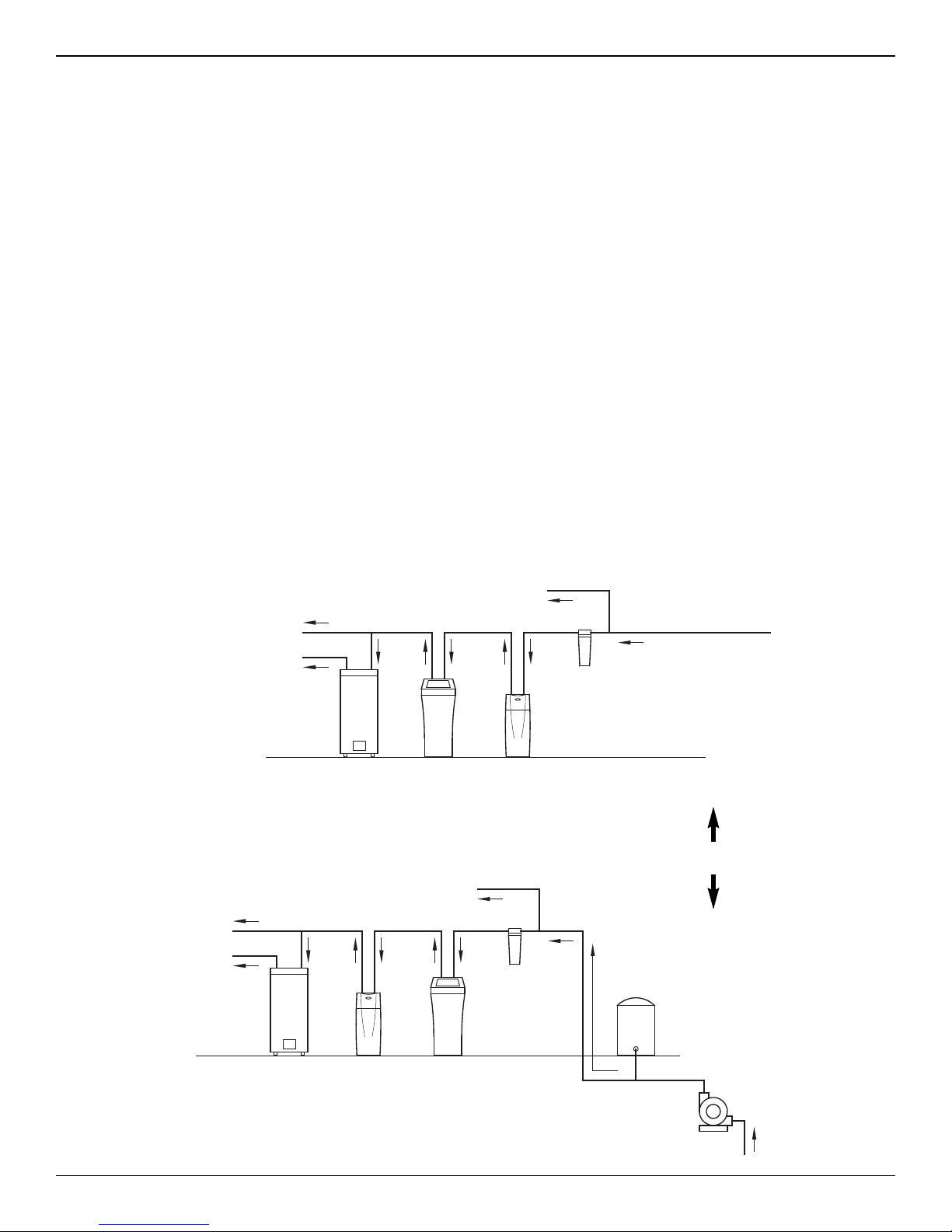

THE PROPER ORDER TO INSTALL WATER TREAT ENT EQUIP ENT
Untreated Water to
Outside Faucets
FIG. 3B
ot Water
to ouse
Cold Water
to ouse
Untreated Water to
Outside Faucets
Water
eater
Optional
Sediment
Filter
Pressure
Tank
Well
Pump
ot Water
to ouse
Cold Water
to ouse
Central
Water
Filtration
System
Water
eater
Water
Softener
Optional
Sediment
Filter
City Water Supply
Well Water Supply
Central
Water
Filtration
System
Water
Softener
FIG. 3A
OR

7
Installation Requirements
PLU BING CODES
All plumbing must be completed in accordance with
national, state and local plumbing codes.

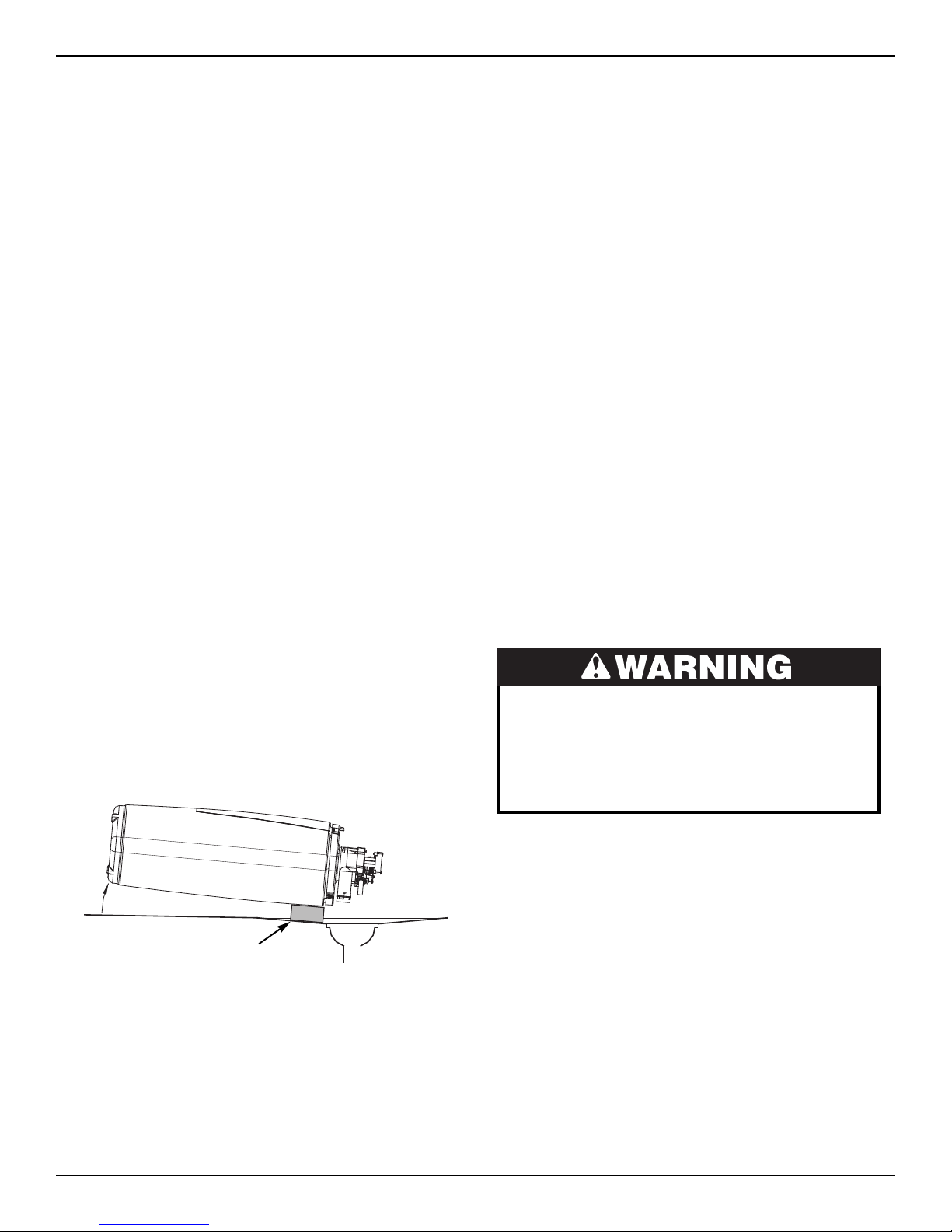

VALVE DRAIN REQUIRE ENTS
Using the flexible drain hose (included), measure and
cut to the length needed. Flexible drain hose is not
allowed in all localities (check your plumbing codes). If
local codes do not allow use of a flexible drain hose, a
rigid valve drain run must be used. Purchase a com-
pression fitting (1/4 NPT x 1/2 in. minimum tube) and
1/2" tubing from your local hardware store. Plumb a
rigid drain as needed (see Figure 4, below).
NOTE: Avoid drain hose runs longer than 30 feet.
Make the valve drain line as short and direct
as possible.
It is recommended that the Central Water Filtration
System be installed near a drain. owever, if a drain
is not available, it is still possible to operate the
Central Water Filtration System in a manual Clean
Rinse mode. See “Operating in Manual Clean Rinse
Mode” section. The automatic Clean Rinse function
must be disabled if the Central Water Filtration System
will not be connected to a drain.
1-1/2”
air gap
Install adaptor
elbow using hose
clamp. Aim noz-
zle down toward
center of drain
Tie or wire
tubing in
place
FIG. 4
LAUNDRY TUB STANDPIPE
1-1/2”
air gap
FLOOR DRAIN
1-1/2”
air gap
To drain point other
than floor drain.
Support tubing in
place as needed.
Drain
Fitting
Clip
Barbs
1/4 NPT Threads
1/2” Outside Dia.
Copper Tube
(not included)
Comp Fitting. 1/4
NPT x 1/2” O.D.
Tube (not included)
Cut barbs from
drain fitting (pull
clip to remove fit-
ting from valve)
CONNECTING VALVE TO DRAIN
SUBSTITUTING RIGID DRAIN LINE
ose
Clamp
Valve
Drain
ose
Drain grate with 1”
dia. hole in center
In the state of Massachusetts: The Commonwealth
of Massachusetts plumbing code 248-CMR shall
be adhered to. A licensed plumber shall be used
for this installation.
AIR GAP REQUIRE ENTS
A drain is needed for Clean Rinse discharge water. A
floor drain, close to the Central Water Filtration
System, is preferred. A laundry tub, standpipe, etc.
are other drain options. Secure valve drain hose in
place. Leave an air gap of 1-1/2” between the end of
the hose and the drain. This gap is needed to prevent
backflow of sewer water into the Central Water
Filtration System . Do not put the end of the drain
hose into the drain.

8
Installation Requirements

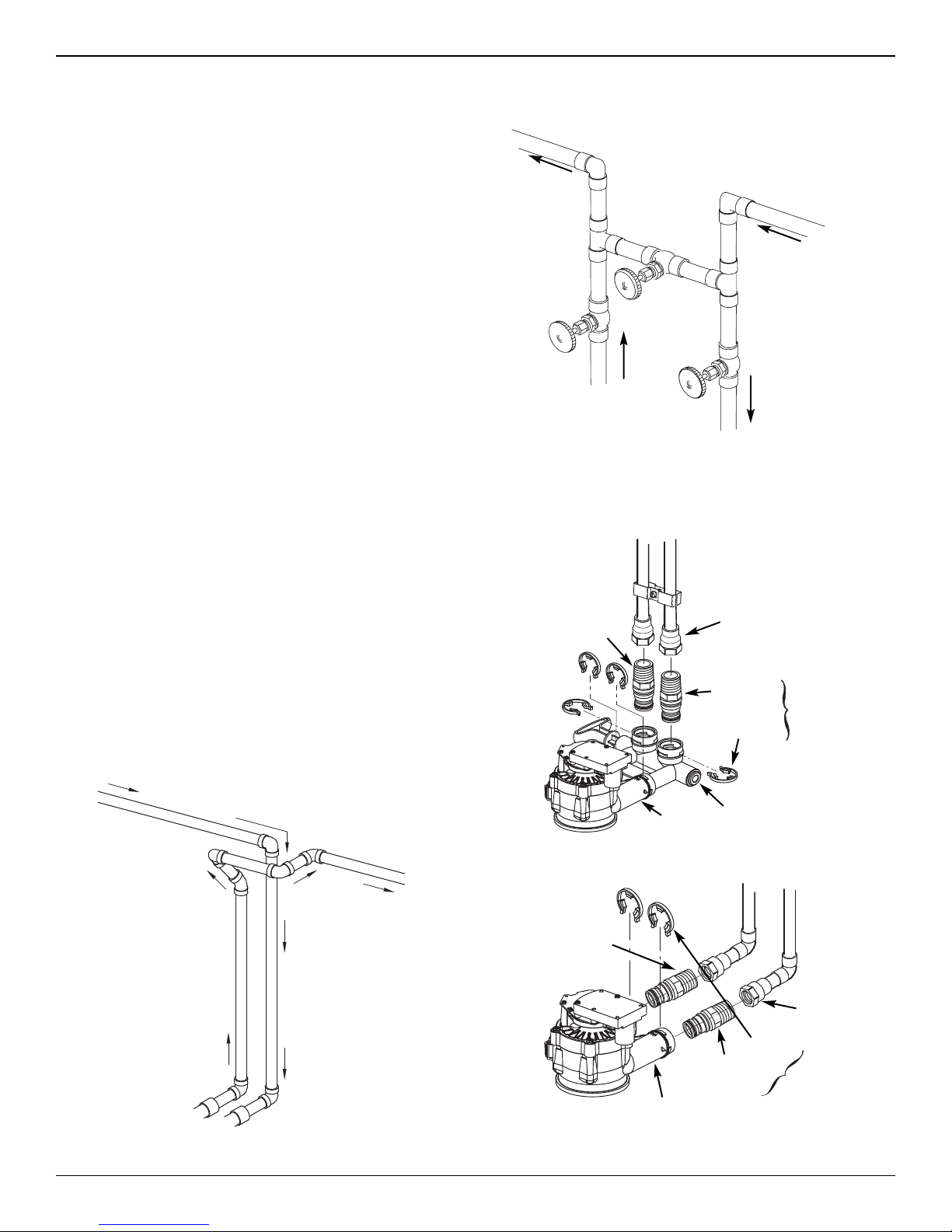

INLET - OUTLET PLU BING OPTIONS
Always install either a single bypass valve (provided)
to the contractor/plumber-supplied plumbing, as shown
in Figure 7 OR if desired, a 3 valve bypass system
(parts not included) can be installed, as shown in
Figure 6. Bypass valves allow you to turn off water to
the Central Water Filtration System for maintenance if
needed, but still have water in house pipes.
Use either:
=Copper pipe
=Threaded pipe
=PEX (Crosslinked Polyethylene) pipe
=CPVC plastic pipe
=Other pipe approved for use with potable water
I PORTANT: Do not solder with plumbing attached to
installation adapters and single valve
bypass. Soldering heat will damage the
adapters and valve.
FIG. 7
FIG. 6
3 VALVE BYPASS
Central Water Filtration
System INLET
INOUT
Clip (2)
Valve
Inlet
1” NPT
Adapter (2)
1” NPT Sweat
Adapter (2)
(not included)
CROSS OVER
FIG. 5
To Central Water
Filtration System
ain Water Pipe
In what direction does the water flow?
Be sure to plan piping so water flow is to the
Central Water Filtration System valve INLET.
Plan a crossover if flow is from left to right.
Treated
Water from
Valve
OUTLET
Central Water Filtration
System OUTLET
Untreated
Water to
Valve
INLET
CONNECTING PLU BING TO VALVE
Included
1” NPT
Adapter (2)
Clip (4)
1” NPT Sweat
Adapter (2)
(not included)
Bypass
Valve
Valve
Inlet
INOUT
Included
Use Teflon® tape,
pipe joint com-
pound or both
Use Teflon® tape,
pipe joint com-
pound or both

9
Installation Instructions
TURN OFF WATER SUPPLY
1. Close the main water supply valve, near the well
pump or water meter.
2. Open all faucets to drain water from the house
pipes.
NOTE: Be sure not to drain water from the water
heater, as damage to the water heater ele-
ments could result.
OVE THE CENTRAL WATER FILTRATION
SYSTE INTO PLACE
Post
Top Cover
RE OVE TOP COVER AND HANG IT
FRO POST ON FRONT OF RI
FIG. 9
Plywood
Shim(s)
LEVEL IF NECESSARY
FIG. 8
1. Move the Central Water Filtration System into instal-
lation position. Set it on a level surface. If needed,
place the unit on a section of plywood, a minimum
of 5/8” thick. Then place shims under the plywood
to level the Central Water Filtration System (see
Figure 8).
2. Remove top cover.
3. ang cover from post on front of rim, as shown in
Figure 9. Avoid allowing cover to hang from wires.
Excessive Weight Hazard
Use two or more people to move and install
Central Water Filtration System.
Failure to do so can result in back or other
injury.

10
1. Install metal grounding clamp to metal house water
supply pipes before beginning installation.
2. Securely tighten connection in center of metal
ground clamp (See Figure 10).
3. Loosely assemble any pipe and fittings needed from
the main water supply to the inlet and outlet ports of
the Central Water Filtration System valve.
I PORTANT:
=Be sure to fit, align and support all plumbing to pre-
vent putting stress on the Central Water Filtration
System valve inlet and outlet. Undue stress from
misaligned or unsupported plumbing may cause
damage to the valve.
=Be sure to keep fittings fully together, and pipes
squared and straight.
=Be sure incoming water supply pipe goes to the
Central Water Filtration System valve INLET side.
Inlet and outlet are marked on the valve. Trace the
water flow direction to be sure.
4. Complete the inlet and outlet plumbing for the type
of pipe as described at right:
Installation Instructions
FIG. 10
Ground
Clamp (2)
Screw with
locking nut
Plastic
Bypass
Valve
Metal
Pipes
Soldered Copper
1. Thoroughly clean and apply solder flux to all joints.
2. Make all solder connections.
I PORTANT: Do not solder with plumbing attached to
installation Adapters and single valve
bypass. Soldering heat will damage the
Adapters and valve.
Threaded Pipe
1. Apply pipe joint compound or Teflon® tape to all
male pipe threads.
2. Tighten all threaded joints and make all solder con-
nections.
CPVC Plastic Pipe
1. Clean, prime and cement all joints, following the
manufacturer's instructions supplied with the plastic
pipe and fittings.
Other, including PEX (Crosslinked
Polyethylene)
1. Follow the piping system manufacturer's instructions
when using other pipe approved for potable water.
® Teflon is a registered trademark of E.I. Du Pont de
Nemours and Company.

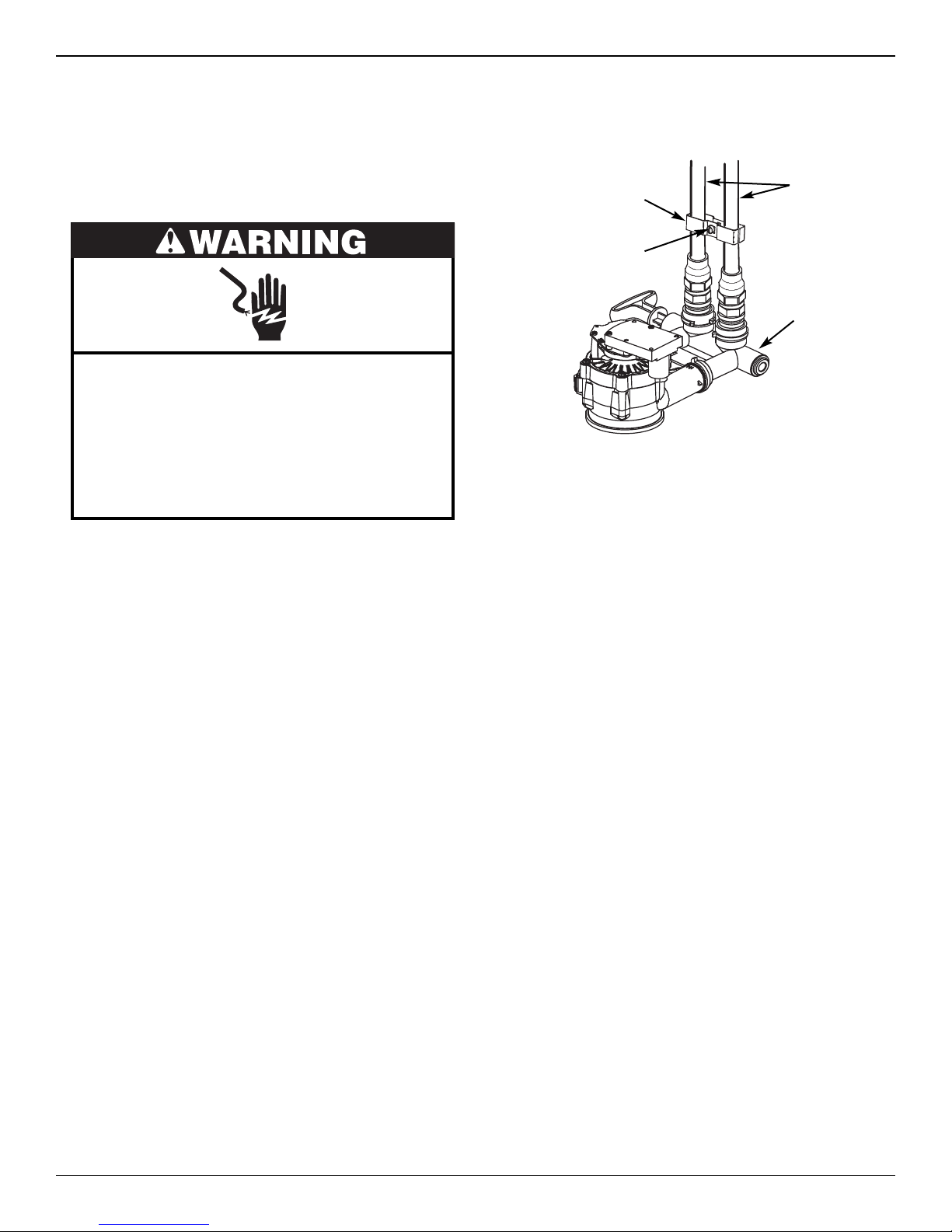

Electrical Shock Hazard
Install metal ground clamp to metal house
water supply pipe before beginning installation.
Securely tighten connection in center of metal
ground clamp.
Failure to do so can result in death or
electrical shock.
ASSE BLE INLET AND OUTLET PLU BING
A ground clamp should be installed on the household
plumbing supply lines in accordance with the National
Electric Code.

11
Installation Instructions
FIG. 11
SINGLE BYPASS VALVE
Pull handle
OUT for normal
operation
Push handle IN
for BYPASS
INSTALL VALVE DRAIN HOSE
1. Measure, cut to needed length and connect the 3/8"
drain line (provided) to the Central Water Filtration
System valve drain fitting (See Figure 11). Use a
hose clamp to hold the hose in place.
NOTE: If codes require a rigid drain line see “Valve
Drain requirements" section.
2. Run the drain hose or copper tubing to the floor drain.
Secure drain hose. This will prevent the drain line
from “whipping'' during Clean Rinse cycles. See “Air
Gap Requirements" section.
TEST FOR LEAKS
1. Make sure the single bypass valve (or 3 valve bypass,
if installed) is in the bypass position, with the handle
pushed in (See Figure 11).
2. Fully open the main water supply valve.
3. Briefly open a faucet in the house to refill the plumb-
ing with water.
4. Slowly move the bypass valve(s) to the normal opera-
tion position, pausing several times to allow the unit to
pressurize slowly (See Figure 11).
5. Check for leaks at all the plumbing connections you
made.
I PORTANT: Start up procedure must be run prior to
using any filtered water. Follow the
instructions below and on Page 13.
TURN ON THE CENTRAL WATER FILTRA-
TION SYSTE
During installation, the Central Water Filtration System
wiring may be moved or jostled from place. Check to be
sure all leadwire connectors are secure on the back of
the electronic board and be sure all wiring is away from
the valve gear and motor area, which rotates during
Clean Rinse cycles.
1. Plug the Central Water Filtration System’s power sup-
ply into an electrical outlet that is not controlled by a
switch.
2. In the display, the words “PRESENT TIME” appear
and 12:00 PM begins to flash. Set the clock accord-
ing to the “Set Time of Day” section on Page 12.
3. Run the start up procedure, as detailed on Page 13.
Drain Line
Connection

12
Programming the Central Water Filtration System
When the power supply is plugged into the electrical
outlet, a model code and a test number (example:
J2.0), begin to flash in the faceplate display. Then,
12:00 PM and the words “PRESENT TIME" begin to
flash.
NOTE: If “- - - -” shows in the display, press the r
UP or sDOWN button until the model code
“CF 8” shows in the display. Then, press the
PROGRAM button to set, and change to the
flashing “PRESENT TIME" display.
FIG. 12
UP
button
DOWN
button
Display
CLEAN
button
PROGRAM
button
NOTE: Press buttons and quickly release to slowly
advance the display. old the buttons down
for fast advance.
2. Press the PROGRAM button a few times, until the
time appears on the display, but is not flashing.
FIG. 13
SET TI E OF DAY
If the words “PRESENT TIME" do not show in the dis-
play, press the PROGRAM button until they do.
1. Press the rUP or sDOWN buttons to set the
present time. Up moves the display ahead; down
sets the time back. Be sure AM or PM is correct.
Questions? Call Toll Free 1-866-986-3223 Monday- Friday, 8 AM - 7 PM EST
or visit www.whirlpoolwatersofteners.com
When you call, please be prepared to provide the model and serial number,
located on the rating decal on back of the cover.

13
Start Up Procedure
I PORTANT:
Run the start up cycle immediately after
completing installation, before using any
water in the home.
The filtration media in this Central Water Filtration
System contains a small number of harmless activated
carbon particles generated during shipping that are
small enough to exit the system with water flow. It is
normal for these particles to cause a temporary discol-
oration of the water coming out of the system. To
avoid discolored water at your home’s faucets the sys-
tem’s start up cycle should be initiated to rinse the par-
ticles and any discolored water down the drain.
If the Central Water Filtration System is used without
first running the start up cycle, you will notice that the
water will temporarily have a gray color until the parti-
cles have exited the system.
To Initiate the start up cycle:
1. Make sure the drain hose is attached to the Central
Water Filtration System and the other end is
secured over a drain (see “Install Valve Drain ose”
on Page 11).
2. Make sure bypass valve is in the “service” (open or
filtered water) position and the home’s water supply
is turned on.
3. Press and hold the CLEAN button to initiate the
start up cycle. The button can be released when
you hear the valve changing position and
“REC ARGE NOW” flashes in the display.
During the start up cycle:
Throughout the start up cycle you will hear the valve
changing position and notice the flow of water to drain
starting and stopping. The start up cycle will take
approximately 20 minutes. Avoid using water during
this time. Do not set the time of day or press other
buttons during the start up cycle, as this will interrupt
the start up cycle. Do not unplug the power supply
during the start up cycle. If the start up cycle is inter-
rupted, it should be initiated again and allowed to run
to completion.
After the start up cycle:
Once the start up procedure completes successfully, it
cannot be initiated a second time. The Central Water
Filtration System will automatically return to the normal
operation position. Once the start up cycle has run, a
faucet in the home should be opened and water
allowed to run for 10 minutes at the system’s rated
flow. If, after running the start up cycle, the water still
appears discolored, manually run Clean Rinse cycles
(See Page 14) until the water is clear.
If the time of day was not set before the start up cycle,
set it now (See Page 12).
Check the new plumbing connections and joints once
more for leaks.
Questions? Call Toll Free 1-866-986-3223 Monday- Friday, 8 AM - 7 PM EST
or visit www.whirlpoolwatersofteners.com
When you call, please be prepared to provide the model and serial number,
located on the rating decal on back of the cover.

14
Customizing Features / Options
SET NU BER OF DAYS BETWEEN
CLEAN RINSE CYCLES
By default the Central Water Filtration System will
automatically initiate a Clean Rinse every 14 days.
This should be sufficient for most applications.
To change the number of days between Clean Rinse
cycles:
1. Press the PROGRAM button twice, so “REC ARGE”
is shown in the display.
2. Press the rUP or sDOWN buttons to set the
number of days between Clean Rinse cycles (from 1
to 99).
3. Press the PROGRAM button twice when complete.
SET CLEAN RINSE TI E
By default the Central Water Filtration System will
Clean Rinse at 1:00 a.m.
To change the Clean Rinse start time:
1. Press the PROGRAM button three times, so
“REC ARGE TIME” is shown in the display.
FIG. 15
2. Press the rUP or sDOWN buttons to set the
Clean Rinse time. Be sure AM or PM is correct.
3. Press the PROGRAM button again when com-
plete.
FIG. 16
SET LENGTH OF CLEAN RINSE
By default the Central Water Filtration System’s
Clean Rinse cycle will consist of a 2 minute back-
wash followed by a 1 minute fast rinse. This should
be sufficient for most applications.
Increasing the length of Clean Rinse time will
increase the amount of water flushed to drain during
each Clean Rinse cycle, therefore, these times
should only be increased when necessary.
To change the length of the backwash part of the
Clean Rinse cycle:
1. Press and hold the PROGRAM button for a few
seconds, until the “000--” screen appears, as shown
in Figure 17.
2. Press the PROGRAM button once, so “bA TIME”
appears in the display.
FIG. 17
3. Press the rUP or sDOWN buttons to set the
length of backwash in minutes.
4. Press the PROGRAM button twice when complete.
To change the length of the fast rinse part of the
Clean Rinse cycle:
1. Press and hold the PROGRAM button for a few
seconds, until the “000--” screen appears, as shown
in Figure 17.
2. Press the PROGRAM button twice, so “Fr TIME”
appears in the display.
3. Press the rUP or sDOWN buttons to set the
length of fast rinse in minutes.
4. Press the PROGRAM button again when com-
plete.
FIG. 18
FIG. 19
FIG. 14
START A CLEAN RINSE CYCLE
To manually start a Clean Rinse cycle, press and
hold the CLEAN button for a few seconds, until
“REC ARGE NOW” flashes in the display.

15
Customizing Features / Options
OPERATING IN ANUAL CLEAN RINSE
ODE
Clean Rinse cycles will run automatically, unless the
automatic Clean Rinse function has been disabled. If
this function has been disabled, it will be necessary to
manually initiate any Clean Rinse cycles. It is recom-
mended that a Clean Rinse cycle should be run at
least once each month, or more frequently if neces-
sary.
A manual Clean Rinse mode may be used when a
drain (required for automatic Clean Rinse) is not
available. owever, it is recommended that automat-
ic Clean Rinse be used if the drain requirements can
be met.
I PORTANT: During the Clean Rinse cycle, whether
manually or automatically initiated, water will flow
from the valve drain port. If a permanent drain line
has not been installed, provisions must be made for
the drain flow prior to initiating a Clean Rinse cycle.
DISABLING AUTO ATIC CLEAN RINSE
To disable the automatic Clean Rinse function:
1. Press and immediately release the CLEAN button
(pressing and holding the button a few seconds would
initiate a Clean Rinse cycle).

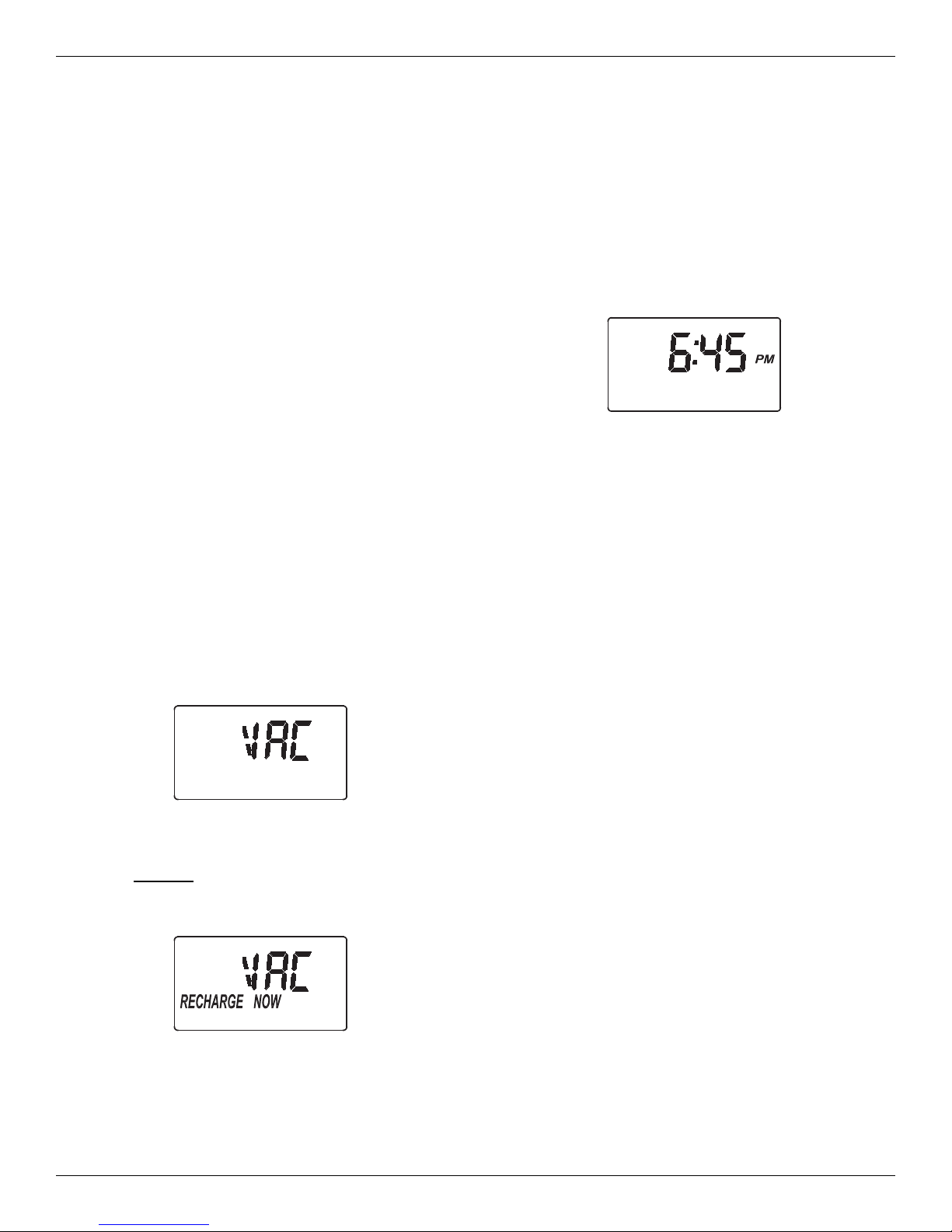

2. “VAC” should flash in the display, as shown in
Figure 20, indicating that the Central Water Filtration
System is in the manual Clean Rinse mode (the auto-
matic Clean Rinse function has been disabled).
POWER OUTAGE E ORY
If electrical power to the Central Water Filtration
System is lost, “memory'' built into the controller cir-
cuitry will keep all settings for several hours. While
the power is out, the display is blank and the Central
Water Filtration System will not Clean Rinse.
When electrical power is restored, you have to reset
the time of day only if the display is flashing. The
Clean Rinse TIME never requires resetting unless a
change is desired. Even if the clock is incorrect after
a long power outage, the Central Water Filtration
System works as it should to keep your water treated.
owever, Clean Rinse cycles may occur at the wrong
time of day until you reset the clock to the correct
time of day.
NOTE: If the Central Water Filtration System was in a
Clean Rinse cycle when power was lost, it will
now finish the cycle.
ANUALLY STARTING A CLEAN RINSE CYCLE
To manually start a Clean Rinse cycle:
1. Press and hold the CLEAN button for a few sec-
onds, until “REC ARGE NOW” flashes in the display,
as shown in Figure 21.
2. When the Clean Rinse cycle is complete, the
Central Water Filtration System will remain in the
manual Clean Rinse mode.
FIG. 20
FIG. 21
RE-ENABLING AUTO ATIC CLEAN RINSE
To return the Central Water Filtration System to its
automatic Clean Rinse function:
1. Press and immediately release the CLEAN button.
2. The flashing “VAC” on the display should be
replaced by the normal time of day screen, as shown
in Figure 22.
FIG. 22

16
Care of Your Central Water Filtration System
VACATIONS AND EXTENDED PERIODS OF
NO WATER USE
If your Central Water Filtration System will not be used
for an extended period of time (several months),
please follow one of these recommendations:
=If the water supply to the unit is not turned off, and
the automatic Clean Rinse function has not been
disabled, then no further actions are required.
=If the Clean Rinse cycle cannot be automatically
run, due to the water supply being shut off, the
power supply being unplugged or the automatic
Clean Rinse function being disabled, then it is rec-
ommended that a minimum of 2 manually initiated
Clean Rinse cycles be performed when the system
is placed back into operation (see Start a Clean
Rinse Cycle section on Page 14).
=In any installation where there is a possibility of
freezing, the Central Water Filtration System should
be disconnected and the water drained (see Protect
the Central Water Filtration System from Freezing
section).
PROTECT THE CENTRAL WATER FILTRA-
TION SYSTE FRO FREEZING
If the Central Water Filtration System is installed where
it could freeze (summer cabin, lake home, etc.), you
must drain all water from it to stop possible freeze
damage. To drain the unit:
1. Close the shut-off valve on the house main water
pipe, near the water meter or pressure tank.
2. Open a faucet in the filtered water pipes to vent
pressure in the unit.
3. Move the stem in the single bypass valve to bypass.
Close the inlet and outlet valve in a 3 valve bypass
system, and open the bypass valve. If you want
water in the house pipes again, reopen the shut-off
valve on the main water pipe.
4. Unplug the power supply at the wall outlet. Remove
the cover. Take off the drain hose if it will interfere
with moving the Central Water Filtration System into
position over the drain.
5. Remove the large holding clips at the Central Water
Filtration System inlet and outlet. Separate the unit
from the plastic installation adaptors, or from the
bypass valve.
6. Lay a piece of 2 inch thick board near the floor
drain.
DRAIN ALL WATER FRO CENTRAL
WATER FILTRATION SYSTE
Floor Drain
Wood Block
FIG. 23
7. Move the Central Water Filtration System close to
the drain. Slowly and gently, tip it over until the rim
rests on the wood block with the inlet and outlet
over the drain. Do not allow the unit’s weight to rest
on the inlet and outlet fittings or they may break.
8. Tip the bottom of the Central Water Filtration
System up a few inches and hold until all water has
drained. Leave the unit laying like this until you are
ready to use it. Plug the inlet and outlet with clean
rags to keep dirt, bugs, etc. out.
Excessive Weight Hazard
Use two or more people to move and install
Central Water Filtration System.
Failure to do so can result in back or other
injury.

17
Troubleshooting
PROBLE CAUSE CORRECTION
Water has black r
gray c l r
(NEW SYSTEM) Start up procedure
has not been completed
Run start up procedure (See Page 13) or run
consecutive Clean Rinse cycles (See Page 14)
until water color returns to normal.
(NOT A NEW SYSTEM) Normal abra-
sion of filtration media
Manually initiate a Clean Rinse cycle (See Page 14).
L w water pressure at
h use faucets
Sediment filter screen is clogged Manually initiate a Clean Rinse cycle (See Page 14).
Clean sediment filter screen (See Page 19). If
the filter screen is frequently plugging, it may be
necessary to adjust the frequency of Clean Rinse
cycles.
Filtration media pores are blocked Manually initiate a Clean Rinse cycle (See Page 14).
If the filtration media pores are frequently block-
ing, it may be necessary to increase the frequen-
cy of Clean Rinse cycles.
Water has bjecti n-
able taste and/ r d r
System is in bypass Move bypass valve(s) to normal operating (non-
bypass) position.
Filtration media pores are blocked Manually initiate a Clean Rinse cycle (See Page 14).
If the filtration media pores are frequently block-
ing, it may be necessary to increase the frequen-
cy of Clean Rinse cycles.
N water fl w t drain
during Clean Rinse
cycle
System is in bypass Move bypass valve(s) to normal operating (non-
bypass) position.
Drain flow control is plugged Clean drain flow control (See Page 18).
Drain hose is plugged or kinked Straighten drain hose.
Power supply is unplugged from wall
electrical outlet (display will be blank)
Check for loss of power and correct.
Clean Rinse cycle d es
n t run aut matically
If display reads “VAC”, then Clean
Rinse function has been disabled
Press and release the CLEAN button until display
no longer reads “VAC”.
If display is blank, power supply may be
unplugged from wall electrical outlet
Check for loss of power.
Clean Rinse cycle d es
n t run at the pr -
grammed time f day
If time display is flashing, then a long
power loss caused the clock to lose its
time setting
Reset the clock to the correct time of day (See
Page 12).
Steady beeping fr m
electr nic c ntr l
Electronic control board is wet Allow 48 hours for board to dry, or use blow dryer.
Err r C de E1, E3 r
E4 appears
Fault in wiring harness or connections
to position switch
Replace wiring harness or connection to position
switch (See parts list at end of this manual).
Fault in switch Replace switch (See parts list at end of this manual).
Fault in valve causing high torque Replace rotor/seal kit (instructions included with kit).
Motor inoperative Replace motor (instructions included with motor)
Err r C de E5 appears Electronic control Replace electronic control board (PWA) (instruc-
tions included with PWA).
Need help troubleshooting? Call Toll Free 1-866-986-3223 Monday- Friday, 8 AM - 7 PM EST
or visit www.whirlpoolwatersofteners.com
When you call, please be prepared to provide the model and serial number,
located on the rating decal on back of the cover.

18
Troubleshooting
FIG. 25

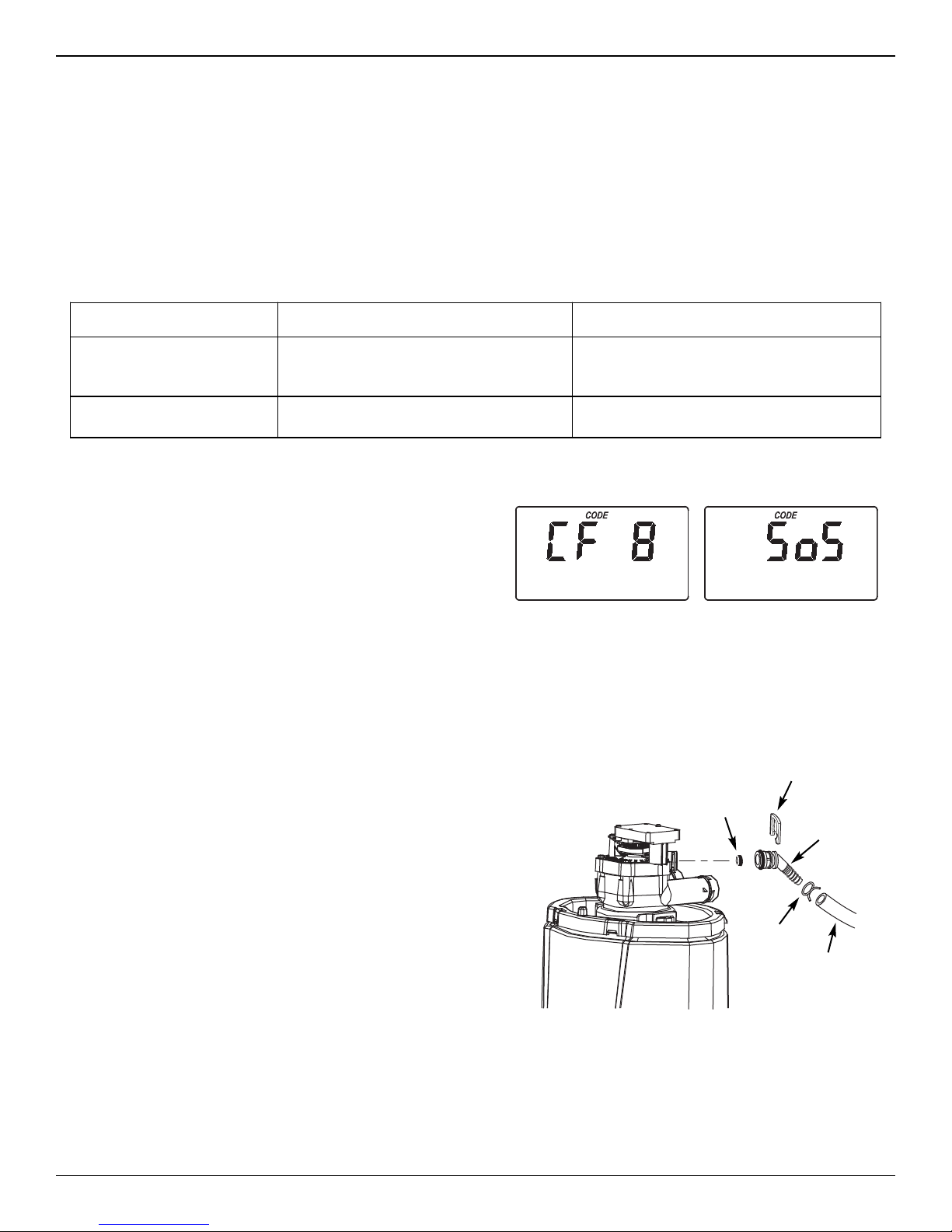

RE OVING DRAIN FITTING TO CLEAN
FLOW CONTROL
Clip
ose
Clamp
Drain
ose
Flow
Control Drain
Fitting
PROBLE CAUSE CORRECTION
Water running t the
drain (while unit is n t in
the Clean Rinse cycle)
Inner valve defect causing leak Replace seals and rotor
Filter media in h useh ld
plumbing
Crack in distributor or riser tube Replace distributor or riser tube.
Procedure for removing error code from display:
1. Unplug power supply from electrical outlet.
2. Correct problem.
3. Plug power supply back in.
4. Wait 8 minutes. The error code will return if the problem was not corrected.
Assistance from customer service may be needed with the following:
Need help troubleshooting? Call Toll Free 1-866-986-3223 Monday- Friday, 8 AM - 7 PM EST
or visit www.whirlpoolwatersofteners.com
When you call, please be prepared to provide the model and serial number,
located on the rating decal on back of the cover.
FIG. 24
RESETTING TO FACTORY DEFAULTS
To reset the electronic controller to its factory default
for all settings (time, number of days between Clean
Rinse cycles, etc.):
1. Press the PROGRAM button and hold it until the
display changes twice to show “CODE” and the
flashing model code.
2. Press the rUP button twice to display a flashing
“SoS”.
3. Press the PROGRAM button, and the electronic
controller will restart.
4. Set the present time, as described on page 12.
CLEANING THE DRAIN FLOW CONTROL
This procedure is not required if the Central Water
Filtration System is operating normally. It should be
performed only if a problem with lack of water flow to
drain is encountered, as detailed in the troubleshooting
table on Page 17.
1. Remove the clip holding the drain fitting into the
valve (See Figure 25).
2. Remove the drain fitting from the valve
3. Clear any obstruction.
4. Reinstall the drain fitting into the valve.
5. Reinstall the clip to secure the drain fitting in the
valve.

19
Troubleshooting
CLEANING THE SEDI ENT FILTER
SCREEN
This procedure is not required if the Central Water
Filtration System is operating normally. It should be
performed only if a problem with low water pressure at
household faucets is encountered, as detailed in the
troubleshooting table on Page 17.
1. Press and hold the CLEAN button for a few sec-
onds, until “REC ARGE NOW” begins to flash in
the display.
2. When water begins to flow from the valve drain
hose, place the bypass valve(s) in bypass position
(See Figure 11 on Page 11).
I PORTANT: Be sure to do Steps 1 and 2, as instruct-
ed, to relieve water pressure in the tank.
3. Unplug the power supply from the wall electrical
outlet.
4. Remove the cover and hang it from the post on
front of rim (See Figure 9 on Page 9).
5. Pull the two clips at the inlet and outlet fittings.
Slide the adaptors, or bypass valve, from the
Central Water Filtration System valve.
6. Remove the clamp retainers (2) and clamp sections
(2) that hold the valve to the tank (See Figure 27).
Lift upward to remove the valve.
7. Remove the small o-ring (See Figure 28).
8. Remove the screen from the top distributor. Rinse
off the screen.
9. Use water to flush the tank top opening. Then,
replace the top distributor and o-ring. Be sure to
locate o-ring seal correctly (See Figure 28).
10. Install the valve assembly and retaining clamps.
Double check to be sure clamps and retainers are
securely fastened in place.
11. Referring to the installation instructions, reconnect
the Central Water Filtration System to the plumb-
ing. Be sure the plumbing is held firmly in place in
the valve inlet and outlet.
12. Return the plumbing bypass valve(s) to normal
operating position (non-bypass).
13. Plug the power supply back into the wall electrical
outlet. The Central Water Filtration System will
complete the Clean Rinse cycle initiated in Step 1,
and will automatically return to normal operation.

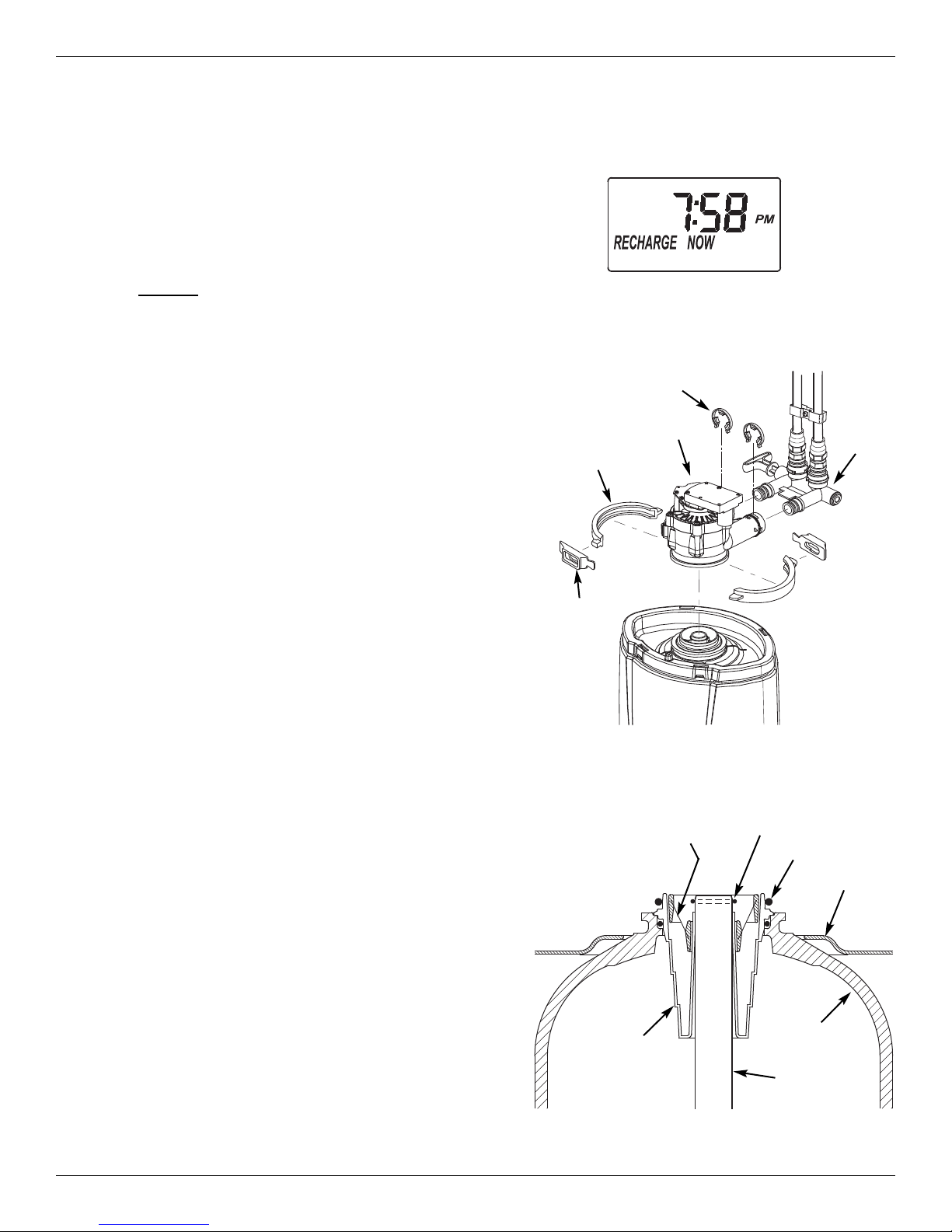

FIG. 28
FIG. 27
REASSE BLING FILTER SCREEN
Rim
Large O-ring
Small O-ring
Filter Screen
Stand pipe
Top
Distributor
Tank
RE OVING VALVE ASSE BLY
Clips (2)
Valve
Clamp
Sections (2)
Bypass
Valve
Retainers (2)

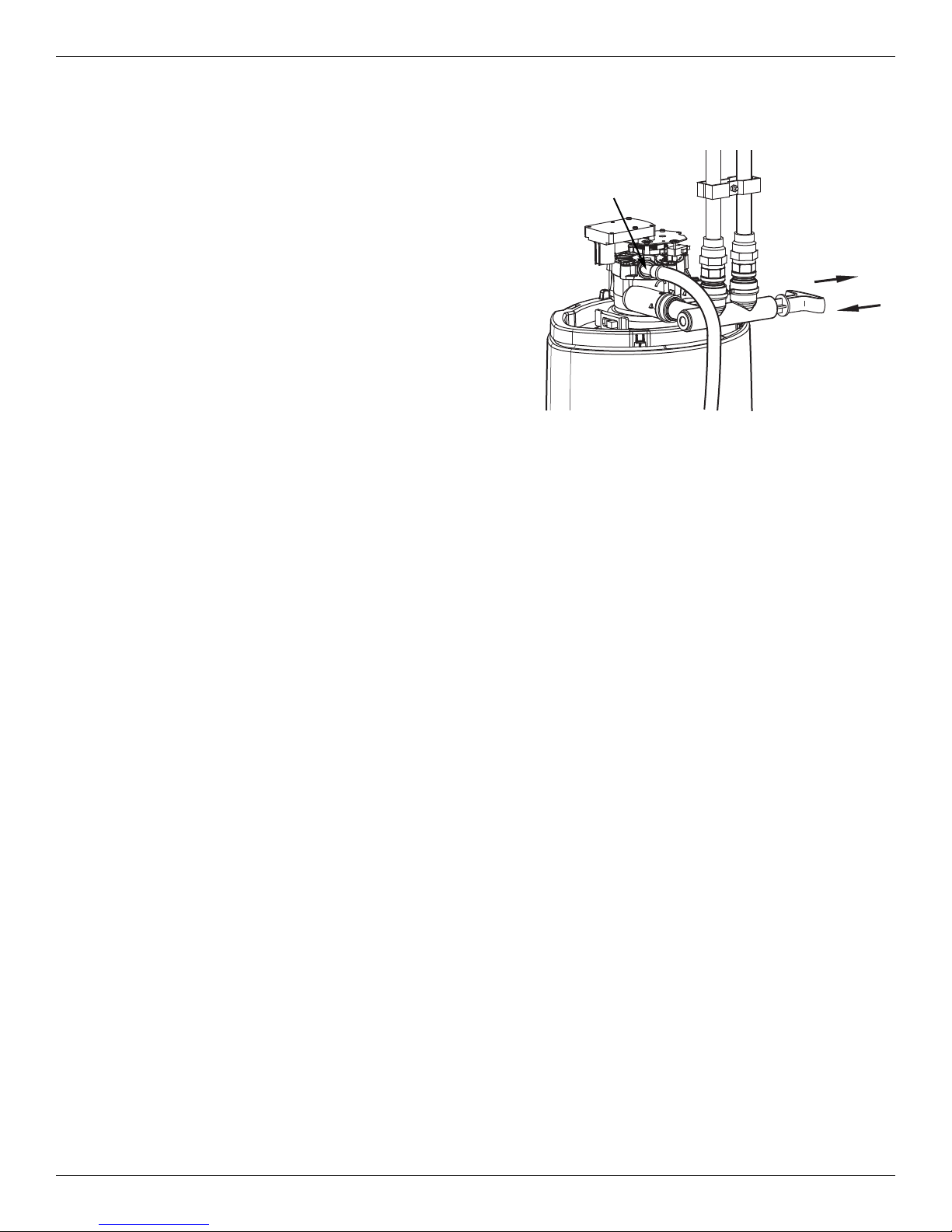

FIG. 26

20
Central Water Filtration System Exploded View
8
7
11
10
9
12
13
16
17
18
22
70
24
Valve Assembly
See Pages 22 & 23
for parts
23
20
21
14
15
71
72
72
1
2
4
3
6
5
19
