INTRODUCTION
Customer Service
Thank you for purchasing a WhisperKOOL cooling system. We strive to provide the highest-quality products and the best
possible customer service. If you have any questions about your system, please call us at 1-800-343-9463 or visit
WhisperKOOL.com.
Using the Manual
This manual is intended to assist in the proper maintenance and installation of the cooling system. In order to ensure the
longevity of your cooling unit, the equipment should be installed as outlined. It is also vital to establish a proper care and
maintenance schedule. Please read and review this manual carefully and keep it for future reference.
What is the WhisperKOOL Cooling System?
The WhisperKOOL cooling system is a specialized refrigeration system designed for one purpose only: to maintain the optimal
temperature and humidity levels conducive to the proper storage and aging of fine wines. This system produces minimal in-
cellar noise and has the most lenient exhaust requirements.
How Does the Cooling System Work?
Similar to the air conditioning systems used for homes, the evaporator unit (fan coil unit) and condensing units are installed
in separate locations. The units are connected by a refrigerant line set and communication cable. The evaporator portion is
commonly installed in the wine cellar, with the condensing unit is located either outside or in a remote indoor location that is
properly ventilated.
Temperature Setting
The system is designed to maintain a cellar temperature of 55°F as long as the ambient temperature does not exceed 120°F.
Page 2
08/04/21

BEFORE YOU START 1-800-343-9463
1. Inspect all components prior to installation. If damage or missing components are found, please notify WhisperKOOL
Customer Service at 1-800-343-9463 within 30 days.
2. The evaporator units require a dedicated 120V, 15-amp circuit. The condensing unit requires a dedicated 220V, 15-amp
circuit. Use a surge protector with the system. Do not use a GFI outlet or breaker.
3. Communication cable (18-5 thermostat wire) must be ran between the condensing unit and the evaporator unit. Only 2 of
the communication wires will be used. For 24V thermostat equipped systems an 18-5 cable must be used to connect the
thermostat to the evaporator unit.
4. You are REQUIRED to install a drain line to remove condensation from the evaporator units.
5. The warranty is not active until a warranty checklist has been received, reviewed, and approved.
6. The system is intended for use in properly designed and constructed wine cellars. Hire a professional wine storage
consultant with a valid contractor’s license to build your wine cellar.
7. WhisperKOOL requires that all split systems be installed by a certified HVAC-R technician only. NATE or equivalent is
recommended.
8. It is vital that the units be set apart and oriented so that the supply air from one unit does not recirculate into the return
air of the other unit.
If you encounter a problem with your WhisperKOOL system, please refer to the Troubleshooting Guide. If you have any further
questions or concerns, or need assistance, please contact WhisperKOOL’s Customer Service at 1-800-343-9463. Please be sure all
testing has been completed prior to contacting Customer Service. Please have your results ready for your representative.
Page 3
08/04/21

PREPARING THE WINE CELLAR
The performance and life of your system is contingent upon the steps you take in
preparing the wine cellar. Improp-erly preparing your enclosure or incorrectly installing
your unit may cause unit failure, leaking of condensation, and other negative side eects.
It is highly recommended that you obtain the assistance of a wine storage professional.
Wine storage professionals work with licensed contractors, refrigeration technicians, and racking companies to build
well-insulated, beautiful, and protective wine cellars. We have put together some useful tips to assist in the
installation process. Our recommendations are meant to act as a guide in the process of building a proper enclosure.
Your intended location may have specific needs which we do not address.
Wall & Ceiling Framing
Build wine cellar walls using standard 2x4 or 2x6 boards and ceiling joists without violating local or state codes in
your area. As a general rule, the thicker the walls and the higher the insulation value, the more consistent your cellar
temperature will be.
Insulation
Insulation is REQUIRED in order to properly use our products. It is vital that all walls and ceilings be insulated to
keep the cellar temperature as consistent as possible during the summer and winter months. Standard fiberglass or
rigid foam insulation is normally used in cellar construction; in some cases, “blown-in” insulation is used. The R-
value, or quality of insulation, is determined by the rate at which heat passes through the insulation. The higher the
R-value, the more resistant the insulation is to conducting heat, and the more consistent your wine cellar’s
temperature will be. Using higher R-values in insulation will lower your operating costs and unit run time. (R-13 is
the recommended minimum; R-19 is preferred for interior cellar walls, and R-30 for ceilings and exterior walls.)
Vapor Barrier
Water vapor creates its own pressure, separate from the ambient air pressure, and will intrude into colder/drier areas.
A vapor barrier is REQUIRED in order to prevent the intrusion of water vapor and maintain the correct cellar
temperature and humidity. It is recommended that 6-millimeter plastic sheeting be applied to the warm side of the
cellar walls. The vapor barrier must also be applied to the outside walls and ceiling. If it is impossible to reach the
outside, then the plastic must be applied from within the cellar. The most common method is to wrap the entire
interior, leaving the plastic loose in the stud cavity so the insulation can be placed between each stud. All of the
walls and ceiling must be wrapped in plastic for a complete vapor barrier.
In areas of high humidity, such as Southern and Gulf States, the vapor barrier will prevent infiltration of warm moist
air. The moist air can cause mold to form, and standing water in drain pans promote microbial and fungal growth
that cause unpleasant odors and indoor air quality problems. If mold is found, remove it immediately and sanitize
that portion of the unit.
Note: High humidity significantly increases the heat load on the cooling system.
Any break in the vapor barriers (cut, nail hole, over-lapping, etc.) will cause a moisture leak and must be sealed. The
electric conduit is a “duct” for vapor to travel in. The conduit should be caulked and sealed on the warm air end.
Page 4
08/04/21

Unobstructed Airflow
Unobstructed airflow to and from the system is critical for the evaporator unit and condensing units overall
performance and lifespan. A minimum of 3 feet of clearance (5 feet is ideal) on all sides is crucial. The air the fans blow
needs to circulate and either dissipate or absorb heat from the space. The more air to exchange, the more efficient the
system will operate.
Note: Avoid attempting to camouflage the unit. This will restrict airflow and thus the systems ability to work efficiently.
Door and Door Seal
An exterior grade (1¾”) door must be installed as a cellar door. It is essential that weather stripping is attached to all 4 sides of
the doorjamb. A bottom “sweep” or threshold is also required. The door must have a very good vapor seal to prevent warmer
moist air from leaking into the cellar. One of the most common problems with cooling systems running continually is due to
the door not sealing properly. In cases where glass doors are used and the room size is close to the recommended
system size, the next larger size system should be used. This will compensate for the insulation loss due to the lower
insulating rating of glass.
PREPARING THE WINE CELLAR, CONTINUED
Ventilation
The necessity of dissipating heat away from the condensing unit is critical to the unit’s performance and cannot be overstated. As
the system operates and cools, a greater amount of heat is generated on the condensing side of the system. Adequate ventilation
is required in order to dissipate heat away from the condensing unit. If ventilation is inadequate, the exhaust will heat up the
area or room and adversely affect the system’s ability to cool. Avoid installing the condenser in a closet or other small rooms and
spaces. This will cause the system to overheat and void the warranty.
Note: If you are unsure about having adequate ventilation in your install location, please contact us to assess your specific
installation
Ambient Temperature Factor
The cooling system has the ability to cool a wine cellar efficiently to 55°F as long as the ambient temperature of the
area that it is exhausting to does not exceed 120°F. Therefore, you want to exhaust the condensing unit in a space which will
not exceed 120°F. Otherwise the system will not have the capacity to keep the wine at a desirable 55°F.
WARNING! Allowing your system to operate in temperatures of 120° or above for
extended periods of time will greatly decrease the life of your system and void
your warranty. The cooler the temperature of the air entering the condenser coil,
the more cooling capacity the system has. The less heat gain through the
common wall, the less the electricity consumption.
Page 5
08/04/21

RECEIVING & INSPECTING THE SYSTEM
•Use caution when lifting and check package for damage.
•Lift only at the designated hand-hold locations on the shipping container, or fully support the container from
underneath. A shipment may include one or more boxes containing accessories.
•Before opening the container, inspect the packaging for any obvious signs of damage or mishandling.
•Write any discrepancy or visual damage on the bill of lading before signing.
•Allow the condensing unit to sit for 24 hours prior to startup. The condensing unit can be placed in the
installation location, piped and evacuated during this time.
Note: WhisperKOOL units are manufactured in the USA and tested prior to shipment.
•Review the packing slip to verify contents.
•Check the model number to ensure it is correct.
•Check that all factory options ordered are listed.
If any items listed on the packing slip do not match your order information,
contact WhisperKOOL Customer Service immediately.
Check all shipped boxes for the following contents:
Please leave the system in its original box until you are ready for installation. This will allow you to move the product safely
without damaging it. When you are ready to remove the product from the box, refer to the installation instructions.
TIP: Save your box and all packaging materials. They provide the only safe means of transporting/shipping the system.
Evaporator Unit Box 1 Condensing Unit Box
(1) Primary evaporator unit
Evaporator installation hardware bag (primary):
•(12) 2½”Phillips wood screws
•(12) #8 ⁄”Phillips pan-head screws
•(1) Bypass plug
•(1) ¼”barbed coupling
•(2) 3”strips of cork tape
Documentation bag (primary):
•Ceiling Mount Twin owner’s manual
•H.E. R-134a split system warranty checklist
(1) Ceiling Mount condensing unit
KDT Plus hardware bag:
•(1) ⁄”OD grommet
•(2) ½”nylon hole plugs
•(4) #6 x 1”Phillips zinc Type A screws
•(4) 8-10 x ⁄”blue plastic screw anchors
Accessory kit bag (primary):
•Stainless steel probe (50 feet)
•KDT Plus display cable (50 feet)
•KDT Plus wall mount bracket assembly
•KDT Plus ush mount bracket assembly
•KDT Plus display assembly
•Flush mount template
•Evaporator installation hardware bag
•KDT Plus hardware bag
Insulation blanket bag (primary):
•(1) Ceiling Mount insulation blanket
Evaporator Unit Box 2
(1) Secondary evaporator unit
Evaporator installation hardware bag (secondary)
Insulation blanket bag (secondary):
•(1) Ceiling Mount insulation blanket
Evaporator installation hardware bag (secondary):
•(12) 2½”Phillips wood screws
•(12) #8 ⁄”Phillips pan-head screws
•(1) Bypass plug
•(1) ¼”barbed coupling
•(2) 3”strips of cork tape
Page 6
08/04/21

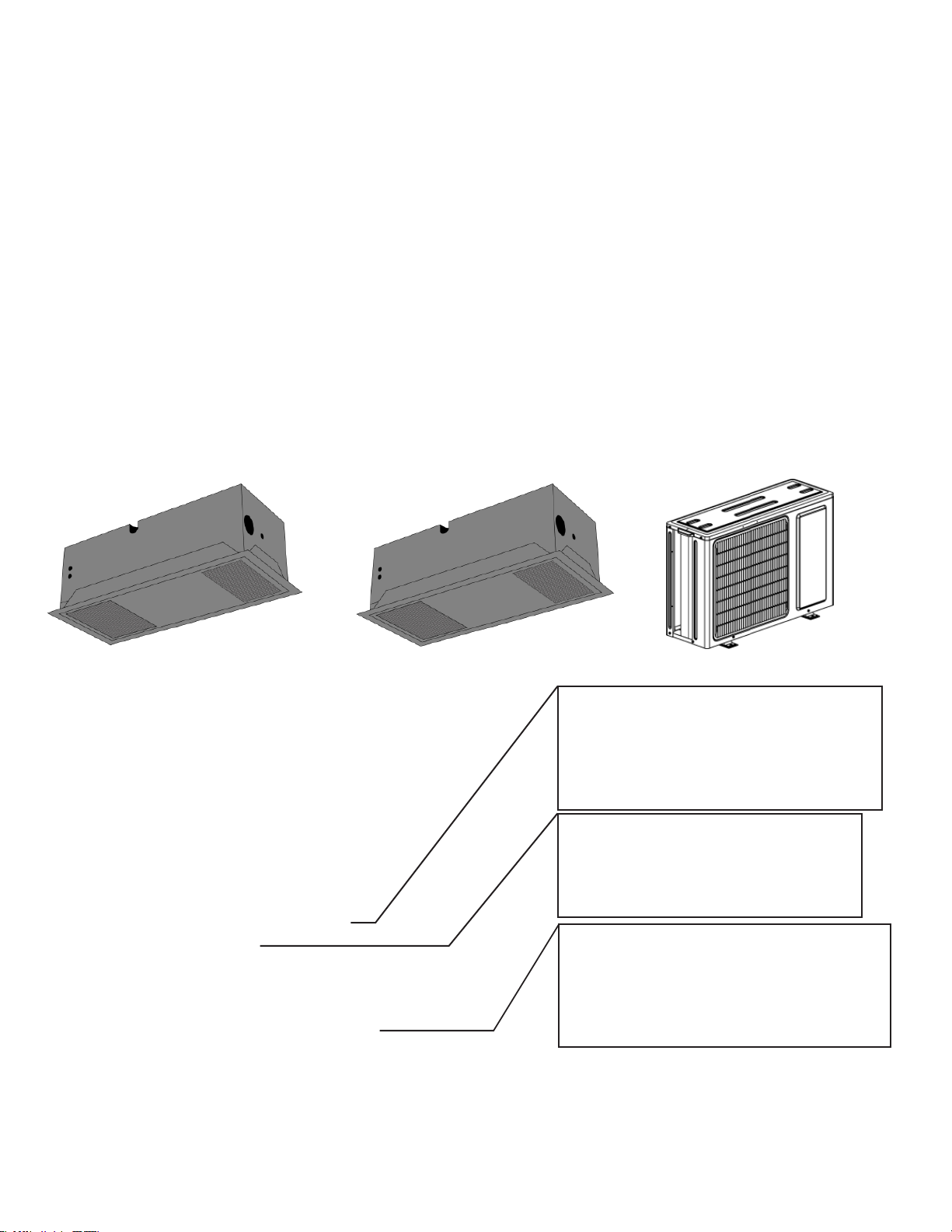

QUICK REFERENCE GUIDE
Top View
Bottom View
Mounting Bracket (Paintable)
Supply and Return Grille (Paintable)
Evaporator Unit (Fan Coil Unit)
Electrical Knockouts
Note: The unit comes in black. The mounting bracket and front grille
are paintable, enabling you to match your desired color.
Top Panel
QUICK REFERENCE GUIDE
Line Set Knockout (x6)
Electrical Knockout
Options
Line Set Knockout
Options
Optional Line Set and
Electrical Openings
Page 7
08/04/21

5
6
7
8
PROPRIETARY AND CONFIDENTIAL
NEXT ASSY
KNOCKOUT LOCATIONS
Top View of Evaporator Unit
Front View of Evaporator Unit
KNOCKOUT LOCATIONS
15.35" 20.40"
14.10
8.05"
1.50"
4.55"
35.75"
1.42"
2.81"
3.00" 3.75"
34.33"
15.35" 20.40"
12.65"
35.75"
1.75"
6.58"
1.50"
4.58"
12.65" Side View of Evaporator Unit
1.12"
11.53"
12.65"
4.58"
1.50"
6.58"
14.10"
11.10"
Back View of Evaporator Unit
6.31"
6.34"
1.95" 4.11"
14.10"
8.05"
12.65"
Page 8
08/04/21

LIQUID-MEASURING THERMOSTAT SYSTEM (BOTTLE PROBE) - KDT
Our cooling units come with a liquid-temperature-measuring thermostat. The self-calibrating probe con-tains a sensor chip,
which communicates back and forth with the thermostat. This results in a consistent temperature setting and accuracy.
Wine should be kept at a very precise, controlled temperature and humidity.

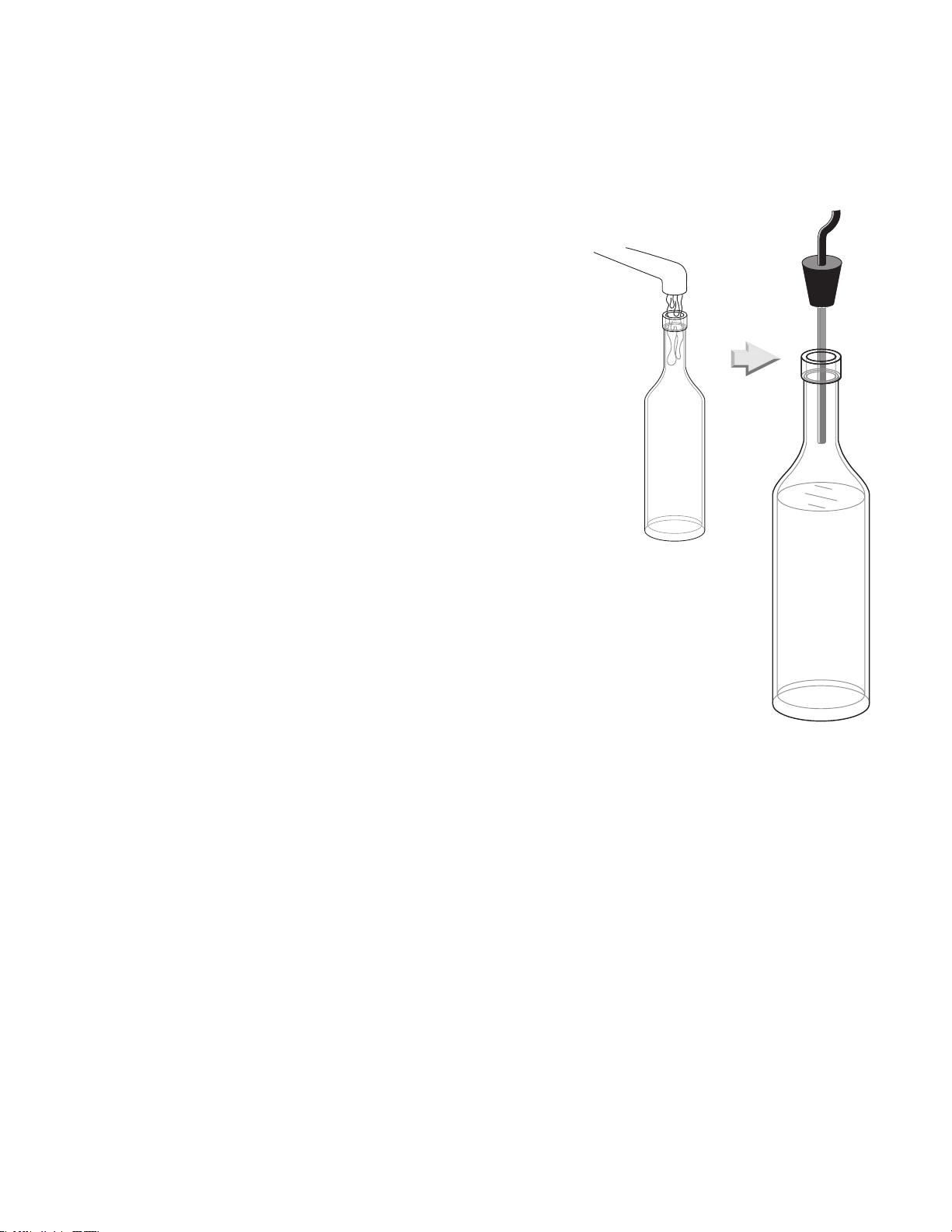

Setting up the Bottle Probe:
1. Locate an empty wine bottle.
2. Fill it 75% full with room-temperature tap water.
3. Place bottle probe securely into bottle as seen in Figure 1.
4. Place the wine bottle in your wine cellar. Ensure sensor tip is fully submerged.
5. To ensure a consistent temperature, place bottle probe approximately three
(3) feet away from the air output and not in the flow of the air.
It is recommended that the bottle be placed in a central location of your
wine cellar. Avoid pulling too much on the probe cord. It may become
disconnected resulting in limited functionality of the unit.
Note: The thermostat can be set between 50–70°F.
Remember: The unit operates based on the temperature of the water.
Do not be misled by thermostats reading air temperature. The air temperature
in the cellar will be cooler than the liquid temperature of the wine while it is
reaching the optimum balanced temperature.
Figure 1
Page 9
08/04/21

F
CONDENSING UNIT
55°F
BOTTLE PROBE
5/8”suction line
1/4” liquid line 1/4”liquid line
18-5 THERMOSTAT
WIRE
DISPLAY CABLE
PRIMARY EVAPORATOR UNIT SECONDARY EVAPORATOR UNIT
DISCHARGE LOCATION DISCHARGE LOCATION
POWER CABLE POWER CABLE

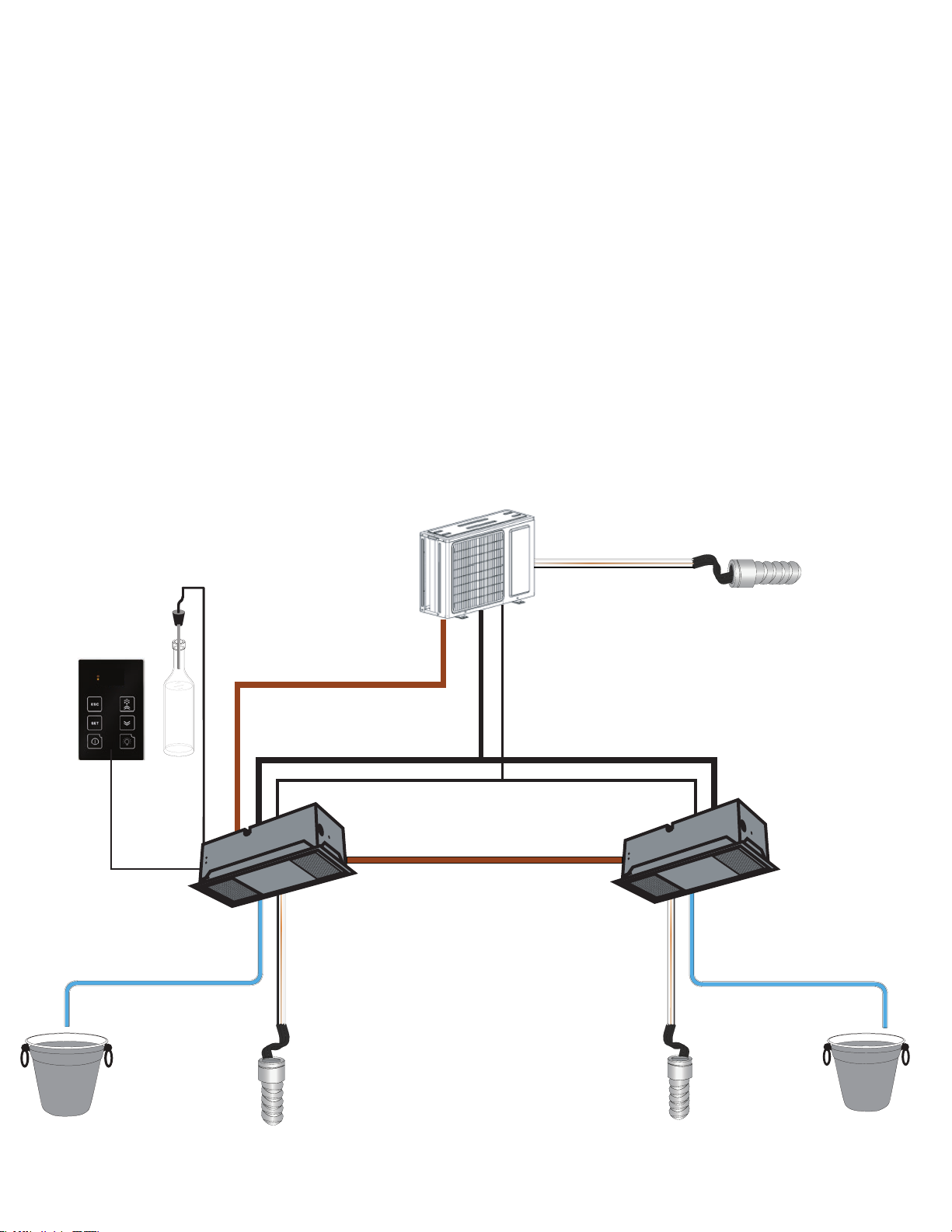

ITEMS TO ROUTE BEFORE INSTALLING THE EVAPORATOR UNITS
1. Route the refrigerant lines from each evaporator unit toward each other using 1/2"OD copper tubing for the suction line and 1⁄4”OD
tubing for the liquid lines.
2. Join both suction lines together using a 1/2" T-fitting. Install a 5/8”to 1/2"reducerattheoutletofthe T-fitting. The remainder of the
suction line from the T-fitting to the condensing unit will need to be 5/8”OD copper tubing.
3. Join both liquid lines together using a 1/4" T-fitting. Install a 3/8" to1⁄4”reducer atthe inlet of the T-fitting. The remainder of the
liquid line from the T-fitting to the condensing unit will need to be 3/8" OD copper tubing.
4. Route the display cable from the desired location to the desired primary evaporator unit installation location.
5. Route the bottle probe cable from the desired thermostat bottle location to desired primary evaporator unit installation location.
6. Route the drain lines from a proper discharge location to desired evaporator unit installation locations.
7. Route the power cable wiring to the desired evaporator unit installation locations.
8. Route an 18-5 thermostat wire between the desired evaporator unit installation locations.
55°F
1/2" suction line 1/2” suction line
220V 60Hz 1 PH 15-amp
dedicated circuit
POWER CABLE
24V COMMUNICATION CABLE
3/8" liquid line
Page 10
08/04/21

POWER CABLE CONDENSING UNIT
230V 60Hz 1 PH 15-amp
dedicated circuit
5/8" Suction Line
1/4" liquid line 1/4" liquid line
24V THERMOSTAT
(NOT INCLUDED)
18-5 THERMOSTAT
WIRE
PRIMARY EVAPORATOR UNIT SECONDARY EVAPORATOR UNIT
DISCHARGE LOCATION DISCHARGE LOCATION
POWER CABLE POWER CABLE
115V 60Hz 1 PH 15-amp
dedicated circuit
115V 60Hz 1 PH 15-amp
dedicated circuit
24V WIRING CONNECTIONS (EVAPORATOR UNITS)
24V Wiring Connections (Evaporator Units)
F
55°F
1. Route a standard 18-5 thermostat wire into the primary evaporator unit.
2. Locate the 18-5 thermostat wires inside of the primary evaporator unit.
3. Connect the wires according to color: yellow to yellow, red to red, green to green, and blue to blue. Connect the red
adapter wire to the end of the white thermostat wire.
4. Run the opposite end of the previously routed 18-5 thermostat wire to the secondary evaporator unit.
5. Locate the 18-5 thermostat wires inside of the secondary evaporator unit.
6. Connect the wires according to color: yellow to yellow, red to red, green to green, blue to blue, and white to white.
Thermostat Wiring Connections
1. At the thermostat terminal block, connect the wires according to color: yellow to Y, blue to C, green to G, and red to R.
2. Connect the opposite ends of the thermostat wires to the connections previously made between the 18-5 thermostat wire
and the primary evaporator unit. Connect the wires according to color: yellow to yellow, blue to blue, and green to green.
Connect the red thermostat wire to the red adapter wire previously connected to the white wire in Step 3 above.
3/8" Liquid Line
NOTE: To ensure correct system
operation, the 24V thermostat
must be placed inside the
wine cellar, preferably in a
central location away from any
airflow.
24V COMMUNICTION CABLE
1/2" suction line 1/2" suction line
Page 11
08/04/21

1. Locate the desired installation location. Using a stud nder, locate the ceiling joists
on either side of the center point. Cut and frame 14.5”x 36” openings in the ceiling
for each evaporator unit. Make sure the framing is sucient to support the weight of
the cooling unit. Use only the mounting locations provided. These locations ensure
that the installer will not drill into any critical components within the system.
2. Determine which orientation the evaporator units will be installed in (inside the
cellar or with attic access). Mounting options are listed below:
Minimum Tools Needed:
Fully exposed mounting option
Flush mount option
Choose a mounting
option suitable
for the installation
location.
Partially recessed mounting option
Hammer Saw
#2 Phillips-head screwdriver
SELECTING MOUNTING OPTIONS
T-square
1
2
3
4
12.65”
12.65”
5.75”
6.9”
6.9”
5.75”
Page 12
08/04/21

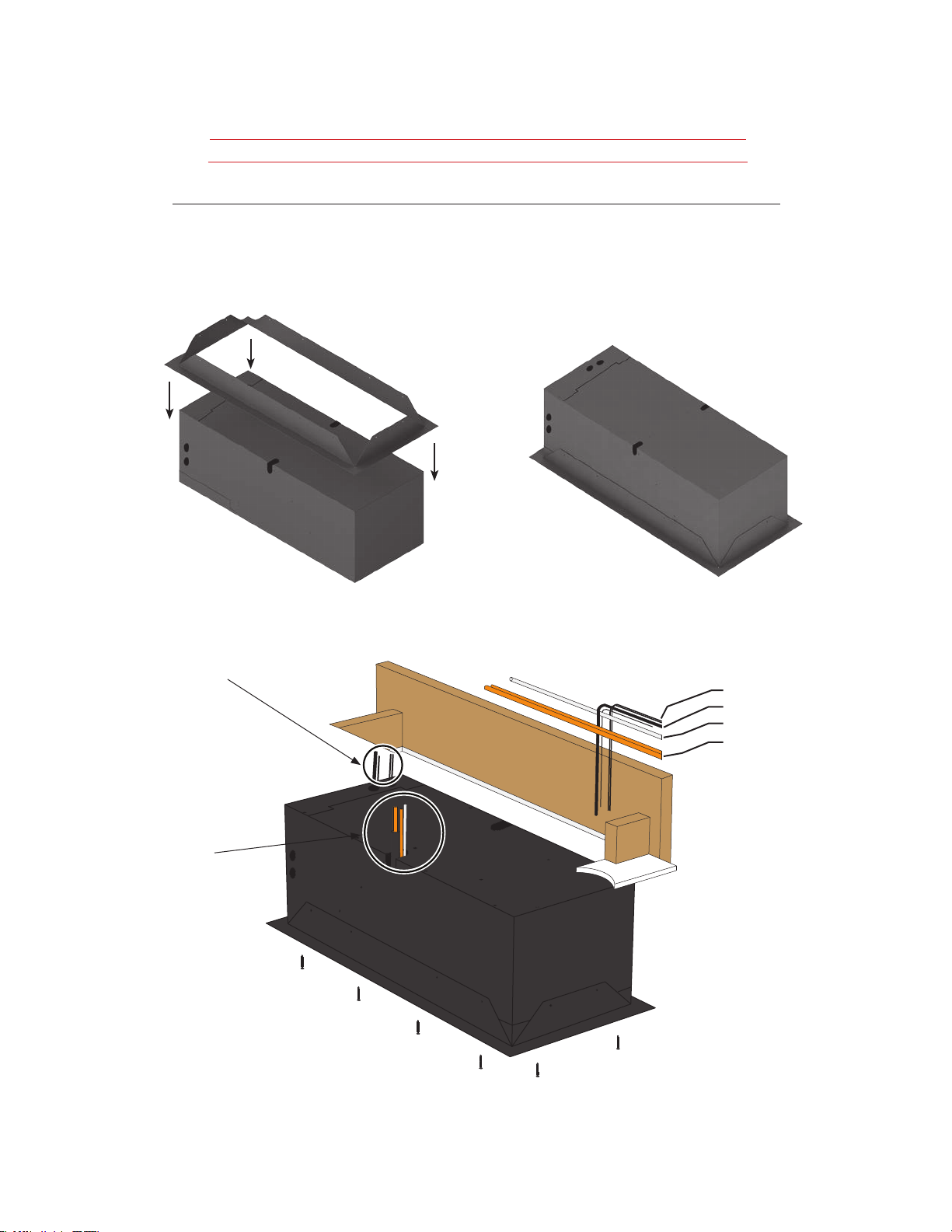

MOUNTING THE EVAPORATOR UNITS
NOTE: You are REQUIRED to use only the mounting locations provided. These locations
ensure that the installer will not drill into any copper or electrical wiring within the system.
It is vital that the units be set apart and oriented so that the return air
from one unit does not recirculate into the supply air of the other unit.
NOTE: If installing the units without attic access, perform steps 5-21prior to steps 3-4.
1. Display cable
2. Power and thermostat wires
3. Drain line
4. Line set
Routed Items:
Line Set / Drain Line
Display, Power. and
Thermostat Wires
3. Secure the mounting bracket to the primary evaporator unit using the twelve (12) supplied ⁄”Phillipspan-head
screws.
4. Secure the primary evaporator unit’s mounting bracket to the opening using the twelve (12) supplied 21⁄2”Phillips-
head screws.
Page 13
08/04/21

Figure 1
TOP PANEL
6. Remove the knockout(s) that you will be using to route the line set, power wires, display cable, bottle
probe, and drain line. For ease of installation, see Figure 2 for recommended orientation (with attic access).
Figure 2
ELECTRICAL
ACCESS
PANEL
INSTALLING THE EVAPORATOR
5. Unscrew the twenty-two (22) screws and remove the top and electrical access panels.
7. Using copper tubing per line set sizing chart, route the liquid
and suction lines to the tubing coming from the unit
8. Connect the line set to system using the line set connection
instructions
9. Insulate the suction line using Armaflex or similar insulation.
10.Route the drain line out of the primary evaporator unit with the
line set. Connect using the supplied 1/4” barb coupling.
11.Connect hard line drain tubing to provided flex tubing
12.Route the power wire, bottle probe, and display cable through
the knockouts in the electrical panel as shown
LINE SET
MOUNTING BRACKET
DRAIN
LINE
BOTTLE PROBE &
DISPLAY CABLE
KNOCKOUT
POWER &
THERMOSTAT WIRE
KNOCKOUT
NOTE: The units come in
black. The mounting brackets
and front grilles are paintable,
enabling you to match your
desired color.
Page 14
08/04/21

INSTALLING THE EVAPORATOR UNITS
13. Slide the electrical panel up and out of the primary evaporator unit.
14. Connect the green wire to the green wire, the black wire to the black wire, and the white wire to the white wire.
15. Locate the thermostat wire connections inside of the primary unit.
16. Connect the 18-5 wire for the secondary unit according to color (yellow to yellow, red to red, green to green, blue to blue, and
white to white).
17. Connect the male circular connector on the bottle probe cable to the female circular connector on the exterior of the electrical box.
18.Connect the end of the display cable labeled “UNIT” to the wire labeled “UNIT” coming from the electrical box.
19. Slide the electrical panel back down into the primary evaporator unit.
20. Reinstall the top access panel and fasten the twenty-two (22) screws into place.
21. Install the supplied three-inch pieces of cork tape around the display cable, bottle probe cable, and power wires.
22. Repeat Steps 1-21with the secondary evaporator. (Steps 17 and 18 do not apply to the secondary unit.)
UNIT
UNIT
Page 15
08/04/21

_
_
M
i
n
.
T
a
c
k
T
i
m
e
A
d
h
e
s
i
v
e
_
_
M
i
n
.
C
u
r
e
T
i
m
e
D
i
r
e
c
t
i
o
n
s
_
_
M
i
n
.
T
a
c
k
T
i
m
e
D
i
r
e
c
t
i
o
n
s

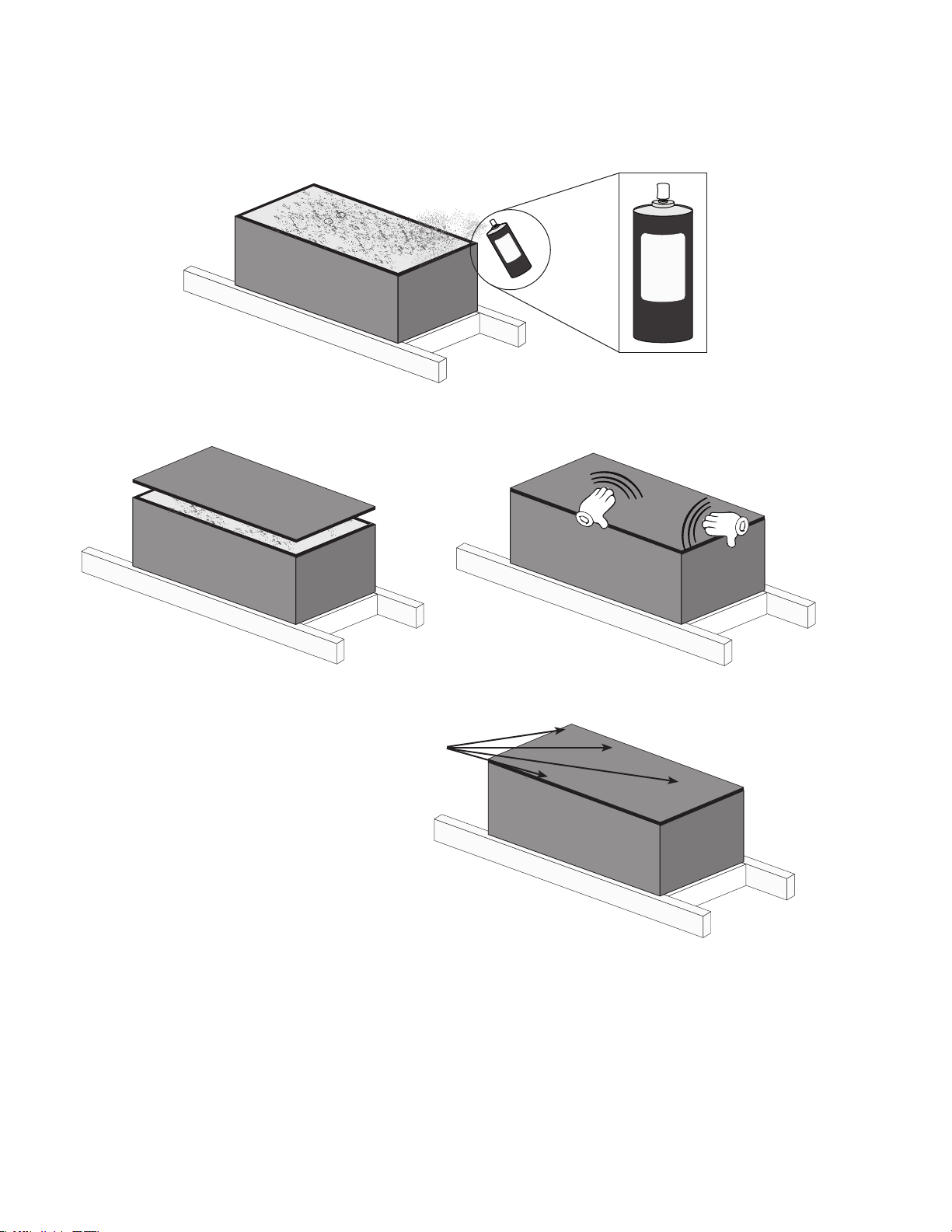

INSULATION BLANKET INSTALLATION
1. Once mounting bracket location has been selected and installed, proceed to the insulation blanket installation.
2. Spray adhesive onto the sides of the portions of each evaporator unit and mounting bracket which protrude into
the attic. See spray adhesive directions for proper tack time before proceeding to step 3 (see illustration).
3. Wrap insulation piece (A) around the sides of each evaporator unit. Make sure the bottom edge of the insulation is
flush with the top edge of the mounting bracket (see illustration).
4. Set insulation in place by pressing firmly on all surfaces of the insulation that come in contact with the sides of
each evaporator unit (see illustration).
5. Using a utility knife, cut holes in the insulation for the line set, wiring, and drain line if needed.
6. If necessary, cut the insulation to size using the top edge of each evaporator unit as a template. Remove excess
insulation. Proceed to piece (B) installation.
*Tools required: spray adhesive, utility knife, cork tape, foil tape
If needed, trim excess insulation around all edges.
A
A
A
H
H
H
H
11.25”
14.25”
68”
Insulation Blanket
B
Insulation Blanket
B
Mini Ceiling Mount blanket dimensions
Ceiling Mount blanket dimensions
22”
102” 35.75”
14.25”
11”
Insulation Blanket
A
Insulation Blanket
A
A
Page 16
08/04/21

INSULATION BLANKET INSTALLATION, CONTINUED
8. Set piece (B) in place by pressing firmly on all surfaces of the insulation that come in contact with the top of each
evaporator unit (see illustration).
9. Using a utility knife, cut holes in the insulation for line set, wiring, and drain line if needed.
10. Once insulation is installed, apply foil tape to all seams, covering them completely.
11. Inspect insulation for damage/defects. If damaged, repair with foil tape.
12. Apply cork tape or equivalent to areas where the line set, wiring, and drain line enter the unit.
If needed, trim excess insulation around all edges.
A
_
_
M
i
n
.
T
a
c
k
T
i
m
e
A
d
h
e
s
i
v
e
_
_
M
i
n
.
C
u
r
e
T
i
m
e
D
i
r
e
c
t
i
o
n
s
_
_
M
i
n
.
T
a
c
k
T
i
m
e
D
i
r
e
c
t
i
o
n
s
B
A
B
A
7. Spray the top of each evaporator unit with spray adhesive. (See spray adhesive directions for proper tack time
before proceeding to step 8.)
Page 17
08/04/21

Condensation Drain Line
The condensation drain line tube is used to remove excess condensation from the unit to a proper discharge location. It
is important that the drain line tube is properly connected.
Failure to use the condensation drain line tube will void the warranty on the unit.
Drain Line
The Ceiling Mount evaporator unit features a drain line pump system that removes excessive condensate build up in
the drain pan. During operation, the drain pan collects water that drips from the coil. The drain line pump system will
prevent overflow and leaking by allowing for discharge of the additional condensate.
Connecting the Drain Line
Route the drain line to an appropriate discharge location and connect the opposite end to
the tubing that was routed out with the line set using the provided barbed coupling side of the
condensate pump. Do not route the drain line more than 15 vertical ft.
Drain Recommendations
It is recommended that the line connected to the 1/4" clear plastic line is a rigid drain line.
The line should be sloped towards the discharge location to help with the removal of water.
A T fitting with a cap is recommended towards the connection point of the two lines to
help with cleaning out the line when needed.
WRONG: Drain line is under water.
To prevent mold from growing, allow the
drain line to hang above the water line.
1/4" Clear Plastic Tubing Rigid drain line
Proper Discharge
Location
DRAIN LINE
Page 18
08/04/21
