WhisperPower 12 VDC-3000 VA User manual

12 VDC - 3000 VA | 12 VDC - 2000 VA | 120 VAC - 60 Hz
Enjoy Green Energy
Inverter/ Charger
Supreme Combi
whisperpower.com
User Manual
Inverter/ Charger

2 WhisperPower Inverter / Battery Charger

WhisperPower Inverter / Battery Charger 3
Inverter-Charger
120V Series
12V-2000W-80A (61122085)
12V-3000W-100A (61123006)
User Manual
Manual Edition 20210929

4 WhisperPower Inverter / Battery Charger
For safe and optimum performance, the Inverter-Charger must be used properly. Carefully
read and follow all instructions and guidelines in this manual and give special attention to the
CAUTION and WARNING statements.
PLEASE KEEP THIS MANUAL FOR FUTURE REFERENCE
Disclaimer
While every precaution has been taken to ensure the accuracy of the contents of this
guide, Whisper Power assumes no responsibility for errors or omissions. Note as well that
specications and product functionality may change without notice.
Important
Please be sure to read and save the entire manual before using your Whisper Power
Sinewave Inverter-Charger. Misuse may result in damage to the unit and/or cause harm
or serious injury. Read manual in its entirety before using the unit and save manual for
future reference.
Model Numbers
120VAC Series:
61122085-EU Inverter-Charger 12V / 2000W / 80A - 120VAC (NEMA 5-20 Socket GFCI)
61123006-EU Inverter-Charger 12V / 3000W / 100A - 120VAC (NEMA 5-20 Socket GFCI)
Service Contact Information
Email: [e-mail]
Web: www.whisperpower.com

WhisperPower Inverter / Battery Charger 5
IMPORTANT SAFETY INFORMATION
This section contains important safety information for the Sinewave Inverter-Charger. Before
using the unit, READ ALL instructions and cautionary markings on or provided with the unit,
and all appropriate sections of this guide.
The Sinewave Inverter-Charger contains no user-serviceable parts. See Warranty section for
how to handle product issues.
DANGER: Fire and/or Chemical Burn Hazard
• Do not cover or obstruct any air vent openings and/or install in a zero-clearance
compartment.
DANGER: Failure to follow these instructions can result in death or serious injury
• When working with electrical equipment or lead-acid batteries, have someone nearby in
case of an emergency.
• Study and follow all the battery manufacturer’s specic precautions when installing, using
and servicing the battery connected to the inverter.
• Wear eye protection and gloves.
• Avoid touching your eyes while using this unit.
• Keep fresh water and soap on hand in the event battery acid comes in contact with eyes.
If this occurs, cleanse right away with soap and water for a minimum of 15 minutes and
seek medical attention.
• Batteries produce explosive gases. DO NOT smoke or have an open spark or re near the system.
• Keep unit away from moist or damp areas.
• Avoid dropping any metal tool or object on the battery. Doing so could create a spark or
short circuit which goes through the battery or another electrical tool that may create an
explosion.
WARNING: Shock Hazard. Keep away from children!
• Avoid moisture. Never expose unit to snow, water, etc.
• Unit provides high voltage AC; treat the AC output socket the same as regular wall AC
sockets at home.
WARNING: Explosion hazard!
• DO NOT install the unit near ammable fumes or gases (such as propane tanks or large engines).
• AVOID covering the ventilation openings. Always operate unit in an open area.
• Prolonged exposure to high heat or freezing temperatures will decrease the working life
of the unit.
• DO NOT connect AC power sources like utility power or generator to the AC outputs of
the unit. It will damage the unit and may cause re. Feeding AC to the AC output of the unit
is not covered by warranty.
• The 12V DC unit is designed for use on 12V House Battery System only. Use on a higher
house battery system will damage the unit and lead to unit explosion.

6 WhisperPower Inverter / Battery Charger
FCC and EMC INFORMATION
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules (for 120V models) and comply with the CE EMC Standard
on 230V models. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment o and
on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Re-orient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Consult the dealer or an experienced radio/TV technician for help.
LIMITATIONS ON USE
Do not use in connection with life support systems or other medical equipment or devices.

WhisperPower Inverter / Battery Charger 7
TABLE OF CONTENTS
1. INTRODUCTION 8
2. PRODUCT DESCRIPTION 8
3. UNDERSTANDING THE UNIT 9
4. INSTALLING THE UNIT 14
5. UNIT OPERATION 17
6. TROUBLESHOOTING 29
7. SPECIFICATIONS 30
8. WARRANTY 32

8 WhisperPower Inverter / Battery Charger
1. INTRODUCTION
Thank you for purchasing the Whisper Power Sinewave Inverter-Charger. With our state of the
art, easy to use design, this product will o er you reliable service by providing True Sinewave AC
power for your home, cabin, boat, RV or trailer and recharge your battery automatically when
utility AC is available. The Sinewave Inverter-Charger can run many AC-powered appliances
when you need AC power anywhere. The multi-stage battery charger will charge di erent types
of batteries. The built-in transfer switch will automatically switch the load to the battery power
when the utility power is interrupted.
This manual will explain how to use this unit safely and e ectively. Please read and follow these
instructions and precautions carefully.

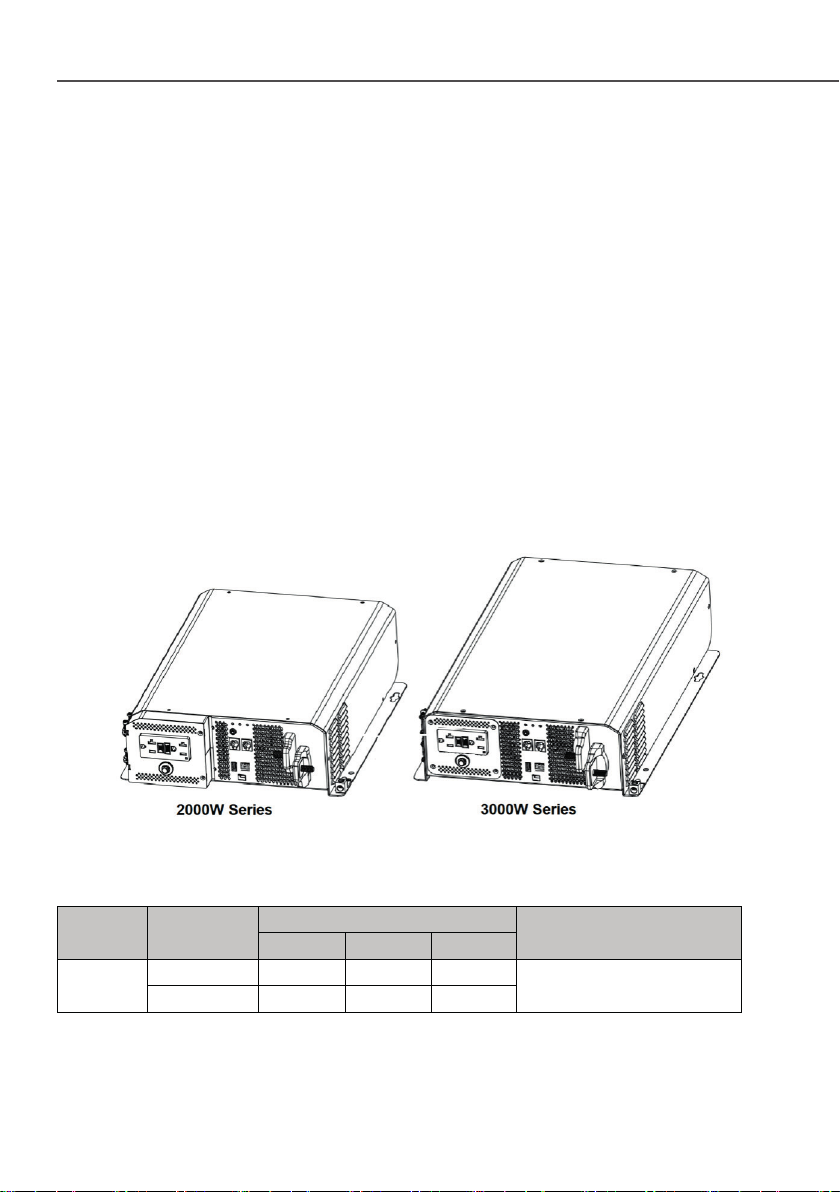

2. PRODUCT DESCRIPTION
The Sinewave Inverter-Charger includes the items listed below.
• Inverter-Charger base unit
• Multi-Function Display
• 25’ RJ12 Display Cable
• Owner’s manual
Series Model No. Rating AC Output Types
Inverter Charger By-Pass
12V
120VAC
61122085 2000W 12V-80A 30A • 20A GFCI
• Hardwire
61123006 3000W 12V-100A 30A
Note: This product is optionally available for 230VAC input, 24V output, and/or UK/ AU/ EU outlets.
Please contact WhisperPower.

WhisperPower Inverter / Battery Charger 9
3. UNDERSTANDING THE UNIT
WARNING: It is recommended that all wiring be done by a certi ed technician or electrician to
ensure adherence to the applicable electrical safety wiring regulations and installation codes.
Failure to follow these instructions can damage the unit and could also result in personal injury
or loss of life.
CAUTION: Before beginning unit installation, please consider the following:
• The unit should be used or stored in an indoor area away from direct sunlight, heat,
moisture or conductive contaminants.
• When placing the unit, allow a minimum of three inches of space around it for
optimal ventilation.
Main Unit Front
Main Unit Rear
Digital Input Port
(120V Model)

10 WhisperPower Inverter / Battery Charger
Multi-Function Display
Typical Wiring Block Diagram of Inverter-Charger:
Typical Wiring Block Diagram of Inverter-Charger:
A Battery Bank
• The use of deep cycle or lithium ion battery is highly recommended for power inverter
application
• For battery size, you need to identify how much and for how long the inverter has
to provide AC power to the loads (based on Amps x hour energy consumption). It is
recommended to purchase as much battery capacity as possible.
AC Load
Estimated run time on 12V Battery bank on 12V Input Models
12V/120AH 12V/240AH
50 W 22 hrs. 44 hrs.
100 W 11.5 hrs. 23 hrs.
200 W 5 hrs. 11 hrs.
500 W 2 hrs. 4 hrs.
1000 W 49 mins 2 hrs.
1500 W 27 mins 1 hr.
2000 W 15 mins 49 mins
2500 W N.R. 37 mins
3000 W N.R. 27 mins
N.R. - Not Recommended. Based on more than 2C discharged on battery capacity.
Estimated run times are for reference use only. Actual run times may vary on battery type used.
4 5 6 7 8
2
1
3

WhisperPower Inverter / Battery Charger 11
B DC Fuse or Circuit Breaker
• DC-rated fuse or DC-rated circuit breaker connected along the DC positive line is required.
Fuse/Circuit Breaker
Rating
12V 2000W System 12V 3000W System
300Adc 400Adc
• Based on the size of the Battery Bank, determine the overall short circuit current rating of
the battery bank from the battery manufacturer. The fuse or circuit breaker has to be able
to withstand the short circuit current that can be supplied by the battery bank.
• For battery banks with total capacity under 500Ah the most aordable ANL fuse type can
be used. Otherwise use Class-T type.
C DC Disconnect Switch
• A DC Disconnect Switch connected along the DC positive line is recommended. The
rating of the switch is with the same or higher rating of the selected fuse or circuit breaker.
Use ignition protected switches when required by local codes.
• This switch is used to disconnect the positive of the battery bank to the unit’s positive
terminal during maintenance/repair service, when not in use, or when troubleshooting.
It could also be an A/B/A+B/OFF type switch to select either one of the two or both
(paralleling) battery banks (if available).
D DC Input Cable
• All DC Input Wires should be insulated multi-strand low resistance wires.
• The DC wires must be copper and with minimum 105orating.
Model
Thinnest DC Input Wires Gauge Used
≤ 1.5 m / ≤ 5 feet
(Recommended)
≤ 2.25 m / ≤ 7.5 feet ≤ 3 m / ≤ 10 feet
12V 2000W series 70 mm2AWG # 2/0 95 mm2AWG # 3/0 130 mm2
250 kcmil (MCM)
12V 3000W series 120 mm2AWG # 4/0 150 mm2
300 kcmil (MCM)
200 mm2
400 kcmil (MCM)
The typically recommended wire length is limited to 5 feet or less for each of the positive and the negative. For
longer wires, a proportionally thicker gauge is required to compensate for additional voltage drop
CAUTION: These guidelines assume you are using the DC supplied cable and fuse sizes
recommended in this manual. The use of a thinner gauge in the DC wires may cause the
inverter to trigger the under-voltage shut down under heavy load conditions. It may also melt
the wire insulation and catch re, resulting in death or serious injury. The choice of the wire
gauge should also match or exceed the ampacity rating of the DC fuse and holder being used.

12 WhisperPower Inverter / Battery Charger
E Chassis Ground
DANGER: The unit chassis has to be grounded properly before use. Never operate the unit
without proper grounding. Failure to do so will result in death or serious injury.
Model Thinnest Wire Gauge Used
Recreation Vehicle Marine
12V 2000W series 10 mm2 / AWG # 8 55 mm2 / AWG # 1/0
12V 3000W series 95 mm2 / AWG # 3/0
- These guidelines assume you are using the DC supplied cable and fuse sizes recommended in this manual. If
you are using dierent sizes, refer to the applicable installation code for the DC grounding detail.
- In marine applications, the main AC-DC ground bonding may require galvanic isolators to avoid galvanic
corrosion. Check your local electrical codes (i.e. NEC, UL, ABYC...).
F AC Input Source
An AC source is usually grid power or an AC Generator. The acceptable AC Input voltage
range and frequency are as shown:
Model Acceptable AC Input Voltage Range Acceptable AC Input Frequency Range
120VAC series 90 - 140 VAC 30 - 100 Hz
An automatic or manual AC source selector switch can be used to switch between the
multiple sources of shore power to the unit. Usually, the AC Main Panel includes a main
circuit breaker that serves as over-current protection and as a disconnect for the AC shore
power supply line. Additional AC circuit breakers serve individual circuits and one of the AC
circuit breakers will serve the unit. During By-Pass mode, the AC Input source will serve the
AC Output Load and also the AC Input current for the charger when it is used to charge the
battery.
Model AC Input Circuit Breaker to serve the unit AC Input Wire
120VAC series 30A (maximum) 6 mm2 (#10 AWG minimum)
- Follow the electrical and/or building code when you choose AC Branch Breaker and AC Input wire Size. Connect the
unit to any AC Input Source
- Smaller size AC Input wire can be used when a lower amperage rated AC Input Circuit Breaker is used from upstream
to feed the unit.
The unit is designed to accept non-Sinewave AC Input Source supplied by a generator. When
both shore connection and/or a generator are available, it is recommended to make use of an
external transfer switch. The inverter/charger accept contact closure or an active 12Vdc signal
to set dierent circuit breaker current.
G AC Hardwire Output
An AC Sub-Panel is recommended to incorporate an AC output circuit breaker and breakers
for individual load circuits. Use the same wire size as used for the AC Input Wire.
H AC Output Socket and I AC Output Thermal Breaker:
A single AC Output socket is provided for direct AC output from the unit. An overcurrent
protective device (thermal breaker) is connected in series with the AC Output Socket to
avoid excessive current being drawn from it.

WhisperPower Inverter / Battery Charger 13
Model AC Output Socket Type AC Output Thermal Breaker
120VAC series NEMA 5-20 GFCI 20A
Model
By-Pass Mode Current (Maximum) Inverter Mode Current (Maximum)
Total AC
Output
AC Output
Hardwire
AC Output
Socket
Total AC
Output
AC Output
Hardwire
AC Output
Socket
2000W/120VAC 30A 30A GFCI 20A* 16.7A 16.7A GFCI 16.7A
3000W/120VAC 30A 30A GFCI 20A* 25A 25A GFCI 20A*
* Limited by AC Output Thermal Breaker connected in series with the AC Output Socket.
** Limited by Inverter maximum AC Output Current during inverter mode.
J Display Port
The port is used to connect to the Multi-Function Display of the unit.
K Multi-Function Display
The display is used to provide unit information and for unit setting.
L BTS Port
The port is used for connecting to the optional Battery Temperature Sensor. The thermistor
installed inside the ring terminal is used to measure the battery terminal temperature and the
unit will make compensation on battery charging voltage for battery charging.
M Digital Input Port, Program Port, Can-BUS Port
• Digital Input Port
This port is used for connecting to a slave contact of an external Transfer Switch or Relay
to control the charger input current limit.
• Program Port
This USB port is for system rmware upgrade use only. This CANNOT be used for
charging Smartphones or USB powered devices. Mis-use of this port can potentially
damage the unit and is not covered by the warranty. This USB type A port is located on
the Inverter-Charger and an extra port that shares the same function is also located on
the side of the Multi-Function Display.
• CAN-BUS Port
This is for unit communication through the CAN interface. Mis-use on this port can
potentially damage the unit and is not covered by the warranty.

14 WhisperPower Inverter / Battery Charger
4. INSTALLING THE UNIT
WARNING: Explosion hazard!
• DO NOT install the unit near  ammable fumes or gases (such as propane tanks or large
engines).
• AVOID covering the ventilation openings. Always operate unit in an open area.
Choosing the location:
The unit should only be installed in locations that meet the following requirements:
• Do not allow water or other  uids to drip or splash on the unit.
• Environment temperature should be between -20 °C and 40 °C (-4 °F and 104 °F)
• Allow at least three inches of clearance around the unit. The more clearance for ventilation
around the unit, the better the performance.
Mounting the Unit:
• Choose an appropriate mounting location.
• The unit can be mounted in any direction.
• Use the mounting template below to mark the positions of the mounting screws.
• Drill the 4 mounting holes and place the unit in position and fasten the unit to the
mounting surface.
mounting surface.
DC Input Connection:
WARNING: Electrical Shock Hazard
The unit ‘On/O ’ switch does not disconnect the DC power from the battery. Use the DC
Disconnect Switch or disconnect the DC input cables to disconnect the DC power from the
battery before working on any circuits connected to the unit. Failure to follow these instructions
can result in death or serious injury.

WhisperPower Inverter / Battery Charger 15
CAUTION: Reversing the DC Input terminals will damage the unit and it cannot be repaired.
Damage caused by reverse polarity connection is not covered by the warranty.
IMPORTANT: Field wiring DC terminals tightening torque 12-13 Nm
• Connect a negative DC input cable between the unit DC negative terminal and battery
negative terminal.
• Make sure the Disconnect Switch is in the OFF position. Connect a positive DC input cable
between the unit DC positive terminal and one terminal of the Disconnect Switch.
• Connect another DC input cable between the other terminals of the Disconnect Switch
to one side of the terminal of the fuse holder or DC rated circuit breaker (OFF position).
• Connect another DC input cable between the other terminal of the fuse holder or DC
rated circuit breaker to the battery positive terminal.
• Note: For Marine application, either the DC fuse or DC rated circuit breaker needs to be
installed within 7 inches (17.8cm) from the battery positive terminals.
• Install the selected fuse to the fuse holder.
Chassis DC Ground Connection:
• Connect the grounding wire to the unit’s Chassis DC Ground Lug located near the DC
Input terminal and the other side of the cable to the common grounding point.
• For a Recreation Vehicle, the common ground point is usually the vehicle chassis or a
dedicated DC ground bus.
• For Marine, the common ground point is usually the DC ground bus or engine negative bus .
Note: Do not use the Chassis DC Ground Lug for your AC Grounding, For AC Grounding, see AC Wiring
instructions for more details.
AC Input and AC Output Hardwire Connections:
Warning: Before making any AC Input and AC Output Hardwire connection, please be sure
the AC Input Source is not energized and the DC disconnect switch is switched
OFF. Please double check the location of the AC input connector located inside the
wiring compartment. Misconnecting to the AC output connector inside the same
compartment will damage the unit and may cause  re.
Remove the AC compartment cover by unscrewing the four screws located at the front of the
AC compartment cover.
For AC Input Connections:
• Insert the AC Input cable through the AC Input Strain relief g on the unit.
• Connect the AC Main Panel AC Ground wire to the AC Input Ground terminal a on the unit.
If a solid ground wire is used, the wire can be connected directly under the screw head. If a
stranded ground wire is used, ring terminals must be used

16 WhisperPower Inverter / Battery Charger
• Connect the AC Main Panel AC Live or Hot wire to unit’s AC Input ‘L’ Live or ‘H’ Hot’ terminal b.
• Connect the AC Main Panel AC Neutral wire to unit’s AC Input Neutral ‘N’ terminal c.
• Tighten the strain relief to secure the AC Input wire.
For AC Output Hardwire Connections:
• Insert the AC Input cable through the AC Output Strain relief h on the unit.
• Connect the AC Sub-Panel AC Ground wire to the AC Output Ground terminal f on the unit.
If a solid ground wire is used, the wire can be connected directly under the screw head. If a
stranded ground wire is used, ring terminals must be used
• Connect the AC Sub-Panel AC Live or Hot wire to unit’s AC Output ‘L’ Live or ‘H’ Hot terminal d .
• Connect the AC Sub-Panel AC Neutral wire to unit’s AC Output Neutral ‘N’ terminal e.
• Tighten the strain relief to secure the AC Input wire.
Multi-Function Display Connection:
• Route the RJ12 cable from the unit to your desired location for the Multi-Function Display and
connect one end of the cable to the main unit Display Port and the other end of the cable to
the Display Panel socket located at the rear panel of the Multi-Function Display.
BTS (Battery Temperature Sensor) Connection (optional):
To provide more accuracy and precision on battery voltage charging against battery temperature,
a BTS (sold separately) can be used. The BTS can also be used to terminate the charging cycle
when it senses the temperature of the battery rise to above 60 °C or fall below 0 °C. See
‘Understanding the Error Code’ E19-E21 for more details. Use the following procedure to install
the BTS.
• Connect the RJ12 end of the BTS cable to the BTS Port on the main unit.
• Install the ring terminal end of the BTS cable to the negative terminal of the battery bank.
Digital Input Port Connection (optional):
If an input power selection switch or relay is present, the auxillary signalling contact may be used
to provide a dierently programmed current limit when in Generator Mode. Connect the Faston
wired connection through the auxillary contact to a fused +12V connection of the battery.
Ground Fault Circuit Interrupters (GFCIs) and Monthly Testing (120VAC 2000W/3000W
model)
A GFCI is a device that de-energizes a circuit when a current to ground exceeds a specied value
that is less than that required to blow the circuit breaker. GFCIs are intended to protect people
from electric shocks and are usually required in wet or damp locations.
Installations in marine and recreation vehicles require GFCI protection of branch circuits
connected to the AC output of the unit.
The following 20A 120/125Vac 60Hz cURus GFCIs will work correctly with the unit. Here are the
recommendations:
Grande Electric Inc.: G1520FLA-R
Copper Wiring Device: SGF20GY
Leviton Mfg Co. Inc.: GFNT2
For units equipped with GFCI, the GFCI function is required to be tested monthly.
• To test the GFCI, turn unit ON either in By-Pass mode or battery power mode. Plug a small
AC load (e.g. 40W light bulb) to the AC Output GFCI Socket.
• Check that the AC load is ON.
• Press the ‘TEST’ button to trip the GFCI protection. A clicking sound should be observed.
Check that the AC load is turned o. The unit will show the “E13” (“AC Output GFCI tripped”)
error code as long as the Load Sense (“LdS”) feature is set to O.

WhisperPower Inverter / Battery Charger 17
• Press the ‘RESET’ button until hearing a click to reset the GFCI outlet.
• Check that the AC load is back ON again.
Note: Be aware that a tripped GFCI outlet cannot be reset with the unit operating in
Battery Power Mode and with the Load Sense setting activated. Turn Load Sense feature
O before resetting the tripped GFCI.
How to Reset the GFCI outlet when tripped (120VAC 2000W/3000W model if available):
When Utility AC Input Source is available:
• Unplug all the AC loads from the unit’s GFCI outlet.
• Press the ‘RESET’ button until hearing a click to reset the GFCI socket.
• Plug in the AC Loads and verify the AC Load is ON.
When Utility AC Input Source is not available:
• Unplug all the AC loads from the unit’s GFCI outlet.
• Turns unit On and be sure the unit is running in Battery Power Mode.
• Check / Set the Load Sense (“LdS”) setting to o .
• Press the ‘RESET’ button until hearing a click to reset the GFCI socket.
• Plug in the AC Loads and verify the AC Load is ON.
Note: Be aware that a tripped GFCI outlet can only be Reset when there is a continuous
AC Input supplying to the GFCI Socket.
5. UNIT OPERATION
The unit is preset with factory default settings and will ful ll the basic needs for inverter-charger
operation. The display is used to provide information about the unit status and the unit function
can be customized through the Display.
Once the unit function is customized, the display can be removed if desired, as the unit can run
without it.
Understanding the Indicator/Push Button/Unit Functions
Understanding the Indicator/Push Button/Unit Functions
4 5 6 7 8
WP-RCC Supreme Remote Combi Control
AC Output
Power
Status
Set Escape
2
1
3
Digital Input Port
4 5 6 7 8

18 WhisperPower Inverter / Battery Charger
Indicator Status Function
Power ON Unit is power ON
AC Output ON AC Output Switch is turned ON and AC is available at the Output
Socket
OFF AC Output Switch is turned OFF and AC is not available at the Output
Socket
Status Green AC Output is running from Utility
Green (Flash) AC Output is running from utility and battery charger is charging the
battery
Amber AC Output is running from Inverter
Amber (Flash) Utility is detected and is under verication. AC Output is still running
from Inverter and will switch to Utility in about 10 seconds.
Red Error/Warning occurs. Display will show Error or Warning code
Normal Operation
When unit is On, the Multi-Function display shows Battery Voltage ‘V’.
Pressing any button will illuminate the backlighting of the display for about 10 seconds.
‘Power’ button (Same function as the green ‘On/O’ push button on the main unit):
- To turn the inverter ON: press and hold until hearing the beep (in about 1 sec.). Display
turns on and shows ‘-- -- --‘, all icons turn ON, followed by the revision levels of the main
unit ‘Rx.x’ and then the Display revision levels ‘rx.x’ (where x = any number).
- To turn the inverter OFF: press and hold until hearing the beep (in about 1 sec.). Display
turns o and the unit cannot be turned on again but after about 3 sec (when hearing the
deactivation of the internal relays).
Note: When AC Input is available, this ‘Power’ button cannot be used to turn OFF the unit.
‘Menu/Set’ button:
- Press once to view unit setting on display. See more details on
Viewing and Change Unit Setting section.
and button:
- The or button can be used to scroll through DC Current ‘A’,
AC Output Power ‘KW’ and Battery Voltage ‘V’.
- Press and hold and buttons together for 2 seconds to show
rmware revision numbers.
‘Escape’ button:
Press and hold for 5 seconds to turn OFF or ON the AC Output Switch
(use this button as an AC Output ON/OFF function for the Output Socket).
Viewing and Change Unit Setting
- When unit is in normal operation mode, Press ‘Menu/Set’ button once to view unit setting
as listed on the Unit Setting Function Chart.
- Theor button can be used to scroll through each unit setting. If a particular setting
needs to be modied, press and hold the ‘Menu/Set’ button for 5 seconds and the set
parameter will ash on the display. Use theor button to scroll through the available
settings. Once the desired setting is chosen, press and hold the ‘Menu/Set’ button until a
beeping sound occur and the new setting is saved.
- Press ‘Escape’ button once to return back to Normal Operation. (If none of the button is
triggered for about 5 seconds, display will also return back to Normal Operation.

WhisperPower Inverter / Battery Charger 19
Unit Setting Function Chart
Unit Setting Display Description and Available Setting
Inverter : Use as Inverter only. No By-Pass functions.
(Default): Auto Backup. Inverter automatically turns ON when AC
Blackout.
: Manual Backup. When AC Blackout occurs, Inverter has to be
manually turned ON by using the ‘Power’ button’ on either the
Display panel or the ‘Power’ button on the Main unit
: Inverter function is disabled. No AC backup when AC Blackout.
Load Sense (Default): Continuous AC Output when inverter is ON
10 : Continuous AC Output when inverter is ON and AC load is > 10W
15 : Continuous AC Output when inverter is ON and AC load is > 15W
20 : Continuous AC Output when inverter is ON and AC load is > 20W
25 : Continuous AC Output when inverter is ON and AC load is > 25W
Battery Low
Disconnect 10.5
Battery Low Disconnect Voltage selectable ranges is 10.5 - 12.0V (0.1V steps)
(Default voltage is set to 10.5V
Battery Low
Warning 11.0
Battery Low Warning Voltage selectable ranges is 11.0 - 12.5V (0.1V step)
(Default voltage is set to 11.0V
Battery Low
Recovery 12.0
Battery Low Recovery Voltage selectable ranges is 11.5 - 13.0V (0.1V step)
(Default voltage is set to 12.0V
Audible
Buzzer (Default): Buzzer is enabled. Unit buzzes when Warning or Error
occurs.
: Buzzer is disabled. Unit does not buzz when Warning and Error occur.
AC Charger (Default): AC Charger is enabled. Charge battery when AC Input is
available.
: AC Charger is disabled. No battery charging when AC Input is available.
Battery Type (Default): GEL Battery, default Bulk Charge/Float Voltage is 14.2V/13.8V
: AGM Battery, default Bulk Charge/Float Voltage is 14.3V/13.4V
: Flooded Battery, default Bulk Charge/Float Voltage is 14.4V/13.5V
: Lithium Battery, default Bulk Charge/Float Voltage is 13.9V/13.5V
: Program, default Bulk Charge/Float Voltage is 13.8V/13.2V
: Power Supply Mode, Default Power Supply Voltage 13.8V
Bulk Current
100
80
12V/3000W Models: Selectable Ranges 100A, 80A, 60A, 40A, 25A (Default
100A).
12V/2000W Models: Selectable Ranges 80A, 60A, 40A, 20A, 10A (Default
80A).

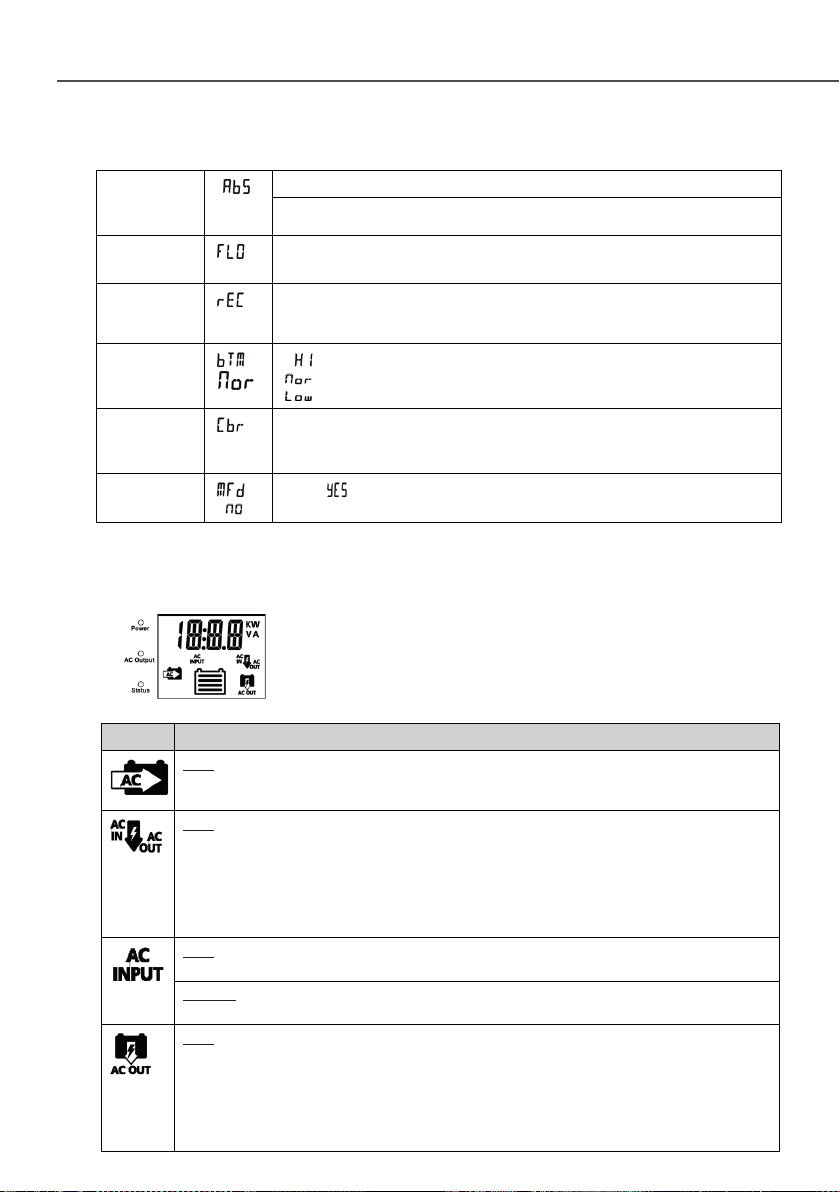

Bulk/Absorpt-
ion Voltage 14.2
Bulk/Absorption voltage is based on the battery type chosen. All battery
types have selectable ranges of 13.8 – 14.8V. (Default on GEL Battery is
14.2V

20 WhisperPower Inverter / Battery Charger
Absorption to
Float Current 10
8
12V/3000W Models: Selectable Range: 20A, 15A, 10A, 5A, 2A (Default 10A).
12V/2000W Models: Selectable Range: 15A, 10A, 8A, 4A, 2A (Default 8A).
Float Voltage
13.8
Float voltage is based on the battery type chosen. All battery types have
selectable ranges of 13.0 – 14.0V. (Default on GEL Battery is 13.8V
Recharge
Voltage 12.8
Battery Recharge Voltage Selectable Range: 12.8 to 14.0V (0.1V step)*
(Default on GEL, AGM, Flooded, PGM battery setting is 12.8V* and Li
setting is 13.2V).
Battery
Temperature : High > 35 °C
(Default): Normal 15 - 35°C
: Low < 15°C
AC Input
Circuit
Breaker
*
30
30
Shore (AC in Display): Range: 16A, 20A, 30A (Default),
Generator (AUX in Display): Range: 16A, 20A, 30A (Default)
Factory
Default Select to reset all settings to default.
* Circuit Breaker setting representation:
SPW (Shore Power Wattage) for AC input power when no signal on Digital Input
GPW (Generator Power Wattage) for AUX input, when +12V on Digital Input
Understanding the Display Icons during Unit Operation
Understanding the Display Icons during Unit Operation
Icons Meaning
Solid: Unit is running in Battery Charger mode and is charging the battery. Input current limit
set under SPW is applicable when on generator, symbol changes to AUX solid, and current
limit set under GPW is applicable.
Solid: Unit is running in By-Pass mode. (The transfer switch is switched to AC Input Source).
- AC Output power is running from AC Input Source.
- AC Output is available at both the AC Output socket and the AC Output Hardwire terminal
if AC Output switch is turned On (indicated by AC Output indicator located on the left side
of the Display and also the Main unit being On).
Note: Press and hold the ‘Escape’ button on the Display panel for 5 seconds to toggle AC
Output switch On/O .
Solid: AC Input is available and is in the operating range.
Flashing: AC Input is detected and is under veri cation before switching to By-Pass mode.
This normally takes about 10 seconds.
Solid: Unit is running in Battery Mode (The transfer switch is switched to Inverter)
- AC Output power is running from the inverter
- AC Output is available at both the AC Output socket and the AC Output Hardwire terminal
if AC Output switch is turned On (indicated by AC Output indicator located on the left side
of the Display and also the Main unit being On).
Note: Press and hold the ‘Escape’ button on the Display panel for 5 seconds to toggle AC
Output switch On/O .
